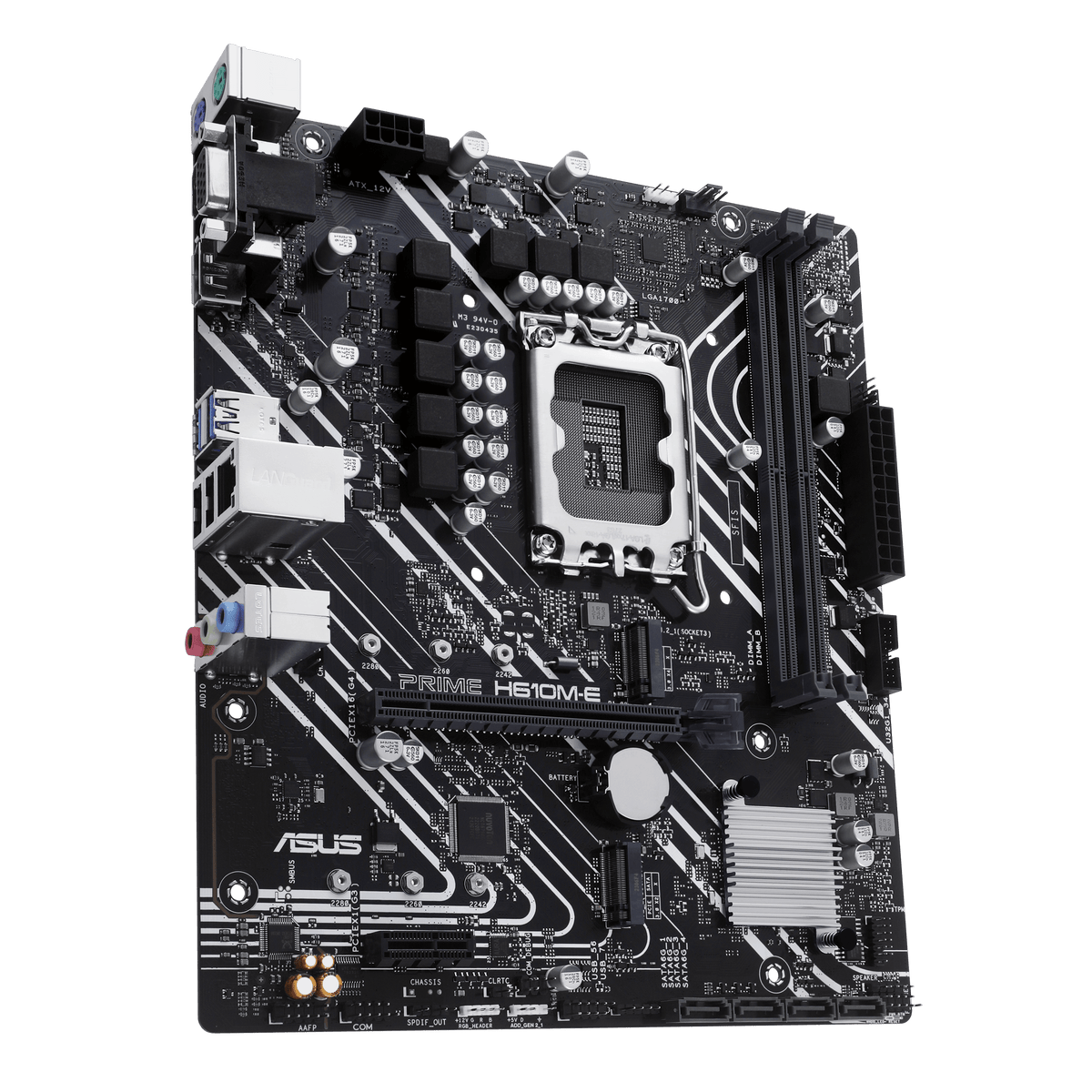

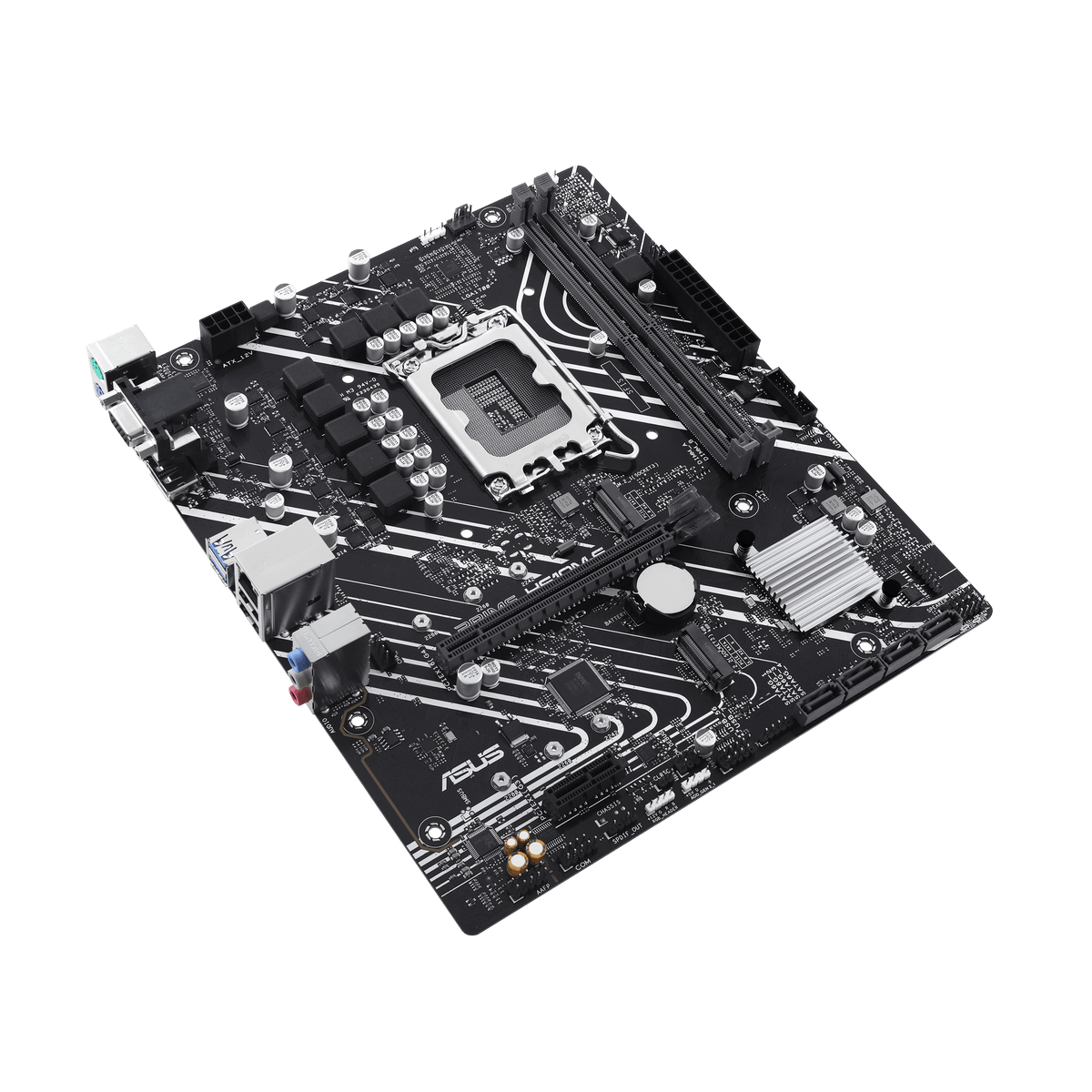

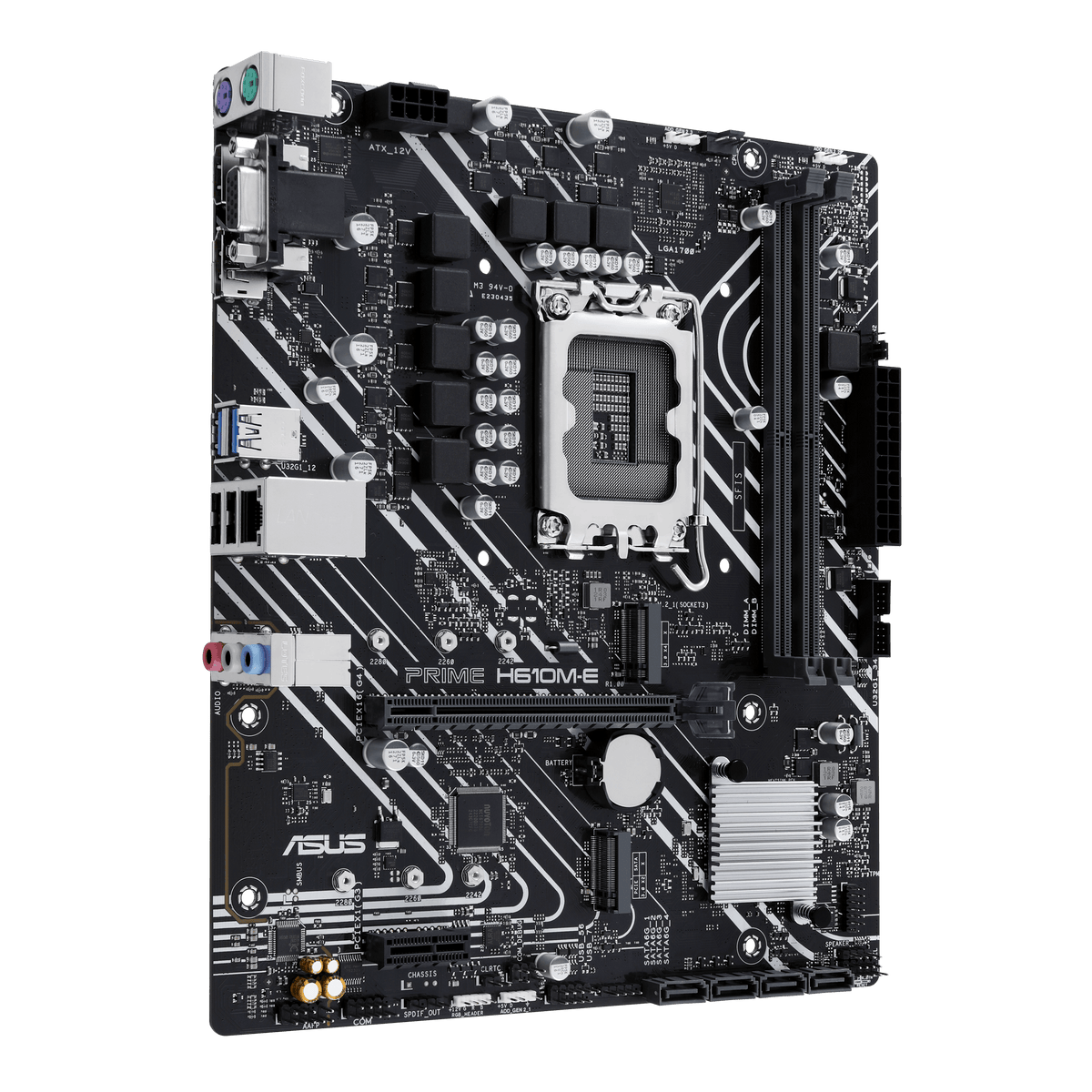

ASUS PRIME H610M-E-CSM Intel H610 mATX Motherboard DDR5
ASUS

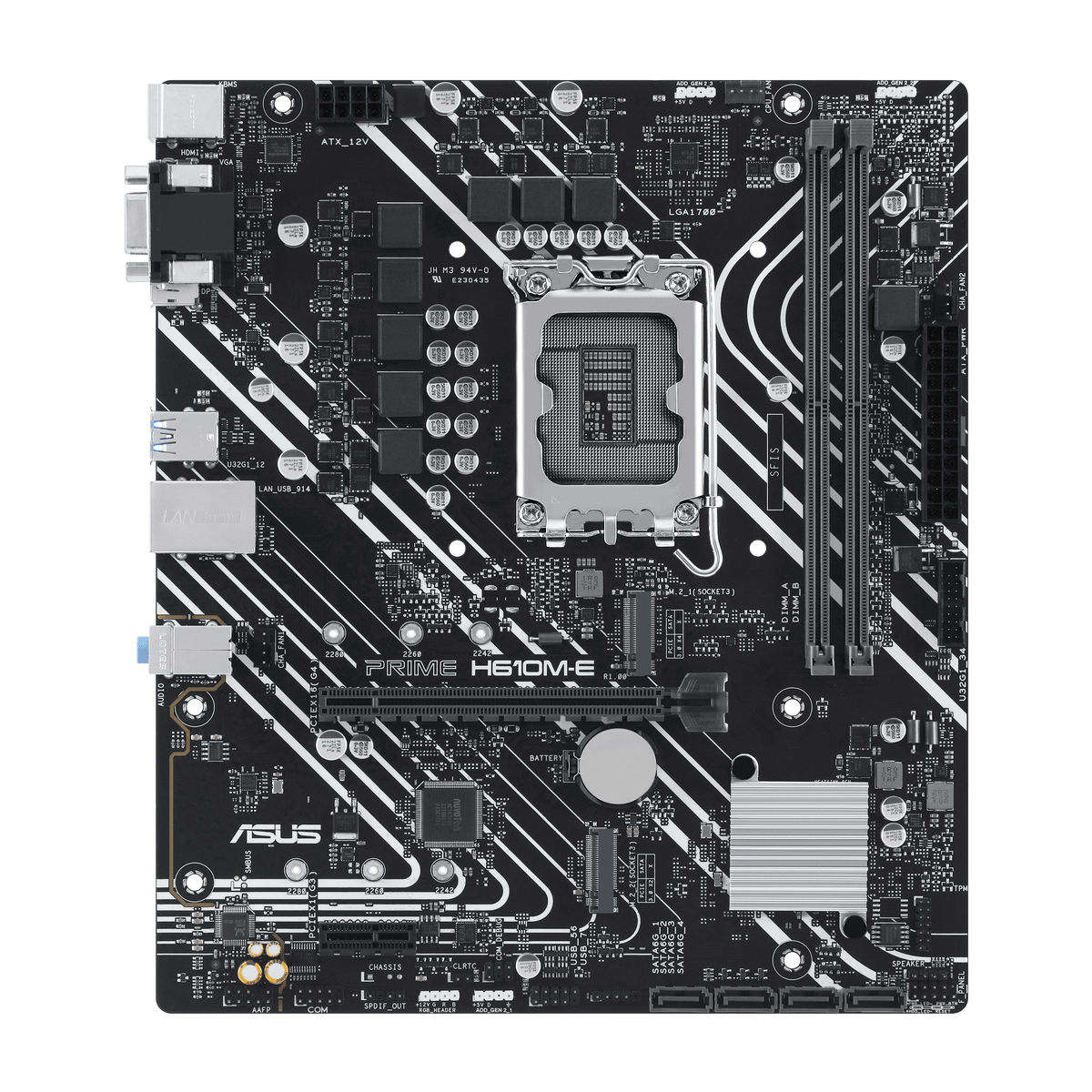

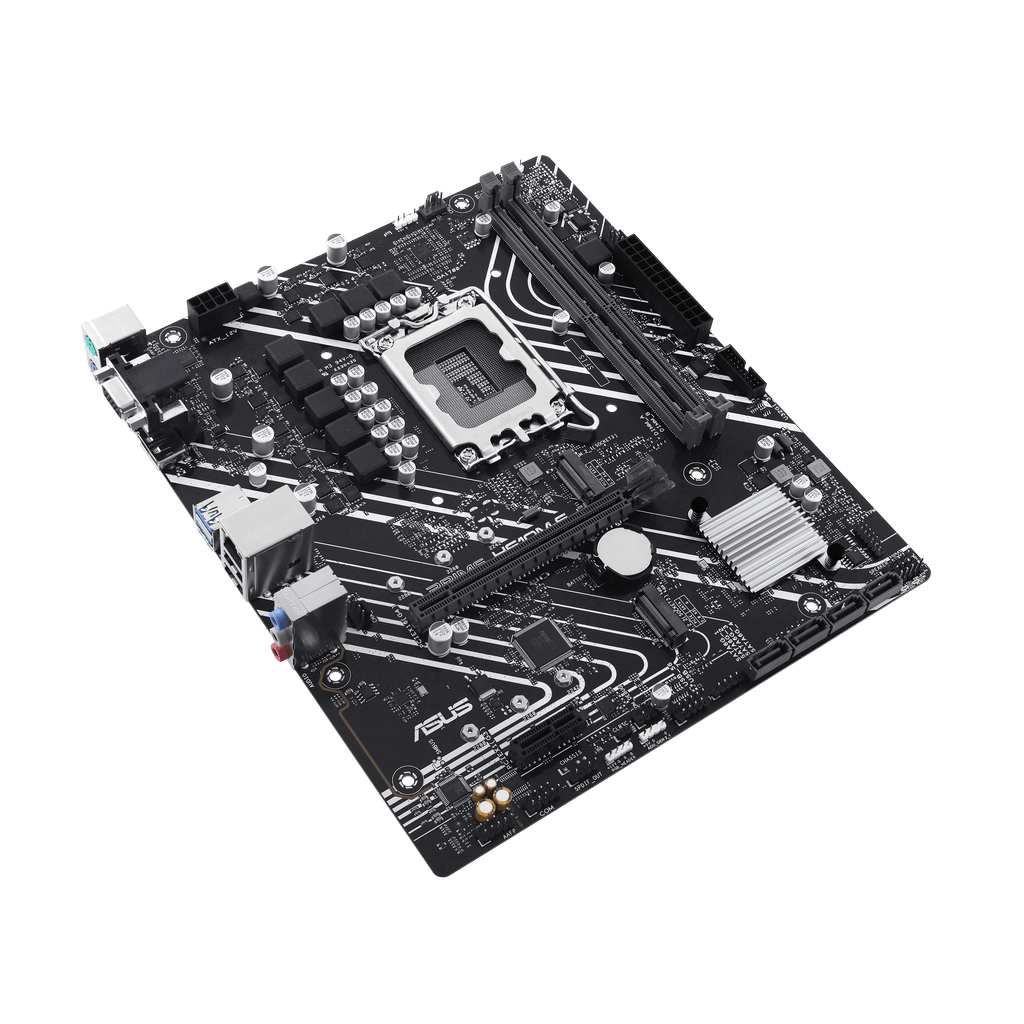

ASUS PRIME H610M-E-CSM Intel H610 mATX Motherboard DDR5
The ASUS PRIME H610M-E-CSM is a compact mATX motherboard built for 12th, 13th and 14th Gen Intel processors, designed for builders who need a balanced platform without premium frills. It combines DDR5 memory support, PCIe 4.0 connectivity and practical I/O into a small form factor, making it suitable for office builds, HTPCs and budget-conscious systems.
Why this product
DDR5 support in a compact form
This board accepts up to 96GB of DDR5 memory across two DIMM slots, with support for speeds up to 5600MHz and Intel XMP profiles for easy tuning.
Multiple display outputs included

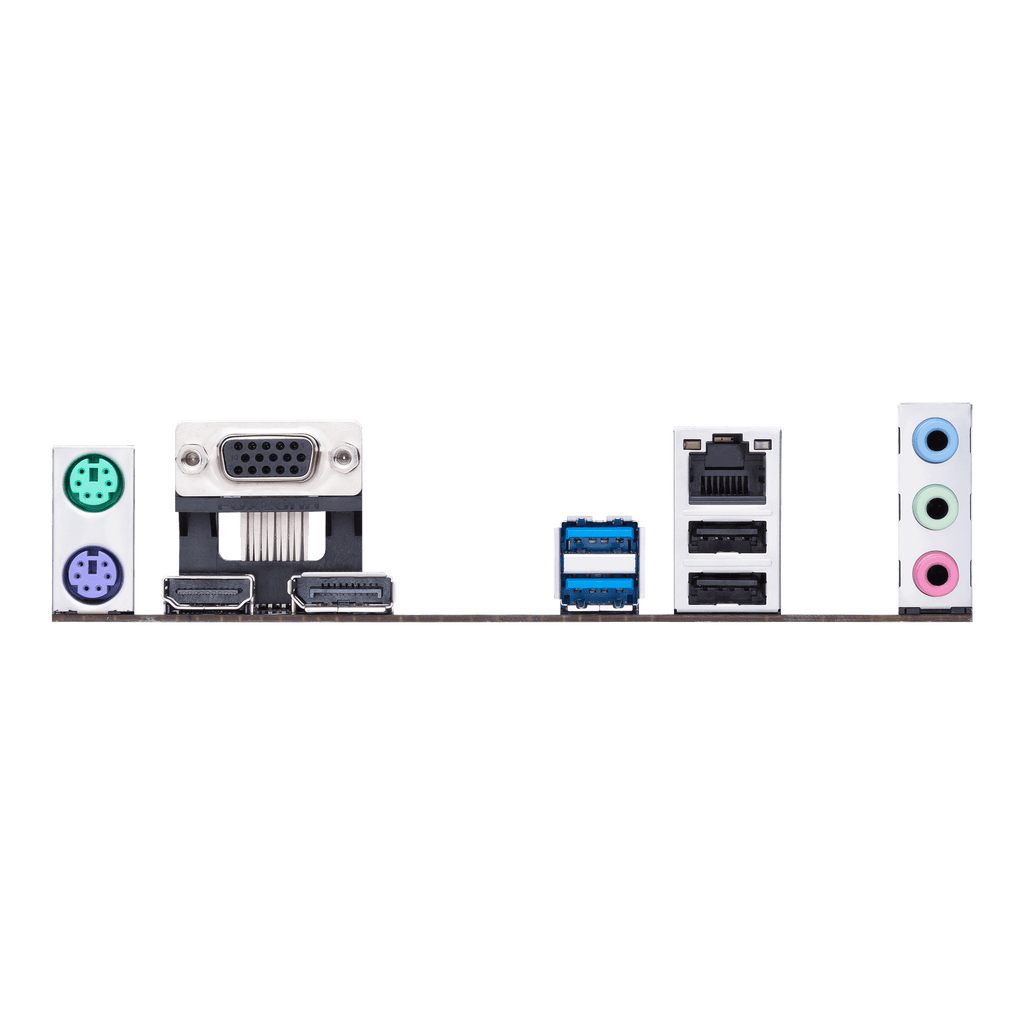

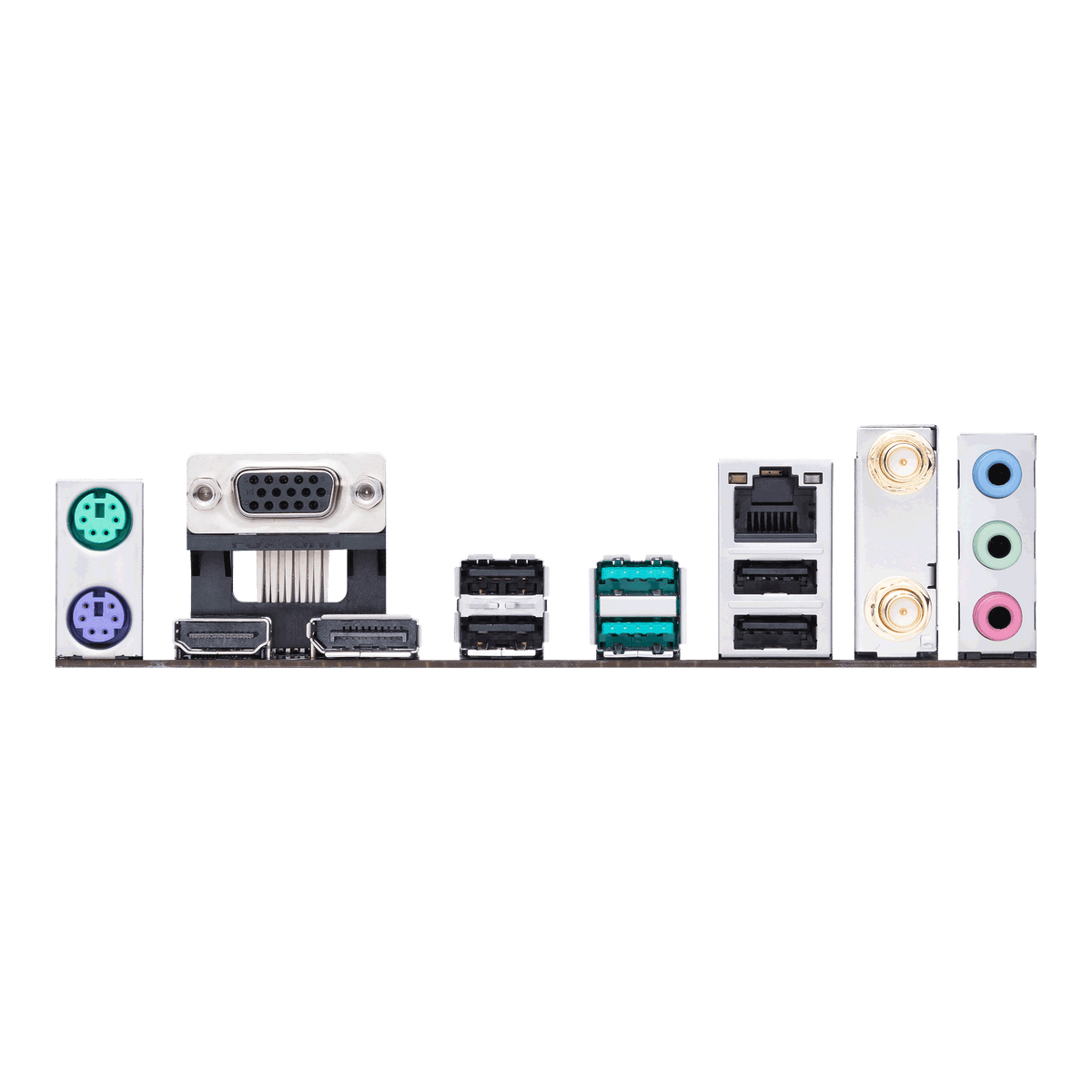

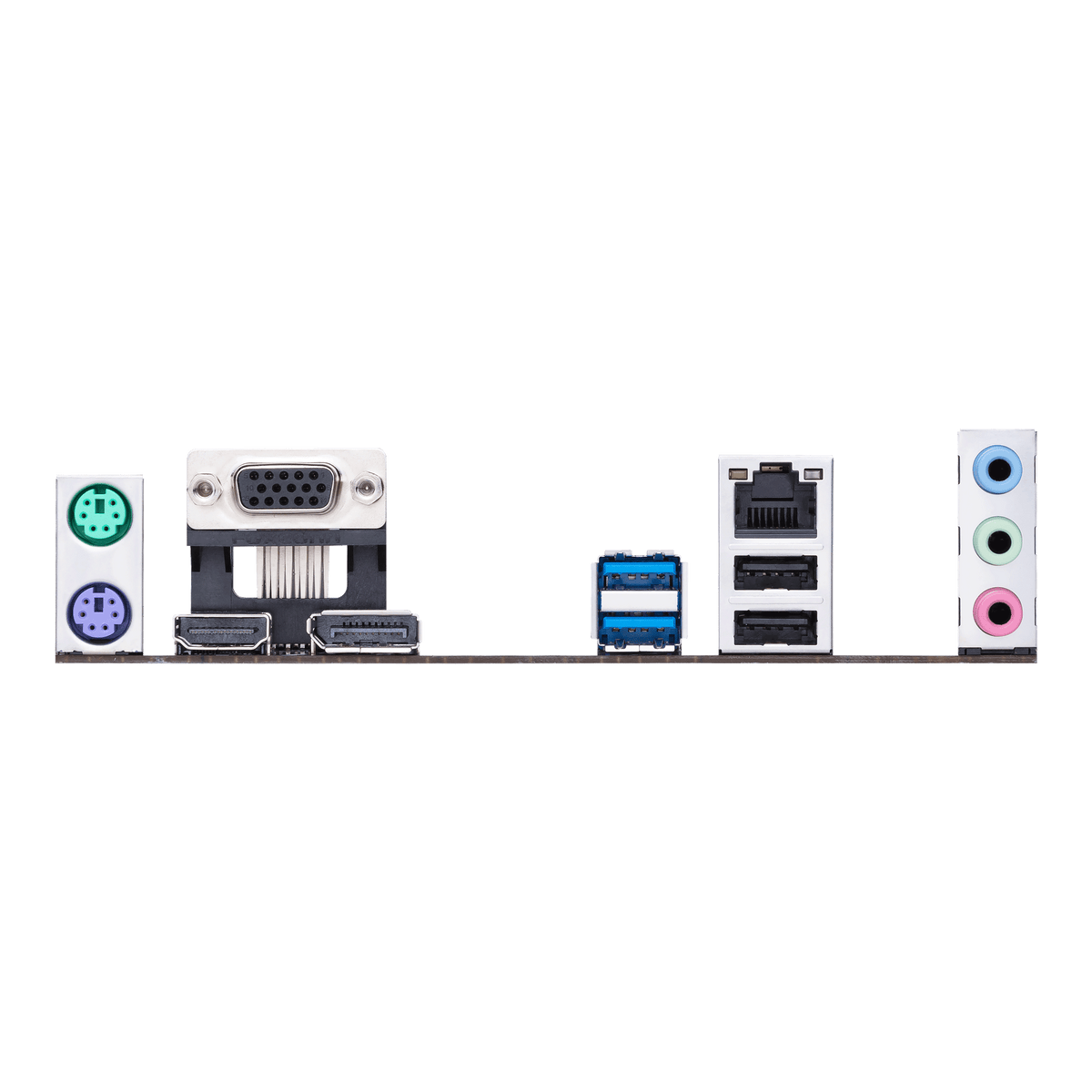

It offers DisplayPort, HDMI and VGA ports on the back panel, so you can connect to legacy or modern monitors without hunting for adapters.
Dual M.2 storage with PCIe speed
Two M.2 slots support NVMe drives; the primary slot runs at PCIe 3.0 x4 for fast storage, while the secondary runs at x2.
Integrated protection features

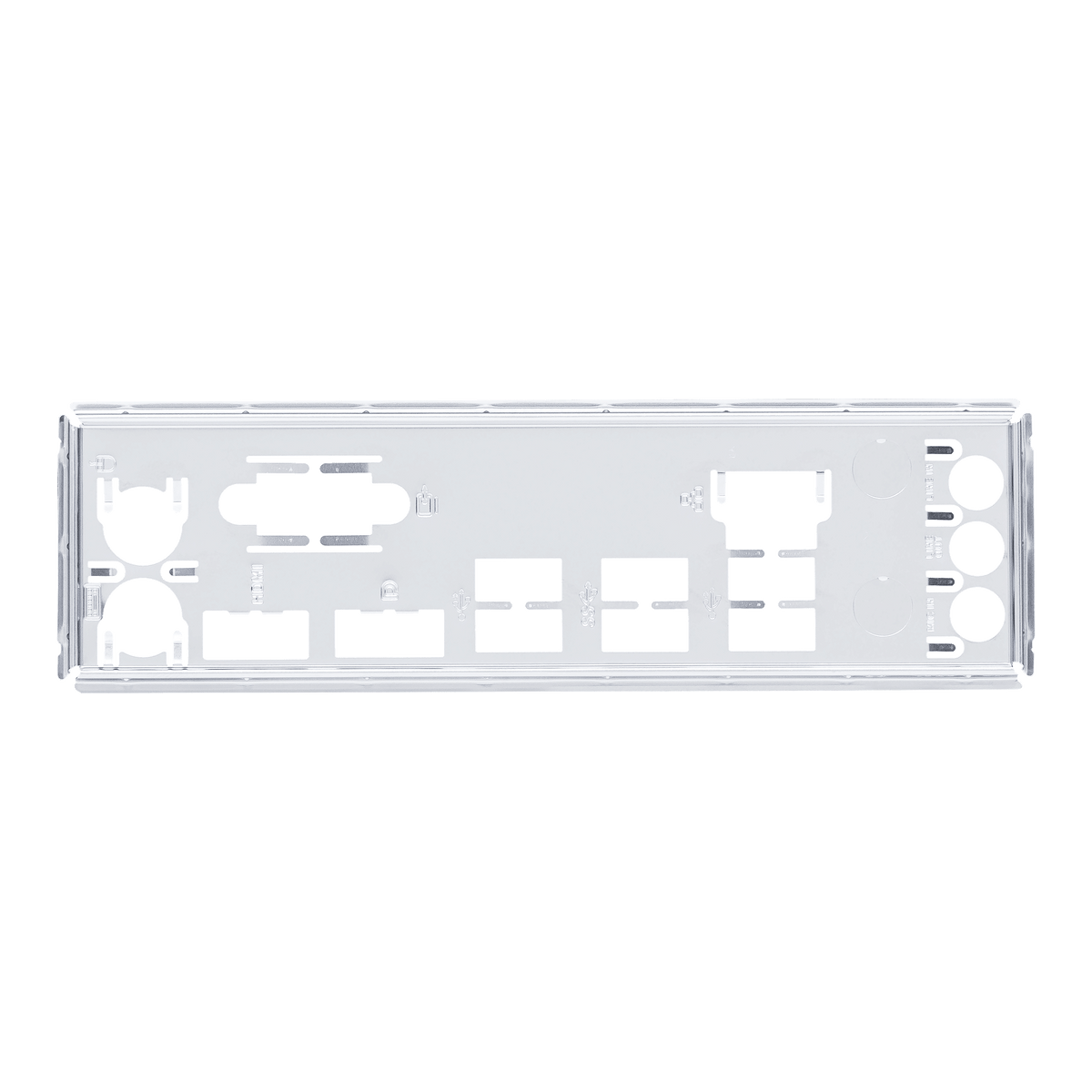

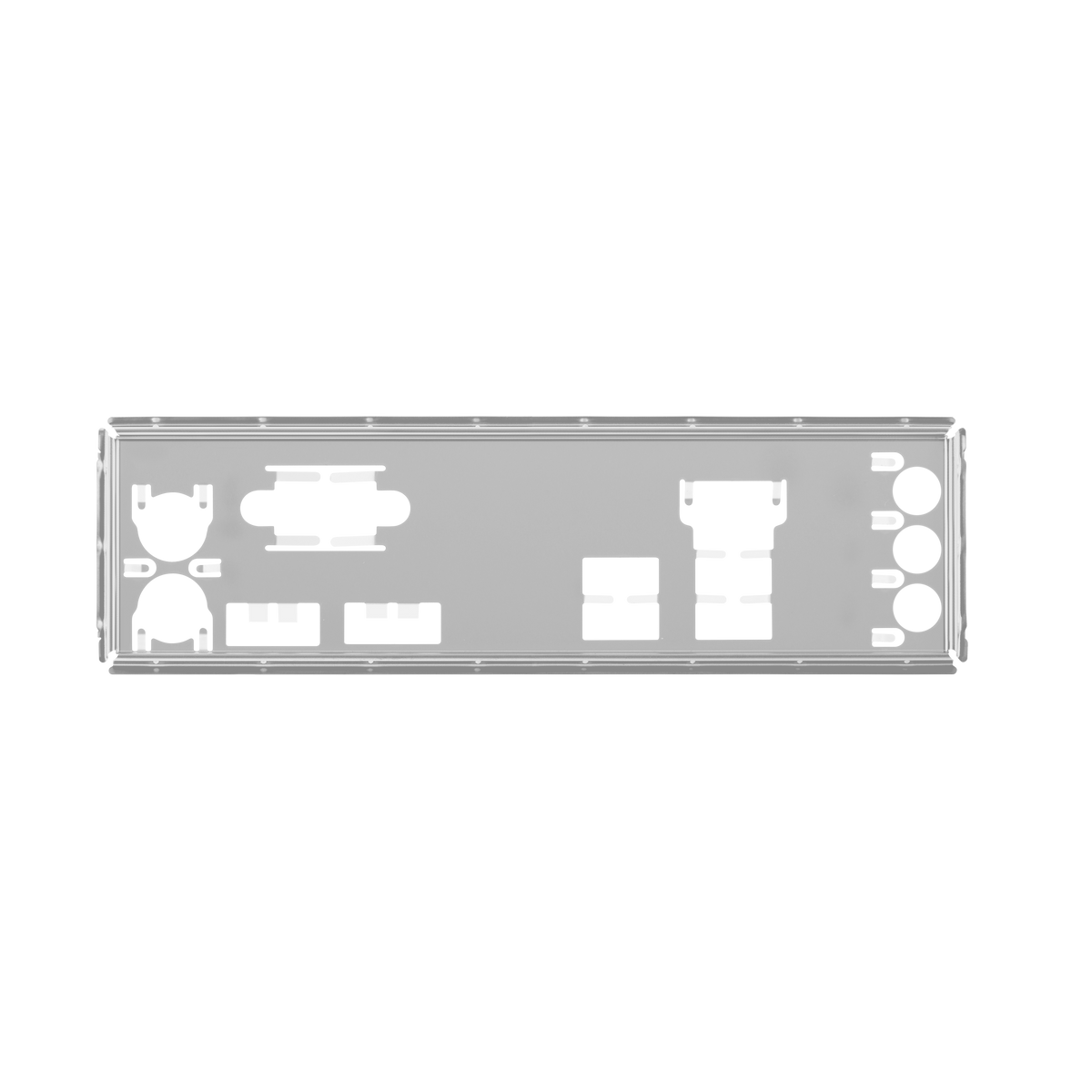

ASUS 5X Protection III includes hardware safeguards against overvoltage, ESD and physical damage via SafeSlot reinforcement and stainless-steel I/O shielding.
RGB lighting control via Aura Sync
The board includes onboard RGB headers and Addressable Gen 2 connectors, letting you sync RGB lighting across compatible peripherals through ASUS software.
- ChipsetIntel H610
- SocketLGA 1700
- Memory TypeDDR5
- Memory Slots2 x DIMM
- Max Memory96GB
- Form FactormATX
- M.2 Slots2
- SKUASU-2665
- EAN4711387259795
- Works with Intel Core 12th, 13th and 14th Gen processors in LGA 1700 socket, plus Pentium Gold and Celeron variants of those generations.
- Accepts standard DDR5 desktop memory modules (non-ECC, unbuffered) up to 96GB total across two slots.
- Fits ATX-sized PC cases that support mATX (micro-ATX) motherboards; measures 9.6 × 8.3 inches.
- Front panel USB 3.2 Gen 1 connectivity requires a corresponding internal header on the motherboard; only one internal header is provided, so additional front USB 3.2 ports beyond the two that come with this header are not supported.
- Not compatible with Intel 11th Gen or earlier processors, or with AMD Ryzen processors—this is Intel only.
Best for
- Budget office and productivity builds
- HTPC and compact system builds where small form factor matters
- First-time builders who want DDR5 and modern storage without overclocking complexity
- Systems needing multiple display outputs for office or content creation setups
Trade-offs
- High-end gaming or workstations: H610 chipset lacks overclocking support and offers limited PCIe lanes—single PCIe 4.0 x16 slot, with remaining expansion at PCIe 3.0 x1.
- Multi-GPU setups: Only one full-length x16 PCIe slot; a second GPU would run at PCIe 3.0 x1, crippling performance.
- Storage-heavy builds: Four SATA ports and two M.2 slots are adequate for single-drive systems but limit options for multiple SSDs or large disk arrays.
- Advanced cooling tuning: Fan control is basic; no support for extensive temperature or PWM fan curve customization beyond Fan Xpert 2+.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
General
| Brand | ASUS |
|---|---|
| Model | PRIME H610M-E-CSM |
| Chipset | Intel H610 |
| Form Factor | mATX (9.6 × 8.3 inches) |
CPU & Memory
| CPU Socket | Intel LGA 1700 (12th, 13th, 14th Gen Core; Pentium Gold; Celeron) |
|---|---|
| Memory Slots | 2 x DIMM |
| Memory Type | DDR5 |
| Supported Speeds | 5600 / 5400 / 5200 / 5000 / 4800 MHz |
| Max Memory | 96GB |
| Memory Features | Dual Channel; Intel XMP support |
Storage & Expansion
| M.2 Slots | 2 (type 2242/2260/2280) |
|---|---|
| M.2_1 Mode | PCIe 3.0 x4 |
| M.2_2 Mode | PCIe 3.0 x2 |
| SATA Ports | 4 x 6Gb/s |
| PCIe Slots | 1 x PCIe 4.0 x16 (CPU); 1 x PCIe 3.0 x1 (Chipset) |
Connectivity & I/O
| Ethernet | Realtek 1Gb |
|---|---|
| Display Outputs | DisplayPort (4K@60Hz); HDMI 2.1 (4K@60Hz); VGA |
| Rear USB 3.2 Gen 1 | 2 x Type-A |
| Rear USB 2.0 | 2 x Type-A |
| USB Headers (Front) | 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers |
| Audio Jacks | 3 x 3.5mm |
| Audio Codec | Realtek 7.1 Surround; 24-bit/192 kHz |
| Legacy I/O | PS/2 Keyboard (purple); PS/2 Mouse (green); COM header |
Features & Management
| RGB Lighting | Aura Sync; 1 x Aura RGB header; 3 x Addressable Gen 2 headers |
|---|---|
| Protection | ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless Steel I/O |
| Cooling | PCH heatsink; Fan Xpert 2+ |
| BIOS | 128 MB Flash; UEFI AMI; EZ DIY (CrashFree 3, EZ Flash 3) |
| Manageability | WOL by PME; PXE |
| OS Support | Windows 10 64-bit; Windows 11 64-bit |
