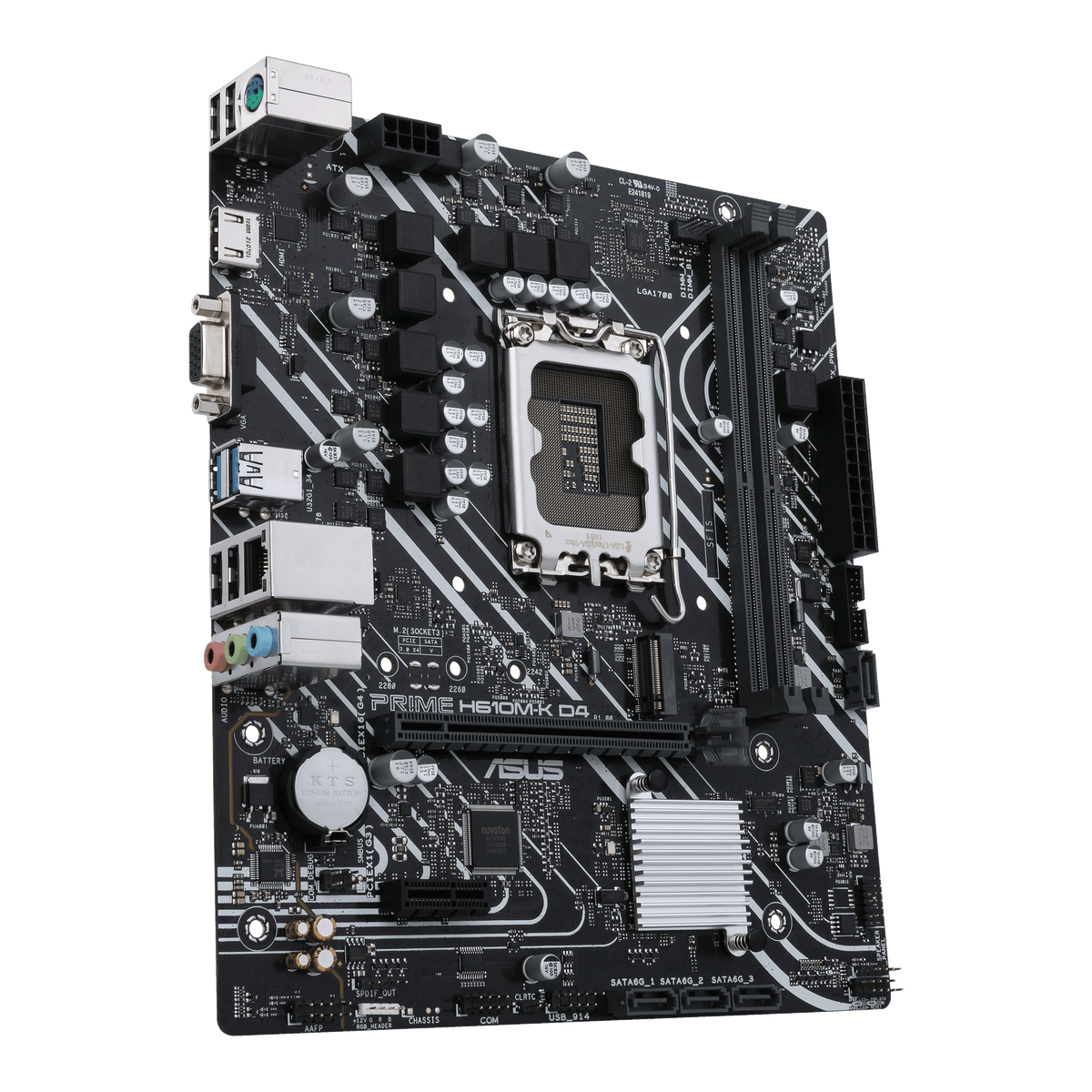

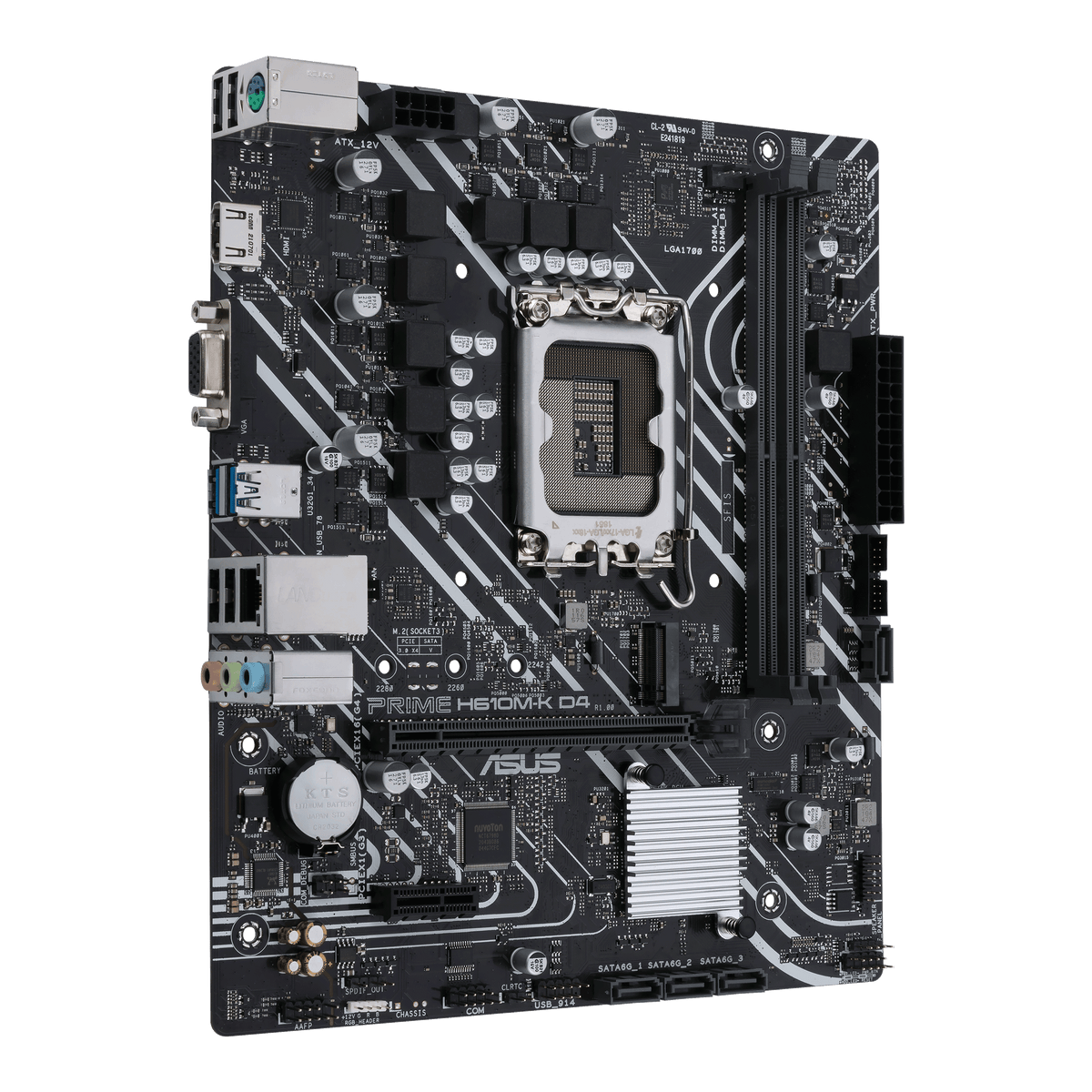

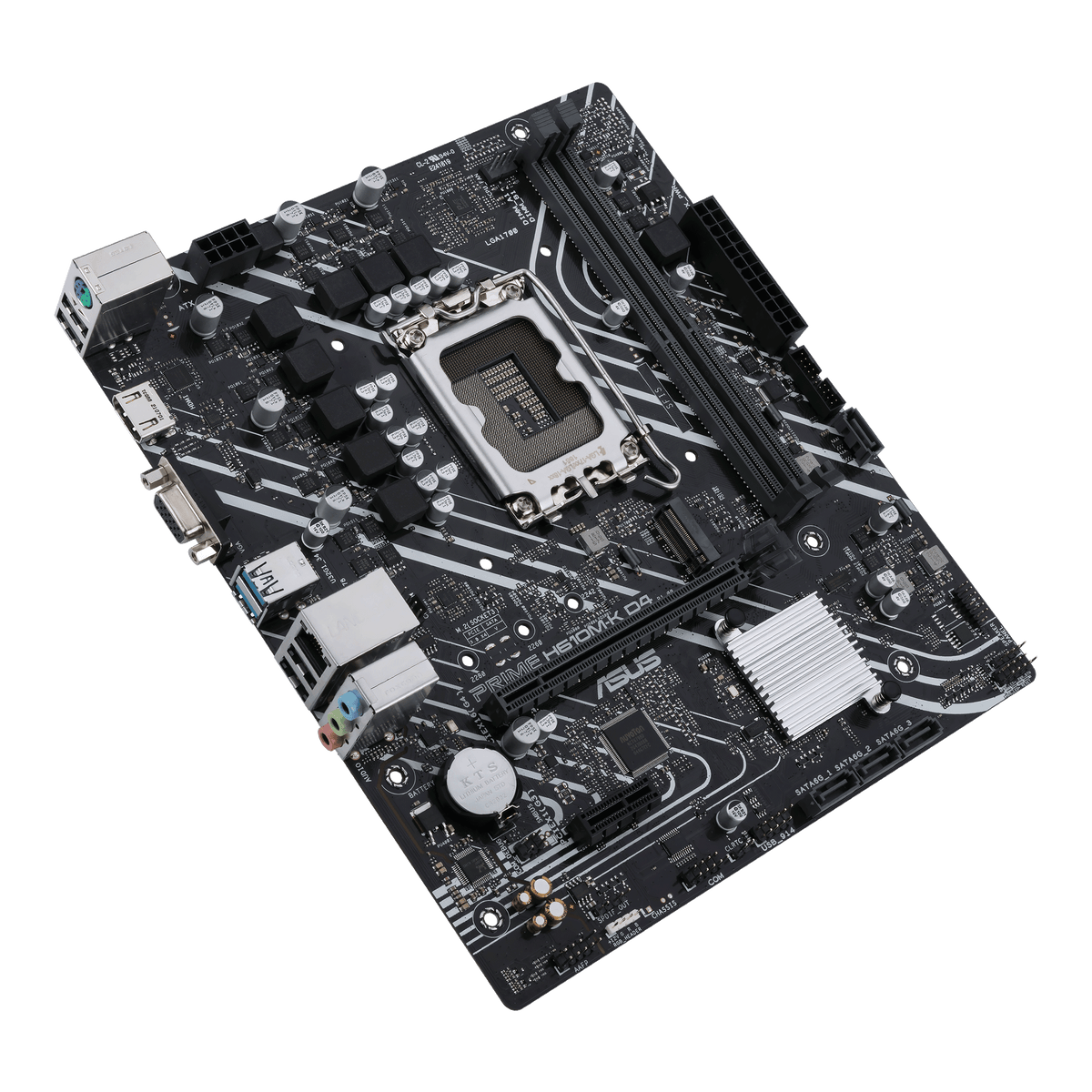

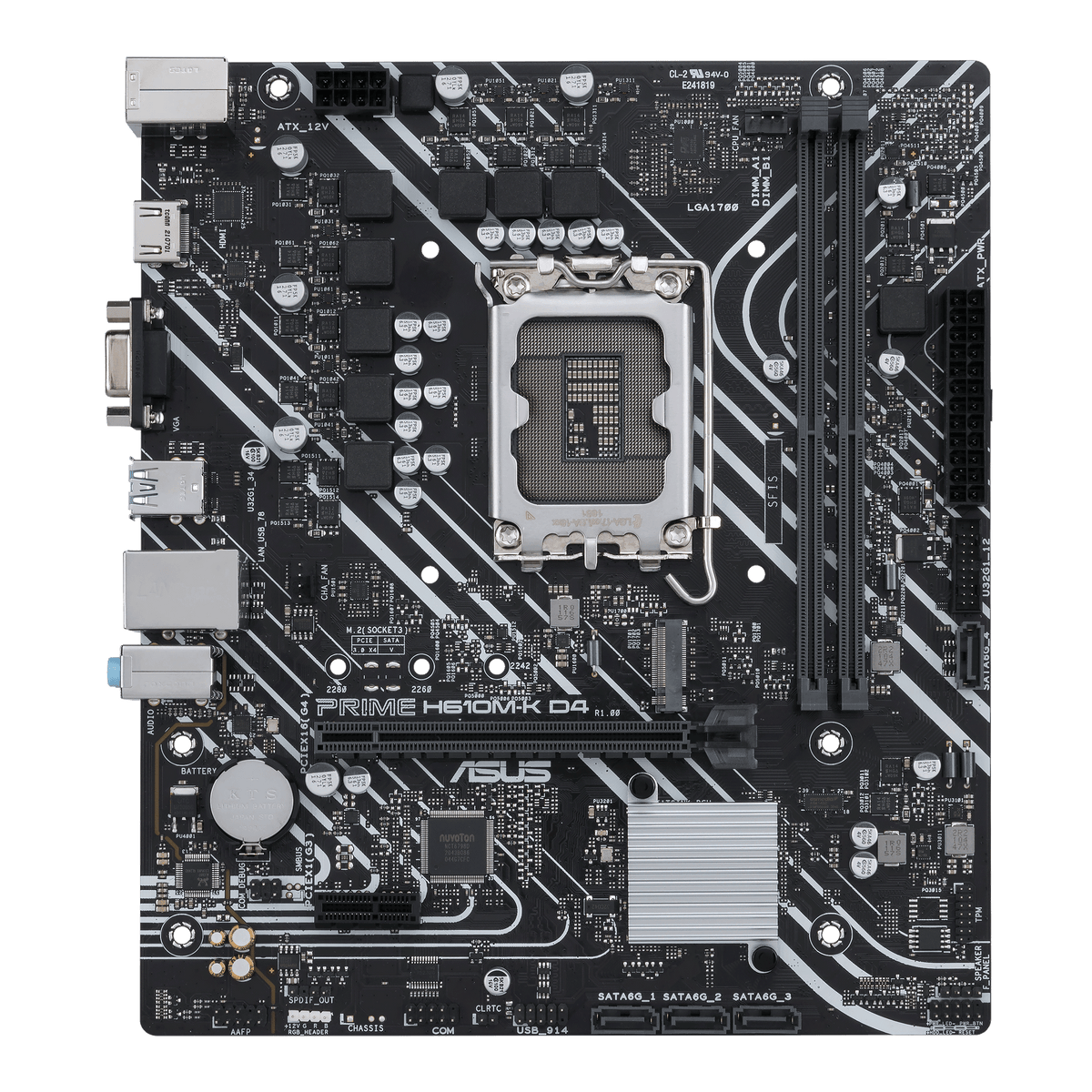

ASUS PRIME H610M-K D4 Intel H610 mATX DDR4 Motherboard
ASUS
ASUS PRIME H610M-K D4 Intel H610 mATX DDR4 Motherboard
The ASUS PRIME H610M-K D4 is a micro-ATX motherboard built on the Intel H610 chipset for budget-conscious builders and first-time system integrators who want a reliable foundation for a 12th, 13th or 14th Generation Intel Core platform. It pairs DDR4 memory support with PCIe 4.0 GPU connectivity and an M.2 slot, covering the essentials without the overhead of a higher-end chipset.
Why this product
Supports three generations of Intel CPUs
The LGA 1700 socket accepts 12th, 13th and 14th Generation Intel Core, Pentium Gold and Celeron processors, making it straightforward to reuse an existing CPU or upgrade later within the same socket.
PCIe 4.0 x16 slot for current GPUs
The primary expansion slot runs at PCIe 4.0 x16, providing the bandwidth needed for current discrete graphics cards.
M.2 slot reaches 32 Gbps via PCIe 3.0
The single M.2 slot (Key M, 2242/2260/2280) supports both PCIe 3.0 x4 and SATA modes, enabling fast NVMe or standard SATA SSDs for quicker boot and application load times.
Up to 64 GB DDR4 with XMP support
Two DIMM slots support dual-channel DDR4 at speeds from 2133 up to 3200 MHz, and Intel XMP profiles are recognised for straightforward memory tuning.
5X Protection III hardware safeguards
DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core and a stainless-steel back I/O panel work together to protect components from common electrical and physical hazards.
COM header for legacy industrial use
An onboard COM port header and SPI TPM header make this board suitable for small business or light industrial builds that still rely on serial-connected peripherals.
- SocketIntel LGA 1700
- ChipsetIntel H610
- Memory2 x DDR4 DIMM, up to 64 GB, dual-channel
- Max Memory SpeedDDR4 3200 MHz (XMP)
- Form FactormATX — 9.2 in × 8.0 in (23.4 cm × 20.3 cm)
- M.2 Slots1 × PCIe 3.0 x4 / SATA (Key M, up to 2280)
- SATA Ports4 × SATA 6 Gb/s
- EthernetRealtek 1 Gb
- SKUASU-3390
- EAN4711081565499
- Compatible with 12th, 13th and 14th Generation Intel Core, Pentium Gold and Celeron processors via the LGA 1700 socket.
- Accepts standard unbuffered, non-ECC DDR4 DIMMs; two slots support dual-channel operation up to 64 GB.
- Works with M.2 NVMe SSDs (PCIe 3.0 x4) and M.2 SATA SSDs in 2242, 2260 and 2280 form factors.
- Display output via HDMI (4K@60Hz, HDMI 2.1 spec) and D-Sub; requires a processor with integrated graphics for onboard video.
- Operating system support is limited to Windows 10 64-bit and Windows 11 64-bit as stated by ASUS; Linux compatibility is not specified in the verified source.
- Does not support ECC or registered (buffered) memory modules.
Best for
- First-time builders who want a straightforward mATX board with UEFI EZ Mode, Q-DIMM and Q-Slot features that reduce assembly errors.
- Office and productivity builds that need reliable Realtek 1 Gb Ethernet, integrated audio and stable daily operation rather than enthusiast overclocking headroom.
- Light industrial or point-of-sale systems that require a COM port header and TPM header on a compact mATX footprint.
- Builders on a DDR4 budget who already own DDR4 kits and want to avoid the higher cost of a DDR5 platform while still pairing with 12th–14th Gen Intel CPUs.
- Small form-factor cases that require a micro-ATX board measuring 9.2 × 8.0 inches.
Trade-offs
- Overclocking enthusiasts: The H610 chipset does not support CPU overclocking; that capability requires a Z-series chipset.
- Multi-GPU or high-lane-count builds: Only one PCIe x16 slot and one PCIe 3.0 x1 slot are available; there is no second full-length slot.
- Builders needing multiple M.2 drives: Only one M.2 slot is provided; additional NVMe storage would require using SATA ports instead.
- DDR5 memory users: This board supports only DDR4; it will not accept DDR5 modules.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header.
Prime H610 motherboards are designed specifically for 14th, 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
General
| Brand | ASUS |
|---|---|
| Series | PRIME |
| Model | PRIME H610M-K D4 |
| Form Factor | mATX — 9.2 in × 8.0 in (23.4 cm × 20.3 cm) |
| Chipset | Intel H610 |
| CPU Socket | Intel LGA 1700 |
| Supported CPUs | Intel Core 12th, 13th & 14th Gen; Pentium Gold; Celeron |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS; CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode |
Memory & Storage
| Memory Slots | 2 × DIMM |
|---|---|
| Memory Type | DDR4 (unbuffered, non-ECC) |
| Max Memory | 64 GB |
| Memory Speeds | 2133 / 2400 / 2666 / 2800 / 2933 / 3000 / 3200 MHz |
| Memory Profile | Intel XMP supported |
| M.2 Slots | 1 × Key M, 2242/2260/2280, PCIe 3.0 x4 & SATA modes, up to 32 Gbps |
| SATA Ports | 4 × SATA 6 Gb/s |
Connectivity & I/O
| Expansion Slots | 1 × PCIe 4.0 x16; 1 × PCIe 3.0 x1 |
|---|---|
| Ethernet | 1 × Realtek 1 Gb |
| USB (Rear) | 2 × USB 3.2 Gen 1 Type-A; 4 × USB 2.0 Type-A |
| USB (Front Headers) | 1 × USB 3.2 Gen 1 header (2 ports); 1 × USB 2.0 header (2 ports) |
| Video Output | 1 × HDMI (4K@60Hz, HDMI 2.1); 1 × D-Sub |
| Audio | Realtek 7.1 HD Audio; 24-bit/192 kHz; audio shielding; dedicated PCB layers |

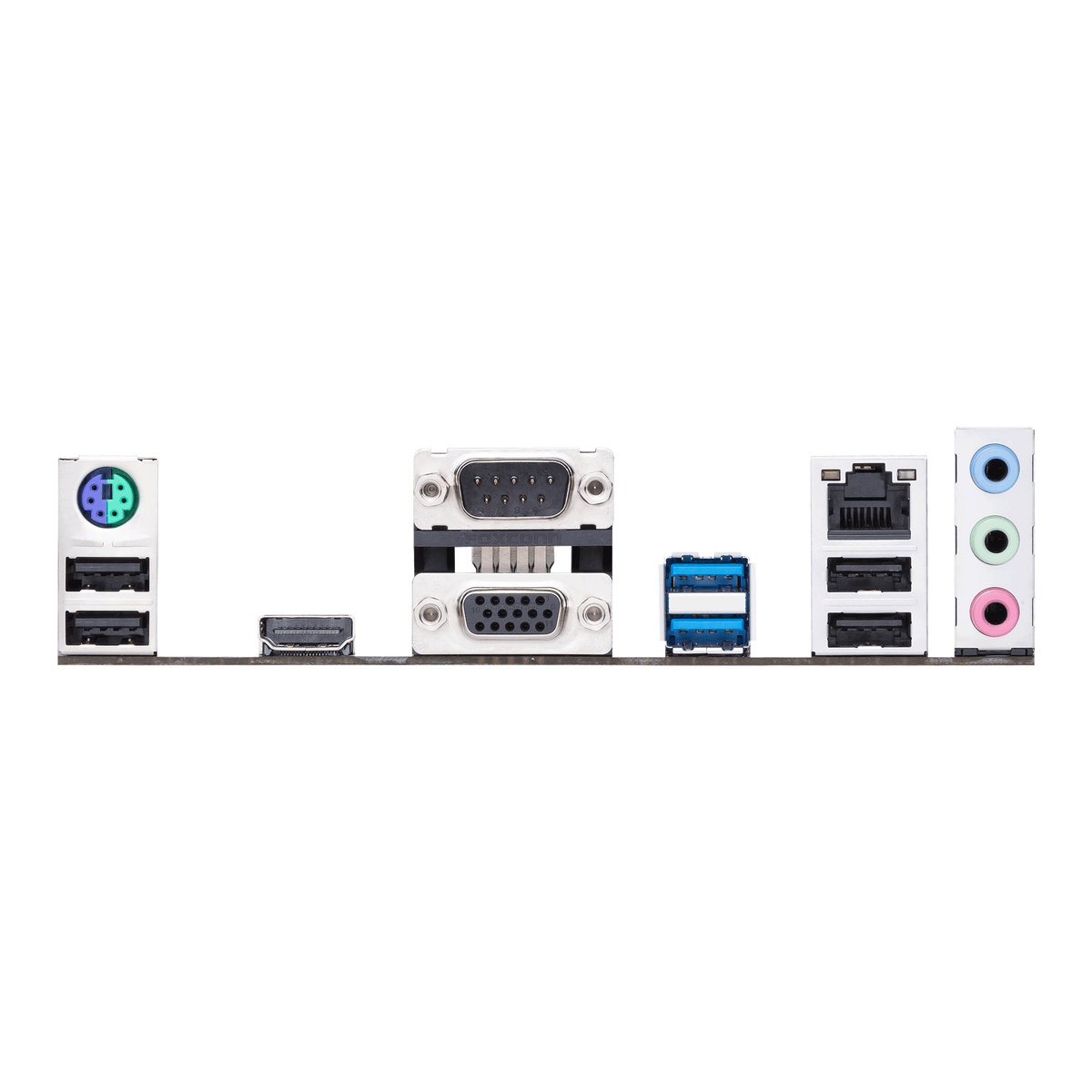

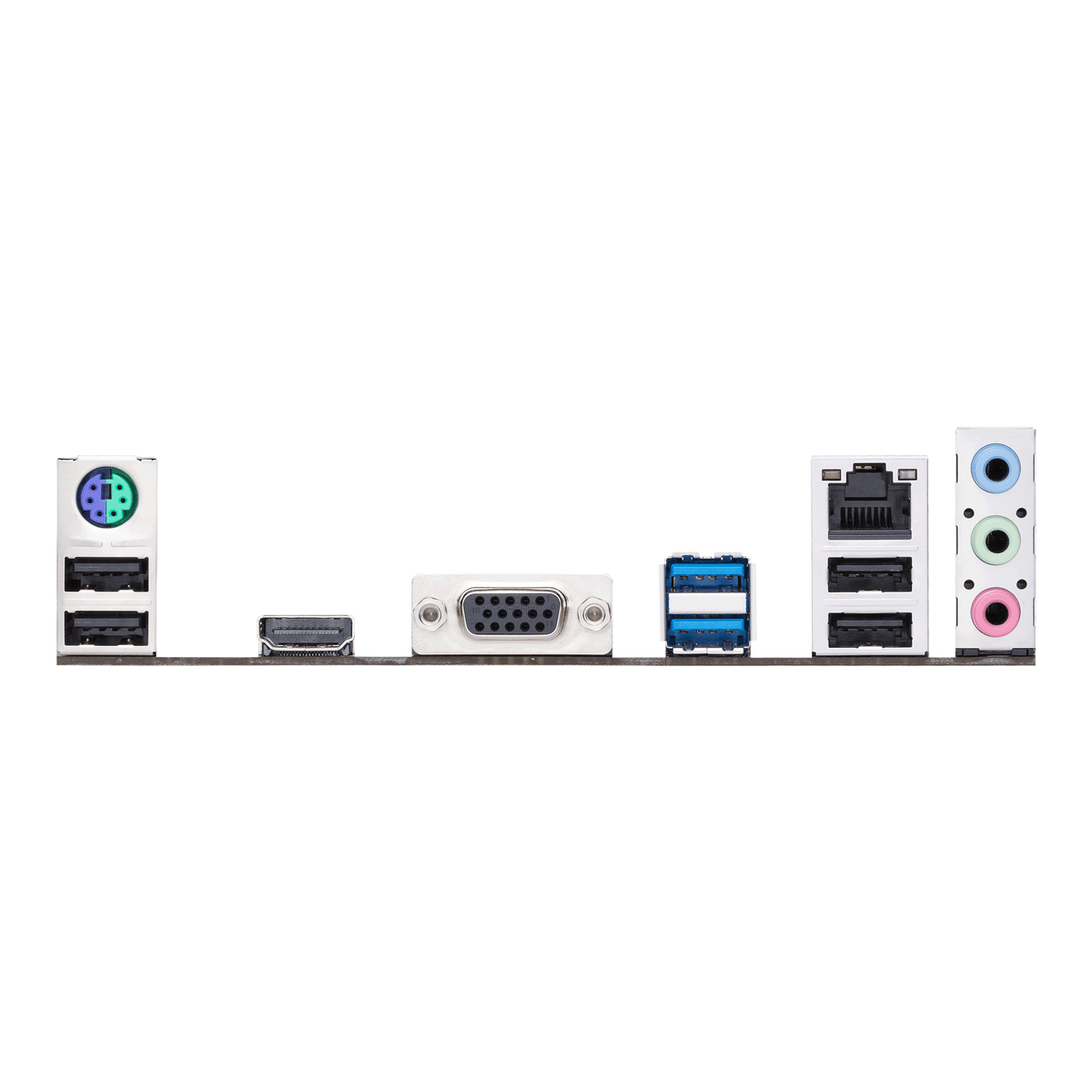

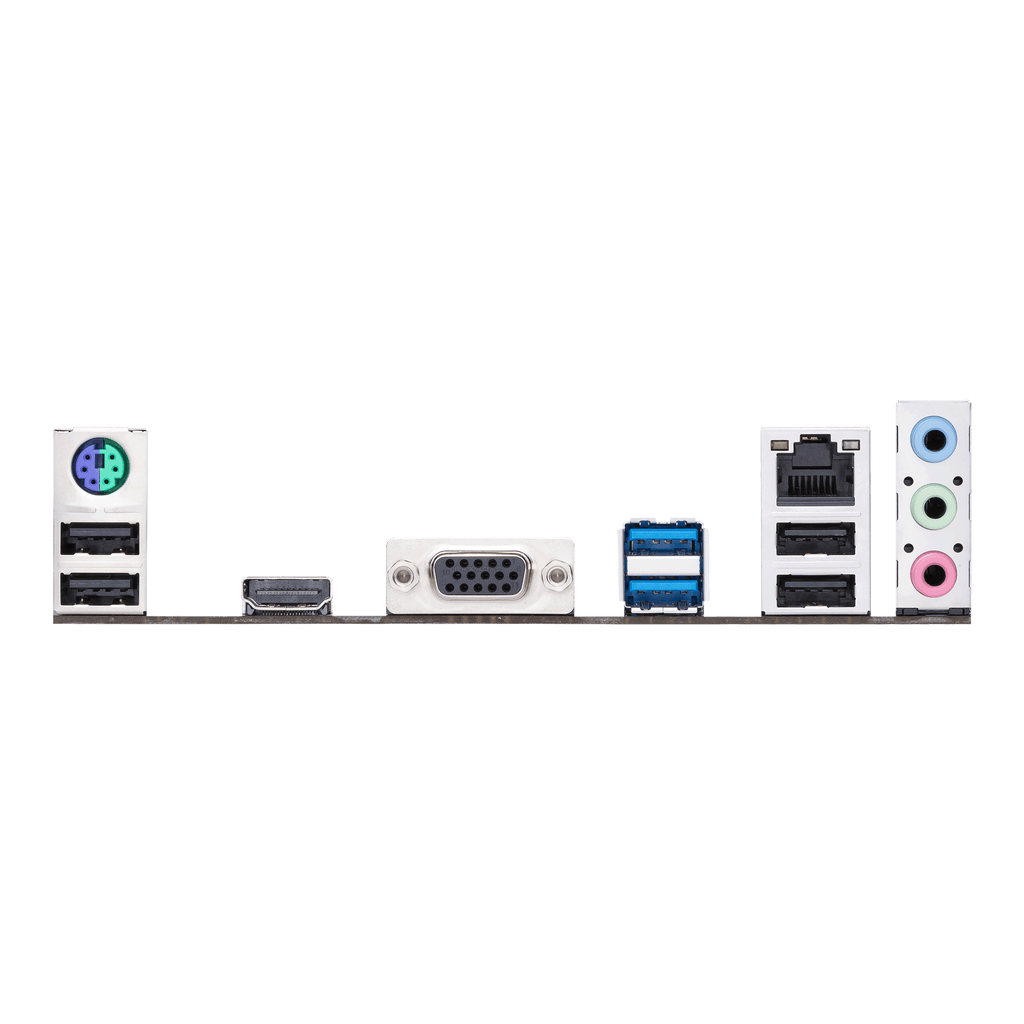

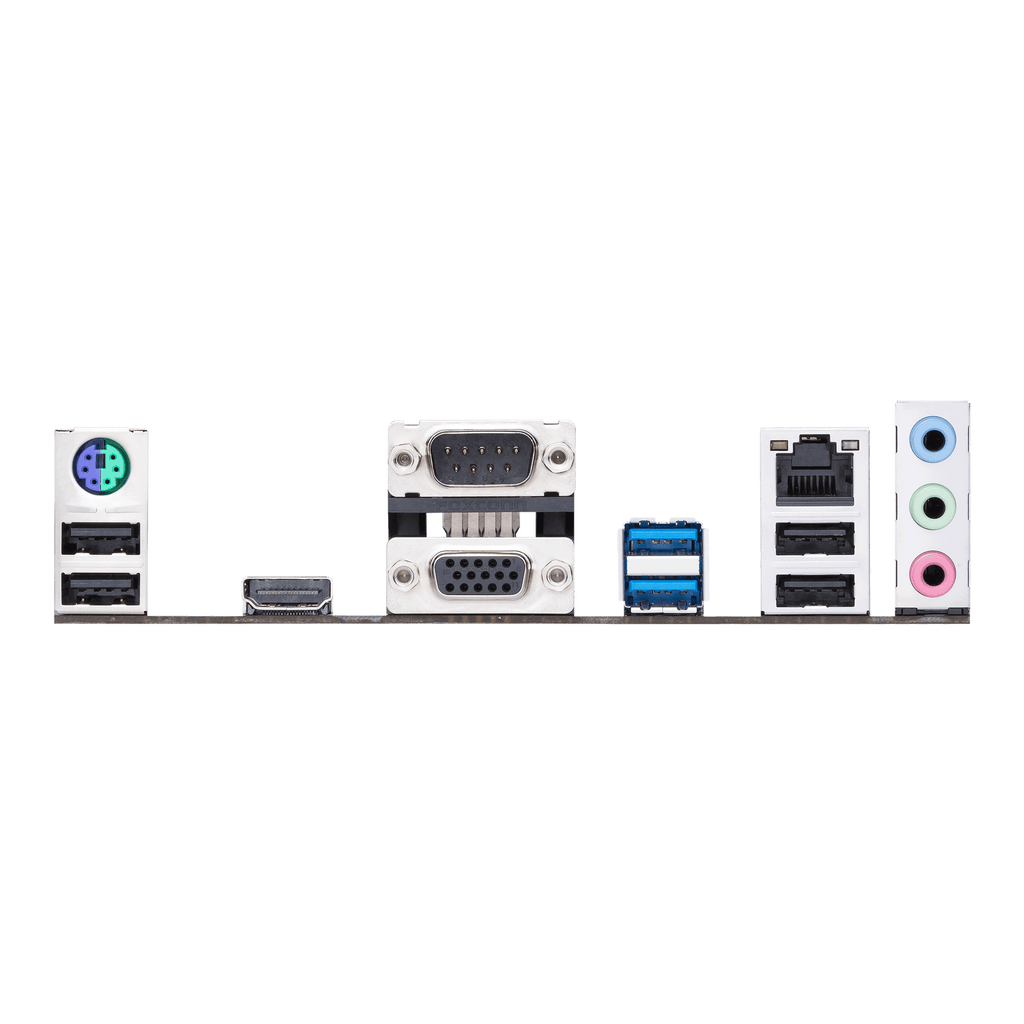

| Back Panel I/O | 1 × PS/2 combo; 2 × USB 2.0; 2 × USB 3.2 Gen 1; 1 × HDMI; 1 × D-Sub; 1 × Ethernet; 3 × audio jacks |
Headers & Protection
| Fan Headers | 1 × 4-pin CPU fan; 1 × 4-pin chassis fan |
|---|---|
| RGB Header | 1 × RGB header |
| COM Header | 1 × COM port header |
| TPM Header | 1 × SPI TPM header (14-1 pin) |
| Protection | 5X Protection III: DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, stainless-steel back I/O |

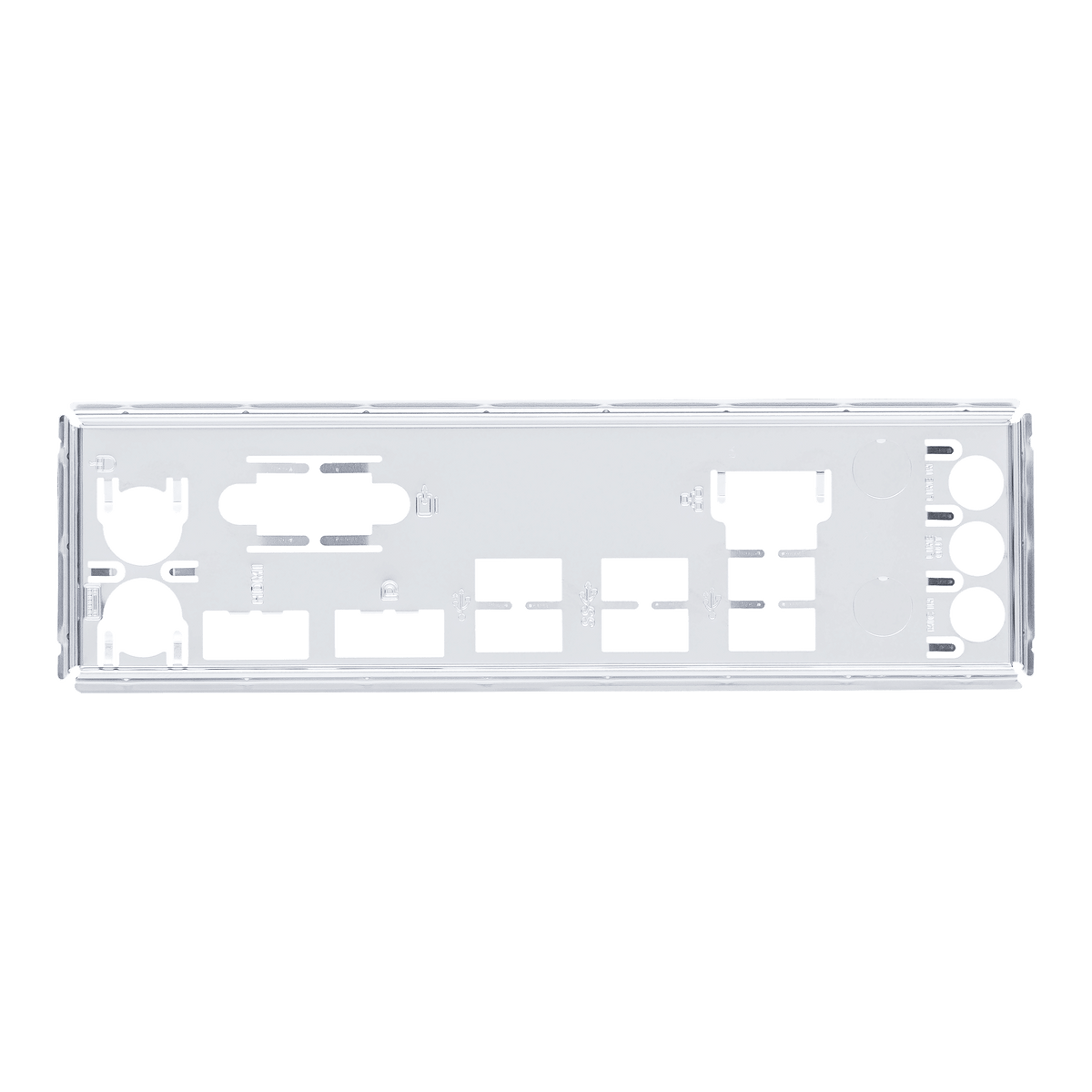

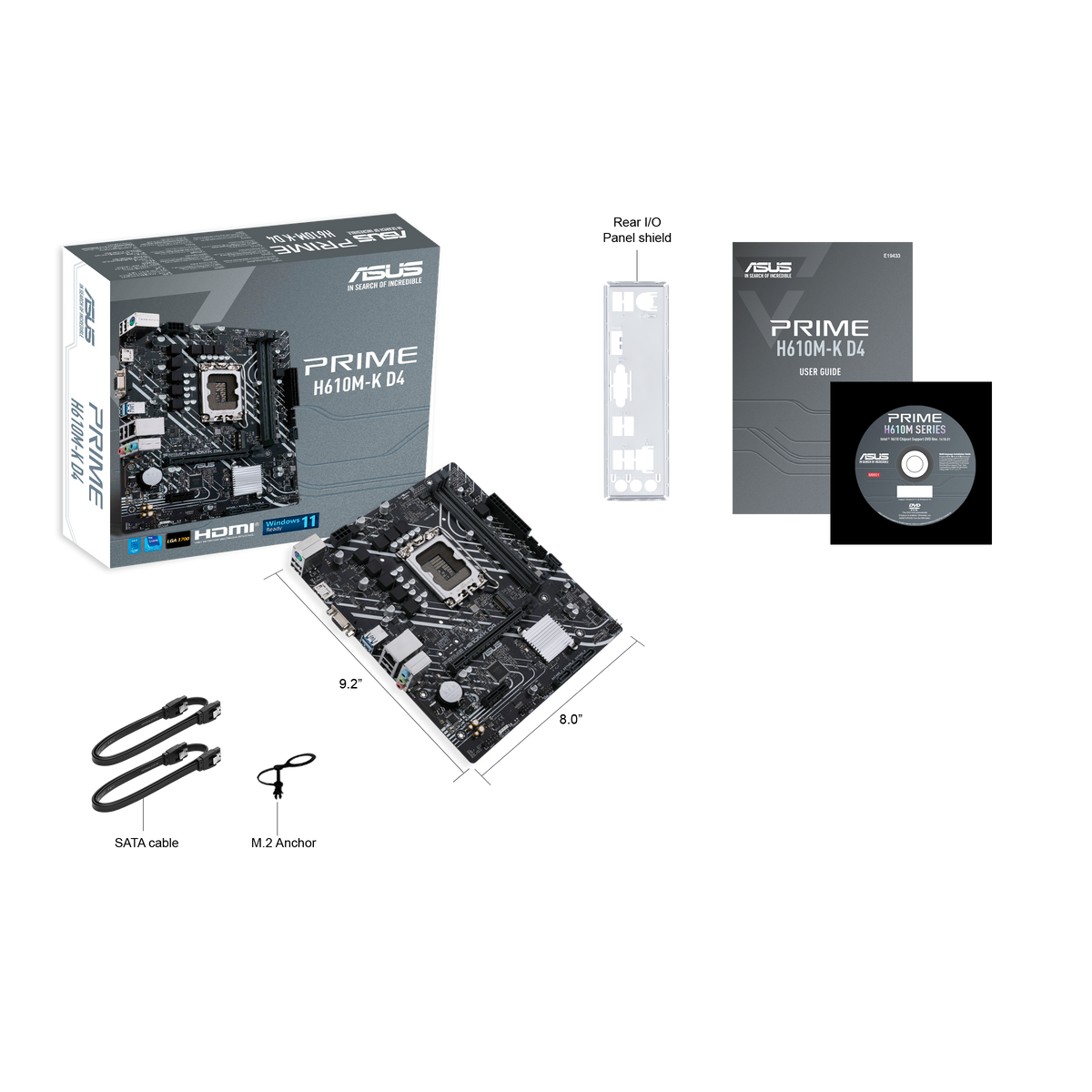

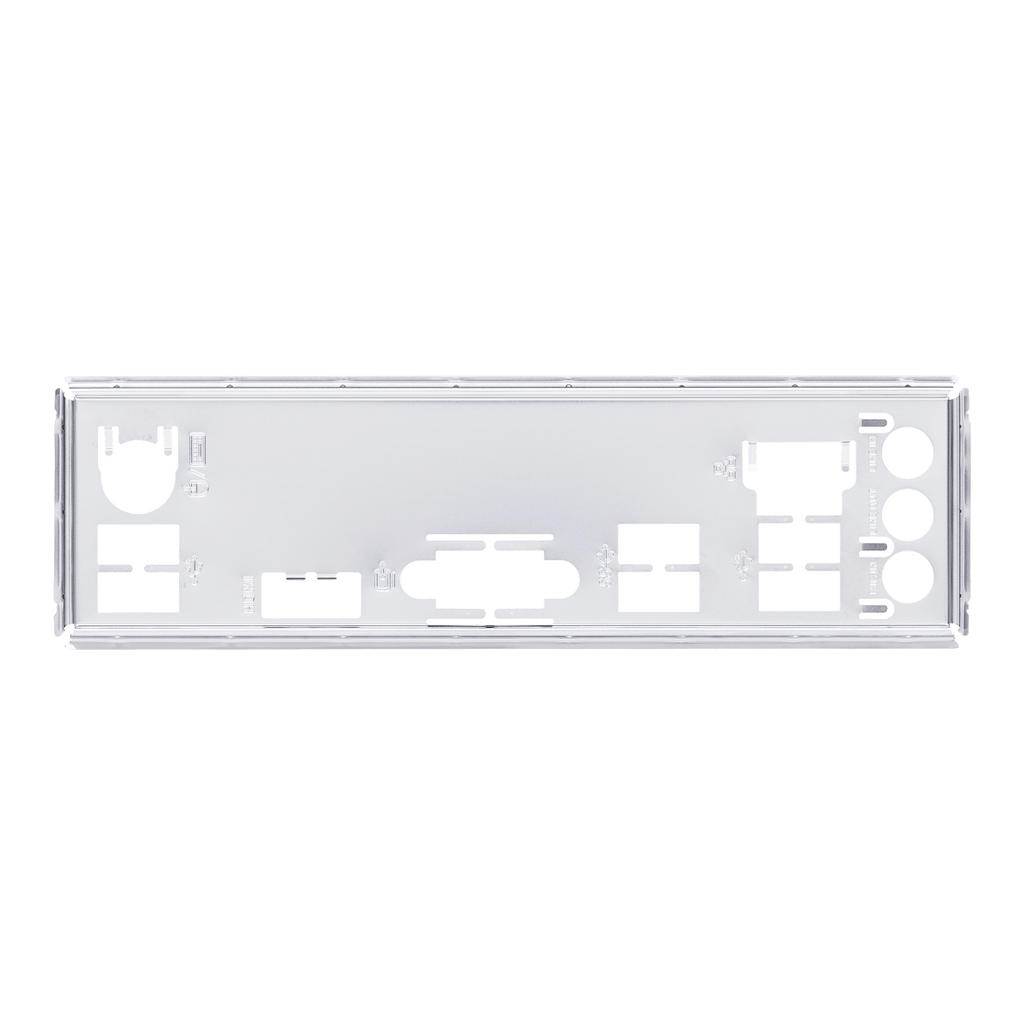

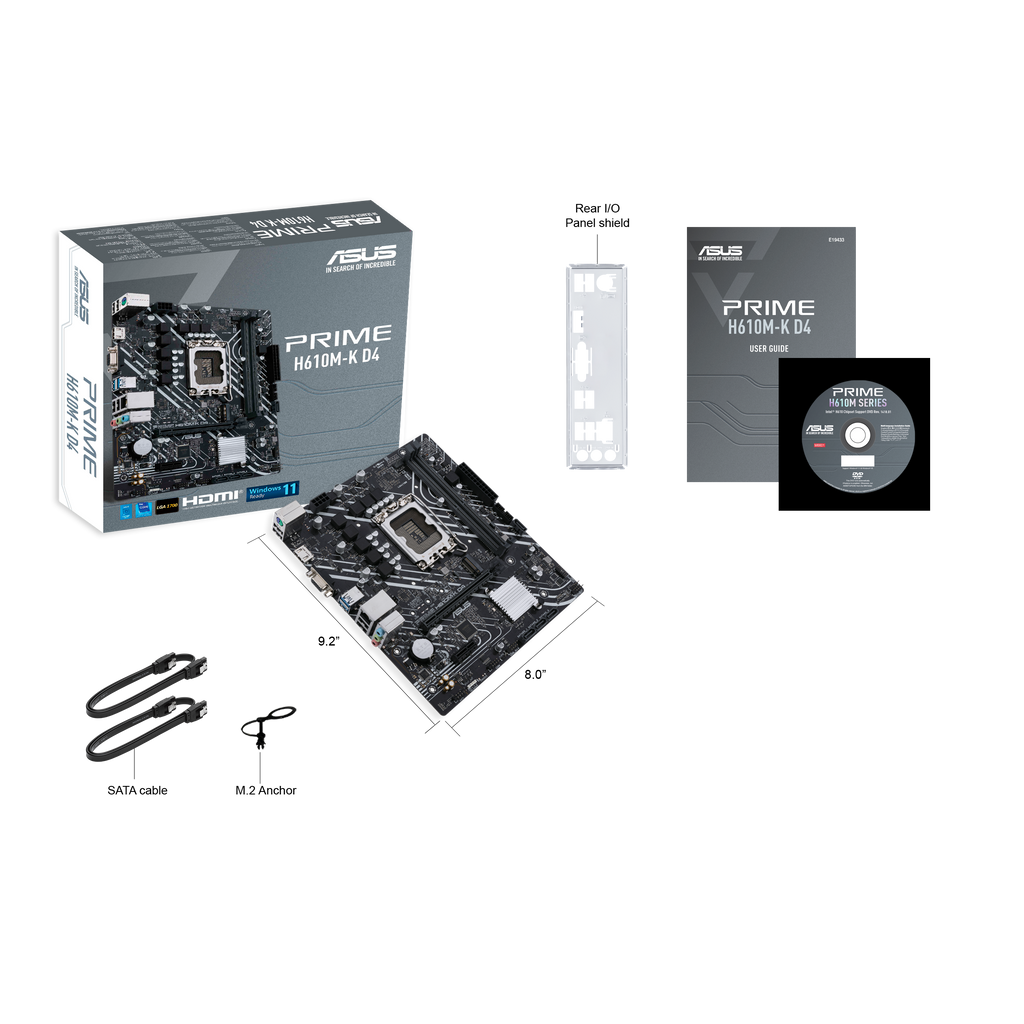

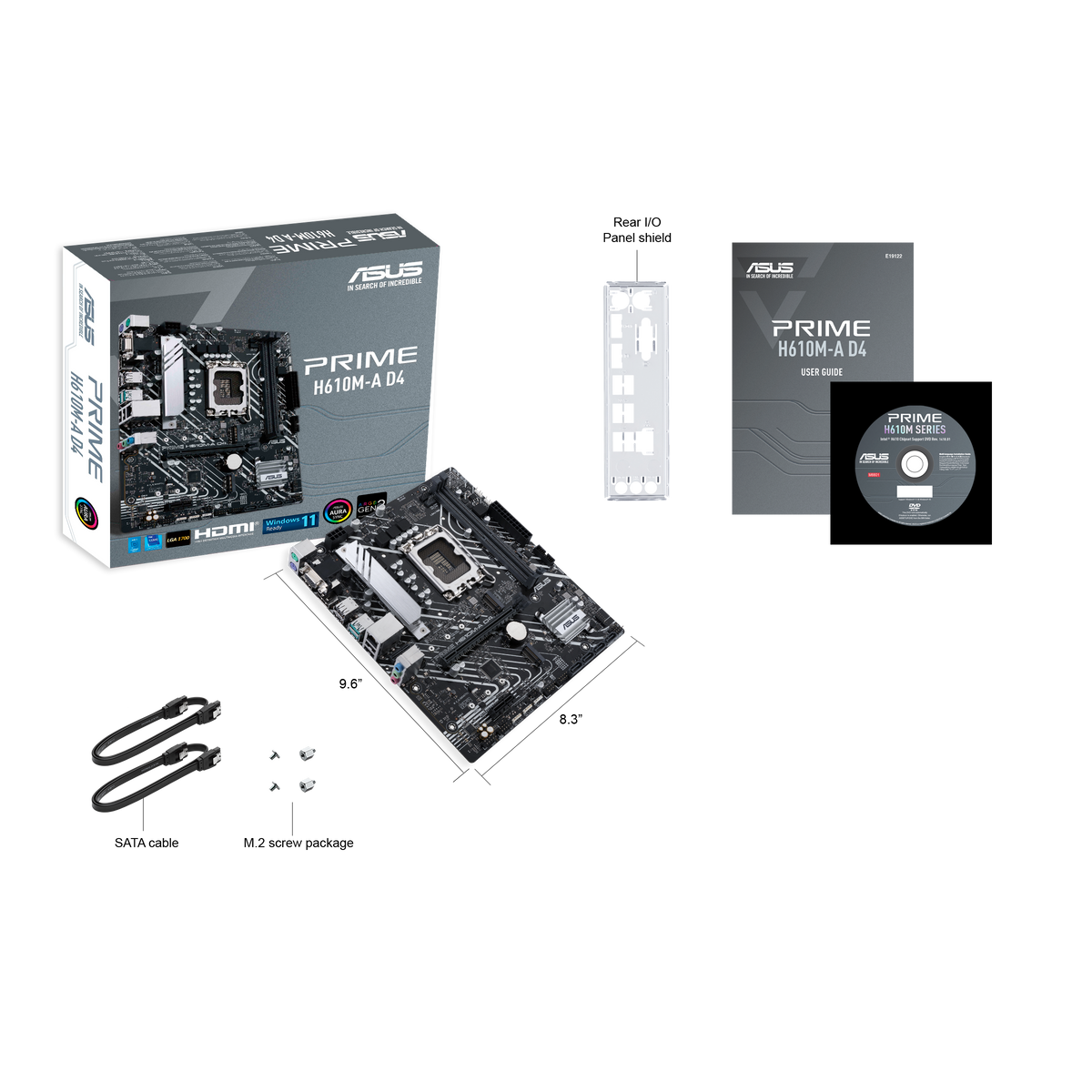

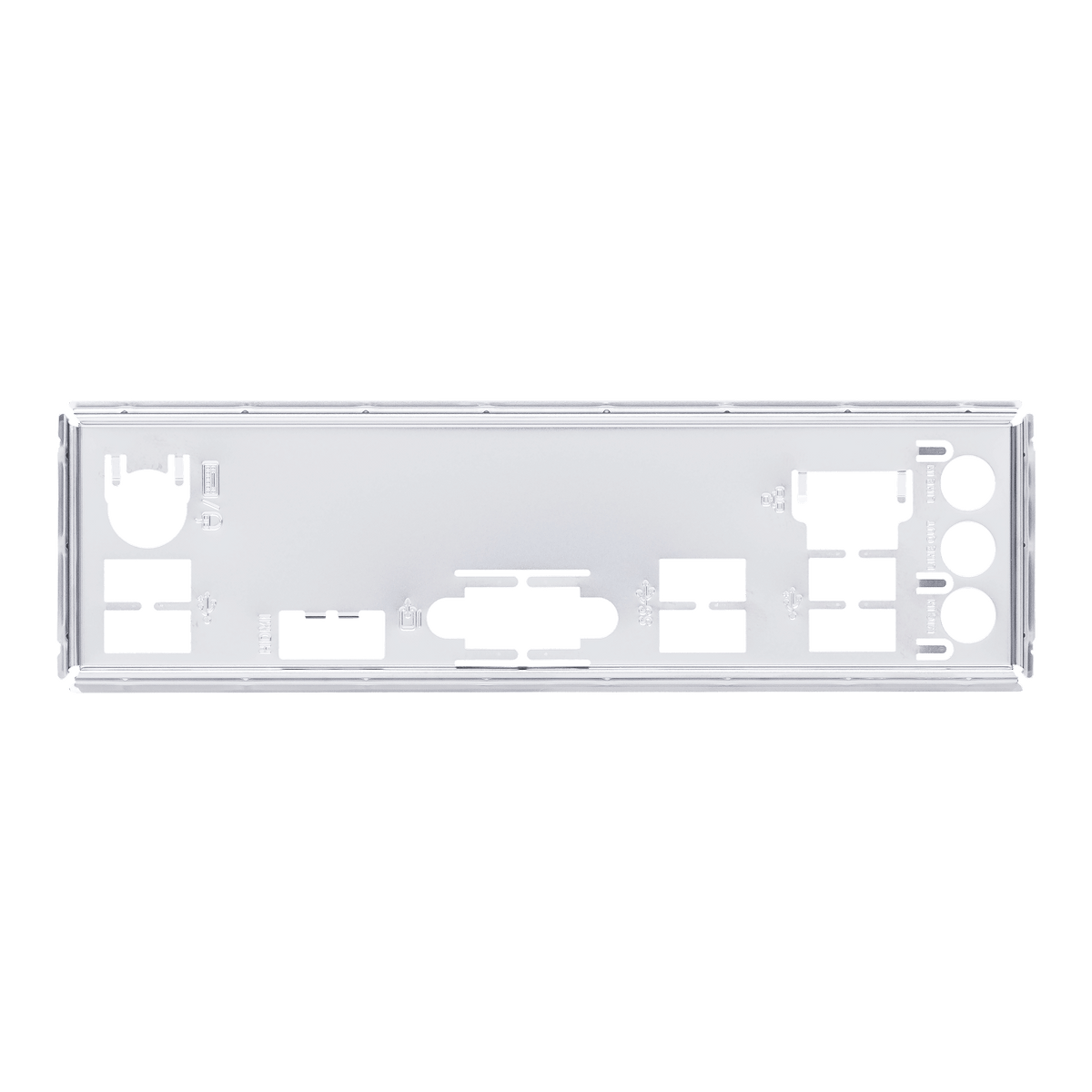

| Included Accessories | 2 × SATA 6 Gb/s cables; I/O shield; M.2 anchor; support DVD; user guide |
