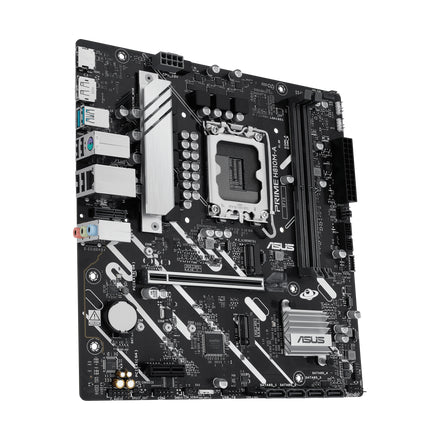

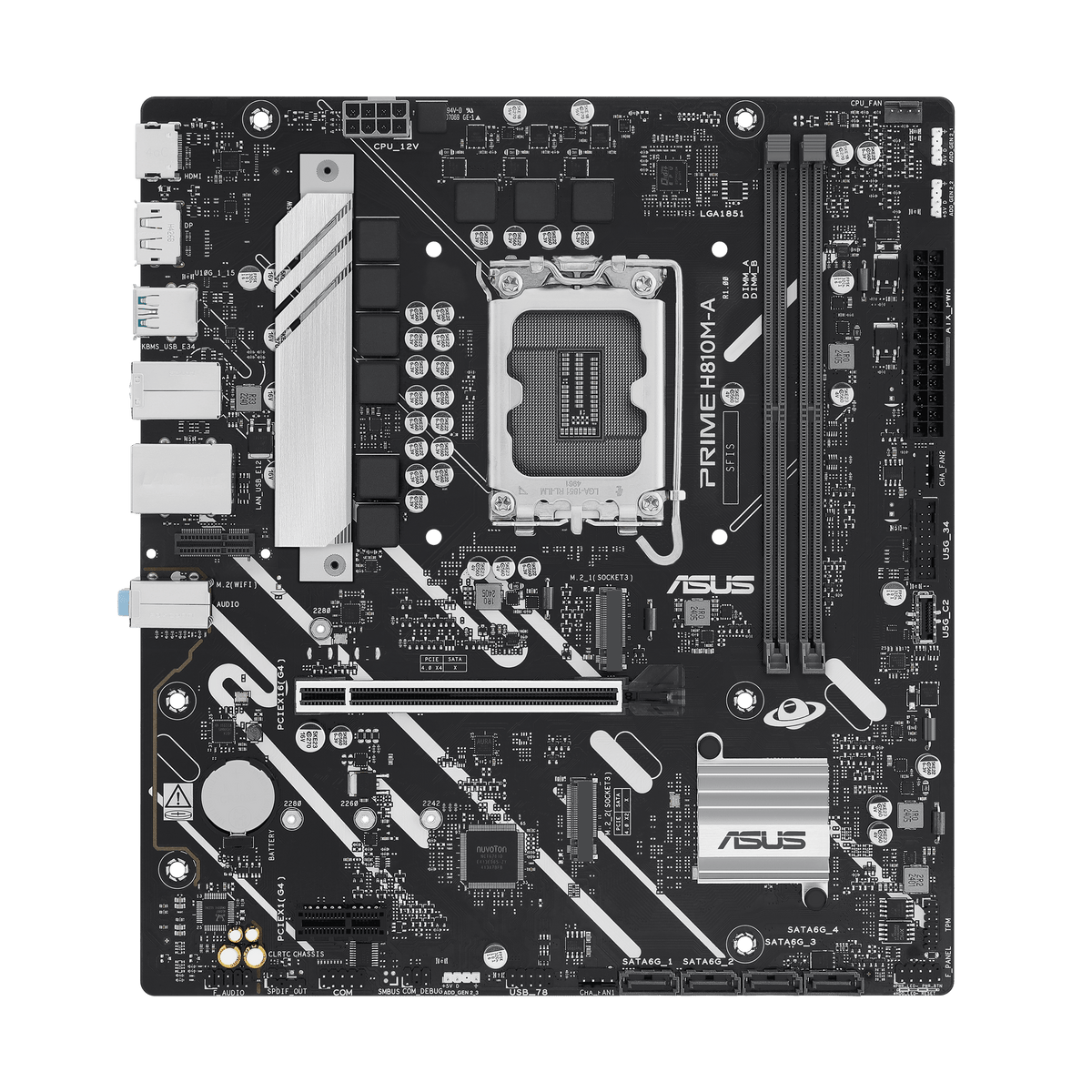

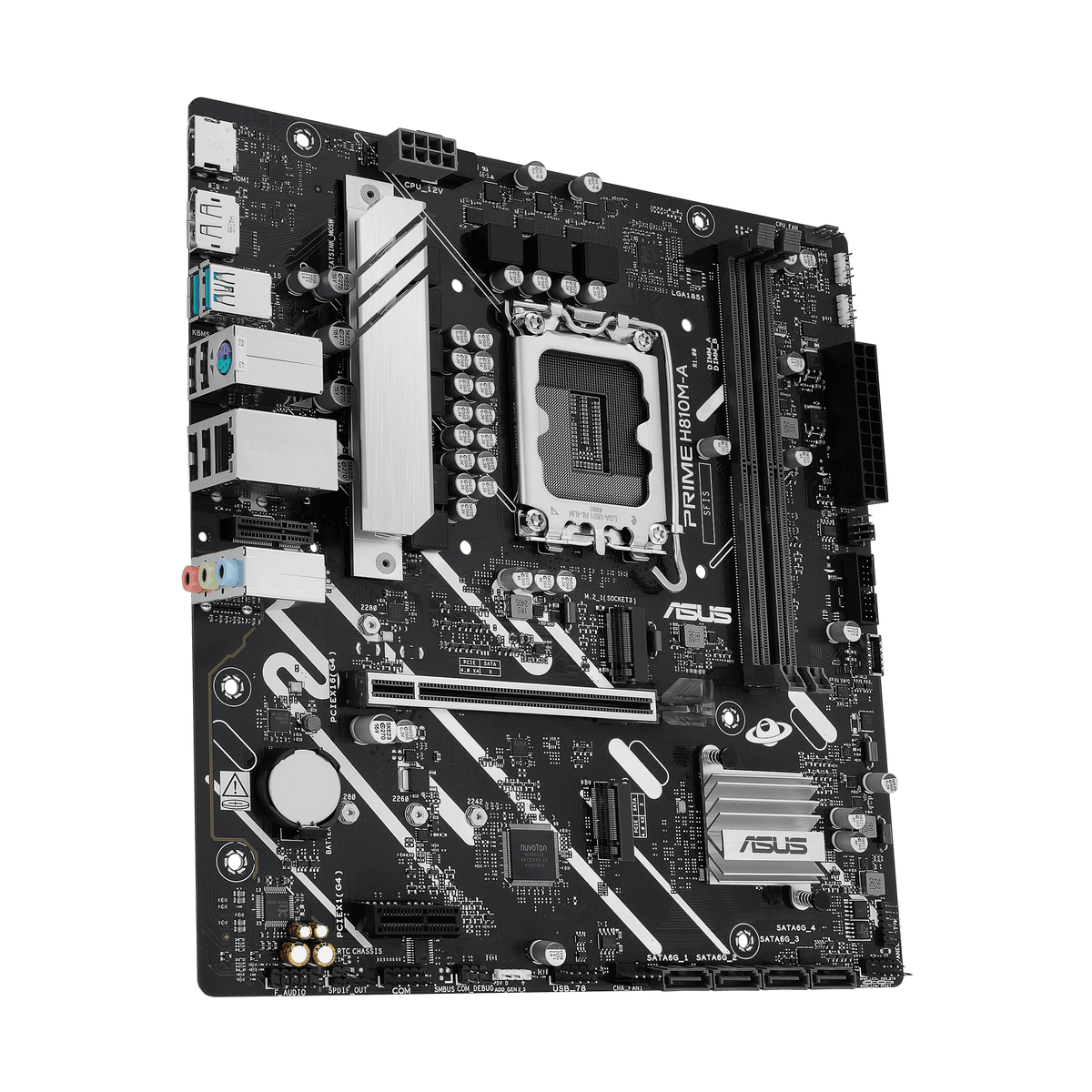

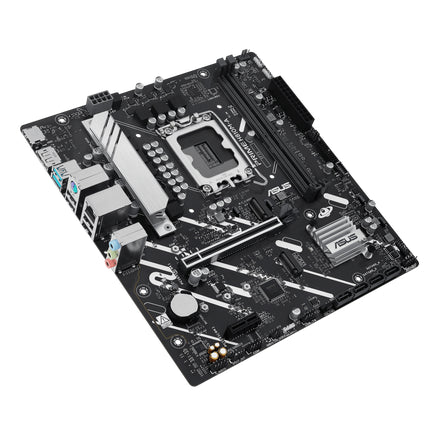

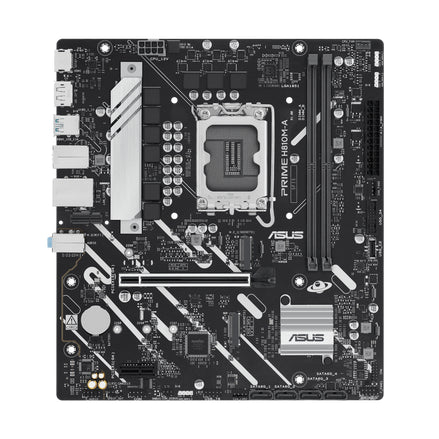

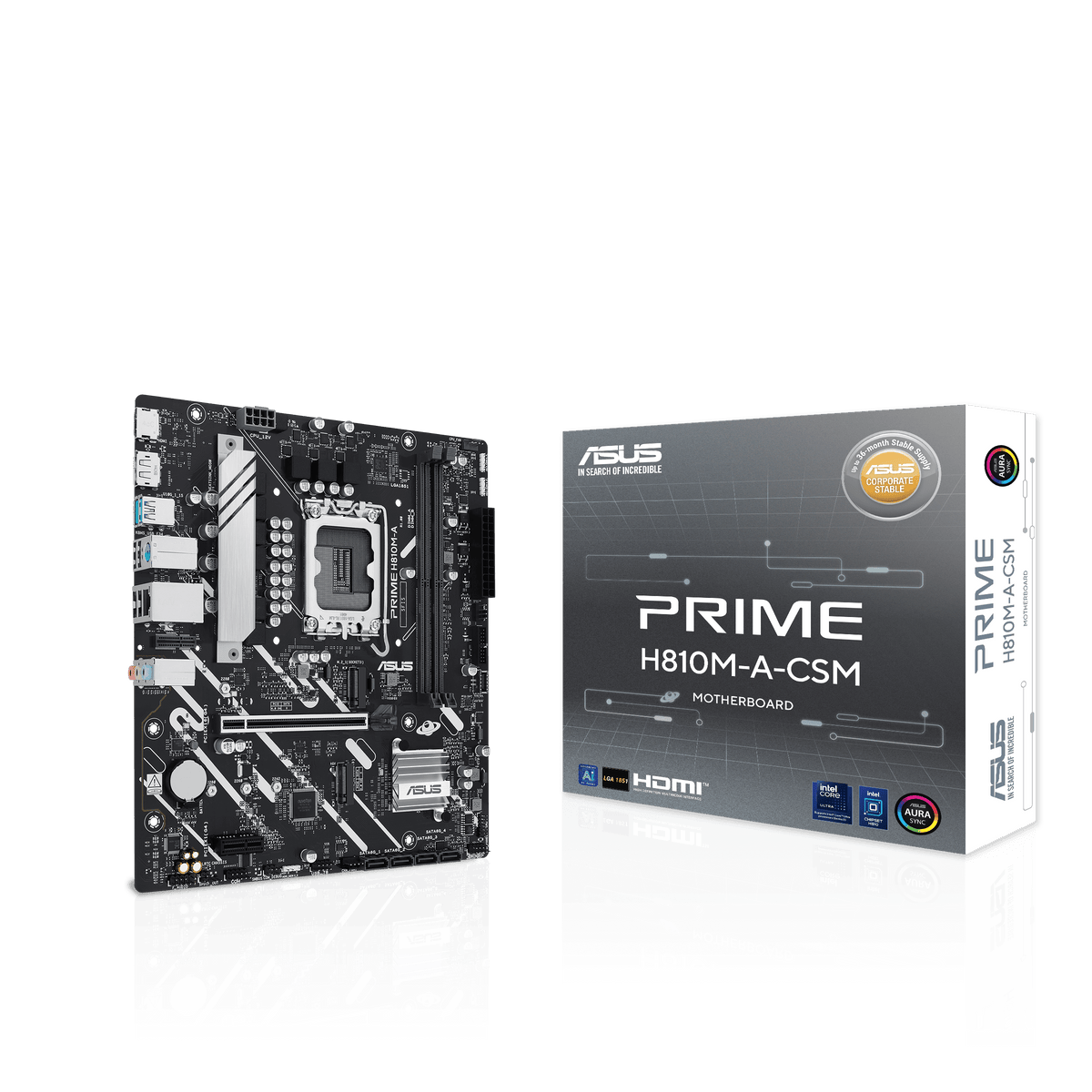

ASUS PRIME H810M-A-CSM LGA1851 Micro-ATX Motherboard
ASUS

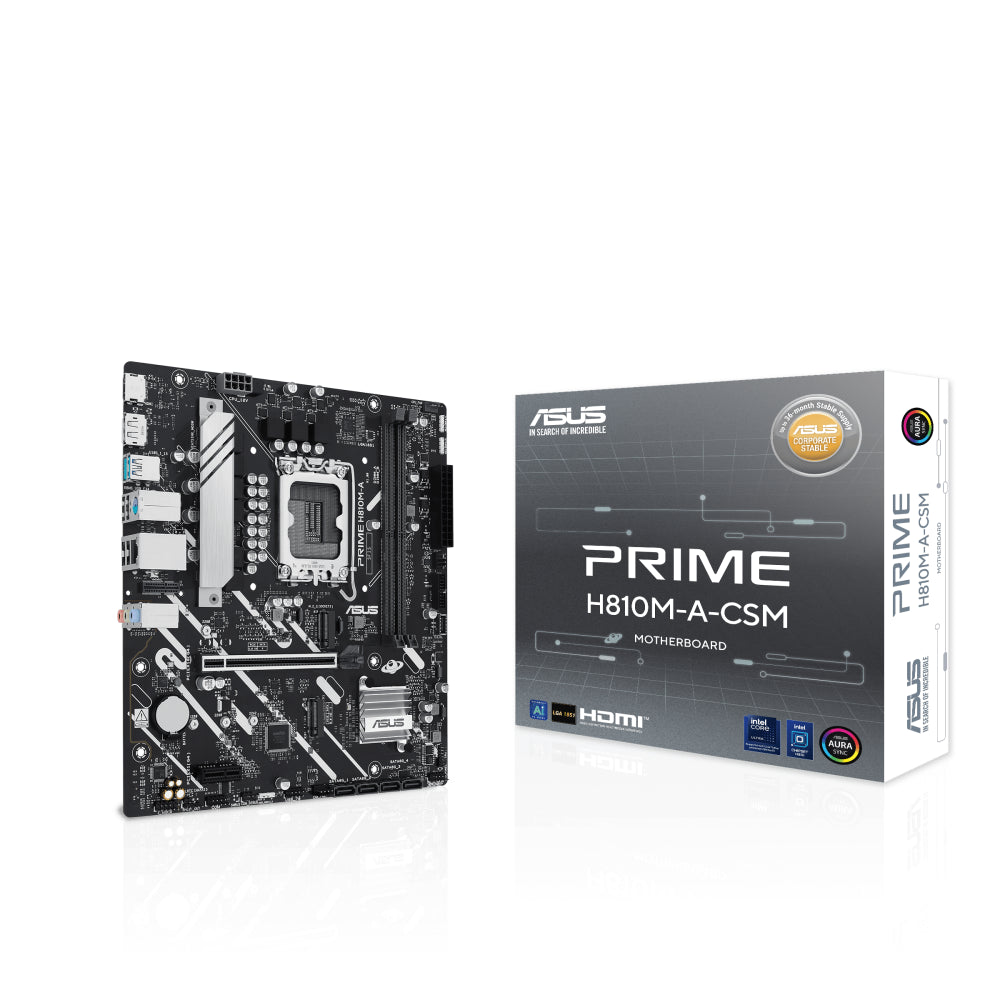

ASUS PRIME H810M-A-CSM LGA1851 Micro-ATX Motherboard

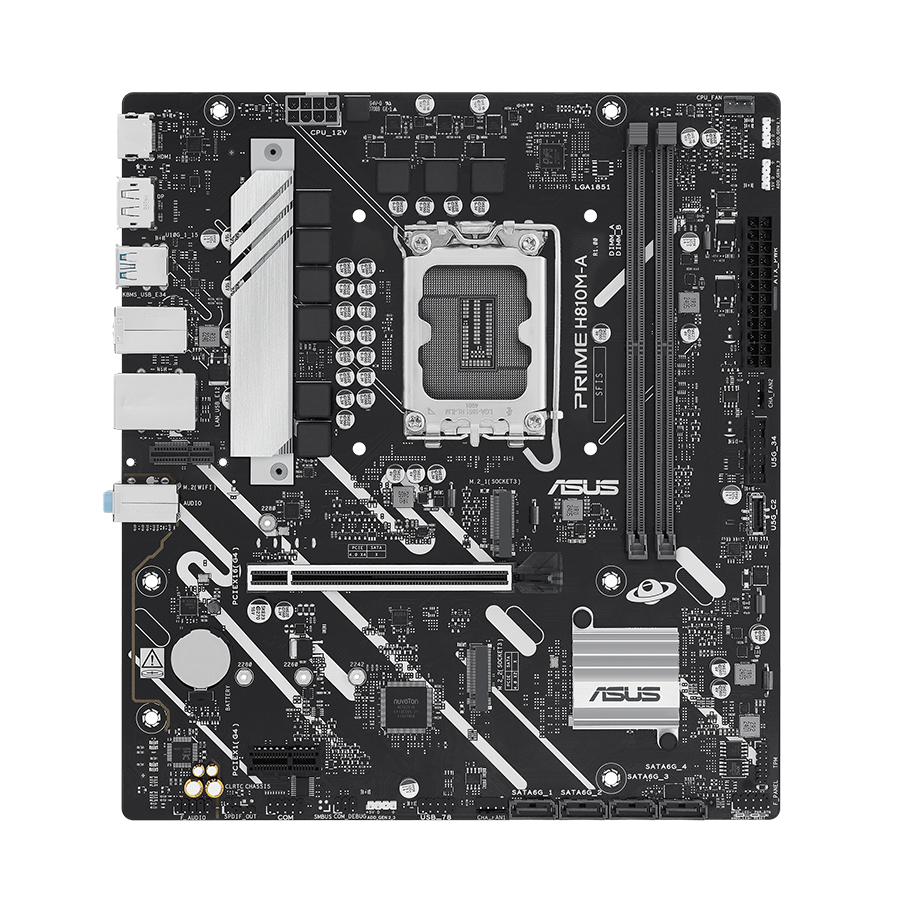

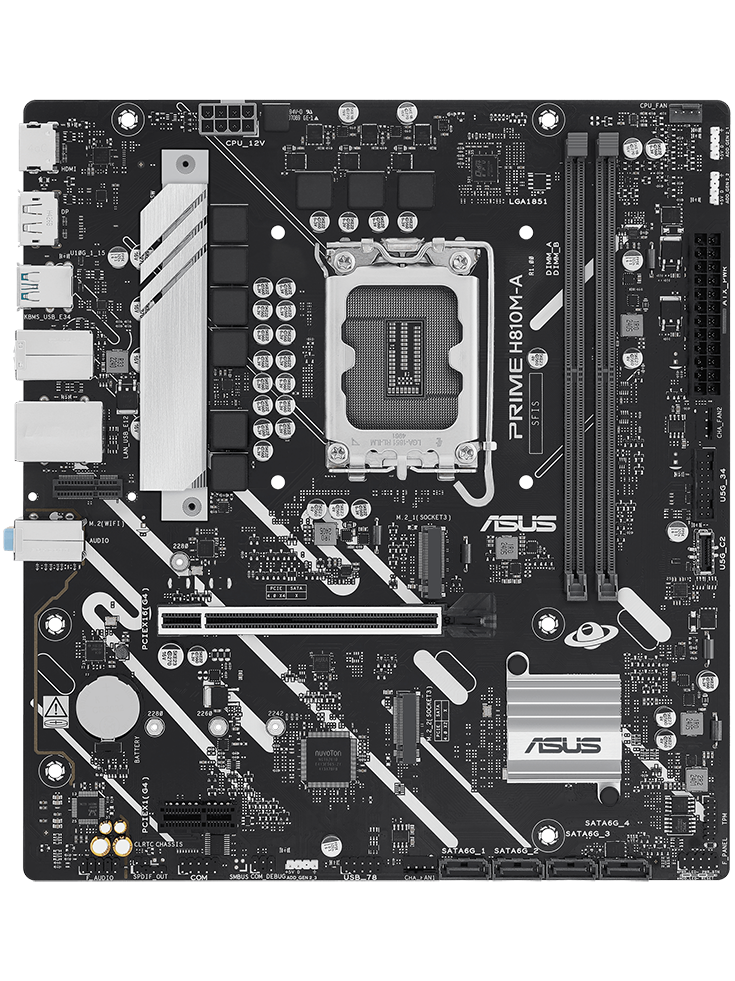

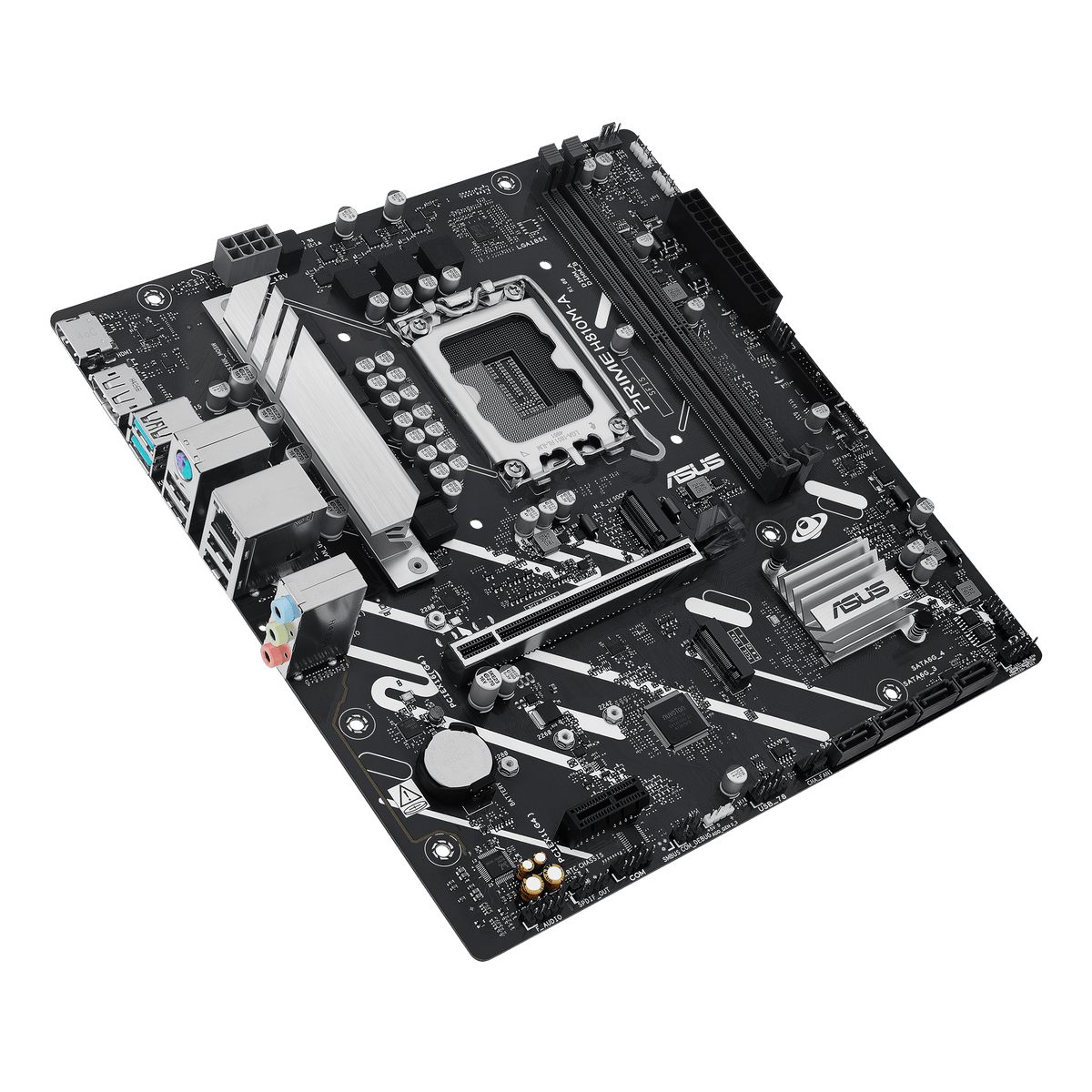

The ASUS PRIME H810M-A-CSM is a micro-ATX motherboard built for DIY PC builders upgrading to Intel Core Ultra Processors (Series 2). It combines stable power delivery, modern storage connectivity, and AI-ready features in a compact form factor.
Why this product
6+1+1+1 power phase for stable delivery
Discrete MOSFETs and Digi+ voltage regulation ensure reliable power to the latest Intel processors during everyday use and light overclocking.
PCIe 4.0 M.2 slots up to 64Gbps
Two M.2 slots support fast NVMe SSDs—one at full PCIe 4.0 x4 speed and one at x2—for quick boot and app loading.
USB 10Gbps rear ports and 5Gbps Type-C
High-speed USB connectivity at the back and a front USB Type-C connector handle modern peripherals and external drives without bottlenecks.
AI PC-ready design
Built with the power and connectivity to support demanding AI applications on future Intel platforms.
Three Aura Sync RGB headers
All three addressable Gen 2 RGB headers work with ASUS Aura Sync for coordinated case lighting.
- SocketIntel LGA 1851
- ChipsetIntel H810
- Memory slots2 × DIMM, DDR5 up to 6400MT/s, max 128GB
- M.2 slots2 × PCIe 4.0 (x4 and x2)
- Form factorMicro-ATX (24.4 cm × 22.2 cm)
- USB rear2 × 10Gbps Type-A, 4 × 2.0 Type-A
- USB front headers1 × 5Gbps Type-C, 1 × 5Gbps header, 1 × 2.0 header
- SKUASU-3386
- EAN4711387844625
- Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket only—not compatible with older Intel or AMD platforms.
- Accepts DDR5 memory up to 6400MT/s in two DIMM slots (maximum 128GB total).
- Fits micro-ATX cases measuring at least 24.4 cm × 22.2 cm; will not fit mini-ITX or full-size ATX enclosures.
- Requires an 8-pin 12V CPU power connector and 24-pin main power connector from a standard ATX power supply.
- Supports Windows 11 (22H2 or later) and Windows 10 64-bit (21H2 or later); older versions are not compatible.
Best for
- First-time or budget-conscious PC builders stepping up to Core Ultra Series 2 without overpaying for features they won't use.
- System integrators and small businesses building stable, reliable commercial machines (ASUS Corporate Stable Model program).
- Builders who want fast NVMe storage and modern USB connectivity in a compact, space-saving form factor.
- Users planning mild overclocking or AI application work who need solid power delivery and sufficient M.2 slots.
Trade-offs
- Extreme overclockers — the 6+1+1+1 power phase is robust for stock and moderate tuning, but does not match high-end boards designed for sustained voltage pushing.
- Users with only DDR4 memory — this board has no DDR4 slots and will not accept older memory standard.
- Builders needing Thunderbolt or WiFi — it lacks both; only Intel 1Gb Ethernet and standard USB are provided.
- Full-size ATX builds — the micro-ATX layout suits compact cases but wastes space in larger chassis and may limit future expansion slots.
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

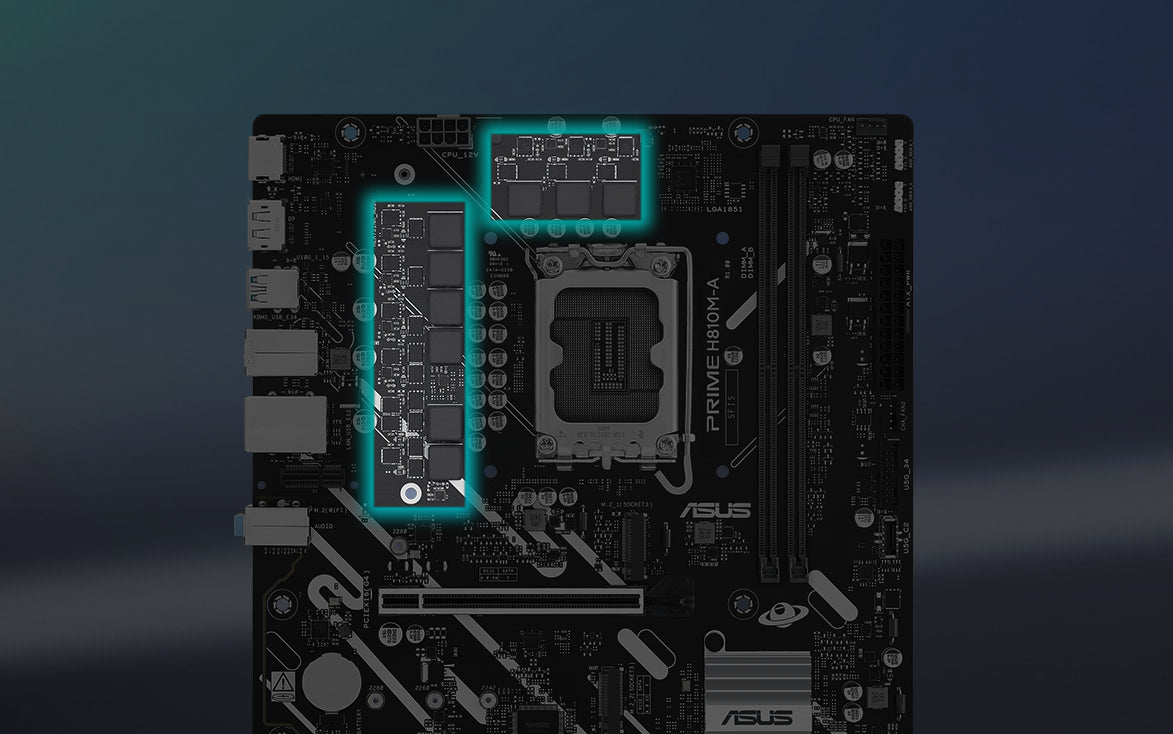

Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME H810M-A-CSM features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced Memory & Storage Performance
PRIME H810M-A-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
High Speed Transferring
Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 10Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.
General
| Brand | ASUS |
|---|---|
| Product line | PRIME H810M-A-CSM |
| Form factor | Micro-ATX |
CPU & Chipset
| Socket | Intel LGA 1851 |
|---|---|
| Supported processors | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 |
| Turbo boost support | Intel Turbo Boost Technology 2.0 and Max Technology 3.0 |
Memory & Storage
| Memory slots | 2 × DIMM |
|---|---|
| Memory type | DDR5 CUDIMM |
| Memory speed | Up to 6400MT/s |
| Maximum memory | 128GB |
| Memory profiles | XMP and AEMP II |
| M.2 slot 1 | PCIe 4.0 x4 (type 2280) |
| M.2 slot 2 | PCIe 4.0 x2 (type 2242/2260/2280) |
| SATA ports | 4 × SATA 6Gb/s |
Connectivity & I/O
| Video outputs | DisplayPort 1.4 (4K@60Hz), HDMI 2.1 (4K@60Hz) |
|---|---|
| Ethernet | 1 × Intel 1Gb with LANGuard |

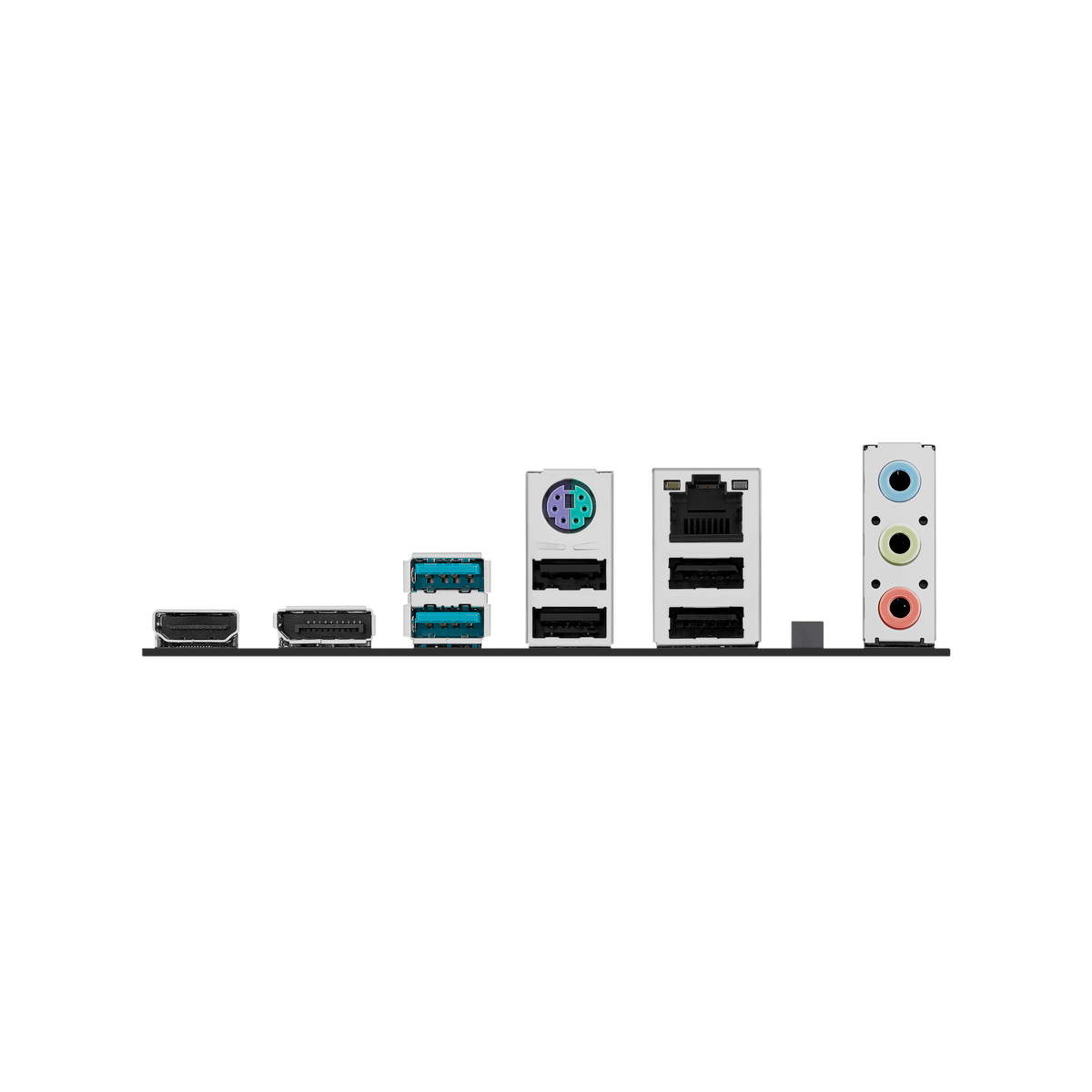

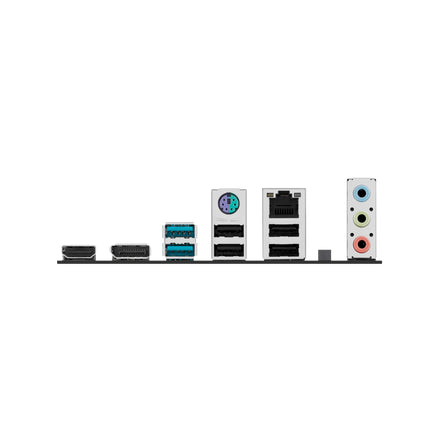

| USB rear (Type-A) | 2 × 10Gbps, 4 × 2.0 |
| USB front headers | 1 × 5Gbps Type-C connector, 1 × 5Gbps header (2 ports), 1 × 2.0 header (2 ports) |
| Audio | Realtek 7.1 Surround Sound, 24-bit/192 kHz |
| RGB headers | 3 × Addressable Gen 2 (Aura Sync) |
Power & Cooling
| Power design | 6+1+1+1 phase with discrete MOSFETs |
|---|---|
| Main power | 24-pin ATX, 8-pin 12V CPU |
| Fan headers | 1 × 4-pin CPU, 2 × 4-pin chassis |
| Cooling features | VRM heatsink, PCH heatsink, hybrid fan control, Fan Xpert 2+ |
System & Software
| BIOS | 256 Mb (128+128) Flash, UEFI AMI |
|---|---|
| Expansion slots | 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x1 |
| Manageability | WOL by PME, PXE |
| Supported OS | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Software suite | ASUS DriverHub, MyHotkey, Aura Sync, Q-Dashboard, Q-LED Core |
