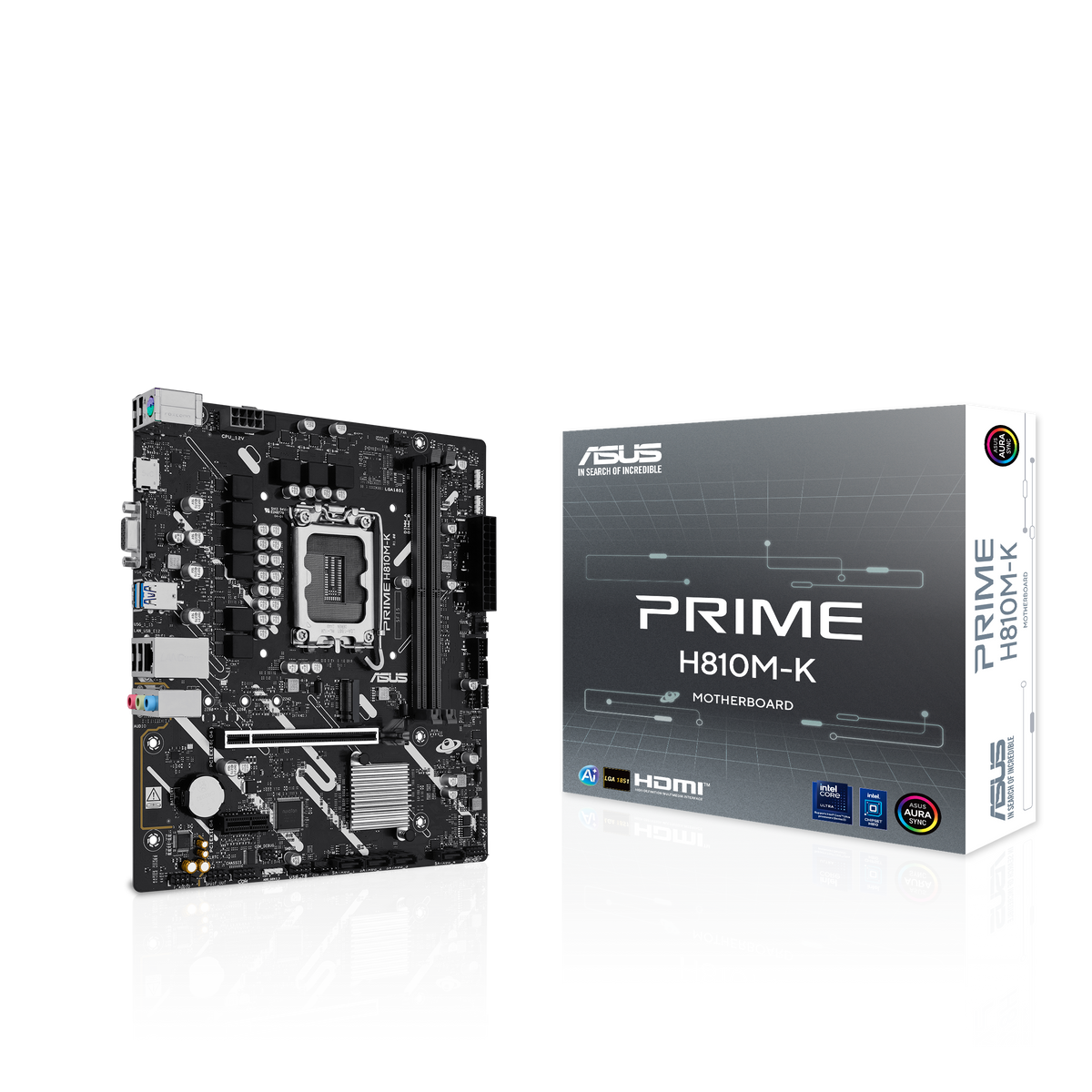

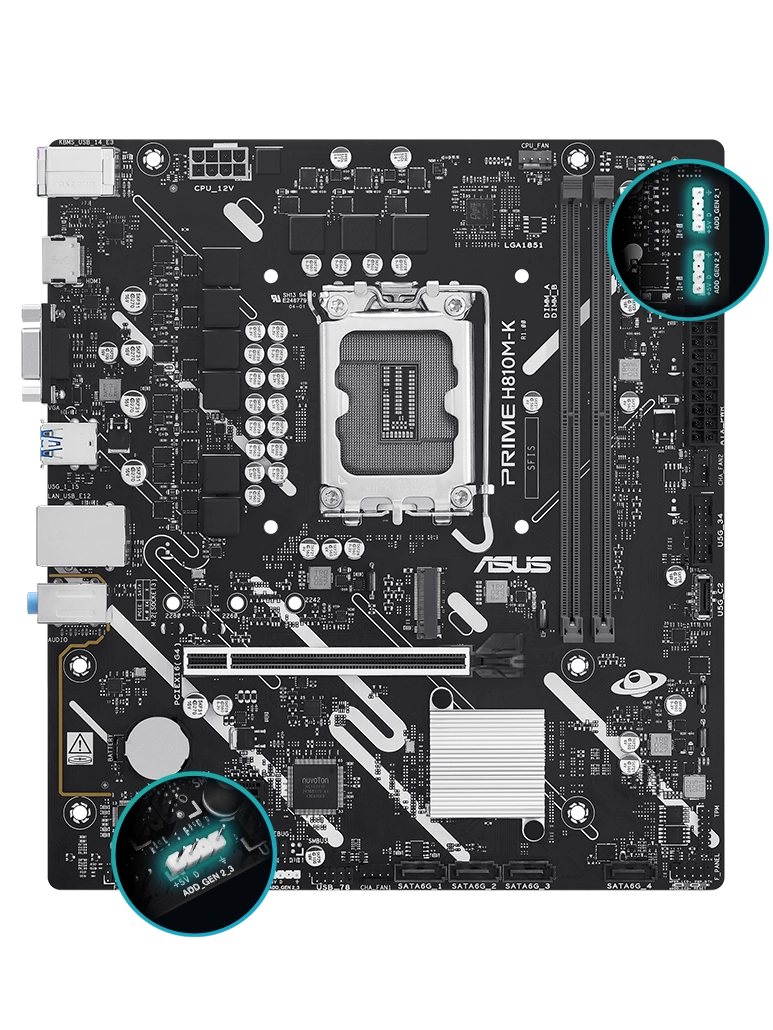

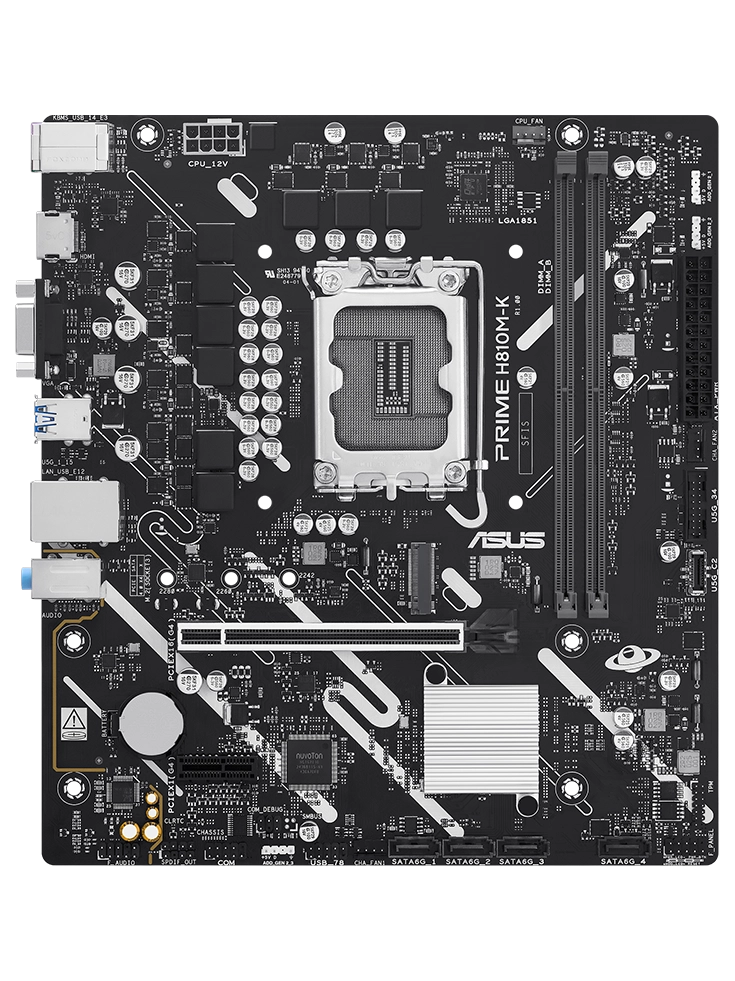

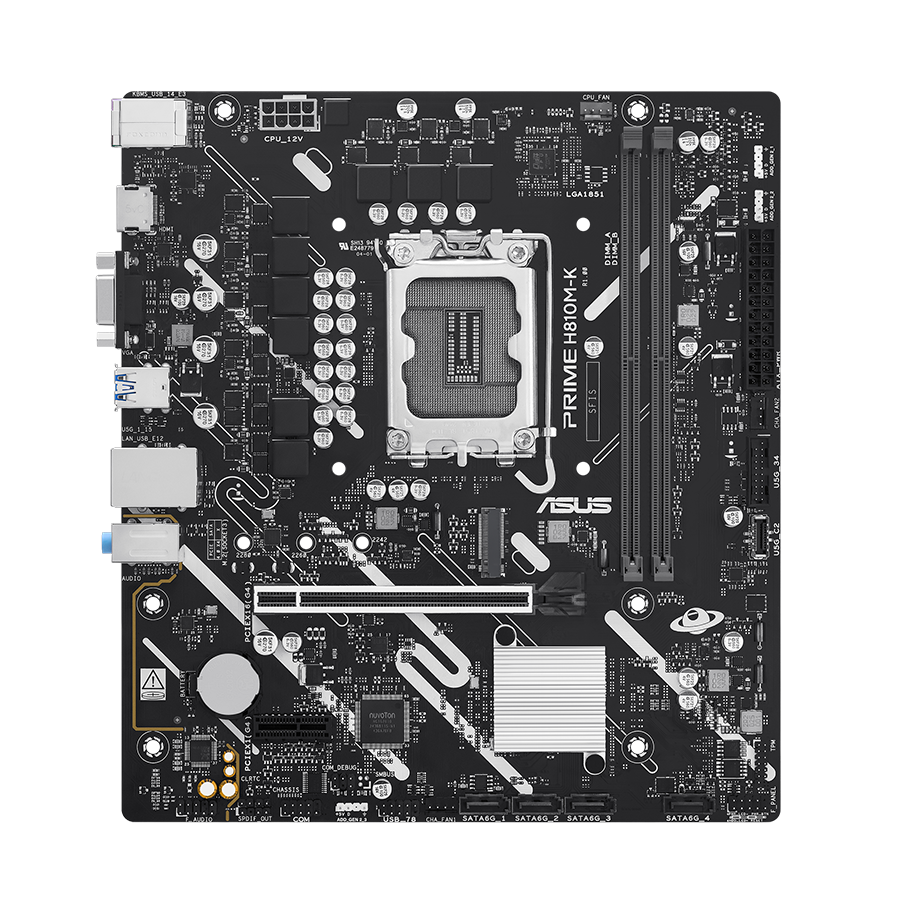

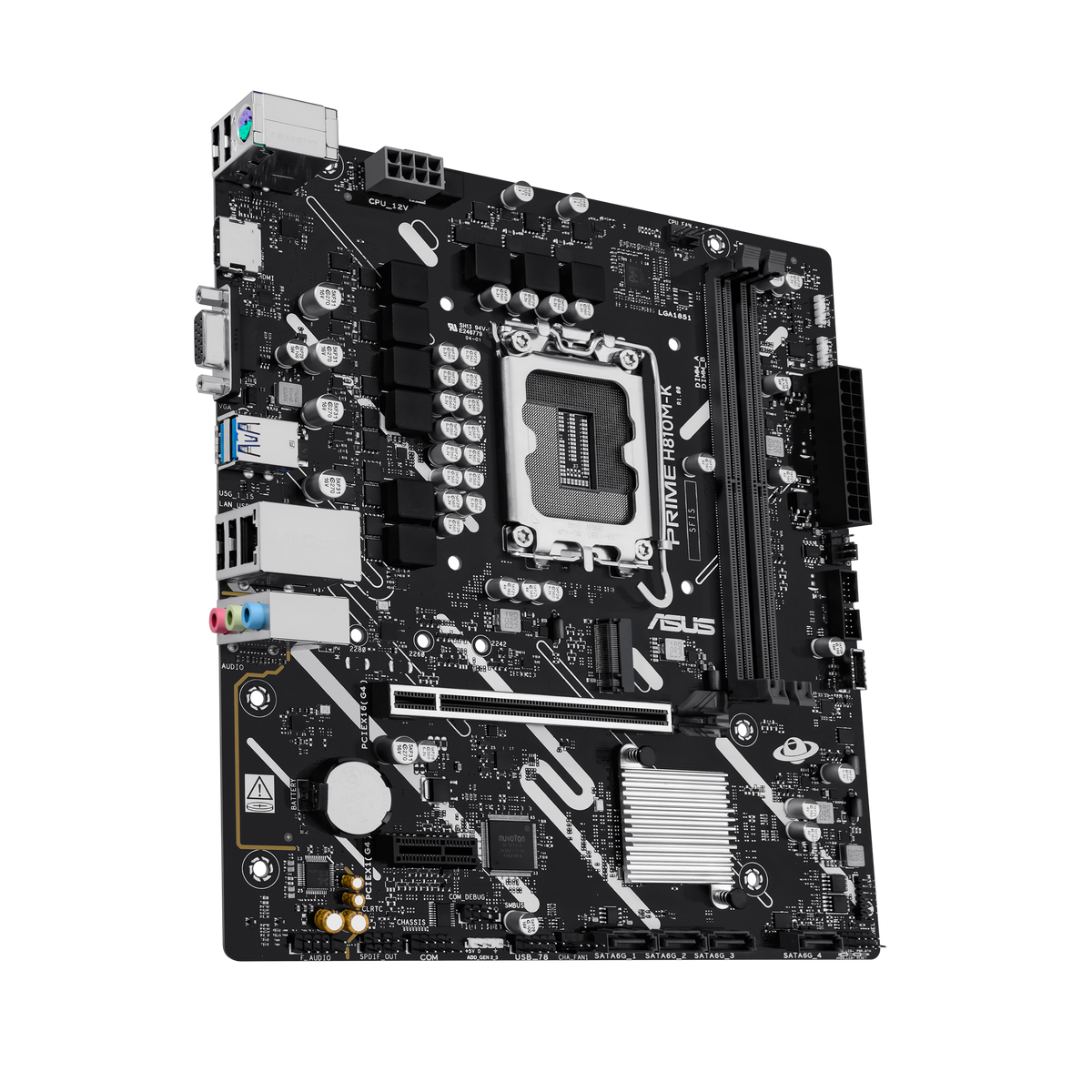

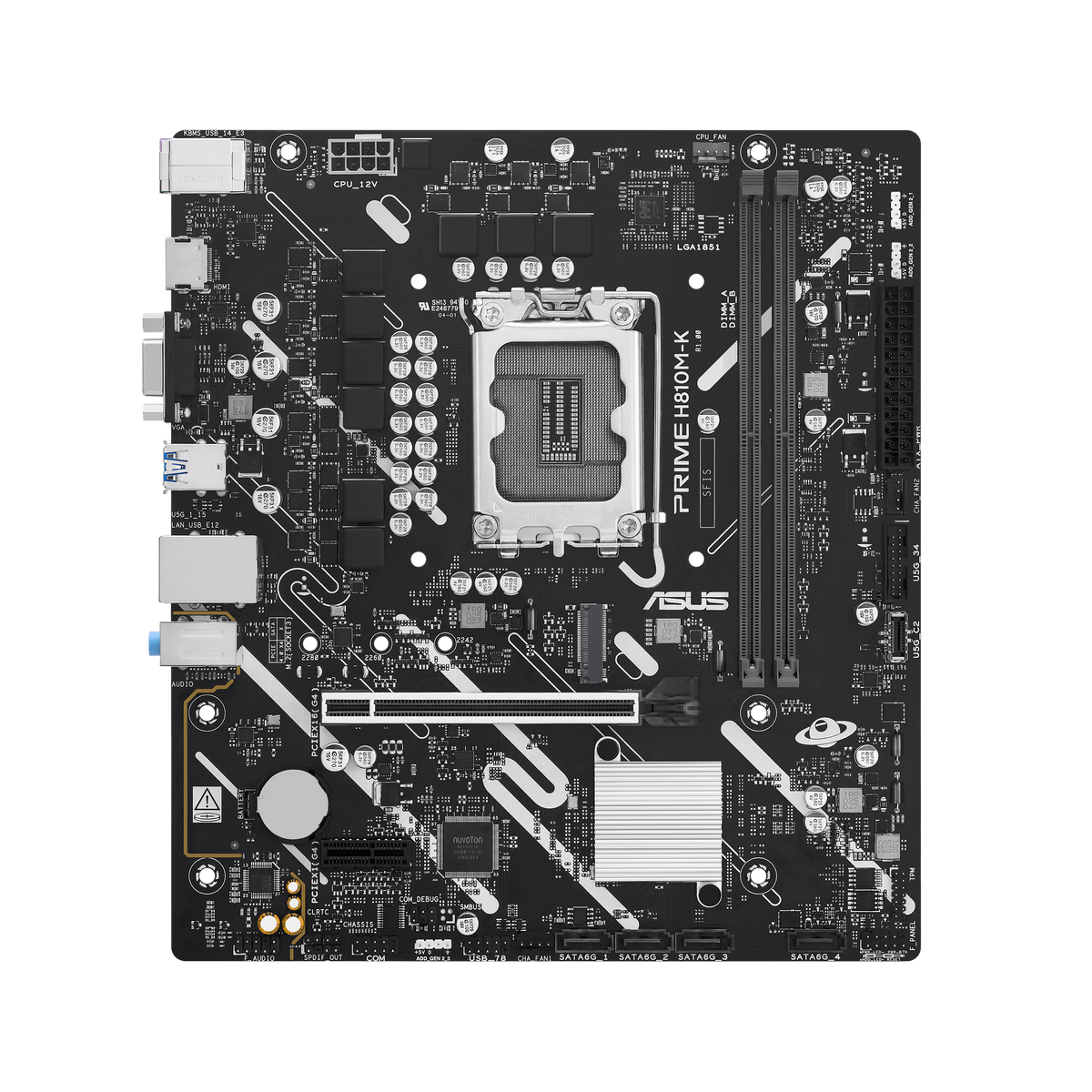

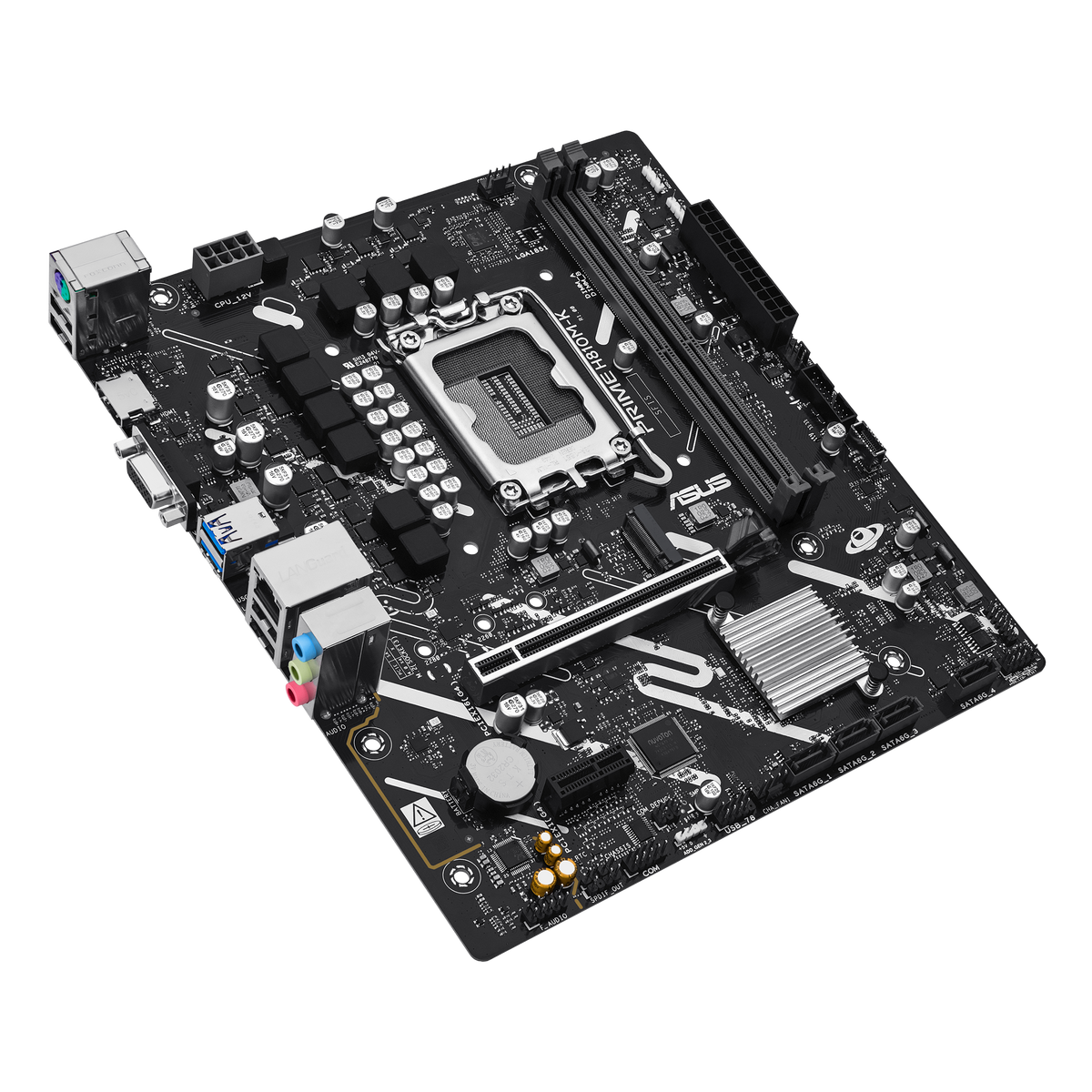

ASUS PRIME H810M-K LGA1851 DDR5 mATX Motherboard
ASUS
ASUS PRIME H810M-K LGA1851 DDR5 mATX Motherboard

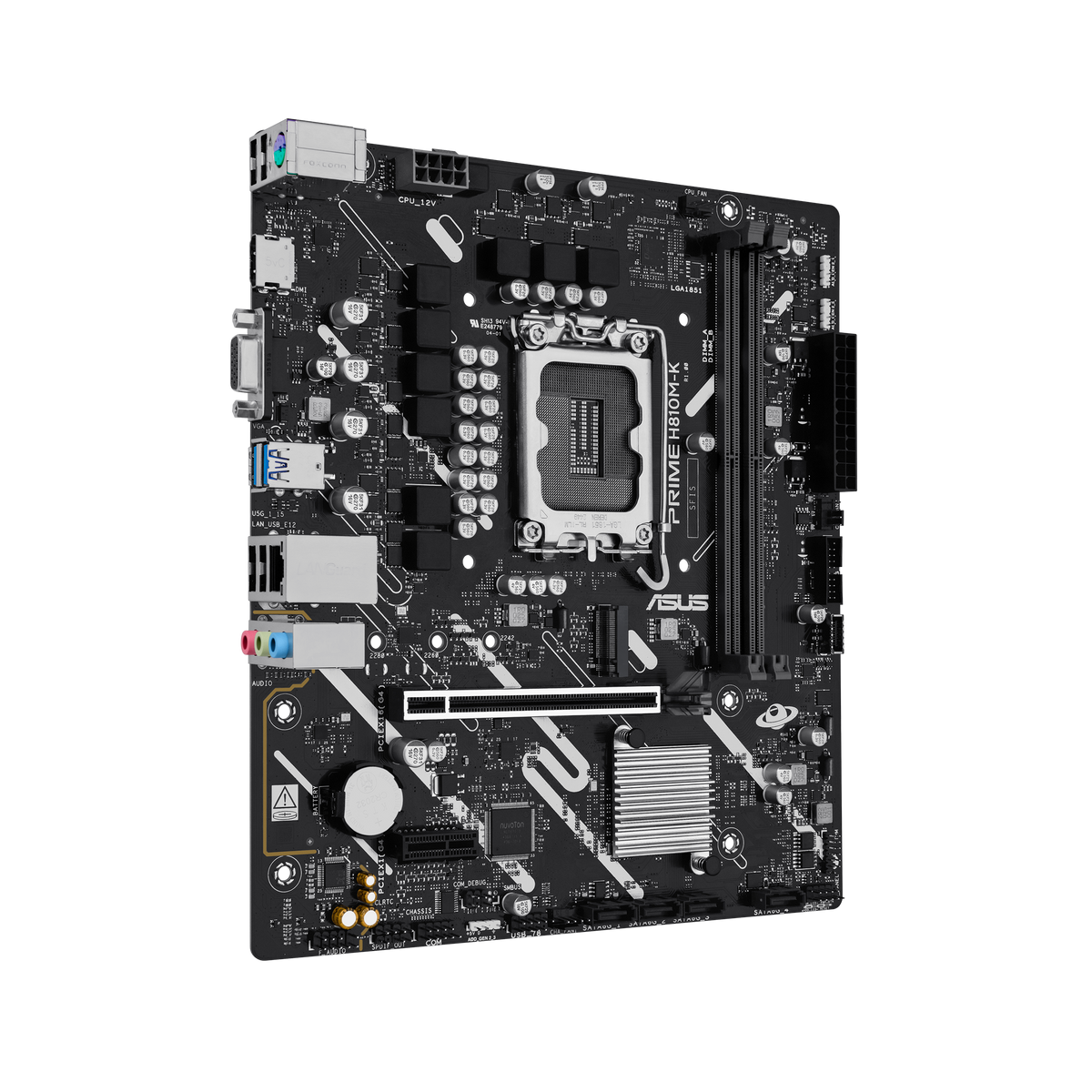

The ASUS PRIME H810M-K is a micro-ATX motherboard for Intel Core Ultra Processors (Series 2) that combines DDR5 memory support, PCIe 4.0 connectivity, and AI-ready architecture in a compact form factor. It suits PC builders who want solid performance and cooling without unnecessary complexity, solving the need for a reliable platform that handles both everyday computing and emerging AI workloads.
Why this product
Intel Core Ultra Series 2 ready
Full support for the latest Intel Core Ultra Processors (Series 2) on LGA1851 socket with Turbo Boost technologies for responsive multitasking and workload acceleration.
DDR5 memory with up to 7200MT/s
Dual-channel DDR5 supporting speeds up to 7200MT/s with Intel Core Ultra 200S Plus, plus DIMM Fit Pro and XMP profiles for optimized performance out of the box.
6+1+1+1 phase digital power design
Discrete MOSFETs ensure stable power delivery for consistent performance under load and day-to-day computing.
PCIe 4.0 storage and graphics
One PCIe 4.0 x16 slot with SafeSlot Core+ reinforcement for graphics cards, plus an M.2 socket for high-speed NVMe drives.
Cooling built in from the start
Chipset heatsink and hybrid fan headers with auto-detection for PWM or DC fans, plus ASUS Fan Xpert 2+ software to manage temps intelligently.
Compact micro-ATX footprint
9.2 x 8.3 inch dimensions fit smaller cases without sacrificing connectivity or upgrade potential.
- SocketLGA1851
- ChipsetIntel H810
- Form FactorMicro-ATX (23.4 x 21.1 cm)
- Memory SupportDDR5 up to 7200MT/s, 2 DIMM slots, max 128GB
- PCIe Slots1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
- Storage1 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s
- Video OutputVGA, HDMI (4K@60Hz)
- Network1 x Realtek 1Gb Ethernet
- SKUASU-2708
- EAN4711636292290
- Intel Core Ultra Processors (Series 2) on LGA1851 socket only. Not compatible with older Intel processors or AMD chips.
- Supports DDR5 CUDIMM memory up to 128GB across two DIMM slots in dual-channel configuration.
- Fits micro-ATX cases; check case dimensions (motherboard is 23.4 x 21.1 cm) before purchase.
- Video output via VGA port or HDMI (4K@60Hz) for integrated graphics; discrete cards use the PCIe x16 slot.
- Supports Windows 11 (22H2 & later) and Windows 10 64-bit (21H2 & later); older OS versions are not listed as supported.
Best for
- Compact builds and smaller cases needing full-featured LGA1851 support
- DDR5-first builders who want high memory speeds (up to 7200MT/s) without overcomplication
- DIY PC builders seeking straightforward UEFI BIOS controls and intuitive Fan Xpert 2+ management
- Systems intended for AI workloads, with Intel Core Ultra Series 2 optimization built in
- Users needing fast storage via PCIe 4.0 NVMe and graphics expansion without complexity
Trade-offs
- Full-size ATX builds. Micro-ATX form factor limits expansion slot count to 1 PCIe x1 and may not fit standard ATX cases.
- Demanding storage arrays. Only 1 M.2 slot and 4 SATA ports; systems needing more simultaneous drives should consider larger boards.
- Extreme overclocking or advanced silicon lottery tuning. H810 chipset with fixed power phases suits stable performance over maximum frequency tweaking.
- AMD Ryzen or older Intel socket users. LGA1851 support is exclusive to Intel Core Ultra Series 2; no backward compatibility.
- Multi-GPU setups. Single PCIe x16 slot and one PCIe x1 slot limit parallel GPU installations.
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

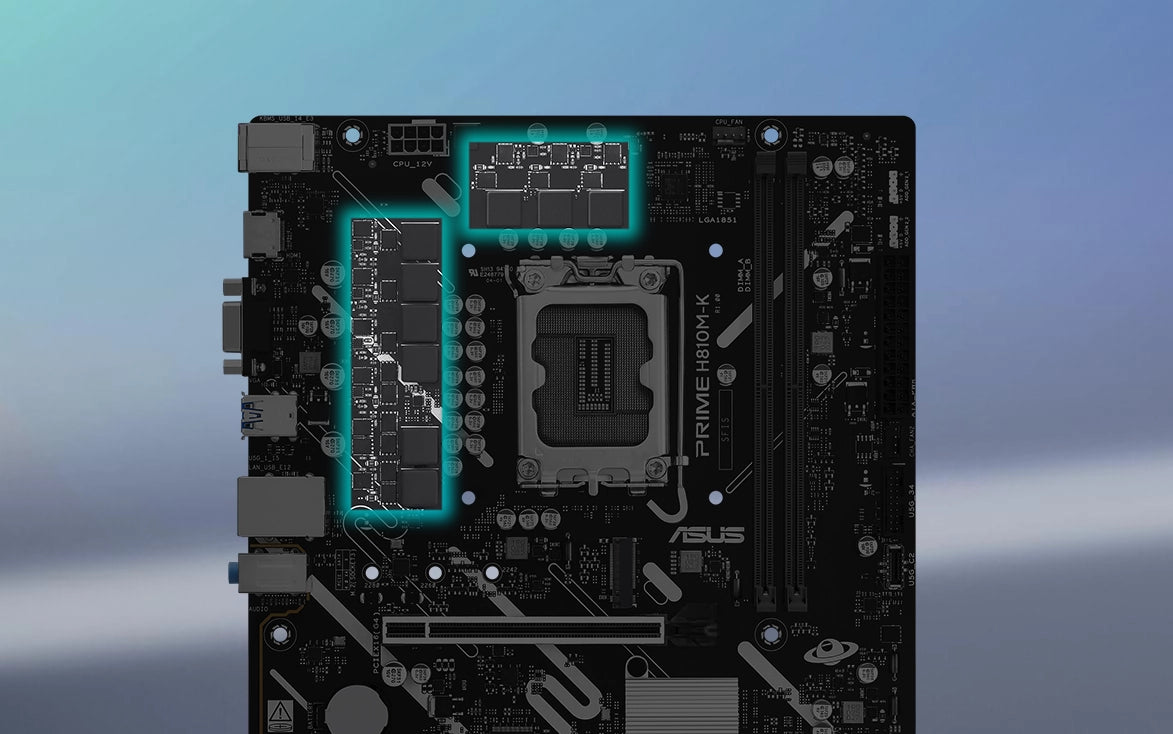

Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME H810M-K features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
Cooler by design
The PRIME H810M-K motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads. Each onboard header supports auto-detection of PWM or DC fans.
Empowering connections
Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 5Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.
Realtek 1 Gb Ethernet
Realtek Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
DIY friendly
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Aura Sync
For full RGB lighting control.
ASUS Fan Xpert 2+ — Smart cooling precision
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
General
| Brand | ASUS |
|---|---|
| Model | PRIME H810M-K |
| Socket | LGA1851 |
| Chipset | Intel H810 |
| Form Factor | Micro-ATX |
| Dimensions | 23.4 cm x 21.1 cm |
Processor & Memory
| CPU Support | Intel Core Ultra Processors (Series 2), Turbo Boost Technology 2.0, Turbo Boost Max Technology 3.0 |
|---|---|
| Memory Type | DDR5 Non-ECC, Un-buffered CUDIMM |
| Memory Slots | 2 x DIMM |
| Max Memory | 128GB |
| Memory Speeds | Up to 7200MT/s with Core Ultra 200S Plus / 6400MT/s with Core Ultra 200S |
| Memory Features | XMP, AEMP II, DIMM Fit, DIMM Fit Pro |
Storage & Expansion
| M.2 Slots | 1 x (PCIe 4.0 x4), supports 2242/2260/2280 |
|---|---|
| SATA Ports | 4 x SATA 6Gb/s |
| PCIe Slots | 1 x PCIe 4.0 x16 (SafeSlot Core+), 1 x PCIe 4.0 x1 |
Connectivity & Audio

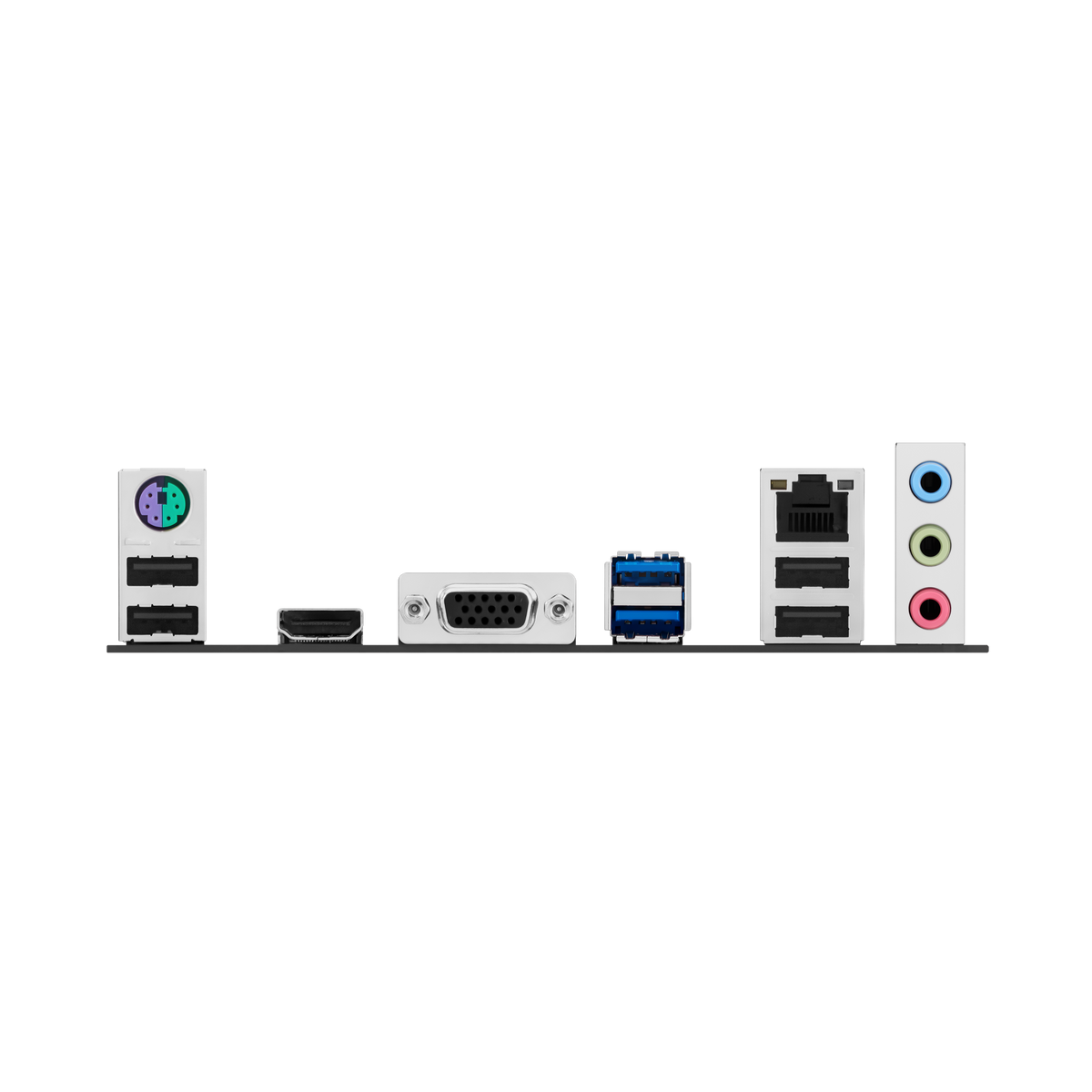

| Rear USB Ports | 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
|---|---|
| Front USB Connectors | 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| Network | 1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| Audio | Realtek 7.1 Surround Sound HD CODEC, 24-Bit/192 kHz, Audio Shielding |
| Video Output | 1 x VGA, 1 x HDMI (4K@60Hz) |
Cooling & Power
| Power Phases | 6+1+1+1 phase digital design with discrete MOSFETs |
|---|---|
| Power Connectors | 1 x 24-pin Main Power, 1 x 8-pin +12V CPU Power |
| Fan Headers | 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan (hybrid PWM/DC auto-detect) |
| Cooling Features | Chipset heatsink, Fan Xpert 2+ software |
Software & Features
| BIOS | UEFI AMI BIOS, 2 x 16MB Flash ROM |
|---|---|

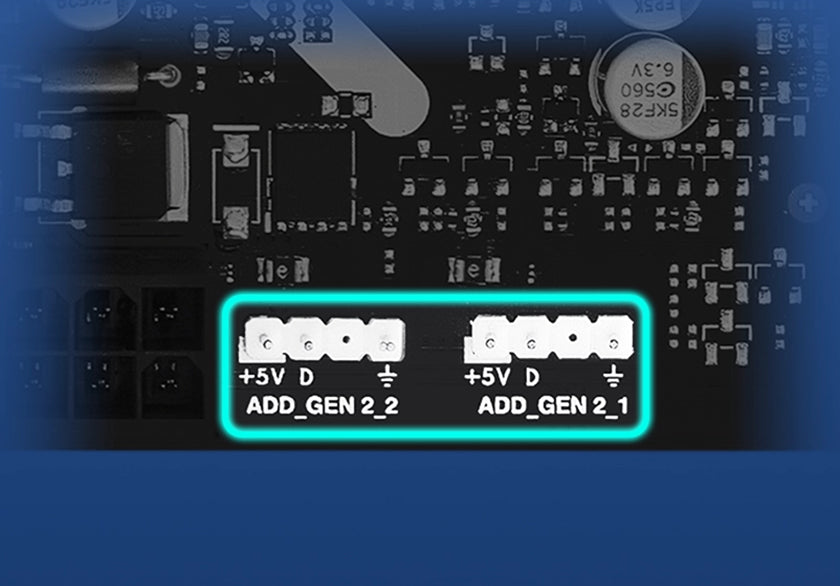

| RGB Control | Aura Sync, 3 x Addressable RGB Gen2 headers |
| Supported OS | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
