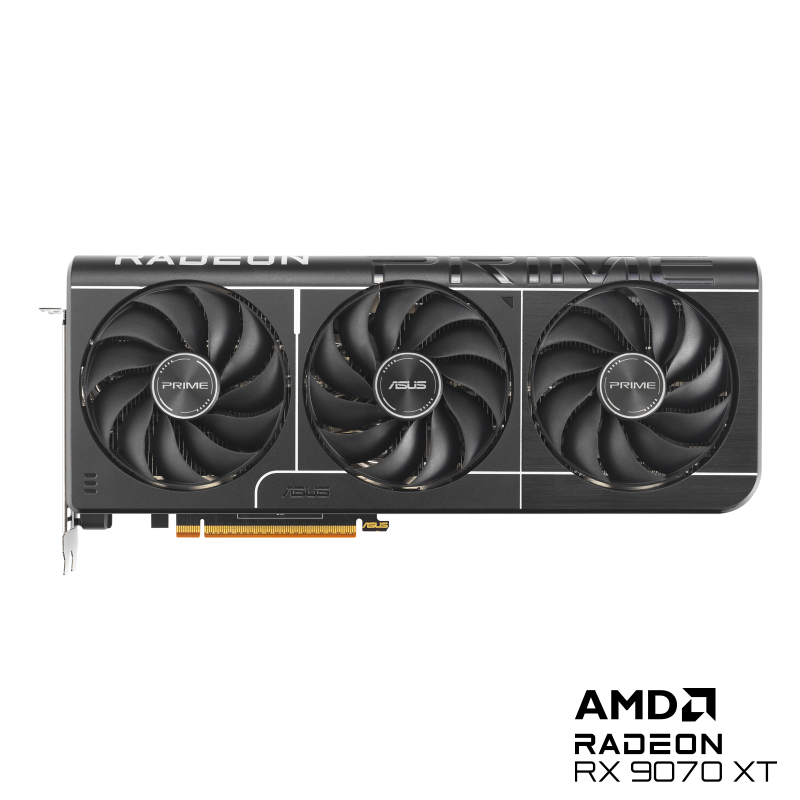

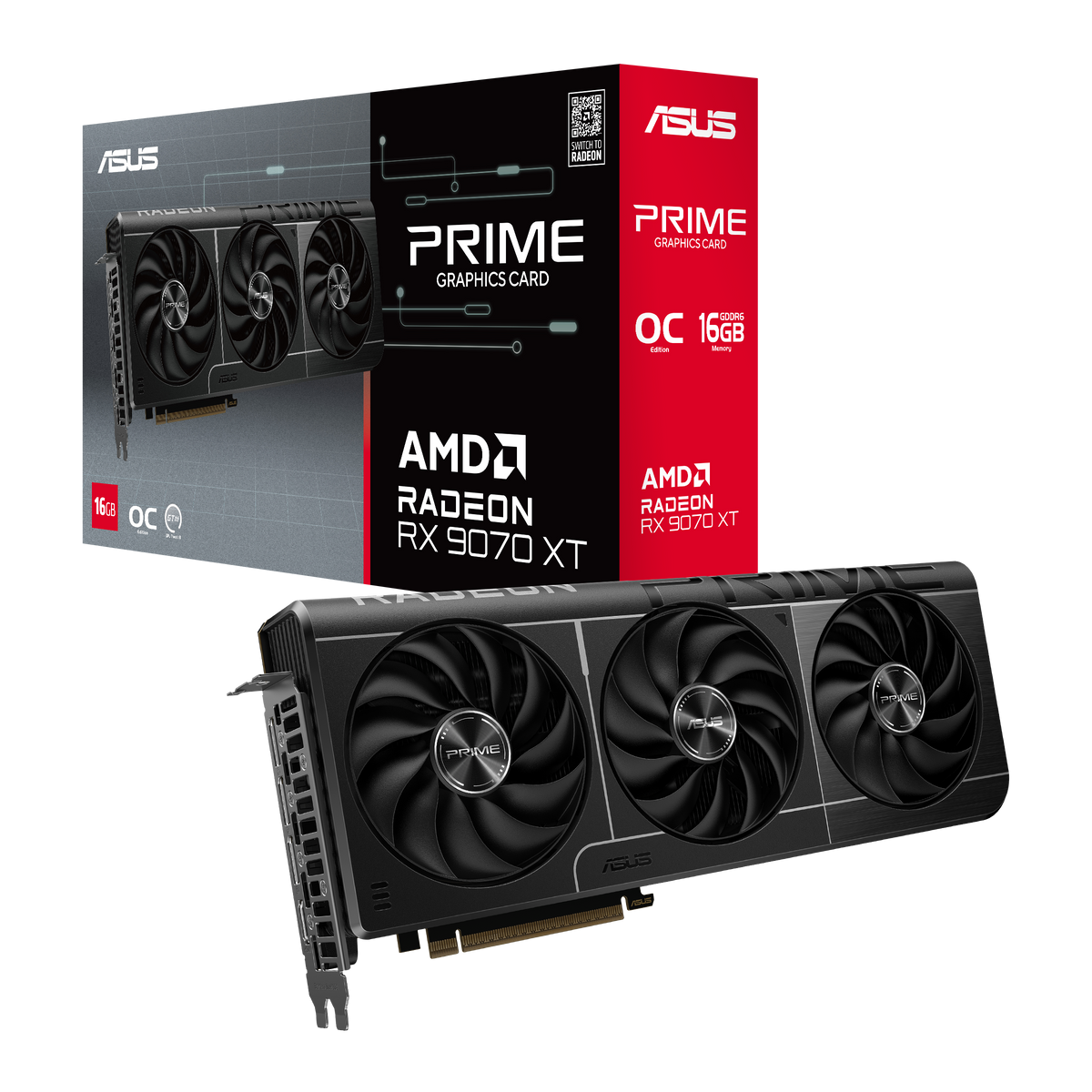

ASUS Prime Radeon RX 9070 XT OC 16GB GDDR6 Graphics Card
ASUS
ASUS Prime Radeon RX 9070 XT OC 16GB GDDR6 Graphics Card

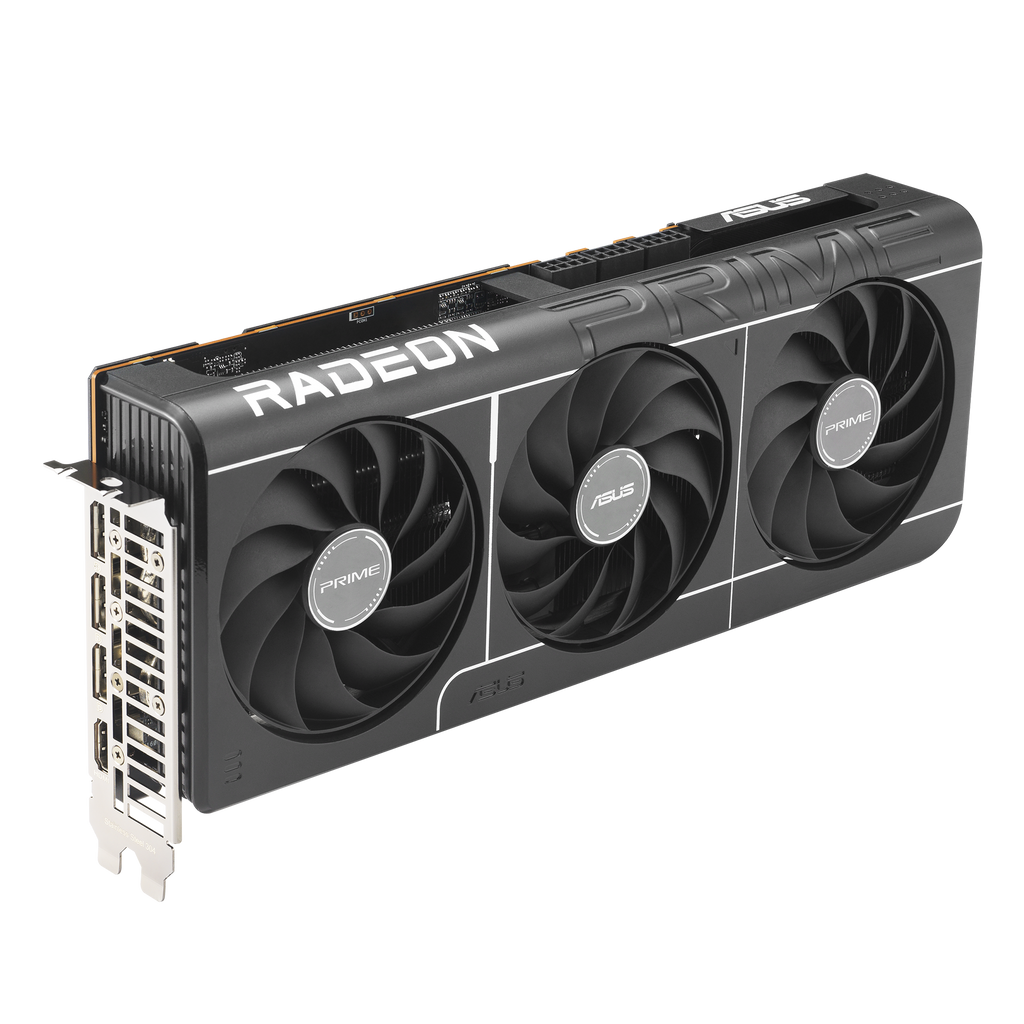

The ASUS Prime Radeon RX 9070 XT OC is a compact 16GB graphics card built for gamers and creators who need strong performance without taking up excessive case space. Its 2.5-slot design, triple axial-tech fans and phase-change thermal pad keep temperatures low during intensive work, while dual BIOS modes let you toggle between performance and quiet operation.
Why this product
2.5-slot compact design
Fits smaller cases and builds where full-size dual-slot cards won't fit, expanding compatibility without sacrificing cooling performance.

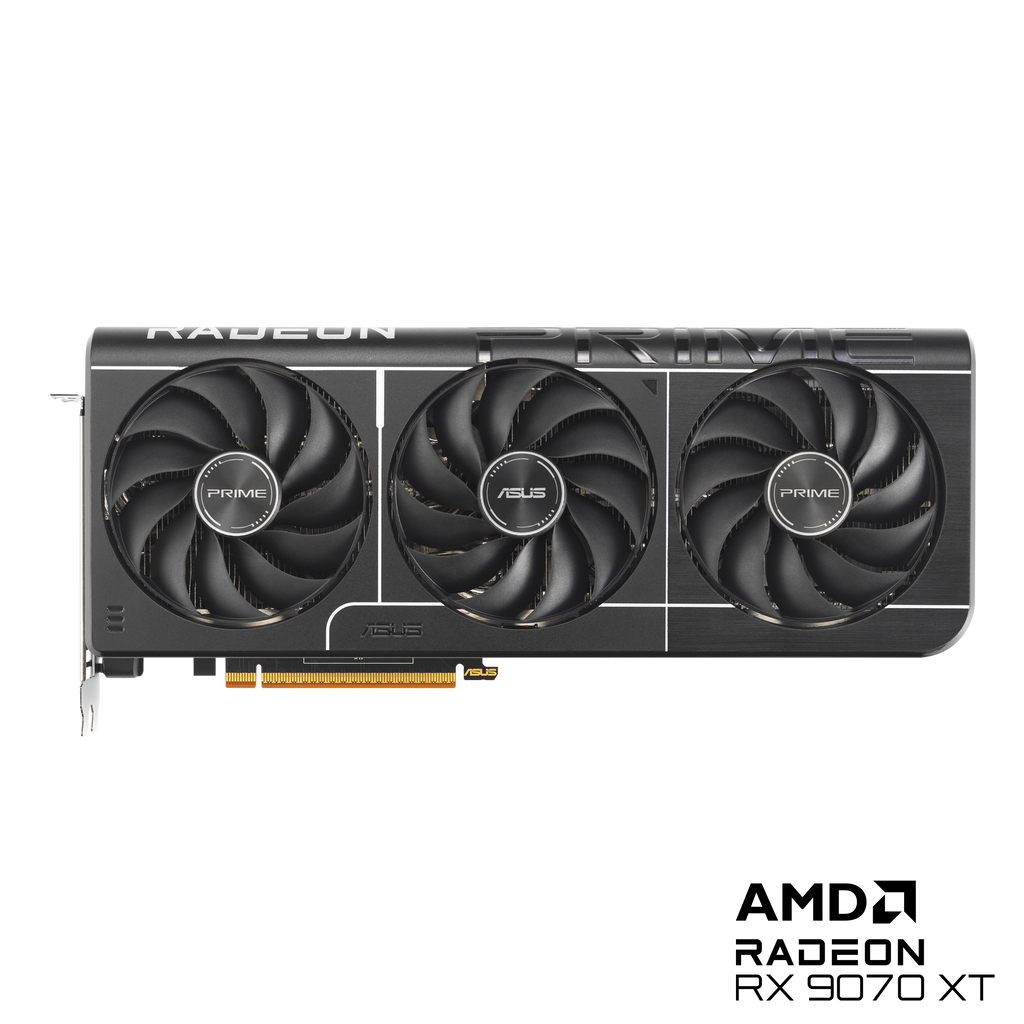

Three axial-tech fans
Longer blades and a barrier ring increase downward air pressure, lowering temperatures and noise while leveraging chassis airflow.
Phase-change GPU thermal pad
Paired with MaxContact surface expansion and extensive heatsink array, it improves heat dissipation by up to 2°C and defends against thermal throttling.
Dual BIOS for mode switching
Toggle between Performance and Quiet modes without rebooting, adapting the card to your workload or ambient noise tolerance.
GPU Tweak III tuning suite
Adjust GPU core clocks, memory frequency and voltage with real-time on-screen monitoring and advanced fan control.
- Memory16GB GDDR6
- Memory Speed20 Gbps
- Boost Clock (OC mode)up to 3030 MHz
- Dimensions312 × 130 × 50 mm

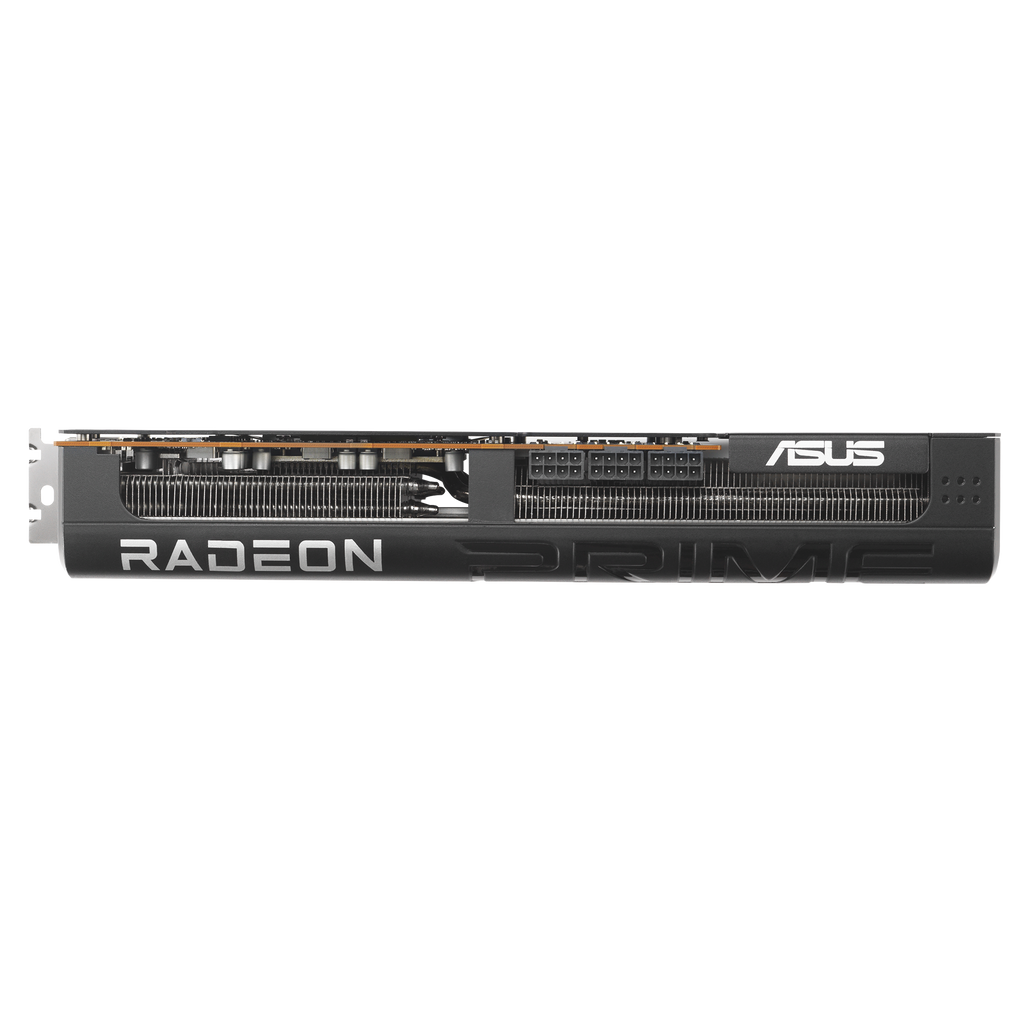

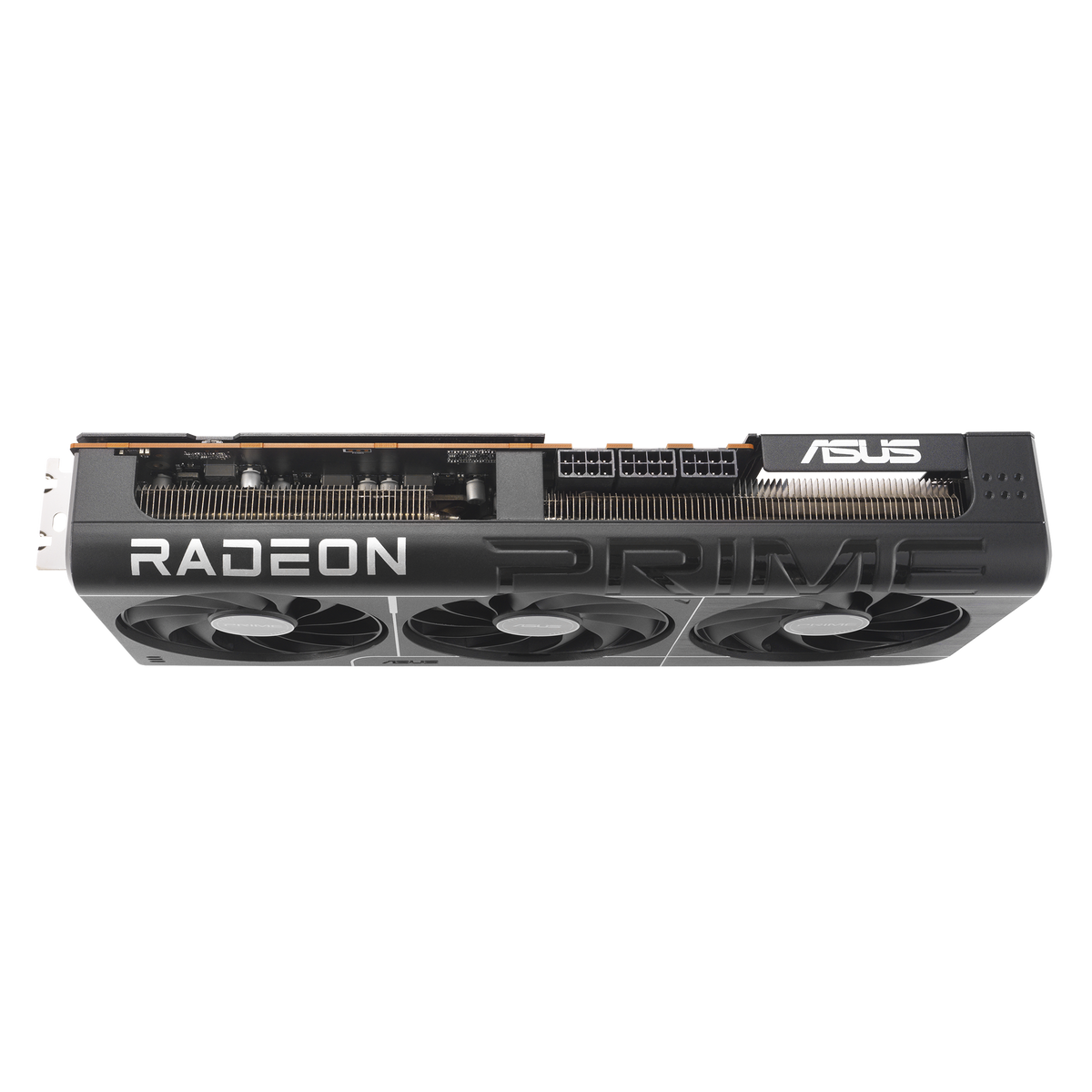

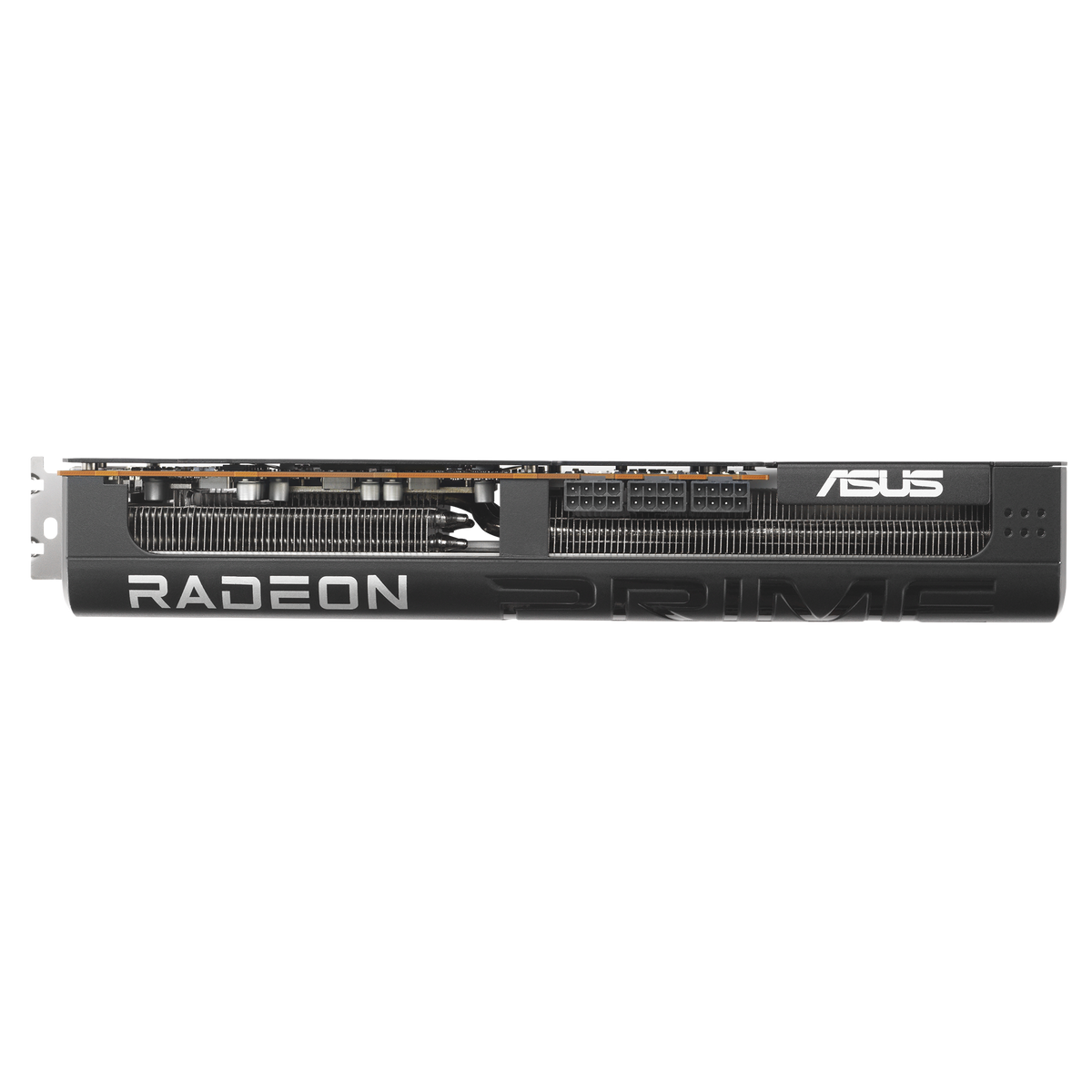

- Power Connectors3 × 8-pin
- Maximum Displays4
- SKUASU-4106
- EAN4711387829585
- PCIe 5.0 motherboards; also backward compatible with older PCIe slots at reduced bandwidth.
- Fits small-form-factor cases and builds where a standard dual-slot or full-size card is too wide.

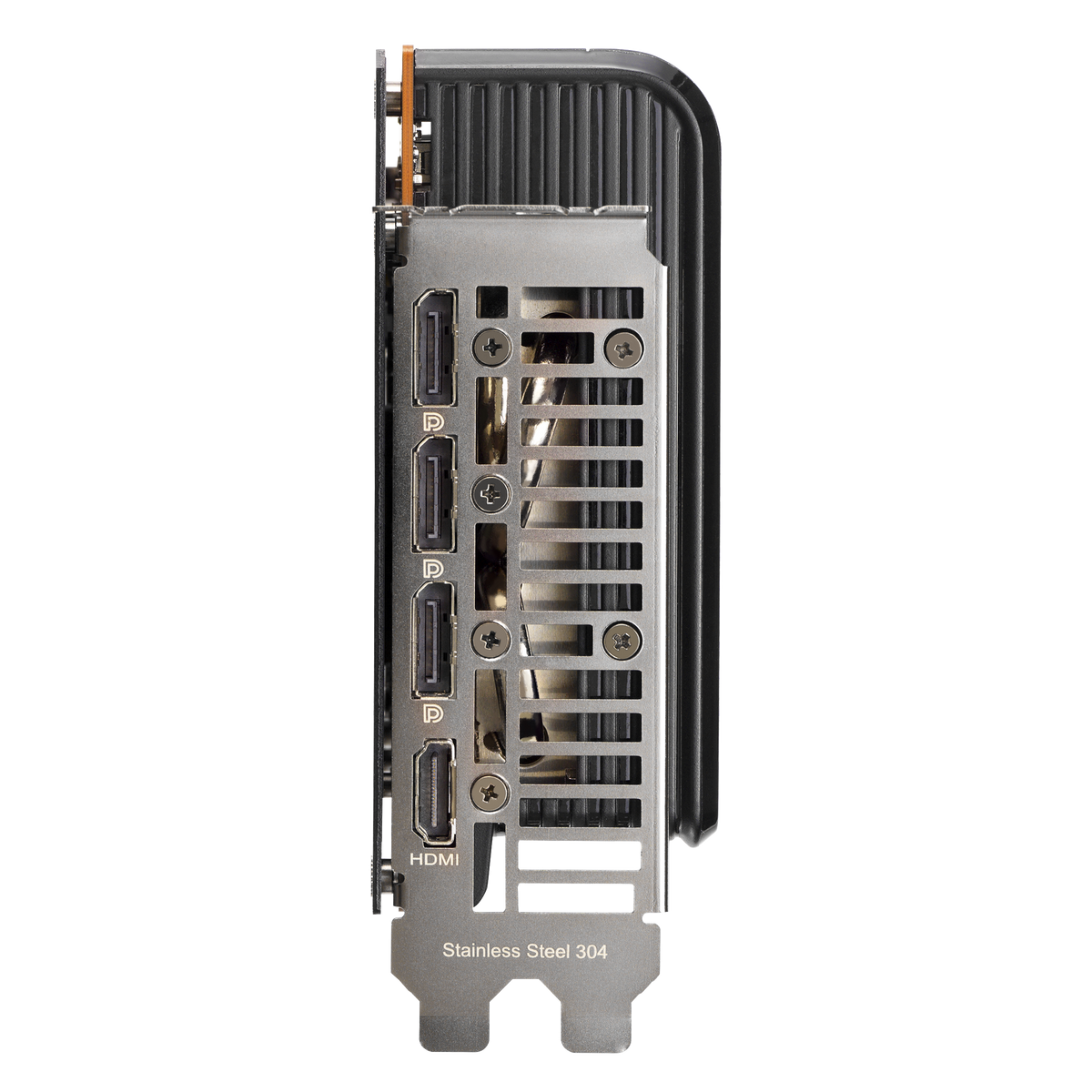

- Supports up to 4 displays simultaneously via 1× HDMI 2.1b and 3× DisplayPort 2.1a.
- Requires 750W PSU minimum (based on fully overclocked GPU and CPU system) and three 8-pin power connectors.
- Does not support GPU linking or Crossfire multi-GPU configurations.
Best for
- Small-form-factor and ITX builds where standard graphics cards are too wide.
- Gamers and creators balancing thermal performance with noise—dual BIOS modes and triple-fan cooling handle both demands.
- Users who want GPU tuning depth without external hardware; GPU Tweak III covers clocks, memory, voltage and fan profiles.
- Multi-monitor setups needing four simultaneous displays across HDMI and DisplayPort outputs.
Trade-offs
- Single-GPU setups requiring Crossfire or NVLink for dual-card scaling; this card does not support those technologies.
- Systems with less than 750W power supplies; three 8-pin connectors and OC headroom demand substantial headroom.
- Users avoiding overclocking or GPU clock tuning; peak performance in OC mode requires active management via GPU Tweak III.
Experience Primal performance with the Prime Radeon™ RX 9070 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.

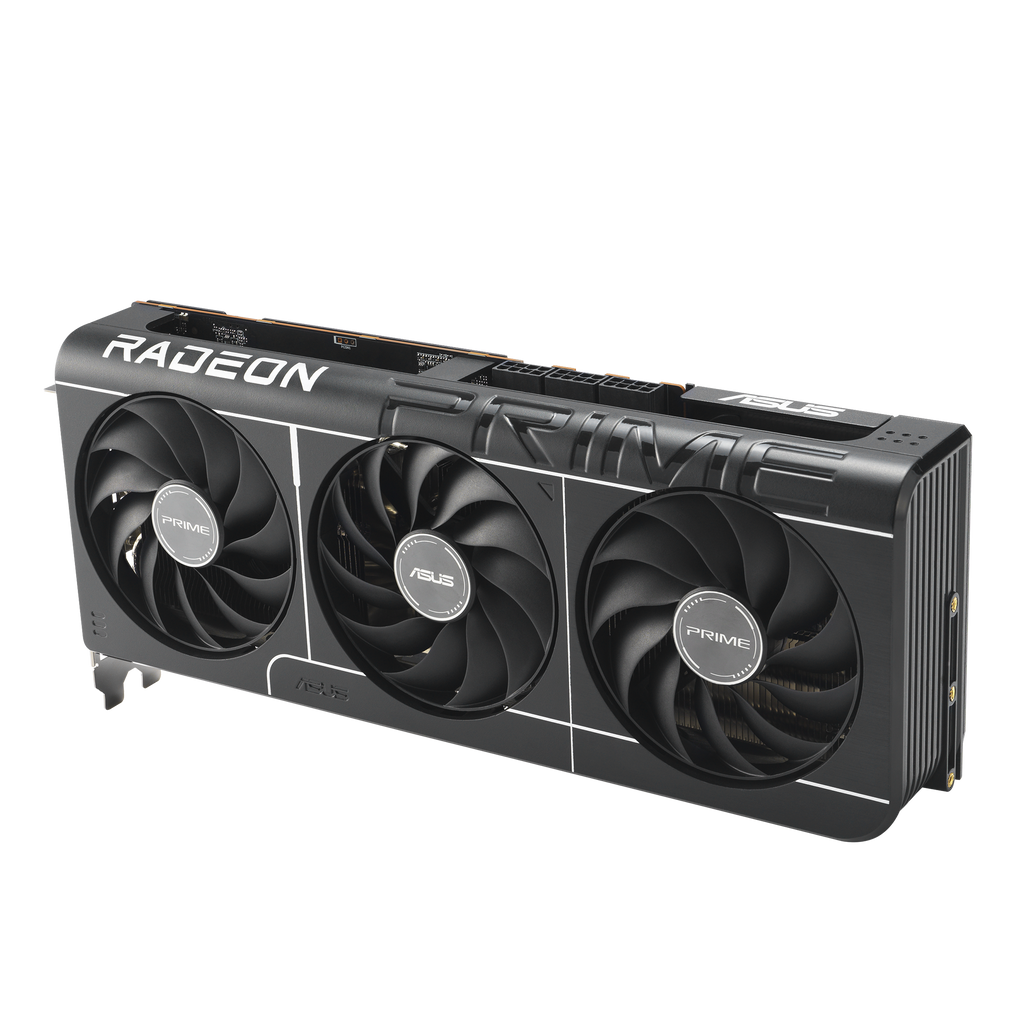

The Prime Radeon™ RX 9070 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

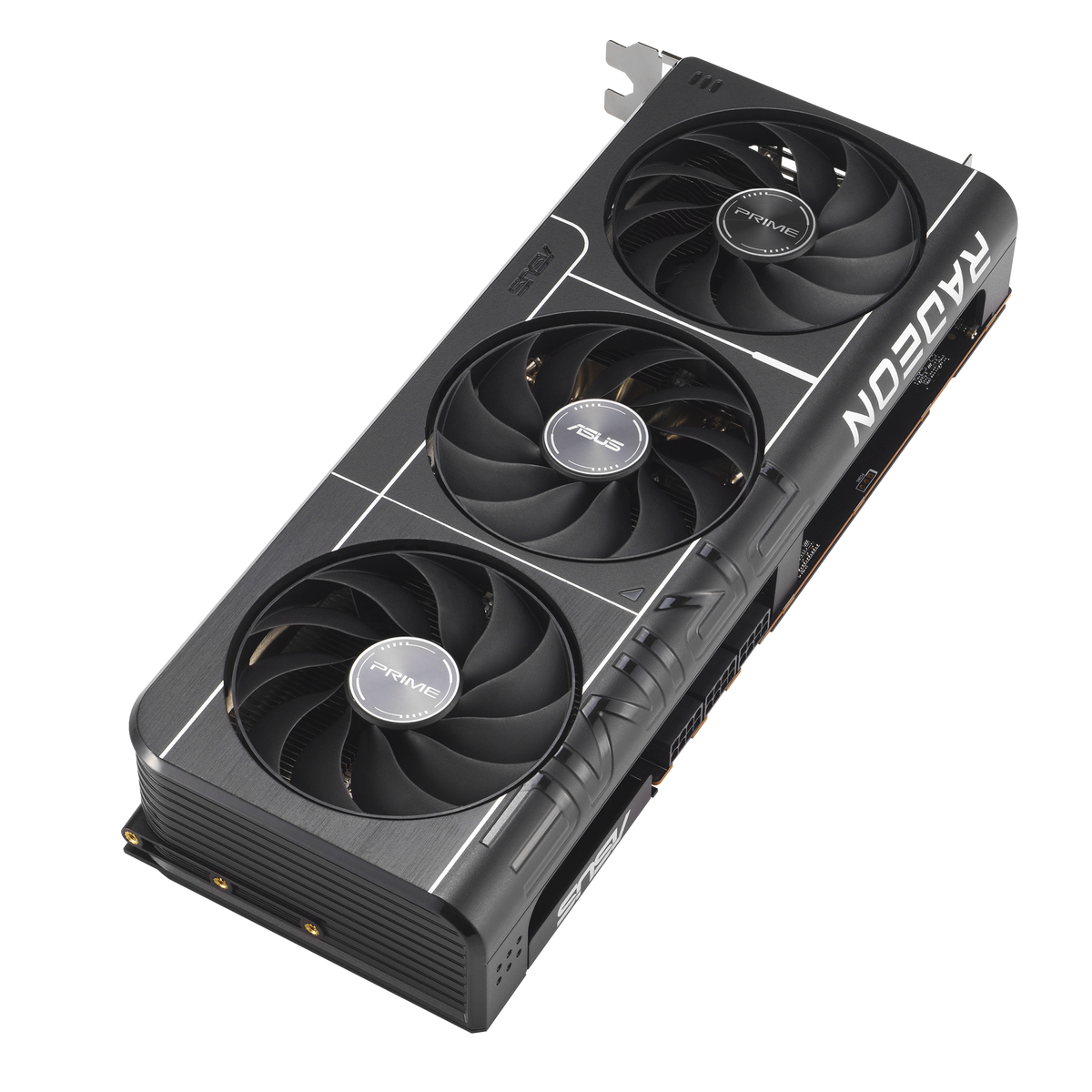

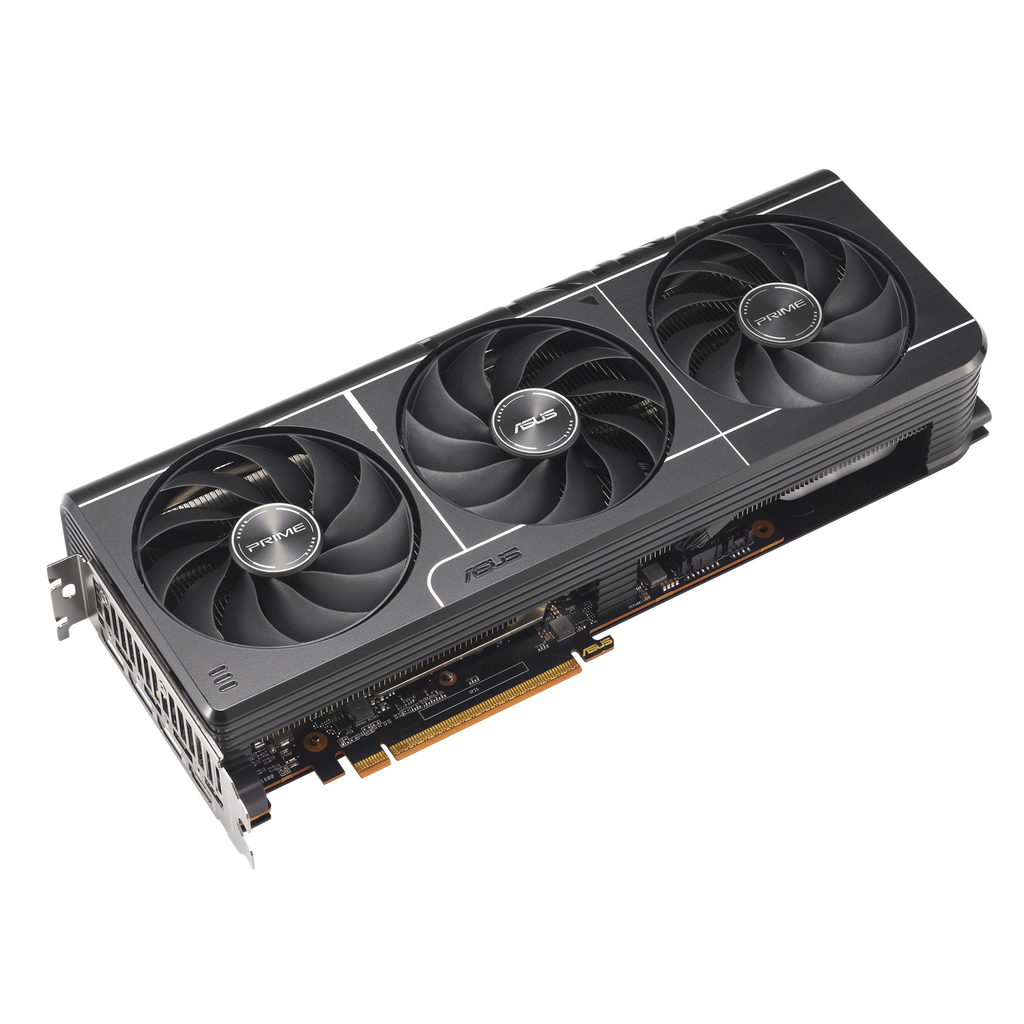

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

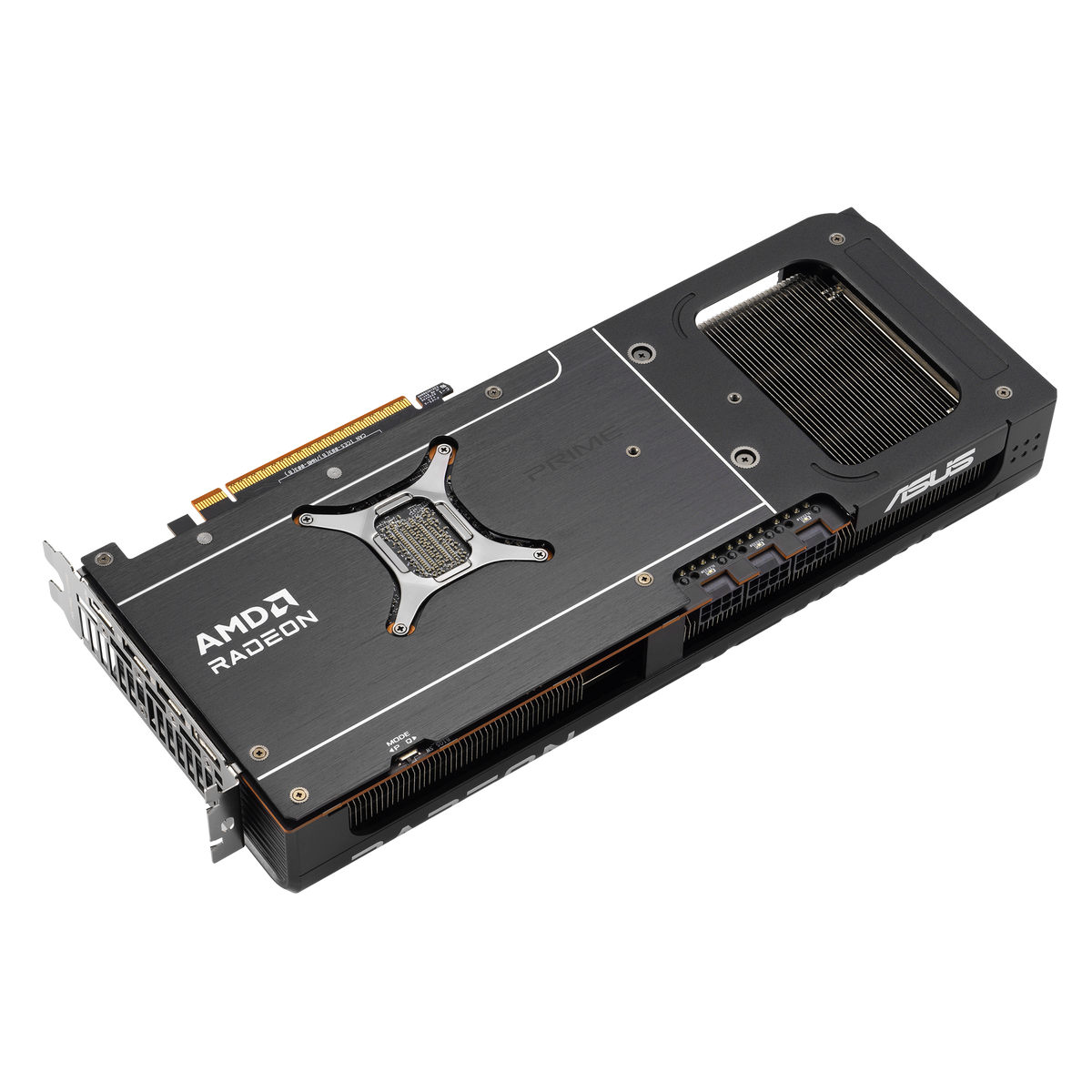

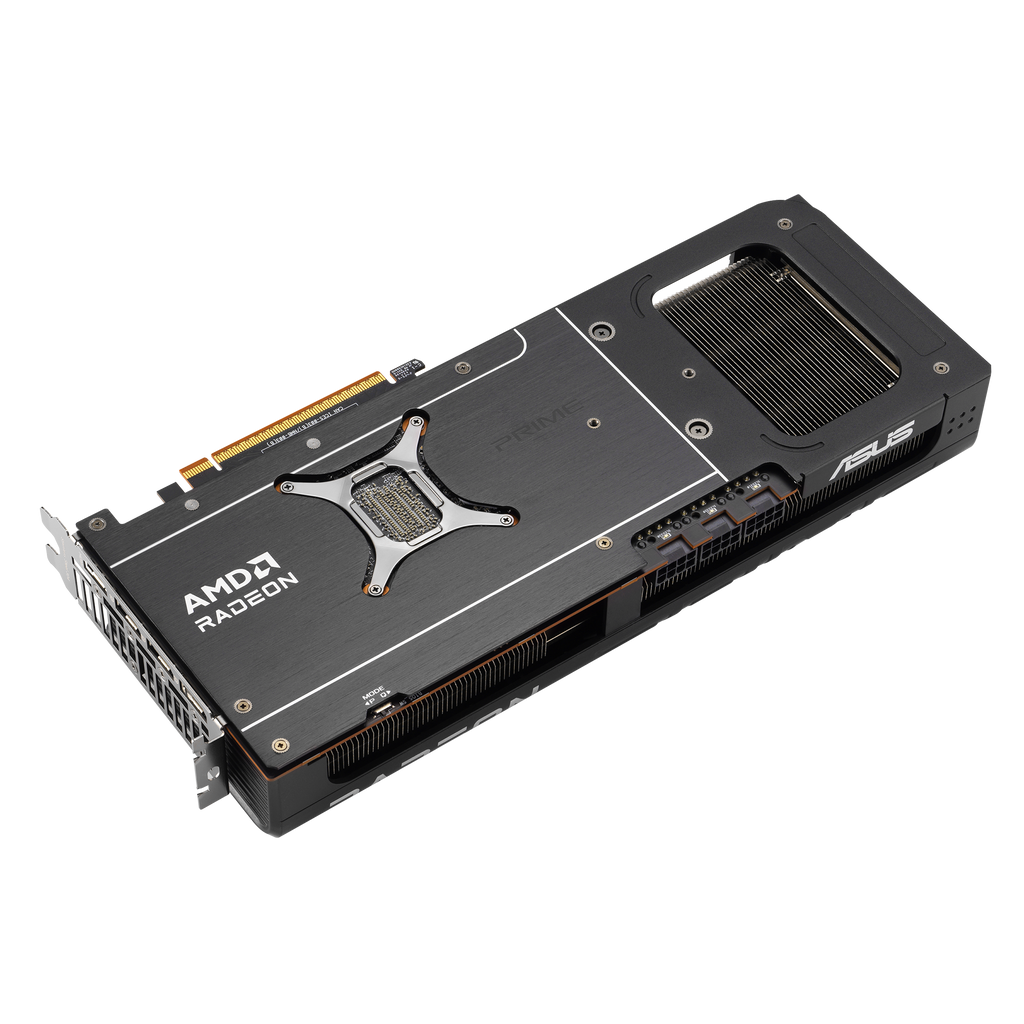

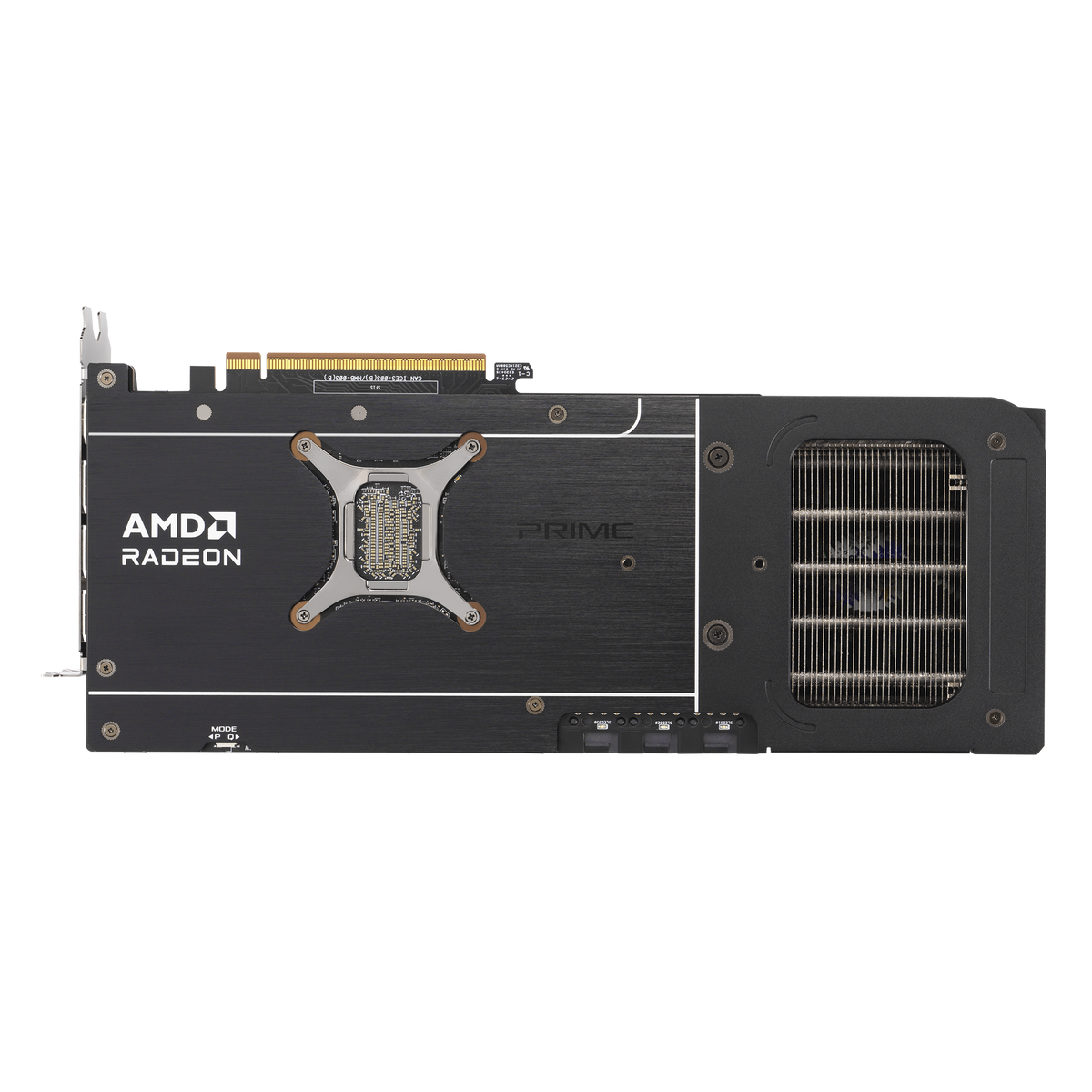

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.
Graphics Engine
| Brand | ASUS |
|---|---|
| GPU | AMD Radeon RX 9070 XT |
| Architecture | Stream Processors: 4096 |
| Bus Standard | PCI Express 5.0 |
Memory & Performance
| Video Memory | 16GB GDDR6 |
|---|---|
| Memory Interface | 256-bit |
| Memory Speed | 20 Gbps |
| Boost Clock (OC mode) | up to 3030 MHz |
| Game Clock (OC mode) | up to 2480 MHz |
| Boost Clock (Default mode) | up to 3010 MHz |
| Game Clock (Default mode) | up to 2460 MHz |
| Maximum Display Resolution | 7680 × 4320 |
Cooling & Power
| Cooling Design | Triple axial-tech fans, phase-change GPU thermal pad, MaxContact heatspreader, dual-ball bearings |
|---|---|
| Slot Configuration | 2.5 Slot |
| Power Connectors | 3 × 8-pin |
| Recommended PSU | 750W |
Connectivity & Features
| HDMI Output | 1 × HDMI 2.1b |
|---|---|
| DisplayPort Output | 3 × DisplayPort 2.1a |
| Maximum Displays | 4 |
| Dual BIOS | Performance and Quiet modes |
| Software | ASUS GPU Tweak III, AMD FidelityFX Super Resolution 4 |
| OpenGL | OpenGL 4.6 |
Physical
| Dimensions | 312 × 130 × 50 mm |
|---|
