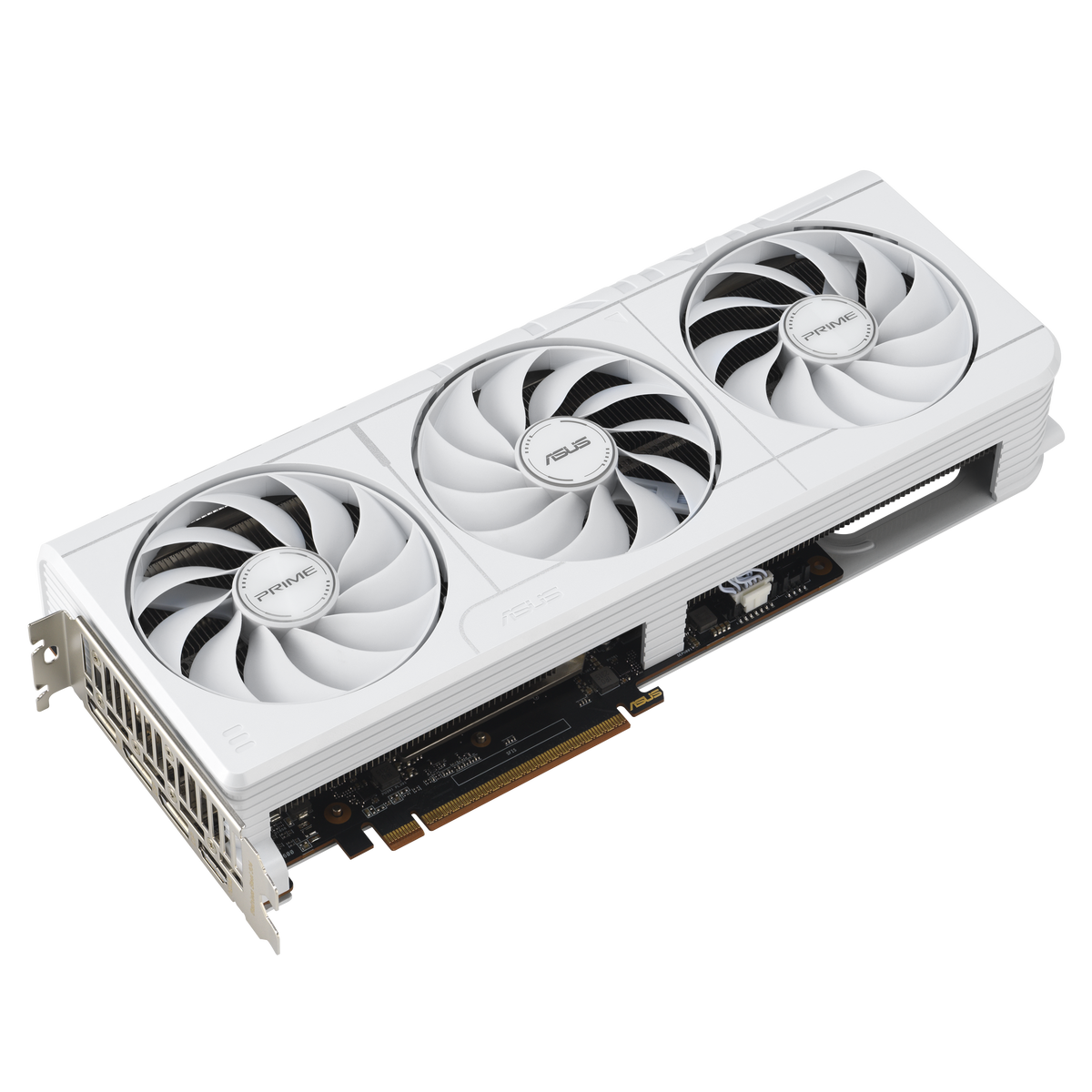

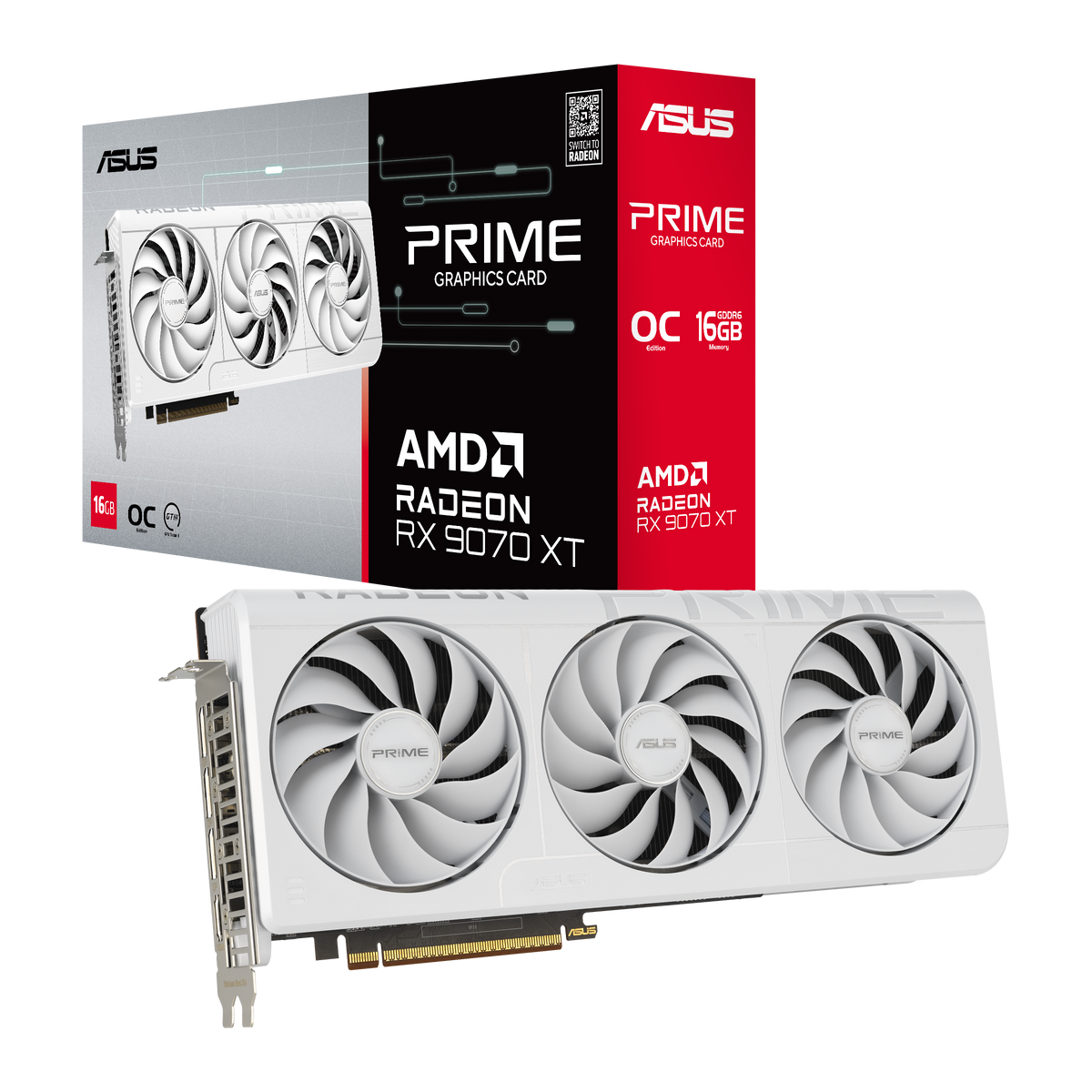

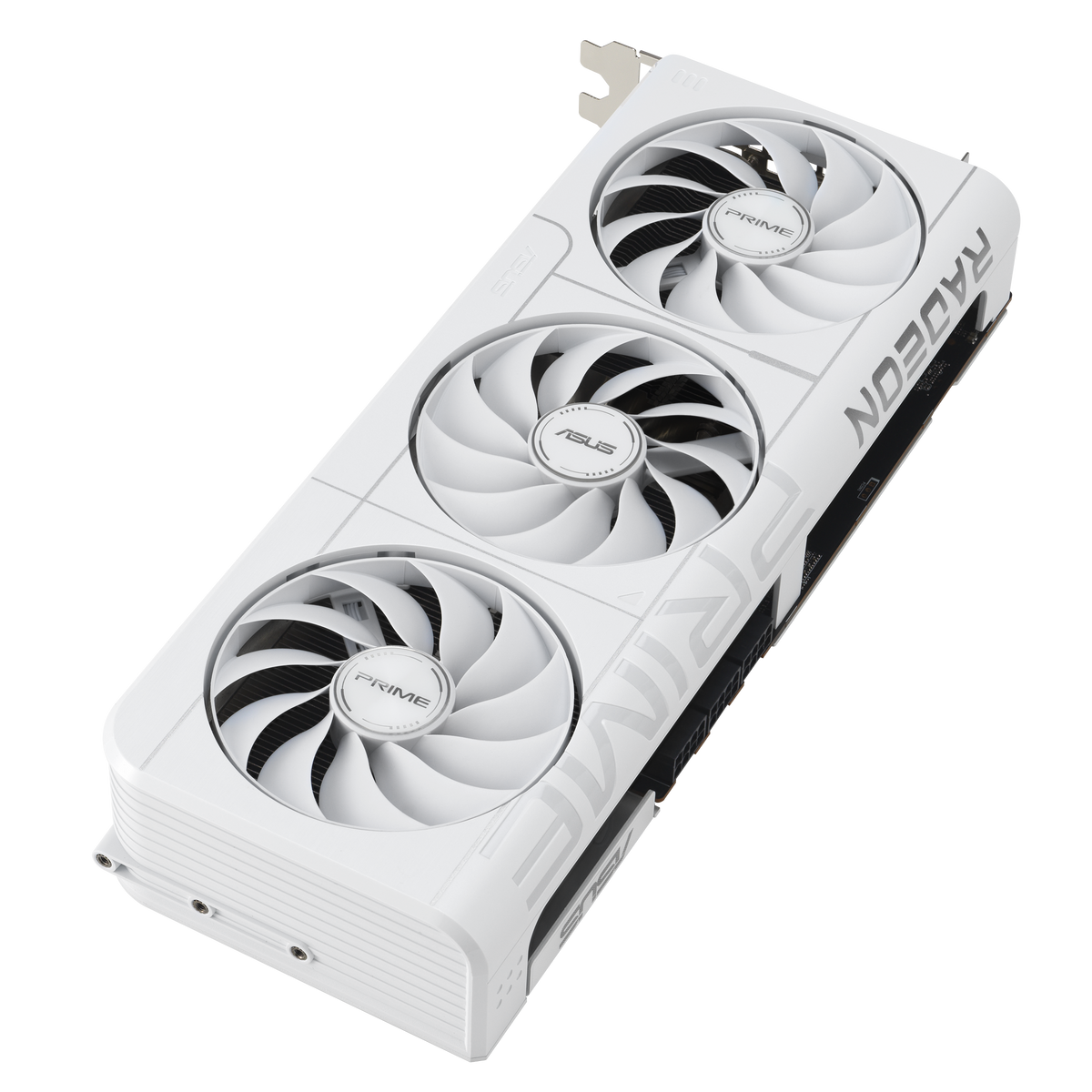

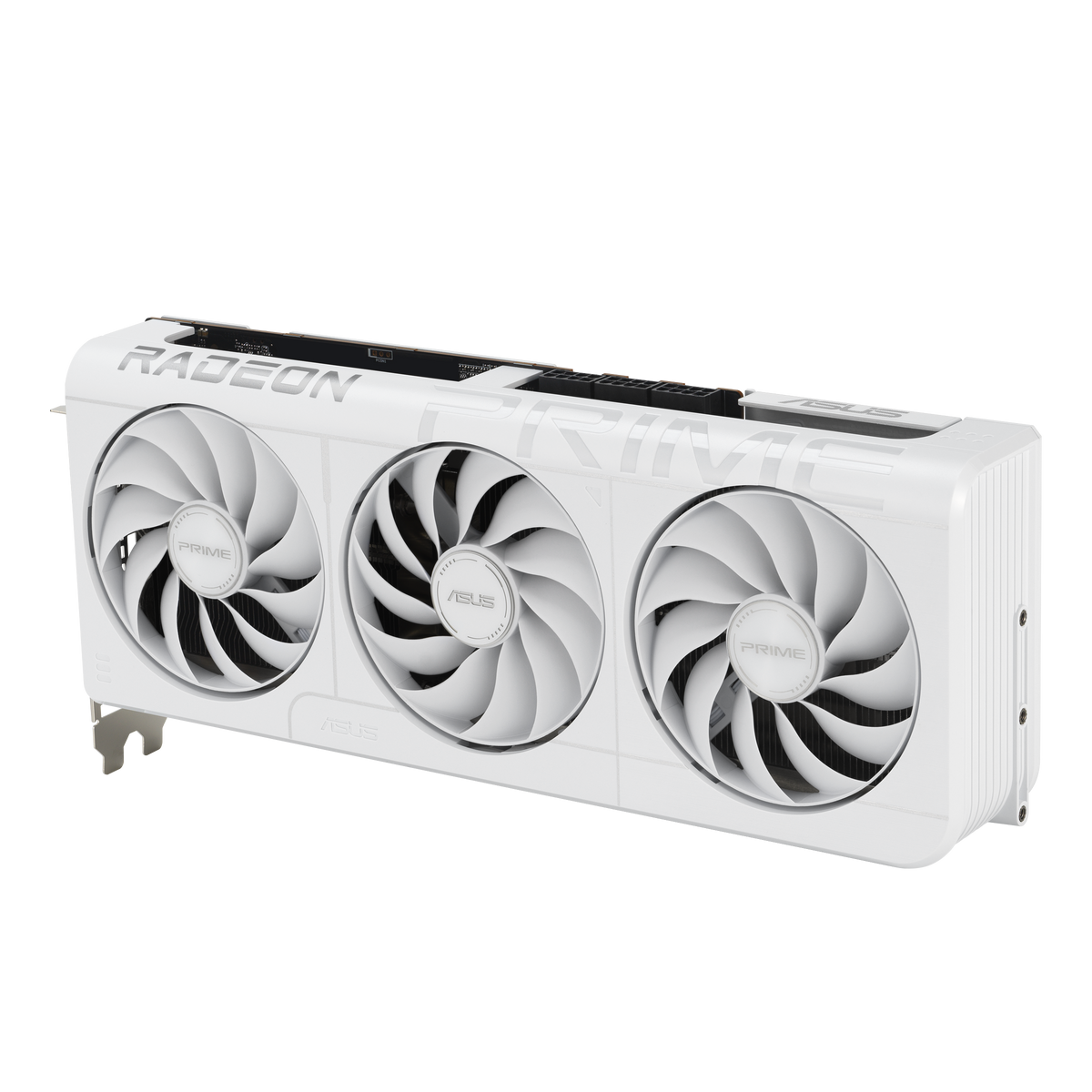

ASUS Prime Radeon RX 9070 XT White OC 16GB GDDR6 GPU
ASUS
ASUS Prime Radeon RX 9070 XT White OC 16GB GDDR6 GPU
The ASUS Prime Radeon RX 9070 XT White OC 16GB GDDR6 GPU is a full-featured discrete graphics card built for gamers and creators who want capable performance in a compact, well-cooled package. Its 2.5-slot form factor and triple Axial-tech fan array make it accessible to a wider range of cases, while features like dual BIOS, a phase-change thermal pad, and AI-powered AMD FidelityFX Super Resolution 4 address the real-world concerns of noise, heat, and image quality.
Why this product

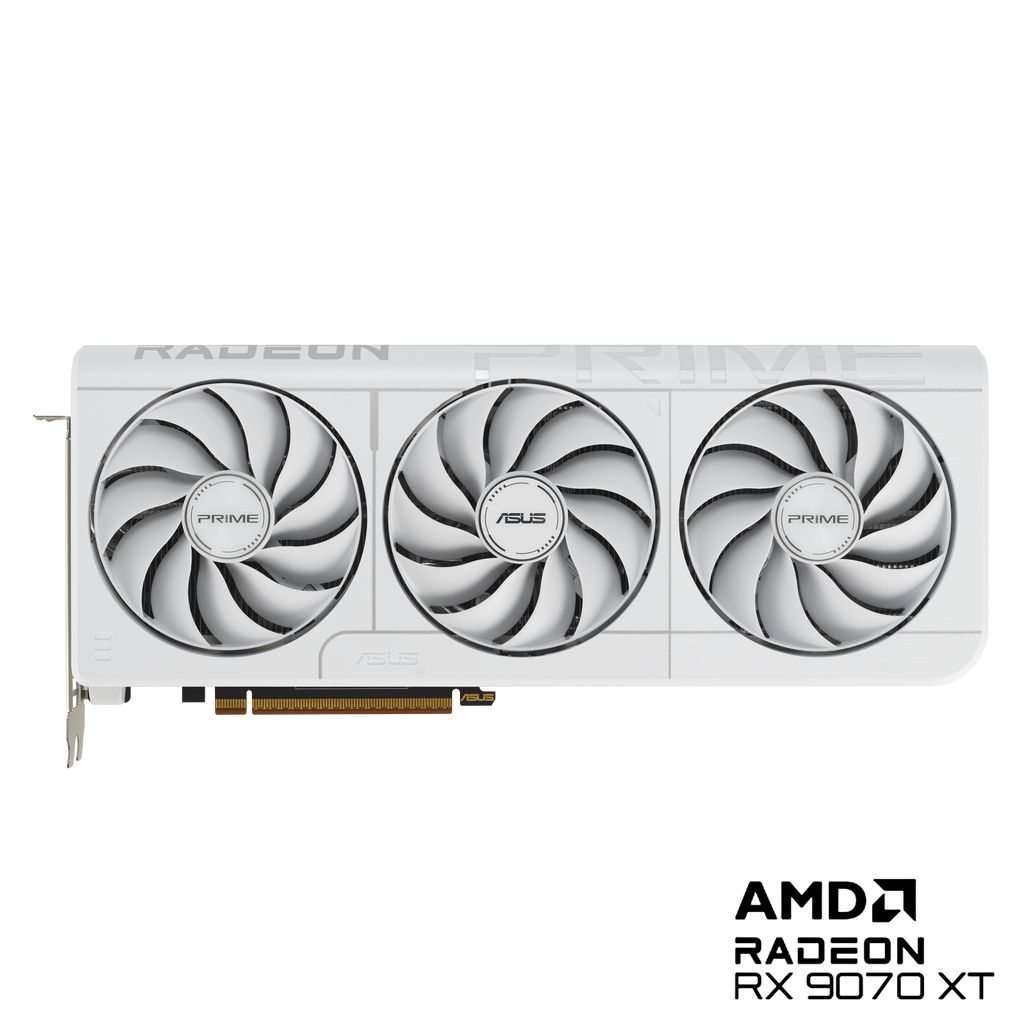

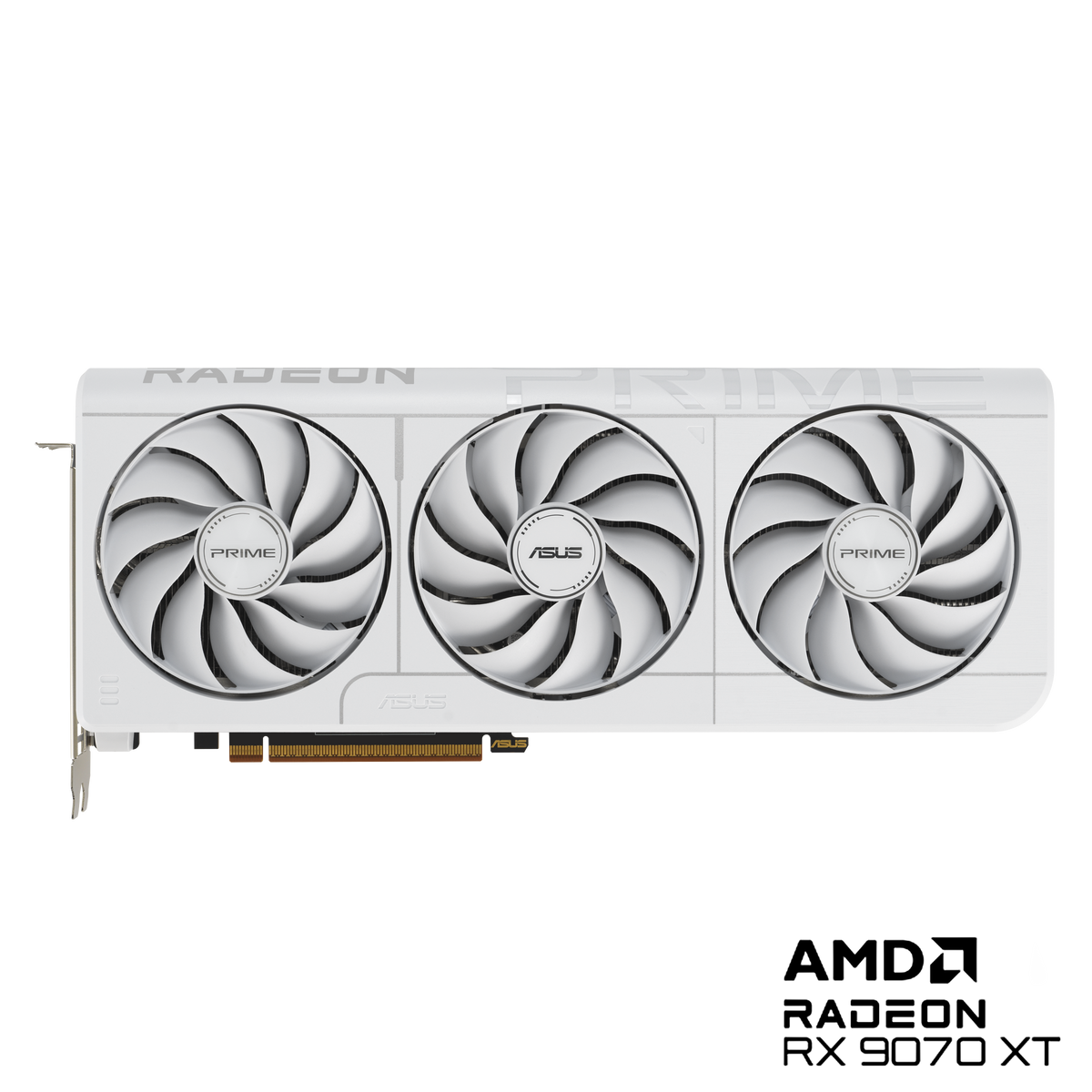

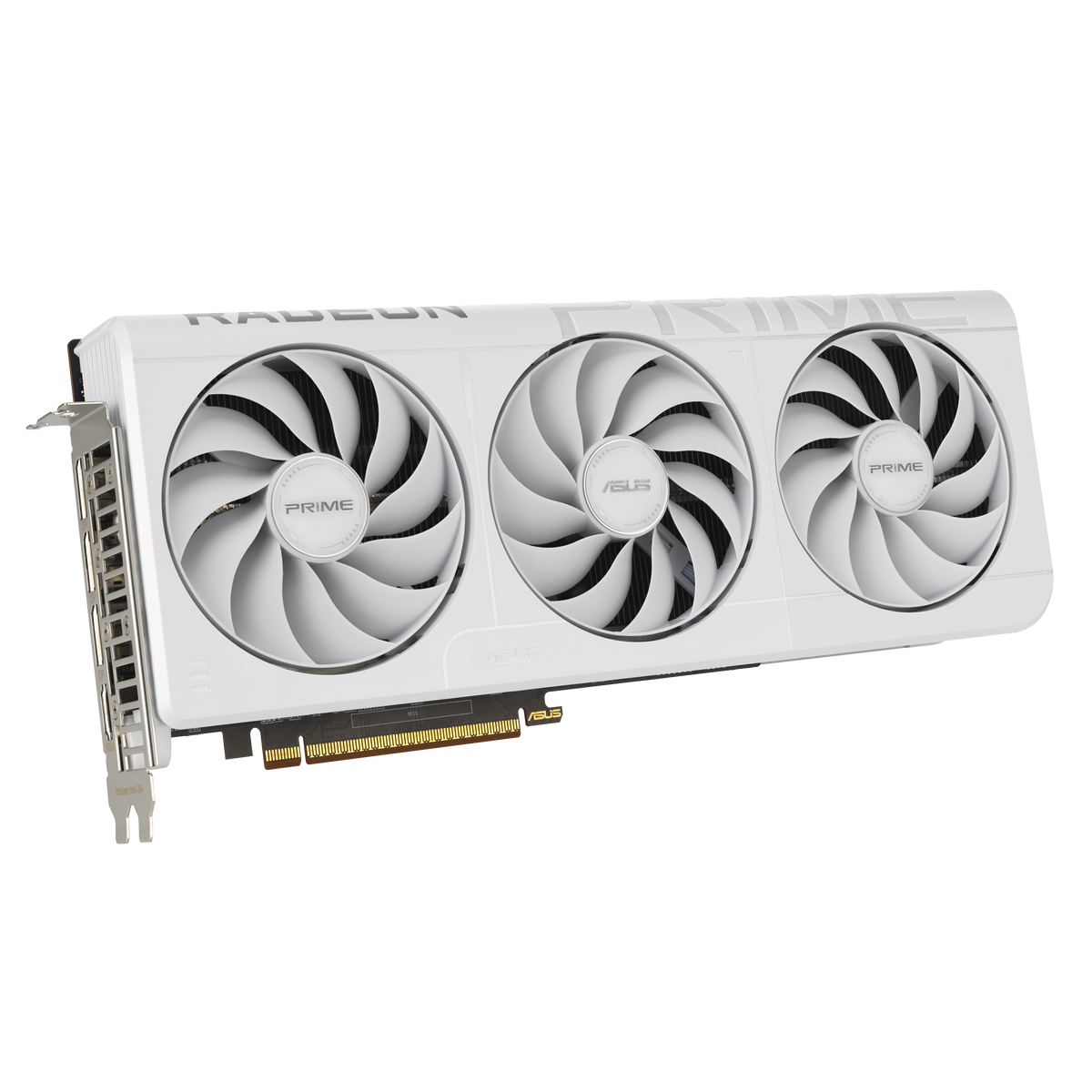

Triple Axial-tech fans with 0dB idle
Three Axial-tech fans use longer blades and a barrier ring to increase downward air pressure. All three stop completely when GPU temperatures stay below 55°C, then resume above 60°C.
2.5-slot design for broader case compatibility
A carefully arranged shroud, heatsink, and heat-pipe layout keeps the card to just 2.5 slots and 312 x 130 x 50 mm, making it easier to fit in tighter builds than a full 3-slot card.
Phase-change GPU thermal pad
A phase-change thermal pad melts to fill micro-gaps between the GPU die and the heatsink, improving thermal conductivity and heat dissipation under sustained load.
Dual BIOS for performance or quiet modes
A physical switch lets you toggle between Performance mode (up to 3030 MHz boost) and Quiet mode (up to 3010 MHz boost) without entering software.
16 GB GDDR6 on a 256-bit bus
16 GB of GDDR6 running at 20 Gbps over a 256-bit interface gives the card headroom for high-resolution textures and complex scenes.
Four displays up to 8K supported

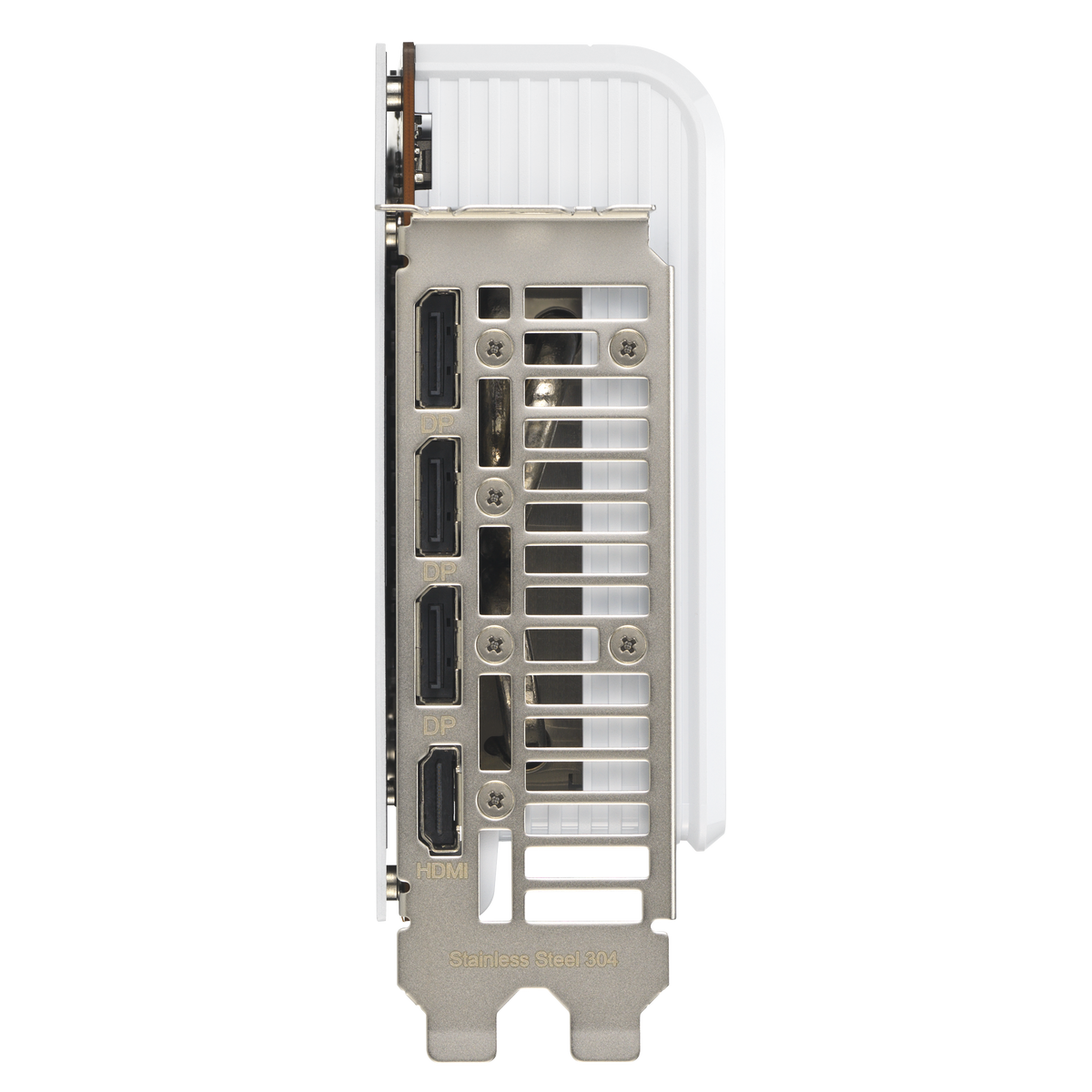

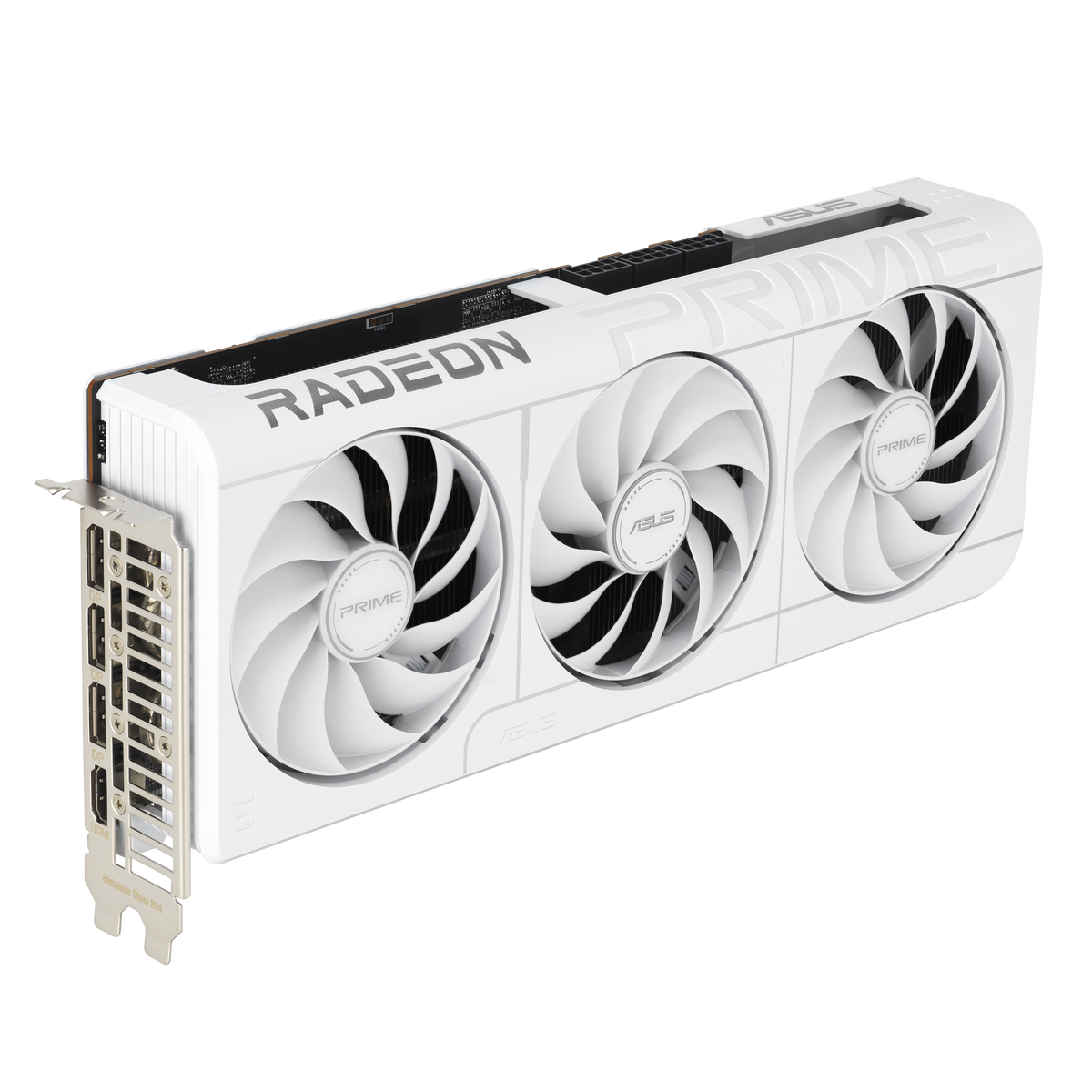

One HDMI 2.1b and three DisplayPort 2.1a outputs support up to four simultaneous displays at a maximum digital resolution of 7680 x 4320.
- GPUAMD Radeon RX 9070 XT
- Video Memory16 GB GDDR6
- Boost Clock (OC Mode)Up to 3030 MHz
- Memory Speed20 Gbps
- Slot Width2.5 Slot
- Card Dimensions312 x 130 x 50 mm
- Recommended PSU750 W
- Display Outputs1x HDMI 2.1b, 3x DisplayPort 2.1a
- SKUASU-3375
- EAN4711636234245
- Fits any case that accommodates a 2.5-slot card measuring 312 x 130 x 50 mm.
- Connects via PCI Express 5.0 and is backward compatible with PCIe slots on existing motherboards.
- Supports up to four simultaneous displays through one HDMI 2.1b and three DisplayPort 2.1a outputs.
- Requires a 750 W or higher PSU; ensure your current supply meets this minimum before purchasing.

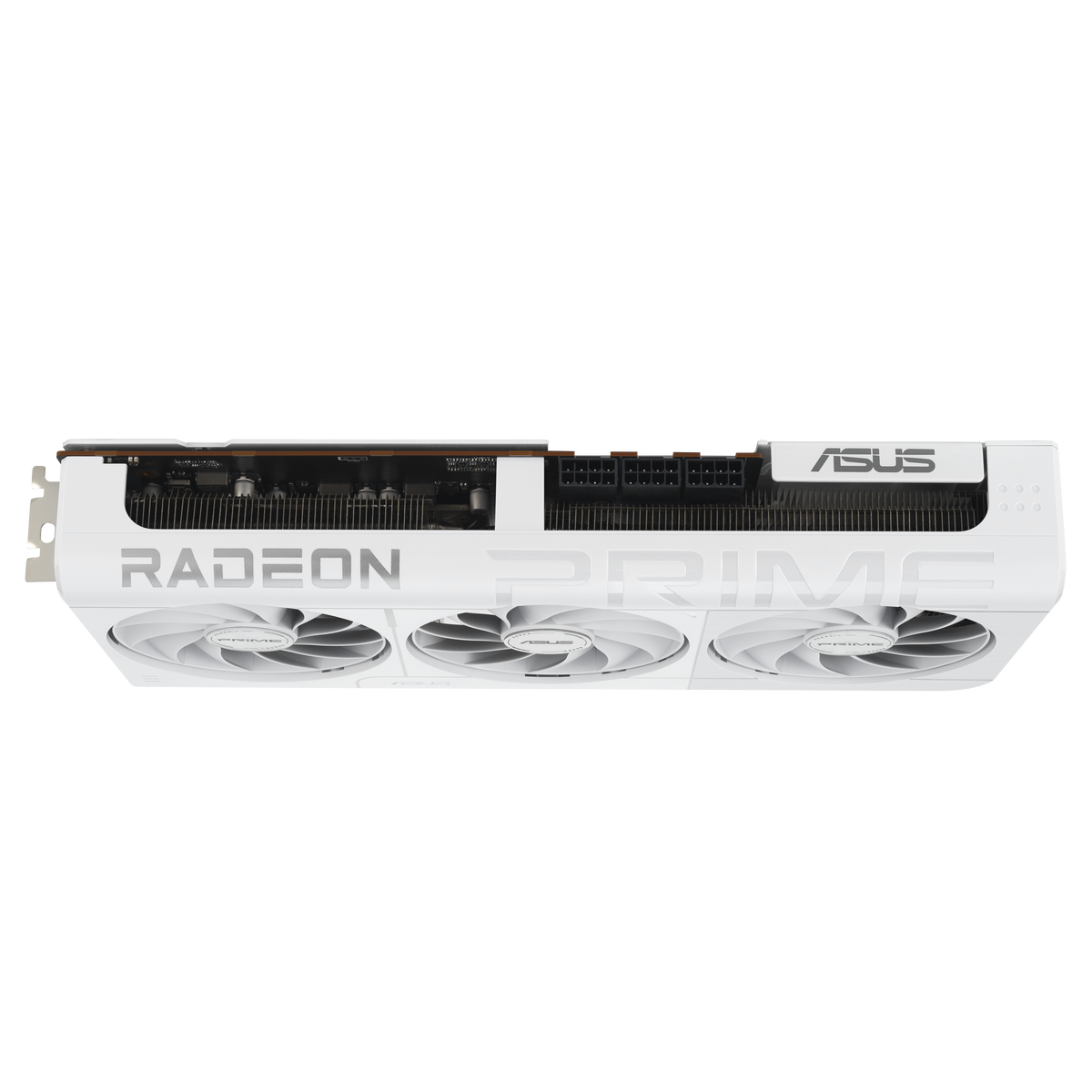

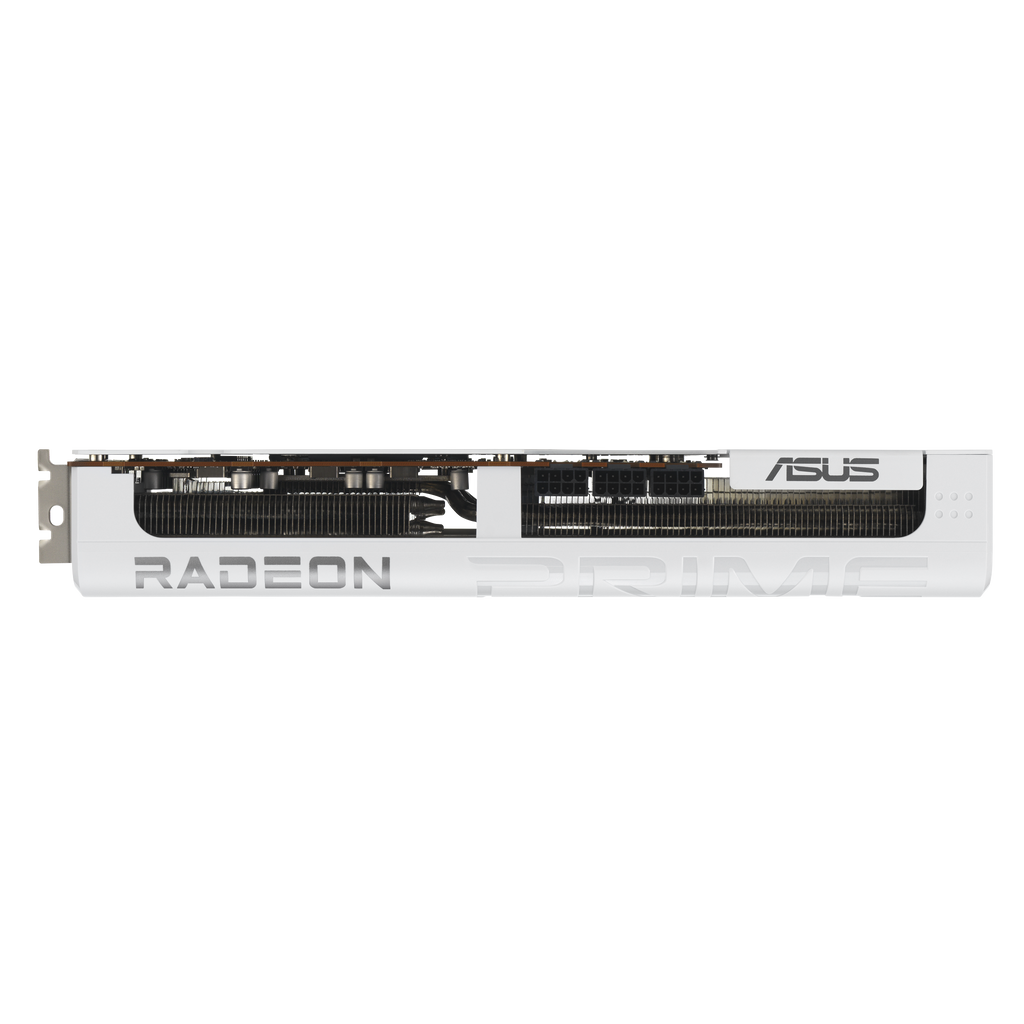

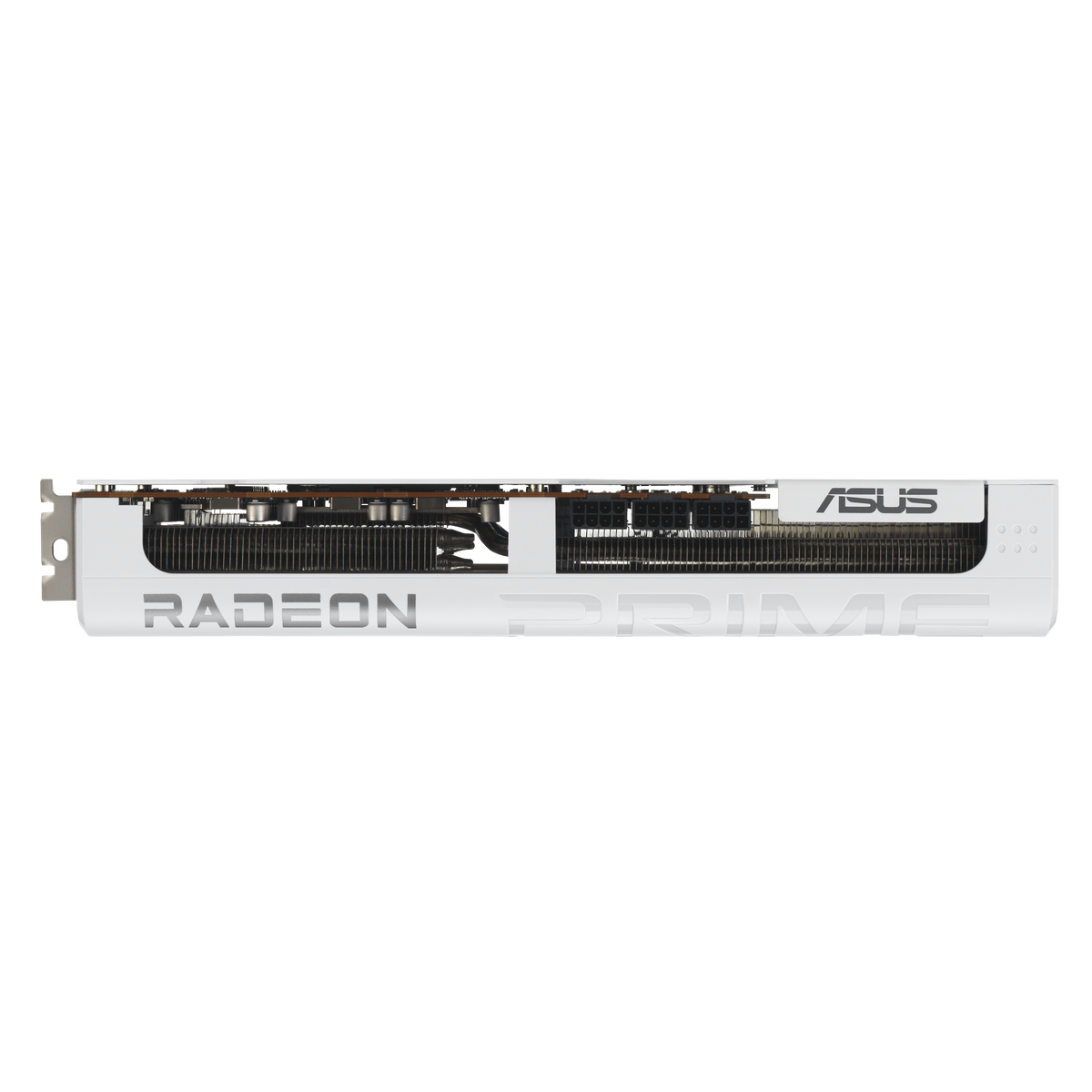

- Needs three available 8-pin PCIe power connectors from the power supply; check connector count before ordering.
- NVLink and CrossFire multi-GPU configurations are not supported on this card.
Best for
- High-resolution gaming: 16 GB GDDR6 and a 256-bit memory bus at 20 Gbps give it the memory bandwidth to handle demanding workloads at high resolutions.
- Multi-monitor setups: Four display outputs (HDMI 2.1b and three DisplayPort 2.1a) with support for up to a 7680 x 4320 digital maximum resolution suit users running multiple screens.
- Compact build owners: A 2.5-slot, 312 mm card fits cases too tight for typical 3-slot flagships, without sacrificing cooling hardware.
- Noise-sensitive environments: The 0dB fan-stop below 55°C and the Quiet BIOS mode together suit users working or gaming in shared or quiet spaces.
- AI-upscaling workflows: AMD FidelityFX Super Resolution 4 with advanced frame generation in supported titles benefits users who want higher visual quality from AI-assisted rendering.
Trade-offs
- Multi-GPU builds: CrossFire and NVLink are explicitly not supported, so buyers planning a linked dual-card setup should look elsewhere.
- Underpowered systems: The recommended PSU is 750 W and three 8-pin connectors are required; systems below that threshold cannot run this card.
- Single-slot or very restricted cases: Even at 2.5 slots and 312 mm in length, the card may not fit the most constrained enclosures — measure carefully before purchasing.
PRIME RADEON™ RX 9070 XT White Edition
Primed for Power
Experience Primal performance with the Prime Radeon™ RX 9070 XT White Edition graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.
Cooling
2.5-slot Design
The Prime Radeon™ RX 9070 XT White Edition features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Unmatched Reliability

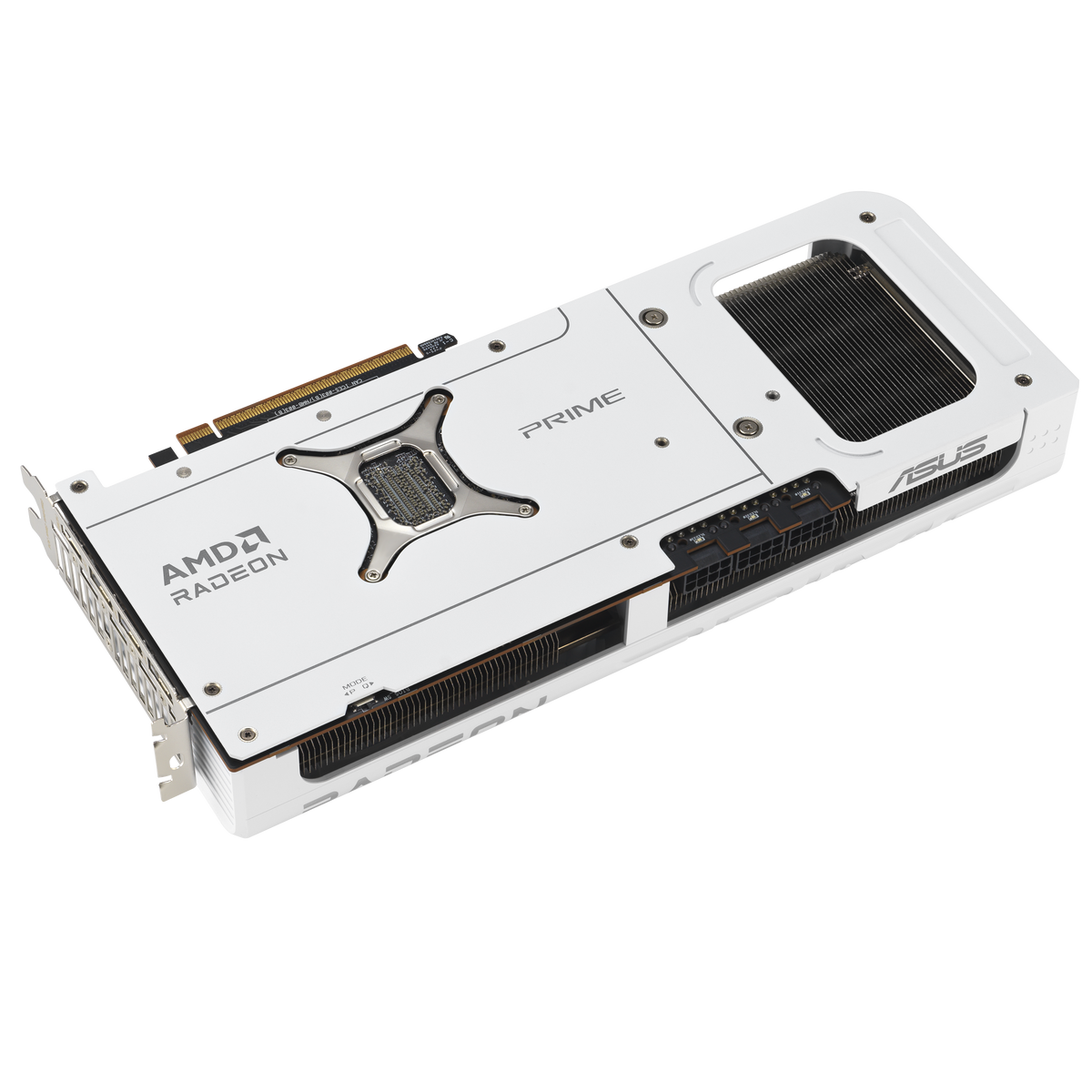

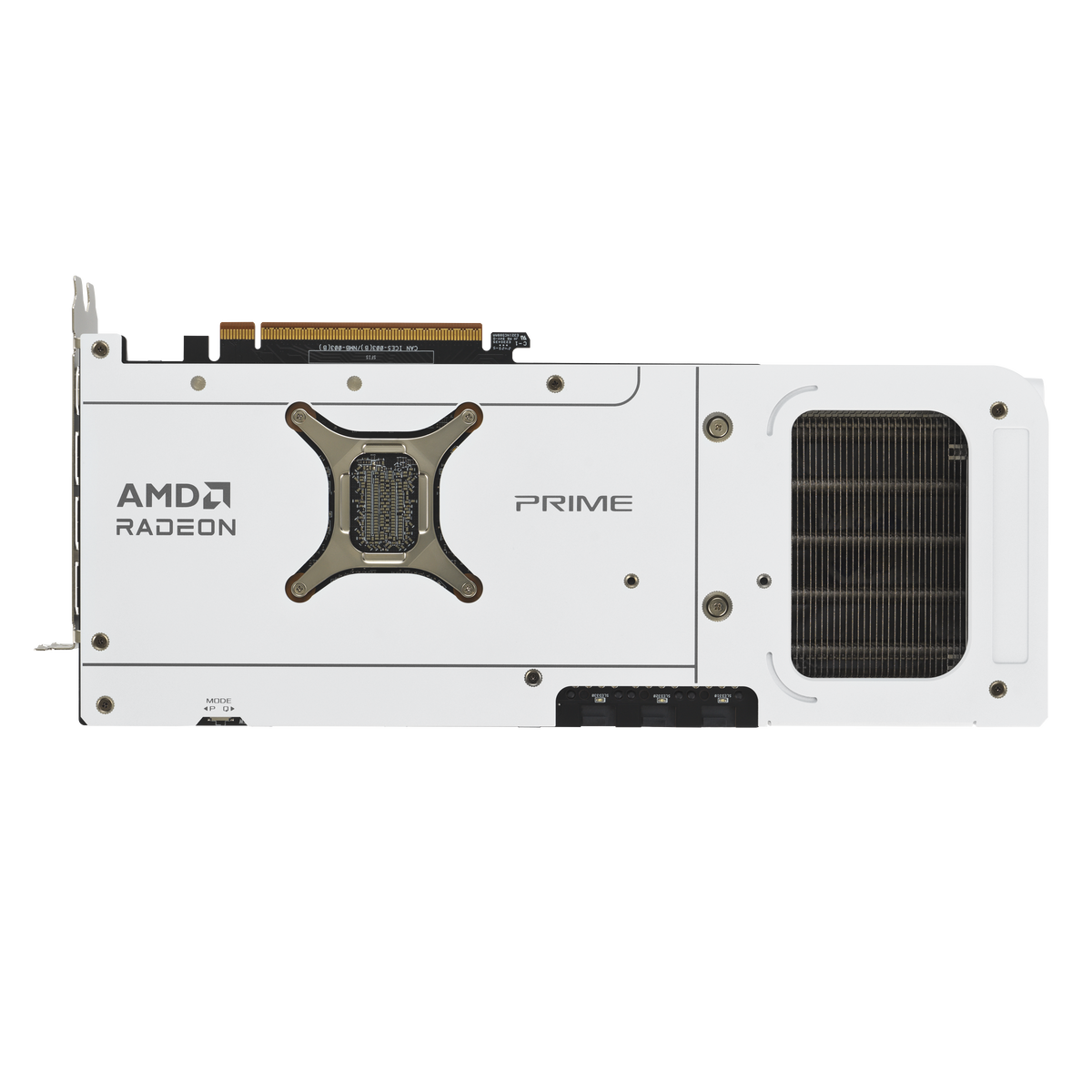

ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Software
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
General
| Brand | ASUS |
|---|---|
| Model | PRIME-RX9070XT-O16G-WHITE |
| Graphic Engine | AMD Radeon RX 9070 XT |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
| Slot | 2.5 Slot |
| Dimensions | 312 x 130 x 50 mm / 12.3 x 5.1 x 2.0 inch |
Memory & Performance
| Video Memory | 16 GB GDDR6 |
|---|---|
| Memory Speed | 20 Gbps |
| Memory Interface | 256-bit |
| Stream Processors | 4096 |
| Boost Clock — OC Mode | Up to 3030 MHz |
| Game Clock — OC Mode | Up to 2480 MHz |
| Boost Clock — Default Mode | Up to 3010 MHz |
| Game Clock — Default Mode | Up to 2460 MHz |
Display & Connectivity
| Display Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1a |
|---|---|
| HDCP Support | Yes (2.3) |
| Max Digital Resolution | 7680 x 4320 |
| Maximum Displays | 4 |
| NVLink / CrossFire | Not supported |
Power & Accessories
| Recommended PSU | 750 W |
|---|---|
| Power Connectors | 3 x 8-pin |
| Included Accessories | Thank you card, Speedsetup Manual, ASUS Velcro Hook & Loop WHITE |
