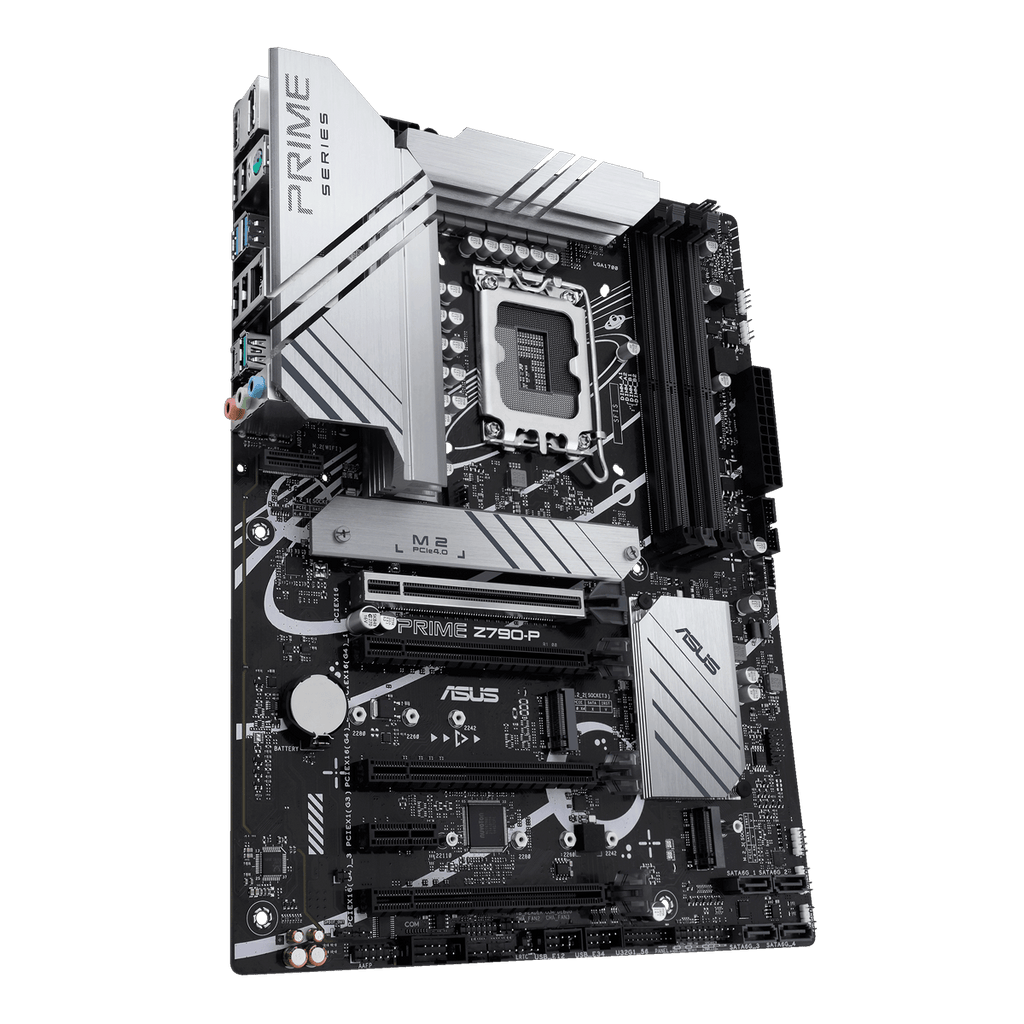

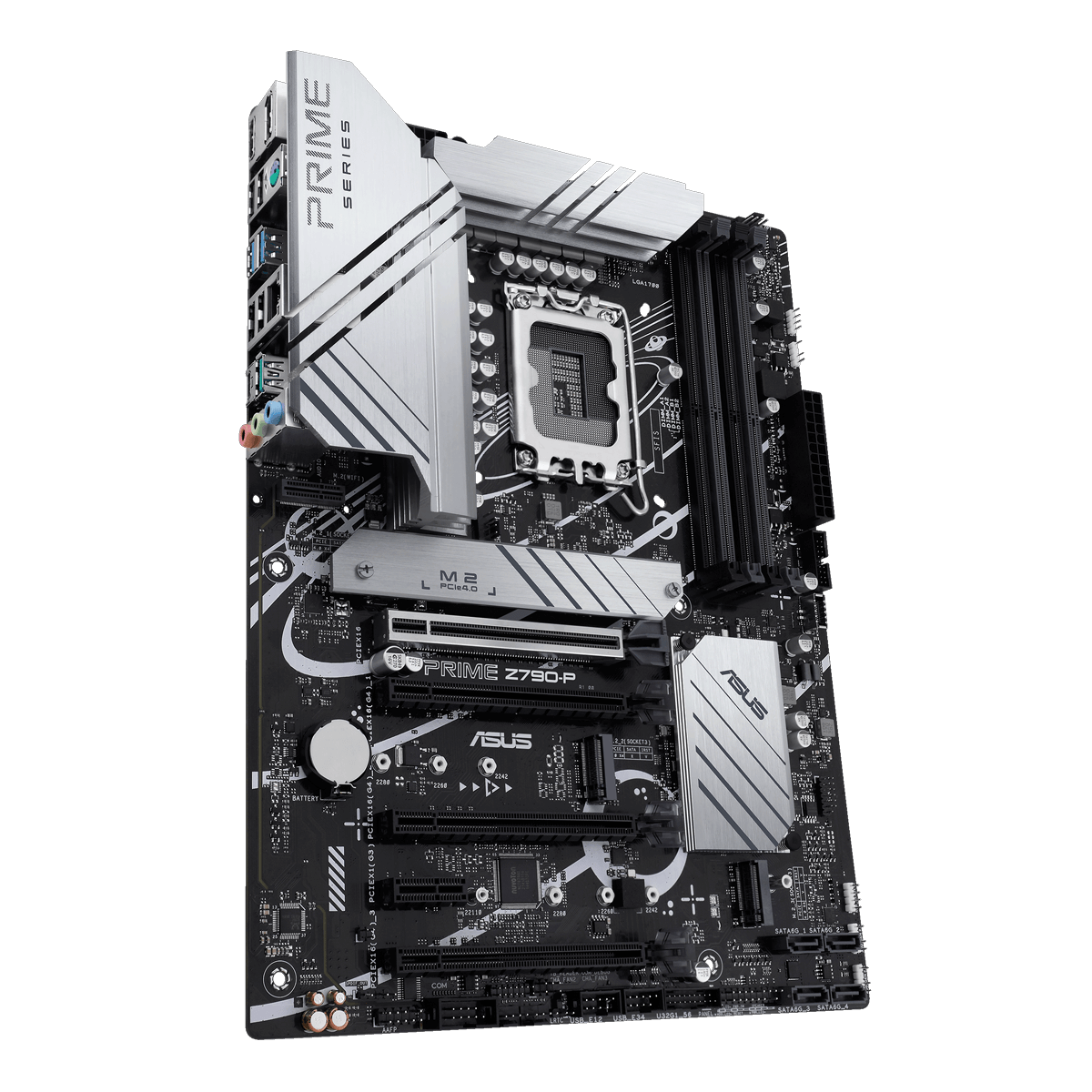

ASUS PRIME Z790-P Intel Z790 LGA1700 ATX Motherboard
ASUS
ASUS PRIME Z790-P Intel Z790 LGA1700 ATX Motherboard

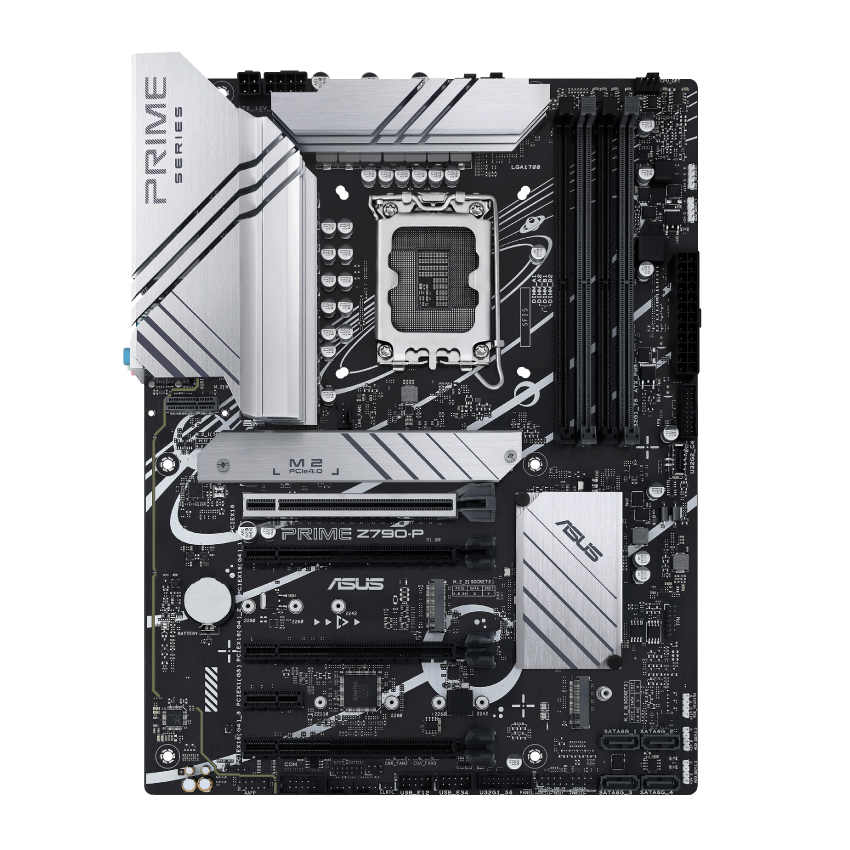

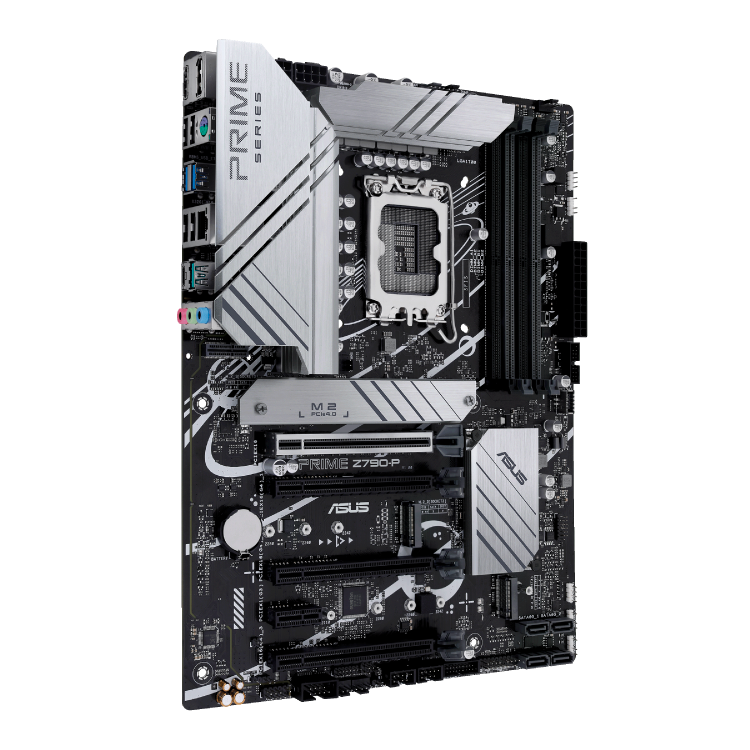

The ASUS PRIME Z790-P is an ATX motherboard built for 12th, 13th and 14th Gen Intel Core processors. It combines robust power delivery, DDR5 memory support and PCIe 5.0 connectivity for PC builders seeking stable performance without unnecessary premium features.
Why this product

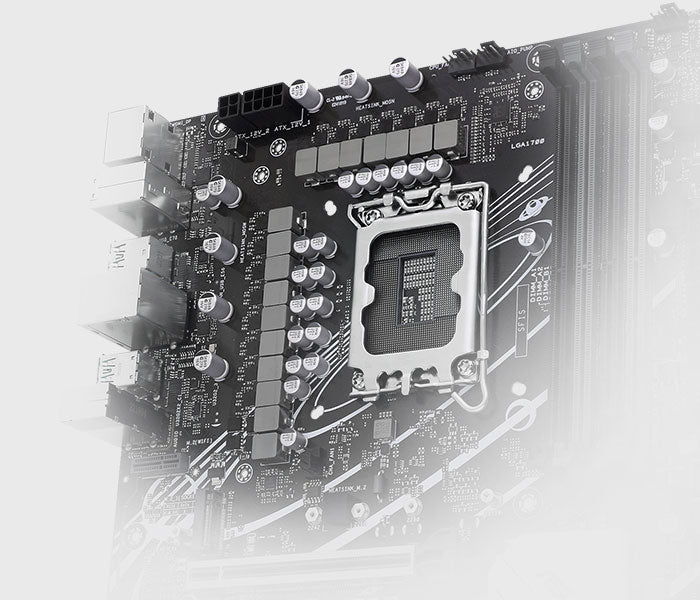

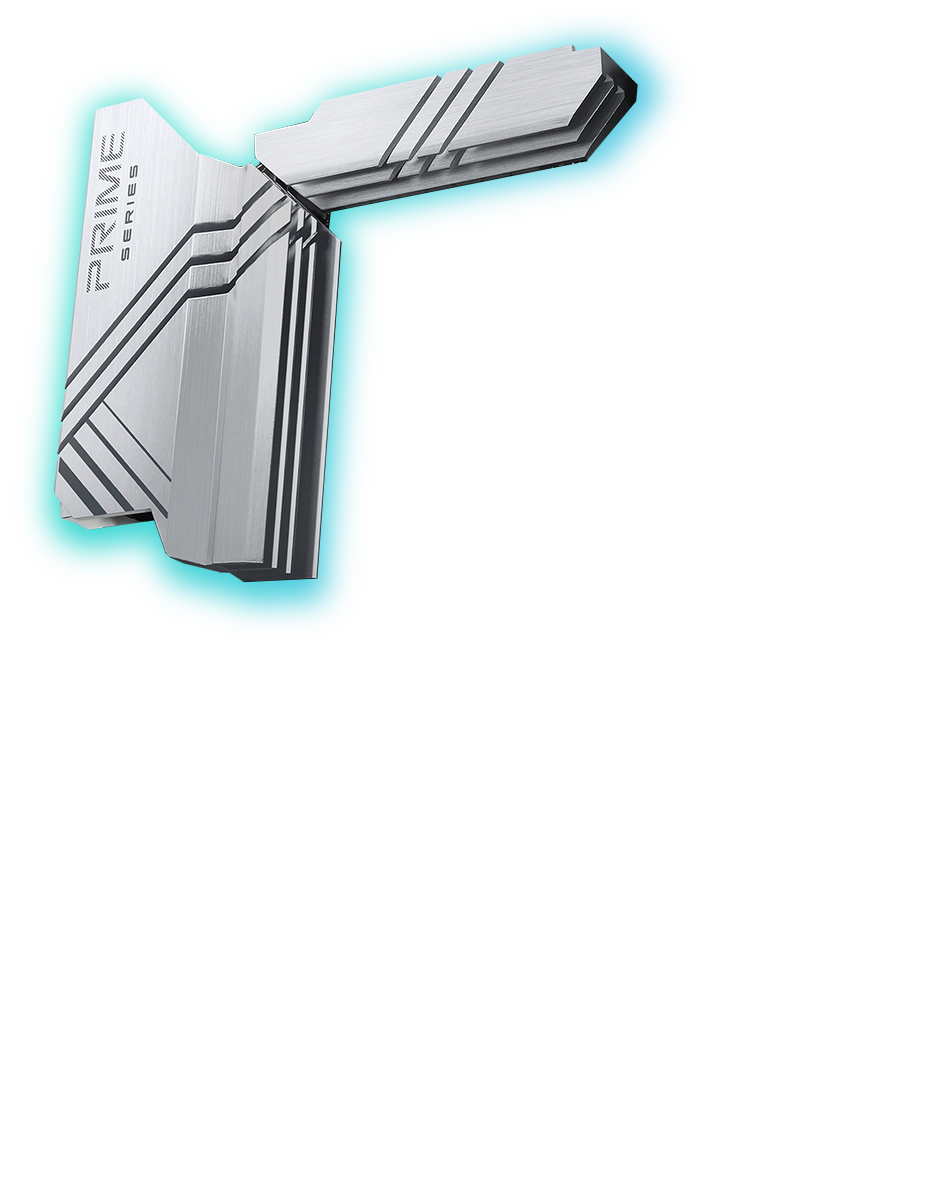

14+1 DrMOS power stages
Enhanced VRM design with 14(50A)+1(60A)+1 power stages, 6-layer PCB, ProCool connectors and enlarged heatsinks ensure stable power delivery under load.

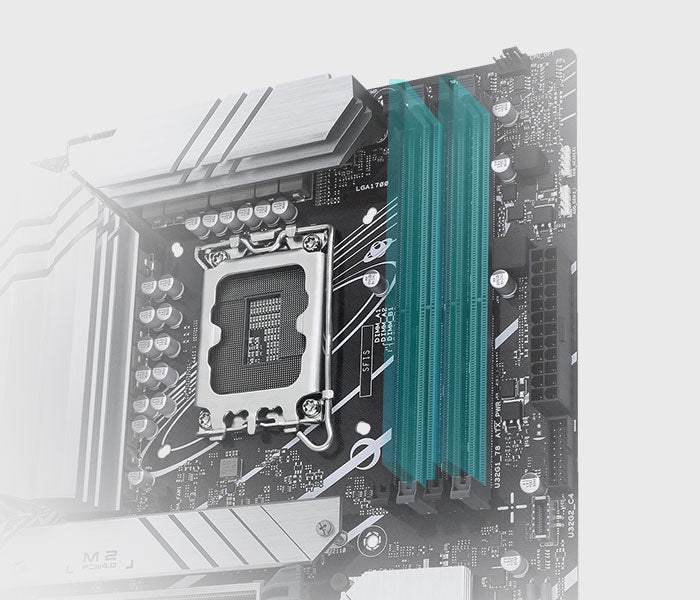

DDR5 memory up to 192GB

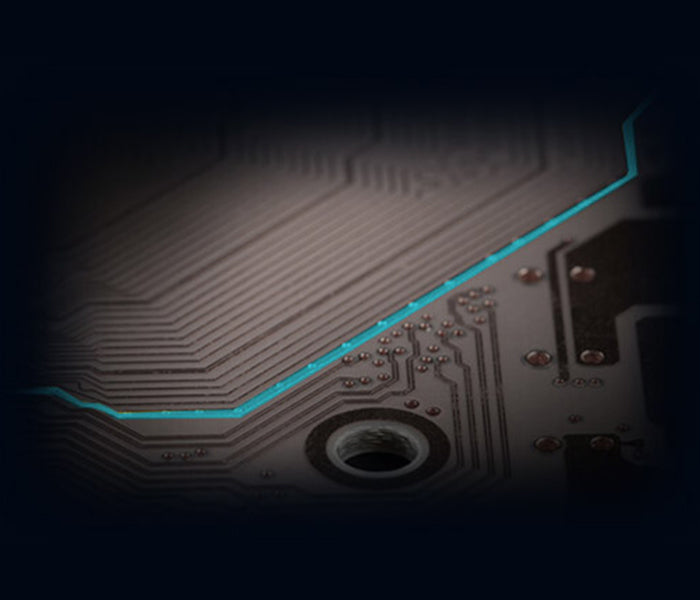

Four DIMM slots support DDR5 up to 7200+ MHz (overclocked) with ASUS Enhanced Memory Profile II and OptiMem II for flexible tuning.

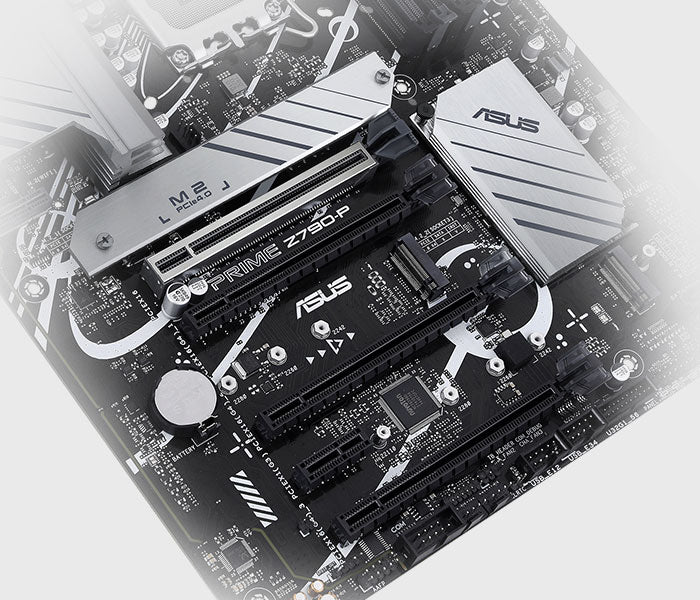

PCIe 5.0 graphics slot
One PCIe 5.0 x16 slot for current and next-generation graphics cards, plus three PCIe 4.0 x16 slots (x4 mode) and one PCIe 3.0 x1.

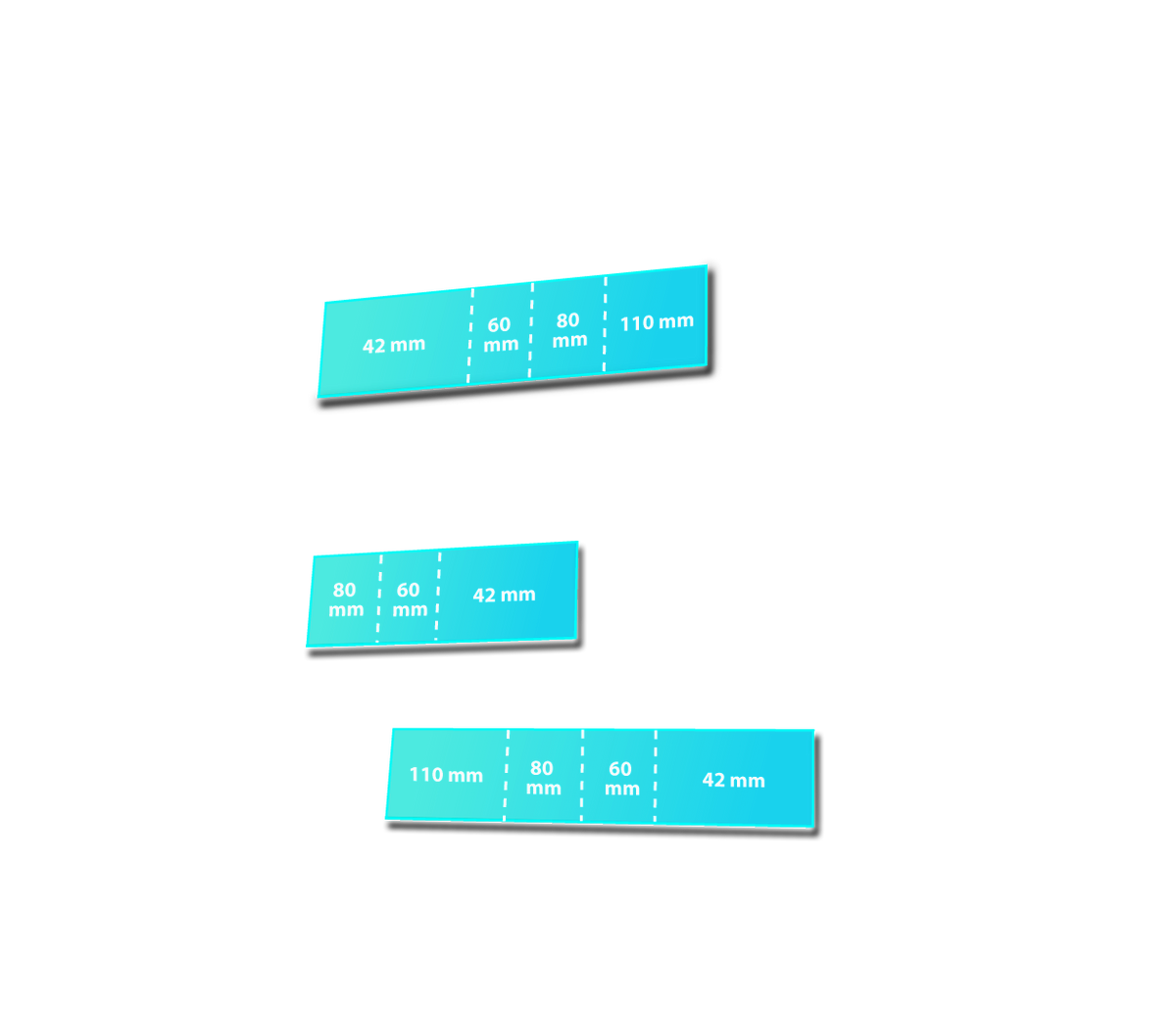

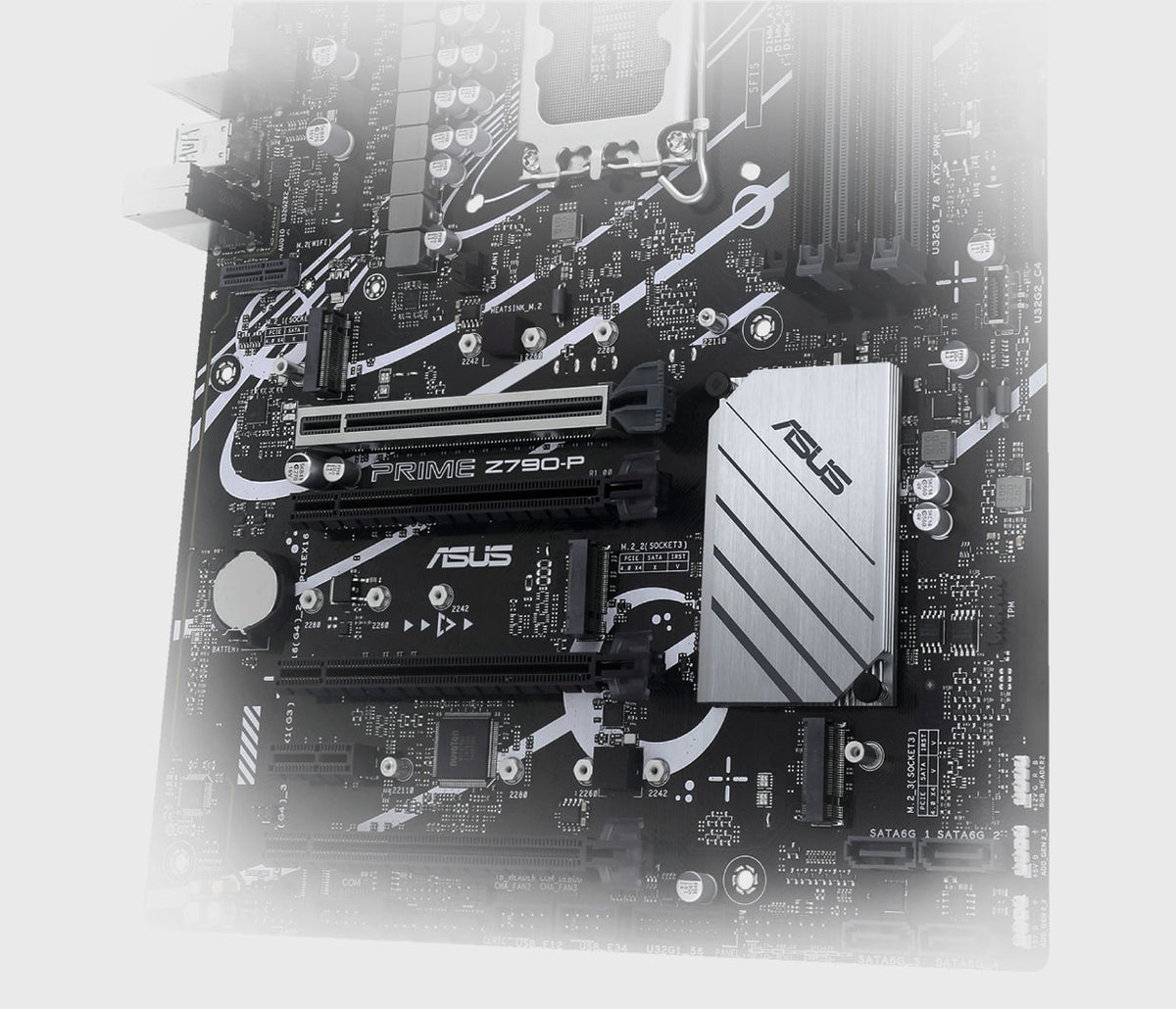

Three M.2 NVMe slots
All three M.2 slots run PCIe 4.0 x4, supporting drives up to 22110 length. M.2_3 also supports SATA mode for mixed storage setups.
USB 3.2 Gen 2x2 and Thunderbolt ready
Rear and front panel USB 3.2 Gen 2x2 Type-C ports deliver high-speed I/O, plus header support for optional Thunderbolt (USB4) expansion.

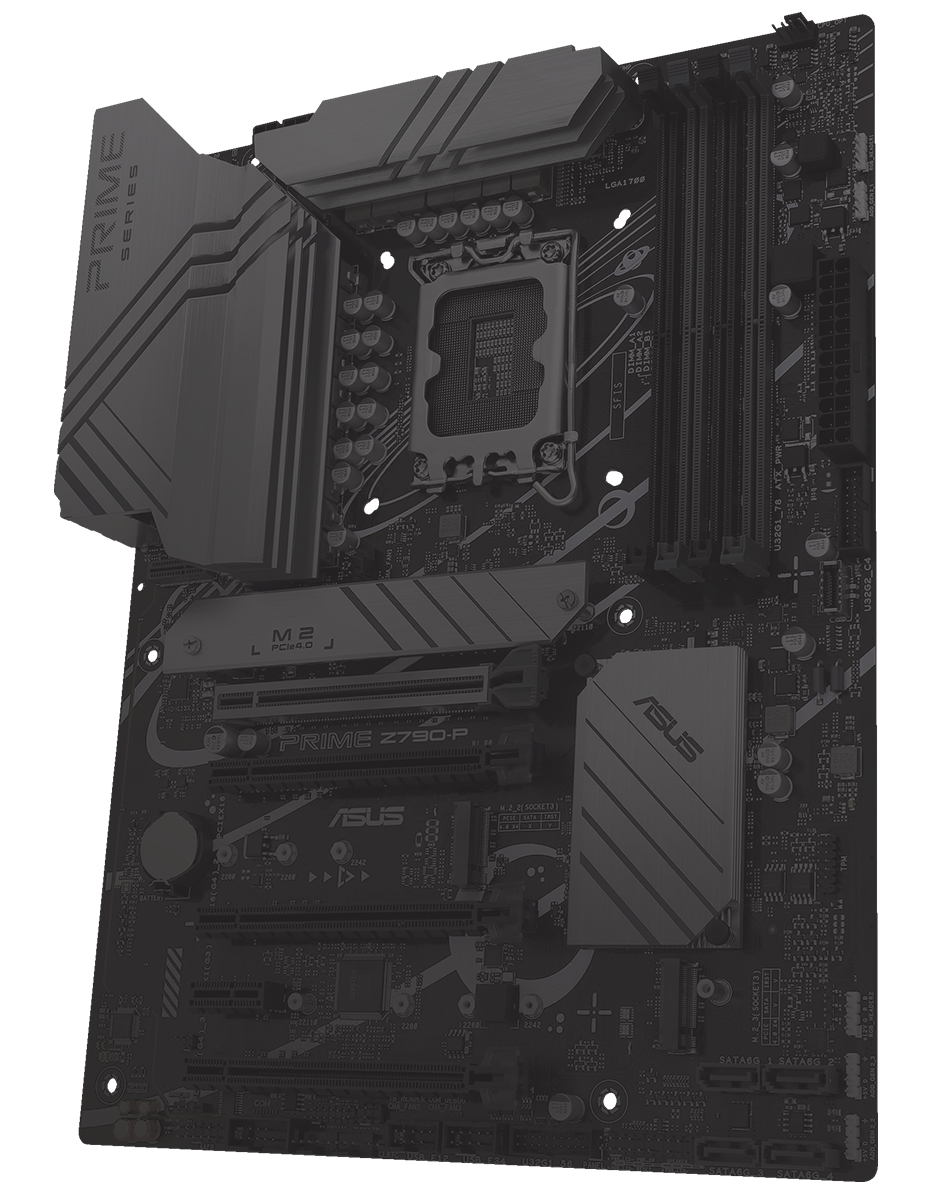

Comprehensive cooling array

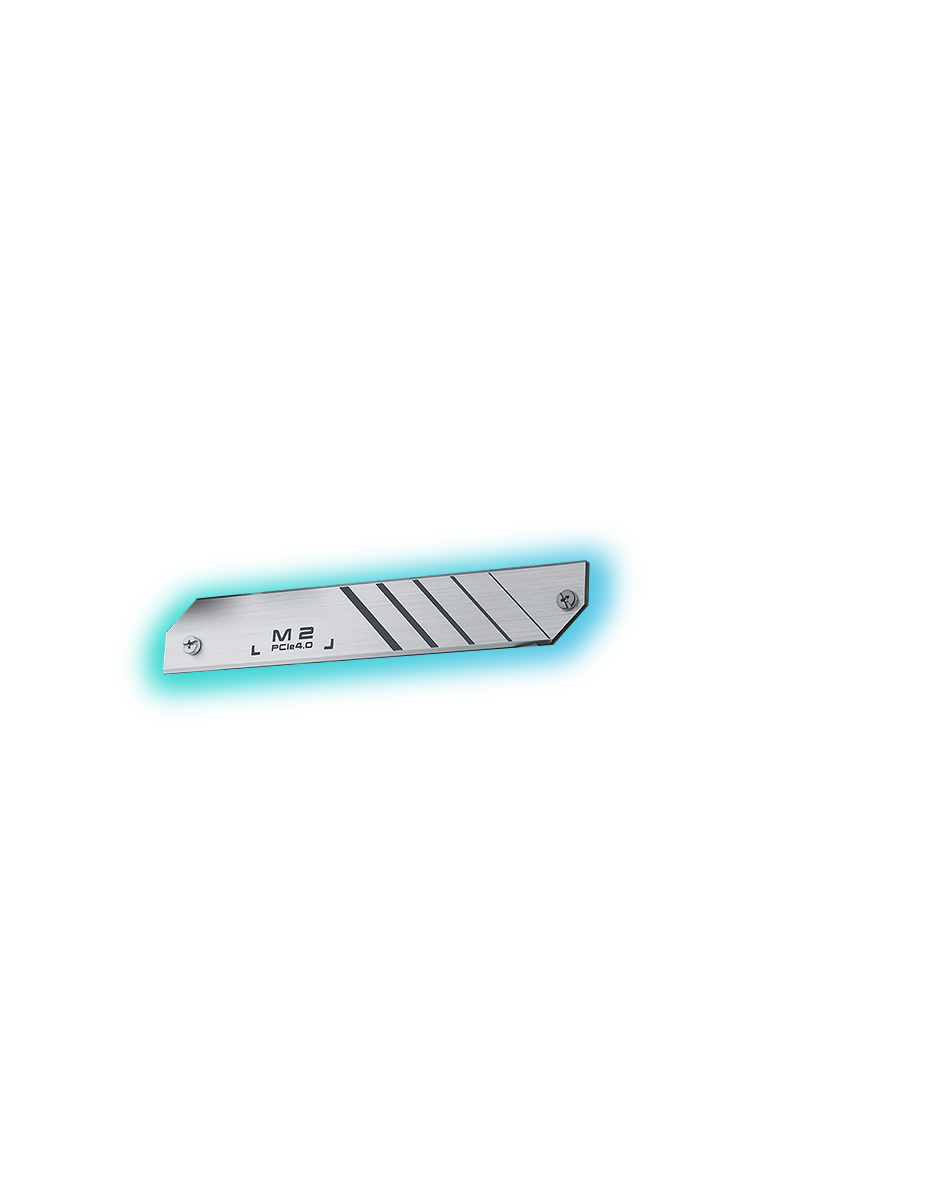

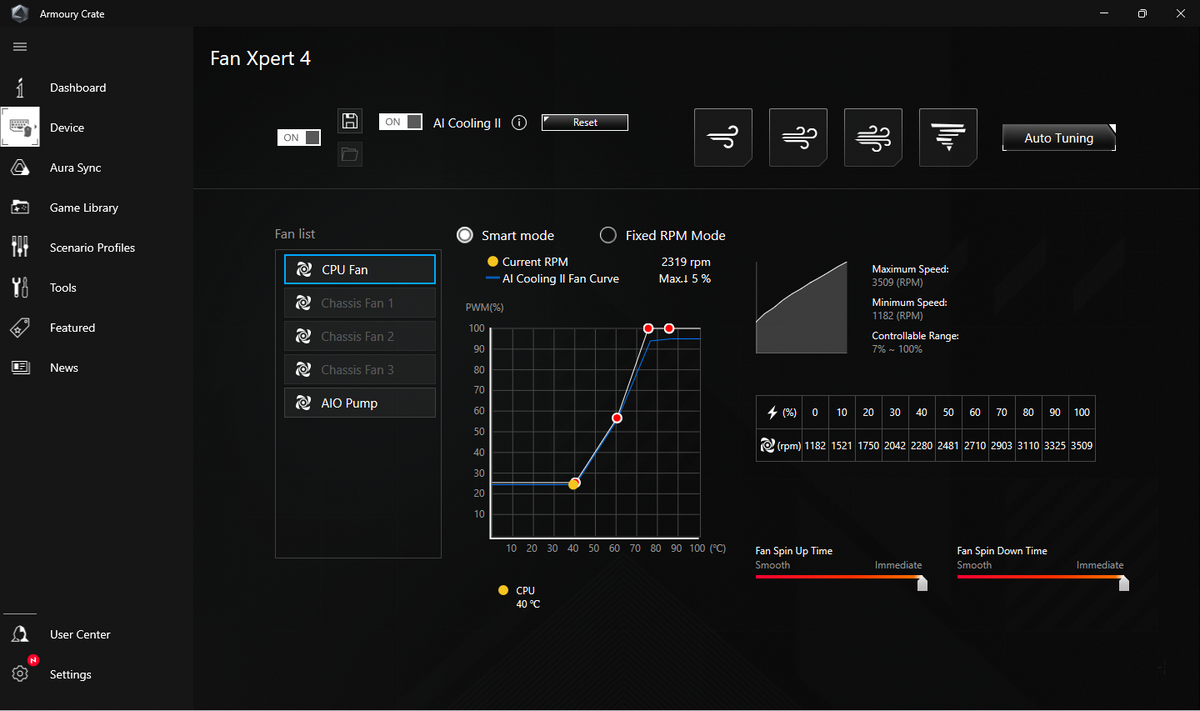

Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink and hybrid fan headers with Fan Xpert 4 AI Cooling II manage thermals across the board.
- ChipsetIntel Z790
- SocketLGA 1700
- Form FactorATX
- Memory SupportDDR5 up to 7200+ MHz (OC), 4 DIMM, max 192GB
- PCIe 5.0 Slots1 × x16
- M.2 Slots3 × PCIe 4.0
- SATA Ports4 × 6Gb/s
- Ethernet1 × 2.5Gb Realtek
- SKUASU-2742
- EAN4711081937449
- Supports Intel Core 12th, 13th and 14th Gen processors in LGA 1700 socket.
- Accepts DDR5 memory modules in four DIMM slots.
- Fits standard ATX cases (12 × 9.2 inches / 30.5 × 23.4 cm).
- Wi-Fi module is sold separately; the board has a vertical M.2 Key E slot (CNVi & PCIe) ready to accept one.
- Not compatible with AMD processors or DDR4 memory.
Best for
- PC builders seeking stable power delivery and memory overclocking on a budget Z790 board.
- Users building with DDR5 and NVMe storage who want reliable thermals and future graphics upgrades.
- Content creators and gamers who need multiple high-speed I/O ports without paying for enthusiast-tier extras.
Trade-offs
- Intel 11th Gen or older — this board only supports 12th Gen and newer.
- DDR4-only builds — the PRIME Z790-P requires DDR5 memory.
- Wifi out of the box — wireless connectivity requires a separate M.2 Wi-Fi module.
- Extreme overclocking enthusiasts — this is a mainstream board; higher-tier Z790 models offer more granular tuning controls.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors.
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
This platform delivers the power and connectivity that advanced AI PC applications demand.
General
| Brand | ASUS |
|---|---|
| Chipset | Intel Z790 |
| Form Factor | ATX (12 × 9.2 inches / 30.5 × 23.4 cm) |
| Socket | Intel LGA 1700 |
| Compatible CPUs | Intel Core Processors (14th, 13th, 12th Gen) |
Power & Cooling
| Power Stages | 14(50A)+1(60A)+1 DrMOS |
|---|---|
| PCB Layers | 6-layer |
| CPU Fan Headers | 1 × 4-pin + 1 × 4-pin OPT + 1 × 4-pin AIO Pump |
| Chassis Fan Headers | 3 × 4-pin with hybrid support |
| Fan Control | Fan Xpert 4 with AI Cooling II |
| Heatsinks | Large VRM, flexible M.2, PCH |
Memory & Storage
| Memory Slots | 4 × DIMM |
|---|---|
| Memory Type | DDR5 |
| Memory Support | 5000–7200+ MHz (OC), max 192GB |
| Memory Features | ASUS Enhanced Memory Profile II, OptiMem II, Intel XMP |
| M.2 Slots | 3 × Key M (PCIe 4.0 x4) |
| M.2 Compatibility | M.2_1: 2242/2260/2280/22110; M.2_2: 2242/2260/2280; M.2_3: 2242/2260/2280/22110 (PCIe 4.0 & SATA) |
| SATA Ports | 4 × 6Gb/s |
Connectivity & Expansion
| PCIe 5.0 Slots | 1 × x16 (Graphics) |
|---|---|
| PCIe 4.0 Slots | 3 × x16 (x4 mode) |
| PCIe 3.0 Slots | 1 × x1 |
| Ethernet | 1 × Realtek 2.5Gb |
| Wireless | Vertical M.2 slot (Key E, CNVi & PCIe) — module sold separately |
| Rear USB Ports | 1 × USB 3.2 Gen 2x2 Type-C, 1 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0 Type-A |
| Front USB Headers | 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1 (4 ports), 2 × USB 2.0 (4 ports) |
| Thunderbolt Support | USB4 / Thunderbolt header (module not included) |
| Video Outputs | 1 × DisplayPort (4K@60Hz), 1 × HDMI 2.1 (4K@60Hz) |
| Audio Jacks | 3 × 3.5mm |
| PS/2 | 1 × Keyboard/Mouse combo |
Audio & BIOS
| Audio Codec | Realtek 7.1 Surround Sound HD |
|---|---|
| Audio Features | Jack-detection, multi-streaming, front panel retasking, premium capacitors, dedicated audio layers |
| Audio Playback | Up to 24-bit/192 kHz |
| BIOS | 192 Mb Flash ROM (128+64), UEFI AMI |
| Manageability | WOL by PME, PXE |
Operating System & Accessories
| Operating System Support | Windows 11, Windows 10 64-bit |
|---|---|
| Included Cables | 2 × SATA 6Gb/s cables |
| Included Accessories | 1 × I/O Shield, 1 × M.2 rubber package, 2 × M.2 screw packages, user guide |
