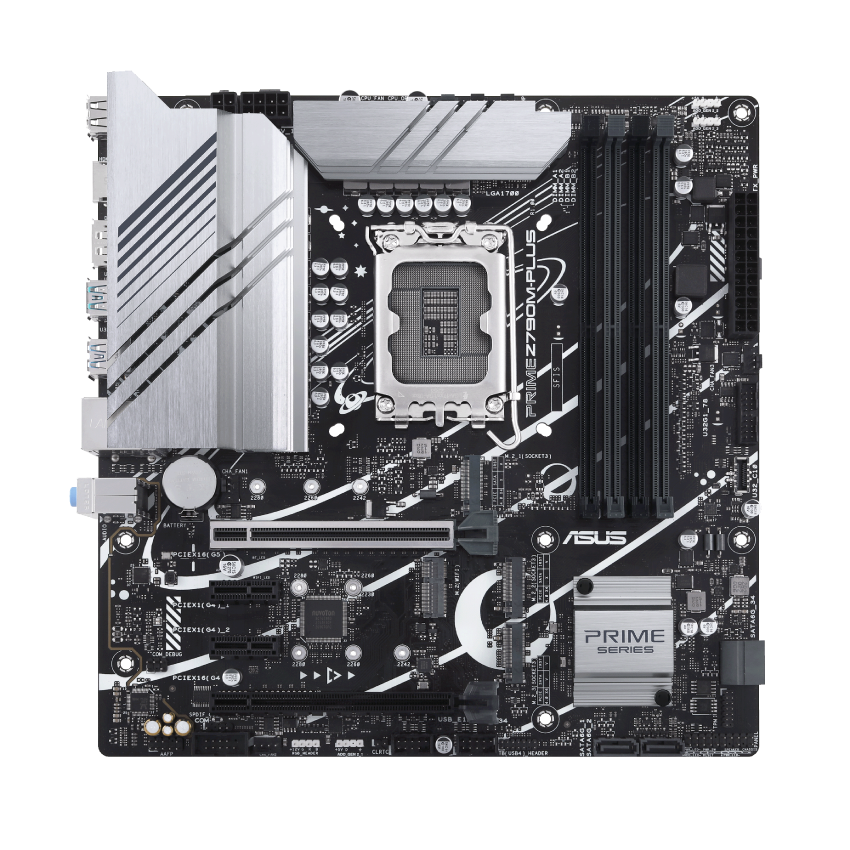

ASUS PRIME Z790M-PLUS LGA1700 DDR5 mATX Motherboard
ASUS
ASUS PRIME Z790M-PLUS LGA1700 DDR5 mATX Motherboard
The ASUS PRIME Z790M-PLUS is a micro-ATX motherboard for Intel 12th, 13th and 14th Gen processors, designed for builders who need PCIe 5.0 support, DDR5 memory, and compact form factor without sacrificing core features. It combines next-gen connectivity with robust power delivery in a space-efficient package.
Why this product
PCIe 5.0 and DDR5 Ready
Supports the latest DDR5 memory standards with AEMP II profiles delivering up to 37.5% faster speeds than baseline specs, plus a PCIe 5.0 slot for modern graphics cards.
10+1 Power Stages for Stability
Robust 50A power delivery with enlarged heatsinks ensures stable operation during overclocking and heavy workloads.
Three M.2 Slots
Three M.2 slots support high-speed NVMe storage up to 64 Gbps, with flexible drive support across different sizes.
Micro-ATX Form Factor
Compact 9.6 x 9.6 inch design fits smaller cases and builds without compromising connectivity or power delivery.
Thunderbolt USB4 Support
USB4 header support enables up to 40 Gbps bi-directional speeds with an ASUS add-on card for fast external device connections.
- CPU SocketIntel LGA1700 (14th, 13th, 12th Gen)
- ChipsetIntel Z790
- Form FactorMicro-ATX (9.6 x 9.6 inch)
- Memory SupportDDR5 up to 7200+ MHz (OC), 4 DIMM, max 192GB
- M.2 Slots3 slots (PCIe 4.0 x4)
- PCIe Slots1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1
- Power Delivery10+1 Power Stages, 50A
- EthernetIntel 1 Gb
- SKUASU-2676
- EAN4711387025741
- Supports Intel Core 12th, 13th and 14th Gen processors in LGA1700 socket, plus Pentium Gold and Celeron variants.
- Accepts DDR5 memory up to 7200+ MHz (OC) in four DIMM slots with maximum 192GB capacity.
- Includes 1 x HDMI 2.1 port and 1 x DisplayPort 1.4 for dual display output at up to 4K@60Hz.
- Fits mATX and smaller cases; does not fit ATX or E-ATX form factor chassis.
- Wi-Fi module requires separate purchase; the M.2 Key E slot supports M.2 CNVi and PCIe Wi-Fi cards only.
Best for
- Small form factor builds
- Builders upgrading to DDR5 and PCIe 5.0
- Systems requiring multiple M.2 storage devices
- Overclockers with 50A power delivery headroom
Trade-offs
- ATX or larger form factor case builds—this is mATX only.
- Systems needing Wi-Fi out of the box—the wireless module is sold separately.
- Multi-GPU setups—second PCIe slot runs at x4 mode only.
- Builders requiring more than 1 Gb Ethernet—this board has Intel 1 Gb only.
The PRIME Z790M-PLUS motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal build.
PRIME Z790M-PLUS provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

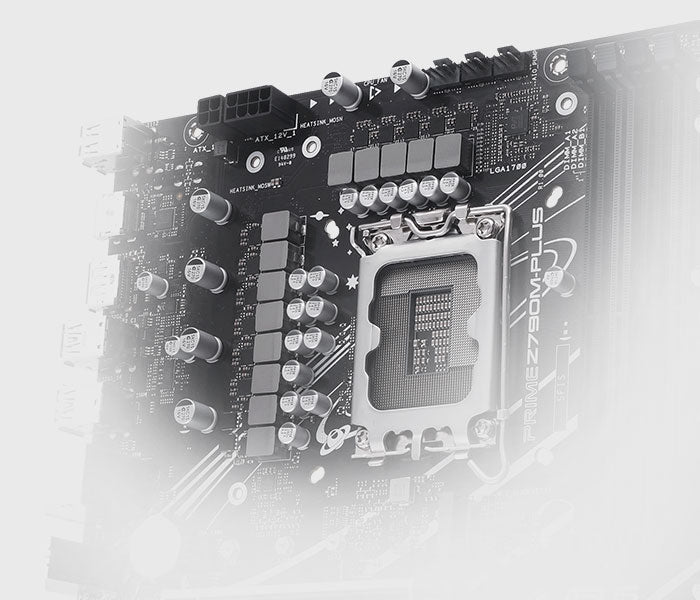

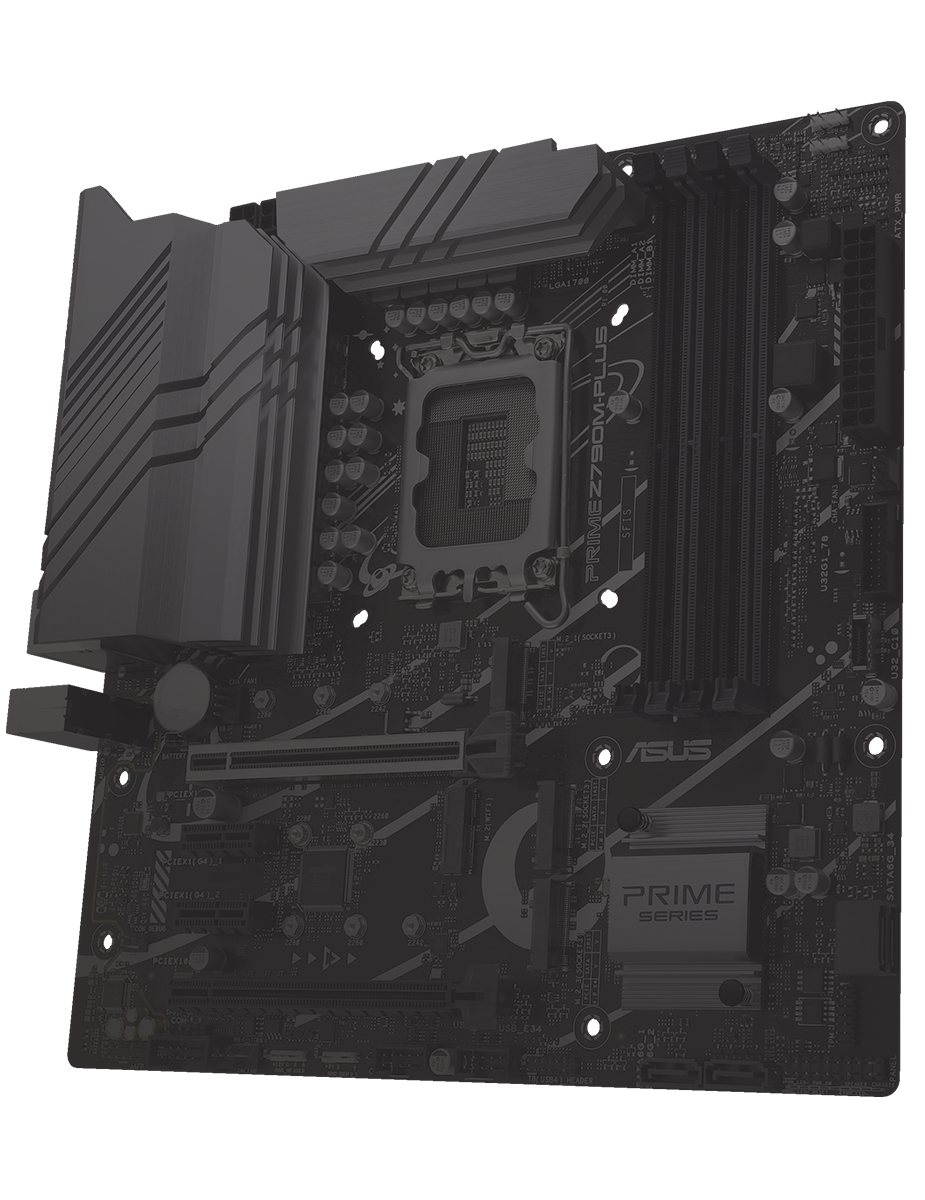

Robust Power Design
10 + 1 Power Stages (50A) with Enlarged Heatsinks
Cooling

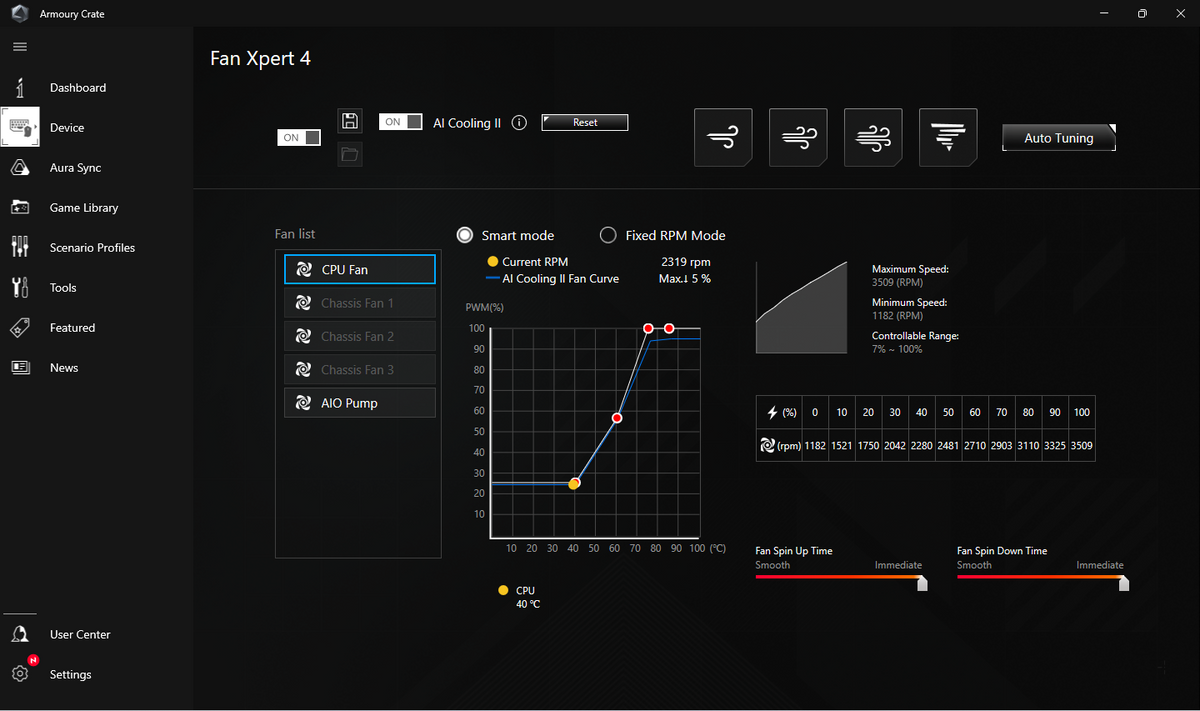

PRIME Z790M-PLUS motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. PRIME Z790M-PLUS features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

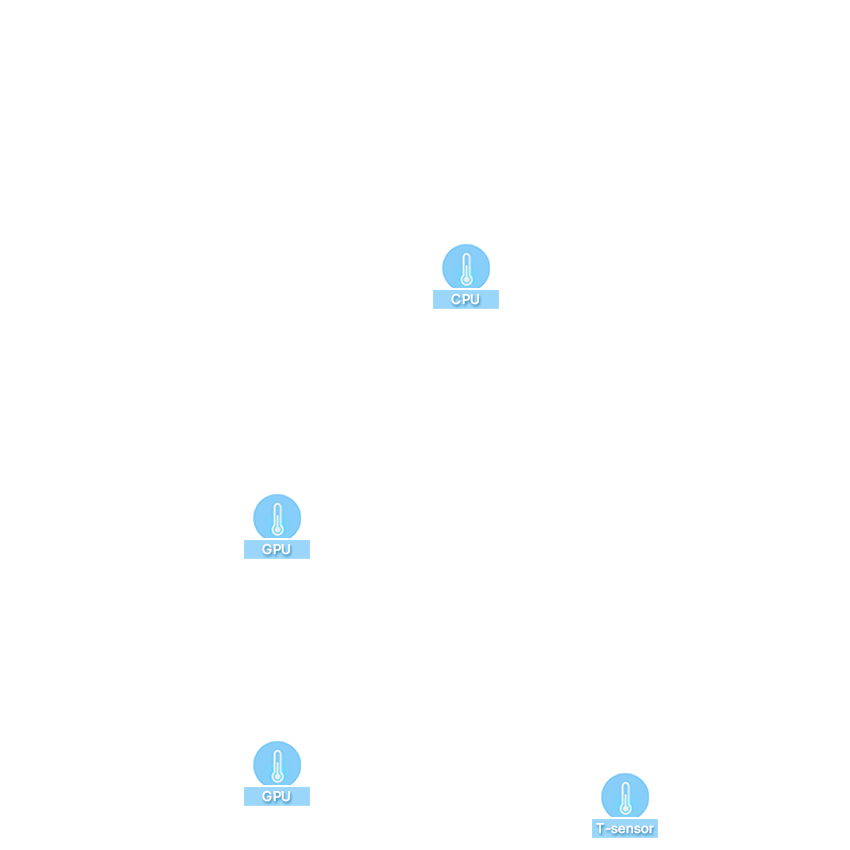

Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
Memory

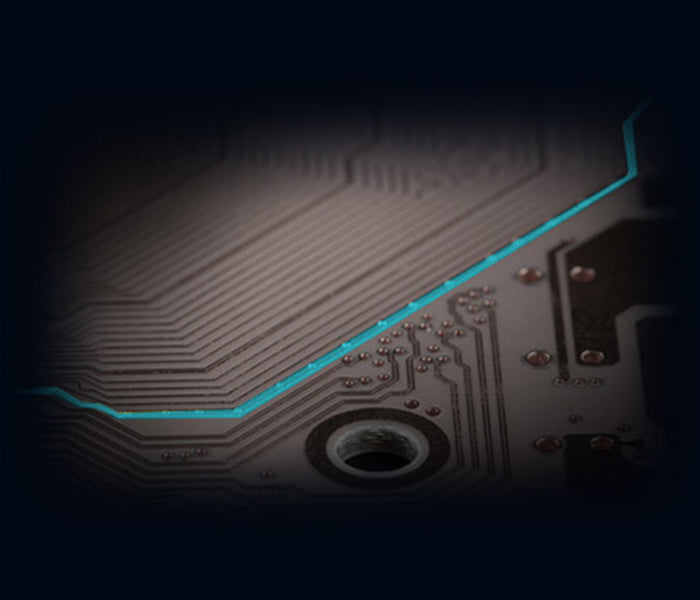

The PRIME Z790M-PLUS motherboard supports ASUS OptiMem II.

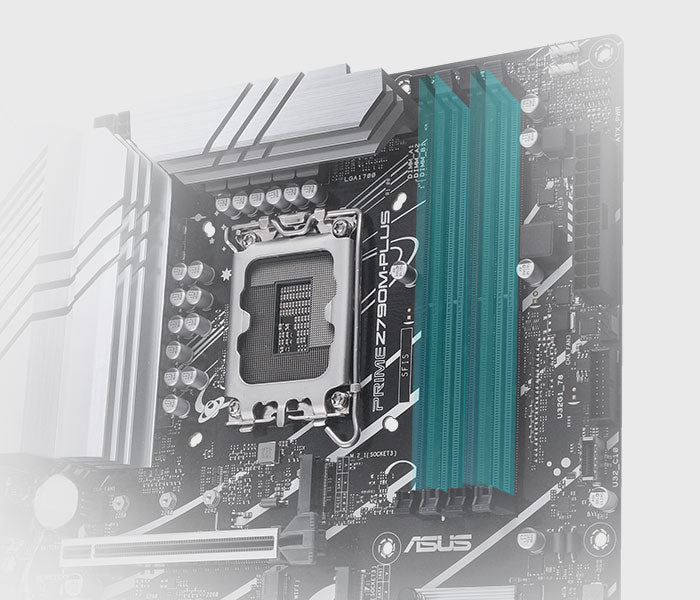

AEMP II for Ultimate DDR5 Performance
PRIME Z790M-PLUS comes along with ASUS Enhanced Memory Profile II (AEMP II) to train your memory kit and optimize clock speed to unleash DDR5 performance. AEMP II profiles offer up to 37.5% faster RAM speeds than baseline DDR5 specs.
Storage

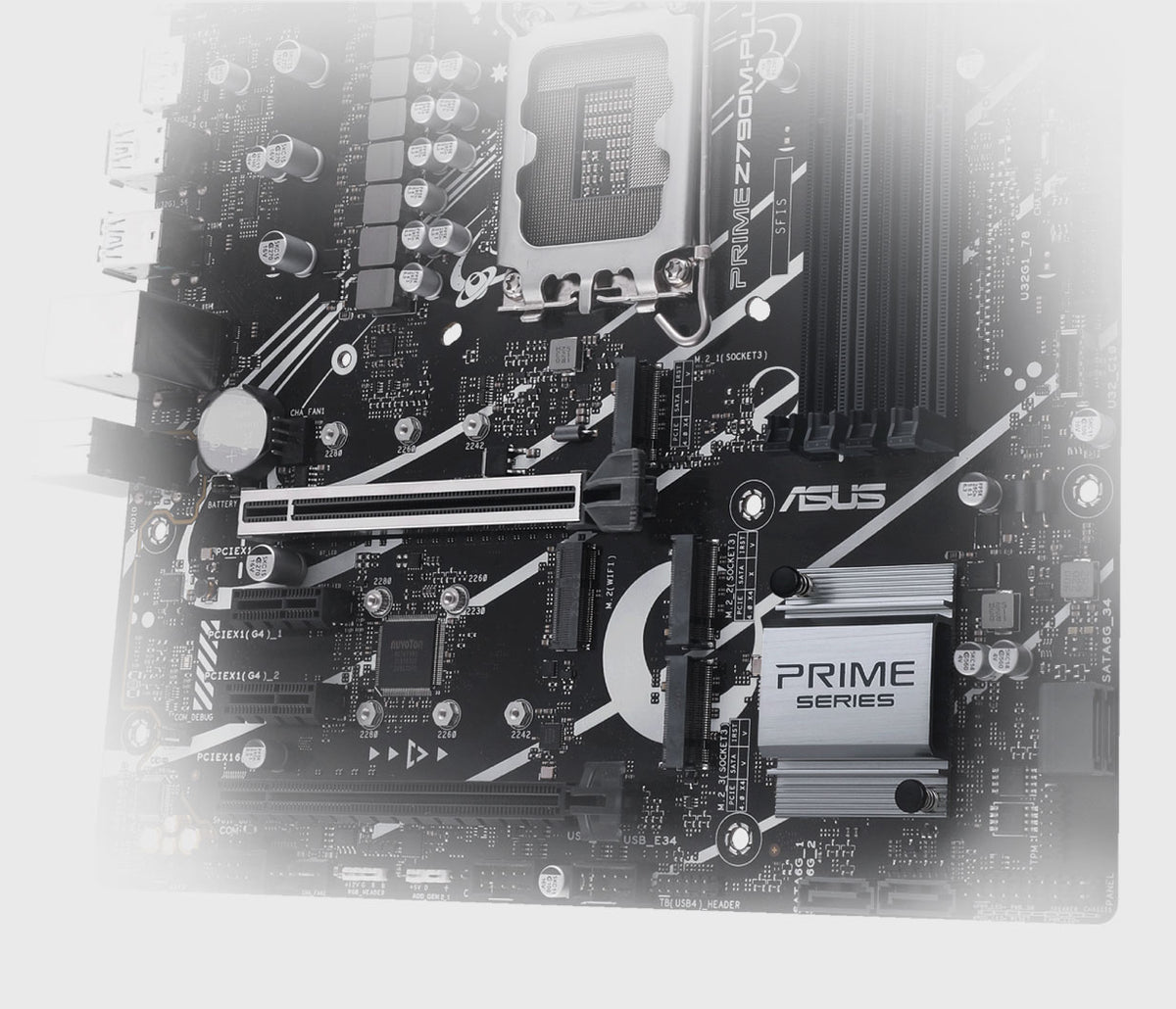

Three M.2 Slots (up to 64 Gbps)
The PRIME Z790M-PLUS motherboard supports three M.2 slots.
Connectivity

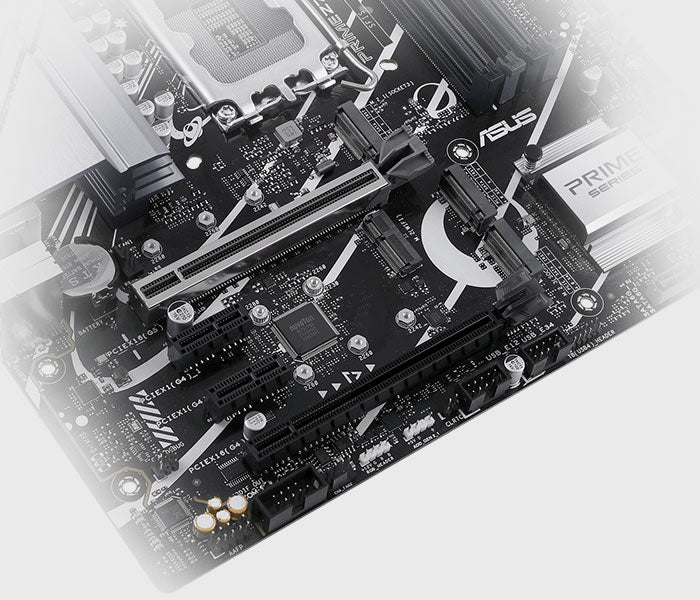

The PRIME Z790M-PLUS motherboard supports PCIe 5.0 slot.
Intel® 1Gb Ethernet
Intel® 1Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
Thunderbolt™ (USB4®) Support
PRIME Z790M-PLUS motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device.
DIY Friendly
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

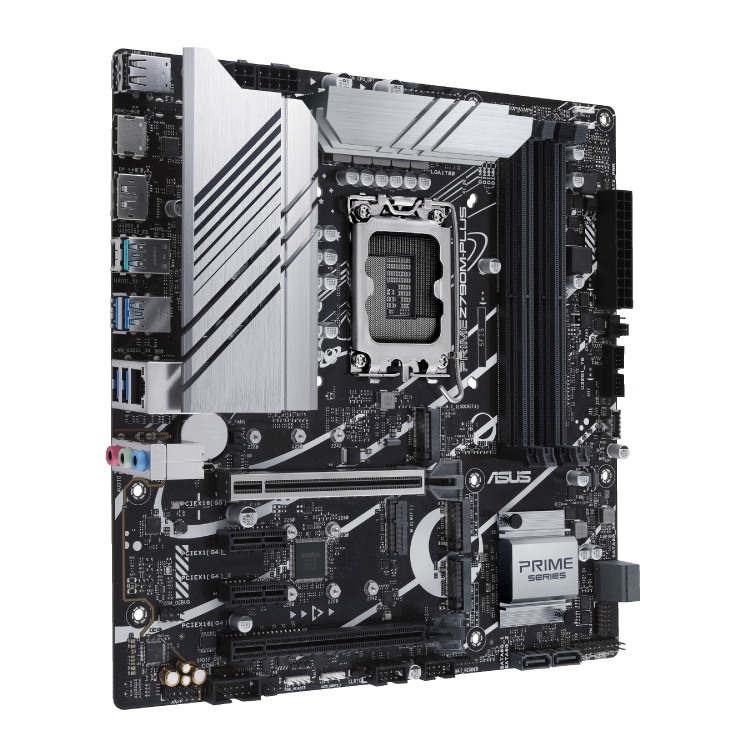

General
| Brand | ASUS |
|---|---|
| Chipset | Intel Z790 |
| Form Factor | Micro-ATX (mATX) |
CPU & Memory
| CPU Socket | Intel LGA1700 for Core 14th, 13th & 12th Gen, Pentium Gold, Celeron |
|---|---|
| Memory Type | DDR5 Non-ECC, Un-buffered |
| Memory Slots | 4 x DIMM |
| Memory Speed | 7200+ MHz (OC) / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 |
| Max Memory | 192GB |
| Memory Features | XMP, OptiMem II, AEMP II |
Storage & Expansion
| M.2 Slots | 3 (Key M) |
|---|---|
| M.2_1 Speed | PCIe 4.0 x4 |
| M.2_1 Form Factors | 2242, 2260, 2280 |
| M.2_2 Speed | PCIe 4.0 x4 |
| M.2_2 Form Factors | 2260, 2280 |
| M.2_3 Speed | PCIe 4.0 x4, SATA |
| M.2_3 Form Factors | 2242, 2260, 2280 |
| SATA Ports | 4 x SATA 6Gb/s |
| PCIe Slots | 1 x PCIe 5.0 x16 (from CPU), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x1 |
| RAID Support | RAID 0/1/5/10 (PCIe and SATA) |
Power & Cooling
| Power Stages | 10+1 DrMOS at 50A |
|---|---|
| CPU Fan Headers | 2 (CPU Fan, CPU OPT) |
| Chassis Fan Headers | 3 x 4-pin |
| AIO Pump Header | 1 x PWM/DC |
| Fan Control | Fan Xpert 4, UEFI BIOS configurable |
Connectivity
| Ethernet | 1 x Intel 1Gb (LANGuard) |
|---|---|
| Rear USB 3.2 Gen 2 | 1 x Type-C (2x2) |
| Rear USB 3.2 Gen 2 | 1 x Type-A |
| Rear USB 3.2 Gen 1 | 4 x Type-A |
| Rear USB 2.0 | 2 x Type-A |
| Front USB 3.2 Gen 1 | 1 x Connector (Type-C), 1 x Header (2 additional) |
| Front USB 2.0 | 2 x Headers (4 additional) |
| Video Output | 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (4K@60Hz) |
| Thunderbolt Support | USB4 header (requires ASUS add-on card, up to 40 Gbps) |
| Wireless | M.2 Key E slot (CNVi & PCIe, module sold separately) |
| Audio | S/PDIF Out header |
Audio & Management
| Audio Codec | Realtek 7.1 Surround Sound HD |
|---|---|
| Audio Features | Audio Shielding, Premium capacitors, Dedicated PCB layers |
| Max Audio Playback | 24-Bit/192 kHz |

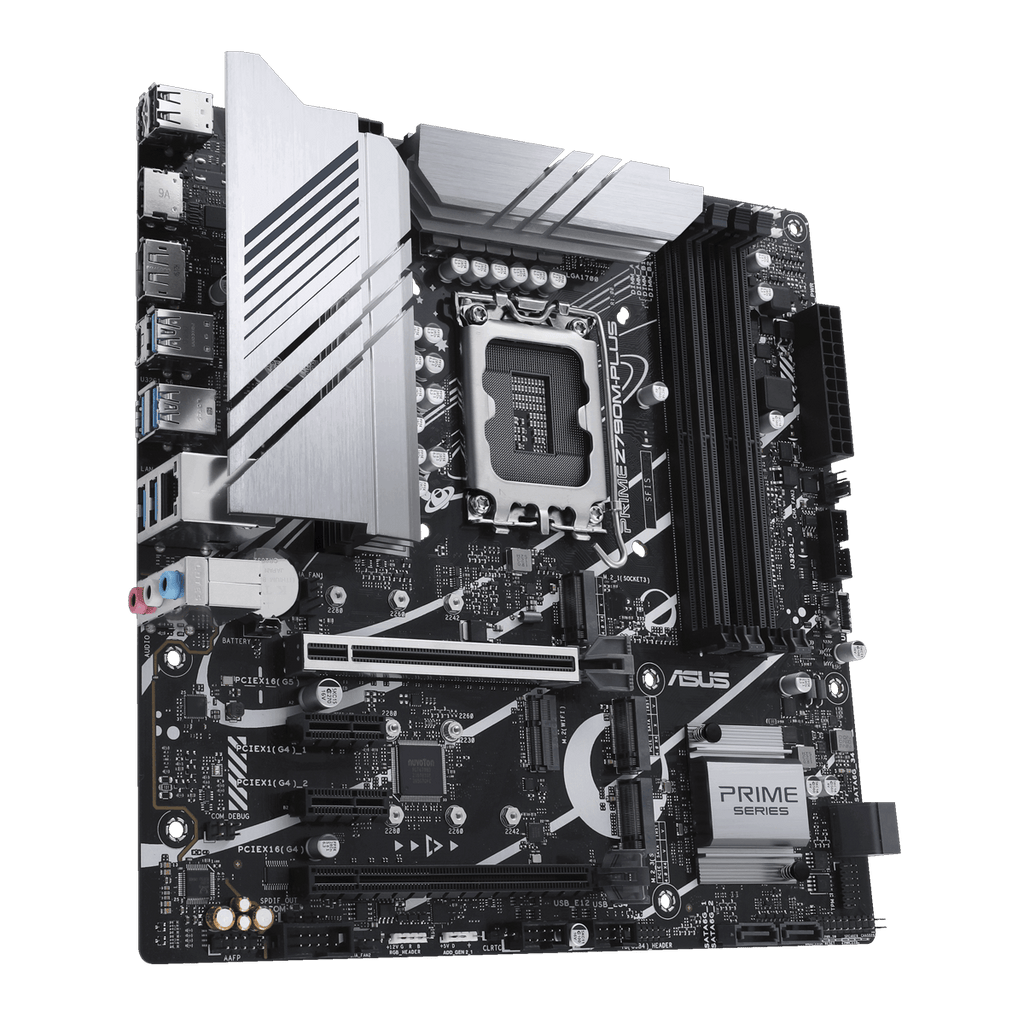

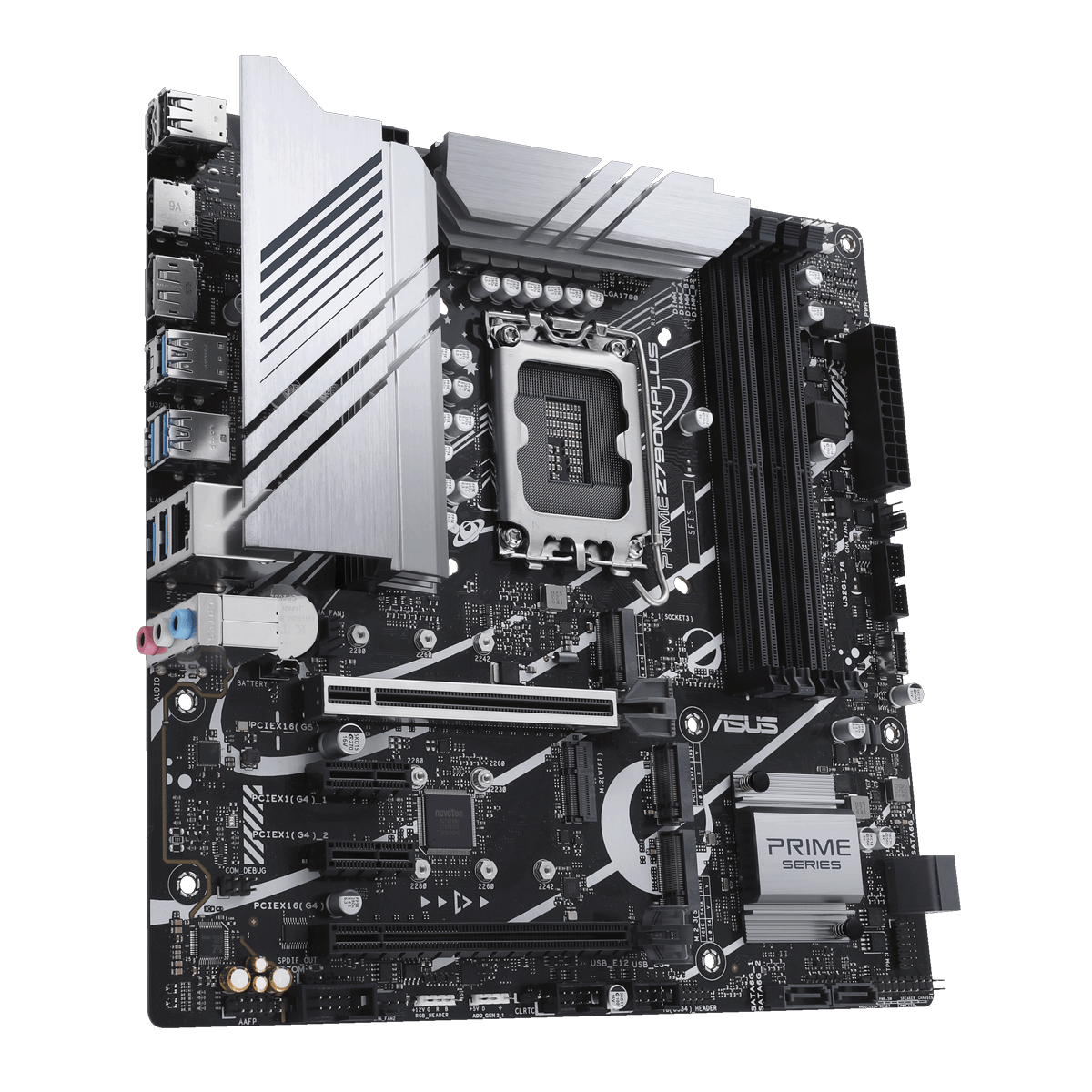

| RGB Control | Aura Sync, 1 x Aura RGB header |
| Diagnostics | Q-LED Core (POST troubleshooting) |
| BIOS | 192 Mb Flash (128+64), AMI UEFI |
| Management | WOL by PME, PXE |
