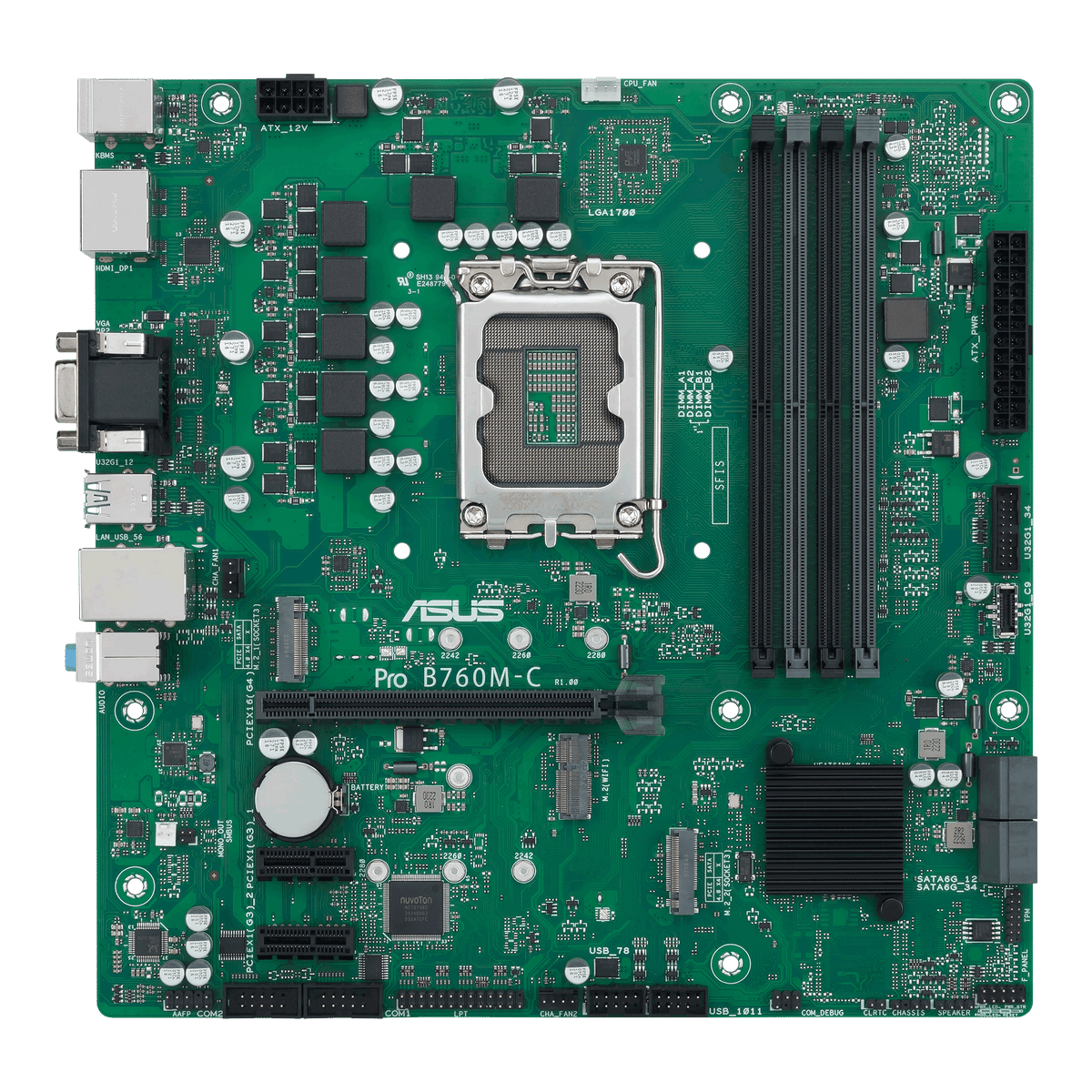

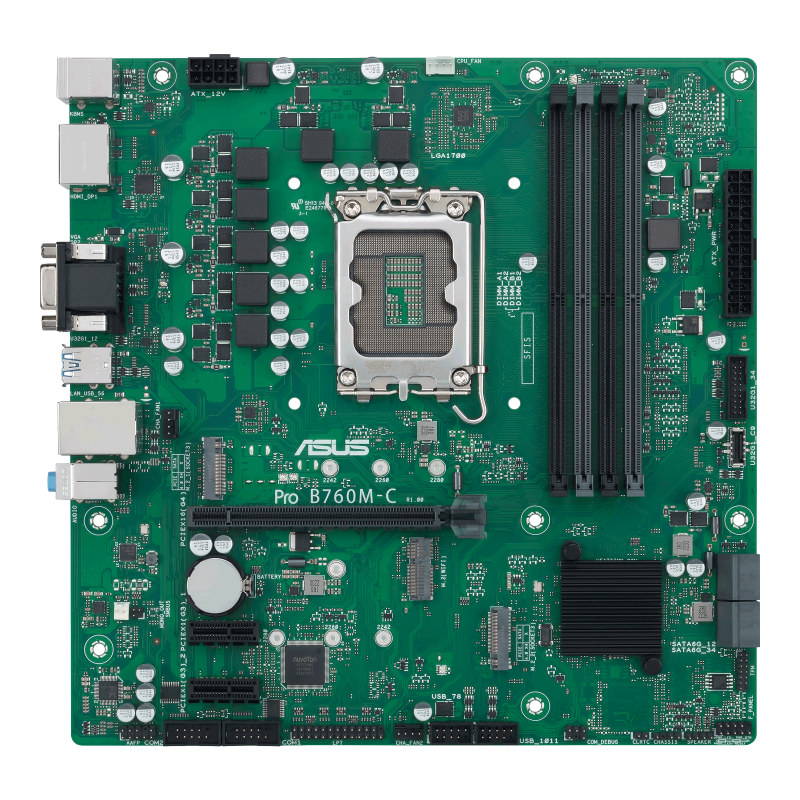

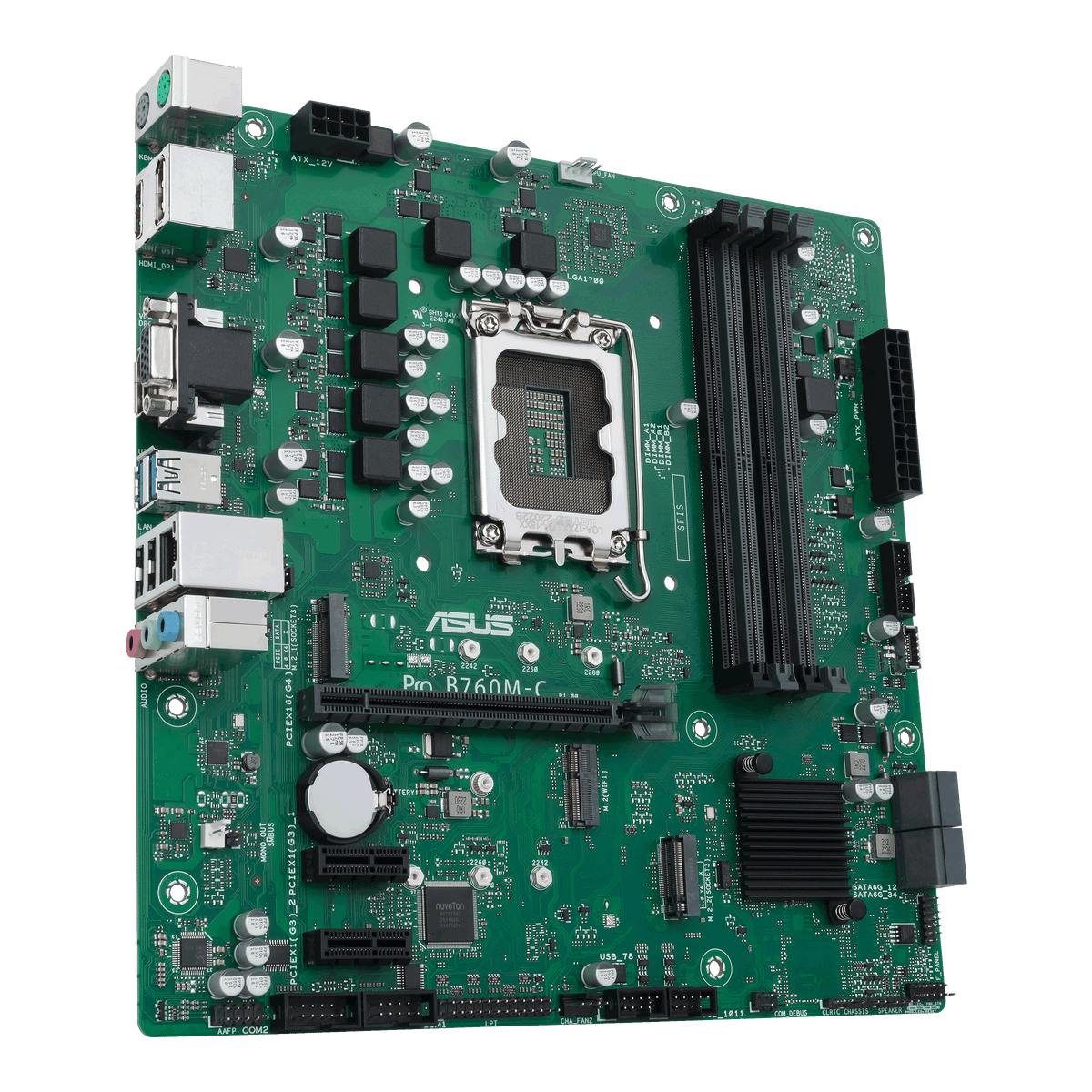

ASUS Pro B760M-C-CSM mATX Business Motherboard DDR5
ASUS

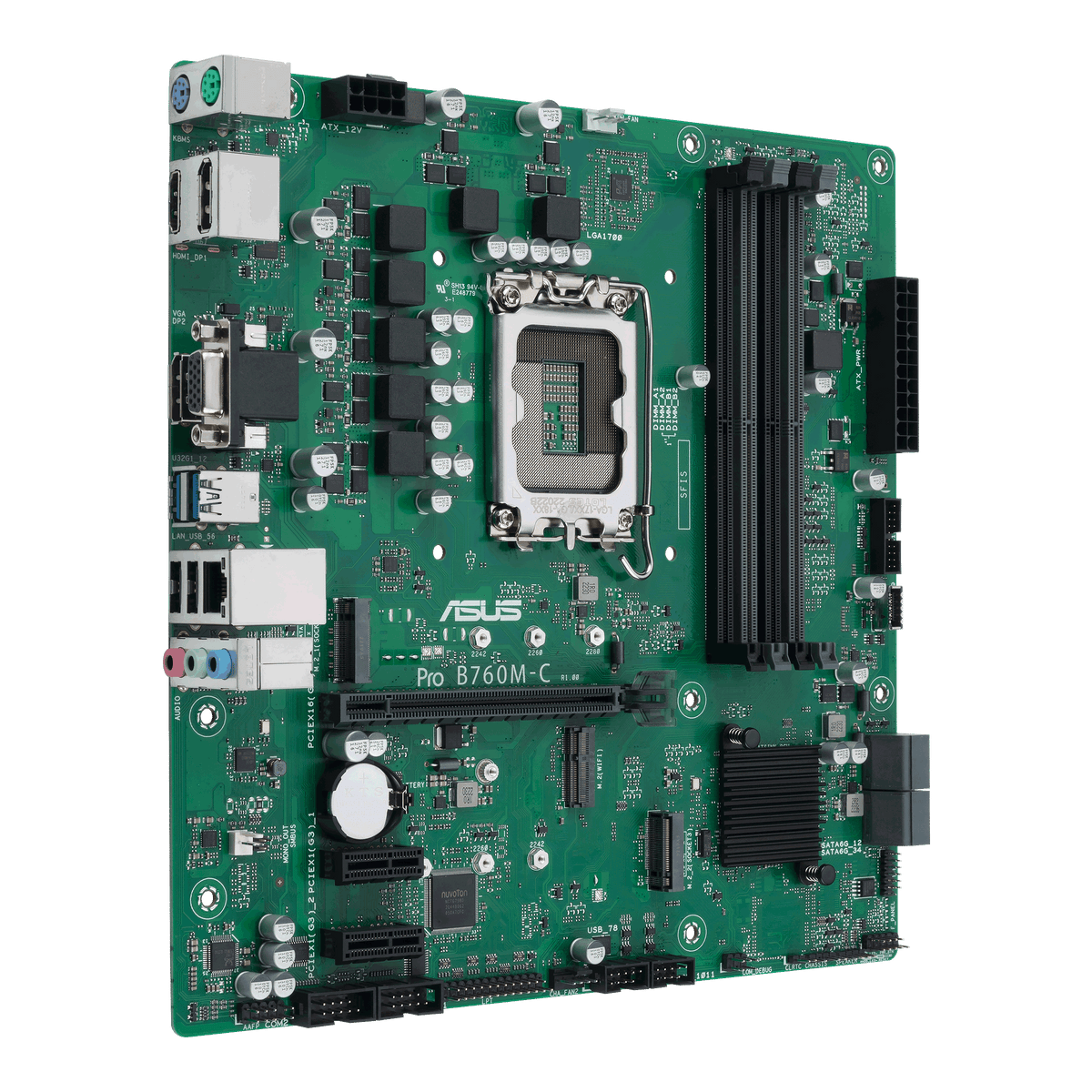

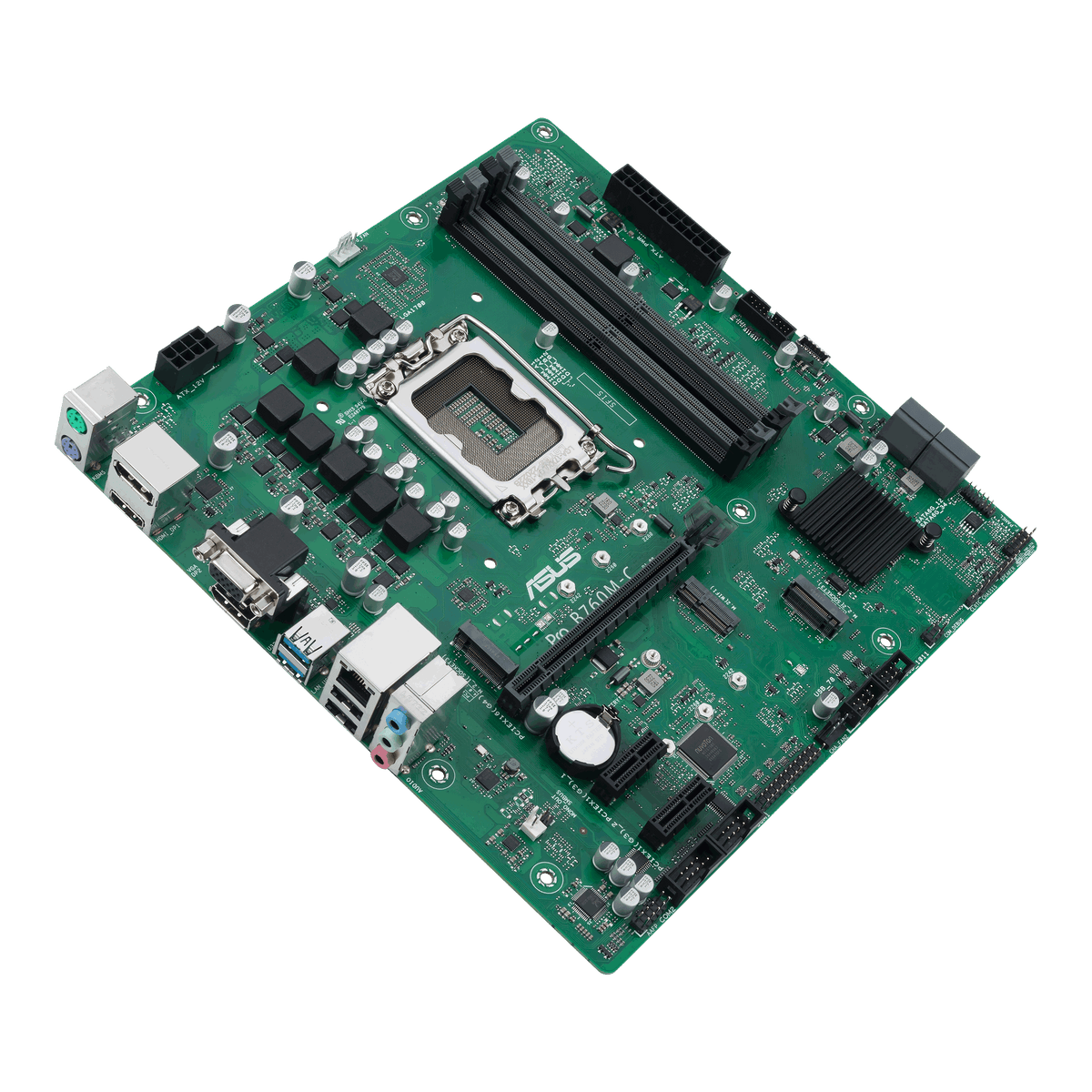

ASUS Pro B760M-C-CSM mATX Business Motherboard DDR5
The ASUS Pro B760M-C-CSM is a micro-ATX business motherboard built for reliability and serviceability in commercial builds. It supports Intel's 12th, 13th and 14th generation processors with DDR5 memory, PCIe 4.0 storage and a diagnostic-focused BIOS designed for IT teams and system integrators.
Why this product
Commercial BIOS and event logging
Includes a commercial BIOS kit and event log for easy maintenance and troubleshooting in managed environments.
Q-LED diagnostic display
Built-in diagnostic LEDs and COM debug header help identify hardware issues during assembly and support.
PCIe 4.0 and DDR5 support
Supports PCIe 4.0 M.2 storage and DDR5 memory for faster data transfer and modern system performance.
Multiple storage options
Two M.2 slots and four SATA ports provide flexibility for solid-state and legacy storage drives.
- SocketIntel LGA1700
- ChipsetIntel B760
- Form FactorMicro-ATX
- Memory TypeDDR5
- Max Memory32 GB
- M.2 Slots2 x PCIe 4.0
- SATA Ports4 x 6Gb/s
- SKUASU-2744
- EAN4711387014691
- Fits Intel Core 14th, 13th and 12th gen processors, Pentium Gold and Celeron in LGA1700 socket
- Accepts DDR5 memory modules up to 32 GB total capacity
- Micro-ATX form factor fits standard business tower cases
- Not compatible with AMD Ryzen or other non-Intel processors
- Does not support DDR4 memory
Best for
- System integrators and IT teams building managed commercial systems
- Organizations needing diagnostic tools and event logging for support
- Space-constrained environments requiring micro-ATX motherboards
- Builds using modern DDR5 and PCIe 4.0 storage
Trade-offs
- Gaming or high-end workstations — business-grade audio and graphics options, not performance-focused features
- AMD platform users — Intel chipset and LGA1700 socket only
- Builds requiring multiple GPU slots — single PCIe slot limits multi-GPU configurations
- Users with legacy PS/2 keyboards and mice — limited to two PS/2 ports total
General
| Brand | ASUS |
|---|---|
| Model | Pro B760M-C-CSM |
| Color | Black |
Processor & Memory
| CPU Socket | Intel Socket LGA1700 |
|---|---|
| Compatible Processors | Intel Core 14th & 13th Gen, Core 12th Gen, Pentium Gold and Celeron |
| Memory Type | DDR5 |
| Max Memory | 32 GB |
Storage & Connectivity
| M.2_1 Slot | Key M, type 2242/2260/2280, PCIe 4.0 x4 |
|---|---|
| M.2_2 Slot | Key M, type 2280, PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| Rear USB | 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| Internal USB | 1 x USB 3.2 Gen 1 Type-C connector, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| LAN | 1 x Intel 1Gb Ethernet |
Expansion & I/O
| PCIe Generation | PCIe 4.0 |
|---|---|

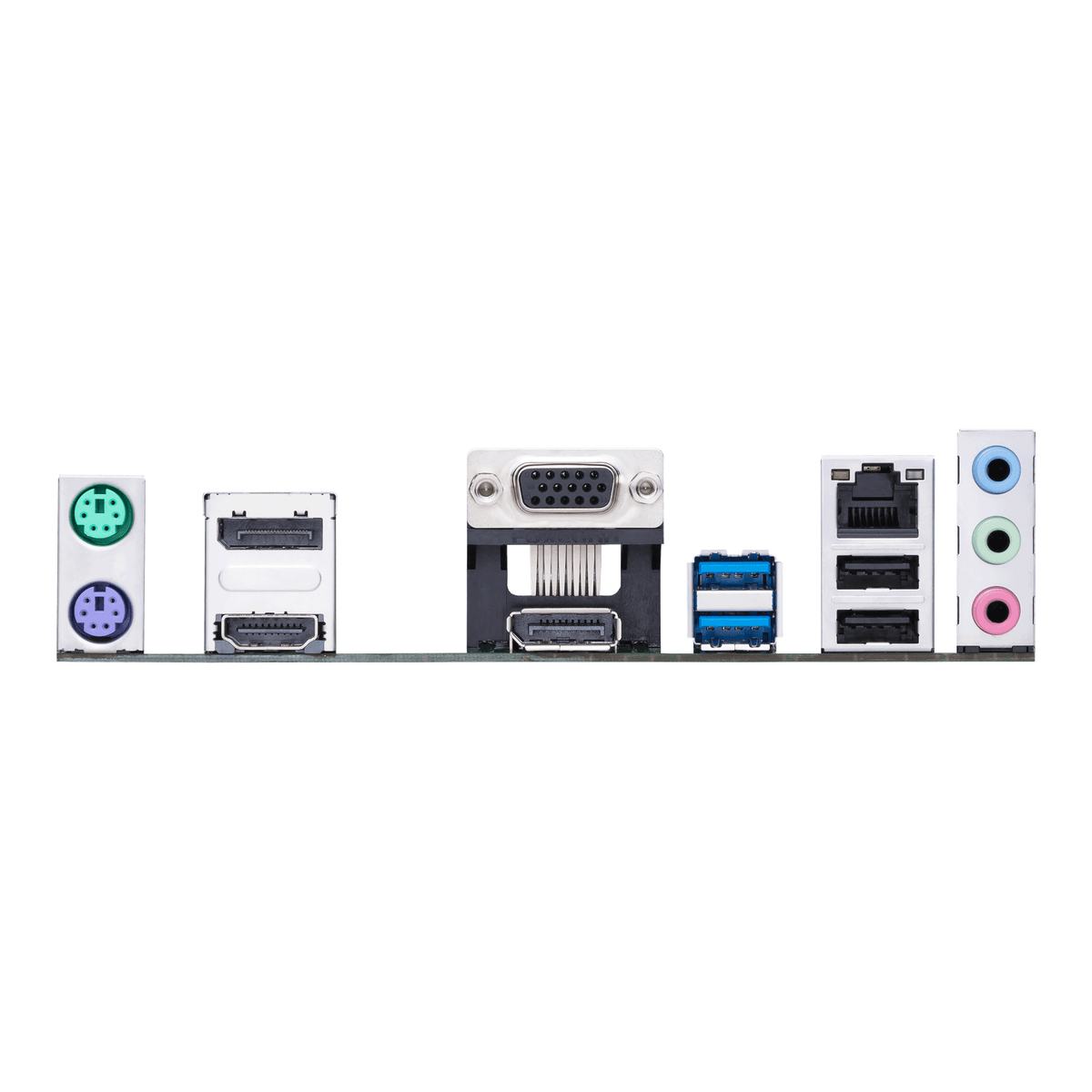

| Display Outputs | 2 x DisplayPort, 1 x HDMI, 1 x VGA |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, 3 x Audio jacks |
| Legacy I/O | 1 x PS/2 keyboard, 1 x PS/2 mouse |
| Fan Headers | 1 x 4-pin CPU, 2 x 4-pin Chassis |
