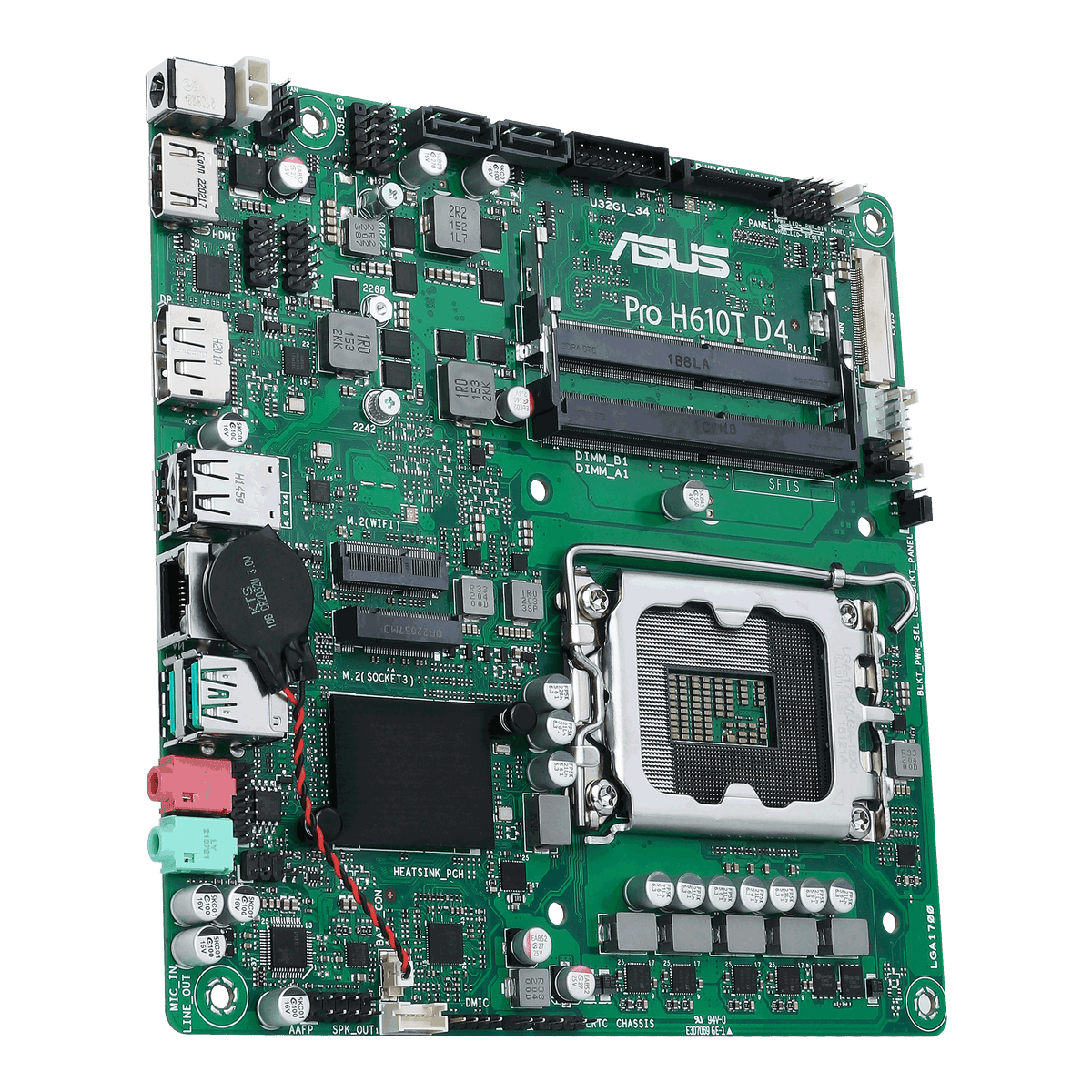

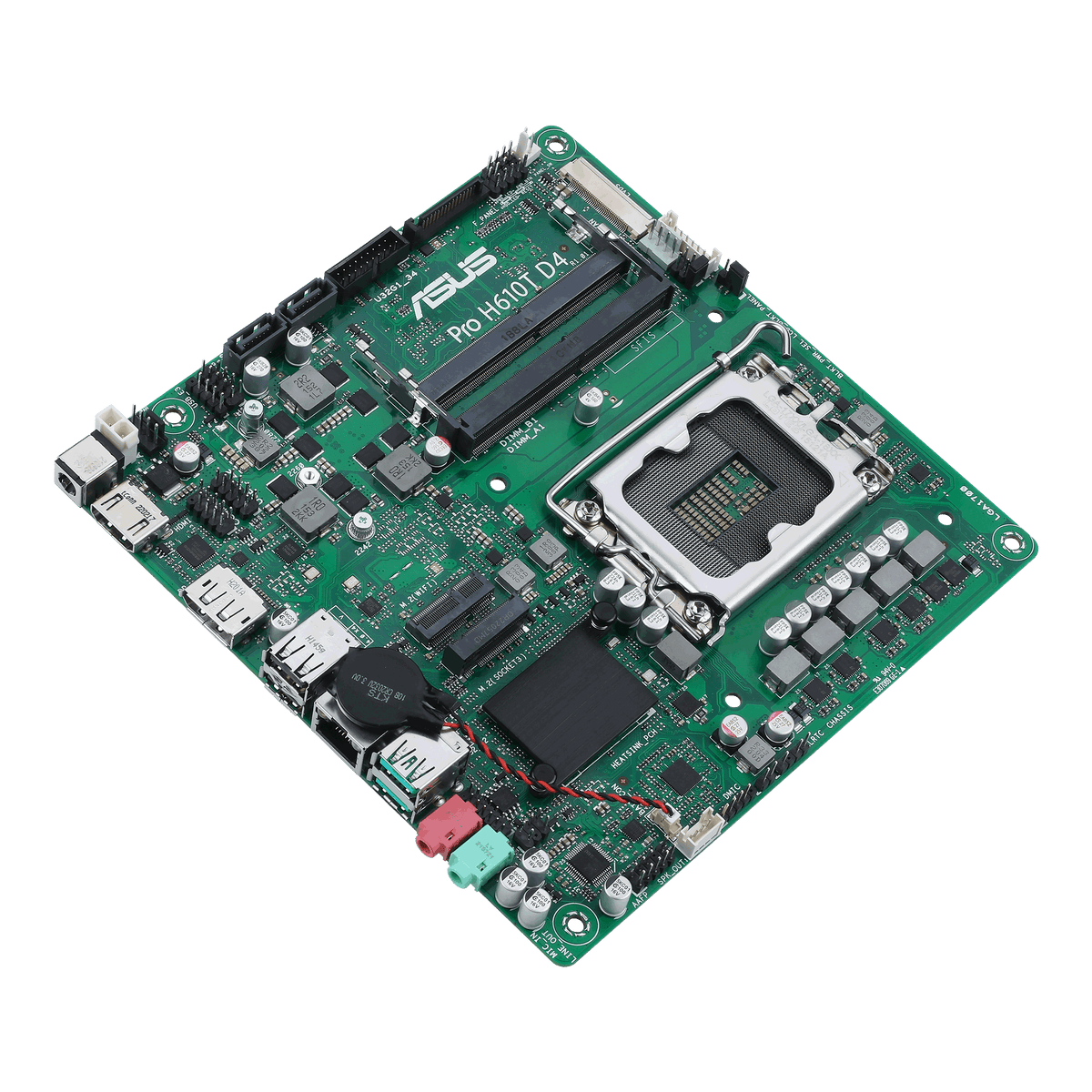

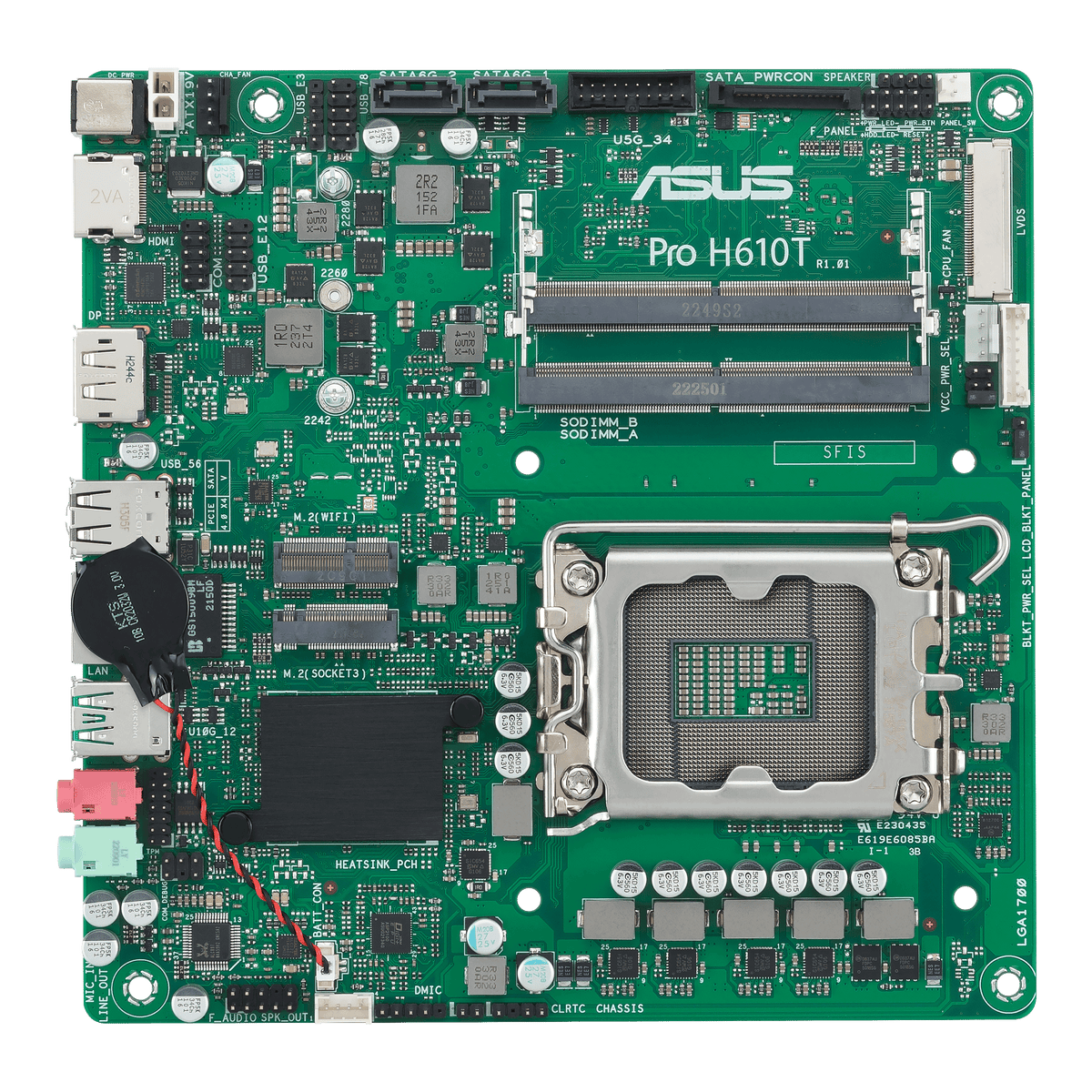

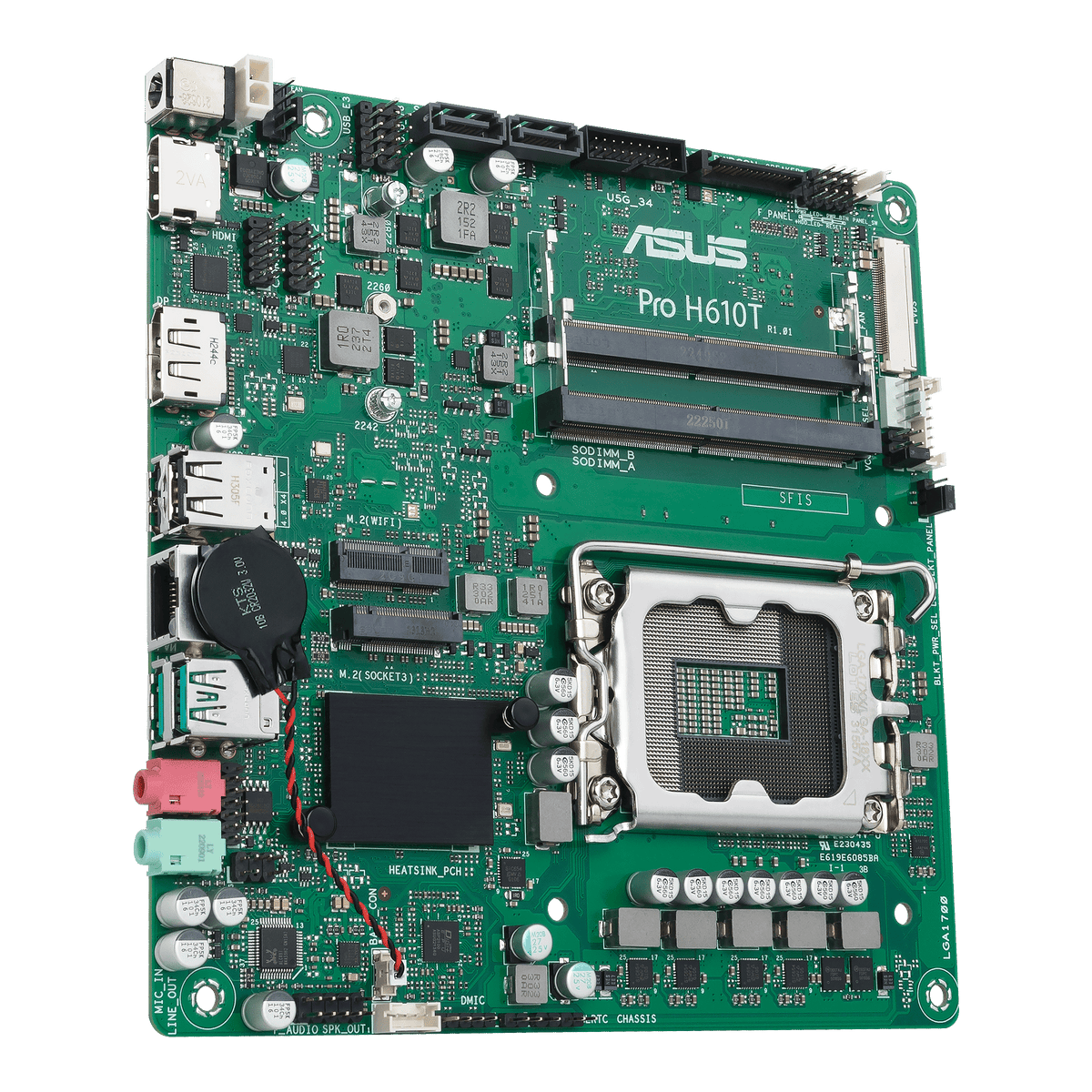

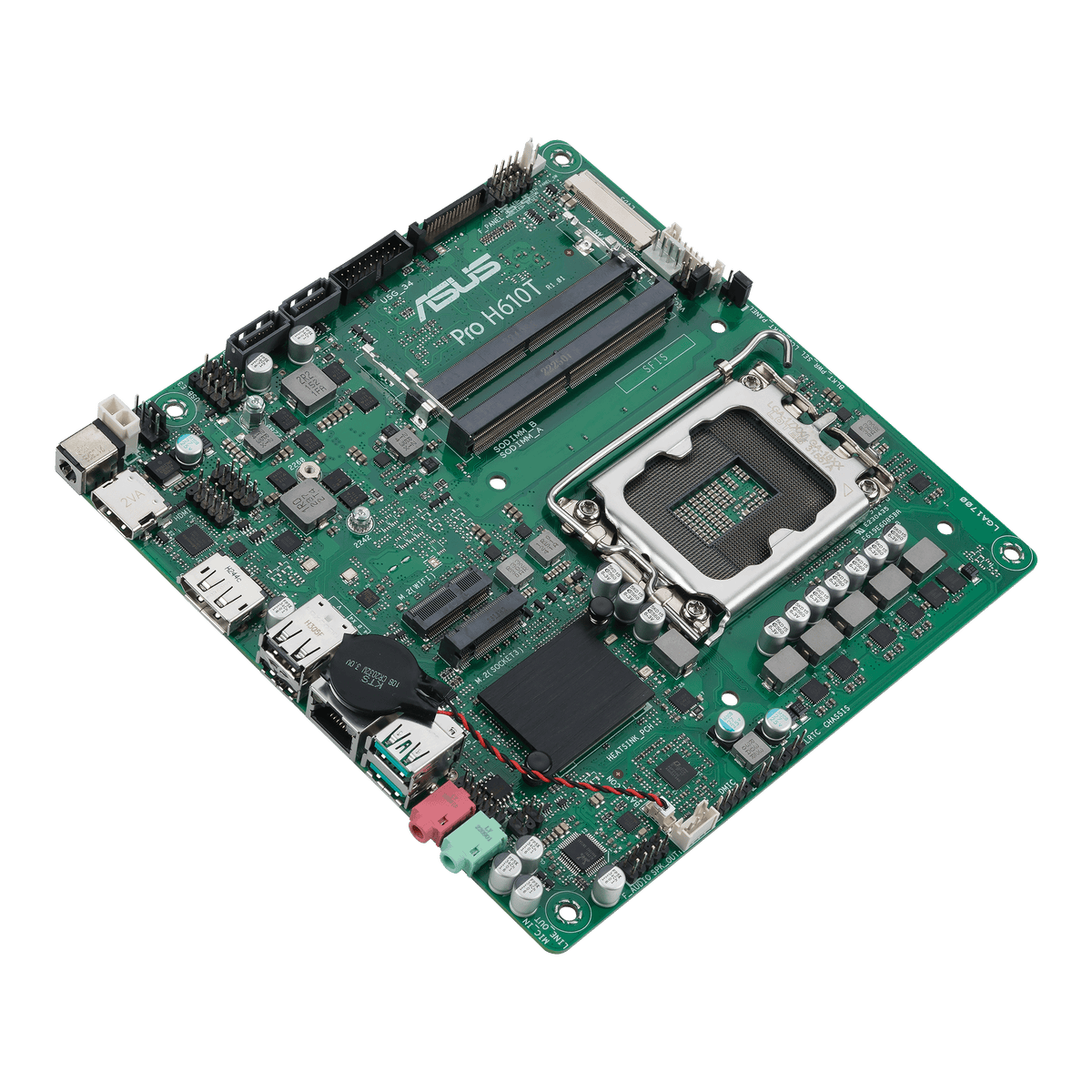

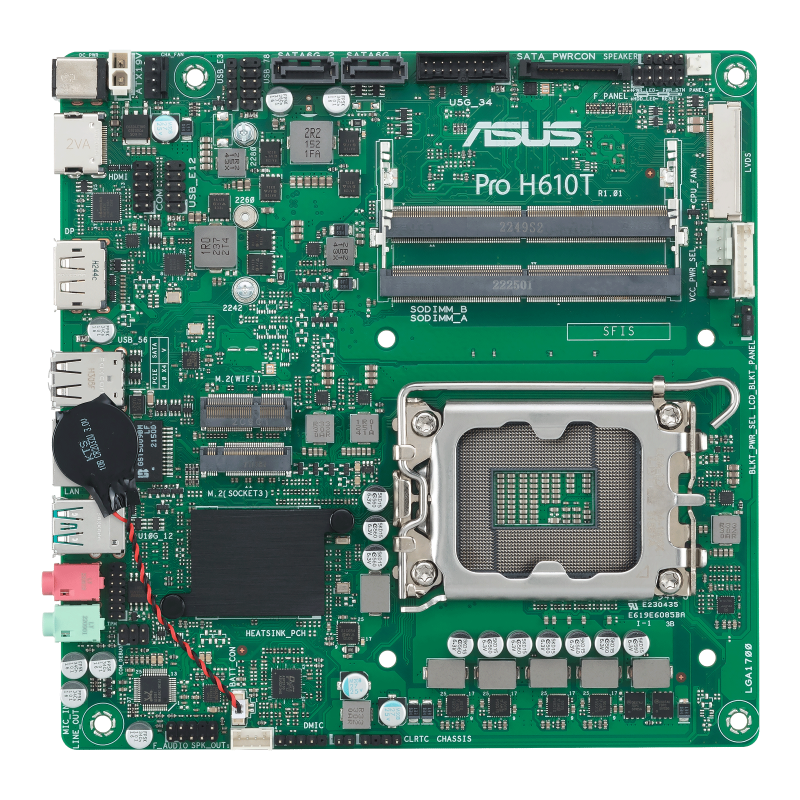

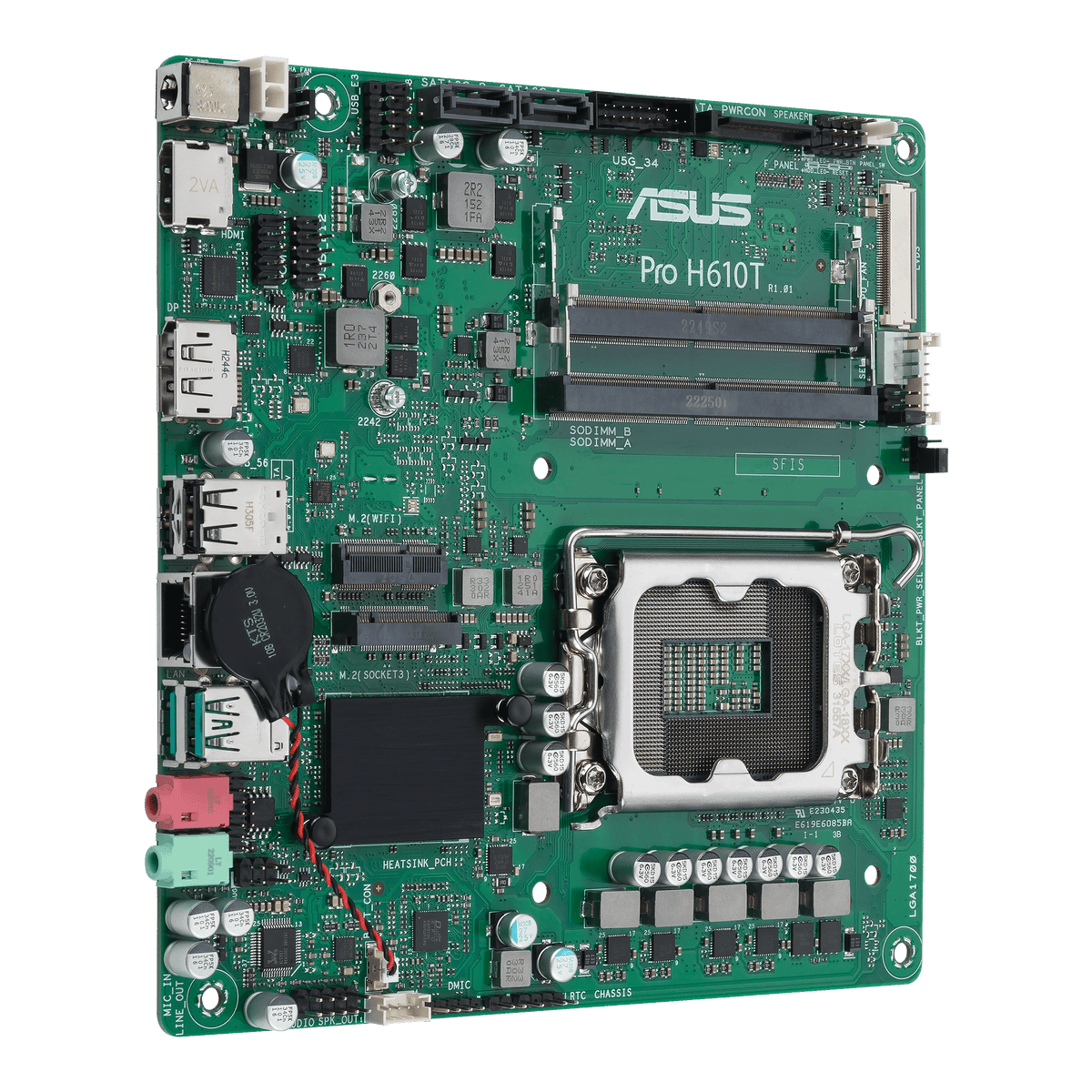

ASUS Pro H610T-CSM Thin Mini-ITX DDR5 LGA1700 Motherboard
ASUS
ASUS Pro H610T-CSM Thin Mini-ITX DDR5 LGA1700 Motherboard
The ASUS Pro H610T-CSM is a thin mini-ITX motherboard built for small-form-factor business systems and compact builds. It supports Intel's 12th, 13th, and 14th Gen processors, integrates enterprise-class management tools, and delivers the I/O density needed in tight spaces.
Why this product
Thin mini-ITX form factor
At 6.7" × 6.7", it fits tight chassis and SFF cases without compromising connectivity or expandability.
Enterprise management built in
ASUS Control Center Express provides centralized monitoring and administration, backed by the CSM program for stable supply and end-of-life support.
PCIe 4.0 storage and DDR5 memory
M.2 NVMe slot with PCIe 4.0 x4 speed and dual SO-DIMM slots support up to 64GB of DDR5, scaling from compact builds to workstation duty.
Multiple display outputs
DisplayPort, HDMI, and LVDS connectors allow triple-display setups or headless configurations in enterprise environments.
Self-healing BIOS and TPM
Enhanced security features including self-recovering BIOS firmware and Trusted Platform Module header protect against corruption and unauthorized access.
- Form FactorThin Mini-ITX
- ChipsetIntel H610
- SocketIntel LGA1700
- Supported CPUs14th, 13th, 12th Gen Intel Core; Pentium Gold; Celeron
- Max Memory64GB DDR5
- Storage1 × M.2 PCIe 4.0 + 2 × SATA
- Rear USB2 × USB 3.2 Gen 2 + 2 × USB 2.0
- Power Input19V DC
- SKUASU-3403
- EAN4711387304020
- Fits Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors in LGA1700 socket.
- Supports up to 64GB DDR5 memory via two SO-DIMM slots.
- Requires 19V DC external power input; does not use standard ATX 24-pin power connector.
- CPU power limited to 65W TDP; high-end K-series or workstation chips may exceed this and require external power solutions.
- Not compatible with AMD processors; LGA1700 Intel socket only.
Best for
- Compact systems and small-form-factor builds
- Business, education, and enterprise deployments needing centralized management and long-term supply stability
- Fanless or passively cooled systems with low thermal budgets
- Multi-display kiosk or digital signage applications
Trade-offs
- High-performance gaming or rendering: H610 chipset and 65W CPU power limit suit office and light compute tasks, not sustained heavy loads.
- Memory-intensive workloads: Limited to 64GB DDR5 and SO-DIMM form factor, which is low for data processing or virtualization compared to standard ATX boards.
- Multi-GPU systems: Single M.2 slot and no PCIe expansion slots mean no secondary graphics cards or add-in boards.
- Legacy hardware integration: Modern I/O only; no parallel ports, serial headers, or older connector types for retrofitting into older enclosures.
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability, and efficiency.
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs

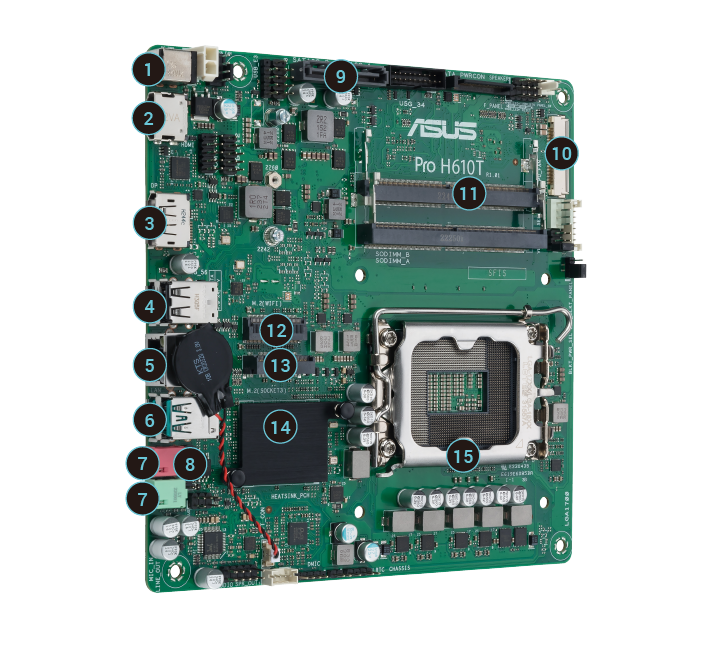

The Pro H610T-CSM supports Intel® socket LGA1700 for 14th, 13th and 12th Gen Intel® processors, and is equipped with outstanding features, including DP, HDMI™, LVDS, SO-DIMM DDR5, 19V DC power connector, USB 3.2 Gen 2, M.2 PCIe 4.0 slot, M.2 key E slot, TPM header, Q-LED Core, ASUS Control Center Express (ACCE).
General
| Brand | ASUS |
|---|---|
| Model | Pro H610T-CSM |
| Chipset | Intel H610 |
| Form Factor | Thin Mini-ITX (6.7" × 6.7") |
CPU & Memory
| CPU Socket | Intel LGA1700 |
|---|---|
| Supported Processors | Intel Core 14th, 13th, 12th Gen; Pentium Gold; Celeron; up to 65W TDP |
| Memory Type | DDR5 5600 Non-ECC |
| Memory Slots | 2 × SO-DIMM |
| Max Memory | 64GB |
Storage & Expansion
| M.2 Slot (Key M) | Type 2260/2280, PCIe 4.0 x4 or SATA mode |
|---|---|
| M.2 Slot (Key E) | Type 2230 |
| SATA Ports | 2 × SATA 6Gb/s |
Connectivity

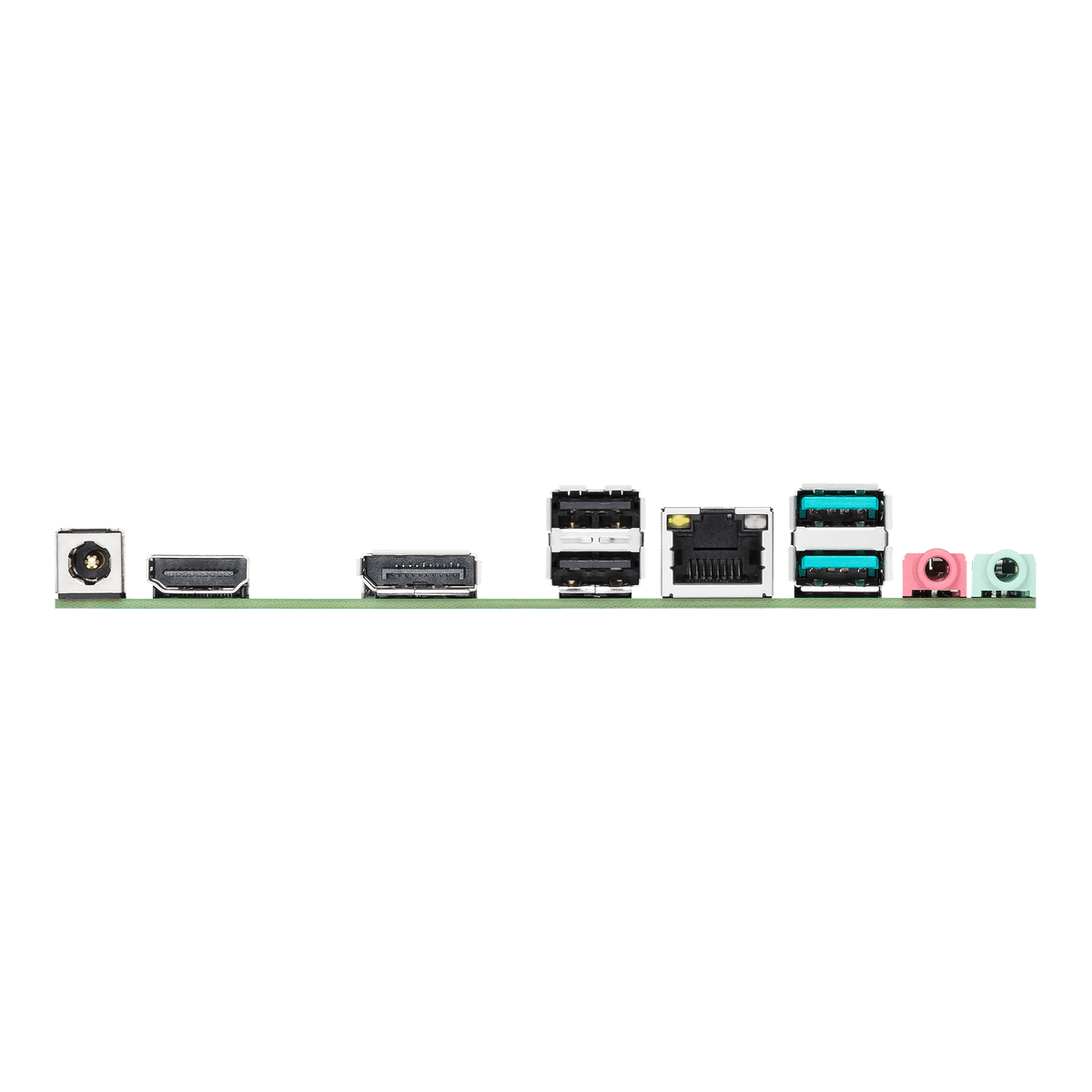

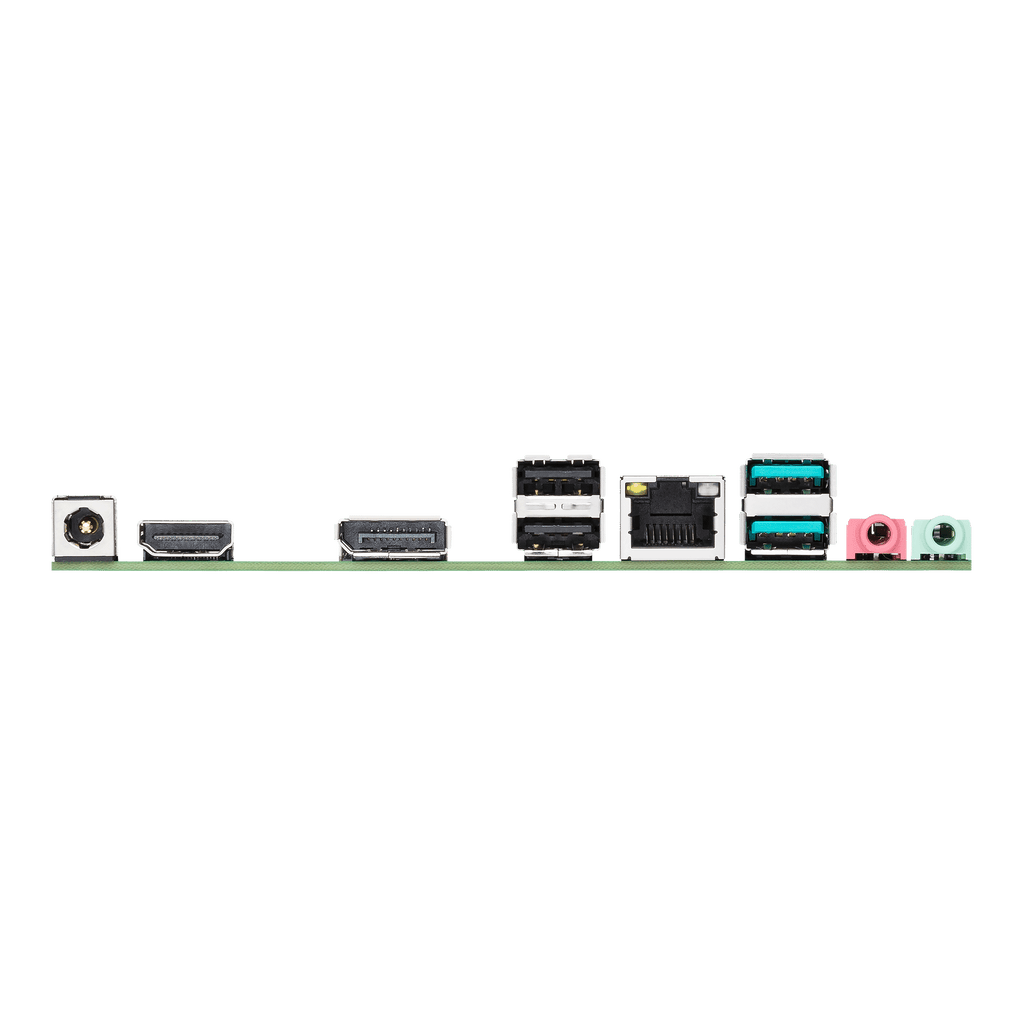

| Rear USB | 2 × USB 3.2 Gen 2 (Type-A) + 2 × USB 2.0 |
|---|---|
| USB Headers | 1 × USB 3.2 Gen 1 header (2 ports) + 3 × USB 2.0 headers (5 ports) |
| Ethernet | 1 × Realtek RTL8111H 1Gb with LANGuard |
| Display Outputs | 1 × DisplayPort (4K@60Hz) + 1 × HDMI (4K@60Hz) + 1 × LVDS |
| Audio | Realtek 7.1 Surround Sound HD Audio Codec |
| Power Input | 1 × 19V DC power connector |
Security & Management
| BIOS | 128MB Flash ROM, UEFI AMI, Self-recovering |
|---|---|
| TPM | 1 × SPI TPM header (14-1 pin) |
| Management Features | ASUS Control Center Express (ACCE), WOL by PME, PXE |
| CSM Program | Stable supply, end-of-life notifications, IT software |
OS Support
| Supported OS | Windows 11 64-bit, Windows 10 64-bit |
|---|
