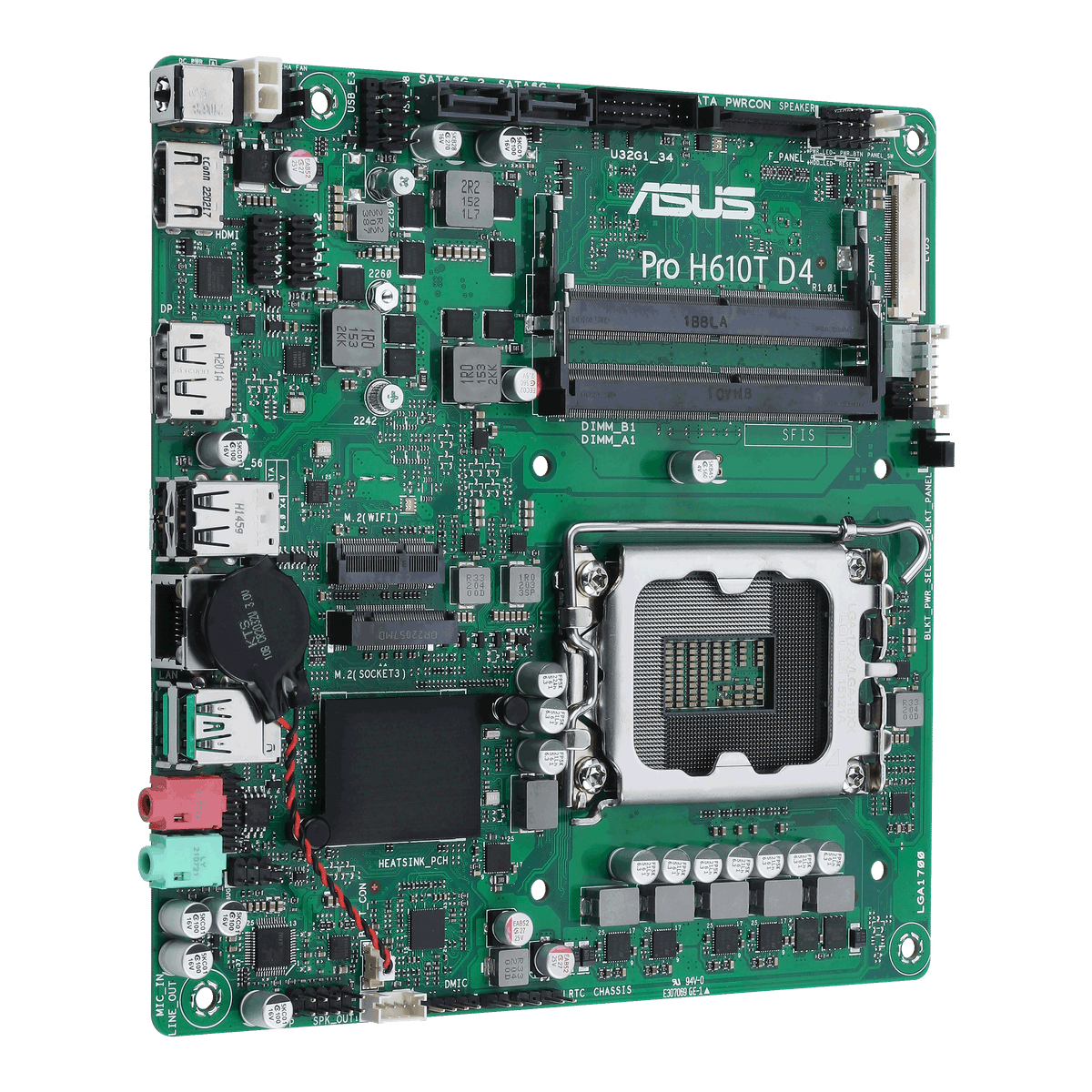

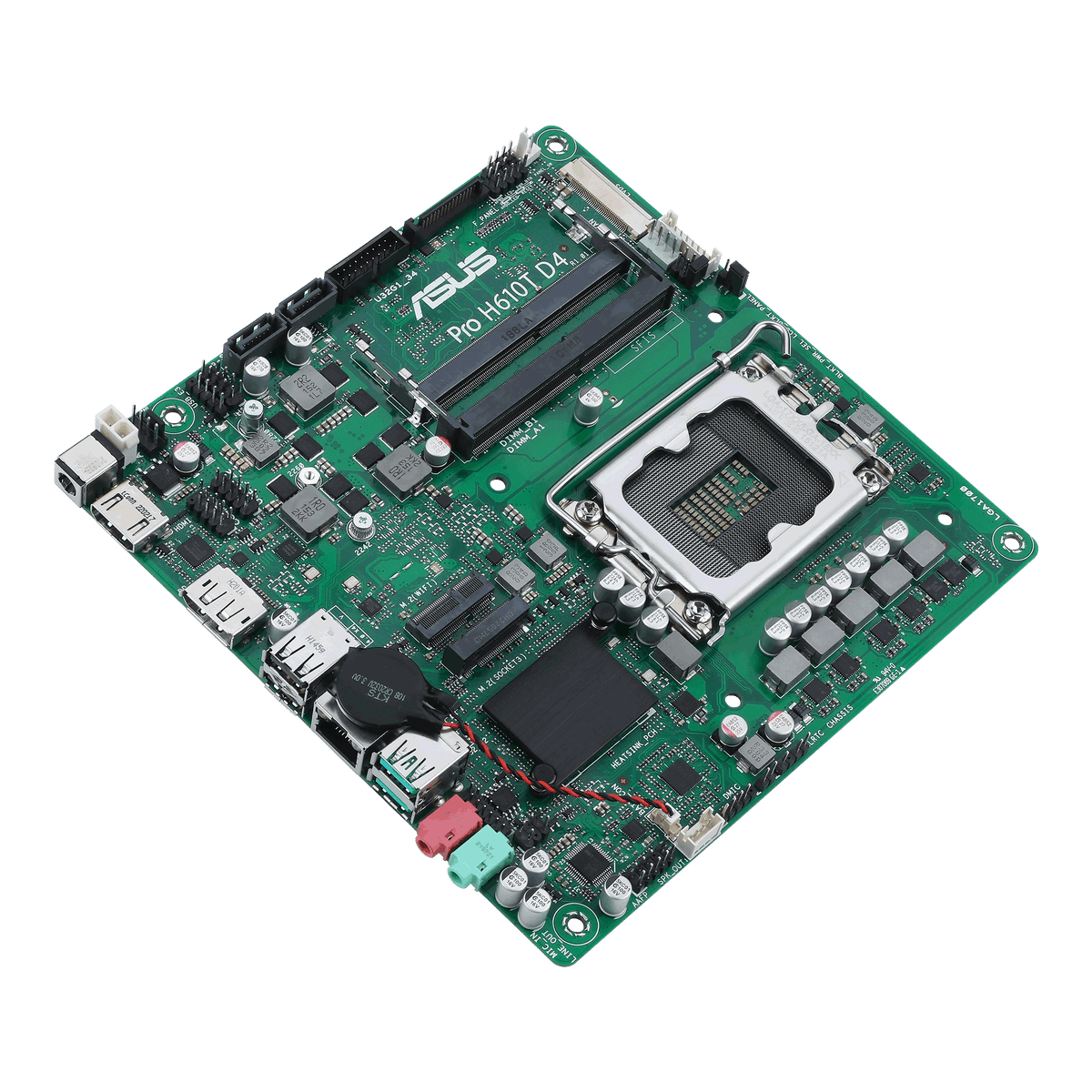

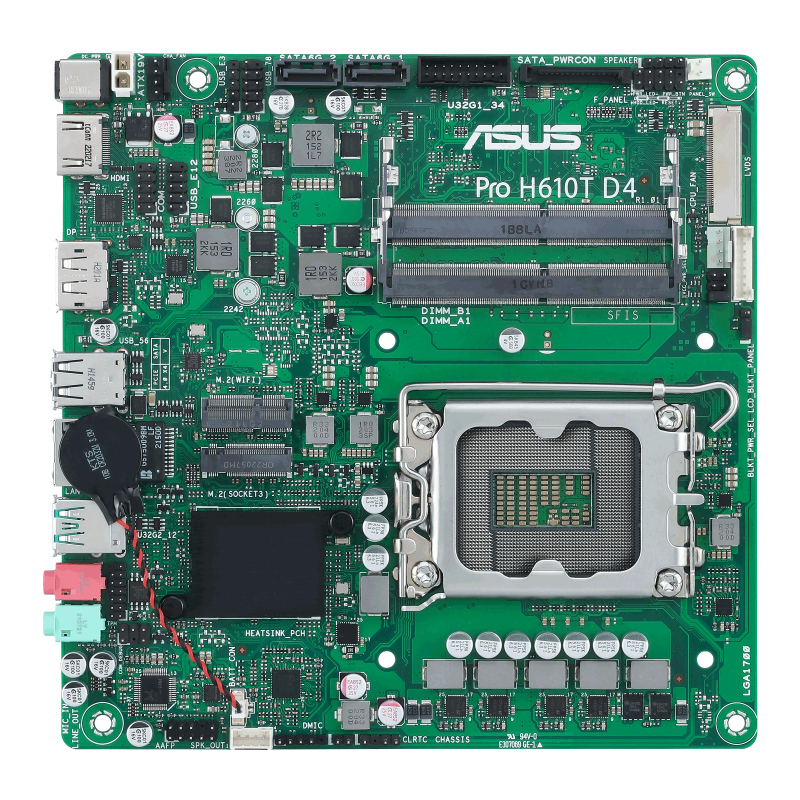

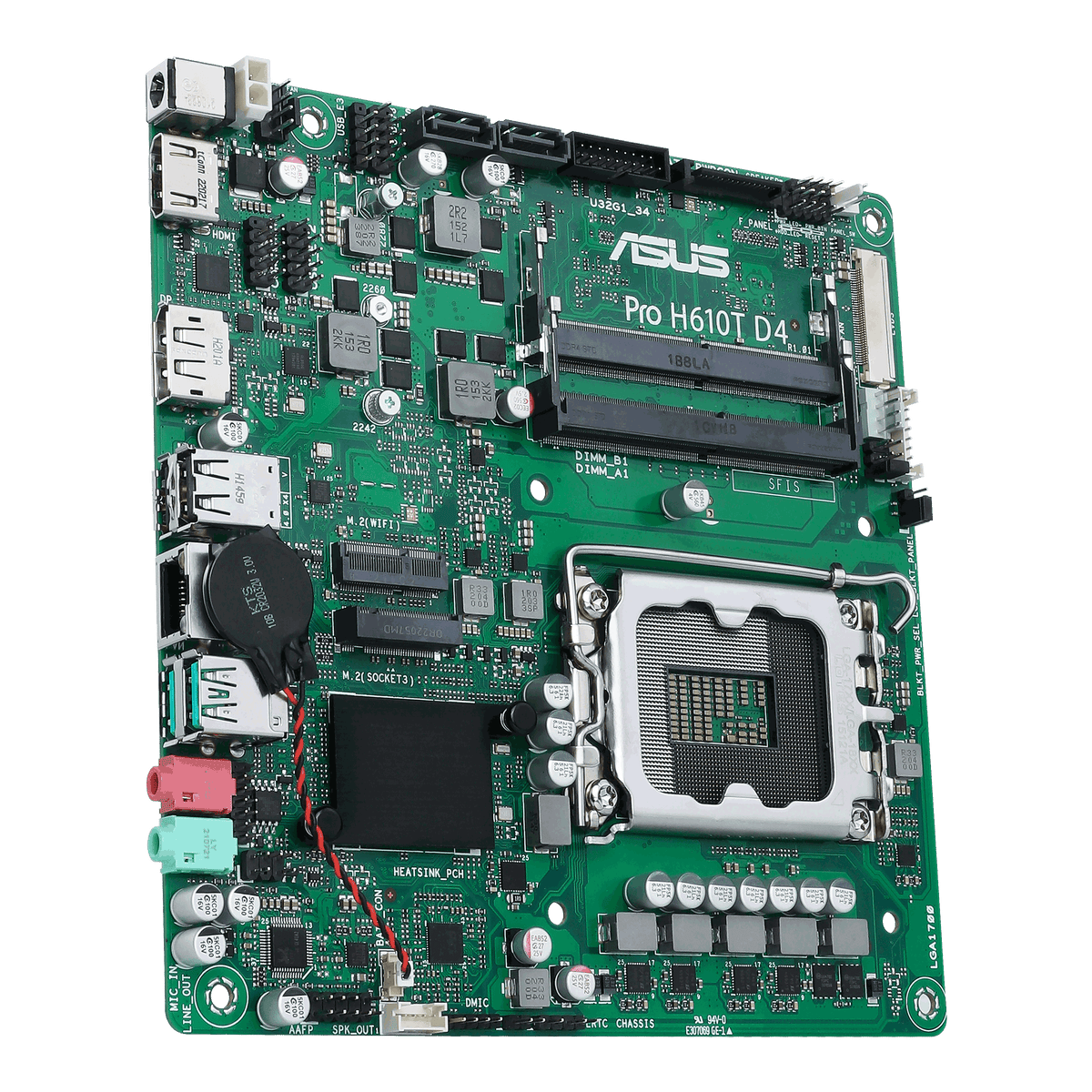

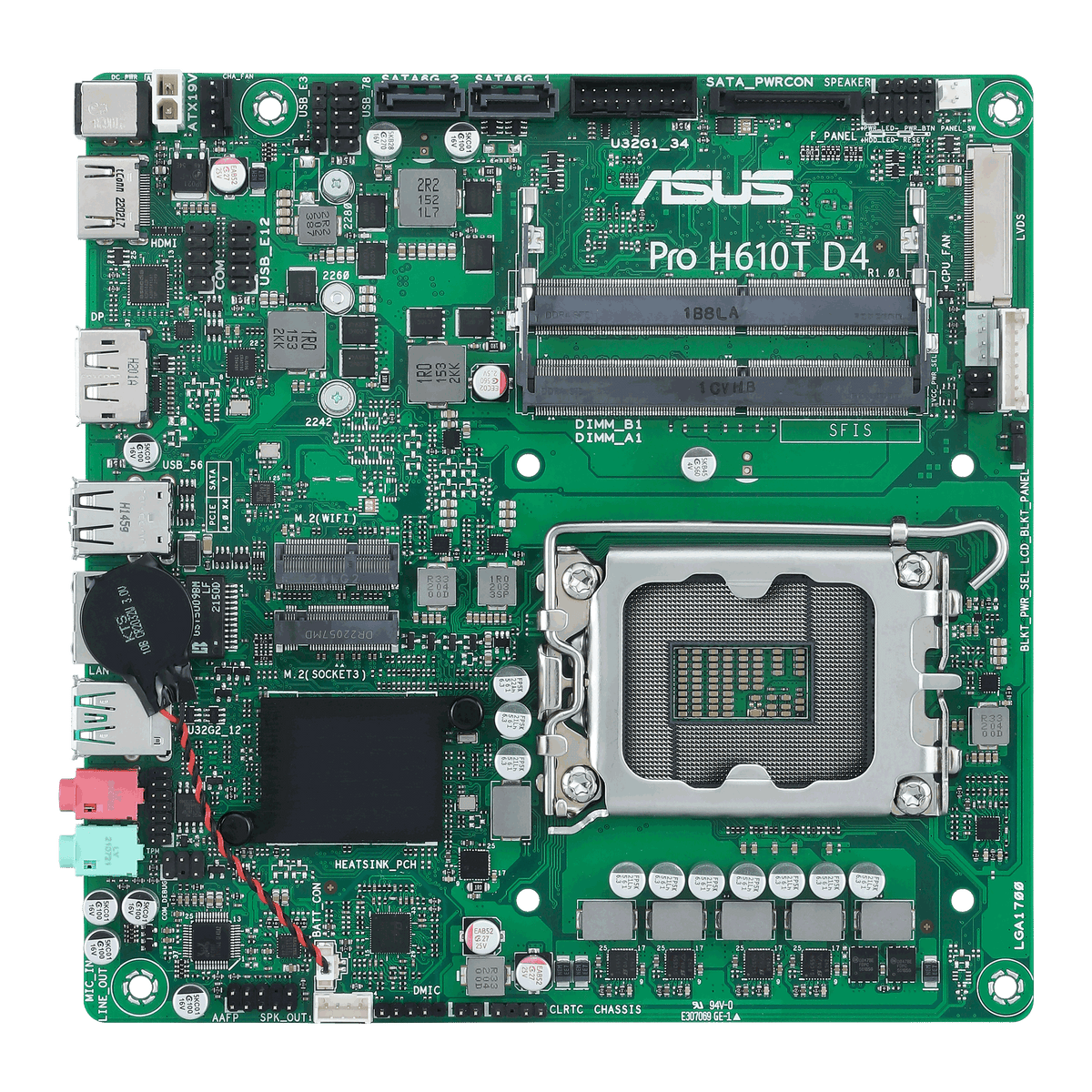

ASUS Pro H610T D4-CSM Thin Mini-ITX LGA1700 Motherboard
ASUS
ASUS Pro H610T D4-CSM Thin Mini-ITX LGA1700 Motherboard
The ASUS Pro H610T D4-CSM is a thin mini-ITX business motherboard built for enterprise deployments that demand stable, manageable systems in compact spaces. It supports 12th, 13th and 14th gen Intel processors and includes ASUS CSM lifecycle support, enterprise management software, and security features designed for IT operations. The tight footprint makes it ideal for compact workstations, kiosks and branch office systems where space is limited.
Why this product
CSM program with 36-month support
ASUS Corporate Stable Model ensures predictable supply, end-of-life notifications, and IT software. This is designed for organisations that need stable product transitions rather than surprise discontinuations.
Self-recovering BIOS and TPM
ASUS-exclusive BIOS recovery technology automatically restores a verified backup if an update fails. TPM integration adds foundation-level security for data and system integrity.
Control Center Express for IT management
Integrated monitoring and management software that centralises system administration across multiple machines. Simplifies remote oversight and configuration without third-party tools.
Thin mini-ITX form factor
At 6.7" × 6.7", this board fits compact cases and space-constrained environments. Ideal for desktop replacement, kiosk, or branch-office builds where real estate matters.
Q-LED diagnostic display
Built-in troubleshooting indicator lights up during Power-On Self-Test to identify issues quickly. COM debug header supports advanced diagnostics for technical support and field service.
- CPU SocketIntel LGA1700 (12th, 13th, 14th gen)
- Form FactorThin Mini-ITX (6.7" × 6.7")
- MemoryDDR4 up to 3200 MHz, max 64 GB
- Storage1 × M.2 (NVMe/SATA), 2 × SATA 6 Gb/s
- Graphics OutputsDisplayPort, HDMI, LVDS
- Warranty3 years
- SKUASU-2699
- EAN4711081679851
- Intel 12th, 13th and 14th gen Core, Pentium Gold and Celeron processors (LGA1700 socket, up to 65W TDP)
- DDR4 SODIMM memory up to 3200 MHz, up to 64 GB total (2 slots, dual-channel architecture)
- M.2 NVMe storage (2260/2280, PCIe 4.0 x4) or SATA drives via dedicated ports
- Windows 10 64-bit and Windows 11 64-bit
- Requires external PSU capable of delivering 19V DC via dedicated connector; does not support standard ATX power supplies
Best for
- Enterprise IT environments needing managed, stable platforms across multiple locations
- Compact workstations and branch-office systems where form factor is constrained
- Organisations requiring predictable product lifecycle and end-of-life planning
- Deployments prioritising security, diagnostics and remote management over raw performance
Trade-offs
- Gaming or creative workloads: H610 chipset lacks overclocking support and offers no discrete GPU slot; integrated graphics only.
- High-capacity memory builds: Limited to 64 GB maximum across two SO-DIMM slots; no ECC support for error-correcting workloads.
- Storage-heavy configurations: Only one M.2 slot and two SATA ports; no RAID or expansion options for multi-drive systems.
- Fanless or passively cooled systems: Board lacks design optimisation for passive thermal dissipation; requires active CPU and chassis cooling.
- Non-enterprise IT buyers: CSM support, lifecycle guarantees and management software target organisational procurement; consumer use cases do not justify the cost model.
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency.
- Intel® LGA 1700 socket: Ready for 14th, 13th and 12th Gen Intel® processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions.
ASUS Shield – Enhances system security from bottom to top
ASUS Self-recovering BIOS: ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
ASUS Reliant
Anti-sulfur Resistors | Stainless-Steel Back I/O
General
| Brand | ASUS |
|---|---|
| Model | Pro H610T D4-CSM |
| Chipset | Intel H610 |
| Form Factor | Thin Mini-ITX (6.7" × 6.7" / 17.0 cm × 17.0 cm) |
Processor & Memory
| CPU Socket | Intel LGA1700 |
|---|---|
| Supported Processors | Intel Core 14th, 13th, 12th gen; Pentium Gold; Celeron (up to 65W TDP) |
| Features | Intel Turbo Boost Technology 2.0 and 3.0 support |
| Memory Type | DDR4 non-ECC, unbuffered |
| Memory Slots | 2 × SO-DIMM |
| Memory Speeds Supported | 3200, 2933, 2800, 2666, 2400, 2133 MHz |
| Maximum Memory | 64 GB |
| Memory Architecture | Dual channel |
| XMP Support | Yes |
Storage & Connectivity
| M.2 Slots | 1 × Key M (type 2260/2280, PCIe 4.0 x4 & SATA) |
|---|---|
| SATA Ports | 2 × SATA 6 Gb/s |
| Ethernet | 1 × Realtek 1 Gb with LANGuard protection |
| Audio | Realtek 7.1 Surround, up to 24-bit/192 kHz |
Expansion & I/O

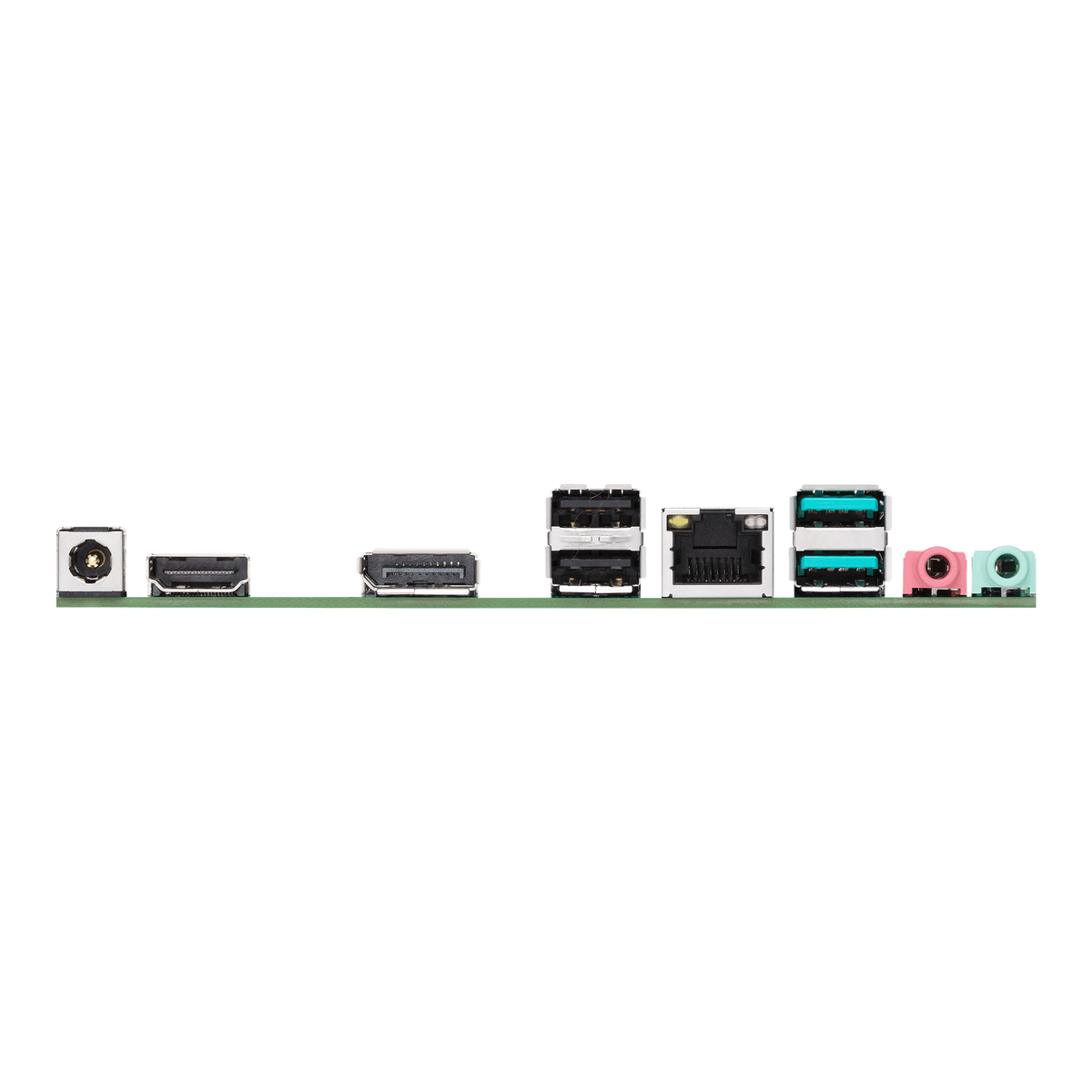

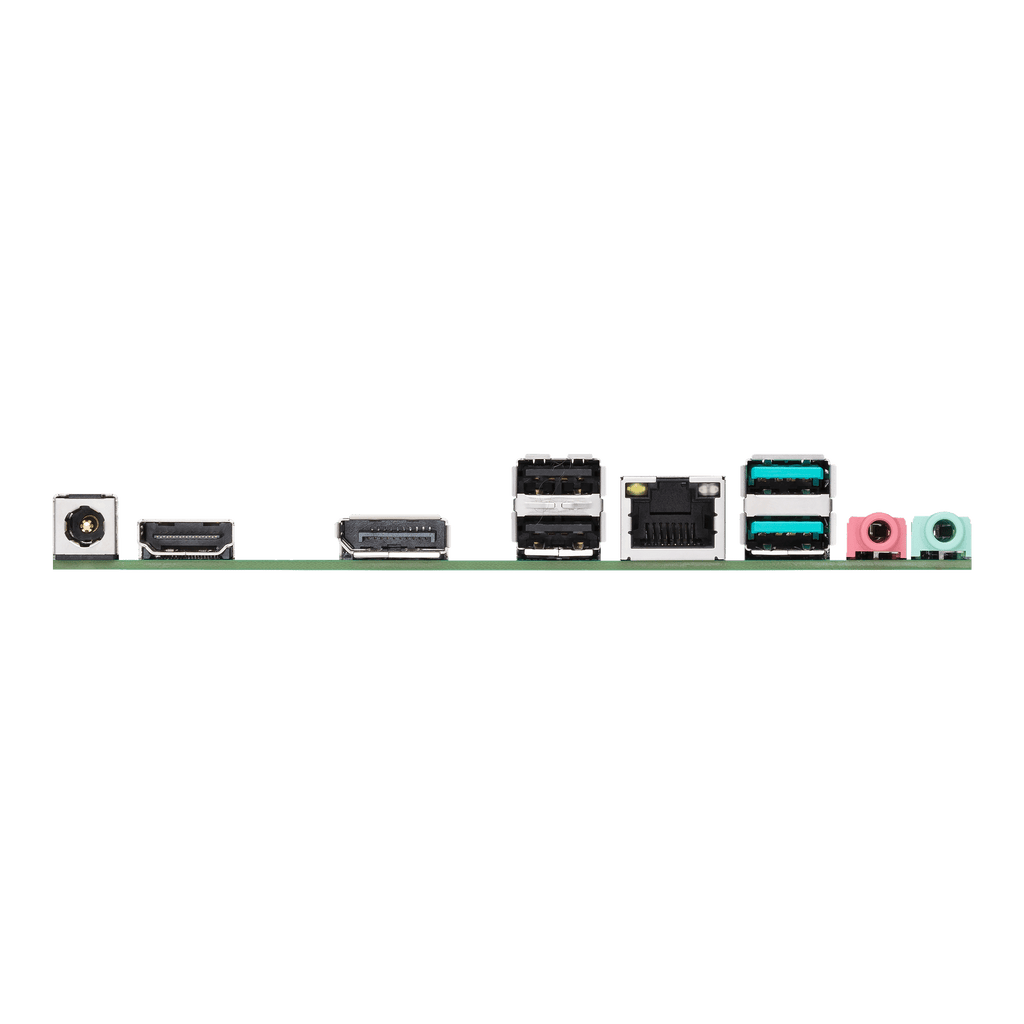

| Rear USB Ports | 2 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0 |
|---|---|
| Front Panel Headers | 1 × USB 3.2 Gen 1 header (supports 2 ports), 3 × USB 2.0 headers (support 5 ports total) |
| Video Outputs | 1 × DisplayPort (4K@60Hz), 1 × HDMI, 1 × LVDS |
| Internal Headers | 1 × 4-pin CPU Fan, 1 × 4-pin Chassis Fan, stereo speaker, DMIC, system panel |
| Power Input | 19V DC connector (external PSU required) |
Security & Management
| BIOS Security | Self-recovering BIOS with verified backup recovery |
|---|---|
| TPM | Yes |
| Diagnostics | Q-LED Core display, COM debug header |
| Management Software | ASUS Control Center Express |
| Wake Functions | WOL by PME, PXE |
| CSM Program | 36-month product lifecycle, 6-month end-of-life notice, IT software bundle |
Firmware & OS
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Supported OS | Windows 11 64-bit, Windows 10 64-bit |
