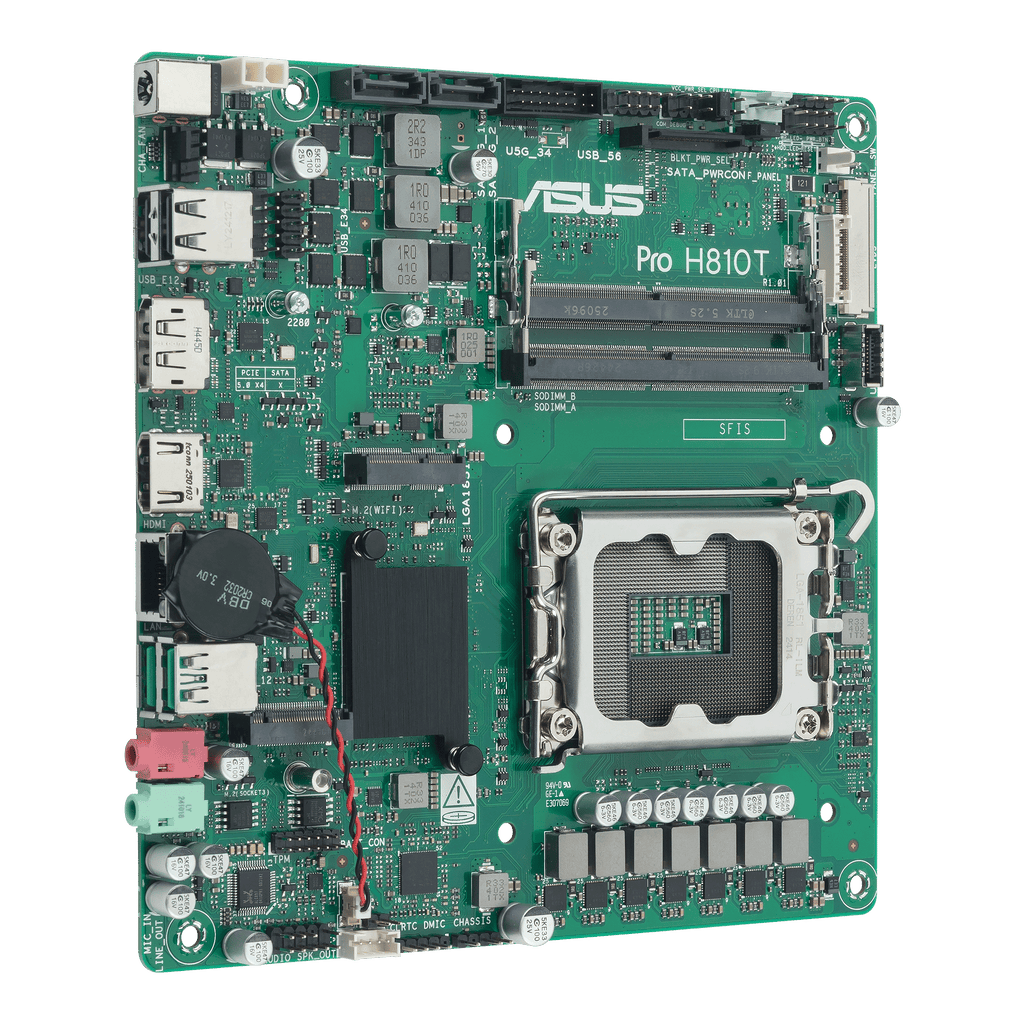

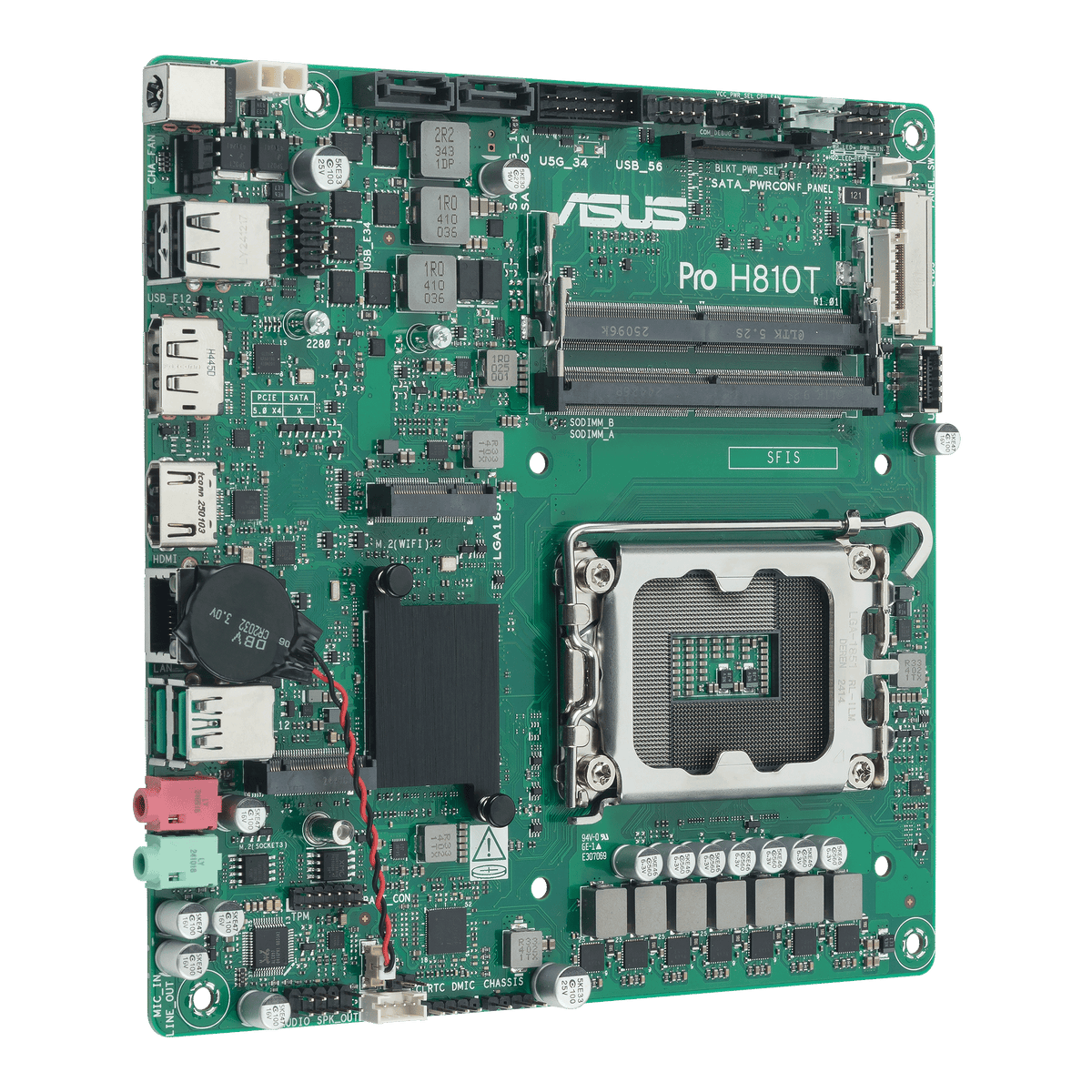

ASUS Pro H810T-CSM Thin Mini-ITX H810 Business Motherboard
ASUS
ASUS Pro H810T-CSM Thin Mini-ITX H810 Business Motherboard

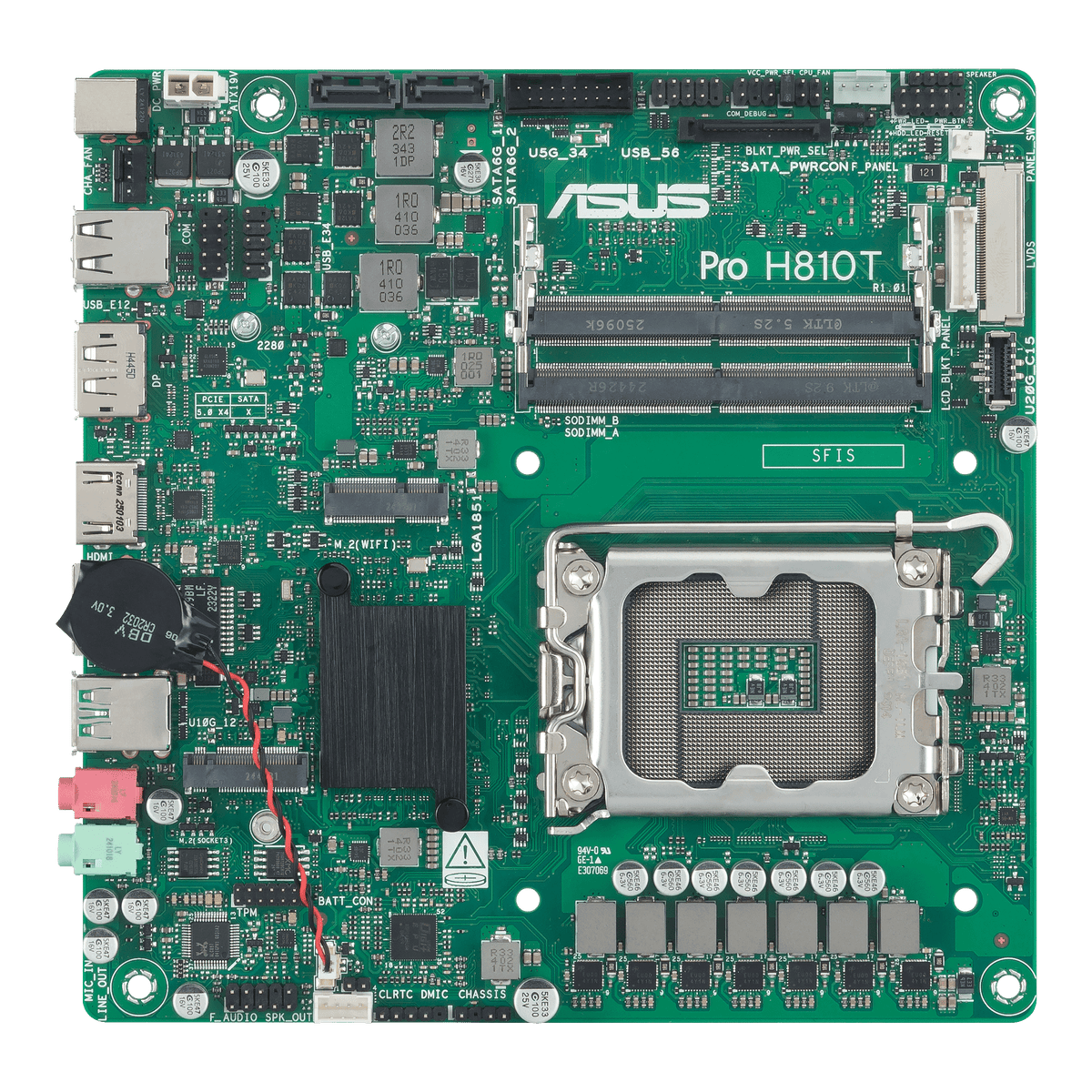

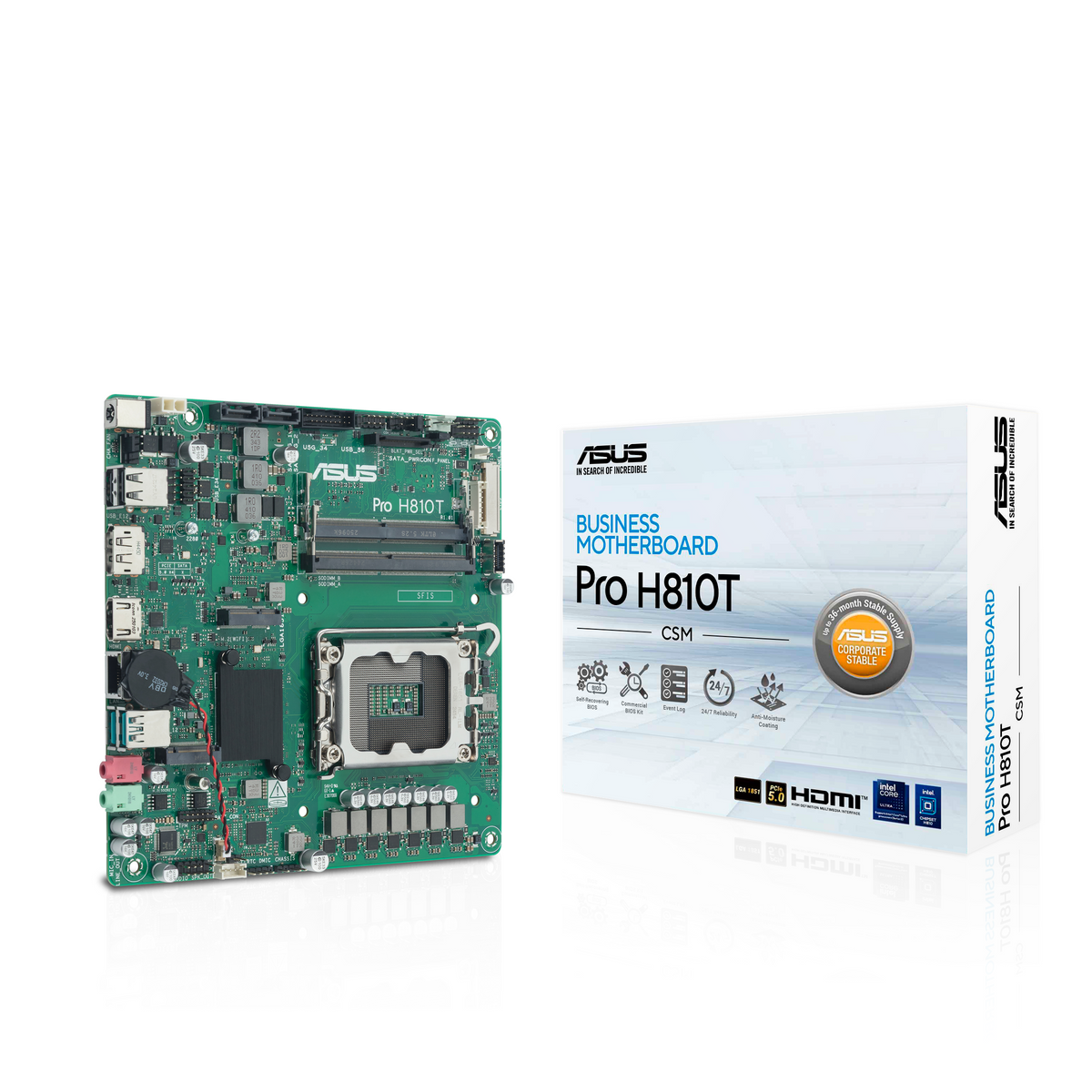

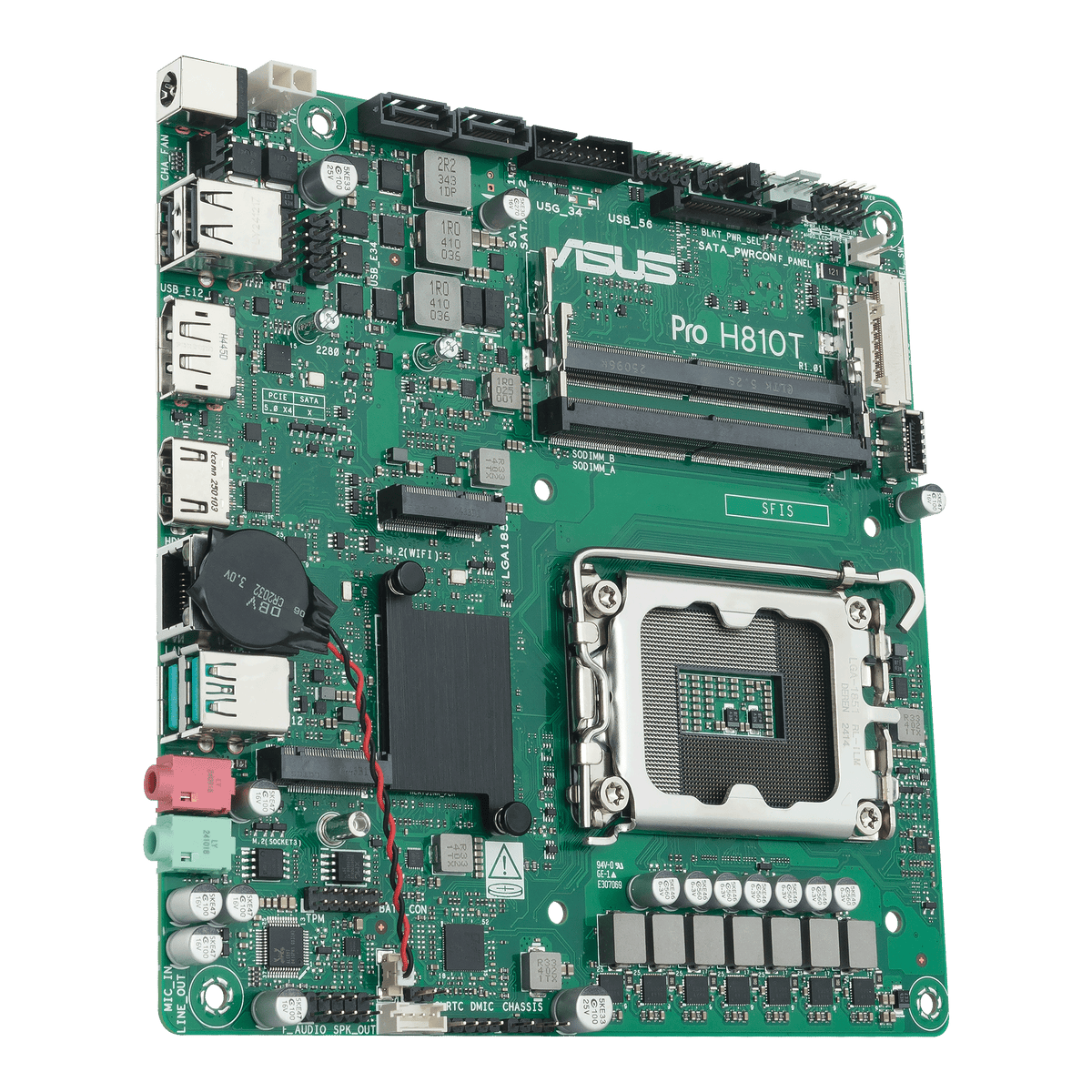

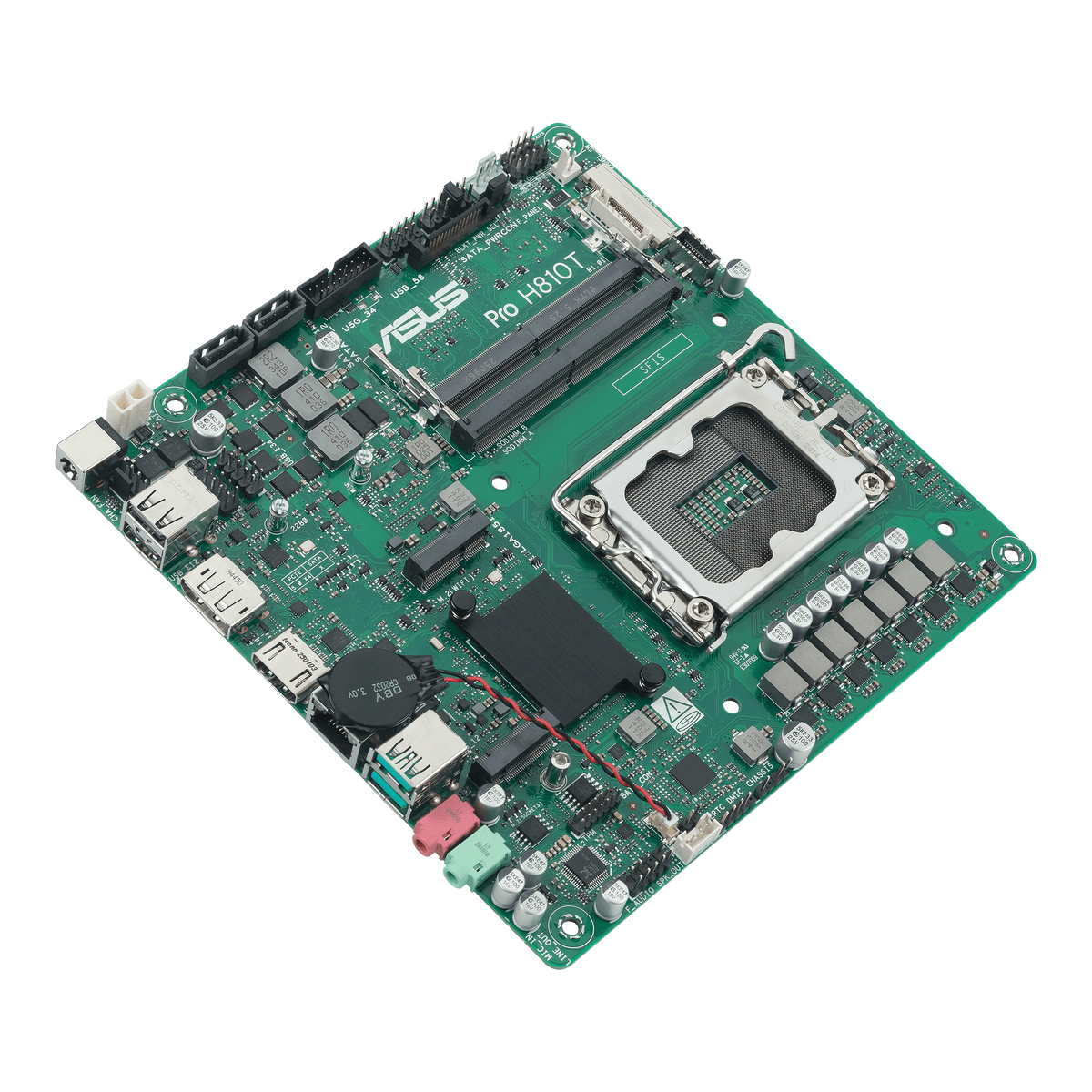

The ASUS Pro H810T-CSM is a thin mini-ITX business motherboard built for compact enterprise systems that demand reliability, security, and remote management. It supports Intel Core Ultra Processors (Series 2) and integrates monitoring software and firmware recovery designed to minimize downtime in production environments.
Why this product
Intel Core Ultra Series 2 ready
LGA 1851 socket supports the latest Intel Core Ultra Processors with TurboBoost Max Technology 3.0 for responsive performance in business applications.
Enterprise management built in
ASUS Control Center Express provides centralized IT monitoring and system administration, reducing hands-on support overhead across multiple deployments.
Self-recovering BIOS and TPM
Firmware can restore itself after corruption, and TPM 2.0 encryption protects against unauthorized access and data breaches.
Compact 6.7" × 6.7" footprint
Thin mini-ITX form factor fits tight spaces without sacrificing I/O, ideal for small-form-factor workstations and edge deployments.
Ultrafast storage and USB connectivity
PCIe 5.0 M.2 slot, front USB 20Gbps Type-C, and rear USB 10Gbps Type-A ports deliver fast data transfer for imaging and backup workflows.
Stable long-term supply
ASUS CSM program guarantees motherboard availability, end-of-life notifications, and IT software tailored to business deployments.
- SocketIntel LGA 1851
- CPU SupportIntel Core Ultra Processors (Series 2) up to 65 W
- MemoryDDR5 SO-DIMM, max 128 GB, up to 6400+ MT/s
- Storage1 × M.2 PCIe 5.0 (NVMe), 2 × SATA 6 Gb/s
- Form FactorThin Mini-ITX (6.7" × 6.7")
- Power19 V external connector
- Graphics OutputDisplayPort 1.4, HDMI 2.1, LVDS
- Network1 × Realtek 1 Gb Ethernet (LANGuard)
- SKUASU-2736
- EAN4711636101325
- Fits Intel Core Ultra Processors (Series 2) only; older Intel Core or AMD Ryzen CPUs are not compatible.
- Accepts DDR5 SO-DIMM memory up to 128 GB total; DDR4 and desktop DDR5 UDIMM are not supported.
- Requires 19 V external power connector; standard ATX power supplies will not work.
- Ships with Windows 10 (21H2 or later) and Windows 11 (22H2 or later) support; older OS versions are not certified.
- Wi-Fi and Bluetooth require a separate M.2 CNVi module (sold separately) in the dedicated M.2 Key E slot.
Best for
- Compact workstations and fanless systems where space and passive cooling are critical.
- Managed enterprise fleets requiring remote administration, BIOS recovery, and centralized monitoring.
- Edge computing and industrial applications where durability and long-term supply stability matter.
- Security-focused deployments needing TPM 2.0, self-recovering firmware, and encrypted data protection.
- NAS, storage appliances, and media systems requiring fast PCIe 5.0 storage and multiple SATA ports.
Trade-offs
- High-end gaming or content creation: Limited to one M.2 slot and no PCIe expansion beyond that, constraining GPU or additional NVMe upgrades.
- Systems requiring integrated Wi-Fi or Bluetooth: Wireless modules must be purchased separately and installed in the M.2 Key E slot.
- Heavy multi-core workloads: CPU thermal envelope capped at 65 W, limiting sustained performance under peak loads.
- High-bandwidth storage needs: Single M.2 PCIe 5.0 slot and two SATA 6 Gb/s ports provide limited parallel I/O compared to full-size boards.
- Consumer-grade environments: Enterprise feature set and CSM program commitment add cost unsuitable for hobby or small non-business builds.
Pro H810T-CSM Intel® H810 (LGA1851) business motherboard, DDR5 SO-DIMM slots, PCIe 5.0 M.2 slot, DisplayPort, HDMI™, LVDS connector, front USB 20Gbps Type-C® and rear USB 10Gbps Type-A, 14-1 pin TPM header, ASUS DriverHub, ASUS MyHotkey, Q-LED Core, ASUS Control Center Express (ACCE)
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 20Gbps Type-C® and rear USB 10Gbps Type-A
General
| Brand | ASUS |
|---|---|
| Model | Pro H810T-CSM |
| Chipset | Intel H810 |
Processor & Memory
| CPU Socket | Intel LGA 1851 |
|---|---|
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Max CPU Power | 65 W |
| Memory Slots | 2 × SO-DIMM |
| Memory Type | DDR5 |
| Max Memory | 128 GB |
| Memory Speed | Up to 6400+ MT/s |
Storage & Connectivity
| M.2 Slots | 1 × Type 2280 (PCIe 5.0 x4) |
|---|---|
| SATA Ports | 2 × SATA 6 Gb/s |

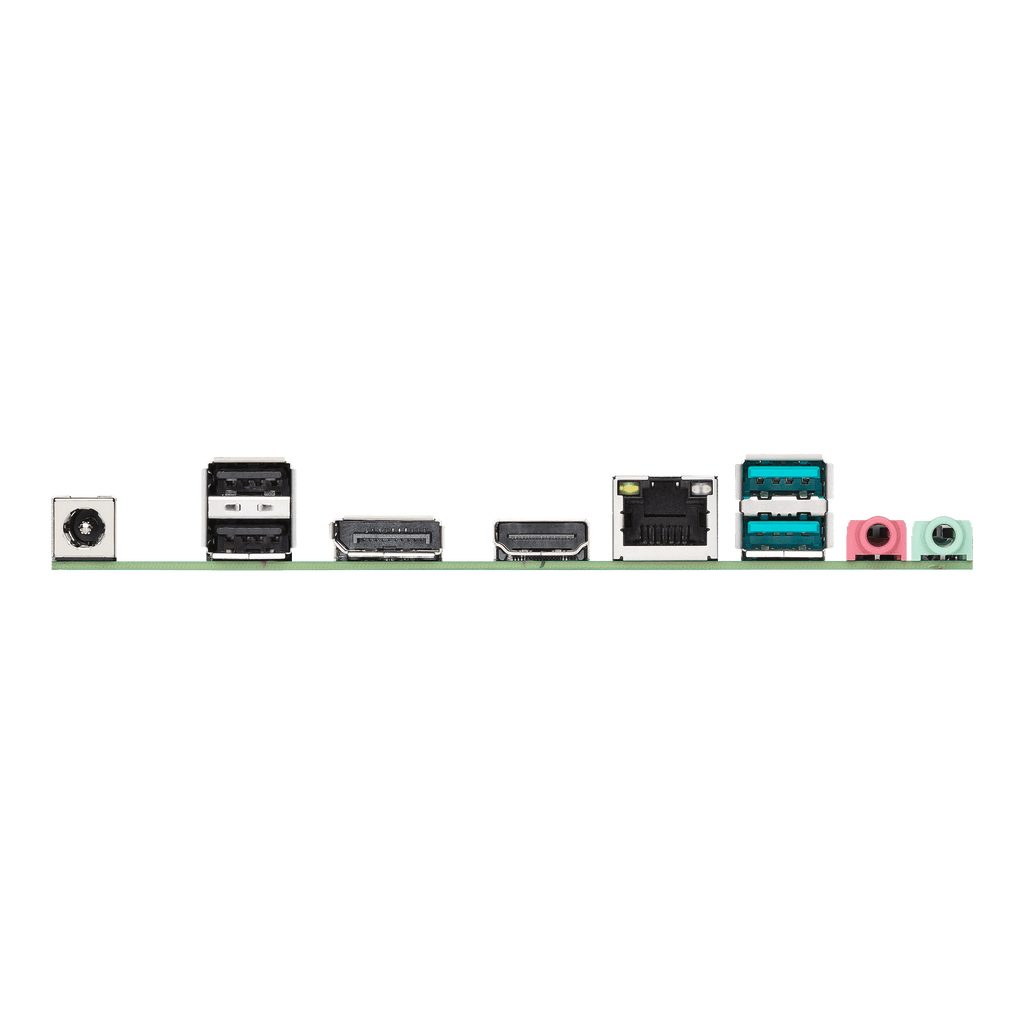

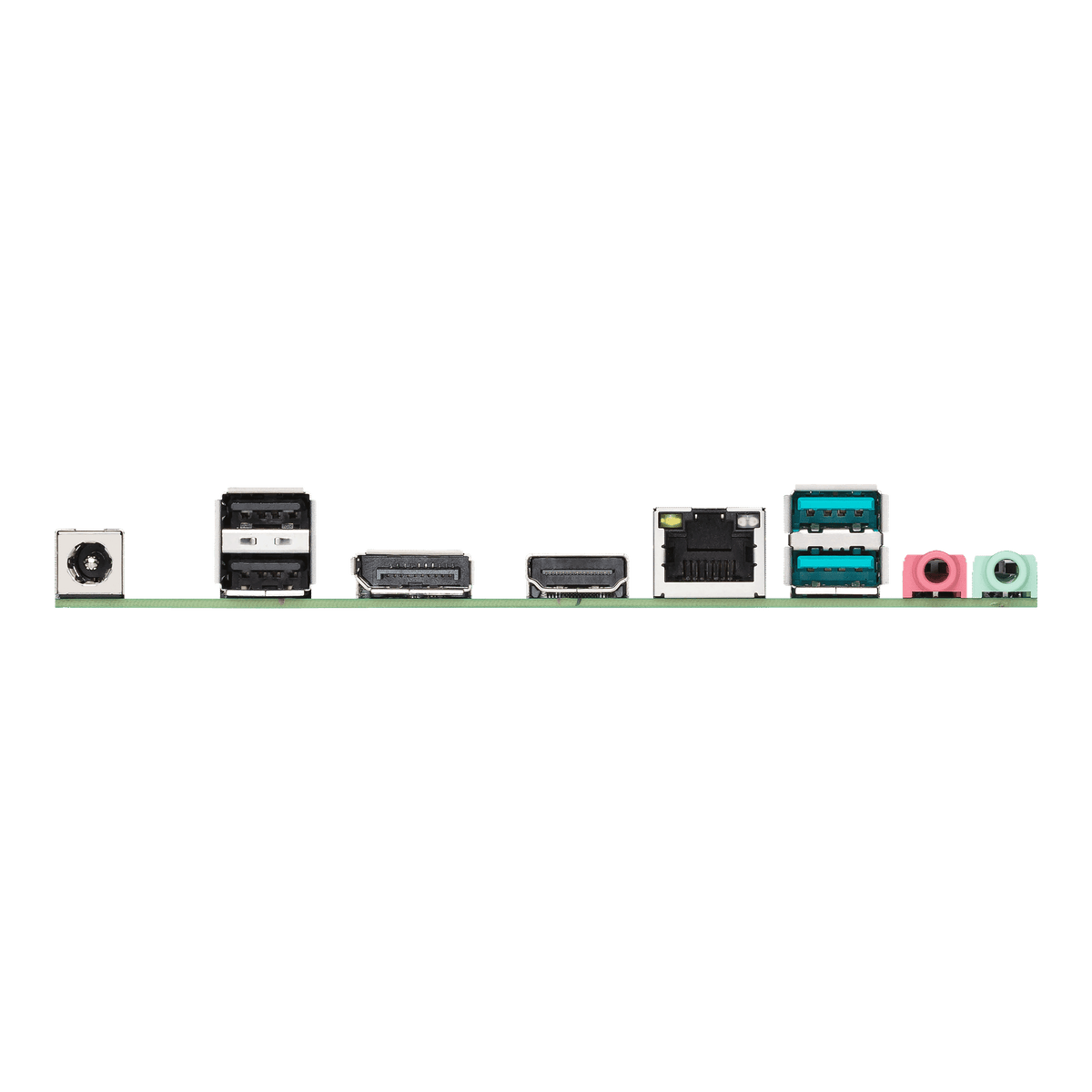

| Rear USB Ports | 2 × USB 10Gbps Type-A, 2 × USB 2.0 Type-A |
| Front USB Headers | 1 × USB 20Gbps Type-C (5V/3A), 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Ethernet | 1 × Realtek 1 Gb (LANGuard) |
| Wireless/Bluetooth | M.2 Key E slot (module sold separately) |
Video, Audio & Security
| Video Outputs | 1 × DisplayPort 1.4 (4K@60Hz), 1 × HDMI 2.1 (4K@60Hz), 1 × LVDS |
|---|---|
| Audio Codec | Realtek 7.1 Surround, 24-bit/192 kHz |
| Security | TPM 2.0, Self-Recovering BIOS, Event Log |
| Management | ASUS Control Center Express (ACCE), WOL by PME, PXE |
Physical & Power
| Form Factor | Thin Mini-ITX |
|---|---|
| Dimensions | 6.7" × 6.7" (17.0 cm × 17.0 cm) |
| Power Connector | 19 V external connector |
| BIOS | 128+128 MB Flash ROM, UEFI AMI |
Supported Operating Systems
| Windows | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
|---|
