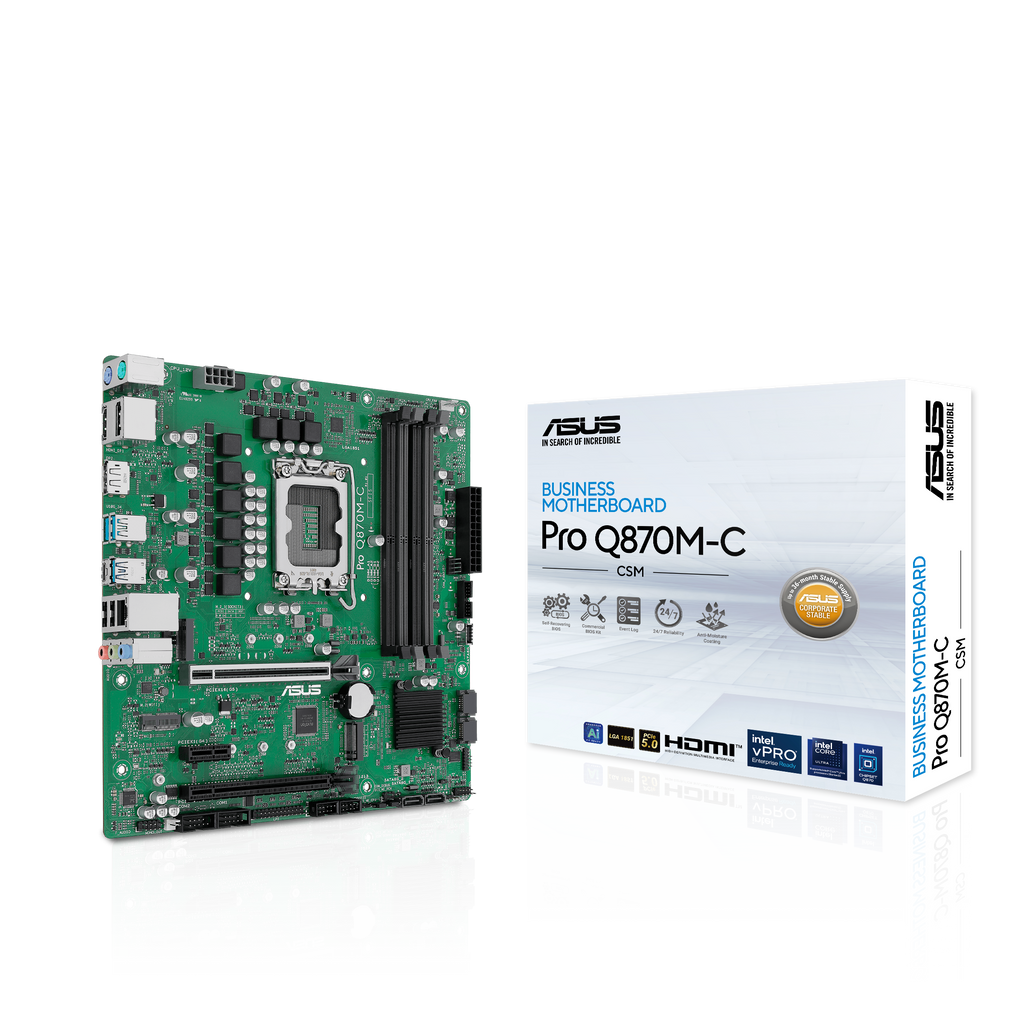

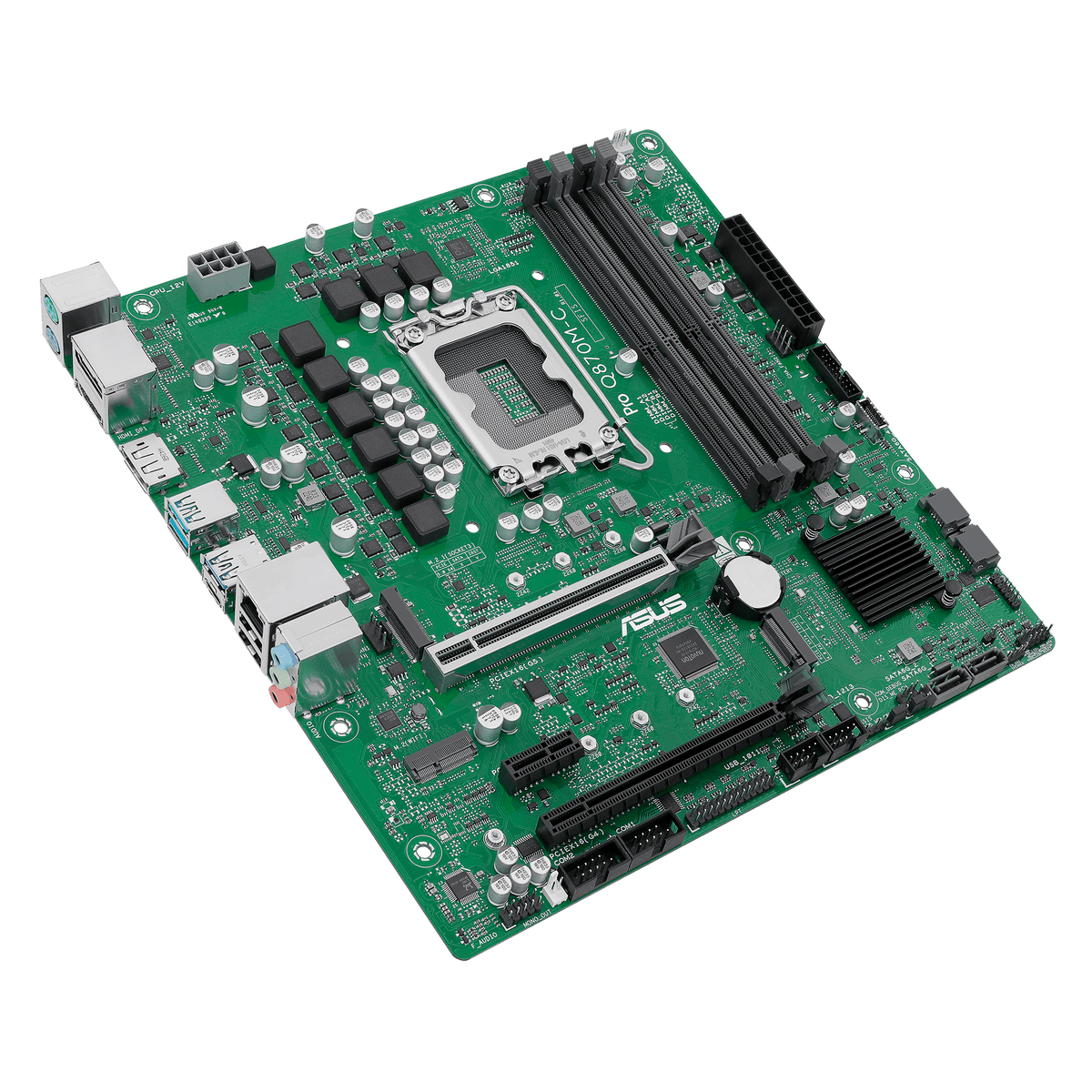

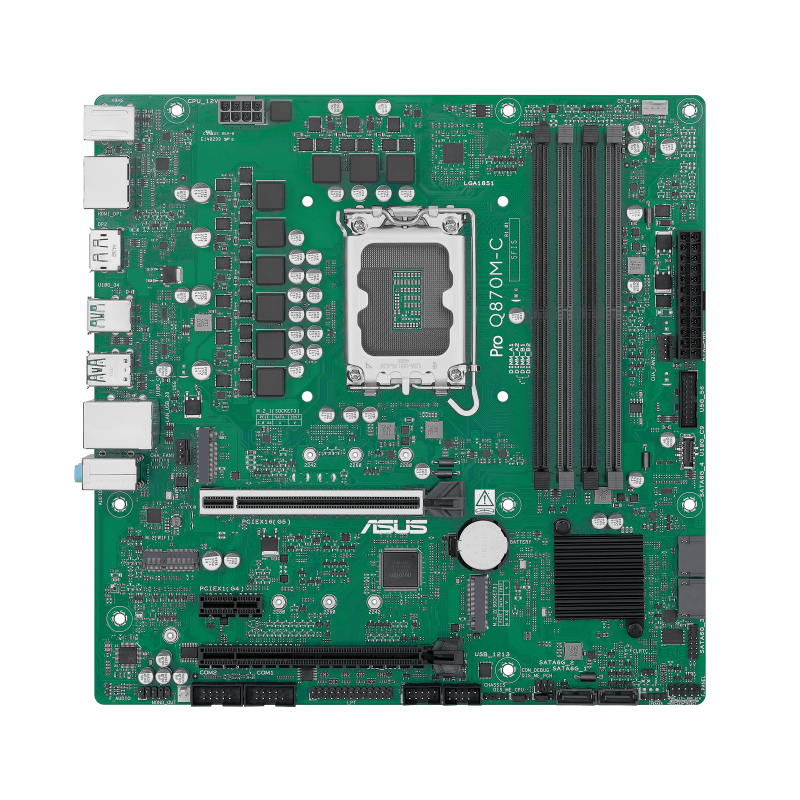

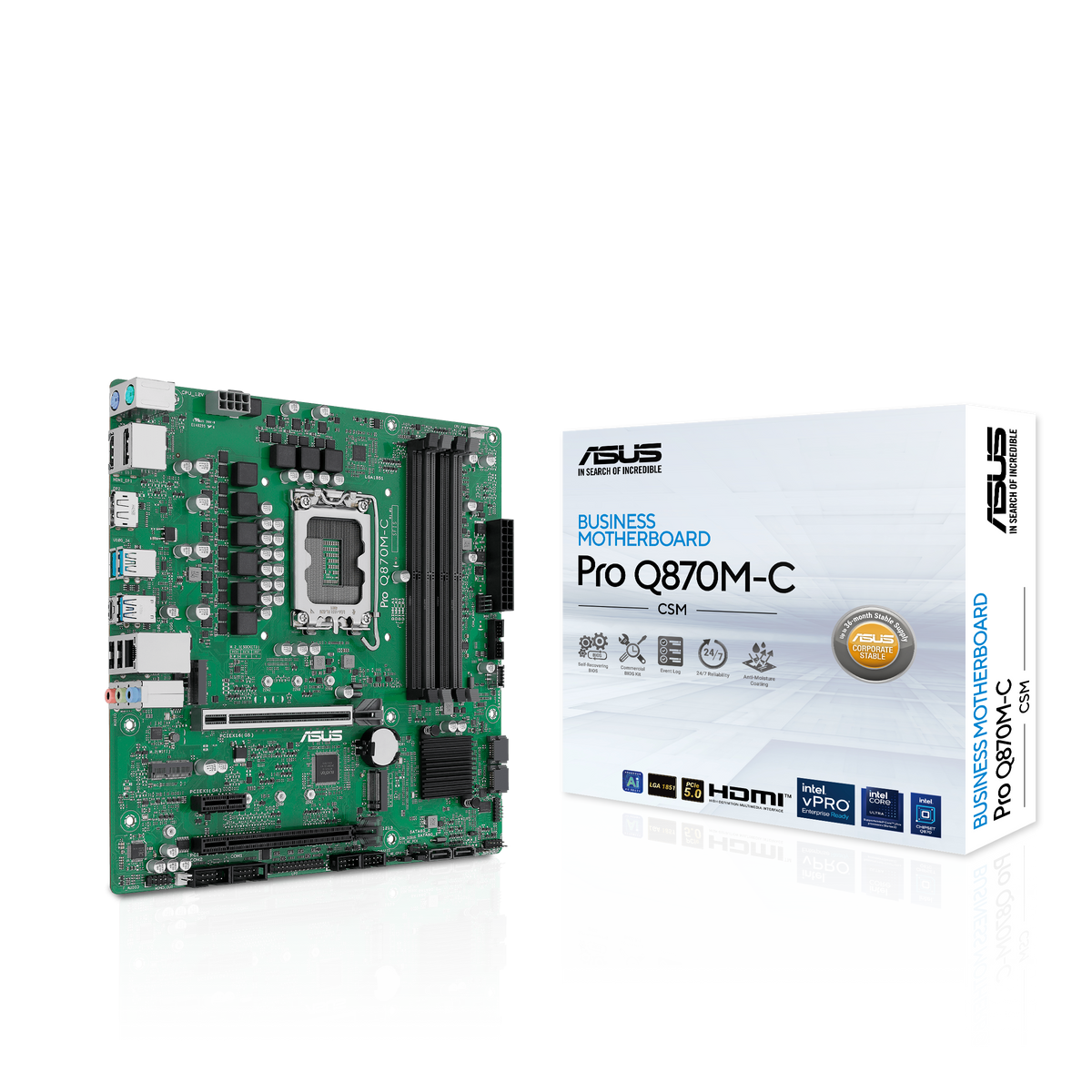

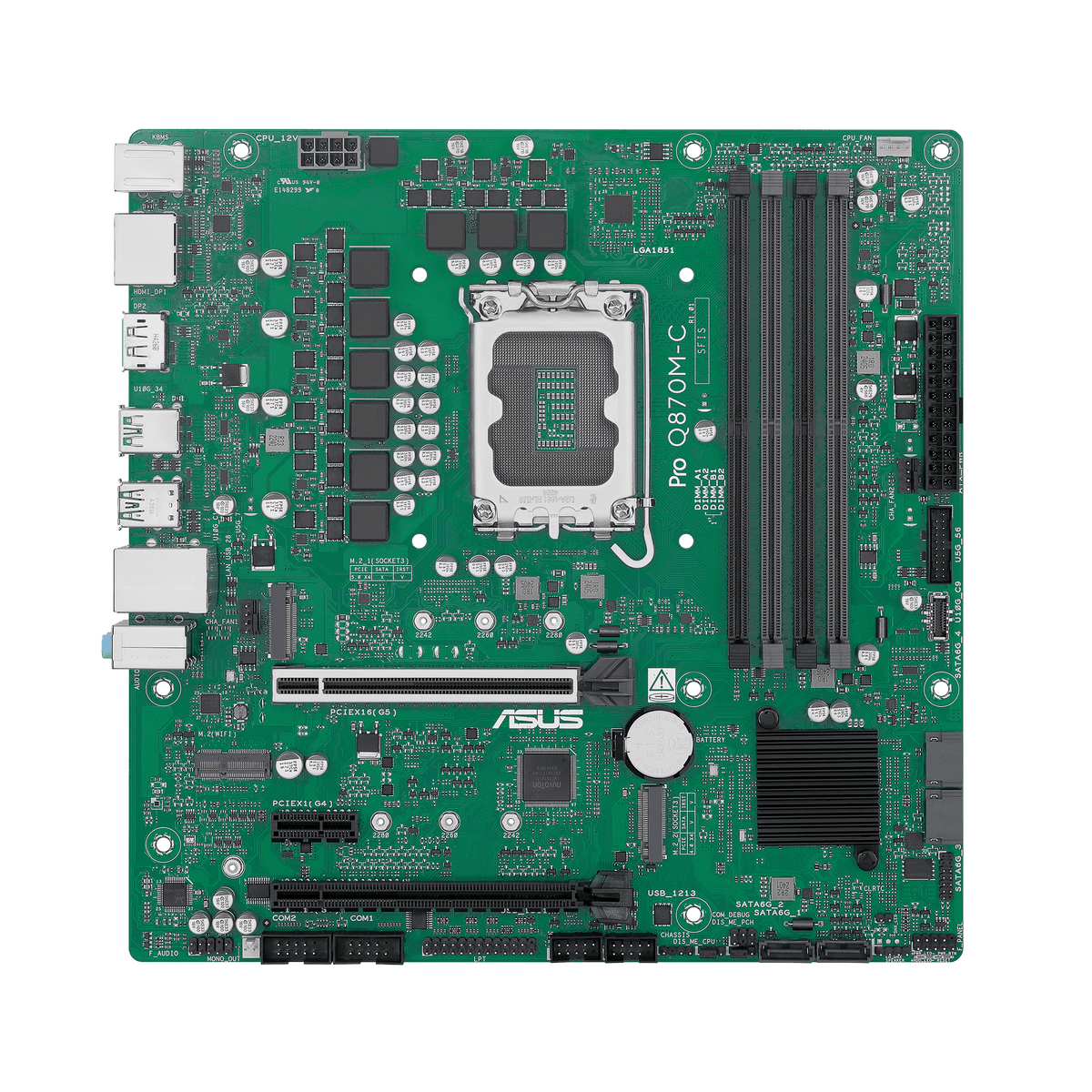

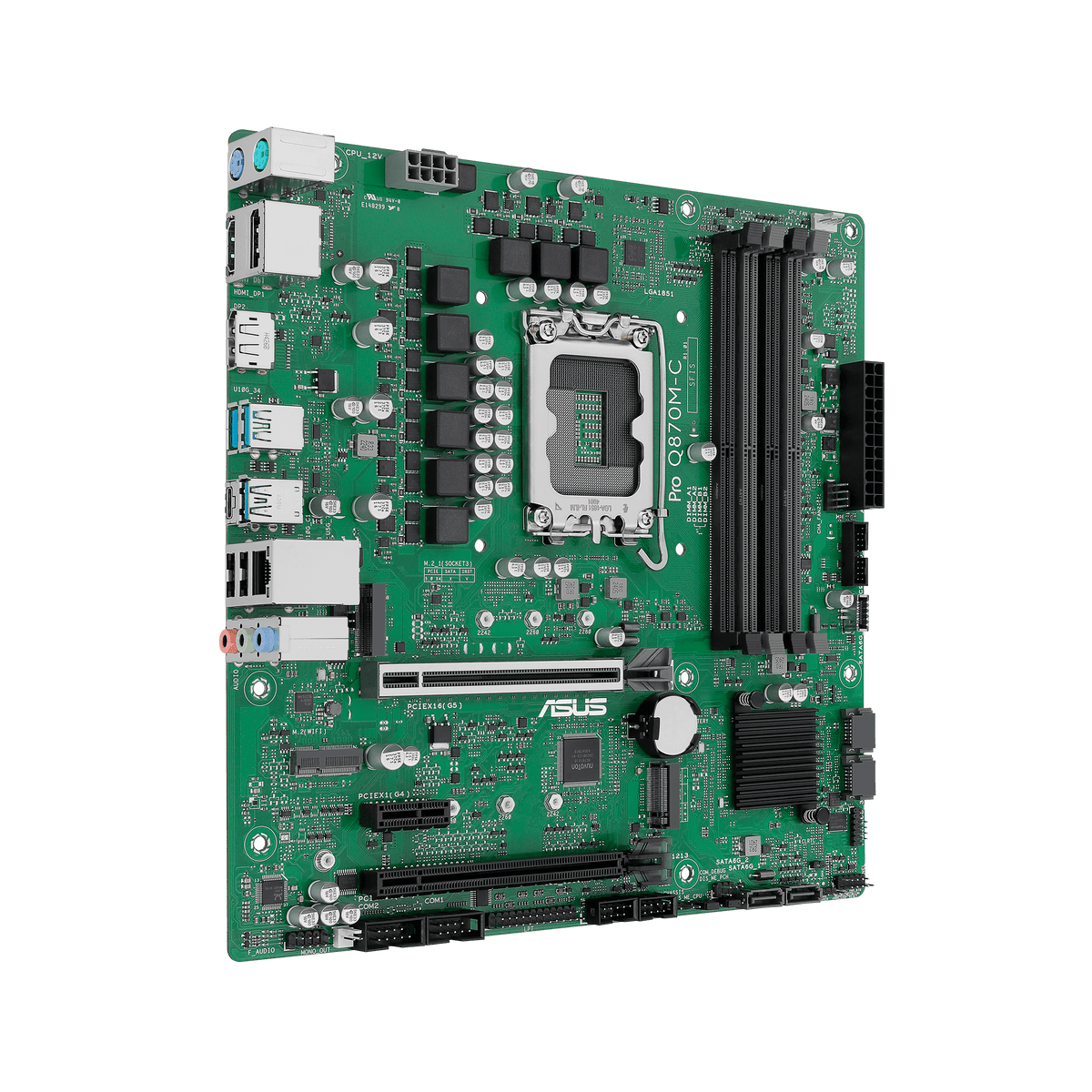

ASUS Pro Q870M-C-CSM LGA1851 Micro-ATX Motherboard
ASUS
ASUS Pro Q870M-C-CSM LGA1851 Micro-ATX Motherboard
The ASUS Pro Q870M-C-CSM is a micro-ATX business motherboard built for enterprises and system integrators who need stability, security, and long-term supply guarantees. It combines Intel's latest Core Ultra Processors (Series 2) with ASUS's CSM program for predictable lifecycle support and integrated management tools.
Why this product
Intel vPro and TPM security
Self-recovering BIOS, onboard TPM, and NIST SP 800-193 compliance protect against firmware tampering and unauthorized access. ASUS Control Center Express simplifies enterprise-level monitoring and administration across multiple systems.
CSM program ensures supply stability
ASUS's Commercial System Maintenance program guarantees stable motherboard availability, end-of-life notifications, and IT software support designed for business deployments that cannot tolerate unexpected discontinuation.
PCIe 5.0 and DDR5 for current hardware
One PCIe 5.0 x16 slot and up to 256GB of DDR5 memory support demanding workloads and peripherals without architectural bottlenecks.
Built for 24/7 operation
Tested under 45°C temperature and 80% humidity with stainless-steel corrosion-resistant back panel and overvoltage protection to survive continuous industrial use.
Diagnostic and troubleshooting tools
Q-LED Core status display, COM debug header, and box headers streamline system assembly and reduce mean-time-to-repair in data centre environments.
- SocketIntel LGA 1851
- Form factorMicro-ATX (9.6 × 9.6 inches)
- Memory slots4 x DIMM, up to 256GB DDR5
- Storage2 x M.2 (PCIe 5.0 and 4.0), 4 x SATA
- Warranty3 years
- ChipsetIntel Q870
- SKUASU-4214
- EAN4711387880586
- Fits Intel Core Ultra Processors (Series 2) in LGA 1851 socket only; not compatible with older Intel or AMD processors.
- Accepts up to four DDR5 DIMM modules at speeds up to 7200MT/s with Core Ultra 200S Plus or 6400MT/s with Core Ultra 200S; requires CUDIMM (Clocked Unbuffered) modules.
- Provides one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 mode), and one PCIe 4.0 x1 slot for expansion cards.
- Micro-ATX form factor (9.6 × 9.6 inches) fits standard small-form-factor and enterprise chassis designed for micro-ATX boards.
- No onboard Wi-Fi or Bluetooth; an M.2 E Key slot accepts optional wireless modules if needed.
Best for
- Business deployments with predictable lifecycle requirements
- System integrators managing fleets of workstations or thin clients
- Environments requiring 24/7 uptime and enterprise security compliance
- Compact builds that still need fast NVMe and PCIe 5.0 support
- Data centres or server rooms where corrosion resistance and industrial durability matter
Trade-offs
- Consumer or enthusiast builds: No overclocking support and no integrated Wi-Fi or Bluetooth for mainstream use cases.
- High-end gaming or content creation: Single 1Gb Ethernet and entry-level Realtek audio codec lack the bandwidth or fidelity of workstation-class boards.
- Budget-conscious buyers: CSM program support and enterprise-grade components command a premium over consumer micro-ATX alternatives.
- Wireless-first workflows: No onboard Wi-Fi or Bluetooth; optional M.2 E Key module required for wireless capability.
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C®
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® port with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps.
ASUS Reliant
Stainless-Steel Back I/O — 3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
Overvoltage Protection
24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
ASUS Serviceability
Facilitate the assembly process and enable efficient troubleshooting
- Q-LED Core
- COM Debug header
- Box headers
- Fix-position connectors

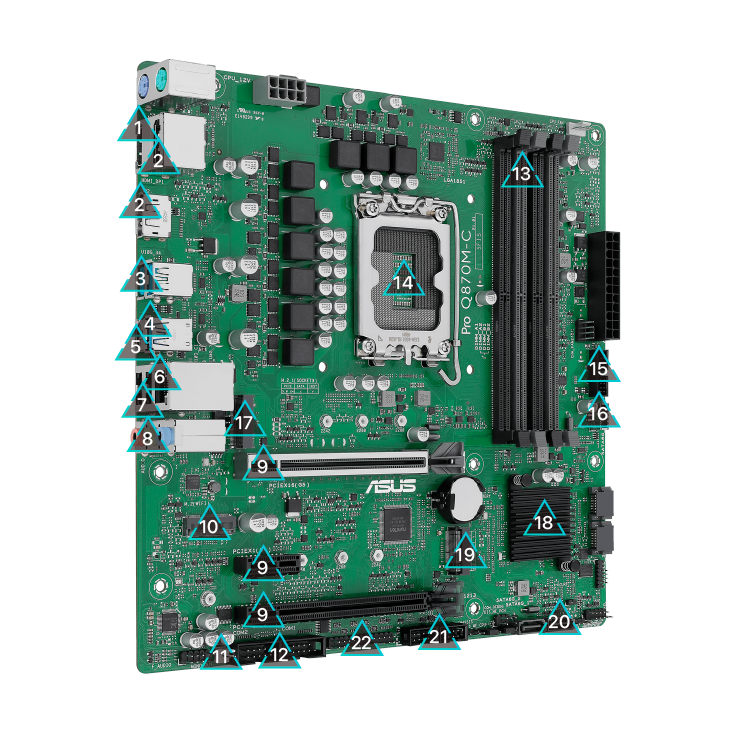

Board & Processor Support
| Brand | ASUS |
|---|---|
| Model | Pro Q870M-C-CSM |
| Chipset | Intel Q870 |
| CPU socket | LGA 1851 |
| Supported processors | Intel Core Ultra Processors (Series 2); supports Turbo Boost 2.0 and Turbo Boost Max 3.0 |
| Form factor | Micro-ATX |
Memory & Storage
| Memory slots | 4 x DIMM |
|---|---|
| Memory type | DDR5 |
| Maximum memory | 256GB |
| Memory speed | Up to 7200MT/s (Core Ultra 200S Plus) or 6400MT/s (Core Ultra 200S) |
| Memory architecture | Dual channel; supports XMP and AEMP II |
| M.2 slots | 2 (M.2_1: PCIe 5.0 x4; M.2_2: PCIe 4.0 x4) |
| M.2 form factors supported | 2242, 2260, 2280 |
| SATA ports | 4 x SATA 6Gb/s |
| RAID support | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 via Intel Rapid Storage Technology |
Expansion & Connectivity
| PCIe slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
|---|---|

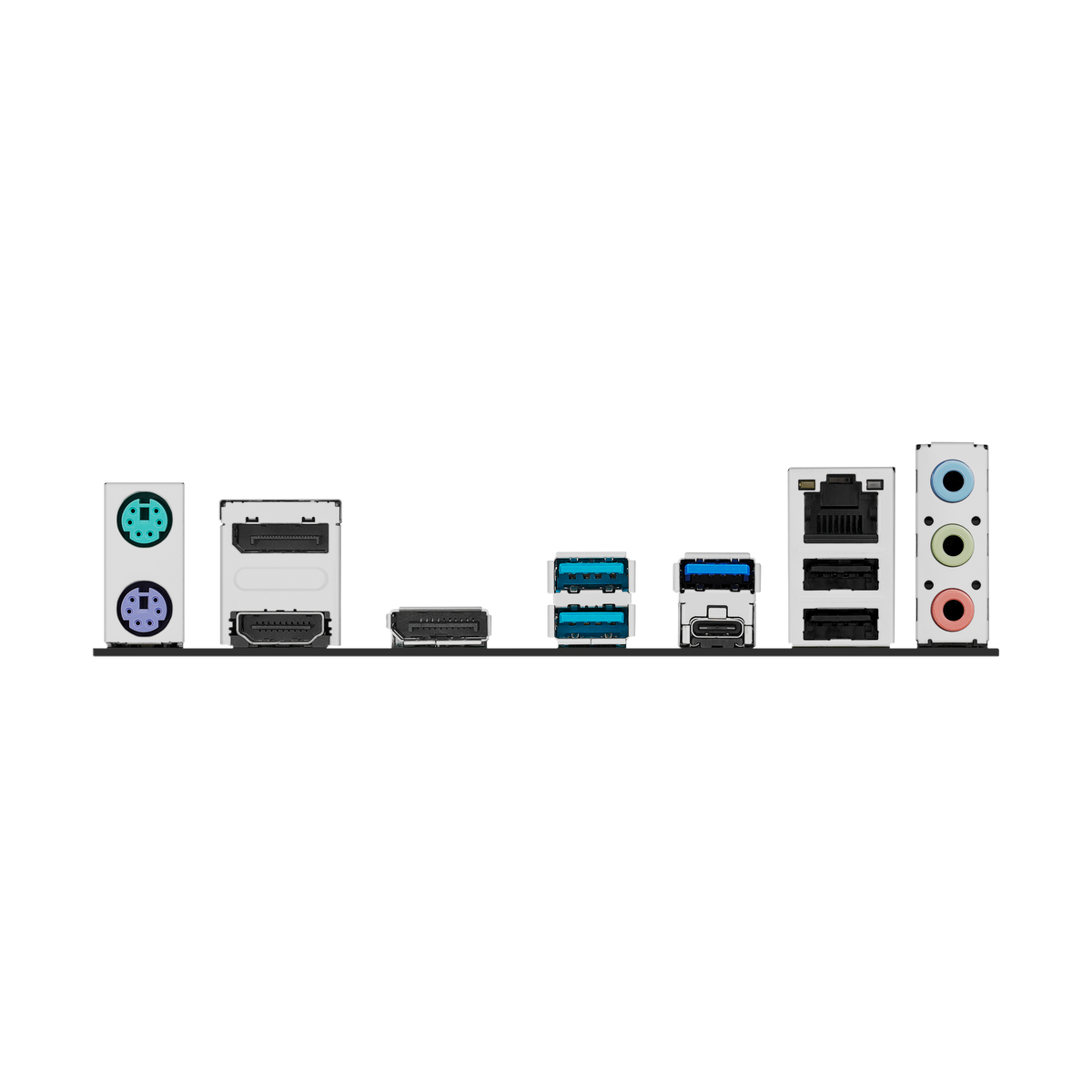

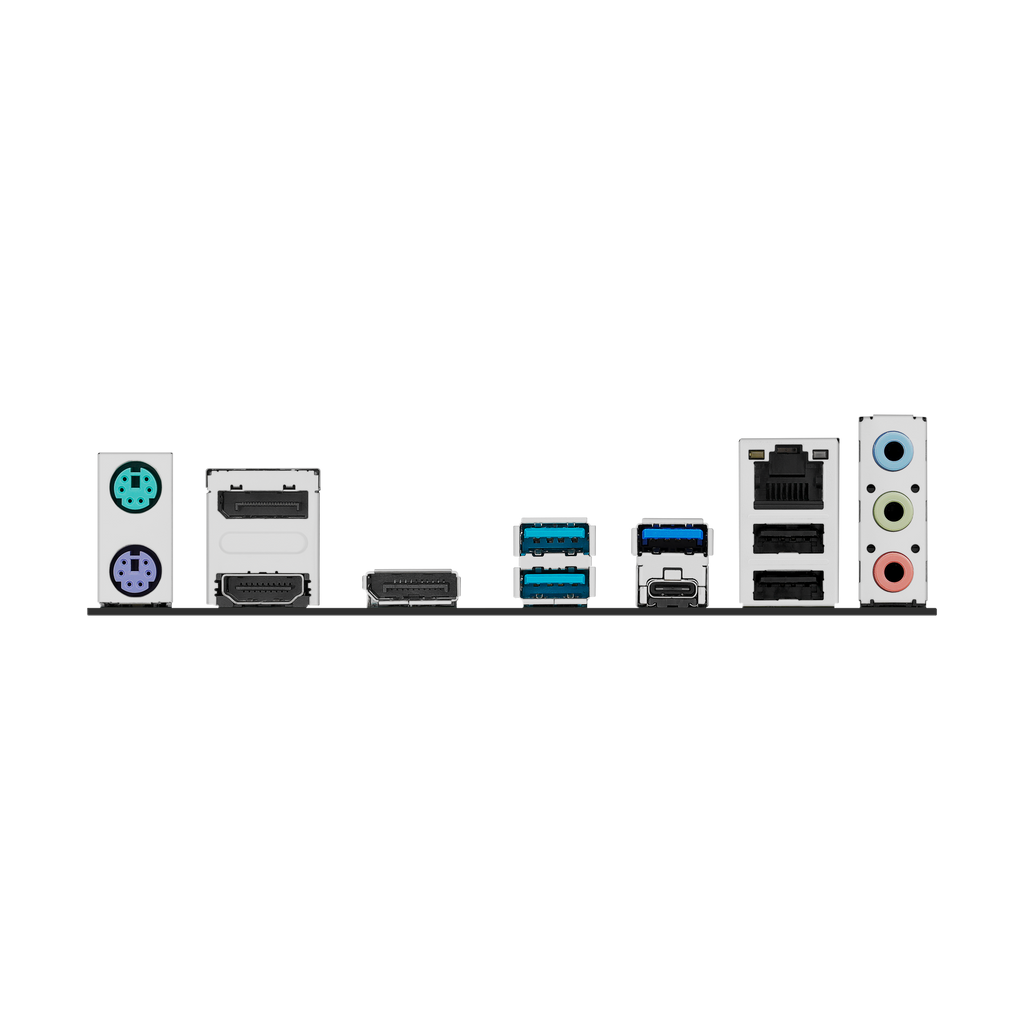

| Rear USB ports | 1 x USB 10Gbps Type-C, 2 x USB 10Gbps Type-A, 1 x USB 5Gbps Type-A, 2 x USB 2.0 |
| Internal USB headers | 1 x USB 10Gbps connector, 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (support 4 ports) |
| Ethernet | 1 x Intel I219LM 1Gb |
| Wi-Fi / Bluetooth | None; M.2 E Key slot available for optional module |
| Display outputs | 2 x DisplayPort 1.4 (up to 4K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Audio jacks | 3 on rear panel |
| PS/2 ports | 1 x keyboard (purple), 1 x mouse (green) |
Security, Reliability & Management
| Security features | TPM onboard, self-recovering BIOS, NIST SP 800-193 compliance, TXT support |
|---|---|
| Management software | ASUS Control Center Express (ACCE) for enterprise monitoring and administration |
| Business program | ASUS CSM (Commercial System Maintenance): stable supply, end-of-life notifications, IT software support |
| Durability features | Stainless-steel corrosion-resistant back panel, overvoltage protection, anti-moisture coating |
| 24/7 reliability testing | Tested at up to 45°C and 80% relative humidity for continuous operation |
| Diagnostics | Q-LED Core status display, COM debug header, COM port headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| Warranty | 3 years |
Audio
| Audio codec | Realtek 7.1 Surround Sound HD |
|---|---|
| Playback resolution | Up to 24-bit / 192 kHz |
| Audio features | Jack detection, multi-streaming, front panel jack retasking |
Internal Connectors & Headers
| CPU fan header | 1 x 4-pin |
|---|---|
| Chassis fan headers | 2 x 4-pin |
| Power connectors | 1 x 24-pin main, 1 x 8-pin +12V CPU |
| Front panel headers | 1 x 10-1 pin system header, 1 x front panel audio header |
| M.2 Key E slot | For optional wireless module |
| Clear CMOS header | Supported |
| Chassis intrude header | Supported |
| LPT header | Supported |

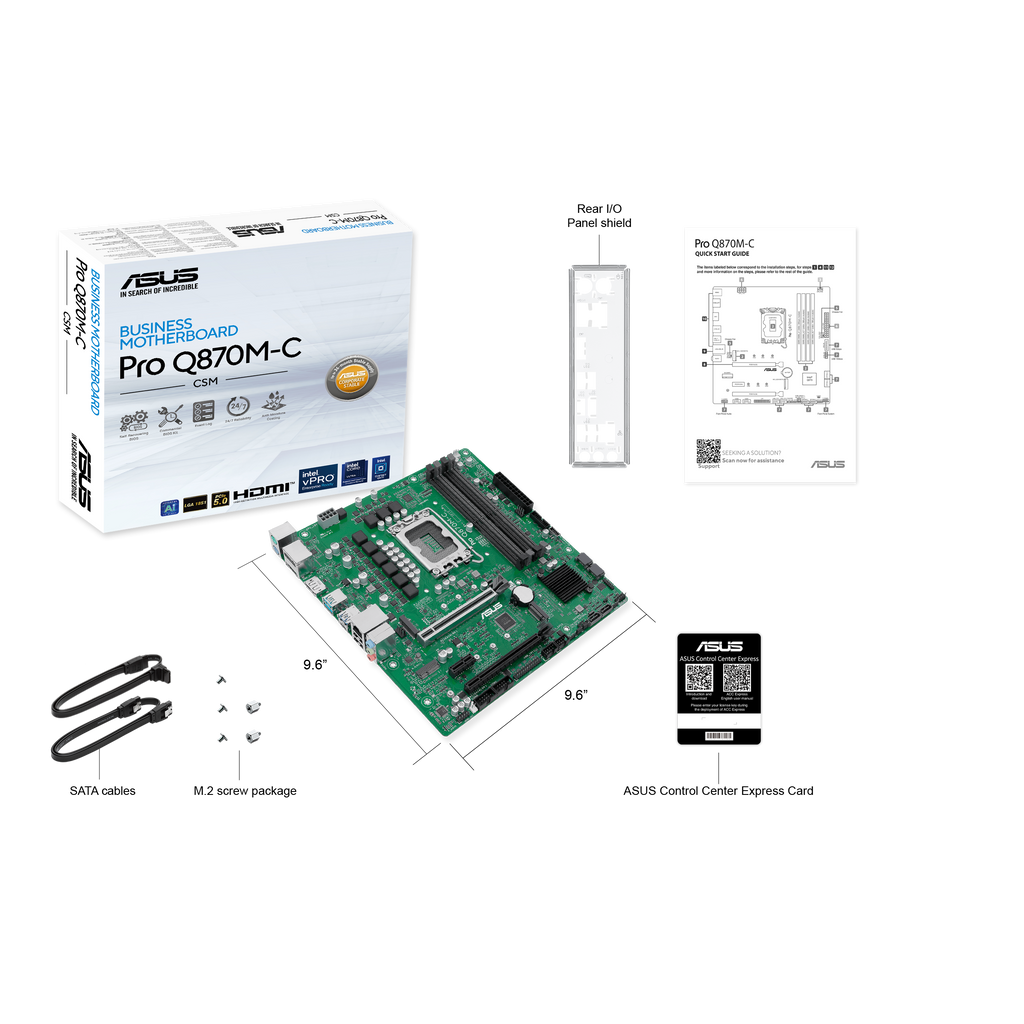

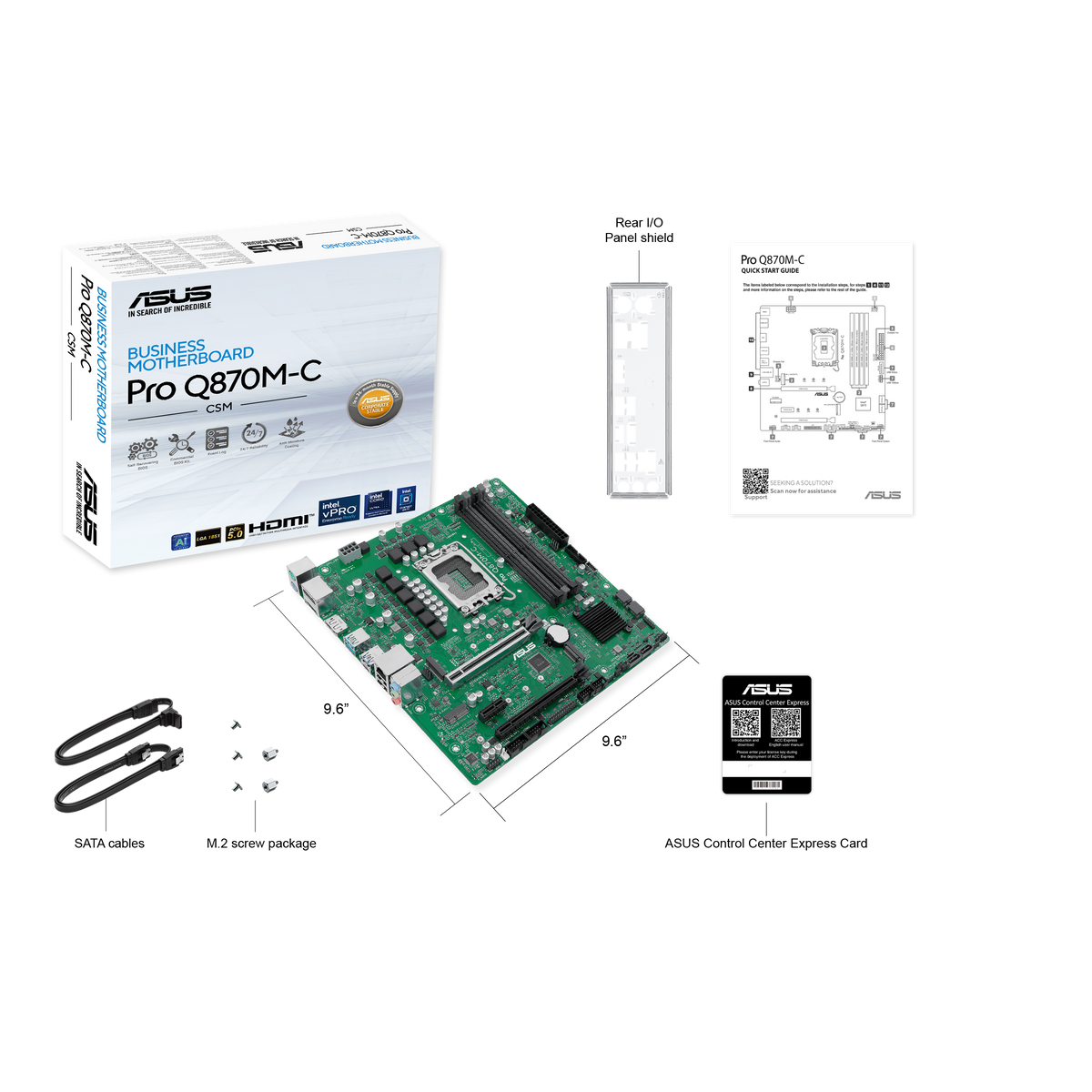

Included Accessories
| SATA cables | 2 x 6Gb/s |
|---|---|
| M.2 hardware | Screw package for M.2 SSD, M.2 Key E screw package |
| I/O shield | Included |
| Software | ASUS Control Center Express Activation Key Card |
| Documentation | Quick start guide |
