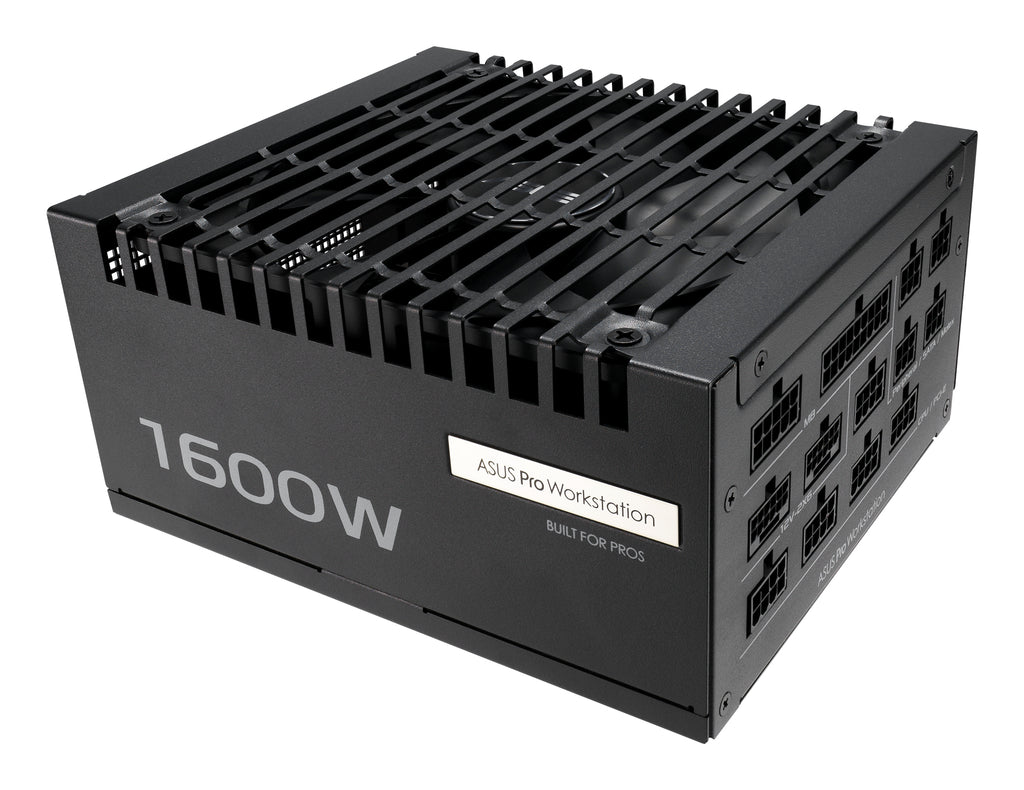

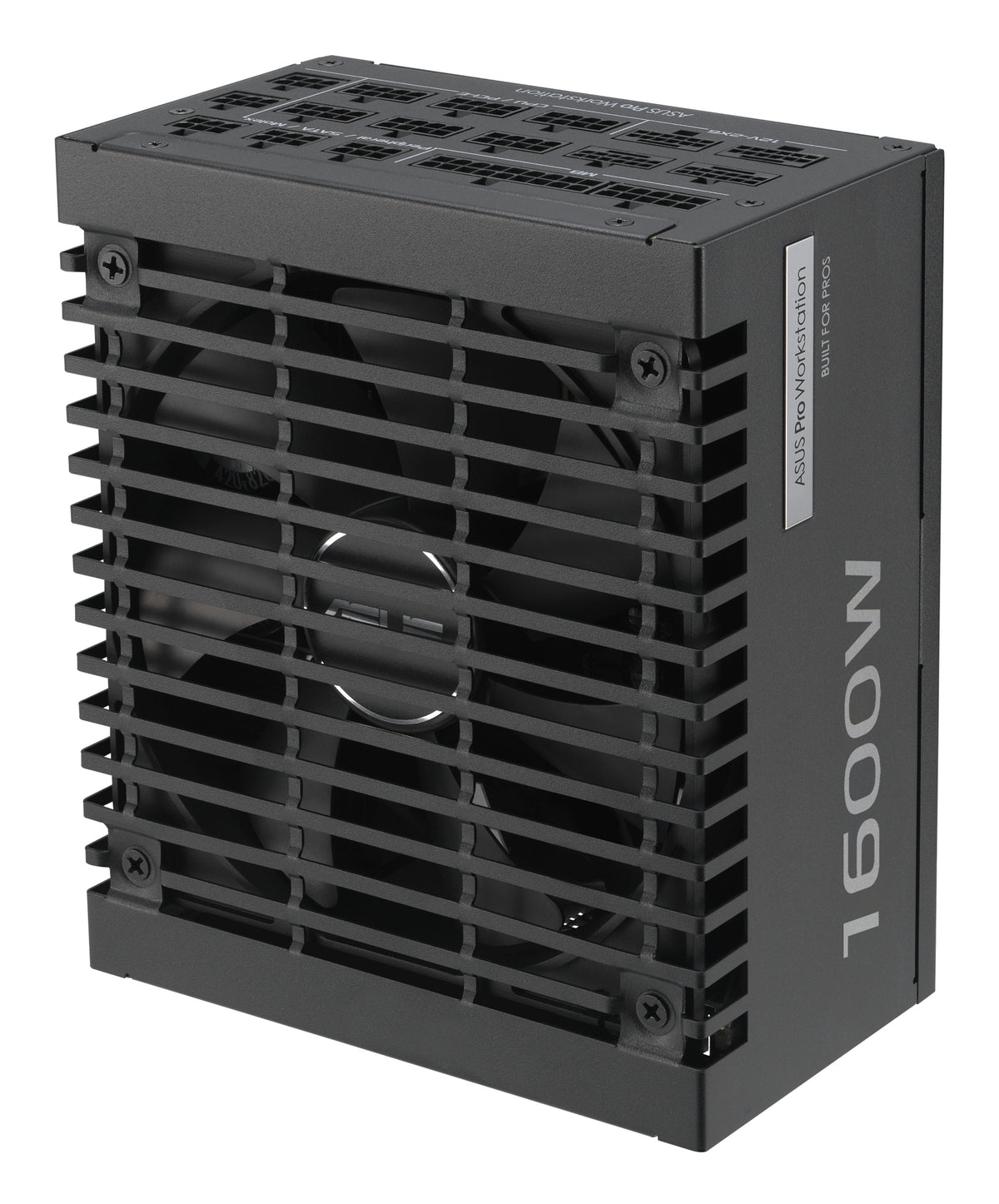

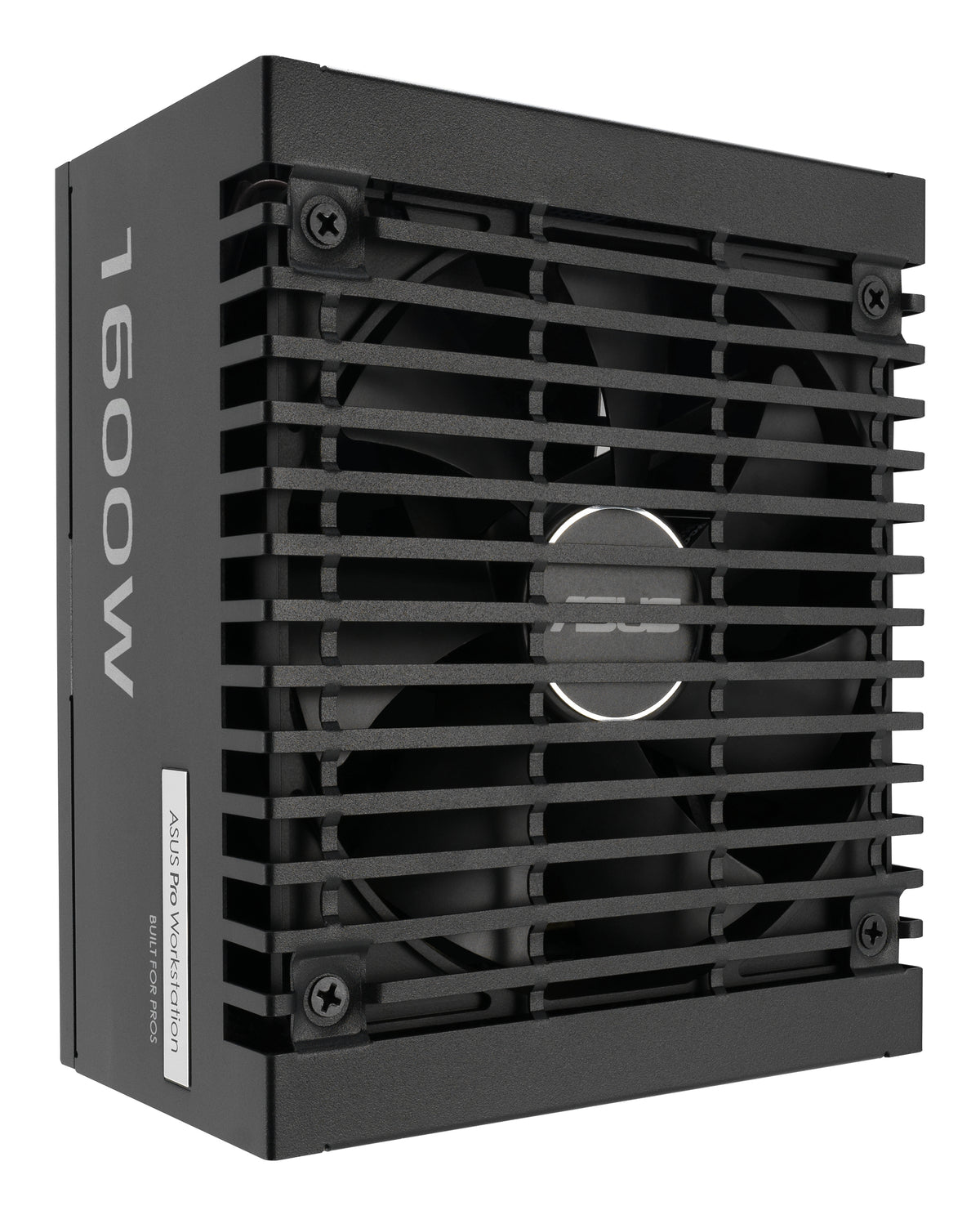

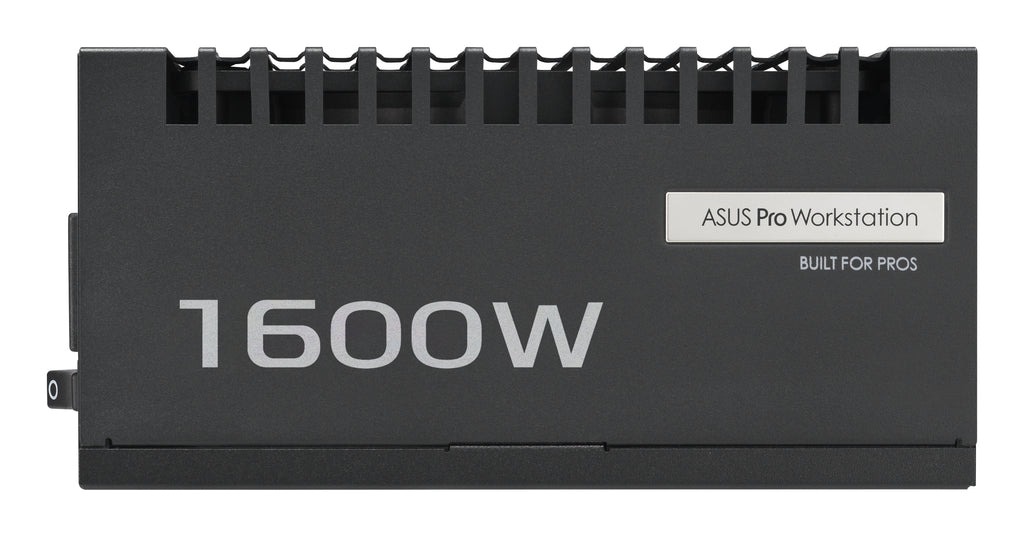

ASUS Pro WS 1600P 1600W Platinum ATX 3.1 Modular PSU
ASUS
ASUS Pro WS 1600P 1600W Platinum ATX 3.1 Modular PSU
The ASUS Pro WS 1600W Platinum ATX 3.1 Modular PSU is built for professionals running demanding AI workloads and dual high-end graphics cards. It delivers rock-solid voltage stability and advanced power delivery through 80 PLUS Platinum efficiency and full ATX 3.1 compliance, with the cable infrastructure to support two GeForce RTX 5090 cards simultaneously.
Why this product
Supports dual RTX 5090 graphics cards
Engineered with the power delivery and voltage stability required to run two of NVIDIA's flagship GPUs in parallel, unlocking dual-GPU AI and deep learning workflows.
ATX 3.1 compliant with 16-pin PCIe 5.1 cables
Includes two 16-pin cables delivering up to 600W each to next-generation graphics cards, meeting tighter voltage and current regulation standards.
80 PLUS Platinum efficiency
Certified for 90% efficiency at 50% load, reducing heat output and electricity costs in always-on workstation environments.

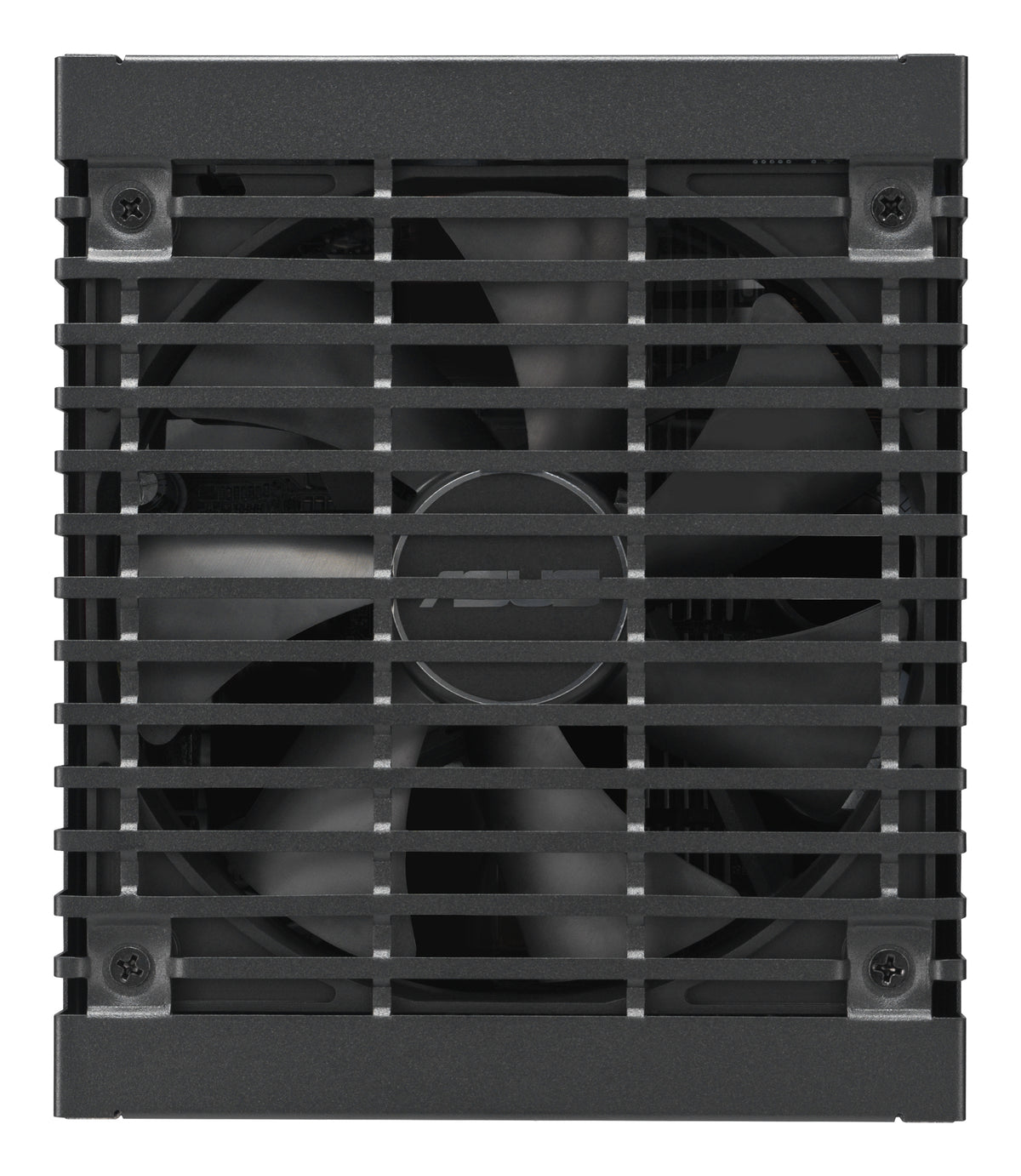

Dual-ball fan bearings rated to last twice as long
Precision bearings extend fan lifespan versus sleeve designs, critical for 24/7 operation in professional settings.
Fully modular cables with gold-plated connectors
All cables detach for cleaner builds and easier replacement. High-performance copper pins resist oxidation and maintain stable connections under load.
Comprehensive protection and thermal management
Extruded aluminum heatsinks cool critical components. Six layers of protection (OPP/OVP/UVP/SCP/OCP/OTP) guard against voltage spikes, current surges and thermal faults.
- Total Output1600W
- Efficiency Certification80 PLUS Platinum
- Form FactorATX12V
- ATX StandardATX 3.1
- Cable TypeFully modular
- Dimensions175 × 150 × 86 mm
- Weight3.365 kg
- GPU SupportUp to two RTX 5090 cards
- SKUASU-2453
- EAN4711387973011
- ATX12V form factor: fits standard full-size ATX and larger workstation cases.
- Motherboard connector: 24/20-pin main power plus dual 4+4-pin CPU connectors for high-core-count processors.
- Graphics cards: two PCIe 5.1 16-pin connectors (600W each) plus four PCIe 6+2-pin connectors for legacy or additional cards.
- Storage and peripherals: nine SATA connectors and three peripheral (Molex) connectors for drives and legacy devices.

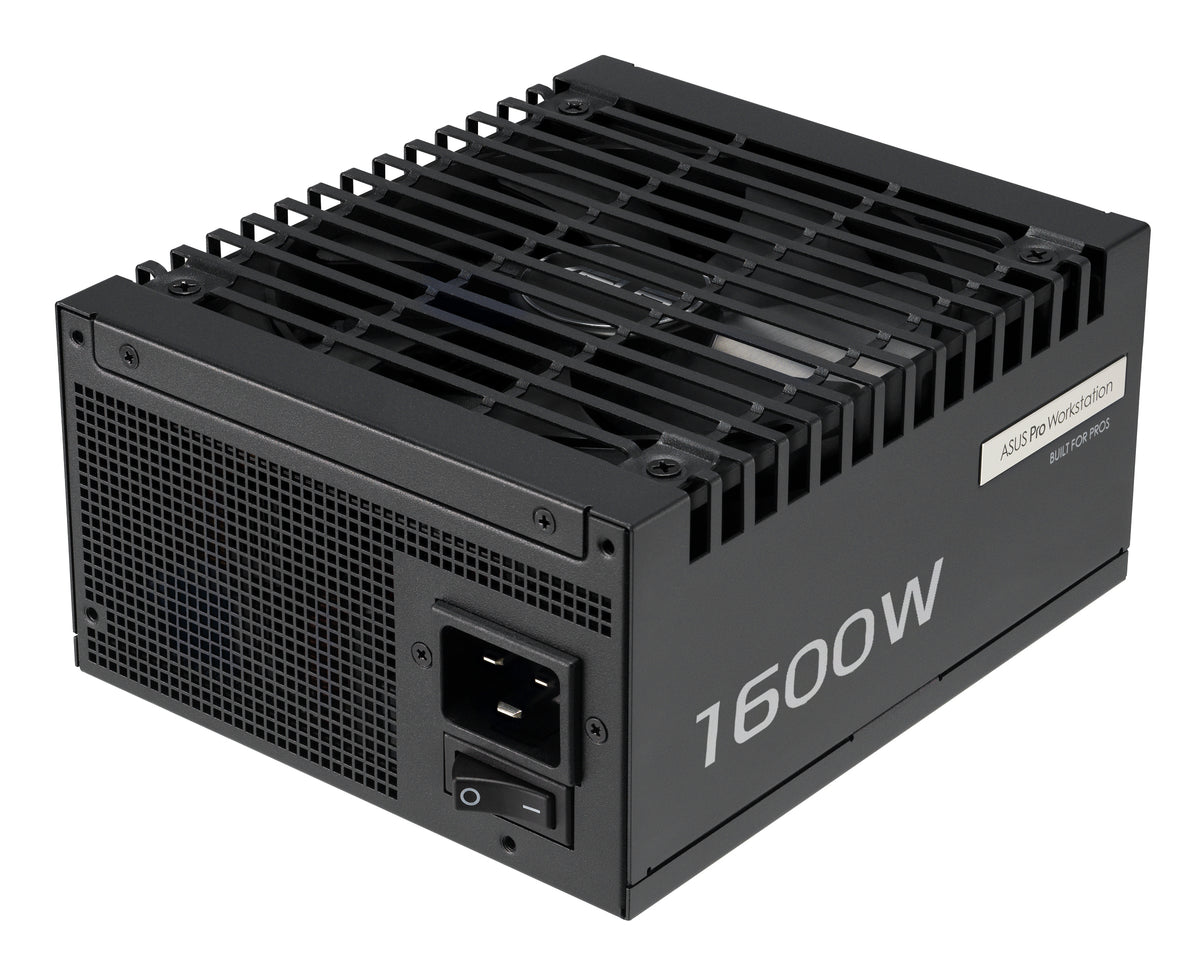

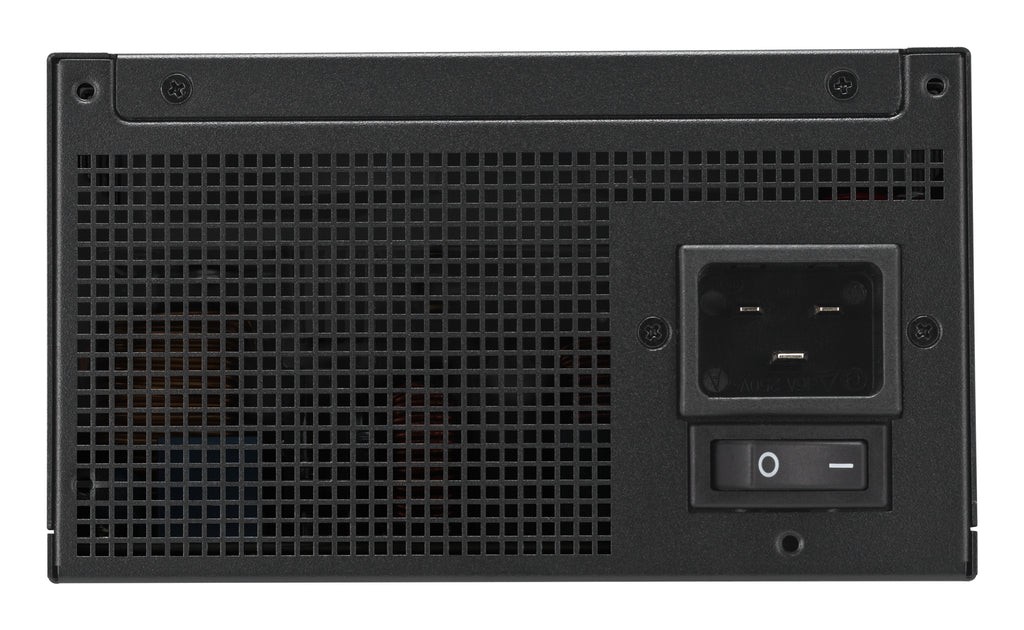

- AC input 200–240V only; requires appropriate regional power cord for your country.
Best for
- AI workstations and deep learning labs
- Dual-GPU rendering and compute workflows
- Professional 24/7 deployments requiring high reliability
- Data centers and managed hosting where efficiency reduces operating costs
- Builds requiring headroom for future GPU upgrades
Trade-offs
- Single-GPU builds: 1600W is overkill for systems with one graphics card; smaller capacity units deliver better cost efficiency.
- Budget-constrained projects: Platinum efficiency and workstation-grade components command a premium over Bronze or Gold units.
- Compact or small-form-factor cases: At 175 × 150 × 86 mm, it requires a full-size ATX chassis.
- Consumer or gaming systems: Designed for professional and enterprise use; consumer platforms do not require this power delivery architecture.
ASUS Pro WS 1600W Platinum PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to two graphics cards to meet the demanding AI workloads.
The ASUS Pro WS 1600W Platinum PSU is engineered to support up to two GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
Heavy-Duty Power
Designed to reliably deliver the thousands of watts necessary to power up to two NVIDIA® GeForce RTX™ 5090 graphics cards, the ASUS Pro WS 1600W Platinum enables breakthrough performance that meets the needs of demanding AI workloads.

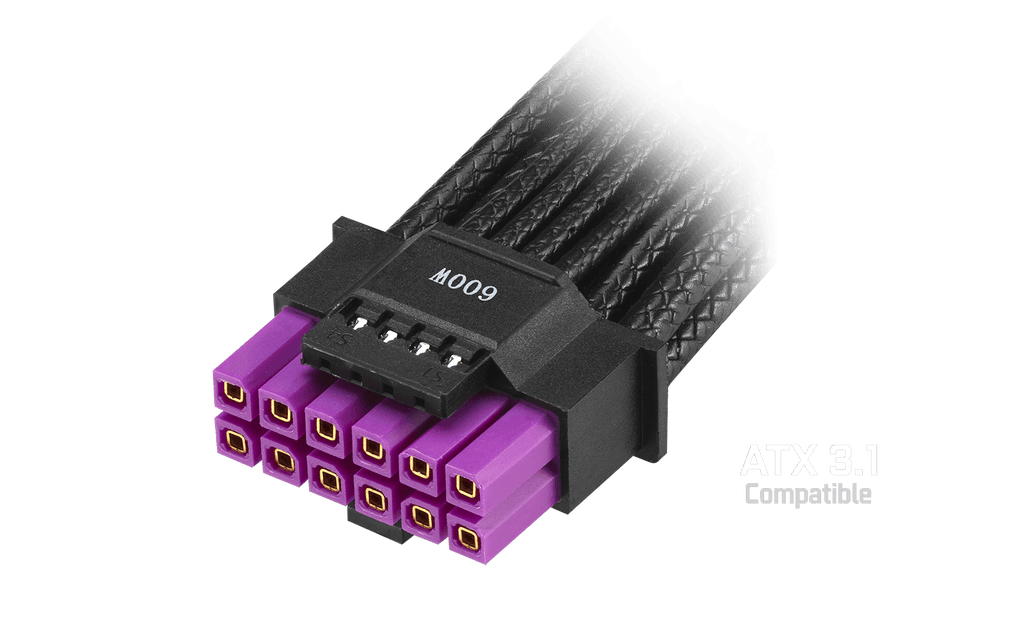

ATX 3.1 Compatible
ATX 3.1 ushers in tighter voltage and current regulation for next-gen hardware ― and the ASUS Pro WS series is ahead of the curve with full compliance. The 16-pin PCIe cables bundled with the PSU deliver up to 600 watts to PCIe 5.1 graphics cards.
General
| Brand | ASUS |
|---|---|
| Model | ASUS-PRO-WS-1600P |
| Form Factor | ATX12V |
Power Output
| Total Output | Up to 1600W |
|---|---|
| +12V Rail Max Output | 1600W |
| +3.3V Rail Max Load | 25A (82.5W) |
| +5V Rail Max Load | 25A (125W) |
| +12V Rail Max Load | 133.3A (1600W) |
| -12V Rail Max Load | 0.8A (9.6W) |
| +5VSB Rail Max Load | 3A (15W) |
| AC Input Range | 200–240V |

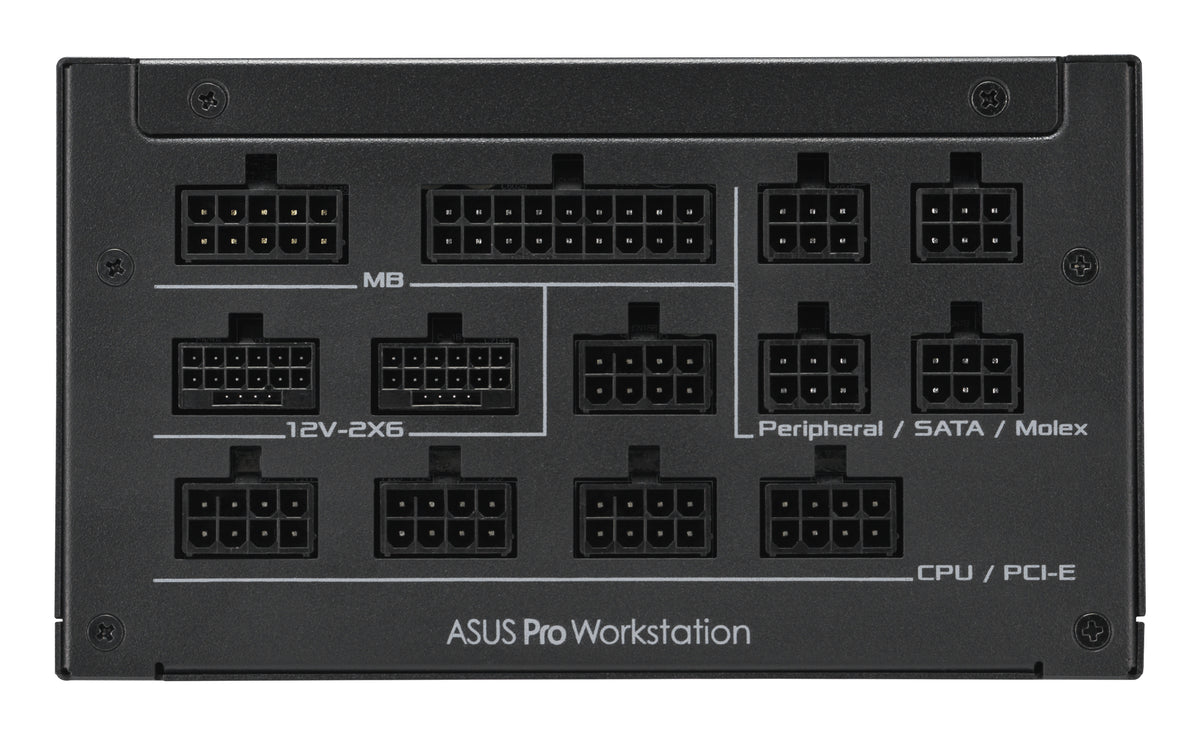

Connectors & Cables
| Motherboard Connector | MB 24/20-pin × 1 |
|---|---|
| CPU Connectors | 4+4-pin × 2 |
| PCIe 5.1 16-pin Connectors | 2 (600W each) |
| PCIe 6+2-pin Connectors | 4 |
| SATA Connectors | 9 |
| Peripheral (Molex) Connectors | 3 |
| Cable Design | Fully modular with gold-plated copper pins |
Protection & Thermal
| Efficiency Certification | 80 PLUS Platinum |
|---|---|
| Power Factor Correction | Active PFC |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Cooling | Dual-ball fan bearings with extruded aluminum heatsinks |
| PCB Coating | Protective coating |
| Compliance | RoHS |
Physical
| PSU Dimensions | 175 × 150 × 86 mm |
|---|---|
| PSU Weight | 3.365 kg |
| Box Dimensions | 342 × 216 × 140 mm |
| Box Weight | 4.402 kg |
