ASUS Pro WS 2200W Platinum PSU - ATX 3.1, 80 Plus

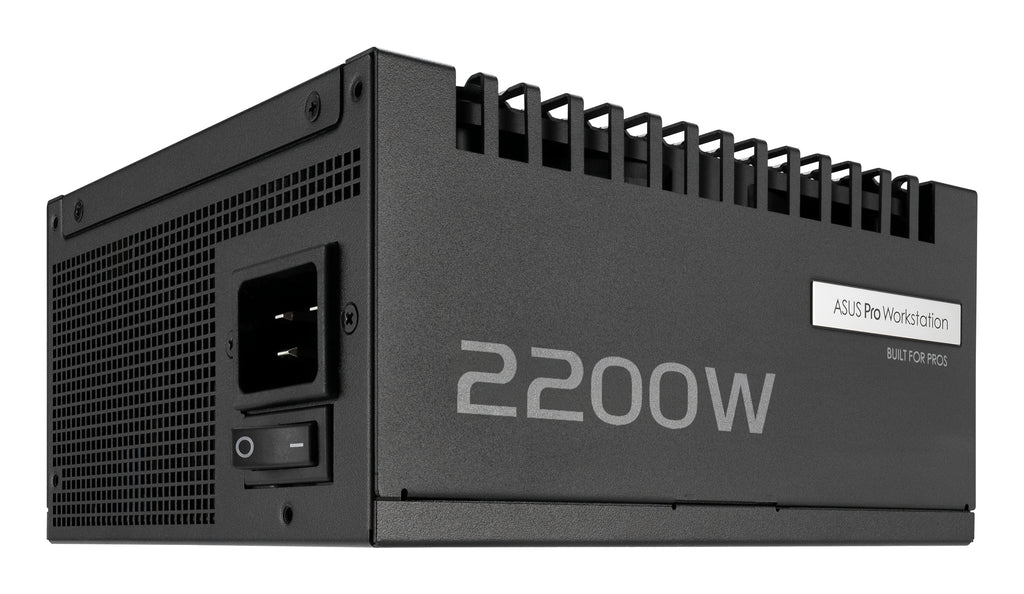

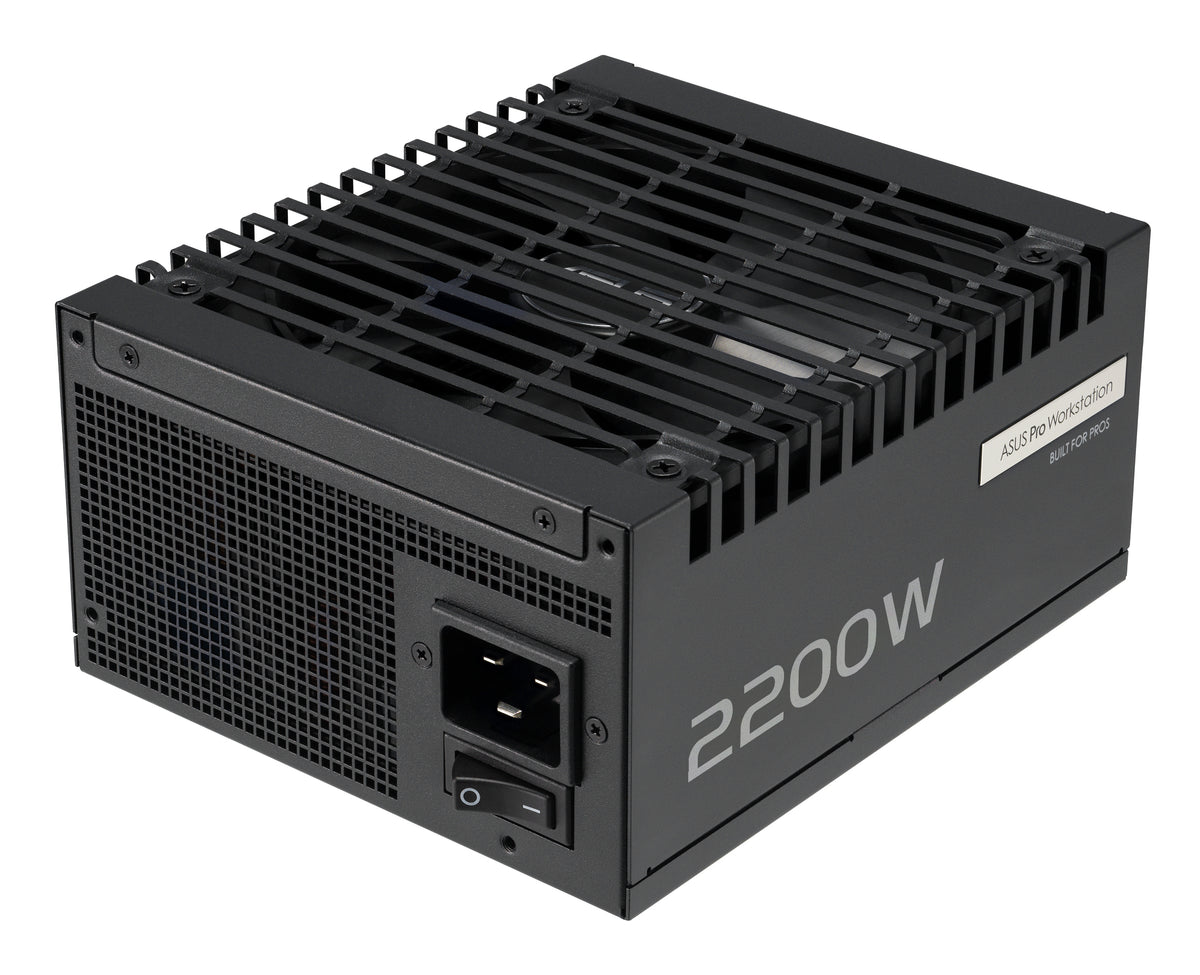

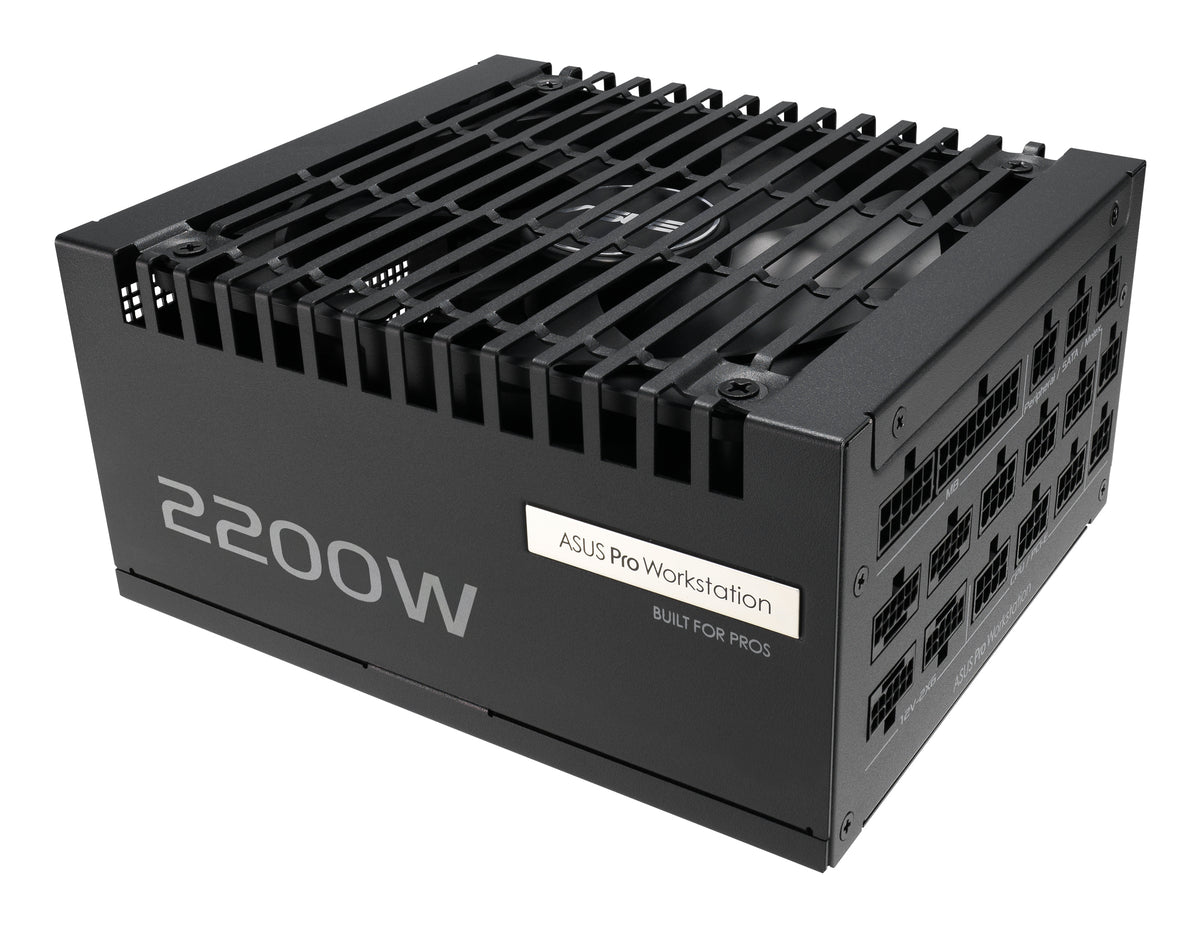

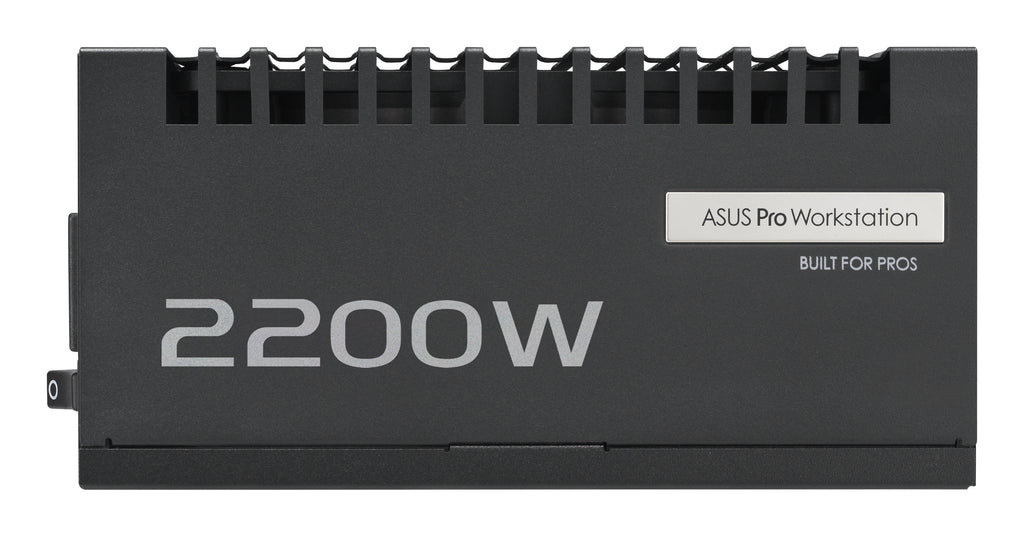

The ASUS Pro WS 2200W Platinum PSU is a workstation power supply engineered for professionals running multiple high-end graphics cards and AI workloads. It delivers 2200W with 80 Plus Platinum efficiency, ATX 3.1 compliance, and the voltage stability needed for demanding compute tasks.
Why this product
Supports up to four RTX 5080 cards
Heavy-duty 2200W capacity with rock-solid voltage regulation and advanced power delivery designed specifically for multi-GPU AI and deep learning setups.
ATX 3.1 compliant with 16-pin PCIe cables
Four 16-pin connectors deliver up to 600W each to PCIe 5.1 graphics cards, future-proofing your build for next-generation hardware.
80 Plus Platinum efficiency
Converts AC mains power to DC output with 90% efficiency at typical loads, reducing wasted heat and energy costs in professional environments.

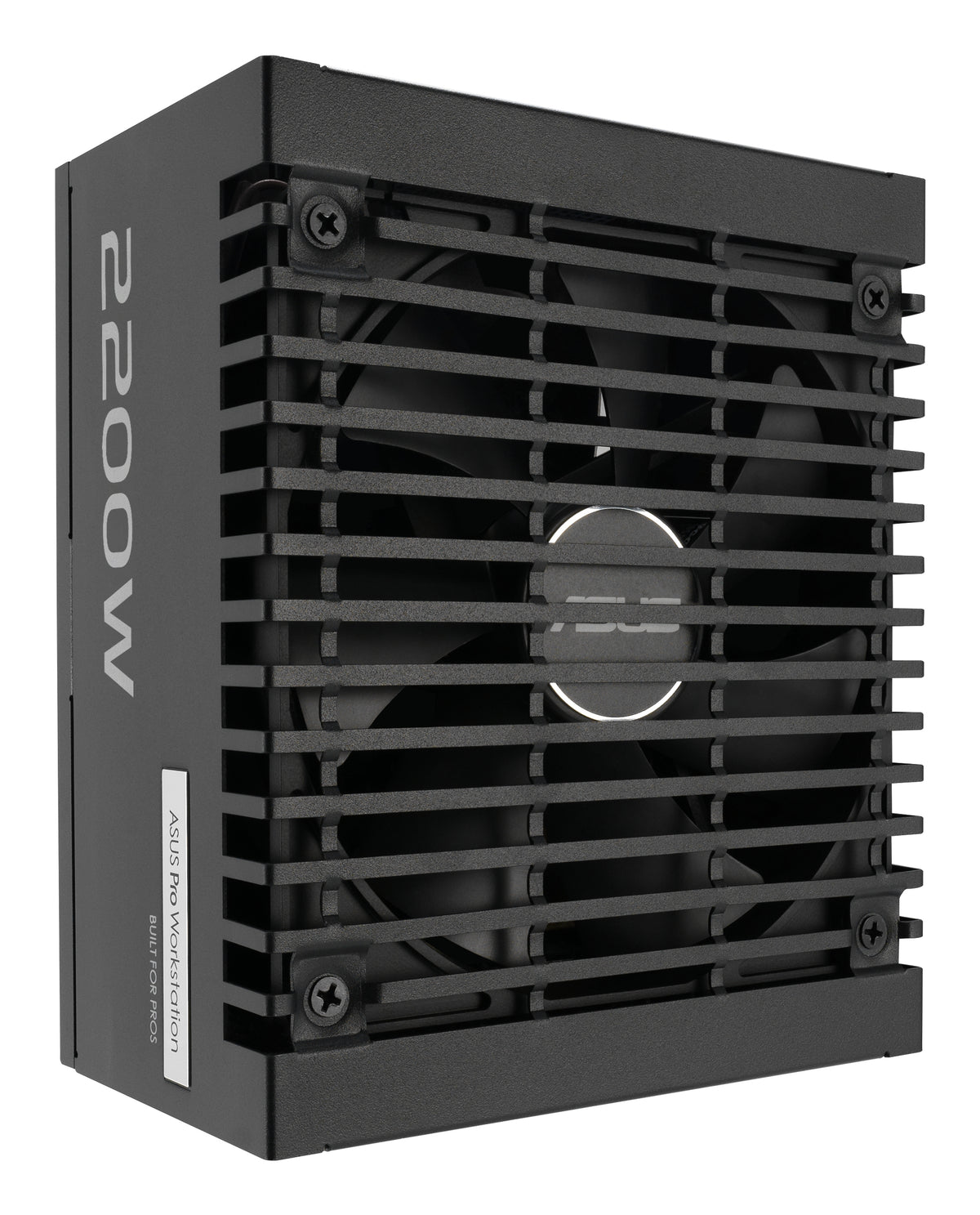

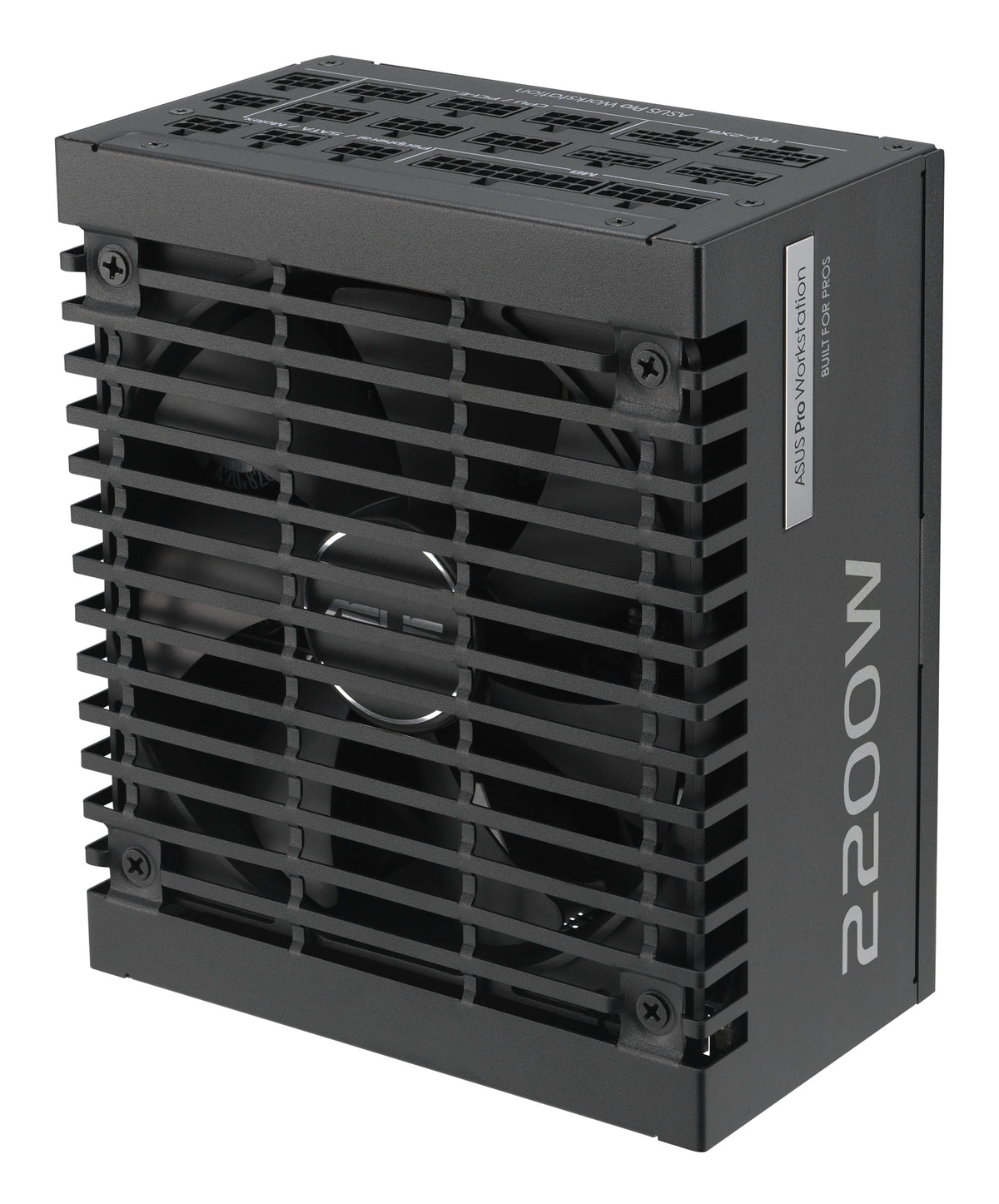

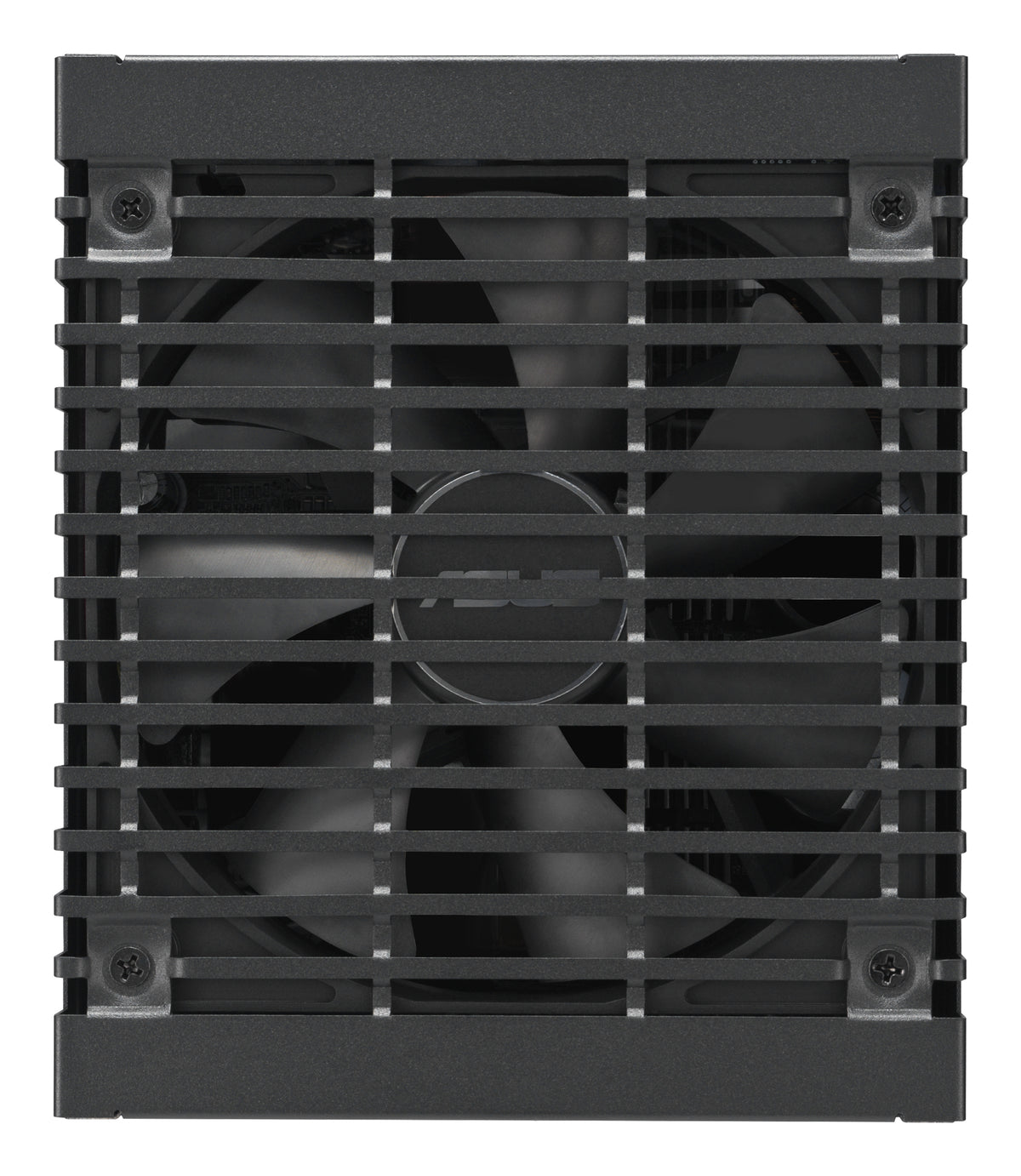

Dual-ball fan bearings for longevity
Bearing design rated to last up to twice as long as sleeve-bearing alternatives, minimizing fan wear over years of continuous operation.
Aluminum heatsinks and protective coating
Extruded heatsinks cover critical components for lower operating temperatures and noise, while PCB coating protects against environmental contaminants.
- Total Output2200W
- Efficiency Rating80 Plus Platinum
- Form FactorATX12V
- ATX StandardATX 3.1
- PCIe 5.1 16-pin Connectors4
- Dimensions175 × 150 × 86 mm
- Weight2.13 kg
- SKUASU-2584
- EAN4711387972861
- ATX 3.1 standard—full compliance with next-generation voltage and current regulation requirements.
- ATX12V form factor fits standard workstation and server chassis with 175 × 150 × 86 mm dimensions.
- Supports NVIDIA GeForce RTX 5080 and other PCIe 5.1 graphics cards via four dedicated 16-pin connectors.
- Provides eight PCIe 6+2-pin connectors for compatibility with older and mid-range discrete graphics cards.

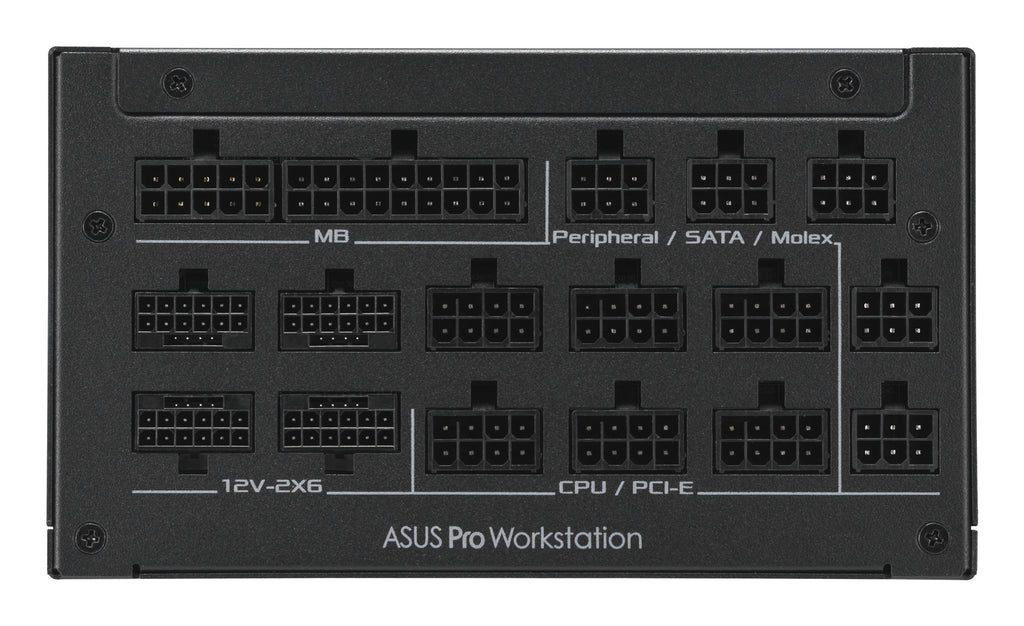

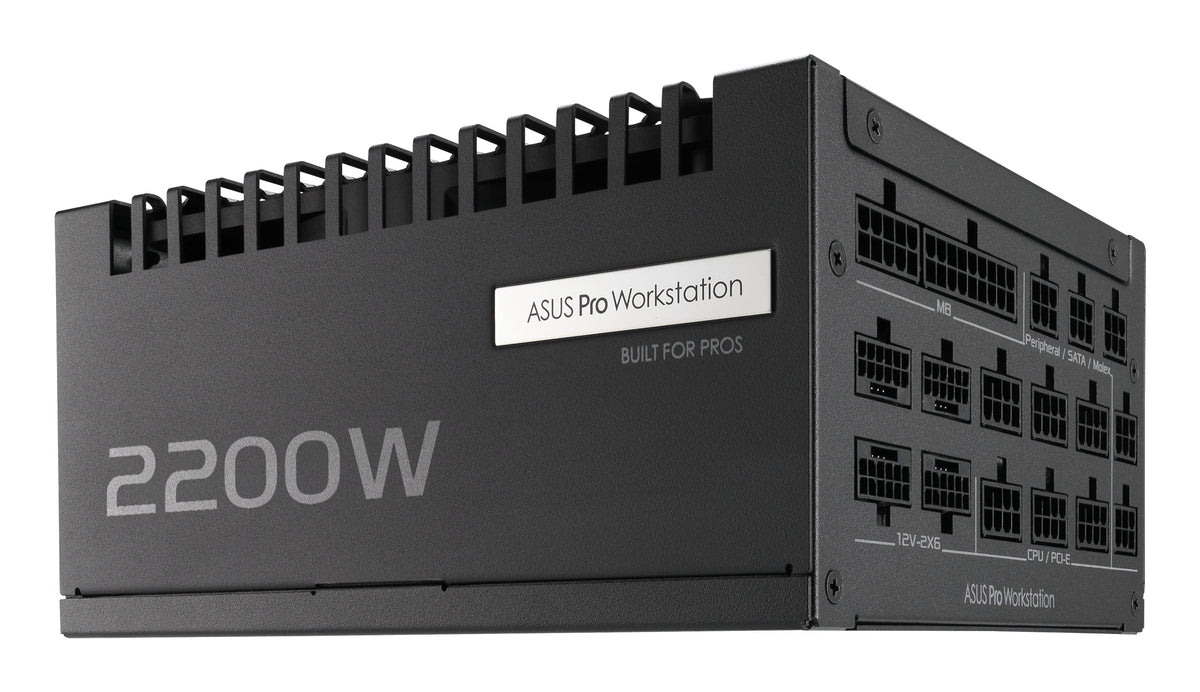

- Includes motherboard 24/20-pin and dual CPU 4+4-pin connectors for single and dual-socket workstations.
Best for
- Multi-GPU AI and machine learning workstations running up to four high-end graphics cards.
- Professional deep learning and data center builds requiring rock-solid voltage stability and low ripple.
- Long-running compute environments where energy efficiency and heat dissipation directly reduce operational costs.
- Future-ready builds targeting PCIe 5.1 graphics cards and ATX 3.1 compliant hardware.
Trade-offs
- Single-GPU gaming or content creation rigs—2200W capacity and professional-grade components are overkill for typical consumer workloads.
- Budget-conscious builders—Platinum efficiency certification and workstation engineering command a premium over consumer-grade Bronze or Gold supplies.
- Compact or SFF builds—175 × 150 × 86 mm footprint and heavy 2.13 kg weight require full-size chassis with adequate clearance.
- Systems requiring passive (fanless) operation—this unit features active cooling and no 0dB silent mode.
The ASUS Pro WS 2200W Platinum PSU is engineered to support up to four GeForce RTX™ 5080 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
ENGINEERING
- Heavy-Duty Power
- Gold-Plated High-Performance Copper Pins
- Protective PCB Coating
- ATX 3.1 Compatible
- 80 Plus Platinum
Heavy-Duty Power
Designed to reliably deliver the thousands of watts necessary to power up to four NVIDIA® GeForce RTX™ 5080 graphics cards, the ASUS Pro WS 2200W Platinum enables breakthrough performance that meets the needs of demanding AI workloads.

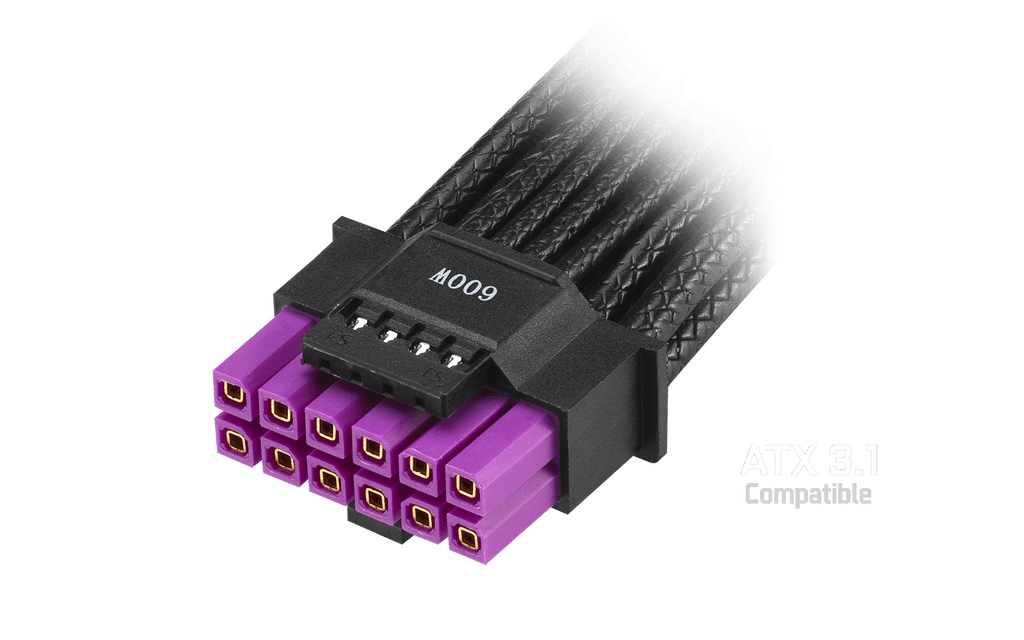

ATX 3.1 Compatible
ATX 3.1 ushers in tighter voltage and current regulation for next-gen hardware ― and the ASUS Pro WS series is ahead of the curve with full compliance. The 16-pin PCIe cables bundled with the PSU deliver up to 600 watts to PCIe 5.1 graphics cards, readying your build for the graphics cards of tomorrow.
General
| Brand | ASUS |
|---|---|
| Model | ASUS-PRO-WS-2200P |
| Total Output | 2200W |
Power & Efficiency
| Efficiency Rating | 80 Plus Platinum |
|---|---|

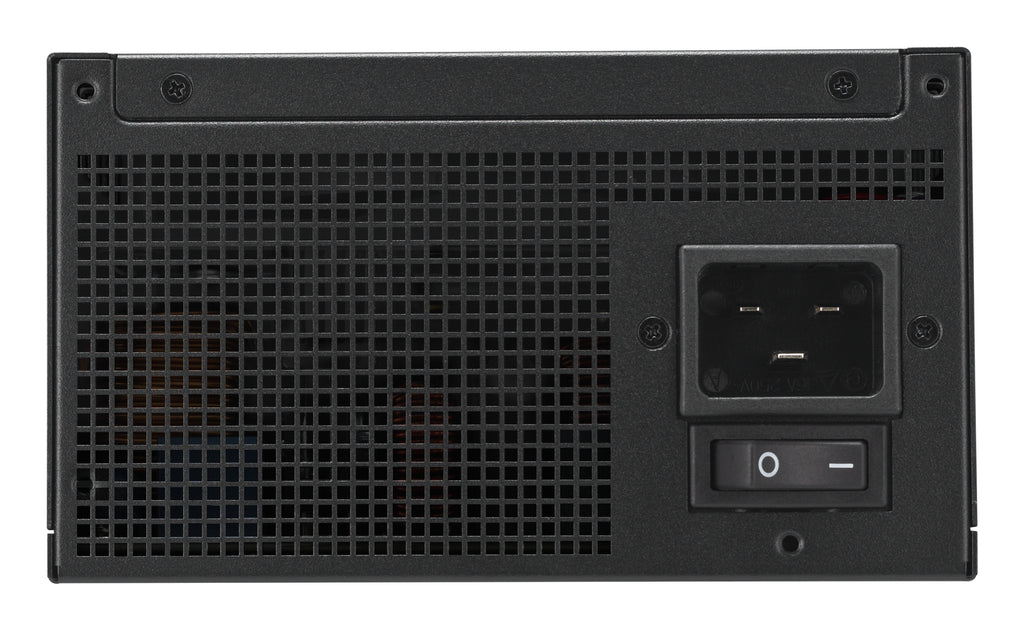

| AC Input Range | 200–240 Vac |
| PFC Type | Active PFC |
Connectors & Cables
| Motherboard | 24/20-pin × 1 |
|---|---|
| CPU Power | 4+4-pin × 2 |
| PCIe 5.1 16-pin | 4 |
| PCIe 6+2-pin | 4 |
| SATA | 12 |
| Peripheral | 3 |
Physical & Features
| Form Factor | ATX12V |
|---|---|
| ATX Standard | ATX 3.1 |
| Dimensions | 175 × 150 × 86 mm |
| Weight | 2.13 kg |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Fan Bearing Type | Dual-ball bearing |
