ASUS ProArt Display PA24US 4K 24" Monitor – 12G-SDI, HDR600
ASUS
ASUS ProArt Display PA24US 4K 24" Monitor – 12G-SDI, HDR600

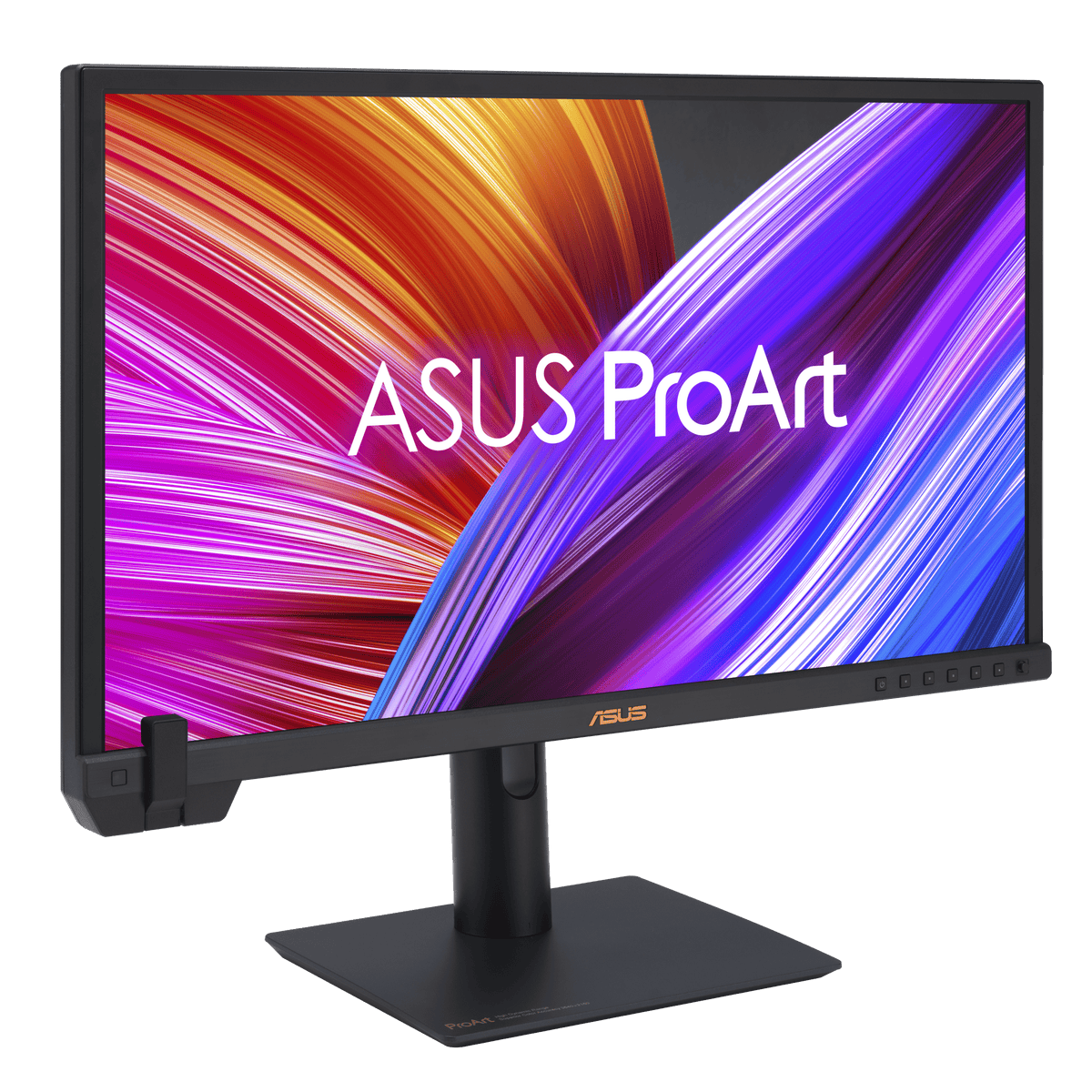

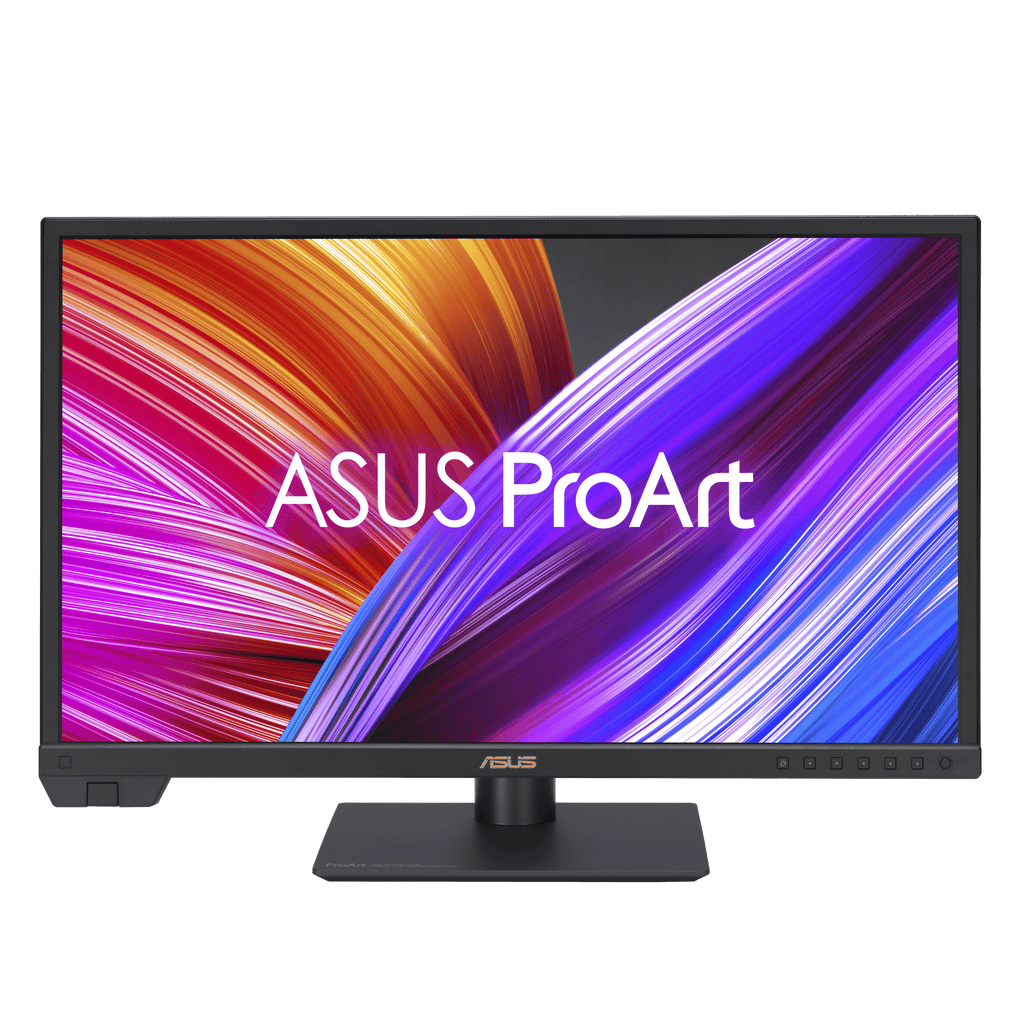

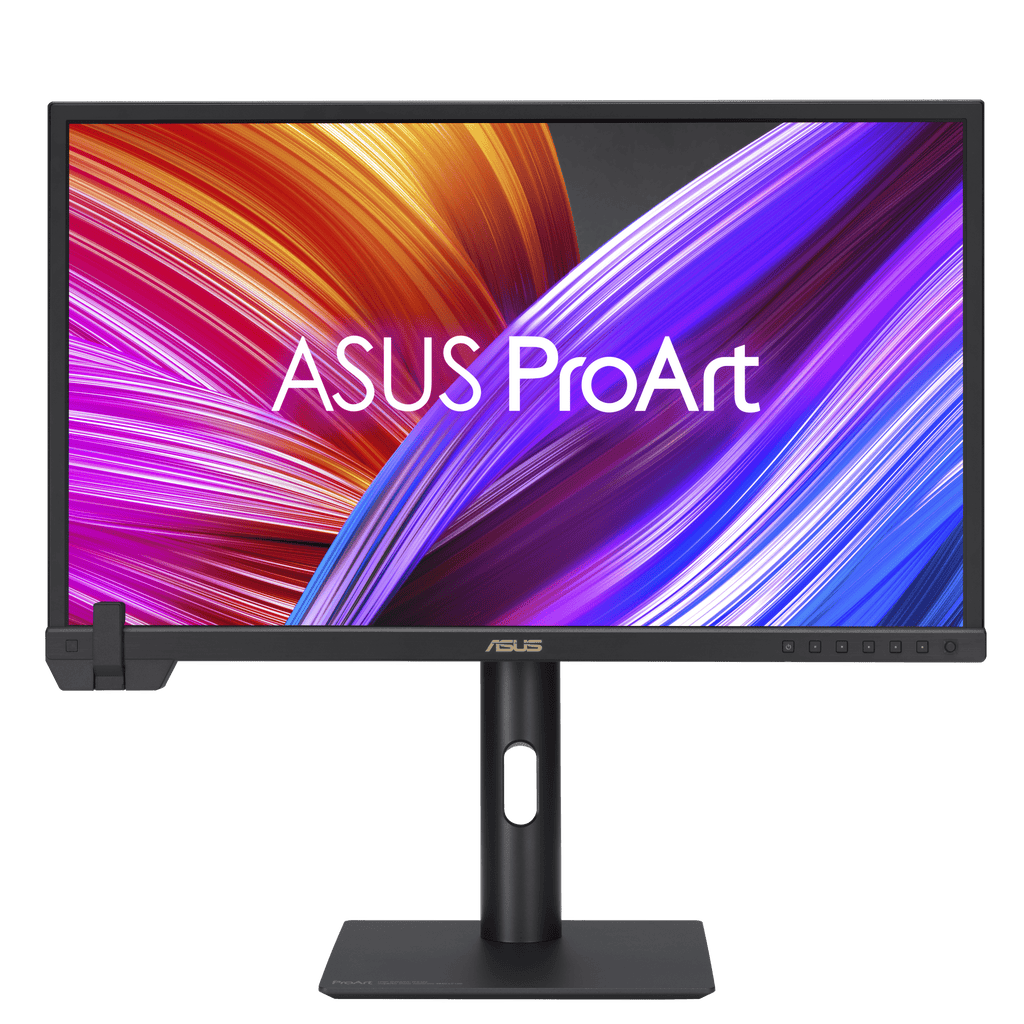

The ASUS ProArt Display PA24US is a 24-inch 4K professional monitor built for content creators, colorists and on-set video professionals who need uncompressed SDI video input and hardware-calibrated color accuracy. It combines a motorized colorimeter, HDR600 brightness, and wide color gamut coverage to deliver precise image reproduction for broadcast, film and digital work.
Why this product
12G-SDI input for uncompressed 4K
Direct SDI connection accepts 4K@60Hz video without compression and supports quad-view simultaneously, eliminating the need for HDMI adapters on professional capture rigs.

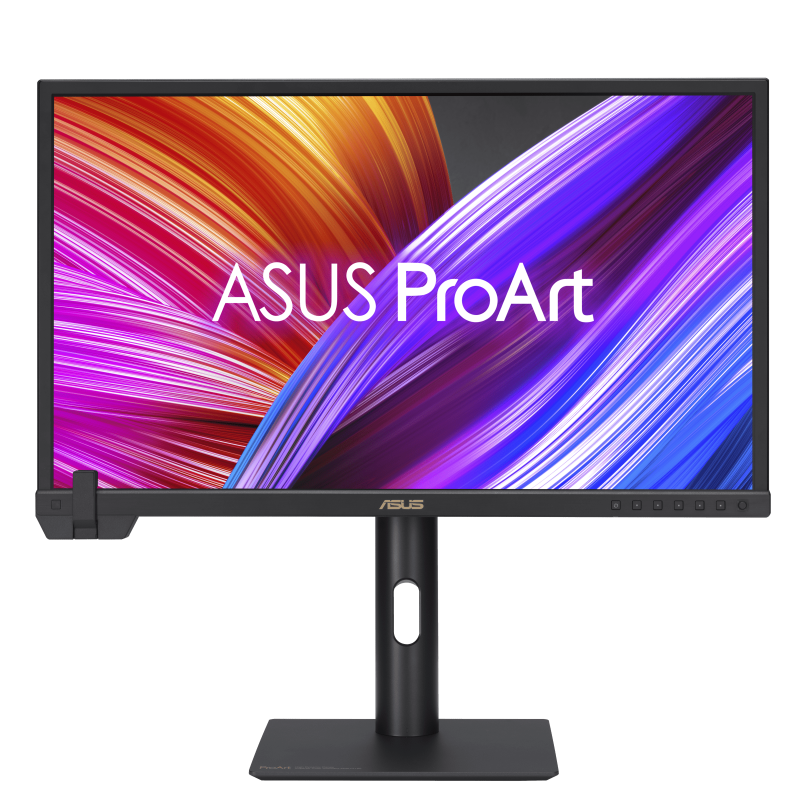

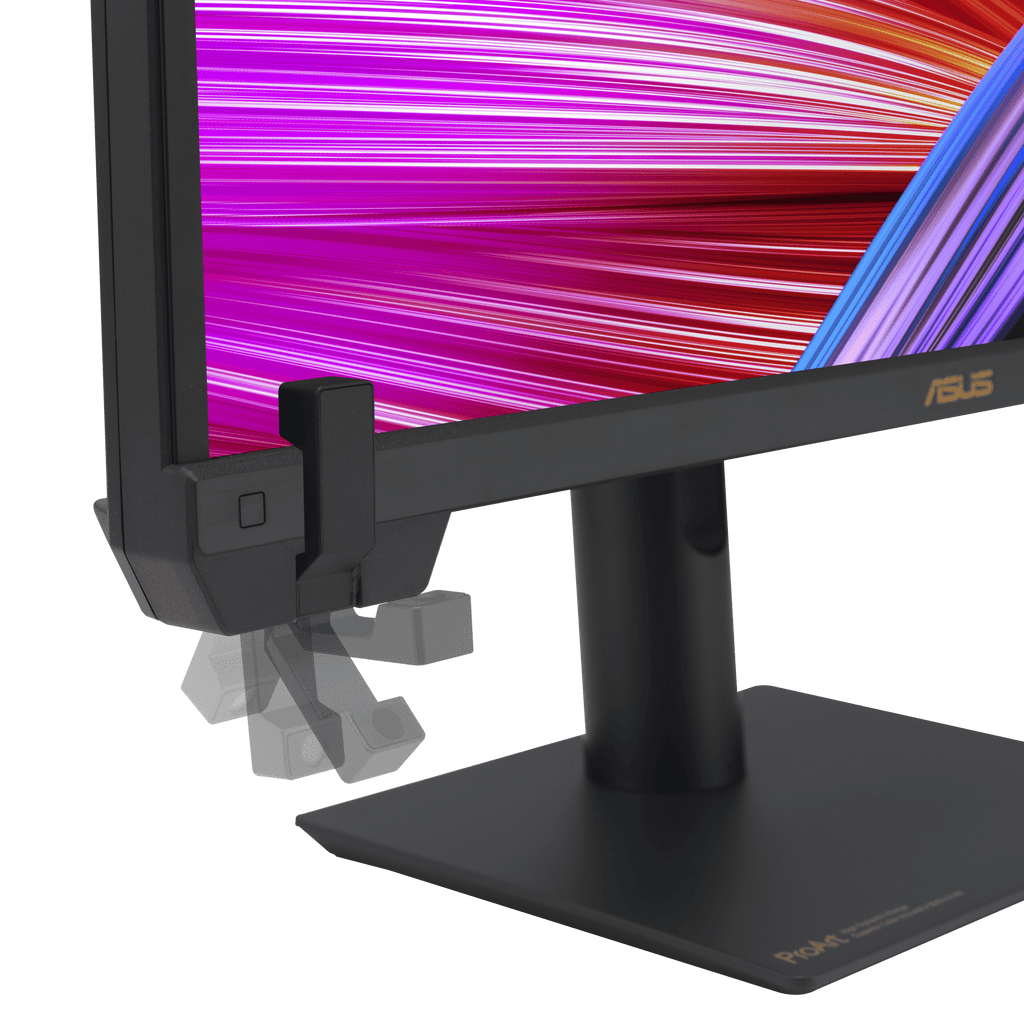

Built-in motorized colorimeter
Auto-calibrates to ΔE < 1 accuracy and integrates with Calman and Light Illusion ColourSpace professional color management software for hardware-level calibration.
600 nits peak HDR brightness
VESA DisplayHDR 600 certification with HDR-10 and HLG support delivers bright, lifelike imagery for on-set monitoring and HDR grading work.
99% Adobe RGB, 95% DCI-P3 color coverage
True 10-bit color depth ensures wide color gamut and smooth gradations across the full spectrum needed for professional color-critical work.
Ergonomic stand with full adjustments

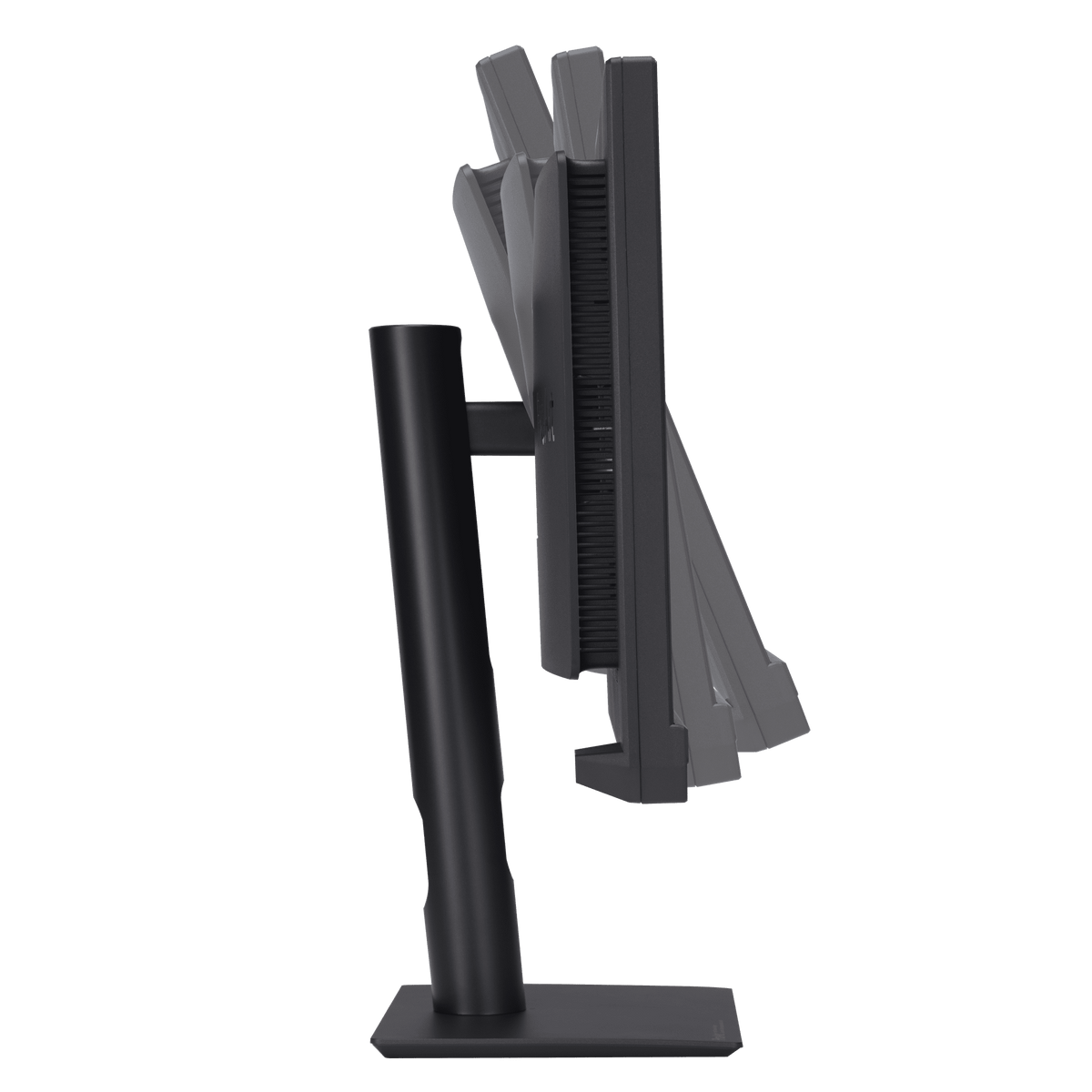

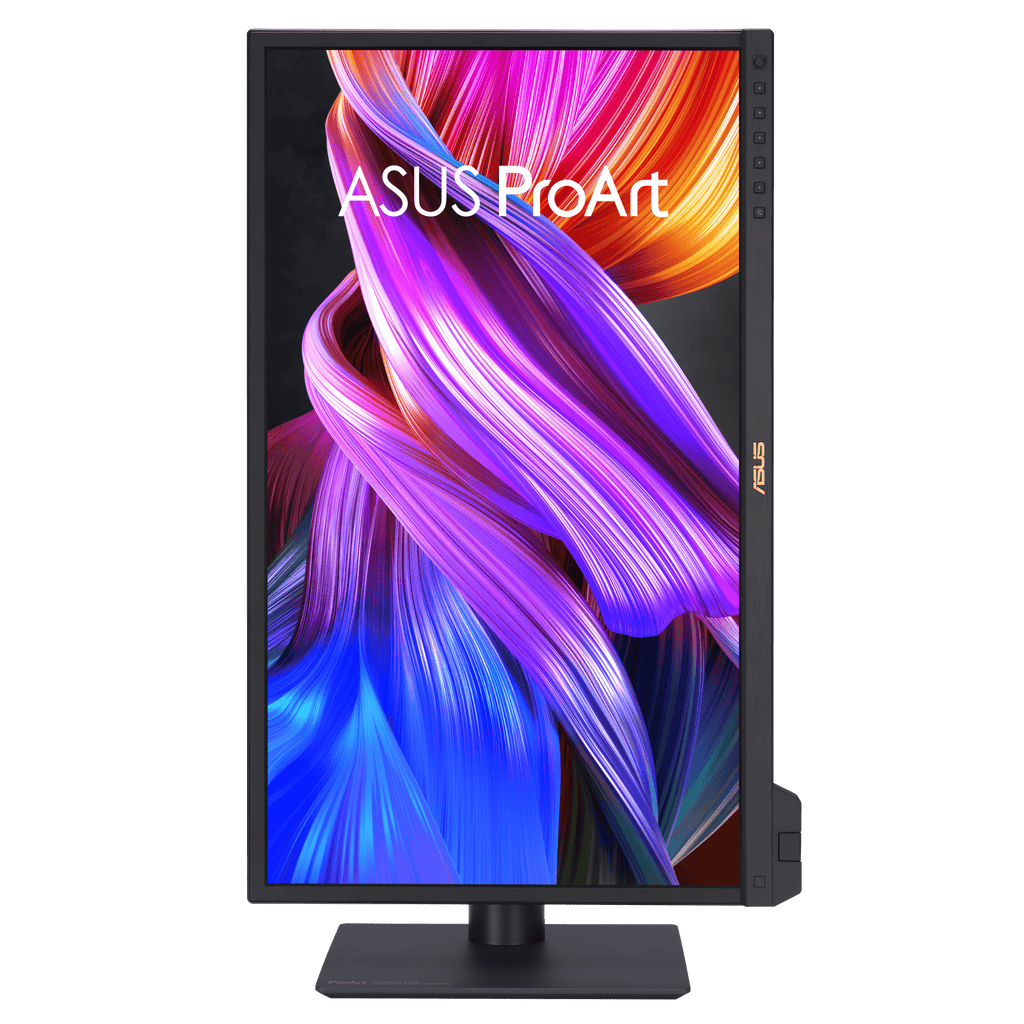

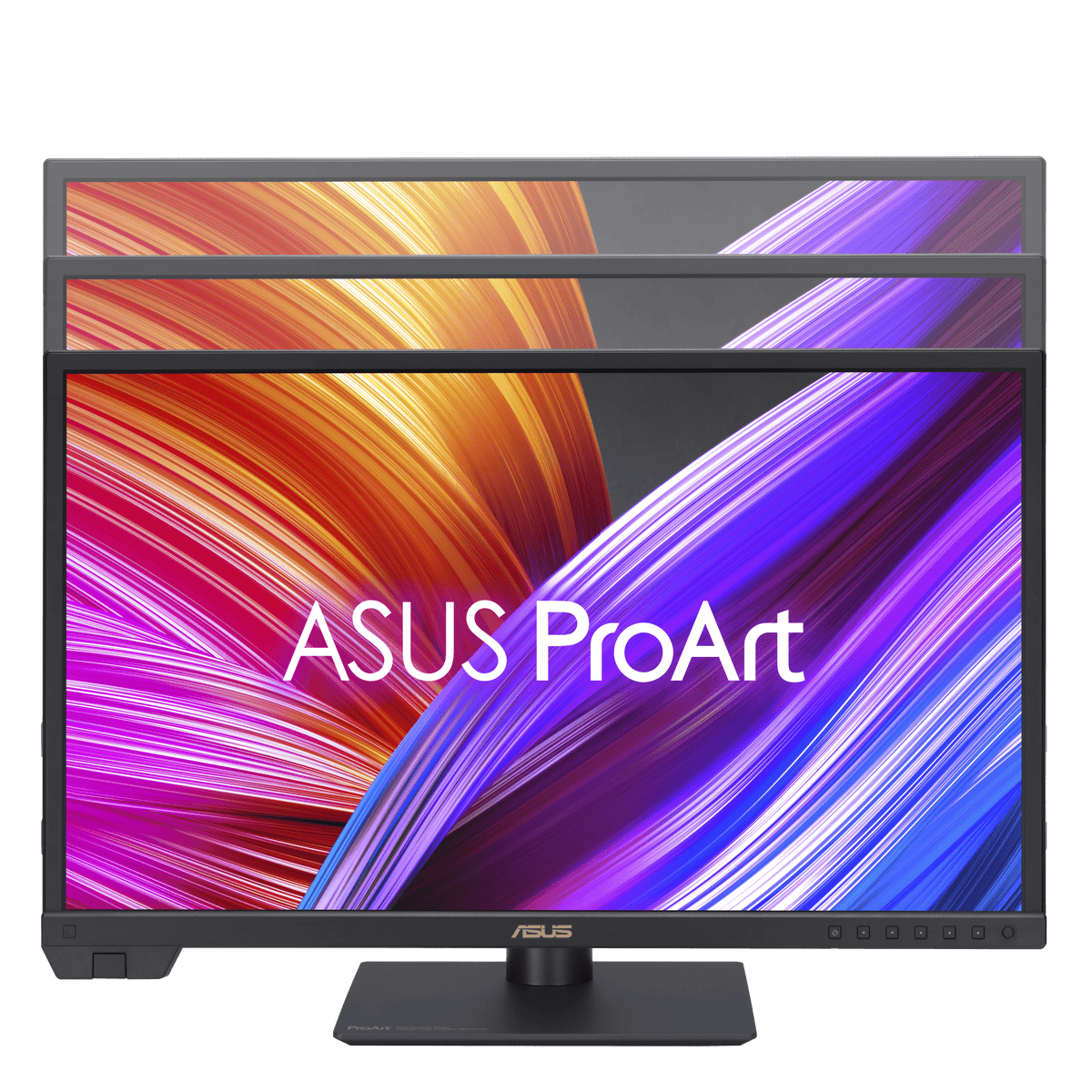

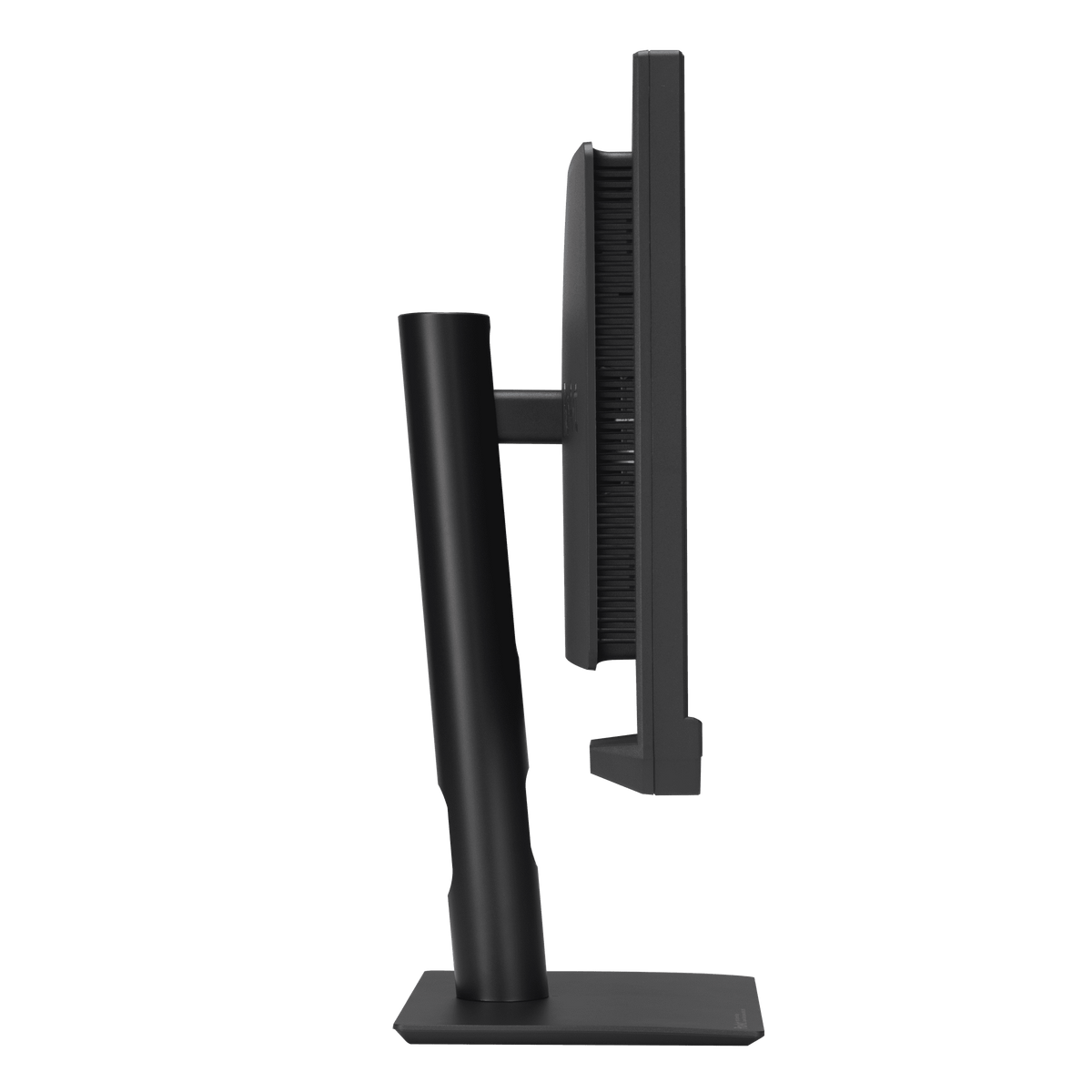

Tilt, swivel, pivot and height adjustments allow precise positioning for extended on-set or studio use.
- Screen Size24-inch (23.6-inch viewable)
- Resolution4K UHD (3840 x 2160)
- Peak Brightness600 nits (HDR Mode)
- Color AccuracyΔE < 1
- SDI Input12G-SDI (4K@60Hz, quad-view)
- Color Gamut99% Adobe RGB, 95% DCI-P3
- Pixel Density187 PPI
- CalibrationBuilt-in Motorized Colorimeter
- SKUASU-2615
- EAN4711387267080
- Works with SDI capture cards and capture boxes via 12G-SDI input for direct, uncompressed 4K video feed.

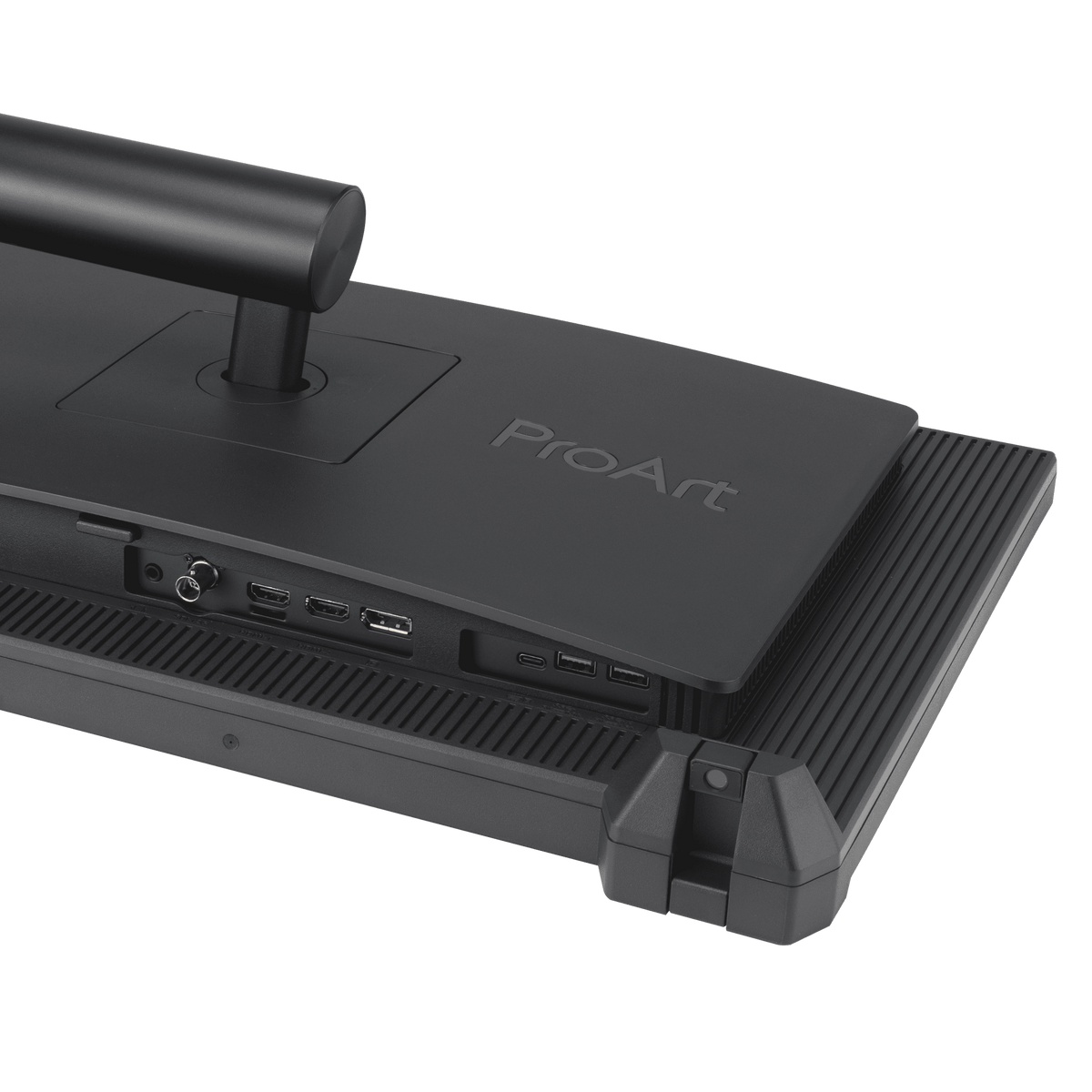

- Connects via DisplayPort, HDMI and USB-C (full function with 80W Power Delivery) for flexibility with modern workstations and laptops.
- Integrates with Calman and Light Illusion ColourSpace CMS for professional hardware calibration workflows.
- USB-C provides 80W power delivery; devices requiring more than 80W will need separate power.
Best for
- On-set video monitoring and color correction
- Professional colorists and DIT (Digital Imaging Technician) roles
- Broadcast and film production workflows requiring SDI infrastructure
- HDR content creation and grading with hardware calibration
Trade-offs
- Gaming or high refresh rate work: 60Hz maximum refresh rate, not suited for competitive gaming or fast-motion applications.
- Budget-conscious setups: Professional-grade SDI input and motorized calibration add significant cost versus standard monitors.
- Setups without SDI infrastructure: The 12G-SDI input is specialized; organizations using only HDMI or DisplayPort may not need this feature.
- Smaller desk spaces: 24-inch footprint with full ergonomic adjustments requires adequate desk real estate.
ASUS ProArt Display PA24US Professional Monitor – 24-inch (23.6-inch viewable), IPS, 4K UHD (3840 x 2160), Built-in Motorized Colorimeter, Self / Auto Calibration, HDR-10, HLG, 99% Adobe RGB, 95% DCI-P3, ΔE < 1, 12G-SDI, USB-C PD 80W, VESA DisplayHDR 600, Hardware Calibration, Calman Ready, ColourSpace Integration, Ergonomic Stand, Green Sustainability.
ProArt Display PA24US is 23.6-inch 4K HDR monitor offers 187 high PPI IPS panel with 99% Adobe RGB and 95% DCI-P3 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and up to quad-view at same time. A built-in motorized flip colorimeter for auto / self calibration to ensure professional-grade color accuracy.
On-set SDI Monitor
Empowering Content Creators – Colorists
12G-SDI input connection let creators who using SDI PCIe capture cards or capture boxes can be directly connect to the PA24US via SDI instead of HDMI, delivers 4K high quality uncompressed videos to preview precise image performance.
Impeccable 4K HDR Imagery On-set
A brighter, Lifelike Viewing Experience
Uncompressed 4K Video
IPS 178° Wide View Angle
Lifelike Views With 178° Wide View Angle
Frameless IPS panel provides 178° viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.
Intuitive and Intelligent Calibration
Enjoy true-to-life color
General
| Brand | ASUS |
|---|---|
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
Display & Color
| Resolution | 4K UHD (3840 x 2160) |
|---|---|
| Color Depth | True 10-bit |
| Color Gamut | 99% Adobe RGB, 95% DCI-P3 |
| Color Accuracy | ΔE < 1 |
| Peak Brightness | 600 nits (HDR Mode) |
| Sustained Brightness (SDR) | 350 nits |
| HDR Support | HDR-10, HLG (Hybrid Log Gamma), VESA DisplayHDR 600 |
| Viewing Angle | 178° (horizontal and vertical) |
| Pixel Density | 187 PPI |
Calibration & Color Management
| Colorimeter | Built-in Motorized Colorimeter |
|---|---|
| Calibration Modes | Self / Auto Calibration, Hardware Calibration |
| Software Integration | Calman Ready, Light Illusion ColourSpace CMS |
Connectivity & Power
| SDI Input | 12G-SDI (supports 4K@60Hz, up to quad-view simultaneously) |
|---|---|
| USB-C | Full function with 80W Power Delivery |
| Other Inputs | DisplayPort, HDMI, USB Hub |
Physical & Sustainability
| Ergonomic Adjustments | Tilt, Swivel, Pivot, Height Adjustment |
|---|---|
| Sustainability | Paper packaging, energy-efficient environmental standards |
