ASUS ProArt PA401 Wood TG PWM Black ATX Case
ASUS
ASUS ProArt PA401 Wood TG PWM Black ATX Case

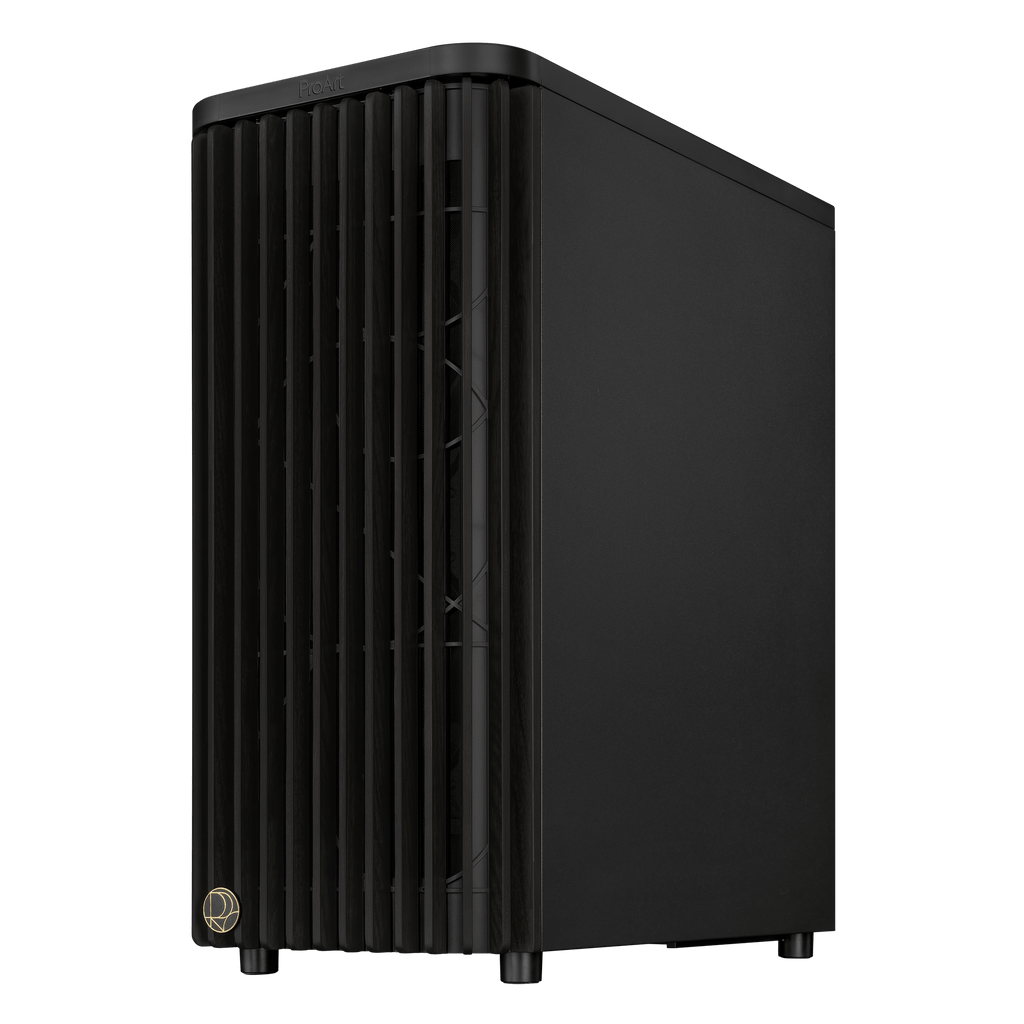

The ASUS ProArt PA401 Wood TG PWM Black ATX Case is a full-size PC enclosure that pairs practical cooling performance with distinctive aesthetics through its FSC-certified ash wood front panel. Built-in dual 160mm front fans and integrated PWM control create efficient airflow without the noise and vibration typical of larger cases. It suits builders who want capable cooling alongside a desktop presence that distinguishes their setup.
Why this product

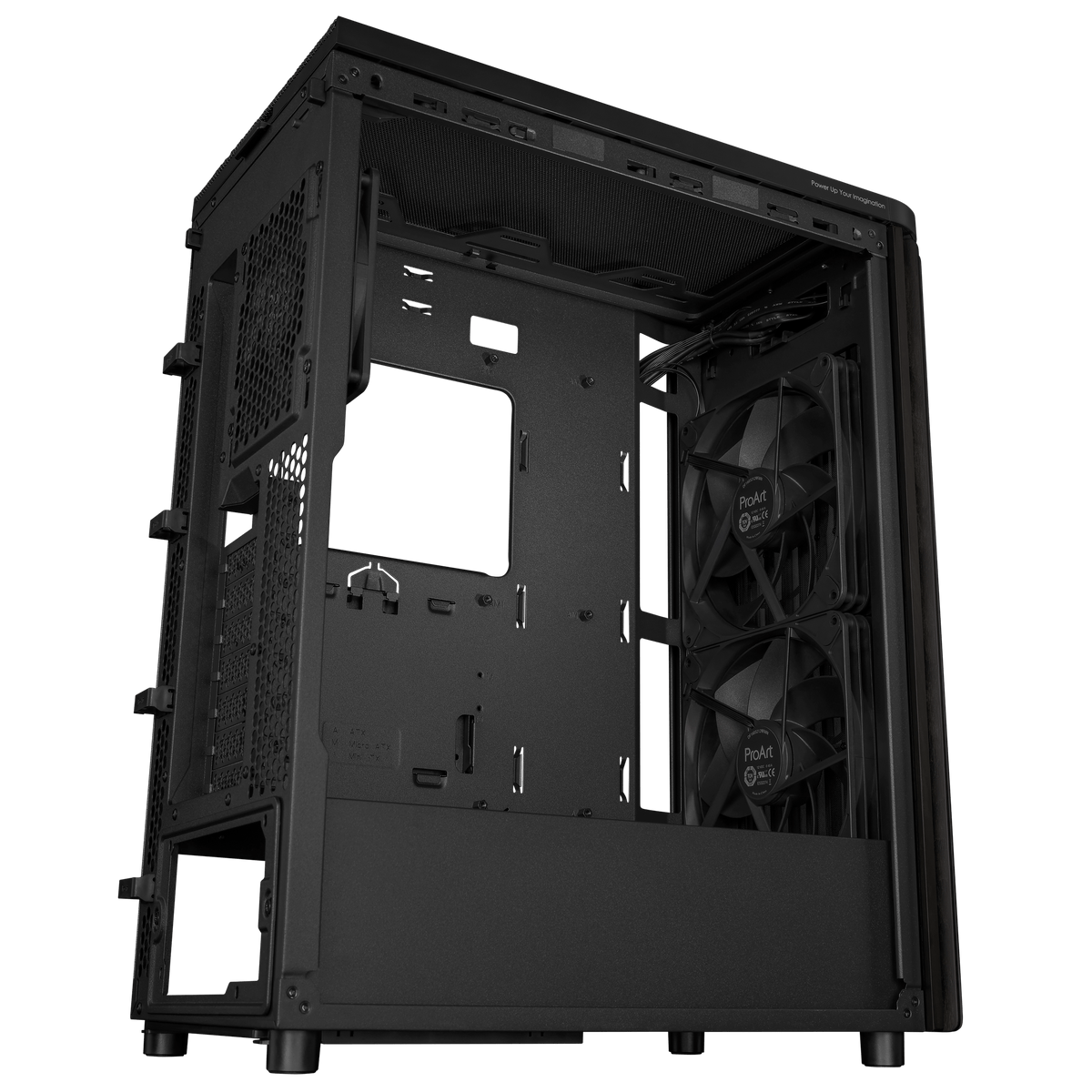

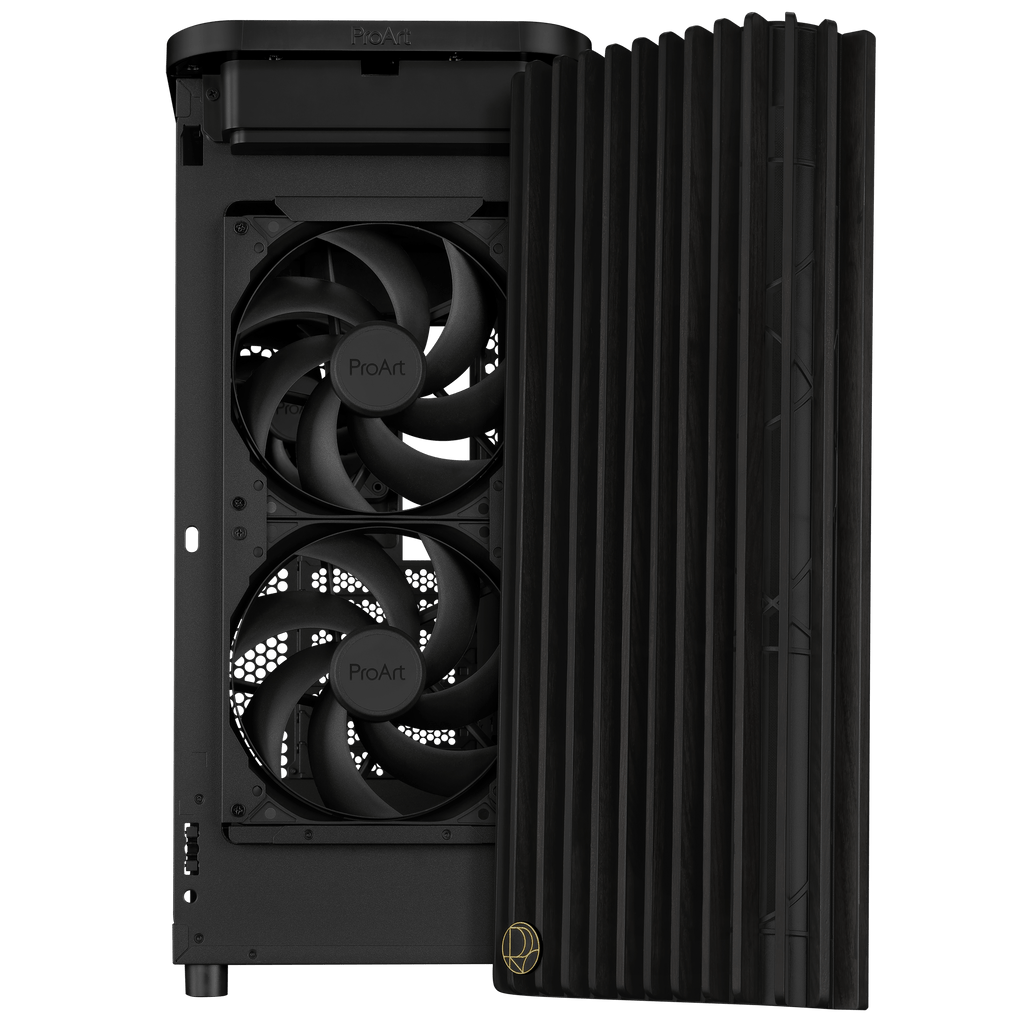

Dual 160mm front fans deliver 138cfm
Pre-installed ring-blade design fans move air efficiently to graphics cards and CPU coolers with low noise and vibration.
FSC-certified ash wood front panel
Each case has a unique finish. The wood is finished through a six-stage process and chosen for durability.

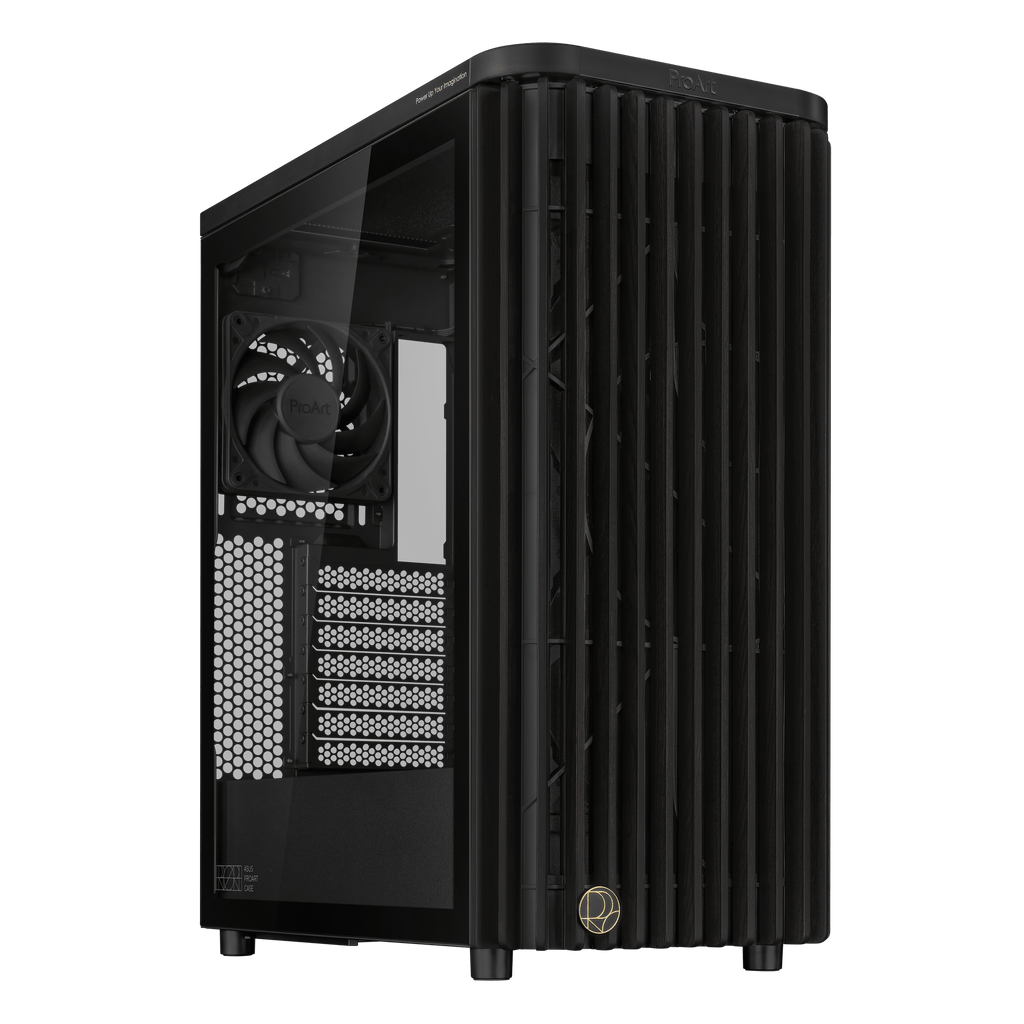

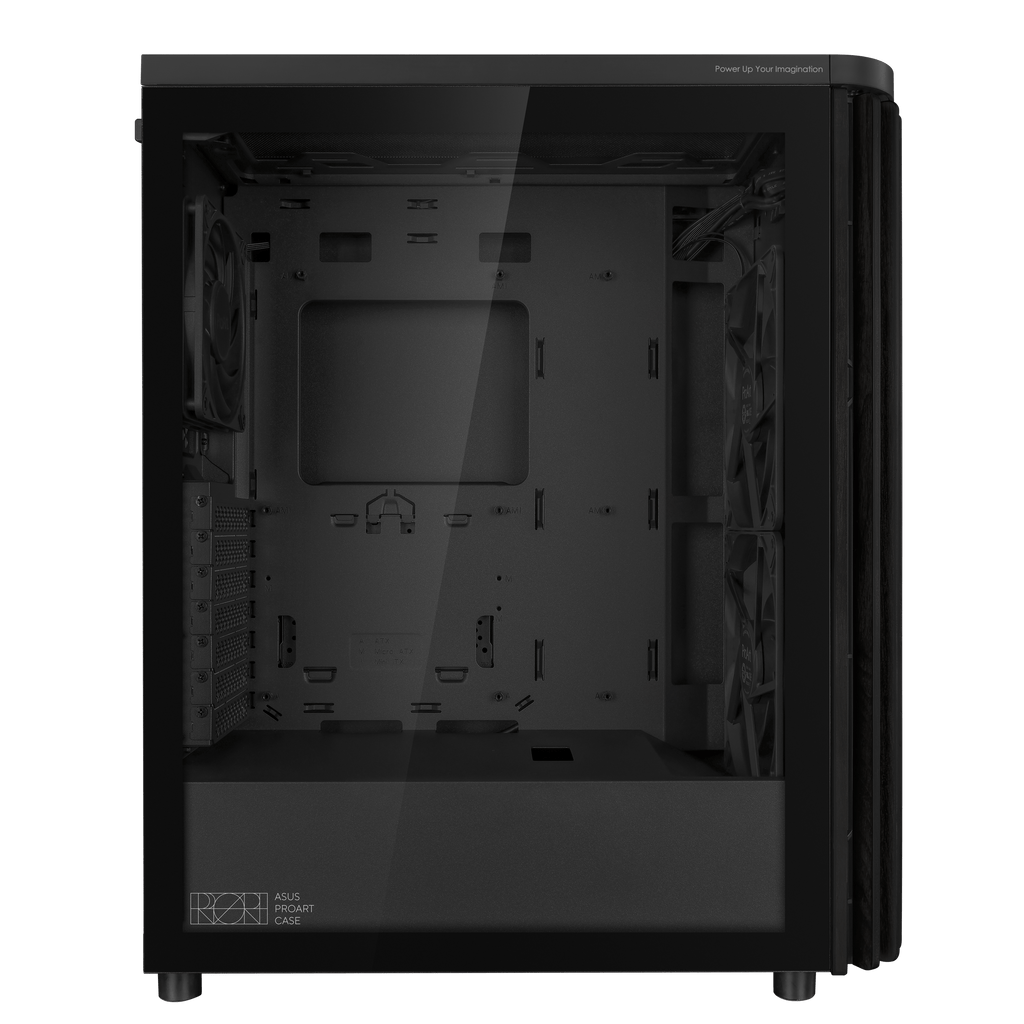

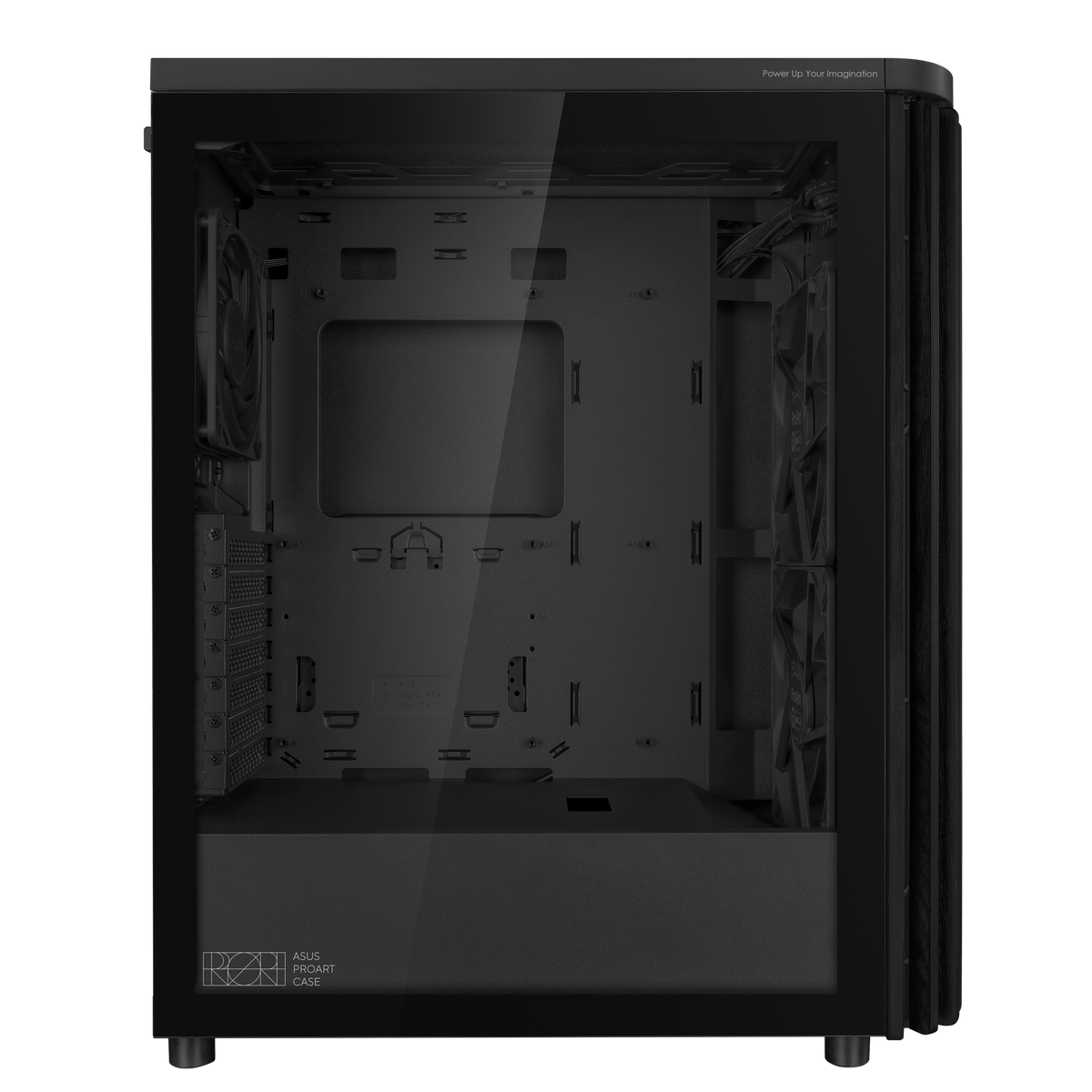

Tempered glass side panel
Displays internal components while maintaining the structural durability of the enclosure.
Integrated PWM fan control
Fan speed adjusts automatically across normal and intensive workload scenarios via a two-section controller on the front panel.
20Gbps USB Type-C on front I/O
Future-ready connectivity for compatible motherboards, alongside two USB-A 3.0 ports and audio in.
- BrandASUS
- Form FactorATX Full Tower
- Front Panel MaterialFSC-certified Ash Wood
- Side PanelTempered Glass
- Pre-installed Fans2 × 160mm (front), 1 × 120mm (rear)
- Dimensions412 × 225 × 503mm (D × W × H)
- Weight8.61 kg
- ColourBlack
- SKUASU-2215
- EAN4711387722275
- Fits standard ATX motherboards and supports graphics cards up to 315mm in length.
- Accommodates CPU coolers with a maximum height of 160mm.
- Supports power supplies up to 170mm in length.
- Mounts radiators on top (240mm, 140mm, 120mm) and front (160mm, 140mm options).
- Houses 2 x 2.5"/3.5" combo drives and 2 x 2.5" drives, with 7 expansion slots.
- Power and Reset button lock prevents accidental presses but requires deliberate hold to activate, which some may find inconvenient during normal operation.
Best for
- Builders prioritizing visual impact with a working case that fits on a desk or open shelf.
- Systems with mid-range to high-end graphics cards and air coolers that benefit from focused front airflow.
- Those seeking low-noise cooling through automated PWM adjustment without manual fan curve tuning.
- Builders who value sustainable materials and want their case to reflect FSC-certified construction.
Trade-offs
- Large liquid cooling loops — top radiator support maxes at 240mm, limiting AIO or custom loop options on high-end systems.
- High-capacity storage — only 4 total drive bays (2 combo, 2 2.5") for users building NAS or multi-drive arrays.
- Extended PSU lengths — 170mm limit rules out some modular and non-modular power supplies over that length.
- Tall tower coolers — 160mm CPU cooler height ceiling excludes the largest air coolers on the market.
- Multi-GPU configurations — designed for single graphics card mounting, not dual-card setups.

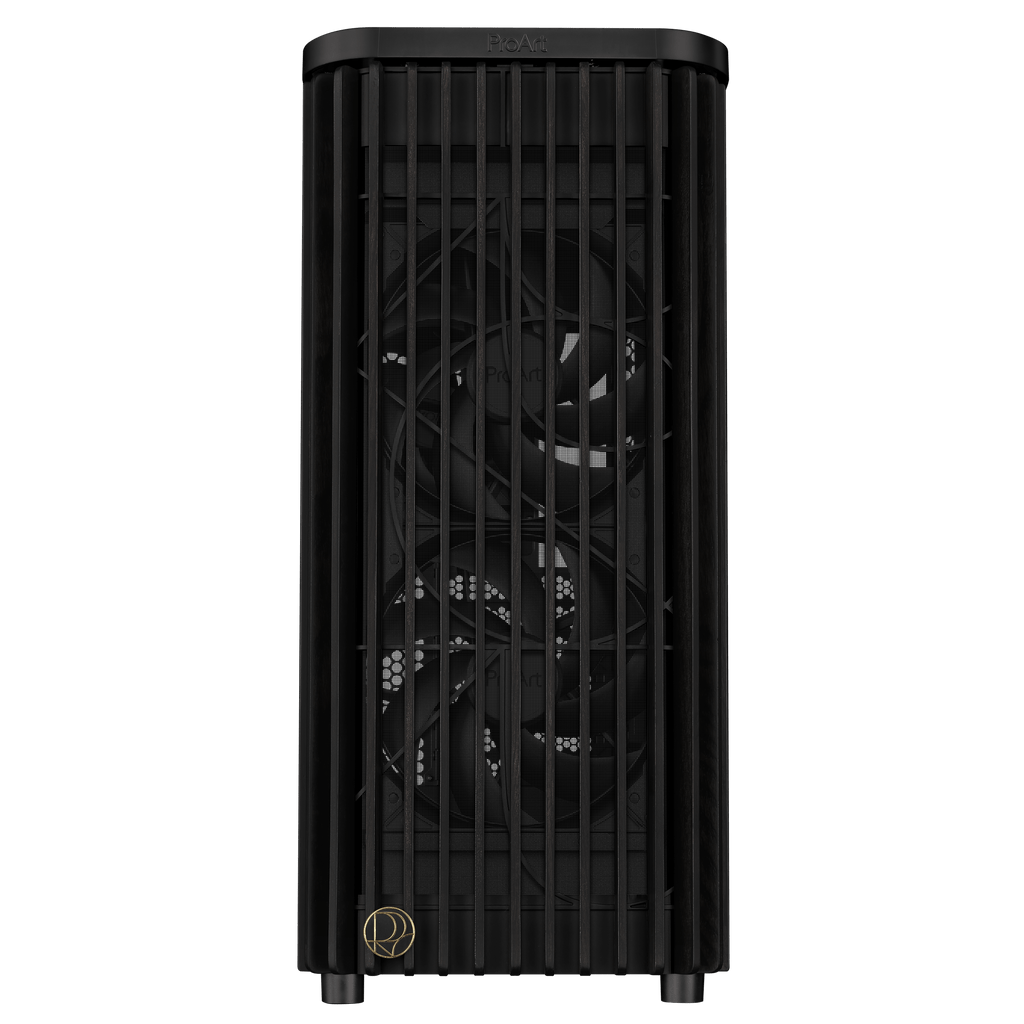

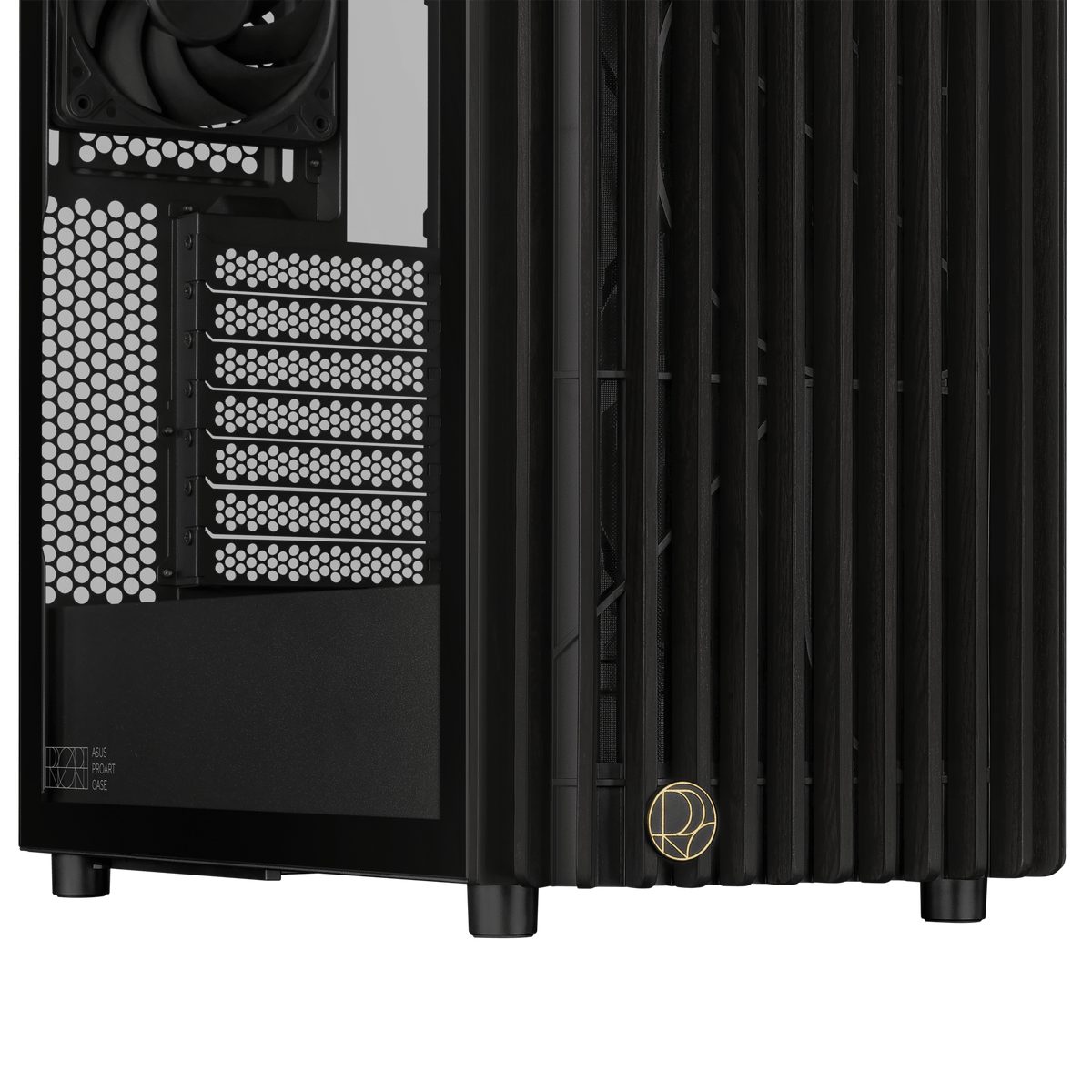

The ProArt PA401 Wood Edition showcases a wooden front panel that creates a distinctive and elegant style. This wood is certified by the Forest Stewardship Council® (FSC®) and is finished using a six-stage process. The case also boasts optimal built-in cooling, with two 160mm front fans and one 120mm rear fan, along with an integrated fan hub, enabling optimal airflow.

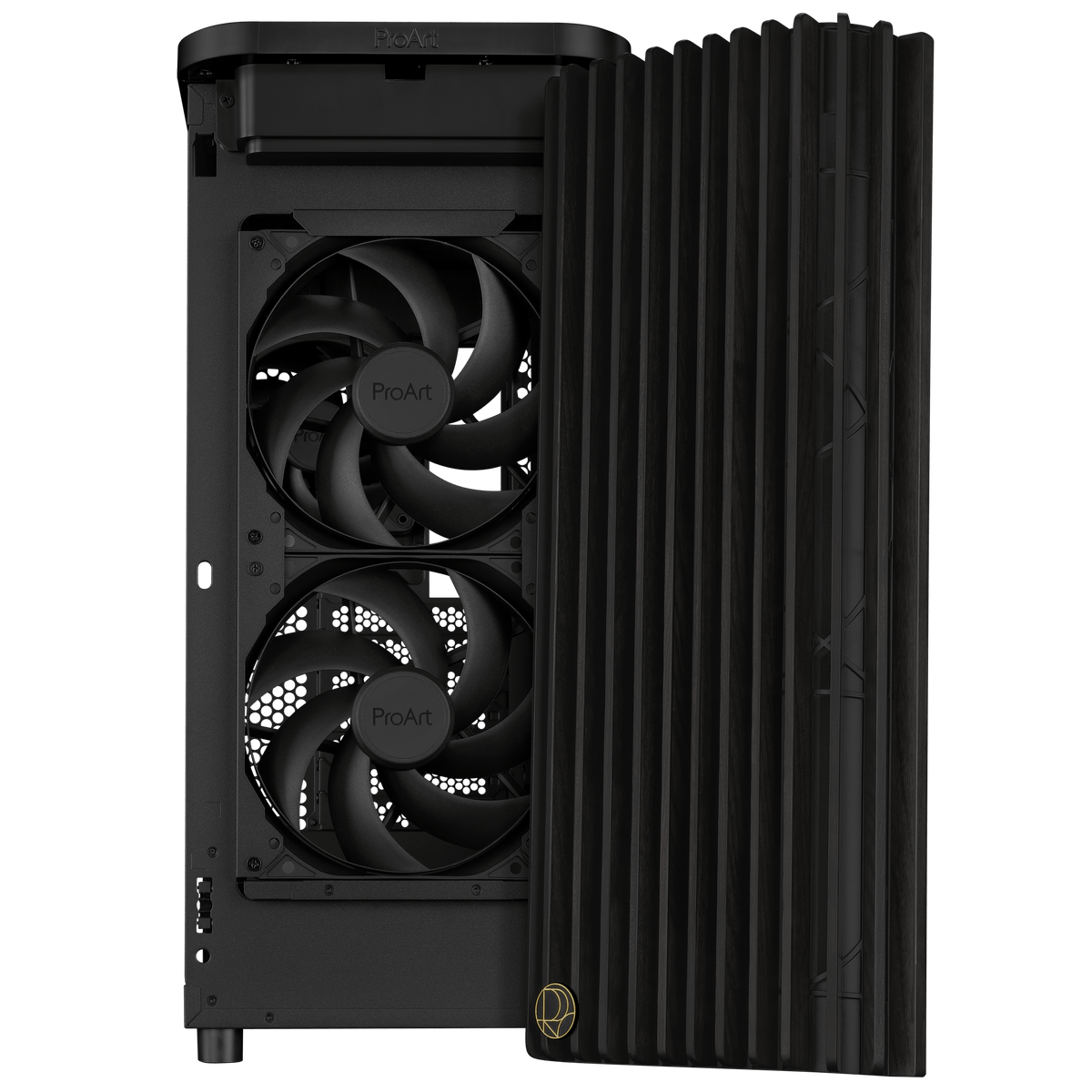

The PA401 Wood Edition features a front grille with 33% porosity to maximize airflow and ventilation. Meanwhile, built-in dual 160mm front fans efficiently deliver up to 138cfm of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and the 120mm rear fan with PWM control yield optimal airflow, low noise, low vibration and high reliability. Fans with ring blade design provide efficient cooling. Ash wood, an uncommon choice for this style of case, has been selected for its durability.
Note: As natural wood varies in texture and characteristics, each ProArt PA401 Wood Edition case will have a distinct finish, adding to its unique charm and character.

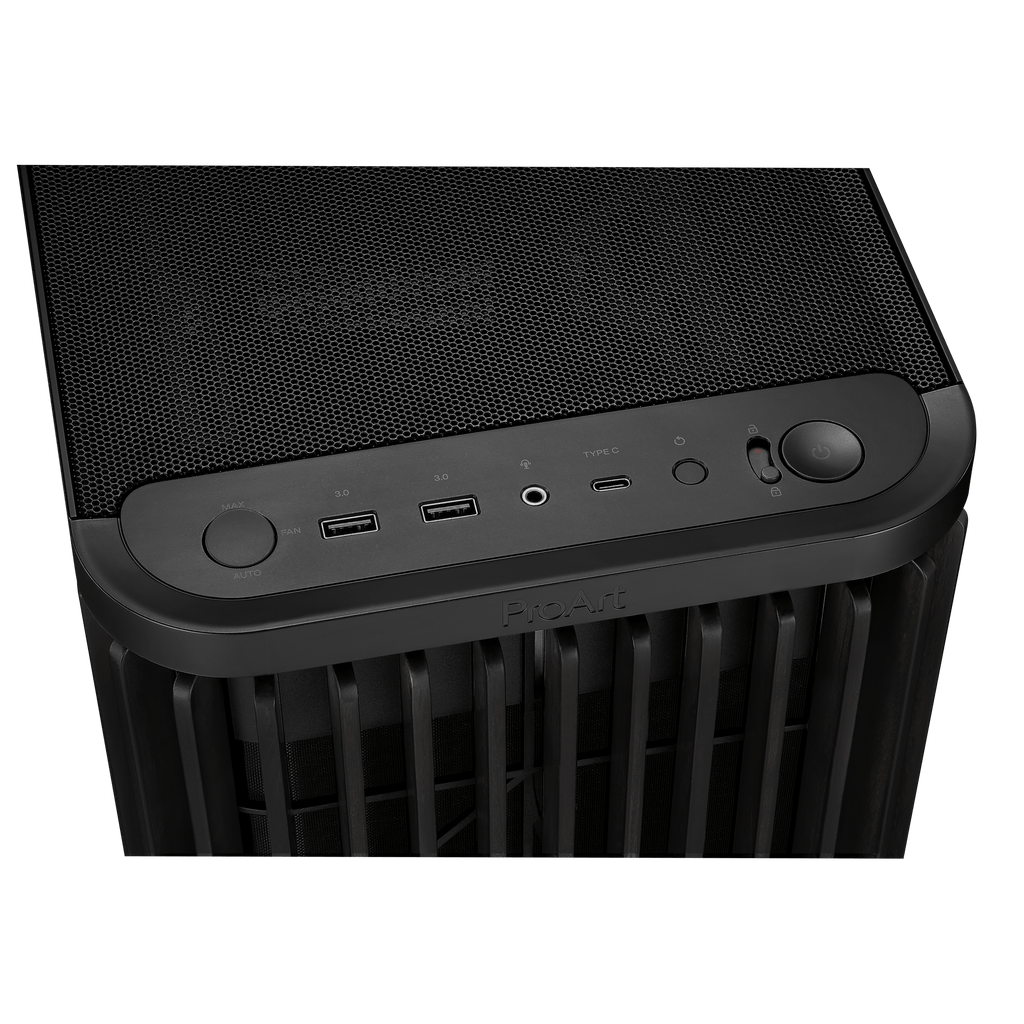

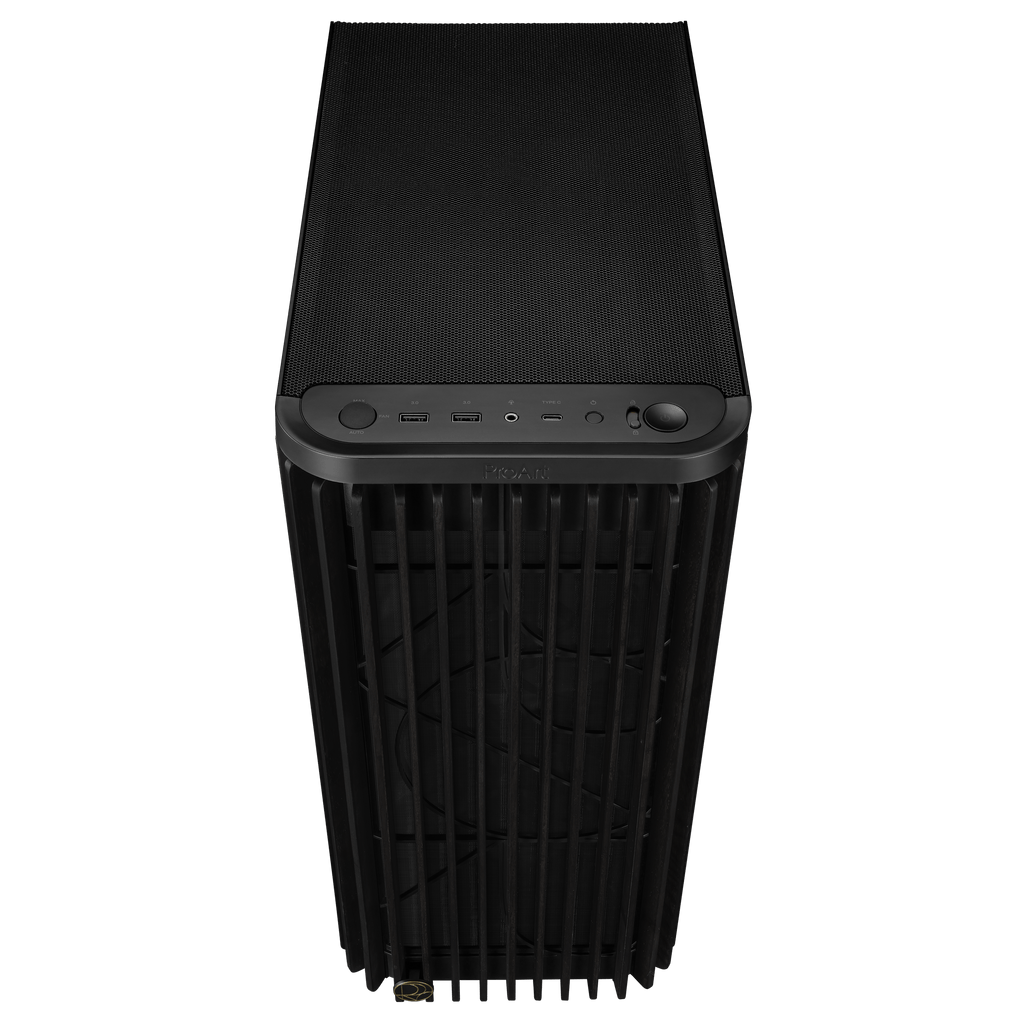

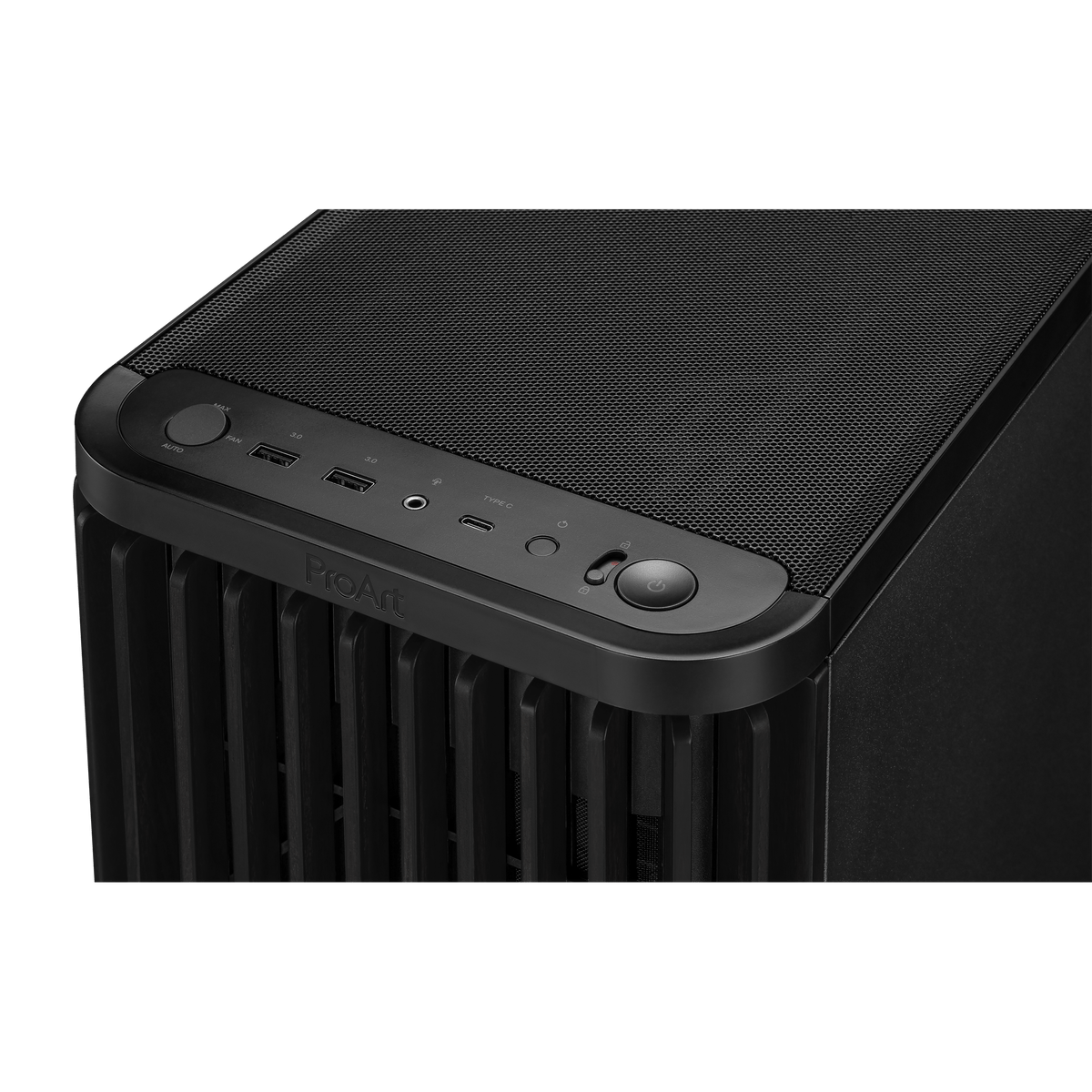

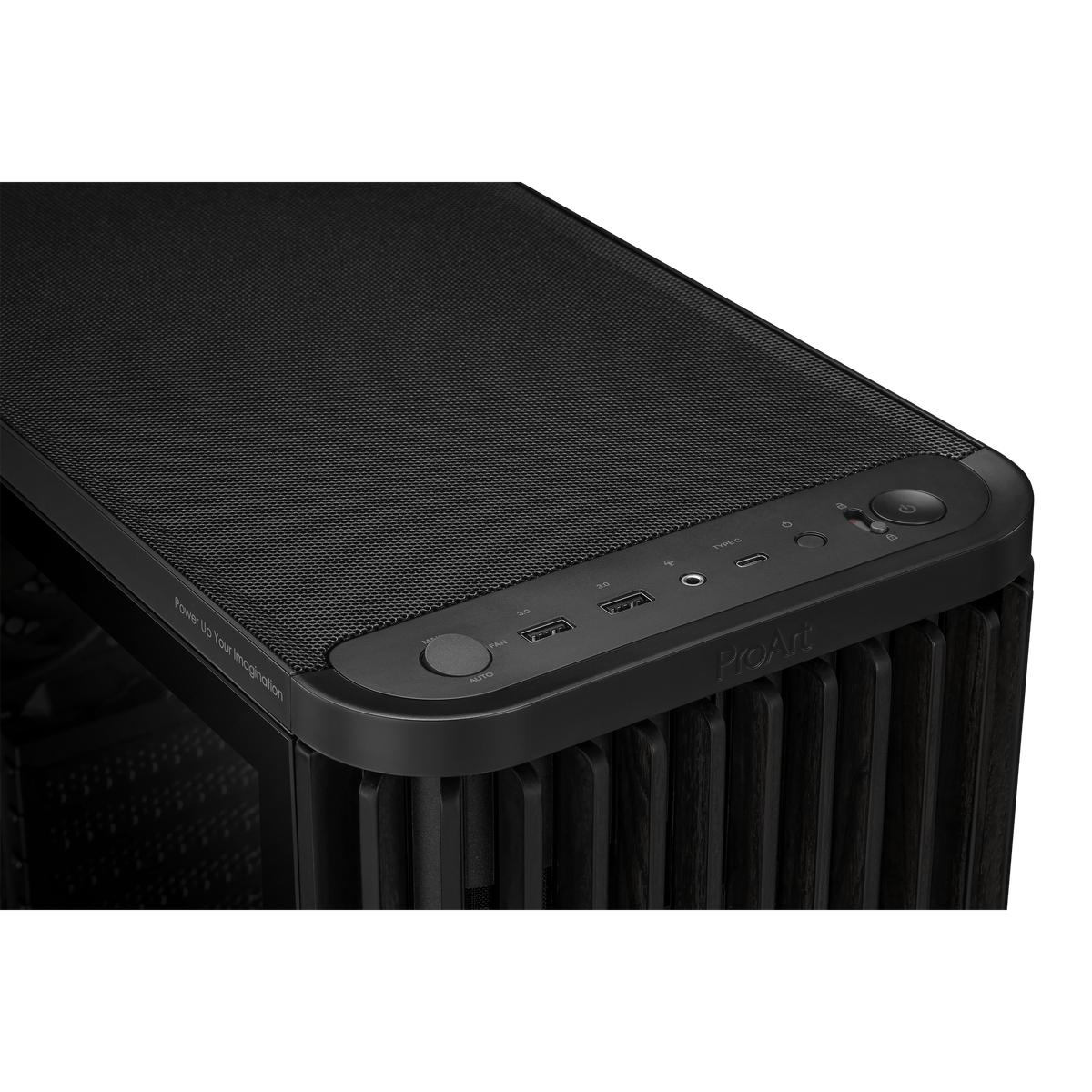

Connectivity options are easily accessible via the front I/O panel, including one two-section PWM control, one 20Gbps USB Type-C® port, two USB-A 3.0 ports, HD audio and a Power and Reset button lock. With integrated PWM control, fan speed adjusts automatically, making it easy to switch between normal and working scenarios and intensive scenarios. The PA401 Wood Edition incorporates one 20Gbps USB Type-C port for current and future devices and connectivity with compatible motherboards. This lock prevents the user from accidentally pressing the Power and Reset buttons.
The ProArt PA401 Wood Edition optimizes the PC building experience, offering better functionality with user-focused features. The ProArt PA401 Wood Edition features two pre-installed 160mm front fans and accommodates both horizontal and vertical graphics card mounting. To accommodate the preferences of diverse builders, the PA401 Wood Edition comes in two versions. The metal side panel version focuses on durability, whereas the tempered-glass version offers durability while providing a window for showing off internal aesthetics.
General
| Brand | ASUS |
|---|---|
| Model | ProArt PA401 Wood TG PWM Black |
| Part Number | 90DC00M0-B38000 |
Form & Layout
| Motherboard Support | ATX |
|---|---|
| Expansion Slots | 7 |
| Maximum GPU Length | 315 mm |
| Maximum CPU Cooler Height | 160 mm |

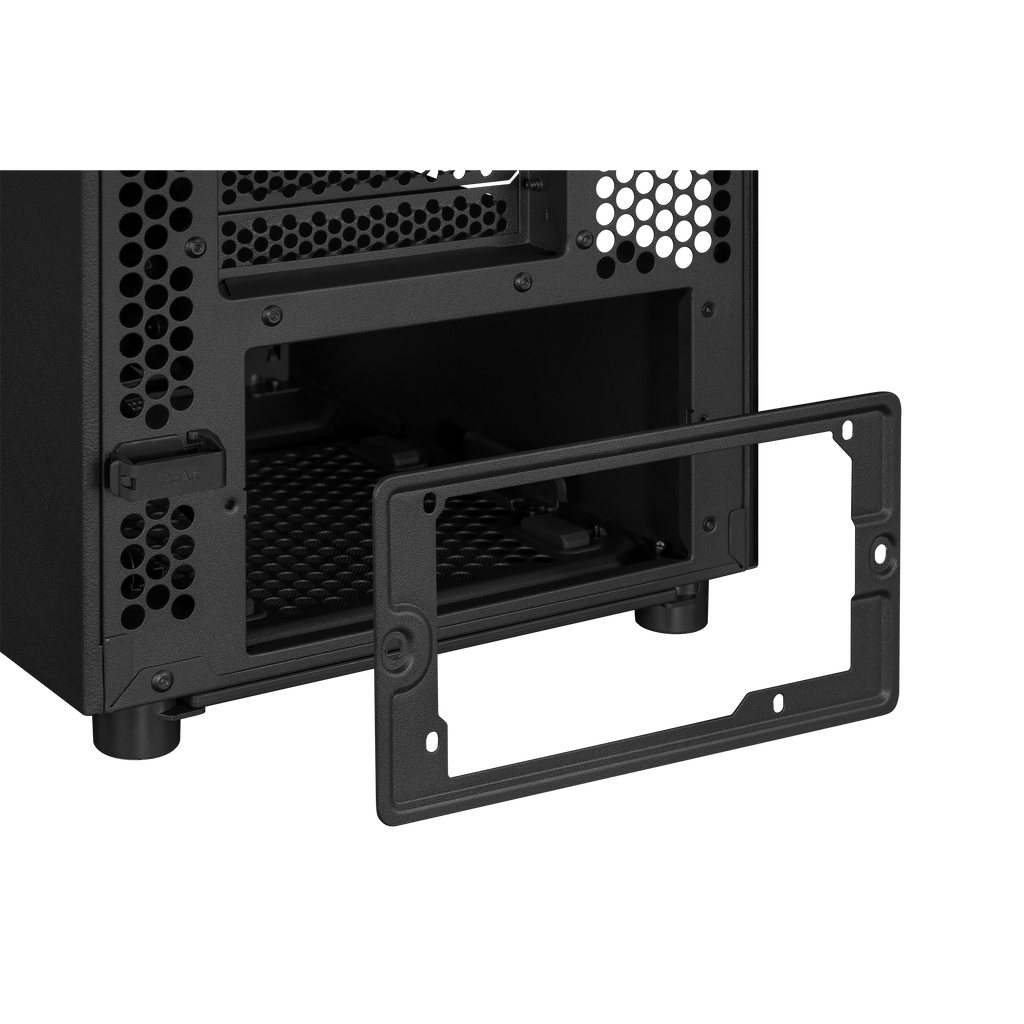

| Maximum PSU Length | 170 mm |
Cooling & Airflow
| Pre-installed Front Fans | 2 × 160 mm (138cfm with ring blade design) |
|---|---|
| Pre-installed Rear Fans | 1 × 120 mm |
| Front Fan Support | 2 × 160 mm, 2 × 140 mm |
| Top Radiator Support | 240 mm, 140 mm, 120 mm |
| Top Fan Support | 2 × 140 mm, 2 × 120 mm |
| Rear Fan Support | 1 × 120 mm |

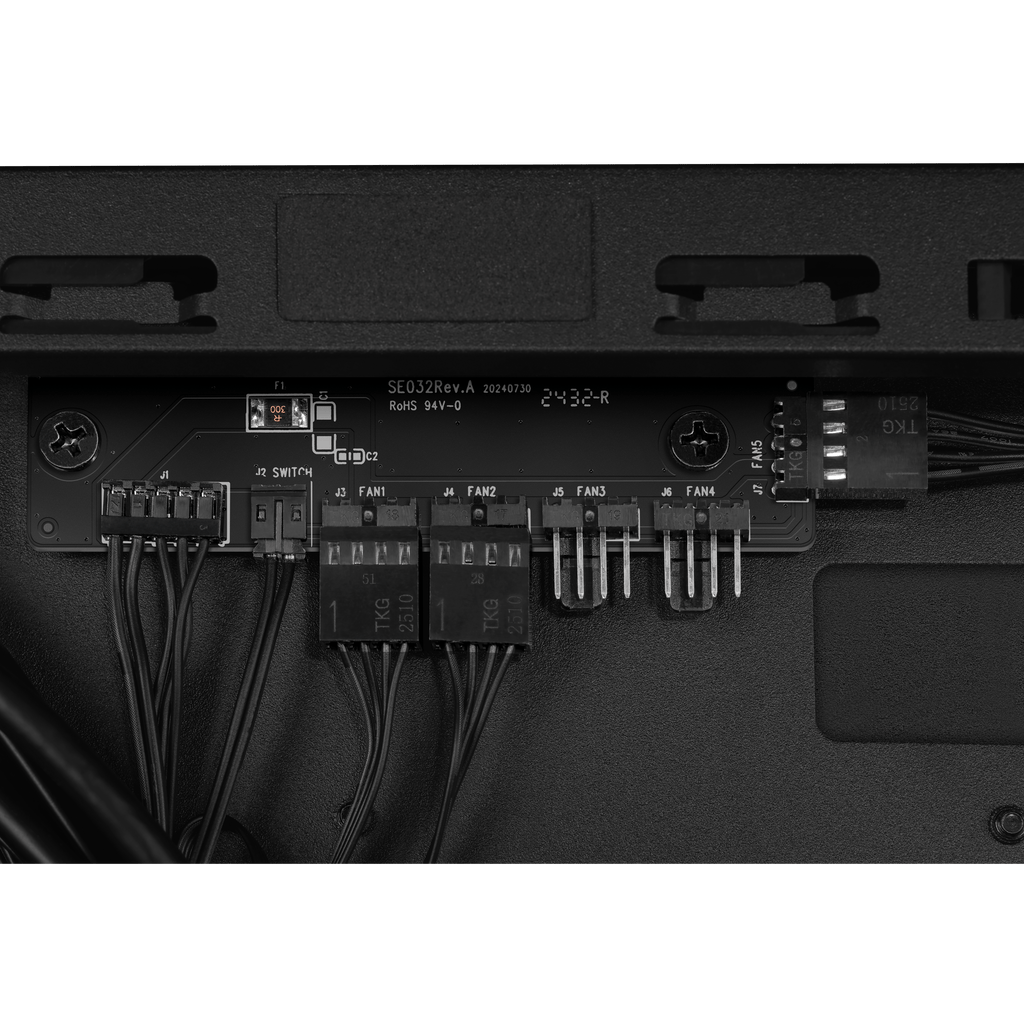

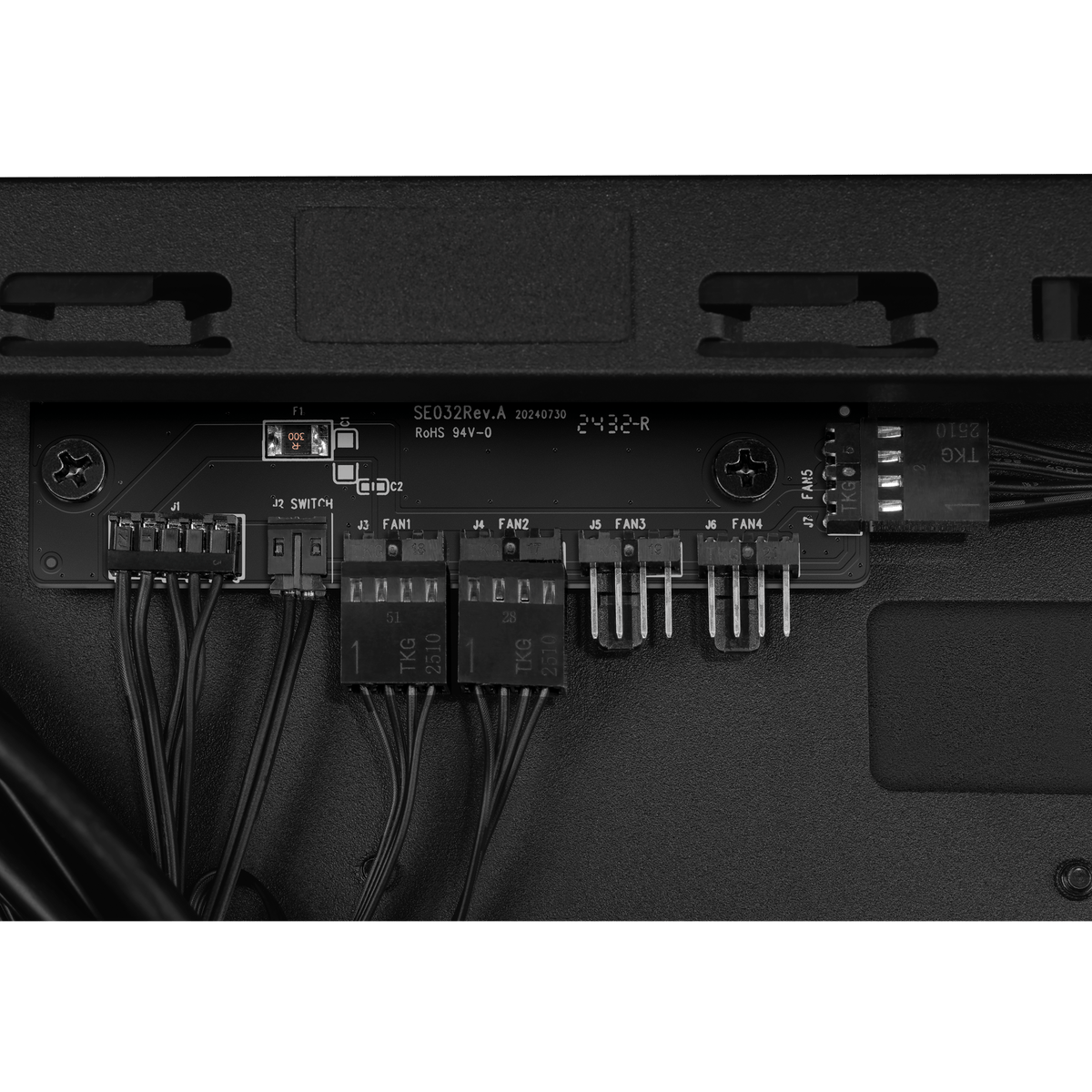

| Fan Control | Integrated PWM hub (5 outputs), two-section front panel control |
| Front Grille Porosity | 33% for optimised airflow |
Storage & I/O
| Drive Bays | 2 × 2.5"/3.5" Combo Bay, 2 × 2.5" Bay |
|---|---|
| Front USB Type-C | 1 × USB 3.2 Gen 2x2 (20Gbps) |
| Front USB-A | 2 × USB 3.2 Gen1 |
| Front Audio | 1 × Headphone / Microphone |
| Additional Controls | Power and Reset button lock |
| Dust Filters | Bottom and Front (removable) |
Design & Materials
| Front Panel Material | FSC-certified Durable Ash Wood (six-stage finish) |
|---|---|
| Side Panel Material | Tempered Glass |
| Colour | Black |
| Dimensions | 412 × 225 × 503 mm (D × W × H) |
| Weight | 8.61 kg |
