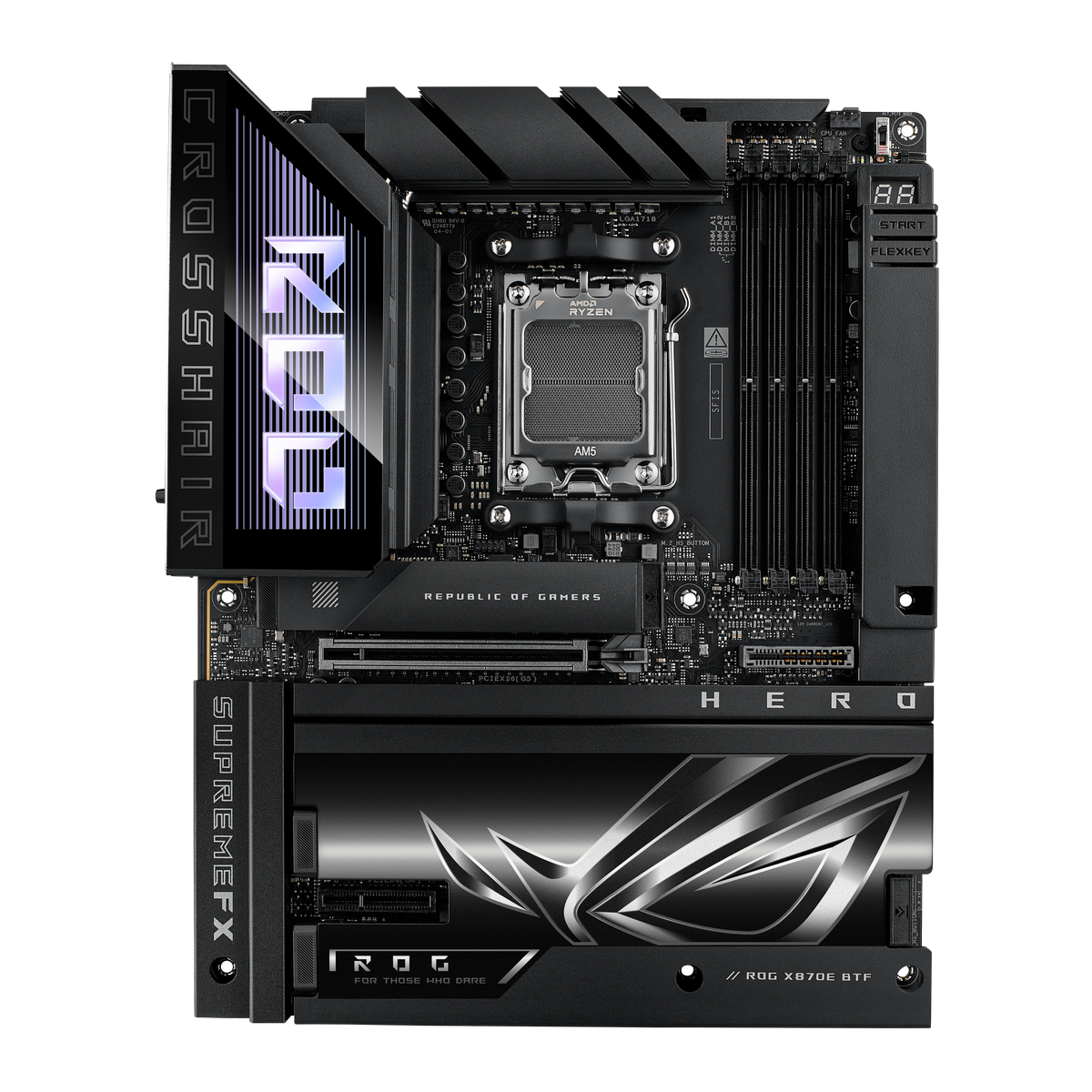

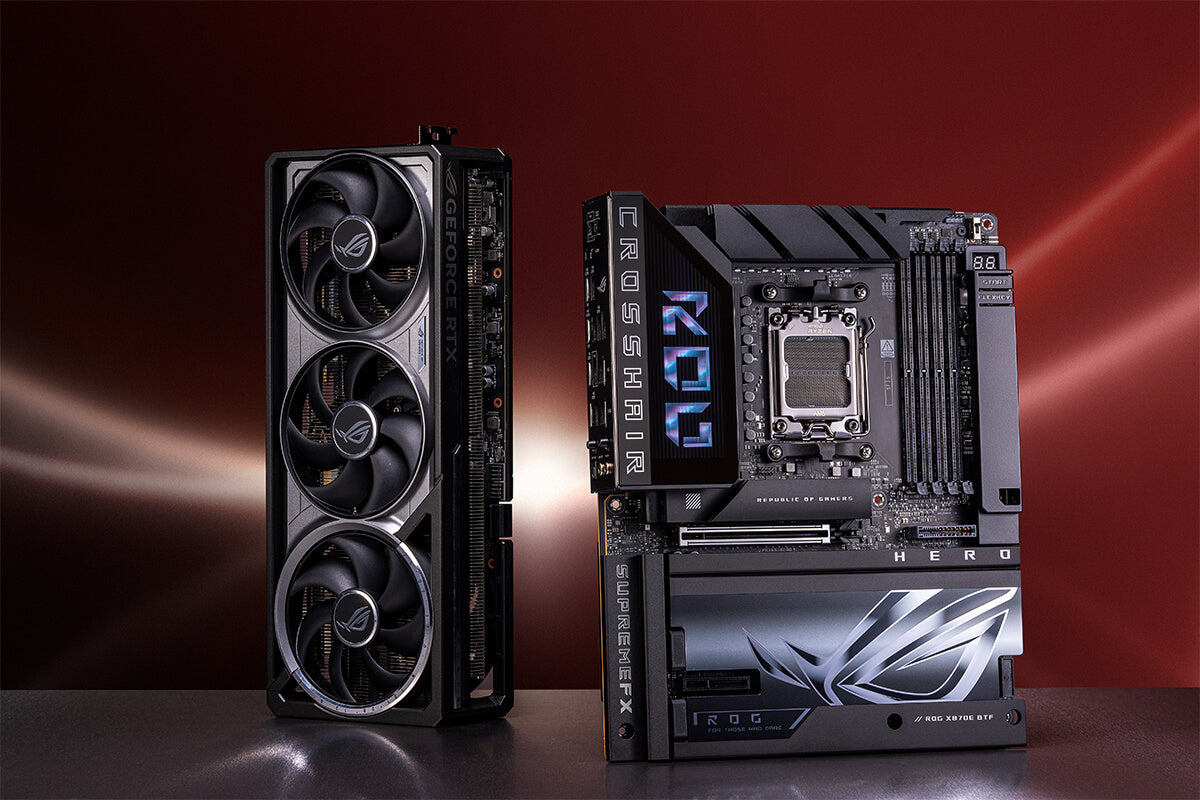

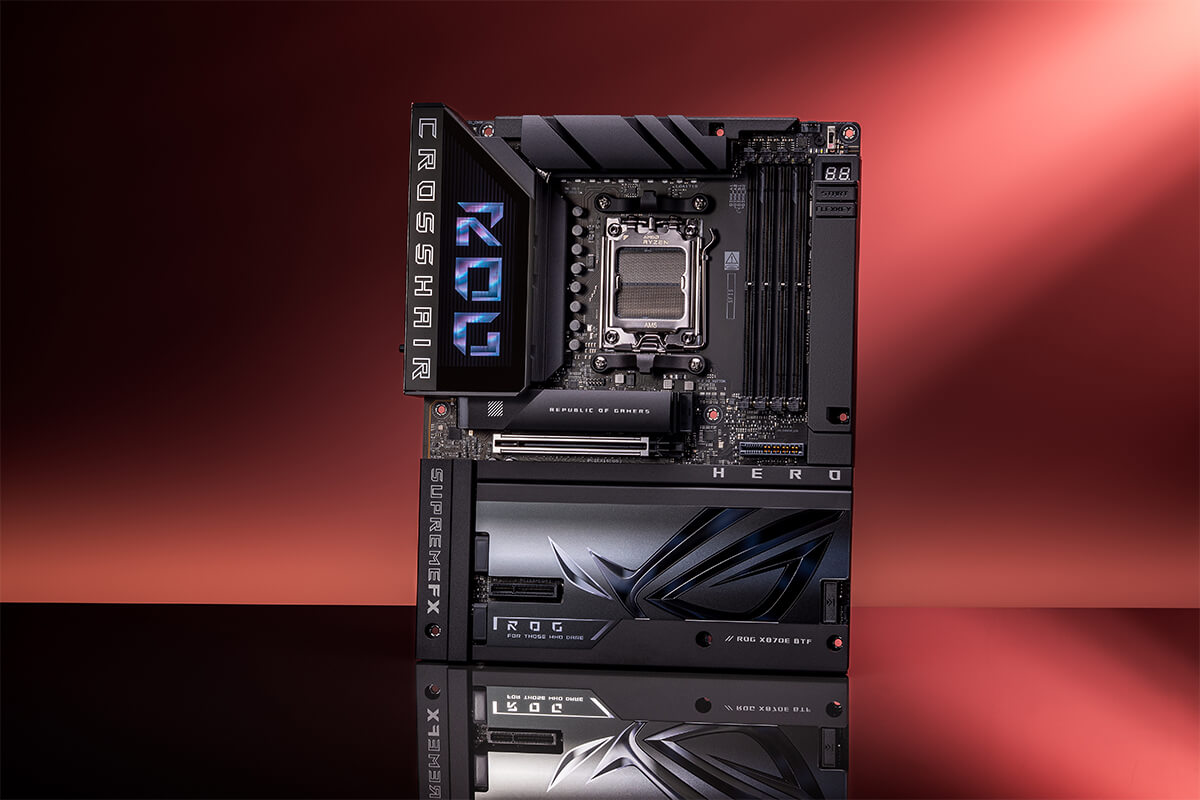

ASUS ROG Crosshair X870E Hero BTF AM5 ATX Motherboard
ASUS ROG
ASUS ROG Crosshair X870E Hero BTF AM5 ATX Motherboard
The ASUS ROG Crosshair X870E Hero BTF is an AMD X870E ATX motherboard built for enthusiasts who want a clean, high-performance Ryzen build without cable clutter. Its BTF hidden-connector design routes motherboard power, GPU power, USB, and fan cables out of sight, while robust power delivery and AI-assisted tuning make it a capable platform for demanding workloads and overclocking.
Why this product

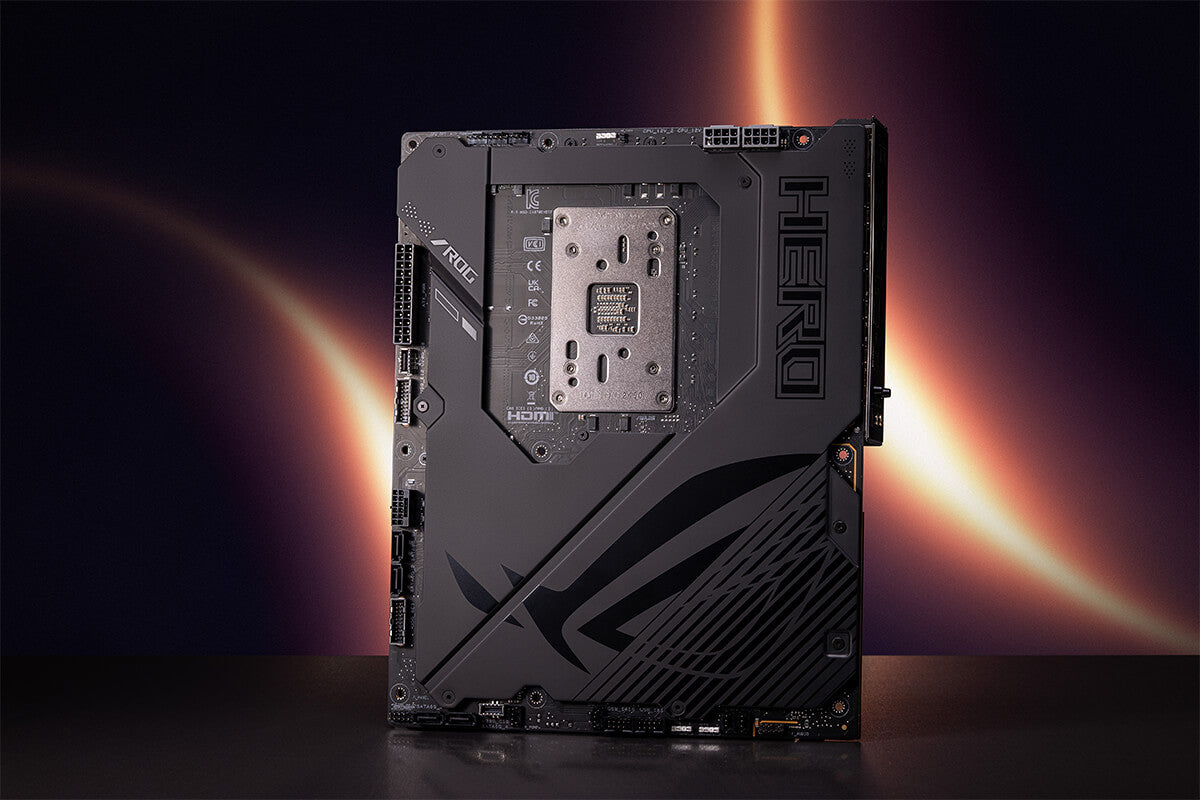

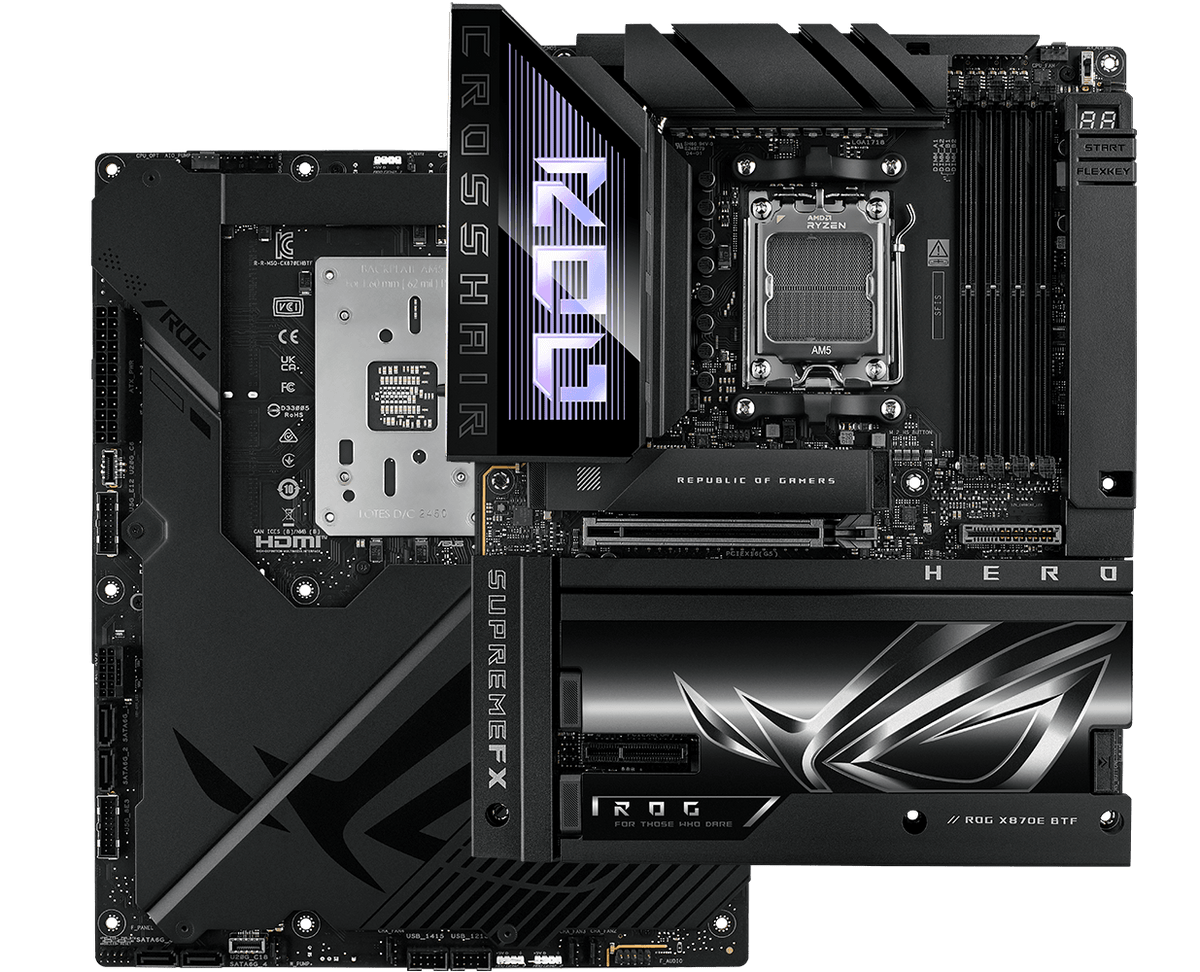

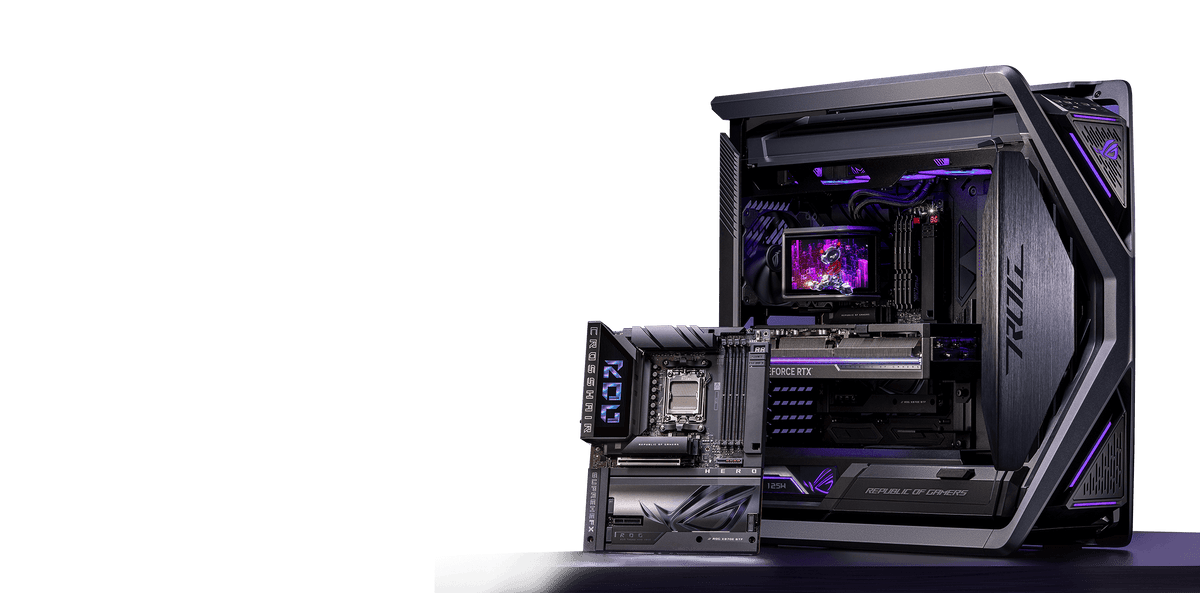

BTF hidden connectors for a clean build

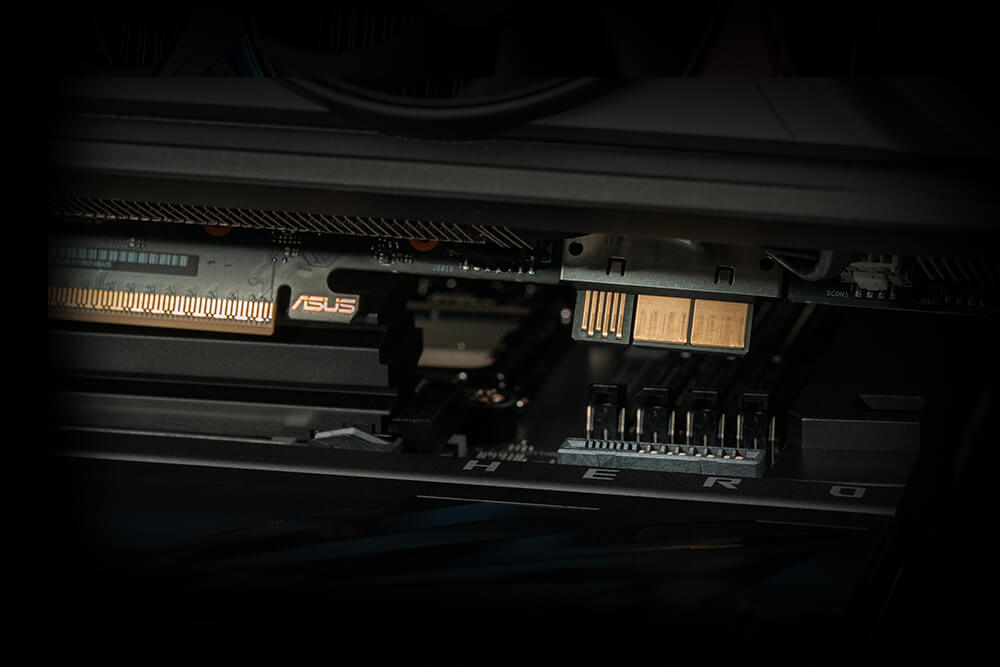

Power, USB, and fan connectors are routed behind the board, keeping the front of the case free of cable clutter. The onboard GPU high-power slot can deliver up to 600 watts to a compatible ASUS BTF graphics card directly through the motherboard.

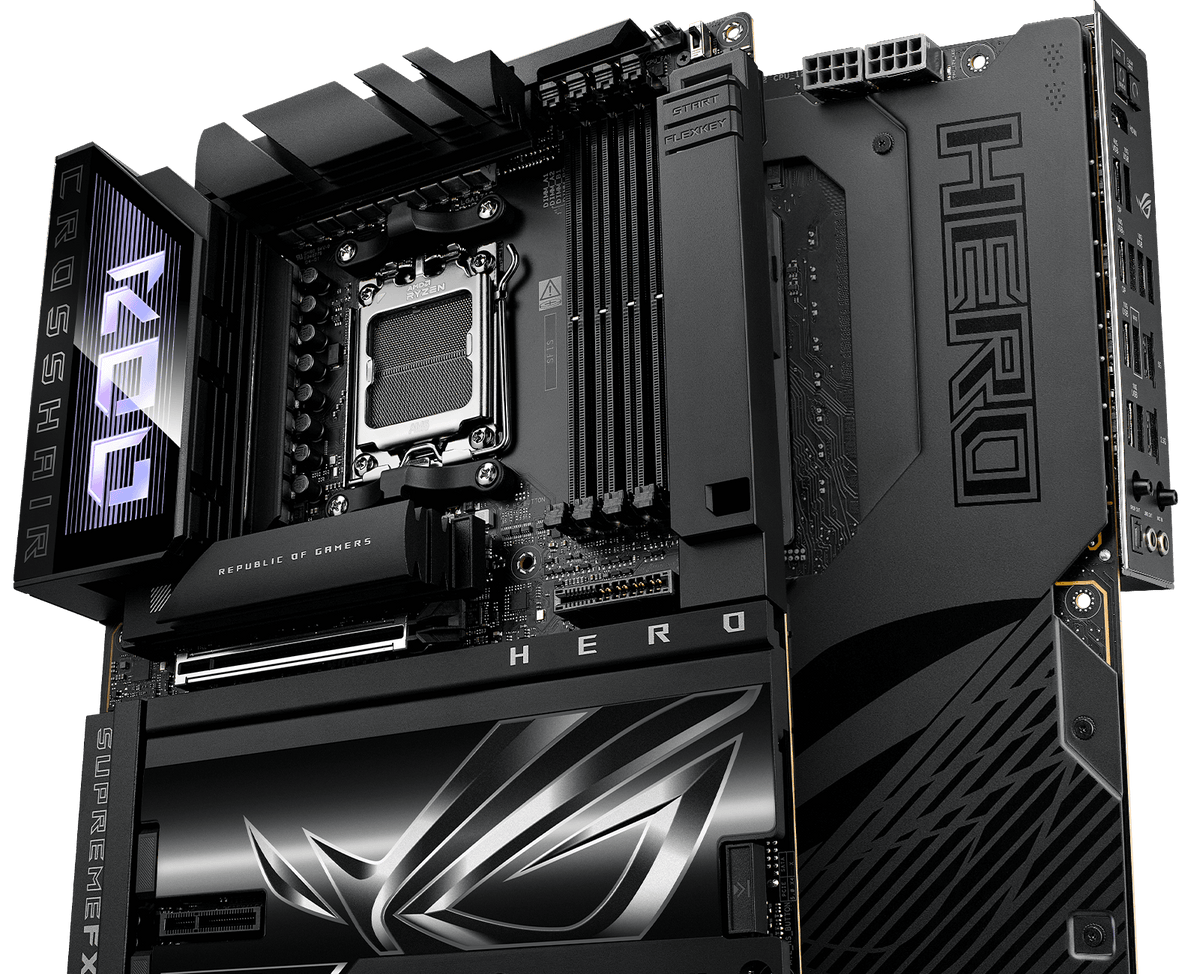

18+2+2 power stages for headroom
The teamed power solution uses 18 × 110A + 2 × 110A + 2 × 80A stages fed by dual ProCool II 8+8-pin EPS 12V connectors, giving Ryzen processors the sustained current they need under heavy loads.

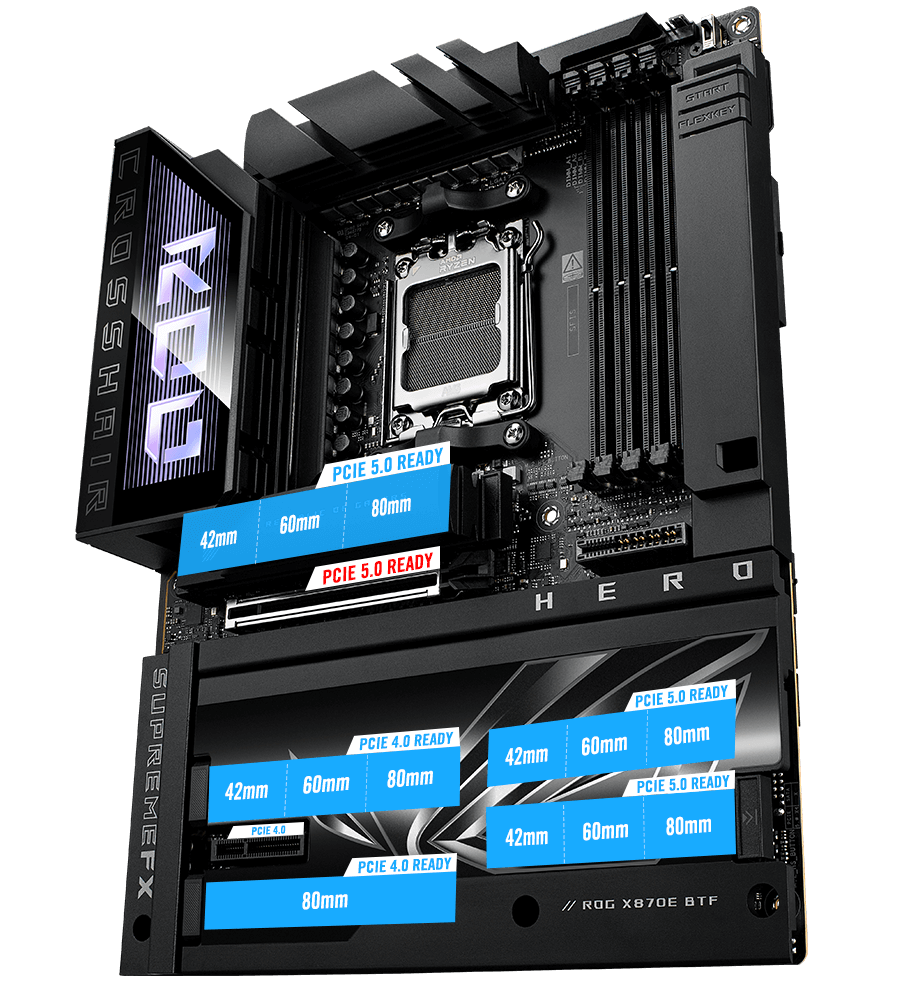

Three PCIe 5.0 M.2 slots onboard
Five M.2 slots are fitted in total; the first three run PCIe 5.0 x4 (on Ryzen 9000/7000 platforms) and the remaining two run PCIe 4.0 x4 from the X870E chipset, covering both current and legacy storage.

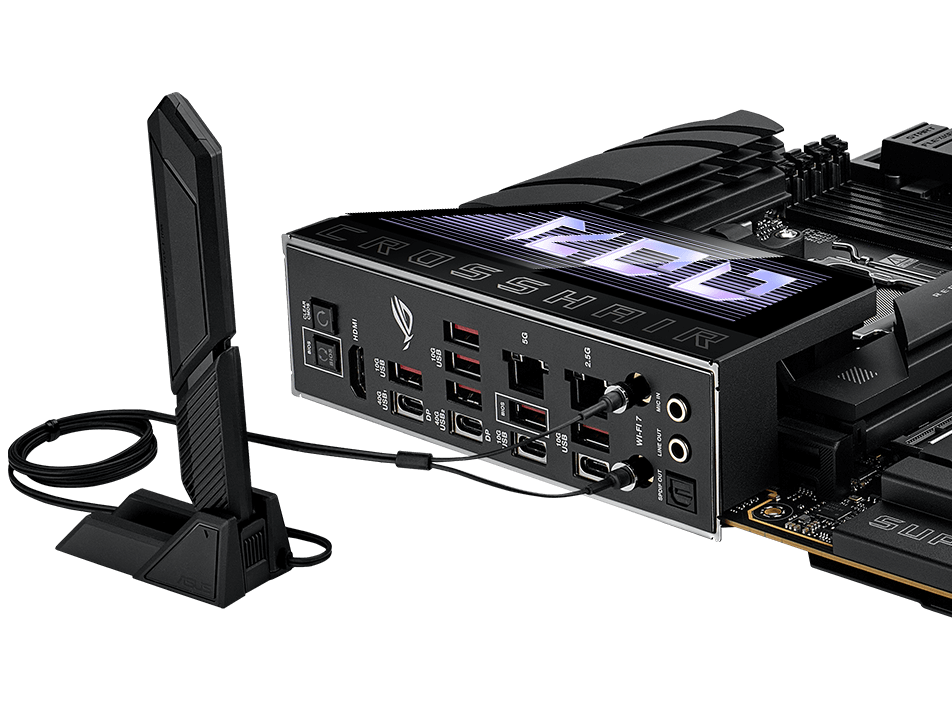

Wi-Fi 7 with dual-band Ethernet
MediaTek Wi-Fi 7 (802.11be, up to 320 MHz, 6 GHz, 4096 QAM) with Bluetooth 5.4 runs alongside both Intel 2.5Gb and Realtek 5Gb wired Ethernet ports, so multiple network paths are available simultaneously.

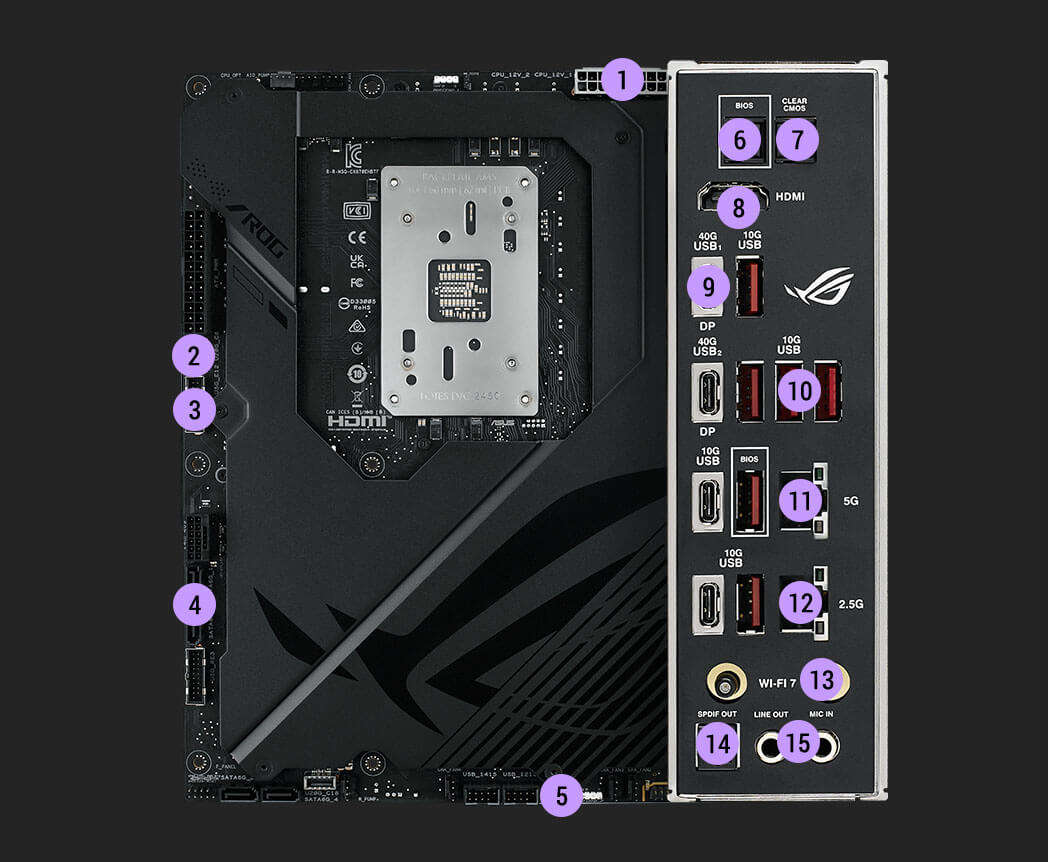

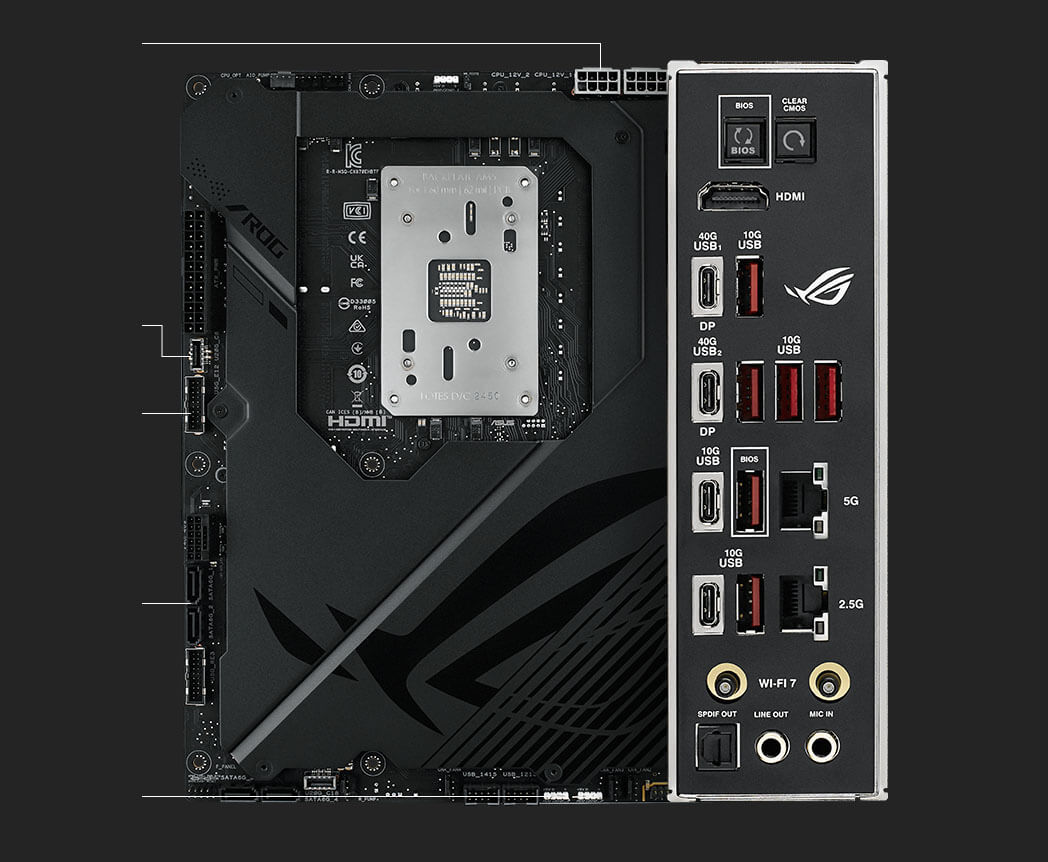

USB4 and high-speed USB throughout
Two USB4 (40 Gbps) Type-C ports sit on the rear panel alongside eight USB 10 Gbps ports. Internal headers add USB 20 Gbps, 5 Gbps, and 2.0 connectivity for front-panel and peripheral needs.
SupremeFX audio with ESS Quad DAC
The ALC4082 codec pairs with an ESS ES9219 Quad DAC for 7.1 surround output, delivering up to 32-bit/384 kHz playback at 120 dB SNR and 110 dB SNR recording, backed by gold-plated jacks and optical S/PDIF out.
- SocketAMD AM5
- ChipsetAMD X870E
- Form FactorATX
- Memory4 × DDR5 DIMM, max. 256 GB
- M.2 Slots5 (3 × PCIe 5.0 x4, 2 × PCIe 4.0 x4)
- NetworkingWi-Fi 7, 2.5Gb + 5Gb Ethernet
- USB4 (Rear)2 × 40 Gbps Type-C
- Power Stages18(110A)+2(110A)+2(80A)
- SKUASU-4120
- EAN4711636227094
- Fits AMD AM5 socket processors: Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series desktop CPUs.

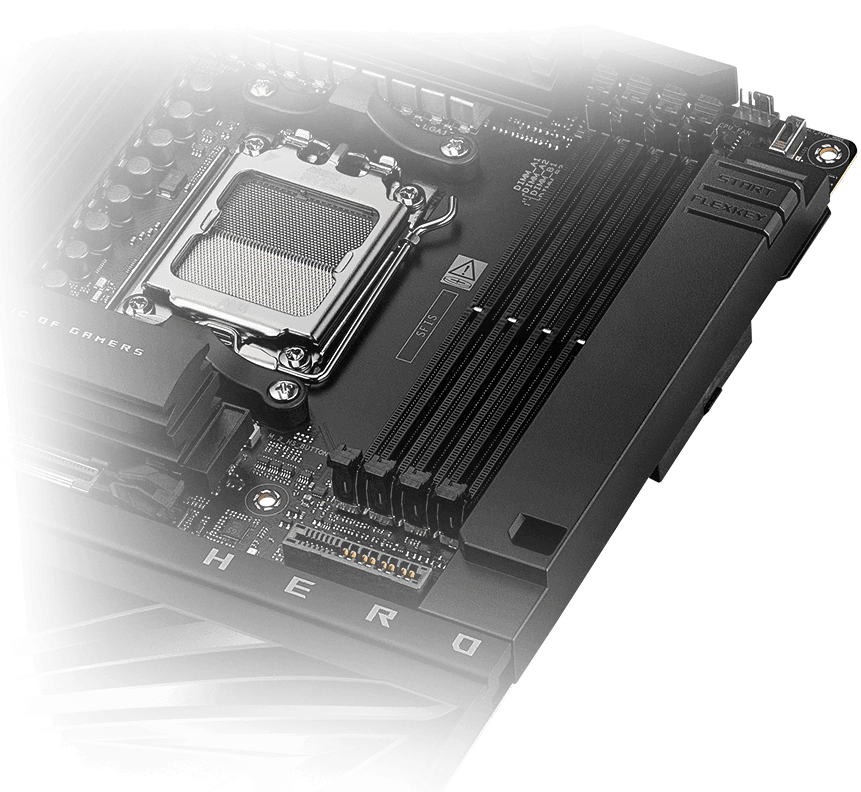

- DDR5 memory up to 256 GB across four DIMM slots; supports AMD EXPO, ASUS AEMP, and NitroPath DRAM Technology.
- ATX form factor — fits standard ATX and full-tower cases.
- The BTF GPU high-power slot (up to 600 W) requires a compatible ASUS BTF ROG Strix, ROG Astral, or TUF Gaming graphics card. Standard graphics cards use the PCIe 5.0 x16 SafeSlot as normal.
- PCIe 5.0 x4 speed on M.2 slots 1–3 requires a Ryzen 9000 or 7000 Series processor; Ryzen 8000 Series support for those slots should be verified against AMD's official compatibility list.
- Not compatible with AMD AM4 or any Intel platform — AM5 CPUs only.
Best for
- Cable-management enthusiasts who want a showcase build — the BTF hidden-connector design eliminates the most visible cable runs in a typical build.
- Overclockers and power users who need headroom: the 18+2+2 power stage configuration and Dynamic OC Switcher support sustained high-frequency operation on Ryzen 9000 processors.
- Storage-heavy workstations — five M.2 slots (three at PCIe 5.0 x4) plus four SATA 6 Gb/s ports can accommodate a large array of fast drives simultaneously.
- Networked or streaming setups where both wired speed and wireless flexibility matter: dual Ethernet (2.5 Gb + 5 Gb) and Wi-Fi 7 provide multiple high-bandwidth paths.
- Audio-focused builds that benefit from the SupremeFX ALC4082 + ESS ES9219 Quad DAC, avoiding the need for a dedicated sound card in most desktop use cases.
Trade-offs
- AMD AM4 or Intel builds — this board is AM5-only and is physically incompatible with all non-AM5 processors.
- Budget or value-focused builds — the feature set (BTF connectors, Wi-Fi 7, dual Ethernet, five M.2 slots, USB4) targets enthusiast budgets rather than cost-conscious configurations.
- Builders committed to a non-ASUS BTF GPU — the 600 W hidden GPU power slot only activates with compatible ASUS BTF graphics cards; other GPUs connect conventionally.
- DDR4 memory users — the four DIMM slots are DDR5-only; existing DDR4 kits cannot be reused.
General
| Brand | ASUS ROG |
|---|---|
| Part Number | 90MB1MX0-M0VAY0 |
| CPU Socket | AMD AM5 |
| Compatible Processors | AMD Ryzen 9000, 8000 & 7000 Series Desktop |
| Chipset | AMD X870E |
| Form Factor | ATX |
| Operating System | Windows 11 |
Memory & Storage
| Memory Slots | 4 × DIMM, DDR5, dual channel |
|---|---|
| Max Memory | 256 GB |
| Memory Speed (OC) | Up to 8200+ MT/s (Ryzen 9000); 8600+ MT/s (Ryzen 8000); 8000+ MT/s (Ryzen 7000) |
| Memory Standards | AMD EXPO, ASUS AEMP, NitroPath DRAM Technology |
| M.2 Slots | 5 × Key M: M.2_1/2/3 PCIe 5.0 x4 (Ryzen 9000/7000); M.2_4/5 PCIe 4.0 x4 (Chipset) |
| SATA Ports | 4 × SATA 6 Gb/s |
Connectivity & Expansion
| PCIe Slots | 1 × PCIe 5.0 x16 SafeSlot with Q-Release Slim; 1 × PCIe 4.0 x4 |
|---|---|
| BTF GPU Power Slot | Up to 600 W via 12V-2x6 (ASUS BTF ROG Strix, ROG Astral, TUF Gaming GPUs) |
| Power Connectors | Dual ProCool II 8+8-pin EPS 12V |
| Power Stages | 18(110A)+2(110A)+2(80A) |
| Wired Ethernet | 1 × Intel 2.5Gb; 1 × Realtek 5Gb |
| Wireless | MediaTek MT7927 Wi-Fi 7 (802.11be, 320 MHz, 6 GHz, 4096 QAM); ASUS WiFi Q-Antenna |
| Bluetooth | 5.4 |
| Rear USB | 2 × USB4 40 Gbps Type-C; 6 × USB 10 Gbps Type-A; 2 × USB 10 Gbps Type-C |
| Internal USB | 2 × USB 20 Gbps (Type-C); 2 × USB 5 Gbps headers; 2 × USB 2.0 headers |
| Video Output | 1 × HDMI |
| Audio (Rear) | 2 × Gold-plated audio jacks; 1 × Optical S/PDIF out |
Audio, Lighting & Features
| Audio Codec | ROG SupremeFX ALC4082, 7.1 surround |
|---|---|
| DAC | ESS ES9219 Quad DAC |
| Playback SNR | 120 dB |
| Recording SNR | 110 dB |
| Max Playback Resolution | 32-bit / 384 kHz |

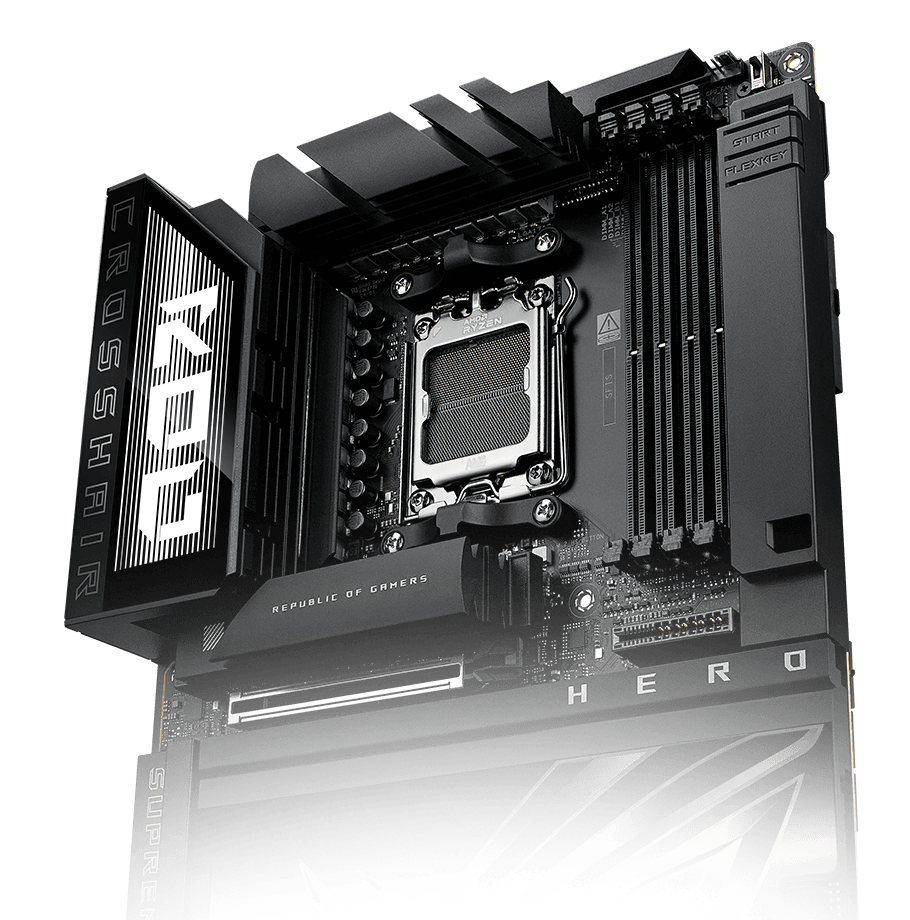

| RGB Lighting | Polymo Lighting II (I/O cover); 3 × Addressable Gen 2 ARGB headers; Aura Sync |

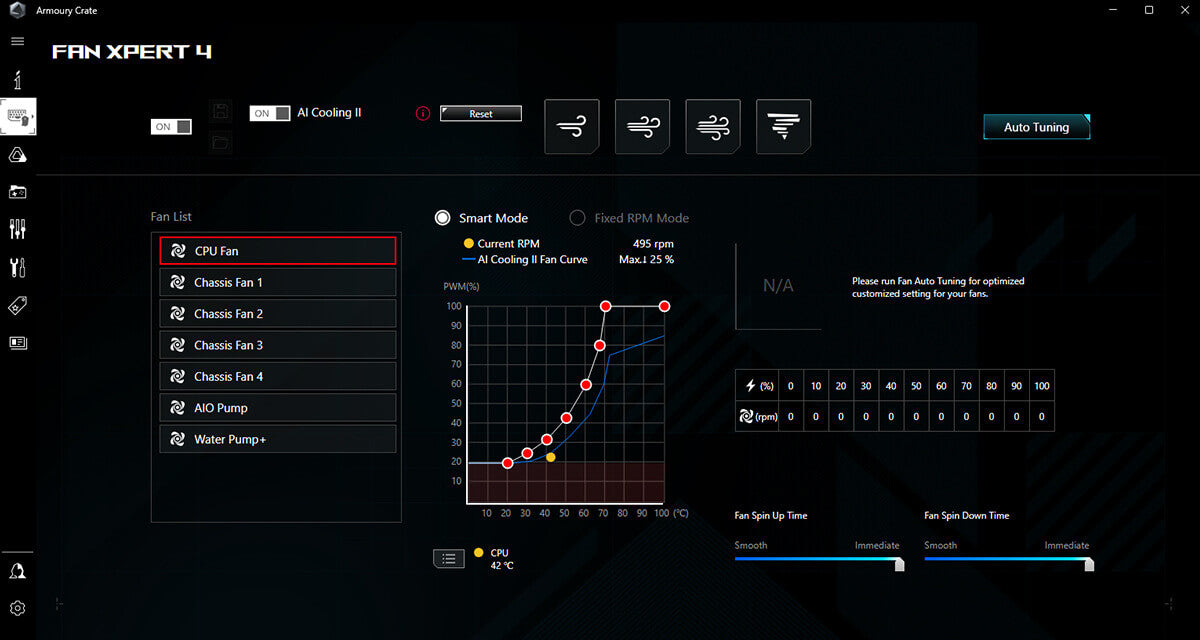

| AI Features | AI Cache Boost, AI Overclocking, AI Cooling II, AI Networking II, AI Advisor |
| Other Features | BIOS FlashBack button; Clear CMOS button; FlexKey button; Dynamic OC Switcher; Core Flex |
