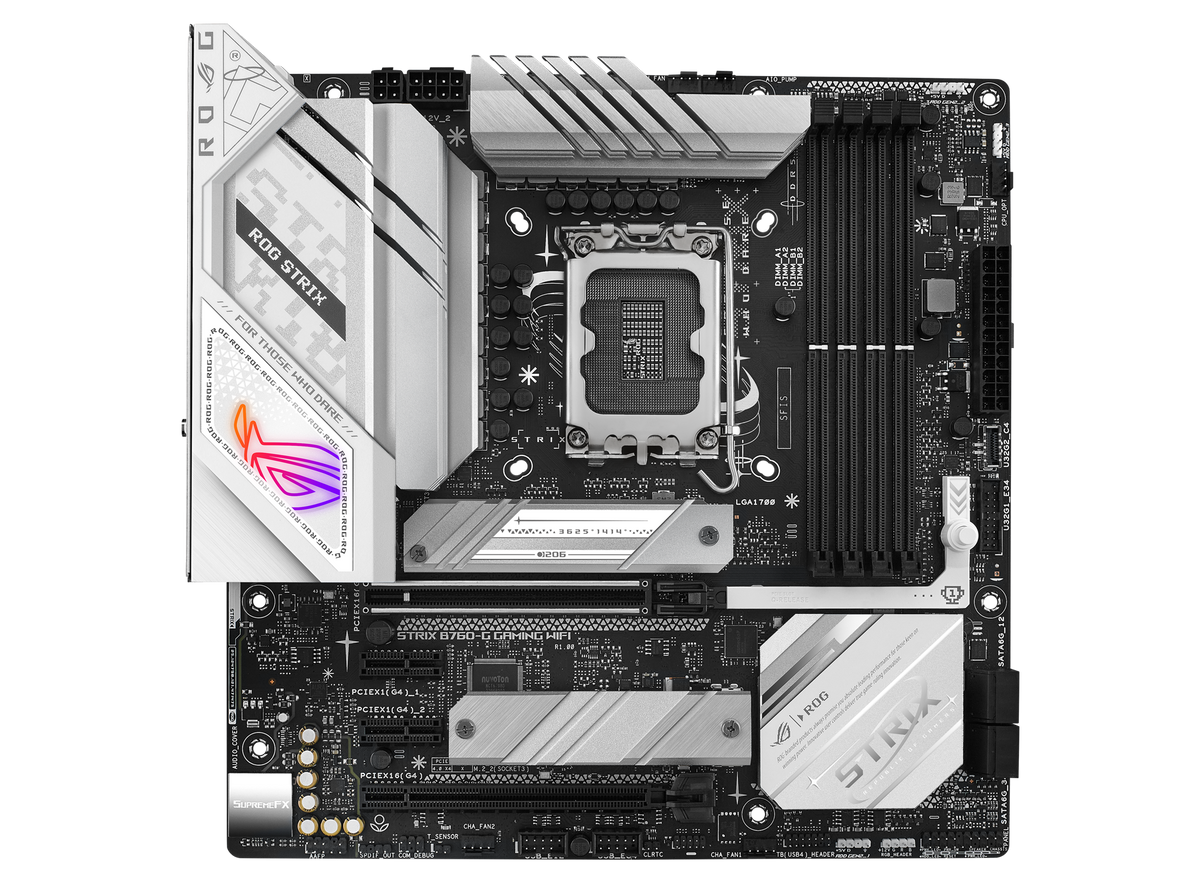

ASUS ROG STRIX B760-G Gaming WiFi mATX LGA1700 Motherboard
ASUS ROG
ASUS ROG STRIX B760-G Gaming WiFi mATX LGA1700 Motherboard
The ASUS ROG STRIX B760-G Gaming WiFi is a micro-ATX motherboard built for compact gaming and workstation builds that demand high performance. It pairs Intel 13th Gen processor support with DDR5 memory, PCIe 5.0 expansion, and Wi-Fi 6E connectivity in a 9.6×9.6 inch footprint.
Why this product
DDR5 memory support with aggressive overclocking
It supports DDR5 speeds of 7800+ MHz (overclocked) across four DIMM slots. AEMP II hardware and firmware tuning lets you push generic memory modules beyond standard profiles.
PCIe 5.0 x16 slot for next-gen graphics
The CPU-connected slot runs at full x16 lanes and meets the PCIe 5.0 standard, ensuring compatibility with current and future graphics cards.

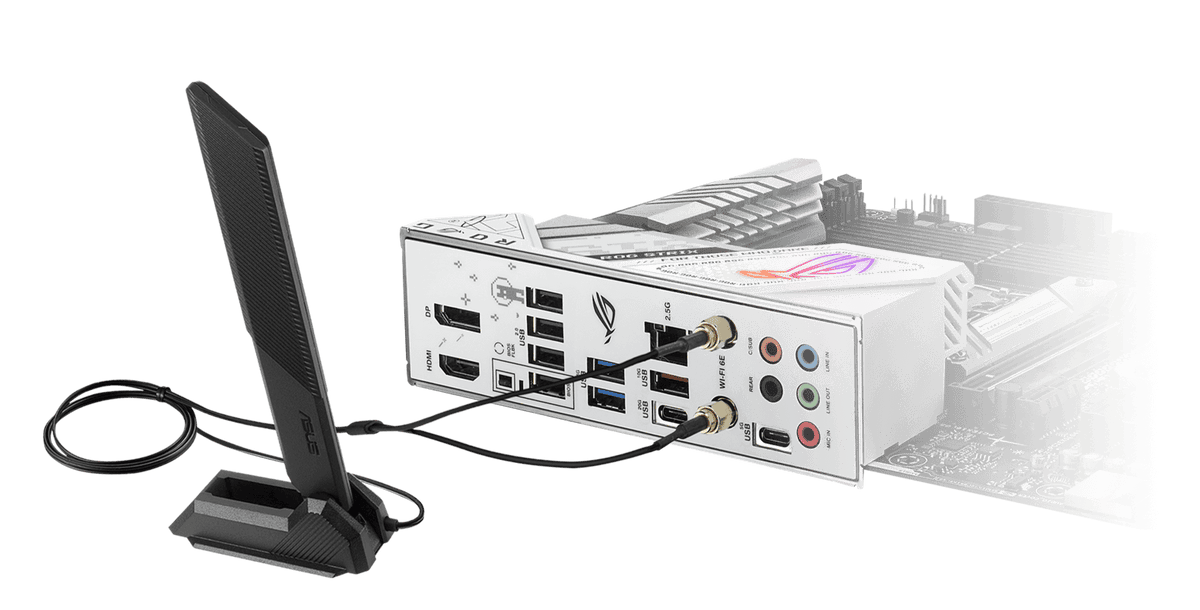

Wi-Fi 6E and 2.5 Gbps Ethernet
It includes Wi-Fi 6E on the 2.4/5/6 GHz bands, Bluetooth 5.3, and a wired connection via Intel 2.5 Gbps Ethernet with ASUS LANGuard protection.
Dual M.2 slots and four SATA ports
Two PCIe 4.0 x4 M.2 slots and four SATA 6 Gb/s ports give you flexibility for SSDs and traditional drives in a compact footprint.
High-end audio with SupremeFX codec
The S1220A codec delivers 7.1-channel surround sound up to 32-bit/192 kHz with 120 dB SNR playback, backed by a Savitech integrated amplifier.
- SocketIntel LGA 1700
- ChipsetIntel B760
- Memory TypeDDR5, up to 128 GB
- M.2 Slots2 × PCIe 4.0 x4
- Wi-FiWi-Fi 6E (802.11ax)
- Form FactorMicro-ATX (9.6 × 9.6 inch)
- Rear USB2 × USB 3.2 Gen 2 Type-C, 1 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Gen 1, 4 × USB 2.0
- SKUASU-2709
- EAN4711387120002
- Fits Intel 13th Gen Core, 12th Gen Core, Pentium Gold, and Celeron processors in the LGA 1700 socket.
- Accepts DDR5 unbuffered non-ECC memory in four DIMM slots, supporting up to 128 GB total capacity.
- Supports PCIe 5.0 graphics cards via the primary x16 slot; secondary slot runs at PCIe 4.0 x4.
- Includes dual USB 3.2 Gen 2x2 Type-C ports (one rear, one internal header) rated for up to 20 Gbps data transfer.
- Micro-ATX form factor fits standard ATX cases and larger, but not ITX-only enclosures.
Best for
- Compact high-performance builds needing DDR5 and PCIe 5.0 without a full ATX footprint.
- Enthusiasts planning extensive memory and storage overclocking via the UEFI tuning options.
- Content creators and gamers relying on wired and wireless connectivity in a tight chassis.
- Builders wanting high-resolution audio output for studio monitoring or audiophile headsets.
Trade-offs
- Large builds. Micro-ATX form factor (9.6 × 9.6 inches) limits expansion compared to full-size ATX boards.
- DDR4 systems. It supports DDR5 memory only; DDR4 modules are not compatible.
- Builds requiring Thunderbolt or USB4 externally. Thunderbolt support is limited to an internal header for expansion cards, not a rear panel port.

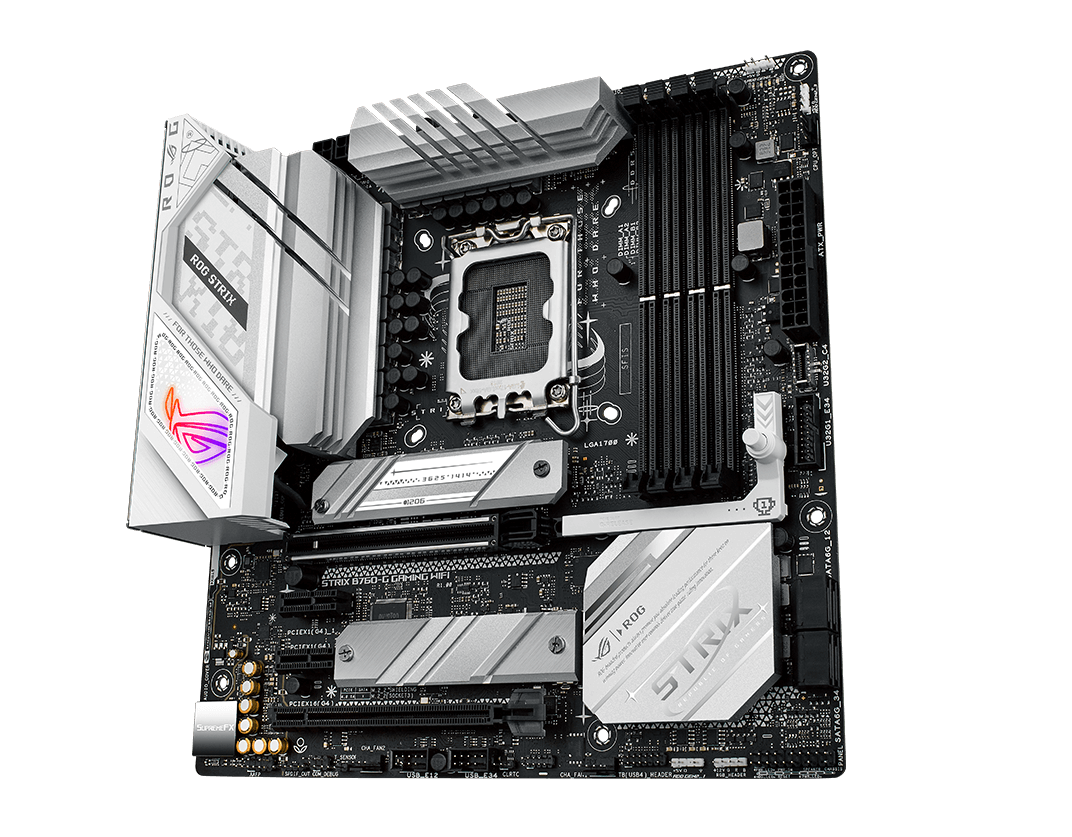

Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors.

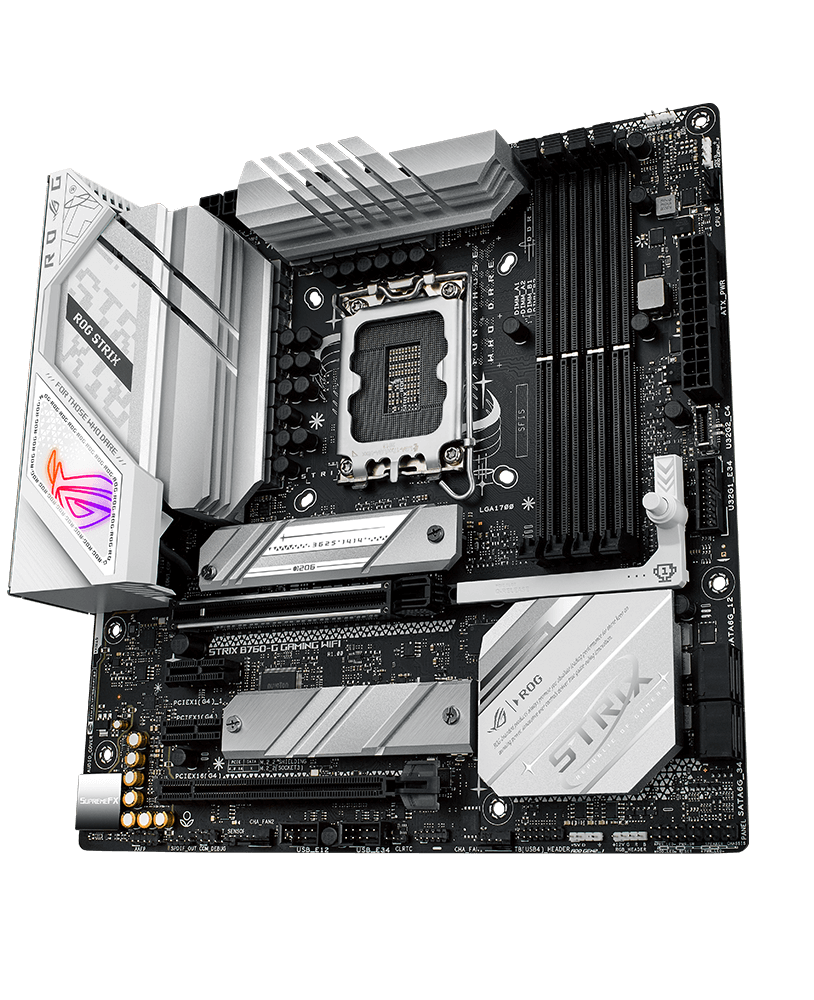

The ROG Strix B760-G is ready to launch into lightspeed.

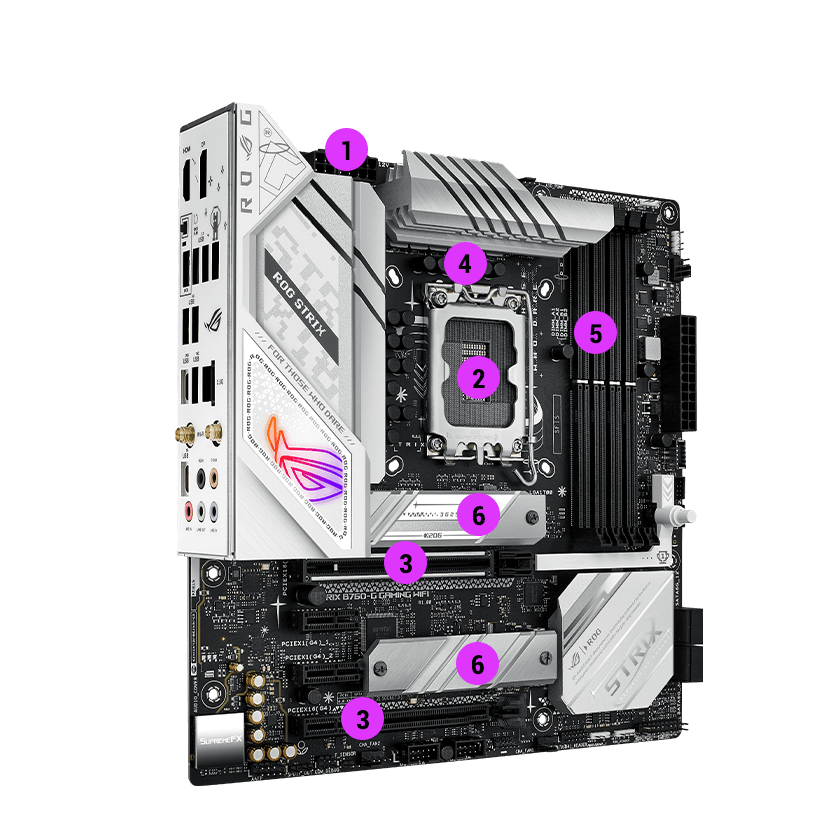

ALL-ROUND PERFORMANCE

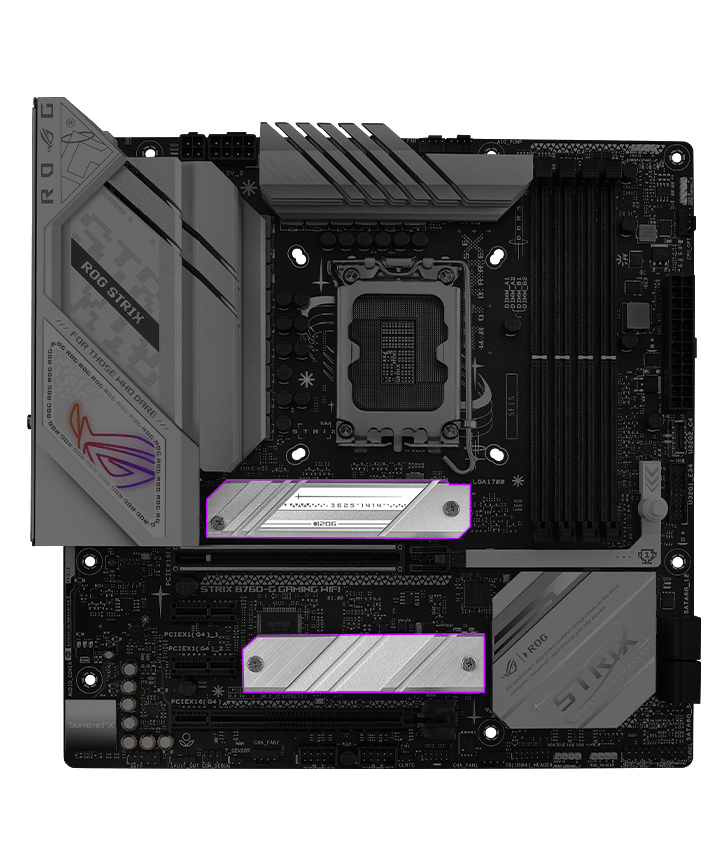

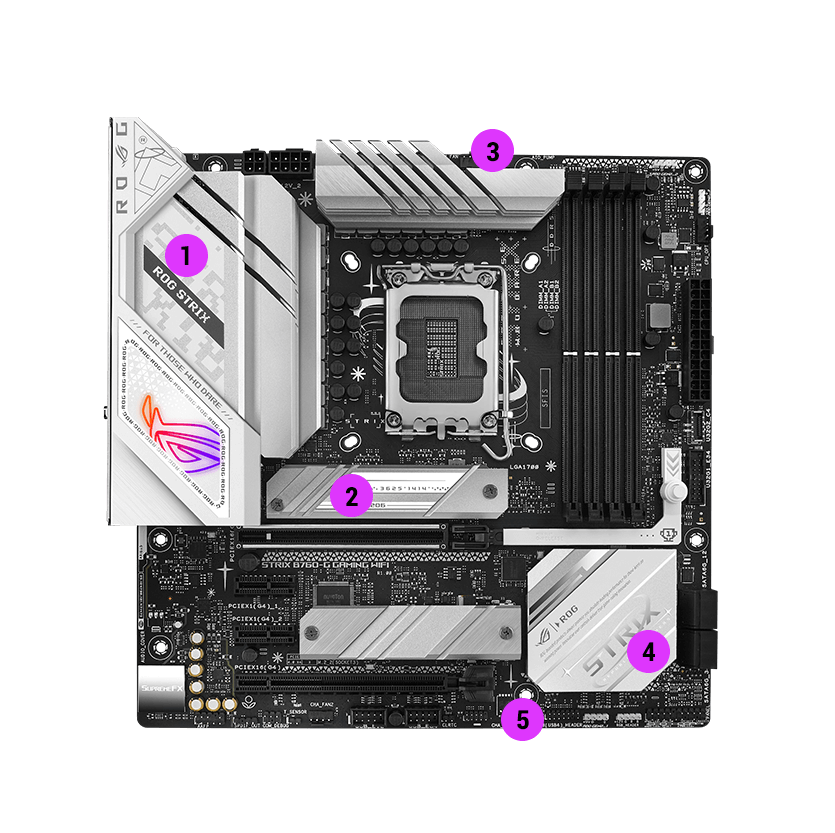

A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-G, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
AEMP II
ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules.

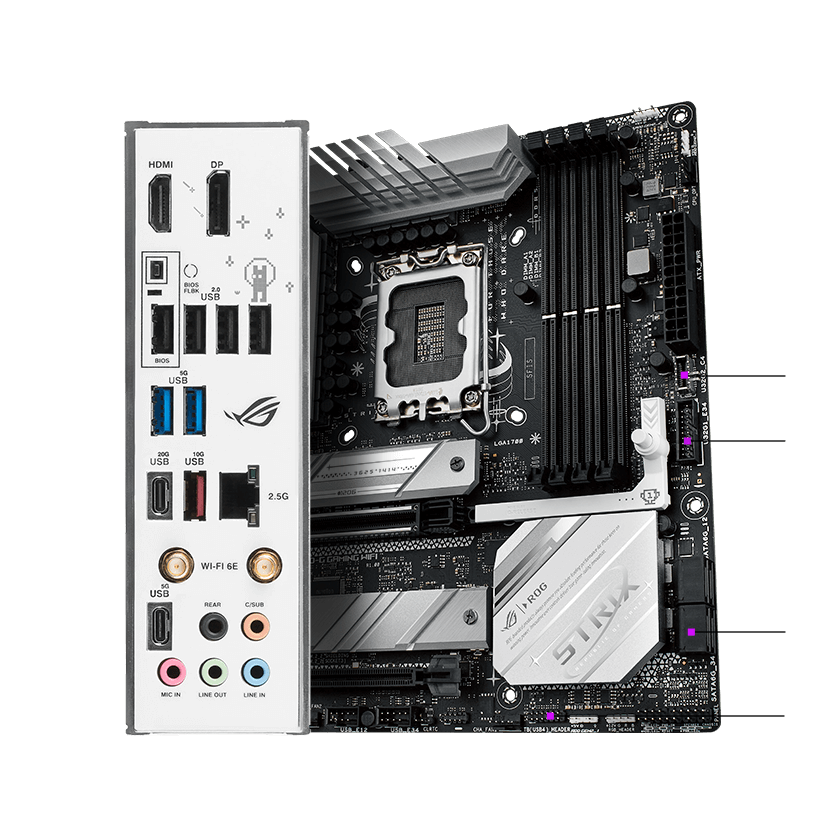

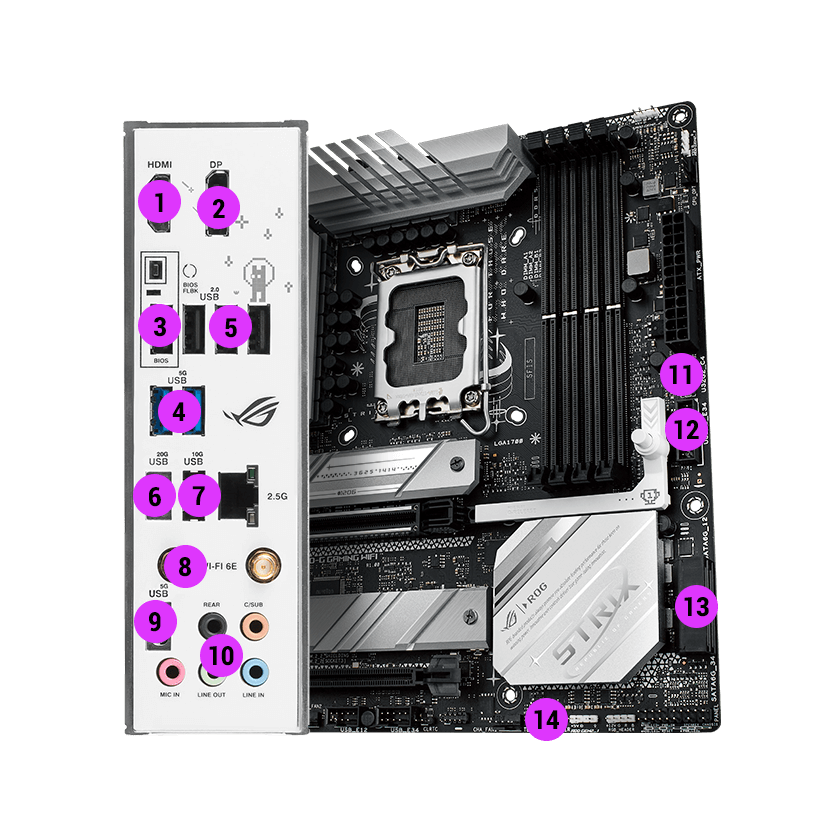

LEADING CONNECTIVITY
The Strix B760-G comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O.

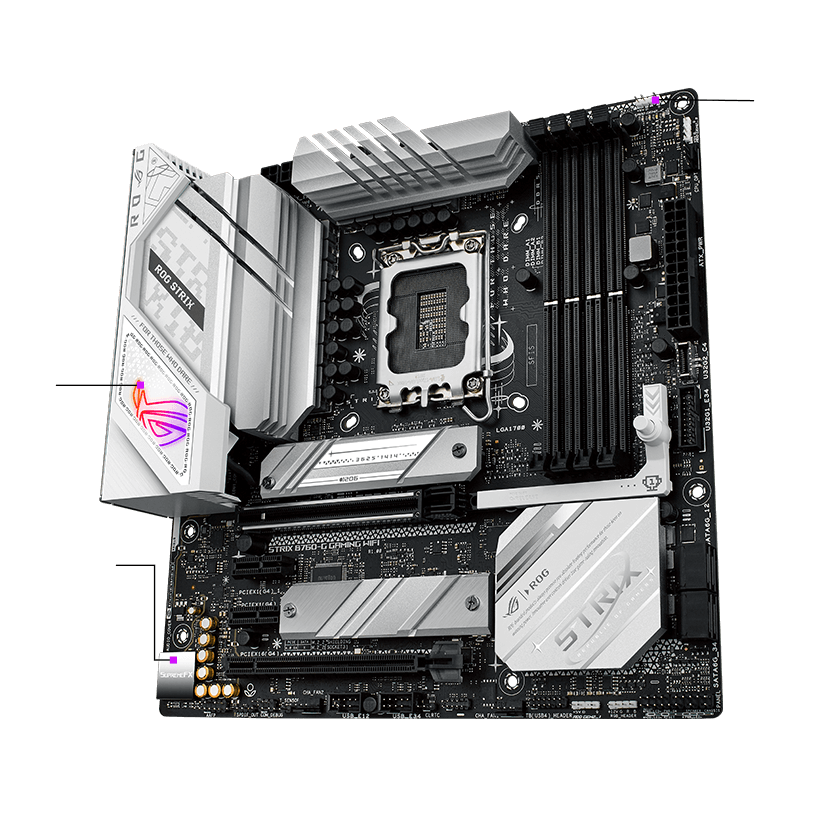

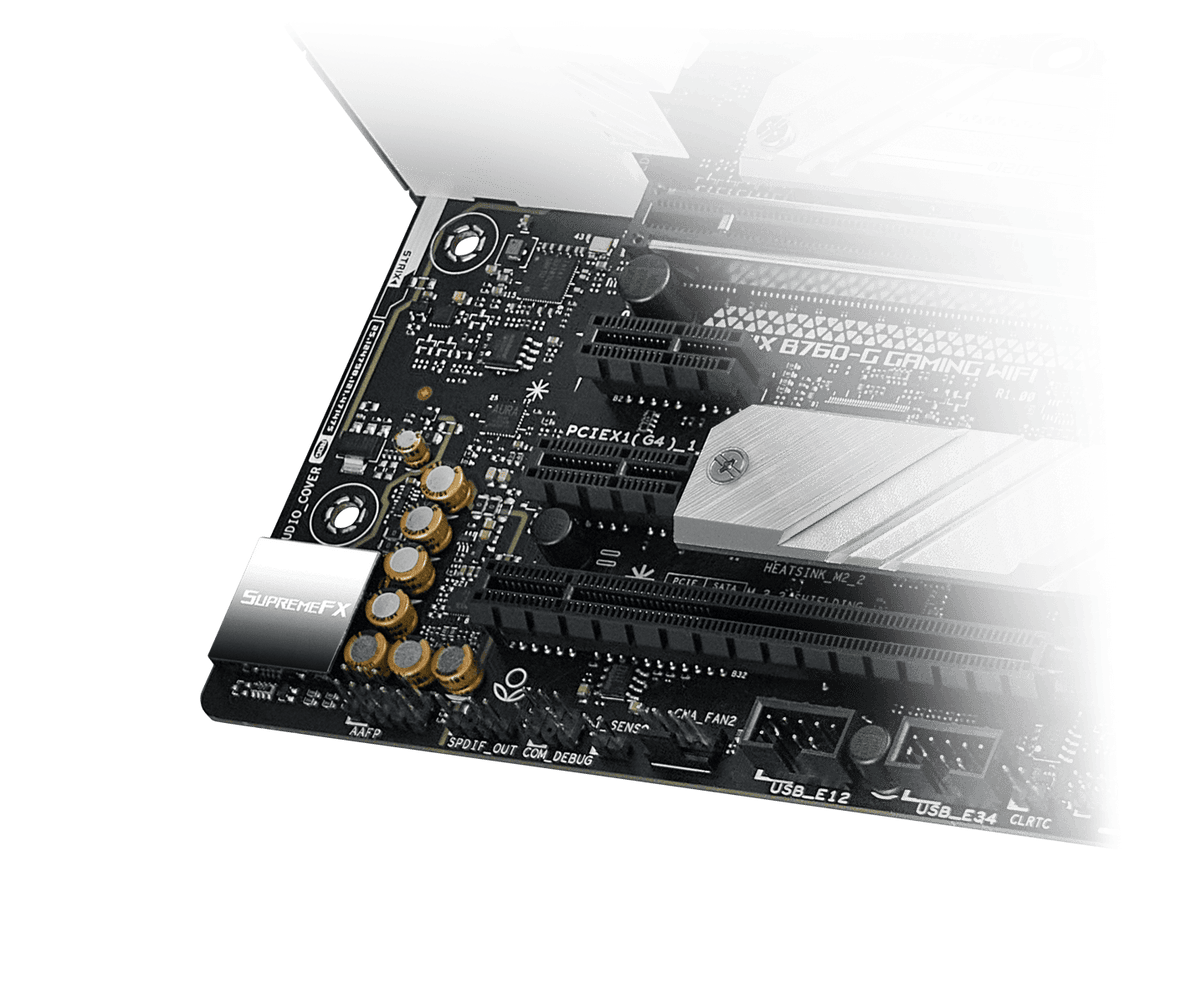

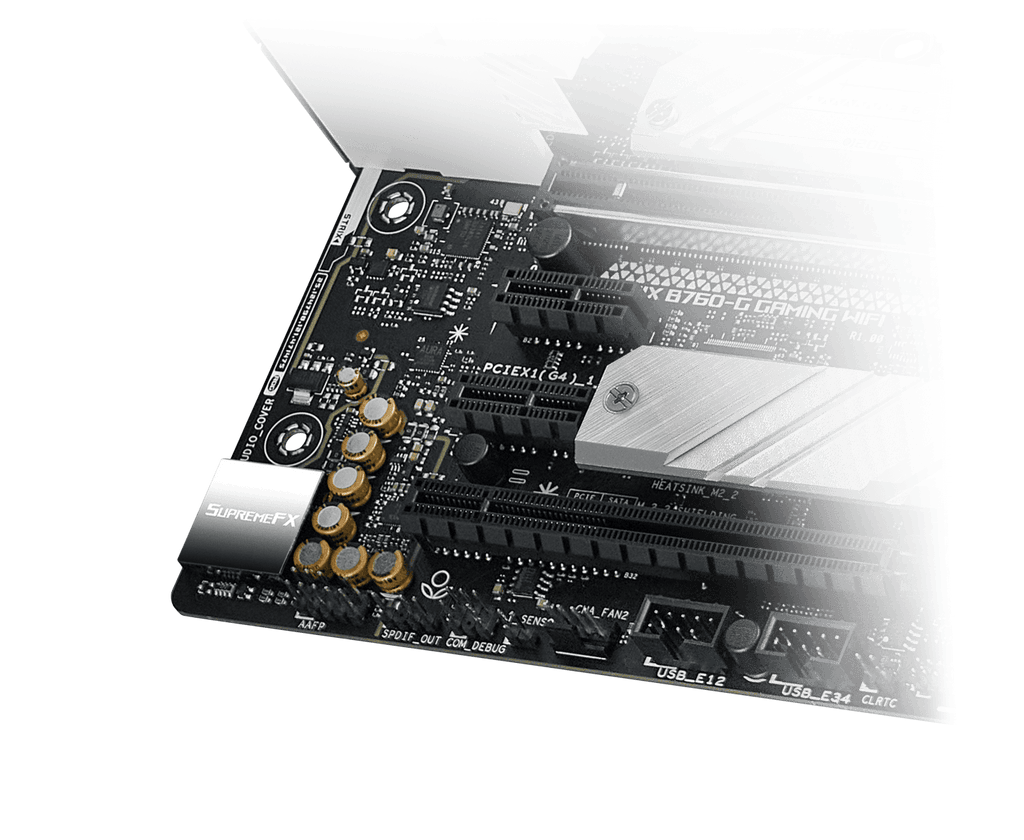

The Strix B760-G motherboard features SupremeFX audio. ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-G implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
General
| Brand | ASUS ROG |
|---|---|
| Product | ROG STRIX B760-G Gaming WiFi |
| Part Number | ROG STRIX B760-G GAMING WIFI |
Performance
| CPU Socket | Intel LGA 1700 — supports 13th Gen Core, 12th Gen Core, Pentium Gold, Celeron |
|---|---|
| Chipset | Intel B760 |
| Memory Slots | 4 × DIMM |
| Memory Type | DDR5 Non-ECC Unbuffered |
| Memory Speed | DDR5 7800+ MHz (OC), Dual Channel, Intel XMP, AEMP II |
| Maximum Memory | 128 GB |
| VRM & Power Stages | 12 + 1 + 1 Power Stages |
| PCB Layers | 6-layer PCB |
Ports & Connectivity

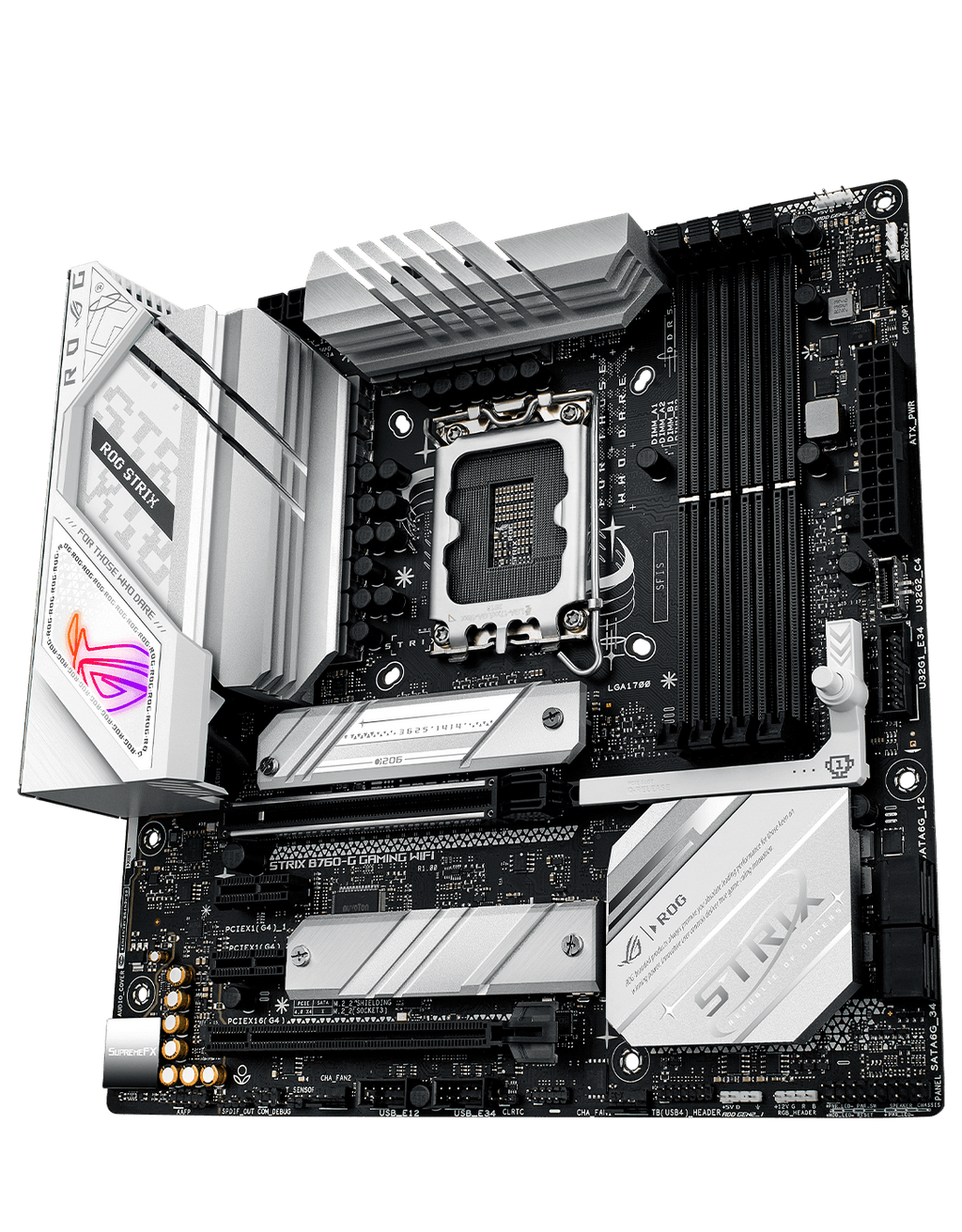

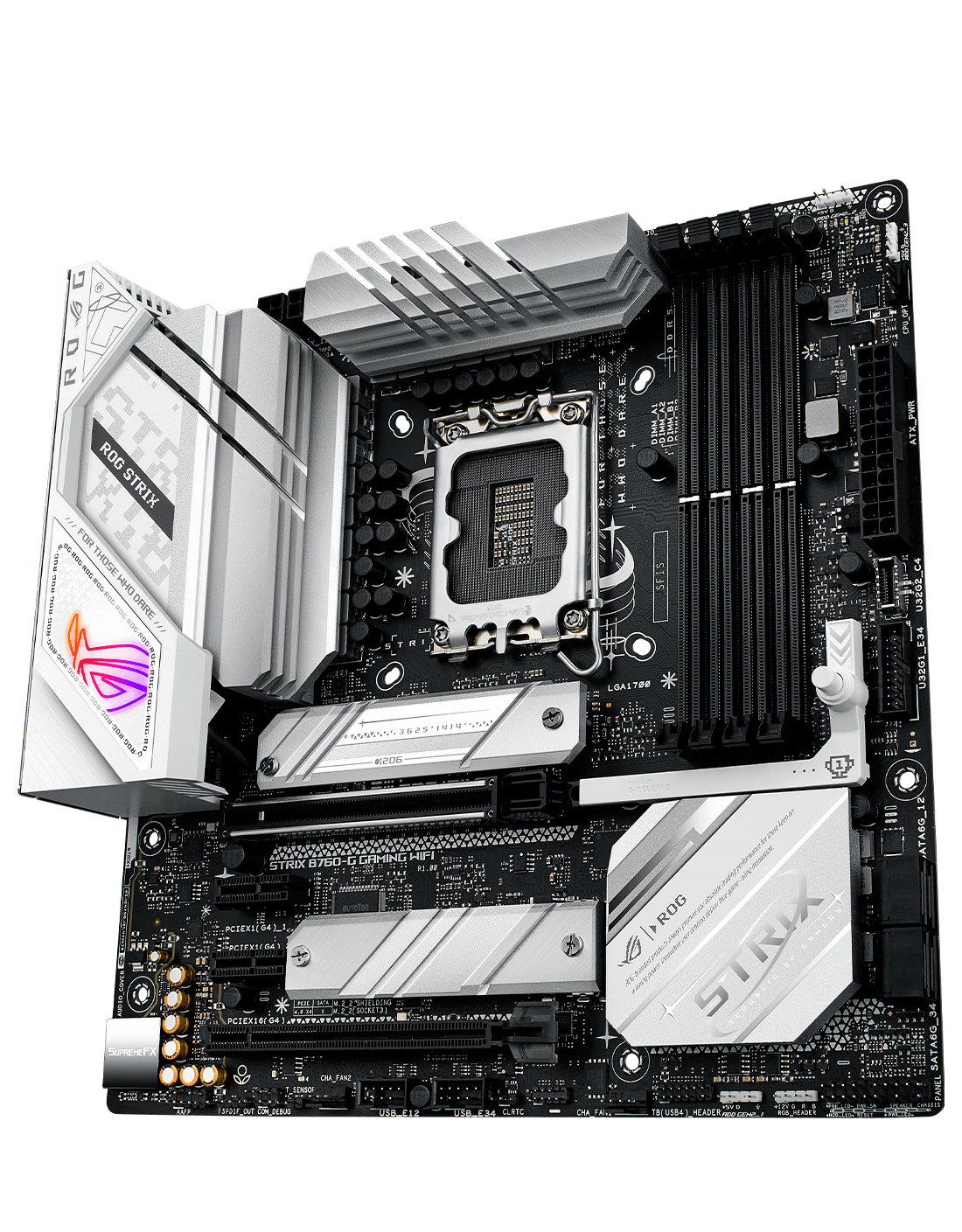

| Expansion Slots | 1 × PCIe 5.0 x16 (CPU), 1 × PCIe 4.0 x16 (x4, Chipset), 2 × PCIe 4.0 x1 |
|---|---|
| M.2 Storage | 2 × M.2 (Key M, type 2242/2260/2280, PCIe 4.0 x4) |
| SATA Ports | 4 × SATA 6 Gb/s |
| Ethernet | 1 × Intel 2.5 Gb Ethernet, ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6E 2×2 (802.11 a/b/g/n/ac/ax) on 2.4/5/6 GHz, Bluetooth 5.3 |
| Rear USB Ports | 1 × USB 3.2 Gen 2x2 Type-C, 1 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Gen 1 (2 × Type-A, 1 × Type-C), 4 × USB 2.0 Type-A |
| Internal USB Headers | 1 × USB 3.2 Gen 2 Type-C, 1 × USB 3.2 Gen 1 (2 ports), 2 × USB 2.0 (4 ports) |
| Video Output | 1 × HDMI, 1 × DisplayPort |
| Internal Headers | 3 × Addressable Gen 2 RGB, 1 × AURA RGB, 1 × Thunderbolt (USB4), 1 × Front Panel Audio (AAFP), 1 × S/PDIF Out, 1 × Thermal Sensor, 1 × Clear CMOS |
Audio
| Audio Codec | ROG SupremeFX S1220A with 7.1-Channel HD Audio |
|---|---|
| Audio Specifications | 120 dB SNR stereo playback, 113 dB SNR recording, up to 32-bit/192 kHz |
| Audio Amplifier | Savitech SV3H712 integrated amplifier |
Power & Cooling
| Power Connectors | 1 × 24-pin Main Power, 1 × 8-pin +12V, 1 × 4-pin +12V ProCool |
|---|---|
| Fan Headers | 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT, 1 × 4-pin AIO Pump, 2 × 4-pin Chassis Fan |
Physical
| Form Factor | Micro-ATX |
|---|---|
| Dimensions | 9.6 × 9.6 inches (24.4 × 24.4 cm) |
