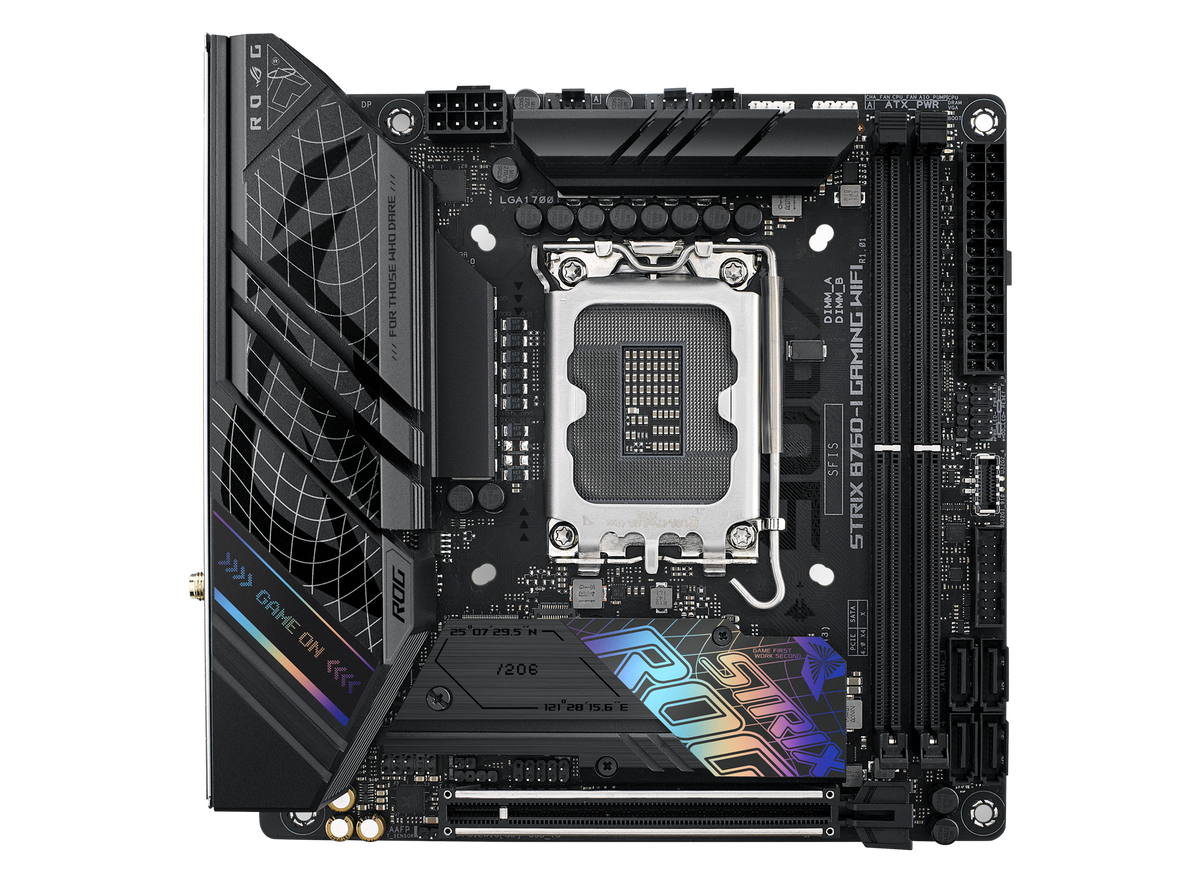

ASUS ROG Strix B760-I Gaming WiFi Mini-ITX Motherboard
ASUS ROG
ASUS ROG Strix B760-I Gaming WiFi Mini-ITX Motherboard
The ASUS ROG Strix B760-I Gaming WiFi is a Mini-ITX motherboard built for compact high-performance builds. It pairs DDR5 memory support with WiFi 6E networking, PCIe 5.0 expansion, and a robust power delivery system, making it suited to enthusiasts building small-form-factor systems with 12th or 13th Gen Intel processors.
Why this product
WiFi 6E and 2.5G Ethernet
Onboard WiFi 6E adds access to the 6 GHz band for lower latency and higher throughput in crowded networks. Intel 2.5 Gbps Ethernet handles wired connectivity with low latency for gaming and file transfers.

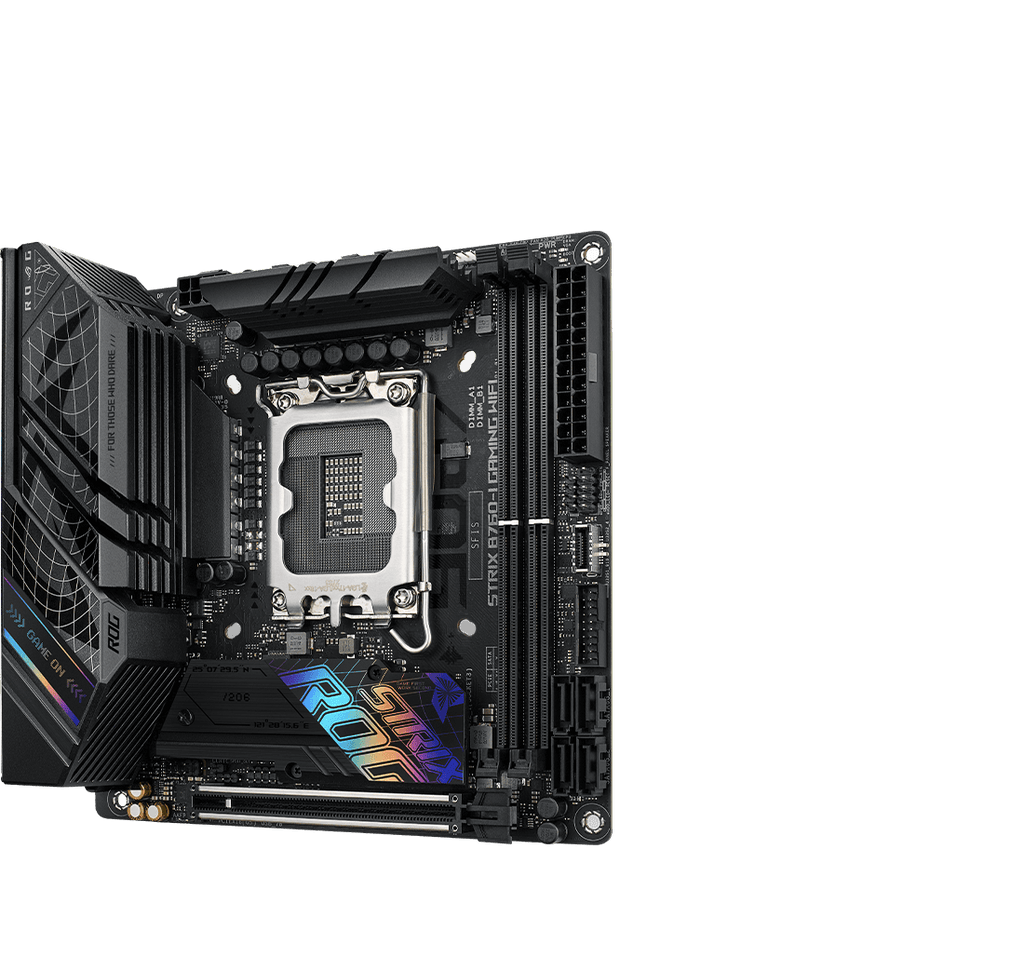

PCIe 5.0 slot for future graphics
The x16 SafeSlot supports next-generation graphics cards at full speed, future-proofing your small-form-factor build.
8+1 power stages for stable overclocking
Rated to 80A per stage, the power delivery handles overclocked 13th Gen Intel chips with headroom and thermal stability.
DDR5 memory at up to 7600 MHz (OC)
Supports high-speed DDR5 across 96GB maximum capacity with Intel XMP profiles for quick tuning.
SupremeFX audio with AI noise cancellation
The S1220A codec and Savitech amplifier deliver 32-bit/192 kHz playback, paired with two-way AI noise cancellation for cleaner voice input.
- SocketIntel LGA 1700
- Form FactorMini-ITX
- Memory SupportDDR5, up to 96GB, up to 7600 MHz (OC)
- WirelessWiFi 6E (802.11ax), Bluetooth 5.3
- ExpansionPCIe 5.0 x16
- Warranty3 years
- SKUASU-2655
- EAN4711081997658
- Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors in LGA 1700 socket.
- Accepts DDR5 memory modules (up to 96GB across two DIMM slots) with native and overclocked profiles.
- Provides two M.2 slots for NVMe storage (both PCIe 4.0 x4) plus four SATA ports for additional drives.
- Runs Windows 10 or Windows 11 64-bit operating systems.
- Mini-ITX form factor fits only compact cases; check case compatibility for heatsink clearance and port access before purchase.
Best for
- Small-form-factor enthusiasts who want high-end features without a full-size motherboard.
- Builders prioritizing low-latency wireless gaming via WiFi 6E and 2.5G Ethernet.
- Users planning to upgrade to next-generation graphics cards thanks to PCIe 5.0 support.
- Overclockers leveraging the 8+1 power stages and robust VRM for stable, high-frequency operation.
Trade-offs
- Large builds requiring full ATX or E-ATX motherboards. Mini-ITX limits expansion and cooling headroom.
- Older Intel processor owners. Socket LGA 1700 supports only 12th Gen and newer; earlier generations cannot be used.
- DDR4-only systems. This board requires DDR5 memory; DDR4 is not supported.
- Budget-conscious builders seeking entry-level options. The ROG Strix line carries a performance premium over basic B760 alternatives.
Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.

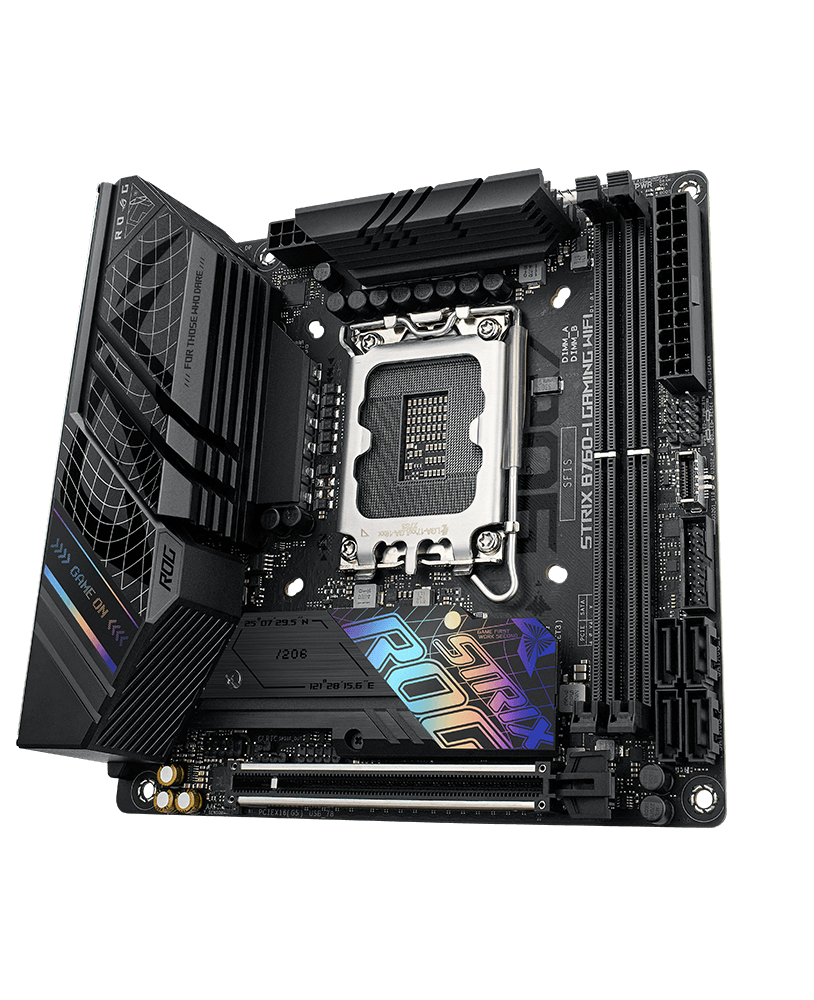

The ROG Strix B760-I is ready to launch into lightspeed.

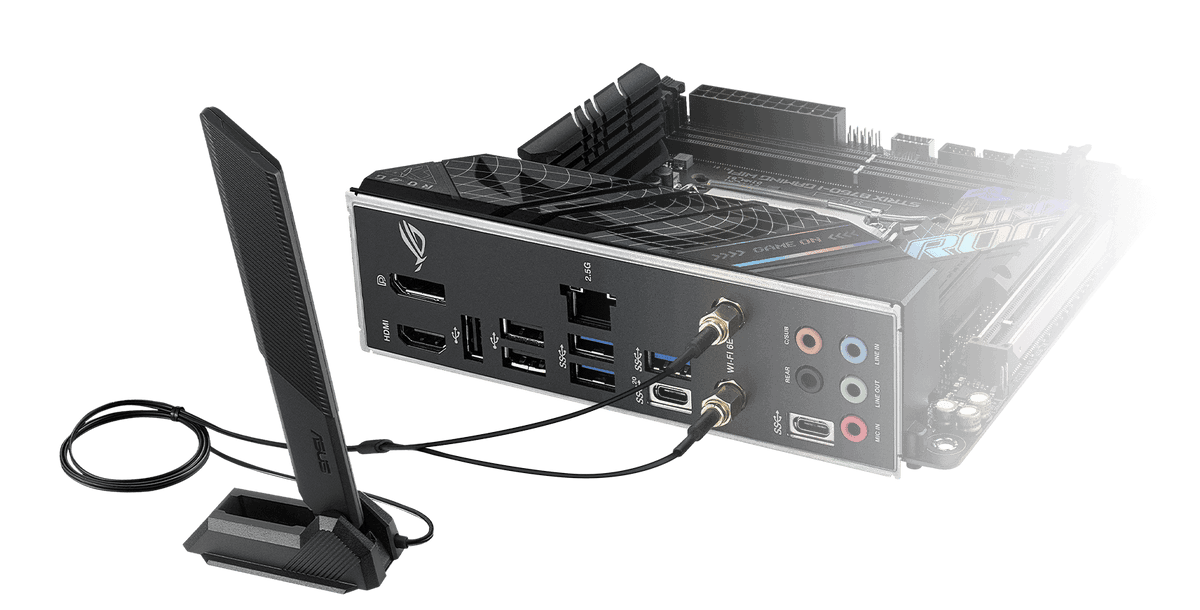

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

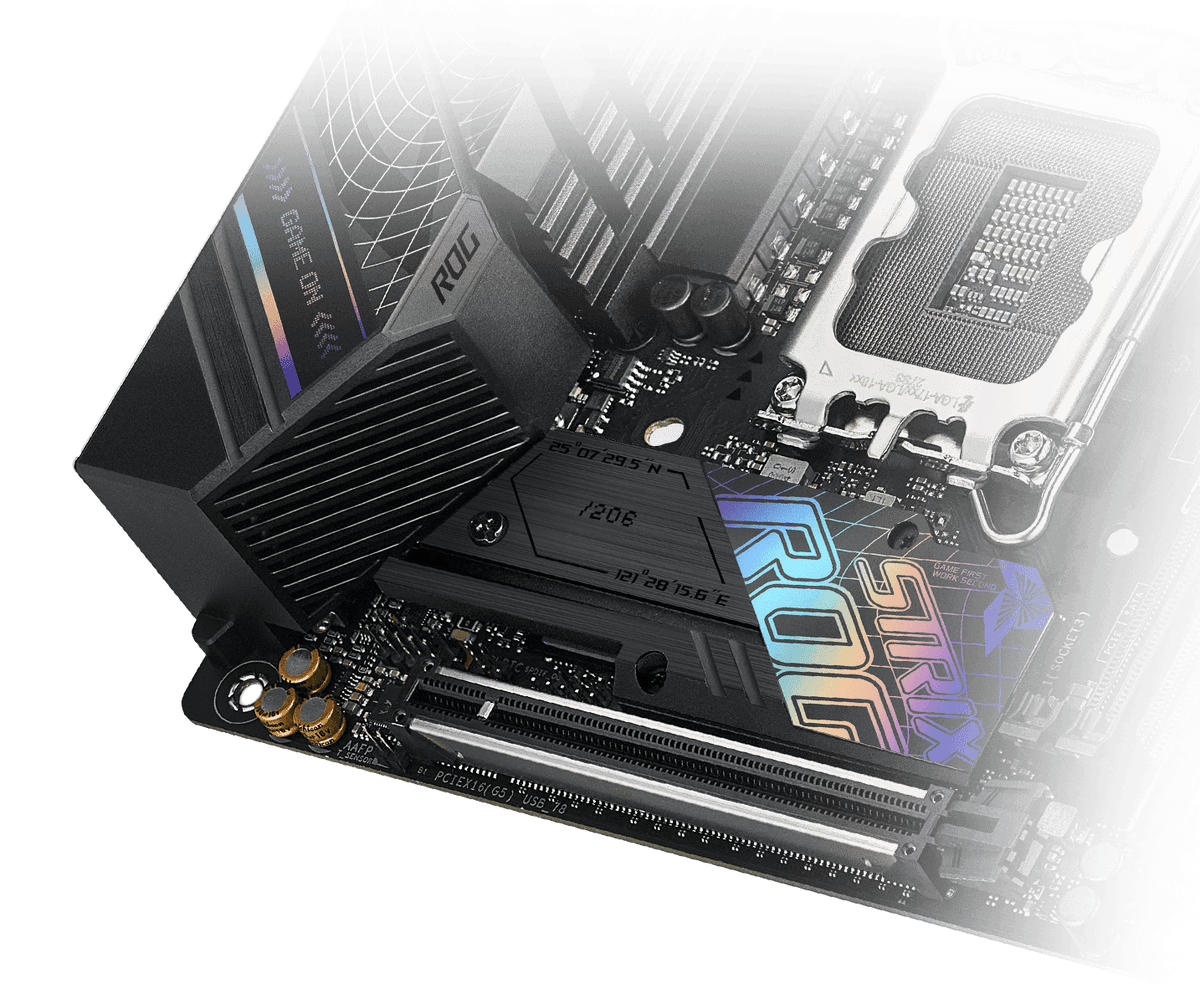

SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-I implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
General
| Brand | ASUS ROG |
|---|---|
| Chipset | Intel B760 |
| Form Factor | Mini-ITX |
Networking
| Ethernet | Intel 2.5 Gbps with ASUS LANGuard |
|---|---|
| Wireless Standard | WiFi 6E (802.11 a/b/g/n/ac/ax) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Bluetooth | 5.3 |
Performance
| CPU Socket | Intel Socket LGA 1700 (12th and 13th Gen Intel Core, Pentium Gold, Celeron) |
|---|---|
| Memory Slots | 2 x DIMM |
| Max Memory | 96GB DDR5 |
| Memory Speeds | DDR5 4800–7600 MHz (JEDEC and OC profiles) |
| Memory Features | Intel XMP, OptiMem II |

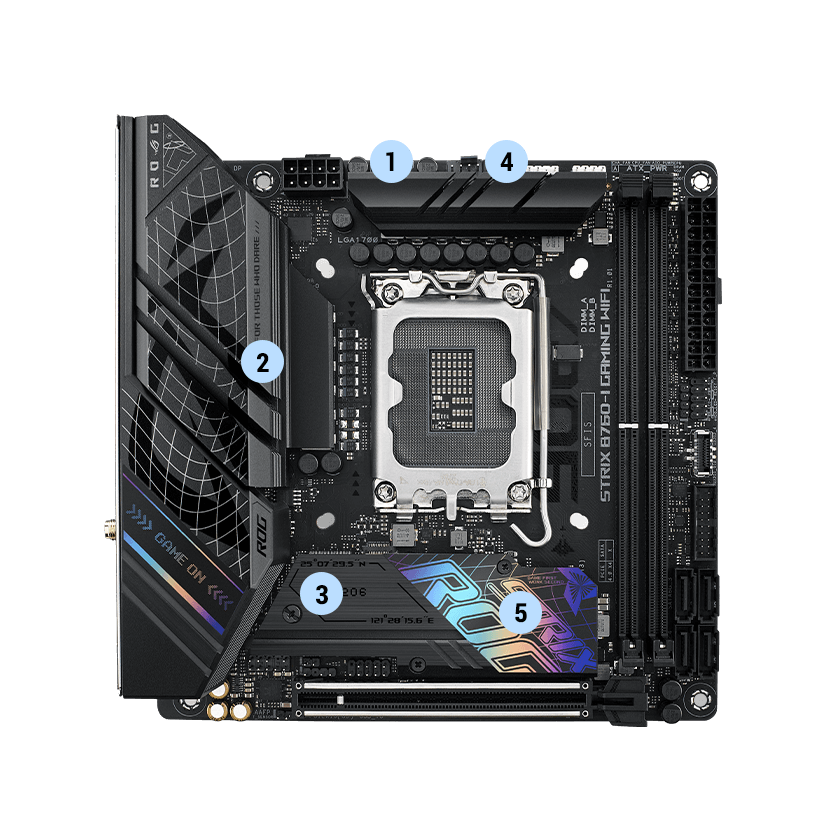

| Power Stages | 8 + 1 (80A rated) |

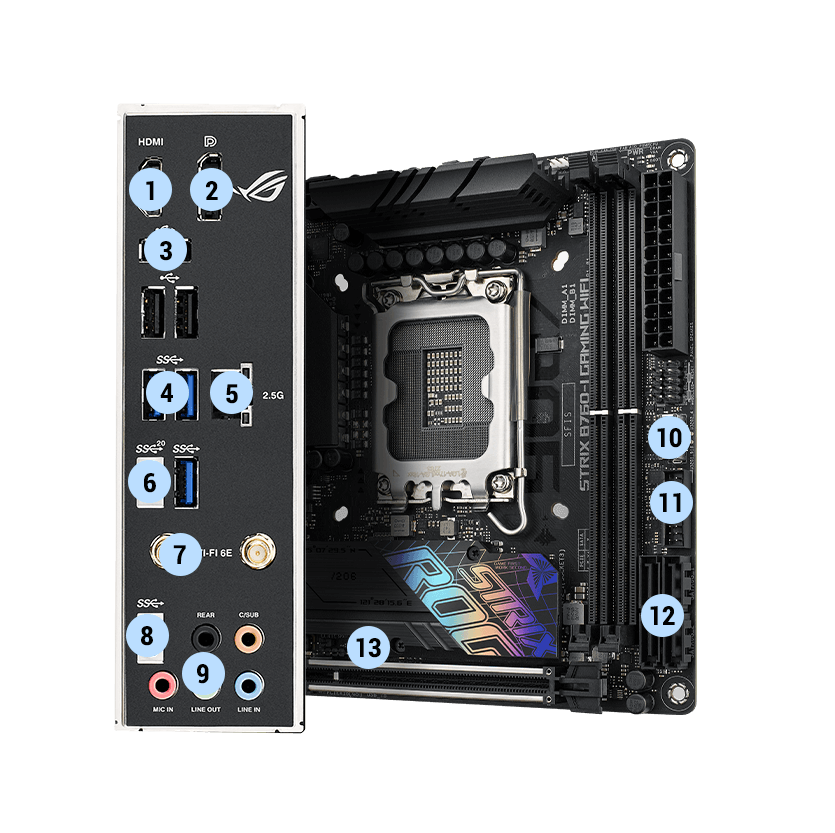

Ports & Power

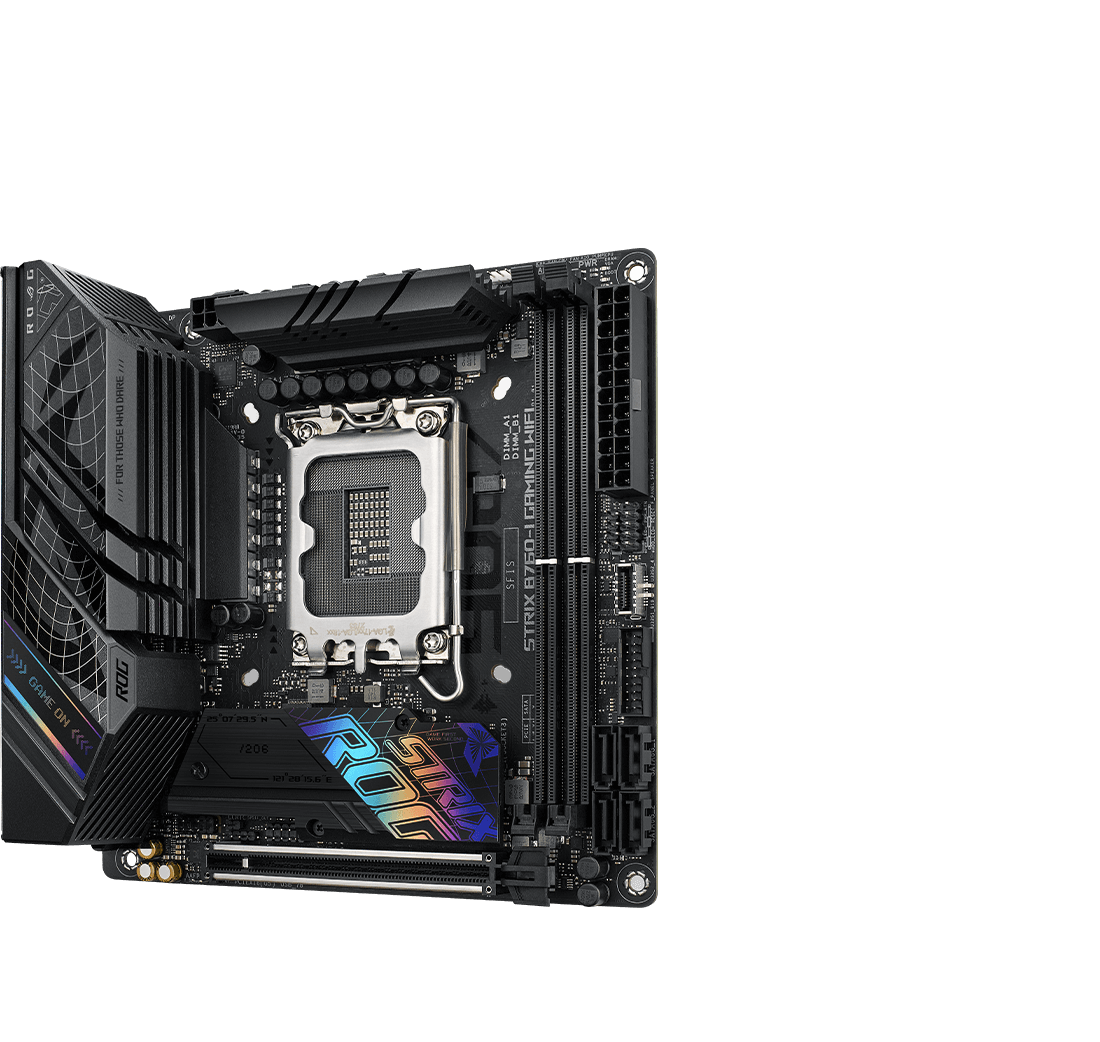

| PCIe Expansion | 1 x PCIe 5.0 x16 SafeSlot |
|---|---|
| M.2 Slots | 2 (both PCIe 4.0 x4) |
| SATA Ports | 4 x 6 Gb/s |
| USB 3.2 Gen 2x2 | 1 x Type-C (rear) |
| USB 3.2 Gen 1 | 3 x Type-A + 1 x Type-C (rear) |
| USB 2.0 | 3 x Type-A (rear) |
| Display Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Audio Jacks | 5 |
| Power Connectors | 24-pin main + 8-pin +12V |

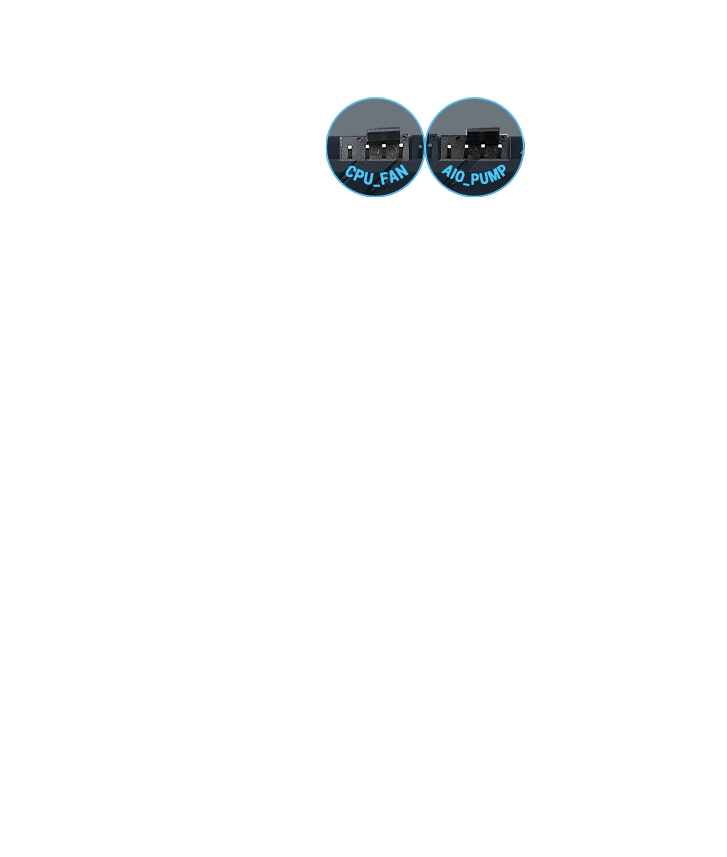

| Fan Headers | 1 x CPU fan (4-pin), 1 x chassis fan (4-pin), 1 x AIO pump (4-pin) |
Audio
| Codec | SupremeFX S1220A |
|---|---|
| Amplifier | Savitech SV3H712 |
| Max Playback Resolution | 32-bit / 192 kHz |
| Playback SNR | 120 dB stereo |
| Recording SNR | 113 dB |
| Features | SupremeFX shielding, impedance sense, Sonic Studio III, Sonic Radar III, DTS Sound Unbound, two-way AI noise cancellation |
Physical
| OS Support | Windows 10 & 11 (64-bit) |
|---|---|
| Warranty | 3 years |
