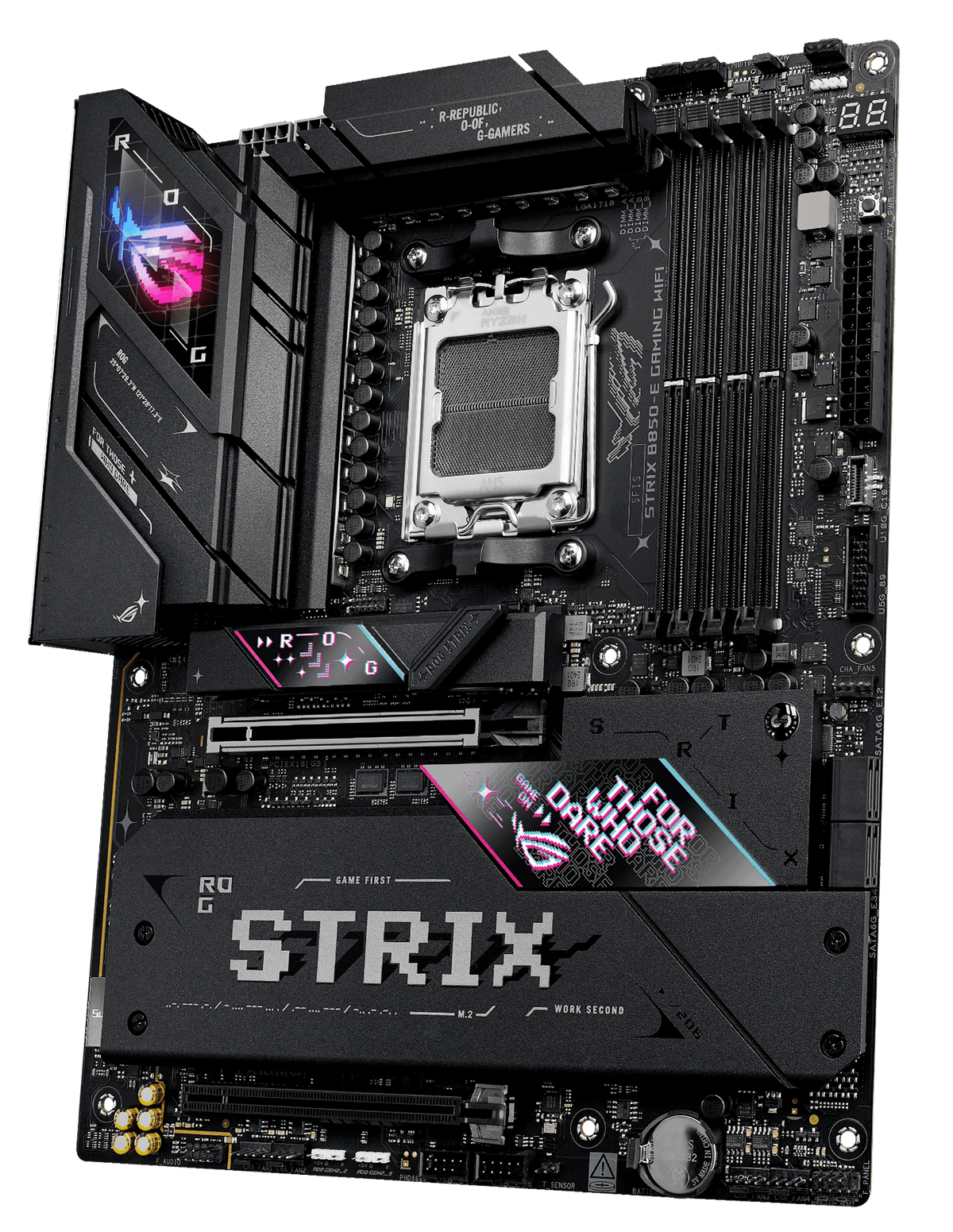

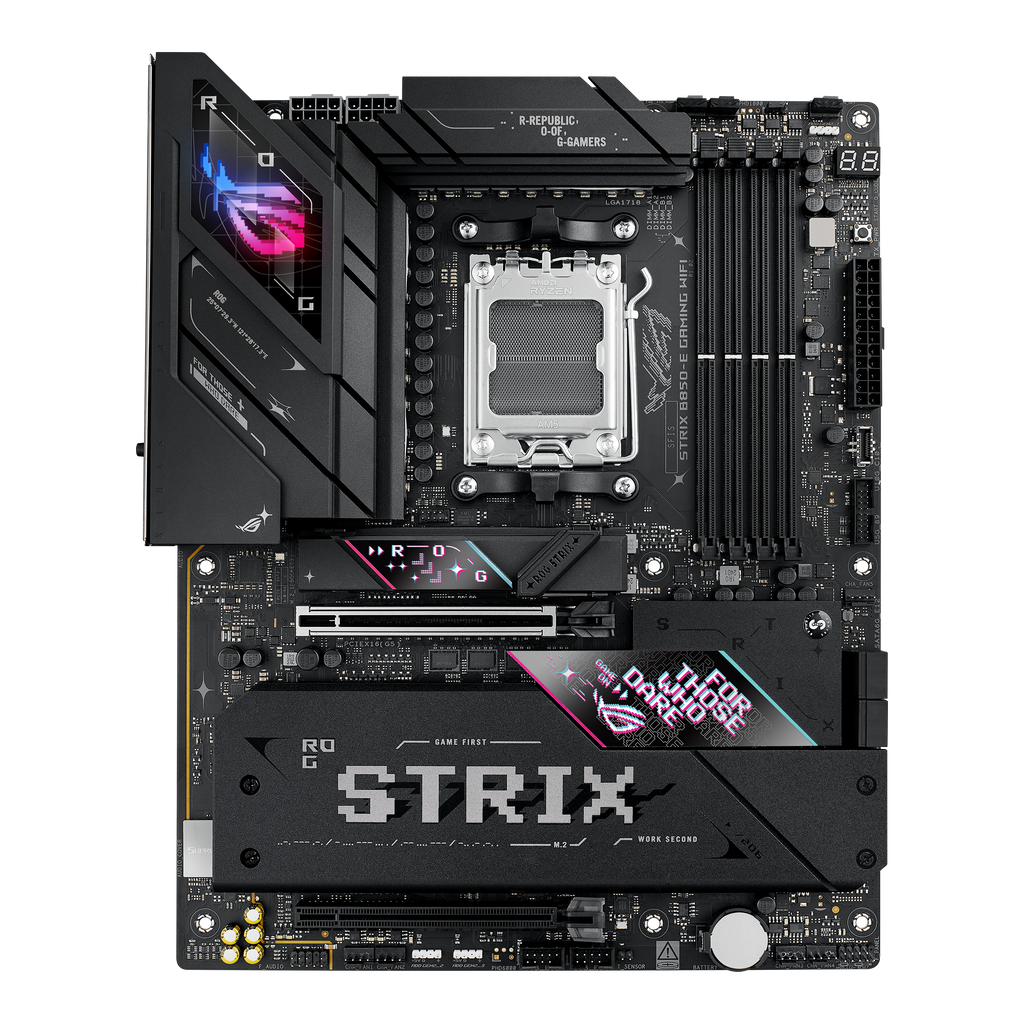

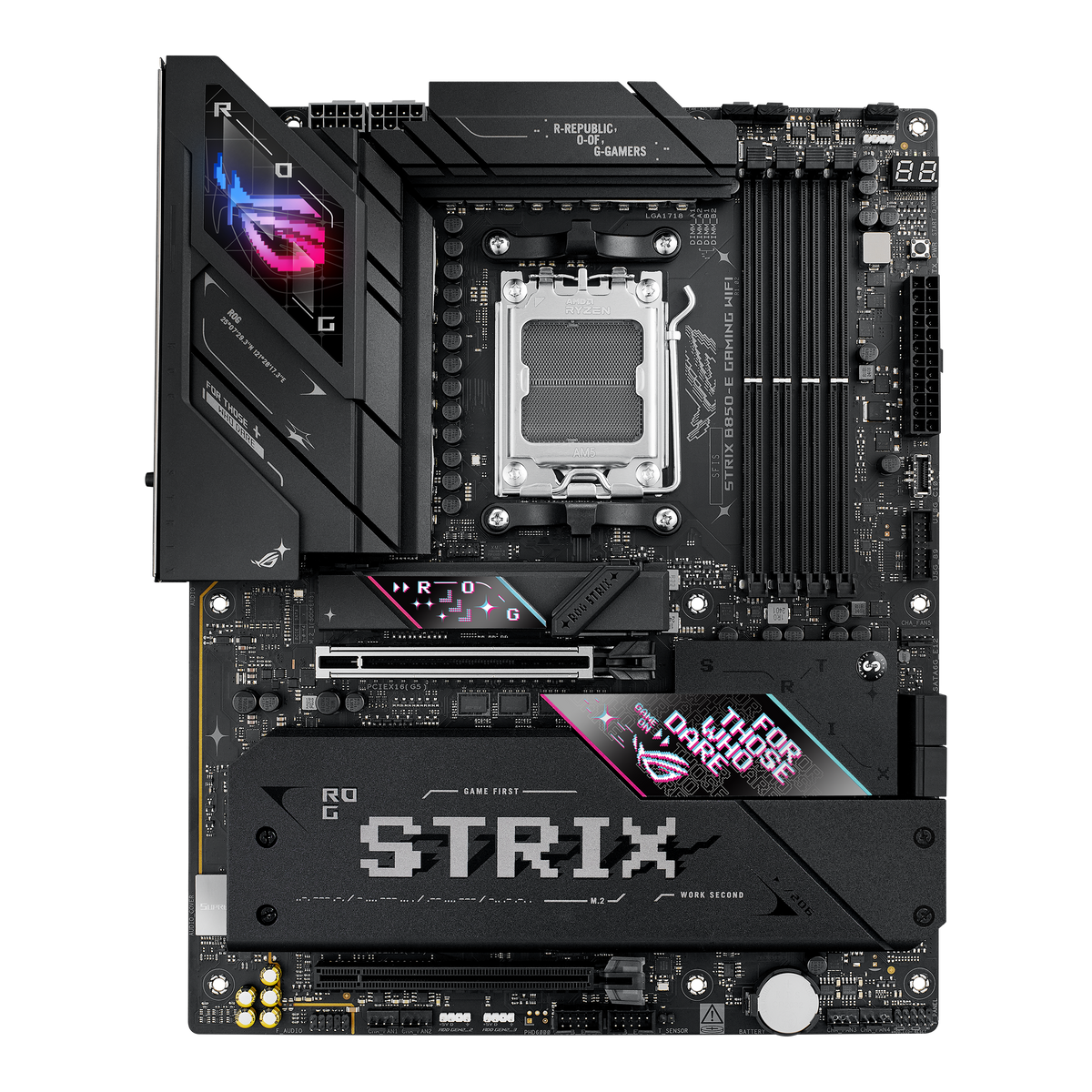

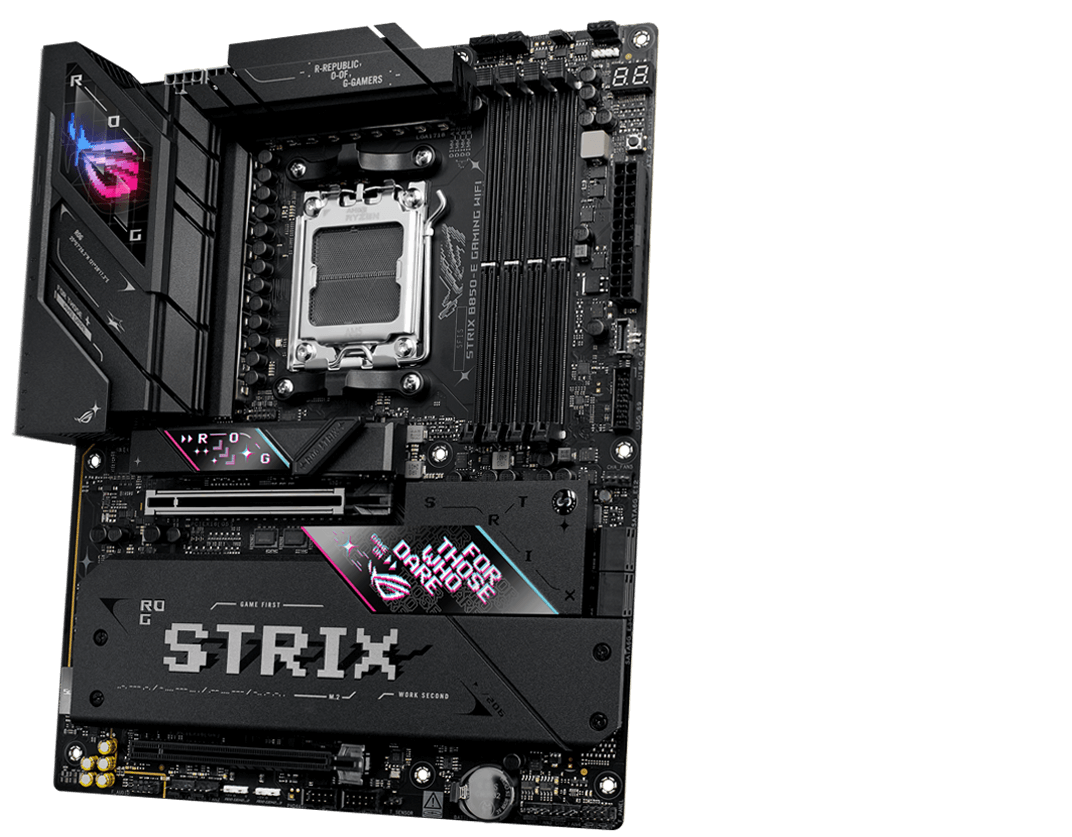

ASUS ROG Strix B850-E Gaming WiFi AM5 ATX Motherboard
ASUS ROG
ASUS ROG Strix B850-E Gaming WiFi AM5 ATX Motherboard
The ASUS ROG Strix B850-E Gaming WiFi is an AM5 ATX motherboard built for builders who want to extract full performance from AMD Ryzen 9000, 8000, and 7000 Series desktop processors without complex manual tuning. It combines AI-assisted overclocking, a 16+2+2 power stage design rated at up to 90A per stage, and end-to-end PCIe 5.0 support to handle demanding workloads. WiFi 7, Realtek 5Gb Ethernet, and a USB4 Type-C port make it a strong choice for anyone who also needs fast wired and wireless connectivity at the desktop.
Why this product

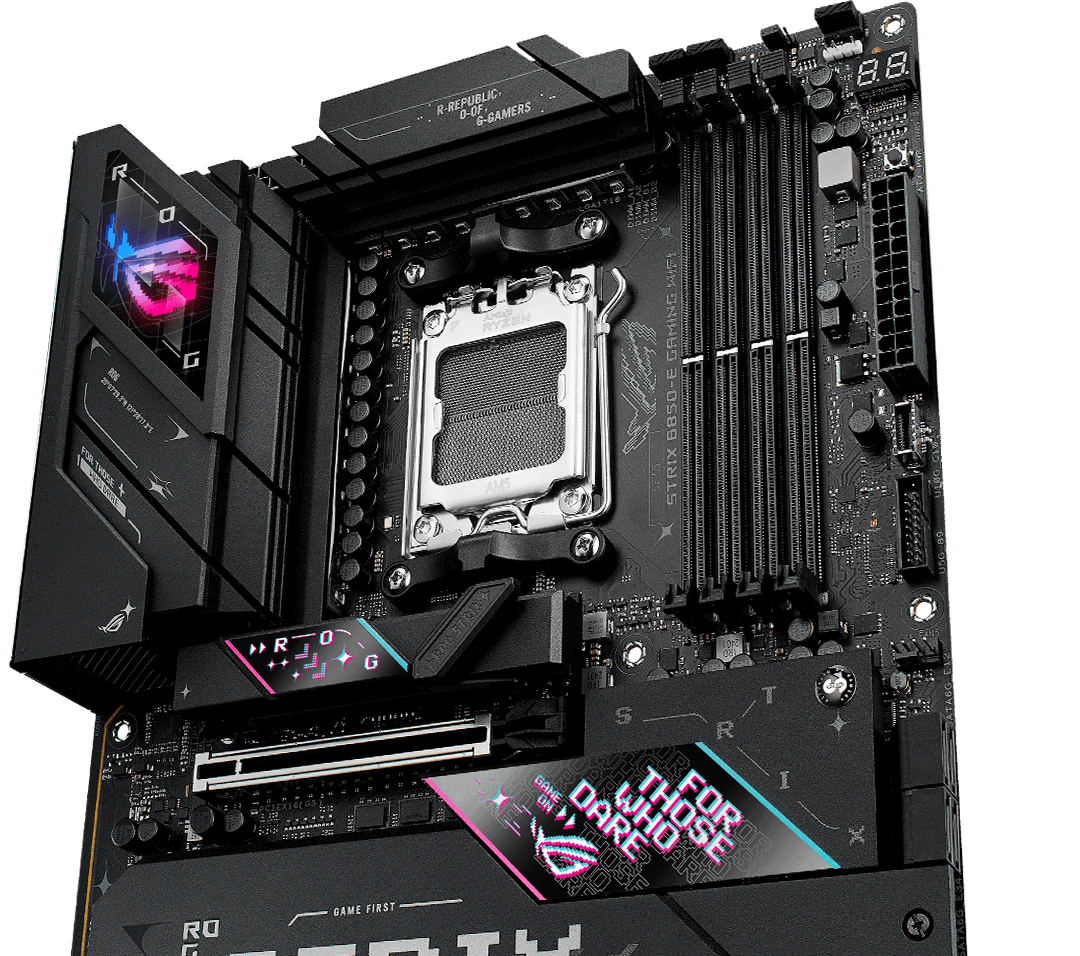

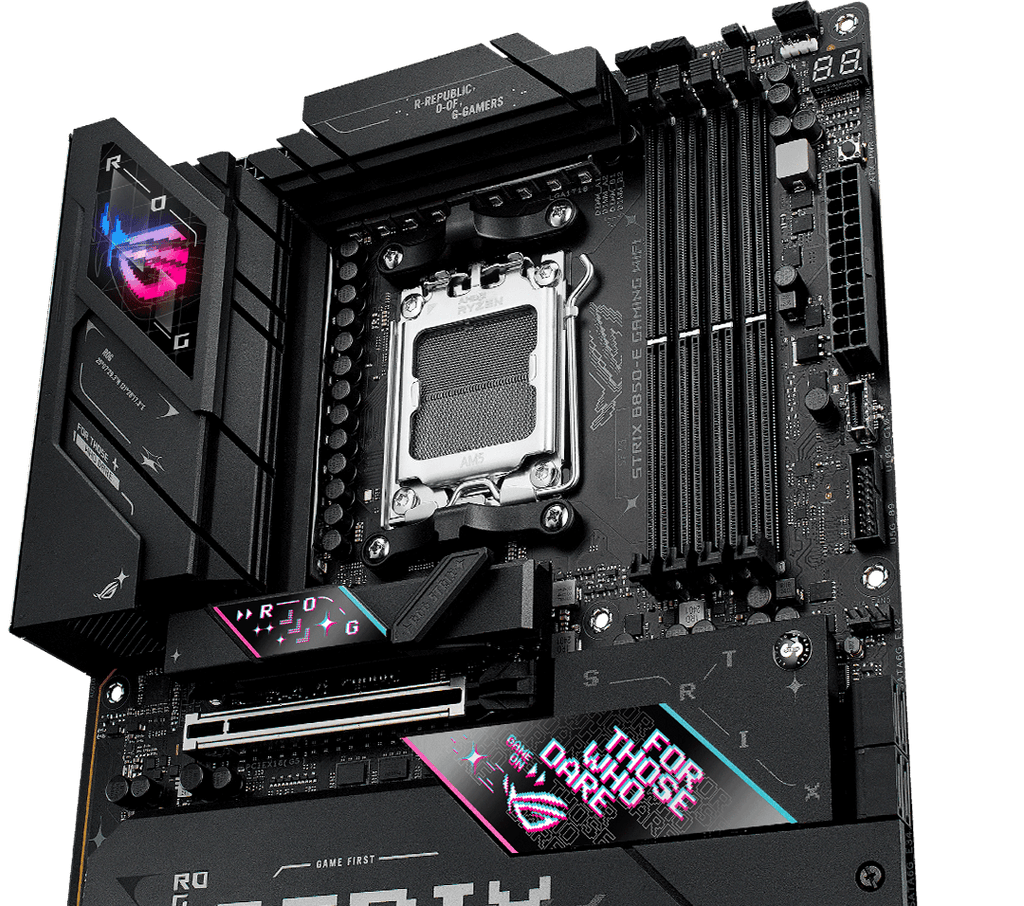

16+2+2 Power Stages at 90A Each
The power delivery system uses 16+2+2 stages, each rated for up to 90A, paired with Dual ProCool Power Connectors to sustain stable voltage under sustained CPU loads.
AI Overclocking and AI Cache Boost
Built-in AI Overclocking profiles and AI Cache Boost analyse system conditions and apply optimised settings automatically, reducing the need for manual BIOS tuning.
WiFi 7 with 6 GHz Band Support
The onboard Wi-Fi 7 (802.11be) adapter supports 2.4, 5, and 6 GHz bands with 320 MHz channel width and 4096-QAM, paired with the ASUS WiFi Q-Antenna for placement flexibility.

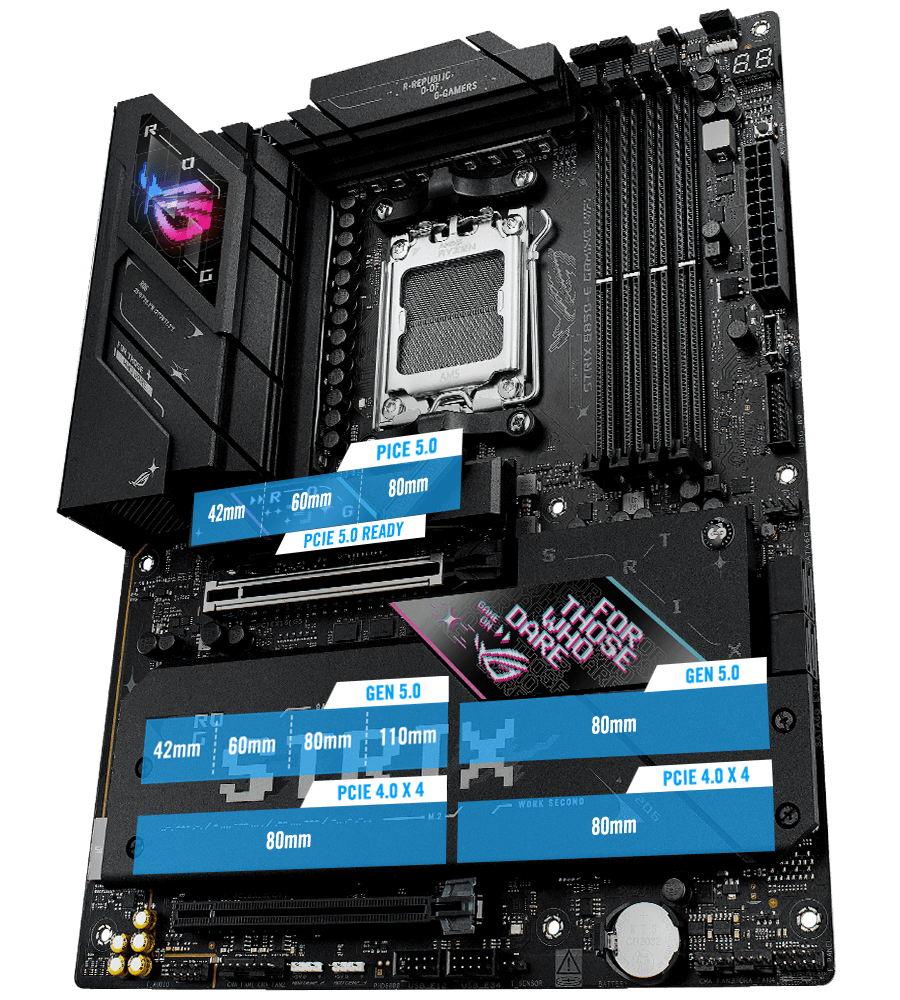

Five M.2 Slots Including Two Gen 5
Two PCIe Gen 5 x4 and three PCIe Gen 4 x4 M.2 slots are included, alongside M.2 Q-Latch, Q-Release, and Q-Slide tool-free installation aids.
USB4 Type-C with 40 Gbps and Display Output
The rear panel includes one USB4 (40 Gbps) Type-C port that supports DP Alt mode, providing a single high-bandwidth connection for fast storage devices or external displays.
Realtek 5Gb Ethernet with ASUS LANGuard
The 5 Gb wired connection is protected by ASUS LANGuard surge protection, and AI Networking II helps prioritise network traffic for lower-latency gaming.
- SocketAMD AM5
- Form FactorATX
- ChipsetAMD B850
- Memory SupportDDR5, up to 192 GB, 4 DIMM slots
- Primary PCIe SlotPCIe 5.0 x16 SafeSlot
- WirelessWi-Fi 7 (802.11be), 2.4/5/6 GHz
- EthernetRealtek 5Gb
- Warranty3 Years
- SKUASU-3393
- EAN4711387769300
- Compatible with AMD Ryzen 9000, 8000, and 7000 Series desktop processors via the AM5 socket.
- Supports DDR5 memory in dual-channel configuration across 4 DIMM slots, up to 192 GB, with AMD EXPO and ASUS AEMP profiles up to 8000+ MT/s (OC).
- Full-size ATX form factor — fits standard mid-tower and full-tower cases that accept ATX boards.
- PCIe 5.0 x16 SafeSlot for the primary GPU, with a secondary PCIe 4.0 x16 slot running at x4 bandwidth for additional cards or adapters.
- ECC memory is supported in un-buffered form only; registered (RDIMM) ECC modules are not compatible.
- Does not support DDR4 memory — DDR5 only.
Best for
- AMD Ryzen builders who want a B850 platform with strong power delivery and AI-assisted tuning rather than manual overclocking.
- Content creators and power users who need multiple fast storage slots — two PCIe Gen 5 and three PCIe Gen 4 M.2 slots plus four SATA 6 Gb/s ports.
- Connectivity-focused users who want WiFi 7, 5 Gb Ethernet, and a USB4 Type-C port on a single board without add-in cards.
- Gamers running high-refresh audio setups who can use the onboard ROG SupremeFX 7.1-channel audio with Realtek ALC4080 and optical S/PDIF output.
- Builders who value tool-free assembly, as M.2 Q-Latch, Q-Release, and Q-Slide reduce the fiddly steps of installing and replacing M.2 drives.
Trade-offs
- Intel platform users — this board uses the AM5 socket and is incompatible with any Intel processor.
- DDR4 memory owners — the board accepts DDR5 only, so existing DDR4 kits cannot be reused.
- Multi-GPU workstation builders — only one full-bandwidth PCIe 5.0 x16 slot is available; the second slot runs at x4.
- Small form factor builds — the ATX form factor will not fit Mini-ITX or Micro-ATX cases.
The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads.
- AI OVERCLOCKING — Effortless performance boost
- AI CACHE BOOST
- 16+2+2 Power Stages — ROBUST POWER SOLUTION — 16 + 2 + 2 power solution rated for up to 90A per stage
- WIFI 7
- USB 4 — One USB4 Type-C® port
- GEN 5 SUPPORT X3 Onboard M.2 Slot
- DDR5 — Max. 256GB, AEMP
Extreme Power & Performance
- Dual ProCool Power Connectors
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- EXPANSION SLOTS · 1 x PCIe 5.0 x16 SafeSlot [CPU] · 1 x PCIe 4.0 x16 Slot (x4) [Chipset]
Leading Connectivity
- WiFi 7 — 320 MHz · 6GHz bands · 4096 QAM
- Realtek 5Gb Ethernet
- ASUS WiFi Q-Antenna
- PCIe 5.0 — Fully embracing the new standard, the Strix B850-E offers end-to-end PCIe 5.0 support.
General
| Brand | ASUS ROG |
|---|---|
| Part Number | 90MB1J60-M0EAY0 |
| Form Factor | ATX |
| CPU Socket | AMD AM5 |
| Chipset | AMD B850 |
| Compatible Processors | AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Warranty | 3 Years |

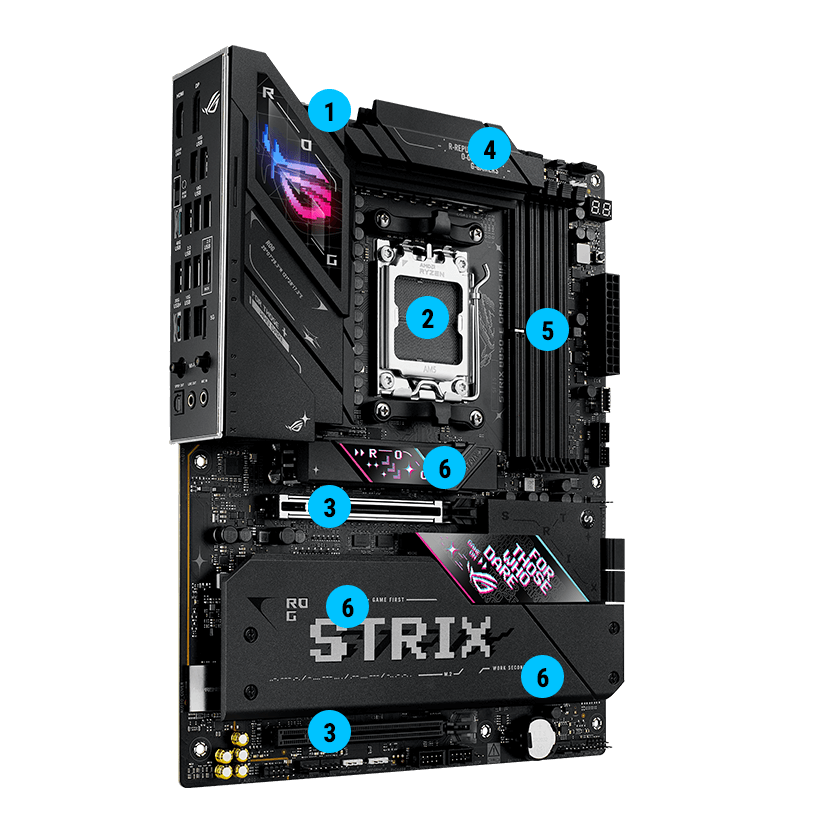

Performance
| Power Design | 16+2+2 power stages, up to 90A per stage |
|---|---|
| Power Connectors | Dual ProCool Power Connectors |
| Memory | 4 x DIMM, max. 192 GB, DDR5 |
| Memory Speed | Up to 8000+ MT/s (OC), supports AMD EXPO and ASUS AEMP |
| Memory Architecture | Dual channel, Un-buffered, ECC and Non-ECC |
| AI Features | AI Overclocking, AI Cache Boost, AI Networking II, Dynamic OC Switcher, Core Flex, PBO Enhancement |
| BIOS | 256 Mbit AMI UEFI; BIOS Flashback button; CMOS Clear button |
Networking
| Standard | Wi-Fi 7 (802.11be) |
|---|---|
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz; 320 MHz; 4096-QAM |
| Bluetooth | Bluetooth 5.4 |
| Antenna | ASUS WiFi Q-Antenna |
| Ethernet | Realtek 5Gb Ethernet with ASUS LANGuard |

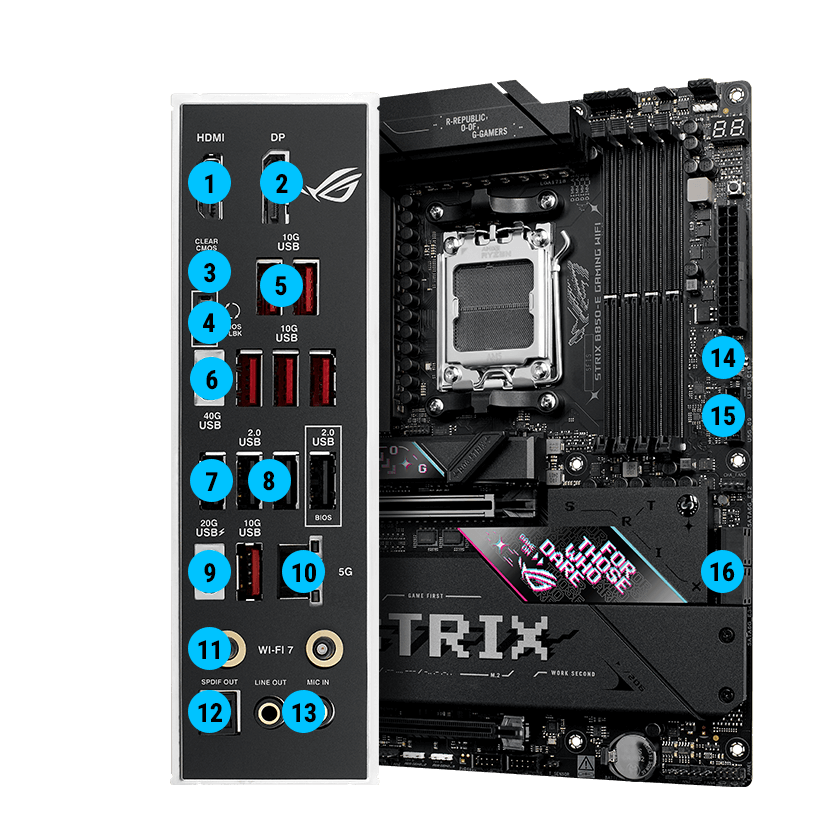

Ports & Connectivity
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot [CPU]; 1 x PCIe 4.0 x16 (x4) [Chipset] |
|---|---|

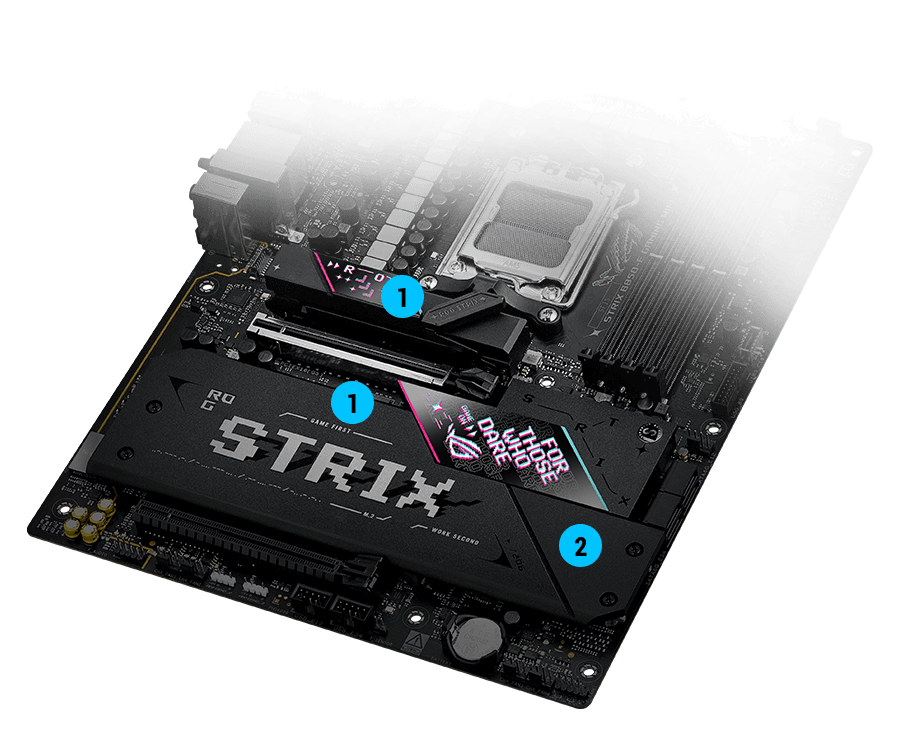

| M.2 Slots | 5 x M.2 (2 x PCIe Gen 5 x4; 3 x PCIe Gen 4 x4) |
| SATA | 4 x SATA 6Gb/s |
| Back Panel USB | 1 x USB4 (40Gbps) Type-C (DP Alt mode); 1 x USB 20Gbps Type-C; 6 x USB 10Gbps Type-A; 4 x USB 2.0 Type-A |
| Internal USB | 1 x USB 10Gbps connector (Type-C); 1 x USB 5Gbps header; 2 x USB 2.0 headers |
| Display Output | 1 x DisplayPort 1.4 (8K@60Hz); 1 x HDMI 2.1 (4K@60Hz); 1 x USB4 Type-C (DP Alt mode) |

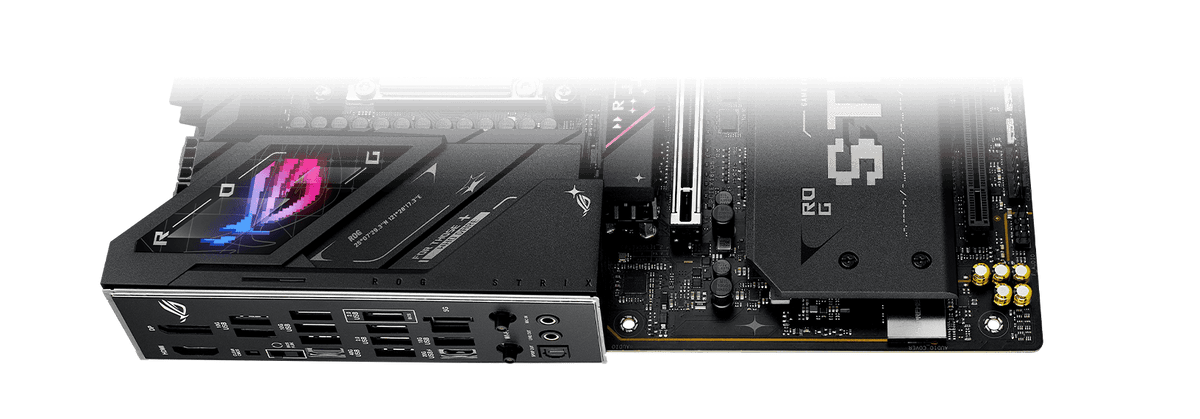

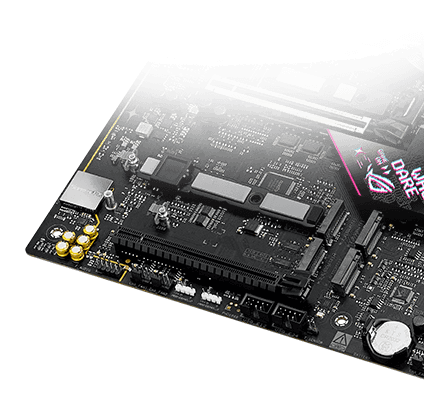

| Audio | Realtek ALC4080; ROG SupremeFX; Savitech SV3H712 AMP; 7.1 channel; Optical S/PDIF out |
| RGB Headers | 3 x Addressable Gen2 (Aura Sync) |
