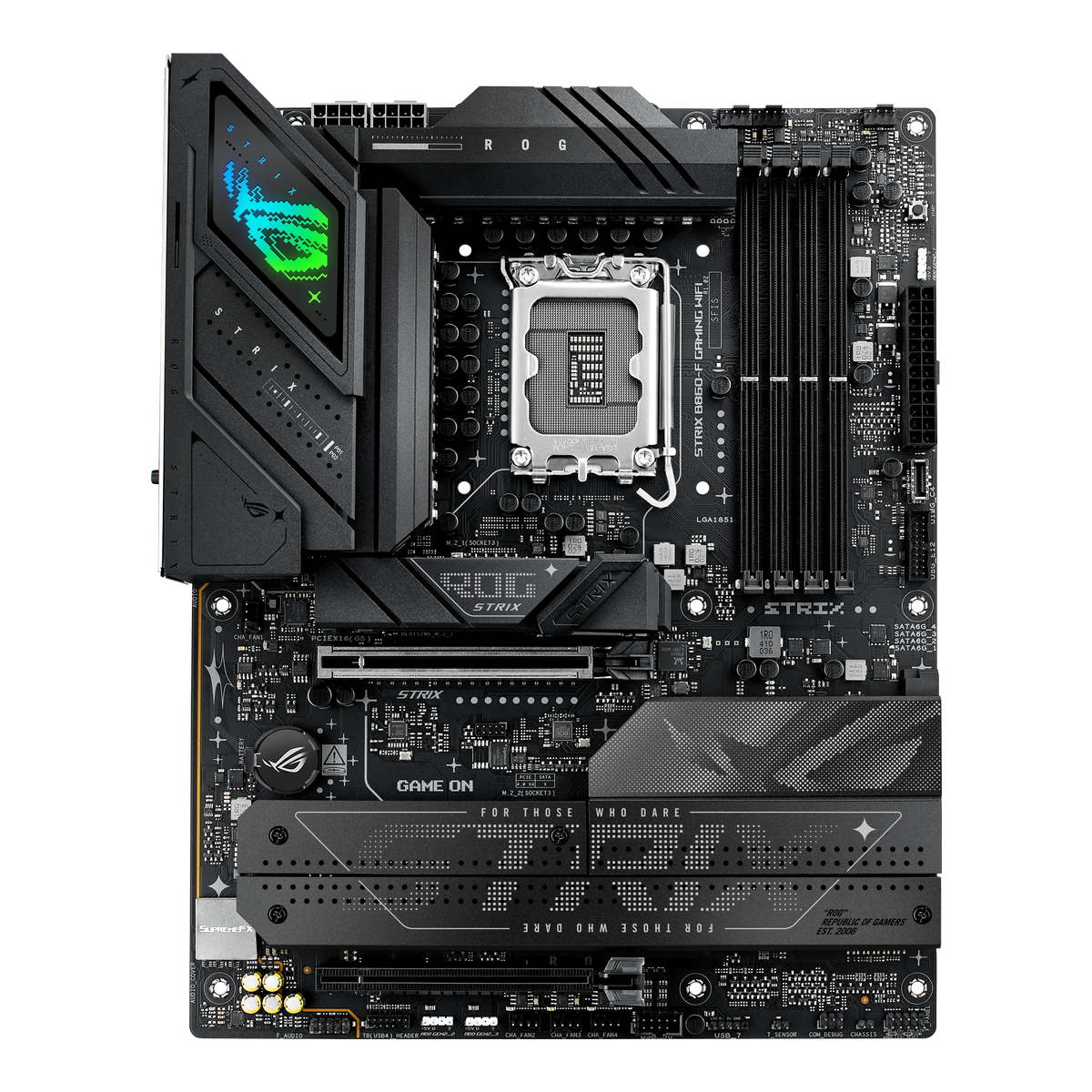

ASUS ROG Strix B860-F Gaming WiFi LGA1851 ATX Motherboard
ASUS ROG
ASUS ROG Strix B860-F Gaming WiFi LGA1851 ATX Motherboard
The ASUS ROG Strix B860-F Gaming WiFi is an ATX motherboard built for Intel's latest Core Ultra processors and AI-ready applications. It combines PCIe 5.0 storage support, WiFi 7 connectivity, Thunderbolt 4, and robust power delivery to handle demanding workloads and next-generation graphics cards.
Why this product
AI PC ready with NPU support
Designed specifically for AI computing with NPU Boost, ASUS AI Advisor, and AI Networking II built into the platform.
WiFi 7 and Thunderbolt 4
160 MHz bandwidth across 6GHz bands and 40Gbps Thunderbolt 4 deliver latest-generation wireless and wired connectivity.

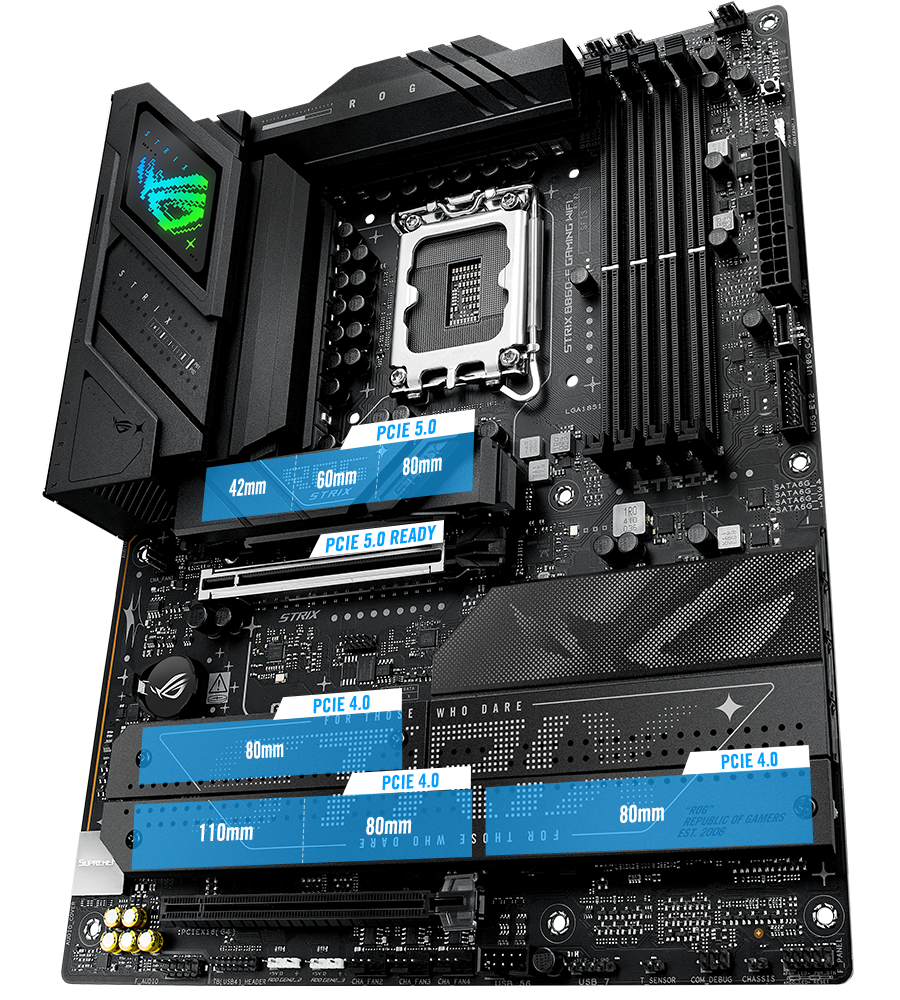

PCIe 5.0 NVMe slot with three PCIe 4.0 backups
One M.2 slot runs at PCIe 5.0 speeds for next-gen drives; three additional PCIe 4.0 slots provide storage expansion.
Strong power delivery for high-end GPUs

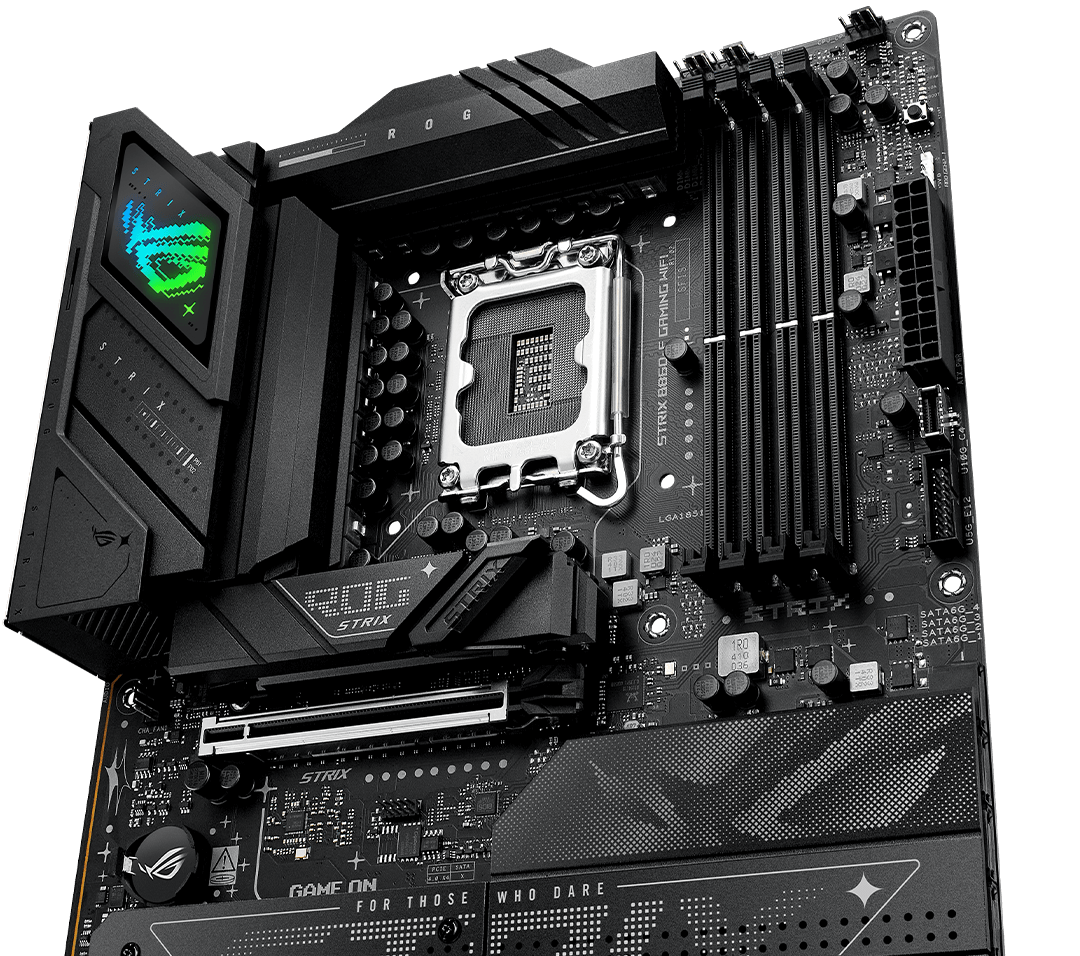

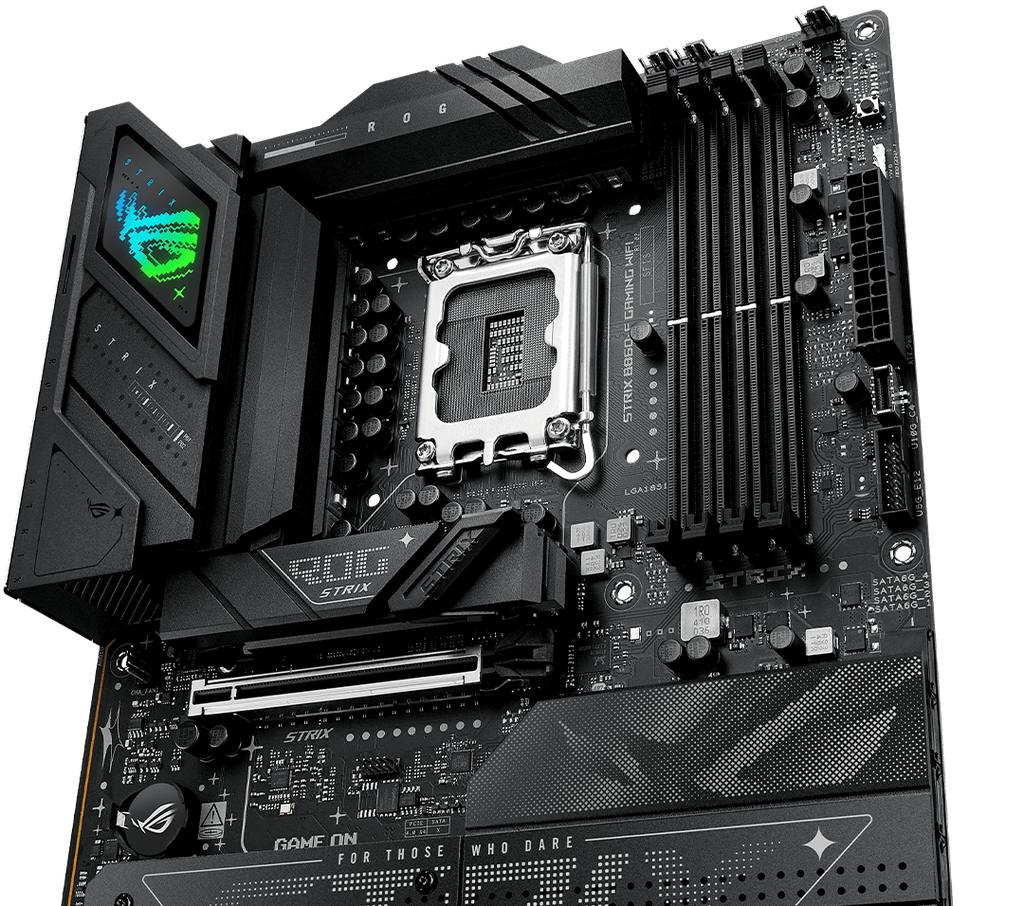

16+1+2+1 power stages rated to 80A each ensure stable power for demanding graphics cards and CPUs.
DIY-friendly design with tool-free releases
M.2 Q-Release, PCIe Slot Q-Release Slim, and pre-mounted I/O shield speed up assembly and component swaps.
- SocketIntel LGA 1851
- Form FactorATX
- Memory SupportDDR5 up to 256GB, 9066+ MT/s
- Storage Slots1x PCIe 5.0 M.2, 3x PCIe 4.0 M.2, 4x SATA
- WirelessWiFi 7, Bluetooth 5.4
- Rear USBThunderbolt 4, USB 20Gbps Type-C, USB 10Gbps, 6x USB 5Gbps
- SKUASU-2686
- EAN4711387806951
- Supports Intel Core Ultra processors (Series 2) in the LGA 1851 socket.
- Accepts up to four DDR5 DIMM modules with speeds up to DDR5 9066+ MT/s and maximum capacity of 256GB.
- Fits standard ATX case layouts (26.6 x 27 cm).
- Supports full-length PCIe 5.0 graphics cards via SafeSlot with x16 bandwidth from CPU.
- Second PCIe slot runs at x4 mode (x16 physical) from chipset; graphics cards in this slot will operate at reduced bandwidth.
Best for
- Builders planning advanced AI workloads or AI-accelerated software
- Users prioritizing latest wireless standards and wired speed (WiFi 7, Thunderbolt 4)
- High-end gaming and content creation requiring strong power delivery and fast NVMe storage
- System builders who value tool-free component installation and clear BIOS controls
Trade-offs
- Budget-conscious builds: This board targets high-performance systems; more affordable B860 boards exist.
- Older Intel or AMD systems: LGA 1851 socket only fits Intel Core Ultra (Series 2); incompatible with prior generations.
- Compact form factors: ATX size does not fit mini-ITX or micro-ATX cases.
With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.
Intel® B860 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+1+2+1 power stages, DDR5 slots, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, one PCIe® 5.0 NVMe® SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, one Thunderbolt™ 4 port, USB 20Gbps Type-C® rear I/O port, NPU Boost, ASUS AI Advisor, AI Networking II, Aura Sync RGB lighting.
General
| Brand | ASUS ROG |
|---|---|
| Chipset | Intel B860 |
| Processor Socket | Intel LGA 1851 |
| Compatible Processors | Intel Core Ultra (Series 2) |
Networking
| Wireless Standard | Intel WiFi 7 (802.11be) |
|---|---|
| WiFi Frequency | 160 MHz, 6GHz bands, 4096 QAM |
| Bluetooth | 5.4 |
| Ethernet | Intel 2.5 Gb |
| WiFi Antenna | ASUS WiFi Q-Antenna |

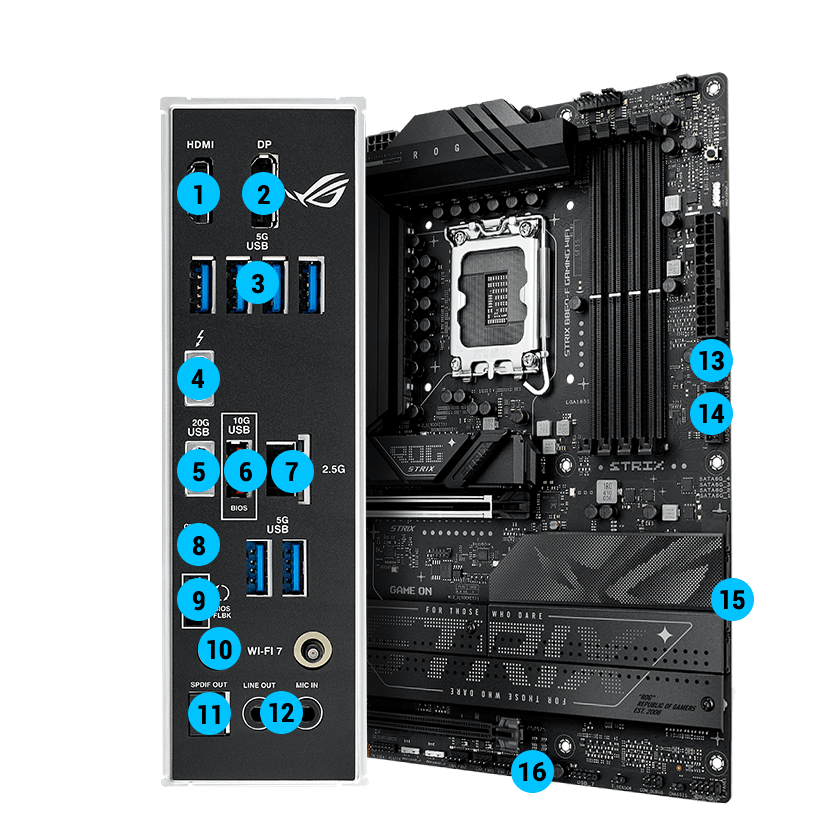

Ports & Power
| Rear USB (Type-C) | 1x Thunderbolt 4 (40Gbps), 1x USB 20Gbps, 1x USB 10Gbps |
|---|---|
| Rear USB (Type-A) | 1x USB 10Gbps, 6x USB 5Gbps |
| Front Panel USB | 1x USB 10Gbps Type-C, 2x USB 5Gbps, 3x USB 480Mbps |
| Video Output | 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Thunderbolt 4 |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x16 (x4 mode, Chipset) |
| Power Delivery | 16(80A) + 1(80A) + 2(80A) + 1(80A) stages with ProCool connectors |
| Main Power | 24-pin connector |

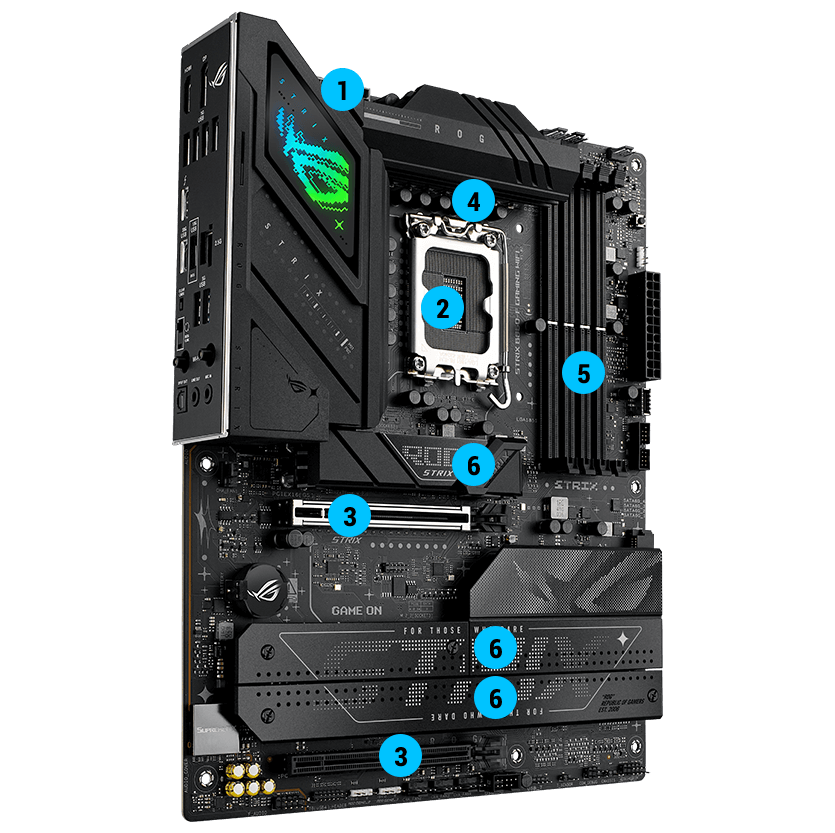

Performance
| Memory Slots | 4x DIMM DDR5 |
|---|---|
| Max Memory | 256GB |
| Memory Speed | DDR5 9066+ MT/s (OC) |
| Memory Features | AEMP III, DIMM Fit |
| M.2 Slots | 1x PCIe 5.0 x4, 3x PCIe 4.0 x4 |
| SATA Ports | 4x 6Gb/s |

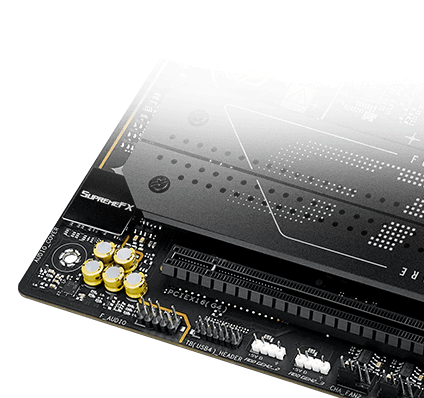

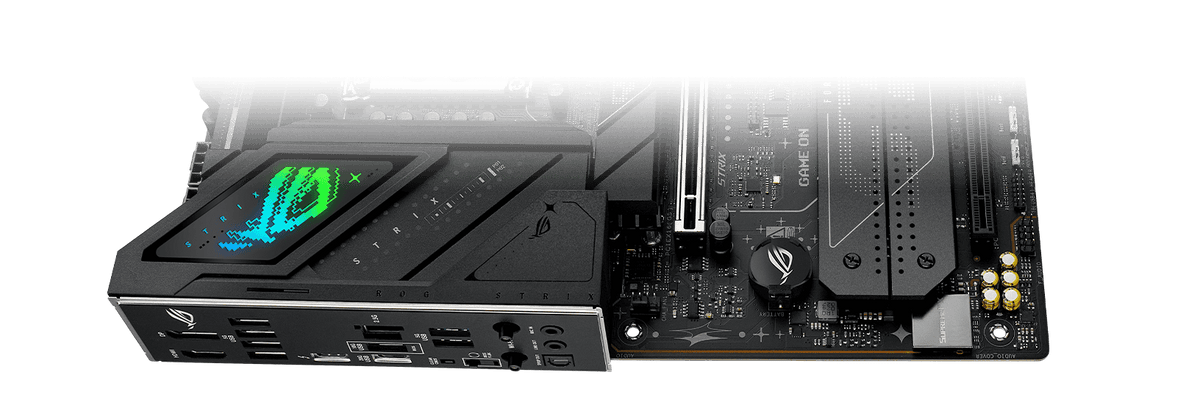

| Audio | ROG SupremeFX ALC4080 codec with SV3H712 amplifier, Dolby Atmos |
Physical
| Dimensions | 26.6 x 27 cm (ATX) |
|---|---|
| RGB Lighting | Aura Sync, 3x Addressable Gen 2 headers |

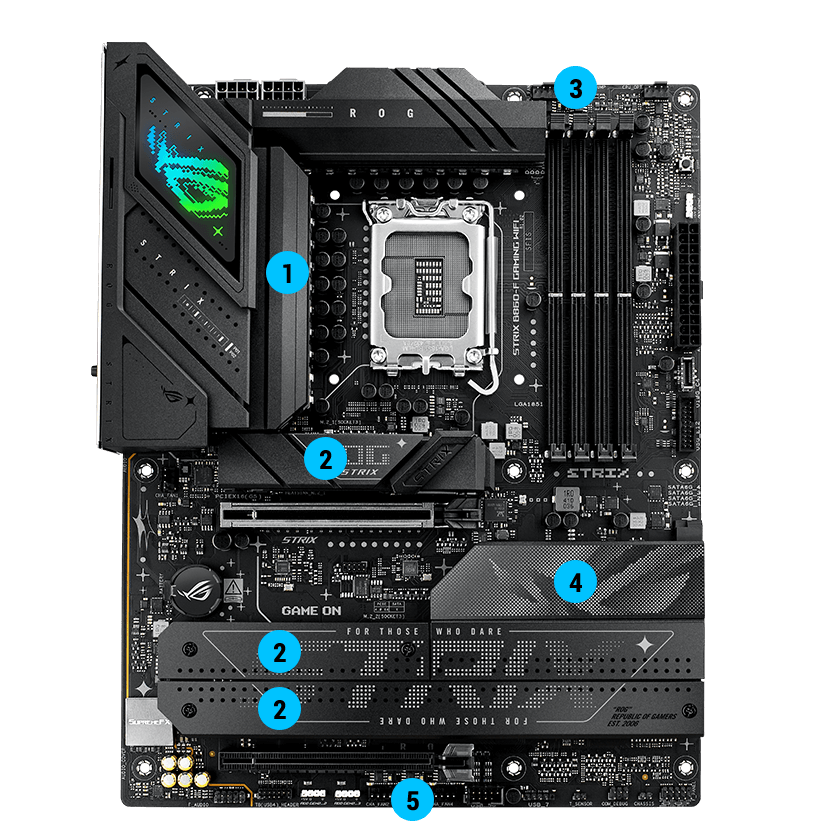

| Thermal Design | Massive heatsinks with integrated I/O cover, high-conductivity thermal pads |
| BIOS | 256 Mbit AMI UEFI, BIOS FlashBack, BIOS Q-Dashboard |
