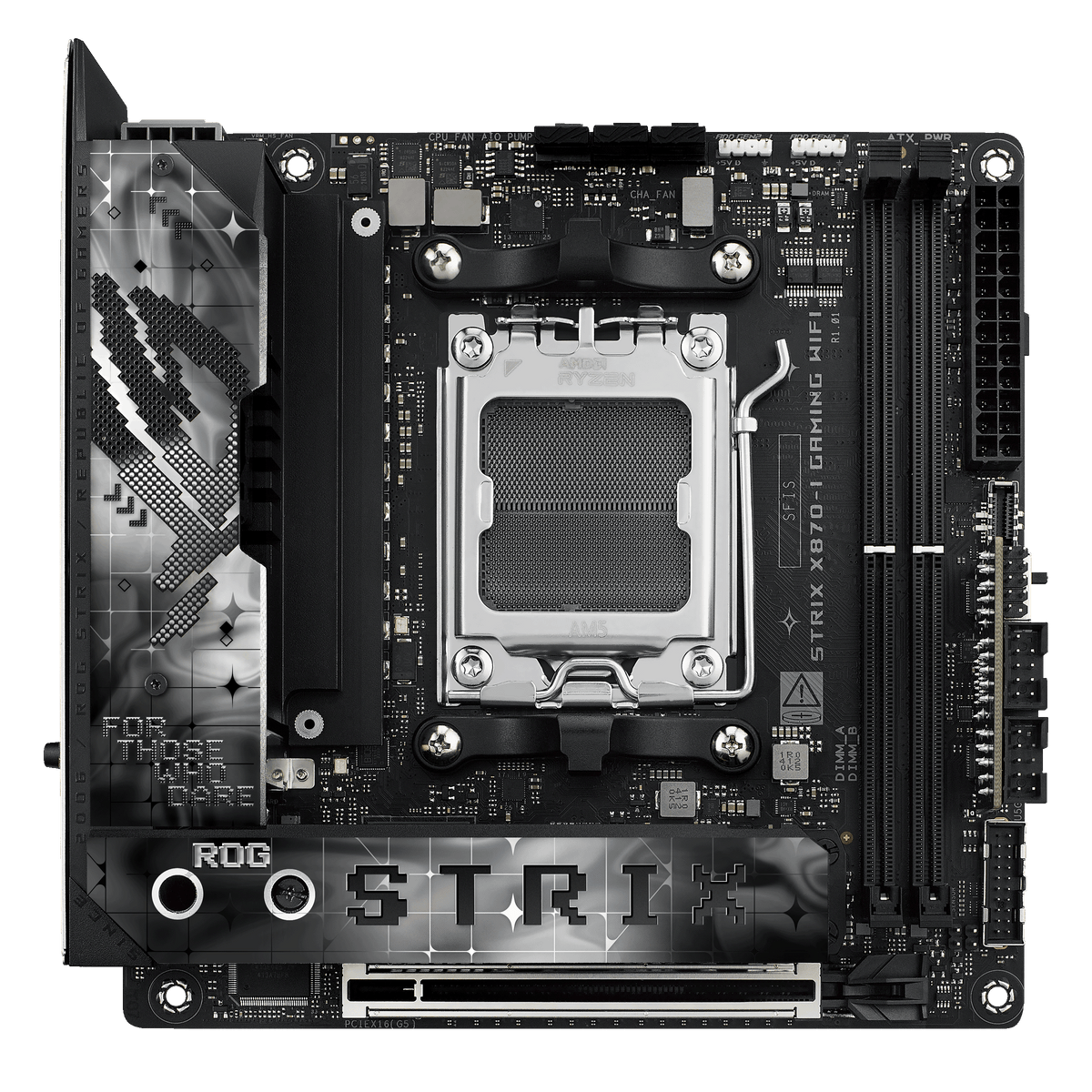

ASUS ROG Strix X870-I Gaming WiFi Mini-ITX AM5 Motherboard
ASUS ROG
ASUS ROG Strix X870-I Gaming WiFi Mini-ITX AM5 Motherboard

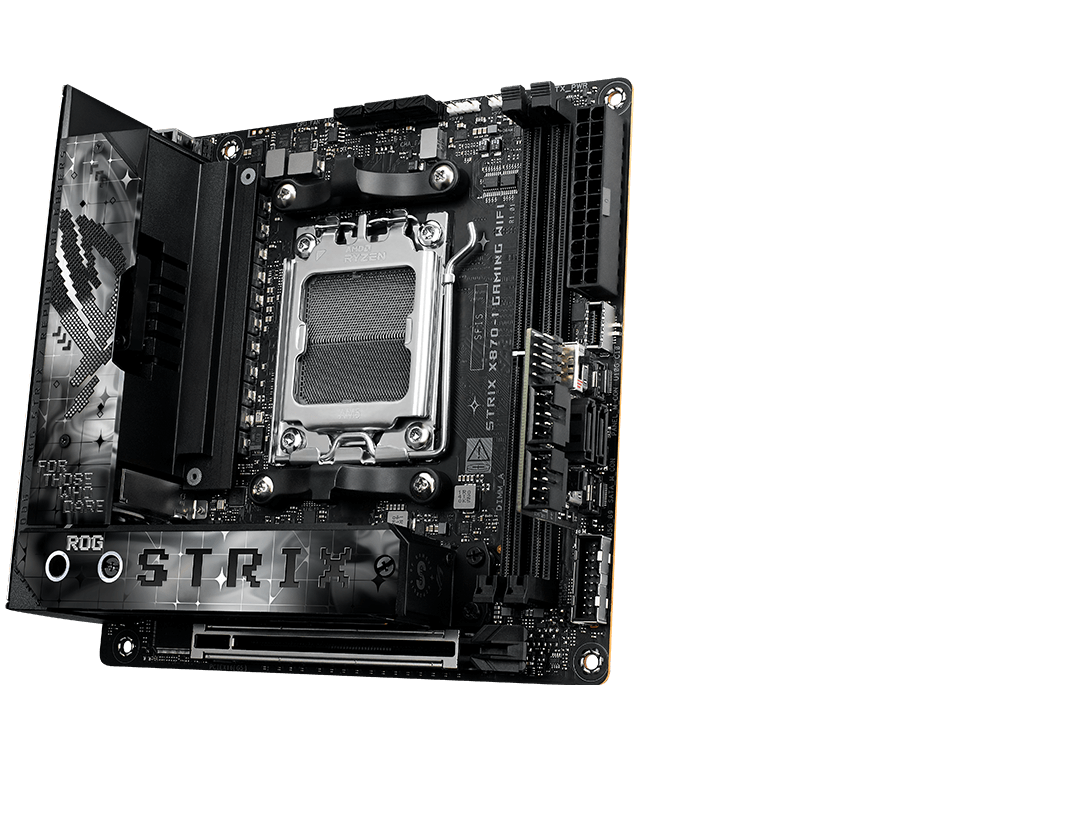

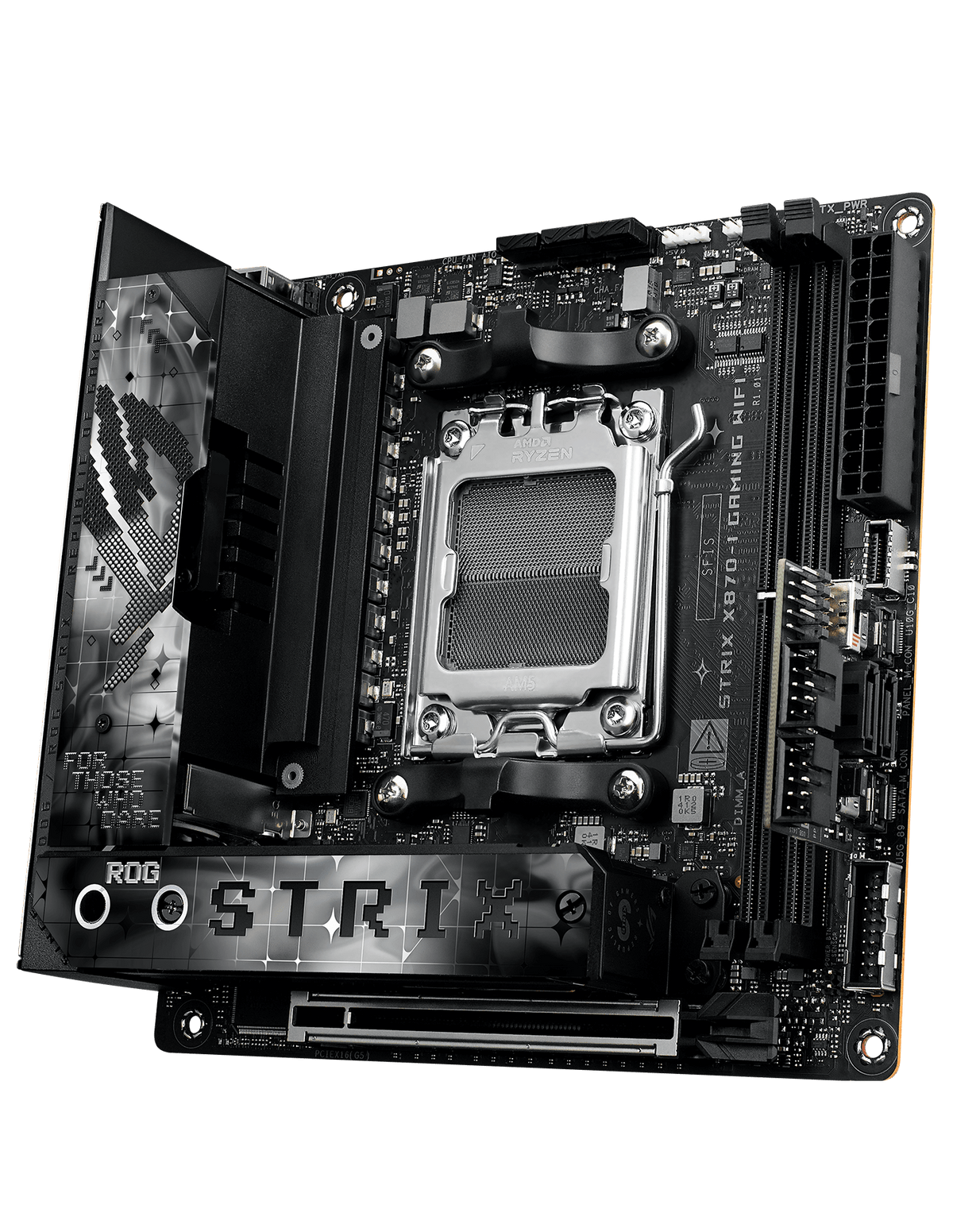

The ASUS ROG Strix X870-I Gaming WiFi is a mini-ITX motherboard for enthusiasts building compact high-performance systems with AMD Ryzen 9000, 8000 or 7000 series processors. It combines PCIe 5.0 support, DDR5 memory up to 8600+ MT/s (OC), WiFi 7 connectivity and a robust 10+2+1 power delivery system rated for 110 amps on the VCORE stage.
Why this product
PCIe 5.0 slots for GPU and storage
The topmost x16 expansion slot supports PCIe Gen 5 graphics cards with a SafeSlot retention bracket. The M.2_1 slot also runs at PCIe 5.0 x4 on Ryzen 9000 and 7000 series chips.
WiFi 7 and 2.5 Gb Ethernet
Built-in WiFi 7 (802.11be) with 320 MHz bandwidth reaches up to 6.5 Gbps, paired with Intel 2.5 Gb Ethernet and LANGuard protection.
Dual USB4 ports with 8K display output
Two USB4 Type-C ports deliver 40 Gbps bidirectional bandwidth each and support up to 8K external display output, or dual 4K displays simultaneously.
110-amp VCORE power delivery
The 10+2+1 power stage design with ProCool II 8-pin connector delivers up to 110 amps to the CPU cores, built for sustained performance under heavy loads.
ROG Strix Hive II control module
The included Hive II module keeps audio controls, volume, a 10 Gb/s USB-A port and diagnostic functions within arm's reach of your desk.
- Form FactorMini-ITX (6.7" × 6.7" / 170 × 170 mm)
- SocketAMD AM5 (Ryzen 9000, 8000, 7000)
- Power Delivery10+2+1 stages, 110A VCORE
- Memory SupportDDR5 up to 128 GB, 8600+ MT/s (OC)
- Storage Slots2 M.2 NVMe, 2 SATA 6 Gb/s
- WirelessWiFi 7, Bluetooth 5.4
- Warranty3 years
- SKUASU-2757
- EAN4711387740309
- Fits AMD Ryzen 9000, 8000 and 7000 series desktop processors in Socket AM5.
- Supports DDR5 memory up to 128 GB across two DIMM slots with EXPO and AEMP profiles.
- Two SATA 6 Gb/s ports are available via the optional ROG FPS Card.
- PCIe 5.0 speeds on the first M.2 slot require Ryzen 9000 or 7000 series; Ryzen 8000 runs at PCIe 4.0 on that slot.
- The second PCIe x16 slot is PCIe 4.0 on Ryzen 8000 (supports x8/x4 mode); PCIe 5.0 on Ryzen 9000 and 7000.
Best for
- Compact high-end gaming builds where PCIe 5.0 GPU and storage speed matter.
- Creators running AI applications and heavy multithreaded workloads that benefit from the 110-amp power delivery.
- Network-conscious users who want WiFi 7 and 2.5 Gb Ethernet without a separate expansion card.
- Users prioritizing fast external storage and display connectivity via dual USB4 ports.
Trade-offs
- ITX case size constraints: Mini-ITX form factor limits cooling solution height and expansion card count compared to standard ATX boards.
- SATA storage reliance: Only two SATA ports available via optional add-on card; primarily oriented toward NVMe M.2 storage.
- Ryzen 8000 users seeking full PCIe 5.0: First M.2 and second expansion slots run at PCIe 4.0 on Ryzen 8000 series.
- Budget-conscious builds: Premium positioning with WiFi 7, dual USB4 and robust power delivery reflects a higher price tier.

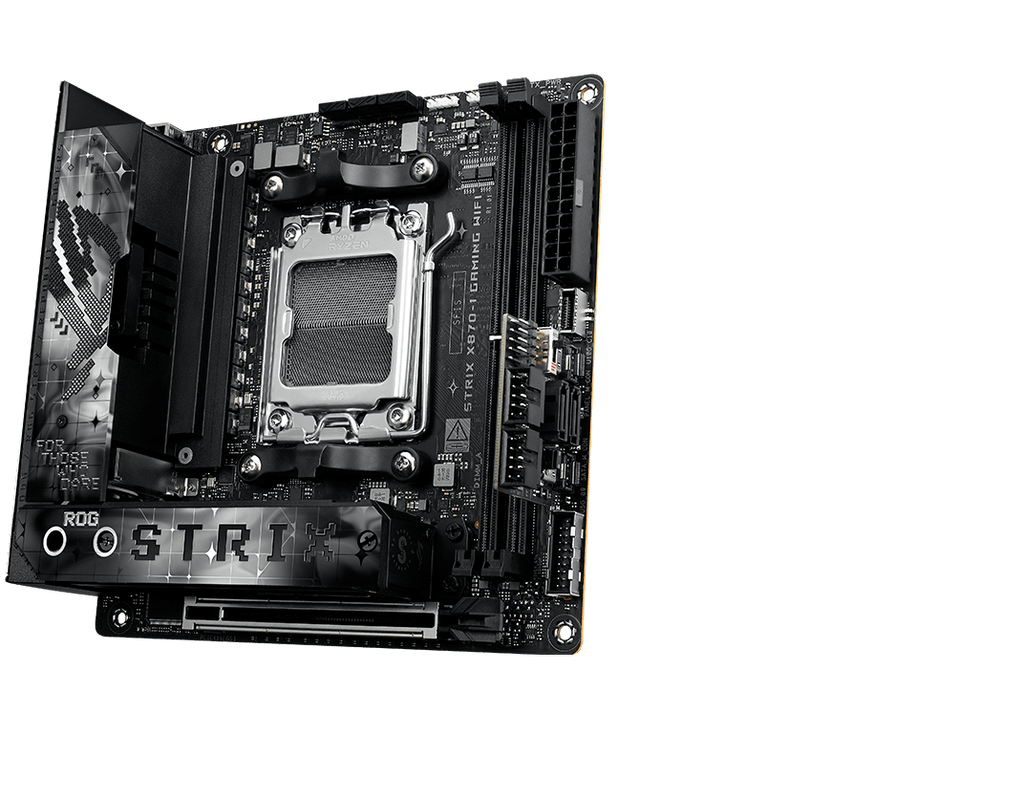

The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

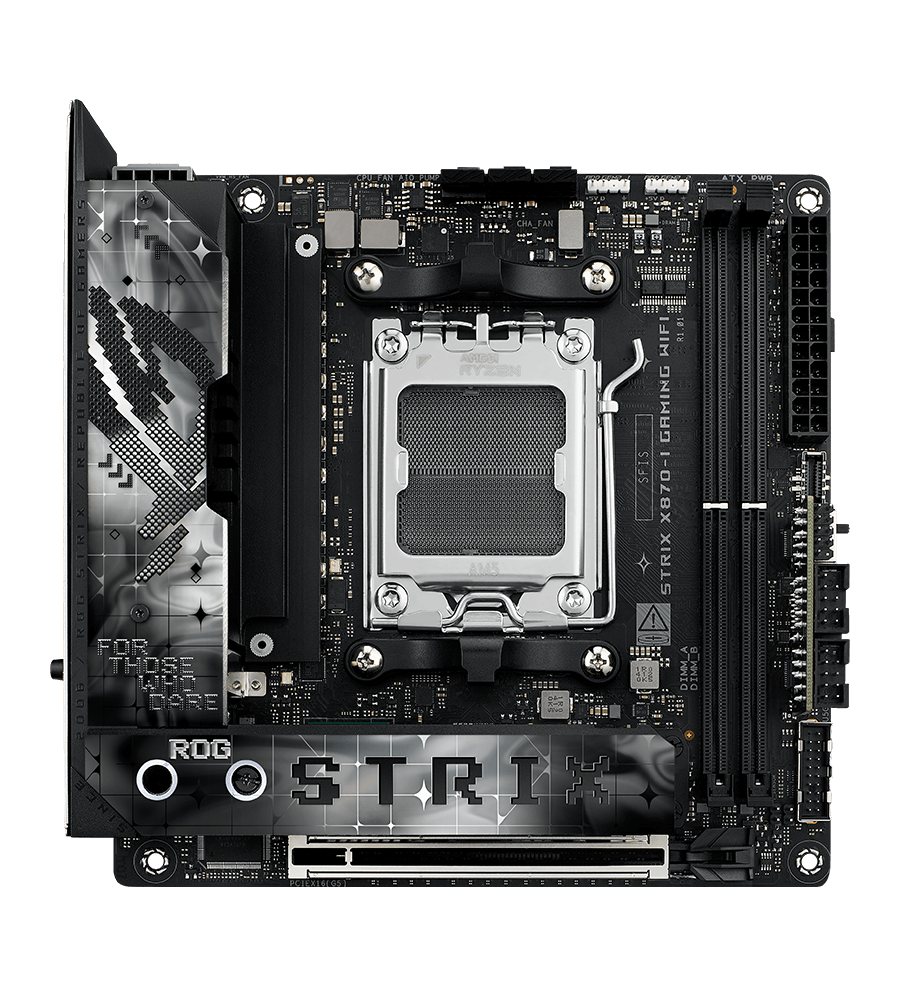

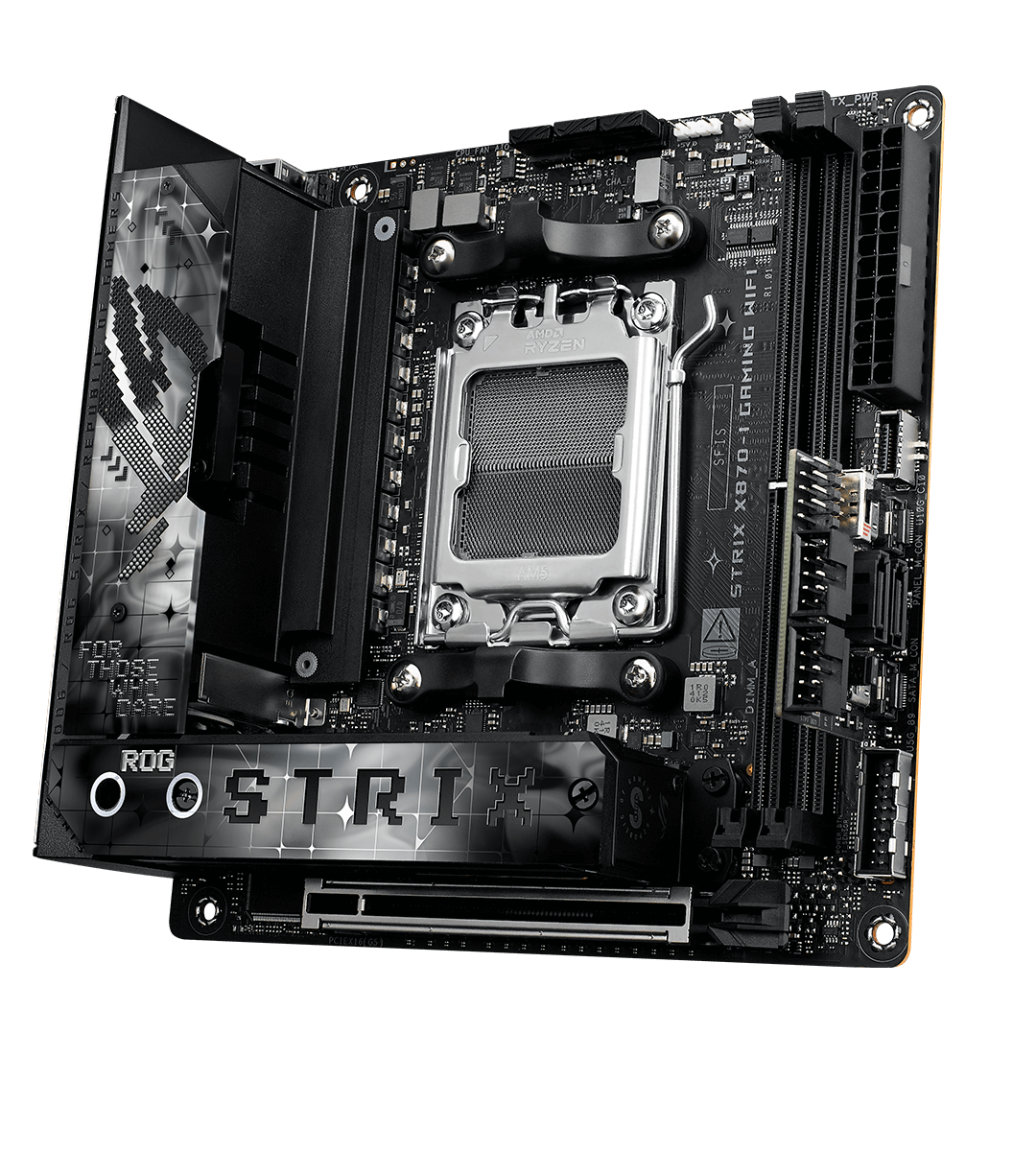

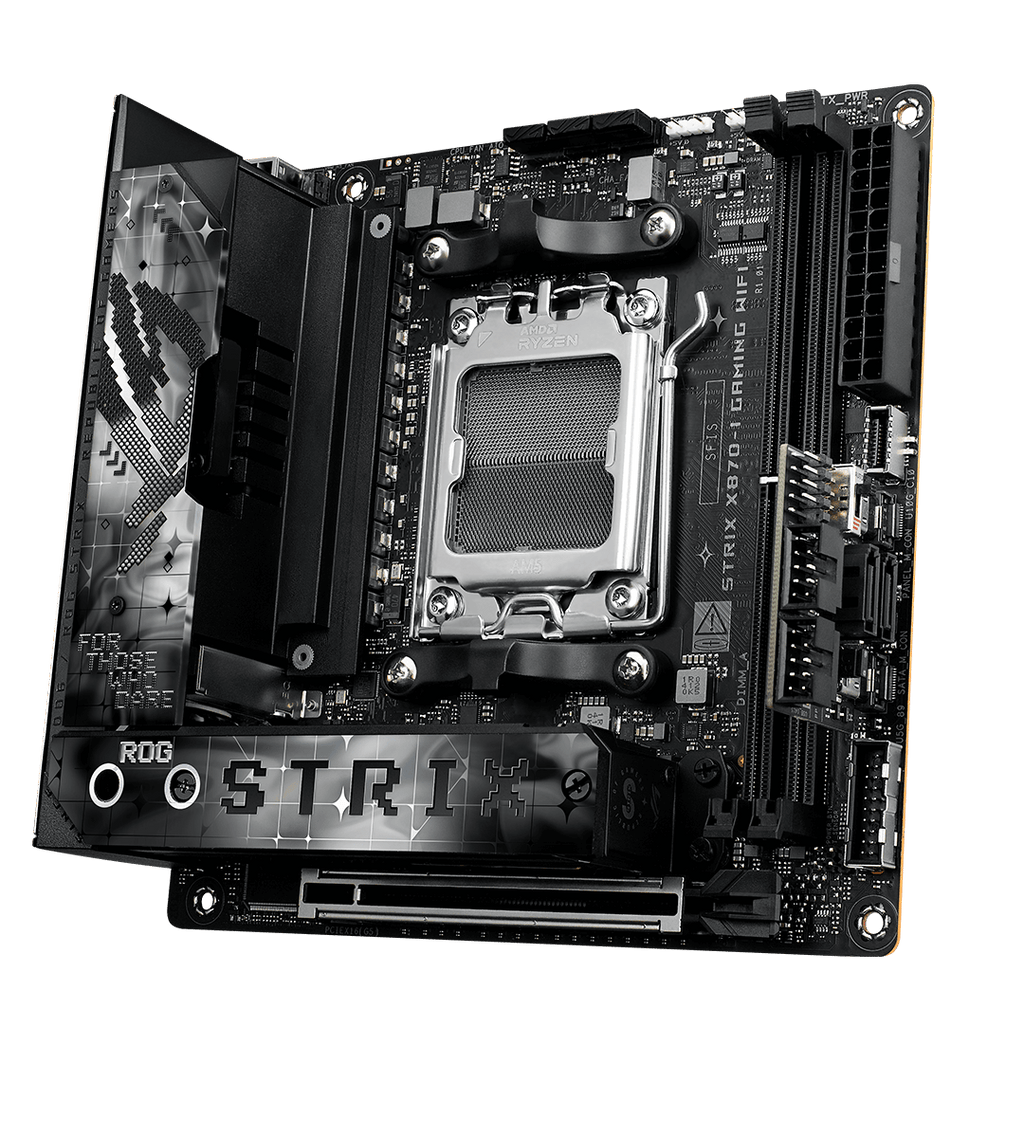

The ROG Strix X870-I features 10+2+1 power stages rated for 110 amps. The VRM features 10+2+1 power stages, each rated to handle up to 110 amps — 10 VCORE (110A), 2 SoC (110A), 1 MISC (80A).

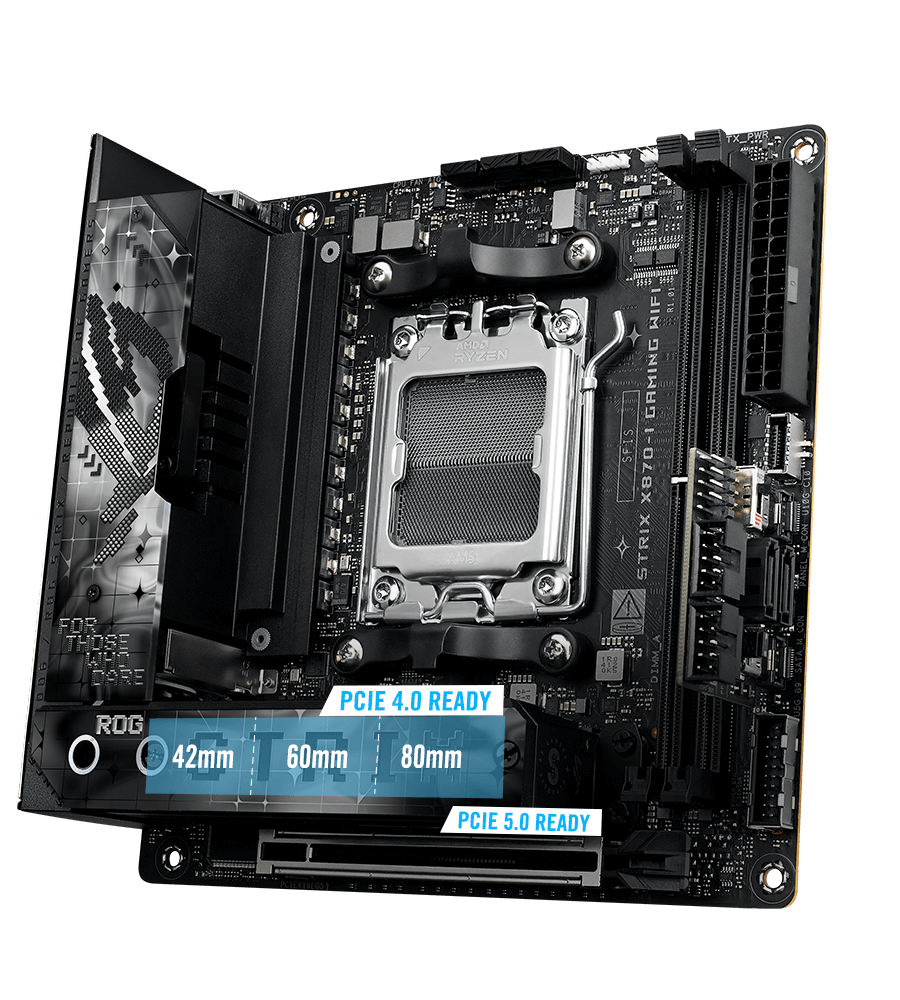

Fully embracing the new standard, the Strix X870-I offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards.
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
The DDR5 DOMINATION: The Strix X870-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. The Strix X870-I lets you overclock memory up to 8600+ MT/s. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

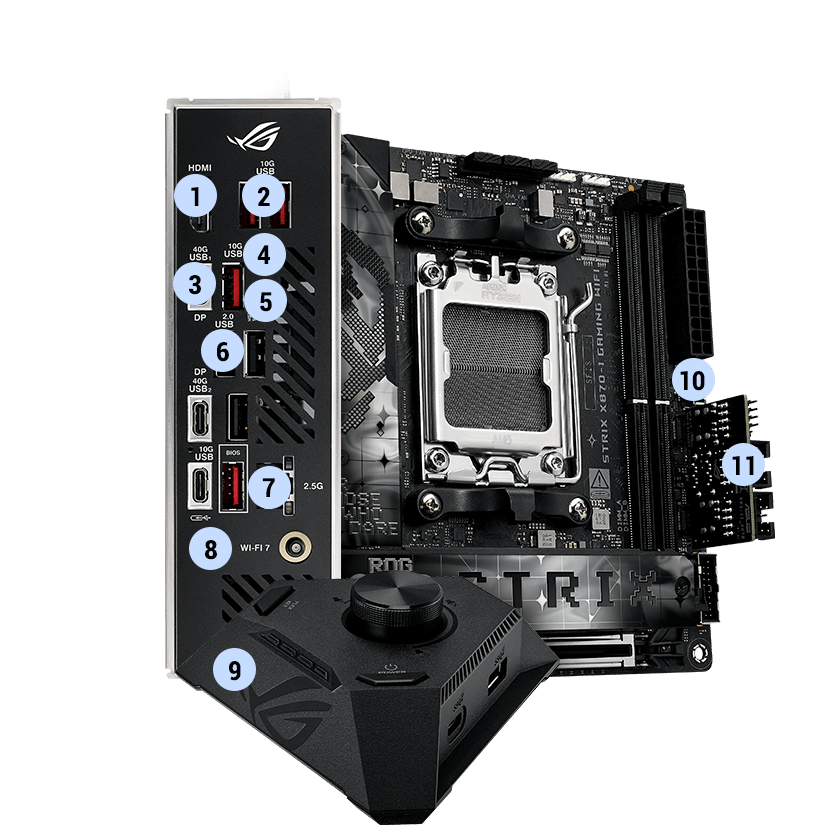

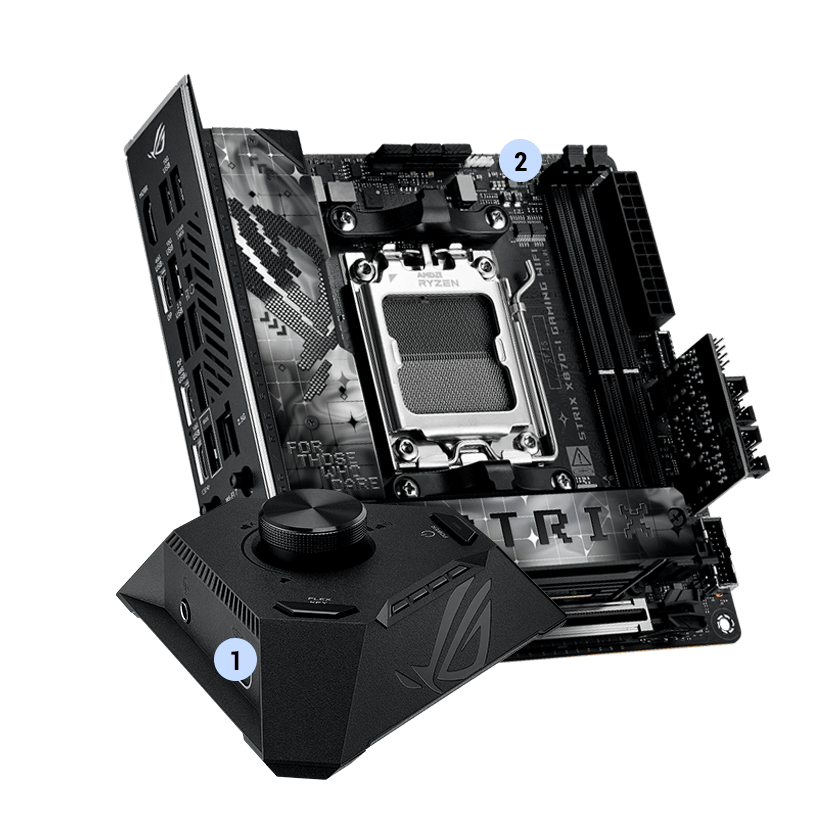

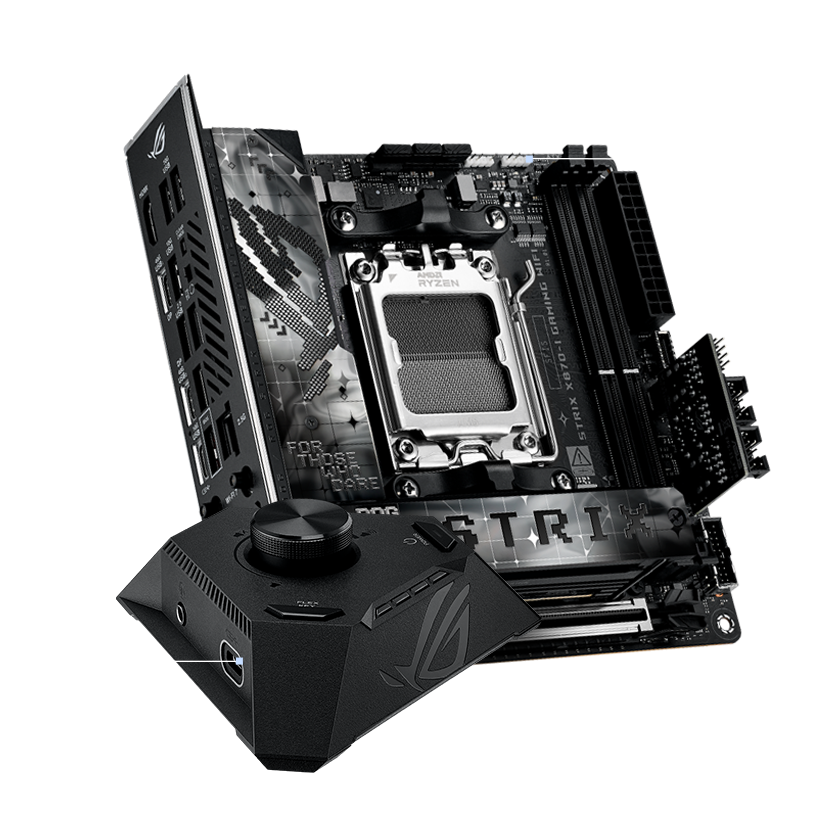

The included ROG Strix Hive II module keeps the 3.5mm audio jack and volume controls within easy reach alongside a 10 Gb/s USB-A port and diagnostic functions. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices.
General
| Brand | ASUS ROG |
|---|---|
| Chipset | AMD X870 |
| BIOS | 256 Mb Flash ROM, UEFI AMI; BIOS FlashBack and Clear CMOS buttons |
Networking
| WiFi Standard | WiFi 7 (802.11be) 2x2, 2.4/5/6 GHz, 320 MHz bandwidth, up to 6.5 Gbps |
|---|---|
| Ethernet | Intel 2.5 Gb Ethernet with LANGuard (10/100/1000/2500 Mbps) |
| Bluetooth | Bluetooth 5.4 |
| Antenna | ASUS WiFi Q-Antenna |
Performance
| CPU Socket | AMD Socket AM5 for Ryzen 9000, 8000, 7000 series |
|---|---|
| Memory Slots | 2 x DIMM DDR5; max. 128 GB; supports up to 8400+ MT/s (Ryzen 9000), 8600+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000); AMD EXPO and ASUS AEMP |
| Power Delivery | 10+2+1 power stages: 10 VCORE (110A), 2 SoC (110A), 1 MISC (80A); ProCool II 8-pin connector |
| PCIe Slot | 1 x PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 (Ryzen 8000, x8/x4 mode); SafeSlot with Q-Release Slim |
Ports & Storage
| M.2 NVMe | M.2_1: Type 2280, PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000); M.2_2: Type 2242/2260/2280, PCIe 4.0 x4 |
|---|---|
| SATA | 2 x SATA 6 Gb/s (via ROG FPS Card) |
| USB4 Ports | 2 x USB4 Type-C (40 Gbps each); support up to 8K display output or dual 4K via DisplayPort |
| Rear USB (Main) | 4 x USB 10 Gbps Type-A; 1 x USB 10 Gbps Type-C; 3 x USB 2.0 Type-A (10 ports total) |
| Front USB Headers | 1 x USB 10 Gbps Type-C connector; 1 x USB 5 Gbps header (2 additional ports) |
| Hive II Module USB | 1 x USB 10 Gbps Type-A; 1 x USB 10 Gbps Type-C |
| Video Output | 1 x HDMI; DisplayPort via USB4 Type-C (up to 8K or dual 4K) |
Audio & Cooling
| Audio | ROG Strix Hive II with ESS SABRE9260Q DAC, ROG Hyper-Grounding, silver-plated jacks, dedicated audio PCB layers, Dolby Atmos |
|---|---|
| Fan Headers | 1 x 4-pin CPU Fan; 1 x 4-pin AIO Pump; 1 x 4-pin Chassis Fan |
| RGB Headers | 2 x Addressable Gen 2 headers; Aura Sync support |
Physical
| Form Factor | Mini-ITX |
|---|---|
| Dimensions | 6.7" × 6.7" (170 × 170 mm) |
| Power Connectors | 1 x 24-pin Main Power; 1 x 8-pin +12V CPU (ProCool II) |
| Special Features | M.2 Q-Latch, M.2 heatsink, aluminum backplate, pre-mounted I/O shield, Q-LED diagnostics, AI Overclocking, AI Cooling II, AI Networking II |
| Warranty | 3 years |
