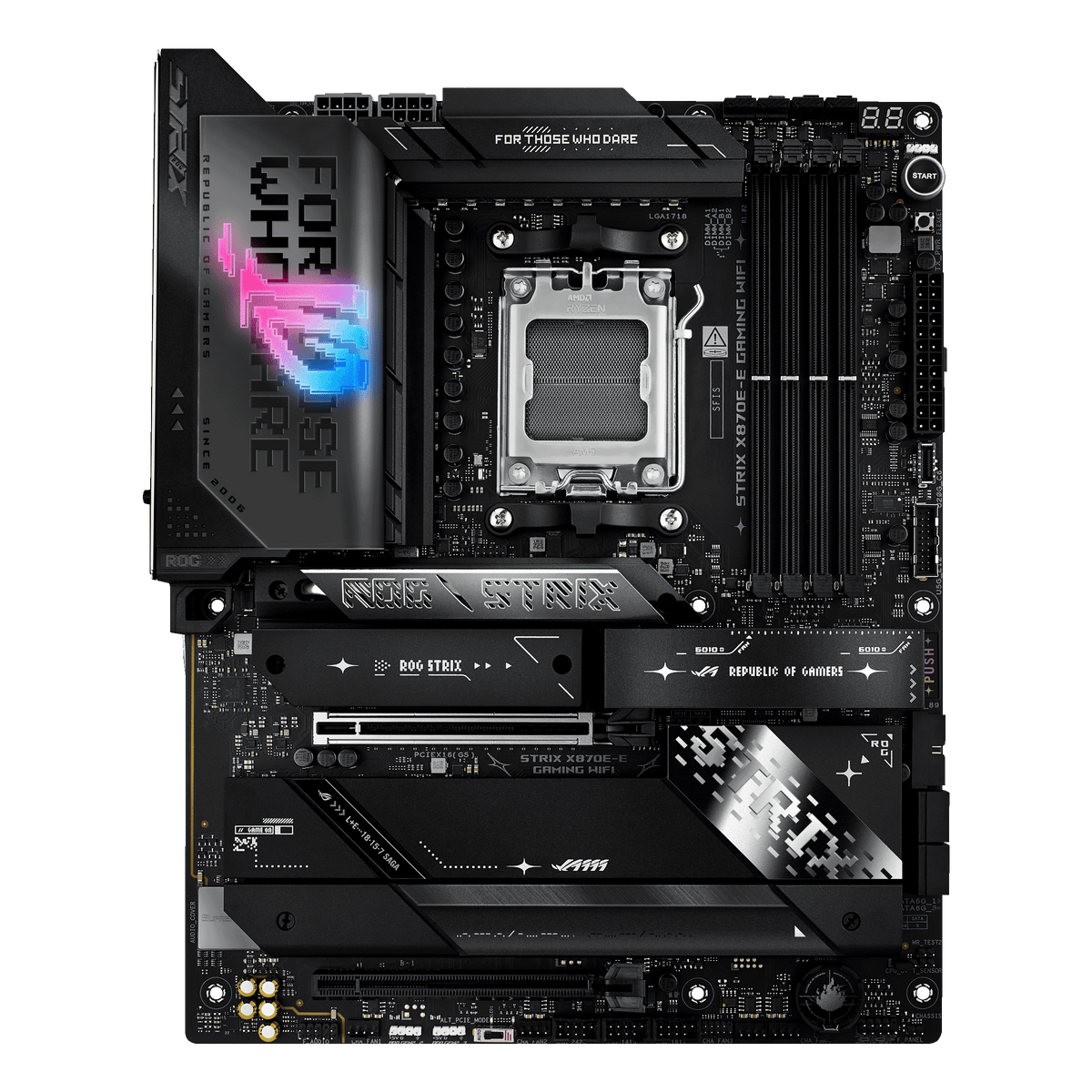

ASUS ROG Strix X870E-E Gaming WiFi AM5 Motherboard
ASUS ROG
ASUS ROG Strix X870E-E Gaming WiFi AM5 Motherboard
The ASUS ROG Strix X870E-E Gaming WiFi is a high-end AM5 motherboard built for enthusiasts who want to run AMD Ryzen 9000, 8000 or 7000 Series processors at their limits. It pairs a 18+2+2 power solution with end-to-end PCIe 5.0 storage support, dual USB4 ports and WiFi 7, making it well-suited to demanding gaming rigs and AI PC workloads that need fast networking and abundant connectivity.
Why this product

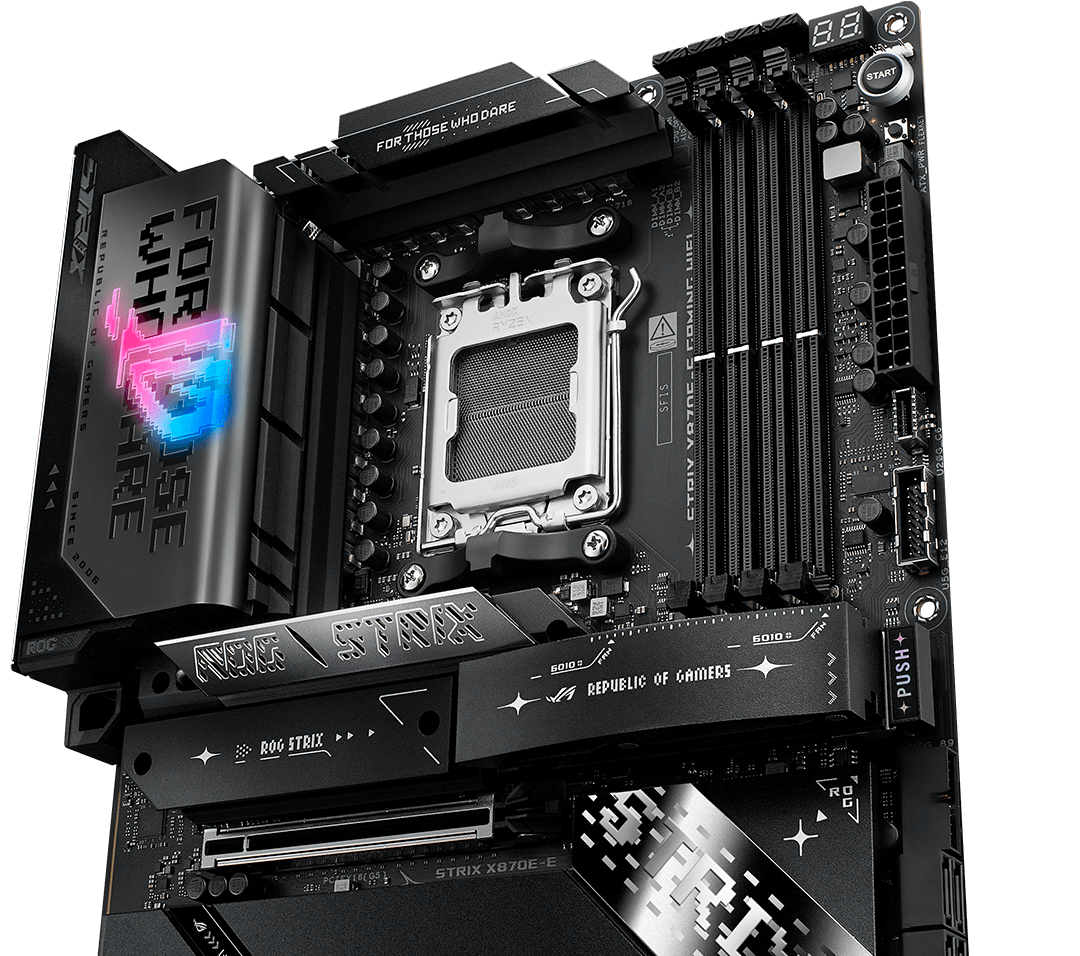

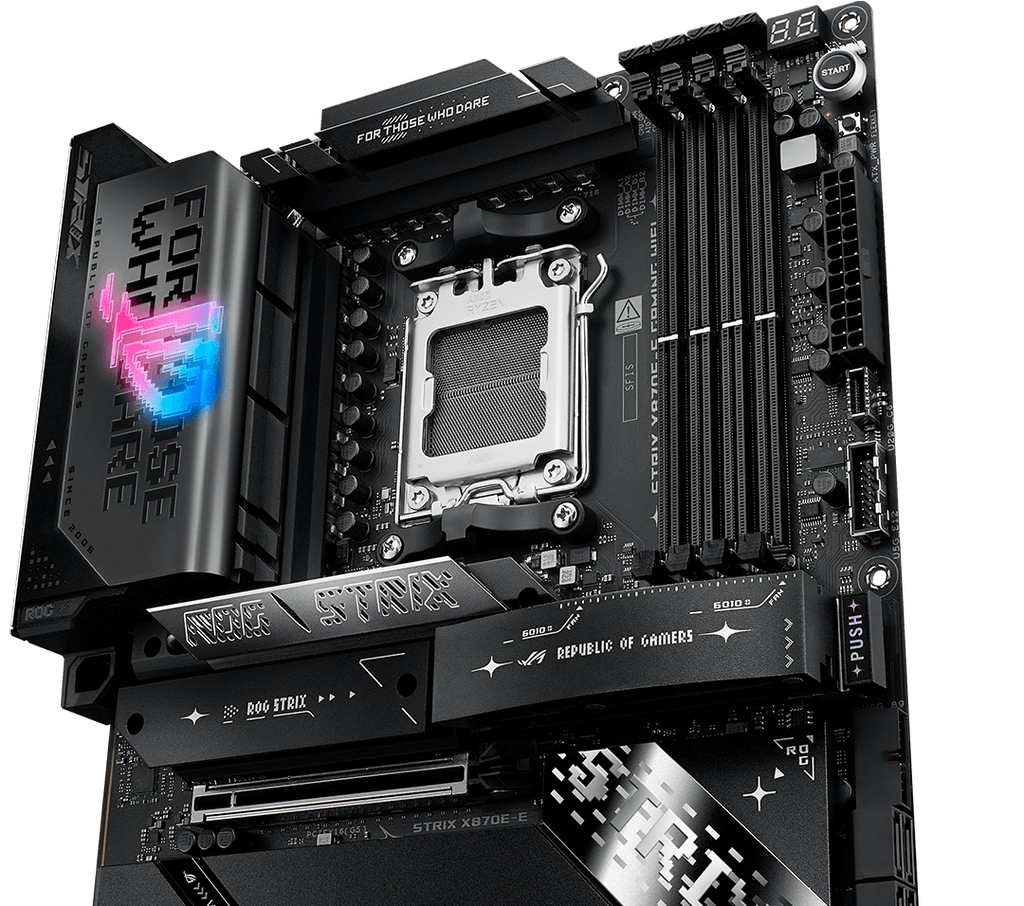

18+2+2 power stages at 110A each
Dual ProCool II connectors feed 18+2+2 power stages, each rated for 110A, giving multi-core processors a stable supply under sustained loads.

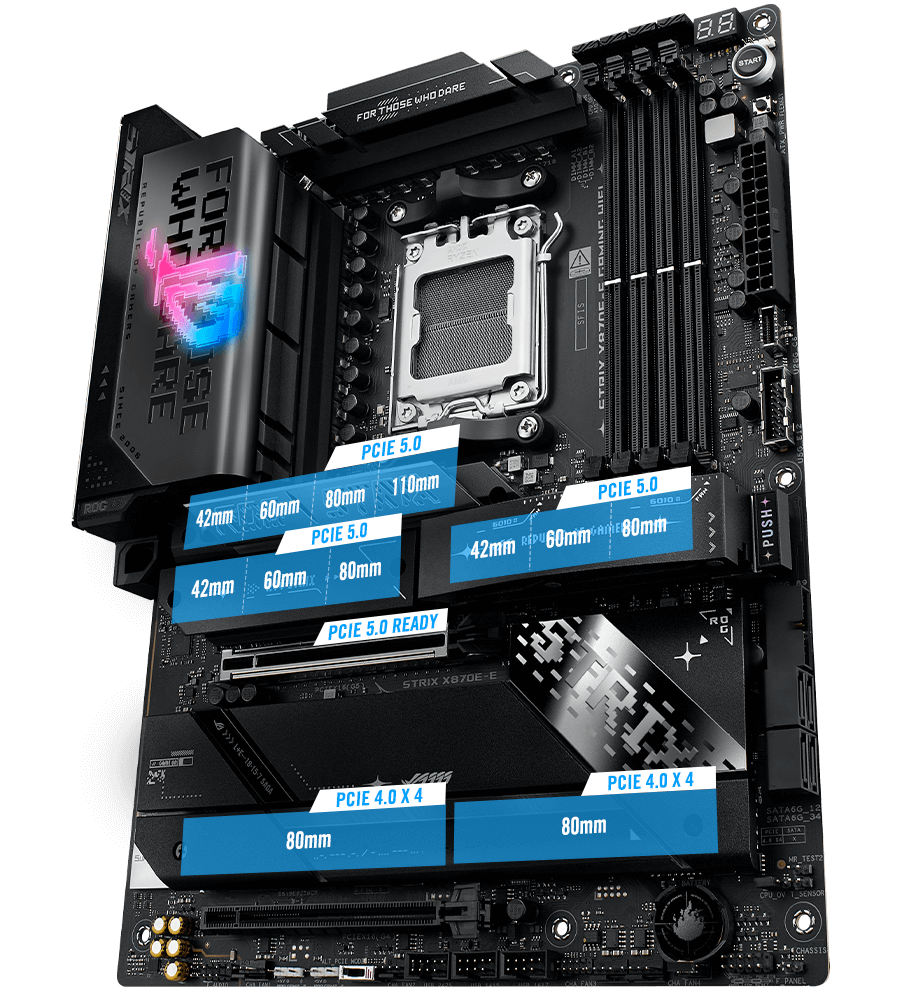

Three PCIe 5.0 M.2 slots onboard

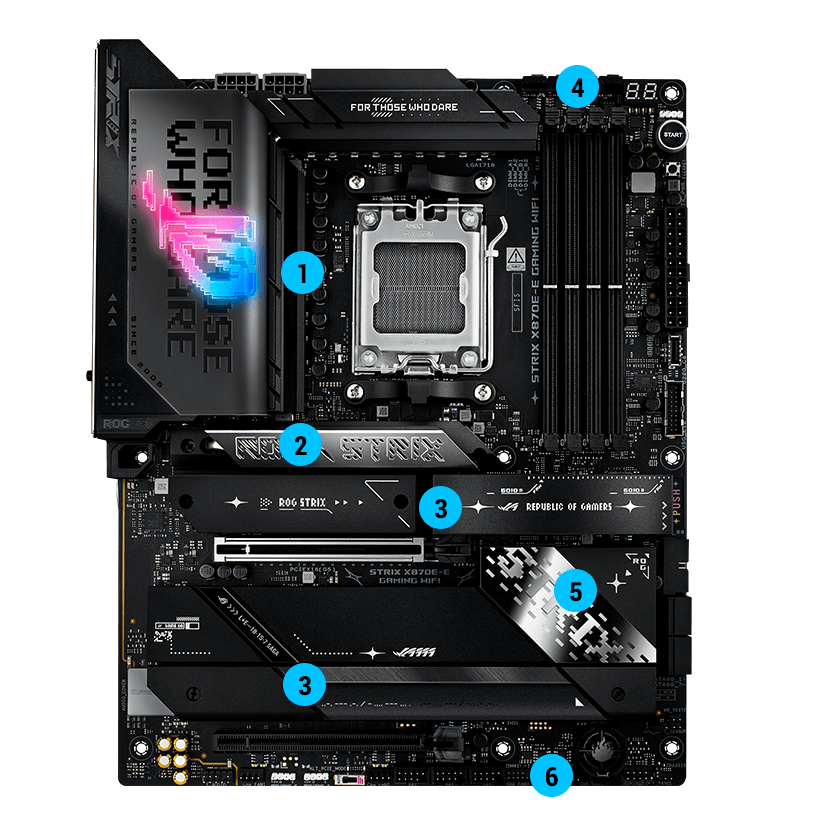

Three M.2_1/2/3 slots run PCIe 5.0 x4, with two additional PCIe 4.0 x4 M.2 slots, and all five come with dedicated cooling hardware.
WiFi 7 and Realtek 5Gb Ethernet
The integrated WiFi 7 (802.11be) adapter covers 2.4 GHz, 5 GHz and 6 GHz bands up to 6.5 Gbps, backed by a wired 5 Gb Ethernet port for low-latency connections.

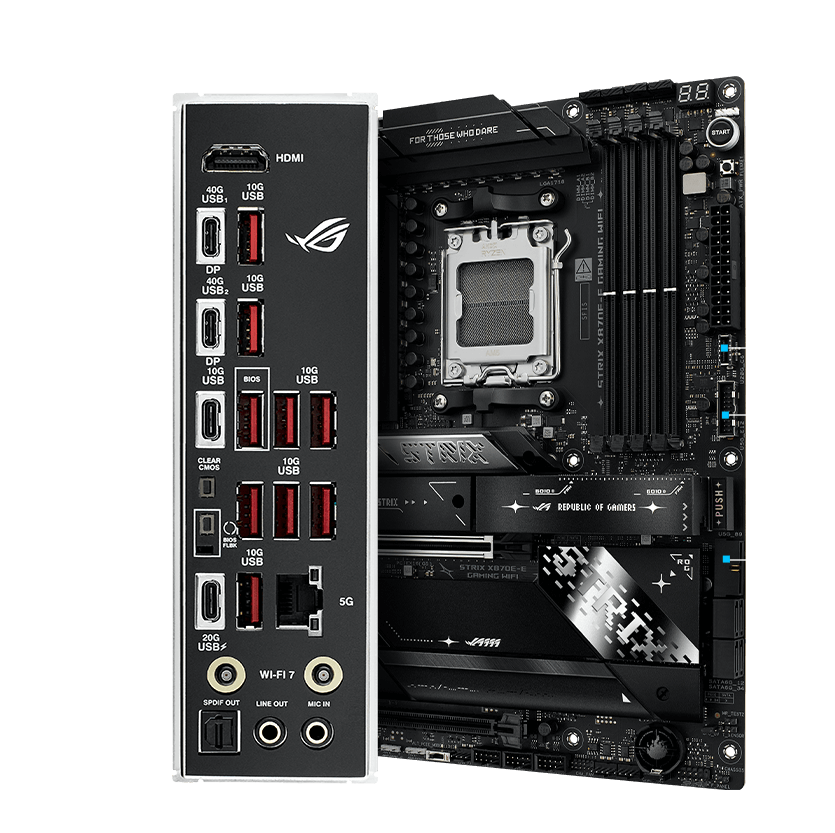

Dual USB4 Type-C ports at 40 Gbps
Two rear USB4 ports run at 40 Gbps and support USB Type-C display output, alongside a USB 20 Gbps Type-C port with up to 30 W Power Delivery.

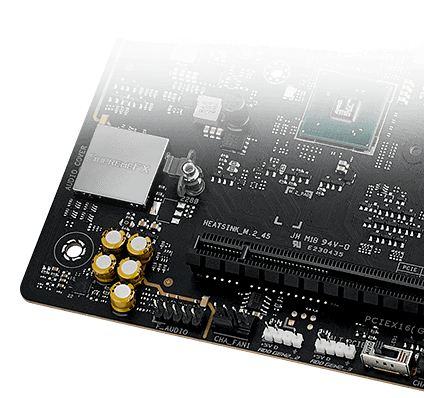

ROG SupremeFX ALC4080 audio
The onboard codec delivers 7.1 surround sound with 120 dB SNR playback, a Savitech SV3H712 amplifier and Dolby Atmos support via gold-plated and optical outputs.
DIY-friendly installation aids
Q-Release Slim, M.2 Q-Latch, M.2 Q-Slide, BIOS FlashBack, Q-Code display and a pre-mounted I/O shield reduce the effort of building and future upgrades.
- SocketAMD AM5
- ChipsetAMD X870E
- Form FactorATX
- Memory4 × DDR5 DIMM, max. 256 GB
- M.2 Slots5 (3 × PCIe 5.0 + 2 × PCIe 4.0)
- NetworkingWiFi 7 (802.11be) + Realtek 5Gb Ethernet
- USB4 Ports2 × USB4 40 Gbps Type-C (rear I/O)
- Power Stages18+2+2 at 110A per stage
- SKUASU-2670
- EAN4711387724163
- Fits AMD Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- ATX form factor (305 mm × 244 mm) fits standard ATX and full-tower chassis.
- Accepts DDR5 Un-buffered DIMMs (ECC and Non-ECC) in four slots, up to 256 GB total; supports AMD EXPO and ASUS AEMP profiles.
- Supports M.2 drives in 2242, 2260, 2280 and 22110 (M.2_3 only) form factors across the five onboard slots.
- The primary PCIe x16 slot runs at PCIe 5.0 x16 with Ryzen 9000 and 7000 processors, but drops to PCIe 4.0 x8/x4 mode with Ryzen 8000 processors.
- Maximum DDR5 overclock speed differs by CPU generation: up to 8400+ MT/s with Ryzen 8000 Series, up to 8000+ MT/s with Ryzen 9000 and 7000 Series.
Best for
- High-core-count CPU builds that need a robust power delivery — 18+2+2 stages at 110A each handle sustained multi-core workloads without throttling.
- Storage-heavy workloads where multiple fast drives are needed simultaneously — three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots and four SATA ports cover most configurations.
- Network-intensive use including game streaming, large file transfers or home lab setups that benefit from WiFi 7 and wired 5 Gb Ethernet running concurrently.
- Users who upgrade frequently and want tools like BIOS FlashBack, Q-Release Slim and Q-Code to reduce the friction of swapping components.
- AI PC and professional workloads that require fast USB4 peripheral bandwidth, high-speed networking and ample PCIe 5.0 lanes.
Trade-offs
- Compact or small-form-factor builds — the ATX footprint (305 mm × 244 mm) will not fit Mini-ITX or Micro-ATX cases.
- Intel platform users — the AM5 socket is exclusive to AMD Ryzen processors and is not compatible with any Intel CPU.
- DDR4 memory owners — only DDR5 Un-buffered DIMMs are supported; existing DDR4 kits cannot be reused.
- Budget-conscious builds where PCIe 5.0 storage and WiFi 7 are unnecessary — the X870E chipset and feature set carry a cost premium over entry-level AM5 boards.
The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

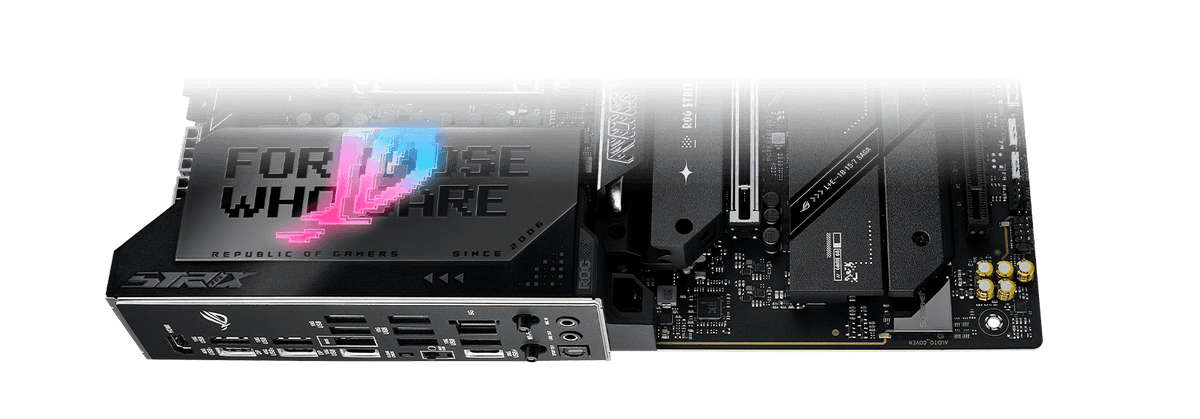

Fully embracing the new standard, the Strix X870E-E offers end-to-end PCIe 5.0 support. The Strix X870E-E motherboard features SupremeFX audio.
General
| Brand | ASUS ROG |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Compatible CPUs | AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Form Factor | ATX |
| Dimensions | 305 mm × 244 mm (12.0 in. × 9.6 in.) |
Networking
| Standard | WiFi 7 (802.11be) 2×2 |
|---|---|
| Frequency Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Throughput | Up to 6.5 Gbps (WiFi 7); 100/1000/2500/5000 Mbps (Ethernet) |
| WiFi Bandwidth | 320 MHz |
| Bluetooth | 5.4 |
| Ethernet | Realtek 5Gb (100/1000/2500/5000 Mbps) |
Performance
| Memory Slots | 4 × DDR5 DIMM |
|---|---|
| Max Memory | 256 GB |
| Memory Speed (OC) | Up to 8000+ MT/s (Ryzen 9000/7000); up to 8400+ MT/s (Ryzen 8000) |
| Memory Support | ECC & Non-ECC Un-buffered DDR5; AMD EXPO; ASUS AEMP; NitroPath DRAM |
| Power Solution | 18+2+2 stages, 110A per stage, dual ProCool II connectors |
| PCIe x16 Slot | PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8/x4 (Ryzen 8000) |
| Audio | ROG SupremeFX ALC4080, 7.1 surround, 120 dB SNR playback, Savitech SV3H712 AMP, Dolby Atmos |
Ports & power
| Ports | 2 × USB4 40 Gbps (Type-C); 1 × USB 20 Gbps Type-C (30W PD); 10 × USB 10 Gbps (9 × Type-A + 1 × Type-C); 1 × HDMI 2.1; 2 × audio jacks; 1 × optical S/PDIF out |
|---|---|
| M.2 Slots | 3 × PCIe 5.0 x4 (M.2_1/2/3); 2 × PCIe 4.0 x4 (M.2_4/5) |
| SATA Ports | 4 × SATA 6 Gb/s |
| Display Output | HDMI 2.1 (4K@60Hz); USB4 Type-C display output (up to 4K@60Hz, DisplayPort 1.4a) |
| BIOS FlashBack | Yes |
| Clear CMOS | Yes (rear I/O button) |
