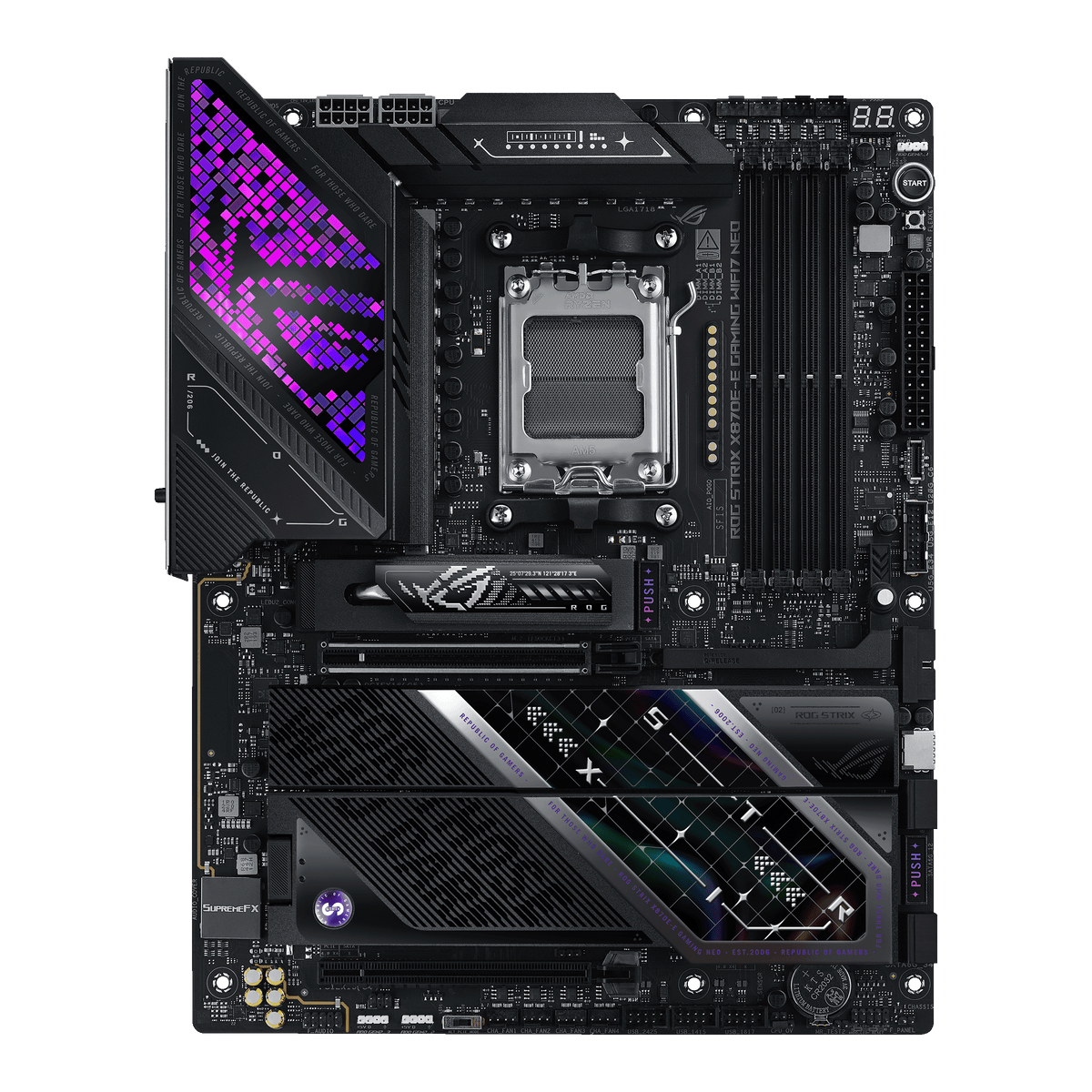

ASUS ROG Strix X870E-E Gaming WiFi7 Neo AM5 Motherboard
ASUS ROG
ASUS ROG Strix X870E-E Gaming WiFi7 Neo AM5 Motherboard
The ASUS ROG Strix X870E-E Gaming WiFi7 Neo is an ATX motherboard for AMD AM5 CPUs, built for gamers and content creators who need PCIe 5.0 support, multiple M.2 slots, WiFi 7 connectivity, and robust overclocking headroom. It pairs a 18+2+2 power delivery design with DDR5 memory support up to 256GB and AI-assisted tuning tools.
Why this product
PCIe 5.0 ready for GPU and NVMe
The top x16 slot runs Gen 5, backed by two PCIe 5.0 M.2 slots. Graphics cards and the latest storage drives see full bandwidth.
WiFi 7 with dual USB4 ports
MediaTek MT7927 WiFi 7 (320MHz bandwidth) runs alongside two USB4 ports at 40Gbps each, plus ten additional USB 10Gbps ports.
Five M.2 slots, five storage paths
Two PCIe 5.0 x4 slots, three PCIe 4.0 x4 slots, plus four SATA ports. Supports NVMe and mechanical drives across multiple expansion options.
18+2+2 power stages for stability
110A per stage on CPU rails, 80A on auxiliary. Eight-layer PCB with two-ounce copper planes supports sustained overclocking and power-hungry processors.
DDR5 up to 256GB, with AMD EXPO
Four DIMM slots accept up to 9600+ MT/s (OC) on Ryzen 8000 Series. NitroPath DRAM Technology and AEMP enhance signal integrity.
AI-assisted tuning for non-experts
AI Cache Boost, AI Overclocking, AI Cooling II and AI Networking II simplify performance tweaks. ASUS AI Advisor offers real-time guidance.
- ChipsetAMD X870E
- SocketAM5
- Form FactorATX
- Memory SupportDDR5 up to 256GB, 9600+ MT/s (OC)
- Storage Slots5 x M.2 + 4 x SATA
- PCIe Slots1 x PCIe 5.0 x16 + 1 x PCIe 4.0 x4
- WiFi StandardWiFi 7
- Rear USB Ports13 (including 2 x USB4)
- SKUASU-2669
- EAN4711636407946
- Fits AMD Ryzen 9000, 8000 and 7000 Series desktop processors in the AM5 socket.
- Accepts DDR5 DIMMs up to 256GB in four slots, supporting both ECC and non-ECC unbuffered modules.
- PCIe 5.0 x16 SafeSlot accommodates high-end graphics cards; retains cards mechanically with Q-Release bracket.
- Supports M.2 2242, 2260 and 2280 NVMe drives; also SATA SSDs and mechanical drives via four SATA ports.
- Second PCIe x16 slot runs at x4 mode and connects to the chipset, not the CPU—suitable for secondary cards but with reduced bandwidth.
- DisplayPort output requires USB Type-C adapters; no native DP connectors on the motherboard itself.
Best for
- High-end gaming builds needing GPU and NVMe bandwidth.
- Content creators using DDR5 workflows and requiring multiple storage paths.
- Overclockers leveraging AI tools and 18+2+2 power delivery for tuning.
- Users wanting future-proofing via PCIe 5.0 and WiFi 7 connectivity.
Trade-offs
- Budget builders—X870E is a premium chipset; lower-tier boards cost significantly less.
- Intel platform users; this is AMD-only and does not accept Intel processors.
- Those requiring built-in Thunderbolt 3/4 at 120Gbps—this board has USB4 at 40Gbps.
- Small-form-factor builds; ATX requires a standard or full-size case.

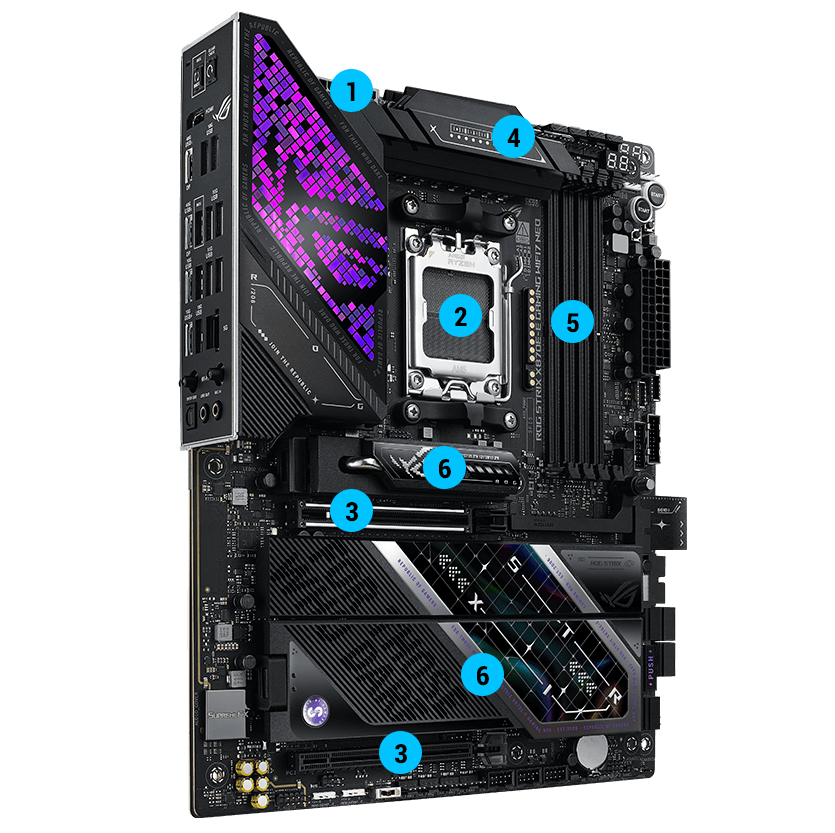

AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.

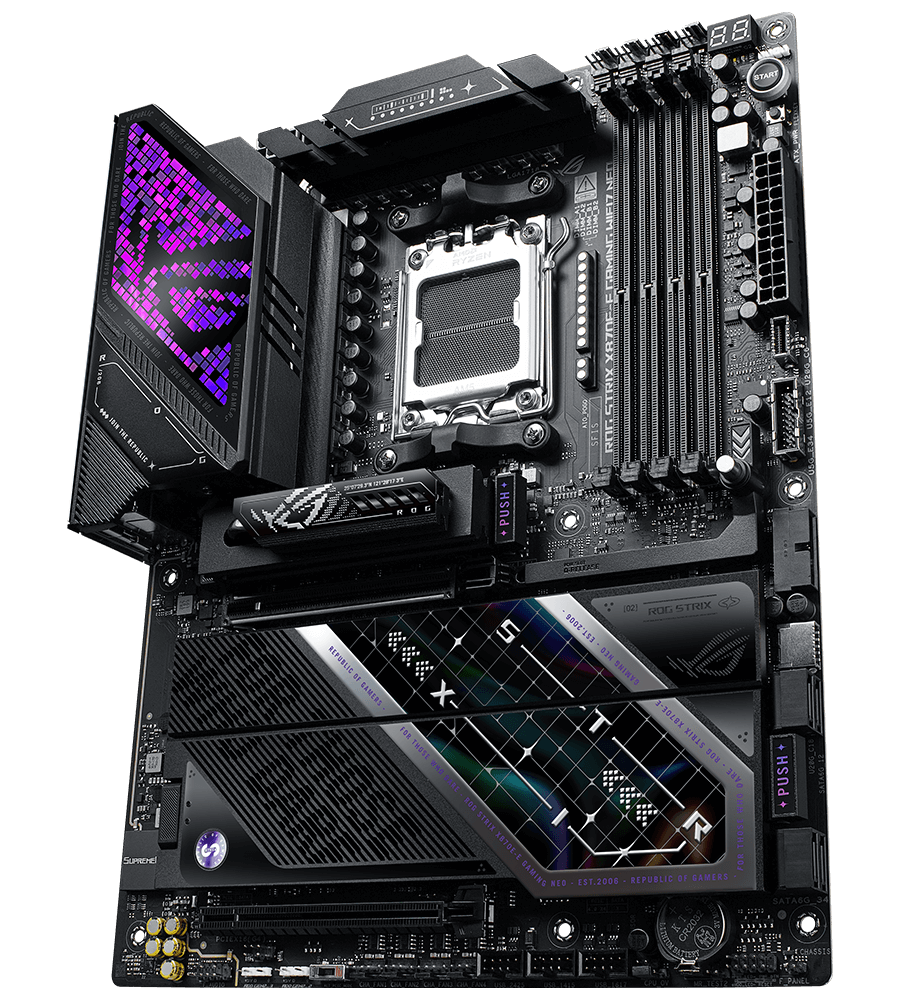

Fully embracing the new standard, the ROG Strix X870E-E Gaming WiFi7 Neo offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards.

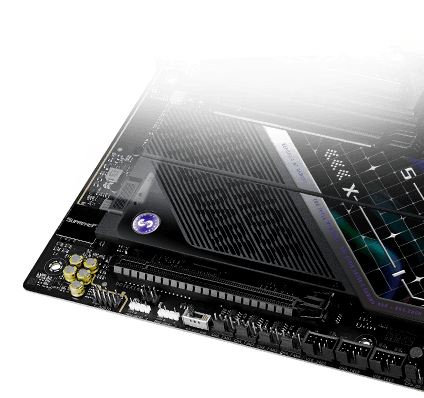

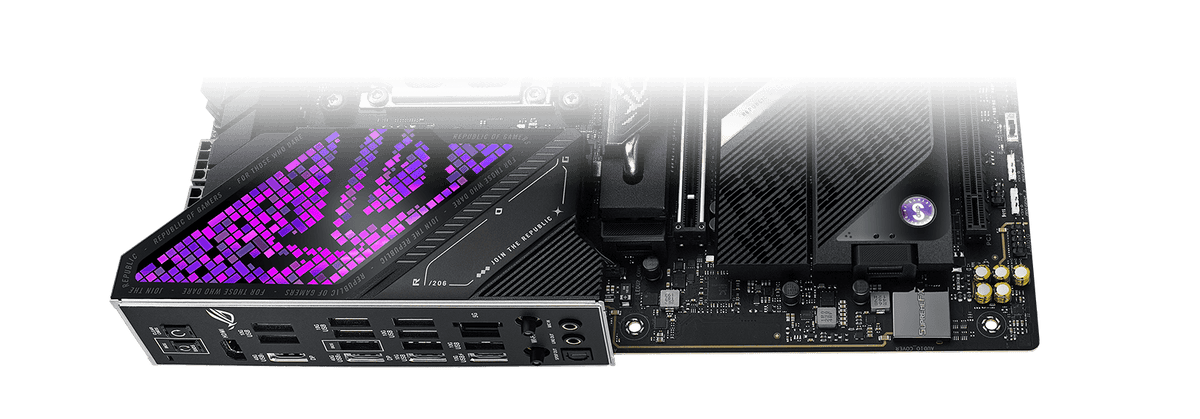

The ROG Strix X870E-E Gaming WiFi7 Neo features SupremeFX audio.
- Audio line shielding
- SAVITECH SV3H712 AMPLIFIER
- ALC4080 CODEC
- AUDIO COVER
- PREMIUM AUDIO CAPACITORS
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

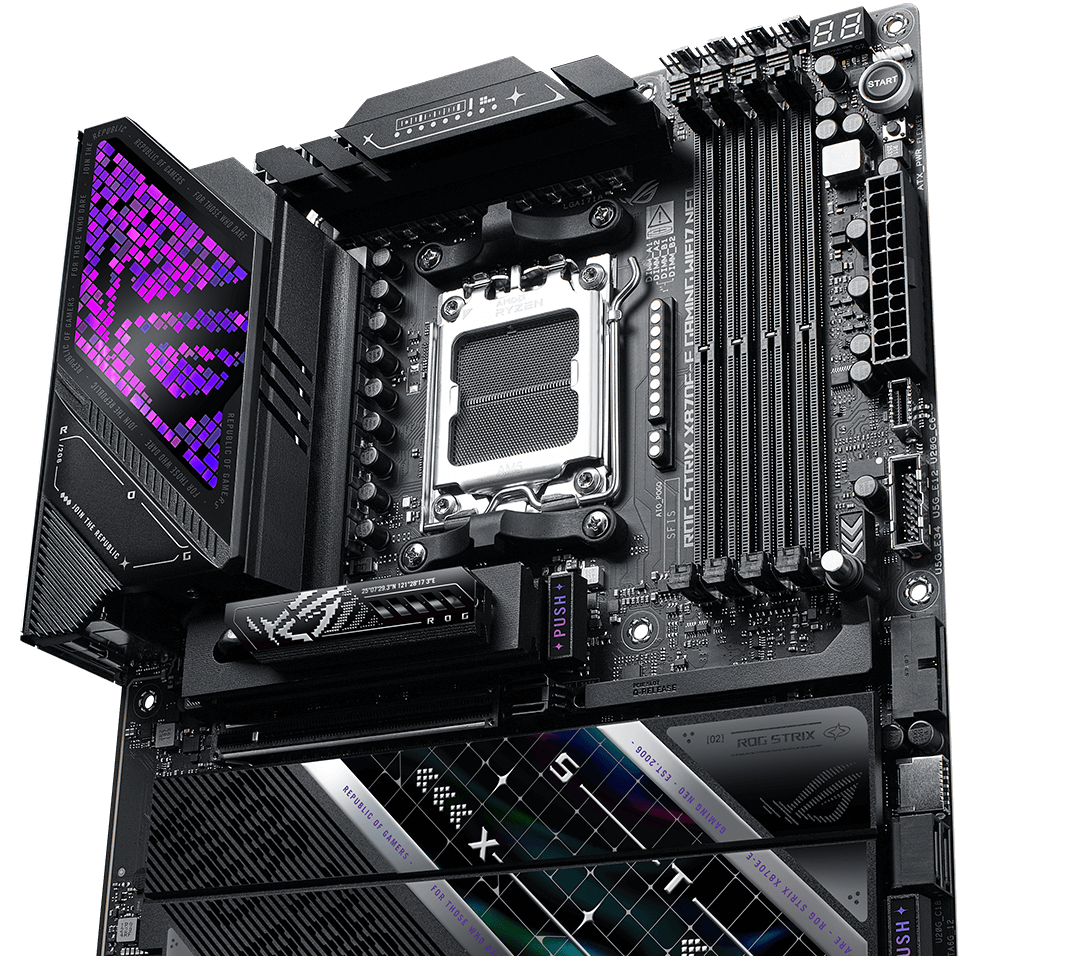

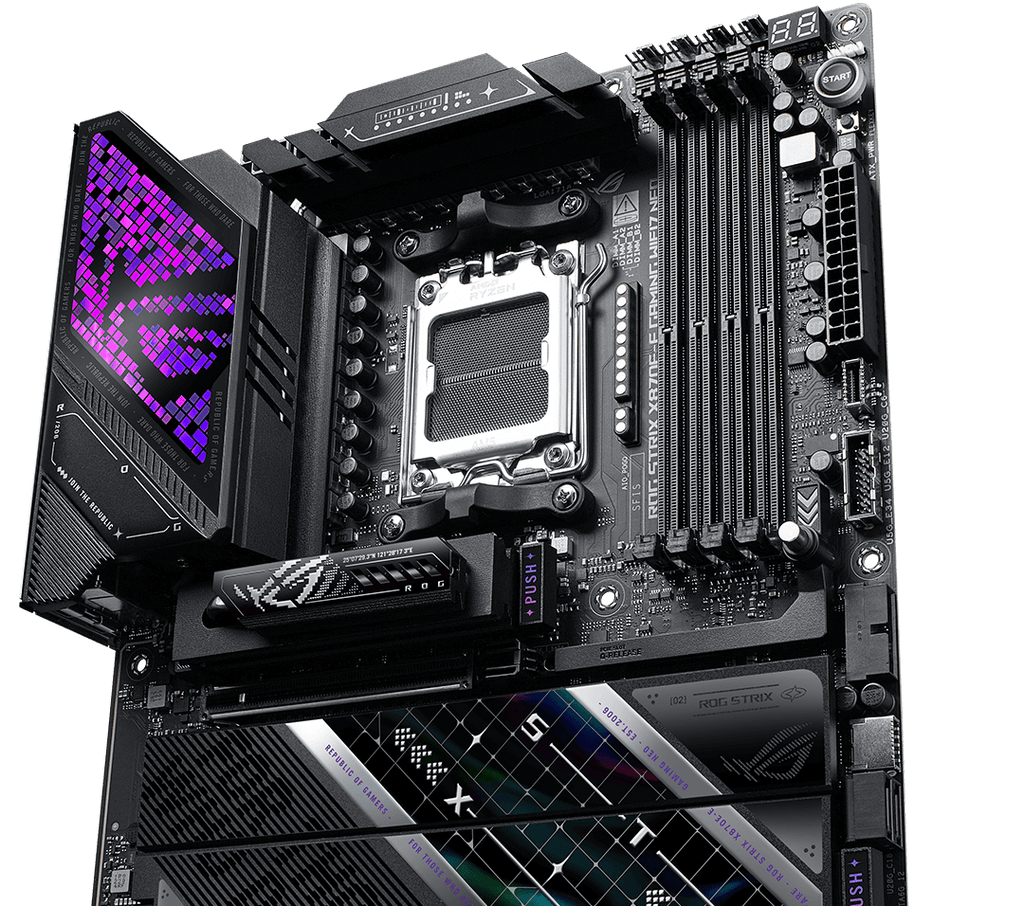

ROG STRIX ULTIMATE POWER DESIGN 18(110A)+2(110A)+2(80A) Power Stages
This motherboard helps ensure precise signal integrity and stable power delivery through a server-grade eight-layer design featuring two-ounce copper power planes.
General
| Brand | ASUS ROG |
|---|---|
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
Networking
| WiFi Standard | WiFi 7 (MediaTek MT7927, 2x2, 320MHz bandwidth) |
|---|---|
| Bluetooth | Bluetooth with LE Audio |
| Ethernet | 1 x Realtek RTL8126 5Gb Ethernet |
Performance
| Power Design | 18(110A) + 2(110A) + 2(80A) Power Stages |
|---|---|
| PCB Design | 8 layers, 2 oz. copper power planes |
| Memory | 4 x DIMM, max. 256GB DDR5, up to 9600+ MT/s (OC) |
| Memory Technology | NitroPath DRAM Technology, ASUS AEMP, AMD EXPO support |
| PCIe Support | PCIe 5.0 x16 (CPU), PCIe 4.0 x4 (Chipset) |

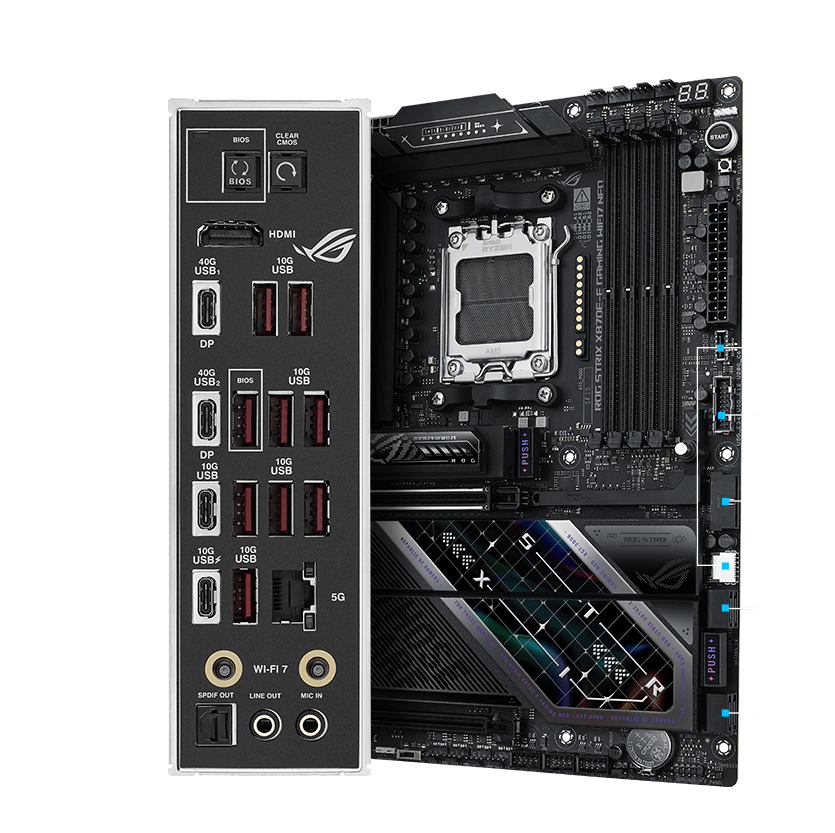

Ports & power
| M.2 Slots | 5 total: 2 x PCIe 5.0 x4 (M.2_1, M.2_2), 3 x PCIe 4.0 x4 (M.2_3-5) |
|---|---|
| SATA Ports | 4 x SATA 6Gb/s |
| USB4 Ports | 2 x USB4 (40Gbps), USB Type-C |
| USB 10Gbps Ports | 10 total: 9 x Type-A + 1 x Type-C (with up to 30W PD/PPS) |

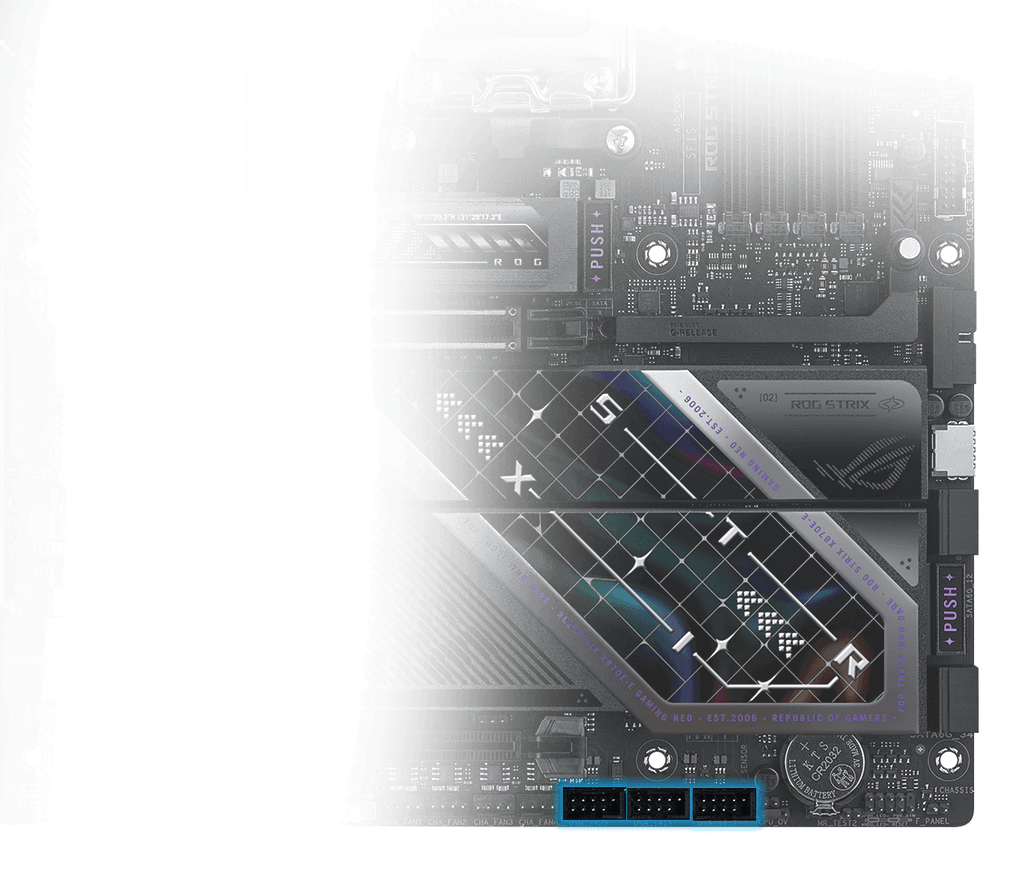

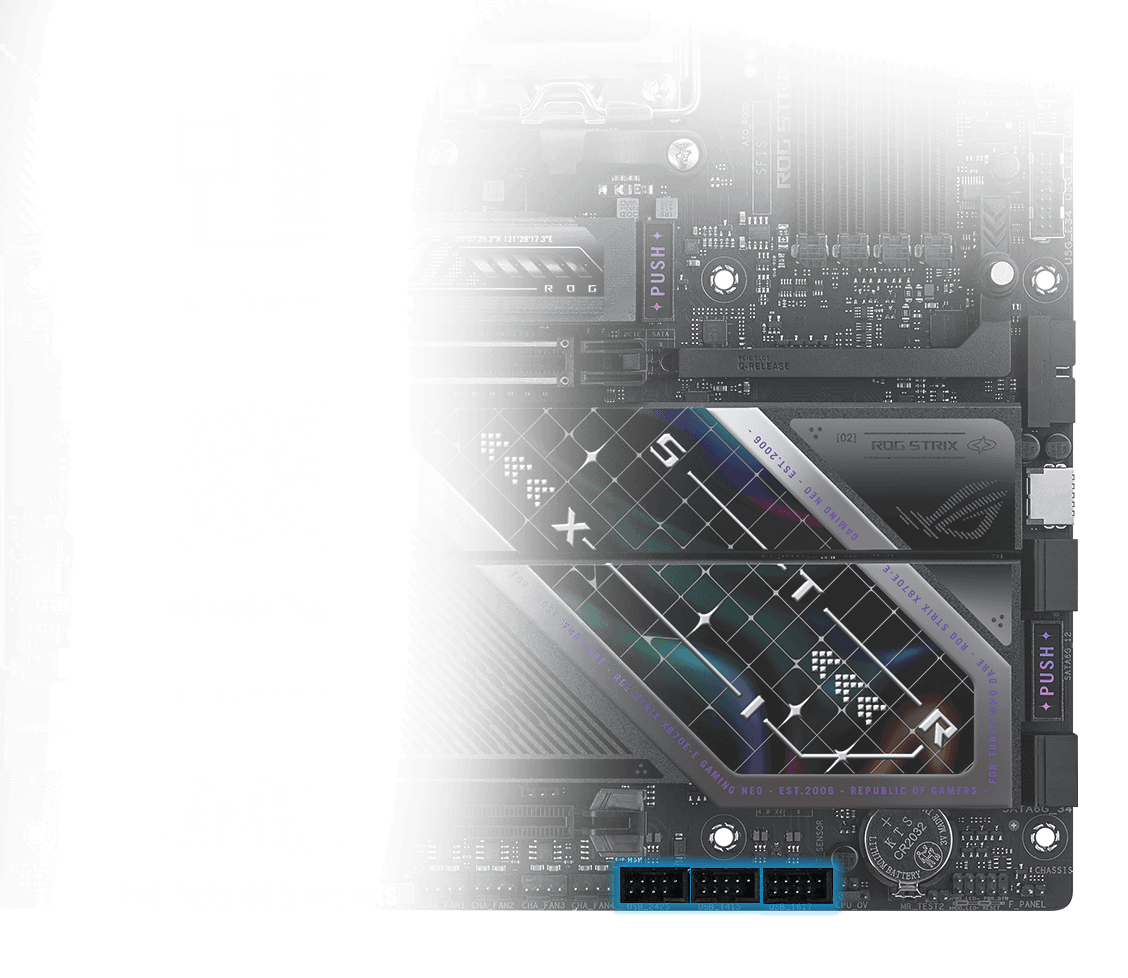

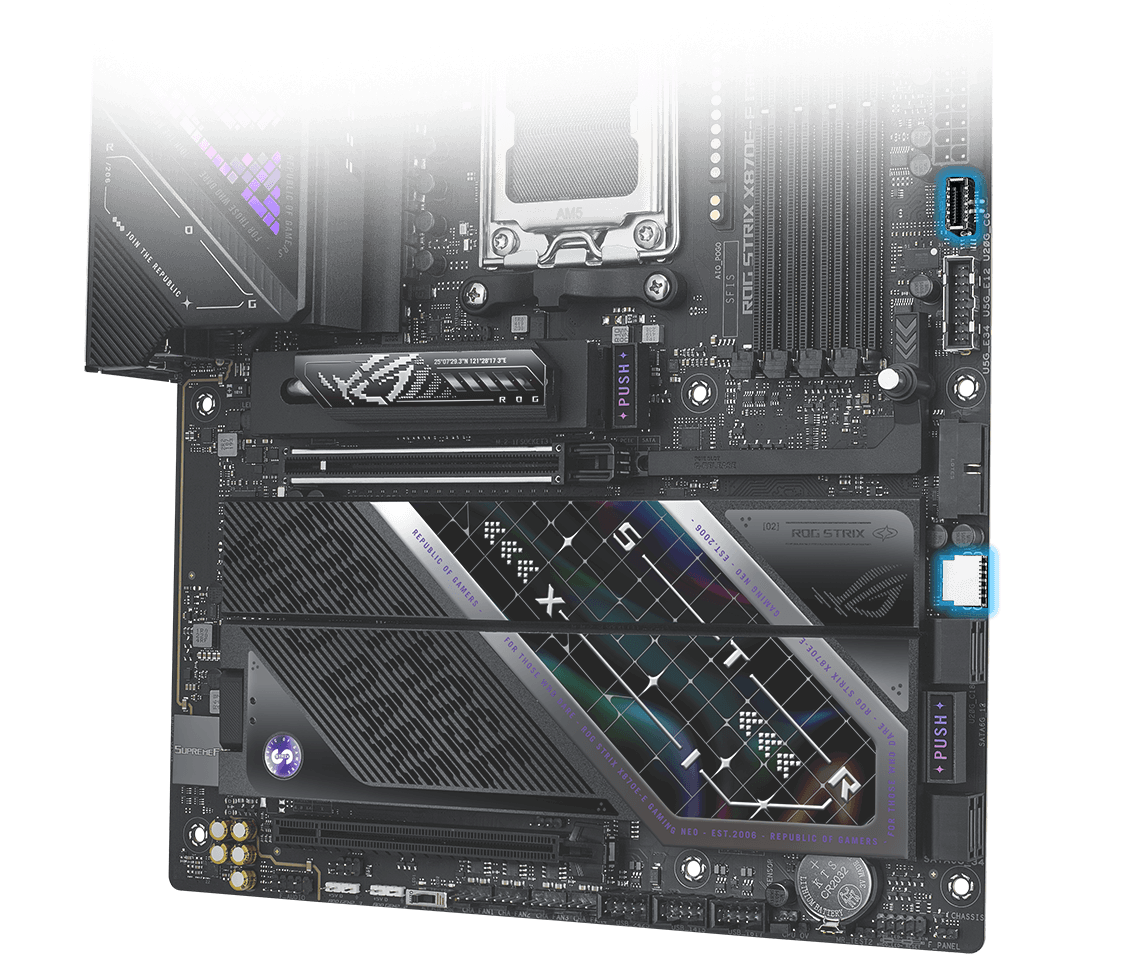

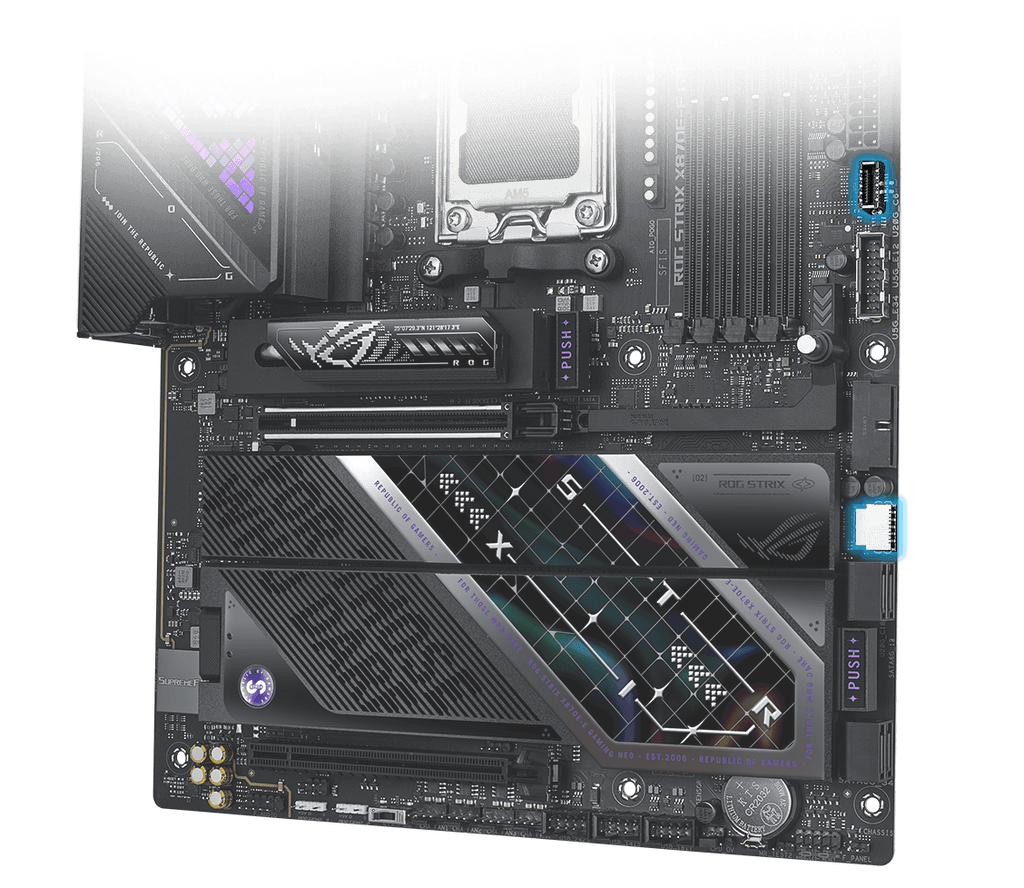

| USB Headers (Front Panel) | 2 x USB 20Gbps, 2 x USB 5Gbps, 3 x USB 2.0 |
| HDMI Output | 1 x HDMI |
| Audio Jacks | 2 x Gold-plated |
| Audio Output | Optical S/PDIF out port |

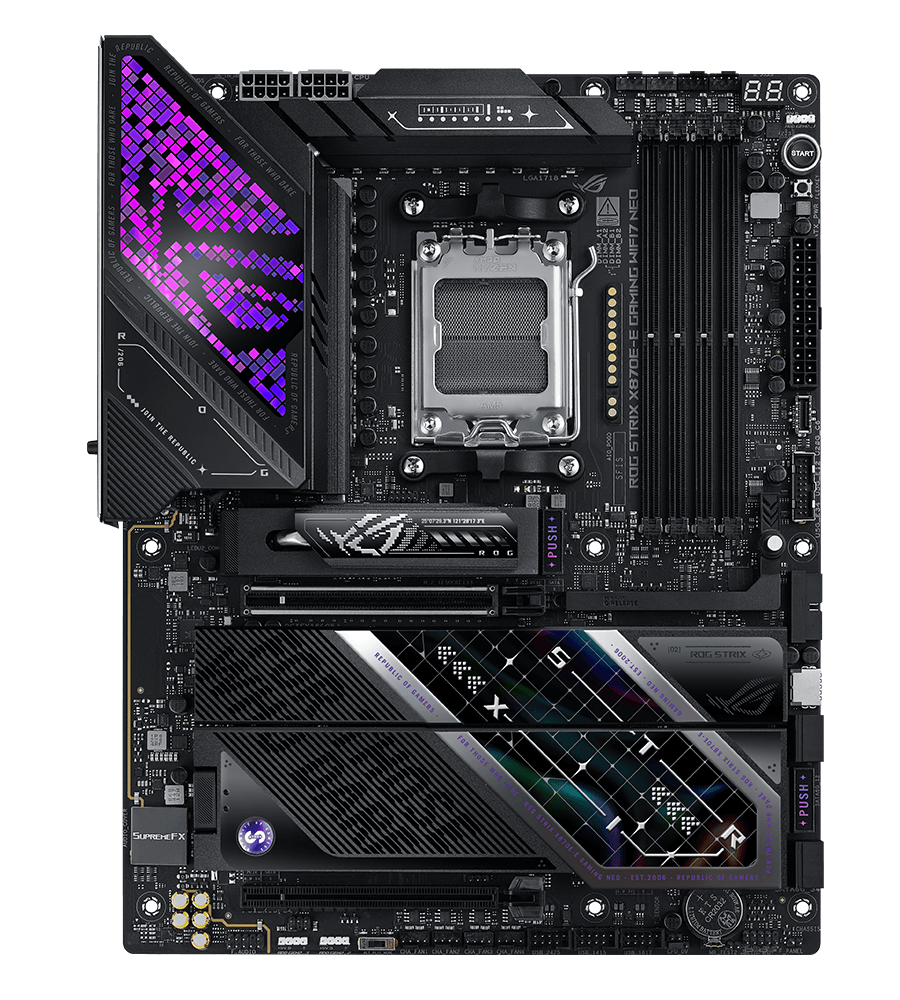

| Fan Headers | 1 x CPU, 1 x CPU OPT, 1 x AIO Pump, 5 x Chassis |
| RGB Headers | 3 x 3-pin Addressable Gen 2 RGB |
Audio
| Audio Codec | Realtek ALC4080 |
|---|---|
| Amplifier | Savitech SV3H712 |
| Surround Sound | ROG SupremeFX 7.1 |
| SNR Playback | 120 dB |
| SNR Recording | 110 dB |
| Max. Sample Rate | 32-Bit/384 kHz |
Physical
| Form Factor | ATX |
|---|---|
| Dimensions | 12.0 × 9.6 in. / 30.5 × 24.4 cm |
| BIOS Chip | 64MB (512Mb) Flash ROM, UEFI AMI |
| Part Number | 90MB1P20-M0VAY0 |
