ASUS ROG Thor 1000W Platinum III PSU - ATX 3.1, GaN MOSFET
ASUS ROG
ASUS ROG Thor 1000W Platinum III PSU - ATX 3.1, GaN MOSFET

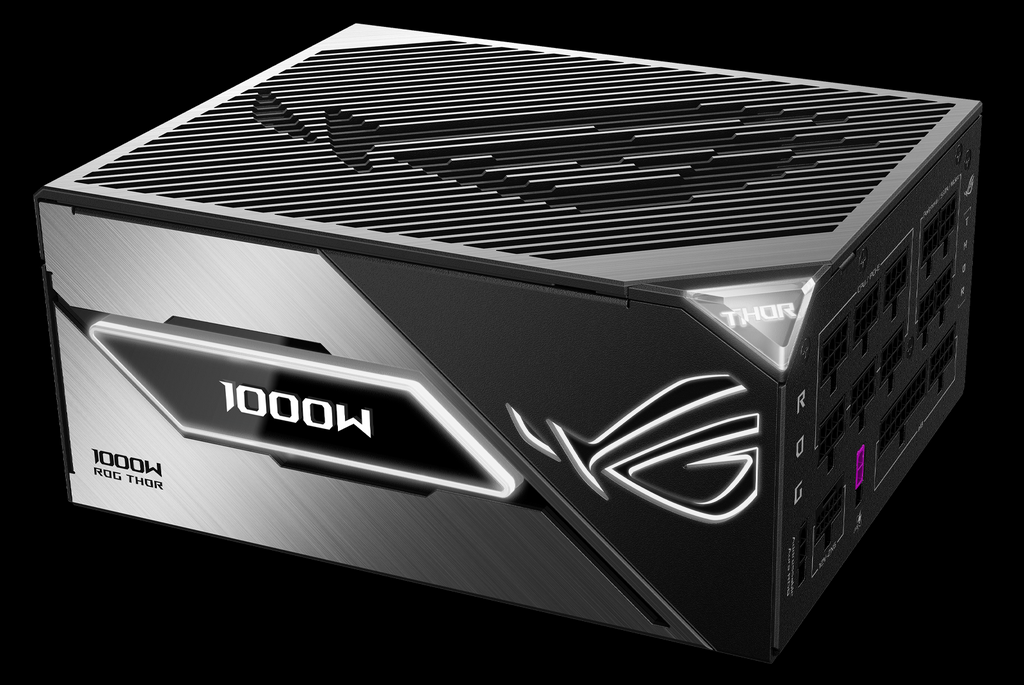

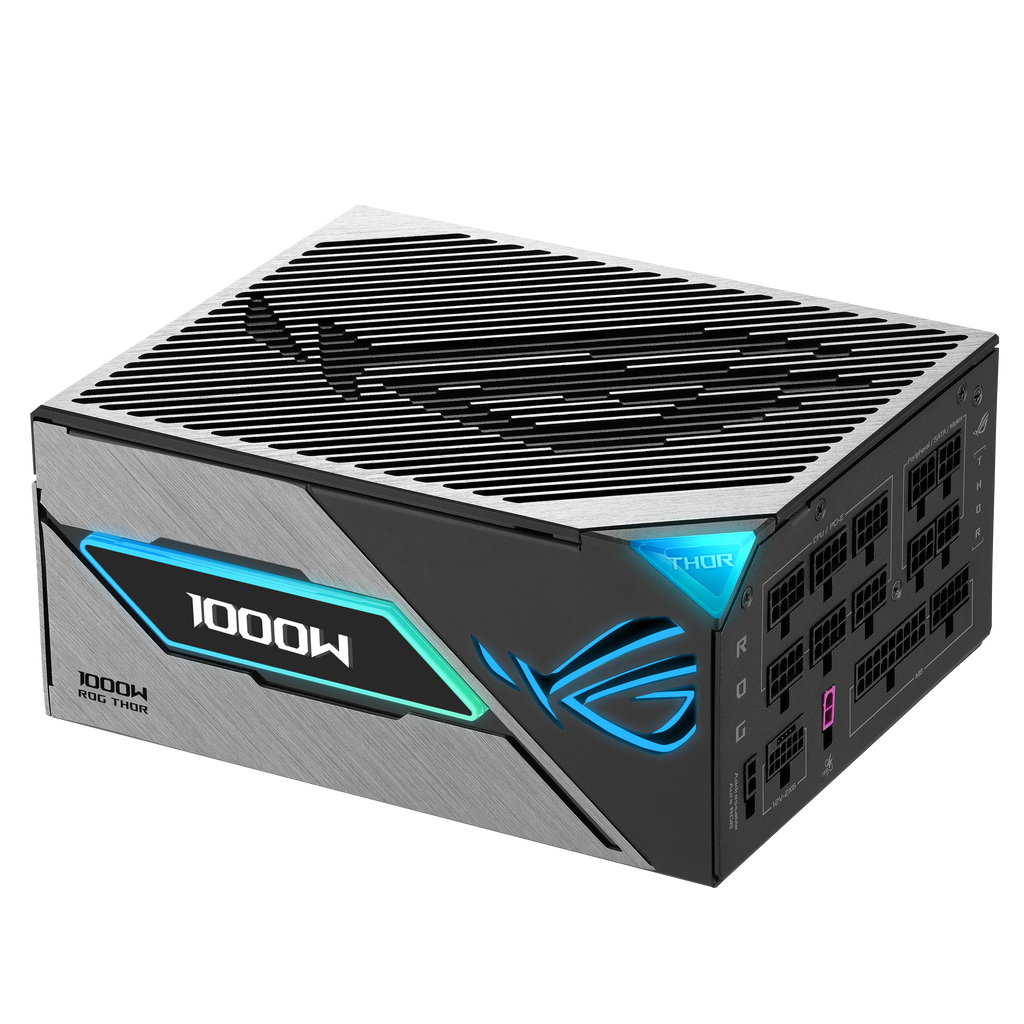

The ASUS ROG Thor 1000W Platinum III PSU is a high-output ATX 3.1 power supply built for enthusiast and high-performance PC builders who need rock-solid voltage stability under heavy, sustained loads. It combines GaN MOSFET technology, a patented "GPU-First" intelligent voltage stabilizer, and a magnetic OLED display showing real-time power draw, making it a well-instrumented choice for demanding builds centred on the latest graphics cards.
Why this product
GaN MOSFET for greater power efficiency
GaN MOSFET technology delivers up to 30% more power efficiency than standard MOSFETs and enables a more organised internal layout that supports cooler operation.
GPU-First voltage stabilizer
A patented intelligent voltage stabilizer prioritises the graphics card rail, enhancing voltage delivery to the GPU by up to 45% for more stable performance during demanding workloads.
Magnetic OLED display
A repositionable magnetic OLED panel shows real-time power draw and can be moved to either side of the unit to suit fan-up or fan-down PSU orientations.
ATX 3.1 and PCIe 5.1 compatible
Full ATX 3.1 compliance ensures tighter voltage and current regulation for next-generation hardware, and a bundled 16-pin PCIe cable supports up to 600W delivery to PCIe 5.1 graphics cards.
Dual certifications: 80 PLUS and Cybenetics Platinum
It holds both 80 PLUS Platinum and Cybenetics Platinum ratings, plus Lambda A++ certification for noise levels certified below 15 dB.
10-year warranty included
A 10-year warranty is included, reflecting confidence in the dual-ball-bearing fan and fully aluminium enclosure built to last.
- Total Output1000W
- ATX StandardATX 3.1
- Efficiency Rating80 PLUS Platinum / Cybenetics Platinum
- Noise CertificationLambda A++ (below 15 dB)
- ModularFully modular
- Warranty10 Years
- Dimensions190 × 150 × 86 mm
- MTBF>120,000 hrs @ 25°C
- SKUASU-2286
- EAN4711387610596
- Fully compliant with the ATX 3.1 standard for enhanced voltage and current regulation.
- Compatible with PCIe 5.1 graphics cards; a 16-pin PCIe cable capable of delivering up to 600W is included.
- Confirmed compatible with GeForce RTX 50 and Radeon RX 9000 series graphics cards.
- Accepts a wide AC input range of 100–240 V, making it suitable for use in most regions worldwide.
- The OLED display is magnetic and repositionable, but physical clearance inside the case should be verified before choosing fan-up or fan-down orientation.
- Not a SFX or SFX-L form factor unit; dimensions are 190 × 150 × 86 mm, so it will not fit cases designed only for small-form-factor PSUs.
Best for
- High-end gaming builds running the latest GeForce RTX 50 or Radeon RX 9000 series GPUs that need stable, prioritised voltage delivery under sustained load.
- Builders who value instrumentation — the real-time OLED power draw display helps monitor system consumption without third-party software.
- Quiet computing environments where noise matters — Lambda A++ certification confirms noise levels below 15 dB.
- Long-term builds where the 10-year warranty and dual-ball-bearing fan longevity (rated up to twice the lifespan of sleeve bearing designs) reduce the risk of having to replace the PSU mid-cycle.
- Modular cable routing is aided by etched, pliable modular cables designed to lie flat and simplify cable management.
Trade-offs
- Small-form-factor builds — at 190 × 150 × 86 mm this is a full-size ATX PSU and will not fit SFX or SFX-L cases.
- Budget-conscious builders who do not need features like GaN MOSFETs, an OLED display, or the GPU-First voltage stabilizer and would be better served by a simpler certified unit.
- Workloads requiring more than 1000W total output — the combined +12V rail is rated at 1000W and cannot be exceeded.
- Older non-modular PSU chassis builds — this is a fully modular unit and requires a compatible ATX case that can accommodate its cable connectors and 190 mm depth.
Featuring a GaN MOSFET, "GPU-First" patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

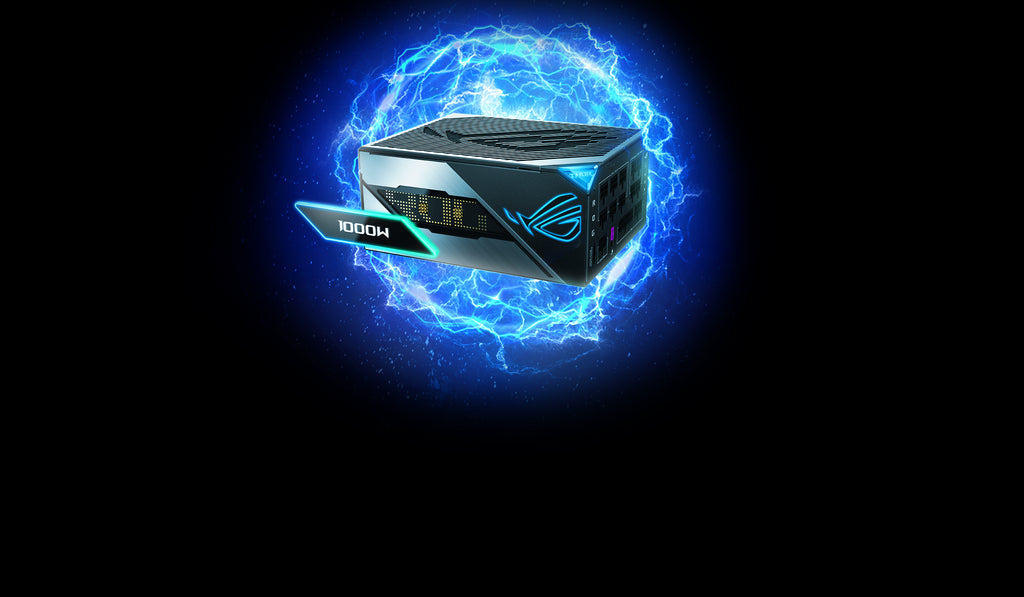

ROG THOR 1000W PLATINUM III ULTIMATE POWER. UNMATCHED STABILITY.

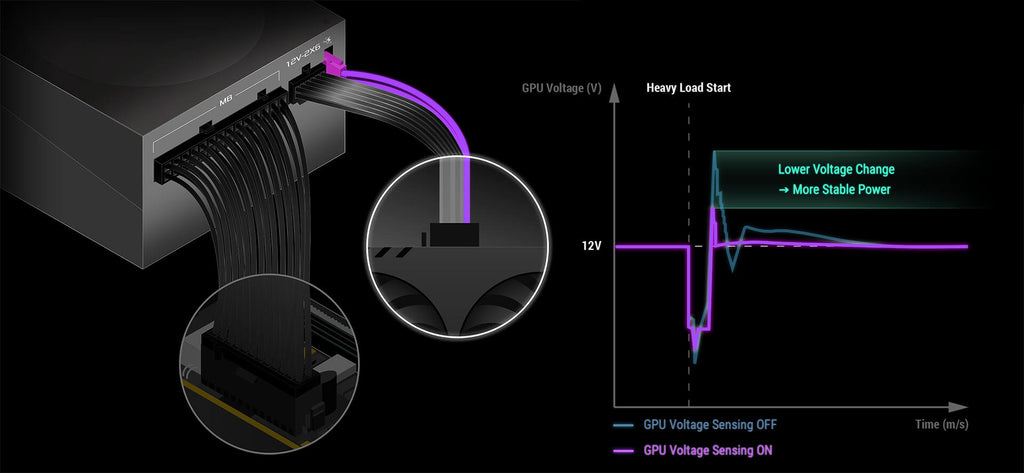

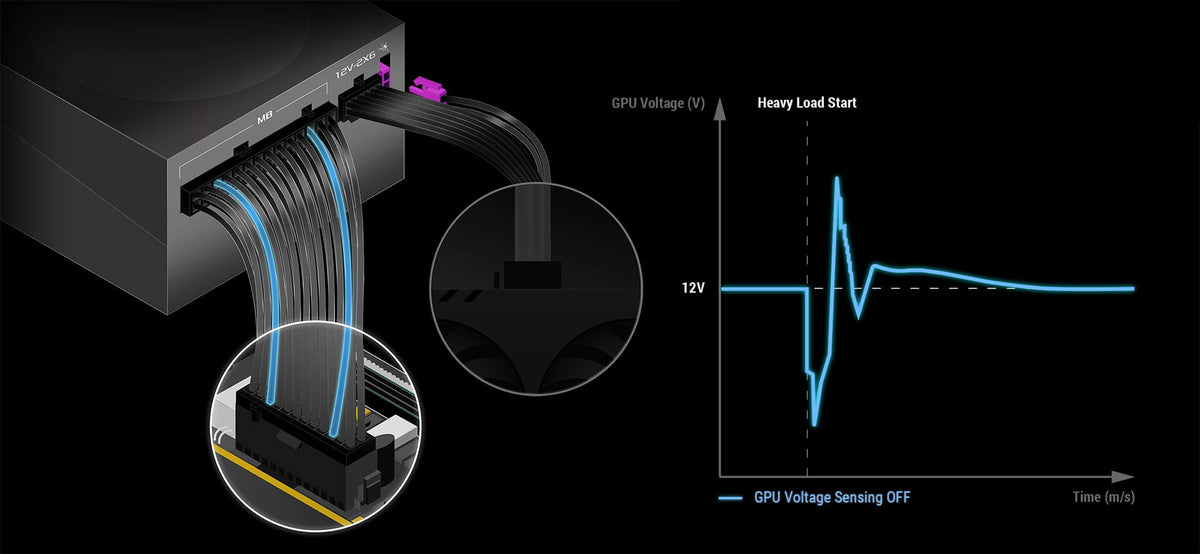

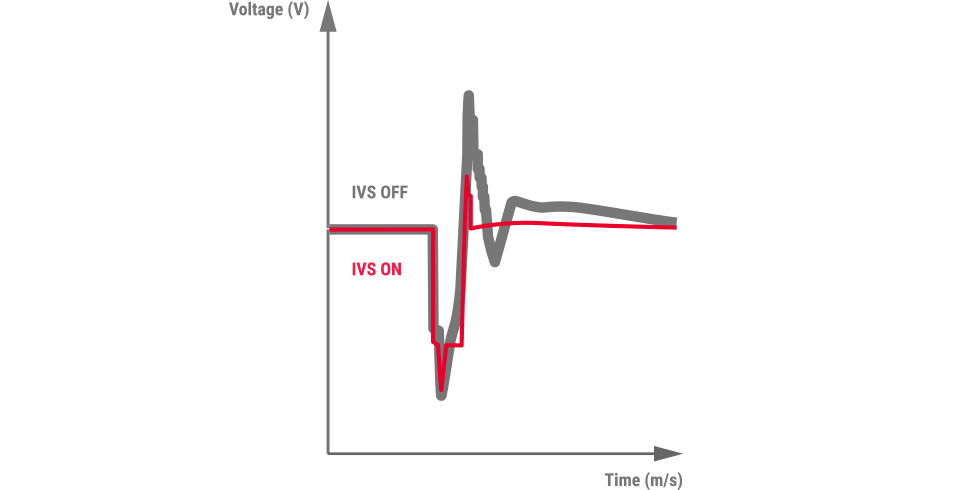

- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

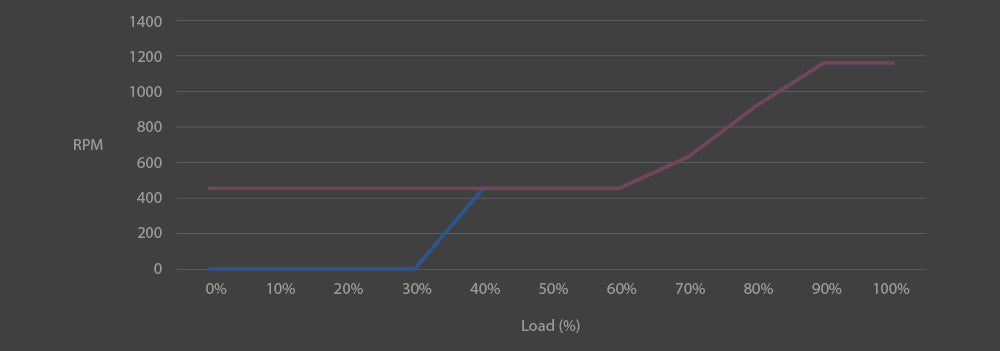

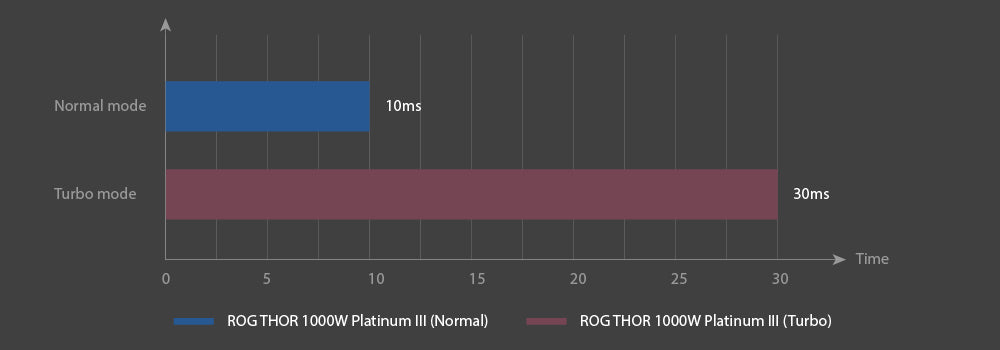

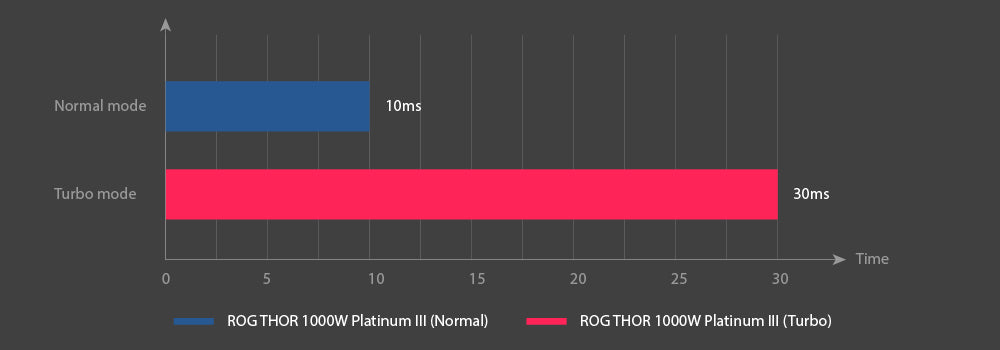

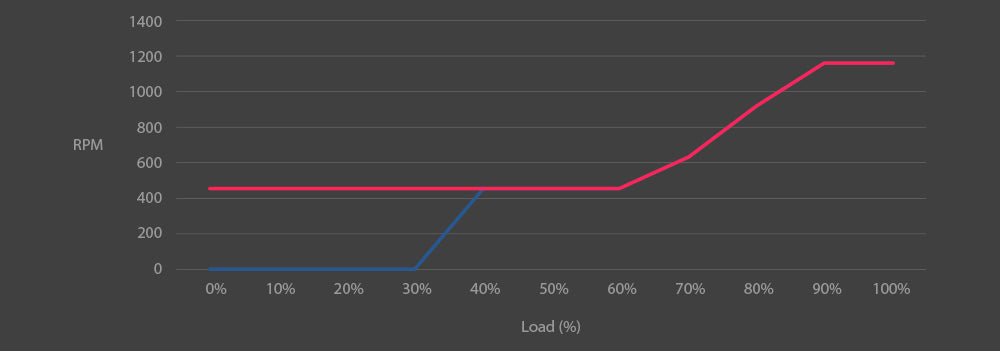

- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.

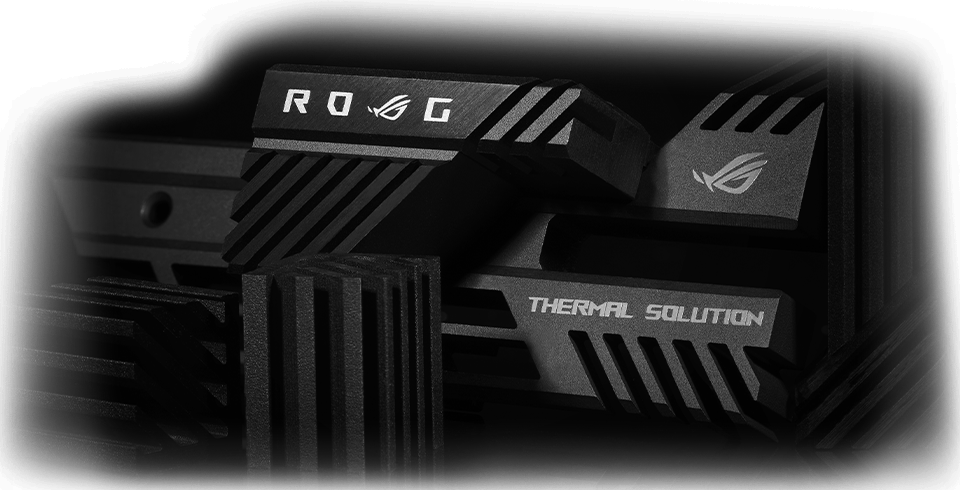

- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
- ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
- Lambda A++ Certification: Certified low noise levels, below 15 dB.

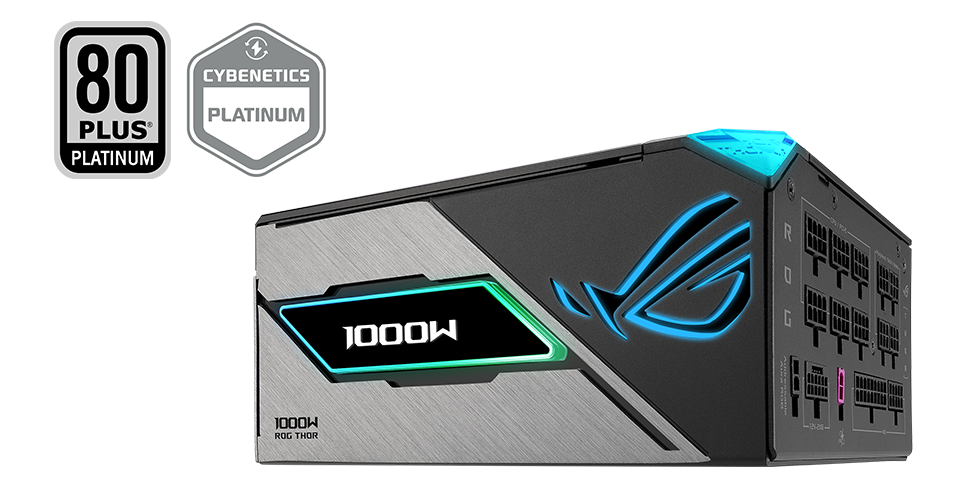

- 80 PLUS & Cybenetics Platinum certified: ROG Thor III leverages low-ESR capacitors and premium components for industry-leading power efficiency.
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
- 10-year warranty included.

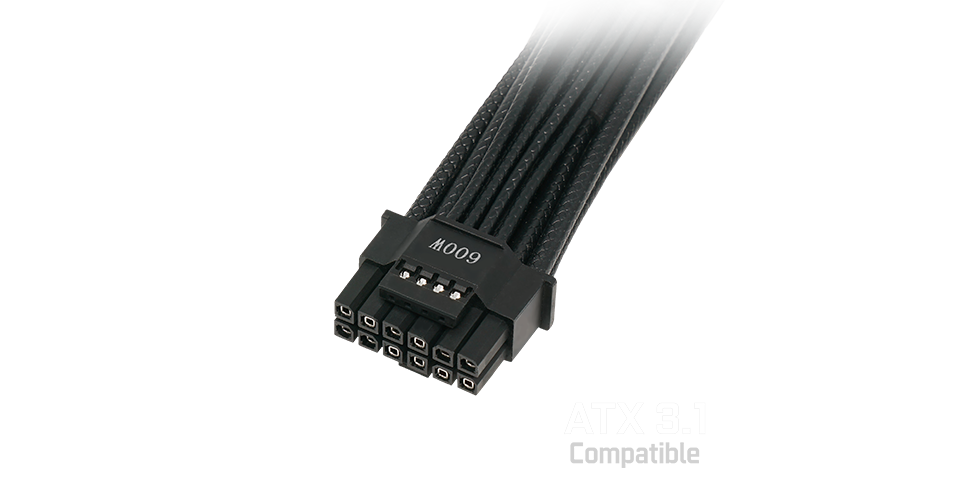

ATX 3.1 ushers in tighter voltage and current regulation standard for next-gen hardware - and the ROG Thor 1000W Platinum III arrives ahead of the curve with full compliance. A 16-pin PCIe cable capable of sending up to 600 watts of power to PCIe 5.1 graphics cards is bundled with this PSU, readying your build for the next gen.
General
| Brand | ASUS ROG |
|---|---|
| Model | ROG-THOR-1000P3-GAMING |
| ATX Standard | ATX 3.1 |
| Warranty | 10 Years |
Power & Efficiency
| Total Output | 1000W |
|---|---|
| 80 PLUS Rating | Platinum |
| Cybenetics Certification | Cybenetics Platinum / Lambda A++ |
| PFC Type | Active PFC |
| AC Input Range | 100–240 Vac |
| DC Output Voltages | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | +3.3V: 30A, +5V: 25A, +12V: 83.33A, -12V: 0.3A, +5Vsb: 3A |
| Combined Load | +3.3V/+5V: 125W, +12V: 1000W, -12V: 3.6W, +5Vsb: 15W |
Connectivity & Cables
| Motherboard Connector | 24/20-pin × 1 |
|---|---|

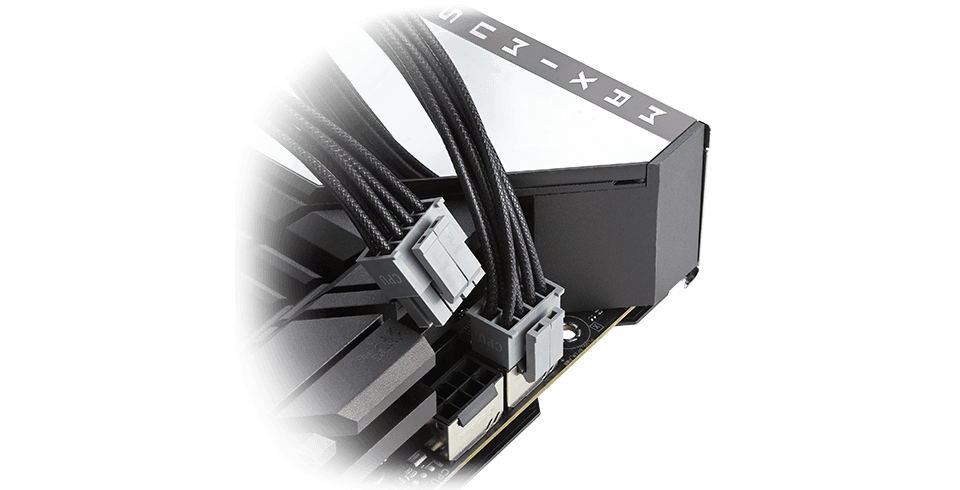

| CPU Connectors | 4+4-pin × 2 |
| PCIe 16-pin Connector | × 1 (up to 600W, PCIe 5.1) |
| PCIe 6+2-pin Connectors | × 4 |
| SATA Connectors | × 7 |
| Peripheral Connectors | × 6 |
Physical & Protection
| Dimensions | 190 × 150 × 86 mm |
|---|---|
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| Fan Bearing Type | Dual ball bearing |
| Enclosure Material | Fully aluminium |
