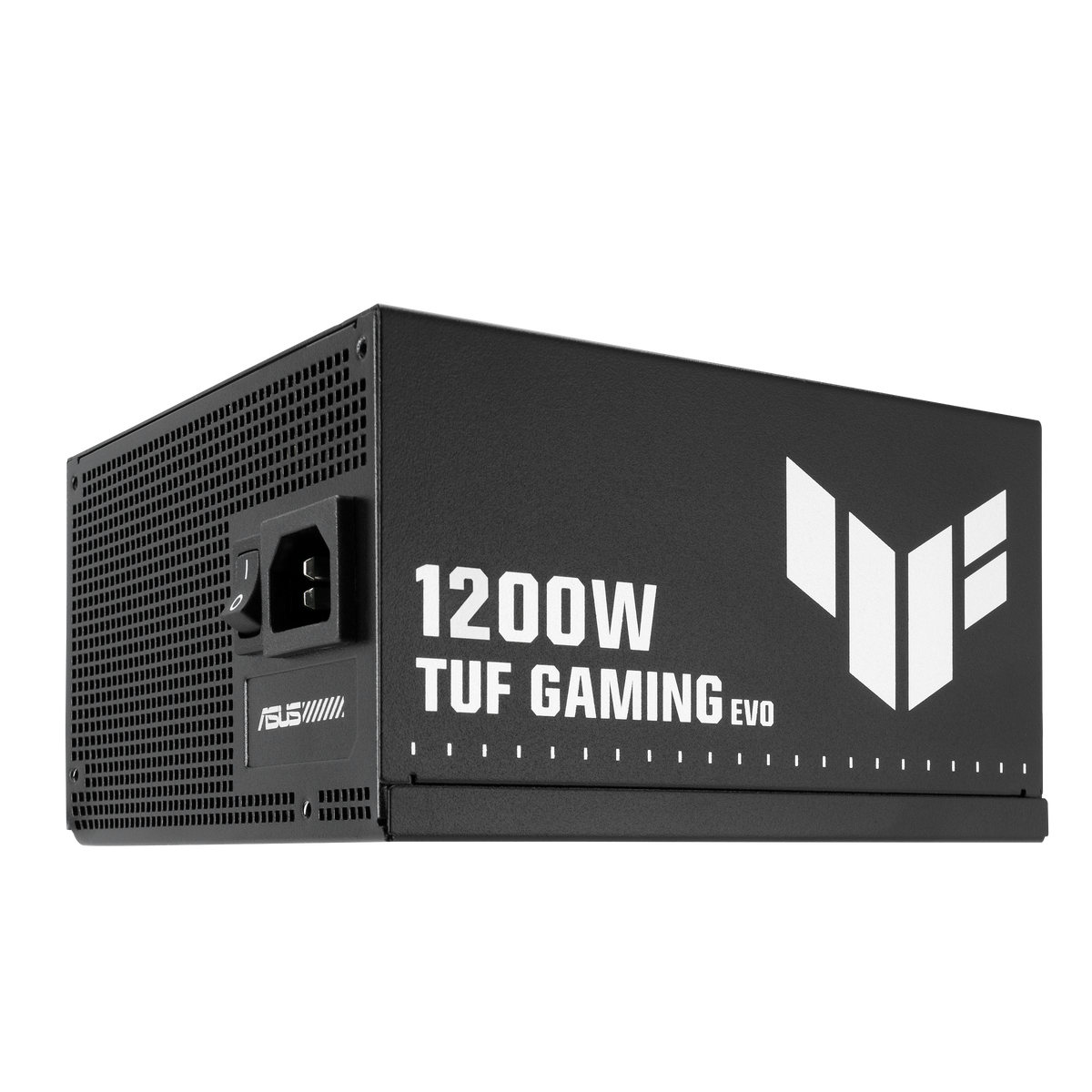

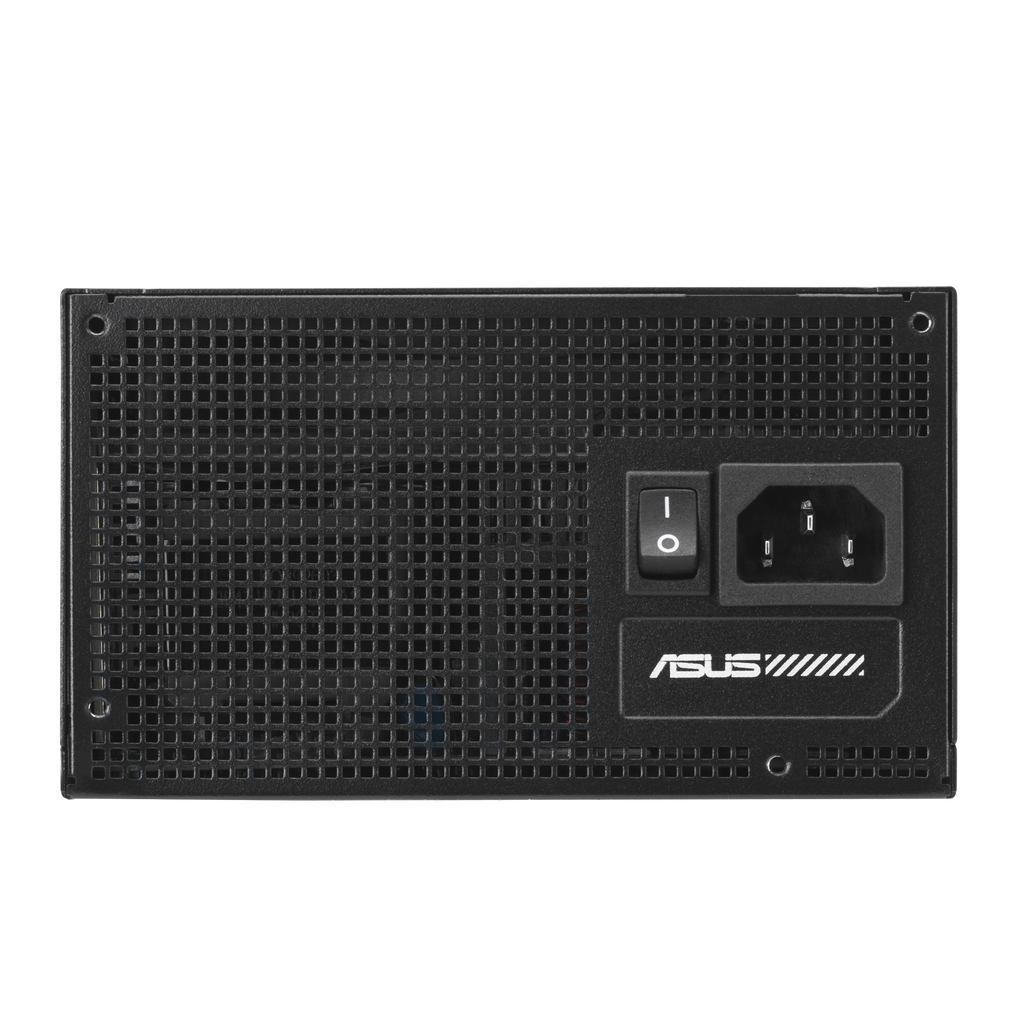

ASUS TUF Gaming 1200W Gold EVO PSU - ATX 3.1, PCIe 5.1
ASUS
ASUS TUF Gaming 1200W Gold EVO PSU - ATX 3.1, PCIe 5.1
The ASUS TUF Gaming 1200W Gold EVO PSU is a full-tower power supply built for PC builders who need high-wattage, ATX 3.1 and PCIe 5.1 support under demanding or harsh conditions. Military-grade capacitors, a protective PCB coating, and dual-ball bearing fan extend service life well beyond standard units. An 8-year warranty backs the durability claims for long-term builds.
Why this product
Military-grade capacitors for longer life
TUF 5K black metallic capacitors offer a 52% wider temperature tolerance and up to a 2.5× longer lifespan than standard capacitors, reducing the risk of degradation over time.
80 PLUS Gold and Cybenetics Platinum efficiency
Low-ESR capacitors help it achieve both 80 PLUS Gold and Cybenetics Platinum efficiency certifications, reducing wasted heat and power draw under load.
Cybenetics Lambda A− noise rating
It emits less than 30 dB of noise on average, making it one of the quieter options in the high-wattage segment.
ATX 3.1 and PCIe 5.1 ready
It meets ATX 3.1 requirements and supports PCIe 5.1 graphics cards, including power excursions up to three times the rated graphics card power for transient stability.
Dual-ball bearing fan for sustained cooling
A 135 mm fan on a dual-ball bearing setup delivers up to 2× longer fan lifespan compared with sleeve-bearing designs.
8-year warranty and corrosion resistance
The PCB coating withstands up to 95% humidity with salt fog for 240 hours, and the unit handles temperature cycling from −40 °C to 85 °C for 27 cycles — backed by an 8-year warranty.
- Total Output1200 W
- Efficiency80 PLUS Gold / Cybenetics Platinum
- ATX StandardATX 3.1
- PCIe SupportPCIe 5.1 (12V-2x6 connector)
- Noise CertificationCybenetics Lambda A− (<30 dB avg)
- Warranty8 years
- Dimensions150 × 150 × 86 mm
- Weight1.867 kg
- SKUASU-2495
- EAN4711636490207
- Compatible with ATX 3.1 motherboards and cases using the standard ATX12V form factor.
- Supports PCIe 5.1 graphics cards via a native 16-pin (12V-2x6) connector.
- Accepts universal AC input of 100–240 V, covering most global mains voltages.
- Includes two CPU 4+4-pin connectors, suiting both standard and HEDT motherboards with dual EPS headers.
- Six SATA connectors and three peripheral connectors are provided — builders with very large storage arrays should verify this count covers their configuration.
- Does not support 0 dB fan-stop mode; the fan runs at all times under load.
Best for
- High-end gaming or workstation builds that require 1200 W of sustained output with PCIe 5.1 support for the latest graphics cards.
- Builders in humid or tropical environments who need corrosion resistance — this unit withstands 95% humidity with salt fog for 240 hours.
- Long-term system owners who value an 8-year warranty and components rated for extended lifespan over lower upfront cost.
- Noise-sensitive builds where sub-30 dB average acoustic output is a priority, as certified by Cybenetics Lambda A−.
- Efficiency-focused builders who want both 80 PLUS Gold and Cybenetics Platinum certifications to minimise heat and energy waste.
Trade-offs
- Small form-factor or SFX builds — at 150 × 150 × 86 mm this is a full ATX form-factor unit and will not fit SFX or SFX-L chassis.
- Builders who want a silent standby mode — there is no 0 dB fan-stop feature; the fan is always active.
- Budget-oriented builds that do not need 1200 W — the output capacity and military-grade components carry a cost premium that is unnecessary for mid-range systems.
- Legacy system upgrades that rely on a large number of older Molex peripheral connectors — only three peripheral connectors are included.
The ASUS TUF Gaming 1200W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Built For The Long Haul
- Military-Grade Components – Premium durability
- 80 PLUS Gold
- Cybenetics Platinum
- Cybenetics Lambda A-
- ATX 3.1 Compatible
- PCIe 5.1 Compatible
- Premium Embossed Cable
- 8-year warranty
- Dual-Ball Fan Bearings – Up to 2X longer lifespan
- Protective PCB Coating – Against moisture and debris
Premium Durability
Military-Grade Capacitors
Engineered for exceptional durability, the TUF Gaming Gold EVO series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.
Extreme Temperature
TUF Gaming Gold EVO series is capable of handling drastic temperature changes from -40°C to 85°C for 27 cycles while maintaining operation.
Corrosion Resistance
The TUF Gaming Gold EVO series is built with corrosion resistance. It can withstand up to 95% humidity with salt fog for up to 240 hours and come out the other side with full functionality. Even if you're living in tropical climates with harsh and wet conditions, it can weather the storm.
Dual-Ball Fan Bearings

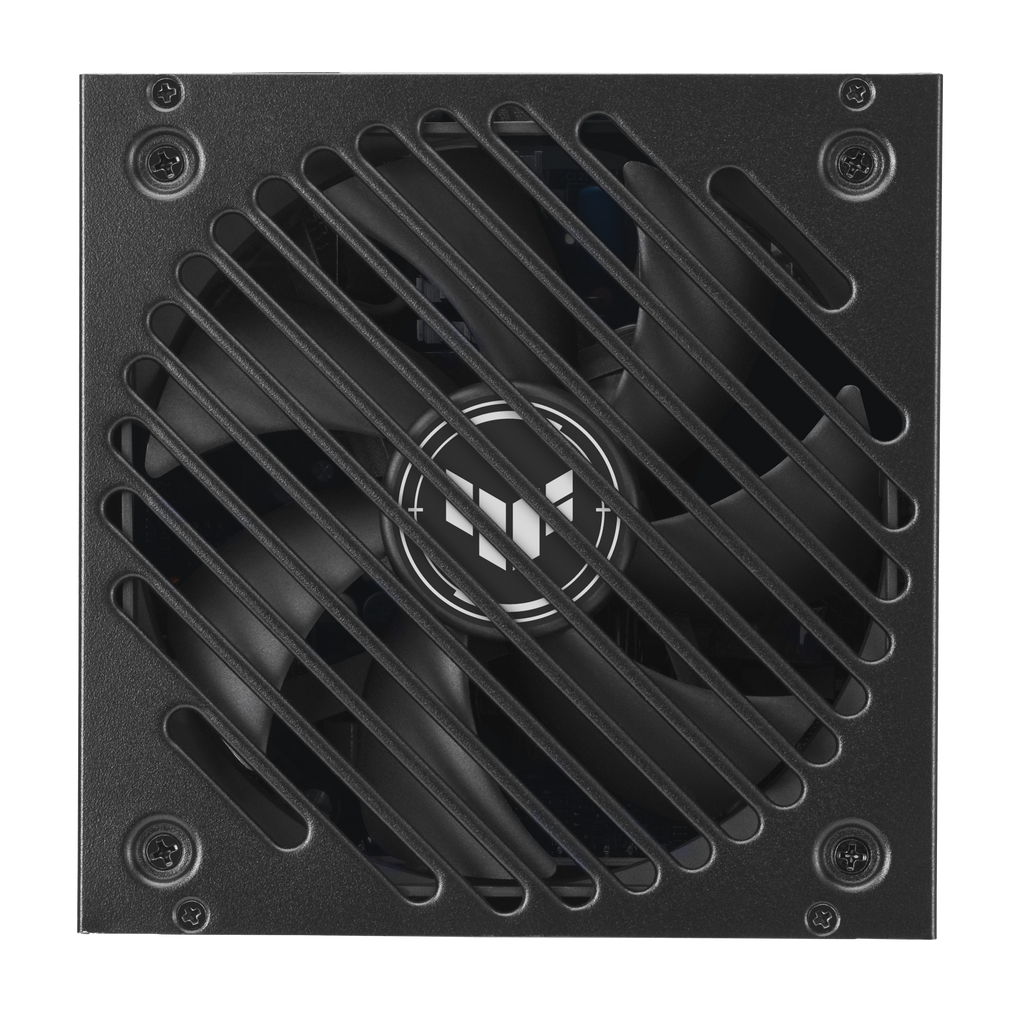

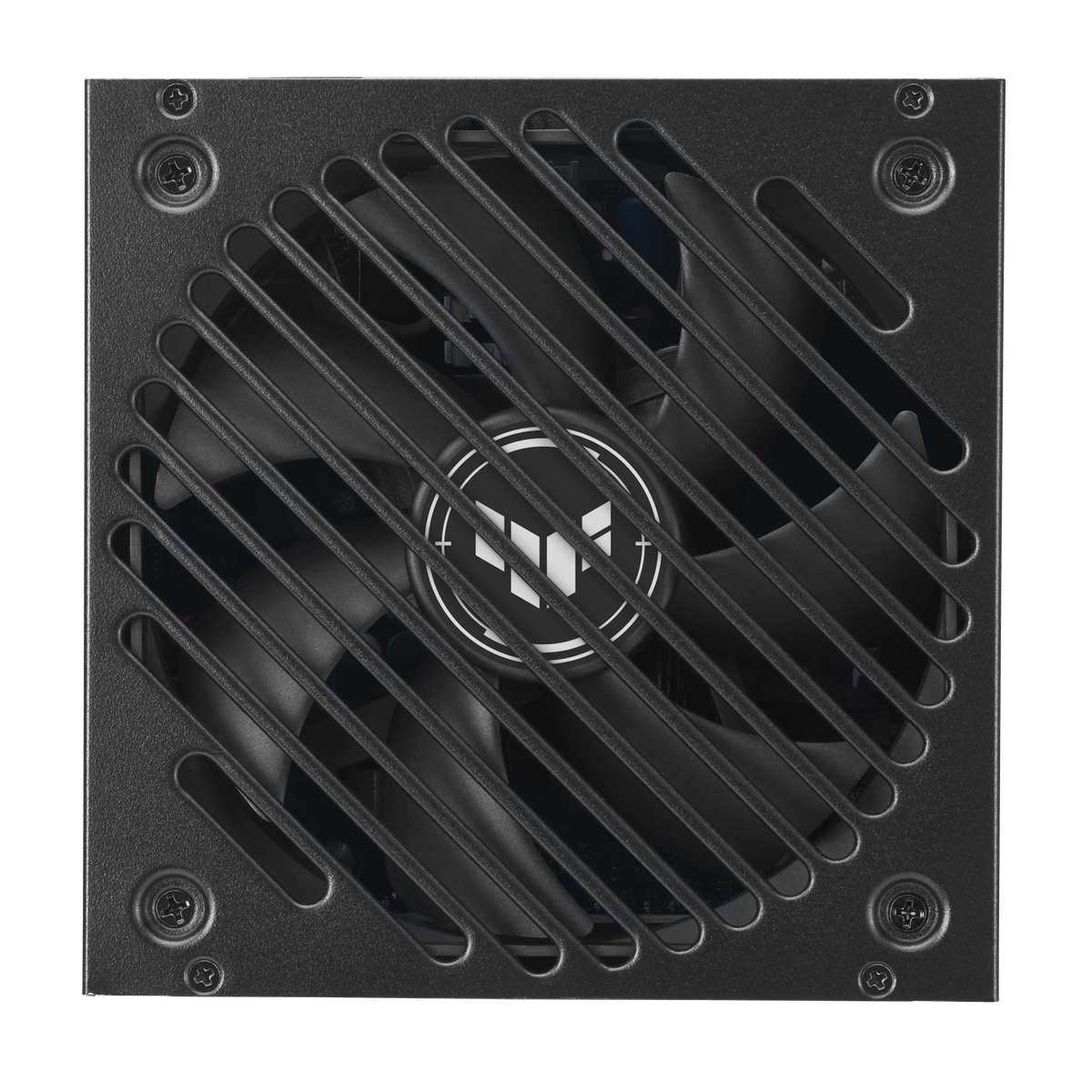

Exemplary cooling is provided by a 135mm fan spinning on a dual-ball bearing setup.
Efficiency & Noise Certification
80 PLUS Gold and Cybenetics Platinum Efficiency — Lambda A- Noise Certification
The TUF Gaming 1200W Gold EVO achieves 80 PLUS Gold and Cybenetics Platinum certifications by leveraging low-ESR capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability. This model also earned a coveted Cybenetics Lambda A- certification by emitting less than 30 dB of noise on average.
Latest Standards
ATX 3.1 & PCIe 5.1 Compatible
The TUF Gaming Gold EVO series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.
Protection
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP – Over-Current Protection
- OVP – Over-Voltage Protection
- UVP – Under-Voltage Protection
- SCP – Short-Circuit Protection
- OPP – Over-Power Protection
- OTP – Over-Temperature Protection
General
| Brand | ASUS |
|---|---|
| Model | TUF-GAMING-1200G-EVO |
| Form Factor | ATX12V |
| ATX Standard | ATX 3.1 |
| Weight | 1.867 kg |
| Dimensions | 150 × 150 × 86 mm |
| Hazardous Materials | RoHS compliant |
Power & Efficiency
| Total Output | 1200 W |
|---|---|
| Efficiency Certification | 80 PLUS Gold |
| Cybenetics Efficiency | Platinum |
| Cybenetics Noise | Lambda A− (<30 dB average) |
| PFC Type | Active PFC |

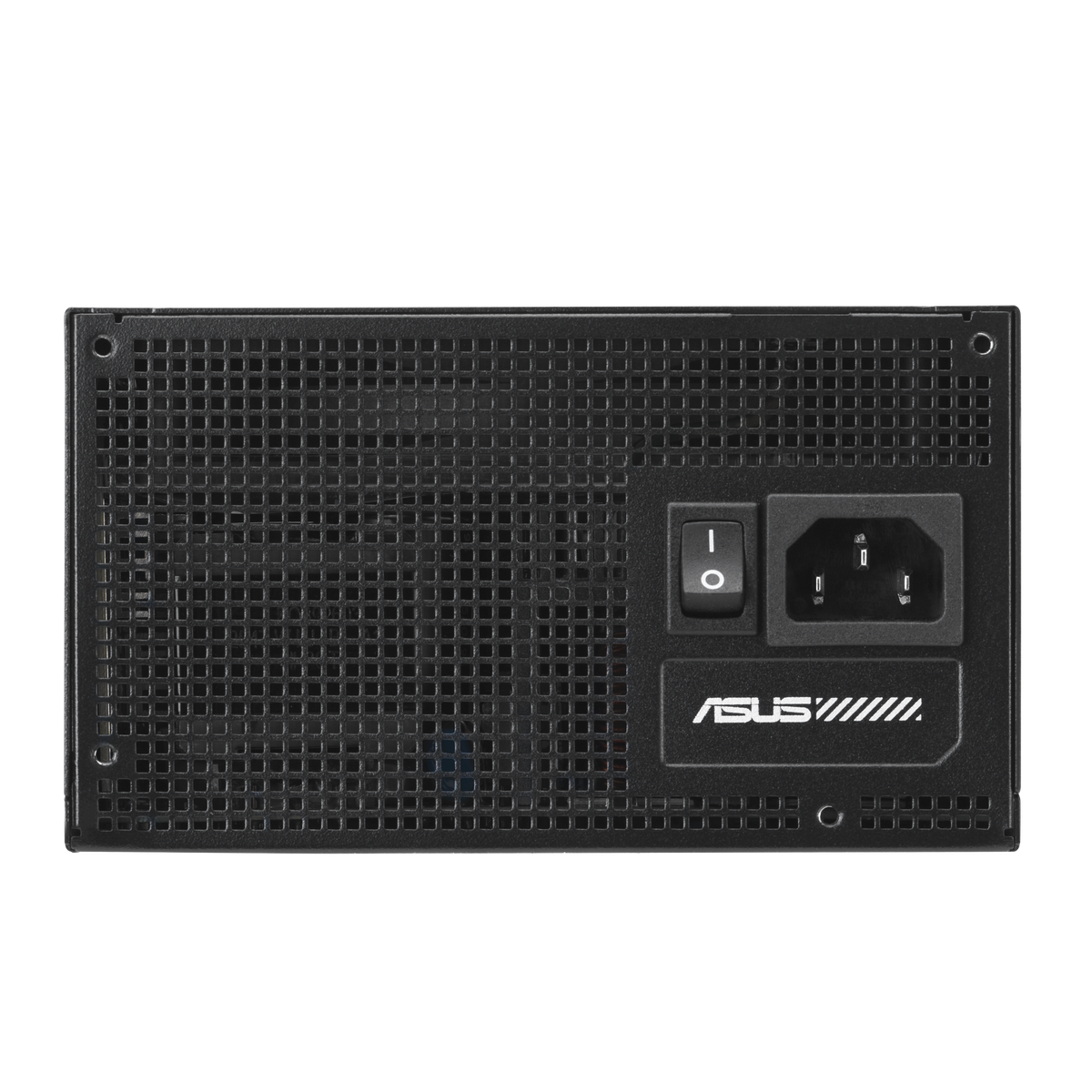

| AC Input | 100–240 Vac |
| MTBF | >120,000 hrs @ 40 °C |
| 0 dB Fan-Stop | No |
DC Output Rails
| Output Voltages | +3.3 V, +5 V, +12 V, −12 V, +5 Vsb |
|---|---|
| Maximum Load (per rail) | +3.3 V: 25 A | +5 V: 25 A | +12 V: 100 A | −12 V: 0.3 A | +5 Vsb: 3 A |
| Combined Load | +3.3 V/+5 V: 125 W | +12 V: 1200 W | −12 V: 3.6 W | +5 Vsb: 15 W |

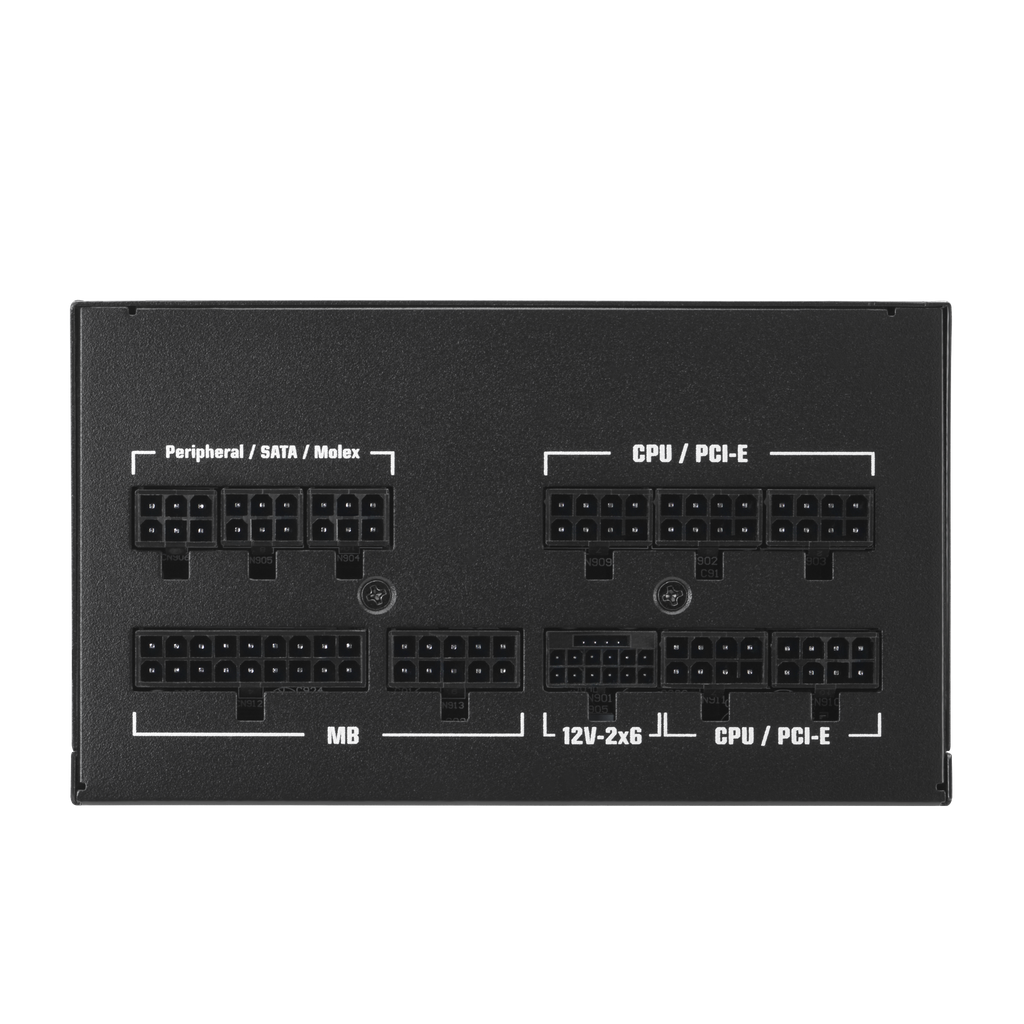

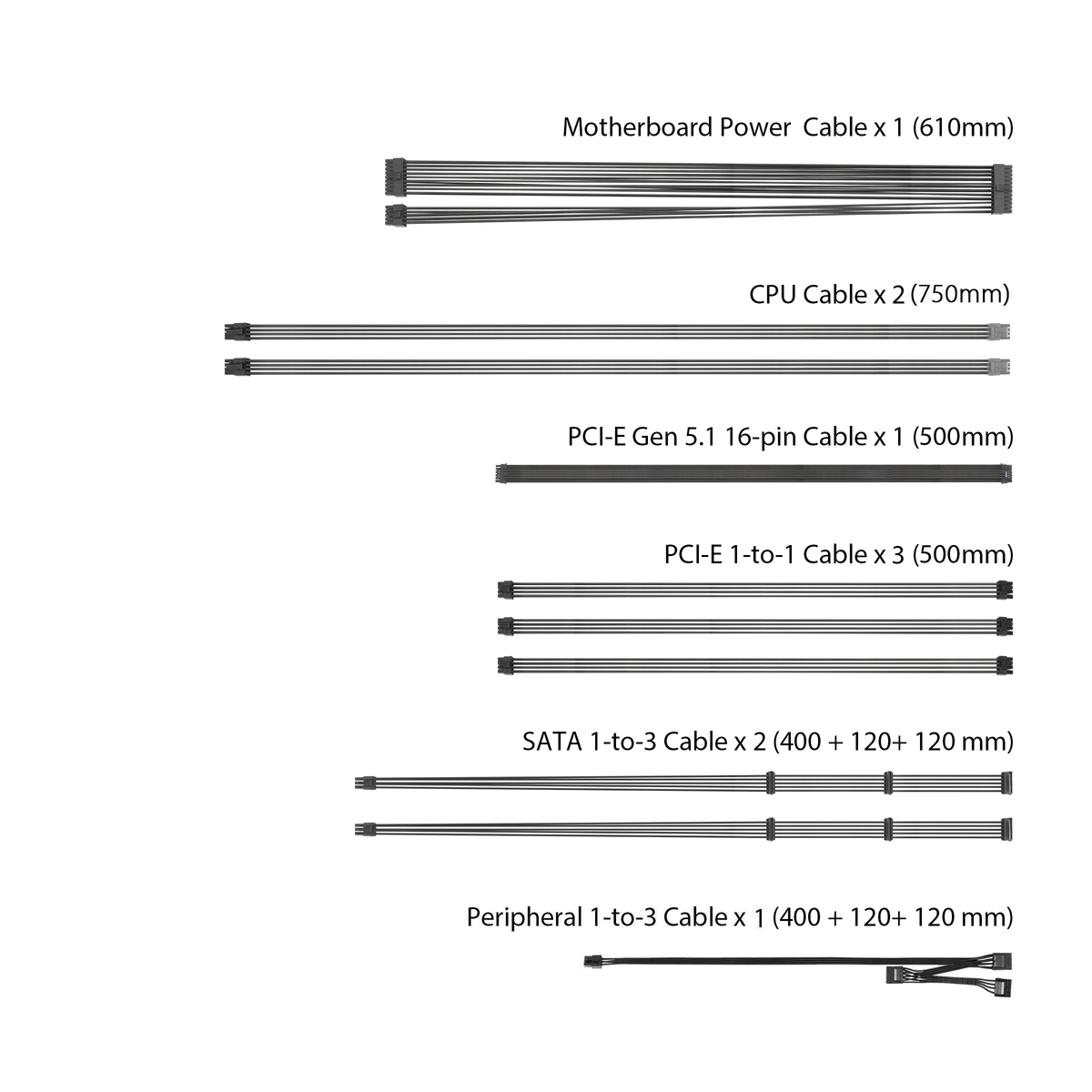

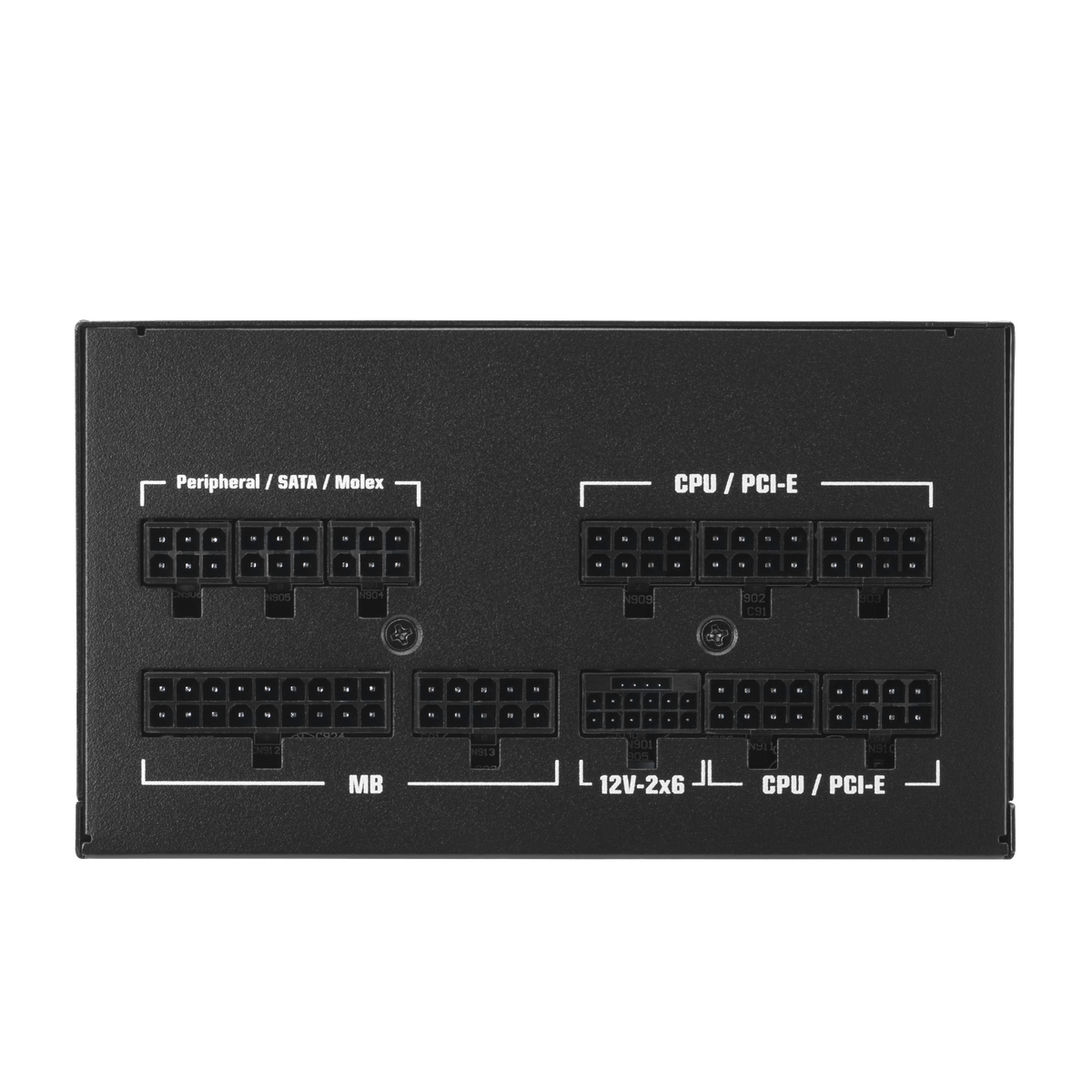

Connectors & Protection

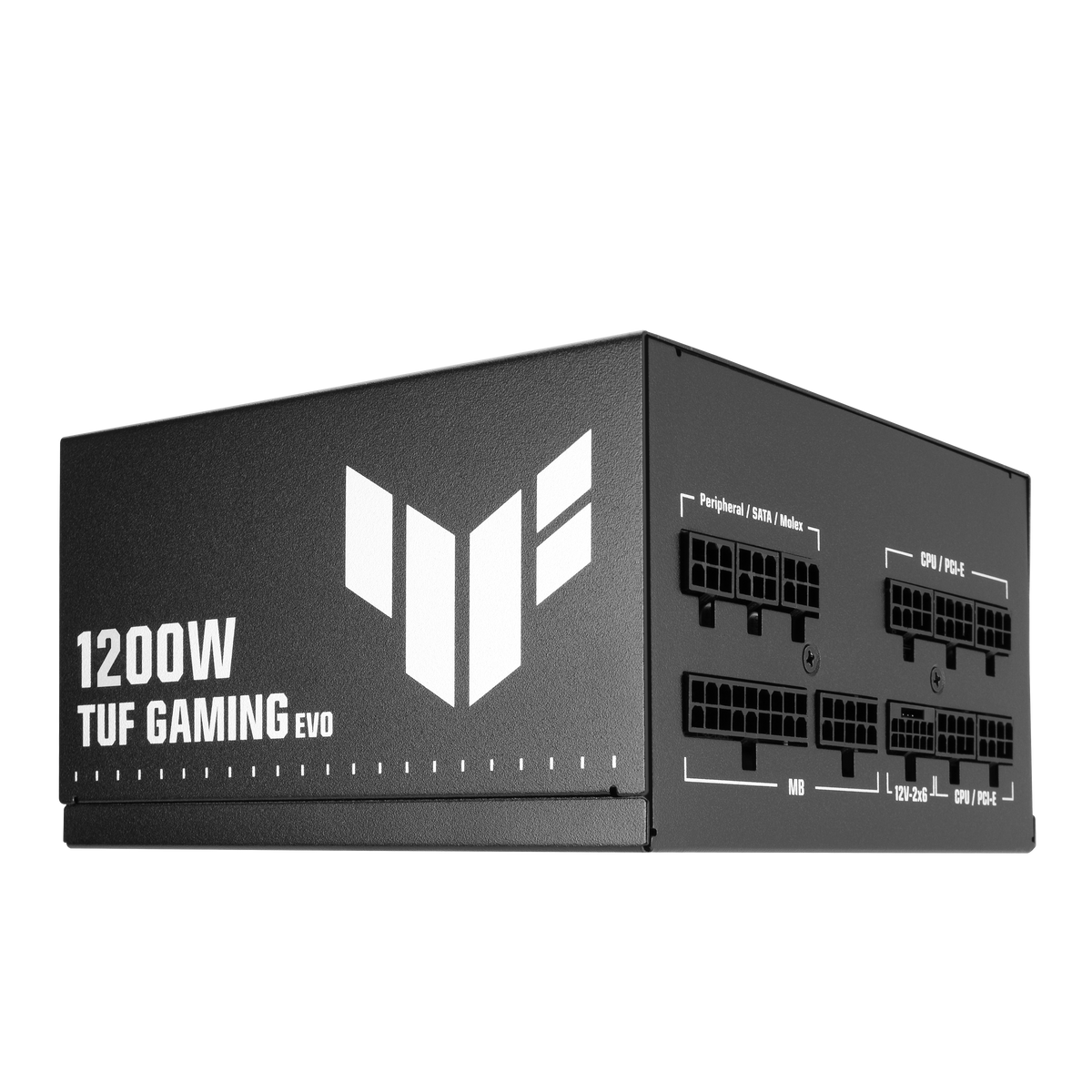

| Motherboard | 20+4-pin × 1 |
|---|---|
| CPU / EPS | 4+4-pin × 2 |
| PCIe 16-pin (12V-2x6) | × 1 |
| PCIe 6+2-pin | × 3 |
| SATA | × 6 |
| Peripheral | × 3 |
| Protection Features | OCP, OVP, UVP, SCP, OPP, OTP |
