ASUS TUF Gaming A1 M.2 NVMe/SATA SSD Enclosure USB-C
ASUS
ASUS TUF Gaming A1 M.2 NVMe/SATA SSD Enclosure USB-C
The ASUS TUF Gaming A1 is a portable SSD enclosure built for gamers, content creators and anyone who needs durable mobile storage. It accepts M.2 NVMe or SATA drives up to 2TB, connects via USB-C 3.2 Gen 2x1, and meets military-grade MIL-STD-810H drop resistance and IP68 water and dust protection standards.
Why this product
Dual drive support with easy mounting
It accepts both NVMe PCIe and SATA M.2 SSDs in 2242, 2260 or 2280 form factors. The Q-Latch mechanism secures drives without screws for quick swaps.
Up to 10 Gbps transfer speeds
USB-C 3.2 Gen 2x1 delivers 10 Gbps with NVMe drives and 6 Gbps with SATA, enabling fast file copies and backups.
Military-grade durability
It passes MIL-STD-810H drop tests and carries an IP68 rating for water and dust protection, making it suitable for travel and rough use.
Console and cross-platform ready
It works with PCs, Macs, Linux machines, mobile devices and the latest PlayStation and Xbox consoles. A USB-C cable is included.
- InterfaceUSB-C 3.2 Gen 2x1
- Max capacity supported2TB
- Drive typesM.2 NVMe PCIe or SATA
- Form factors2242, 2260, 2280
- NVMe speedUp to 10 Gbps
- SATA speedUp to 6 Gbps
- DurabilityMIL-STD-810H, IP68
- Weight142 g
- SKUASU-2777
- EAN4711081826613
- Works with Windows 7 or later, macOS Catalina or later, Chrome OS and Linux.
- Compatible with M.2 NVMe PCIe and SATA SSDs in 2242, 2260 and 2280 form factors up to 2TB capacity.
- Connects to PlayStation and Xbox gaming consoles, laptops, desktops, tablets and phones via the included USB-C cable.
- SATA SSDs max out at 6 Gbps; only NVMe drives reach the full 10 Gbps speed of the USB 3.2 Gen 2x1 interface.
Best for
- Gamers who need portable high-speed storage for console or PC gaming.
- Content creators moving large video or photo files between machines on set or on location.
- Backup users who want rugged, drop and water-resistant storage they can take anywhere.
- Anyone who values tool-free installation and quick drive swaps without dismantling the enclosure.
Trade-offs
- Permanent internal storage — it is an external enclosure, not a bare drive.
- Users with only legacy USB-A ports and no USB-C adapter or hub.
- SATA drive users seeking maximum speed — SATA SSDs are limited to 6 Gbps, not the full 10 Gbps the enclosure offers.
The most durable data storage solution perfect for building a portable gaming, content creation and backup boosting system. TUF Gaming A1 USB-C 3.2 Gen 2x1 SSD enclosure features dual NVMe and SATA interfaces, M.2 Q-Latch for easy installation, MIL-STD-810H drop resistance and IP68 water and dust resistance.
In order to earn the TUF Gaming name, the TUF Gaming A1 was subjected to a rigorous battery of MIL-STD-810H* and IP68 durability tests. Test devices are dropped from height, submerged in water, and exposed to dust and dirt to ensure toughness.
Built Tough. Built for Speed.
The new TUF Gaming A1 offers military-grade protection for the latest portable SSDs.

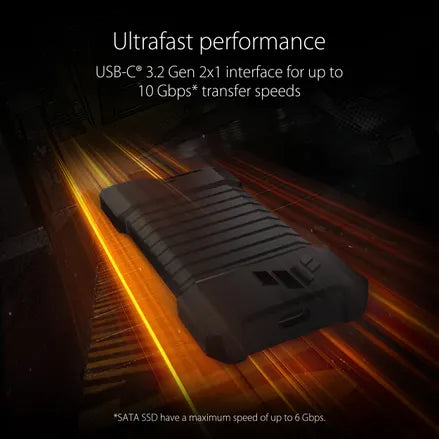

Ultrafast performance
- Dual M.2 interface — TUF Gaming A1 features both PCIe NVMe and SATA interfaces and can accommodate up to 2 TB M.2 form factor 2242/2260/2280 SSDs.

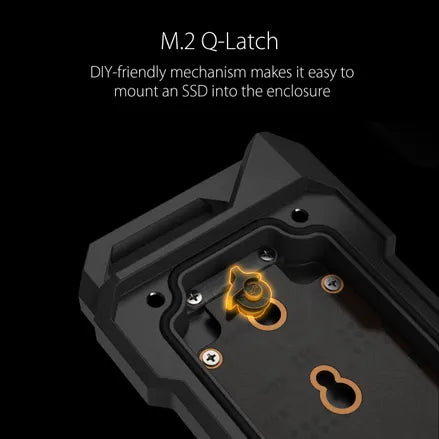

- M.2 Q-Latch — The innovative Q-Latch design simplifies M.2 SSD installation and removal with a quick-lock mechanism that secures the drive in place. It's quicker and more convenient that traditional screw-based setups.
- USB-C® 3.2 Gen 2x1 — With speeds of up to 10 Gbps*, copying and transferring large files will be done in no time. The USB-C 3.2 Gen 2 x1 connection ensures superfast transmission speeds for stable and efficient data transfers. * SATA SSD have a maximum speed of up to 6 Gbps.
Wide-ranging compatibility
The TUF Gaming A1 includes a USB-C cable to ensure compatibility with mobile devices, laptops, PCs and the latest generation PlayStation® and Xbox gaming consoles.
General
| Brand | ASUS |
|---|---|
| Model | TUF Gaming A1 |
| Color | Black |
Drive
| Compatible SSD types | M.2 NVMe PCIe or SATA |
|---|---|
| Form factors supported | 2242, 2260, 2280 |
| Maximum SSD capacity | 2TB |
Performance
| Interface | USB-C 3.2 Gen 2x1 |
|---|---|
| NVMe sequential read speed | Up to 10 Gbps |
| SATA sequential read speed | Up to 6 Gbps |
Power & environment
| Voltage | 5V |
|---|---|
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating humidity | 15% to 90% (non-condensing) |
| Storage humidity | 10% to 90% (non-condensing) |
| Dimensions | 125.28 mm (L) × 54.27 mm (W) × 13.3 mm (H) |
| Weight | 142 g |
Reliability
| Durability standard | MIL-STD-810H drop resistance |
|---|---|
| Protection rating | IP68 water and dust resistance |
| Warranty | 1 year manufacturer's limited warranty |
