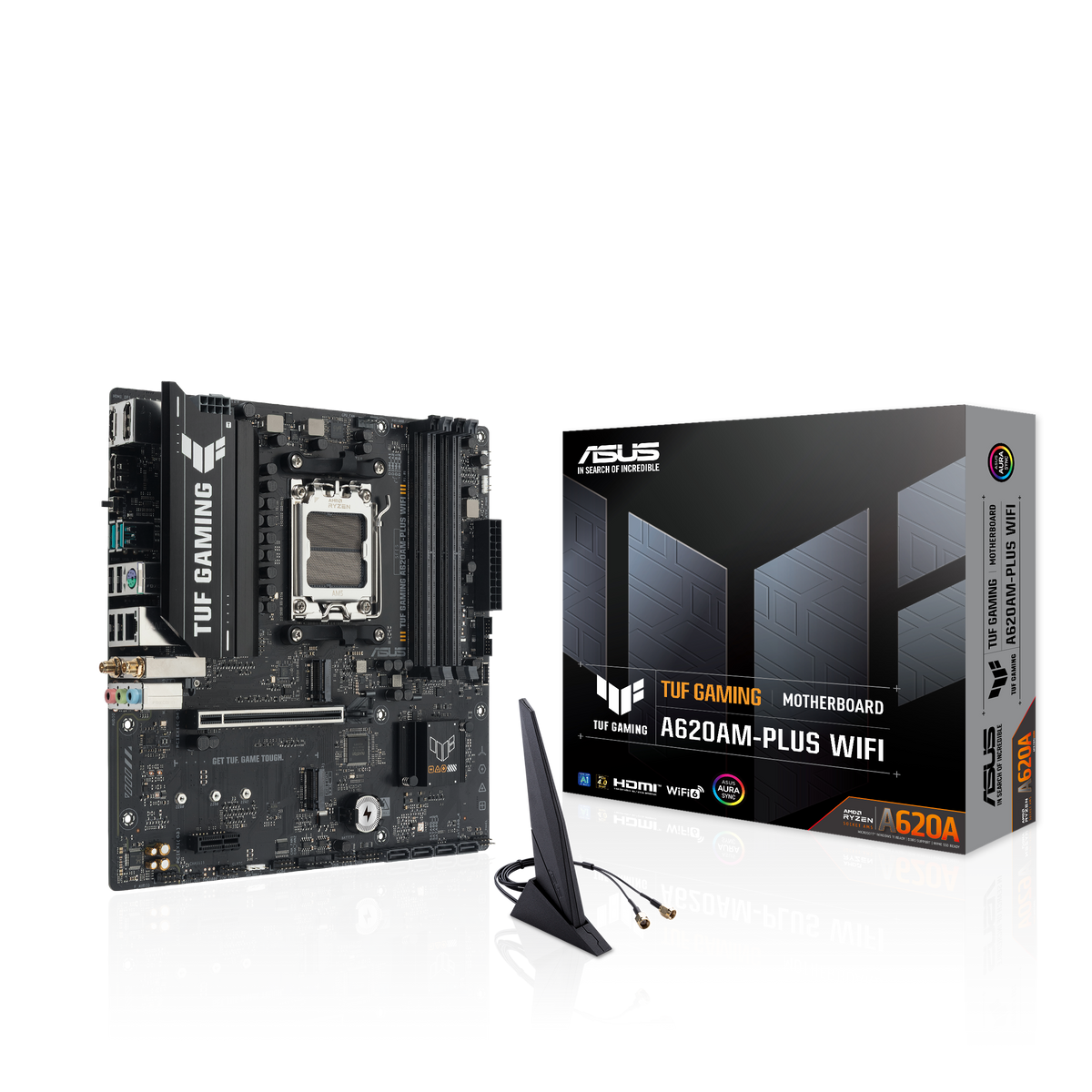

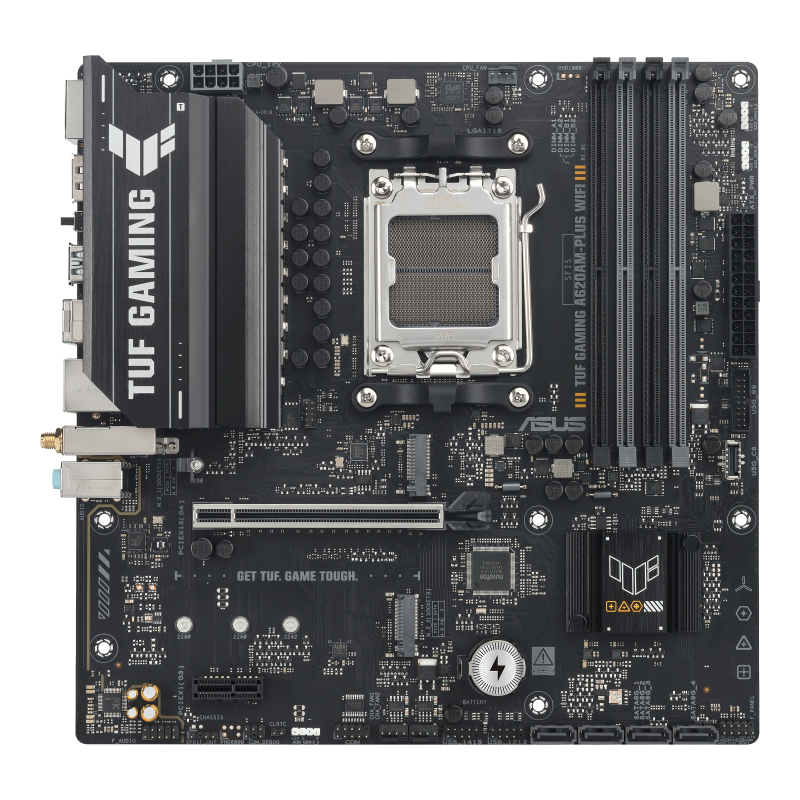

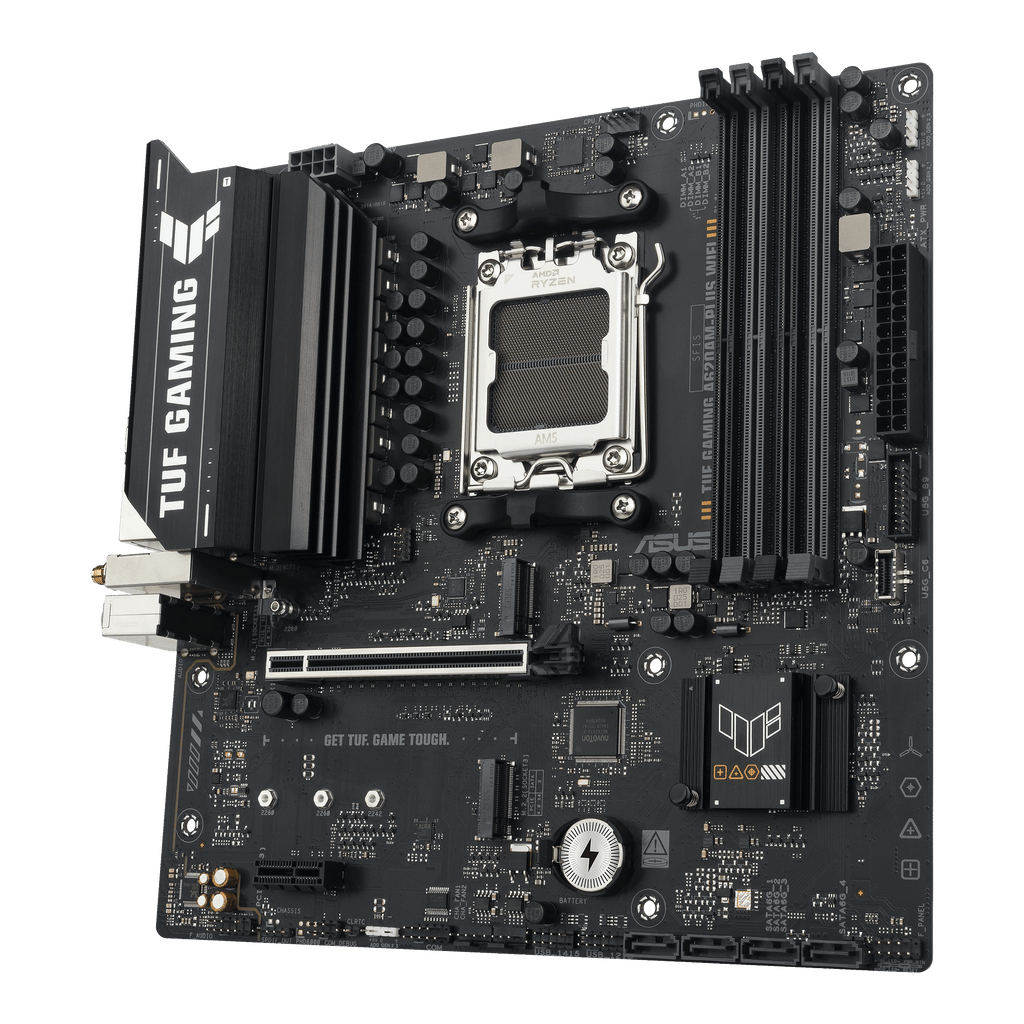

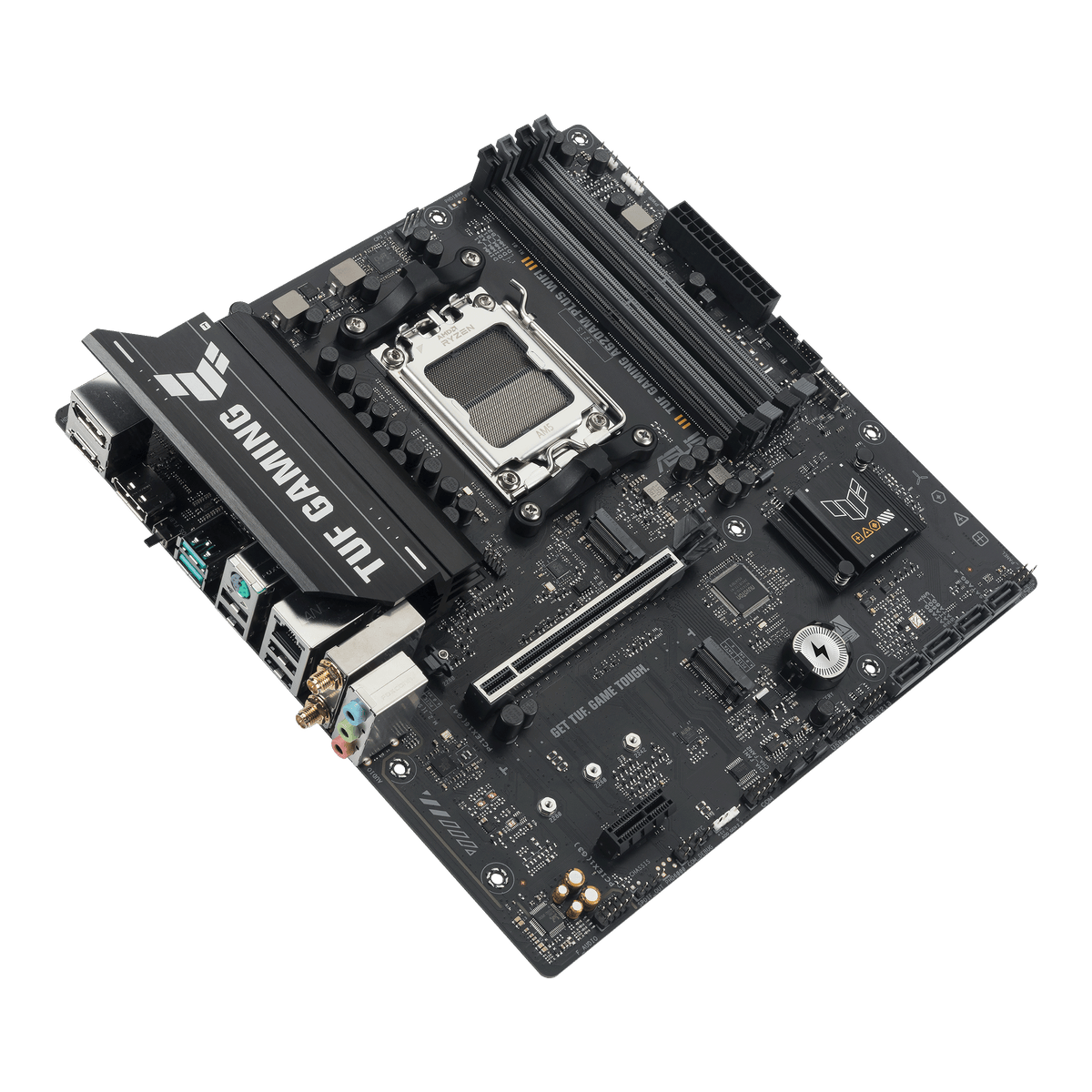

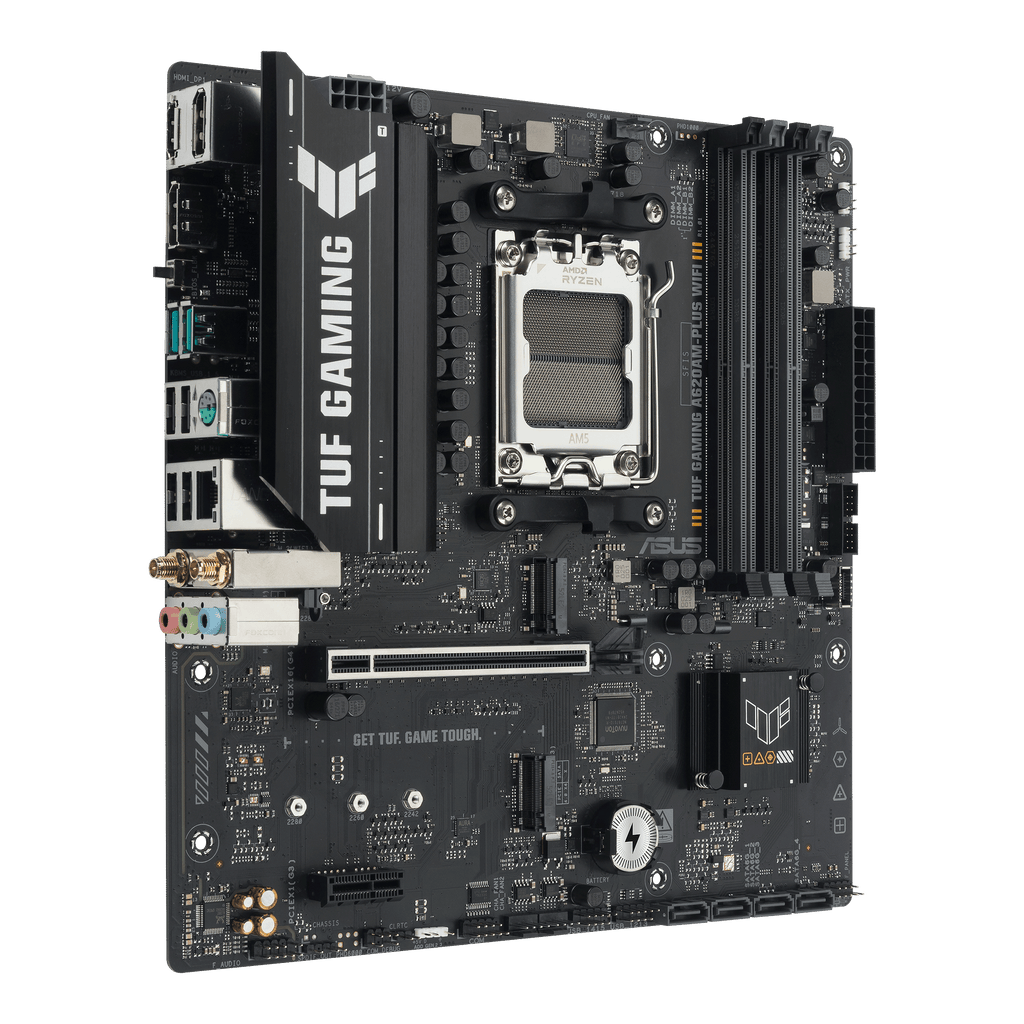

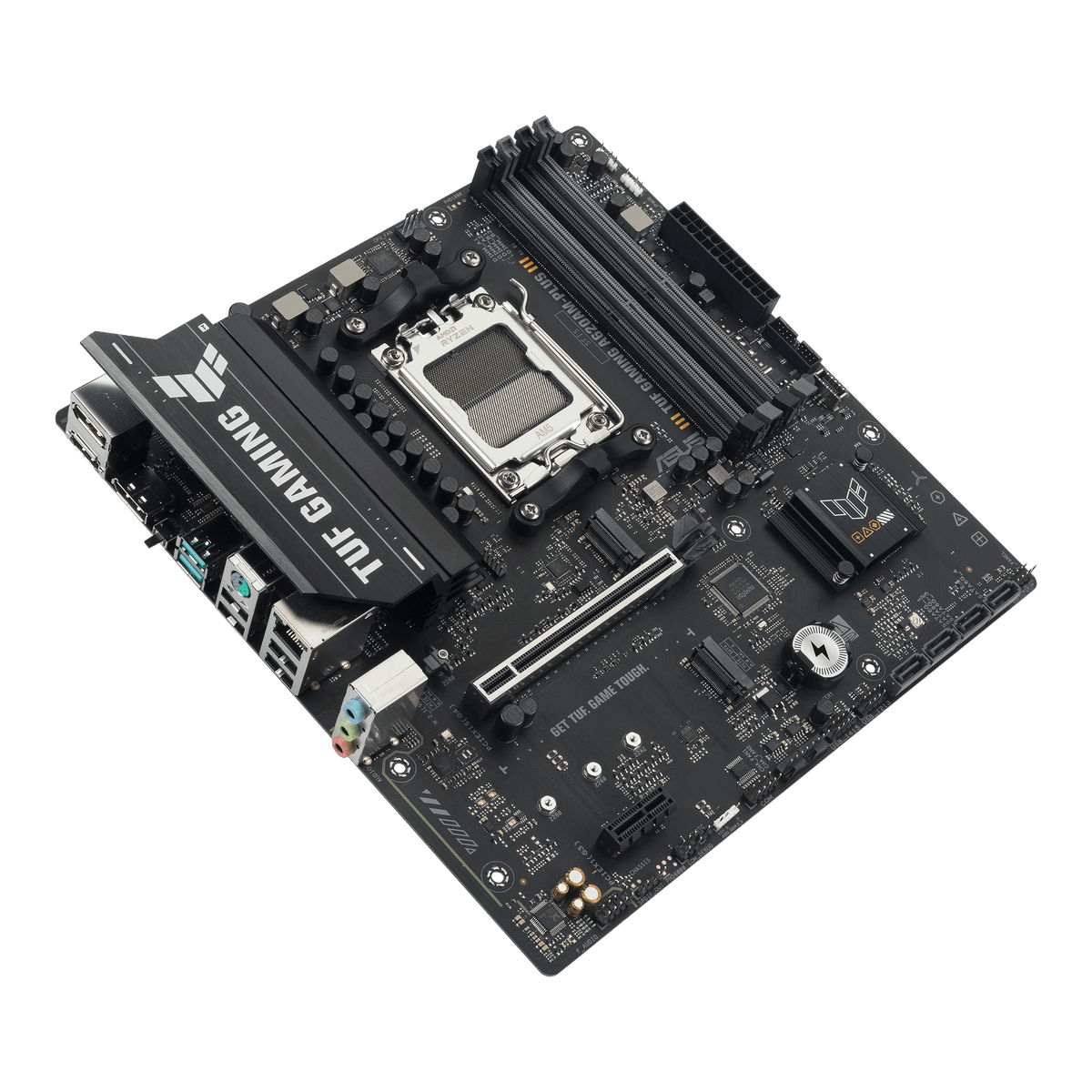

ASUS TUF Gaming A620AM-PLUS WIFI AM5 mATX Motherboard
ASUS
ASUS TUF Gaming A620AM-PLUS WIFI AM5 mATX Motherboard

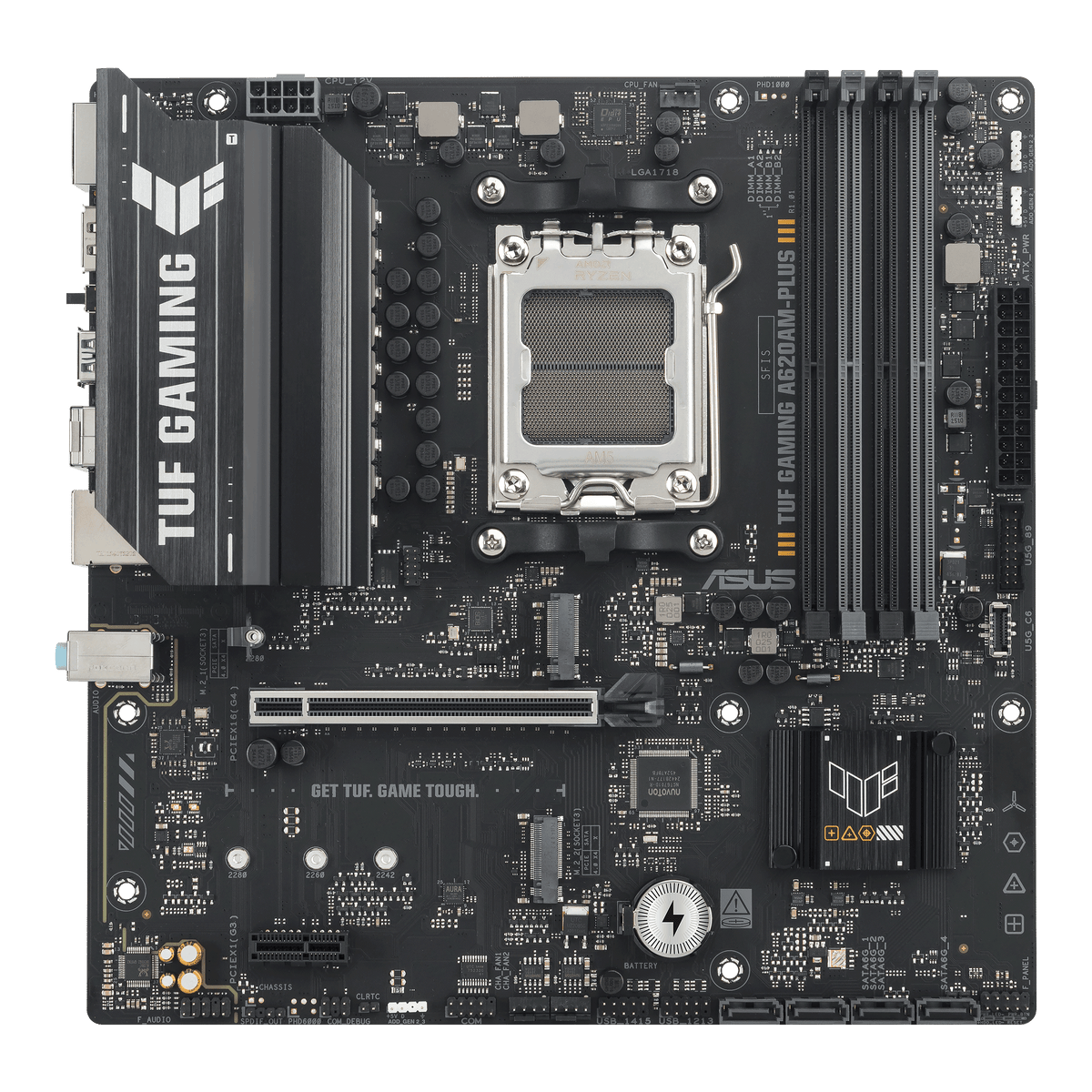

The ASUS TUF Gaming A620AM-PLUS WIFI is a micro-ATX motherboard for AMD Ryzen 9000, 8000 and 7000 series processors, built for gaming and AI workloads. It combines game-ready features with military-grade components and proven durability, delivering stable performance through rigorous endurance testing.
Why this product
2.5Gb Ethernet for reduced lag
On-board 2.5Gb Ethernet improves bandwidth speeds by up to 2.5X over standard Gigabit, reducing latency and enabling smoother video streams and faster file transfers on your existing LAN cable.

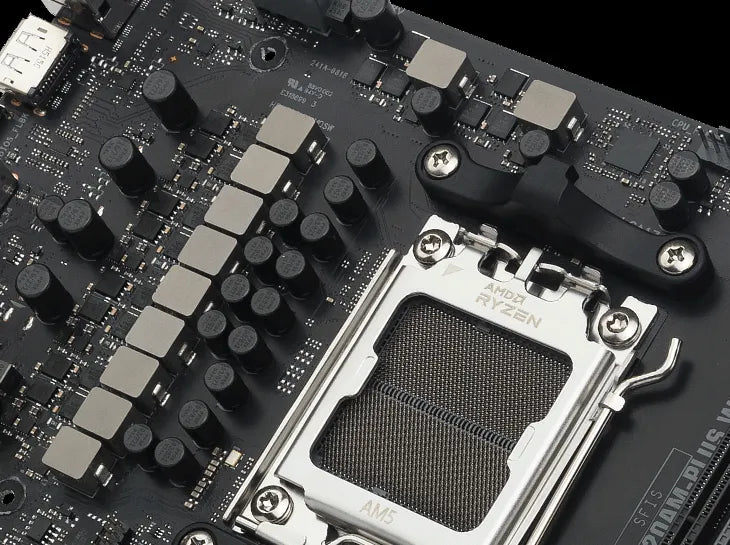

Enhanced power delivery for stability
8+2+1 phase digital power design with 6-layer PCB, alloy chokes and durable capacitors ensures rock-solid performance during extended gaming sessions.
PCIe 4.0 storage and connectivity
Two PCIe 4.0 M.2 slots support fast NVMe drives, and PCIe 4.0 x16 expansion slot handles high-bandwidth graphics cards and peripherals.
Wi-Fi 6 and Bluetooth 5.3
Dual-band Wi-Fi 6 (802.11ax) with 2.4/5GHz support and Bluetooth 5.3 provide wireless connectivity without dedicated cables.
RGB lighting with Aura Sync
Three Addressable RGB Gen 2 headers support up to 500 LEDs and integrate with ASUS Aura Sync for synchronized lighting across compatible components.
- SocketAMD AM5
- Form factorMicro-ATX (mATX)
- ChipsetAMD A620A
- Memory slots4 x DIMM (DDR5, up to 256GB)

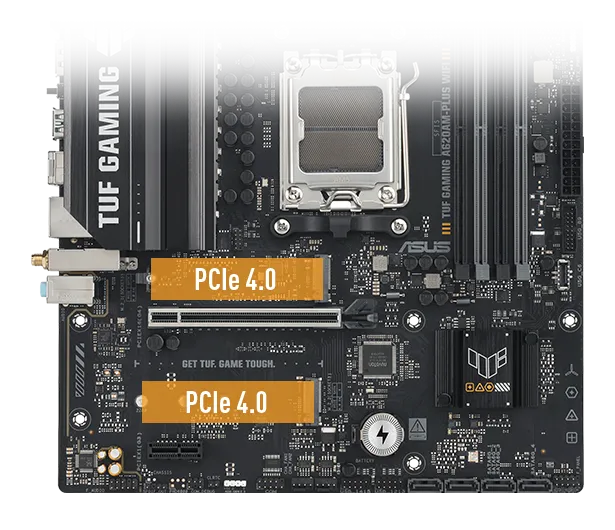

- M.2 slots2 x PCIe 4.0 (M.2_1: 2280, M.2_2: 2242/2260/2280)
- Ethernet1 x 2.5Gb Realtek with TUF LANGuard
- Wi-FiWi-Fi 6 (802.11ax) + Bluetooth 5.3
- SKUASU-2723
- EAN4711636231817
- AMD Socket AM5 for Ryzen 9000, 8000 and 7000 series processors; supports up to 170W CPU thermal design power.

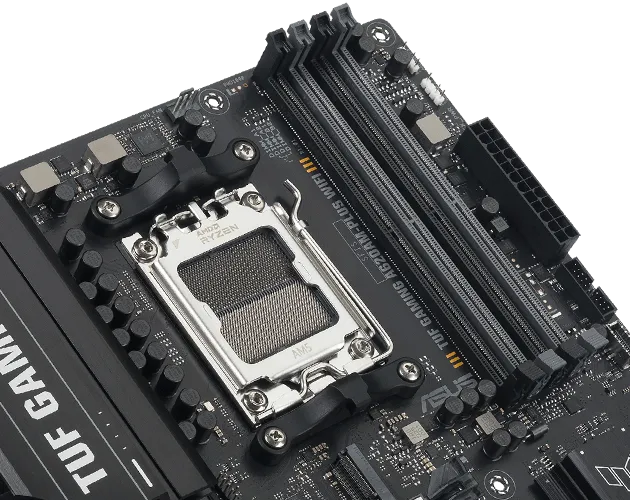

- DDR5 memory: four DIMM slots support up to 256GB total, with speeds up to 7600+MT/s OC on Ryzen 9000 and 8000 series.
- Display outputs include two DisplayPort 1.4 (8K@30Hz) and one HDMI 2.1 (4K@60Hz) for multi-monitor setups.
- Micro-ATX form factor fits standard mATX cases; requires 24-pin and 8-pin +12V CPU power connectors.
- PCIe 4.0 x16 slot runs at x8/x4 mode on Ryzen 8000 series; full x16 mode on Ryzen 9000 and 7000 series.
Best for
- Gaming builds seeking stable, durable performance with military-grade components and proven endurance.
- AI PC enthusiasts who need the power and connectivity demanded by advanced AI applications.
- Compact gaming rigs where micro-ATX dimensions are a must but PCIe 4.0 and Wi-Fi 6 performance are priorities.
- Builders who value low-latency networking; 2.5Gb Ethernet reduces lag in online gaming and enables fast local transfers.
Trade-offs
- High-end server or workstation builds requiring more than two M.2 slots or multiple Gigabit Ethernet ports.
- Builders needing more expansion slots; this board offers only one PCIe x16 and one PCIe x1 slot.
- Users requiring SATA-only storage; only four SATA 6Gb/s ports are available, limiting legacy drive capacity.
ASUS TUF GAMING A620AM-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.
The unique audio codec designed in close collaboration with Realtek for TUF GAMING A620AM-PLUS series motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
Addressable RGB Gen 2 Header
Three addressable RGB Gen 2 headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.
General
| Brand | ASUS |
|---|---|
| Model | TUF GAMING A620AM-PLUS WIFI |
| Part Number | 90MB1MZ0-M0AAY0 |
Networking
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
|---|---|
| Wi-Fi standard | Wi-Fi 6 1x1 (802.11ax), 2.4/5GHz dual-band |
| Bluetooth | Bluetooth 5.3 |
Ports & power

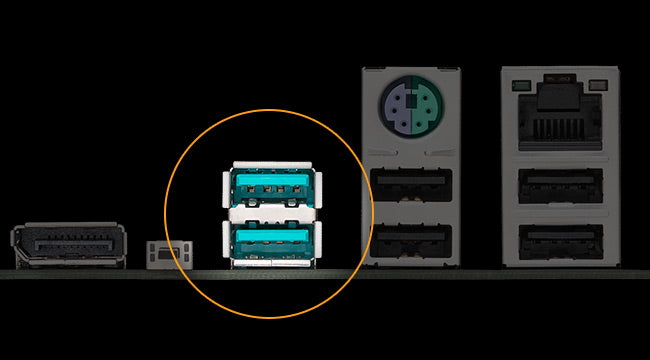

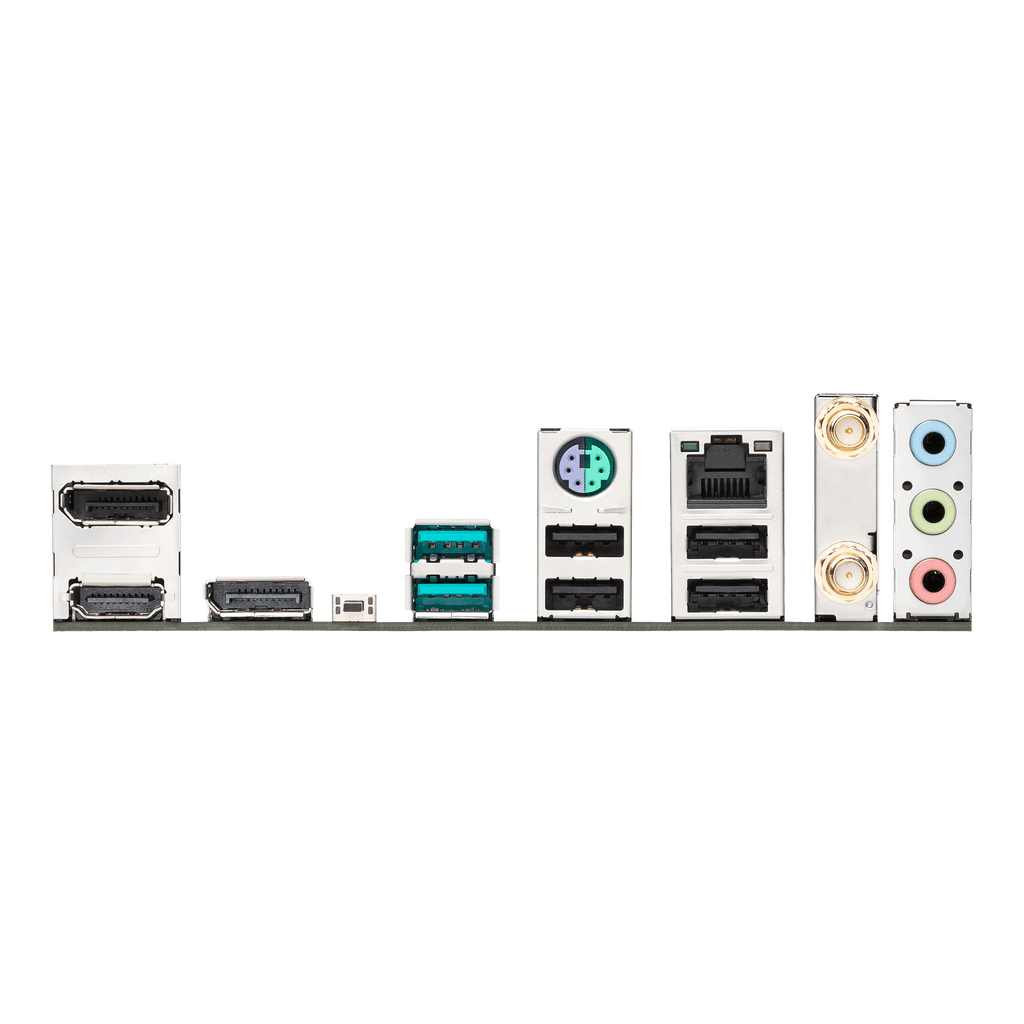

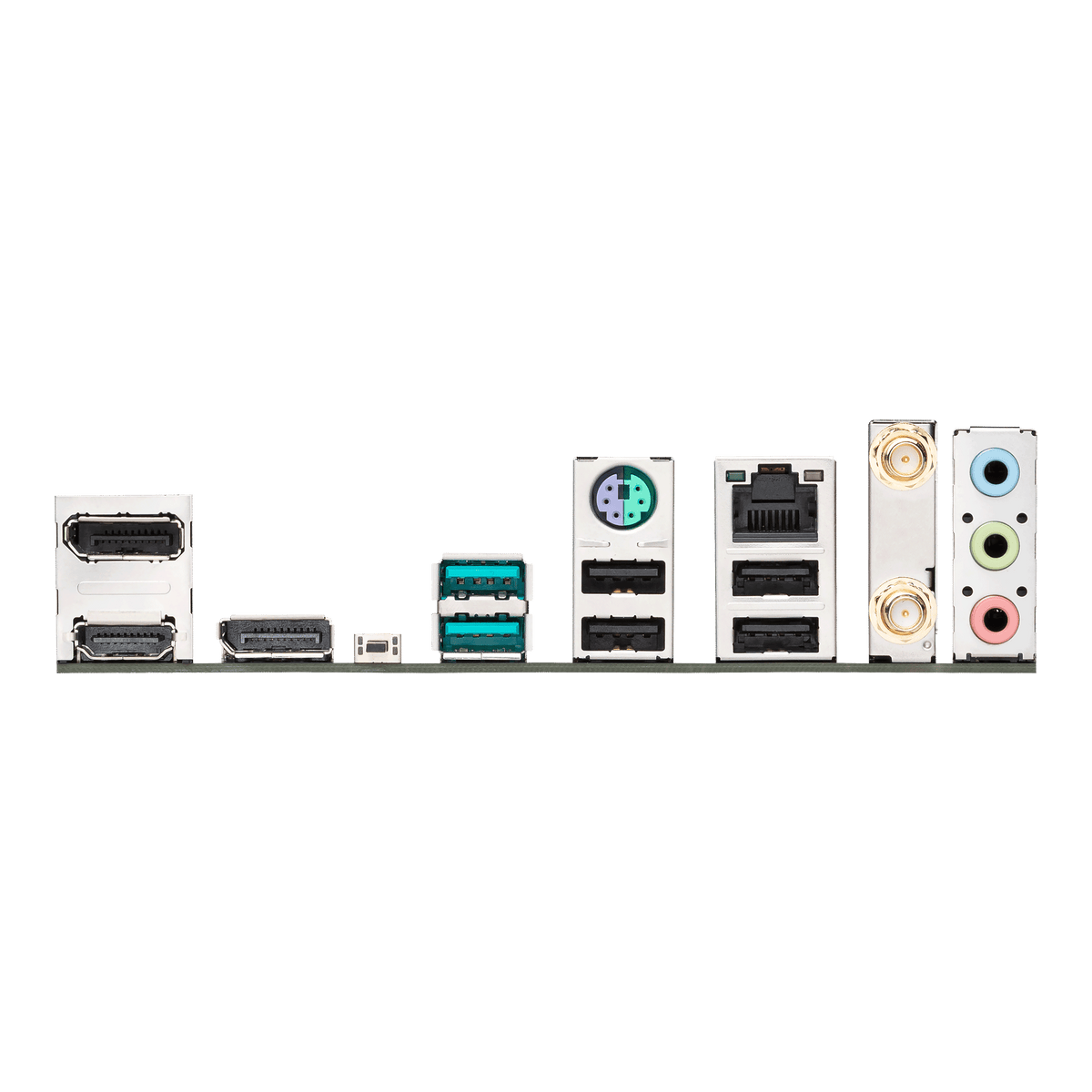

| Rear USB | 2 x USB 10Gbps Type-A, 4 x USB 2.0 Type-A |
|---|---|

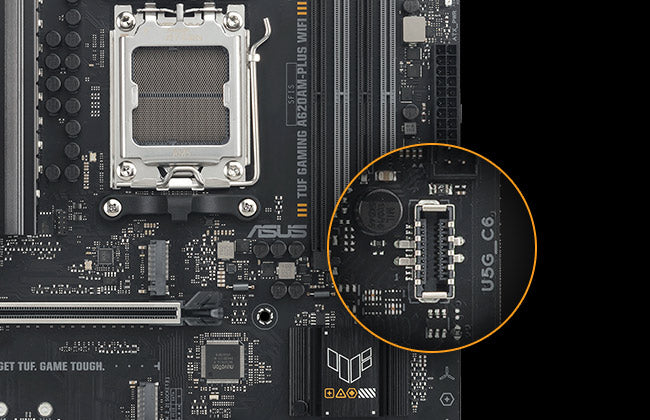

| Front USB connectors | 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Display outputs | 2 x DisplayPort 1.4 (8K@30Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Audio jacks | 3 x 3.5mm (rear) |
| Audio codec | Realtek 7.1 Surround, 24-Bit/192 kHz, 98 dB signal-to-noise ratio |
| Main power | 24-pin connector, 1 x 8-pin +12V CPU |
| Fan headers | 1 x 4-pin CPU fan, 2 x 4-pin chassis fan |
Storage & expansion
| M.2 slots | 2 x PCIe 4.0 x4 (M.2_1: type 2280, M.2_2: type 2242/2260/2280) |
|---|---|
| SATA ports | 4 x 6Gb/s |
| PCIe slots | 1 x PCIe 4.0 x16 (x16 on Ryzen 9000/7000, x8/x4 on Ryzen 8000), 1 x PCIe 3.0 x1 |
Memory
| DIMM slots | 4 x DDR5 |
|---|---|
| Max capacity | 256GB |
| Speed support | Up to 7600+MT/s OC (Ryzen 9000 & 8000), supports EXPO and AEMP |
Performance & cooling
| Power design | 8+2+1 phase digital VRM with alloy chokes and durable capacitors |
|---|---|
| PCB layers | 6-layer |
| CPU support | AMD Ryzen 9000, 8000 & 7000 series, up to 170W TDP |
| VRM heatsink | Enhanced |
| PCH heatsink | Yes |
| Fan control | Hybrid fan headers with Fan Xpert 2+ |
Customization
| RGB headers | 3 x Addressable RGB Gen 2 (up to 500 LEDs per header, backward compatible) |
|---|---|
| RGB software | ASUS Aura Sync |
Physical
| Form factor | Micro-ATX (mATX) |
|---|---|
| Protection | TUF GAMING durability (military-grade components, rigorous endurance testing) |
| DIY features | M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, BIOS FlashBack button and LED |

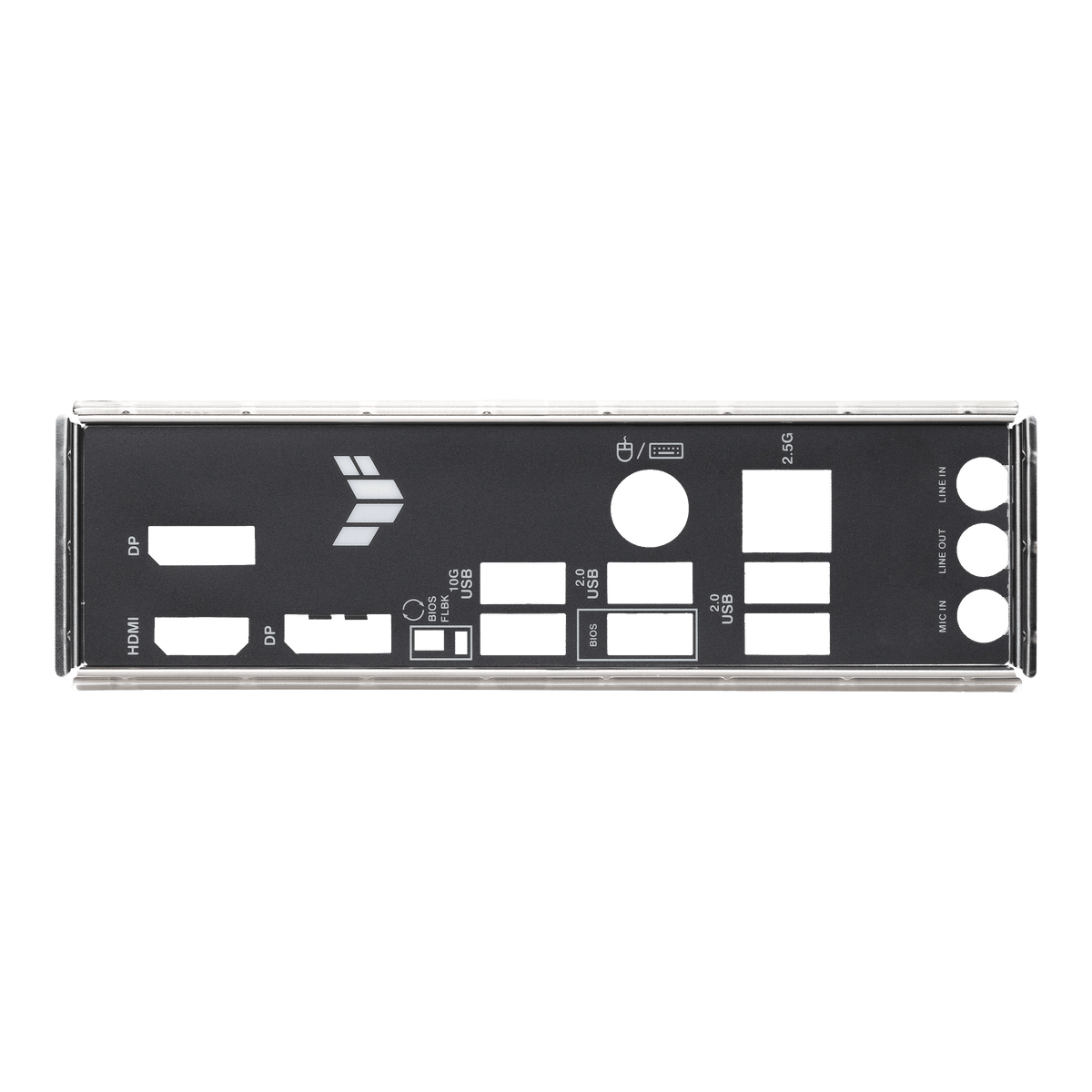

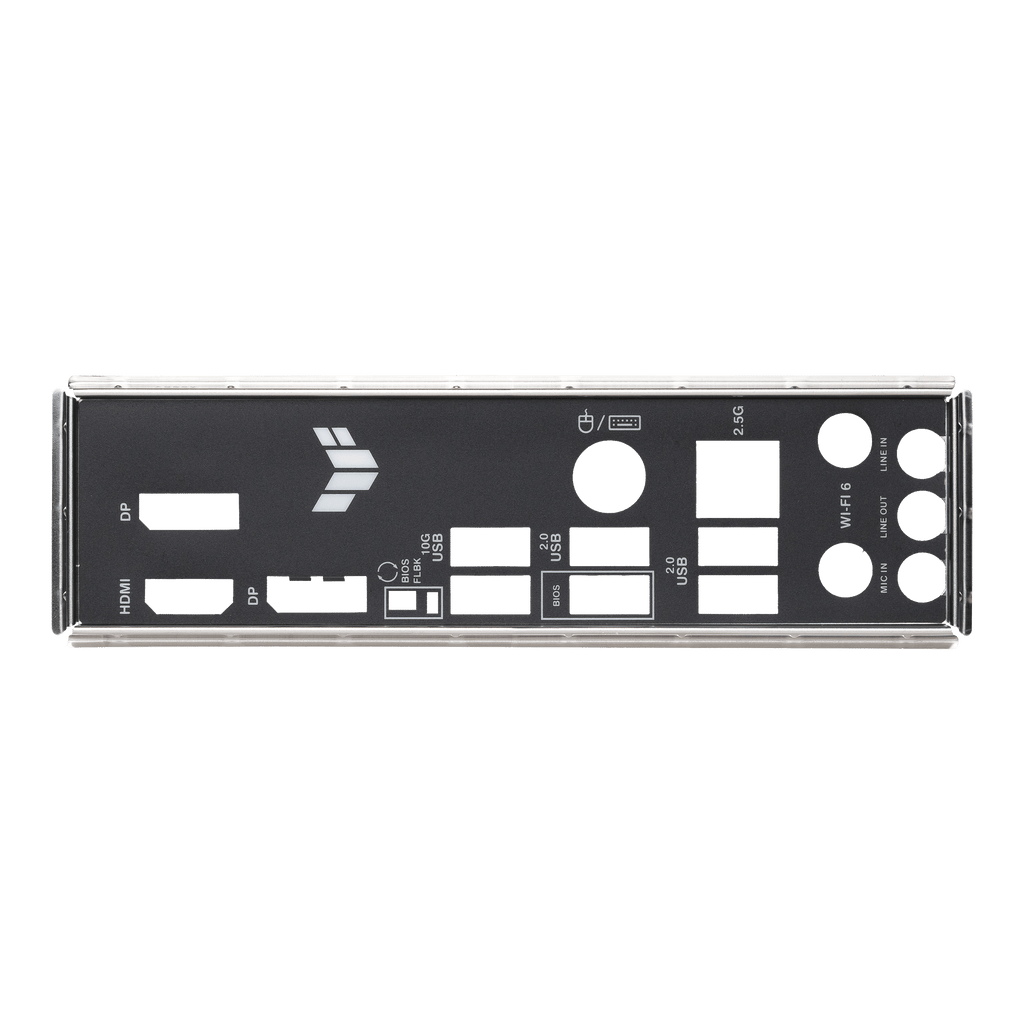

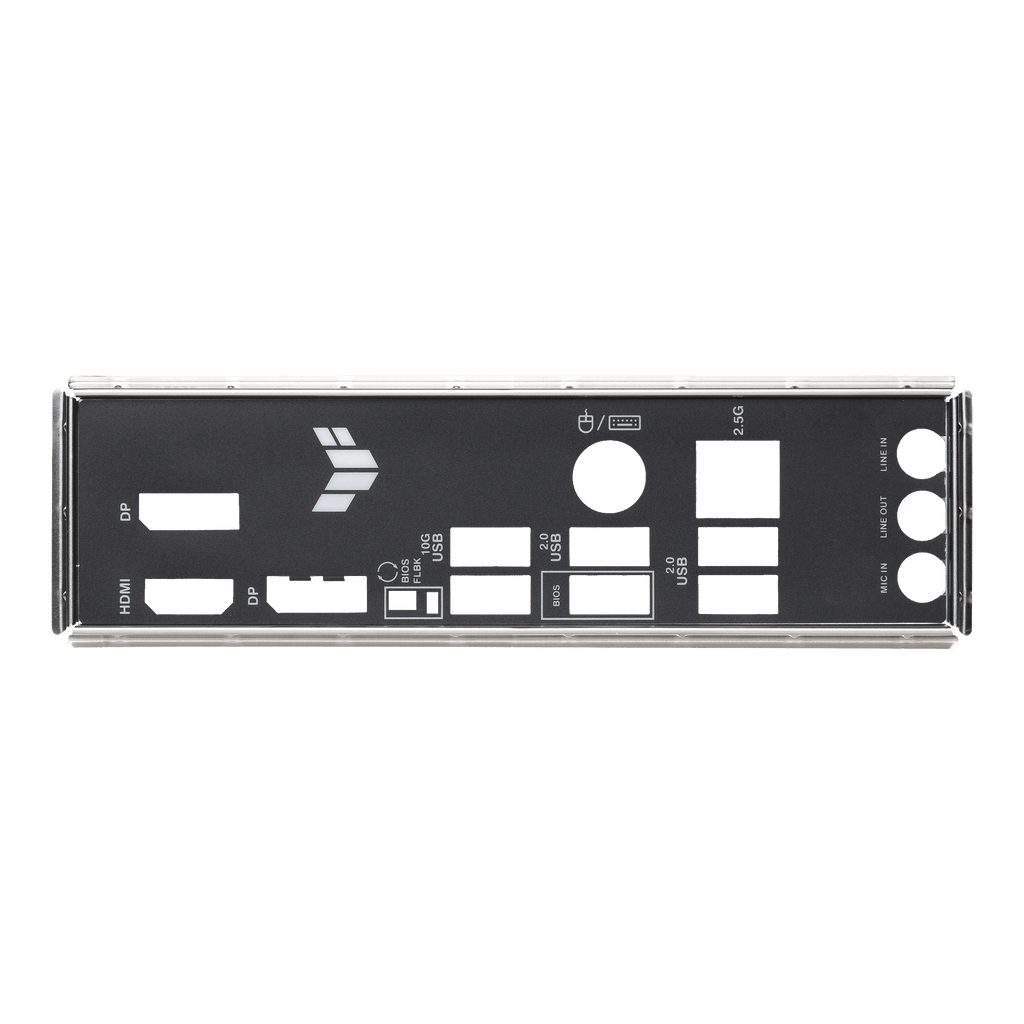

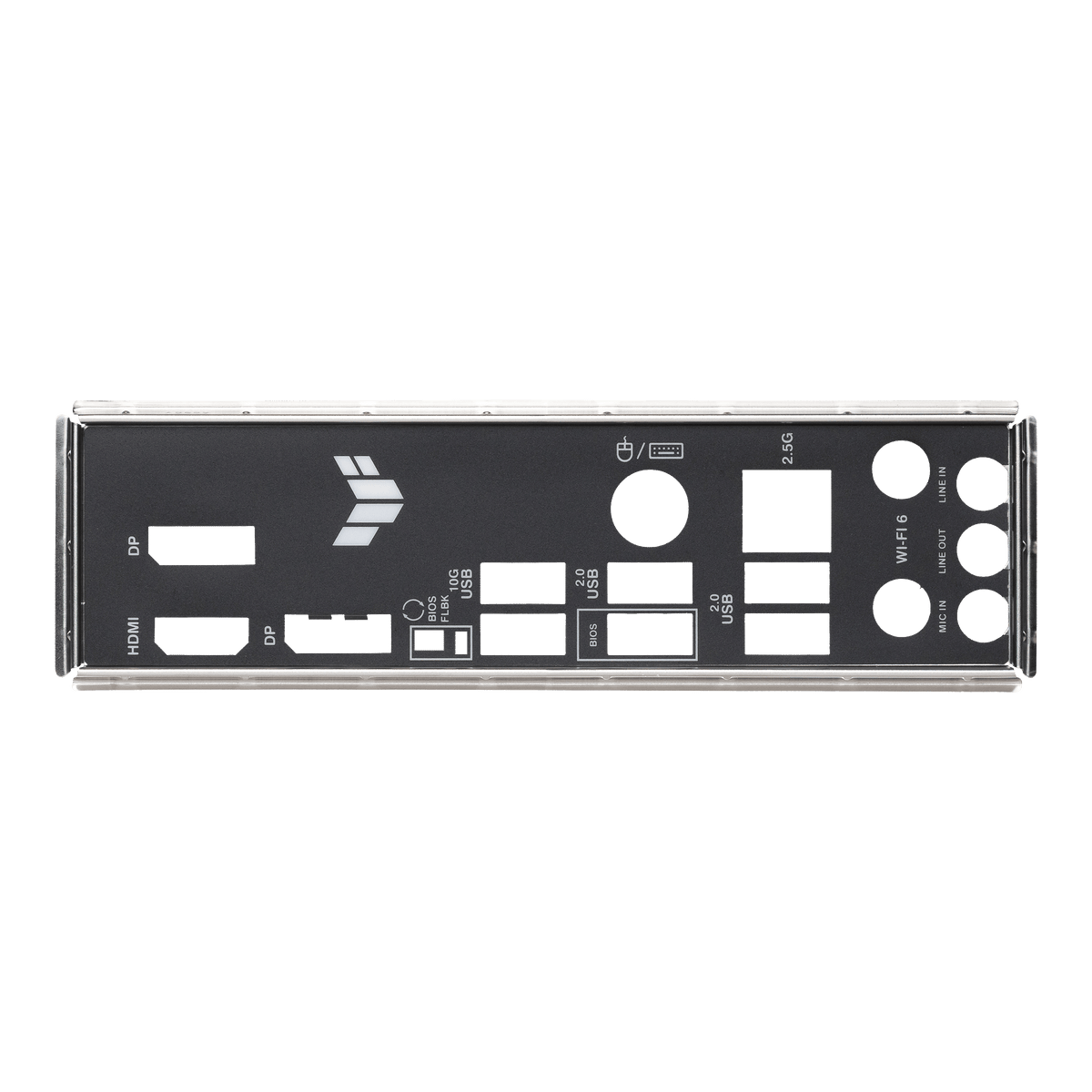

| Back panel | Stainless-steel I/O shield with ESD guards |
BIOS & software
| BIOS | 256 Mb Flash ROM, UEFI AMI |
|---|---|
| OS support | Windows 11, Windows 10 64-bit |
| Included software | ASUS DriverHub, Armoury Crate |
