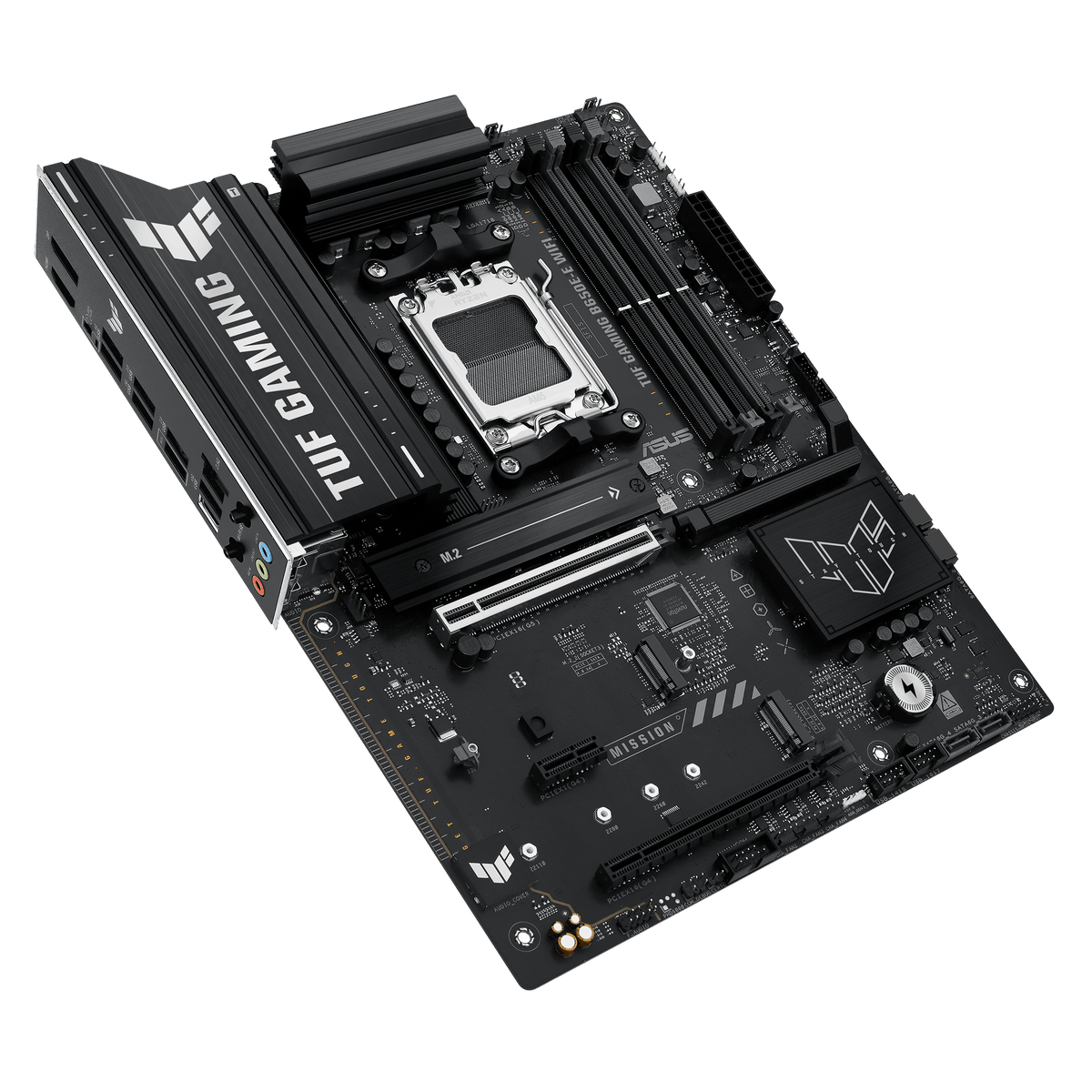

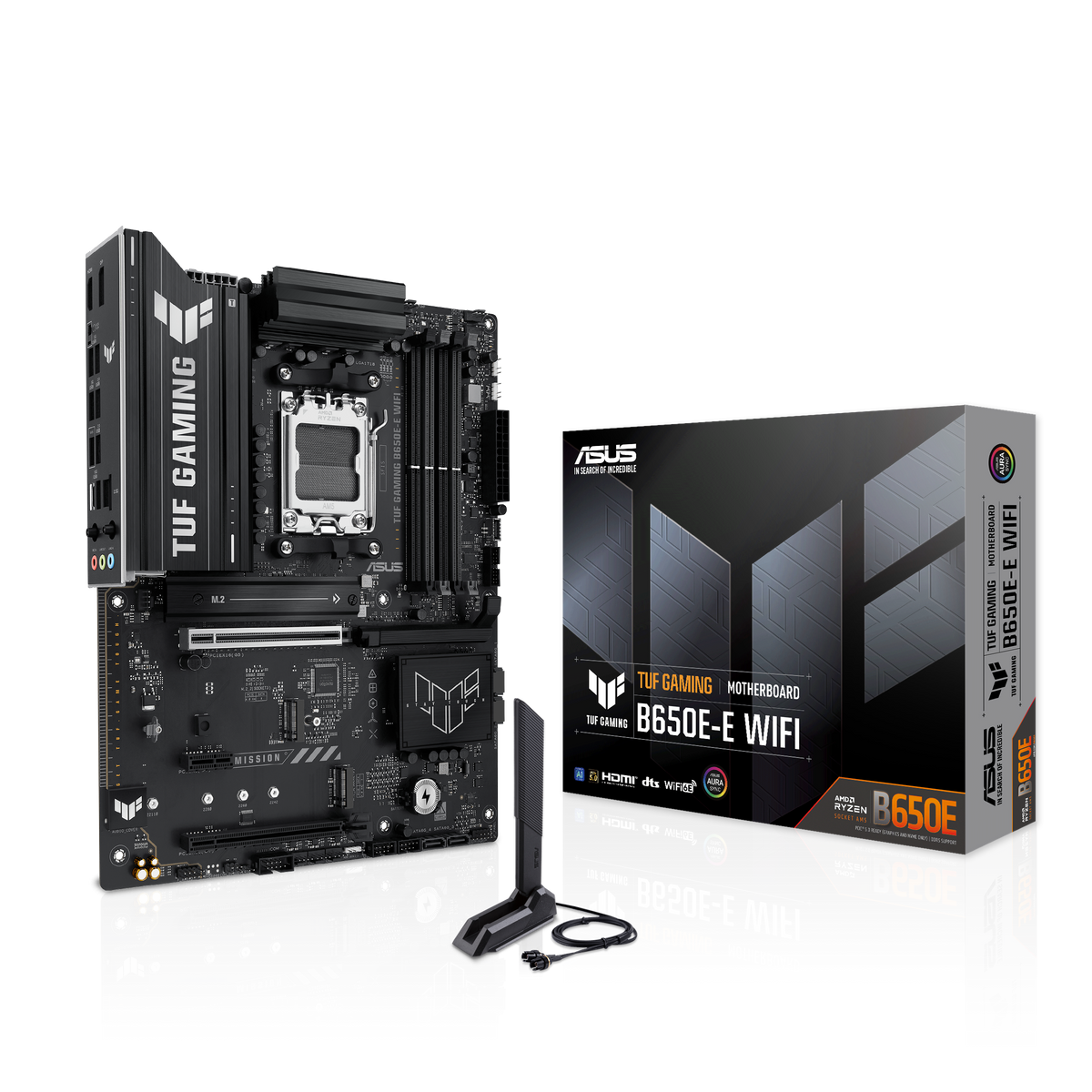

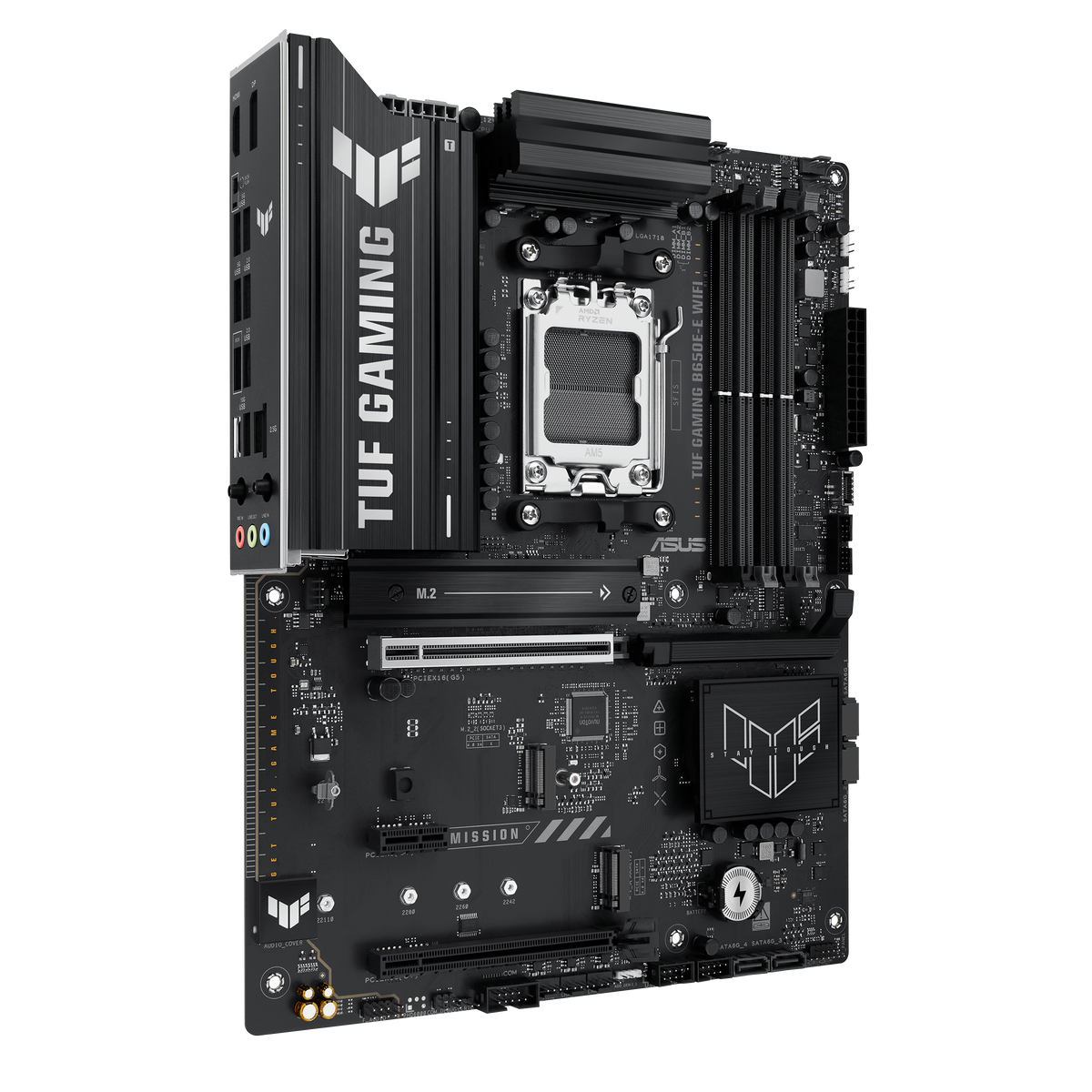

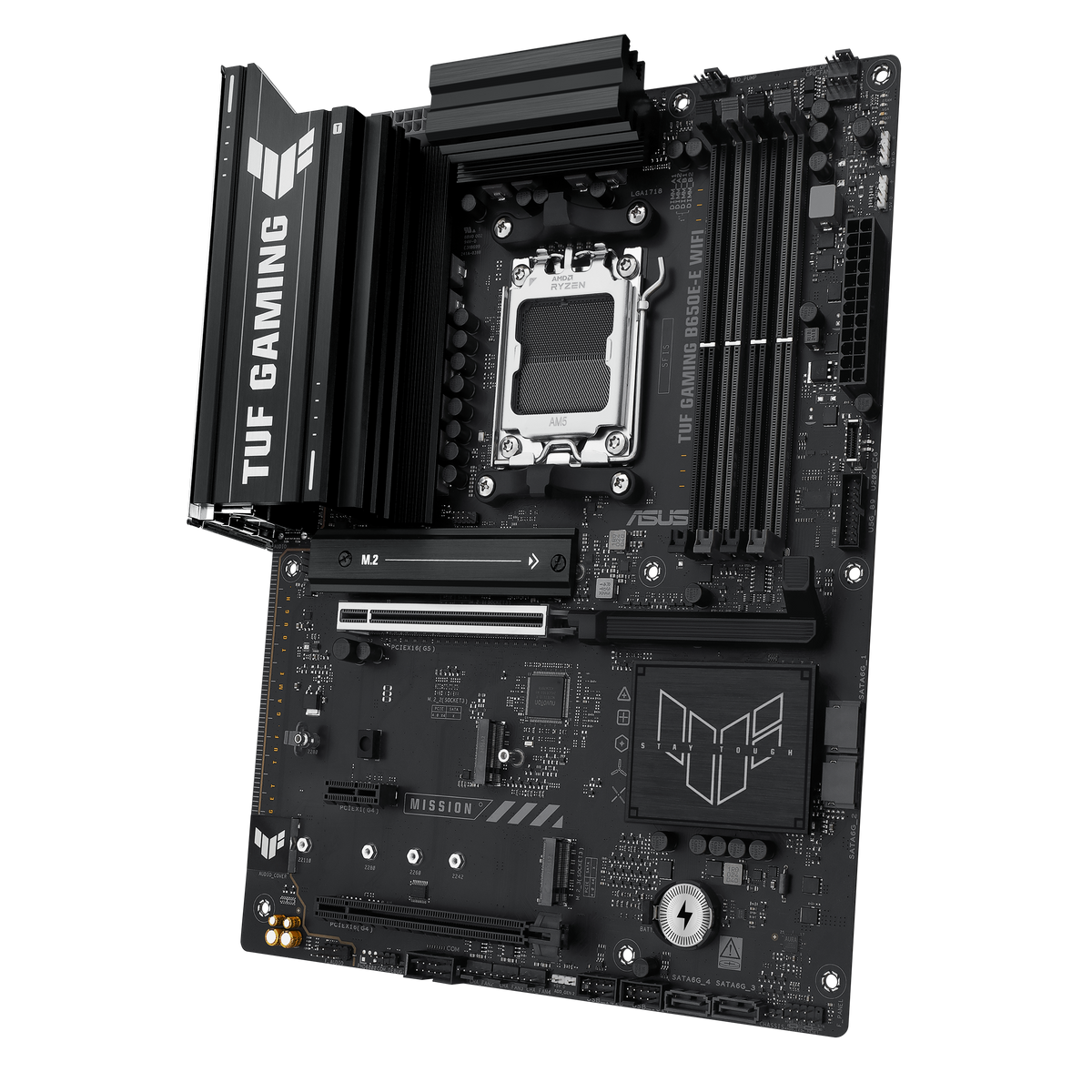

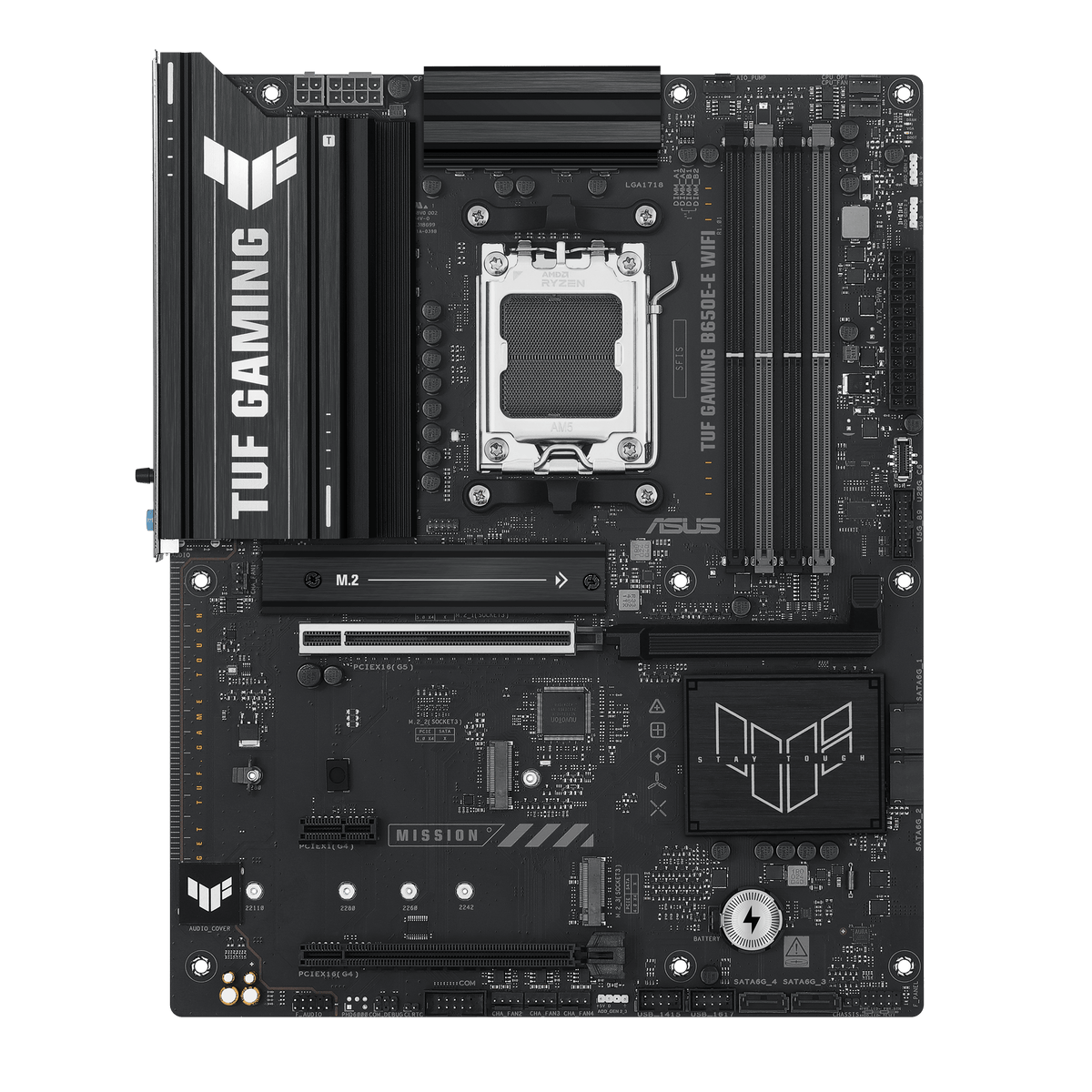

ASUS TUF Gaming B650E-E WiFi AM5 ATX Motherboard DDR5
ASUS
ASUS TUF Gaming B650E-E WiFi AM5 ATX Motherboard DDR5
The ASUS TUF Gaming B650E-E WiFi is a full-size gaming and content-creation motherboard for AMD Ryzen 9000, 8000 and 7000 series processors. It combines PCIe 5.0 storage support, DDR5 memory, WiFi 6E and military-grade durability testing with game-focused features like high-speed networking and audio tuning.
Why this product
PCIe 5.0 storage and graphics support
The M.2_1 slot supports PCIe 5.0 NVMe drives on Ryzen 9000 and 7000 series, and the primary GPU slot runs PCIe 5.0 on those same processors, doubling bandwidth over PCIe 4.0.
WiFi 6E with 2.5 Gb Ethernet

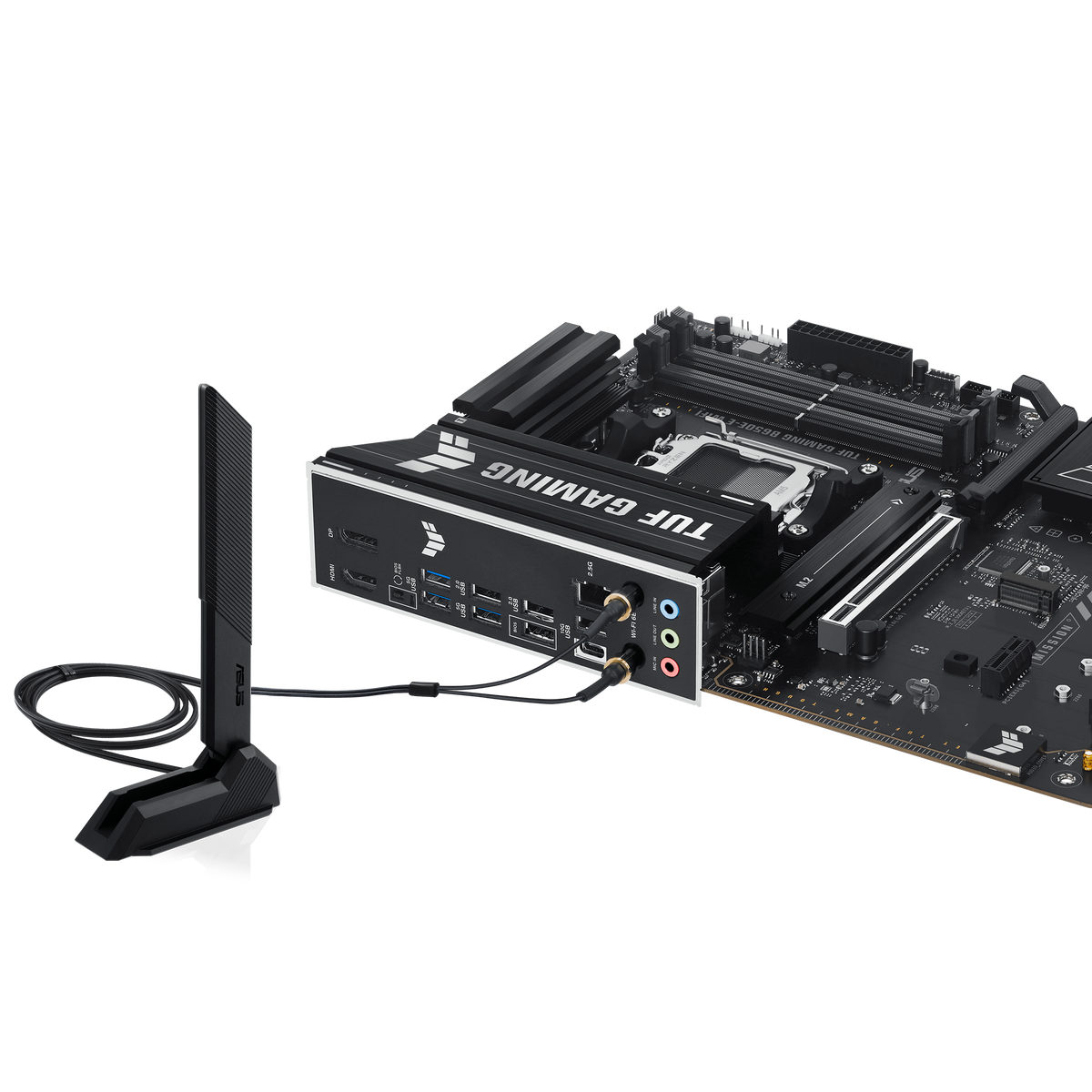

Dual-band WiFi 6E covers 2.4 GHz, 5 GHz and 6 GHz frequencies, paired with a wired 2.5 Gb Ethernet port for low-latency gaming and streaming.
Front USB 20 Gbps Type-C connector
A USB 20Gbps front-panel Type-C port lets you connect high-speed external storage or peripherals without routing through rear connectors.
Tested endurance and protection
Rigorous TUF durability testing, ESD guards, overvoltage protection and TUF LANGuard ensure stability under sustained load and power stress.
Tuned audio for competitive gaming
Realtek 7.1-channel codec with dedicated audio PCB layers, premium capacitors and audio shielding reproduce positional cues for FPS titles.
- ChipsetAMD B650
- SocketAM5
- Memory supportDDR5 up to 8000+ MT/s
- Form factorATX
- PCIe 5.0 GPU slotYes (Ryzen 9000 & 7000 series)
- PCIe 5.0 storageM.2_1 slot (Ryzen 9000 & 7000 series)
- WiFi 6E2x2, 2.4/5/6 GHz
- Ethernet2.5 Gb with TUF LANGuard
- SKUASU-3407
- EAN4711387992494
- Supports AMD Ryzen 9000, 8000 and 7000 series processors in AM5 socket, up to 200W TDP.
- DDR5 memory modules up to 8000+ MT/s on Ryzen 9000 and 8000 series with EXPO or AEMP profiles.
- ATX form factor fits standard tower cases with support for Intel or 3-pin RGB headers.
- Supports BIOS FlashBack updates without a CPU installed.
- PCIe 5.0 GPU slot and M.2_1 storage slot are limited to Ryzen 9000 and 7000 series; Ryzen 8000 series falls back to PCIe 4.0 on those slots.
Best for
- Ryzen 9000 and 7000 series builders seeking PCIe 5.0 GPU and storage performance.
- Content creators and streamers who need stable multi-core performance and wired + wireless networking.
- Competitive gamers prioritizing low-latency audio cues and high-speed I/O for peripherals.
- Builders who value proven durability and comprehensive protection against power and ESD stress.
Trade-offs
- Ryzen 8000 series builders: GPU and primary M.2 slots drop to PCIe 4.0 on this chipset pairing.
- DDR4 users: this board requires DDR5 memory modules; DDR4 is not supported.
- Budget builds: B650E pricing reflects PCIe 5.0 and WiFi 6E; B650 non-E boards offer lower cost for Ryzen 8000.
ASUS TUF GAMING B650E-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability.
TUF GAMING B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability.
Build for the most advanced pc for gaming and creating
Front USB 20Gbps Type-C®
A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 20Gbps Type-C® connector that provides data transfer speeds of up to 20 Gbps.
General
| Brand | ASUS |
|---|
Networking
| WiFi standard | WiFi 6E (802.11ax), 2x2, supports 2.4/5/6 GHz |
|---|---|
| Ethernet | 1 x Realtek 2.5 Gb Ethernet with TUF LANGuard |
| Bluetooth | Bluetooth 5.3 |
Performance
| Chipset | AMD B650 |
|---|---|
| CPU socket | AMD AM5 for Ryzen 9000, 8000 and 7000 series (up to 200W TDP) |
| Memory | DDR5, up to 8000+ MT/s (OC), supports ECC and non-ECC, dual channel with EXPO and AEMP |
| Storage M.2_1 | Type 2280, PCIe 5.0 x4 (Ryzen 9000 & 7000); PCIe 4.0 x4 (Ryzen 8000) |
| Storage M.2_2 | Type 2280, PCIe 4.0 x4 (Ryzen 9000 & 7000); PCIe 4.0 x4/x2 (Ryzen 8000) |
| Storage M.2_3 | Type 2242/2260/2280/22110, PCIe 4.0 x4 |
| SATA ports | 4 x SATA 6 Gb/s |
| GPU slot | PCIe 5.0 x16 (Ryzen 9000 & 7000); PCIe 4.0 x16 (Ryzen 8000) |
| Secondary slots | 1 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 4.0 x1 |
| Power stages | 8(80A) + 2(80A) + 1(80A) with enlarged VRM heatsinks |
Ports & power

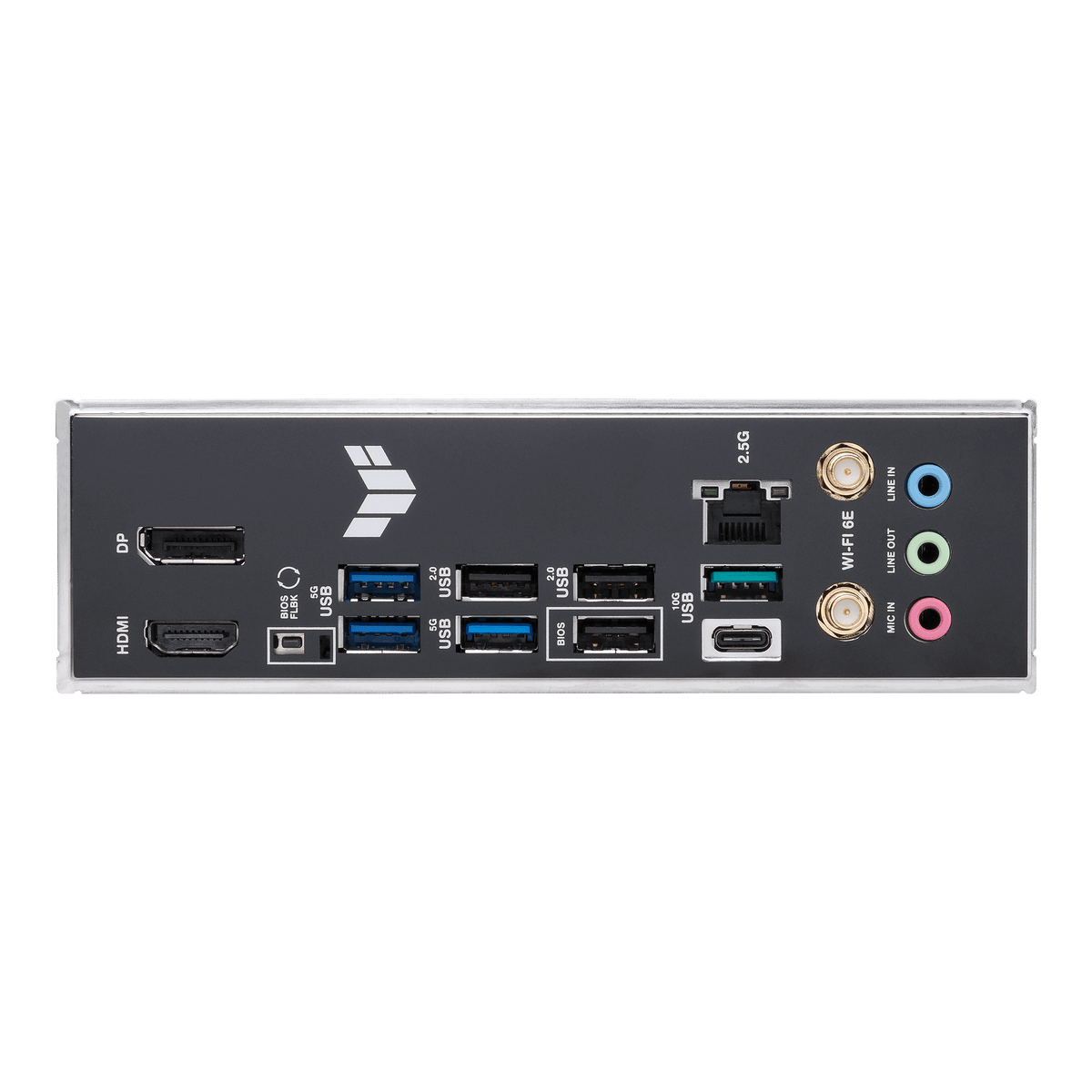

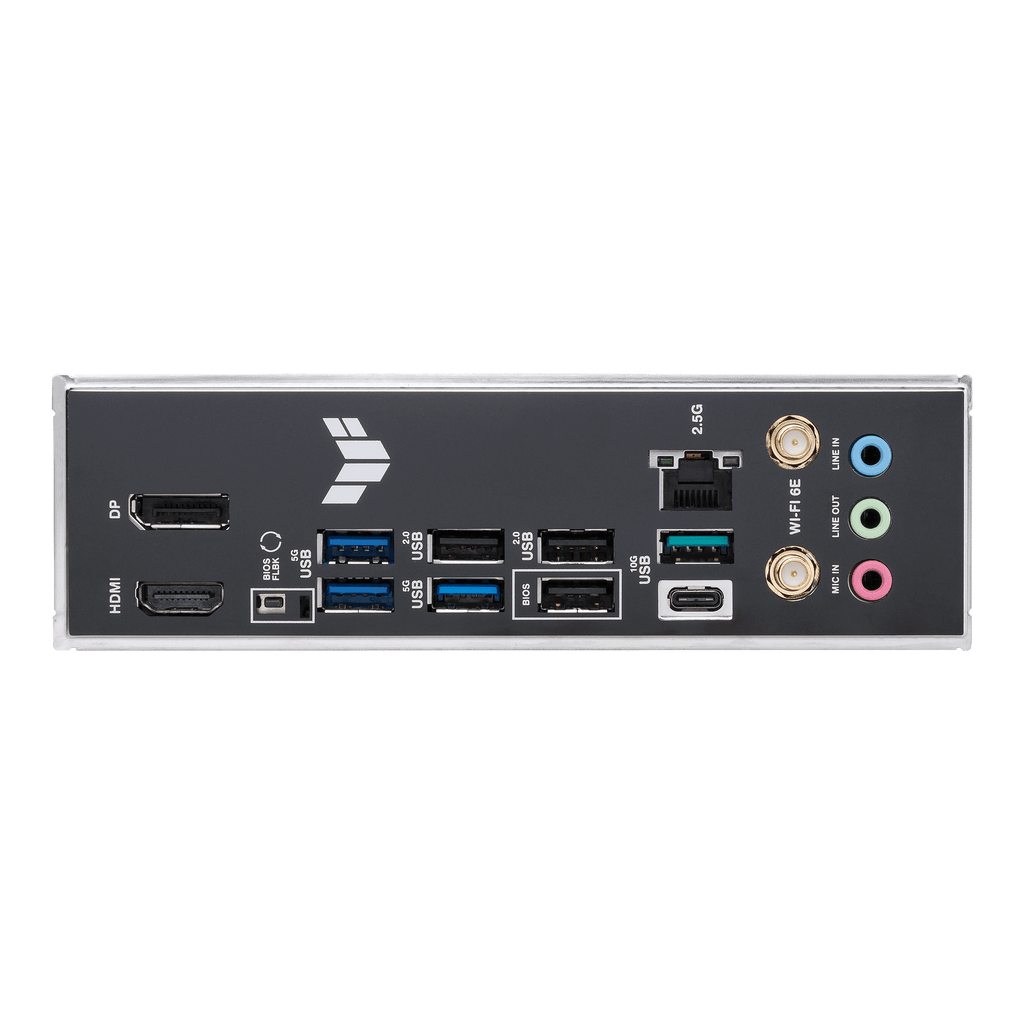

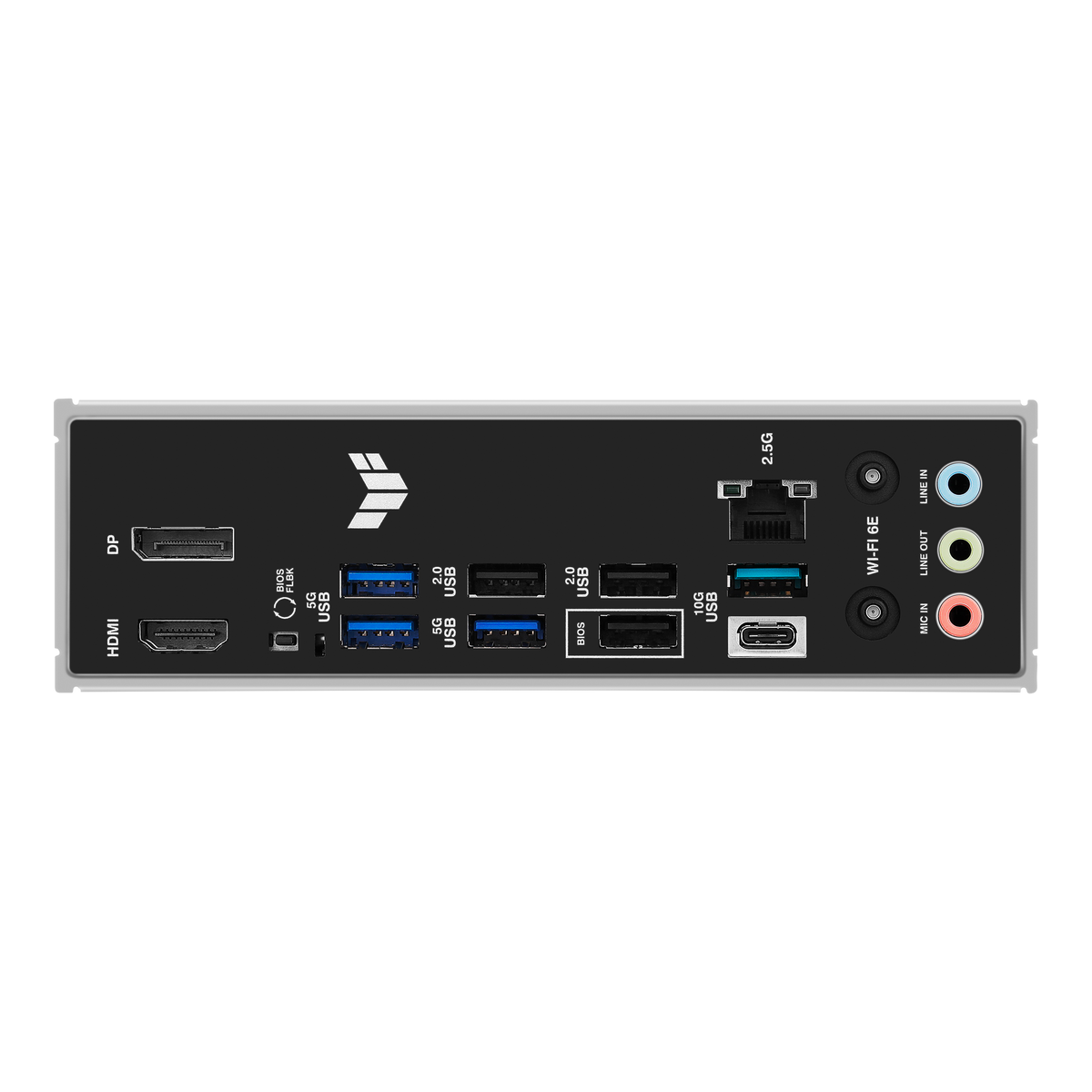

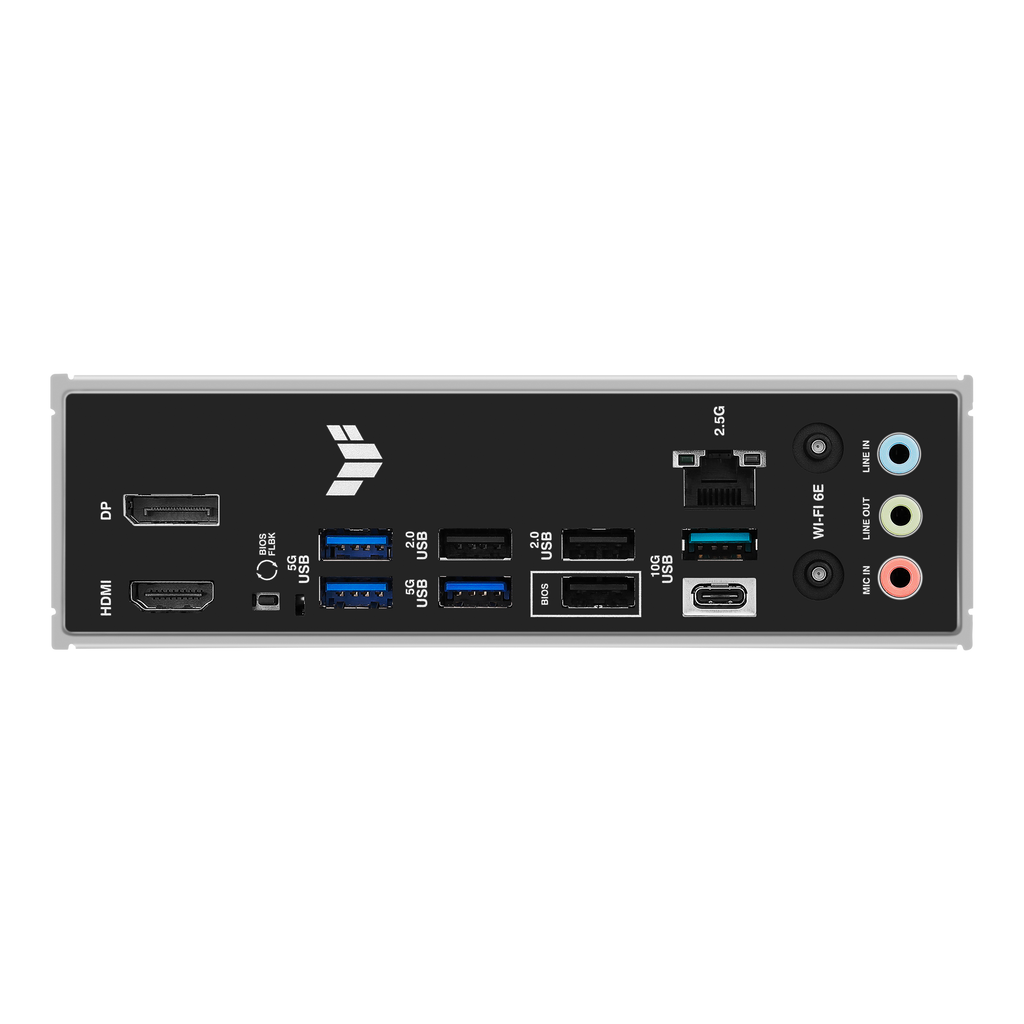

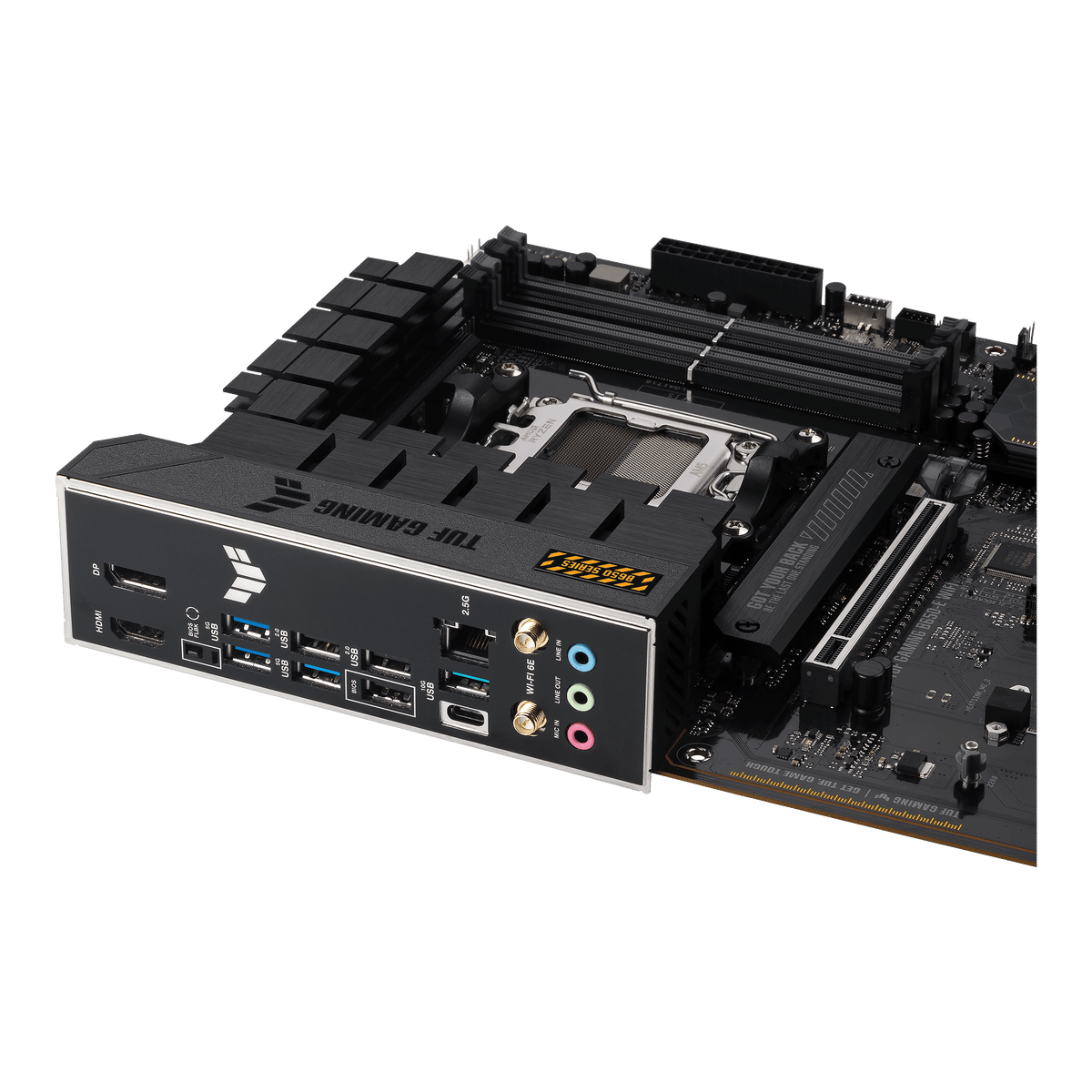

| Rear USB | 2 x USB 10 Gbps (1 Type-A, 1 Type-C), 3 x USB 5 Gbps Type-A, 3 x USB 2.0 Type-A |
|---|---|
| Front USB headers | 1 x USB 20 Gbps Type-C connector, 1 x USB 5 Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Video outputs | 1 x DisplayPort, 1 x HDMI |
| Audio | Realtek 7.1-channel codec with audio shielding, premium capacitors, dedicated PCB layers and audio cover |
| RGB headers | 3 x Addressable RGB Gen 2 headers for Aura Sync |
| Fan headers | 1 x 4-pin CPU, 1 x 4-pin CPU OPT, 1 x 4-pin AIO pump, 4 x 4-pin chassis |
| Power connectors | 1 x 24-pin main, 1 x 8-pin +12V CPU, 1 x 4-pin +12V CPU |
Physical
| Form factor | ATX |
|---|---|
| BIOS | 256 Mb Flash ROM, UEFI AMI with BIOS FlashBack |
| Protection | TUF LANGuard, ESD guards, overvoltage protection, SafeSlot, stainless-steel back I/O |
| Cooling | Flexible M.2 heatsink, VRM heatsink design |
| Operating system support | Windows 11, Windows 10 64-bit |
