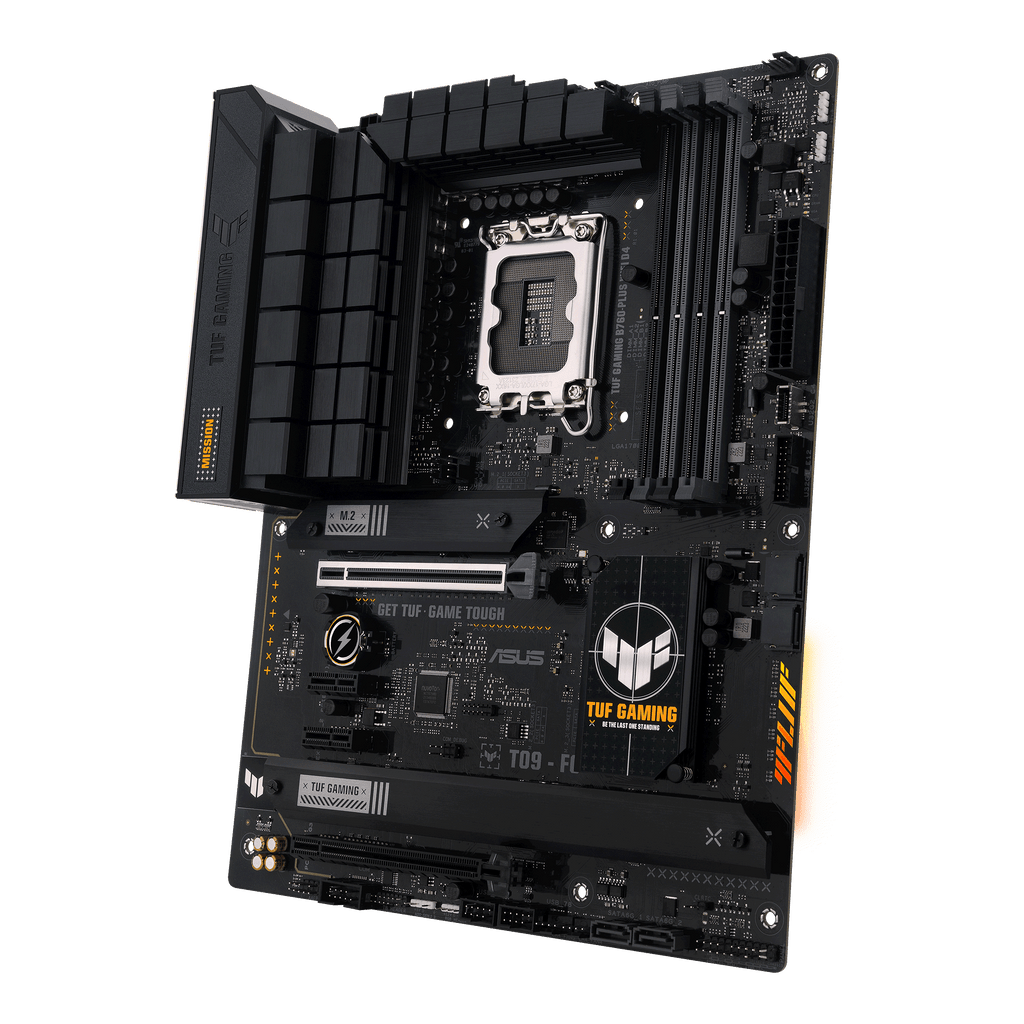

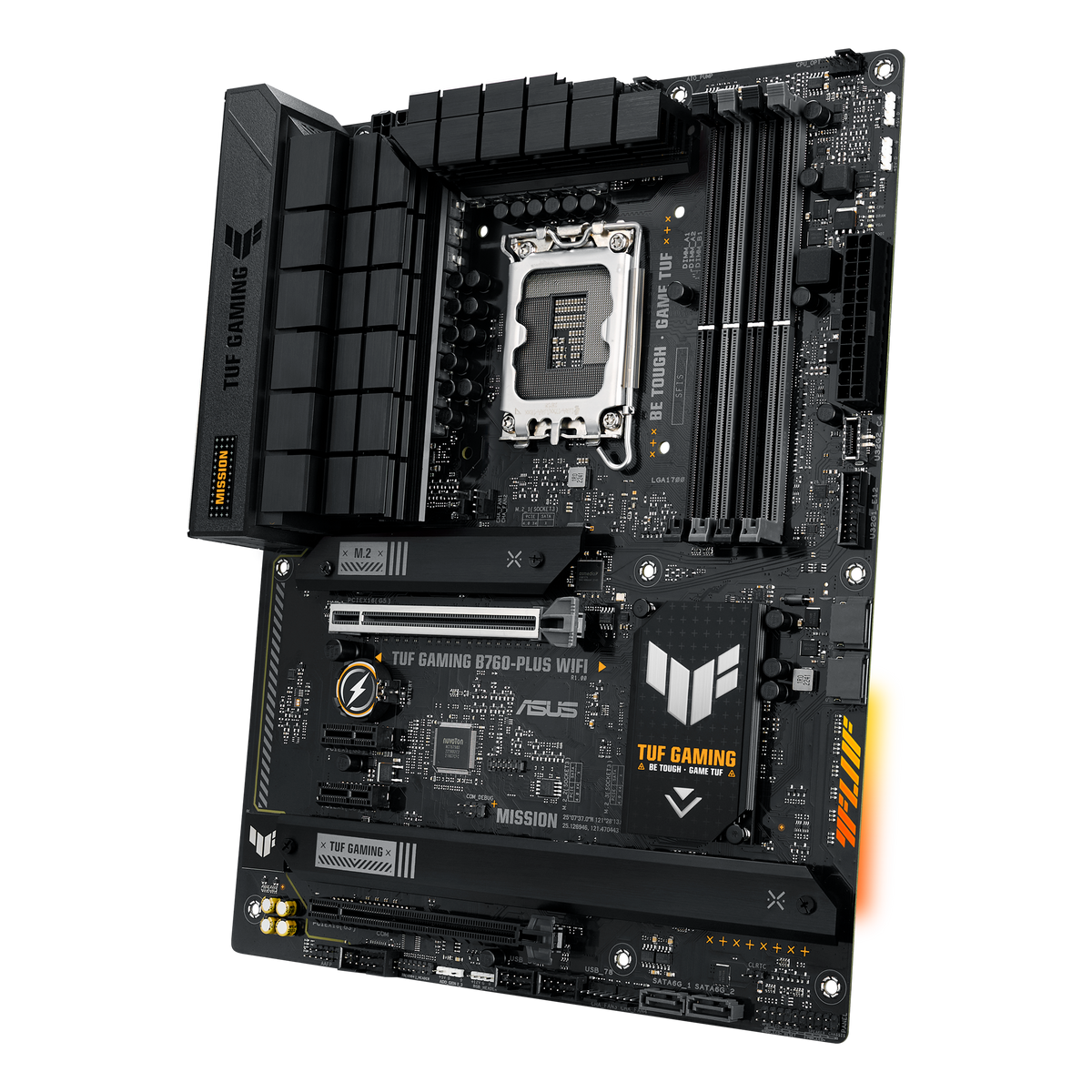

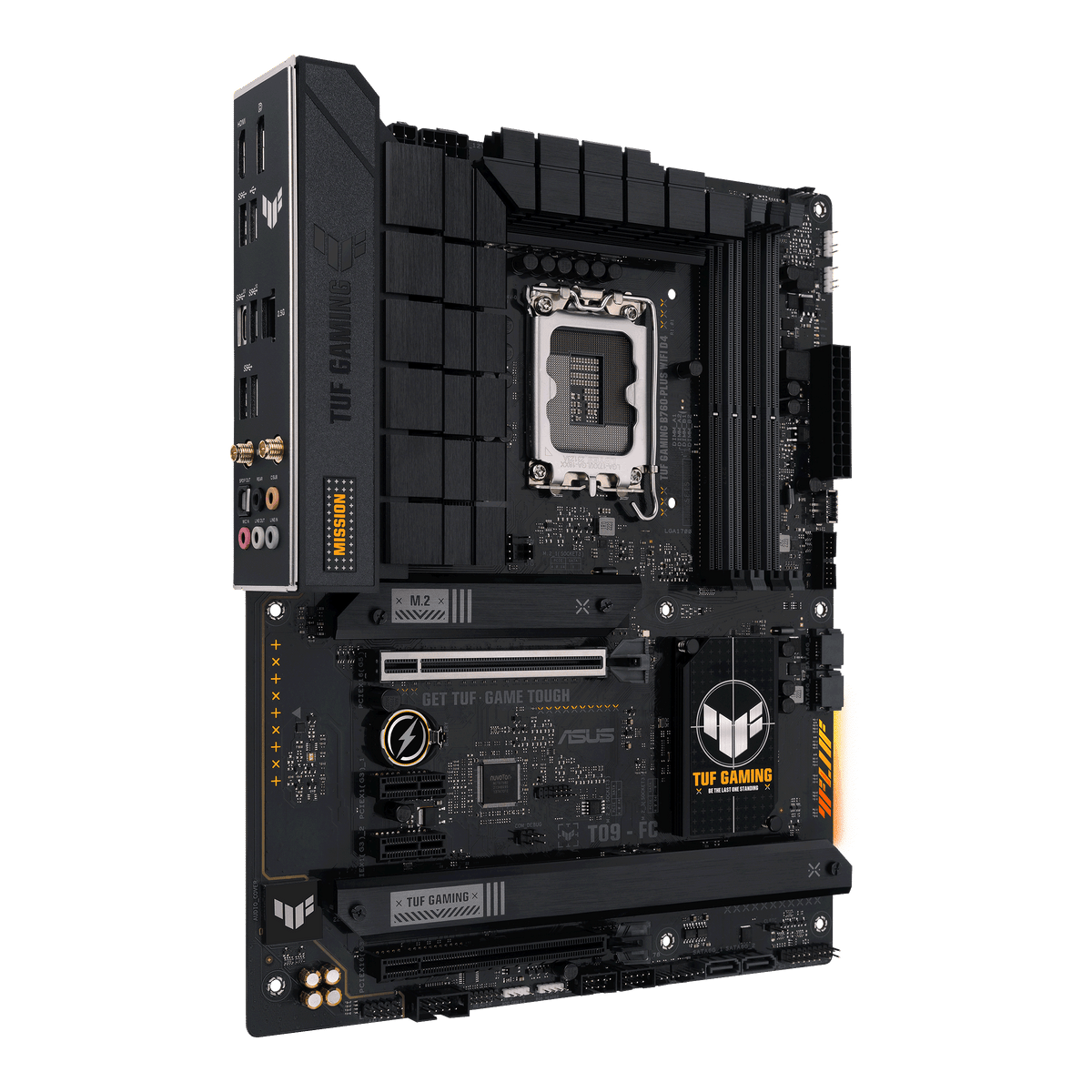

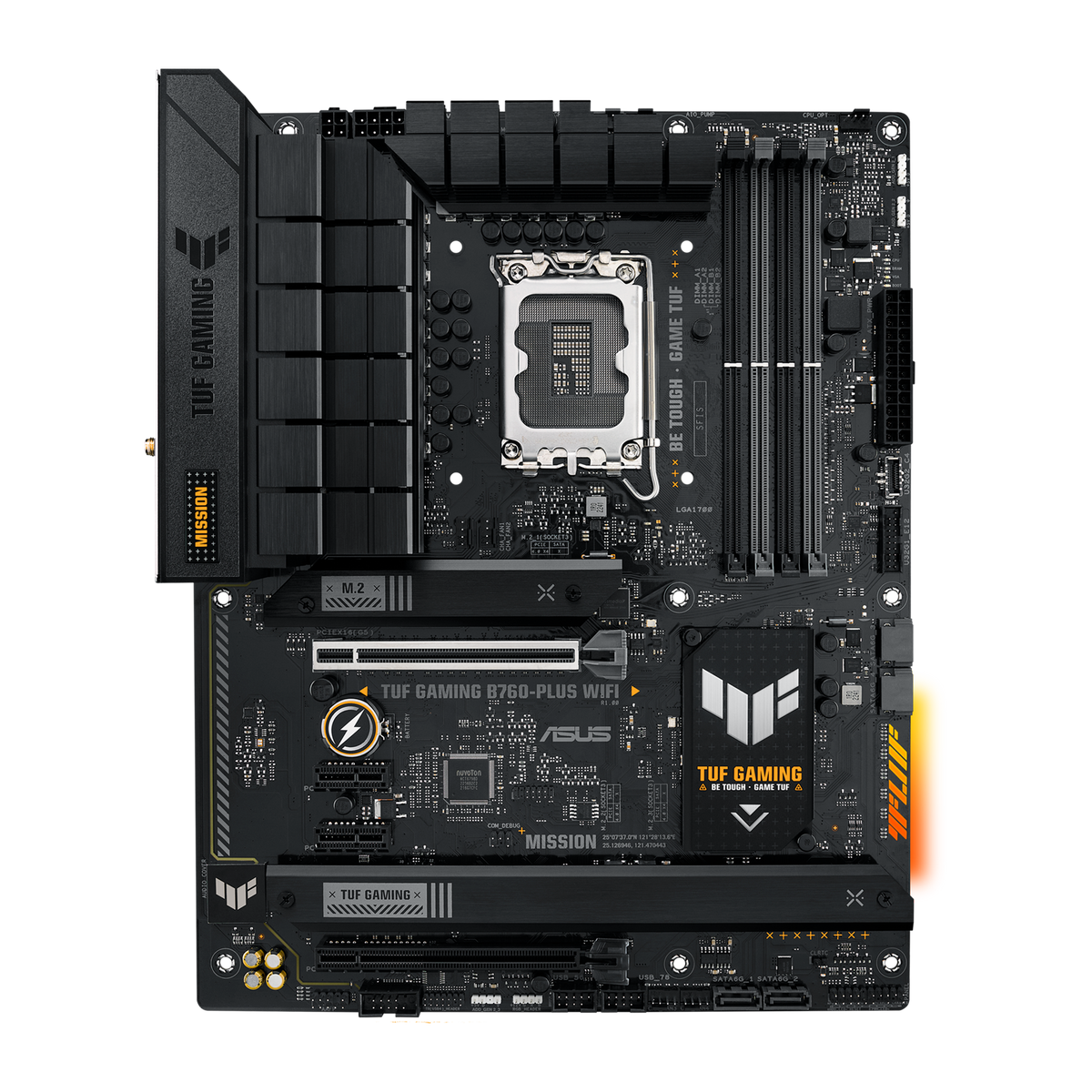

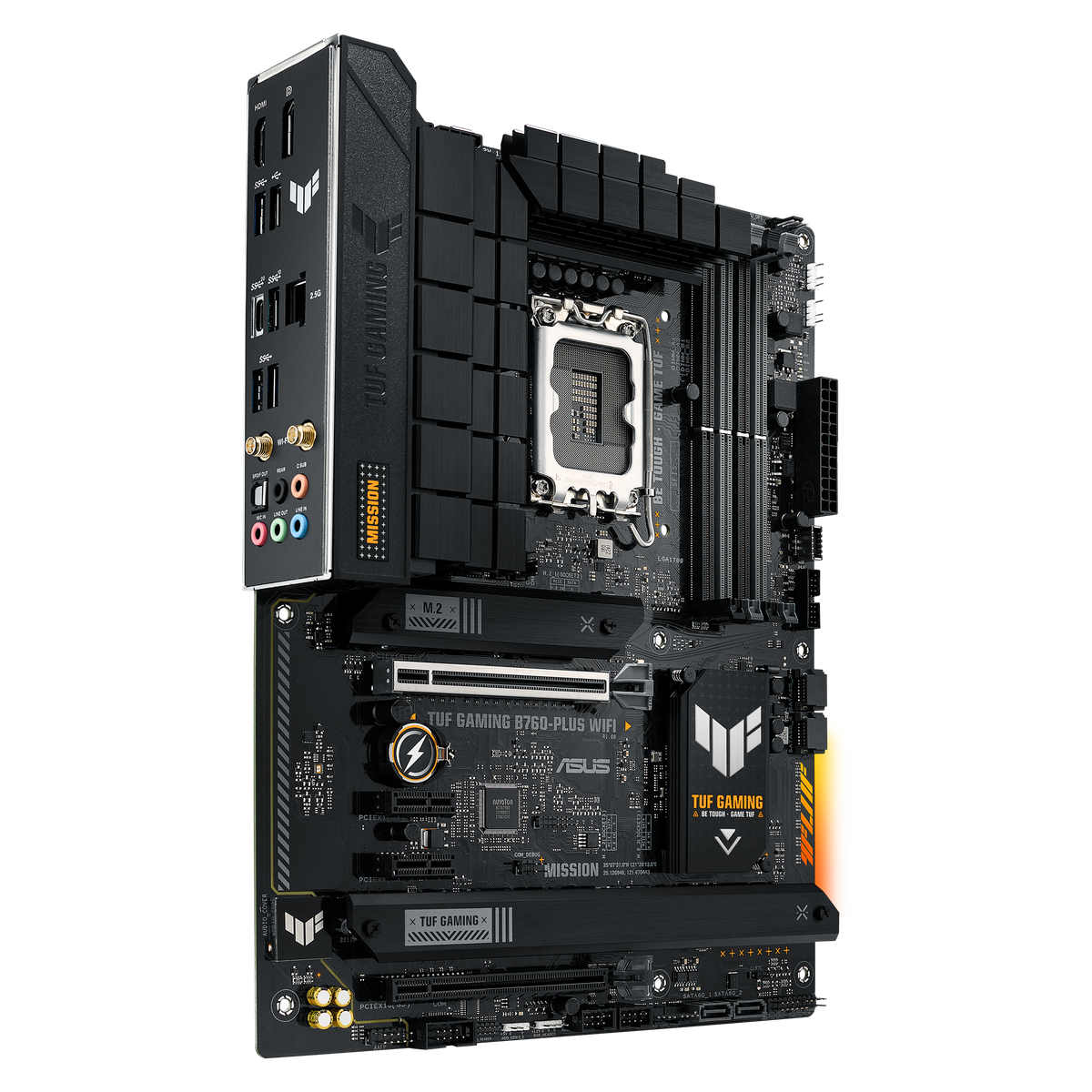

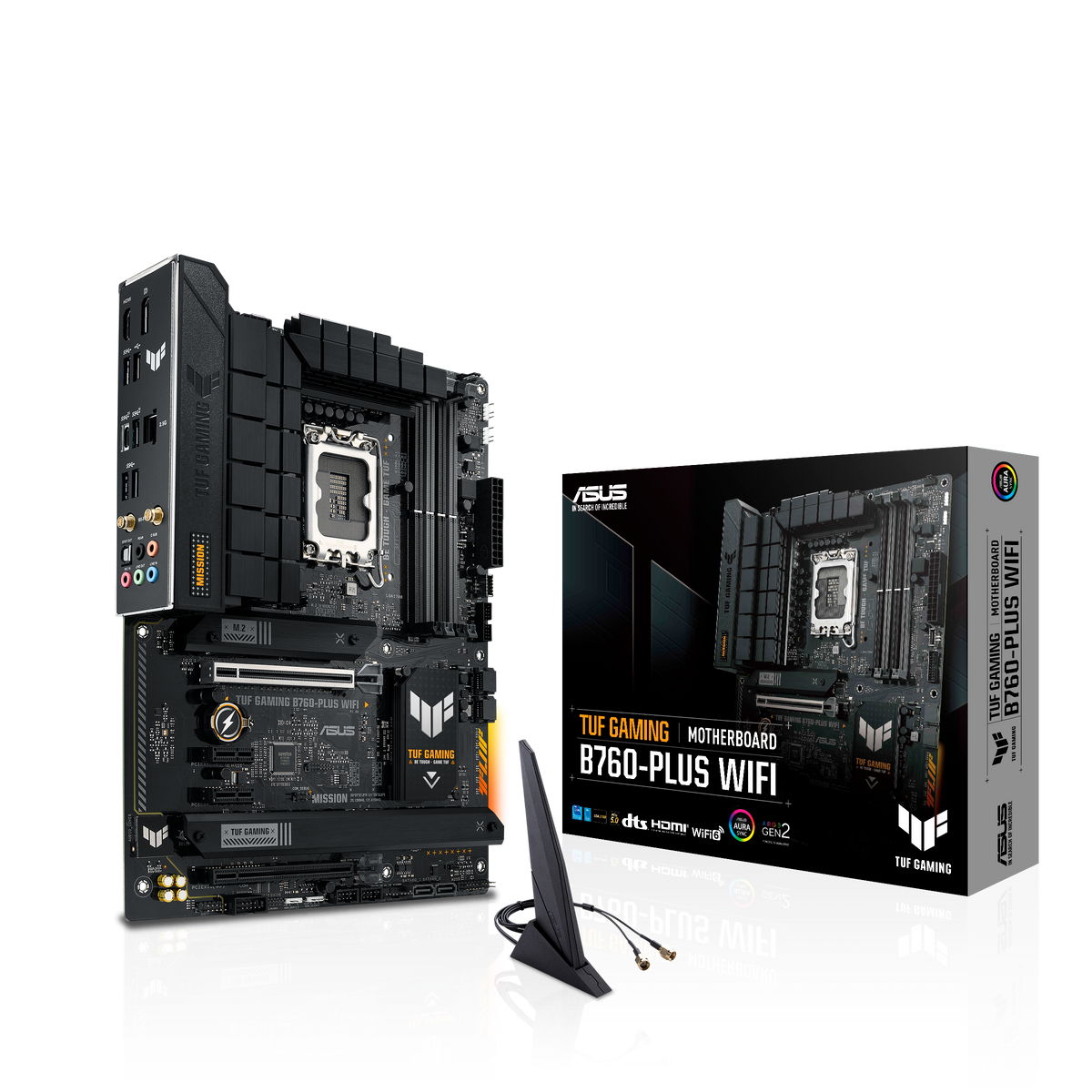

ASUS TUF Gaming B760-Plus WiFi LGA1700 ATX Motherboard
ASUS

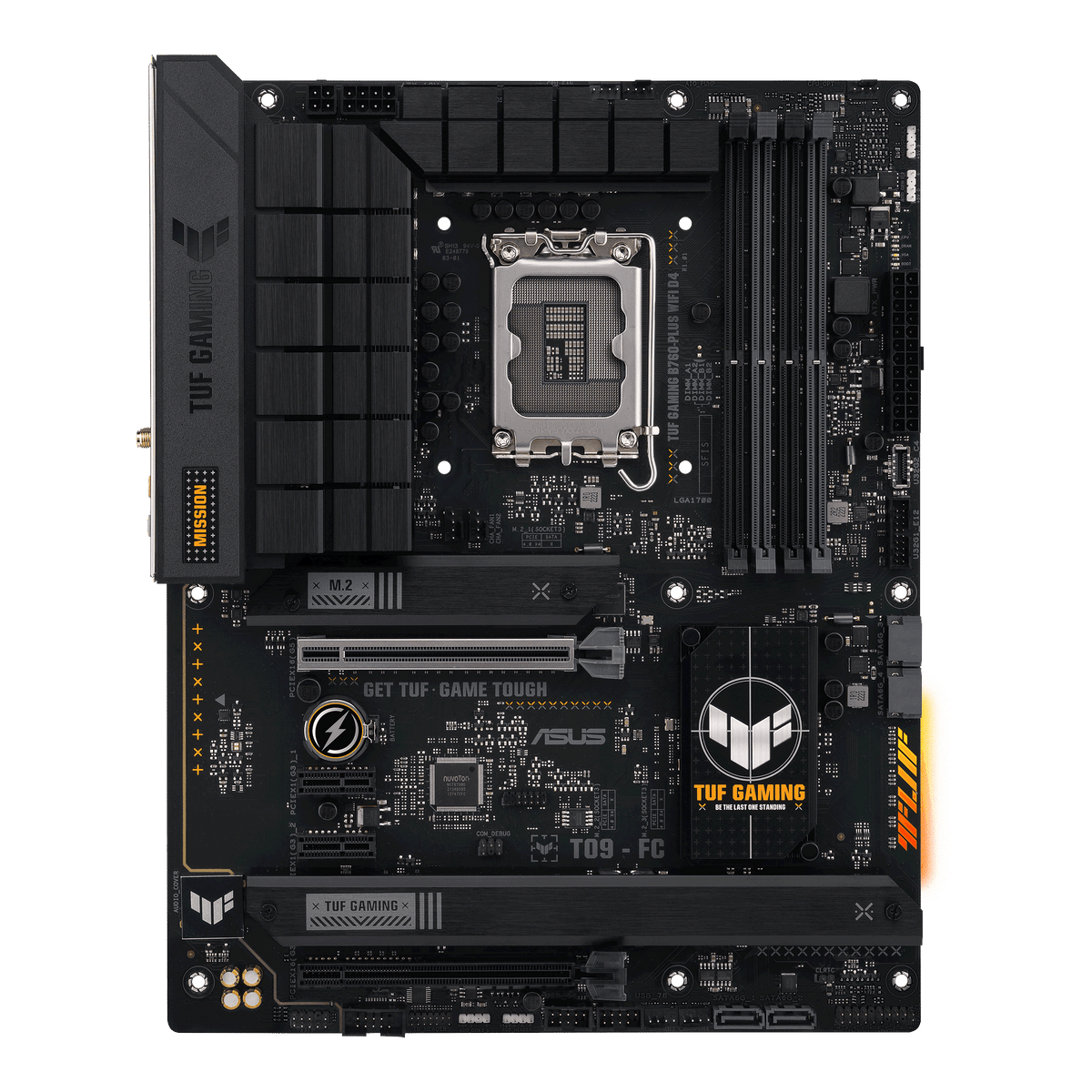

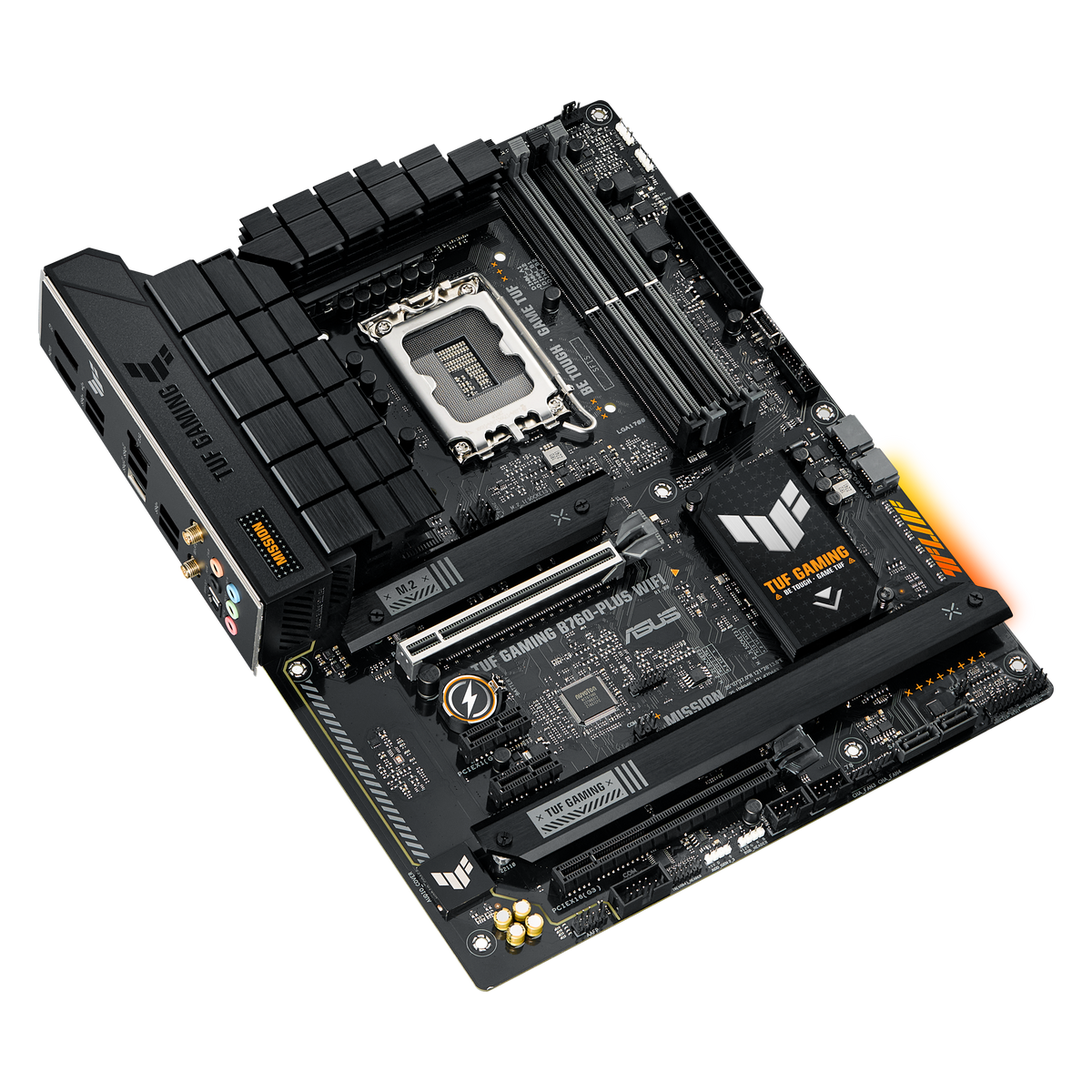

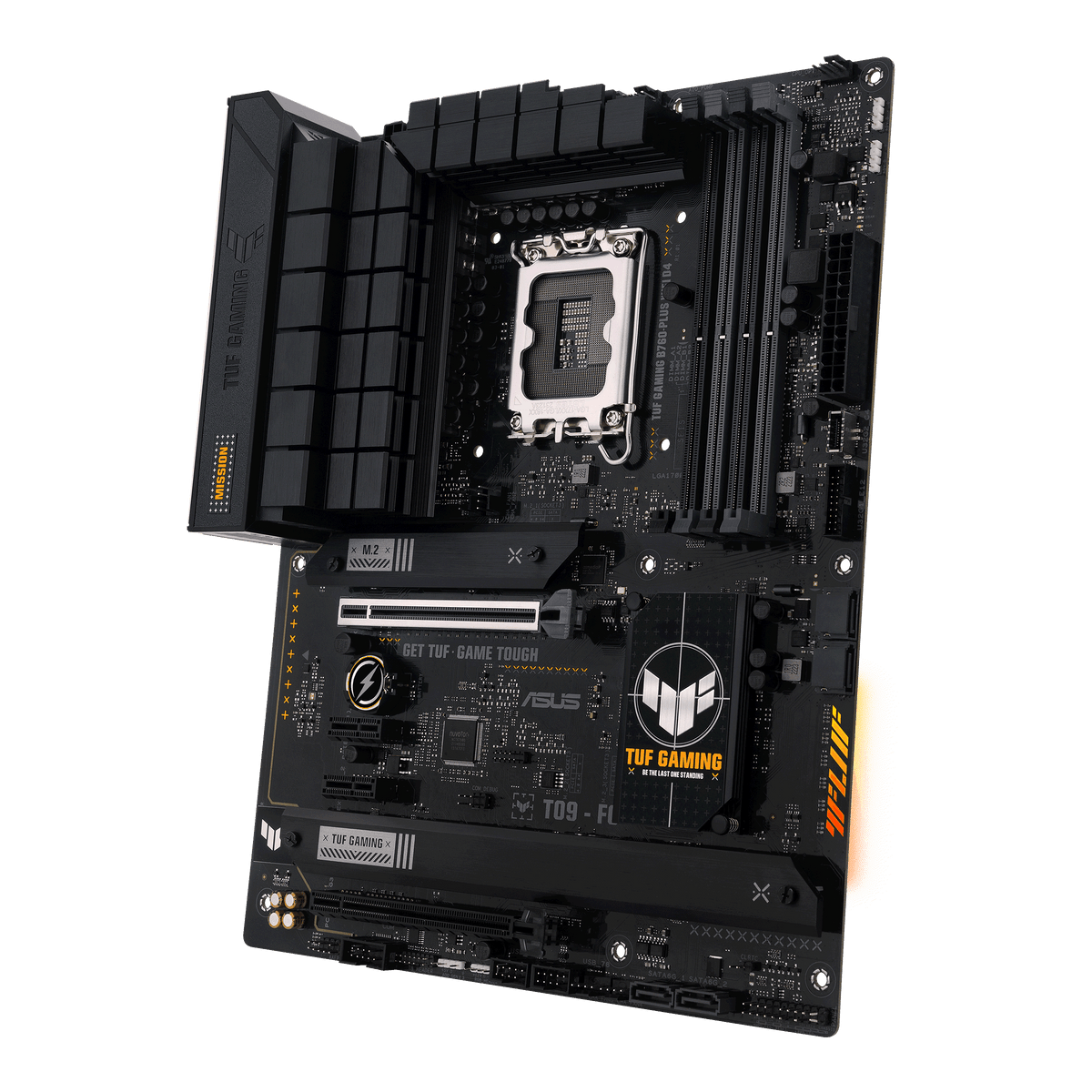

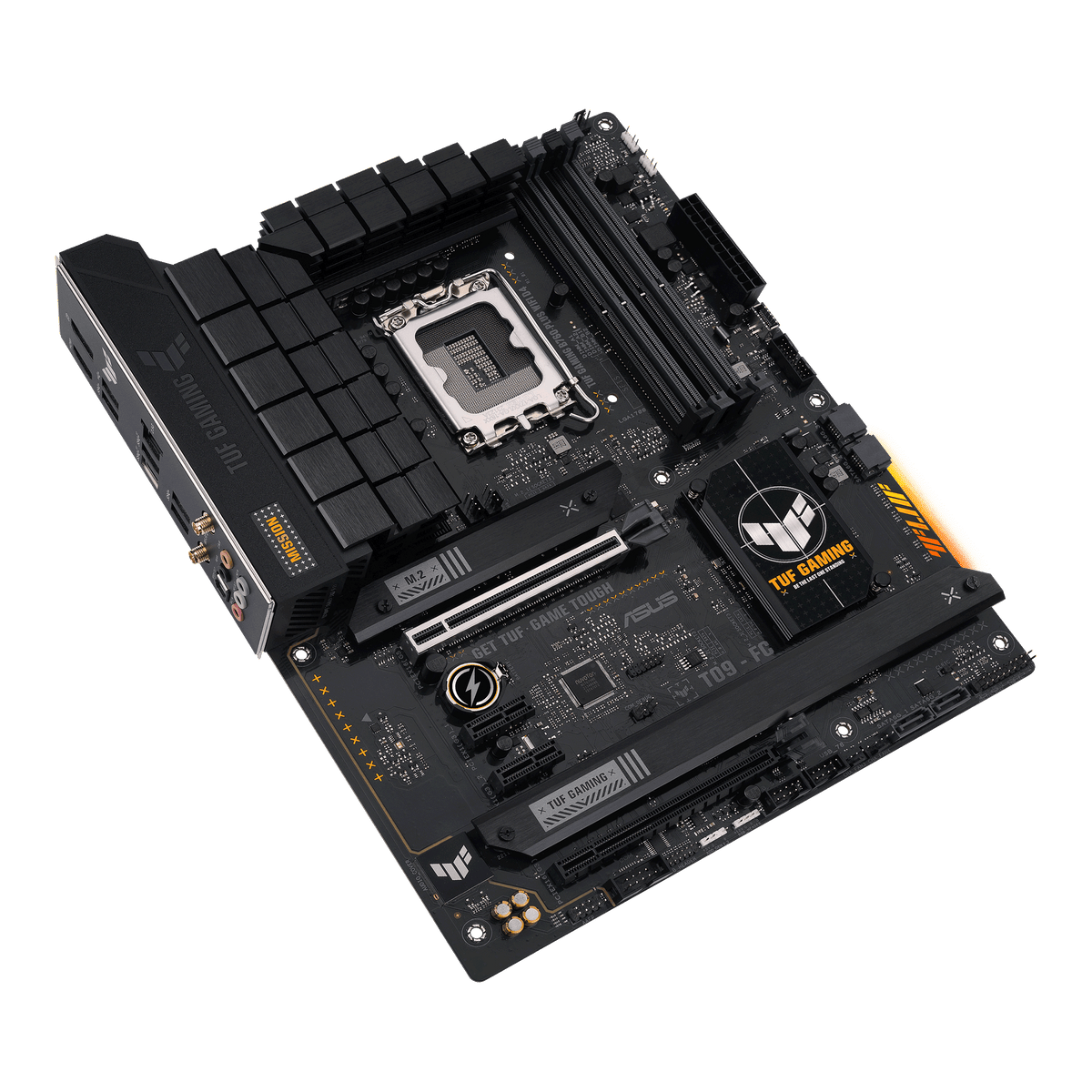

ASUS TUF Gaming B760-Plus WiFi LGA1700 ATX Motherboard
The ASUS TUF Gaming B760-Plus WiFi is an Intel LGA1700 ATX motherboard built for gaming and content creation. It pairs the latest Intel processors with DDR5 memory support, PCIe 5.0 graphics connectivity, and built-in WiFi 6, making it a complete platform for high-performance systems.
Why this product
PCIe 5.0 and DDR5 ready
Supports the latest DDR5 memory modules up to 192GB and PCIe 5.0 x16 slot for next-gen graphics cards, enabling maximum bandwidth for demanding workloads.
Comprehensive cooling and power delivery
Features 12+1+1 power stages with enlarged VRM heatsinks and heatsinks on all three M.2 slots and chipset to manage heat during sustained gaming and overclocking.
WiFi 6 and 2.5Gb Ethernet
WiFi 6 (802.11ax) support with 2x2 antenna and wired 2.5Gb Ethernet for low-latency online gaming and fast file transfers.
Gaming-focused audio and lighting
Realtek 7.1 surround sound with dedicated audio layers, premium capacitors, and Aura Sync RGB lighting that syncs with compatible peripherals.
Thunderbolt 4 and modern I/O
Includes Thunderbolt 4 (USB4) support, USB 3.2 Gen 2x2 Type-C ports, and multiple USB headers for expandable connectivity.
- SocketIntel LGA1700
- ChipsetIntel B760
- Form FactorATX
- Memory SupportDDR5 up to 192GB
- Graphics SlotPCIe 5.0 x16
- Storage Slots3× M.2 + 4× SATA
- WirelessWiFi 6, Bluetooth 5.2
- Dimensions30.5 × 24.4 cm
- SKUASU-2732
- EAN4711387095119
- Supports Intel Core 14th, 13th, and 12th Gen processors, as well as Pentium Gold and Celeron processors in LGA1700 socket.
- Compatible with DDR5 memory modules, including speeds up to DDR5-7200 (overclocked) and supports Intel XMP OptiMem II profiles.
- Fits ATX cases and supports multiple M.2 drives (up to three slots) and four SATA 6Gb/s storage devices.
- Supports Thunderbolt 4 (USB4) expansion via internal header and includes DisplayPort and HDMI video outputs.
- The second PCIe x16 slot runs at x4 mode and uses PCIe 3.0; the primary x16 slot is PCIe 5.0.
Best for
- Gaming builds needing modern I/O and fast storage
- Content creators using multiple high-speed storage devices
- Builders wanting WiFi 6 without a separate adapter
- Systems requiring both wired and wireless networking redundancy
- Users leveraging DDR5 and PCIe 5.0 graphics cards
Trade-offs
- Compact or small-form-factor builds; this is full-size ATX.
- Budget builds sensitive to motherboard cost; ATX with PCIe 5.0 commands a price premium.
- No onboard Thunderbolt 4 port on the back panel; it requires an internal header adapter for external devices.
TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING B760-PLUS WIFI is the perfect foundation for your next Intel battle rig.
The TUF GAMING B760-PLUS WIFI is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
The TUF GAMING B760-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.
TUF GAMING B760 motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 4 utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.
TUF GAMING B760 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
The three PCIe 4.0 M.2 slots support up to one 22110 device and the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
General
| Brand | ASUS |
|---|---|
| Model | TUF Gaming B760-Plus WiFi |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm (12 × 9.6 inches) |
Processor & Memory
| CPU Socket | Intel LGA1700 |
|---|---|
| Supported Processors | Intel Core 14th, 13th, 12th Gen; Pentium Gold; Celeron |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Maximum Memory | 192GB |
| Memory Speeds | DDR5-7200 (OC) down to DDR5-4800 |
| Memory Features | Supports Intel XMP OptiMem II |
Storage & Expansion
| M.2 Slots | 3× (Key M) |
|---|---|
| M.2_1 Slot | PCIe 4.0 x4; supports 2242, 2260, 2280 |
| M.2_2 Slot | PCIe 4.0 x4; supports 2242, 2260, 2280, 22110 |
| SATA Ports | 4× 6Gb/s |
| PCIe Slot 1 | PCIe 5.0 x16 (for graphics) |
| PCIe Slot 2 | PCIe 3.0 x16 (x4 mode) |
| PCIe Slots 3–4 | 2× PCIe 3.0 x1 |
Networking & Audio
| Ethernet | Realtek 2.5Gb with TUF LANGuard |
|---|---|
| WiFi Standard | WiFi 6 (802.11ax) |
| WiFi Configuration | 2×2 MIMO, 2.4/5GHz bands |
| Bluetooth | Bluetooth 5.2 |
| Audio Codec | Realtek 7.1 surround sound |
| Audio Features | Premium capacitors, dedicated audio PCB layers, audio shielding, optical S/PDIF output |
| Audio Quality | Up to 24-bit/192 kHz playback |

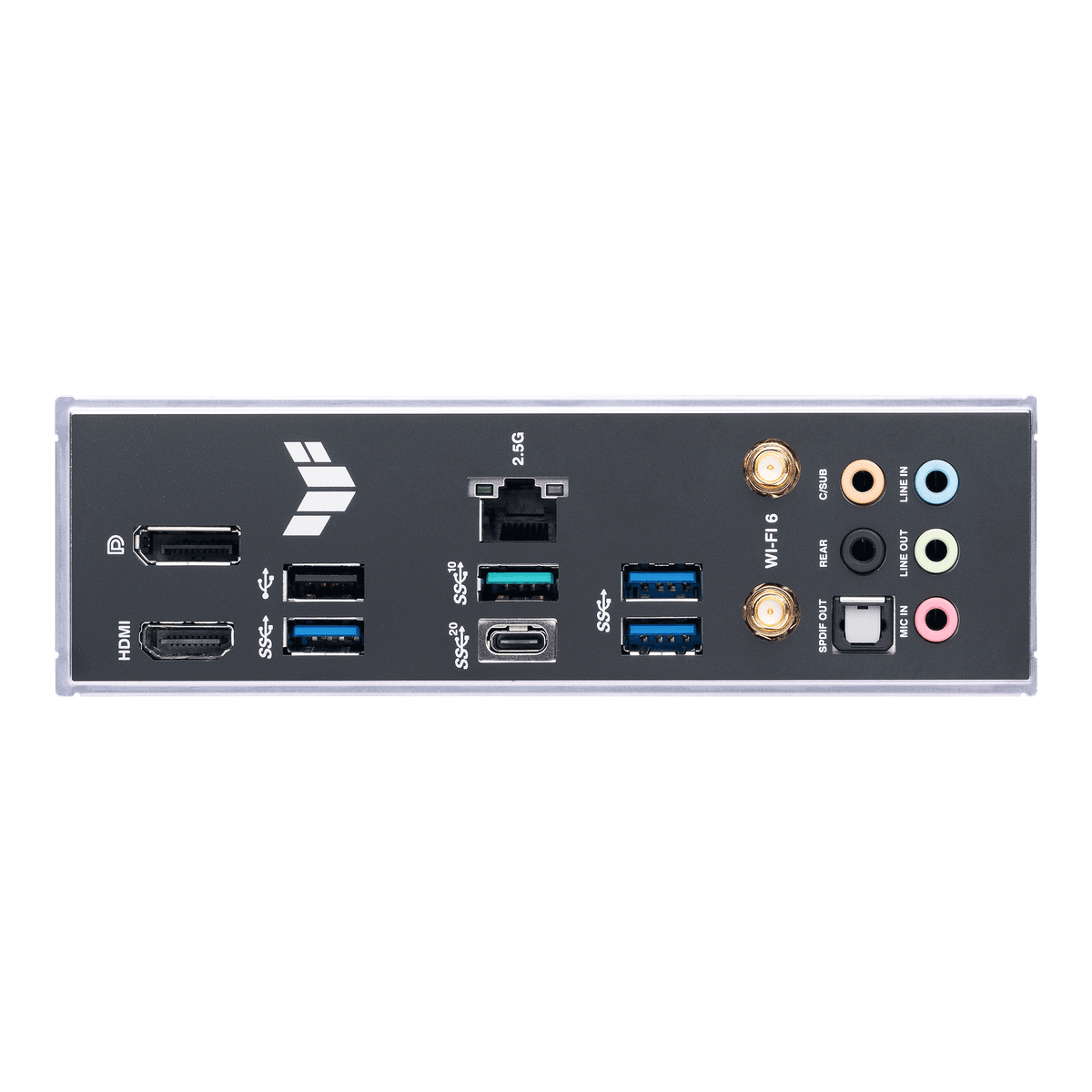

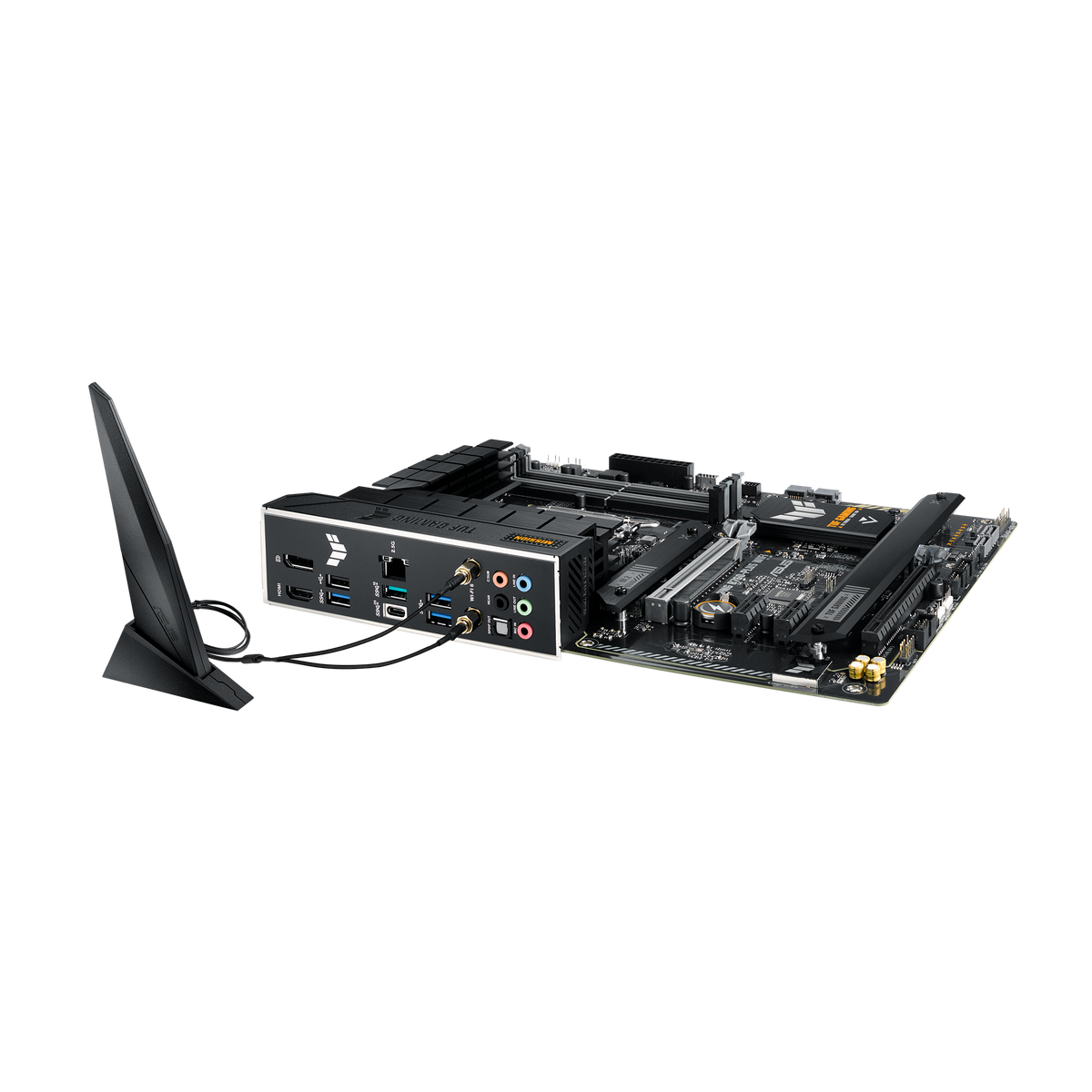

Ports & Power
| Rear USB 3.2 Gen 2x2 | 1× Type-C |
|---|---|
| Rear USB 3.2 Gen 2 | 1× Type-A |
| Rear USB 3.2 Gen 1 | 3× Type-A |
| Rear USB 2.0 | 1× Type-A |
| Video Outputs | 1× DisplayPort (4K@60Hz, DP 1.4), 1× HDMI (4K@60Hz, HDMI 2.1) |
| Internal Fan Headers | 1× CPU, 1× CPU OPT, 1× AIO Pump, 4× Chassis |
| Internal USB Headers | 1× USB 3.2 Gen 2 Type-C, 1× USB 3.2 Gen 1, 2× USB 2.0 |
| Internal M.2 Headers | 3× M.2 slots |
| RGB & Lighting | 1× Aura RGB header, 3× Addressable Gen 2 headers |
| Special Headers | Thunderbolt 4 (USB4), Front Panel Audio, Clear CMOS, COM Port |
| Main Power Connector | 1× 24-pin |
| +12V Power Connectors | 1× 8-pin, 1× 4-pin |
Power Delivery & Cooling
| Power Stages | 12+1+1 with enlarged VRM heatsinks |
|---|---|
| Chipset Cooling | PCH heatsink |
| M.2 Cooling | Heatsinks on all three M.2 slots |
| Fan Control | Fan Xpert 4 utility or UEFI BIOS |
BIOS & Features
| BIOS Type | UEFI AMI BIOS |
|---|---|
| BIOS Flash Size | 128 Mb |
| Processor Features | Supports Intel Turbo Boost 2.0 and Max Technology 3.0 |
| Lighting Control | Aura Sync RGB synchronization |
| Management | WOL by PME, PXE |
Compatibility
| Operating Systems | Windows 11, Windows 10 (64-bit) |
|---|

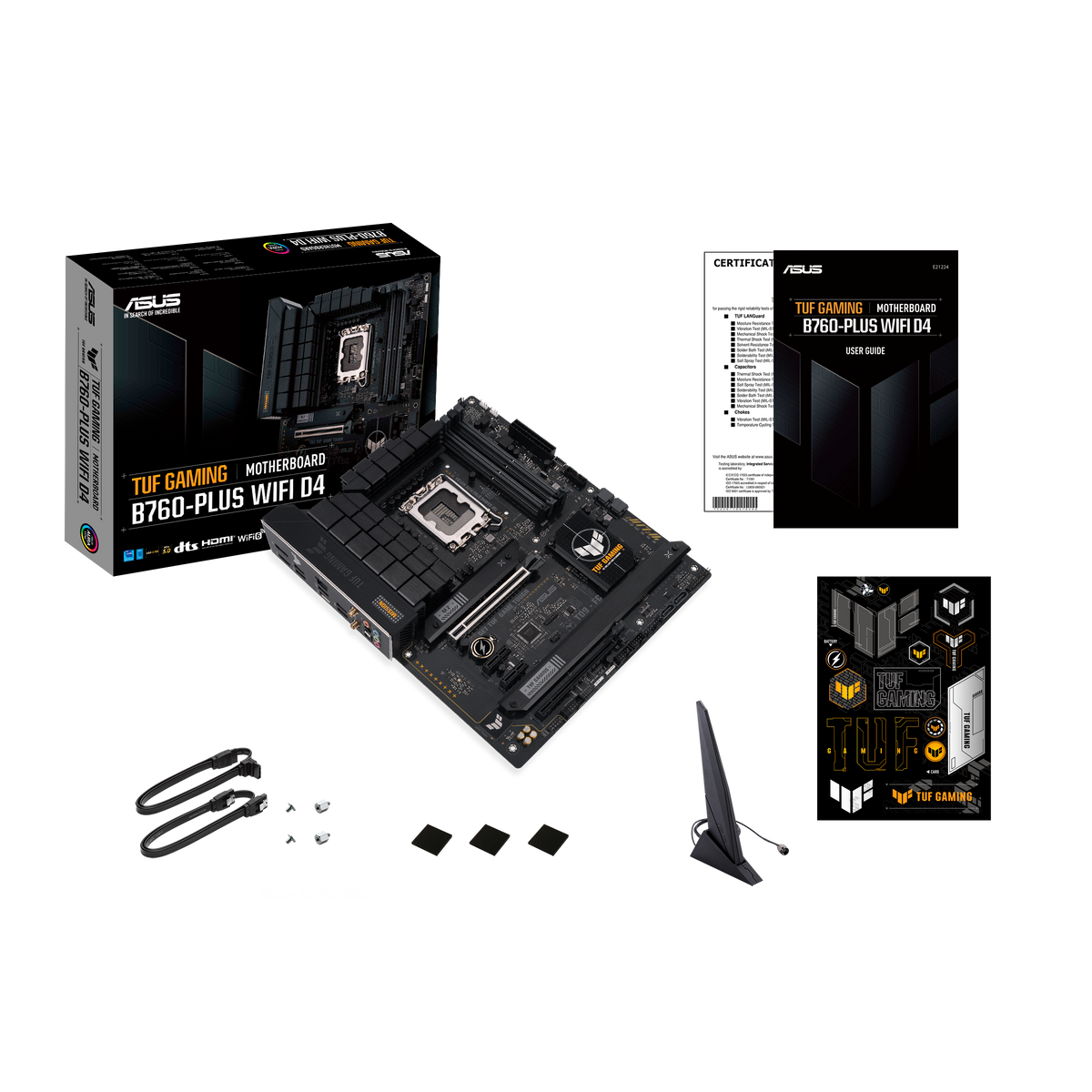

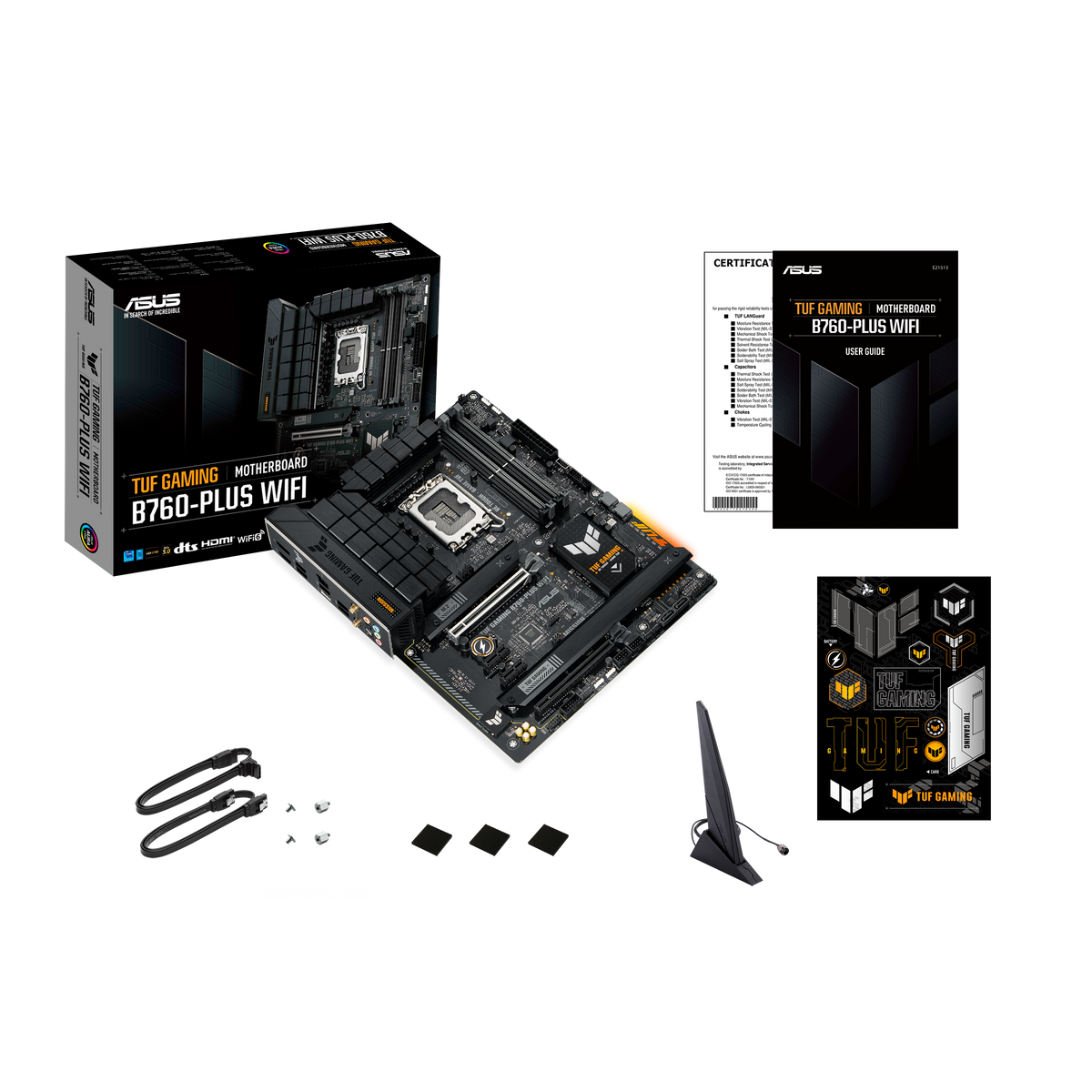

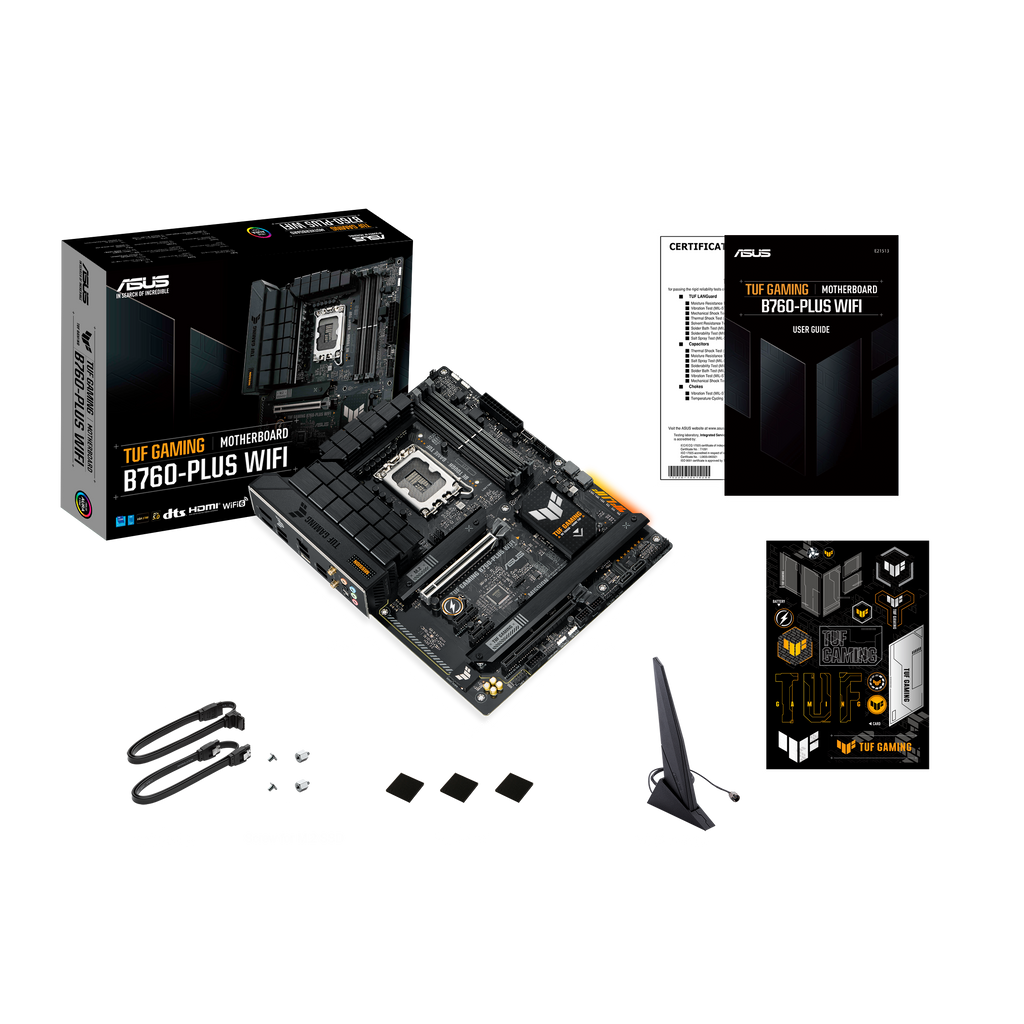

Included Accessories
| Cables | 2× SATA 6Gb/s cables |
|---|---|
| M.2 Accessories | 2× M.2 rubber packages, 1× screw package |

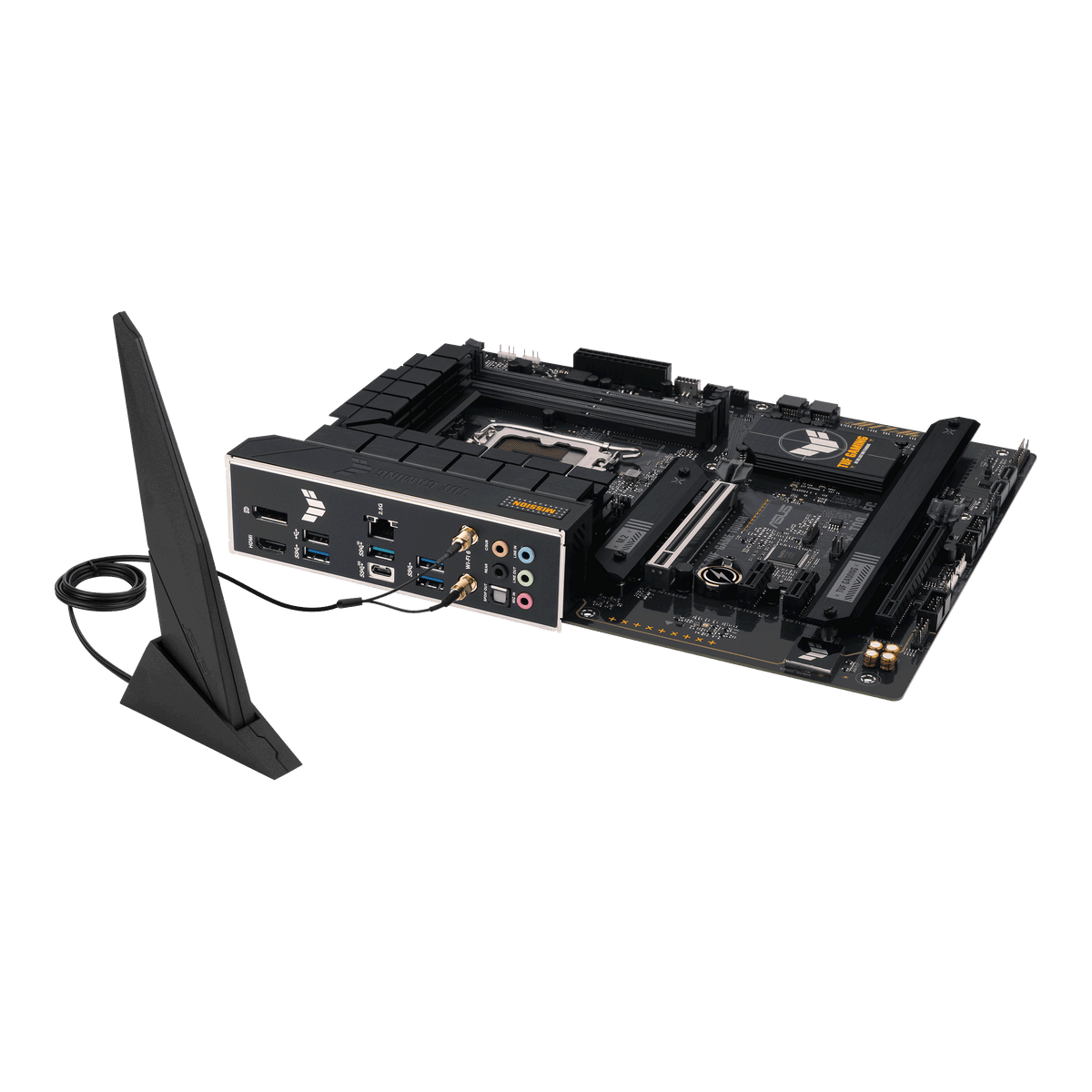

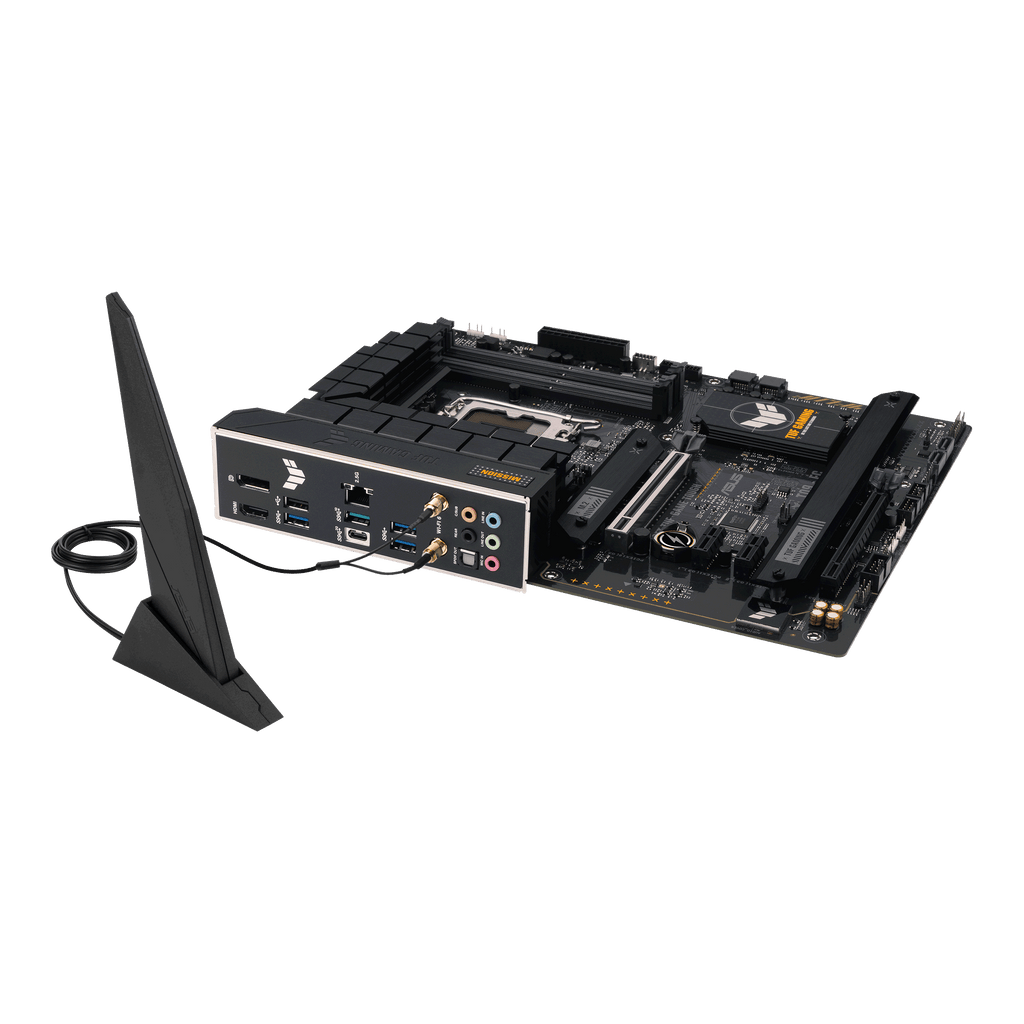

| Networking | 1× WiFi antenna |
| Documentation | User guide, TUF Certification card, sticker |
