ASUS TUF Gaming B850I WiFi NEO Mini-ITX AM5 Motherboard
ASUS
ASUS TUF Gaming B850I WiFi NEO Mini-ITX AM5 Motherboard

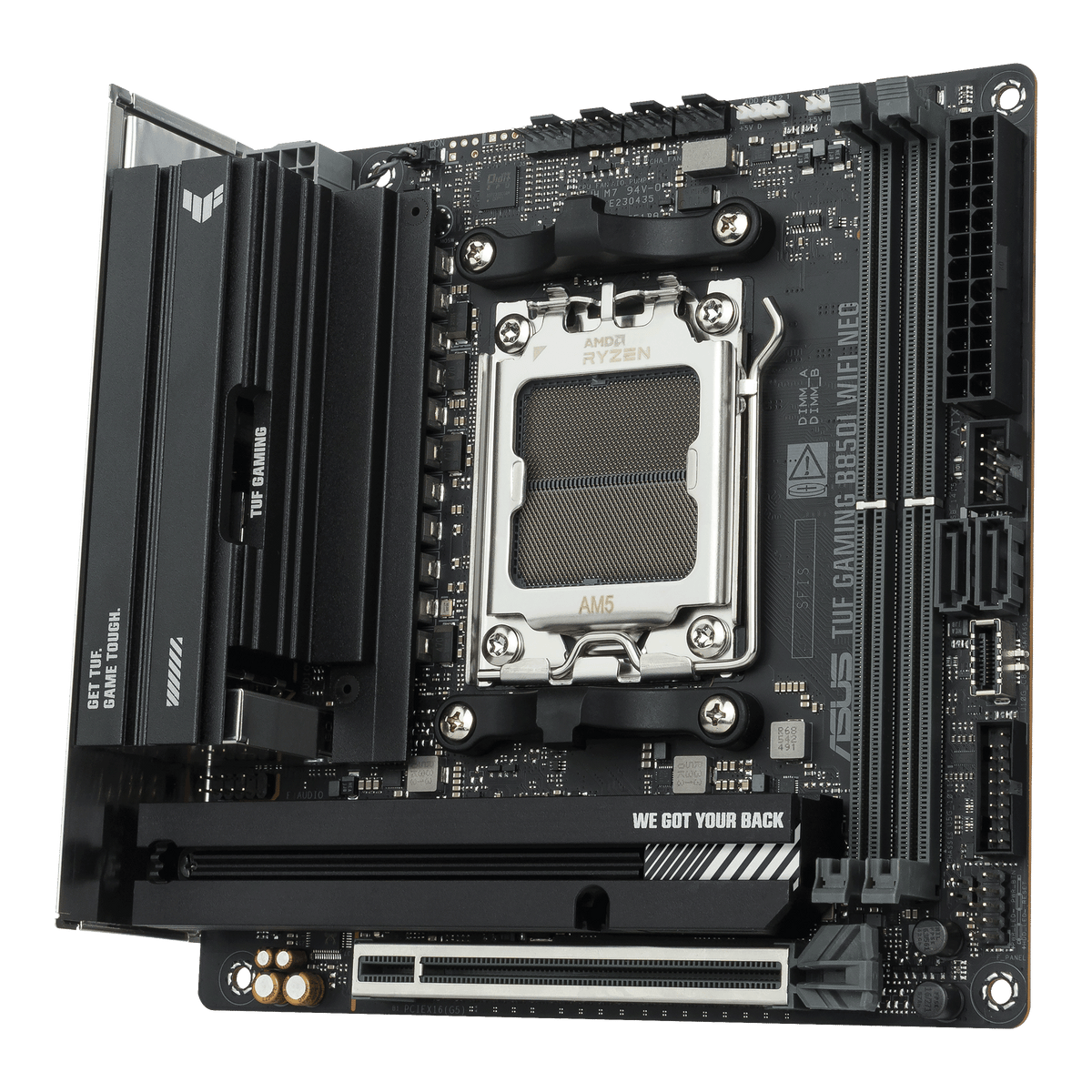

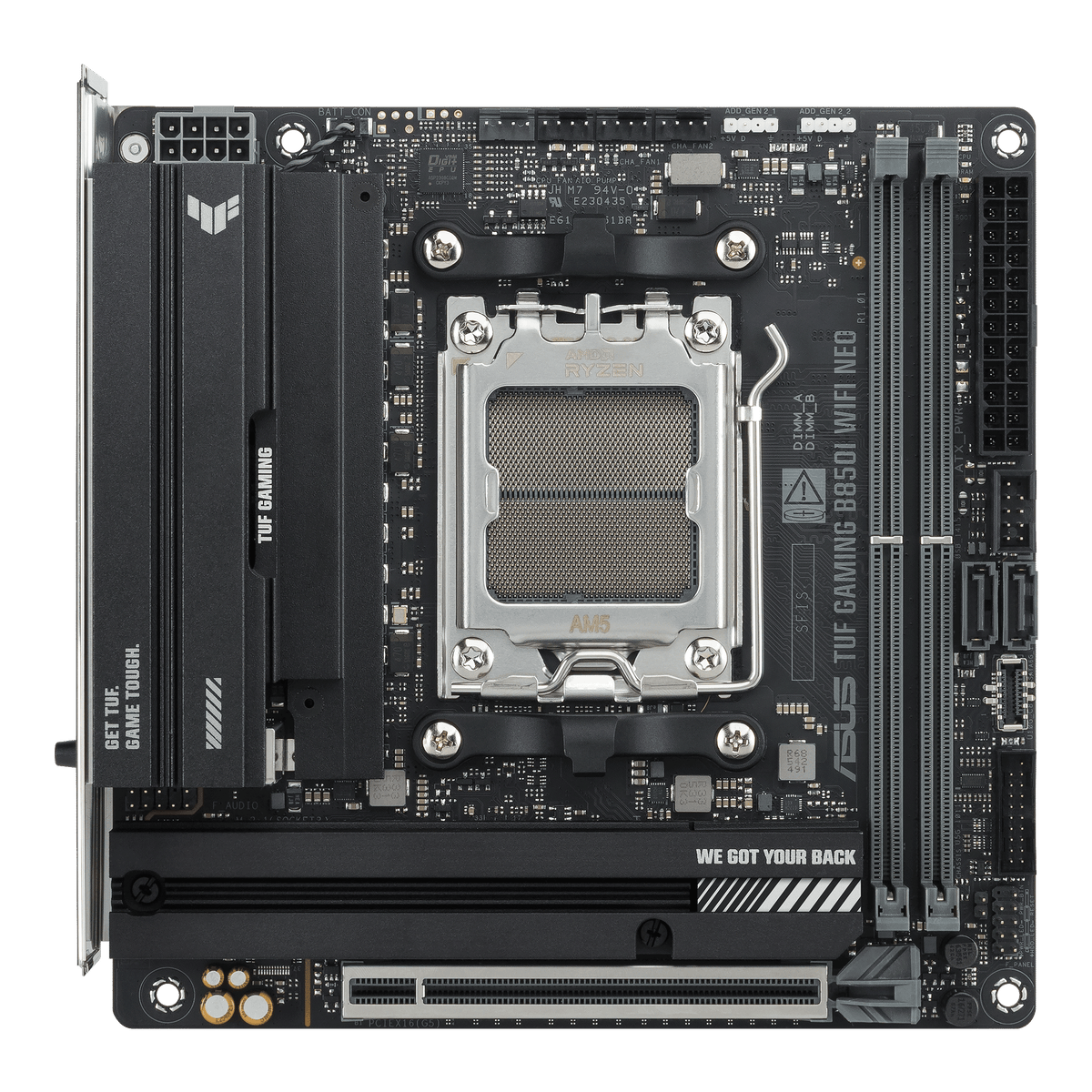

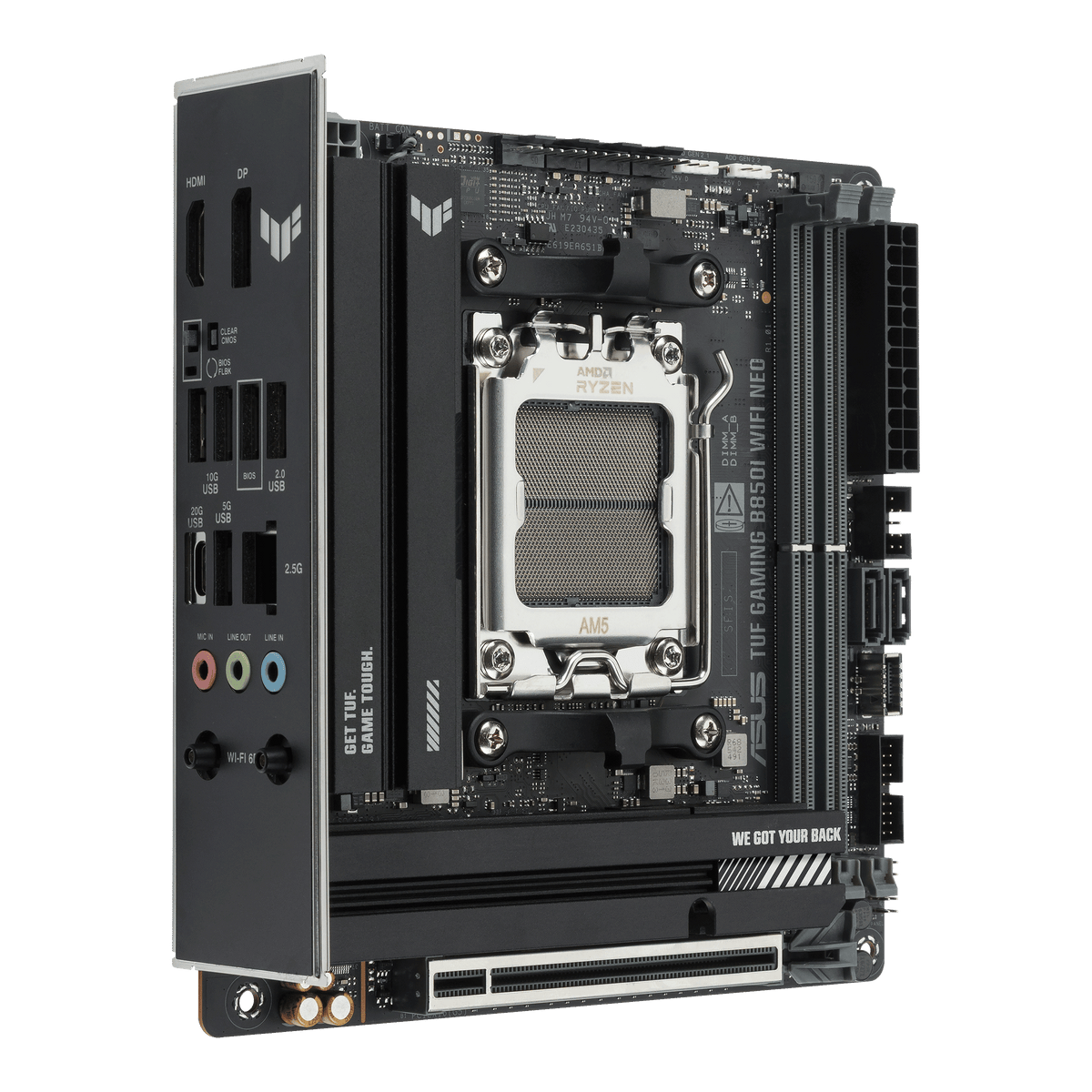

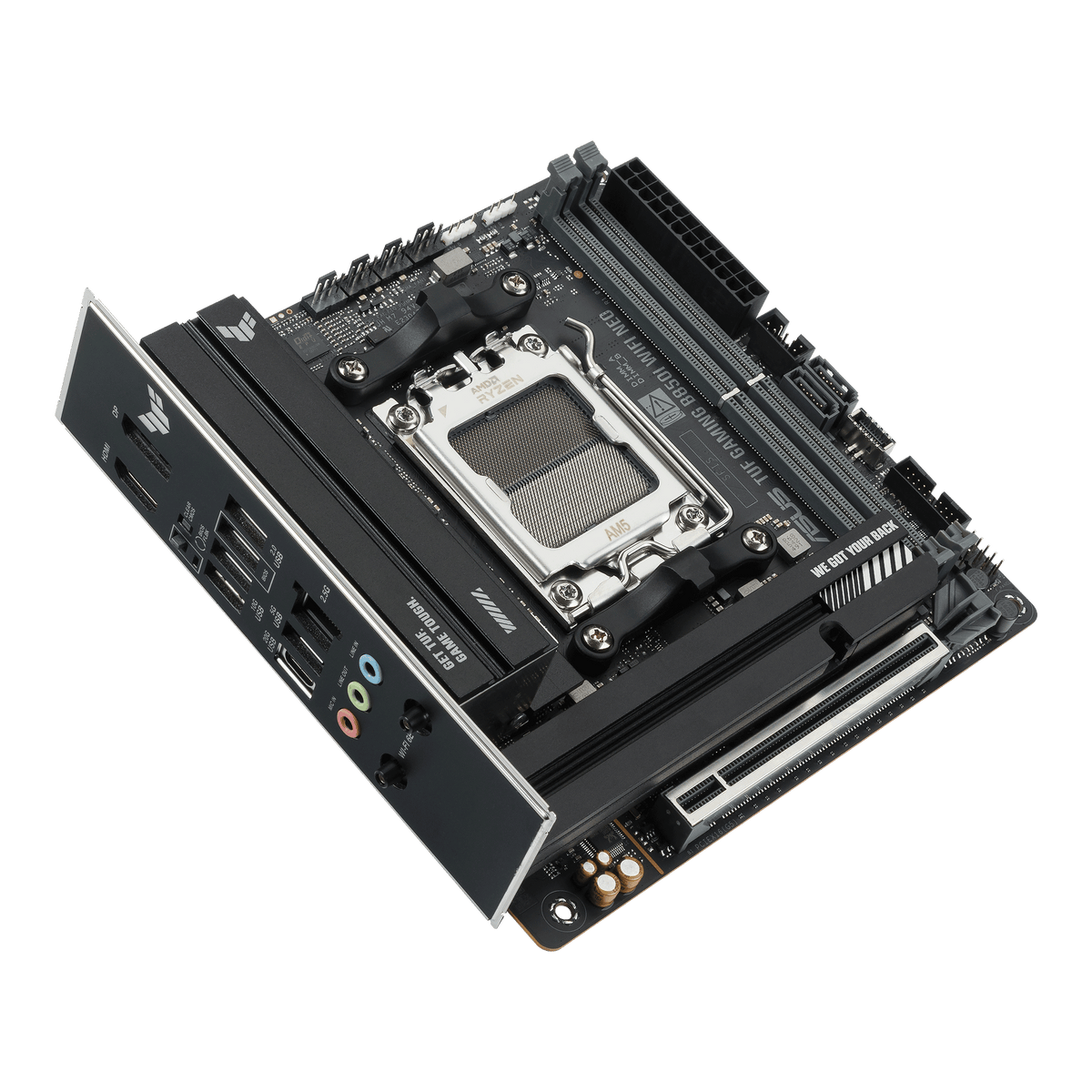

The ASUS TUF Gaming B850I WiFi NEO Mini-ITX AM5 Motherboard brings TUF Gaming performance to the Mini-ITX form factor for the first time, making it suited to builders who want a compact but capable platform for AMD Ryzen processors and demanding AI PC applications. It pairs PCIe 5.0 storage, WiFi 6E, and a robust multi-phase power solution in a 6.7 × 6.7 inch footprint, addressing the need for full-featured performance in small form-factor builds.
Why this product
Mini-ITX with full PCIe 5.0 support

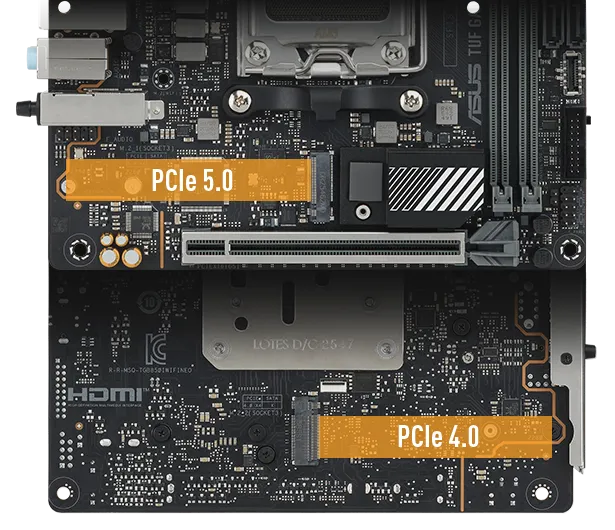

A PCIe 5.0 x16 slot and a PCIe 5.0 x4 M.2 slot (with Ryzen 9000/7000) deliver the latest storage and graphics bandwidth in a compact 6.7 × 6.7 inch board.
Robust 10-layer server-grade PCB

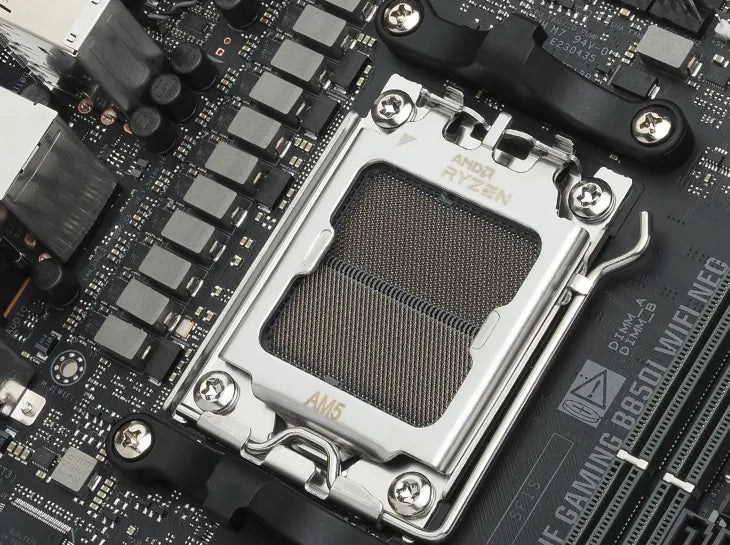

The 10-layer PCB uses 2-ounce low-loss copper power planes for enhanced signal integrity and stable power delivery, backed by military-grade components.
WiFi 6E and 2.5Gb Ethernet onboard

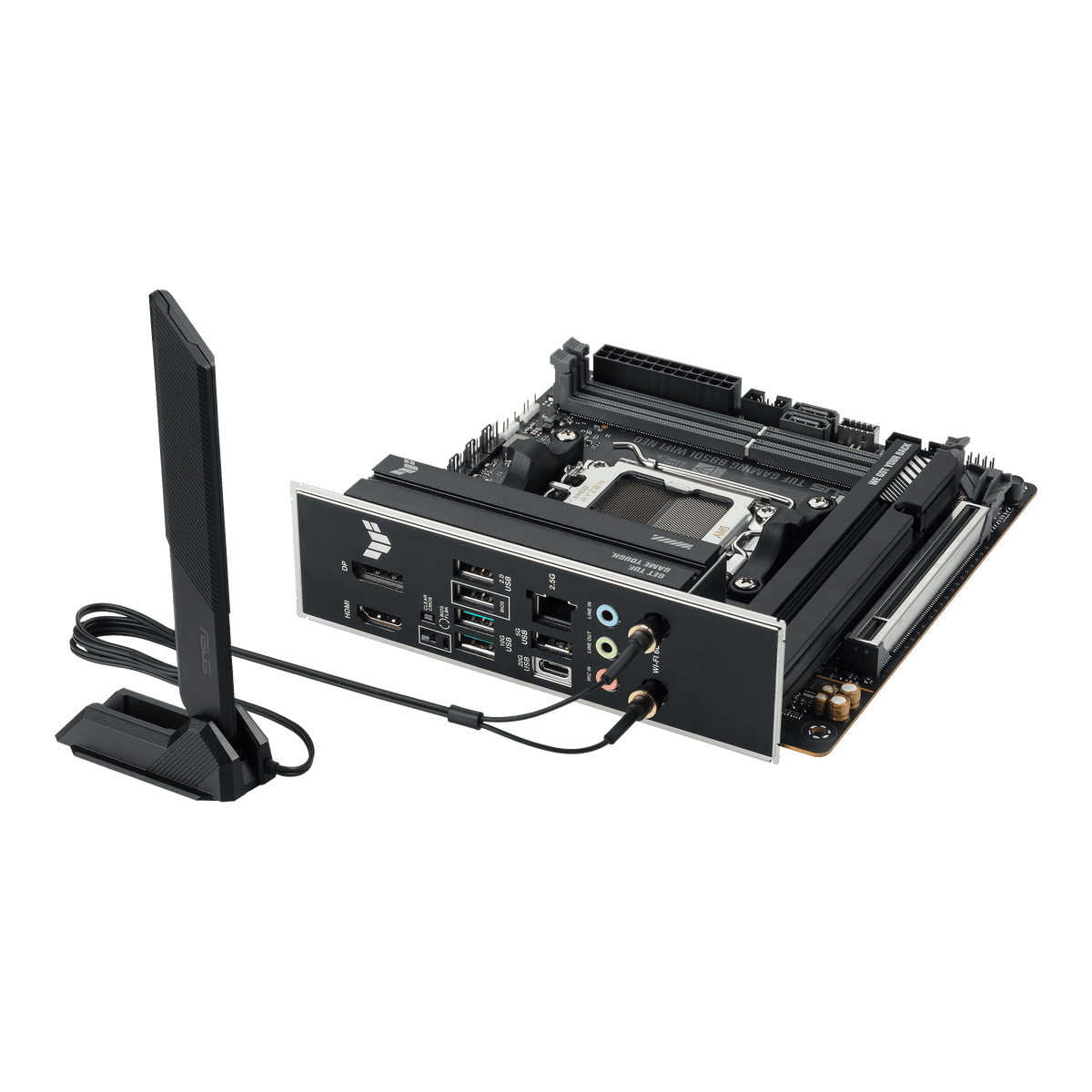

Wi-Fi 6E 2×2 with 160 MHz bandwidth across 2.4 GHz, 5 GHz, and 6 GHz bands is complemented by Realtek 2.5Gb Ethernet for fast wired connections.
DDR5 up to 9600 MT/s (OC)
Two DIMM slots support up to 128 GB of DDR5 with AMD EXPO and ASUS AEMP profiles, reaching up to 9600 MT/s (OC) with Ryzen 8000 Series processors.
Abundant USB connectivity
Six rear USB ports include a USB 20Gbps Type-C port, plus five front USB connectors, so high-speed peripherals and storage devices are well catered for.
DIY-friendly tools built in
Q-Antenna, Q-Dashboard, Q-LED, a Clear CMOS button, and BIOS FlashBack make initial setup and troubleshooting straightforward without needing a running system.
- Form FactorMini-ITX, 6.7 × 6.7 in (17 × 17 cm)
- SocketAMD AM5
- ChipsetAMD B850
- Memory2 × DDR5 DIMM, up to 128 GB
- Primary M.2PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000)
- WirelessWi-Fi 6E (802.11ax), Bluetooth
- EthernetRealtek 2.5Gb
- Rear USB6 ports including USB 20Gbps Type-C
- SKUASU-2750
- EAN4711636580915
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket.
- Fits standard Mini-ITX cases; the board measures 6.7 × 6.7 inches (17 × 17 cm).
- Accepts DDR5 ECC and Non-ECC Un-buffered DIMMs in dual-channel configuration up to 128 GB across two slots.
- Officially supports Windows 11 as the listed operating system.
- PCIe 5.0 x16 and PCIe 5.0 x4 M.2 speeds apply to Ryzen 9000 and 7000 Series; Ryzen 8000 Series is limited to PCIe 4.0 x16 and PCIe 4.0 x4 on those same slots.
- DisplayPort 1.4 and HDMI 2.1 outputs on the rear panel are functional only when using a Ryzen processor with integrated graphics; a discrete GPU is required otherwise.
Best for
- Compact gaming or AI PC builds where Mini-ITX dimensions are required but PCIe 5.0 and WiFi 6E performance cannot be compromised.
- AMD Ryzen 9000 and 7000 builders who want PCIe 5.0 storage on the primary M.2 slot alongside a second PCIe 4.0 M.2 slot.
- Connectivity-focused users who need a USB 20Gbps Type-C port on the rear panel plus multiple high-speed front-panel headers in a small board.
- Wireless-first setups that benefit from Wi-Fi 6E 160 MHz bandwidth across three frequency bands plus Bluetooth with LE Audio support.
- Self-builders who value diagnostic tools such as BIOS FlashBack, Clear CMOS, and Q-LED for easier troubleshooting without a fully assembled system.
Trade-offs
- Builds requiring more than two memory slots — the board provides only two DIMM slots, limiting memory configuration flexibility.
- Multi-GPU or multi-PCIe card setups — only one PCIe x16 slot is present on this Mini-ITX board.
- Ryzen 8000 Series users seeking PCIe 5.0 — those processors are limited to PCIe 4.0 x16 on the expansion slot and PCIe 4.0 x4 on the primary M.2 slot.
- Builds needing more than two SATA ports — only two SATA 6Gb/s ports are available alongside the two M.2 slots.
- Linux-primary users — the listed operating system support is Windows 11 only.
ASUS TUF GAMING B850I WIFI NEO brings TUF GAMING performance to the Mini-ITX form factor for the first time. Designed for the latest AMD Ryzen™ processors, it features a premium 10-layer server-grade circuit board with 2-ounce low-loss copper power planes for enhanced signal integrity and stable power delivery. Built with military-grade components, durable architectures, and a balanced power solution, this compact motherboard delivers the rock-solid reliability, speed and connectivity that gaming and advanced AI PC applications demand.

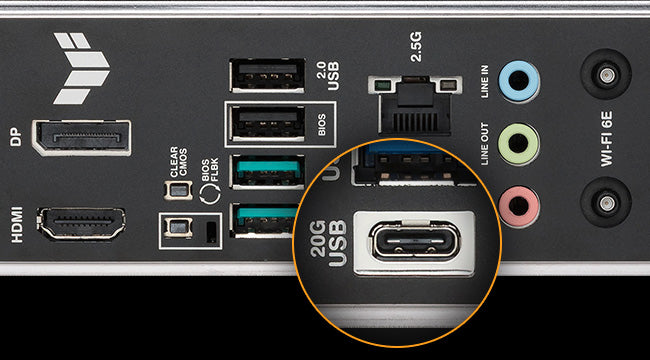

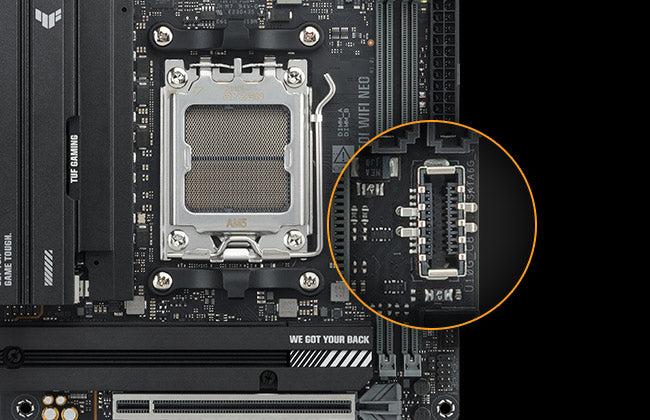

TUF GAMING B850I WIFI NEO offers total 6 rear USB ports and 5 front USB ports, including one USB 20Gbps Type-C® port, one USB 10Gbps Type-C® front-panel connector, two USB 10Gbps Type-A ports, one USB 5Gbps Type-A port, two USB 2.0 Type-A ports and more.

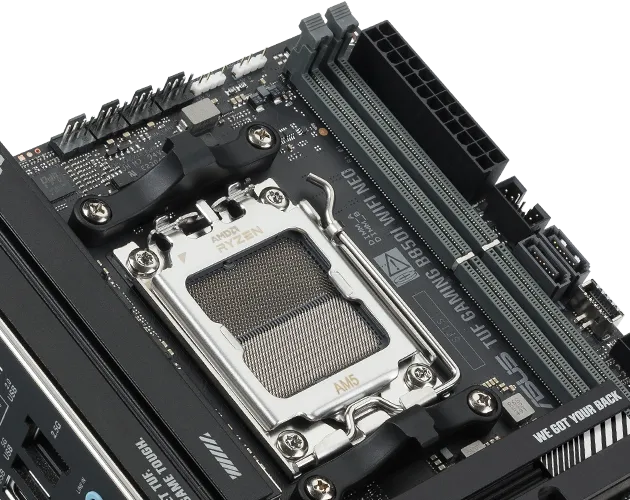

TUF GAMING B850I WIFI NEO supports memory speeds up to 9600 MT/s (OC) and up to 128GB of DDR5 modules. It also features AEMP to enhance memory performance, stability and compatibility.
General
| Brand | ASUS |
|---|---|
| Part Number | 90MB1PI0-M0VAY0 |
| Form Factor | Mini-ITX, 6.7 × 6.7 in (17 × 17 cm) |
| Operating System | Windows 11 |
| BIOS | 32 MB (256 Mb) Flash ROM, UEFI AMI BIOS |
Performance
| CPU Socket | AMD AM5 |
|---|---|
| CPU Support | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Memory Slots | 2 × DIMM |
| Memory Type | DDR5 ECC and Non-ECC Un-buffered, up to 128 GB |
| Memory Speed (OC) | Up to 8200+ MT/s (Ryzen 9000), 9600+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000) |
| Memory Profiles | AMD EXPO, ASUS AEMP |
| PCIe Slot | 1 × PCIe 5.0 x16 (Ryzen 9000/7000); 1 × PCIe 4.0 x16 (Ryzen 8000) |
| M.2 Slot 1 | Key M, 2260/2280, PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000) |
| M.2 Slot 2 | Key M, 2260/2280, PCIe 4.0 x4 via AMD B850 Chipset |
| SATA Ports | 2 × SATA 6Gb/s |
| RAID Support | AMD RAIDXpert2: RAID 0/1/5/10 |
| Power Stage | 8(80A)+2(80A)+1(80A) DrMOS |
| CPU Power Connector | 1 × 8-pin ProCool |
Networking
| Ethernet | Realtek 2.5Gb, TUF LANGuard |
|---|---|
| Standard | Wi-Fi 6E (802.11ax) |
| WiFi Bands | 2.4 GHz, 5 GHz, 6 GHz |
| WiFi Bandwidth | 160 MHz |
| WiFi Configuration | 2×2 |
| Bluetooth | Bluetooth with LE Audio support |
| Audio | Realtek 7.1 Surround Sound HD Audio, up to 24-bit/192 kHz |
Ports & Connectivity

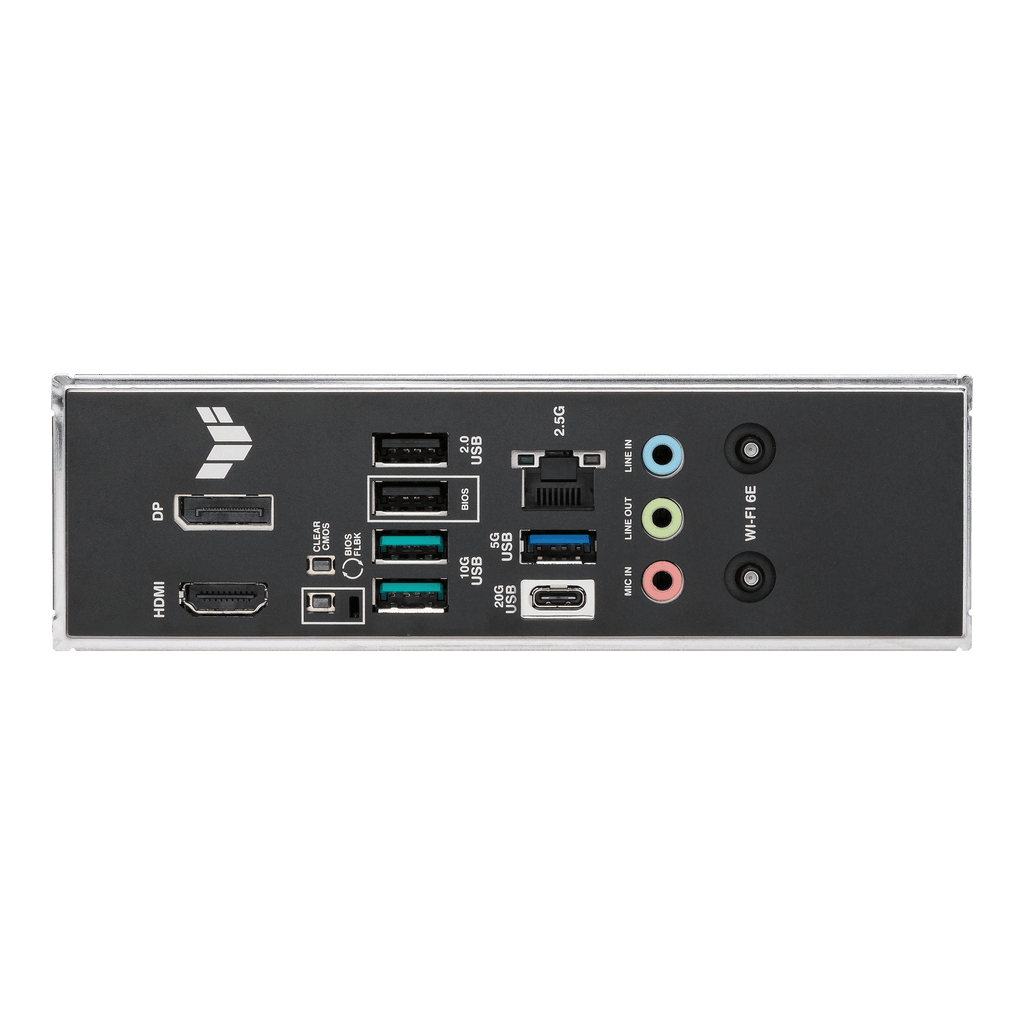

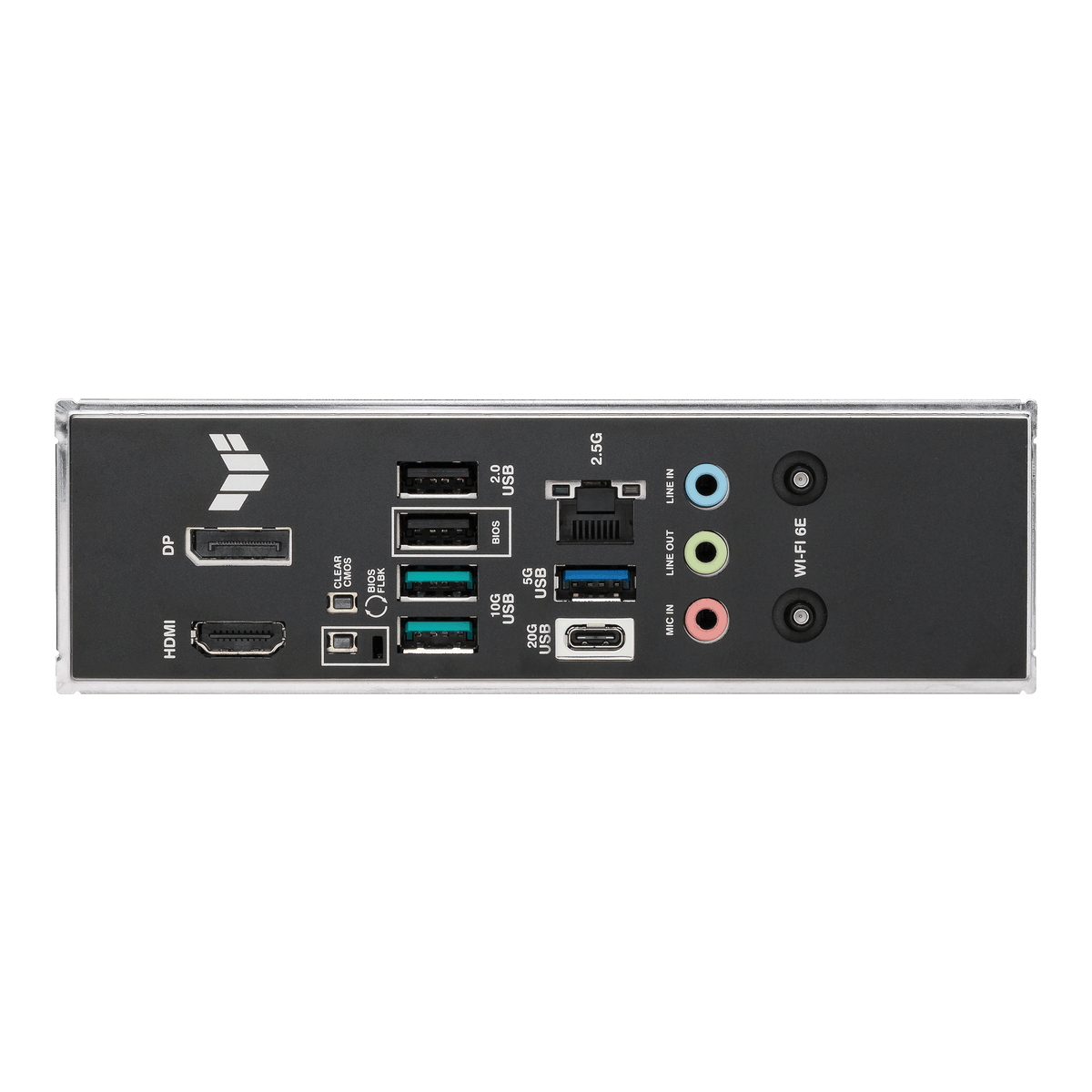

| Rear USB | 1 × USB 20Gbps Type-C; 2 × USB 10Gbps Type-A; 1 × USB 5Gbps Type-A; 2 × USB 2.0 Type-A |
|---|---|
| Front USB | 1 × USB 10Gbps connector (Type-C); 1 × USB 5Gbps header (2 ports); 1 × USB 2.0 header |
| Video Output | 1 × DisplayPort 1.4; 1 × HDMI 2.1 |
| Audio Jacks | 3 × audio jacks (rear) |
| Fan Headers | 1 × 4-pin CPU Fan; 1 × 4-pin AIO Pump; 2 × 4-pin Chassis Fan |
| RGB Headers | 2 × Addressable RGB Gen 2 |
| Chassis Intrusion | 1 × header |
| Diagnostic Tools | Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button |
