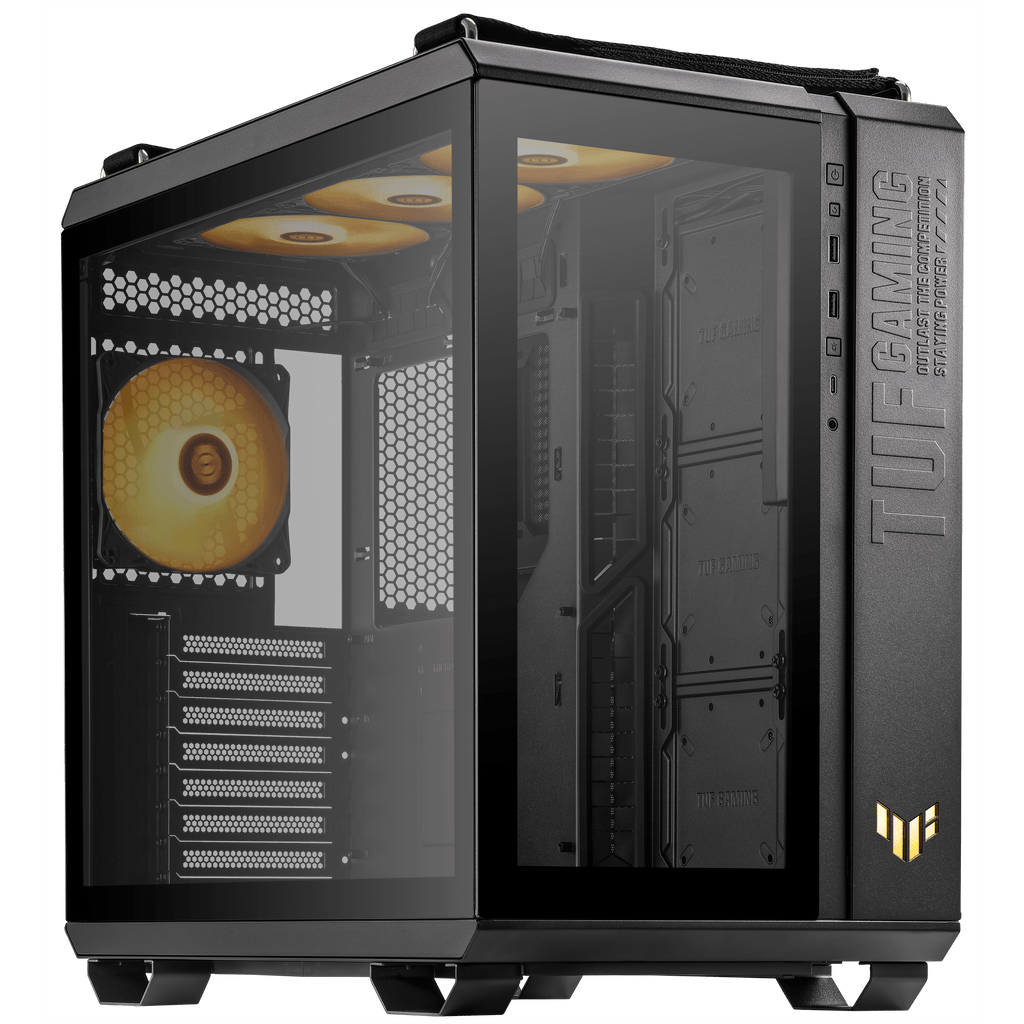

ASUS TUF Gaming GT502 PLUS Mid Tower ATX Case
ASUS
ASUS TUF Gaming GT502 PLUS Mid Tower ATX Case

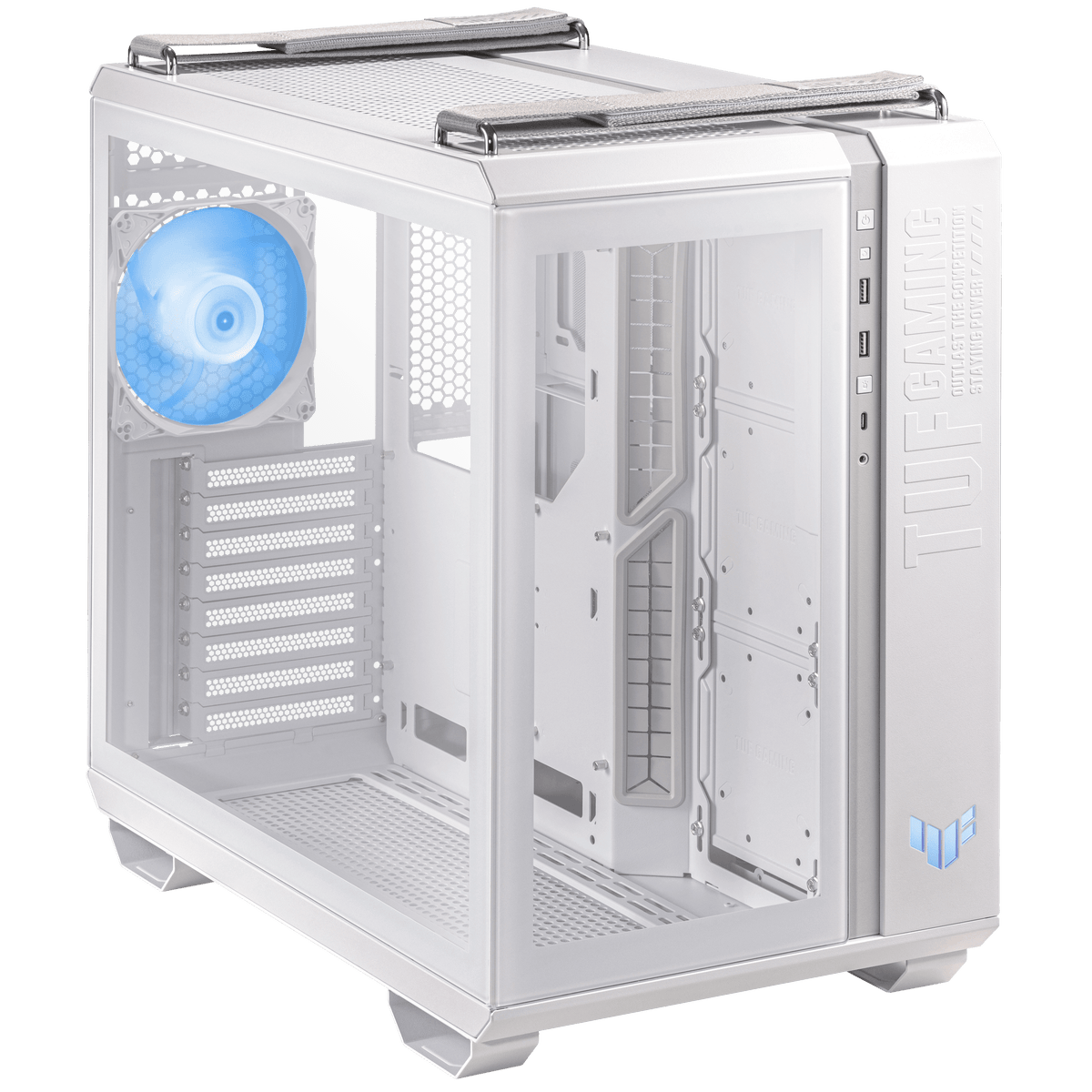

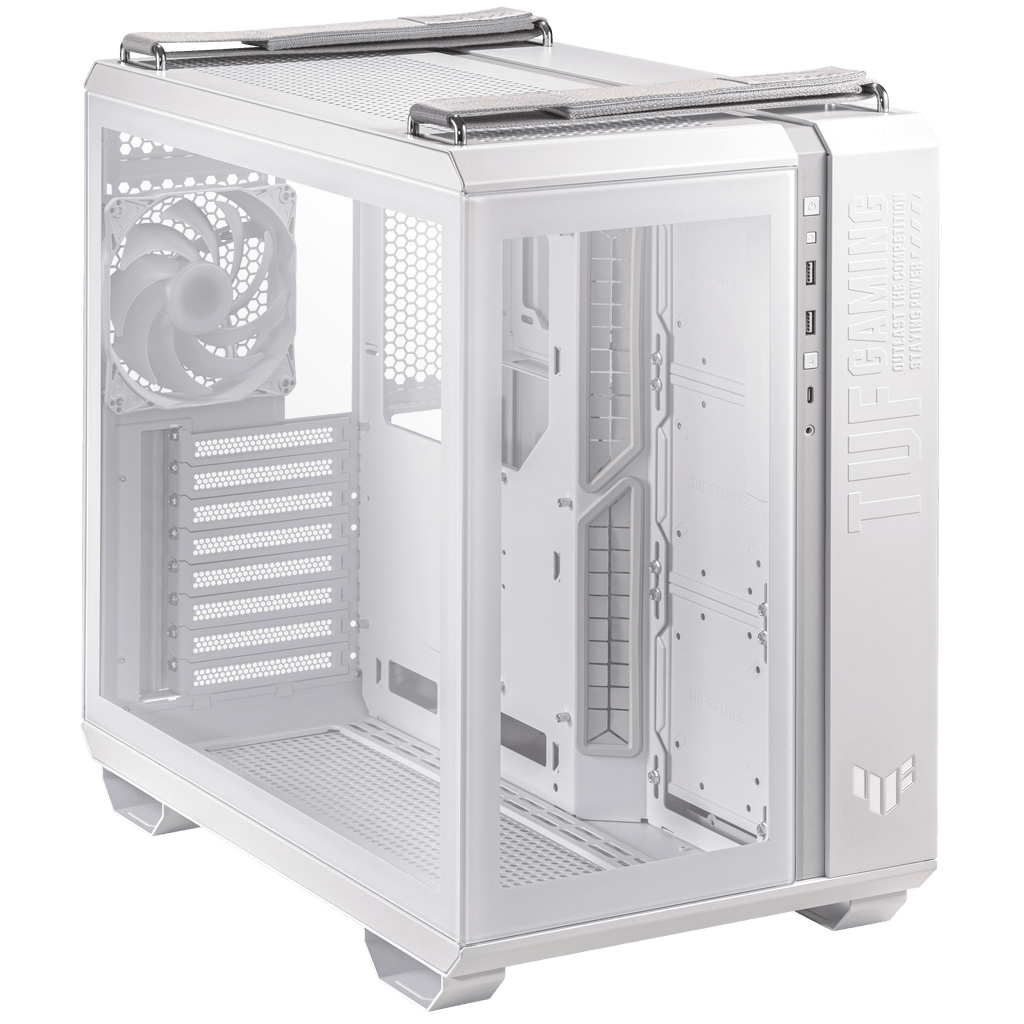

The ASUS TUF Gaming GT502 PLUS is a mid-tower ATX case designed for builders who want flexible cooling setup, easy hardware access, and customisable RGB lighting. Its dual-chamber layout lets you configure independent cooling zones for CPU and GPU, while tempered glass panels showcase your build.
Why this product
Dual-chamber design for independent cooling zones
Separate chambers for CPU and GPU allow you to optimise airflow for each component independently, reducing thermals and improving performance stability.
Four pre-installed ARGB fans with integrated hub
Comes with four 120 mm fans already mounted and connected to an on-board ARGB hub supporting up to six Aura Sync devices, eliminating separate fan controller purchases.
Tool-free side panels and fully modular interior
Button-press removal and removable mounts make installation and reconfiguration fast. Nearly every panel and mount can be taken apart without tools.
Radiator and storage flexibility
Top chamber accepts radiators up to 360 mm; rear supports 120 mm. The rear chamber bracket can hold a 360 mm radiator or three storage drives.
Vertical GPU mount with support bracket included
Display your graphics card upright or use the bundled anti-sag bracket for horizontal mounting. Supports GPUs up to 400 mm long.
USB 3.2 Gen 2 Type-C with 20 Gbps speed
Front panel includes a high-speed Type-C port alongside two standard USB 3.2 Gen 1 ports for fast file transfers and peripheral connectivity.
- Form FactorMid Tower ATX
- Drive Bays4 × 2.5"/3.5" combo
- Pre-installed Fans4 × 120 mm ARGB
- Max Radiator SupportTop: 360 mm; Rear: 120 mm
- Max GPU Length400 mm
- Max CPU Cooler Height163 mm
- Front I/OUSB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1
- Weight11.9 kg
- SKUASU-3319
- EAN4711081800439
- Fits ATX, Micro-ATX, and Mini-ITX motherboards across the main chamber.
- Accommodates CPU coolers up to 163 mm tall in the main chamber.
- Supports graphics cards up to 400 mm in length, either horizontal or vertical.
- Power supplies up to 200 mm length fit in the rear chamber.
- 8 expansion slots plus 3 additional slots for vertical-mounted components.
- Vertical GPU mounting requires a PCIe extension cable, which is not included.
Best for
- Custom-loop or high-end air coolers
- Showcasing premium components with RGB
- Builders who frequently swap or upgrade hardware
- Systems with large graphics cards and top-mounted radiators
- Portable gaming PCs (carry straps support up to 30 kg)
Trade-offs
- Compact builds requiring minimal footprint (mid-tower dimensions are 285 × 450 × 446 mm)
- Systems with tall CPU coolers exceeding 163 mm clearance
- Builders seeking passive cooling only (pre-installed fans are mandatory)
- Budget builds where RGB lighting and tempered glass are not needed
Flexible, scalable, and divided up in all the right ways: the TUF Gaming GT502 PLUS puts your prized hardware up front and holds your six with a stack of cooling options, bundled system fans, and an ARGB lighting hub to express ultimate performance your way. Load up, lock in, and watch it all thrive.

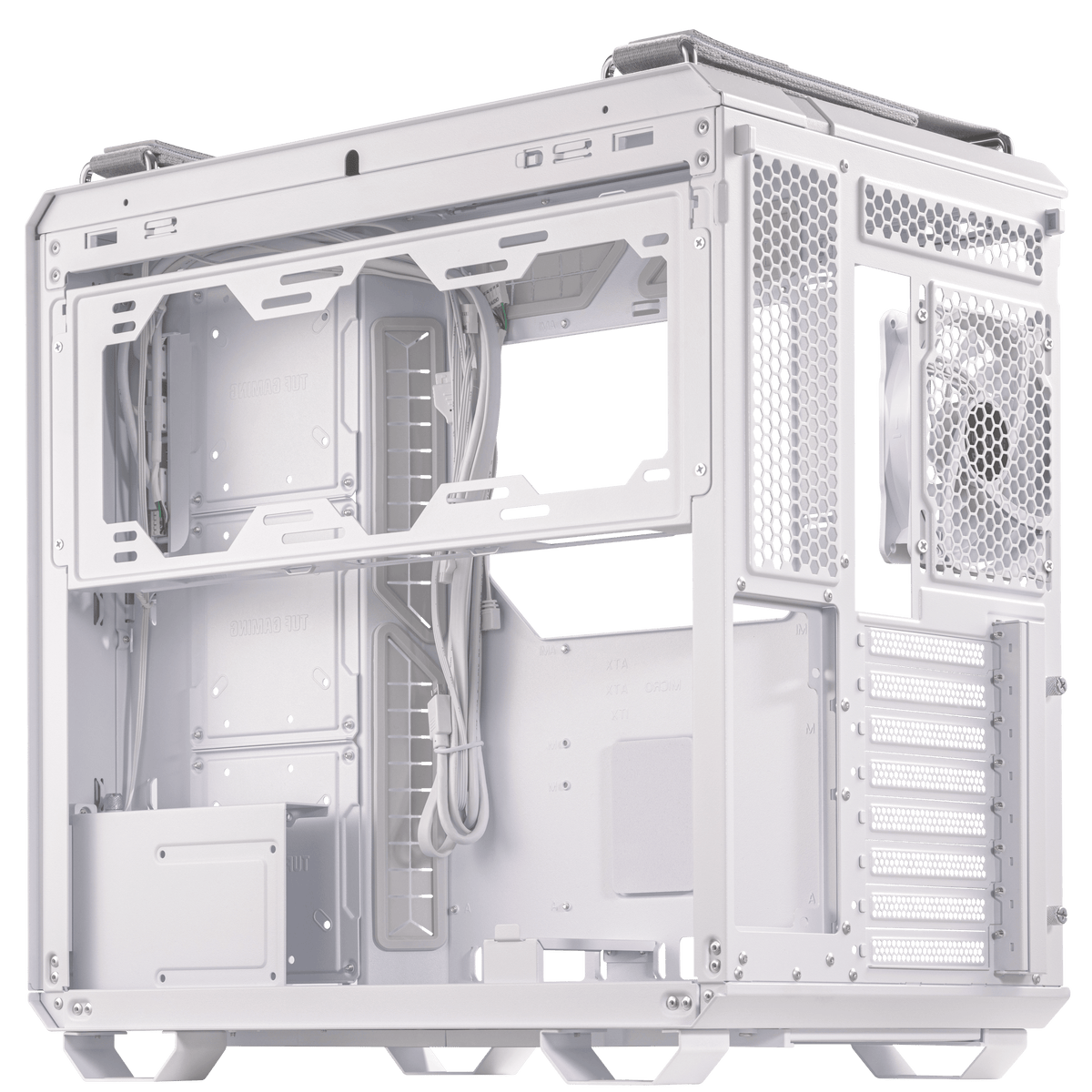

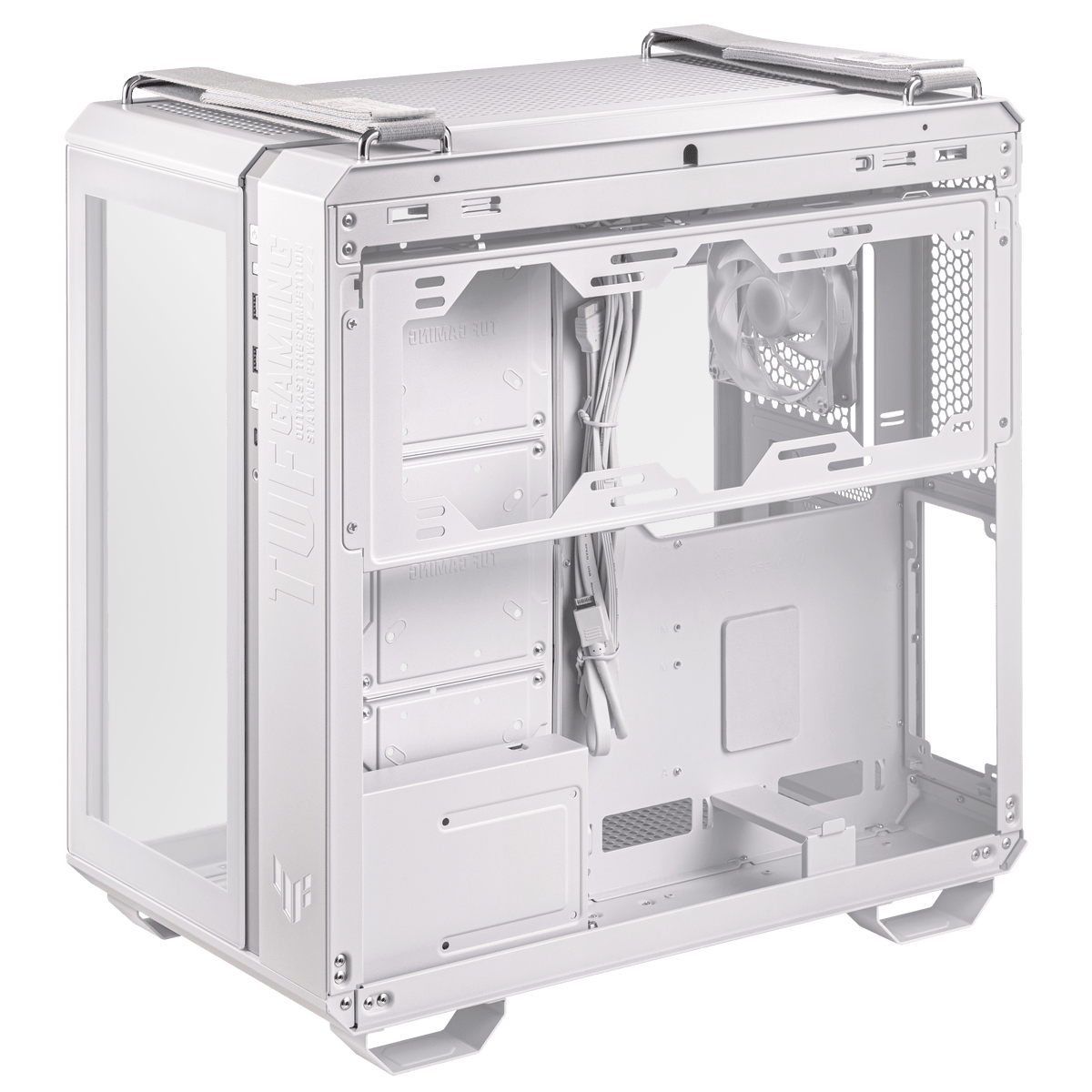

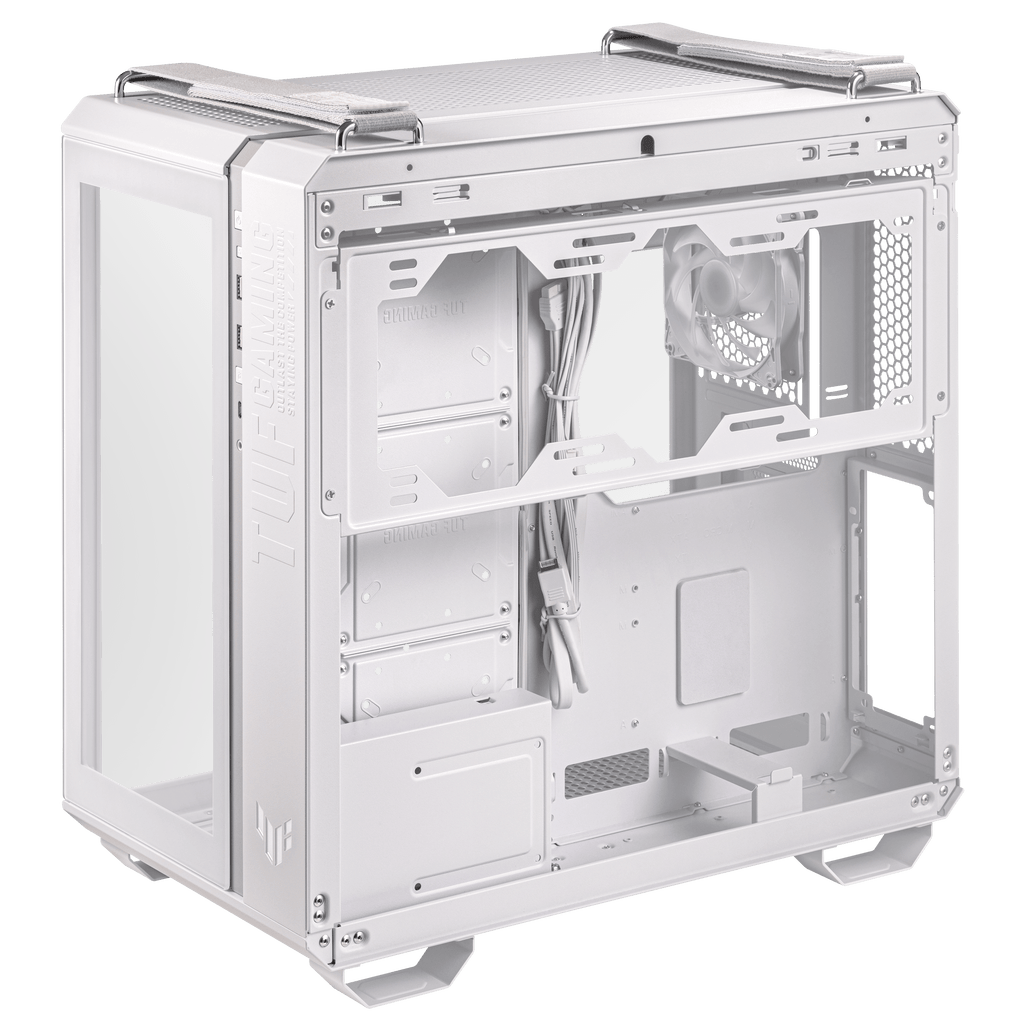

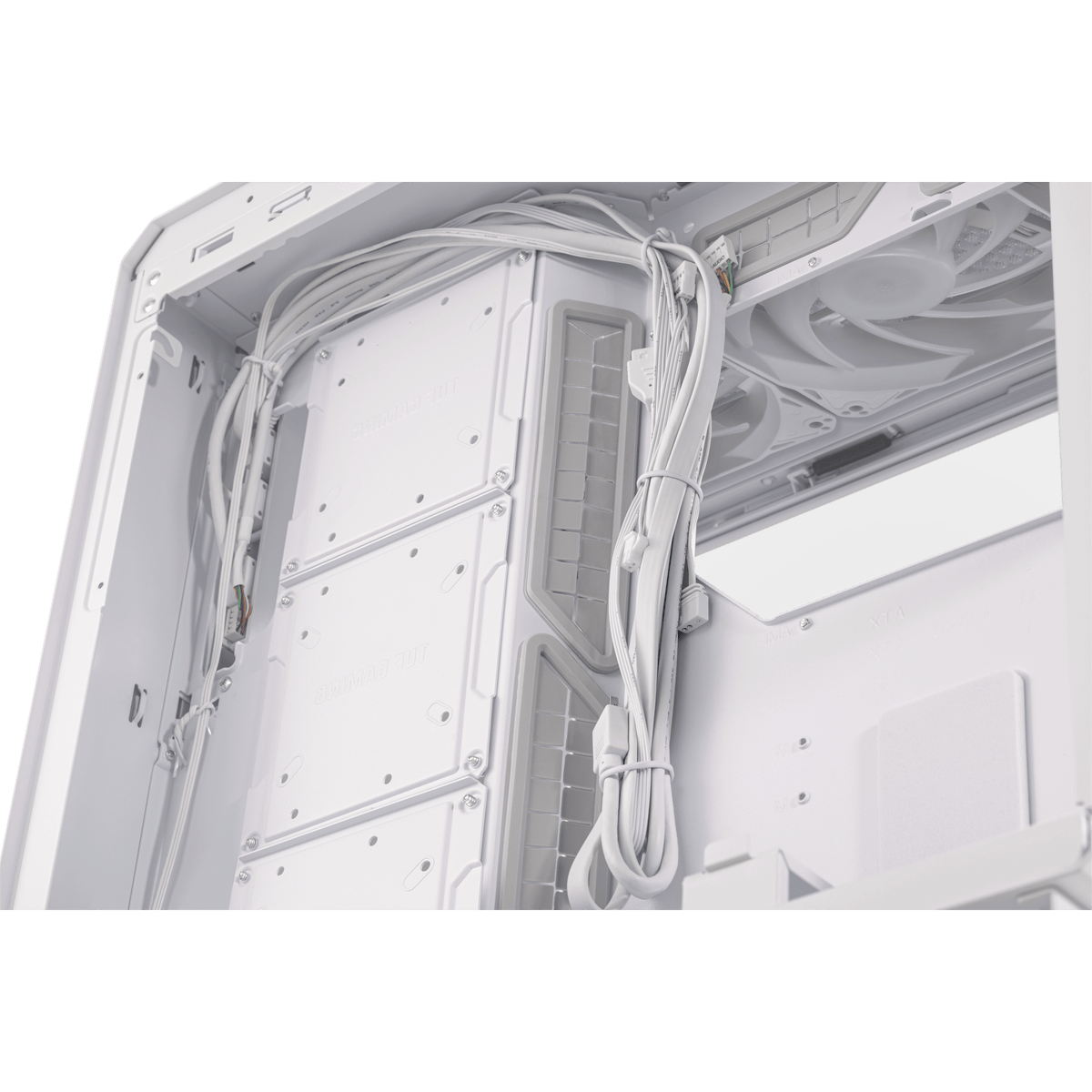

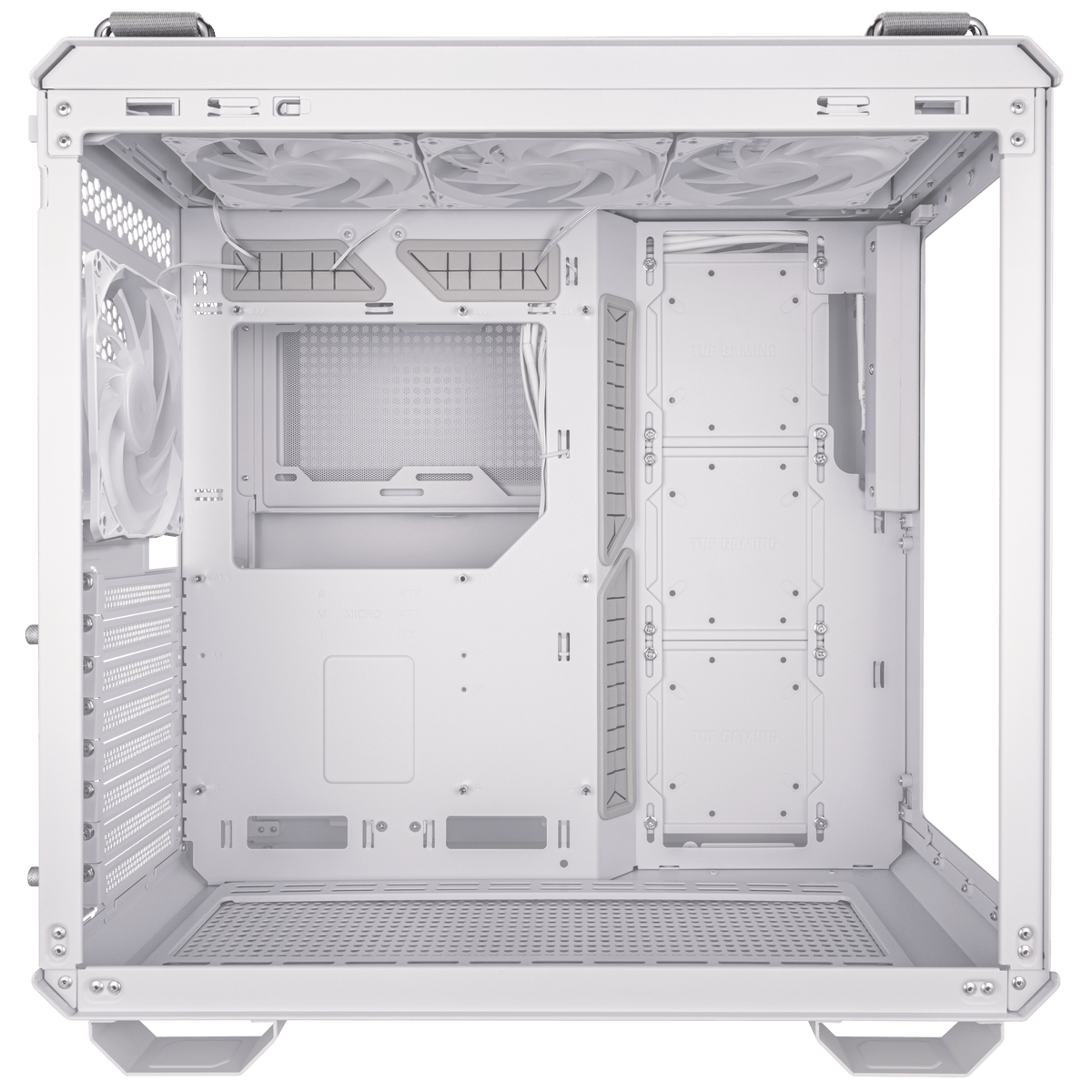

GT502 PLUS internals are divided into two chambers, allowing you to build clean and configure independent cooling zones for the CPU and GPU. Freely expand your rig and give system components the ideal environment to dish out frames and slice through workloads. A 360mm bracket rides in the rear chamber and can carry radiator and fan combos or three storage devices.
Stand your graphics card up proud with an included vertical mount* or slot it directly into the motherboard and banish sag with a bundled support bracket. *PCIe extension cable not included.

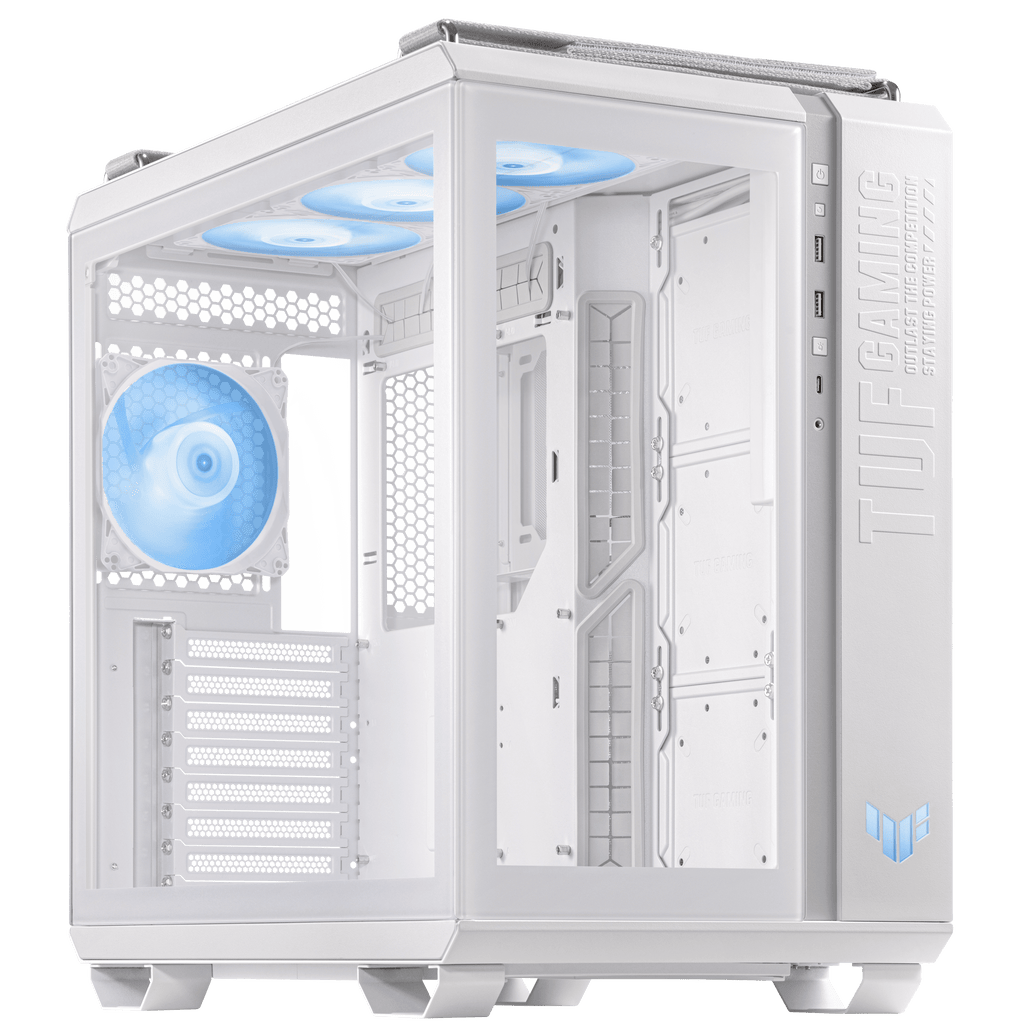

An integrated ARGB hub that supports up to six Aura Sync devices is neatly tucked away under a sleek cover, keeping cable connections in the shade while your system components bask in a customizable glow.

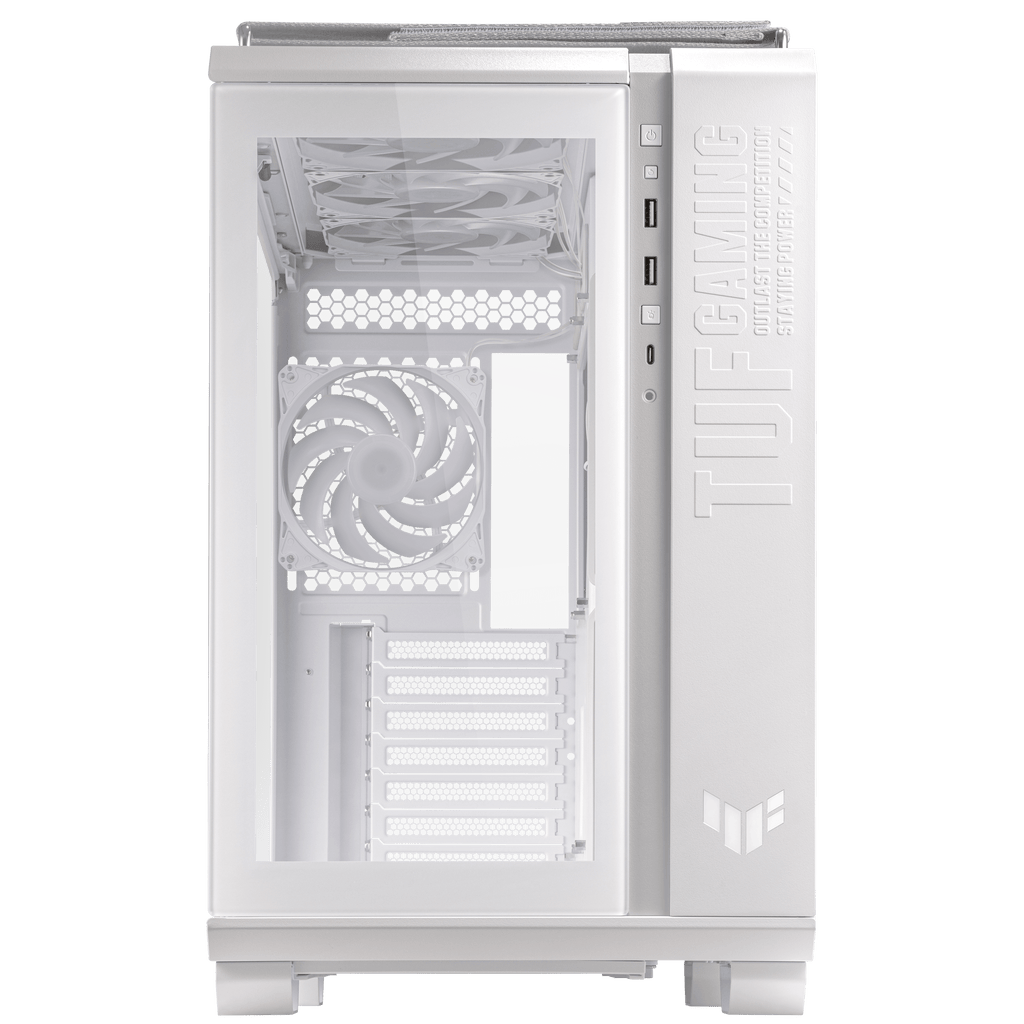

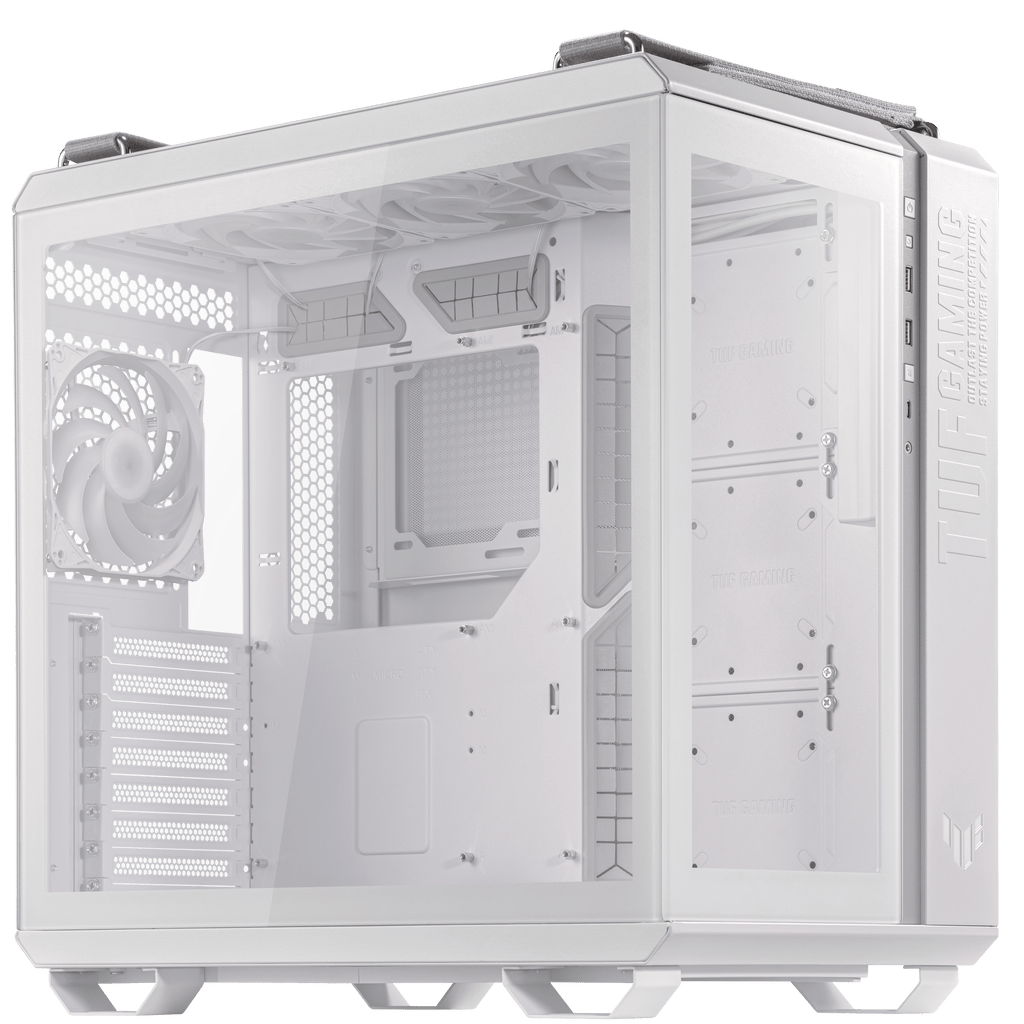

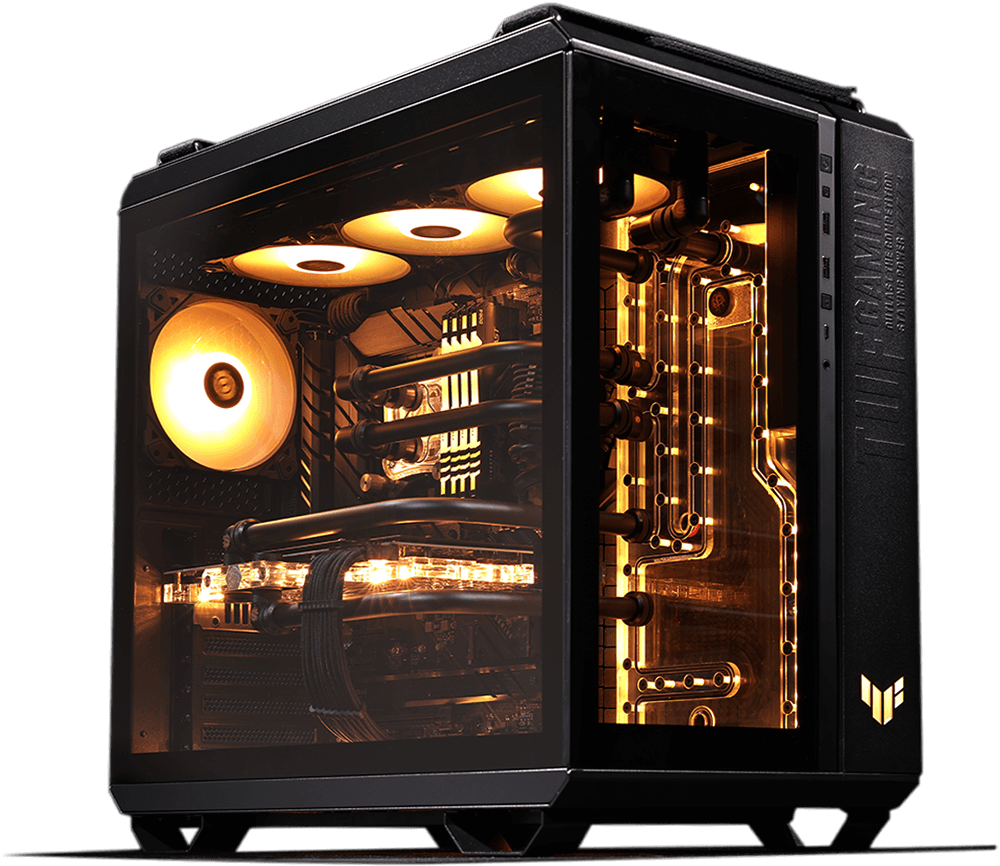

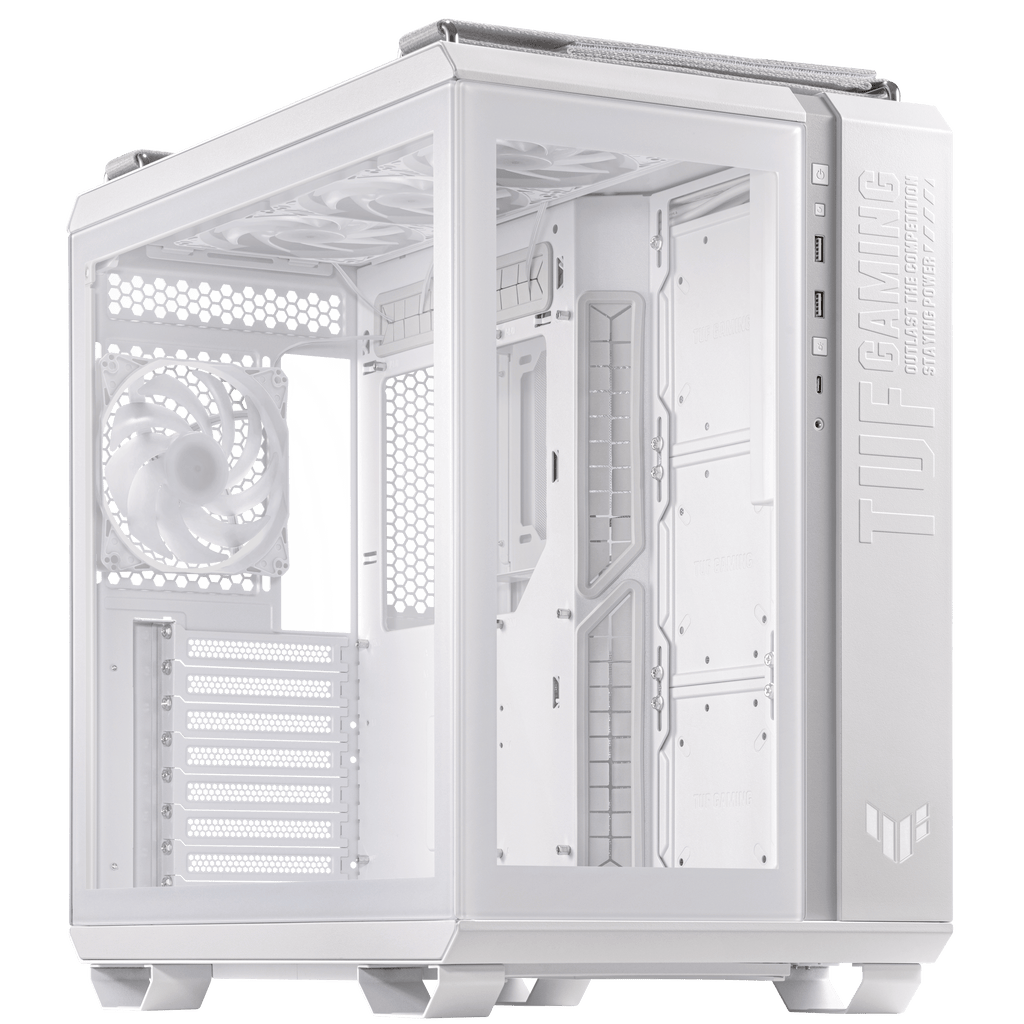

The TUF Gaming GT502 PLUS continues its builder optimizations with side panels that can be removed simply by pressing a button hidden on the rear of the chassis. Tempered glass panels at the front and side provide a tactfully tinted view of the main chamber, showcasing your build to own the room.

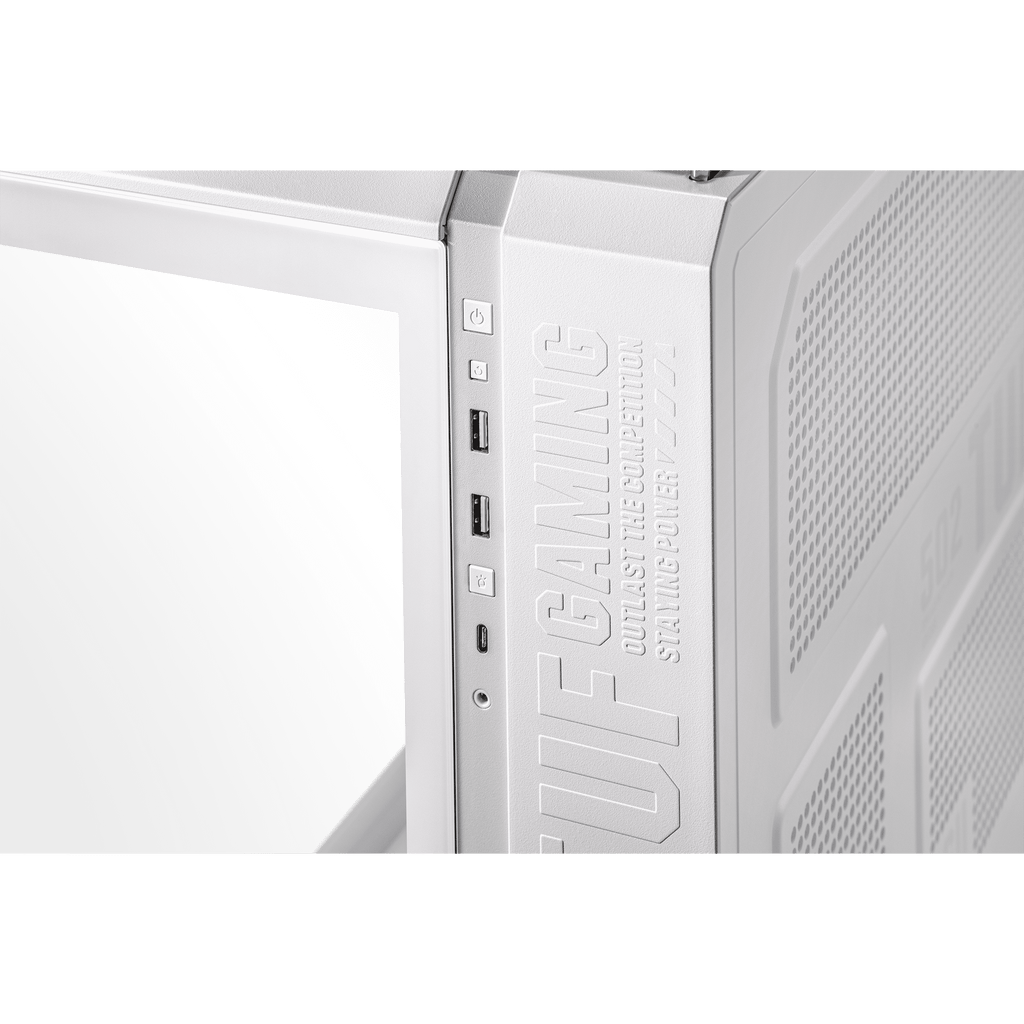

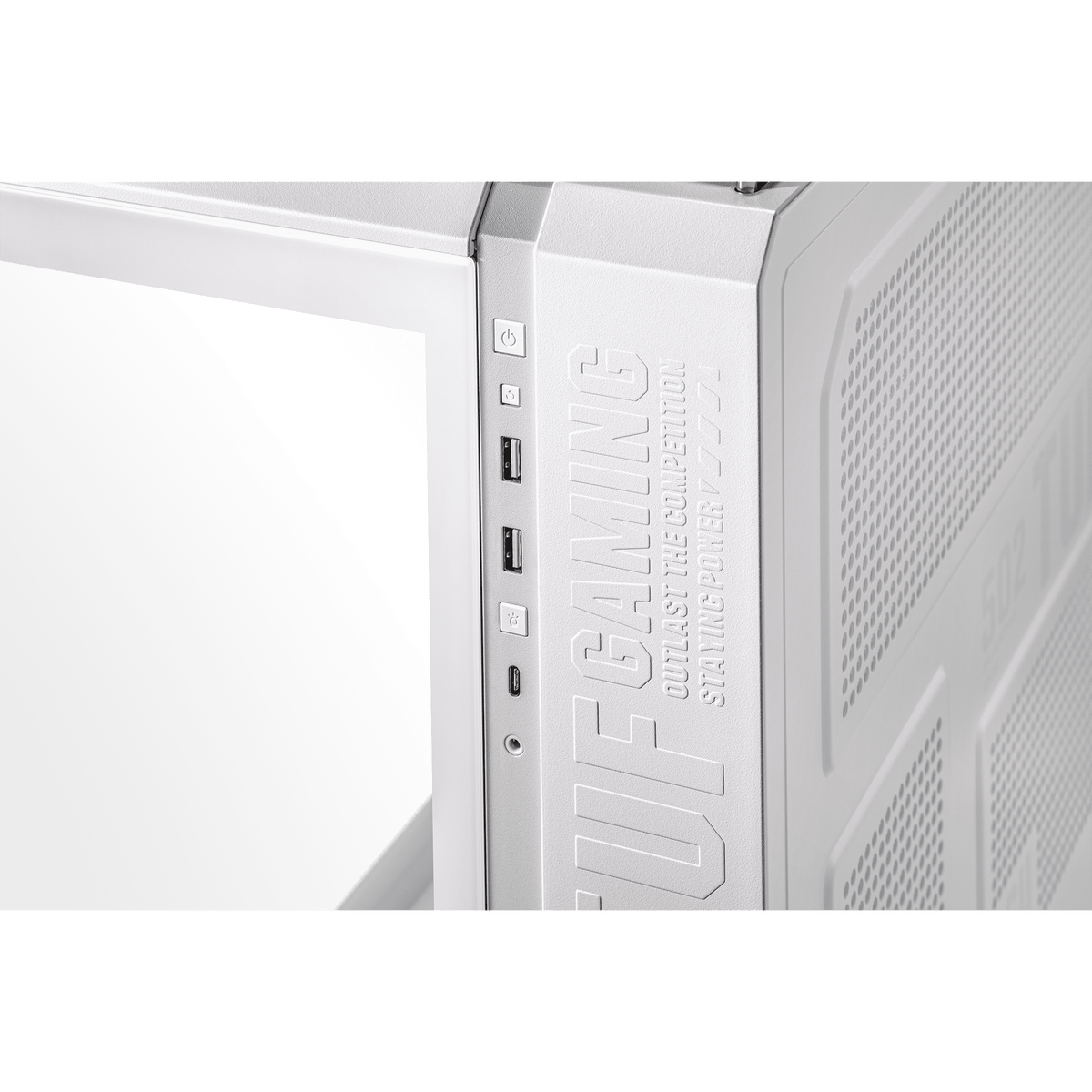

In addition to two USB-A ports, the TUF Gaming GT502 PLUS front panel features a USB 3.2 Gen 2 Type-C port ripe for transfer speeds up to 20 Gbps.

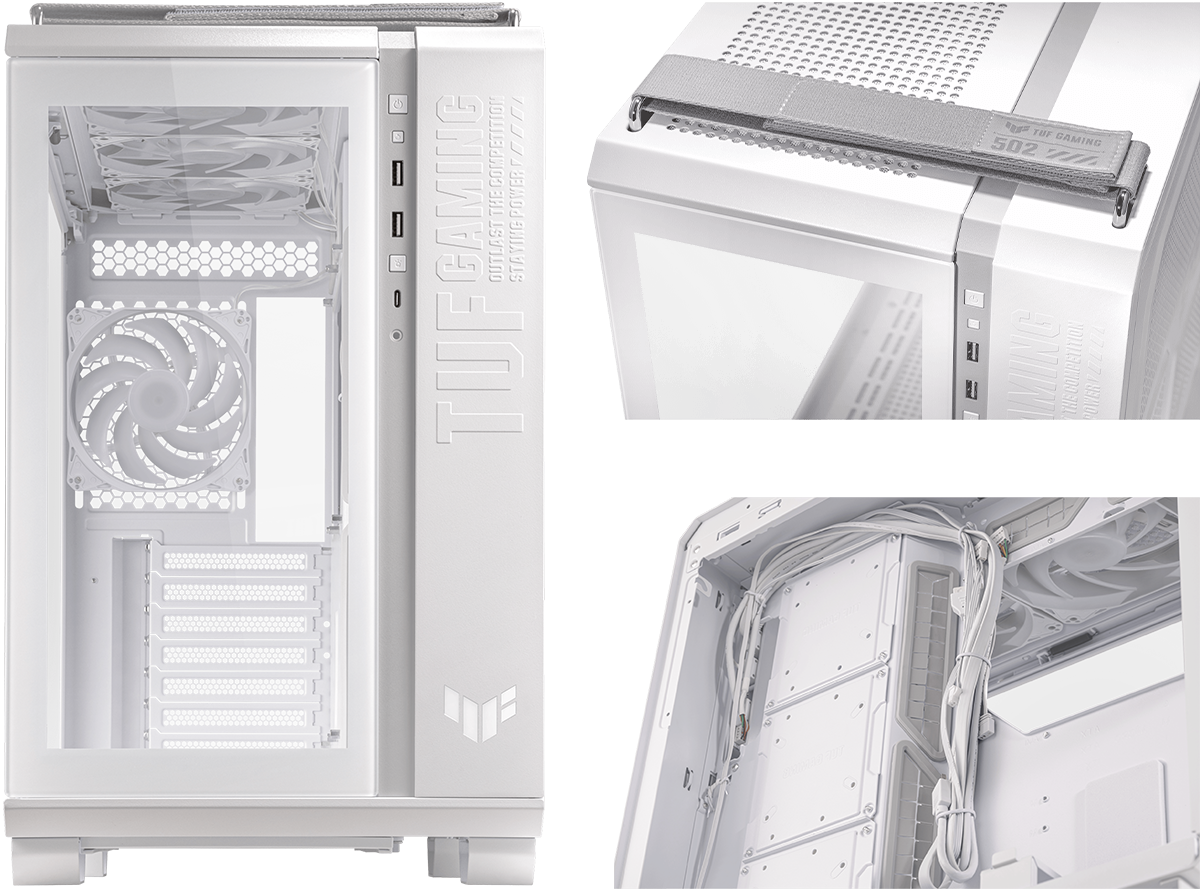

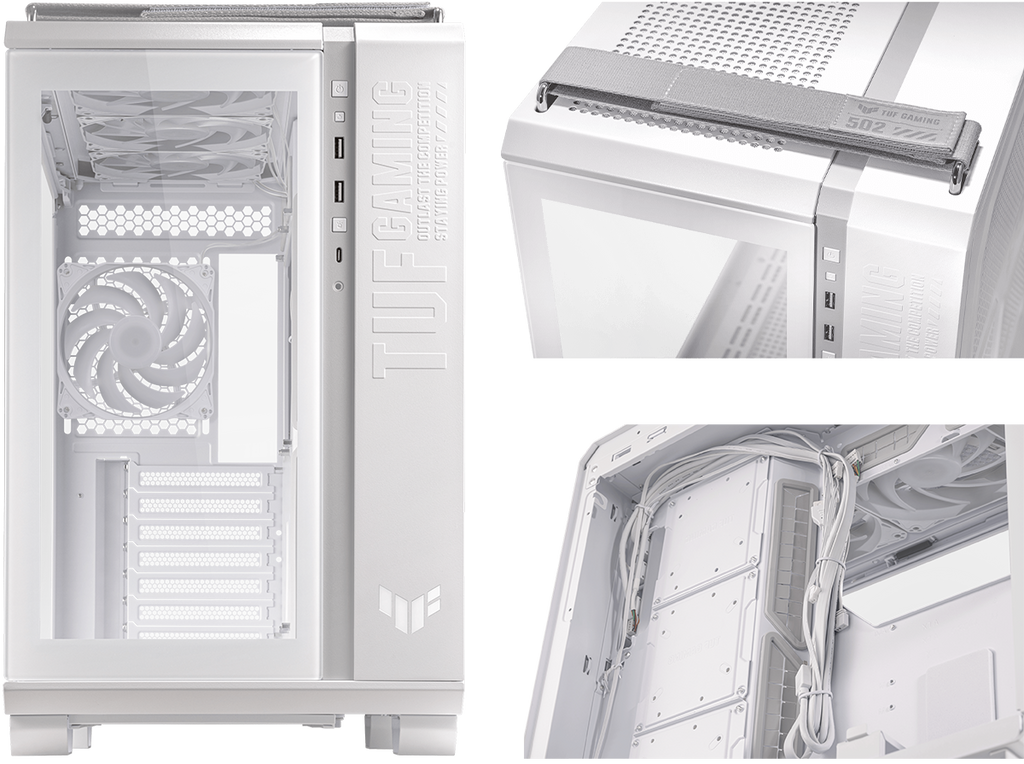

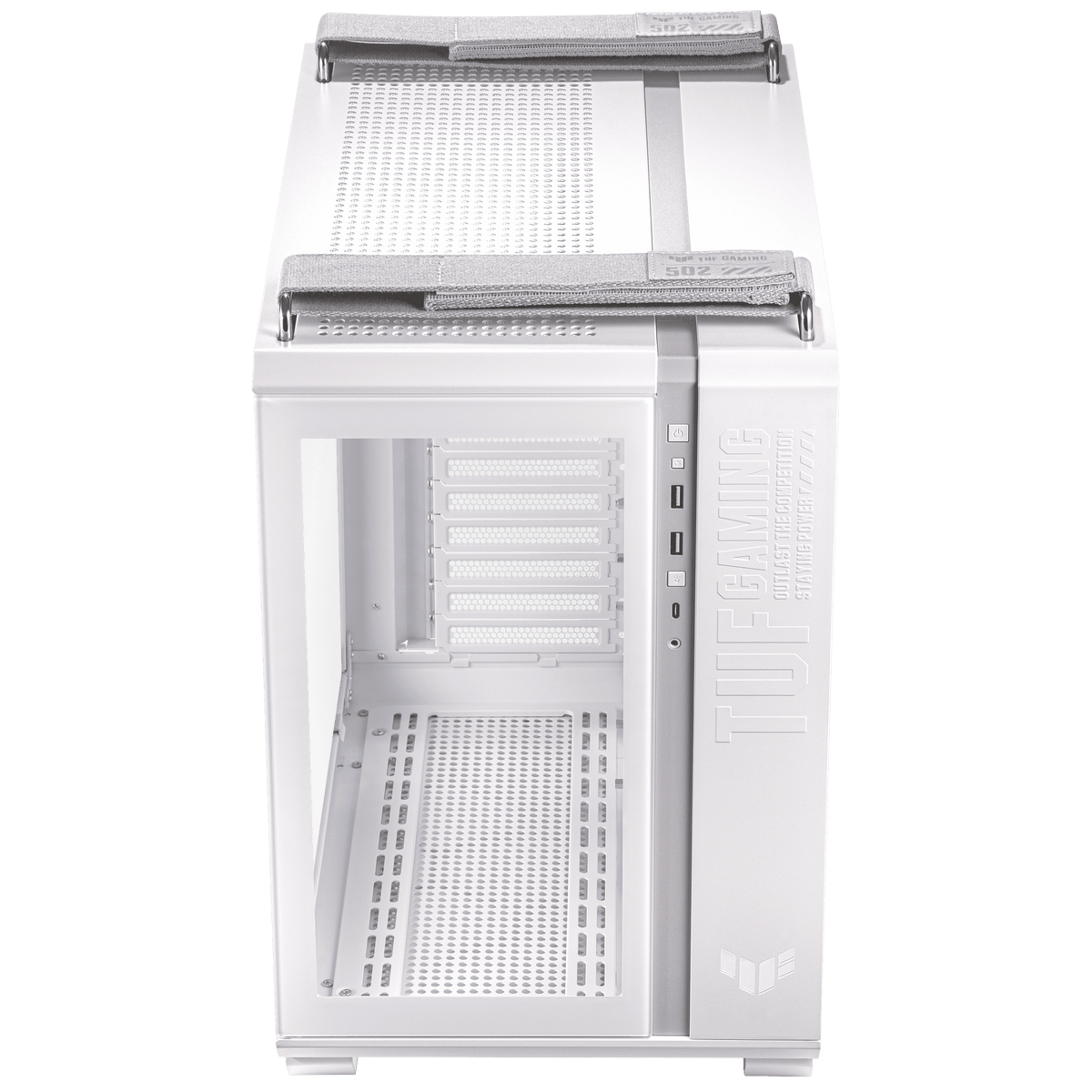

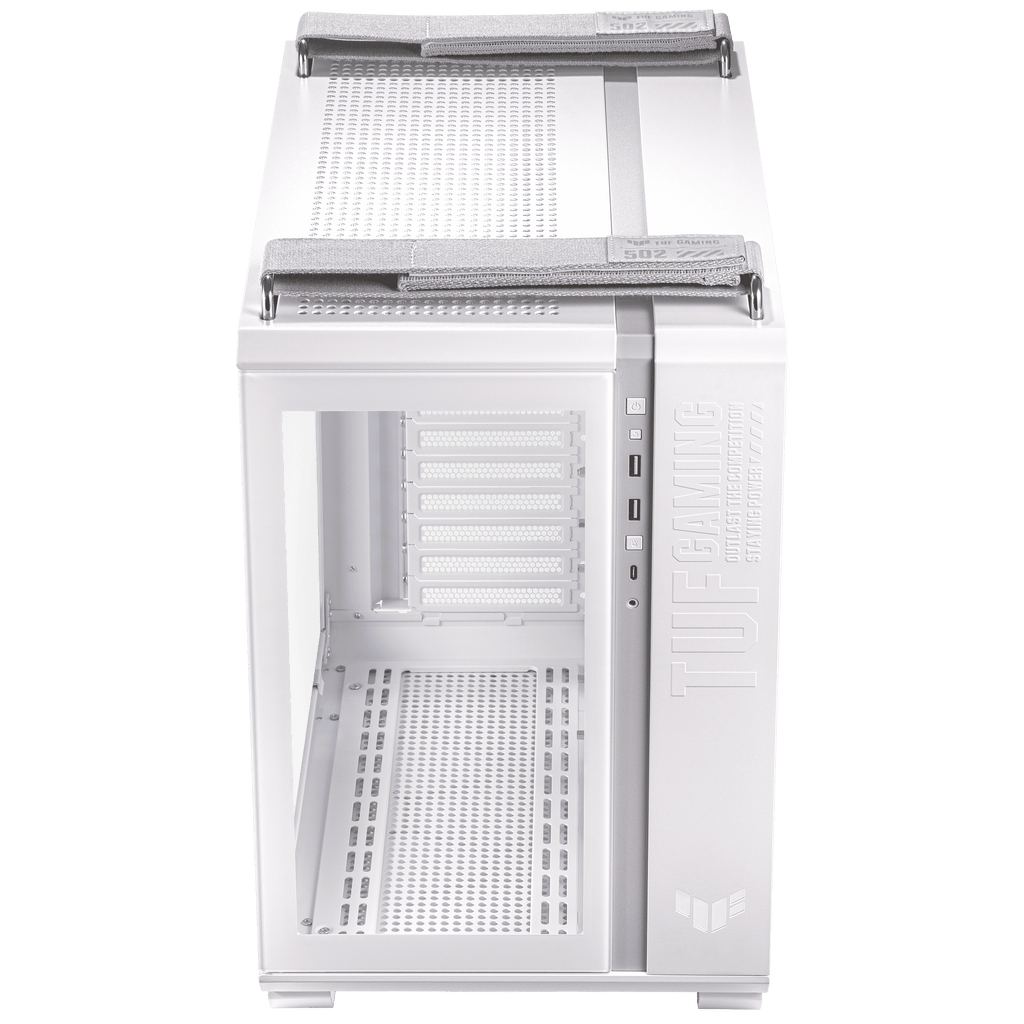

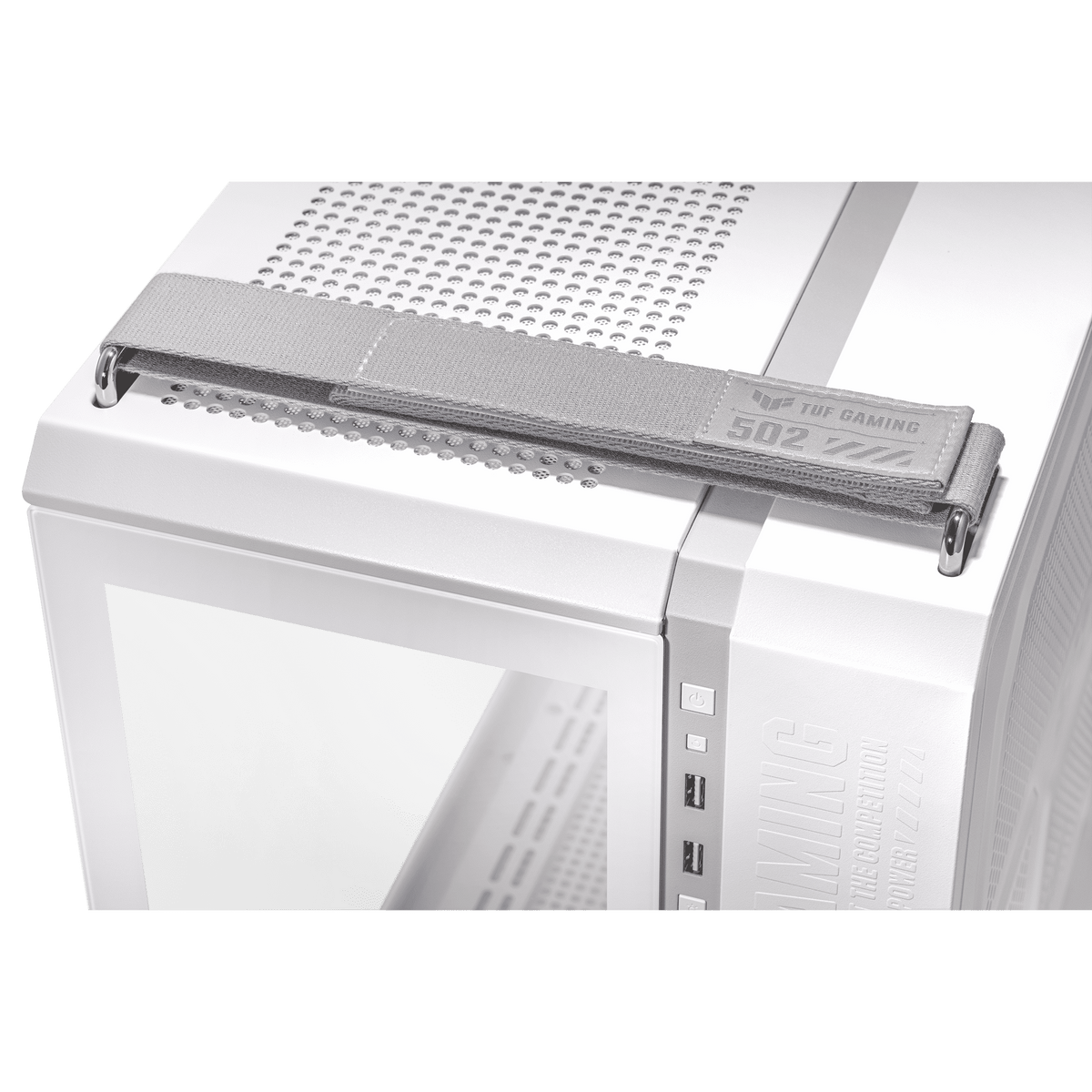

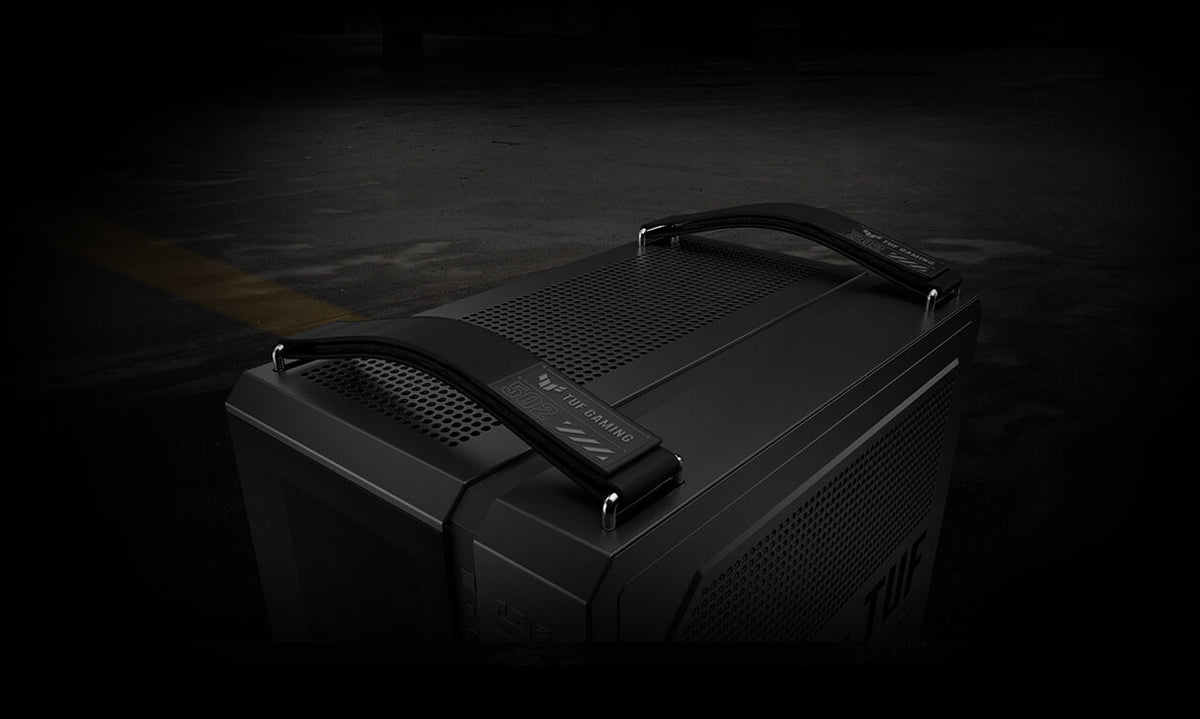

Two durable and detachable straps that can support up to 30 kg (66 lbs) make it much easier to move the chassis around even when it's packed with hardware. Whether you prefer a modest build or a fully-loaded battle station, the GT502 PLUS is ready.

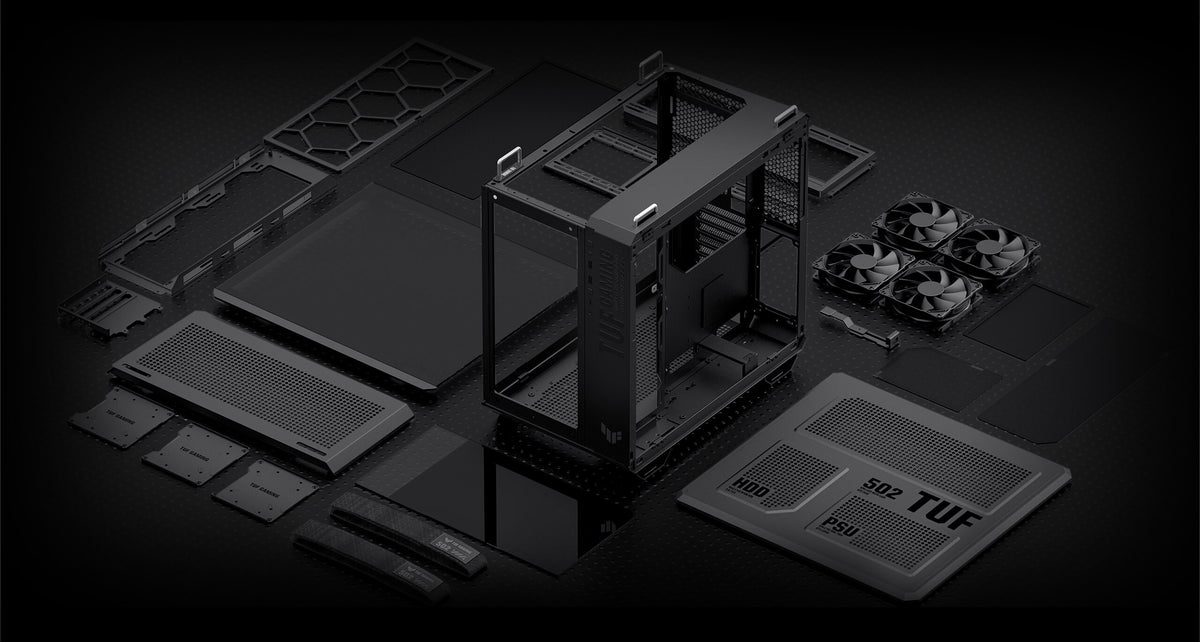

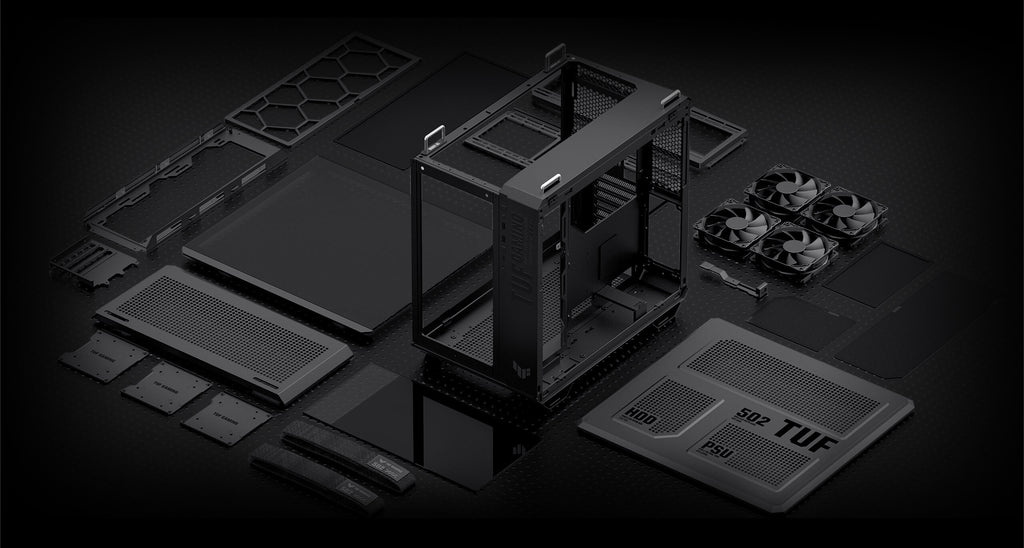

Most of its panels and mounts are removable to ease hardware installation – take it apart to your heart's content then build it up in your ideal image. The GT502 PLUS is available in either black or white, giving you options to create a rig that blends in or stands out.
General
| Brand | ASUS |
|---|---|
| Model | TUF Gaming GT502 PLUS |
| Case Type | Mid Tower |
| Motherboard Compatibility | ATX, Micro-ATX, Mini-ITX |
Cooling & Airflow
| Pre-installed Fans | 4 × 120 mm ARGB (3 top, 1 rear) |
|---|---|
| Maximum Fans Supported | 13 total |
| Top Radiator Support | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Rear Radiator Support | 120 mm |
| Top Fan Slots | 3 × 120 mm or 2 × 140 mm |
| Rear Fan Slots | 1 × 120 mm |
| Dust Filters | Top, Bottom, Right (removable) |
| Dual-Chamber Design | Yes, independent CPU and GPU zones |
Storage & Components
| Drive Bays | 4 × 2.5"/3.5" combo |
|---|---|
| Expansion Slots | 8 + 3 additional (vertical) |
| Maximum GPU Length | 400 mm |
| Maximum CPU Cooler Height | 163 mm |
| Maximum PSU Length | 200 mm |
| GPU Mounting | Horizontal or vertical (vertical mount kit included) |
Connectivity & Lighting
| Front USB Type-C | 1 × USB 3.2 Gen 2x2 (20 Gbps) |
|---|---|
| Front USB Type-A | 2 × USB 3.2 Gen 1 |
| Front Audio | 1 × 3.5 mm headphone / microphone |
| ARGB Hub | Integrated, supports up to 6 Aura Sync devices |
| Tempered Glass | Front and left side panels |
| LED Control | Front panel button |
Physical & Build
| Dimensions | 285 × 450 × 446 mm |
|---|---|
| Weight | 11.9 kg |
| Tool-Free Side Panels | Yes, button-press removal |
| Modular Design | Removable panels and mounts |
| Carry Straps | 2 detachable straps, supports up to 30 kg (66 lbs) |
