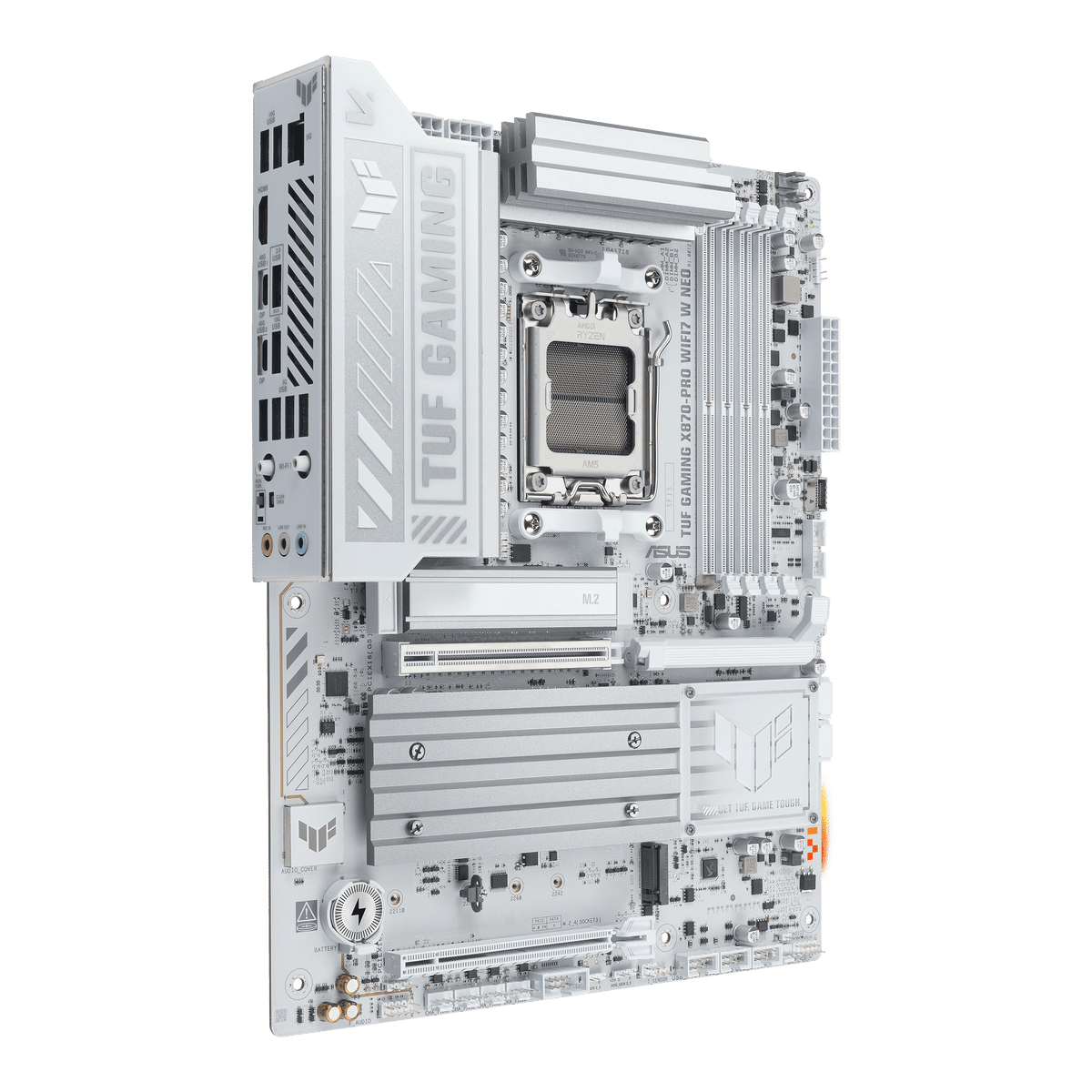

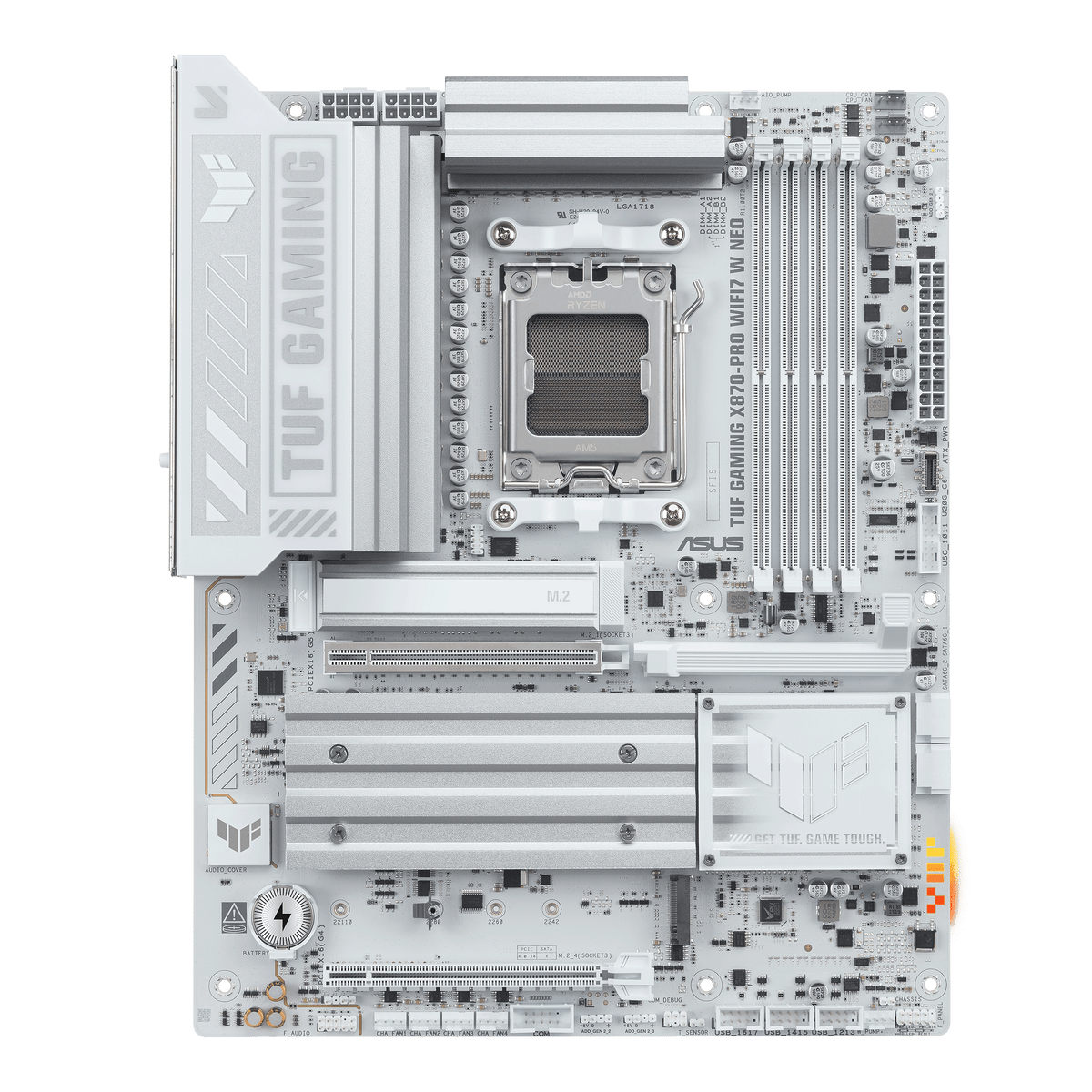

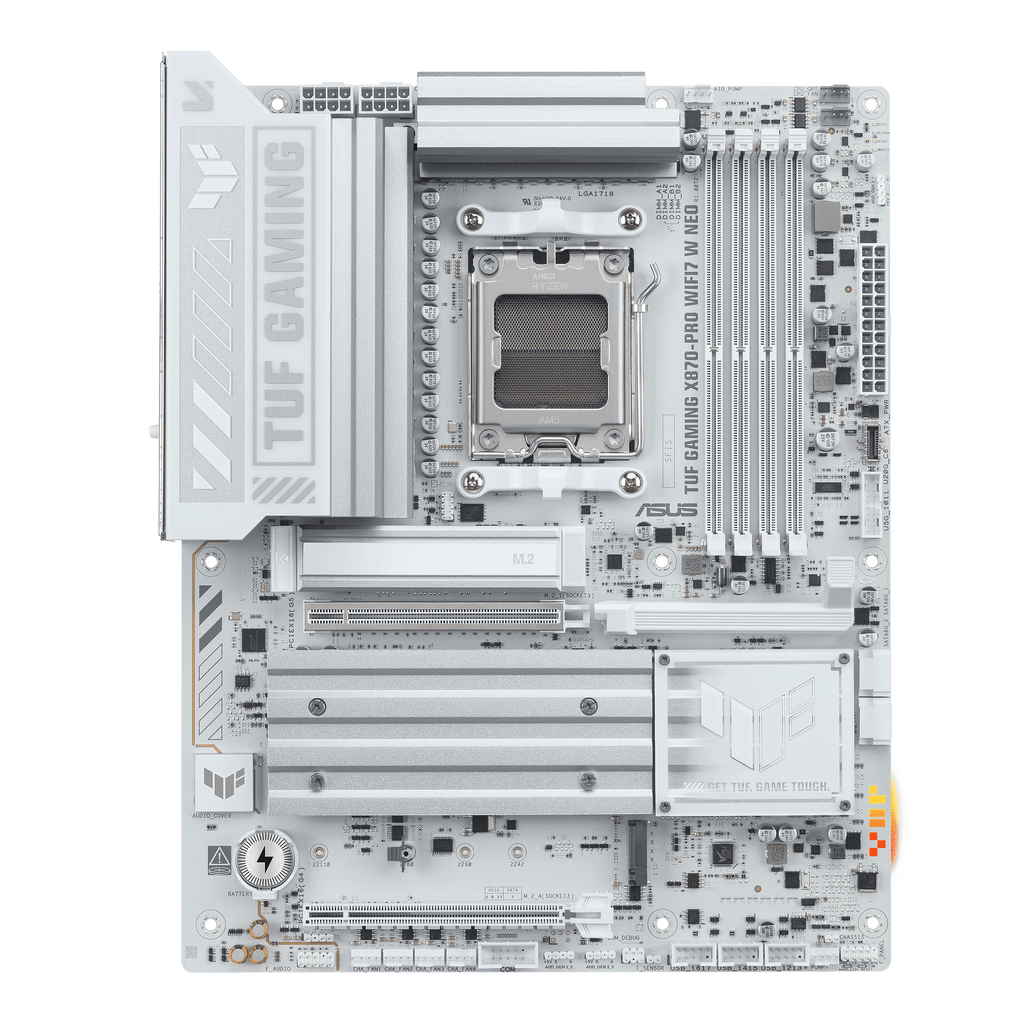

ASUS TUF Gaming X870-Pro WiFi7 W NEO AM5 ATX Motherboard
ASUS
ASUS TUF Gaming X870-Pro WiFi7 W NEO AM5 ATX Motherboard
The ASUS TUF Gaming X870-Pro WiFi7 W NEO is an AMD X870 ATX motherboard built for Ryzen 9000, 8000 and 7000 series processors. It combines server-grade PCB design with DDR5 support, PCIe 5.0 connectivity, and modern I/O including WiFi 7 and USB4, making it suited to high-performance builds that demand both gaming capability and advanced AI workload support.
Why this product

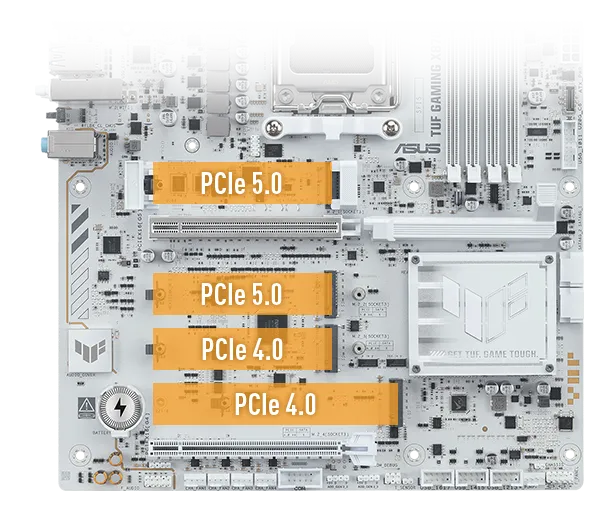

PCIe 5.0 ready with four M.2 slots
Two M.2 slots deliver PCIe 5.0 x4 speeds for the fastest NVMe drives; two more run PCIe 4.0 x4 for additional storage flexibility.
WiFi 7 and 5Gb Ethernet
Realtek RTL8922AE WiFi 7 and a dedicated 5Gb Ethernet port ensure fast wired and wireless connectivity for gaming and streaming.

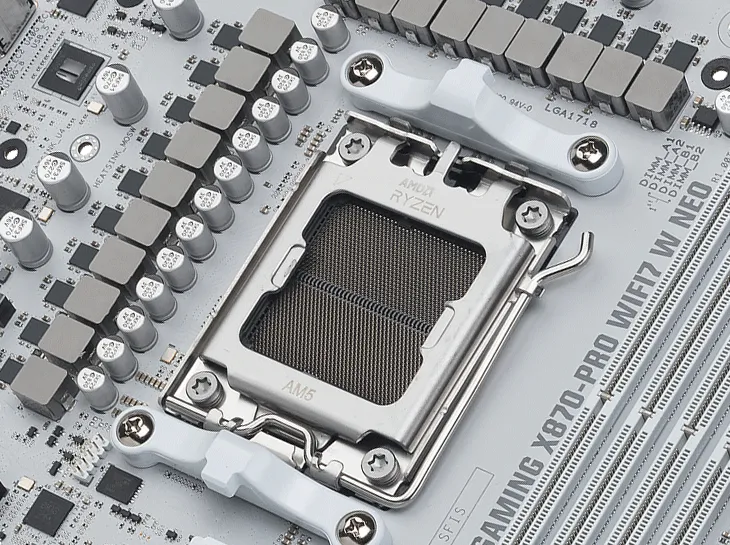

16+2+1 power stages with 80A capacity
Premium VRM design with 80A SPS power stages and enlarged heatsinks provides stable power delivery for high-performance or overclocked CPUs.
NitroPath DRAM Technology
Optimized signal pathways and shorter gold finger pins enhance DDR5 memory performance and overclocking headroom.
Dual USB4 ports and front USB Type-C

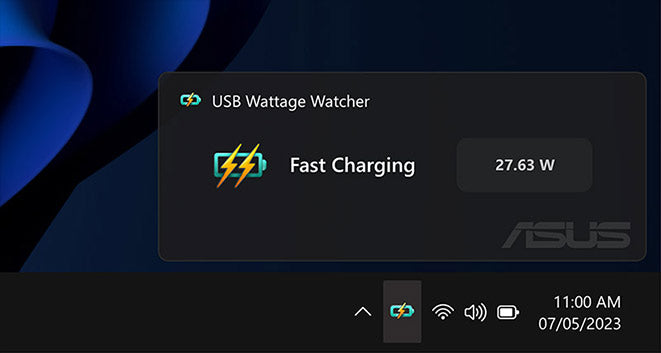

Two rear USB4 ports support 40Gbps bandwidth and DisplayPort 1.4a; a front-panel USB 20Gbps Type-C connector with up to 30W PD charging adds modern connectivity.
Eight-layer server-grade PCB design
Built on a robust signal stack with TUF durability testing and comprehensive protection (ESD guards, overvoltage protection, SafeSlot), this board withstands demanding use.
- ChipsetAMD X870
- SocketAM5
- Form FactorATX (12 × 9.6 inches / 30.5 × 24.4 cm)
- Memory SupportDDR5 up to 256GB, 9600+MT/s (OC)
- PCIe 5.0 Slots1 x x16 GPU, 2 x M.2
- Warranty3 years
- SKUASU-3406
- EAN4711636425247
- Supports AMD Ryzen 9000, 8000 and 7000 series desktop processors in the AM5 socket.
- Accepts up to 256GB of DDR5 memory in dual-channel configuration, with support for speeds up to 9600+MT/s (OC) on Ryzen 8000 series.
- Runs Windows 11 as the supported operating system.
- Includes all standard M.2 form factors: 2280 (both PCIe 5.0 slots and M.2_3), 2260, 2242, and 22110 support (PCIe 4.0 M.2_4 only).

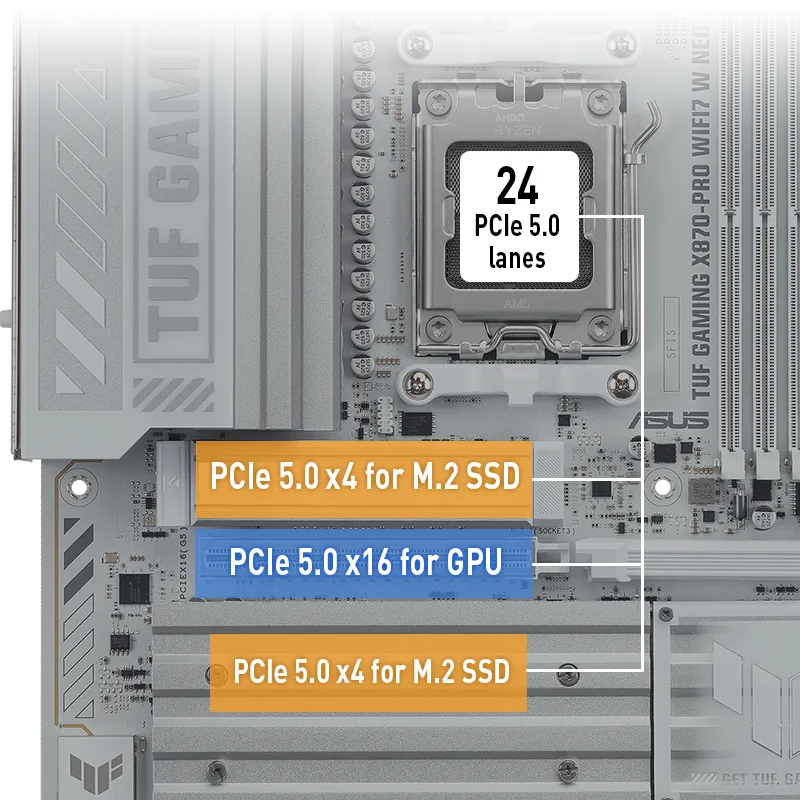

- The single PCIe 5.0 x16 slot runs full bandwidth only with Ryzen 9000 and 7000 series; the secondary x16 slot runs at x4 maximum.
Best for
- High-end gaming builds with fast graphics cards and NVMe storage, thanks to dual PCIe 5.0 M.2 slots and full-width PCIe 5.0 x16 GPU support.
- Overclocking and tuning: 16+2+1 power stages, NitroPath DRAM Technology, Asynchronous Clock, and Dynamic OC Switcher provide extensive frequency control and headroom.
- AI PC workloads that demand bandwidth and stability: PCIe 5.0 connectivity, USB4 40Gbps ports, and server-grade PCB design support data-intensive applications.
- Builders who value DIY ease: M.2 Q-Release, Q-Latch, PCIe Slot Q-Release, BIOS FlashBack, and Clear CMOS button simplify assembly and troubleshooting.
- Content creators and streamers: WiFi 7, 5Gb Ethernet, USB4, and dedicated audio codec with 120 dB SNR deliver fast networking and professional sound.
Trade-offs
- Intel processors: this board is AMD-only with AM5 socket support for Ryzen CPUs.
- Budget builds: an X870 ATX motherboard with premium VRM, PCIe 5.0, and WiFi 7 carries a higher cost than entry-level AM5 boards.
- Compact builds requiring microATX or mini-ITX form factors; it is ATX at 12 × 9.6 inches and requires a full-size case.
- Builders with DDR4 memory; it supports DDR5 only.
- Those needing PoE power delivery on Ethernet; the 5Gb port is standard Ethernet without Power over Ethernet.
ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
AMD X870 ATX motherboard, 16+2+1, 80A SPS power stages, DDR5 with NitroPath DRAM Technology, PCIe 5.0 Ready, four M.2 slots, Wi-Fi 7, Realtek® 5Gb Ethernet, HDMI™, USB4® (40Gbps) ports support USB Type-C® display outputs, SATA 6 Gbps ports, front USB 20Gbps Type-C® with PD Fast Charge Support, front 3 x USB 2.0 headers, BIOS FlashBack™, AEMP, AI Overclocking, Asynchronous Clock and Aura Sync.
Built on an eight-layer server-grade stack for precise signals and stable performance. NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability.
For next-level frequency flexibility, the TUF GAMING X870-PRO WIFI7 W NEO features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality.
A larger BIOS chip enables a more powerful interface and extended CPU compatibility with the latest and future AM5 processors, ensuring a smooth, seamless user experience.
General
| Brand | ASUS |
|---|---|
| Model | TUF GAMING X870-PRO WIFI7 W NEO |
| Chipset | AMD X870 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000 & 8000 & 7000 series |
Memory & Storage
| Memory Slots | 4 x DIMM |
|---|---|
| Memory Type | DDR5 |
| Maximum Memory | 256GB |
| Memory Speed | Up to 9600+MT/s (OC) with Ryzen 8000 series |
| Memory Features | NitroPath DRAM Technology, AEMP, ECC and Non-ECC support |
| M.2 Slots | 4 (M.2_1 & M.2_2: PCIe 5.0 x4 2280; M.2_3: PCIe 4.0 x4 2280; M.2_4: PCIe 4.0 x4 2242/2260/2280/22110) |
| SATA Ports | 2 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 |
Networking
| Ethernet | 1 x Realtek 5Gb (RTL8126) with TUF LANGuard |
|---|---|
| WiFi | Realtek RTL8922AE WiFi 7 (802.11be) |
| Bluetooth | 5.4 |
Ports & Power

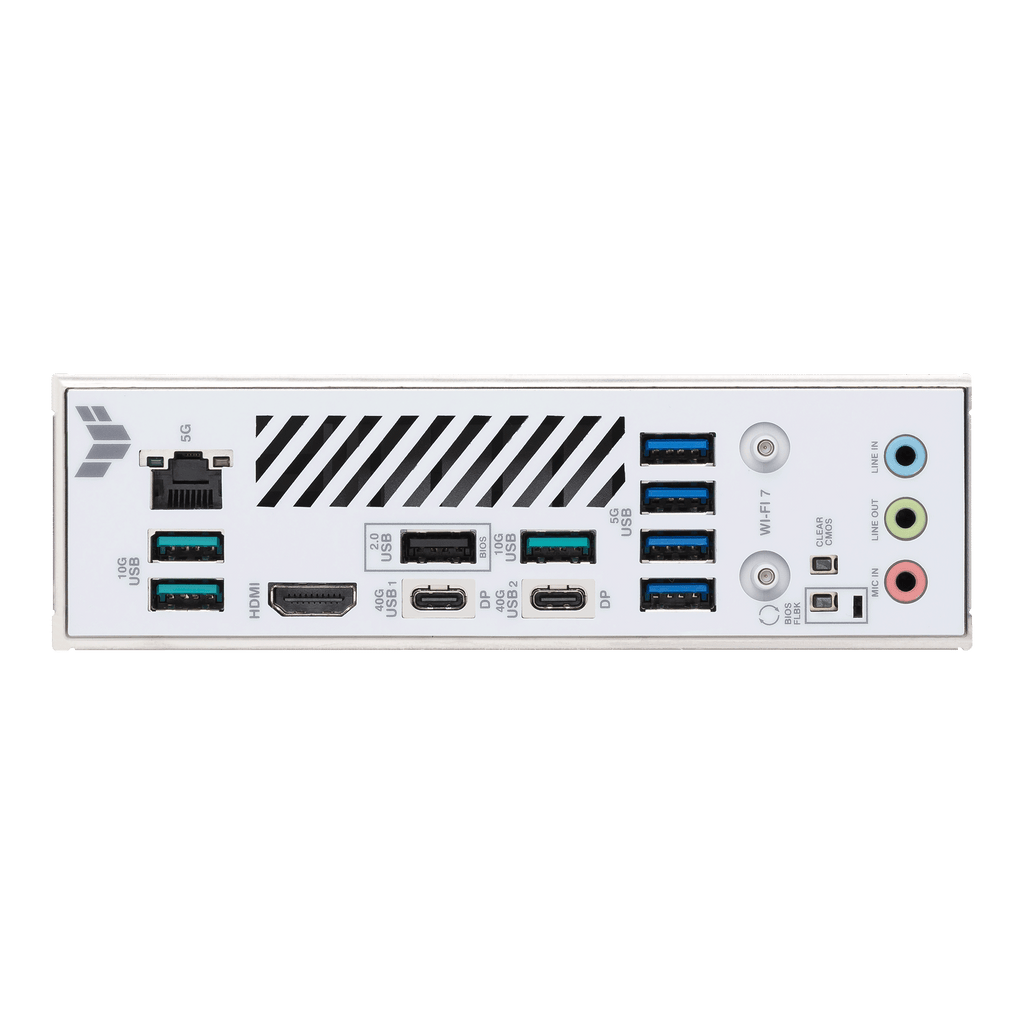

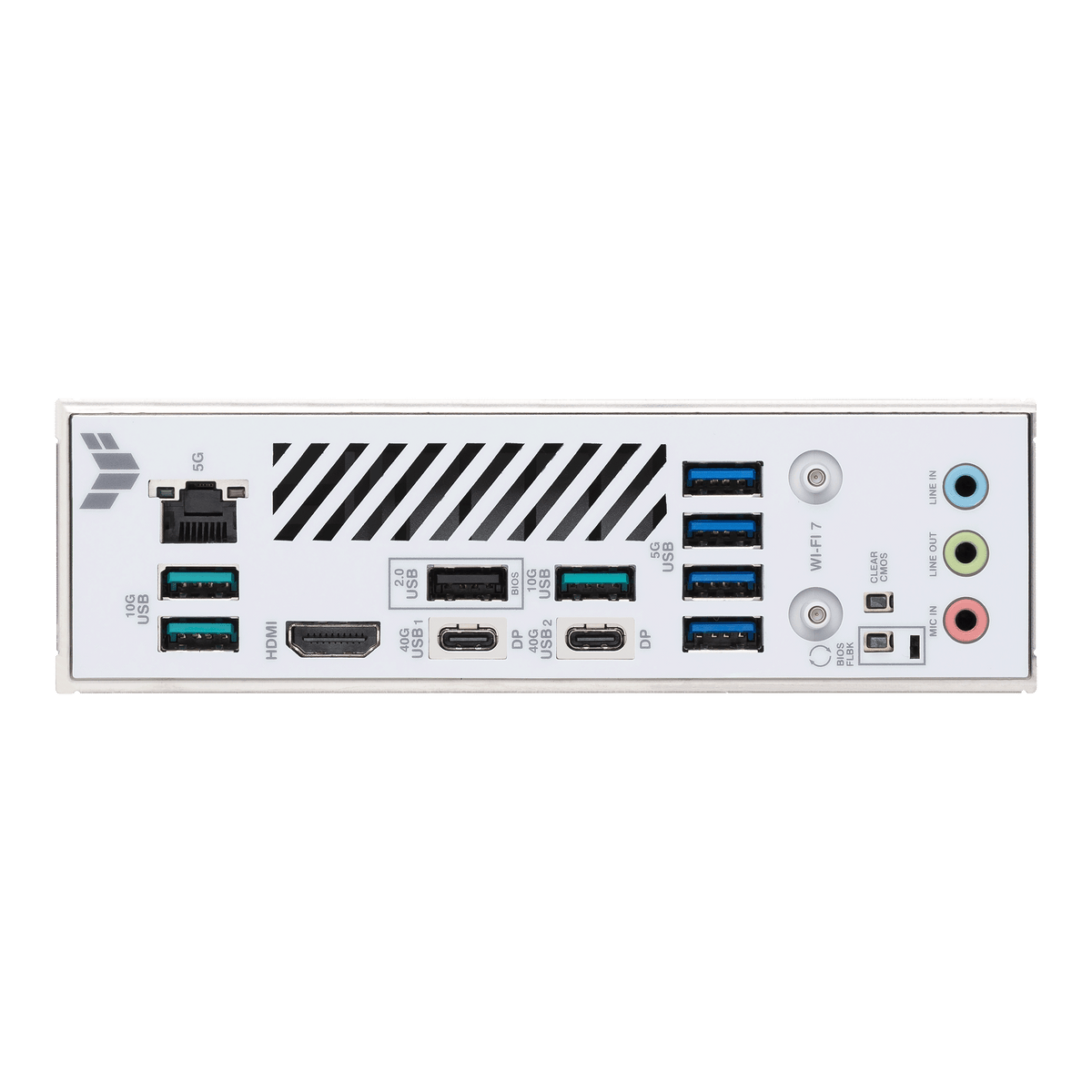

| Rear USB | 2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A |
|---|---|
| Front USB Headers | 1 x USB 20Gbps Type-C (30W PD/PPS fast-charge), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Video Output | 1 x HDMI, 2 x USB4 Type-C (DisplayPort 1.4a) |
| Power Connectors | 1 x 24-pin main, 2 x 8-pin ProCool EPS |
| Power Design | 16(80A)+2(80A)+1(80A) power stages |
Expansion
| PCIe 5.0 Slots | 1 x x16 (Ryzen 9000 & 7000), 2 x M.2 |
|---|---|
| PCIe 4.0 Slots | 1 x x16 slot (x4 max), 1 x M.2 slot, 1 x M.2 slot |
Audio & Features
| Audio Codec | Realtek ALC1220P with 120 dB SNR stereo output, 113 dB SNR input |
|---|---|
| Audio Support | 7.1 surround, up to 32-Bit/192 kHz, DTS Audio Processing, dedicated PCB layers, audio shielding, premium capacitors |
| RGB Headers | 3 x Addressable RGB Gen 2 |
| BIOS | 64MB Flash ROM, UEFI AMI, BIOS FlashBack |
| Operating System | Windows 11 |
Physical
| Form Factor | ATX |
|---|---|
| Dimensions | 12 × 9.6 inches (30.5 × 24.4 cm) |
| PCB Design | Eight-layer server-grade |
| Warranty | 3 years |
