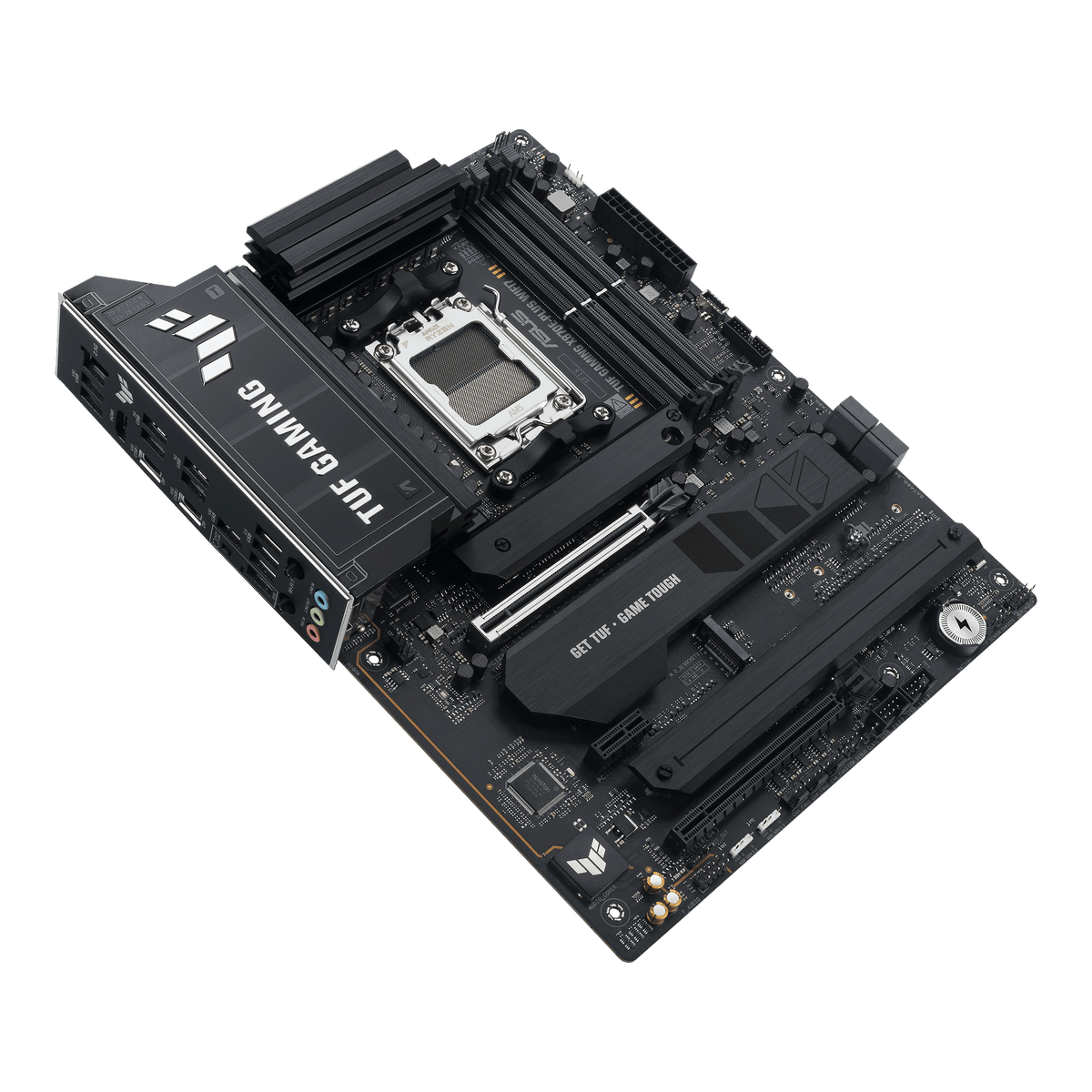

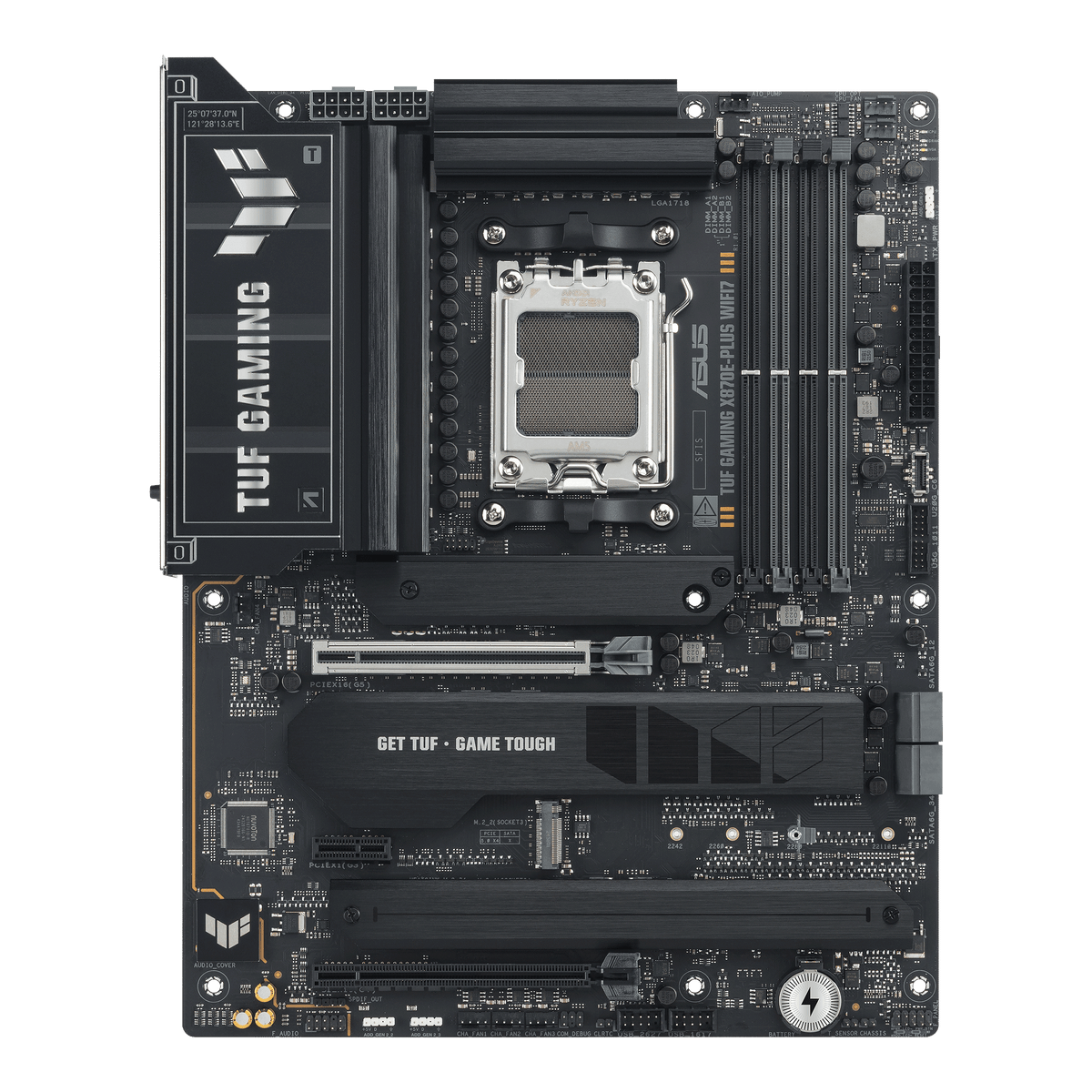

ASUS TUF Gaming X870E-Plus WiFi 7 AM5 ATX Motherboard
ASUS

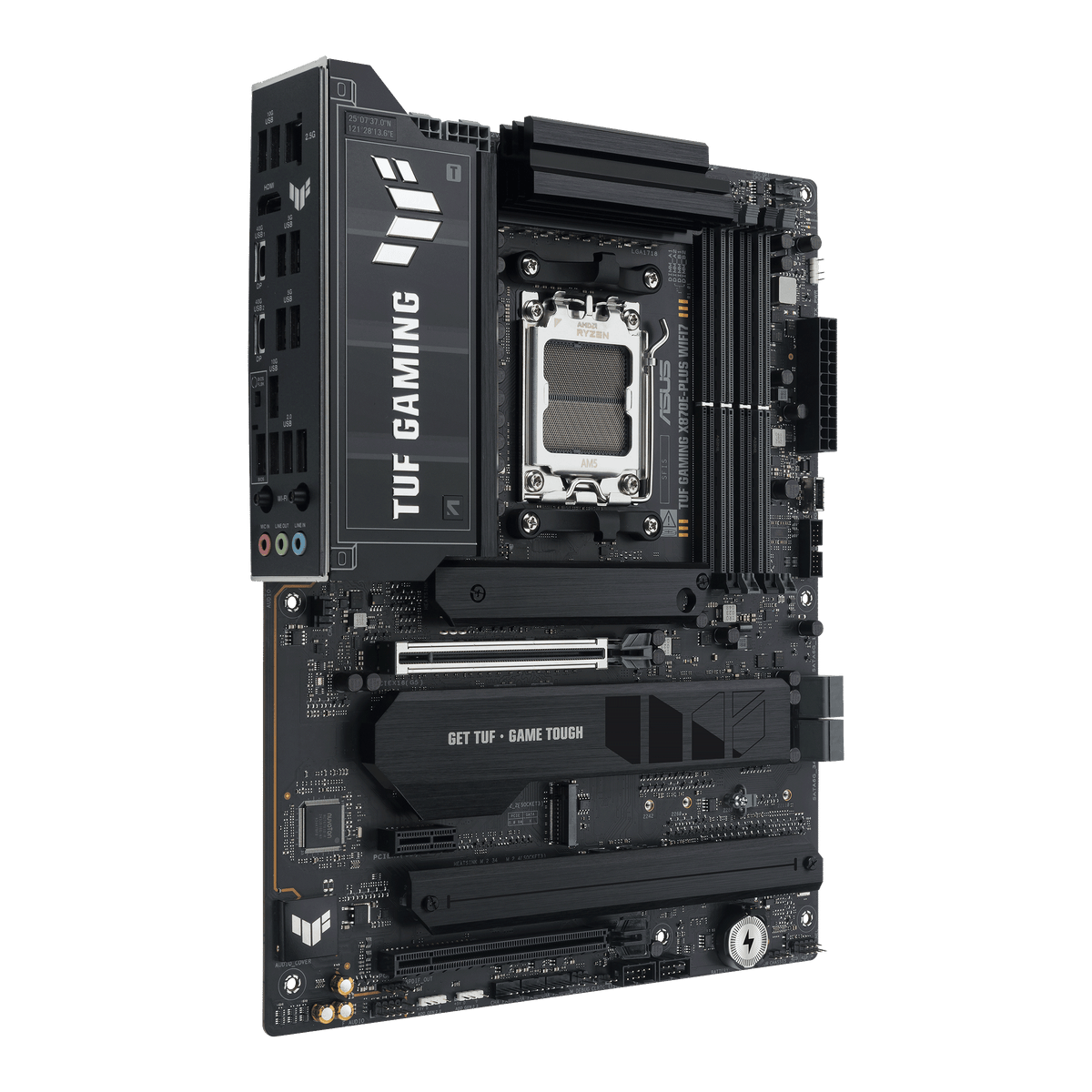

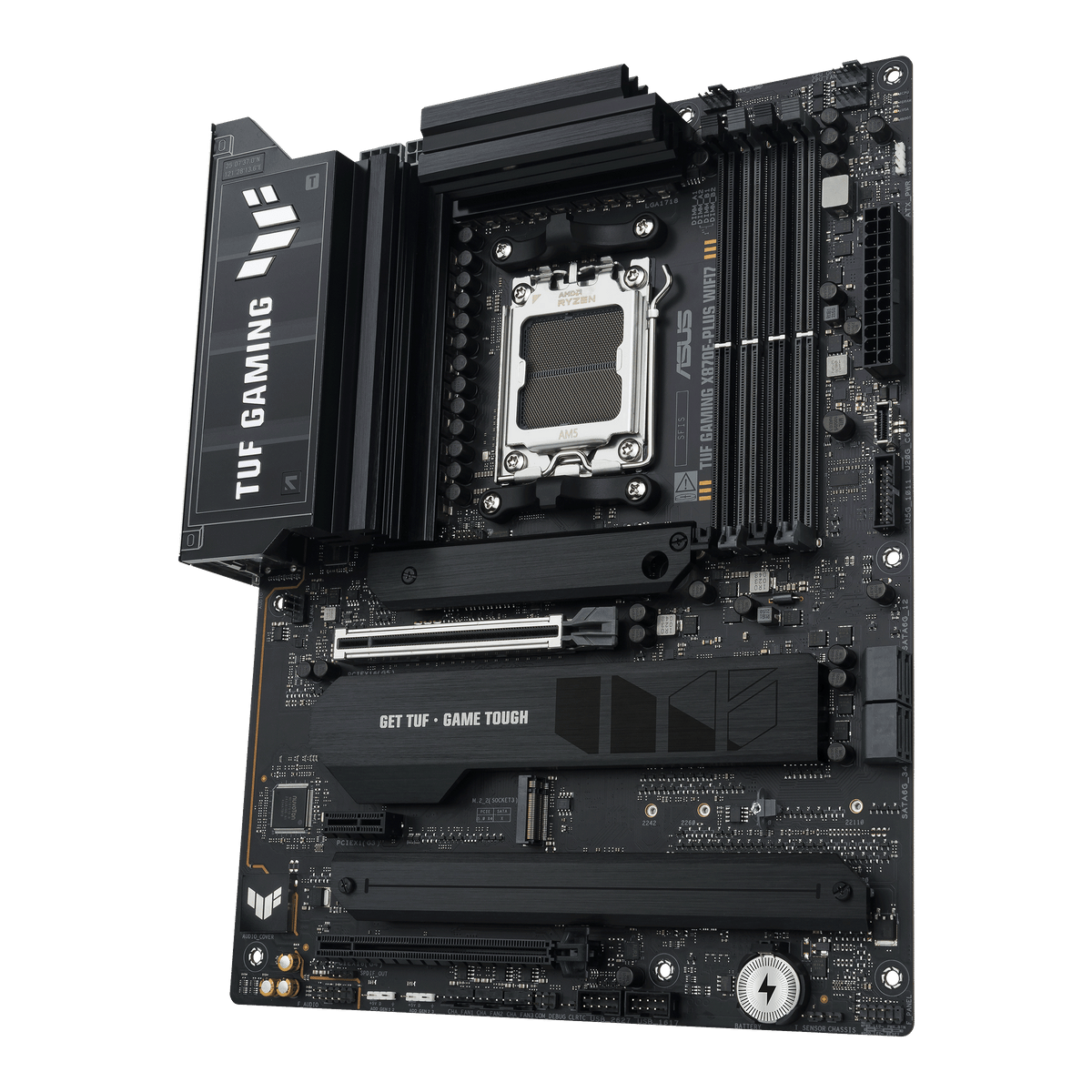

ASUS TUF Gaming X870E-Plus WiFi 7 AM5 ATX Motherboard
The ASUS TUF Gaming X870E-Plus WiFi 7 AM5 ATX Motherboard is built for PC builders who want a stable, feature-rich platform for AMD Ryzen 9000, 8000, and 7000 series processors. It pairs a robust 16+2+1 power solution with Wi-Fi 7, USB4 40Gbps connectivity, and four M.2 slots — two of which run PCIe 5.0 — to support demanding gaming and AI workloads. Military-grade components and a comprehensive cooling system are designed to keep performance consistent across extended sessions.
Why this product
16+2+1 Power Stages at 80A Each
The enhanced VRM delivers 80A per stage across 16+2+1 phases, backed by an 8-layer PCB, dual 8-pin ProCool connectors, alloy chokes and durable capacitors for stable power under load.
Wi-Fi 7 with ASUS Q-Antenna
The onboard Realtek RTL8922AE supports Wi-Fi 7 (802.11be) and ships with ASUS's Q-Antenna design for straightforward installation.
Four M.2 Slots Including Two PCIe 5.0
Two PCIe 5.0 x4 M.2 slots and two PCIe 4.0 x4 M.2 slots give storage-intensive builds room to grow, alongside four SATA 6Gb/s ports for additional drives.
USB4 40Gbps and Front 20Gbps USB-C
Two rear USB4 (40Gbps) Type-C ports handle high-speed peripherals and displays, while the front USB 20Gbps Type-C header includes up to 30W Power Delivery fast-charging.
AI-Assisted Tuning Tools
ASUS AI Overclocking, AI Cooling II, AI Networking II, and AEMP memory support simplify setup and help extract consistent performance without manual tuning.
DIY-Friendly Installation Features
PCIe Q-Release Slim, M.2 Q-Latch, pre-mounted I/O shield, and BIOS FlashBack reduce the friction of building and updating without needing a CPU installed.
- SocketAM5
- ChipsetAMD X870E
- Form FactorATX (12.0 x 9.6 in.)

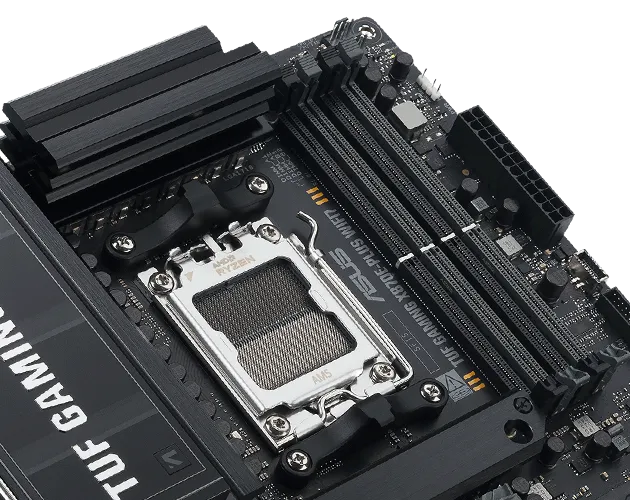

- Memory4 x DDR5 DIMM, up to 256 GB, 8000+ MT/s (OC)
- M.2 Slots4 (2 x PCIe 5.0, 2 x PCIe 4.0)
- Rear USB2 x USB4 40Gbps Type-C + 11 x Type-A (total 13 ports)
- WirelessWi-Fi 7 (802.11be)
- EthernetRealtek 2.5Gb
- SKUASU-2692
- EAN4711636100342
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket.
- Accepts DDR5 Un-buffered DIMMs (ECC and Non-ECC) across four slots, up to 256 GB total.
- Fits standard ATX cases — board dimensions are 12.0 x 9.6 in. (30.5 x 24.4 cm).
- Compatible with Windows 11 as the listed operating system.
- RAID support varies by CPU generation: Ryzen 9000 supports RAID 0/1/5/10; Ryzen 8000 supports RAID 0/1 only; Ryzen 7000 supports RAID 0/1/10.
- Not compatible with AMD AM4 or Intel processors — AM5 socket only.
Best for
- Enthusiast AMD builders who want PCIe 5.0 graphics and storage support together on the X870E chipset.
- Wireless-first setups where Wi-Fi 7 and a 2.5Gb Ethernet port eliminate the need for a separate network card.
- High-bandwidth peripheral users who need two USB4 40Gbps rear ports and a 20Gbps front USB-C with fast-charging.
- Builders running multiple NVMe drives, with four M.2 slots (two PCIe 5.0, two PCIe 4.0) plus four SATA ports.
- Overclockers and AI workload users benefiting from AEMP, EXPO memory support up to 8000+ MT/s, and AI Overclocking tools.
Trade-offs
- Budget system builds — the X870E chipset and feature set sit at the higher end of the AM5 platform.
- Compact or small-form-factor builds — this is a full ATX board at 12.0 x 9.6 in. and will not fit Micro-ATX or Mini-ITX cases.
- Legacy CPU owners — AM4 and Intel processors are not compatible with the AM5 socket.
- Users needing more than one PCIe x16-bandwidth slot — the second PCIe slot runs at x4 mode only.
ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.
Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 16+2+1 80A power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
- Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots
- Ultrafast Connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear two USB4® (40Gbps) Type-C® ports, front USB 20Gbps Type-C® connector with up to 30W PD Fast-charge
- Comprehensive Cooling: Enlarged VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-LED, BIOS FlashBack™ and Pre-mounted I/O shield
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, ASUS GlideX, ASUS TUF PROTECTION, DTS Audio Processing
General
| Brand | ASUS |
|---|---|
| CPU Socket | AM5 — AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Form Factor | ATX, 12.0 x 9.6 in. (30.5 x 24.4 cm) |
| Operating System | Windows 11 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Networking
| Standard | Wi-Fi 7 (802.11be) |
|---|---|
| Wireless Controller | Realtek RTL8922AE |
| Antenna | ASUS WiFi Q-Antenna |
| Ethernet | Realtek 2.5Gb Ethernet with TUF LANGuard |
| Bluetooth | Included (via Realtek RTL8922AE module) |
Performance
| Memory Slots | 4 x DIMM, DDR5, Dual Channel, up to 256 GB |
|---|---|
| Memory Speed | Up to 8000+ MT/s (OC), EXPO, AEMP |
| Memory Type | ECC and Non-ECC Un-buffered DIMM |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| M.2 Slots | M.2_1: 2280, PCIe 5.0 x4; M.2_2: 2242/2260/2280/22110, PCIe 5.0 x4; M.2_3: 2280, PCIe 4.0 x4; M.2_4: 2280, PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID | Ryzen 9000: 0/1/5/10 | Ryzen 8000: 0/1 | Ryzen 7000: 0/1/10 |
| Audio | Realtek ALC1220P Codec |
| VRM | 16+2+1 power stages, 80A per stage, 8-layer PCB, 8+8 pin ProCool connectors |
Ports & Power

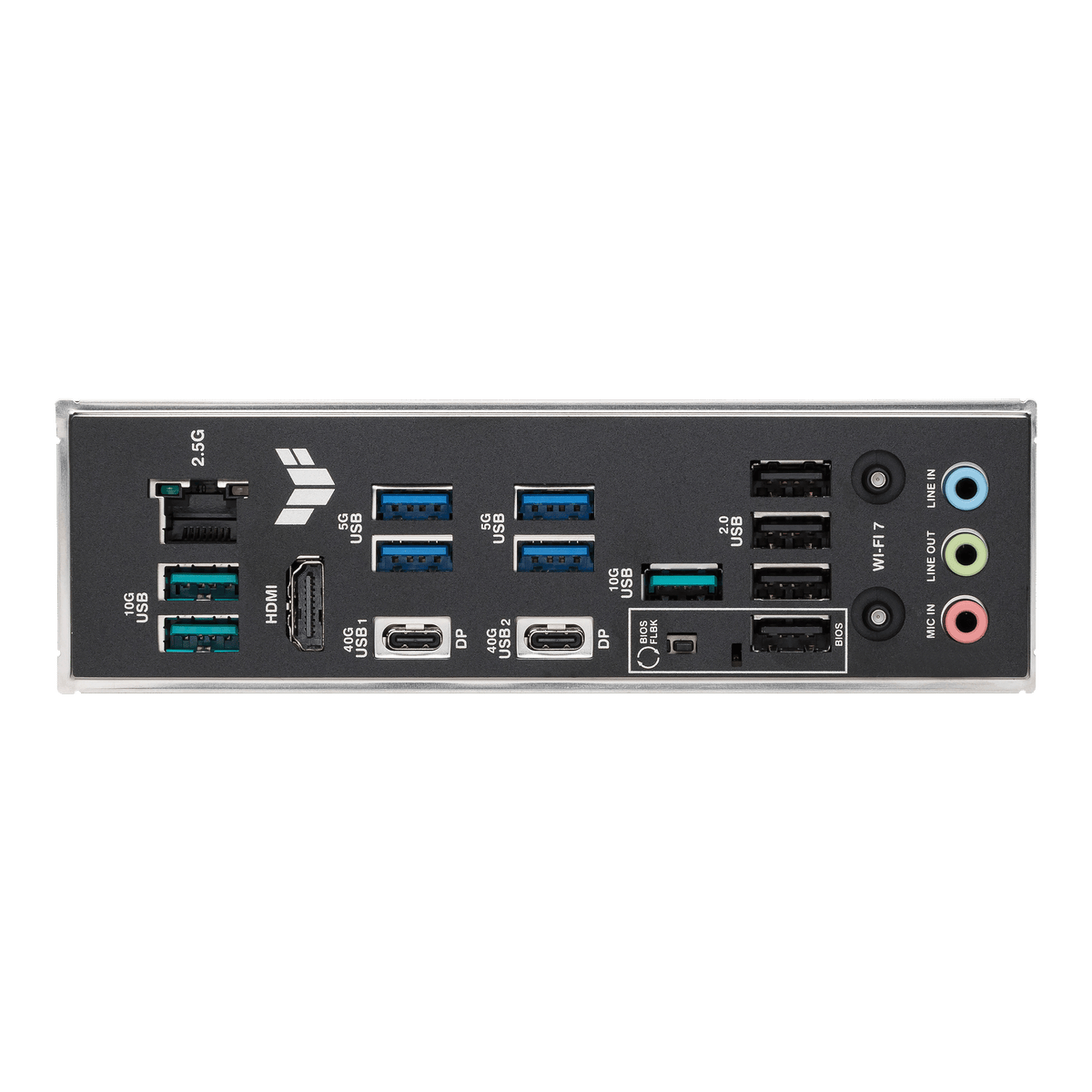

| Rear USB | 2 x USB4 40Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A (13 total) |
|---|---|
| Front USB | 1 x USB 20Gbps Type-C (up to 30W PD), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Video Output | 1 x HDMI |
| Fan / Thermistor Headers | 7 x 4-pin, 1 x 2-pin |
| RGB Headers | 3 x Addressable RGB Gen 2 (Aura Sync) |
