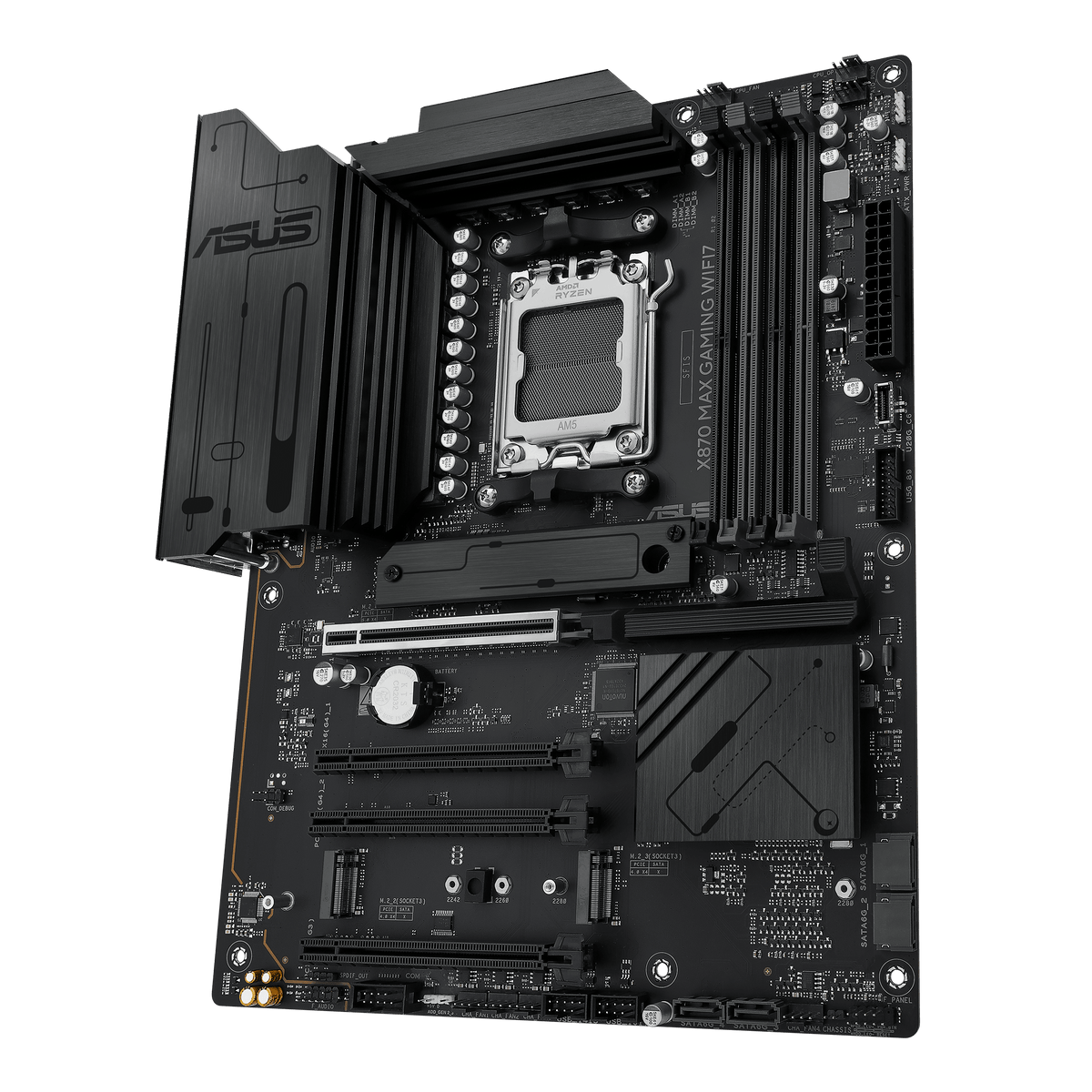

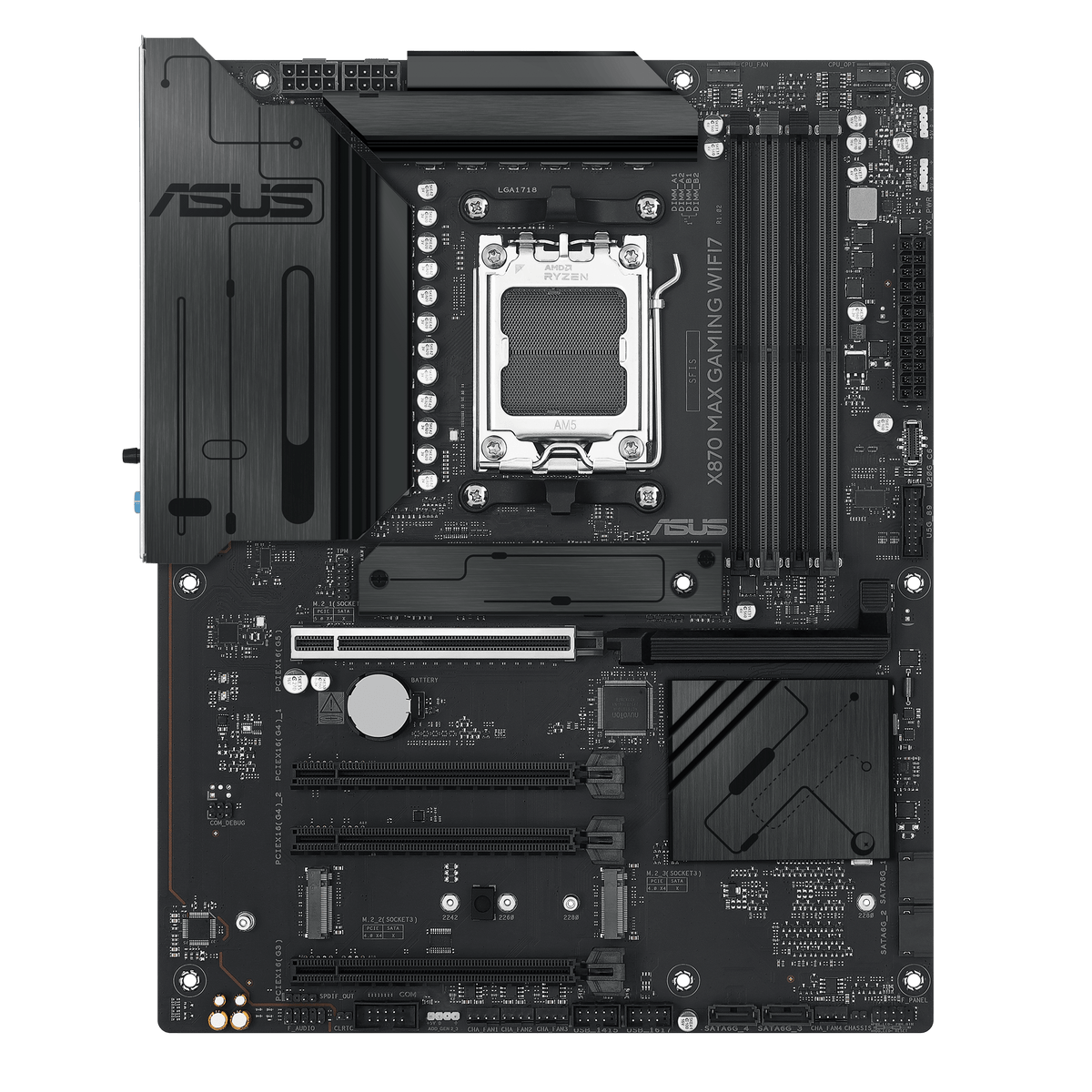

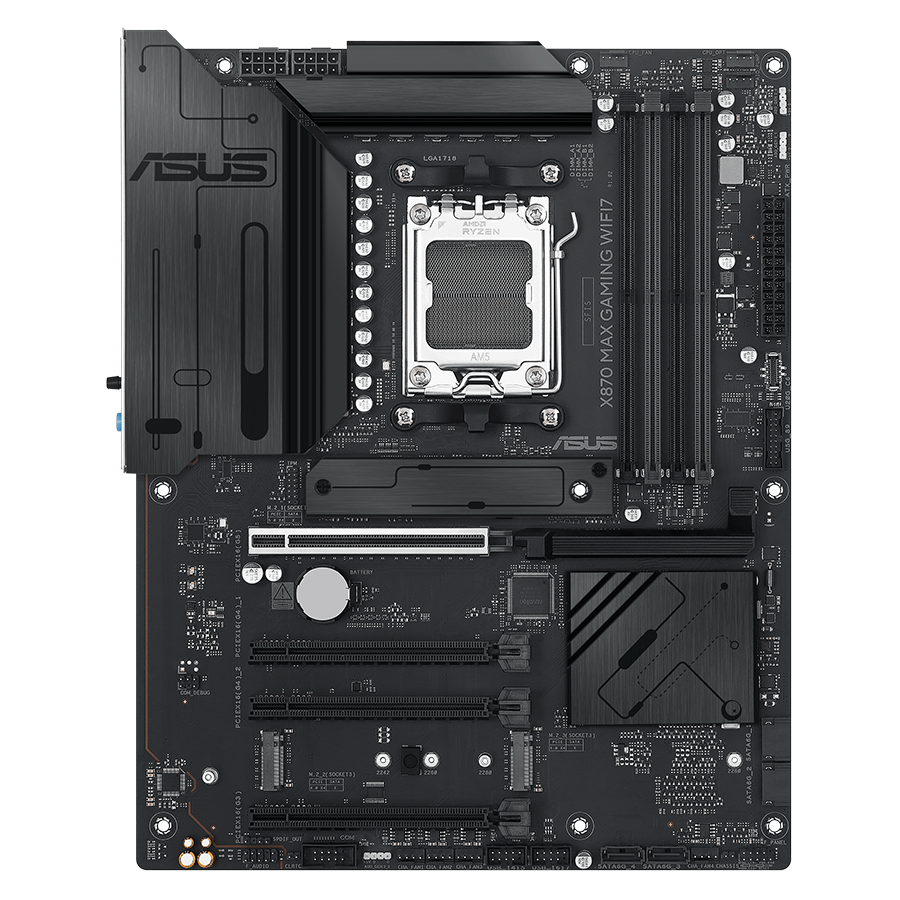

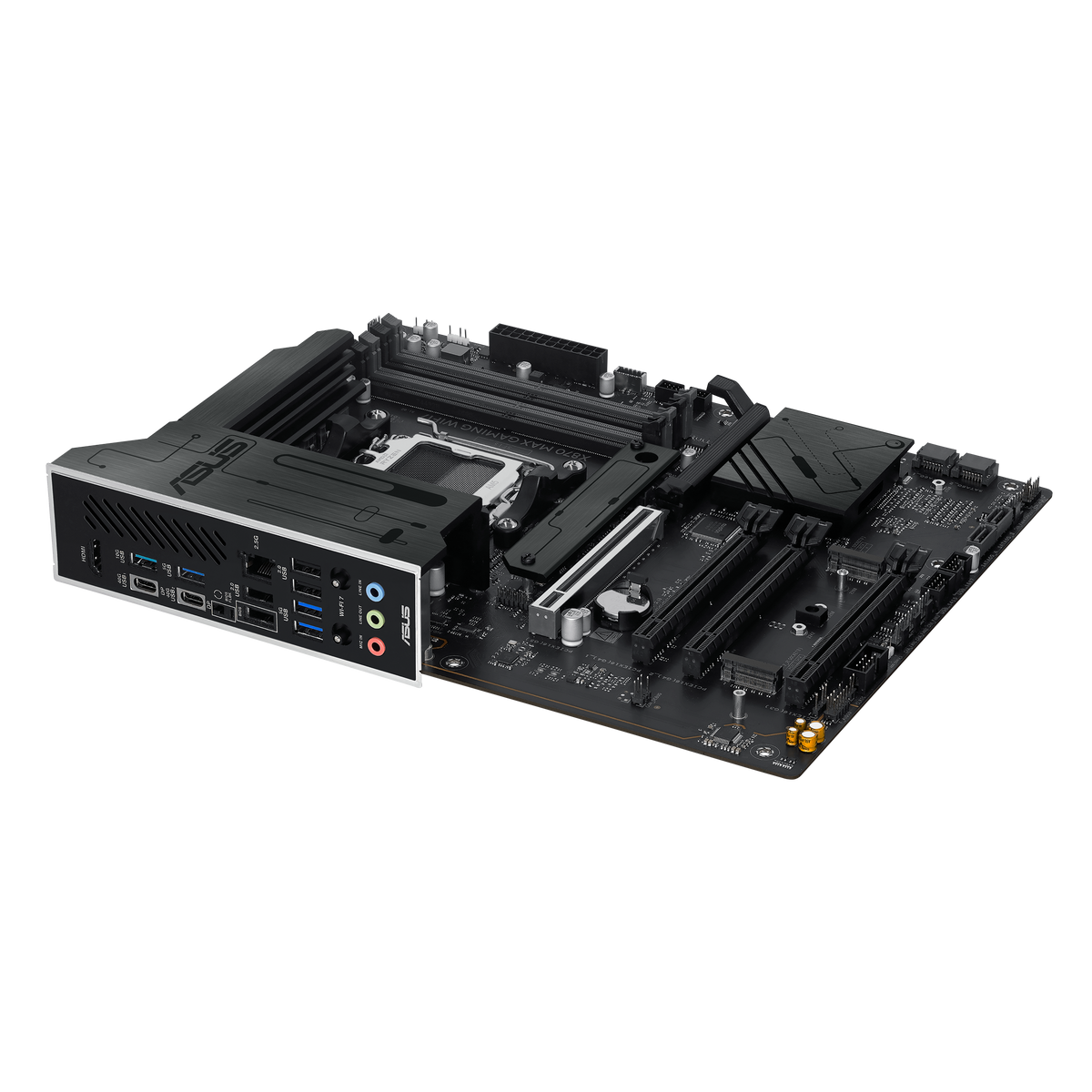

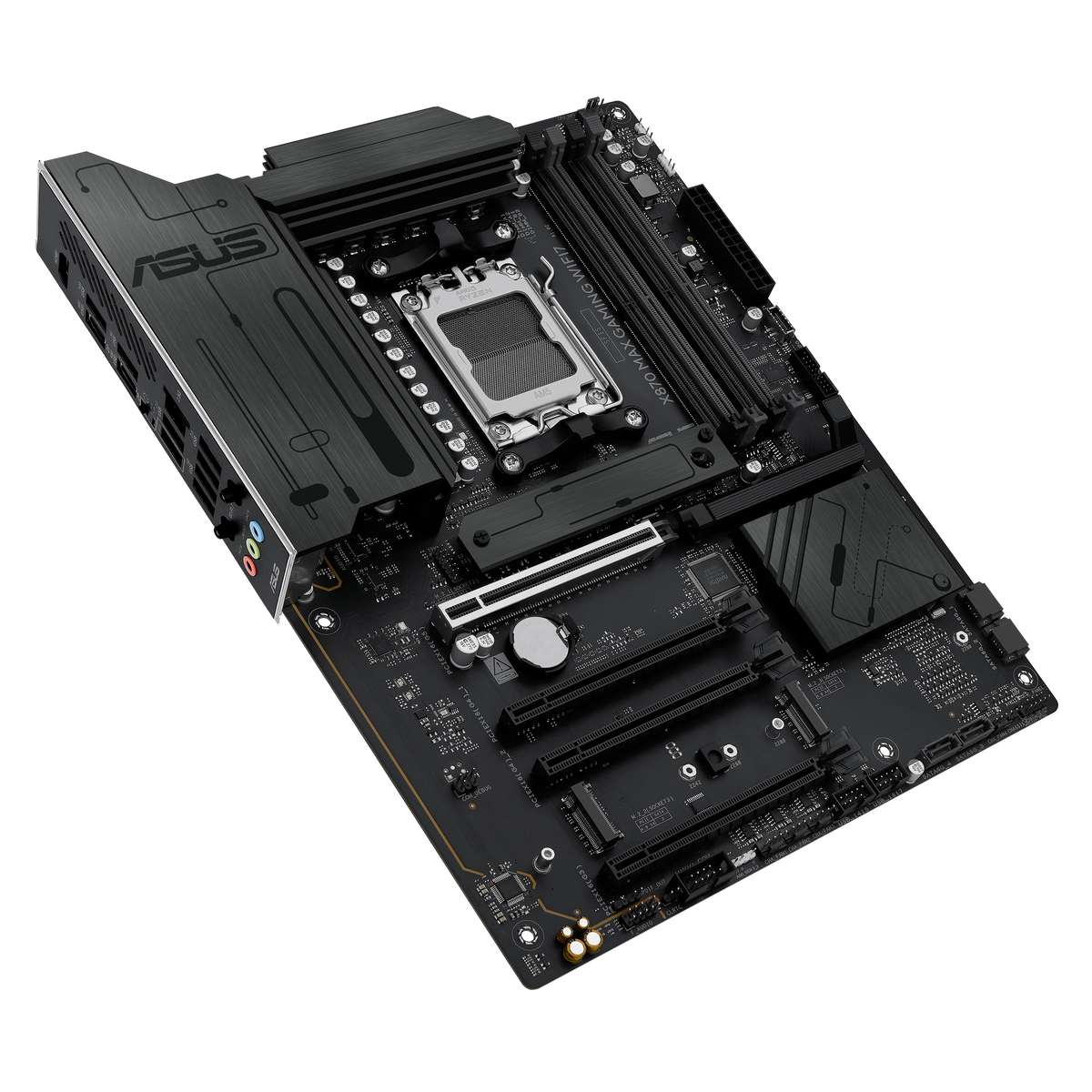

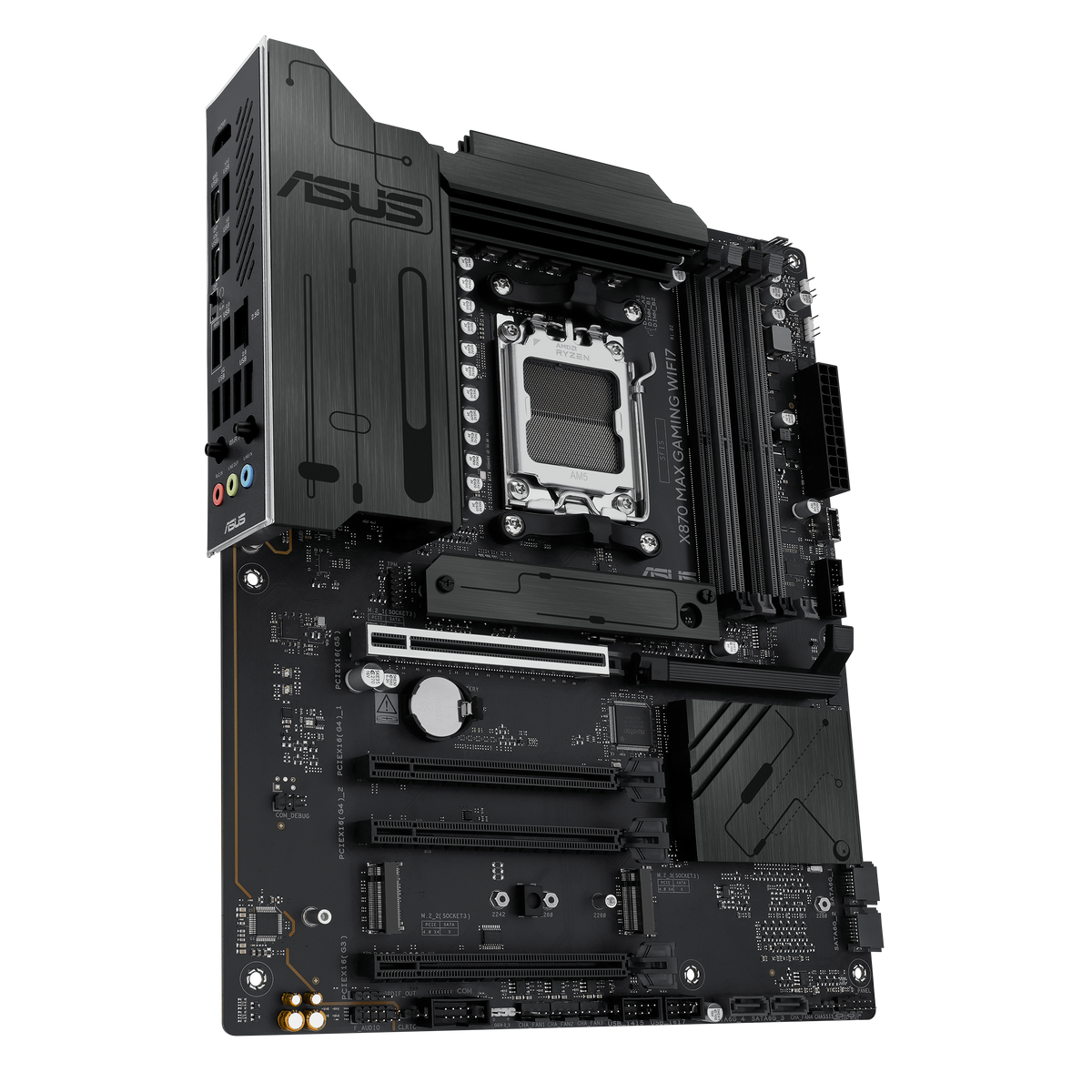

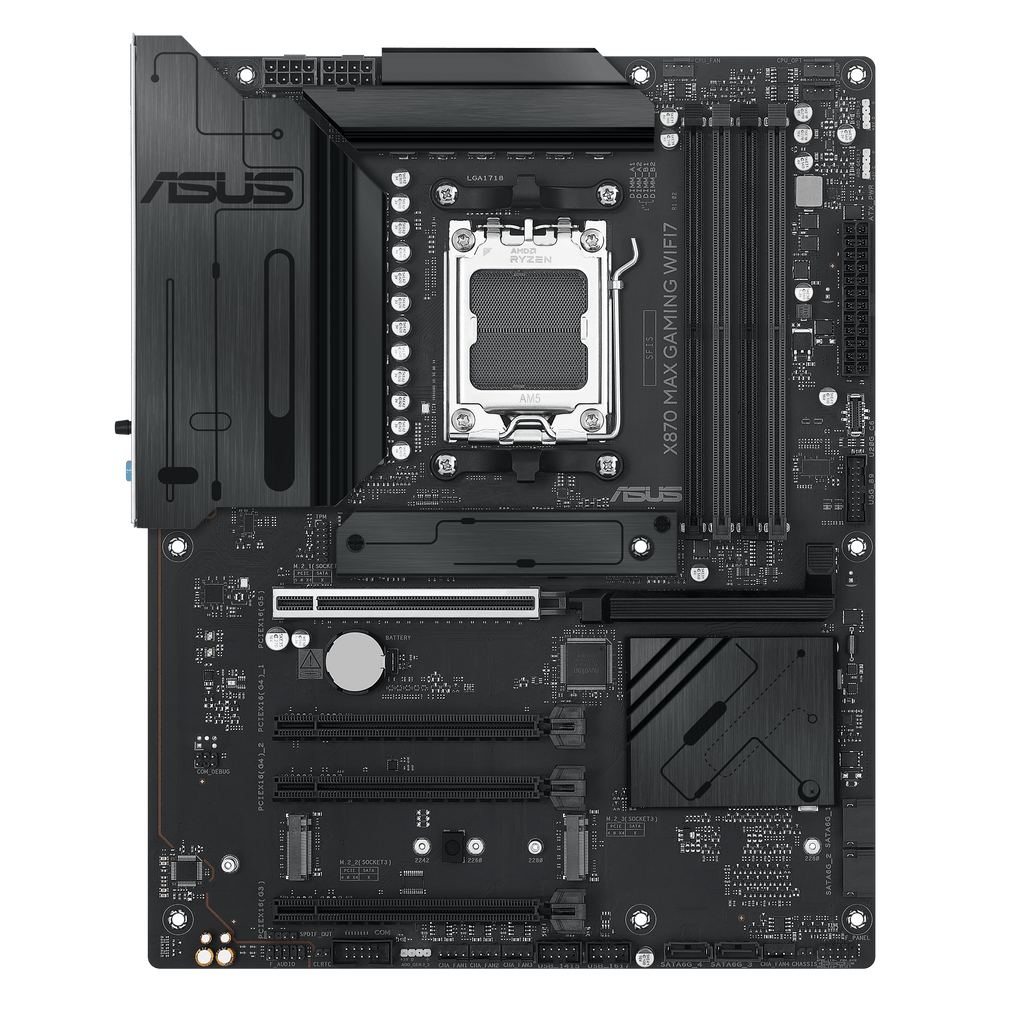

ASUS X870 MAX GAMING WIFI7 AM5 ATX Motherboard DDR5
ASUS

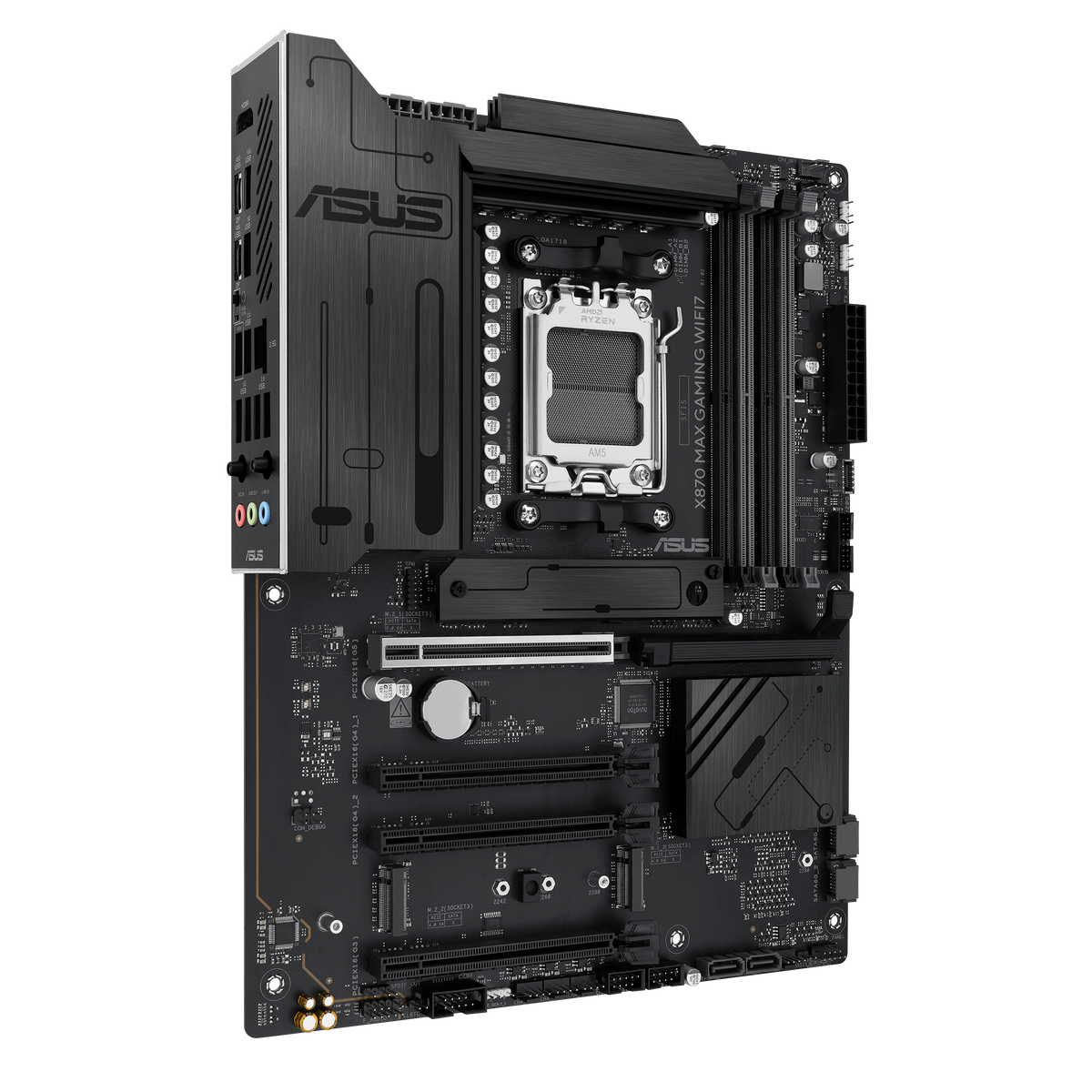

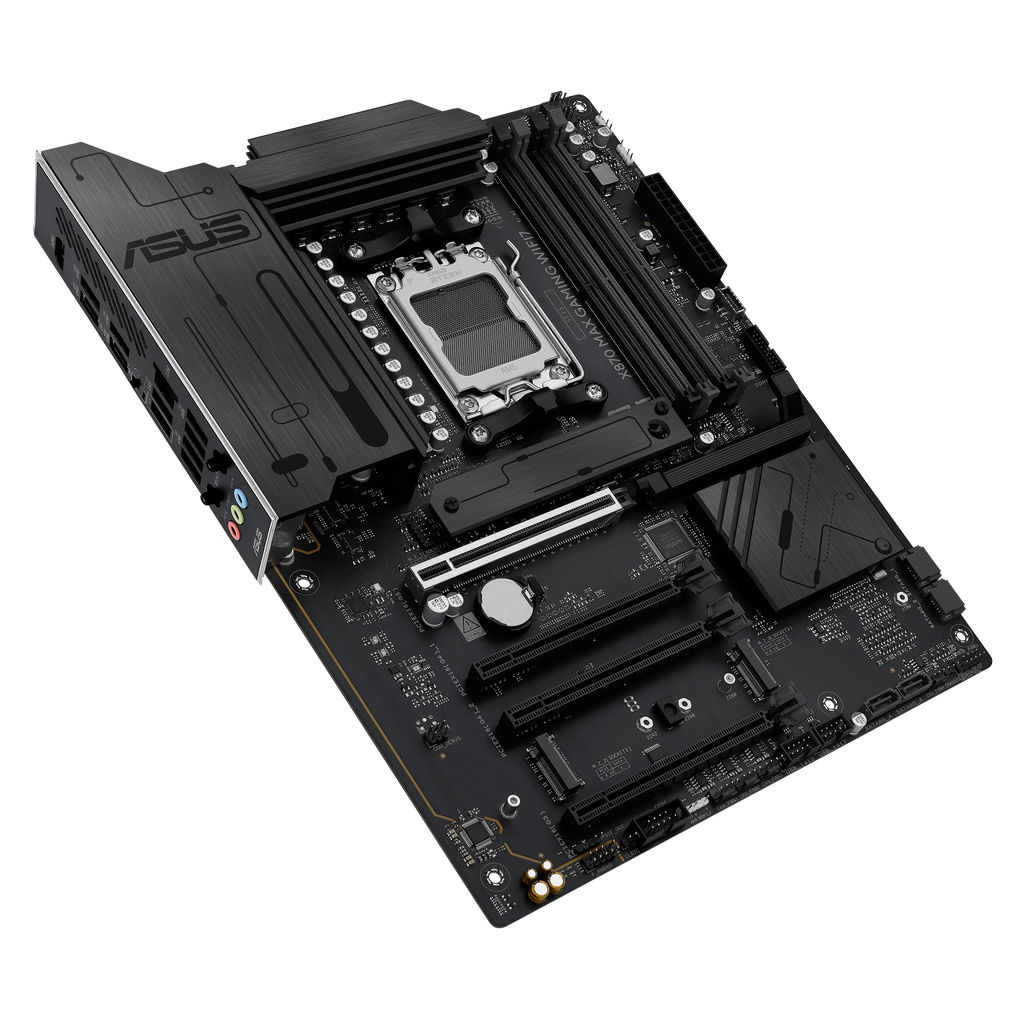

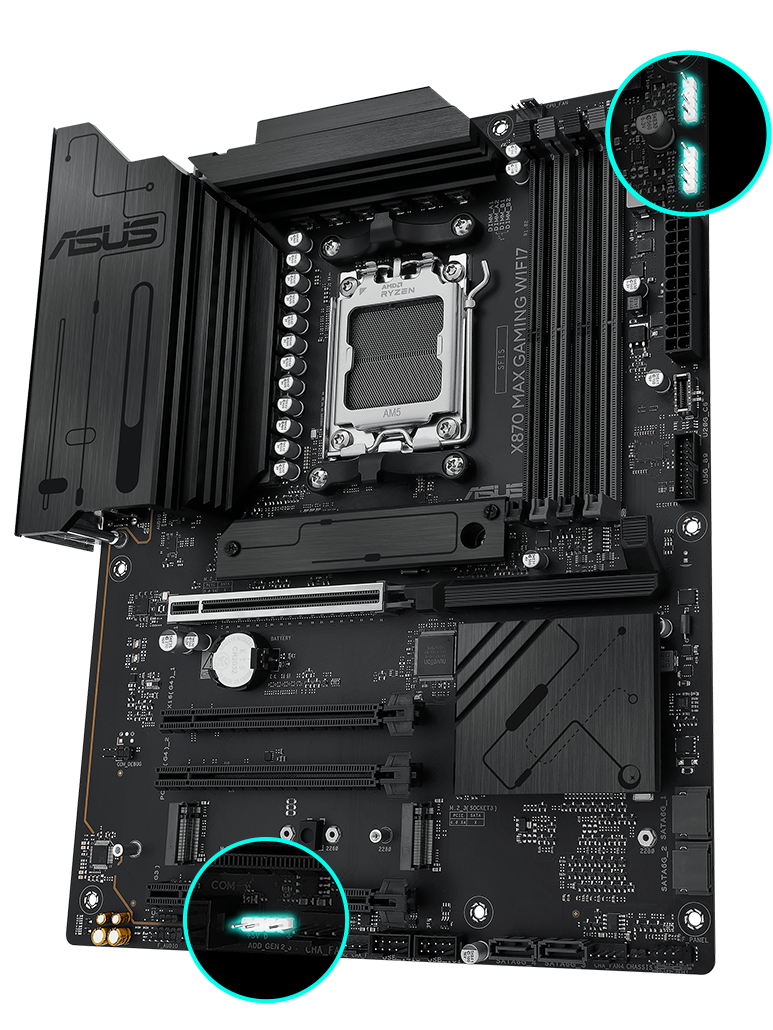

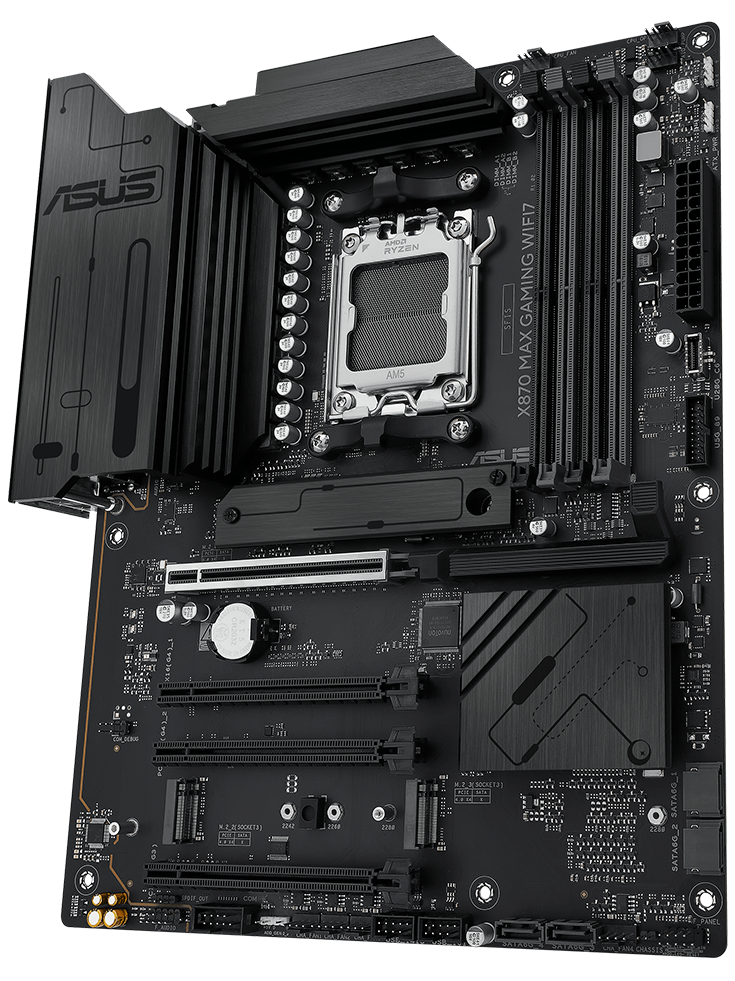

ASUS X870 MAX GAMING WIFI7 AM5 ATX Motherboard DDR5
The ASUS X870 MAX GAMING WIFI7 AM5 ATX Motherboard is built for PC enthusiasts and builders who want to pair AMD Ryzen 9000, 8000, or 7000 series processors with modern connectivity and AI-ready performance. It addresses the need for a high-bandwidth platform by combining PCIe 5.0 storage and graphics support, Wi-Fi 7 wireless, USB 40Gbps, and DDR5 memory in a full ATX form factor.
Why this product
PCIe 5.0 M.2 slot for fast storage
The primary M.2 slot supports PCIe 5.0 x4, enabling data-transfer speeds of up to 128Gbps to reduce boot and application load times.
Wi-Fi 7 with Multi-Link Operation
Wi-Fi 7 (IEEE 802.11be) supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) helps maintain stable wireless connections.
USB 40Gbps on rear and front panels
Two rear USB4 40Gbps Type-C ports and a front USB 20Gbps Type-C connector provide fast peripheral and device connections at both ends of the case.
Robust VRM cooling with dual heatsinks
Two large VRM heatsinks with thermal pads draw heat away from MOSFETs and chokes, helping the board stay stable under sustained heavy workloads.
Flexible display outputs via rear ports
An HDMI 2.1 port supports 4K@60Hz output, while both rear USB4 Type-C ports also carry DisplayPort 1.4a signals up to 4K@60Hz each.
Aura Sync and ARGB headers included

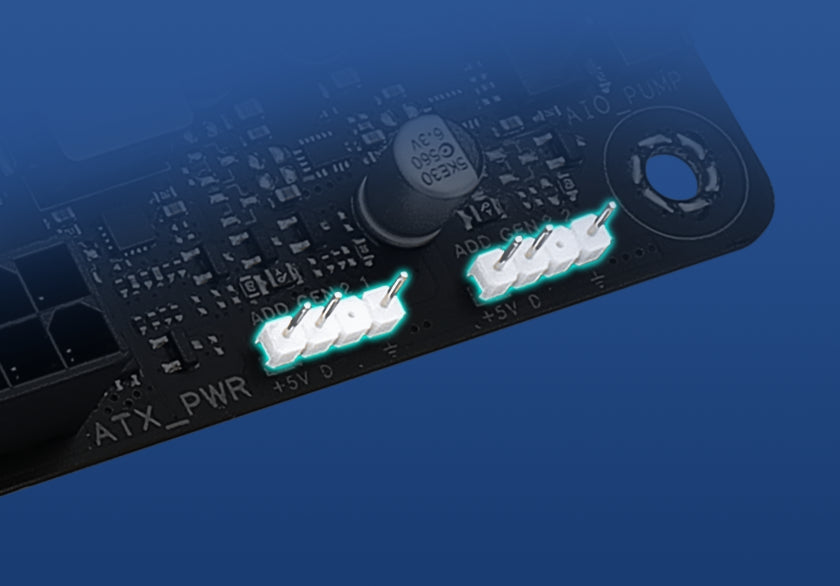

Three onboard Addressable RGB Gen 2 headers and Aura Sync support let builders coordinate lighting across compatible components.
- SocketAMD AM5
- Form FactorATX
- Memory4 × DDR5 DIMM, up to 256 GB, up to 8000+ MT/s (OC)
- WirelessWi-Fi 7 (IEEE 802.11be), Bluetooth 5.4
- USB (Rear)2 × USB4 40Gbps Type-C, 1 × USB 10Gbps Type-A, 3 × USB 5Gbps Type-A, 4 × USB 2.0 Type-A
- M.2 Slots3 (1 × PCIe 5.0, 2 × PCIe 4.0)
- EthernetRealtek 2.5Gb
- ChipsetAMD X870
- SKUASU-2706
- EAN4711636007849
- Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors via the AM5 socket.
- Supports DDR5 Un-buffered DIMMs (ECC and Non-ECC) across four slots, up to 256 GB total.
- Fits standard ATX cases — board measures 12 × 9.6 inches (30.5 × 24.4 cm).
- Works with Windows 11 as the supported operating system.
- Memory speeds above the JEDEC standard (up to 8000+ MT/s) require enabling XMP/EXPO or ASUS AEMP overclocking profiles in BIOS.
- Does not support AMD AM4 or Intel LGA processors — AM5 socket only.
Best for
- AMD Ryzen 9000/8000/7000 builders who want a full-featured ATX platform with PCIe 5.0 graphics and storage support.
- Wireless-first setups where Wi-Fi 7 with MLO and Bluetooth 5.4 remove the need for a separate network card.
- High-bandwidth storage users who need up to three M.2 drives simultaneously — one at PCIe 5.0 and two at PCIe 4.0 speeds.
- Builders with USB-heavy peripherals who need both rear USB4 40Gbps and a front-panel USB 20Gbps Type-C connector.
- AI PC workloads — the board is explicitly designed to be Advanced AI PC-ready, providing the connectivity and power delivery for demanding AI applications.
Trade-offs
- Intel platform users — the AM5 socket is incompatible with any Intel processor.
- Builders needing more than four SATA ports — only four SATA 6Gbps ports are provided on this board.
- Micro-ATX or Mini-ITX cases — the full ATX footprint will not fit smaller enclosures.
- Users needing 10GbE wired networking — the onboard Ethernet is Realtek 2.5Gb only; no 10GbE port is included.
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
The X870 series motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.
X870 MAX GAMING WIFI7 offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

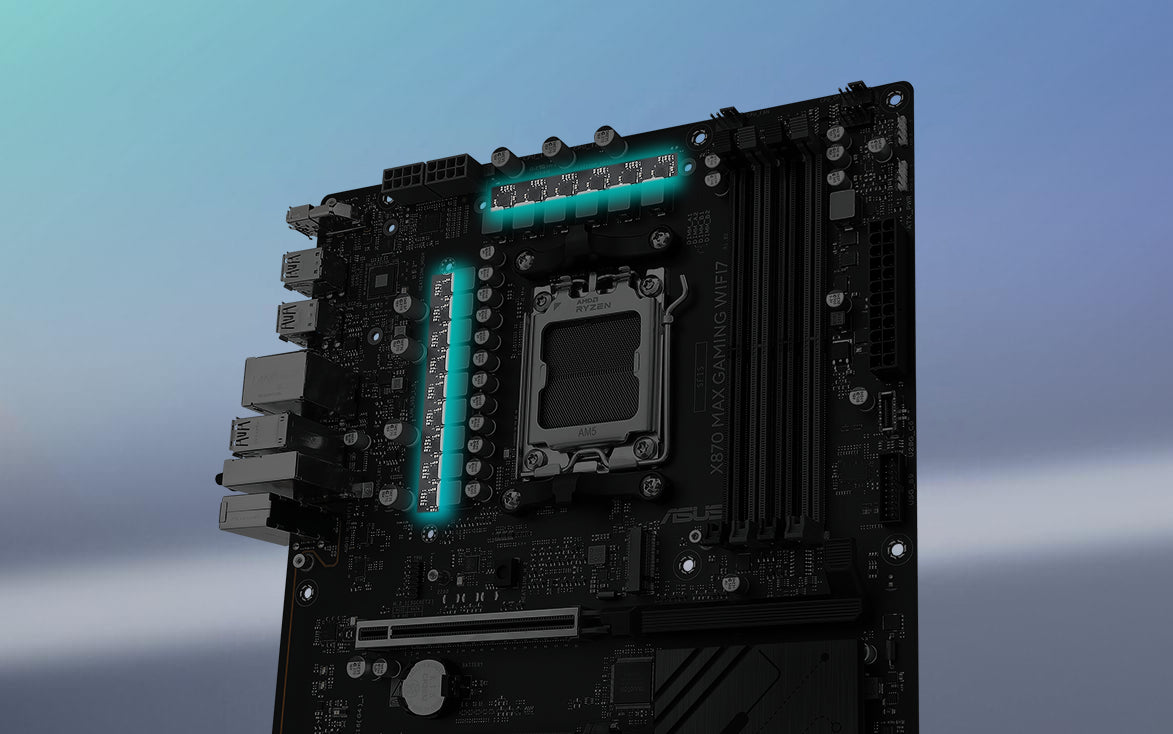

The X870 MAX GAMING WIFI7 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads. Two massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections.
General
| Brand | ASUS |
|---|---|
| Model | X870 MAX GAMING WIFI7 |
| Form Factor | ATX, 12 × 9.6 inch (30.5 × 24.4 cm) |
| Socket | AMD AM5 |
| Chipset | AMD X870 |
| Compatible CPUs | AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Operating System | Windows 11 |
Performance
| Memory Slots | 4 × DDR5 DIMM |
|---|---|
| Max Memory | 256 GB |
| Memory Speed | Up to 8000+ MT/s (OC); supports AMD EXPO and ASUS AEMP |
| Memory Mode | Dual Channel, ECC and Non-ECC Un-buffered |

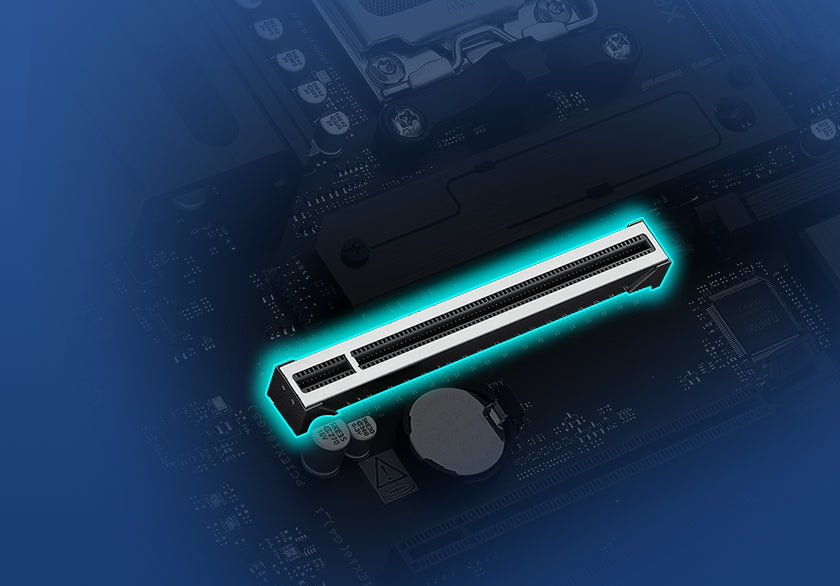

| PCIe x16 Slot | 1 × PCIe 5.0 x16 (x16 mode) SafeSlot with Q-Release |
| Additional PCIe Slots | 2 × PCIe 4.0 x16 (x1 mode); 1 × PCIe 3.0 x16 (x1 mode) |
| M.2 Slots | M.2_1: PCIe 5.0 x4, type 2280 (up to 128Gbps); M.2_2: PCIe 4.0 x4, type 2242/2260/2280 (up to 64Gbps); M.2_3: PCIe 4.0 x4, type 2280 (up to 64Gbps) |
| SATA Ports | 4 × SATA 6Gbps |
| VRM | 12+2+1 DrMOS |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC, up to 24-bit/192 kHz |
Networking
| Standard | Wi-Fi 7 (IEEE 802.11be) |
|---|---|
| Throughput | 160 MHz bandwidth in the 6 GHz band; 4096 QAM |
| Ports | 1 × Realtek 2.5Gb Ethernet (RJ-45); 2 × USB4 40Gbps Type-C (also support DisplayPort 1.4a) |
| Bluetooth | Bluetooth 5.4 |
| Ethernet Controller | Realtek 2.5Gb, ASUS LANGuard |
Ports & Power

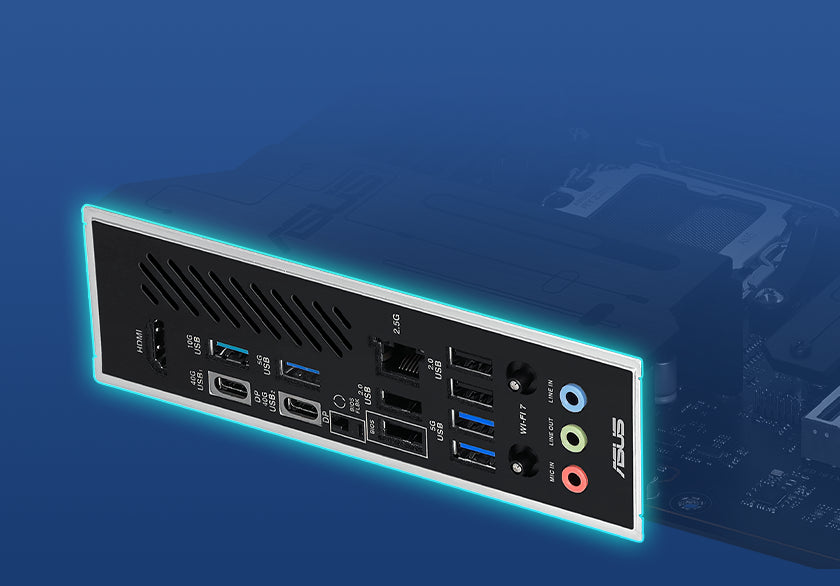

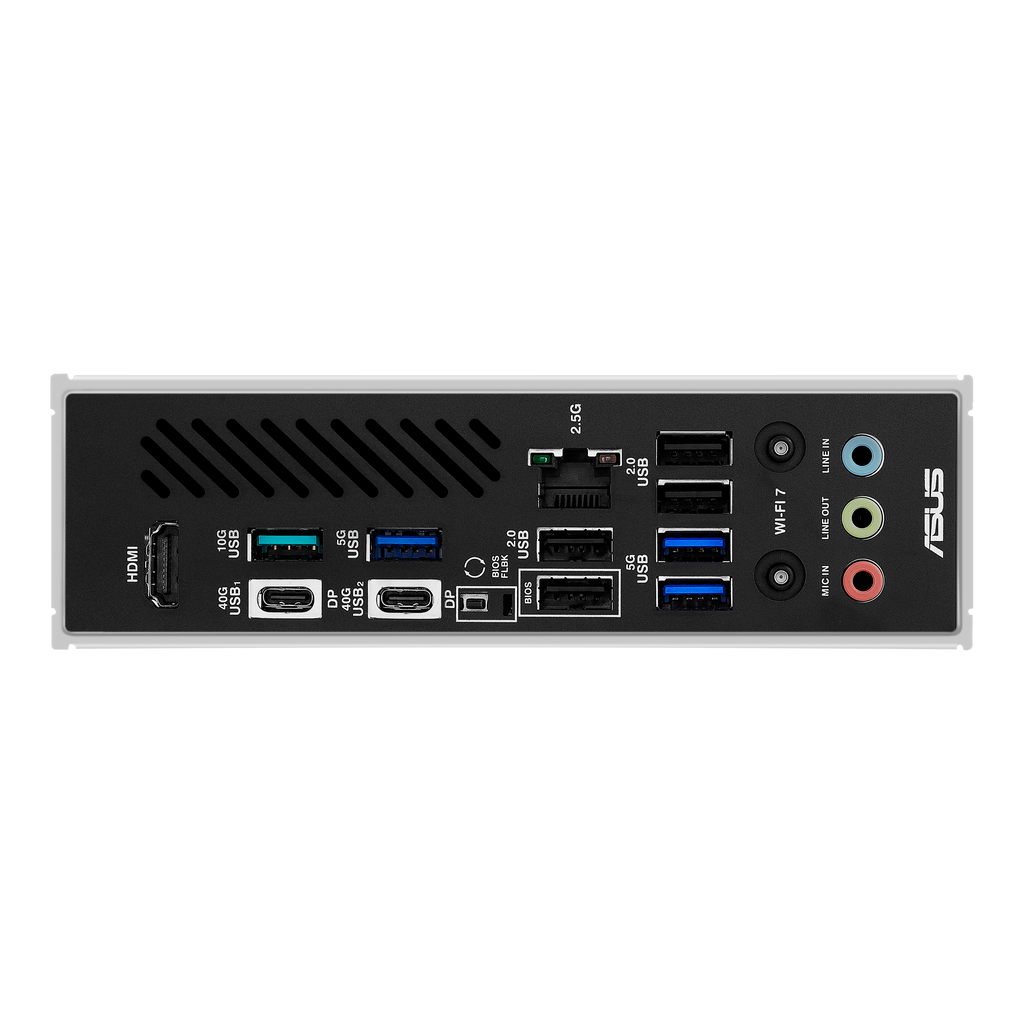

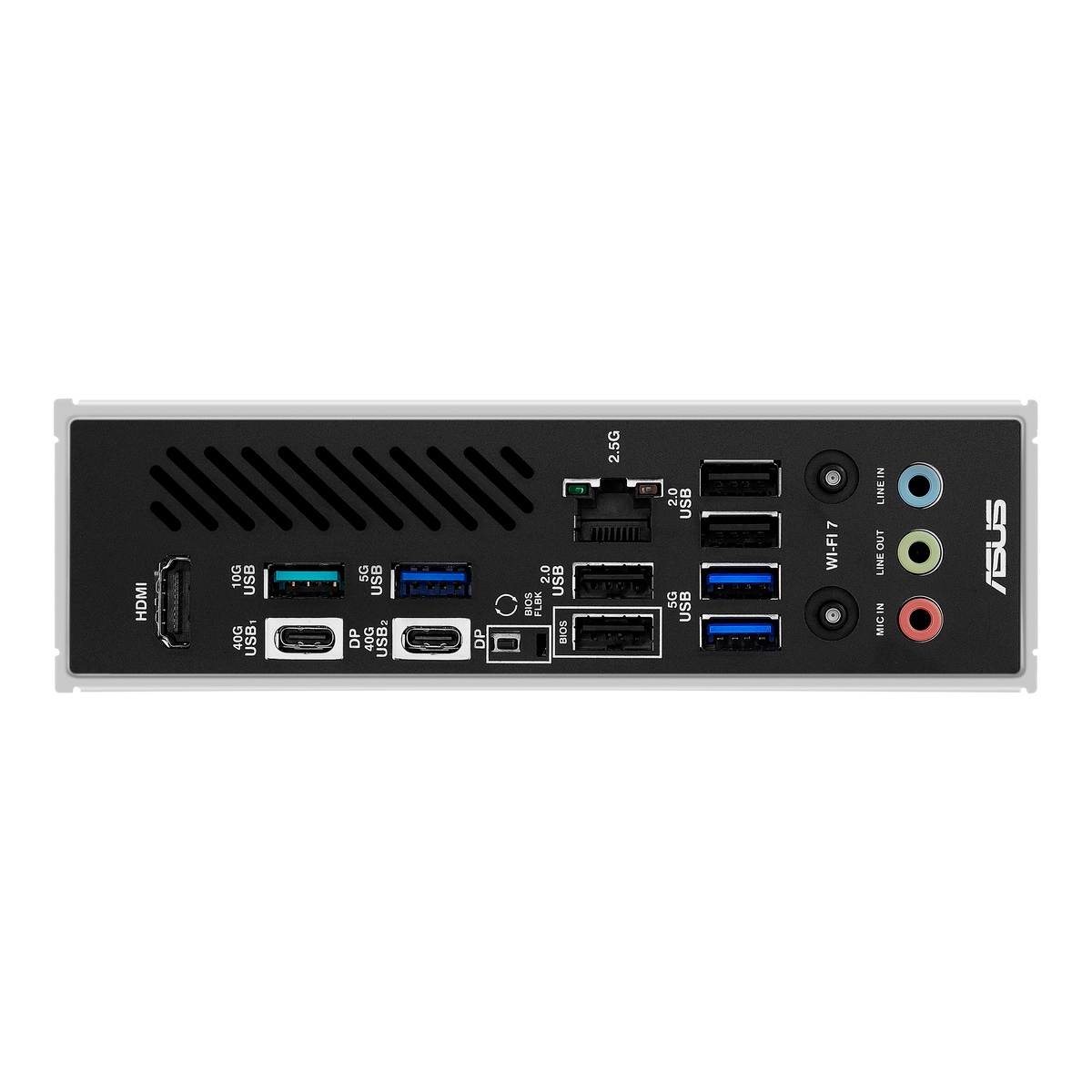

| Rear USB | 2 × USB4 40Gbps (Type-C); 1 × USB 10Gbps (Type-A); 3 × USB 5Gbps (Type-A); 4 × USB 2.0 (Type-A) |
|---|---|
| Front USB | 1 × USB 20Gbps connector (Type-C); 1 × USB 5Gbps header (2 ports); 2 × USB 2.0 headers (4 ports) |
| Display Output | 1 × HDMI 2.1 (4K@60Hz); 2 × USB4 Type-C DisplayPort 1.4a (4K@60Hz each) |
| Main Power | 1 × 24-pin |
| CPU Power | 2 × 8-pin +12V |
| Fan Headers | 1 × CPU Fan, 1 × CPU OPT Fan, 1 × AIO Pump, 4 × Chassis Fan (all 4-pin) |
| RGB Headers | 3 × Addressable RGB Gen 2 |

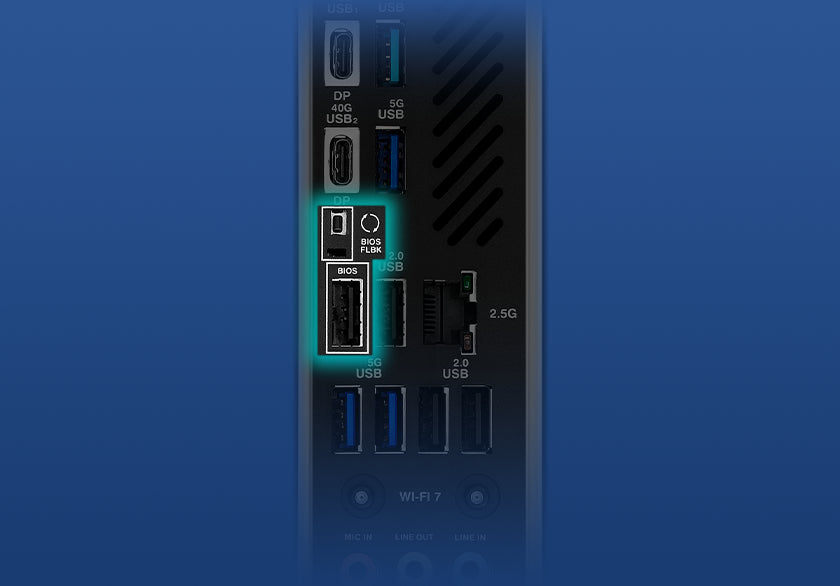

| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS; CrashFree BIOS 3; EZ Flash 3; BIOS FlashBack |

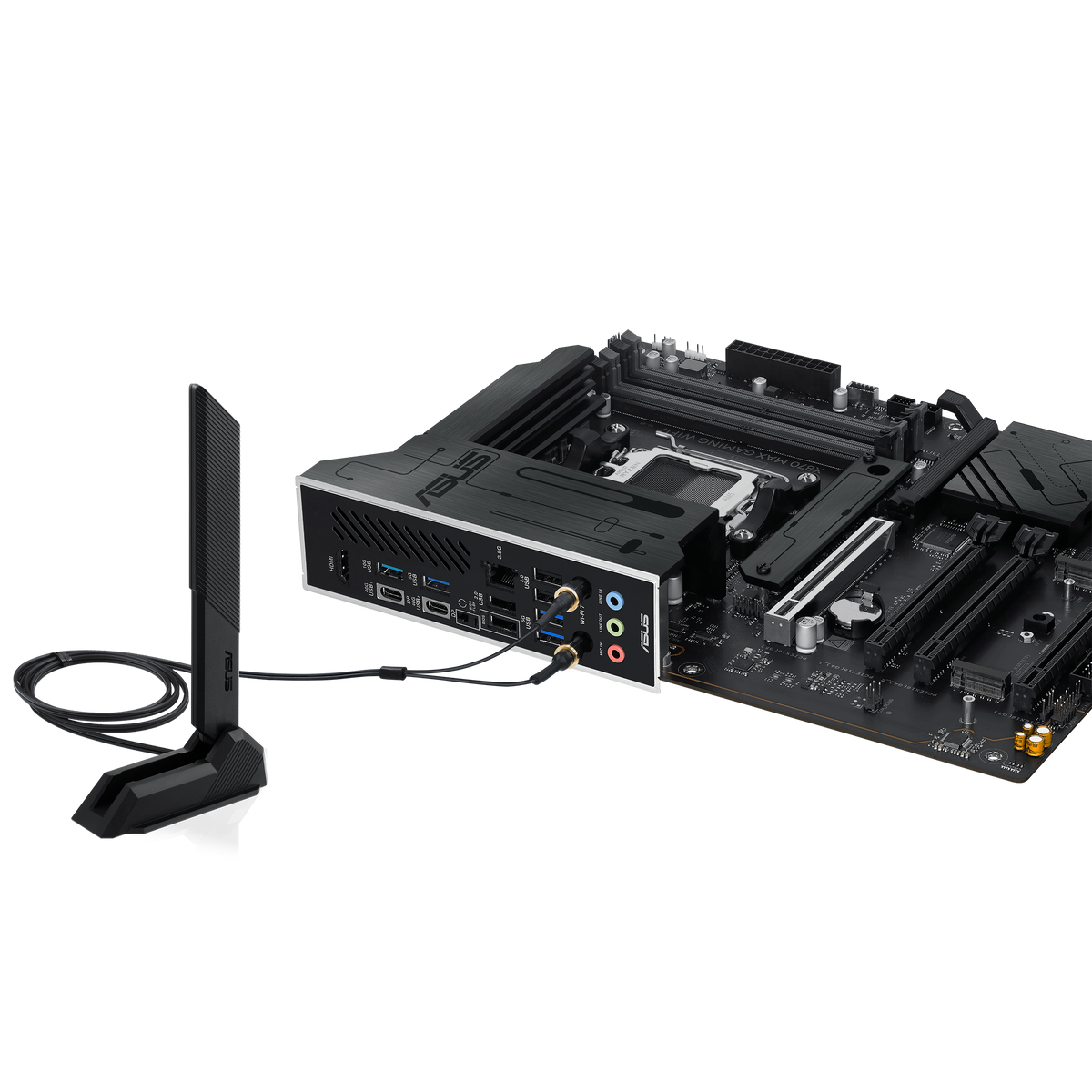

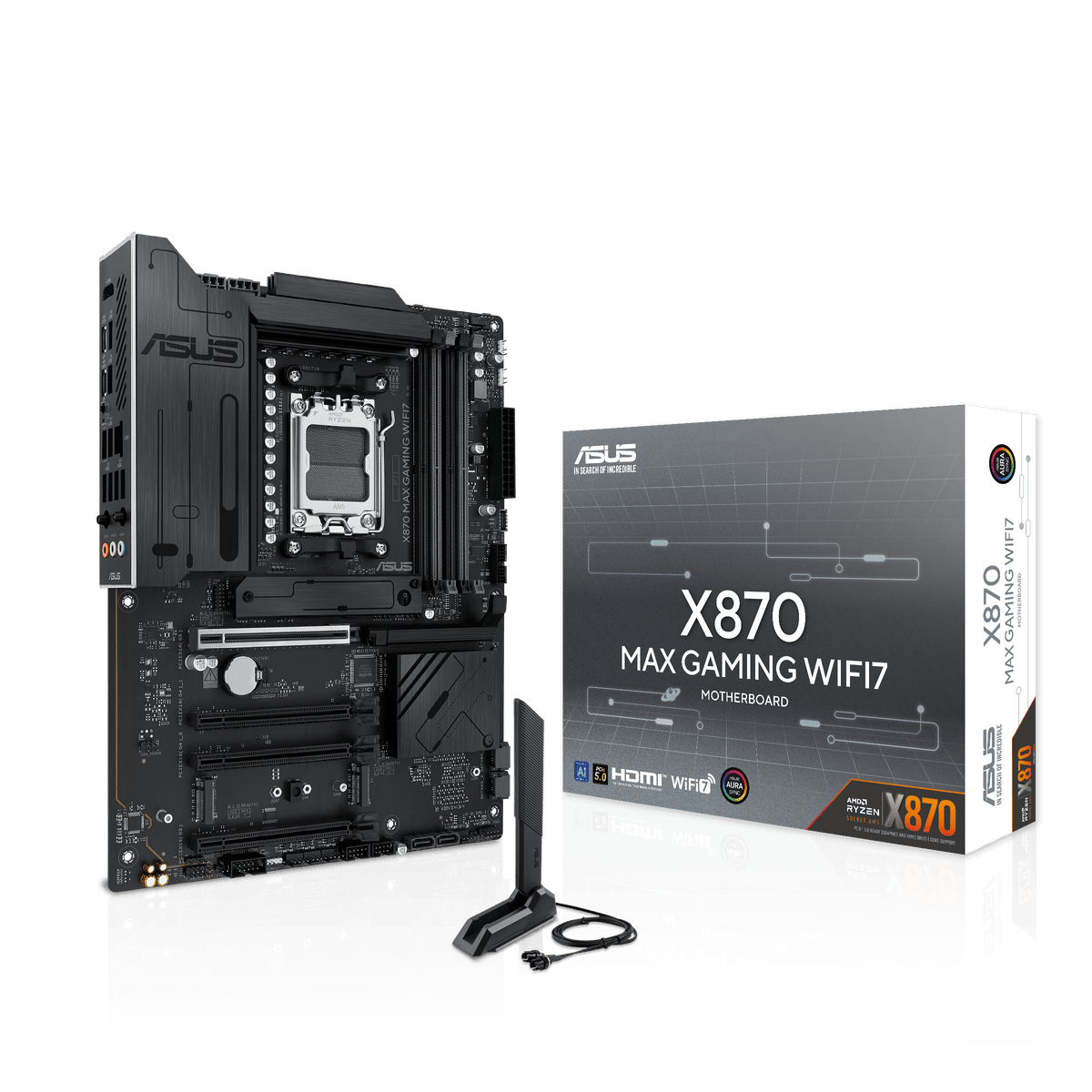

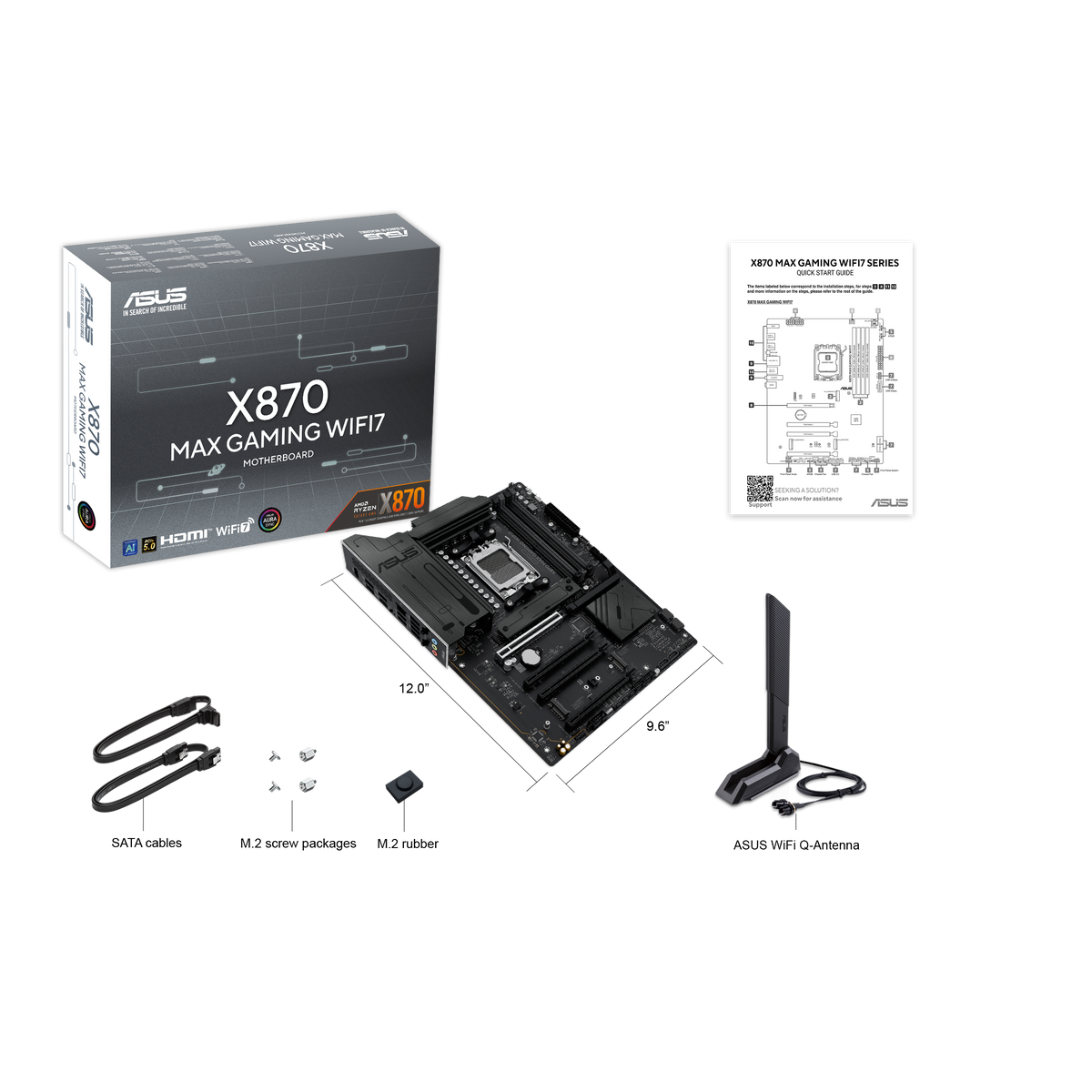

| Accessories | 2 × SATA cables, 1 × WiFi Q-Antenna, M.2 rubber package, M.2 screw package, Quick start guide |
