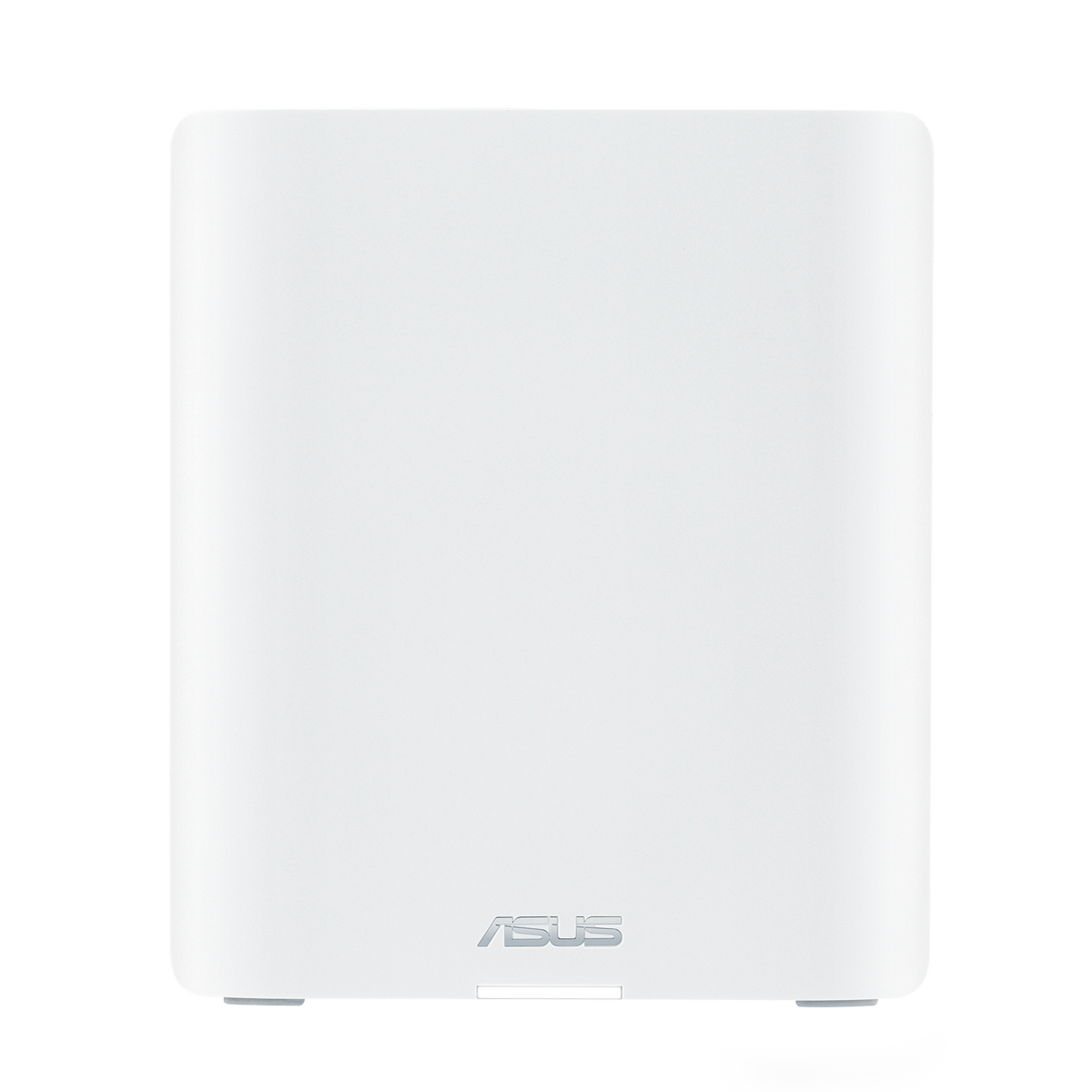

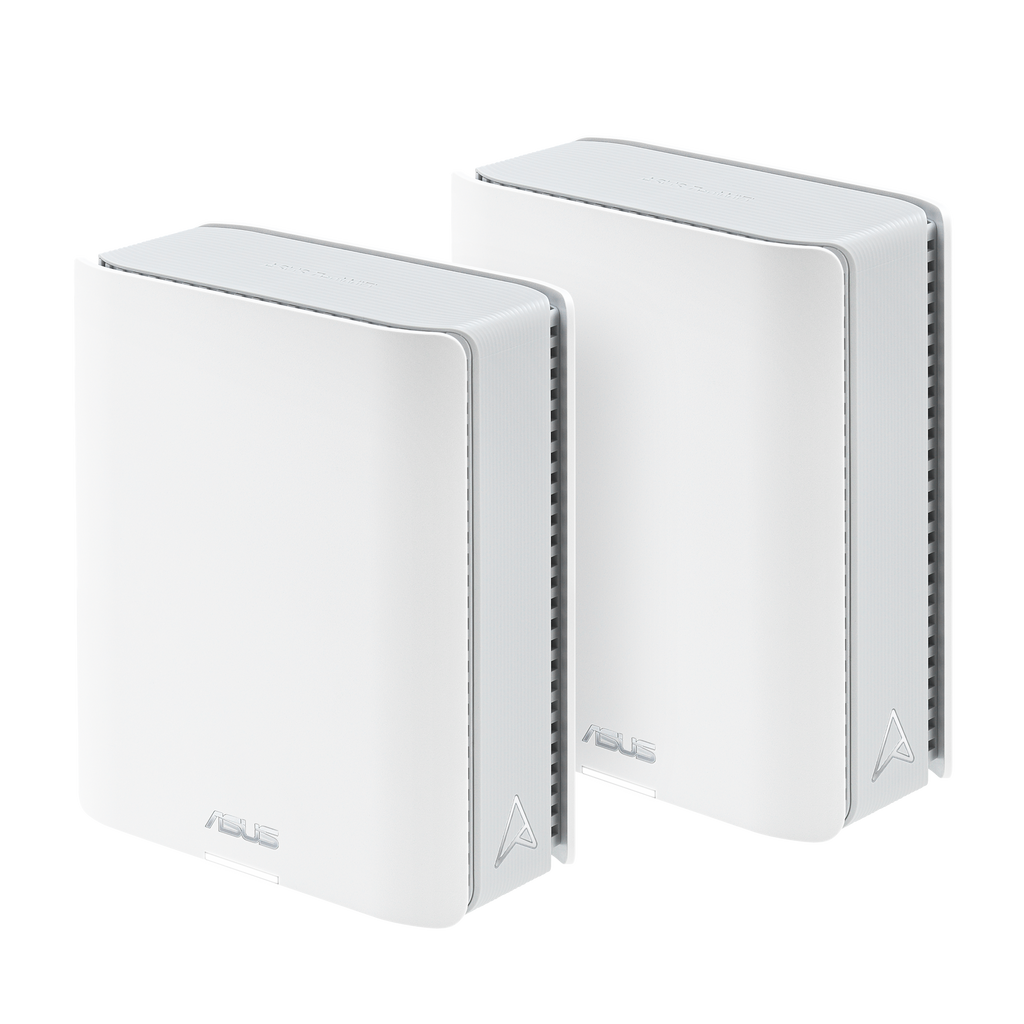

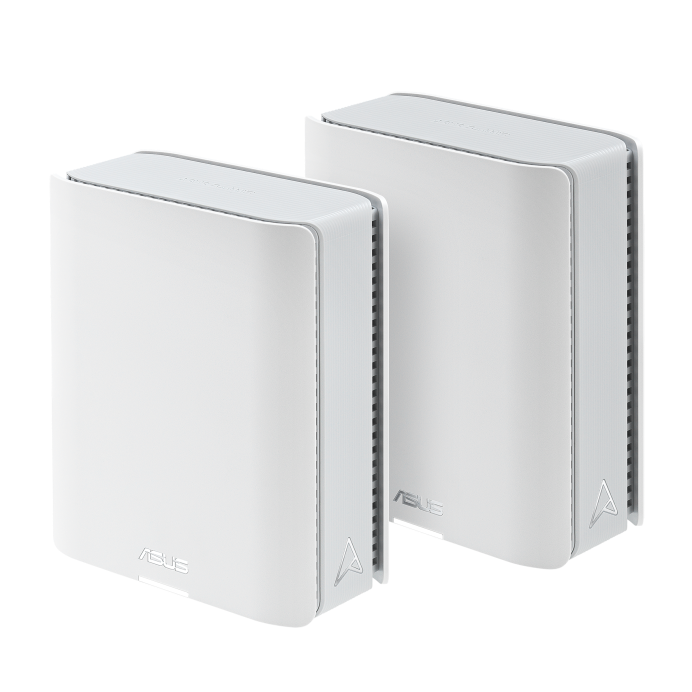

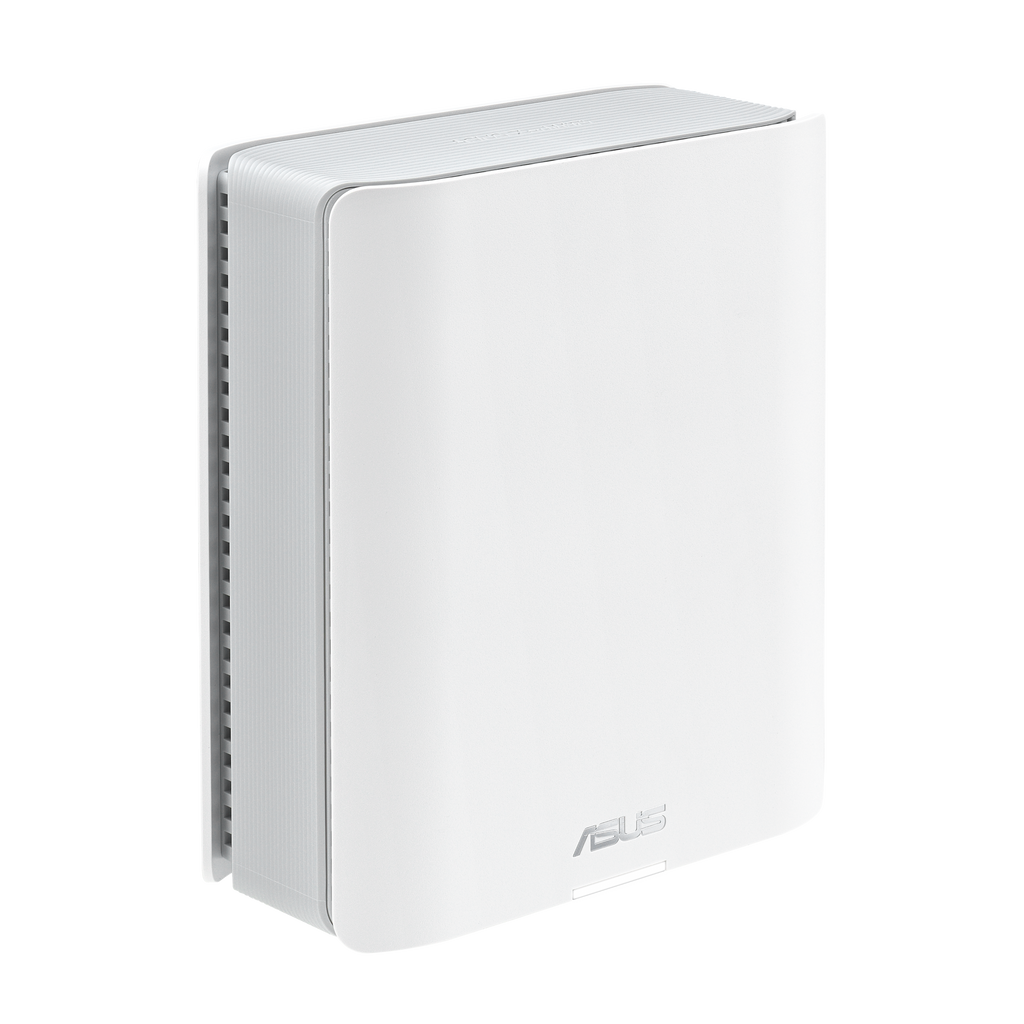

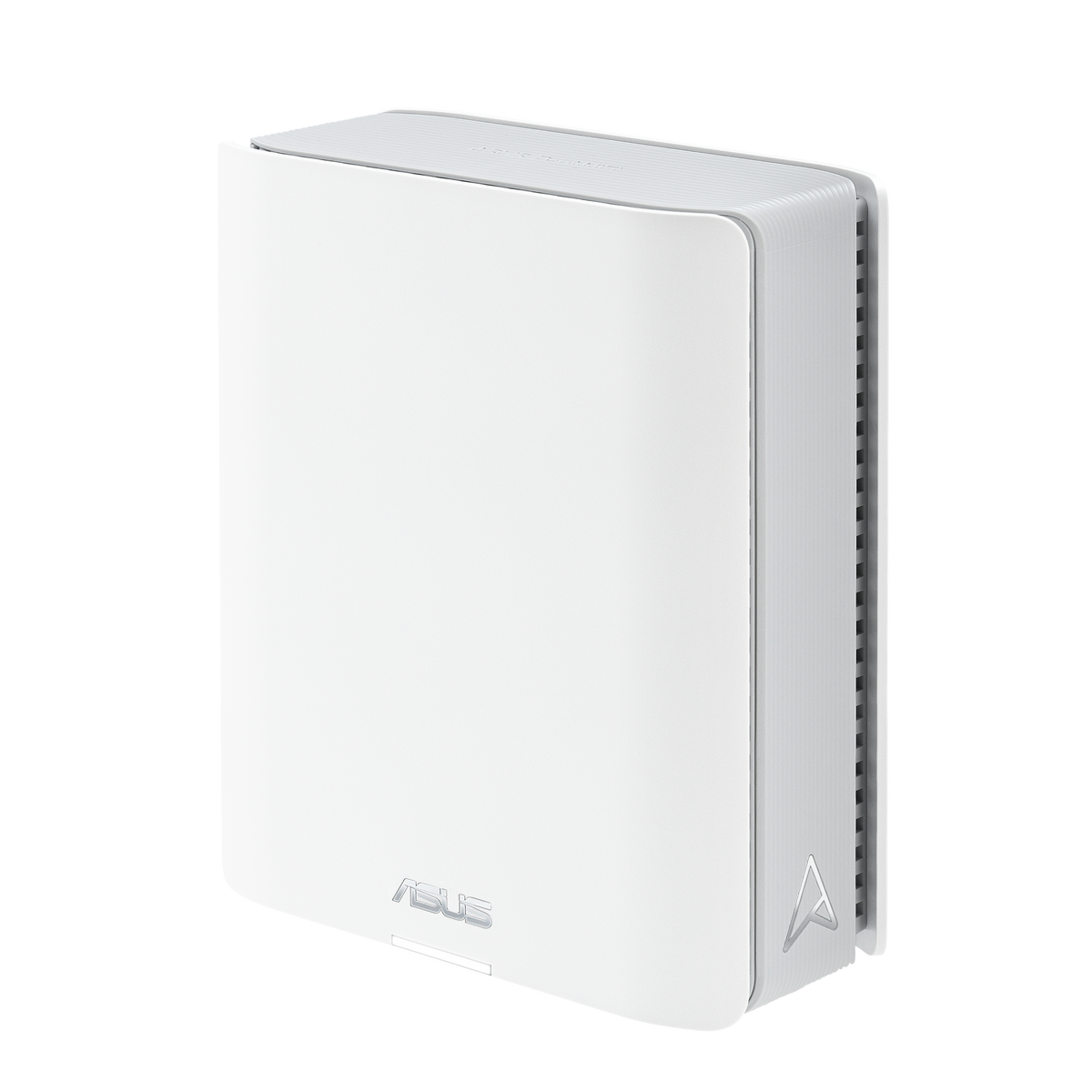

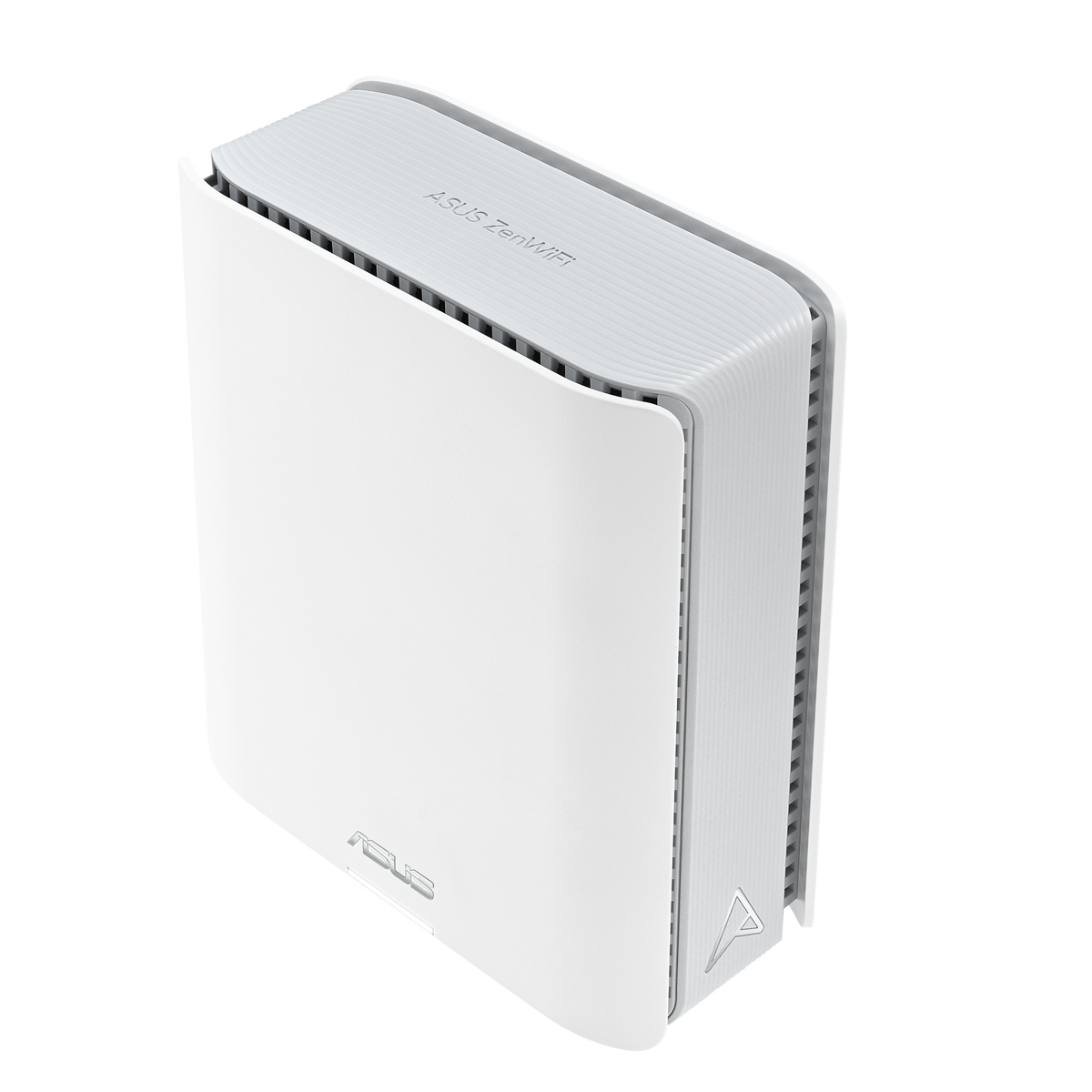

ASUS ZenWiFi BT8 3-Pack Wi-Fi 7 Mesh System BE14000
ASUS
ASUS ZenWiFi BT8 3-Pack Wi-Fi 7 Mesh System BE14000
The ASUS ZenWiFi BT8 3-Pack Wi-Fi 7 Mesh System BE14000 is a tri-band whole-home mesh system designed for households that need fast, stable coverage across large areas. It suits homeowners running demanding applications such as 8K streaming, HDR gaming, and cloud computing across many connected devices. Built around Wi-Fi 7 and next-generation Smart AiMesh technology, it consolidates all devices under one network name with layered security included.
Why this product
Wi-Fi 7 tri-band speeds up to 14 Gbps
It combines 2.4 GHz, 5 GHz, and 6 GHz bands for a combined rated throughput of 688 + 4323 + 8643 Mbps. The 6 GHz band and 4K-QAM modulation deliver up to 2.4× faster speeds compared to Wi-Fi 6E.
3-pack covers up to 8,850 sq. ft.

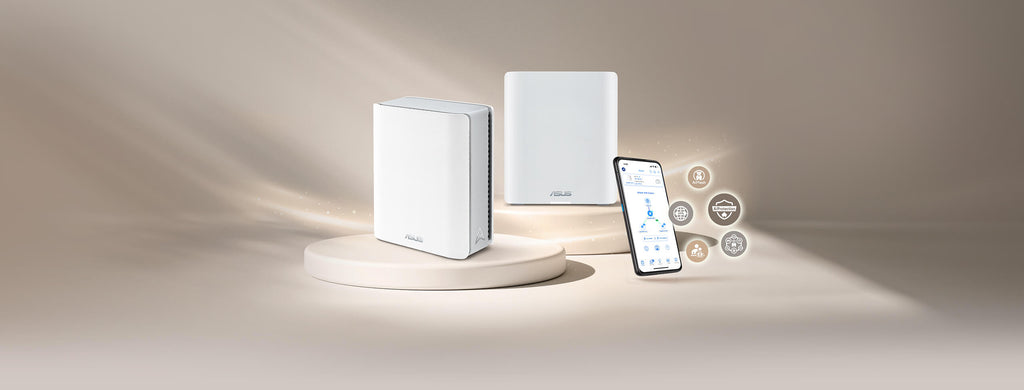

AI-powered Smart AiMesh distributes the three nodes to reach up to 8,850 square feet of coverage, and the system can be extended further with compatible ASUS routers.
Dual 2.5G Ethernet for wired backhaul

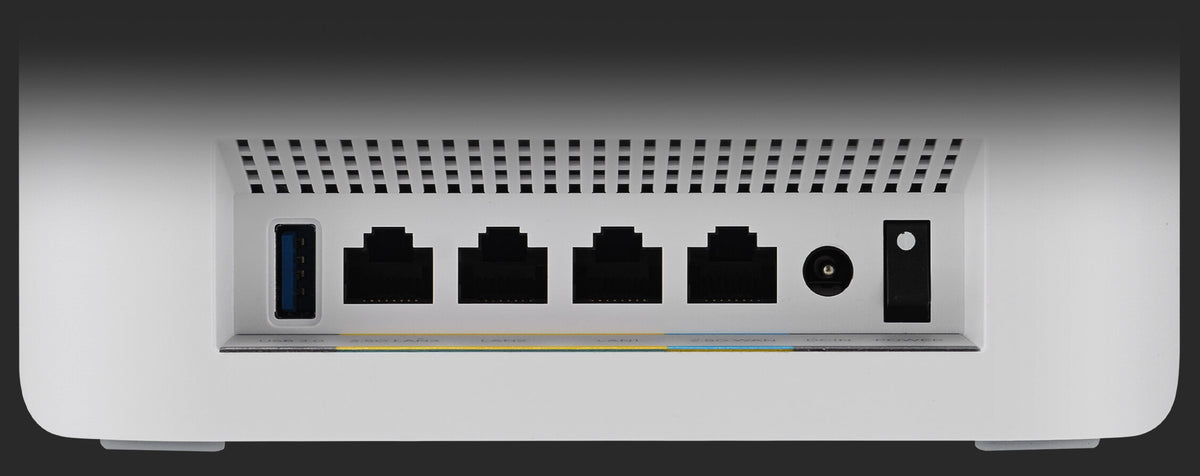

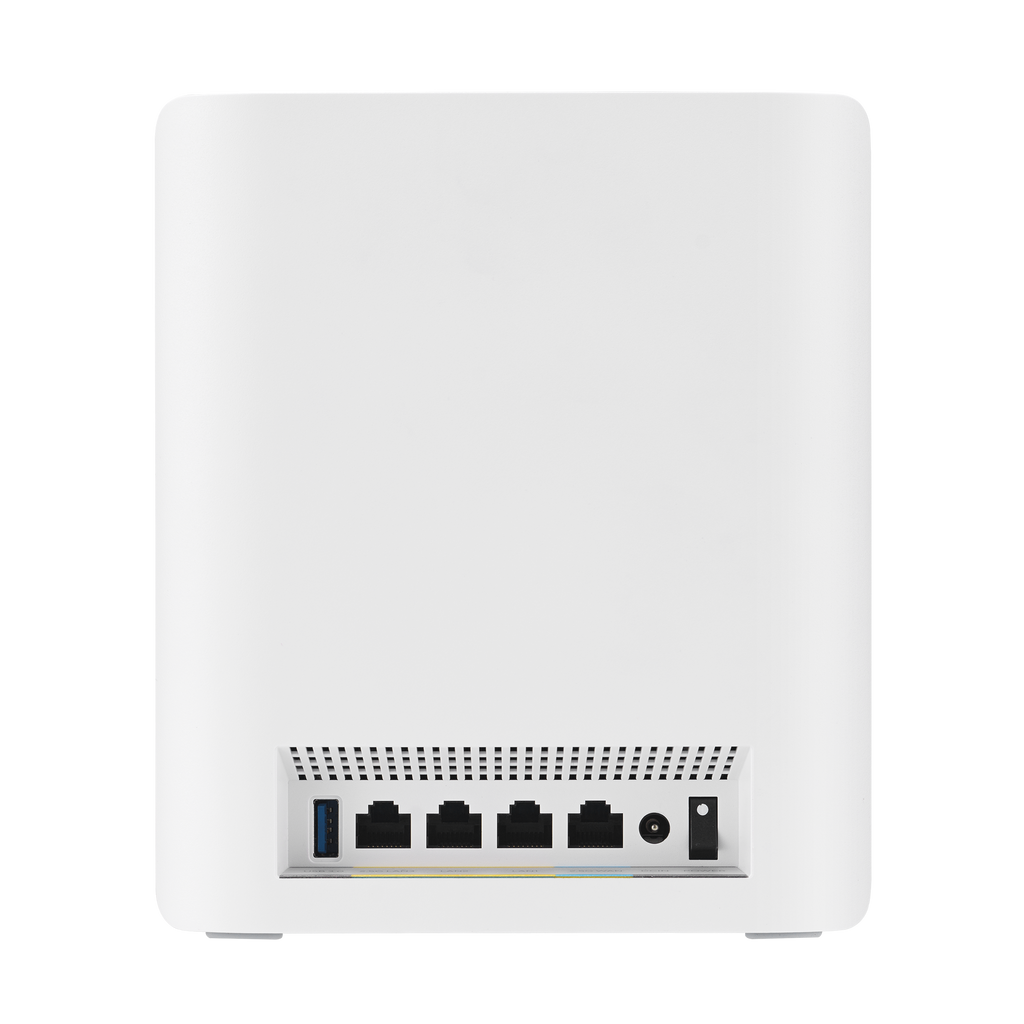

Each node carries one 2.5G WAN port and one 2.5G LAN port alongside two 1G LAN ports, giving you the option of a wired backhaul for more consistent inter-node links.
24/7 security with AiProtection Pro
Commercial-grade AiProtection Pro monitors traffic around the clock, and the system also includes advanced VPN support for end-to-end protection across the whole network.
Multi-Link Operation across all three bands
Wi-Fi 7 Multi-Link Operation allows devices to transmit and receive across 2.4 GHz, 5 GHz, and 6 GHz simultaneously, reducing latency and improving reliability under load.
4G LTE/5G mobile tethering backup
A USB 3.0 port supports 4G LTE and 5G mobile tethering, keeping the network online if the primary broadband connection drops.
- Wi-Fi GenerationWi-Fi 7 (802.11be)
- Combined throughputUp to 14,000 Mbps (688 + 4323 + 8643)
- Coverage (3-pack)Up to 8,850 sq. ft.
- Nodes included3
- WAN port2.5G × 1
- LAN ports2.5G × 1, 1G × 2
- USBUSB 3.0 × 1
- BandsTri-band: 2.4 GHz + 5 GHz + 6 GHz
- SKUASU-4155
- EAN4711387532133
- Supports IEEE 802.11a/b/g/n/ac/ax/be — backwards compatible with Wi-Fi 4, 5, 6, and 6E client devices.
- Works with IPv4 and IPv6 networks.

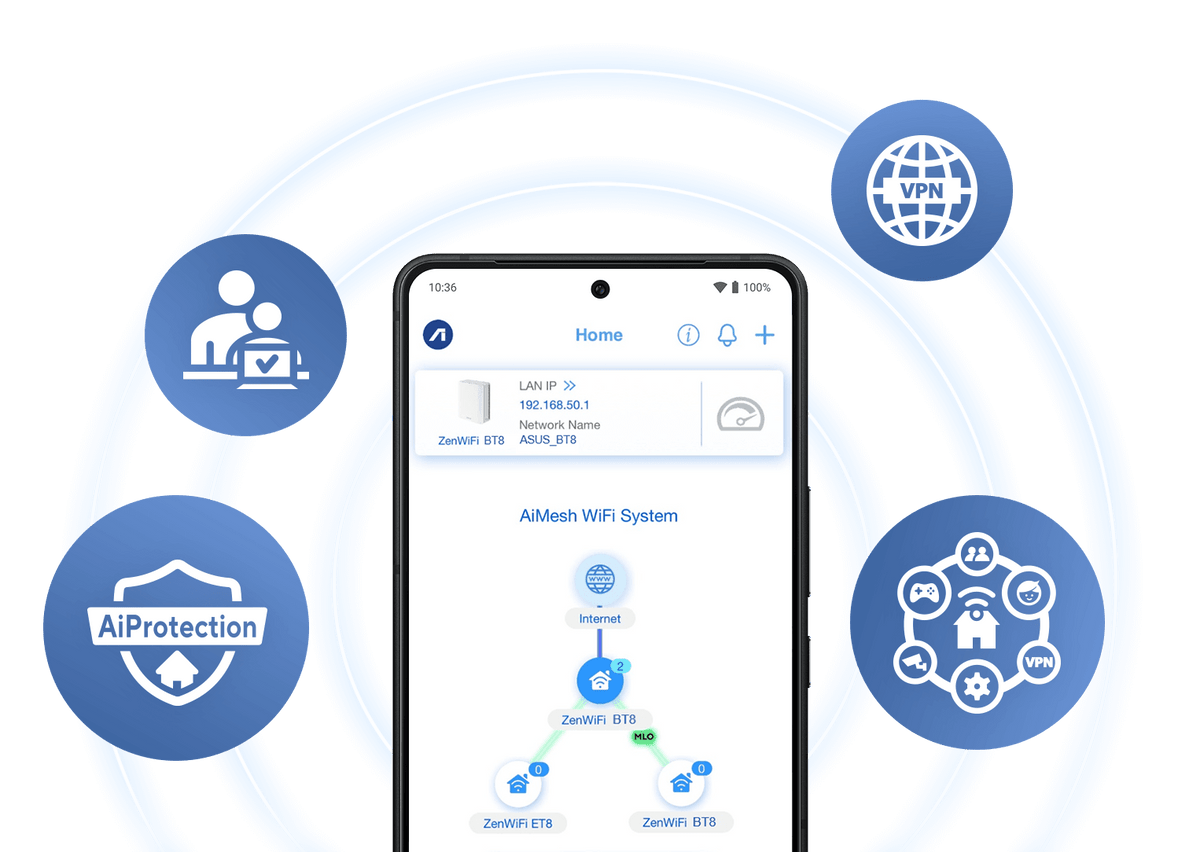

- Can be managed via the ASUS Router app and supports Google Assistant voice control.
- Operates in Wireless Router Mode, AiMesh Node Mode, or Access Point Mode, fitting into existing network setups.
- Wired backhaul and maximum inter-node speed requires connecting nodes via the 2.5G Ethernet ports — a network cable must be run between nodes for this configuration.
- Full 6 GHz Wi-Fi 7 speeds are only available to client devices that themselves support Wi-Fi 7 (802.11be) on the 6 GHz band.
Best for
- Large homes needing wide coverage: the three-node set is rated for up to 8,850 sq. ft., making it suitable for multi-storey or large single-storey properties with many rooms.
- Bandwidth-heavy households: tri-band Wi-Fi 7 with 14 Gbps combined throughput and MLO suits homes running simultaneous 8K streaming, HDR gaming, and video calls.
- Security-conscious users: AiProtection Pro provides commercial-grade round-the-clock monitoring and the system includes advanced VPN options without needing a separate security appliance.
- Smart home environments: IoT Network SSIDs, parental controls, Google Assistant support, and the ASUS Router app allow straightforward management of many device types from one interface.
- Users who want a resilient connection: USB 3.0 mobile tethering support means 4G LTE or 5G can act as a fallback if the main broadband link fails.
Trade-offs
- Small apartments or single rooms: a three-node BE14000 system is more hardware than a one- or two-room space typically needs, and a single-node router would likely suffice.
- Buyers wanting to maximise the 6 GHz band without upgrading clients: the 8643 Mbps 6 GHz rate requires Wi-Fi 7 client devices — existing Wi-Fi 5 or Wi-Fi 6 devices cannot use it.
- Networks limited to gigabit Ethernet backhaul: the fastest wired inter-node links use the 2.5G ports; environments wired only to 1G infrastructure will not reach those backhaul speeds.
- Cost-sensitive buyers: the feature set — Wi-Fi 7, 2.5G dual ports, AiProtection Pro, 1 GB RAM per node — is aimed at users who need those capabilities, not those seeking a budget mesh option.
The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BT8 raises the bar for whole-home mesh with WiFi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 14 Gbps and unleashes superior 6 GHz WiFi. Along with ultra-high-speed dual 2.5-gigabit Ethernet ports and a suite of advanced network and security technologies, this mesh WiFi system is ready for the future of your smart home network today.

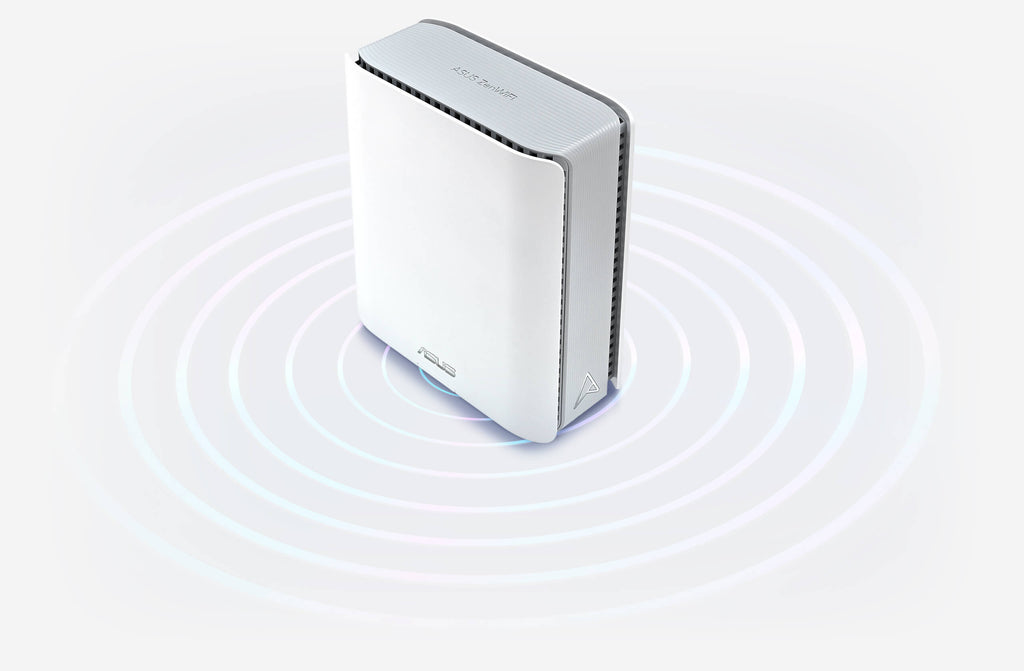

WiFi 7 Powering Premium Mesh
The ZenWiFi BT8 boasts cutting-edge WiFi 7 technology. This superior tri-band mesh system unleashes the full potential of WiFi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.
- Tri-band up to 14000 Mbps
- Up to 2.4x Faster* With 320 MHz & 4K-QAM *Compared to WiFi 6E
- Tri-band Multi-Link With 2.4 GHz + 5 GHz + 6 GHz
Networking
| Brand | ASUS |
|---|---|
| Model | BT8(W-3-PK) |
| Standard | IEEE 802.11a/b/g/n/ac/ax/be; IPv4, IPv6 |
| Wi-Fi generation | Wi-Fi 7 |
| Operating frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Operating mode | Wireless Router, AiMesh Node, Access Point |
| AiMesh | Primary AiMesh Router / AiMesh Node support |
| Smart home | Google Assistant |
Performance
| Throughput | BE14000: 688 + 4323 + 8643 Mbps |
|---|---|
| 2.4 GHz rate | Up to 688 Mbps (Wi-Fi 7 802.11be) |
| 5 GHz rate | Up to 4323 Mbps (Wi-Fi 7 802.11be) |
| 6 GHz rate | Up to 8643 Mbps (Wi-Fi 7 802.11be) |
| Transmit / Receive | 6 GHz 3×3, 5 GHz 3×3, 2.4 GHz 2×2 |
| Antennas | 7 internal |
| RAM | 1 GB |
| Flash | 128 MB |
Ports & power
| WAN | 2.5G × 1 |
|---|---|
| LAN | 2.5G × 1, 1G × 2 |
| USB | USB 3.0 × 1 |
| Power input | AC 110–240 V, 50–60 Hz |
| DC output | 12 V, max. 3 A |
Physical
| Dimensions (per node) | 159 × 72 × 186 mm |
|---|---|
| Pack quantity | 3 |
| In the box | 3× ZenWiFi BT8, RJ45 cable, Power adapter, Warranty card, Quick start guide |
