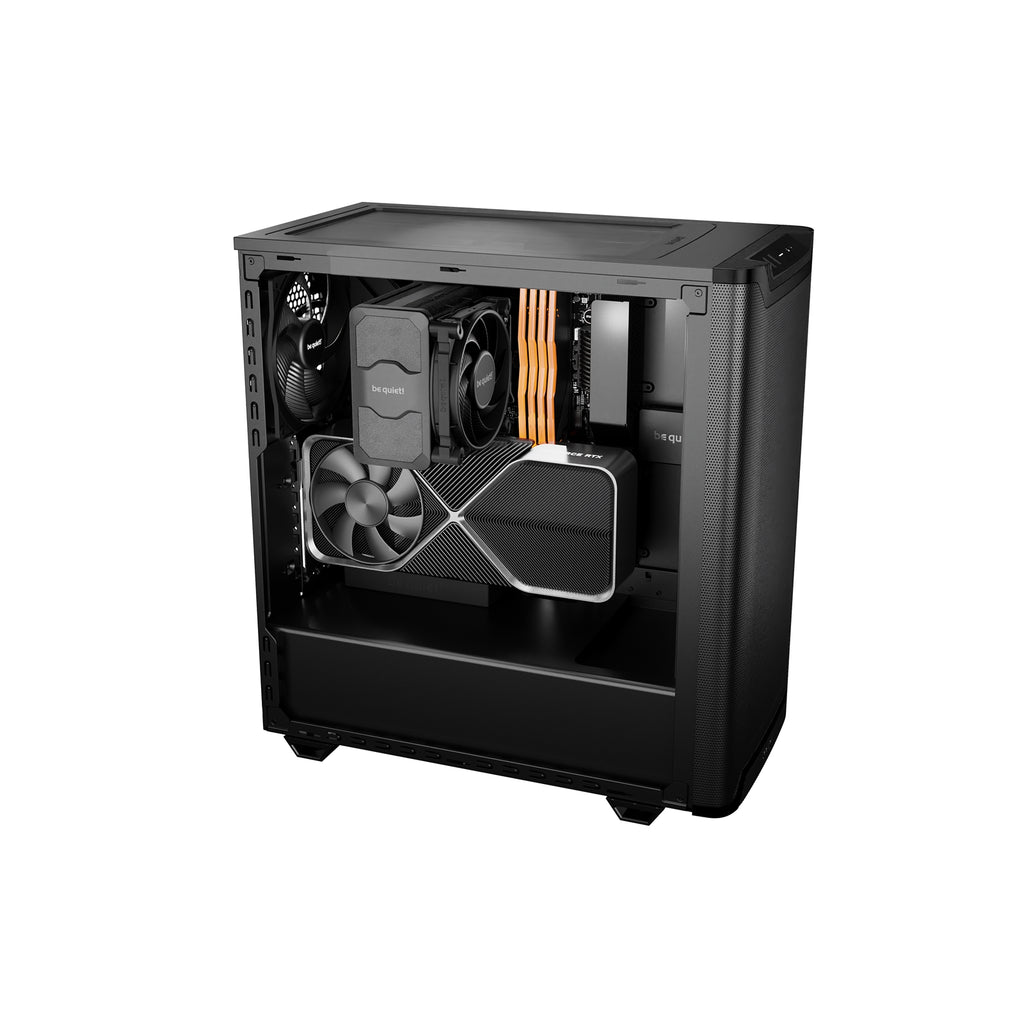

be quiet! BGW74 Pure Base 501 Airflow Window Mid Tower Case
be quiet!
be quiet! BGW74 Pure Base 501 Airflow Window Mid Tower Case
The be quiet! BGW74 Pure Base 501 Airflow Window is a compact mid-tower case designed for builders who want excellent thermals and clean aesthetics without excess size or noise. It fits high-end graphics cards and large CPU coolers while maintaining a practical footprint, and ships with two pre-installed fans optimized for airflow.
Why this product

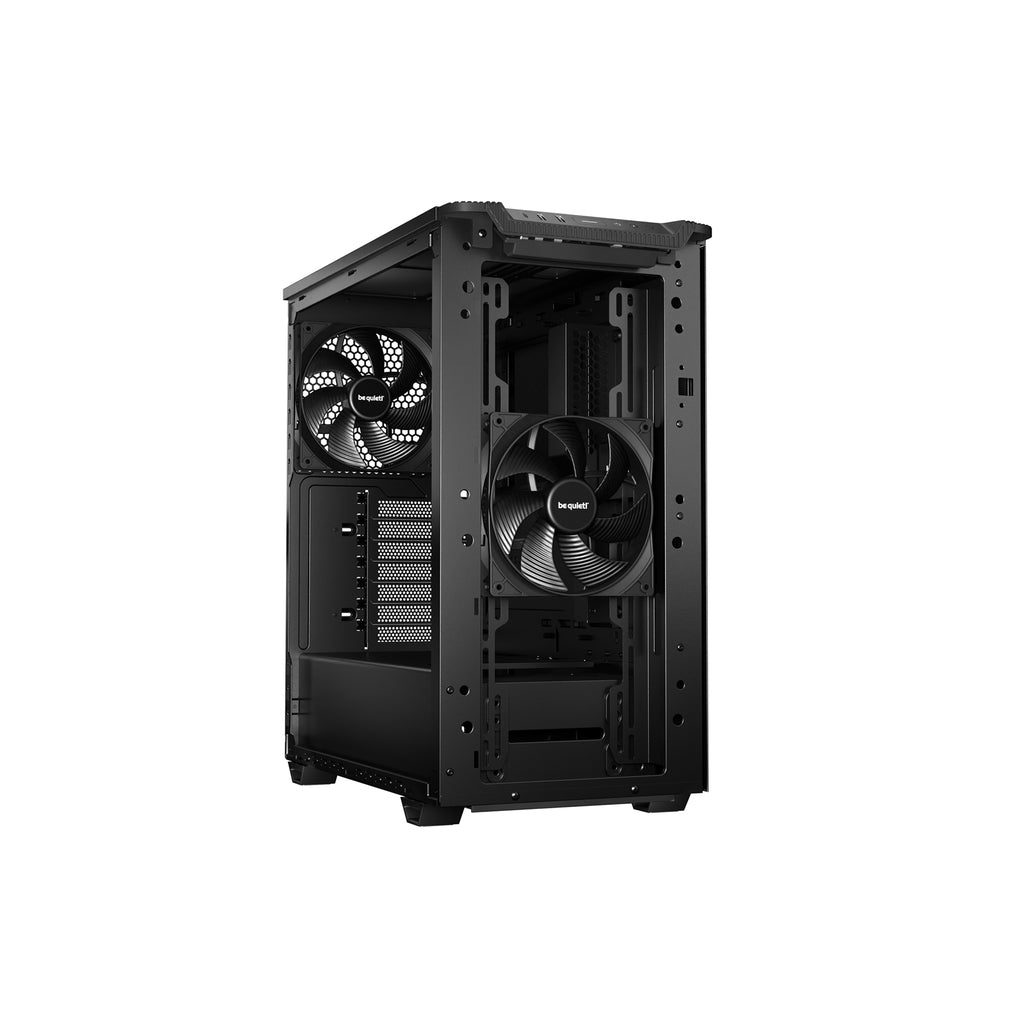

Optimized airflow with pre-installed fans
Two Pure Wings 3 140mm PWM fans come installed to maximize air pressure and cooling performance. The front intake and top exhaust design supports radiators up to 360mm front and 240mm top.

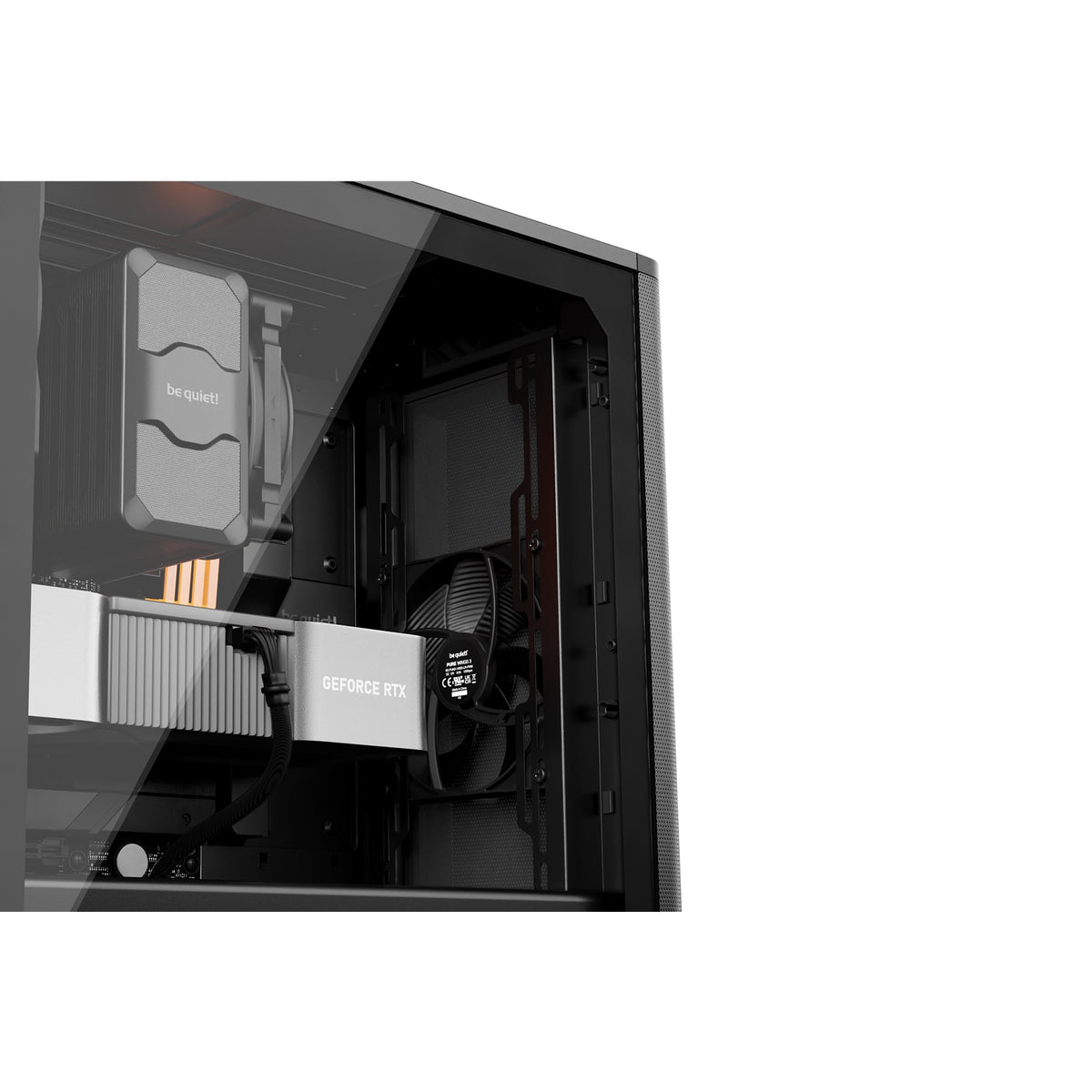

Fits high-end GPUs and coolers
Maximum GPU length of 368mm and CPU cooler height of 178mm accommodate current flagship components. Optional vertical GPU mounting with rotating PCIe slots offers further flexibility.
Compact, practical dimensions

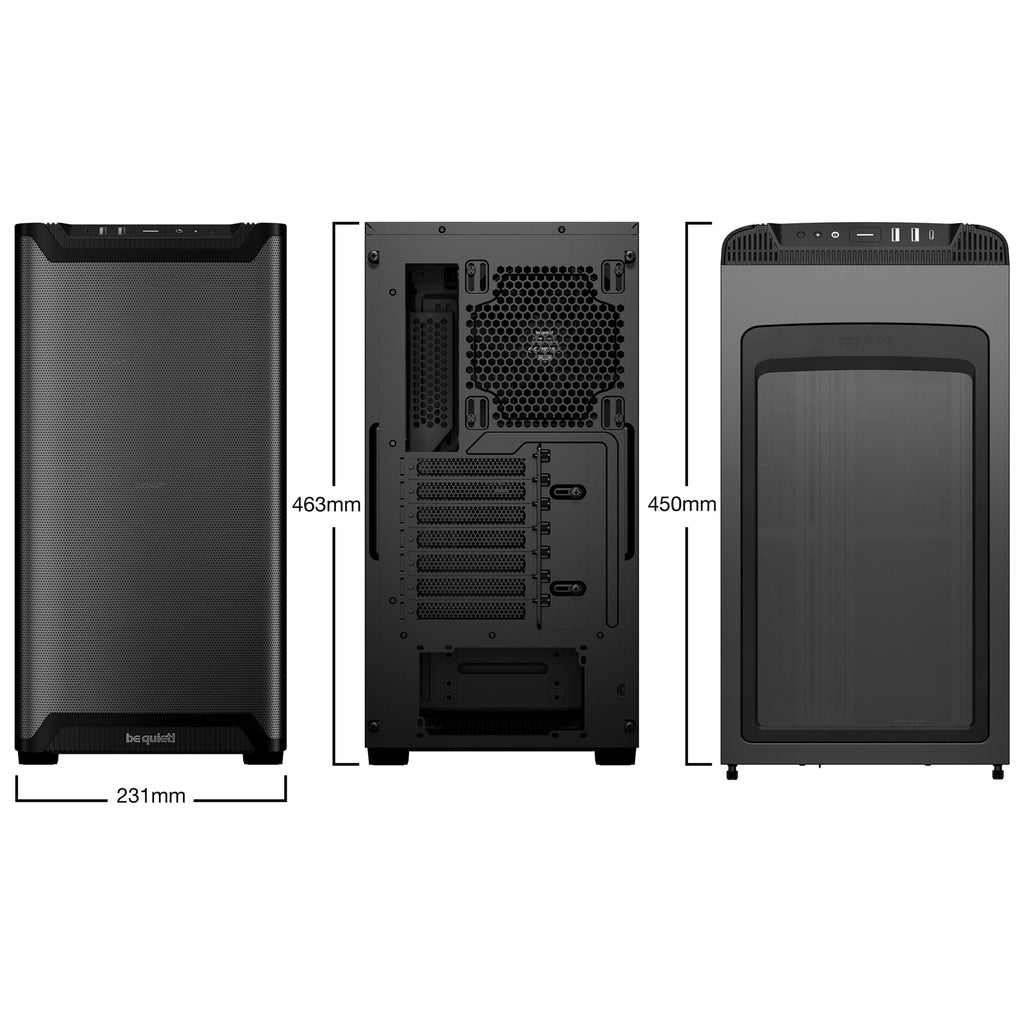

At 450 × 231 × 463 mm, it is smaller than full towers yet supports ATX motherboards and extensive storage, making it suitable for desk-side or space-limited builds.

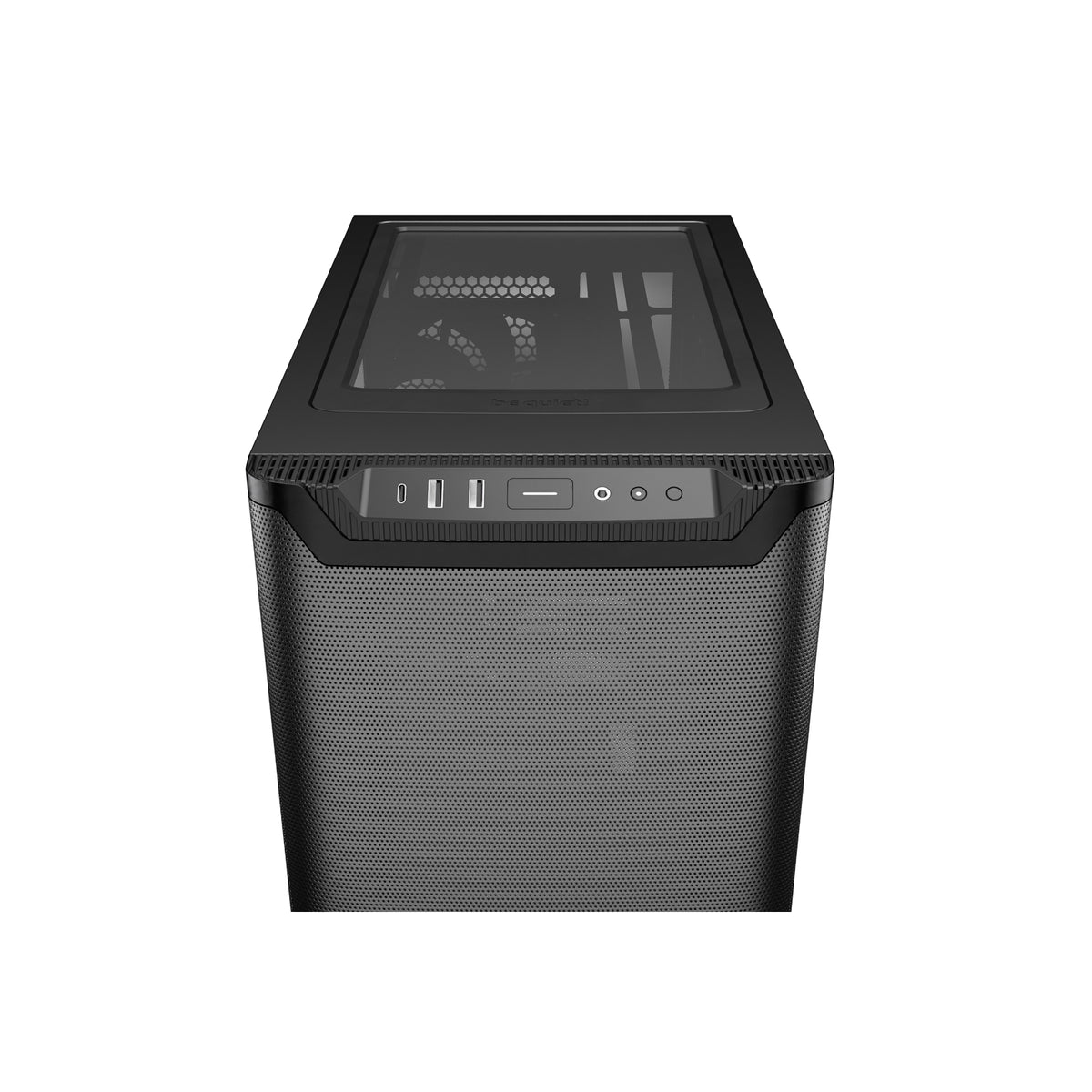

Fast front connectivity
USB 3.2 Gen. 2 Type C port plus two Type A USB 3.2 ports on the front I/O panel provide modern, high-speed device access without reaching the motherboard.

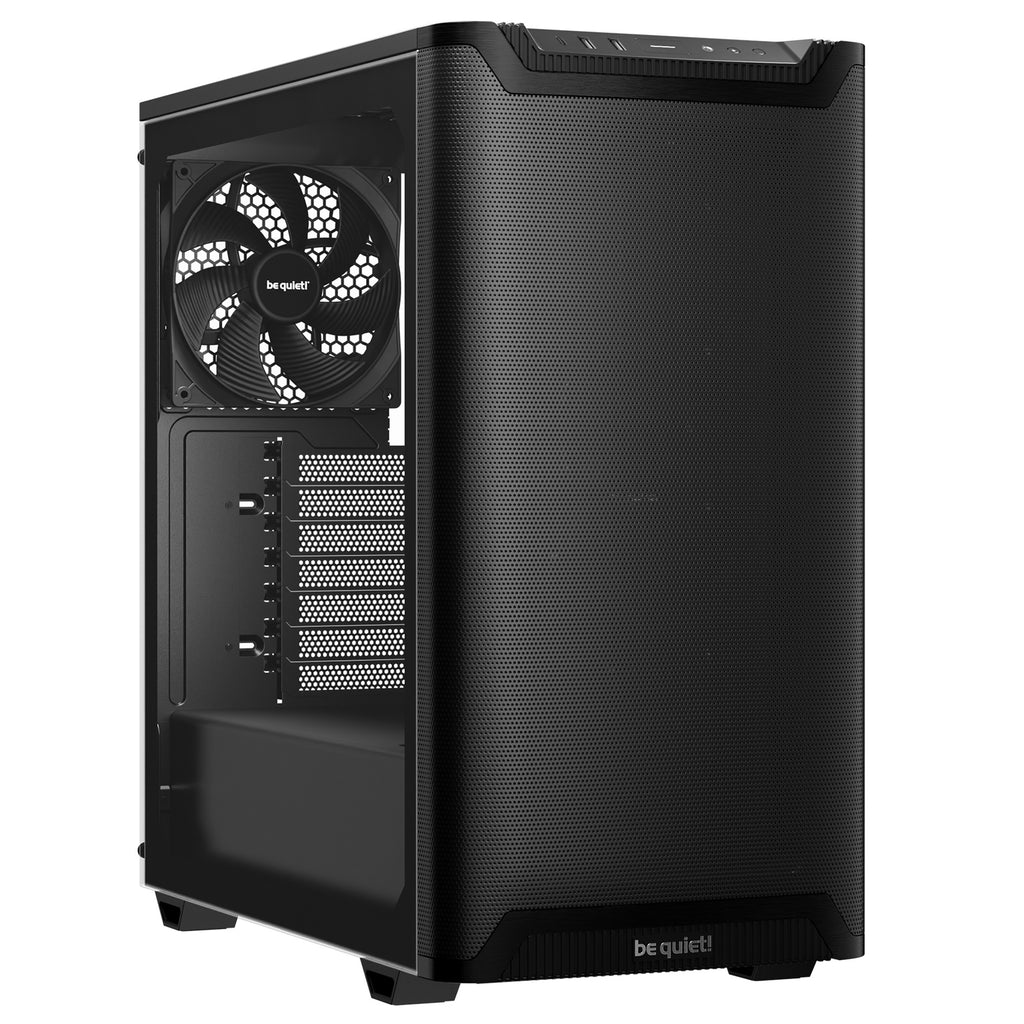

Tempered glass side panel
A transparent side panel lets you display internal components and lighting while the steel frame and ABS construction maintain rigidity and durability.
- Form FactorMid Tower
- Dimensions (H × W × D)450 × 231 × 463 mm
- Pre-Installed Fans2× Pure Wings 3 140mm PWM
- Max GPU Length368 mm
- Motherboard SupportATX, Micro-ATX, Mini-ITX
- Front USB1× USB 3.2 Gen. 2 Type C, 2× USB 3.2 Type A
- SKUBEQ-987
- EAN4260052191828
- Fits ATX, Micro-ATX, and Mini-ITX motherboards with seven PCIe expansion slots.
- Supports air coolers up to 178mm tall and water-cooling radiators up to 360mm on the front or 240mm on top.
- Accommodates graphics cards up to 368mm long, including most current flagship models.
- Accepts power supplies up to 180mm long (200mm without the HDD cage installed).
- Vertical GPU mounting requires an optional be quiet! Riser Cable; the motherboard and PCIe slots must physically support 90° rotation.
Best for
- High-performance builds with current-gen GPUs and large air or liquid coolers
- Builders prioritizing thermal performance and quiet operation over maximum volume
- Compact desk-side or living-room PCs that must fit in tighter spaces than full towers
- Users who want tempered glass visibility and modern I/O without premium pricing
Trade-offs
- E-ATX or extended motherboards: designed for ATX and smaller only; larger boards will not fit.
- Extreme multi-GPU setups: limited to single-GPU layout; dual-card configurations are not supported.
- Builders needing many 3.5" drives: only two removable 3.5" bays; SSDs up to five 2.5" instead.
- Very large power supplies over 200mm: maximum PSU length is 180mm (or 200mm only if HDD cage is removed).
Pure Base 501 Airflow Window Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
Without any distractions, Pure Base 501 Airflow Window Black is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
Despite its compact dimensions, Pure Base 501 Airflow Window Black offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 3 fans or a radiator up to 240mm.
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
As a compact PC case, Pure Base 501 Airflow Window Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze. A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
General
| Brand | be quiet! |
|---|---|
| Model Number | BGW74 |
| Colour | Black |
| Materials | ABS, Steel, Tempered Glass |
Cooling & Airflow
| Pre-Installed Fans | 2× Pure Wings 3 140mm PWM (1 front, 1 rear) |
|---|---|
| Front Fan Support | 3× 120mm or 3× 140mm |
| Top Fan Support | 2× 120mm or 2× 140mm |
| Rear Fan Support | 1× 140mm |
| Front Radiator Support | Up to 360mm |
| Top Radiator Support | Up to 240mm |
| Max CPU Cooler Height | 178 mm |
Component Compatibility
| Motherboard Compatibility | ATX, Micro-ATX, Mini-ITX |
|---|---|
| Max GPU Length | 368 mm |
| Vertical GPU Mount | Yes – PCIe slots rotate 90° |
| Max PSU Length | 180 mm (200 mm without HDD cage) |
| Expansion Slots | 7 |
Storage & Connectivity
| 3.5" Drive Bays | 2× (removable cage) |
|---|---|
| 2.5" Drive Bays | Up to 5× |
| Front I/O Ports | 1× USB 3.2 Gen. 2 Type C, 2× USB 3.2 Type A, HD Audio |
