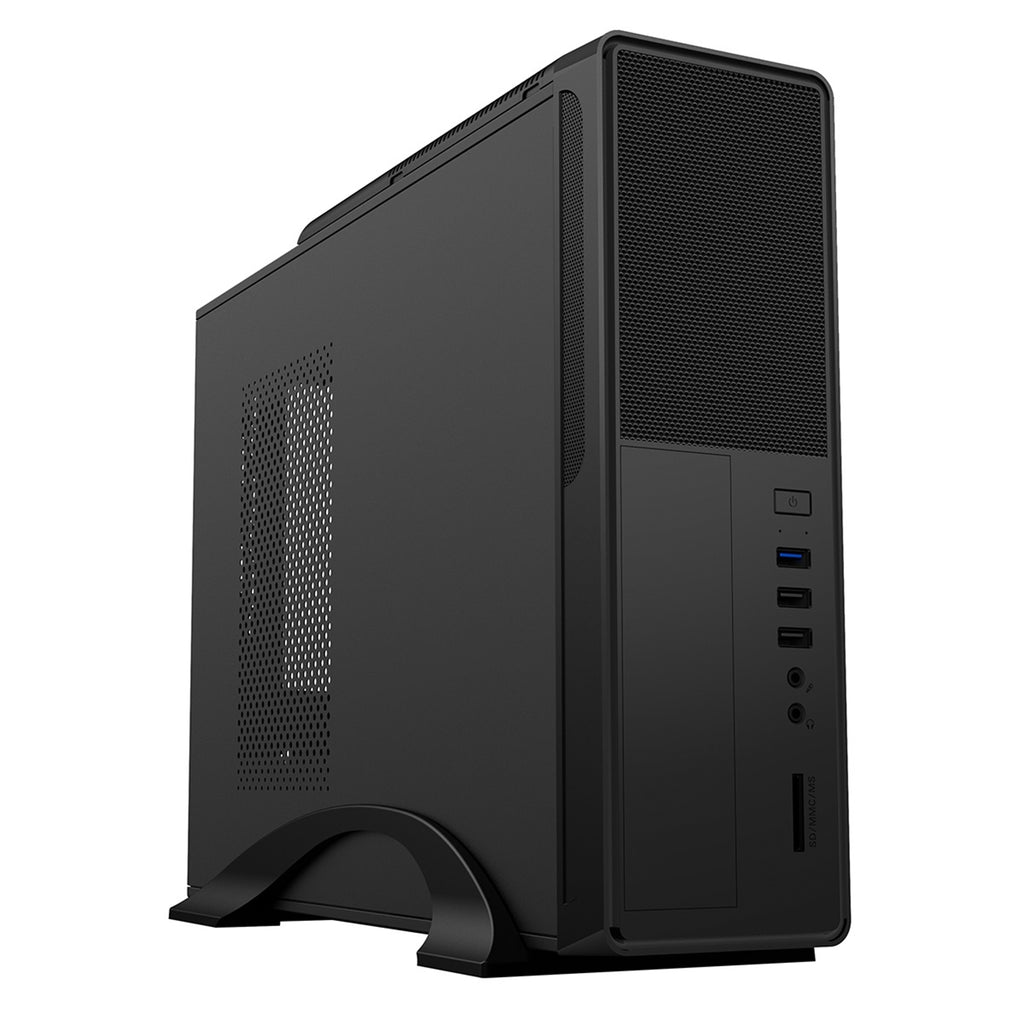

CiT S014B Slim Micro ATX PC Case with 300W PSU - Black
CiT
CiT S014B Slim Micro ATX PC Case with 300W PSU - Black
The CiT S014B Slim Micro ATX PC Case with 300W PSU is a compact desktop case built for users who need space-saving form factor without sacrificing storage or connectivity. It comes fully equipped with a 300W power supply and integrated cooling fan, making it ready for office PCs, HTPCs, or small-footprint business systems.
Why this product
300W PSU included
Comes with a Micro ATX power supply pre-installed, saving the cost and hassle of sourcing a separate unit. Includes all necessary connectors for standard Micro ATX motherboards and peripherals.
Compact footprint with multiple drive bays
Only 100mm wide but holds up to 2 internal 3.5″ drives, 2 internal 2.5″ drives, and 1 external 5.25″ bay. Removable HDD/ODD cage simplifies assembly.
Integrated cooling and airflow

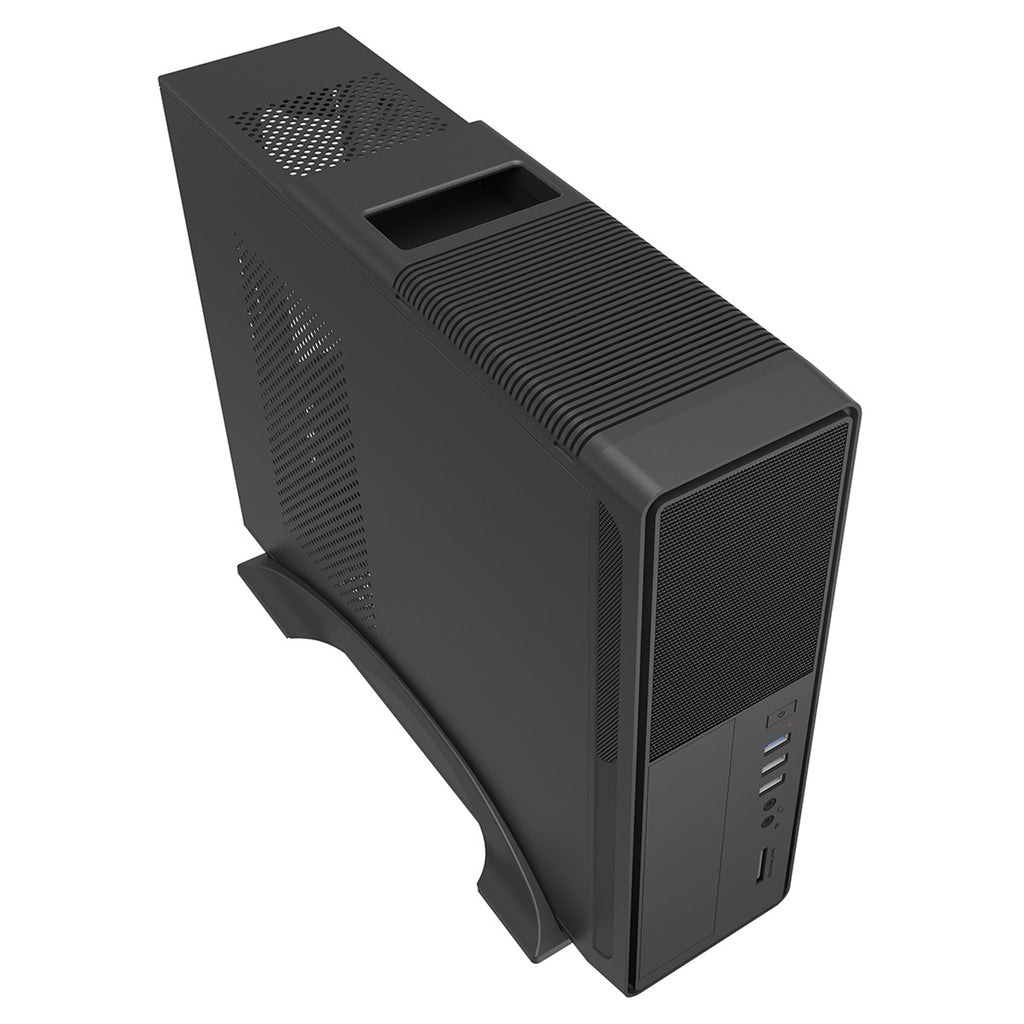

Includes an 8cm top fan and features mesh front panel with side and bottom vents. Optional 50mm bottom fan slot available for additional cooling.
Built-in card reader
SD/TF card reader is integrated into the front panel, eliminating the need for an external adapter.
- Form FactorMicro Tower
- Motherboard SupportMicro ATX, Mini-ITX
- PSU Output300W
- Drive Bays1 x 5.25" External, 2 x 3.5" Internal, 2 x 2.5" Internal
- ColourBlack
- Included Fans1 x 8cm Top Fan
- SKUCIT-1033
- EAN5055492405913
- Fits Micro ATX and Mini-ITX motherboards.
- Supports graphics cards up to 225mm in length.
- Compatible with CPU coolers up to 82mm in height.
- One of the two internal 2.5″ drive bays occupies a 3.5″ bay slot, reducing total 3.5″ capacity from 3 to 2 if both are used.
- Not suitable for ATX or E-ATX motherboards; Micro ATX form factor is required.
Best for
- Office and business PCs needing compact desk placement without compromising storage capacity.
- Home theatre PCs (HTPCs) where space is limited and passive, quiet operation is preferred.
- Budget-conscious builders who want PSU, cooling fan, and case in a single purchase.
- Systems with modest power requirements up to 300W, such as entry-level or second-hand components.
Trade-offs
- High-end gaming rigs. The 300W PSU cannot support modern graphics cards or high-performance CPUs requiring significant power.
- Users needing extensive front cooling. No front-mounted fan, limiting airflow for systems that run hot.
- Deep cable management. Only 21mm depth behind the motherboard tray for routing cables; tight for systems with many peripherals.
- Full-size graphics cards or tall CPU coolers. Maximum GPU length of 225mm and CPU cooler height of 82mm restrict component selection.
CiT S014B micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.
- Comes with 300W Micro ATX PSU
- Comes with a 1 x 8cm Top Cooling Fan
- Built-in Card Reader – SD/MMC/MS 3in1

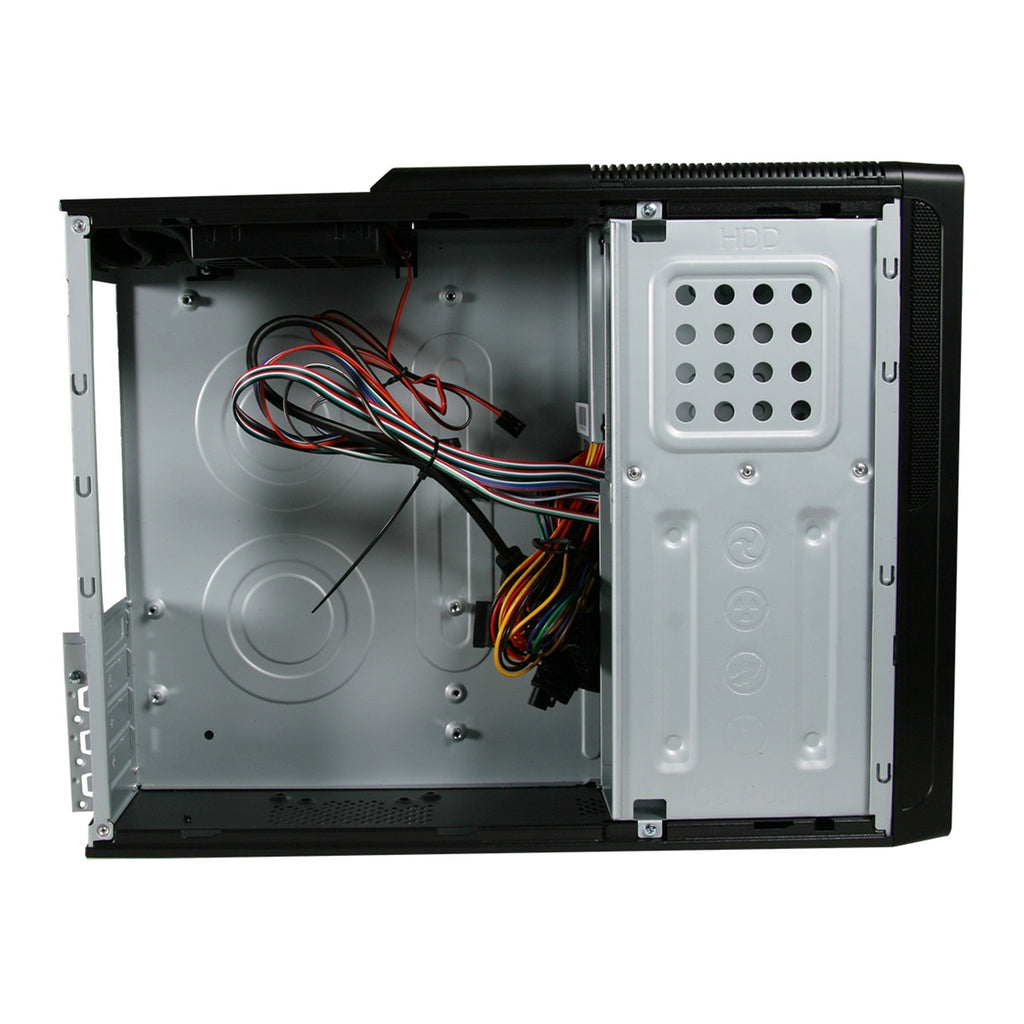

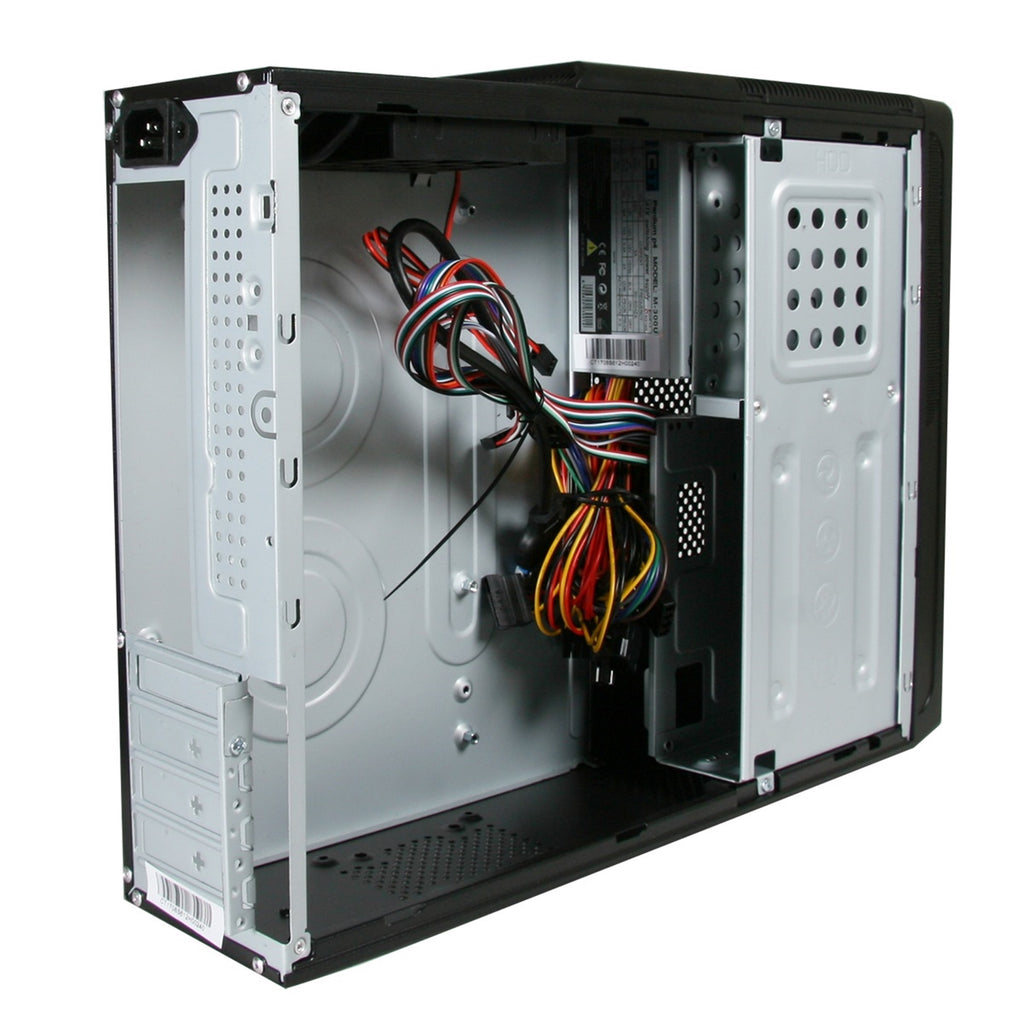

- Removeable HDD/ODD cage for help when assembling your PC

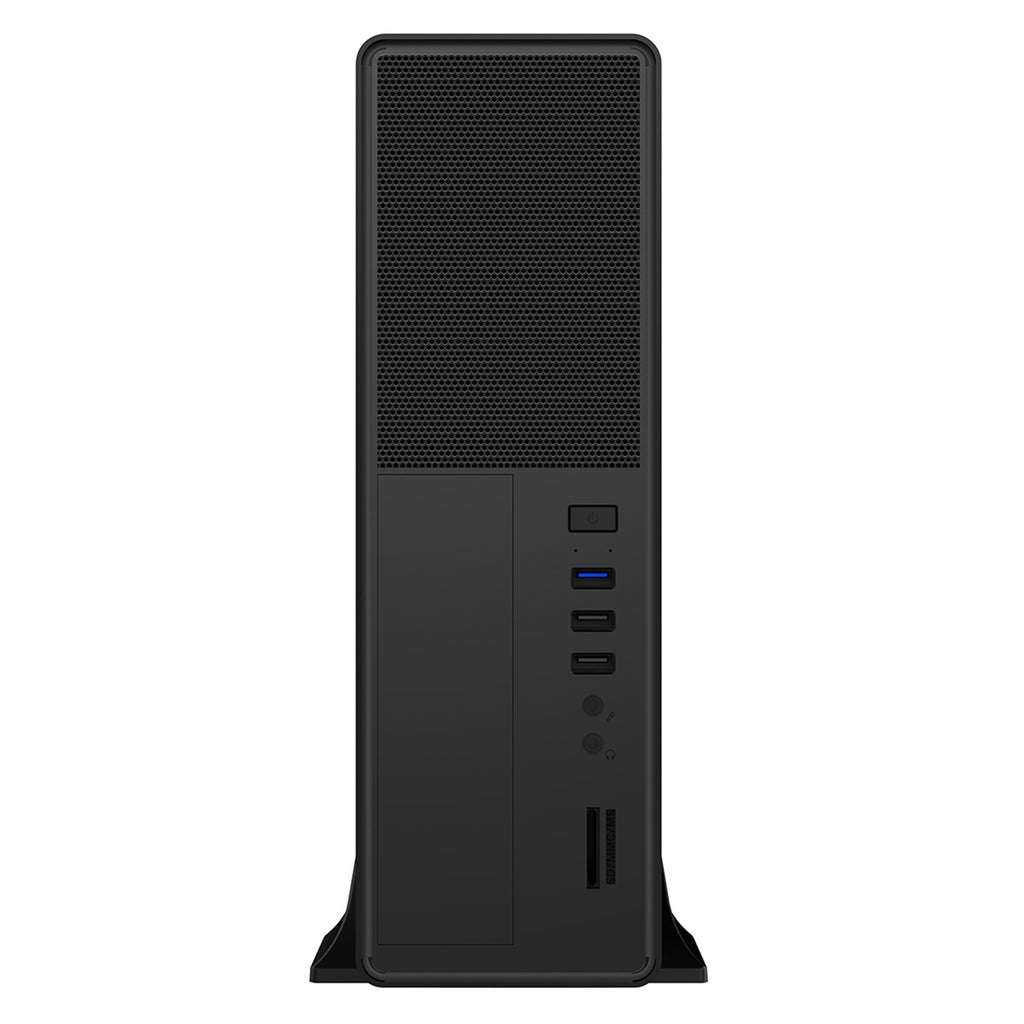

- Front mesh details for extra airflow
PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A
Connections
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1
Drive Bays
1 x 5.25″ External
2 x 3.5″ Internal
2 x 2.5″ Internal (1 x 2.5″ uses a 3.5″ bay)
Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD
I/O Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)
General
| Brand | CiT |
|---|---|
| Colour | Black |
| Form Factor | Micro Tower |
| Body Material | 0.5mm SECC Metal |
Motherboard & Expansion
| Motherboard Support | Micro ATX, Mini-ITX |
|---|---|
| Expansion Slots | 4 x Half-Height |
| Max GPU Length | 225mm |
| Max CPU Cooler Height | 82mm |
Storage & Connectivity
| Drive Bays | 1 x 5.25" External, 2 x 3.5" Internal, 2 x 2.5" Internal (1 x 2.5" uses a 3.5" bay) |
|---|---|
| USB Ports | 1 x USB 3.0, 2 x USB 2.0 |
| Audio Ports | 1 x HD Audio (Also Supports AC'97), 1 x Microphone |
| Card Reader | SD/TF Card Reader Included (Built-in) |
Power & Cooling
| PSU Included | Yes |
|---|---|
| PSU Output | 300W |
| PSU Form Factor | Micro ATX |
| PSU Connections | 20+4 Pin ATX: 1, +12V 4 Pin CPU: 1, 4 Pin Molex: 2, SATA: 3, FDD: 1 |
| PSU Rails | +3.3V: 16A, +5V: 16A, +12V: 14A, -12V: 0.3A, +5VSB: 2A |
| Top Fan | 1 x 80mm (Included) |
| Bottom Fan Space | 1 x 50mm (Not Included) |
Physical Dimensions
| Width | 100mm |
|---|---|
| Depth | 403mm |
| Height | 306mm |
| Cable Management Depth | 21mm |
