Codegen CSCG4U600GP 4U Rackmount Server Case 600mm Deep

The Codegen CSCG4U600GP is a 4U rackmount server case built for system integrators and IT professionals who need a secure, expandable enclosure for multi-drive and high-performance GPU workloads. Constructed from 1.2 mm steel with flexible motherboard support and effective cooling, it balances a compact footprint with the internal capacity to host demanding hardware.

• 8 PCIe slots with GPU sag protection — Supports full-length graphics cards up to 360 mm and includes expansion card retainers to prevent sagging under load.

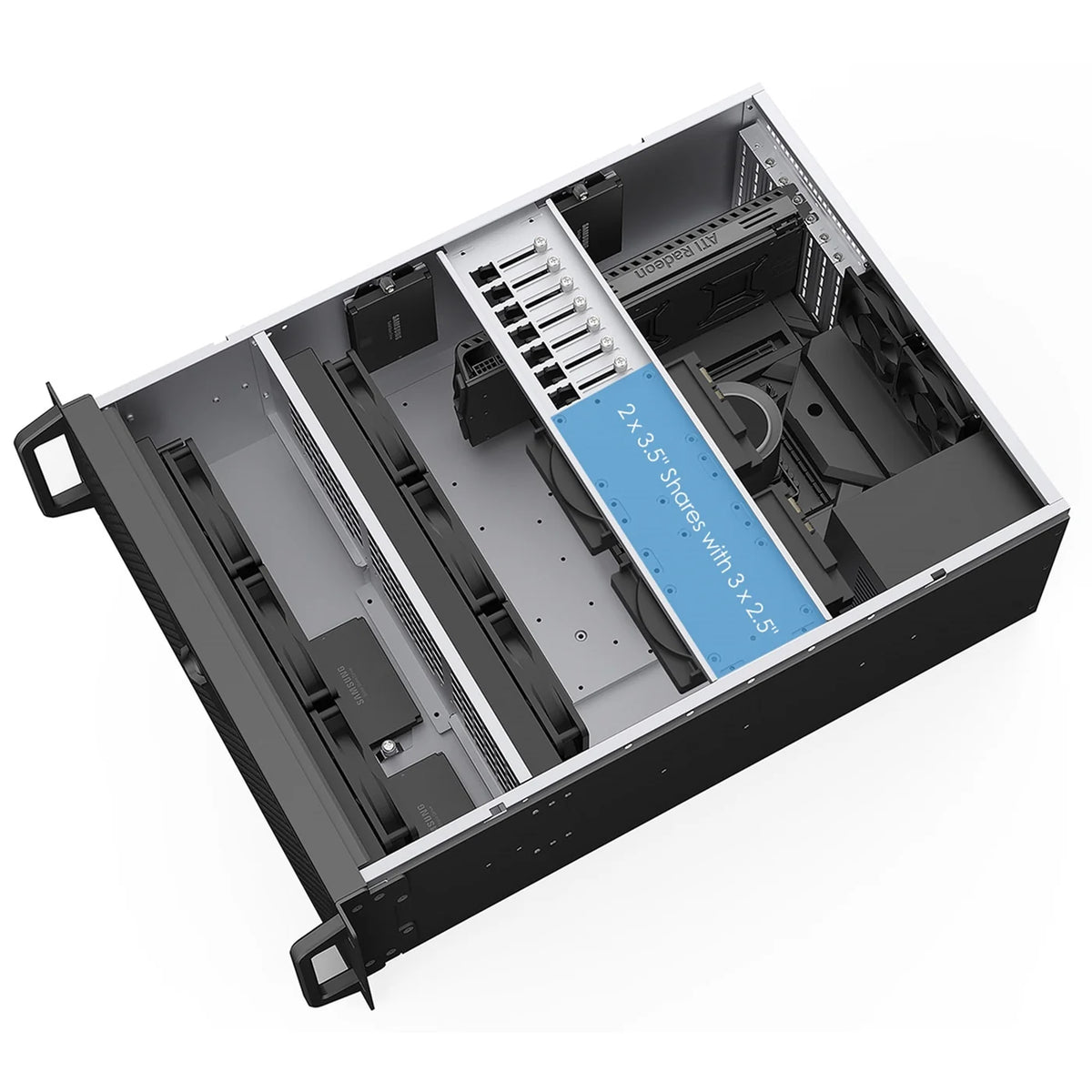

• Flexible drive storage for mixed workloads — 5 x 2.5" bays plus 2 x 3.5" bays (or 3 x 2.5" alternative) let you mix SSDs and HDDs without external adapters.
• Pre-installed cooling with expansion room — Ships with dual 80 mm rear fans; supports up to 6 x 120 mm fans and 360 mm radiators for liquid cooling.
• Supports six motherboard form factors — Compatible with SSI-EEB, E-ATX, ATX, Micro-ATX, and Mini-ITX layouts, adapting to your existing infrastructure or new builds.
• Modern front I/O with USB-C — USB 3.1 Gen2 Type-C, USB 3.0, and USB 2.0 ports; separate power and reset buttons with status LEDs.

• ✓ Fits SSI-EEB, E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards without modification.
• ✓ Accommodates CPU coolers up to 130 mm tall when the card retainer is installed.
• ✓ Accepts graphics cards up to 360 mm in length, with or without fans and radiators installed.
• ✓ Works with standard ATX power supplies mounted at the bottom rear.
• Note: GPU clearance reduces if you fill all fan bays; measure your specific hardware before purchase.

Best for:

• Datacenter and workstation builds needing secure, tool-free access
• Mixed SSD and HDD storage configurations without external adapters
• High-end GPU workloads with room for multiple expansion cards
• Liquid-cooled systems; supports 360 mm radiators front or middle
• System integrators building platforms across multiple motherboard sizes

Trade-offs:

• Compact desk setups; 641 mm depth and 4U height suit racks, not standard shelves
• Passive or near-silent cooling; pre-installed fans and expansion bays assume active cooling
• Budget builds without discrete cooling; does not include a power supply
• Motherboards larger than SSI-EEB; not backwards compatible with older or non-standard boards

The Codegen 4U Rackmount CSCG4U600GP is a professional-grade server chassis designed for reliability, expandability, and efficient cooling. Constructed from durable 1.2 mm SGCC steel, it provides robust protection for critical hardware in both datacenter and workstation environments.

With a depth of 600 mm, the chassis strikes a balance between compact footprint and internal capacity, supporting a wide range of motherboards and high-performance components.

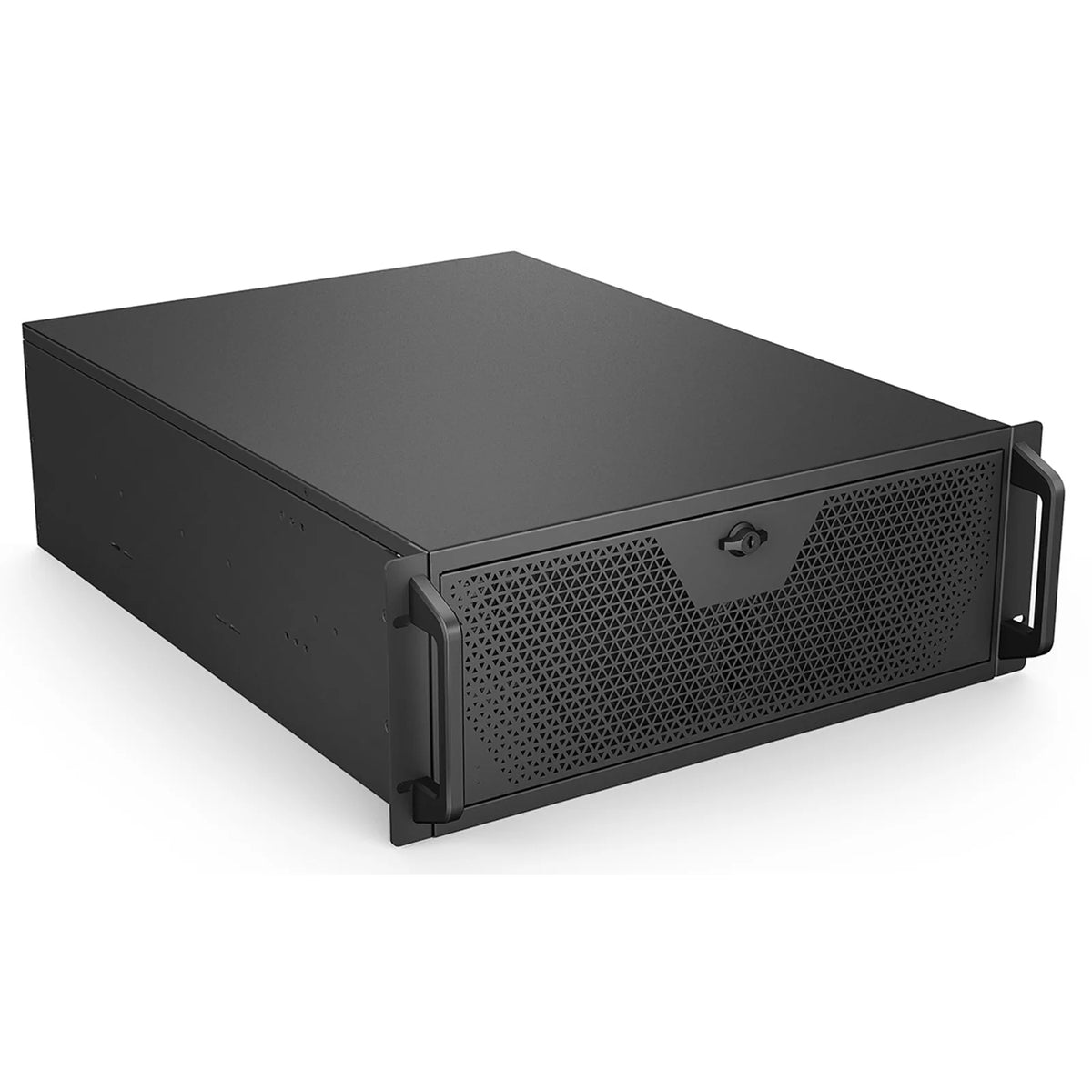

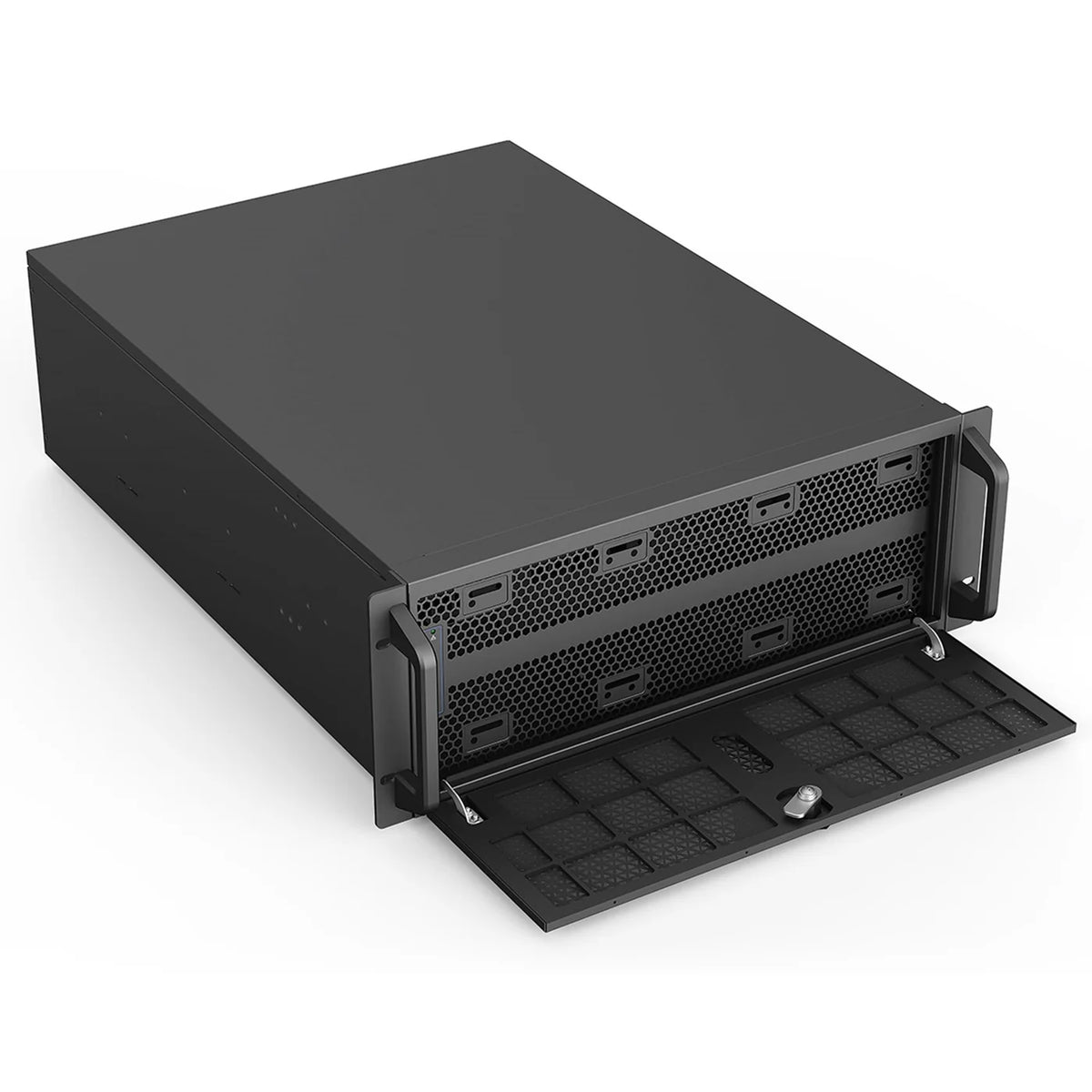

The front panel features a clean design with triangular ventilation, lockable access, and a modern I/O set including USB Type-C, USB 3.0, USB 2.0, power/reset buttons, and LED indicators for system activity.

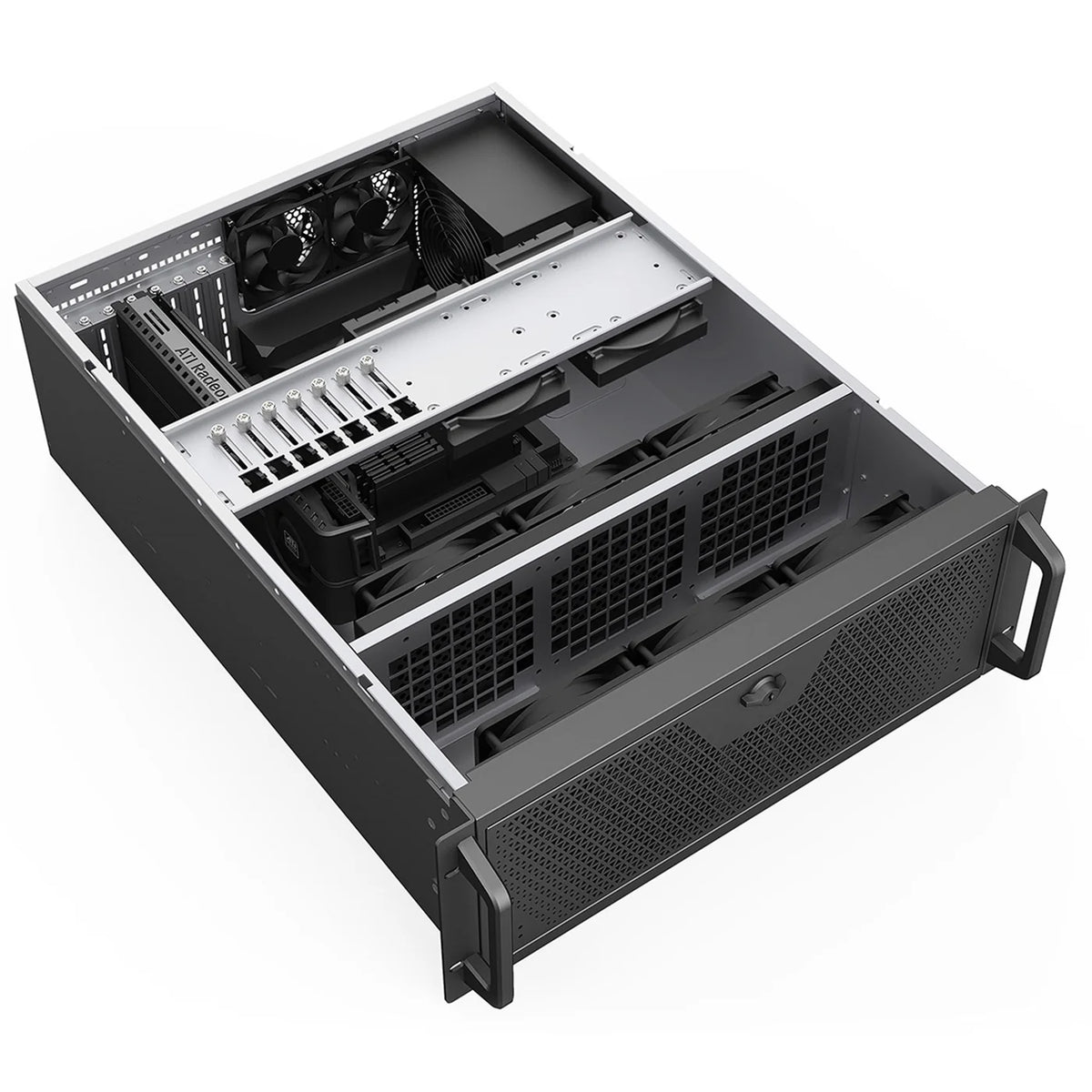

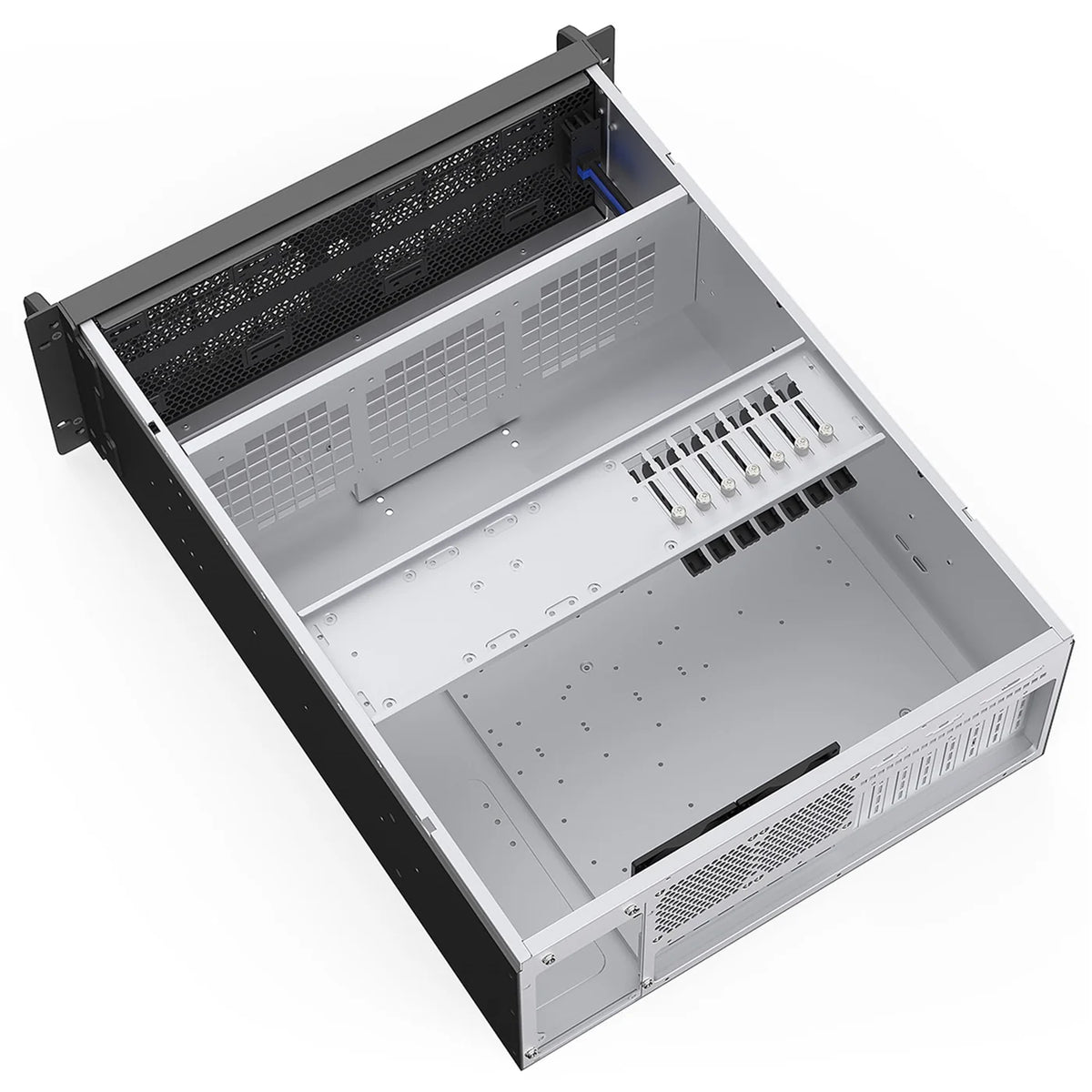

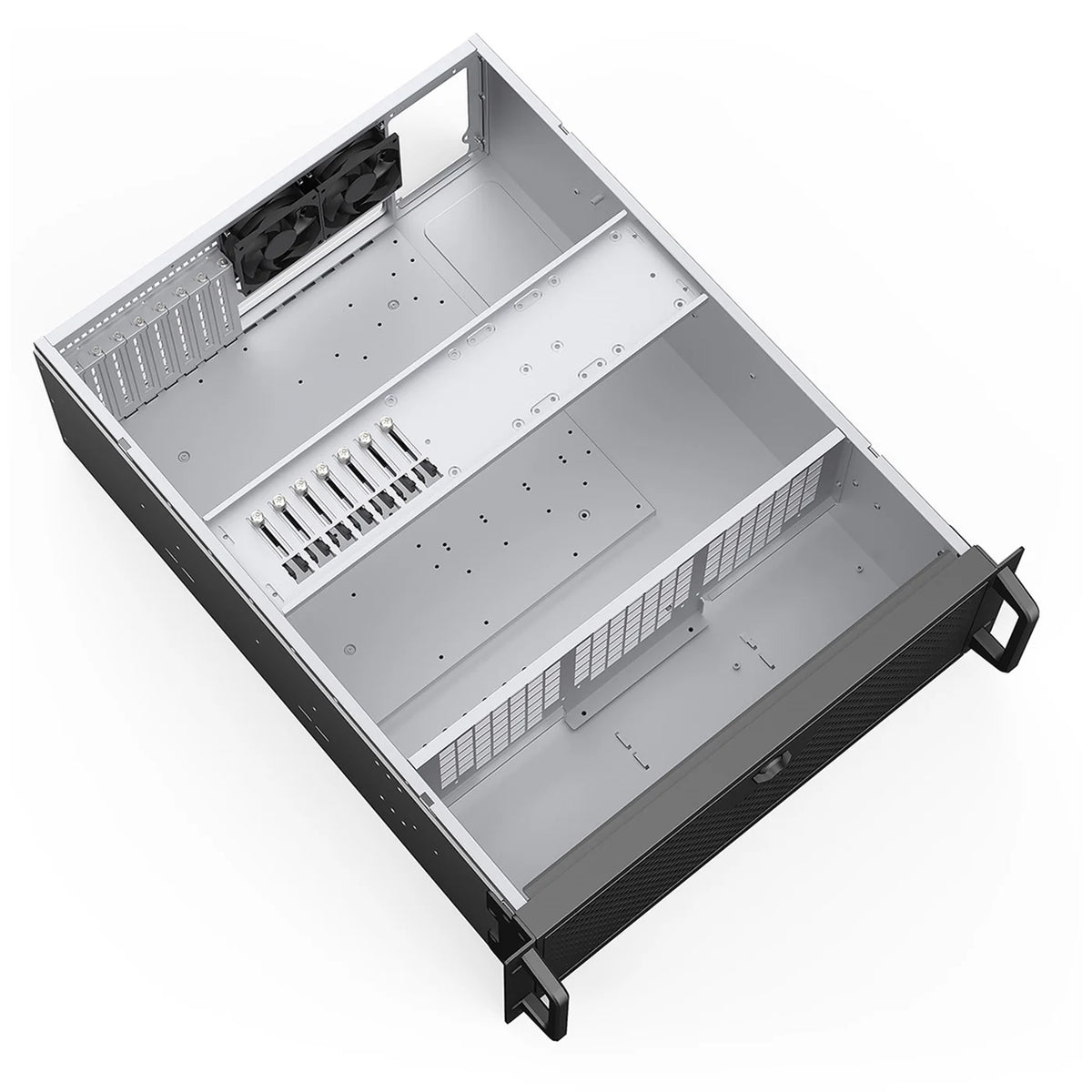

Internally, the chassis provides flexible drive mounting options, GPU clearance up to 360 mm, and CPU cooler clearance of up to 130 mm with a card retainer installed.

This rackmount case is designed to meet the demands of system integrators, power users, and IT professionals who require a versatile, secure, and efficient enclosure.

General

Physical Specifications

Motherboard & Expansion

Cooling & Storage

Front Panel & Connectivity

Power & Compatibility
