TP-Link CPE510 - 5GHz 300Mbps 13dBi Outdoor CPE Antenna
TP-Link
TP-Link CPE510 - 5GHz 300Mbps 13dBi Outdoor CPE Antenna
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna.
- Adjustable transmission power from 0 to 23dBm/200mw.
- System-level optimization for more than 15km long range wireless transmission.
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology. improves product performance in throughput, capacity and latency, ideal for PTMP applications.
- Centralized Management System – Pharos Control.
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes.
- Outdoor stabilized enclosure with IPX5 waterproof certification.

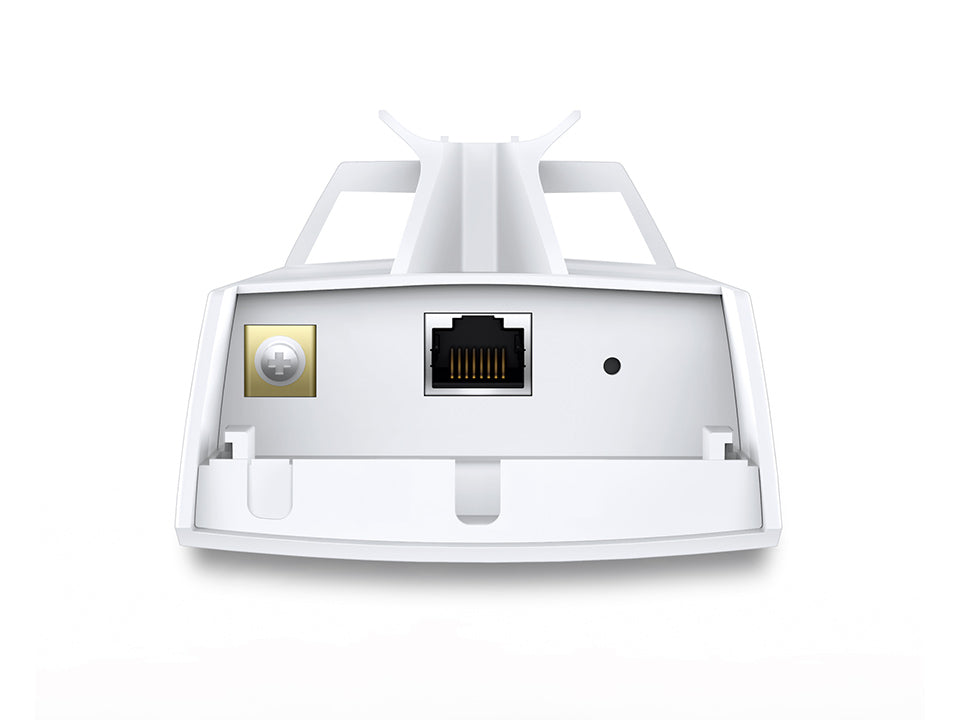

- Dual Ethernet ports and grounding terminal integrated.
- 6KV Lightning Protection, 15KV ESD Protection.
- Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely.
- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security.
- Selectable bandwidth of 5/10/20/40MHz.
- Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools.
- Easy antenna alignment with wireless signal quality indicator.
Product Description
TP-LINK's 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Built-in High Gain Dual-Polarized Antenna — Dedicated metal reflector ensures higher gain and lower noise interference.
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications.
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.
Product Specifications
| Processor | Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Wireless Standards | IEEE 802.11a/n |
| Frequency | 5.15~5.85GHz |
| Wireless Speed | Up to 300Mbps (40MHz, Dynamic); Up to 144.4Mbps (20MHz, Dynamic); Up to 72.2Mbps (10MHz, Dynamic); Up to 36.1Mbps (5MHz, Dynamic) |
| Maximum Transmit Power | 25dBm/200mW (Adjustable power by 1dBm) |
| Antenna Type | Built-in 13dBi 2x2 Dual-polarized Directional Antenna |
| Beam Width | 45° (H-Plane) / 30° (E-Plane) |
| Interface | 1 x 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in); 1 x 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE passthrough); 1 x Grounding Terminal; 1 x Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC |
| Power Consumption | 13 Watts Max |
| Protection | 15KV ESD Protection; 6000V Lightning Protection |
| Weatherproof | IPX5 waterproof certification; Outdoor ASA stabilized plastic enclosure |
| Operating Temperature | -30°C~70°C (-22°F~158°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~95% non-condensing |
| Certifications | CE / FCC / UL / IC / GS / PSB / C-tick / SAA / S-Mark / KC-mark |
| PoE Adapter Dimensions (W x D x H) | 110 x 57 x 33.5mm |
| PoE Adapter Input | 100-240VAC, 50/60Hz, 0.8A Max @ 100VAC |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Package Contents | Outdoor Wireless CPE; 24V 1A Passive PoE Adapter; Pole Mounting Straps; AC Power Cord; Installation Guide |
| Part Number | CPE510 |
| UPC | 6935364070922 |
