DeepCool AK700 Digital NYX CPU Cooler - 7 Heatpipes, 120mm
DeepCool
DeepCool AK700 Digital NYX CPU Cooler - 7 Heatpipes, 120mm

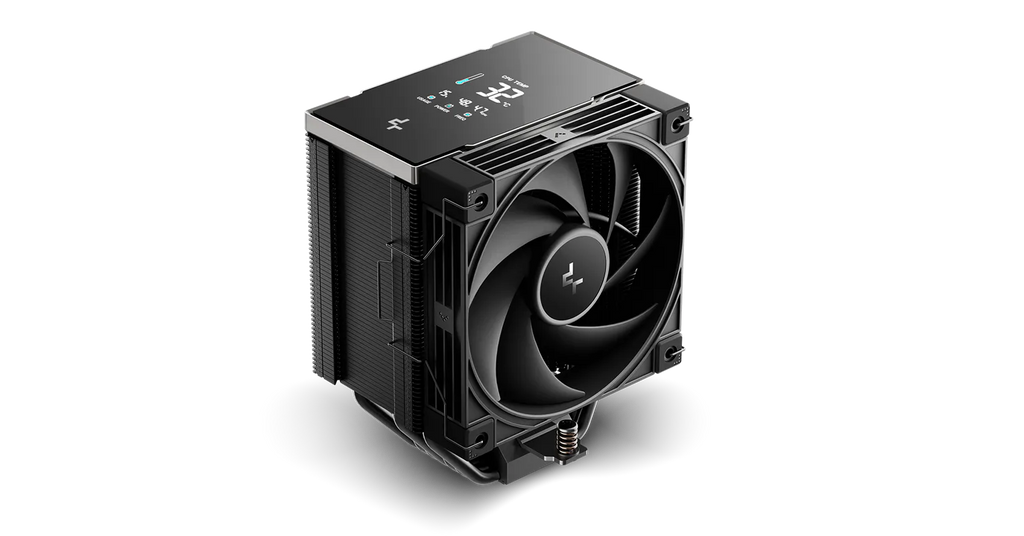

The DeepCool AK700 Digital NYX is a tower cooler with seven copper heat pipes and a quad-segmented digital display that monitors CPU temperature, usage, wattage and frequency in real time. It suits builders who want active thermal monitoring and AI-assisted fan control without manual BIOS tuning. The display connects via USB 2.0 header and is managed through DeepCool's software.
Why this product
Quad-segmented digital display
Real-time monitoring of CPU temperature, usage, wattage, and frequency displayed on the cooler itself. Controlled entirely through DeepCool software via USB 2.0 header.
AI-tuned fan automation
DeepCreative's algorithm tracks CPU load and automatically adjusts fan speed, eliminating the need for manual BIOS fan curves. Fans ramp to full speed above 80 °C and revert to preset speed when cooler.
Seven copper heat pipes
Precision-machined copper base with offset pipe layout to avoid tall RAM spreaders, freeing up all RAM slot visibility while maintaining thermal capacity.
Dust-clearing technology
Activate Clearing Tech (ACT) within 8 seconds of power-on to automatically clear dust from fan blades and heatsink fins.
Silent operation when cool
0-RPM startup/stop mode keeps the fan stopped until thermal demand arrives, reducing noise and extending fan lifespan.
- Heat pipes7 × 6mm copper
- Fan size120 × 120 × 25mm
- Max fan speed2700 RPM
- Noise level21.0 / 28.8 / 36.0 dB(A)
- Socket supportIntel LGA1851/1700/1200/115X; AMD AM5/AM4
- Warranty3 years
- SKUDEE-905
- EAN6933412729624
- Intel LGA1851, LGA1700, LGA1200, and LGA115X processors.
- AMD AM5 and AM4 sockets.
- Offset heat pipe design clears tall RAM modules and allows visibility of all RAM slots.
- Requires an available USB 2.0 header on the motherboard for the digital display. Works without it, but the display will not function.
Best for
- Builders who want real-time CPU metrics visible on the cooler itself without opening software.
- Users who prefer automated fan control over manual BIOS curve tuning.
- Systems with tall RAM heat spreaders that need cooler compatibility without obstruction.
- Quiet-focused builds, thanks to 0-RPM mode and hydraulic bearings.
Trade-offs
- Builders without a free USB 2.0 header, since the display requires one.
- Compact cases where 157mm height and 124mm width exceed available space.
- Users who do not want to install or manage DeepCool software, as the display and AI automation depend on it.
- Systems that will not benefit from automated fan control, such as stable low-load workloads where manual static curves are preferred.

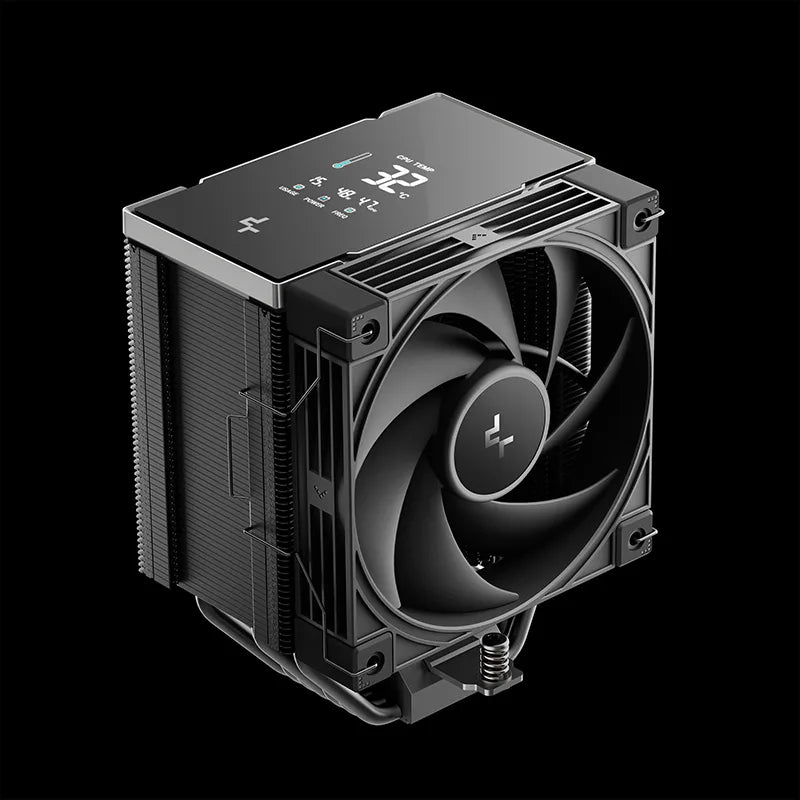

Building on the legendary AK DIGITAL lineup, the AK700 DIGITAL NYX delivers enhanced cooling and a bold new look. Equipped with seven advanced copper heat pipes, a dense single-tower heatsink, newly designed silent fan, and a high-end quad-segmented digital display, it offers top-tier performance and intuitive real-time monitoring.
Thanks to DeepCool's latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK700 DIGITAL NYX reaches a bump in cooling performance.

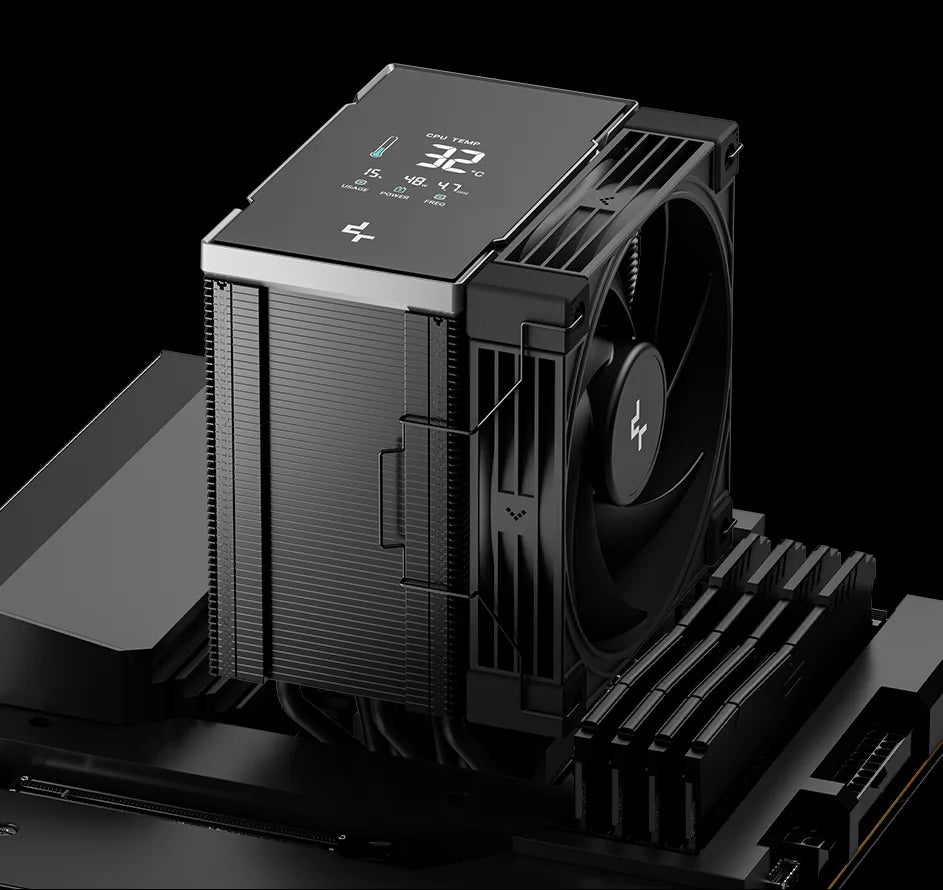

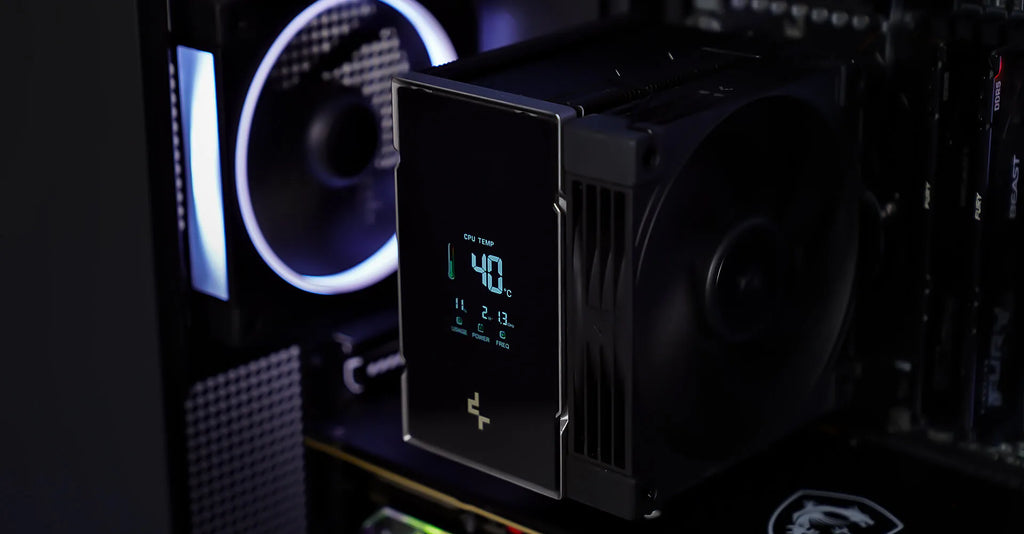

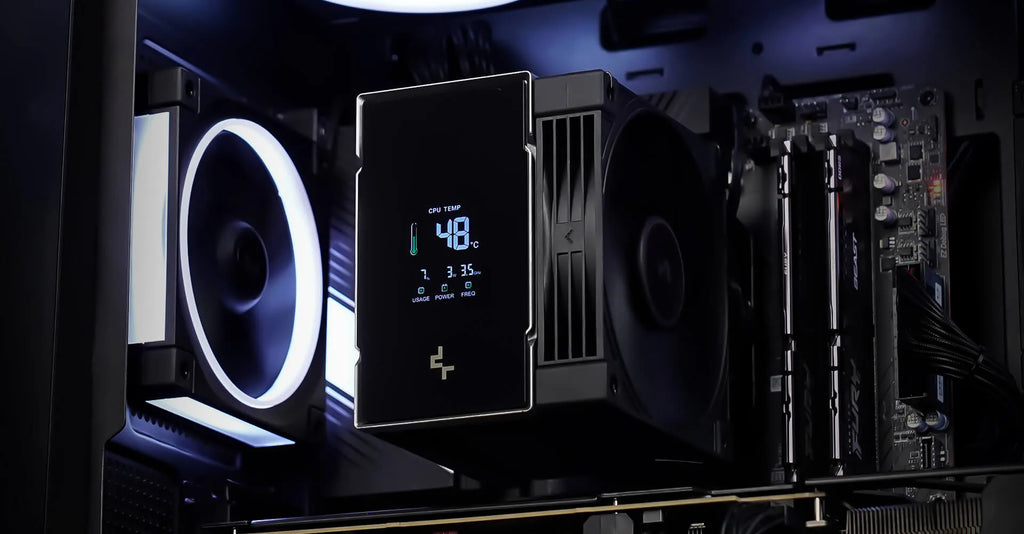

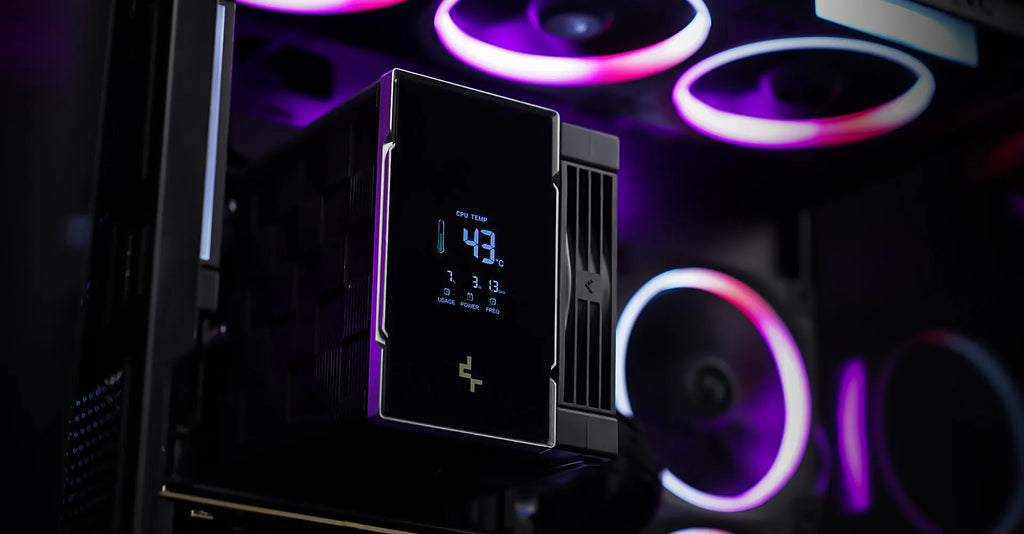

The standout addition of the AK700 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative's proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
*Fans instantly shift to full speed when CPU hits above 80 °C, crushing heat without delay. Fans automatic revert to preset mode once the CPU temp drops below 80 °C.

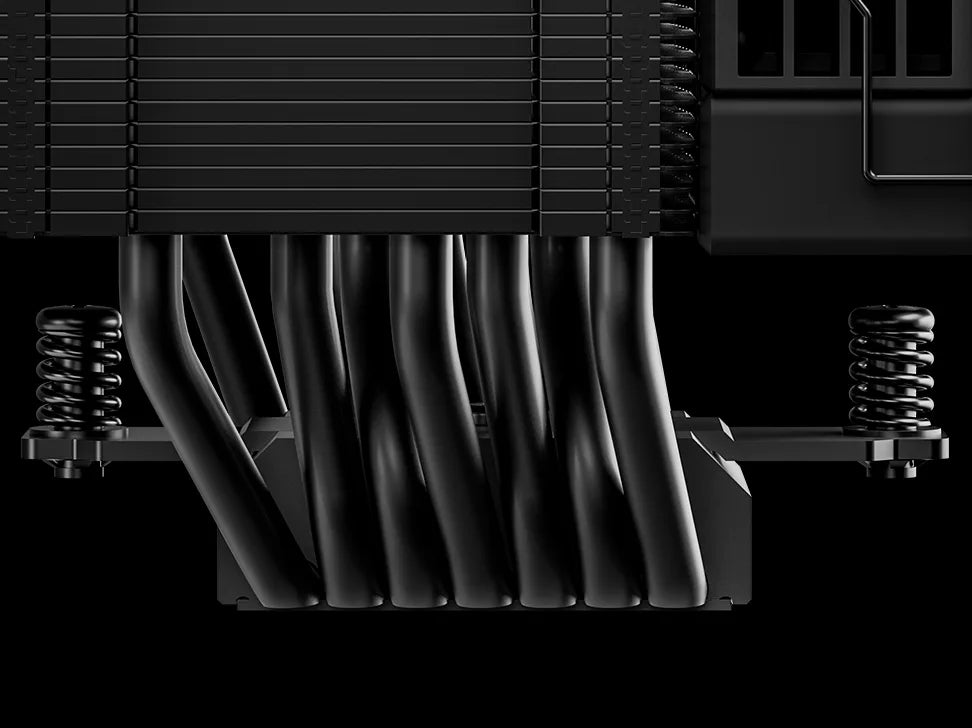

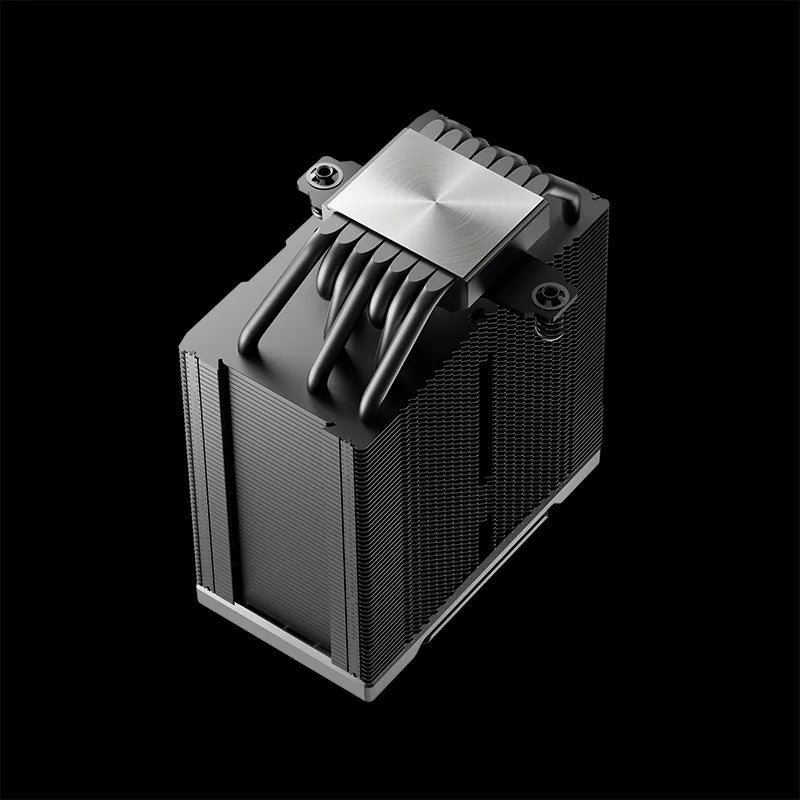

The AK700 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and seven copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

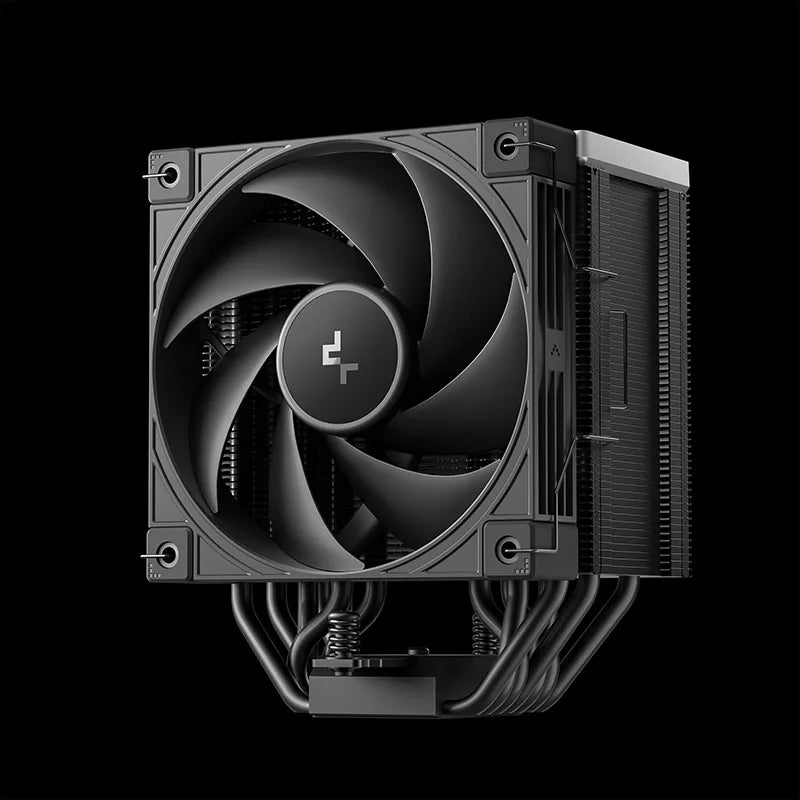

Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK700 DIGITAL NYX's fans operate smoothly and quietly.
- 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.

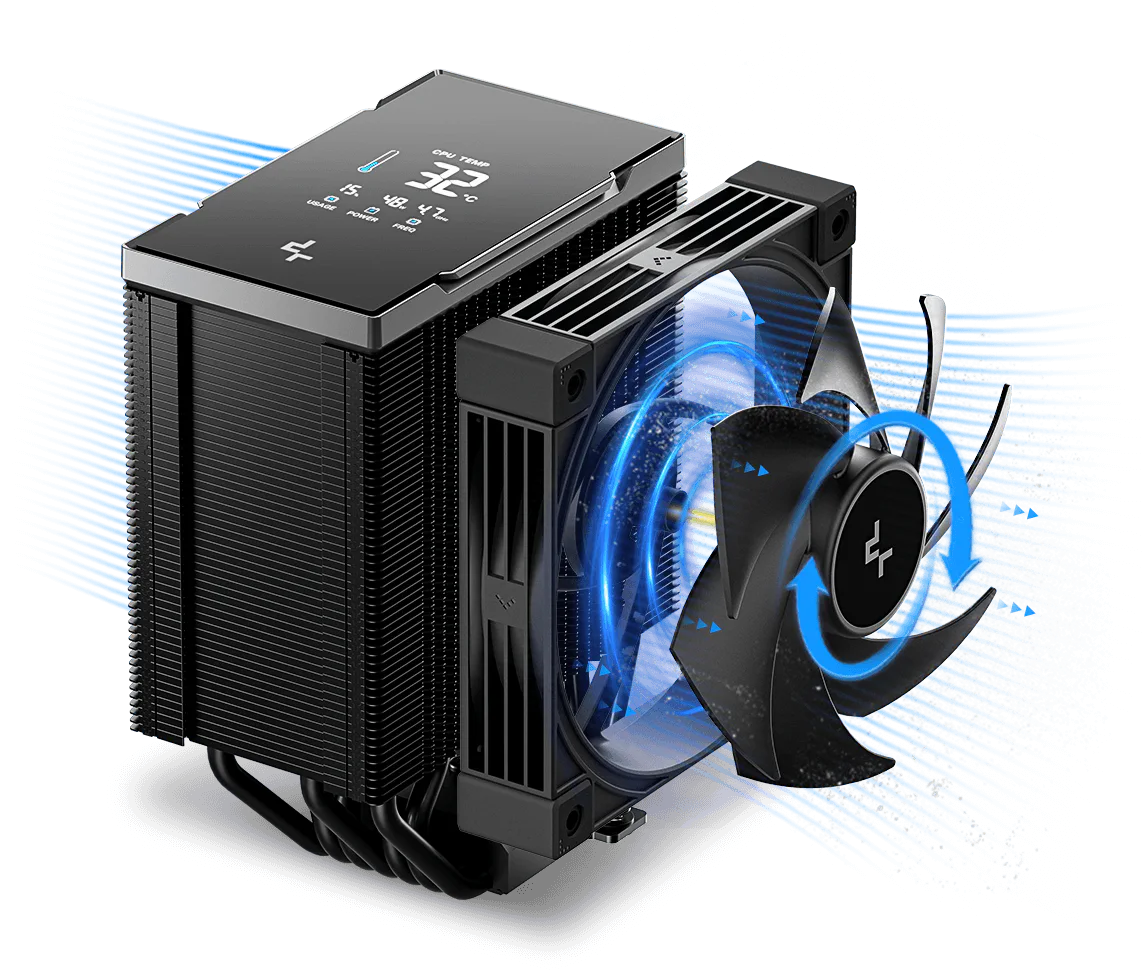

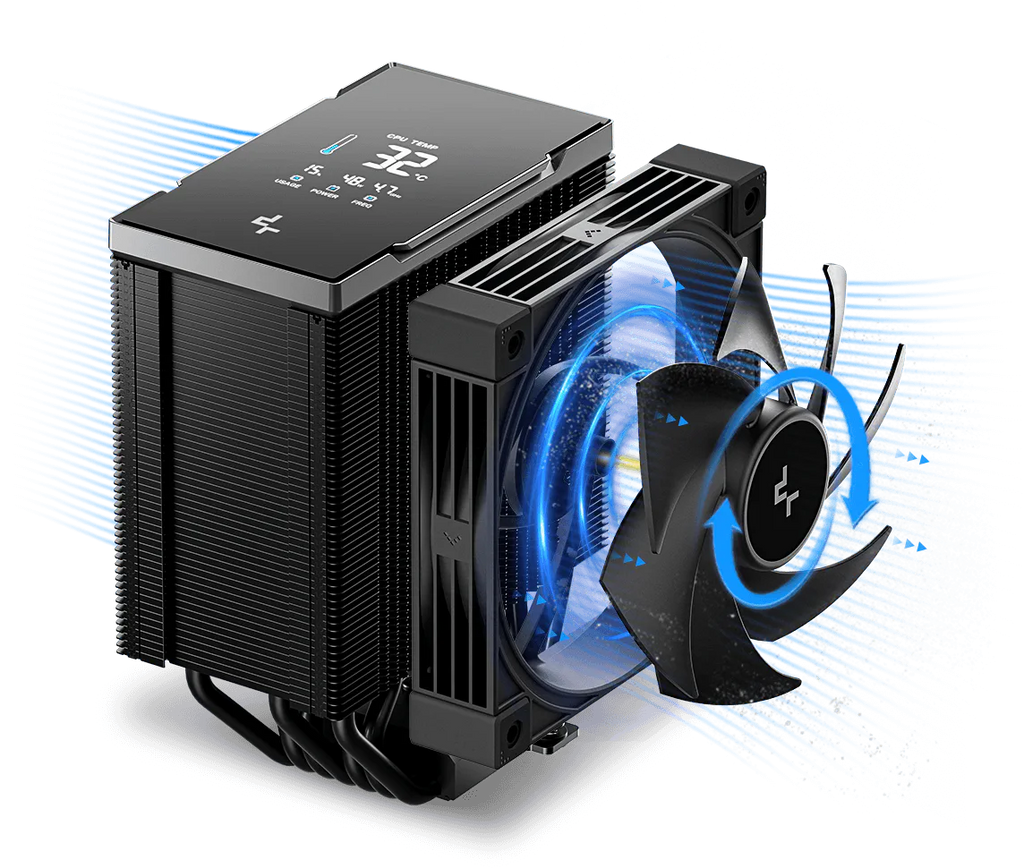

- Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
General
| Brand | DeepCool |
|---|---|
| Model | AK700 Digital NYX |
| Color | Black |
| Weight | 1252g |
Fan
| Size | 120 × 120 × 25mm |
|---|---|
| Speed range | 0–2700 RPM ±10% |
| Airflow | 77.23 CFM |
| Static pressure | 5.13 mmAq |
| Bearing type | Hydro bearing |
| Connector | 4-pin PWM |
| 0-RPM mode | Yes |
Acoustics & power
| Noise level | 21.0 / 28.8 / 36.0 dB(A) |
|---|---|
| Power consumption | 4.2W |
| Rated voltage | 12 VDC |
| Rated current | 0.35A |
Performance
| Heat pipes | 7 × 6mm copper |
|---|---|
| Base material | Precision-machined copper |
| Heatsink dimensions | 124 × 76 × 151mm |
| Socket support – Intel | LGA1851 / LGA1700 / LGA1200 / LGA115X |
| Socket support – AMD | AM5 / AM4 |
| Display connection | USB 2.0 header |
| Warranty | 3 years |
