DeepCool Assassin IV VC Vision CPU Air Cooler - 300W TDP
DeepCool
DeepCool Assassin IV VC Vision CPU Air Cooler - 300W TDP
The DeepCool Assassin IV VC Vision is a high-capacity tower air cooler with an integrated digital display, designed for users who want detailed CPU monitoring and dual acoustic profiles in a single cooler. Its vapor chamber base handles CPUs up to 300W TDP, making it suitable for high-end processors that generate significant heat.
Why this product
Vapor chamber base with 300W TDP capacity
A vapor chamber at the base combined with seven heat pipes and dual fin-array towers dissipates heat far more efficiently than traditional tower designs, supporting demanding high-end CPUs.
Quad-segmented digital display shows CPU metrics in real time
A magnetized LCD panel monitors CPU temperature, usage percentage, wattage, and frequency via USB 2.0 header connection and DeepCool software. The display uses color-coded warnings: green below 80 °C, orange 80–90 °C, red with flashing above 90 °C.
Whisper-quiet and performance modes with a simple switch
Slide a switch to toggle between a quiet profile (≤22.6 dB(A)) for silent operation and a performance profile (≤29.3 dB(A)) for maximum cooling capacity without needing software adjustments.
Relocatable 120mm fan clears tall RAM modules
The smaller fan can be repositioned to avoid obstruction with high-profile RGB memory, while the center 140mm fan provides extra airflow to VRMs and other components around the base.
Wide socket compatibility across Intel and AMD
It supports Intel LGA2066, 2011-v3, 2011, 1700, 1200, 1150, 1151, 1155 and AMD AM5, AM4, covering virtually all current mainstream platforms.
6-year limited warranty
DeepCool backs this cooler with six years of limited warranty coverage.
- TDP capacity300W
- Overall height172 mm
- Heatpipes7 × Ø6 mm
- Fans included140 mm + 120 mm
- Warranty6 years limited
- Weight1780 g
- SKUDEE-862
- EAN6933412729136
- Compatible with Intel LGA2066, 2011-v3, 2011, 1700, 1200, 1150, 1151, 1155 sockets
- Compatible with AMD AM5 and AM4 sockets
- Works with high-profile RGB memory modules thanks to the relocatable 120mm fan
- Digital display requires an open USB 2.0 header on the motherboard for real-time monitoring features
- 172mm height may require checking case clearance before installation
Best for
- High-end CPU builds that need robust cooling for CPUs up to 300W TDP
- Users who want real-time CPU monitoring without a separate software dashboard
- Systems requiring flexibility between silent and performance operation on demand
- Builders with high-end RGB memory who need unobstructed cooler placement
- Users prioritizing long-term support with a 6-year warranty
Trade-offs
- Extremely compact cases with less than 172mm of clearance above the CPU socket
- Systems without a USB 2.0 header if digital display monitoring is a requirement
- Budget builds where a lower-cost cooler would suffice, as this model targets high-TDP platforms
DeepCool's flagship air cooler series gets a drastic addition in the form of the ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don't stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.

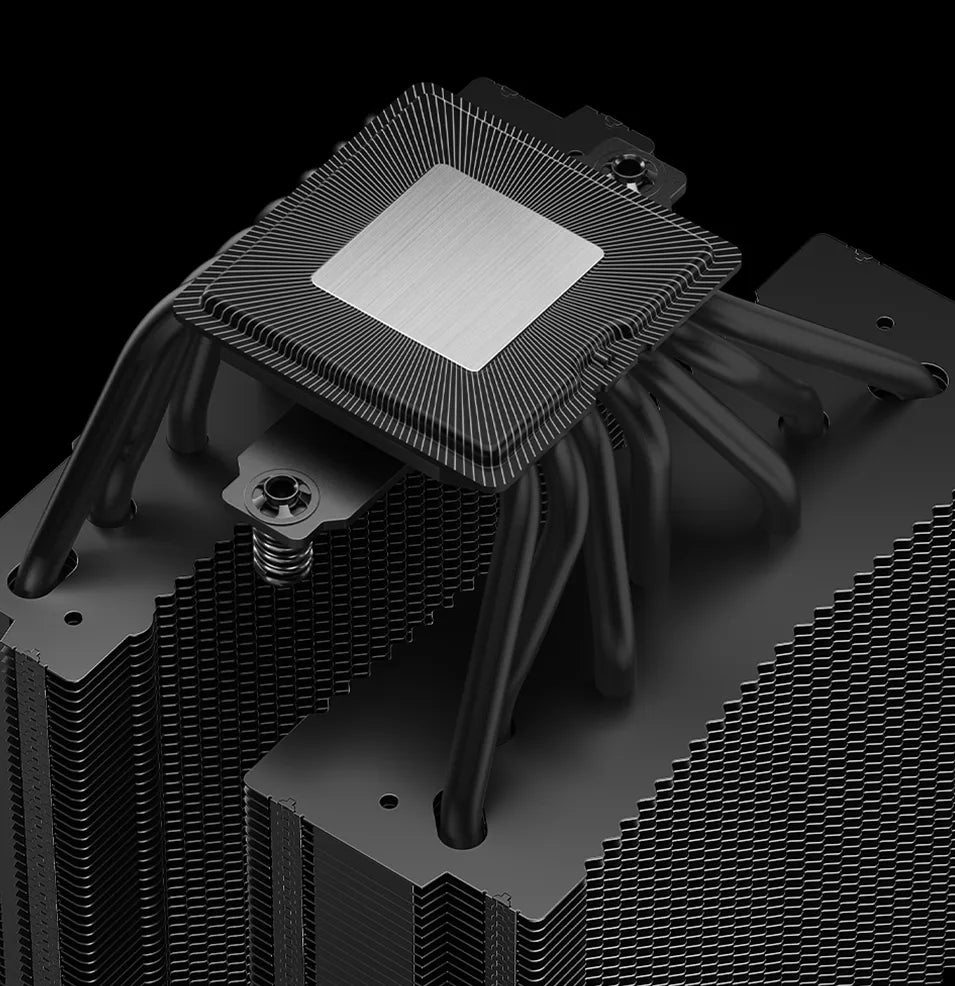

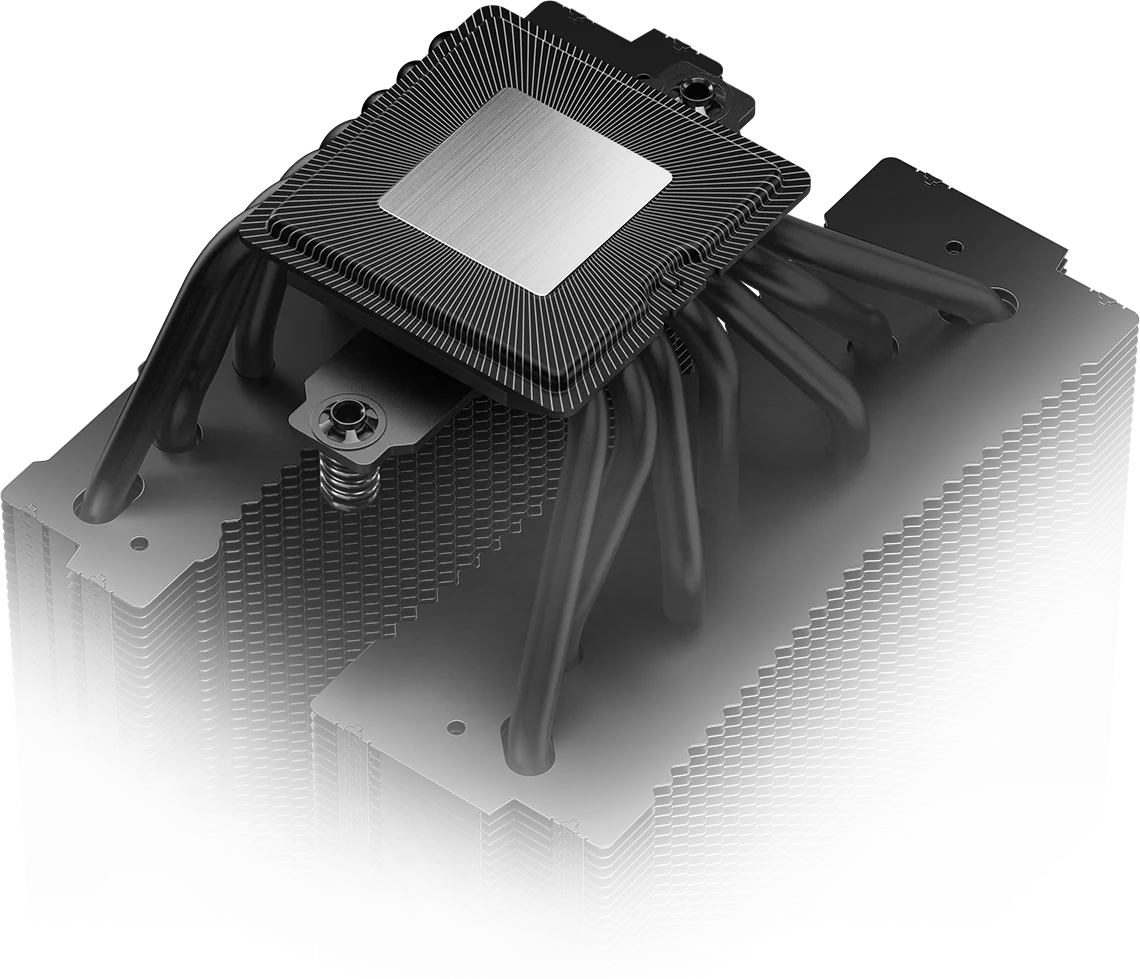

Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

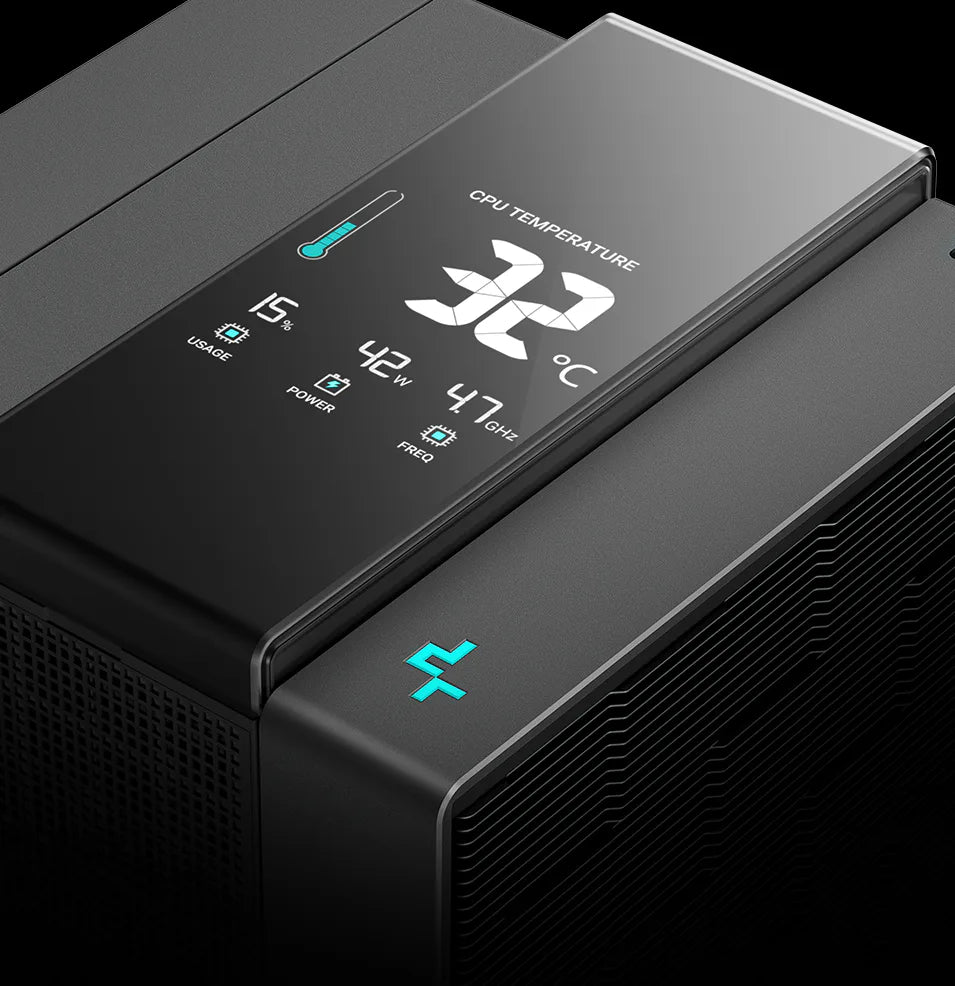

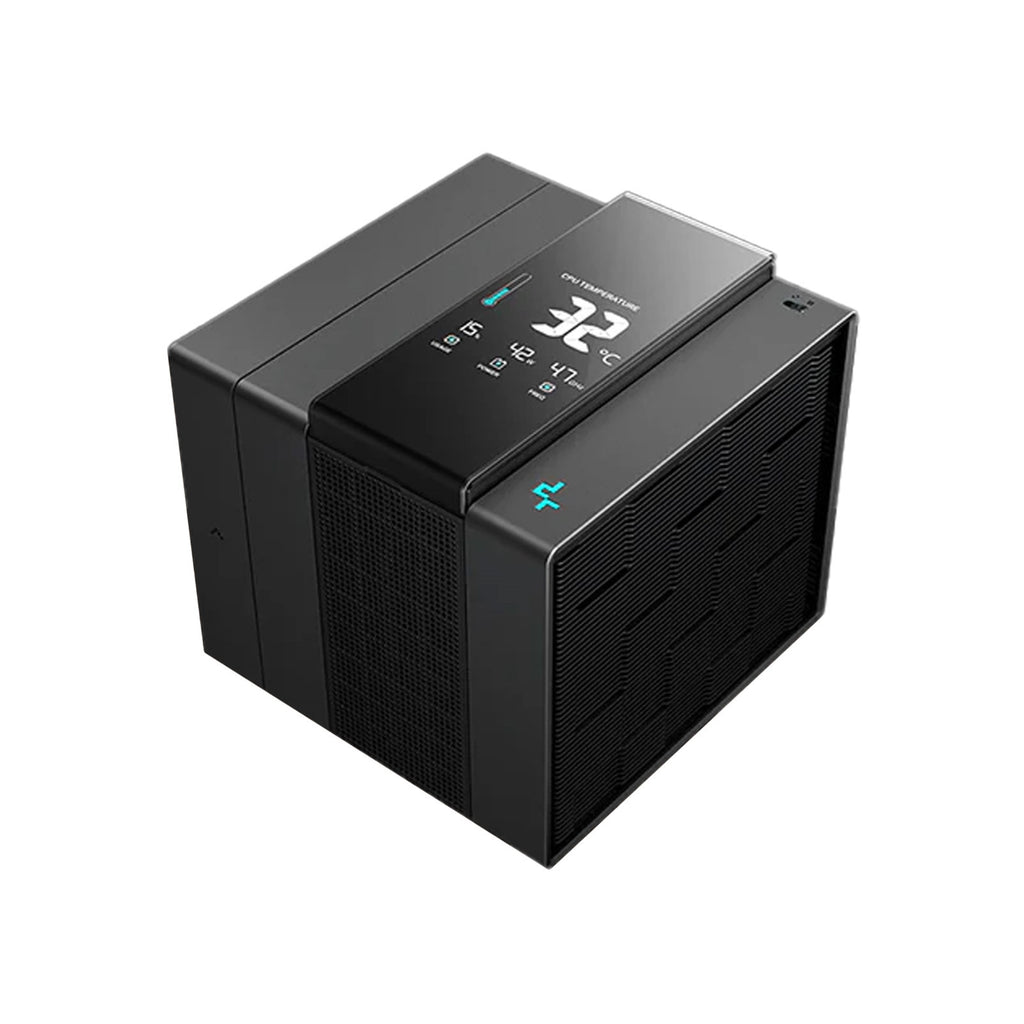

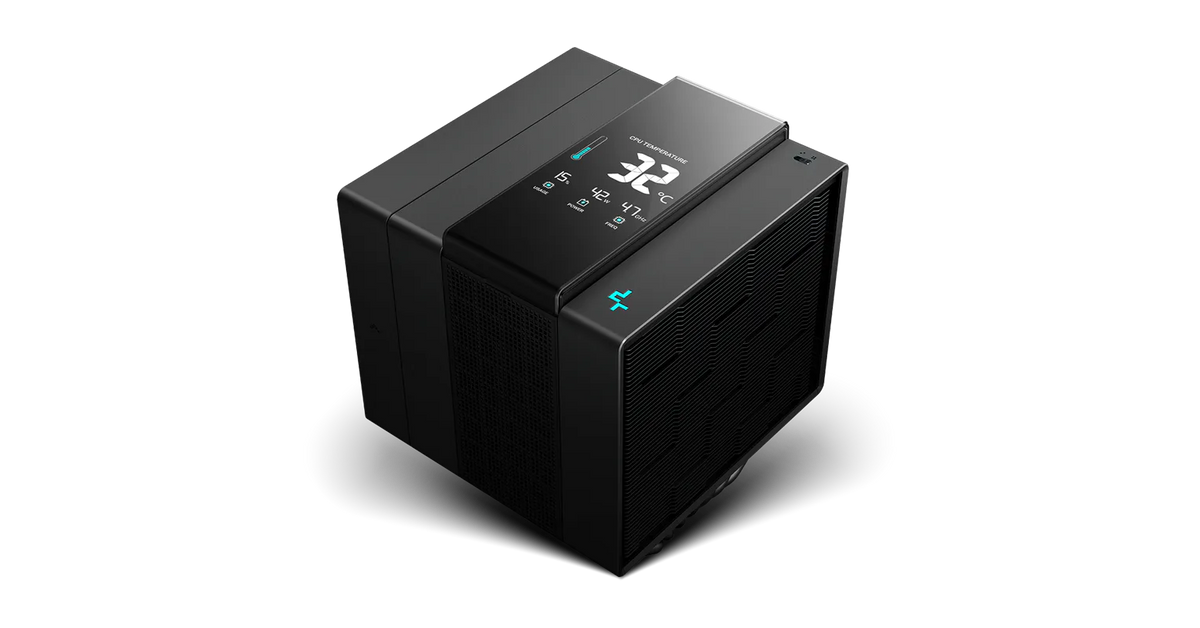

The standout addition of the ASSASSIN IV VC VISION is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The digital panel is magnetized, so installation and adjustments are extremely simple. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

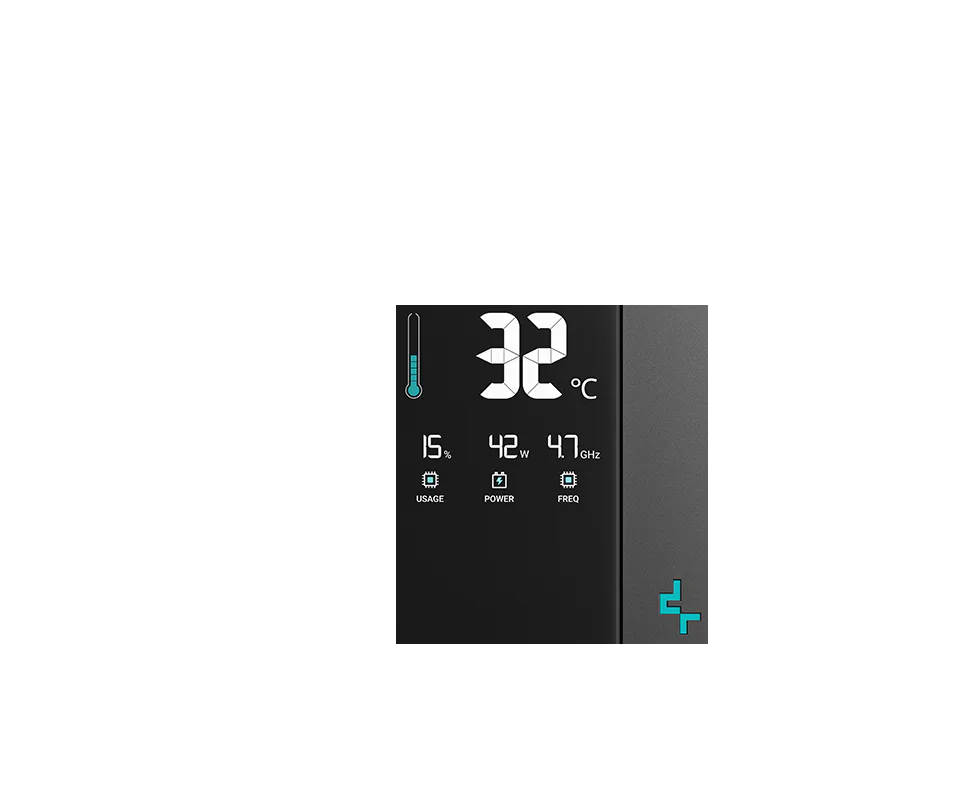

A temperature warning alert system has been integrated with a color-coded visual thermometer indicator: under 80 °C, the indicator will stay green; between 80 °C and 90 °C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

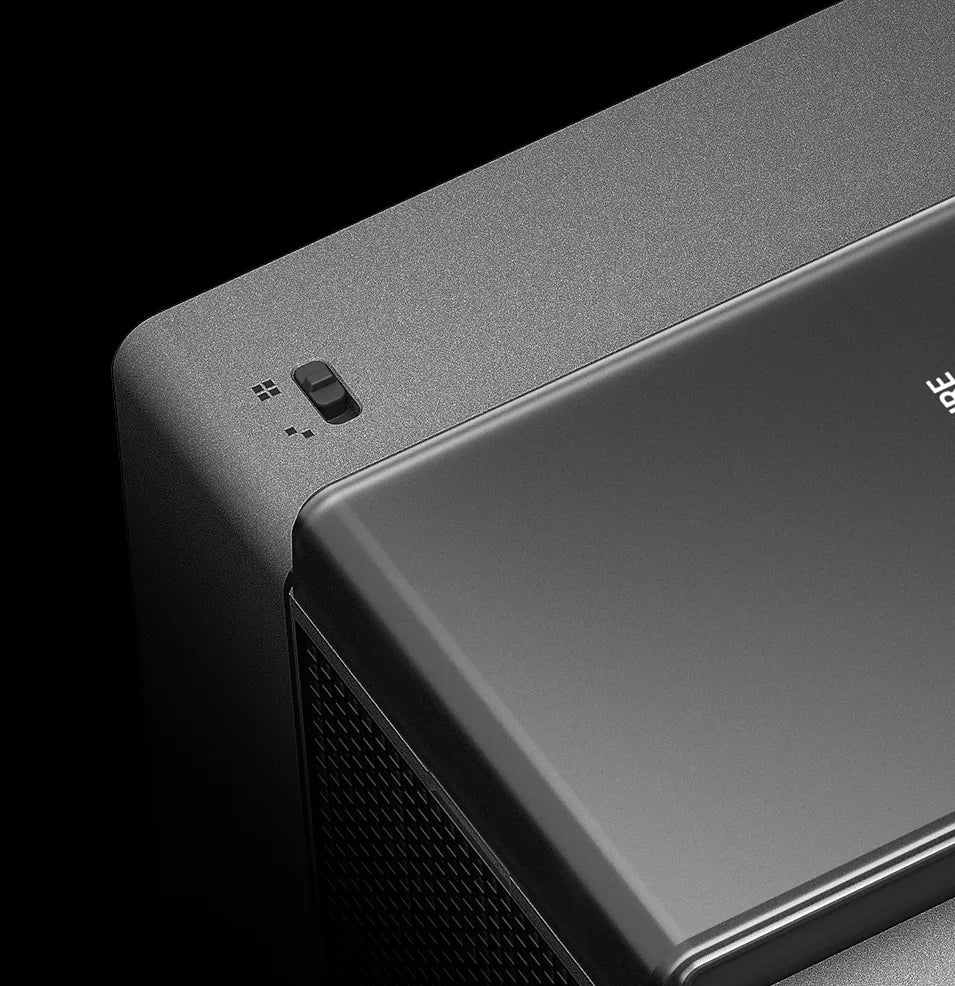

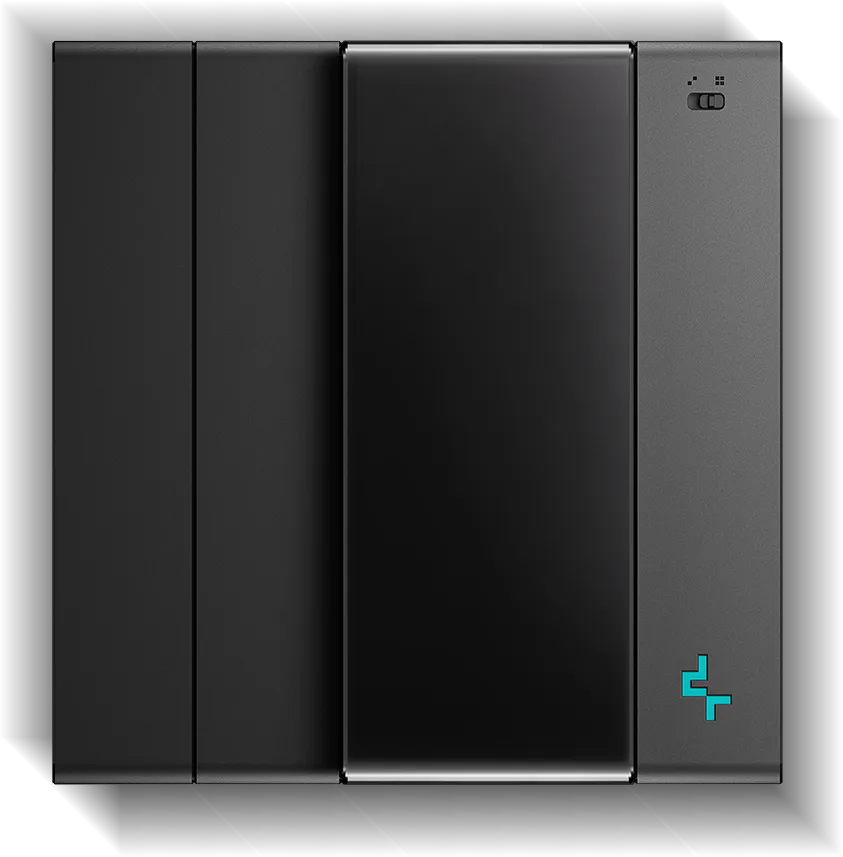

With a simple slide of a switch, the ASSASSIN IV VC VISION can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.

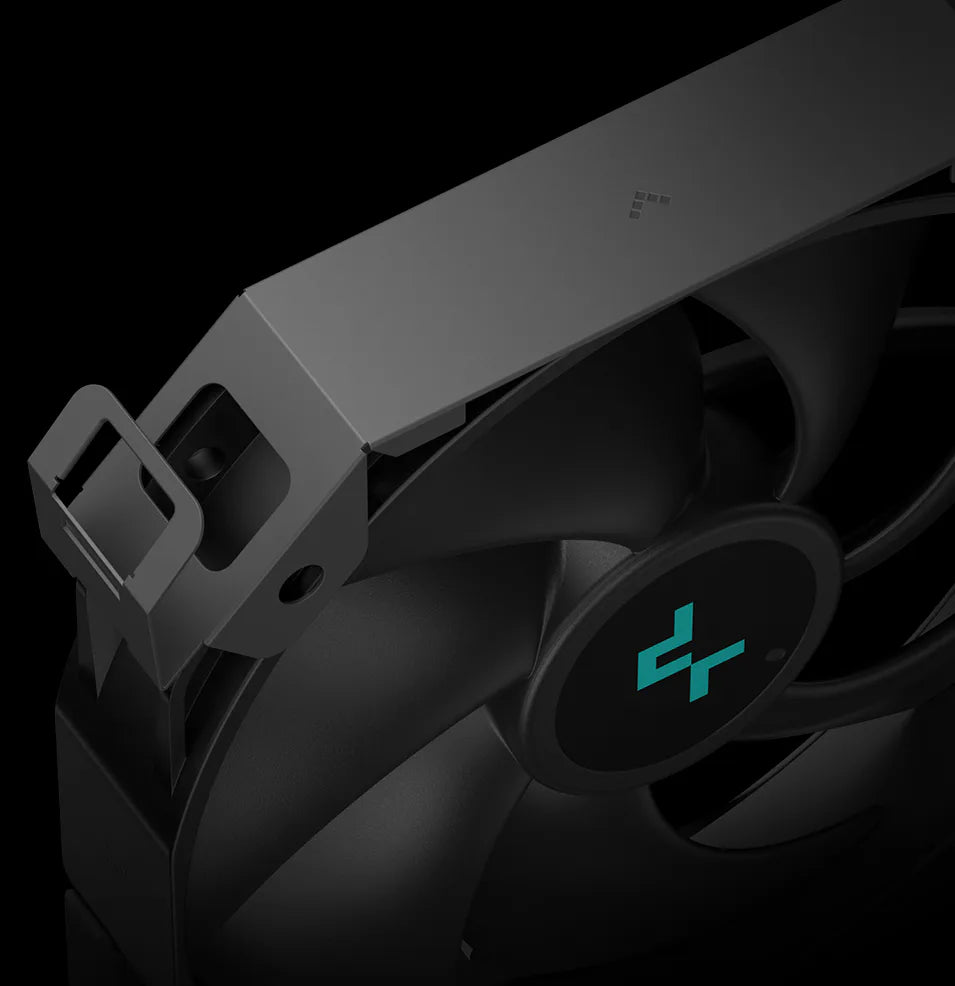

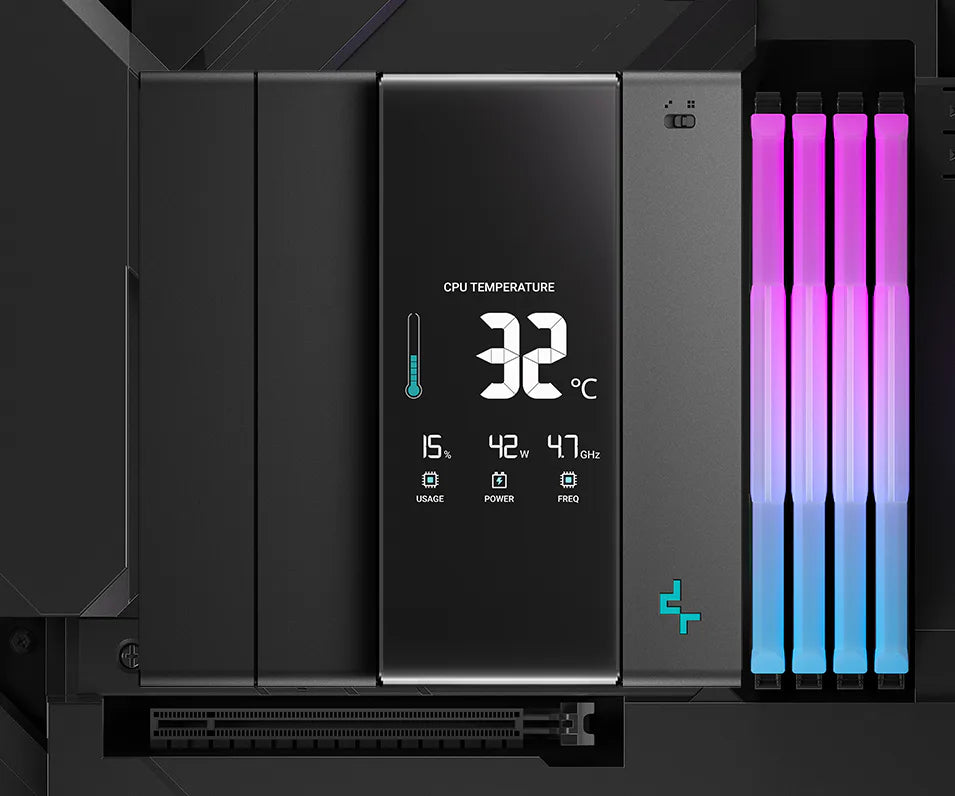

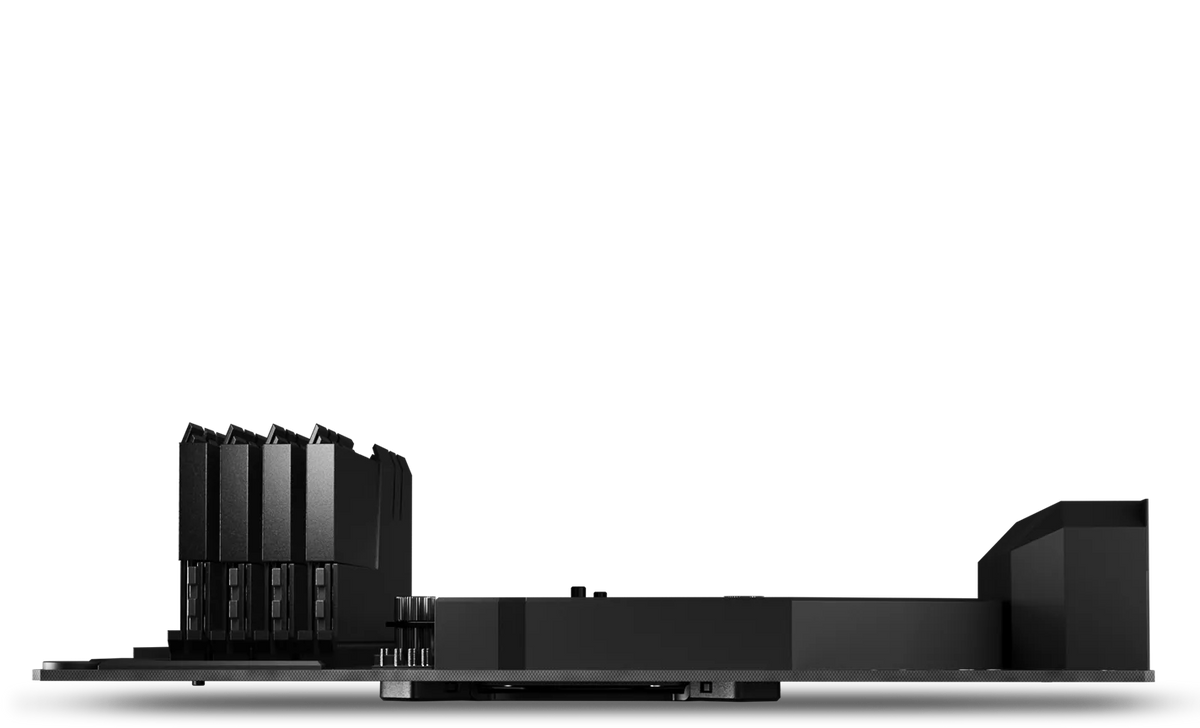

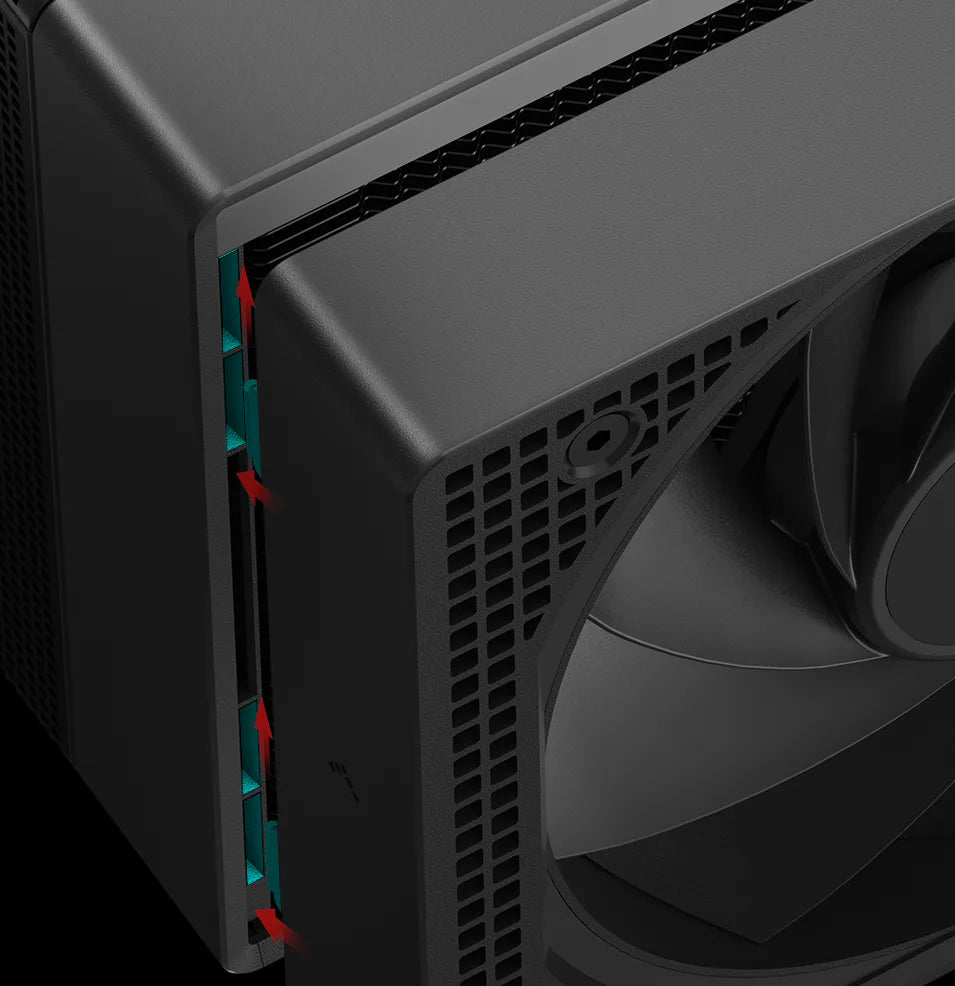

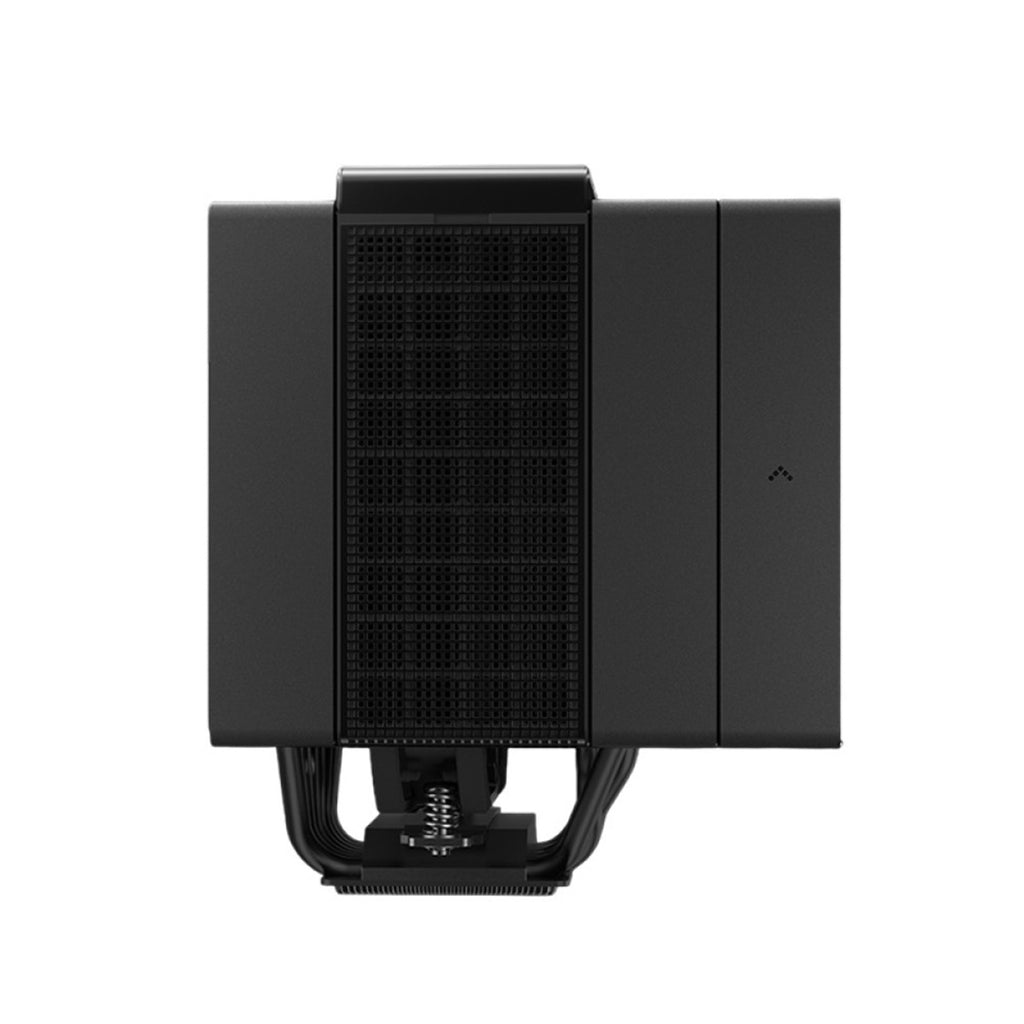

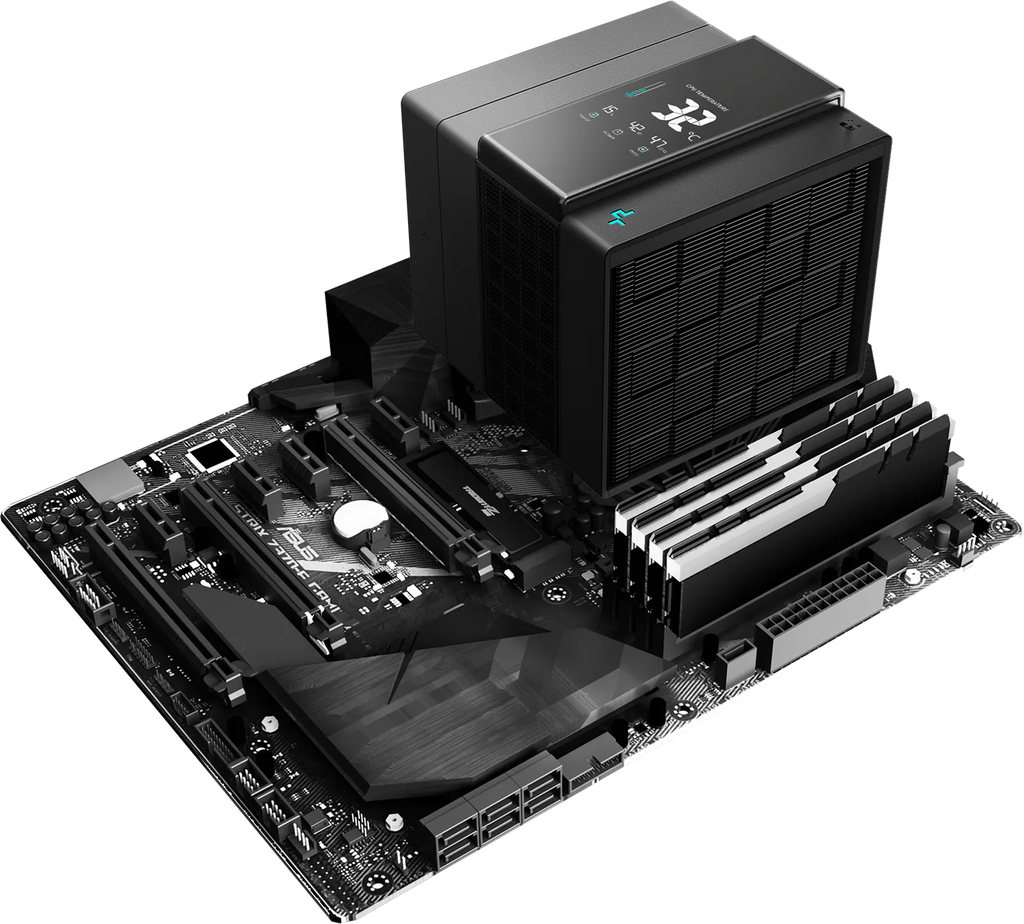

The ASSASSIN IV VC VISION's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.

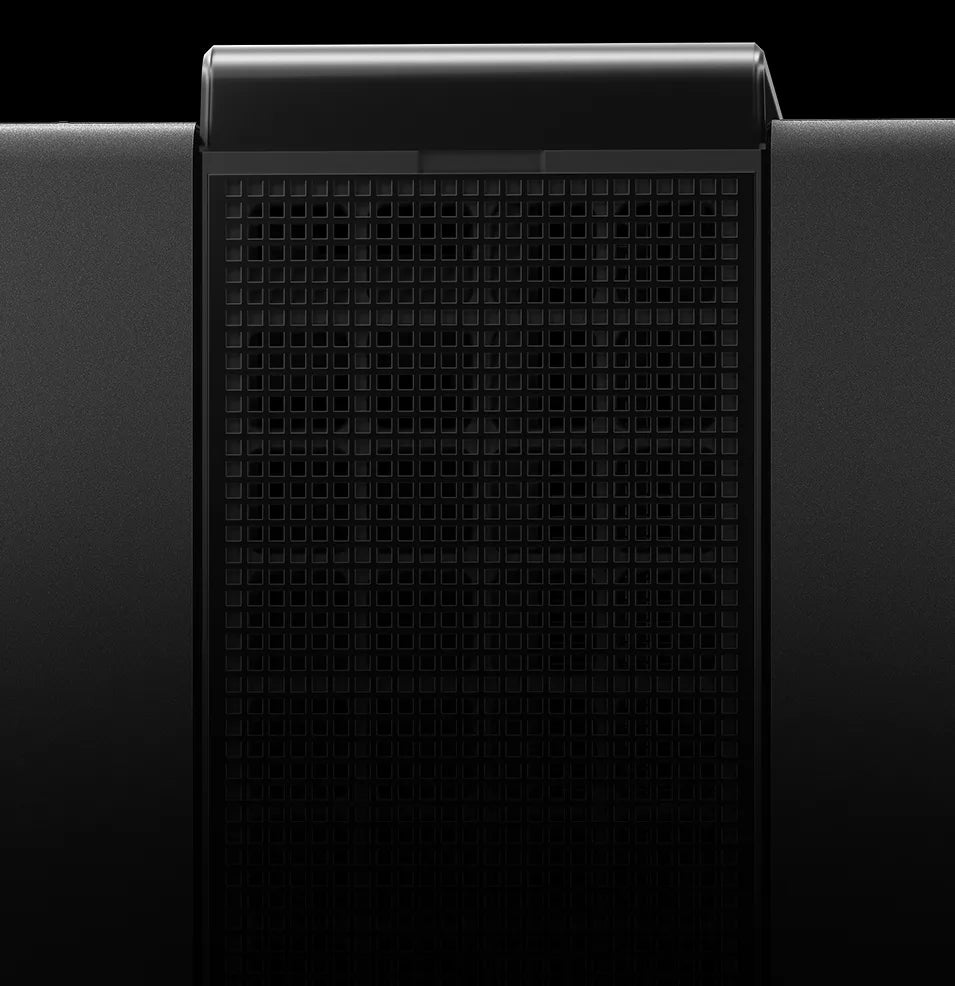

Due to the center 140mm fan sitting deep into the heart of the ASSASSIN IV VC VISION, there is a lower flow of air created underneath the bulk of the cooler, providing additional cooling to the surrounding VRMs.

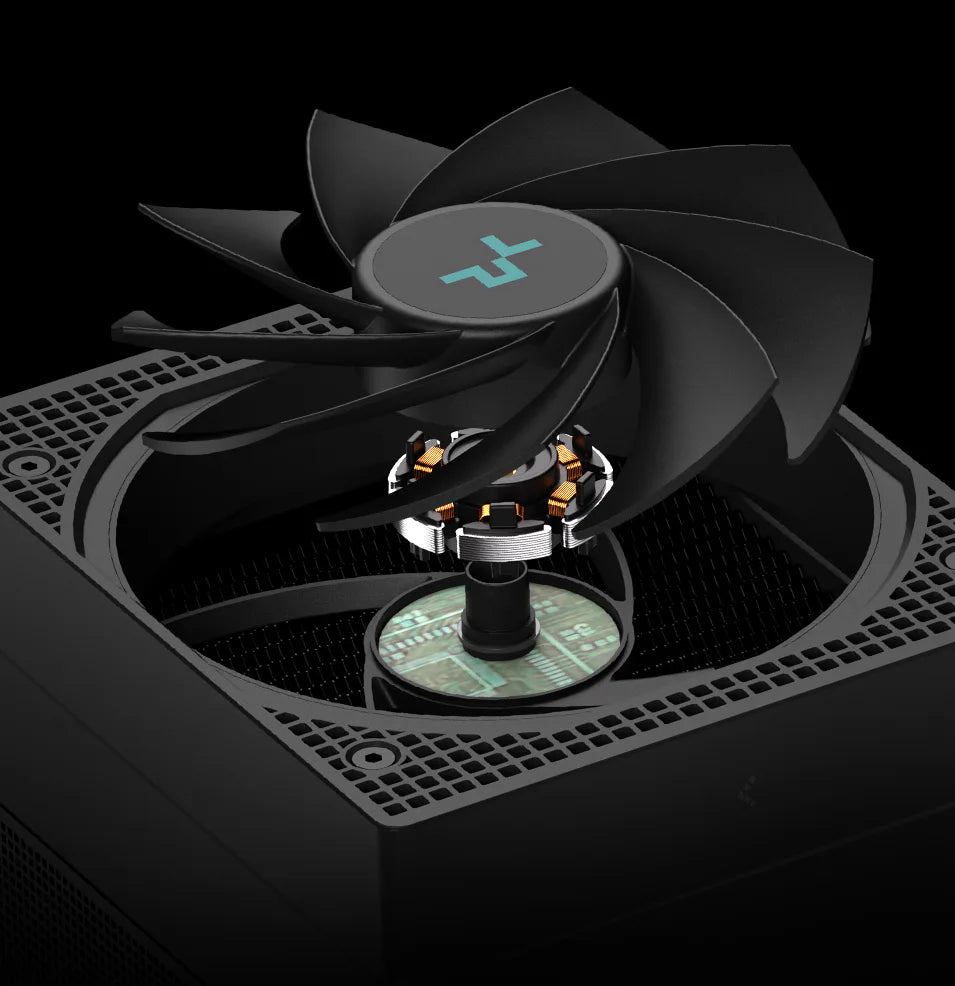

A key factor in the ASSASSIN IV VC VISION's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason.
DeepCool is so confident in our new design that the ASSASSIN IV VC VISION comes with 6 years of limited warranty coverage!

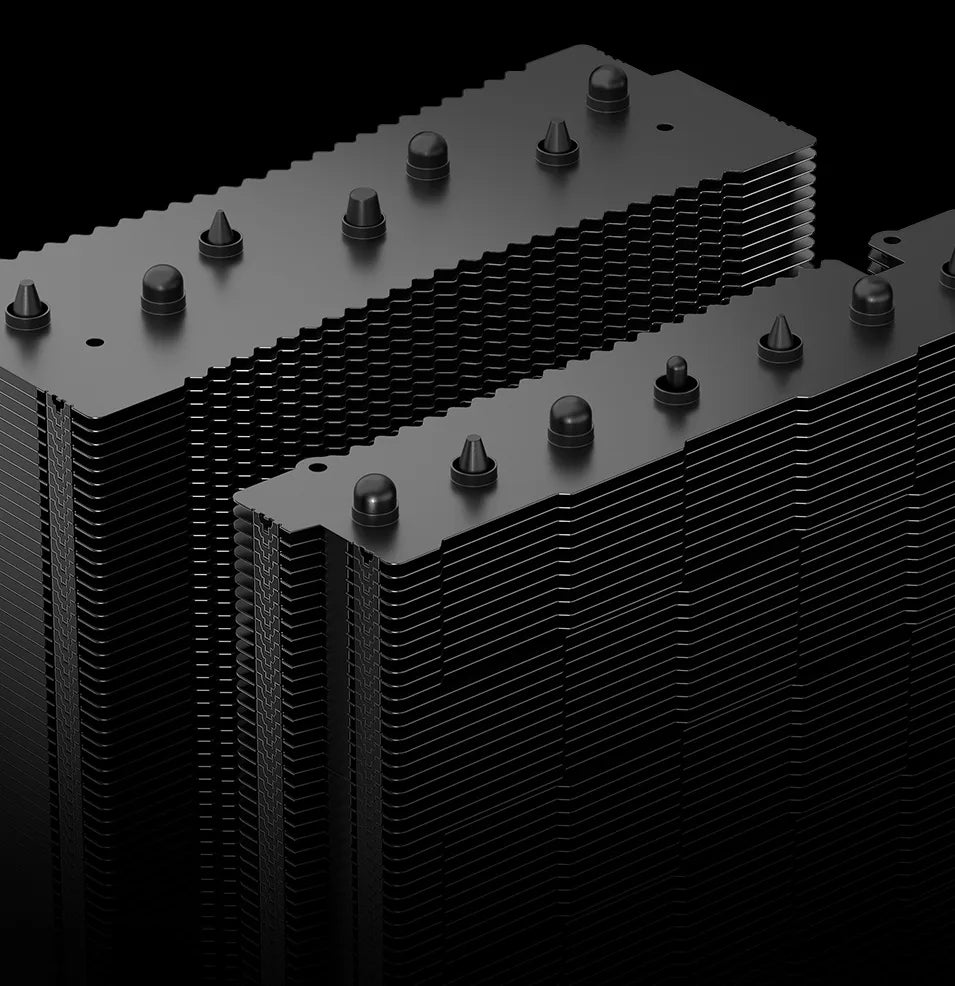

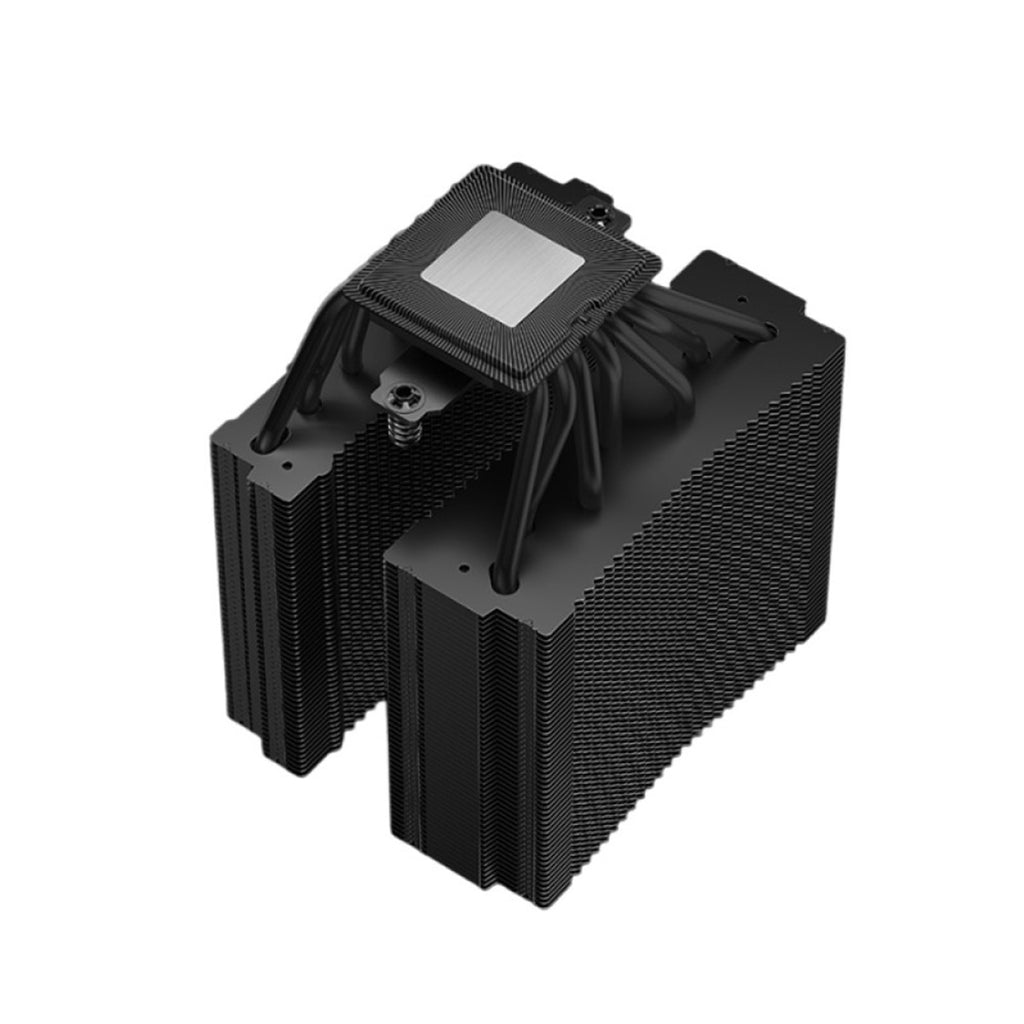

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissipation.

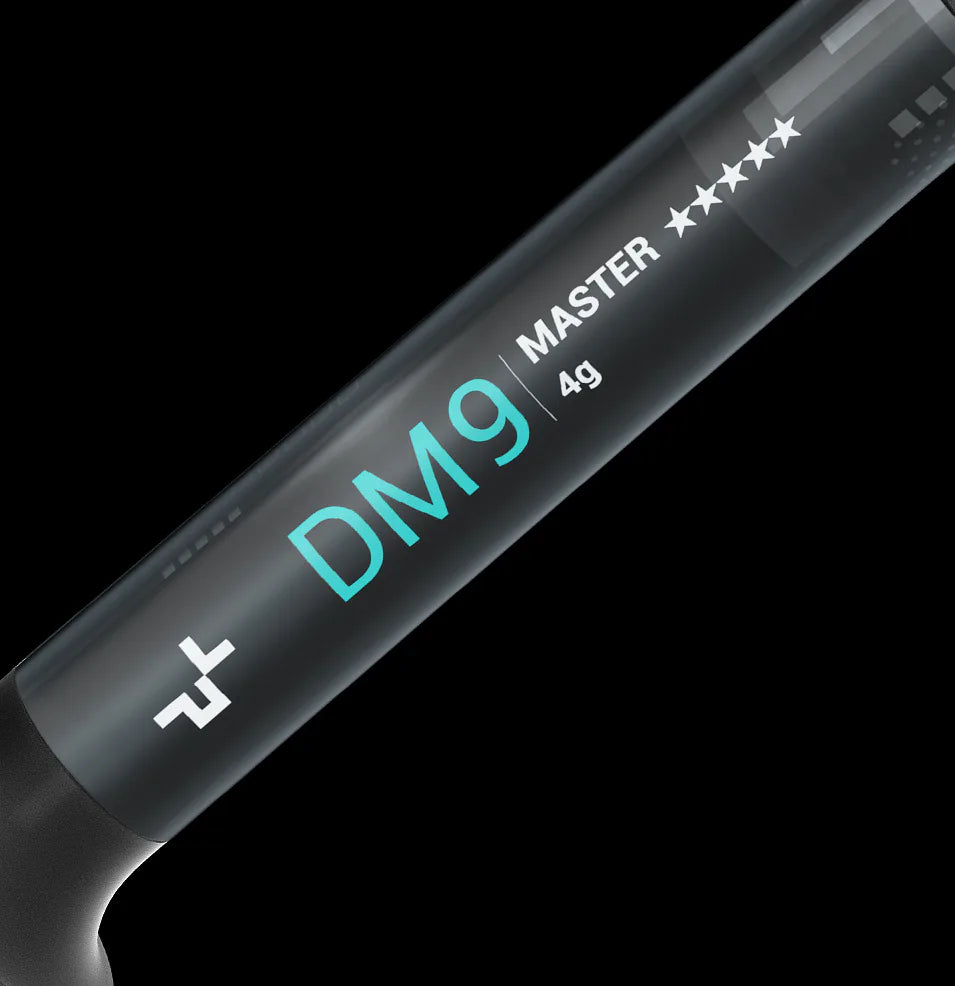

The included DM9 thermal paste meets the rigorous standards used in industrial applications.

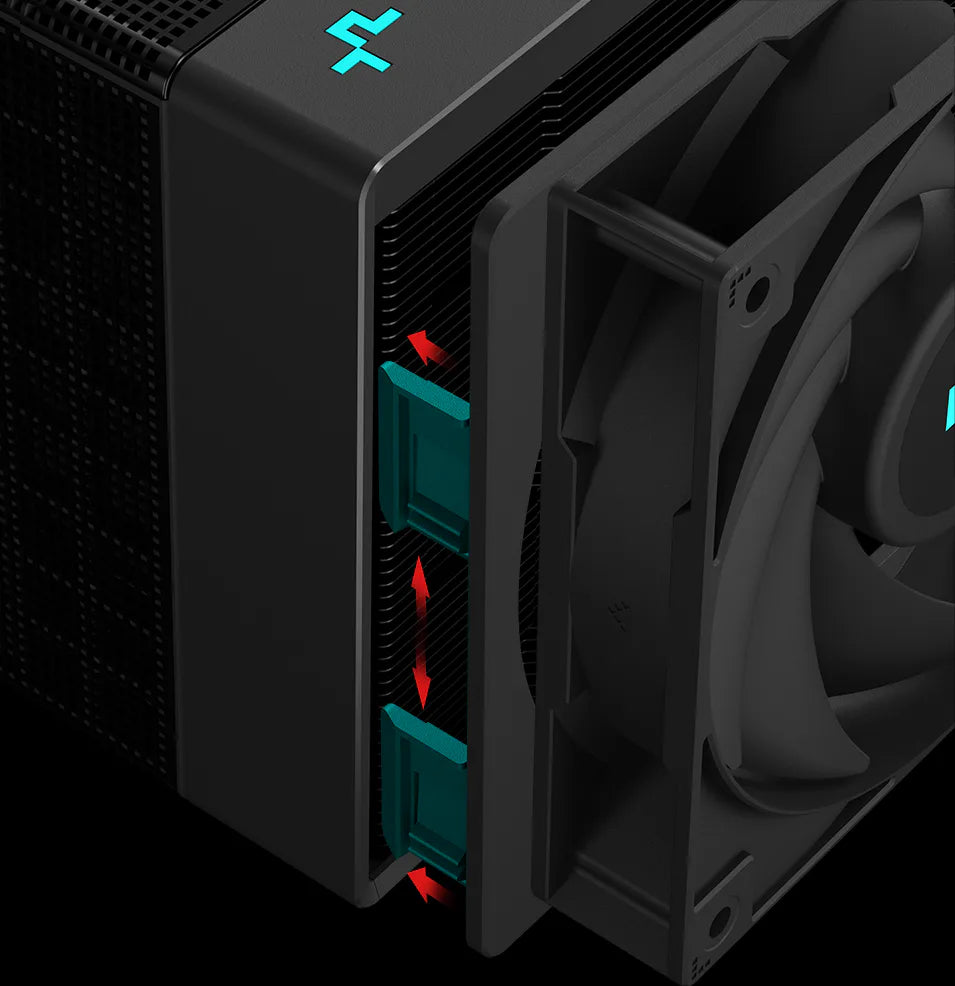

Installing larger air coolers can be difficult, which is a prime reason the hardware and installation were designed to be extremely user-friendly with the 172mm tall ASSASSIN IV VC VISION. Even the magnetic display panel and main fan sliding design were crafted with ease of installation in mind.
The ASSASSIN IV VC VISION supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1700 and AM5.
General
| Brand | DeepCool |
|---|---|
| Socket compatibility | Intel LGA2066, 2011-v3, 2011, 1700, 1200, 1150, 1151, 1155; AMD AM5, AM4 |
| Base material | Copper (Vapor Chamber) |
| Heatsink material | Aluminium Fins |
Fan
| Center fan size | 140 × 140 × 25 mm |
|---|---|
| Relocatable fan size | 120 × 120 × 25 mm |
| Fan connector | 4-pin PWM |
| Bearing type | Fluid Dynamic Bearing |
| Fan rated voltage | 12 VDC |
| Fan rated current | 0.2 A |
| Fan power consumption | 2.4 W per fan |
Performance
| Fan speed — performance mode (140mm) | 500–1800 RPM ±10% |
|---|---|
| Fan speed — performance mode (120mm) | 500–1700 RPM ±10% |
| Fan airflow — performance mode (140mm) | 61.25 CFM |
| Fan airflow — performance mode (120mm) | 58.06 CFM |
| Static pressure — performance mode (140mm) | 3.76 mmAq |
| Static pressure — performance mode (120mm) | 2.1 mmAq |
| Fan speed — quiet mode (140mm) | 500–1450 RPM ±10% |
| Fan speed — quiet mode (120mm) | 500–1350 RPM ±10% |
| Fan airflow — quiet mode (140mm) | 48.55 CFM |
| Fan airflow — quiet mode (120mm) | 46.75 CFM |
| Static pressure — quiet mode (140mm) | 2.46 mmAq |
| Static pressure — quiet mode (120mm) | 1.35 mmAq |
Acoustics & power
| Noise level — performance mode | ≤29.3 dB(A) |
|---|---|
| Noise level — quiet mode | ≤22.6 dB(A) |
| Power consumption — performance mode | 4.8 W |
| Power consumption — quiet mode | 3.6 W |
Physical
| Product dimensions | 147 × 144 × 172 mm (L × W × H) |
|---|---|
| Heatsink dimensions | 140 × 110 × 160 mm (L × W × H) |
| Net weight | 1780 g |
