DeepCool ASSASSIN IV WH CPU Cooler - 280W TDP, White
DeepCool

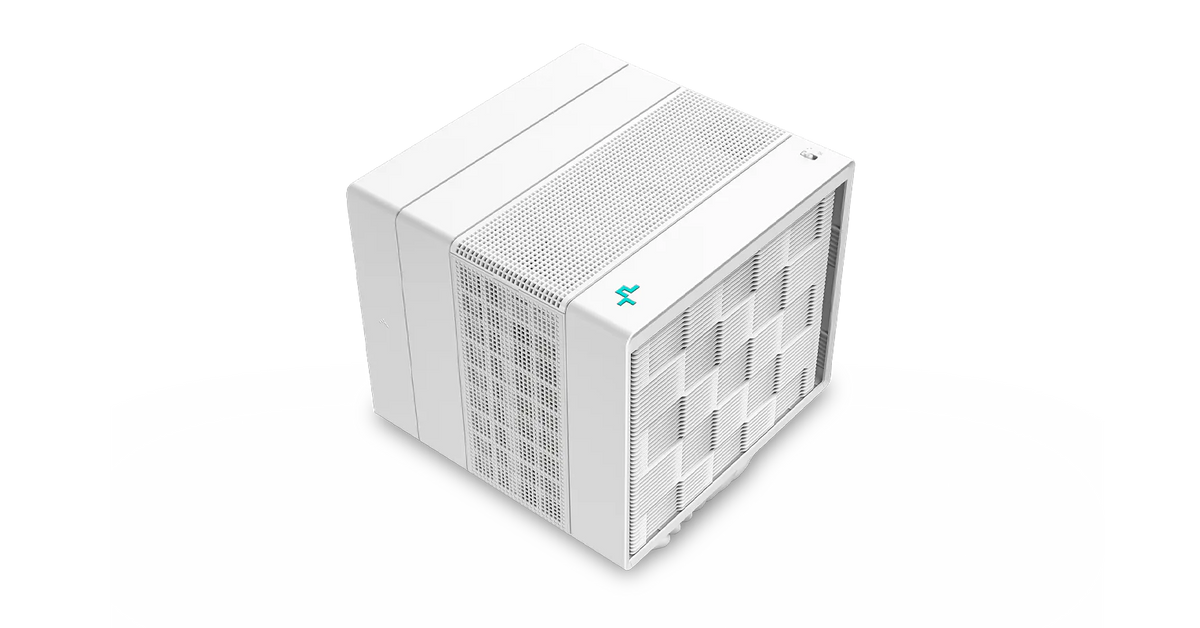

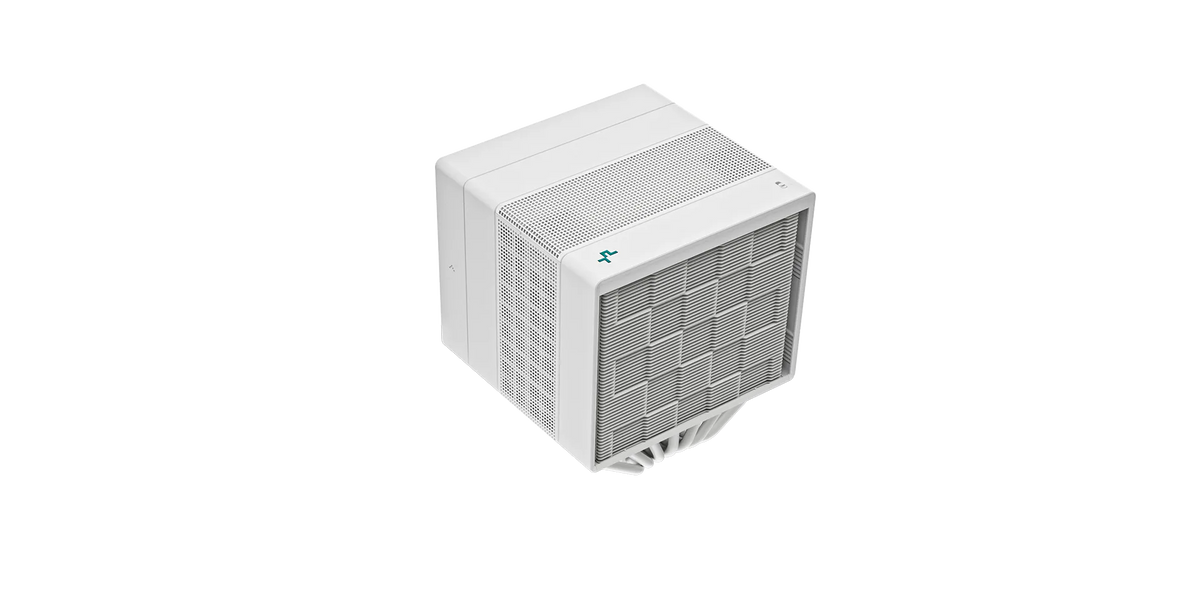

DeepCool ASSASSIN IV WH CPU Cooler - 280W TDP, White
The DeepCool ASSASSIN IV WH CPU Cooler is an air cooler designed for builders wanting efficient thermal management in a white aesthetic. It switches between quiet and performance modes, making it suitable for both silent builds and high-heat workloads up to 280W TDP.
Why this product
Quiet or performance modes
A simple switch lets you toggle between a whisper-quiet operation at 22.6 dB(A) or full performance cooling at 29.3 dB(A), adapting to your priority in the moment.
Seven heat pipes for efficient transfer
Heat is distributed across two fin-array towers via 6 mm heat pipes, maximizing surface area and cooling capacity without requiring liquid.
High-profile RAM compatible
The relocatable 120 mm fan can be positioned to clear tall RAM modules, removing a common constraint of tower coolers.
Low power consumption
It draws just 3.6 W in quiet mode and 6 W in performance mode, minimizing the load on your PSU.
6-year limited warranty
DeepCool backs the design with six years of coverage, reflecting confidence in long-term durability.
- BrandDeepCool
- TDP Rating280W
- Heat Pipes7 × 6 mm
- Fans Included140 mm + 120 mm
- Noise (Quiet Mode)≤22.6 dB(A)
- Noise (Performance Mode)≤29.3 dB(A)
- Warranty6 years limited
- SKUDEE-850
- EAN6933412728382
- Supports Intel LGA2066, LGA2011-v3, LGA2011, LGA1851, LGA1700, LGA1200, LGA1150, LGA1151, and LGA1155.
- Supports AMD AM5 and AM4 sockets.
- Requires 4-pin PWM fan header on motherboard.
- Not compatible with ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, ROG CROSSHAIR X670E GENE, MSI MEG Z790 ACE, ASUS TUF GAMING B760M-PLUS WIFI, ROG STRIX B760-G GAMING WIFI, ASUS ROG STRIX Z690-F GAMING WIFI, ROG STRIX X670E-I GAMING WIFI, and ASUS ROG STRIX Z790-I GAMING WIFI due to motherboard layout differences.
Best for
- White builds seeking a cohesive aesthetic without compromising on cooling capacity.
- Builders with high-profile RGB RAM that need clearance from a relocated fan.
- Systems prioritizing low noise in idle or light-load scenarios, thanks to quiet mode operation.
- Workstations or gaming PCs running CPUs up to 280W TDP.
Trade-offs
- Compact cases: At 144 × 147 × 164 mm, this is a large tower cooler and will not fit small form-factor enclosures.
- Liquid cooling preference: This is an air cooler only; it offers no option for AIO or custom loop builders.
- Motherboards on the incompatibility list: Certain high-end ASUS and MSI boards have layout conflicts that prevent mounting.
The ASSASSIN returns with a new white aesthetic and efficient cooling capacity.

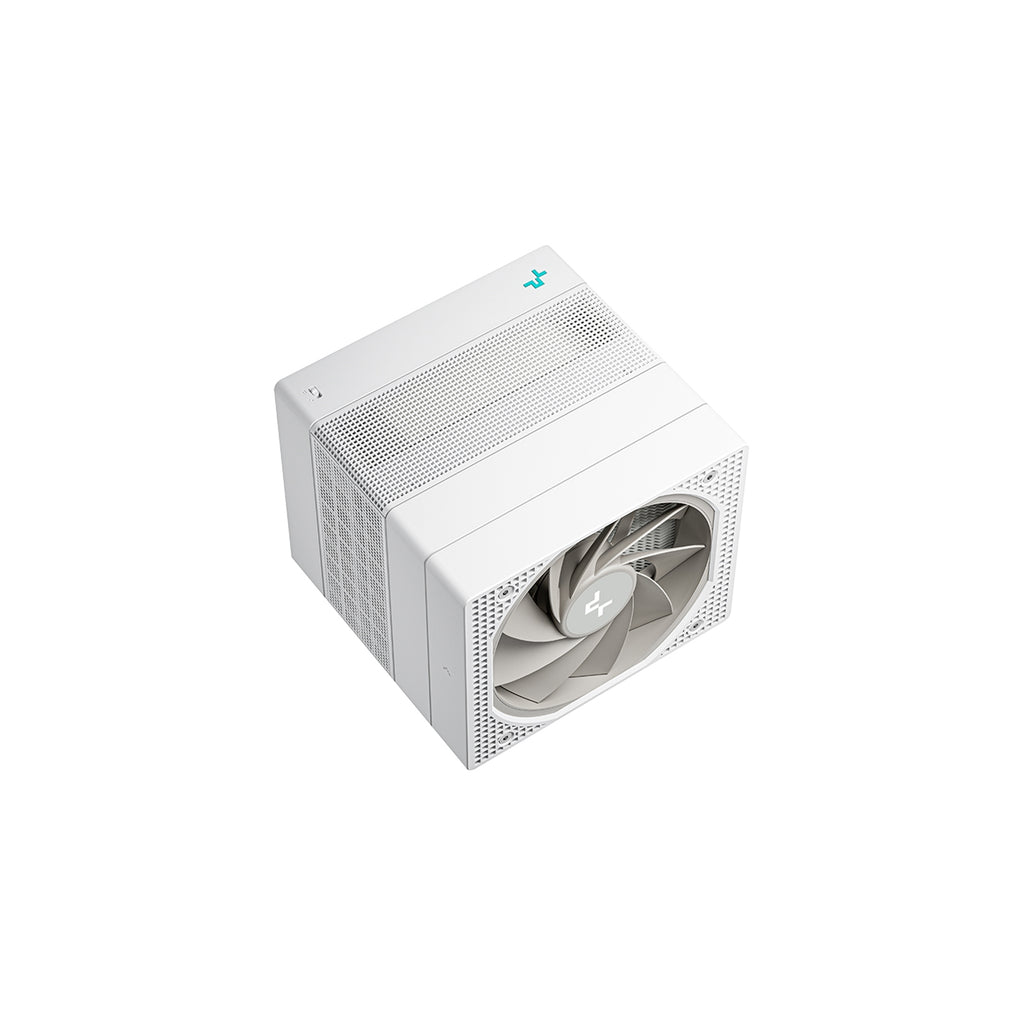

The ASSASSIN IV WH provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.

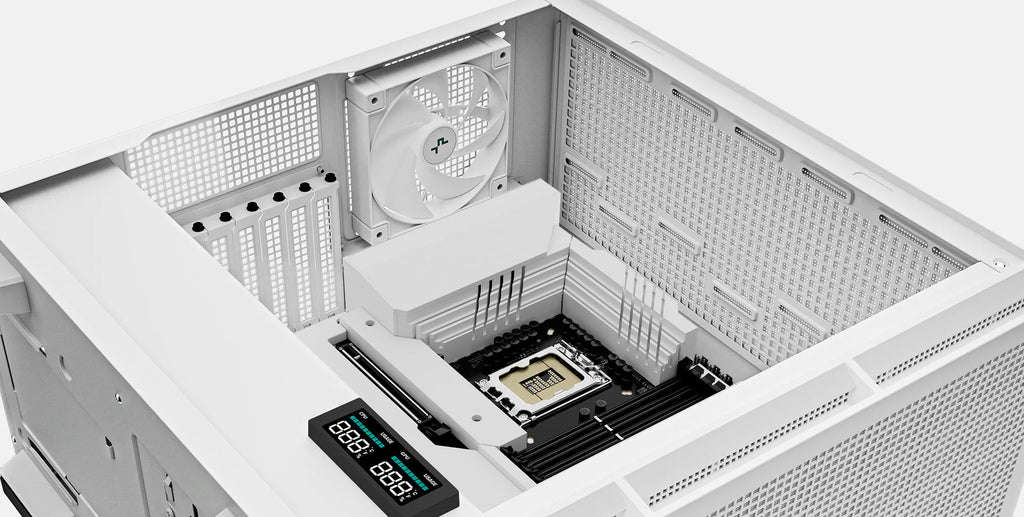

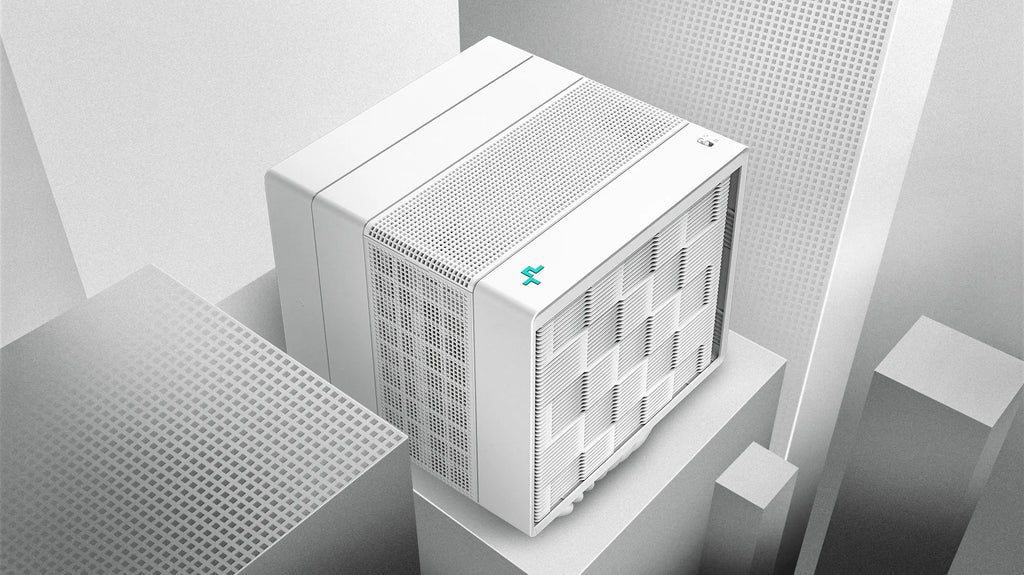

The elegant white design of the ASSASSIN IV WH is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN QUIET OR PERFORMANCE MODE, THE ASSASSIN IV WH IS THE OBVIOUS CHOICE

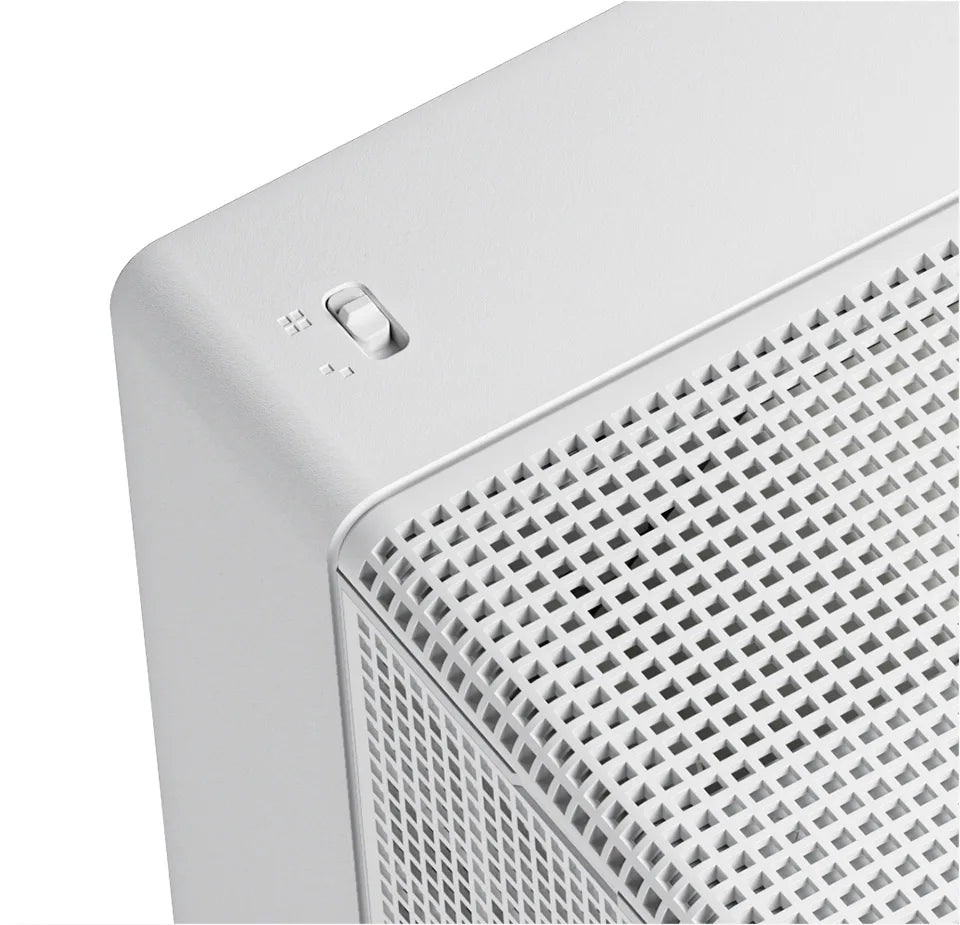

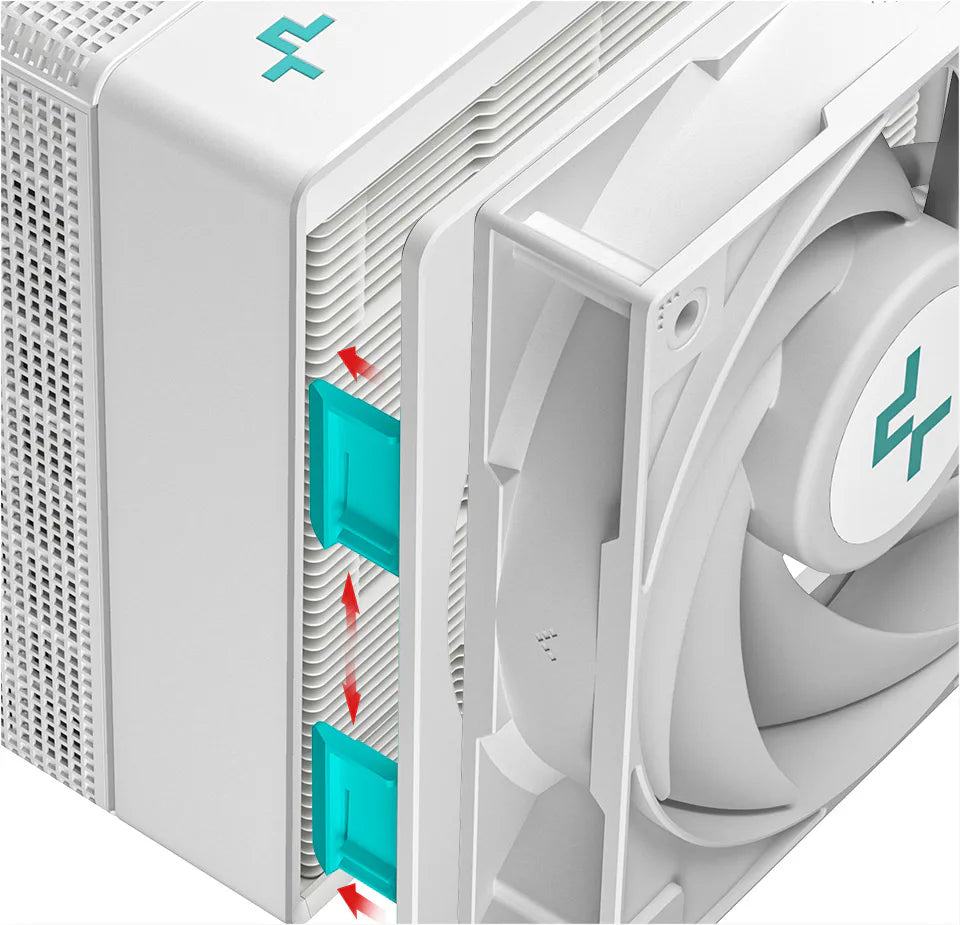

With a simple slide of a switch, the ASSASSIN IV WH can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!

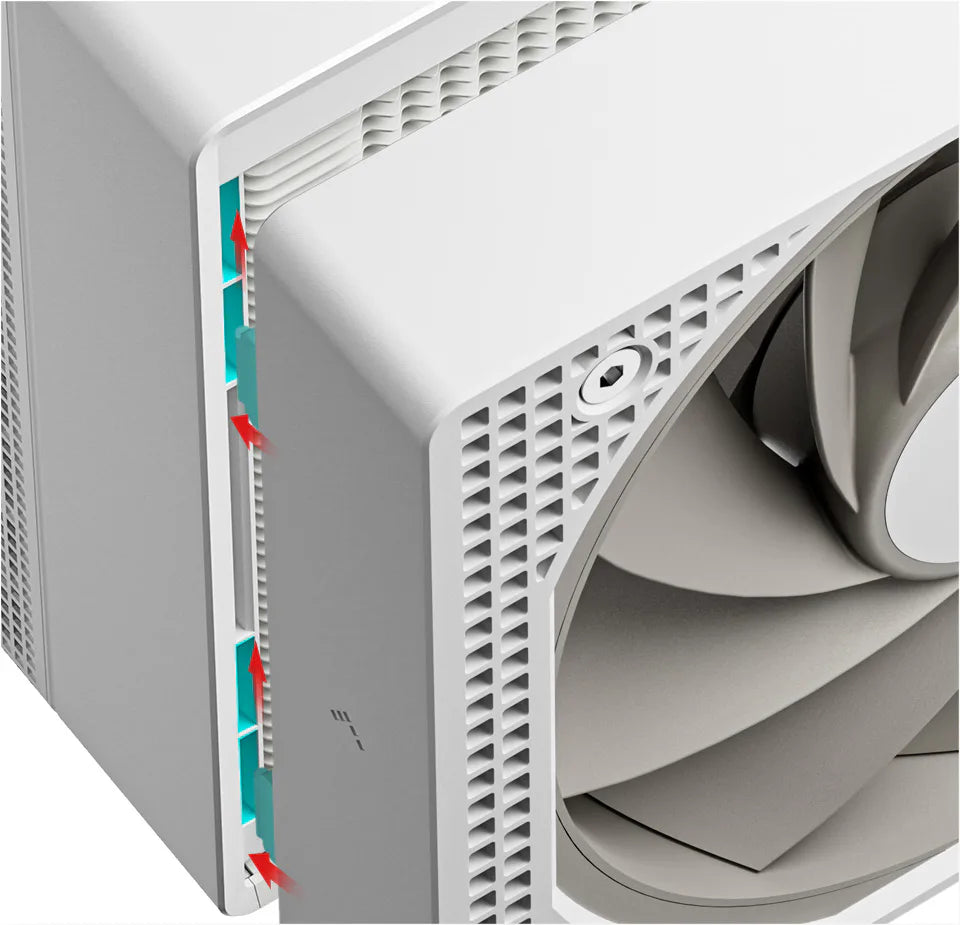

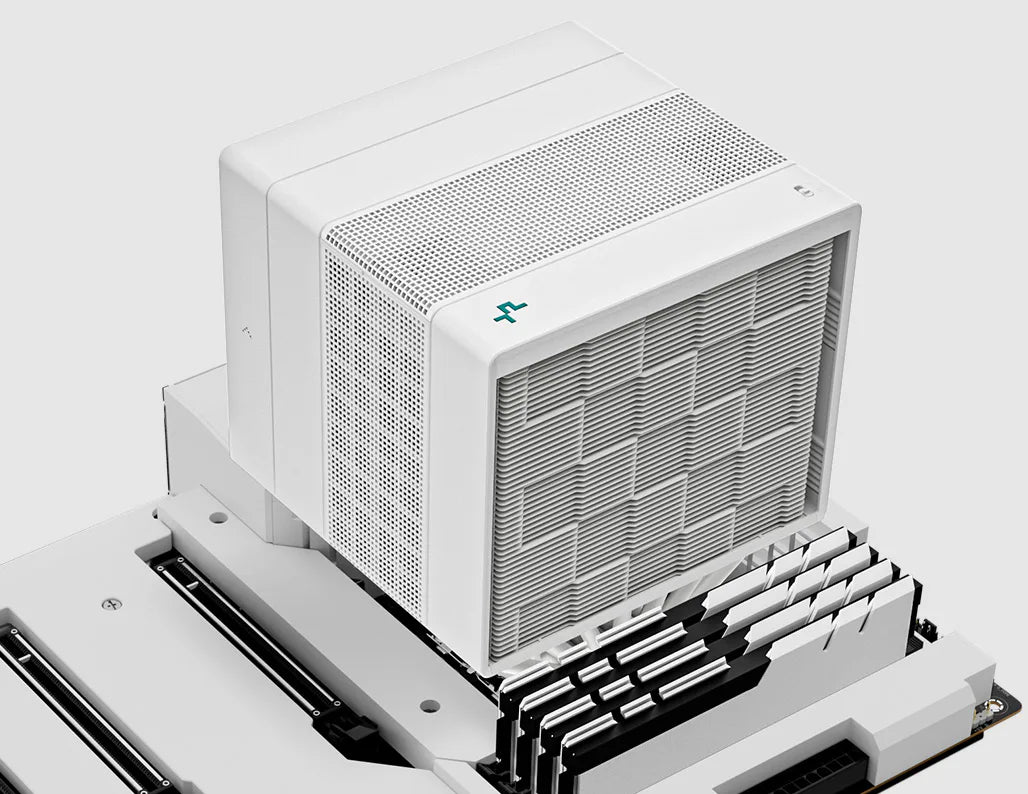

The ASSASSIN IV WH's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
EXCEPTIONAL BY DESIGN

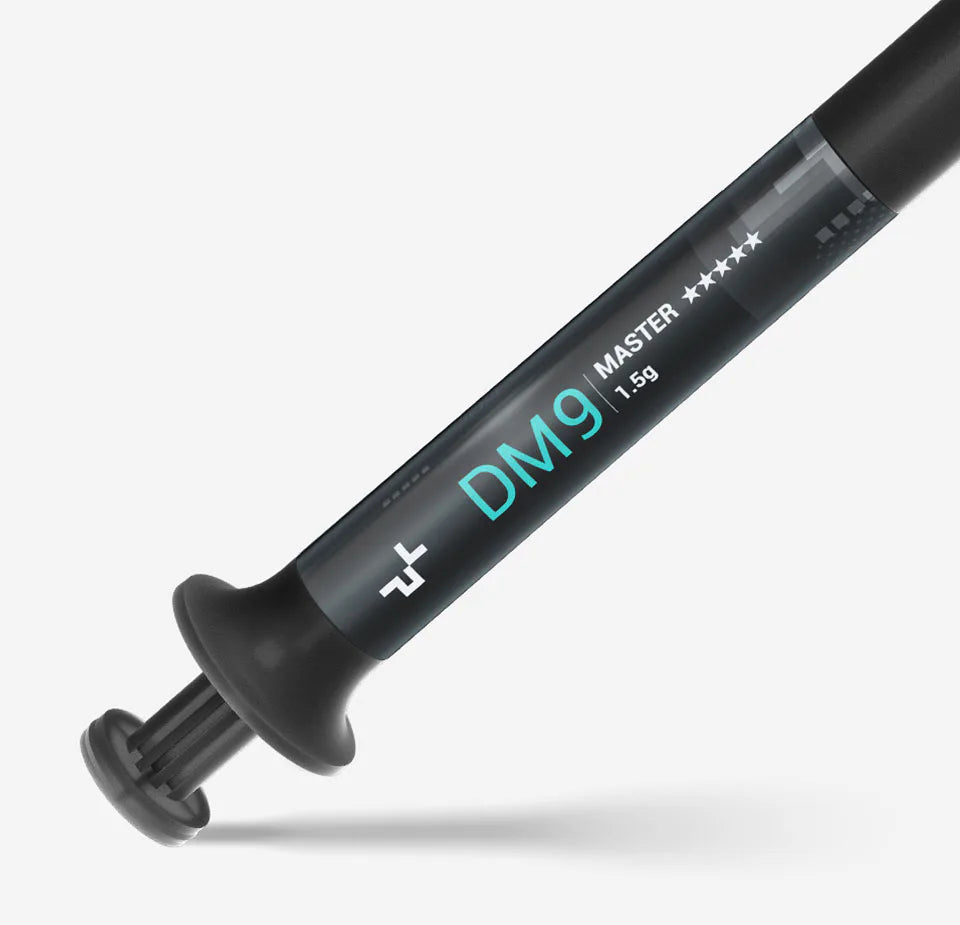

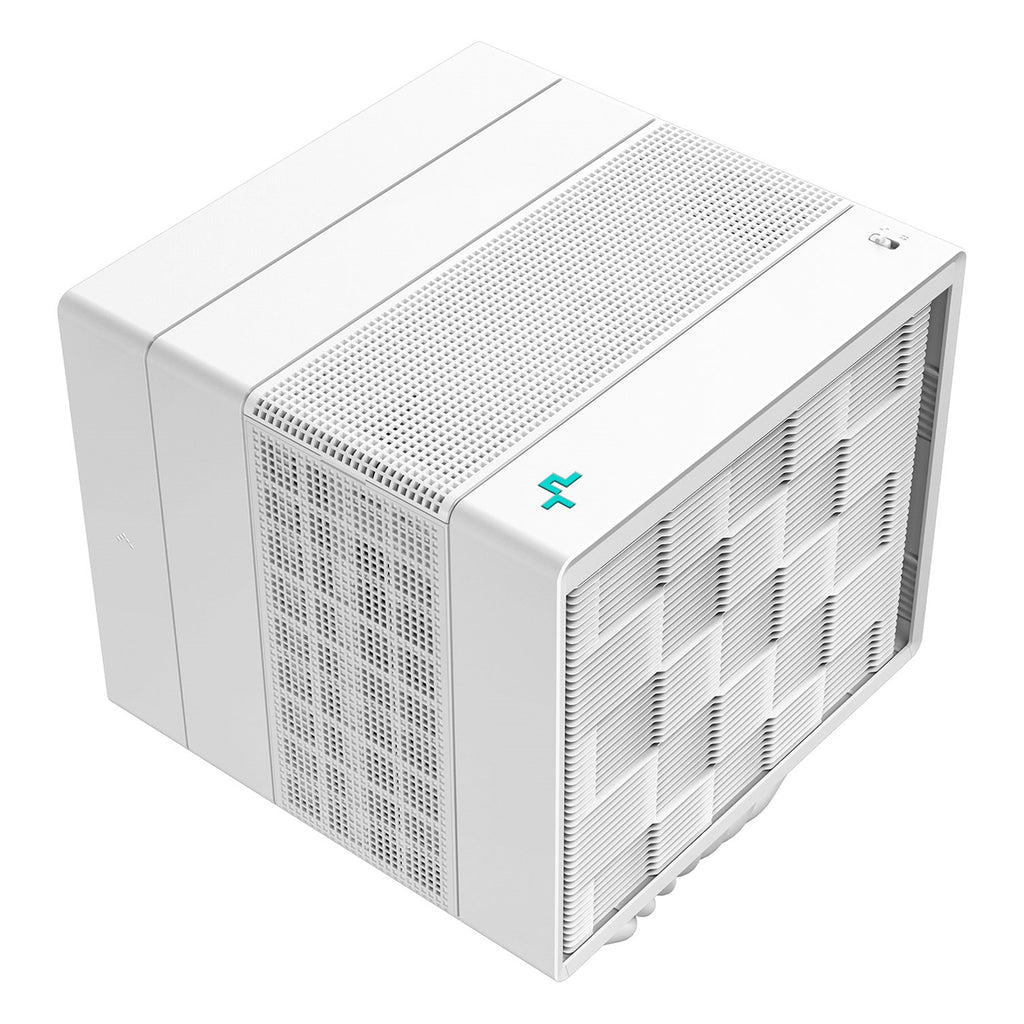

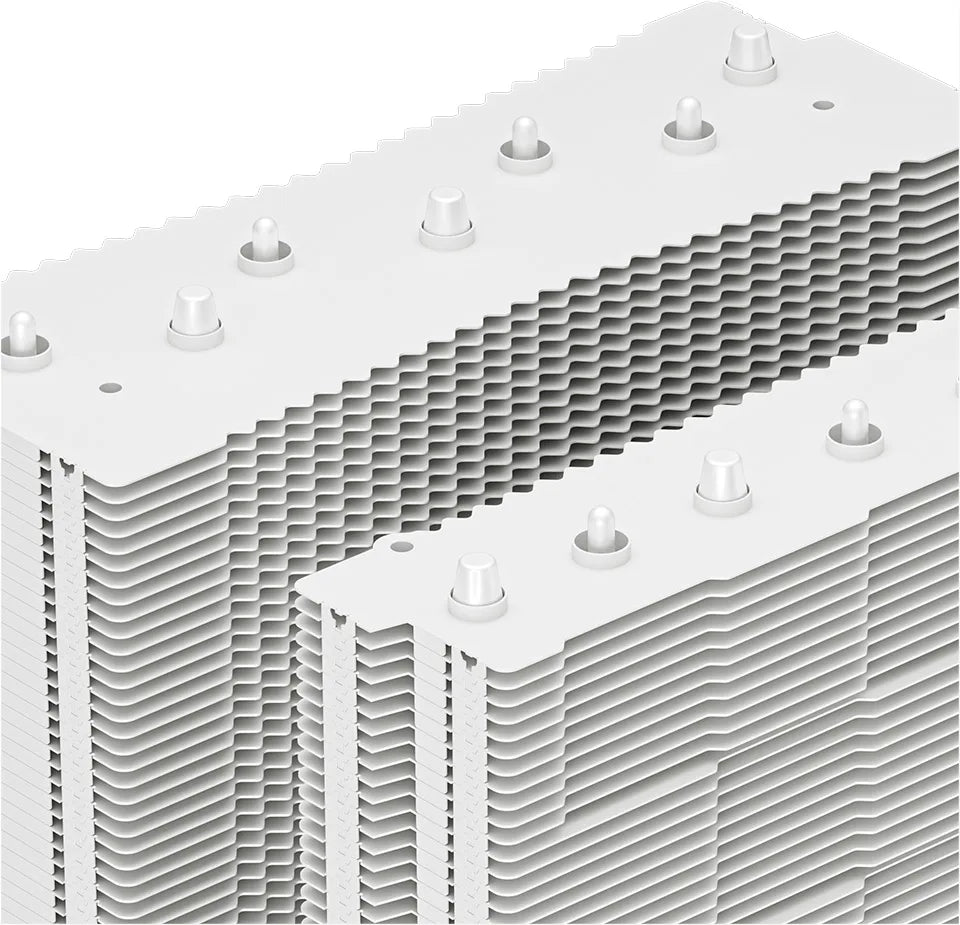

Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

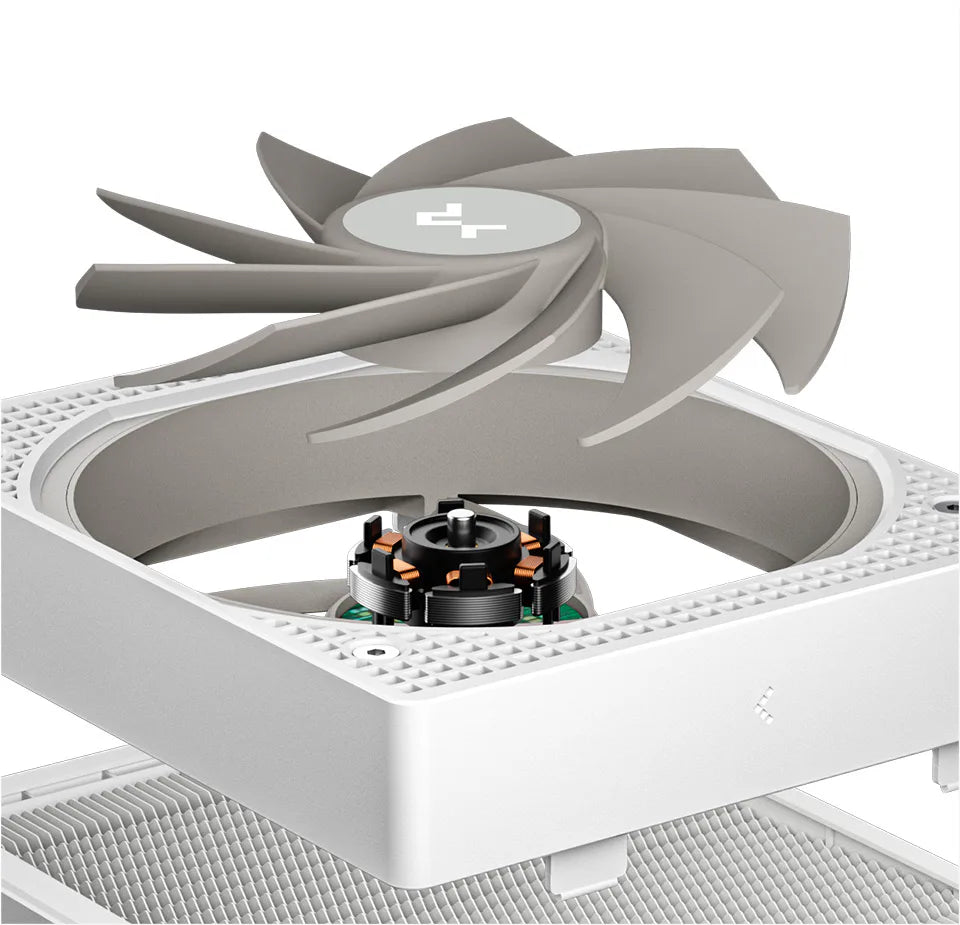

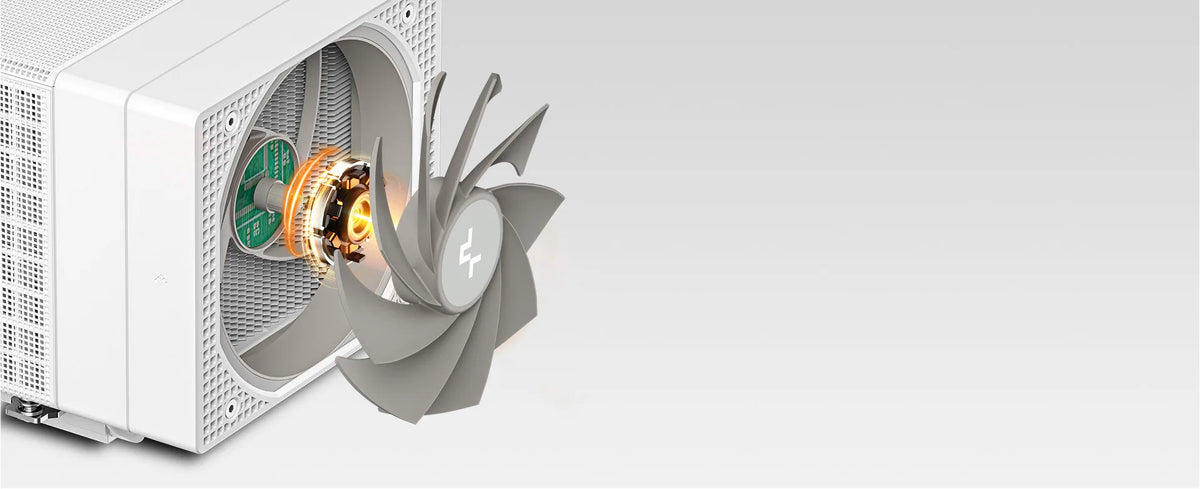

A key factor in the ASSASSIN IV WH's extremely silent operation is the use of three-phase, six-slot, four pole fan motors with low voltage and power consumption.

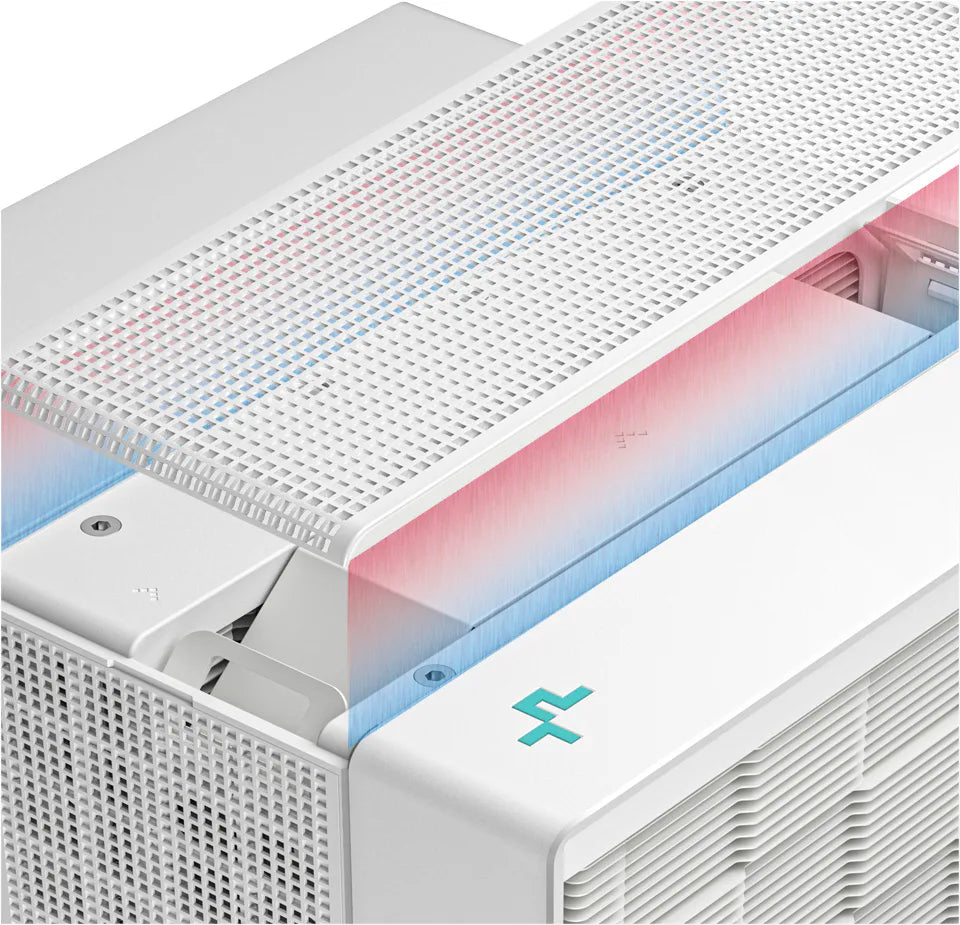

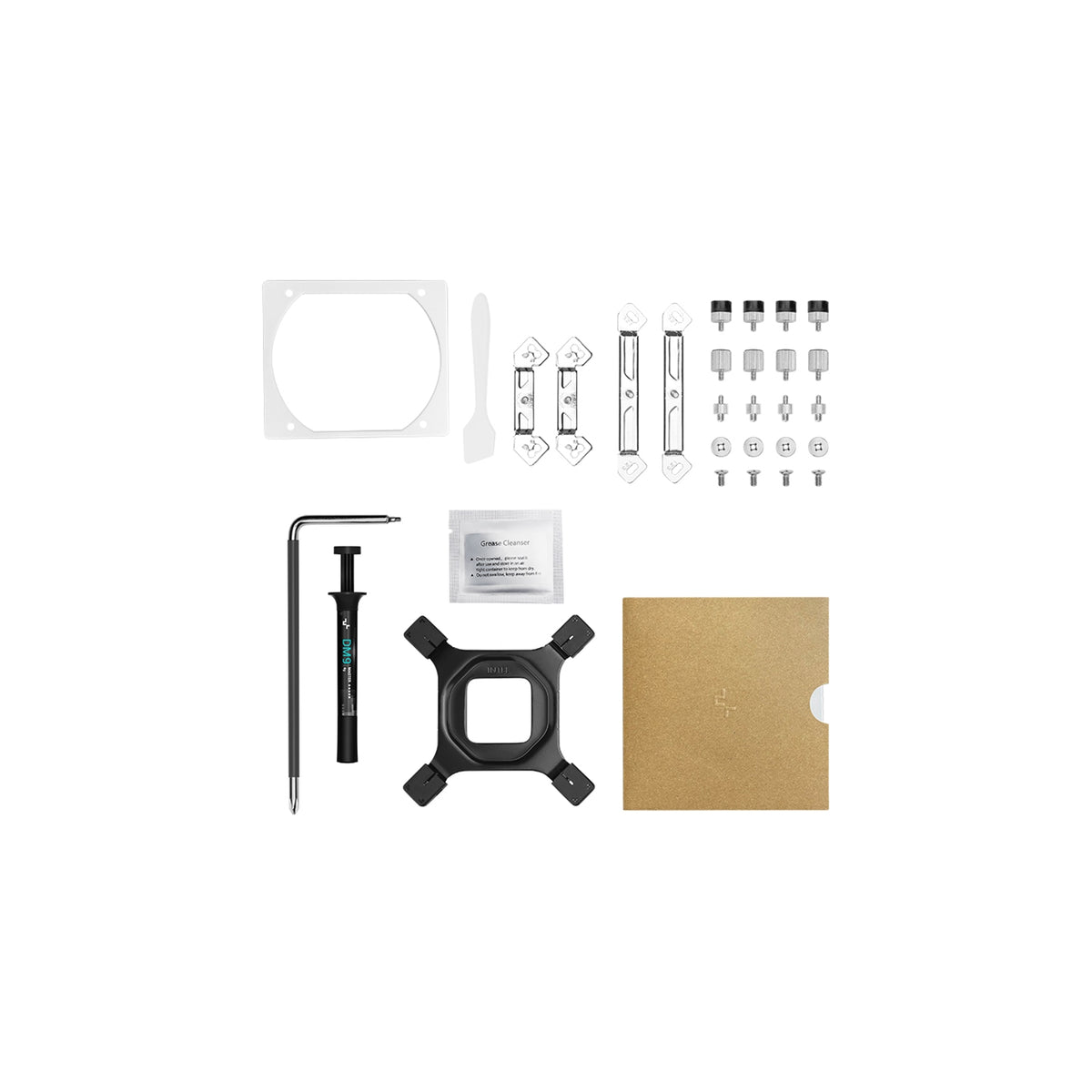

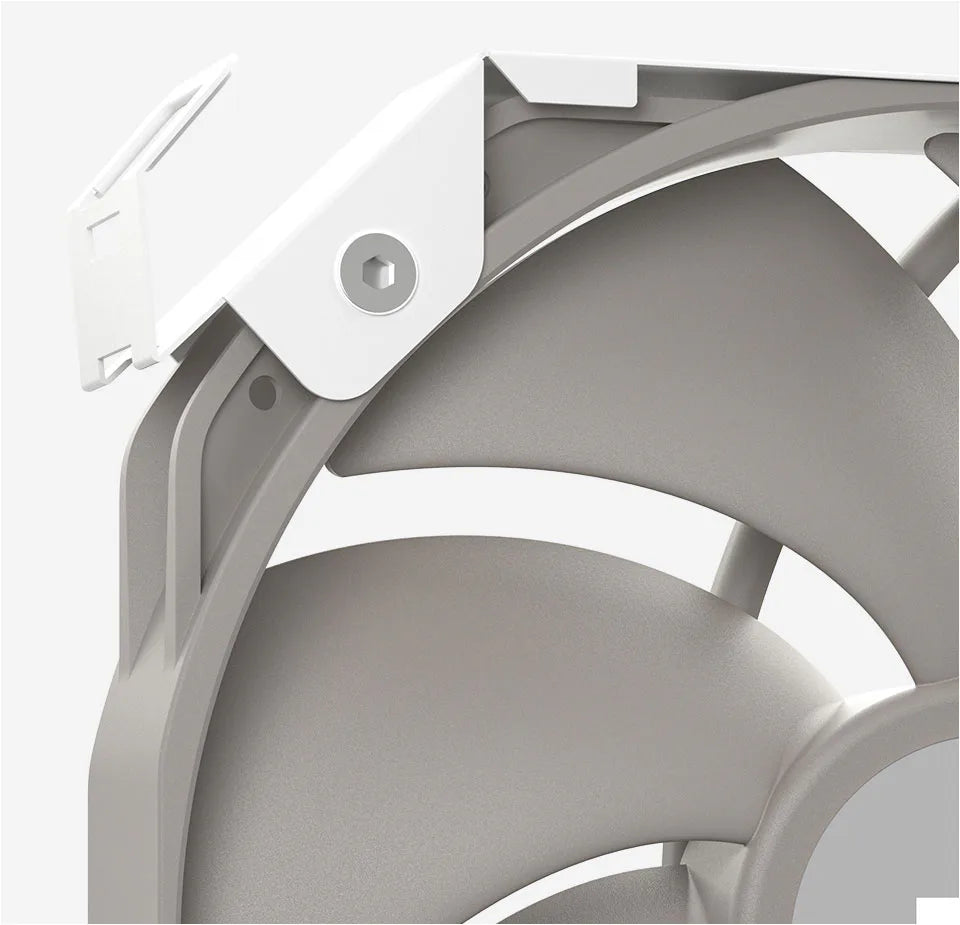

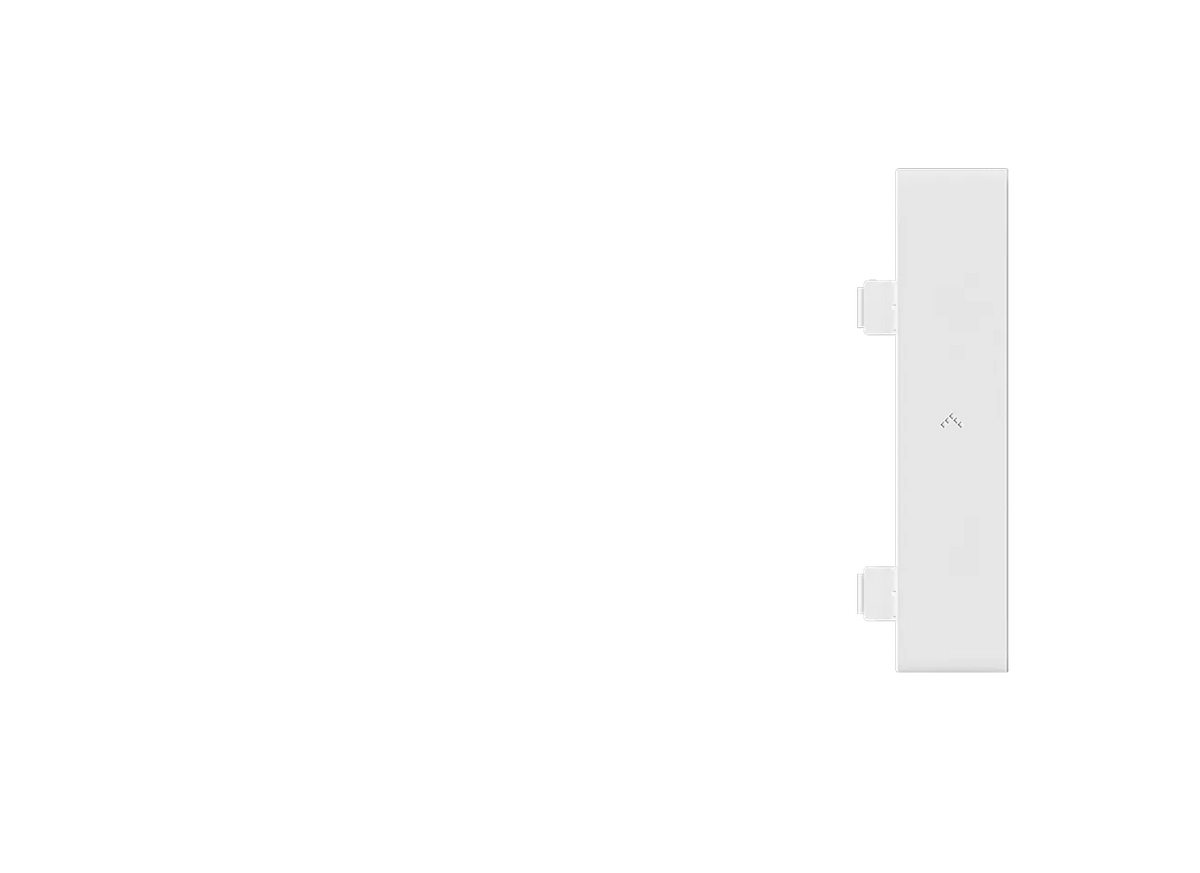

Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
DeepCool is so confident in our new design that the ASSASSIN IV WH comes with 6 years of limited warranty coverage!
Due to differences in motherboard layouts, the following motherboards are not compatible with the ASSASSIN IV WH: ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, ROG CROSSHAIR X670E GENE, MSI MEG Z790 ACE, ASUS TUF GAMING B760M-PLUS WIFI, ROG STRIX B760-G GAMING WIFI, ASUS ROG STRIX Z690-F GAMING WIFI, ROG STRIX X670E-I GAMING WIFI, and ASUS ROG STRIX Z790-I GAMING WIFI.
General
| Brand | DeepCool |
|---|
Fan

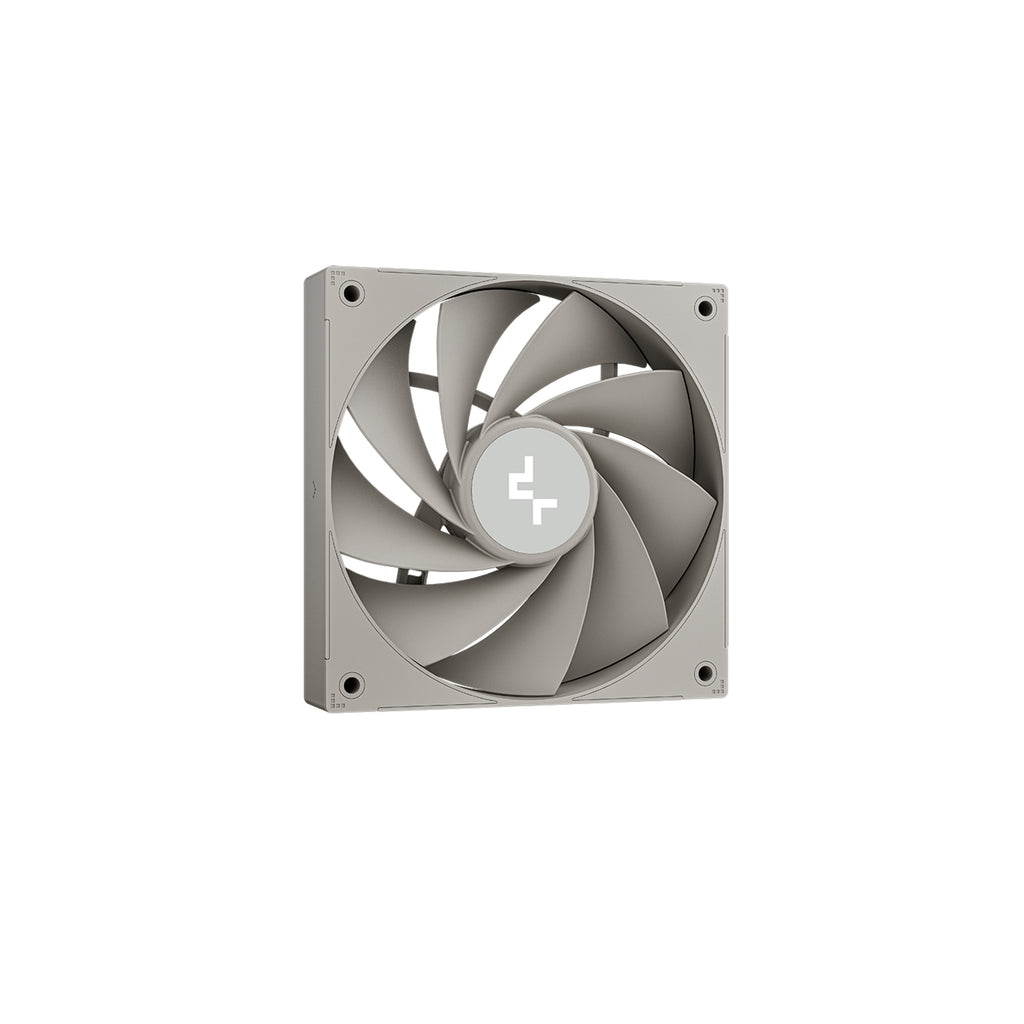

| Included Fans | 140 × 140 × 25 mm, 120 × 120 × 25 mm |
|---|---|
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Connector | 4-pin PWM |
| Rated Voltage | 12 VDC |
Performance
| Speed Range (Performance Mode) | 500–1700 RPM |
|---|---|
| Airflow (Performance Mode) | 79.1 CFM / 58.06 CFM |
| Static Pressure (Performance Mode) | 2.44 mmAq / 2.1 mmAq |
| Speed Range (Quiet Mode) | 500–1350 RPM |
| Airflow (Quiet Mode) | 63.76 CFM / 46.75 CFM |
| Static Pressure (Quiet Mode) | 1.58 mmAq / 1.35 mmAq |
| TDP Rating | 280W |
Acoustics & Power
| Noise Level (Performance Mode) | ≤29.3 dB(A) |
|---|---|
| Noise Level (Quiet Mode) | ≤22.6 dB(A) |
| Power Consumption (Performance Mode) | 6 W |
| Power Consumption (Quiet Mode) | 3.6 W |
| Heatsink Dimensions | 140 × 110 × 160 mm |
| Overall Dimensions | 144 × 147 × 164 mm |
| Weight | 1575 g |
| Thermal Paste Included | DM9 |
