Deepcool CH170 Digital Mini-ITX Case - High Airflow, Water Cooling
DeepCool
Deepcool CH170 Digital Mini-ITX Case - High Airflow, Water Cooling

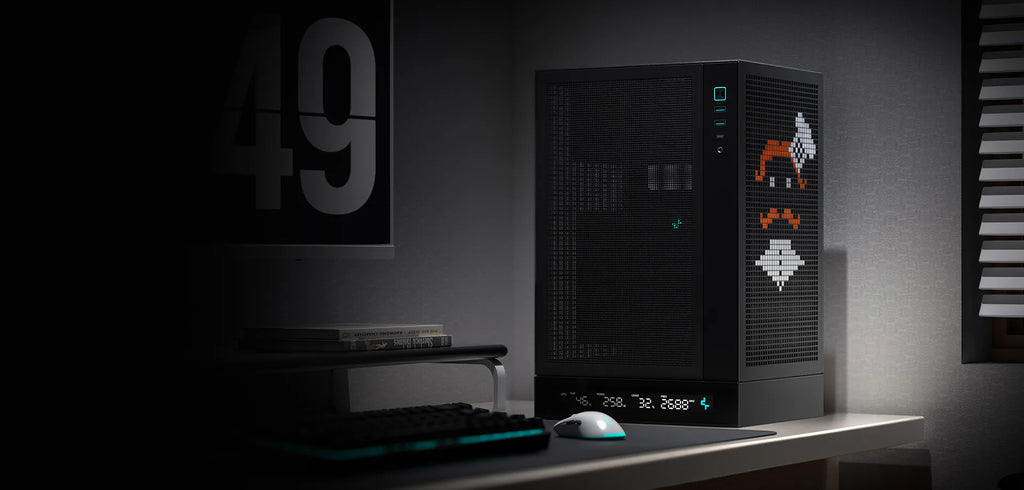

The Deepcool CH170 Digital Mini-ITX Case is a compact tower built for builders who need high airflow and flexibility in a small footprint. It supports both air and liquid cooling, full-size components, and includes a digital display to monitor system vitals—all in a vertical form factor smaller than traditional mid-tower cases.
Why this product
All-mesh design for maximum airflow
Mesh panels on all sides reduce thermal throttling in a compact space. Ideal for high-performance builds that need breathing room.
Digital display shows CPU, GPU, and PSU data
Built-in base displays four system metrics at once. No software needed—just glance at the case to monitor vitals.
Fits air coolers up to 172 mm tall
Tower air coolers that would never fit in typical Mini-ITX cases work here. No compromise on cooling method.
240 mm liquid cooling on the side panel
If you prefer AIO or custom loop cooling, the side radiator mount is ready. Works with or without it.
Three removable dust filters
Front, top, and rear filters slide out for cleaning. Mesh design stays usable longer between maintenance.
Flexible drive and fan mounting
Top bracket swaps between a 120 mm fan, 2.5" SSD, or 3.5" HDD. One slot serves multiple purposes depending on your build.
- Form FactorVertical Mini-ITX
- Dimensions380 × 200 × 250 mm
- Weight3.4 kg
- Motherboard SupportMini-ITX only
- CPU Cooler ClearanceUp to 172 mm
- Radiator Support240 mm (side panel)
- Expansion Slots3
- Front Ports2x USB 3.0, 1x USB Type-C, 1x audio
- SKUDEE-1043
- EAN6933412774228
- Mini-ITX motherboards only. Standard ATX and Micro-ATX boards will not fit.
- ATX, SFX, and SFX-L power supplies up to 140 mm in length. Some larger modular PSUs may not fit.
- Graphics cards up to 305 mm long (SFX/SFX-L orientation) or 230 mm (ATX orientation), 138 mm tall, 65 mm wide across three expansion slots.
- Air coolers fit up to 172 mm in height; 240 mm radiators fit on the side panel only, not the top or front.
- No 3.5" or 2.5" drive bays beyond the one flexible slot that must choose between cooling and storage.
Best for
- SFF and ITX enthusiasts who refuse to compromise on cooling capacity
- Builders who want visibility into real-time system performance without software
- Compact gaming or streaming builds that run hot and need mesh airflow
- Anyone upgrading from a restrictive Mini-ITX case to better thermal performance
Trade-offs
- ATX and Micro-ATX builders. Only Mini-ITX motherboards fit.
- Multi-drive storage systems. Only one flexible slot for drives means single-OS or limited secondary storage.
- Quiet-first builds. All-mesh design and required cooling fans make this louder than filtered tower cases.
- Builders with large modular PSUs. 140 mm length limit rules out many full-size units.
- Large GPU owners. Graphics card length depends on PSU placement; some long cards require specific configurations.
CH170 DIGITAL

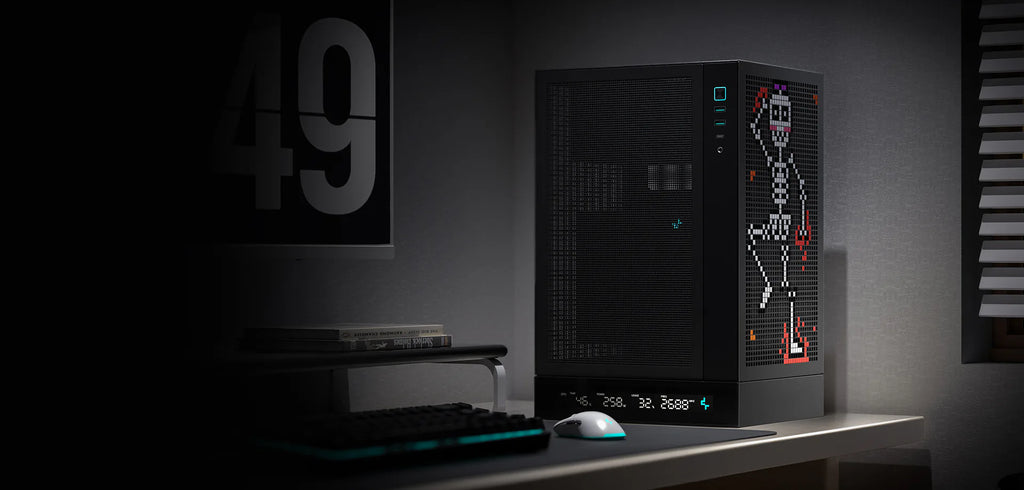

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for a number of different cooling and PSU options.
CH170 DIGITAL
The Tiny Tower of Power

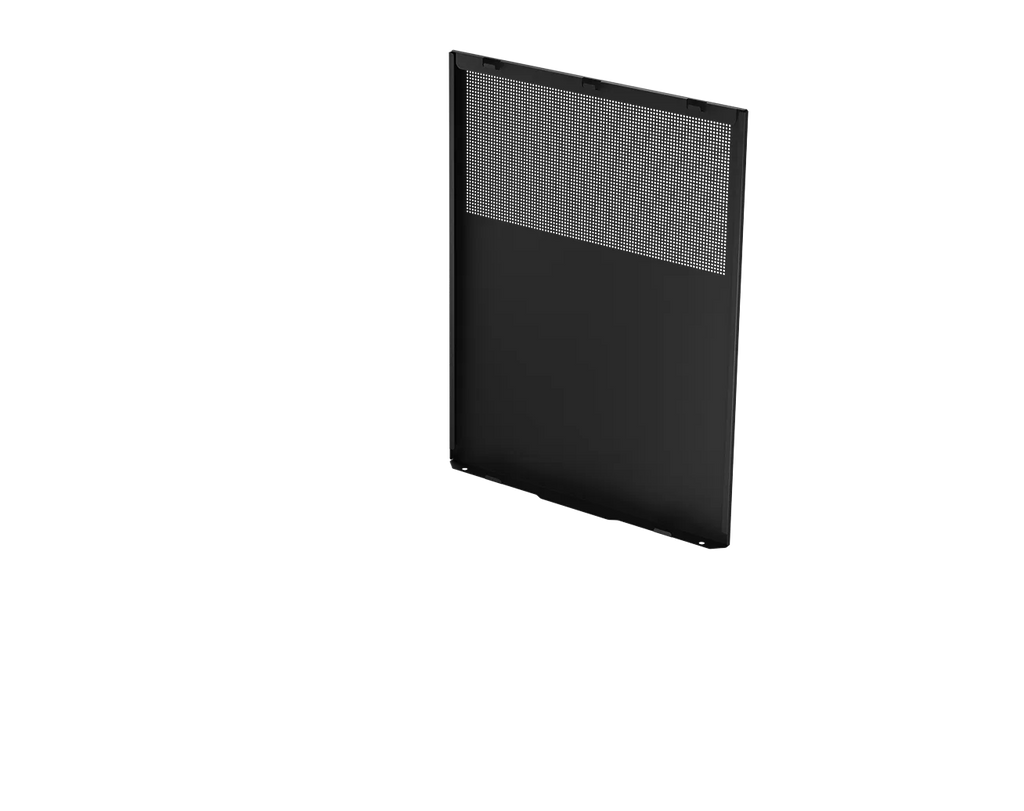

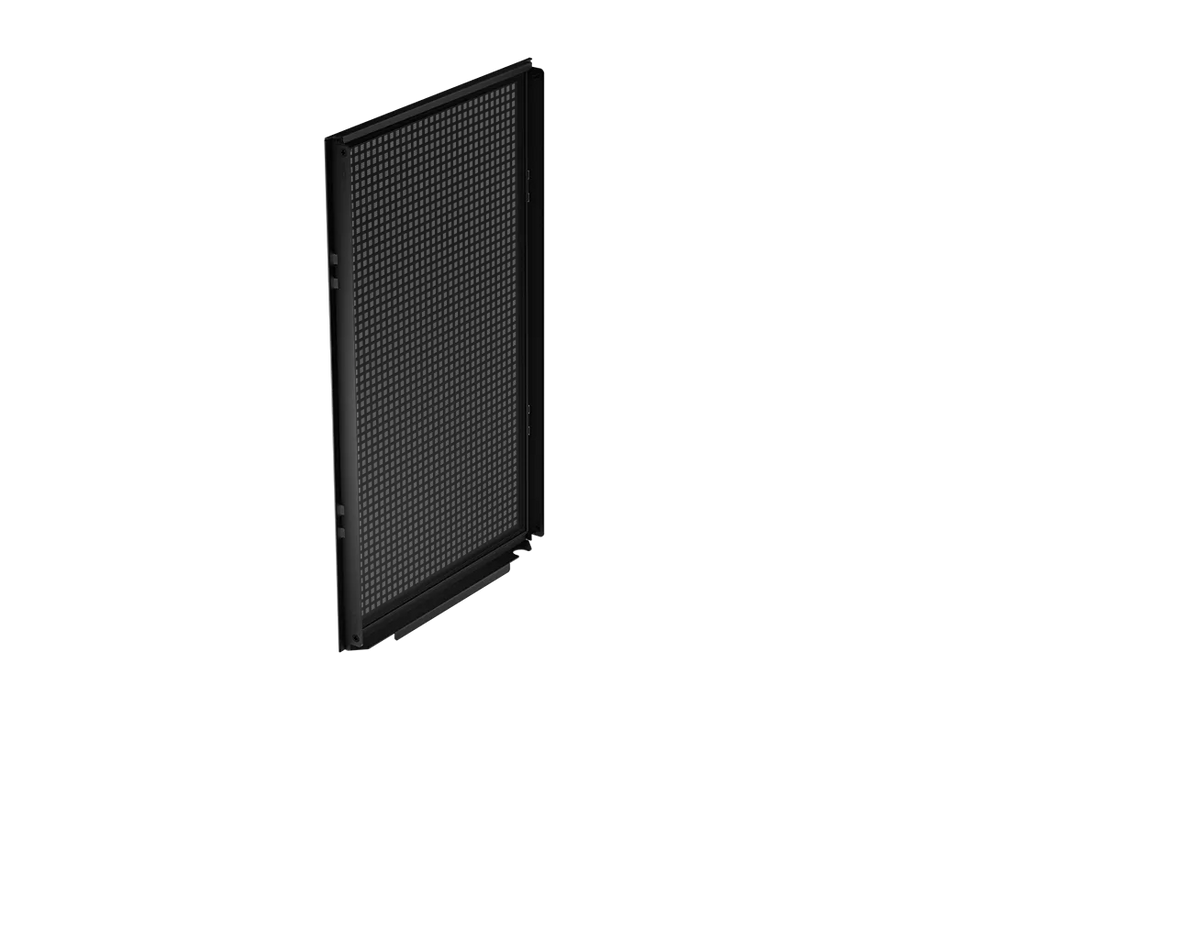

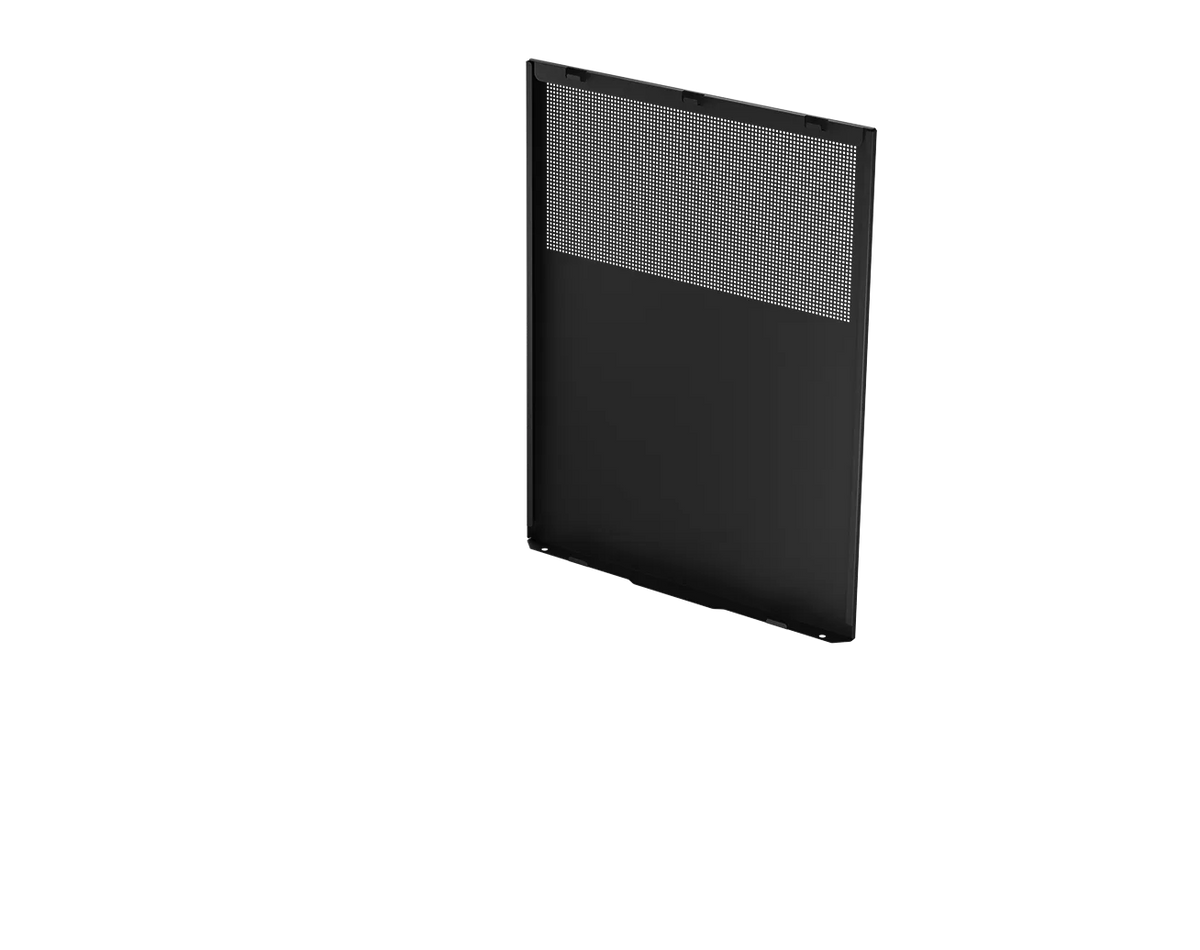

HIGH AIRFLOW PANELS
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.

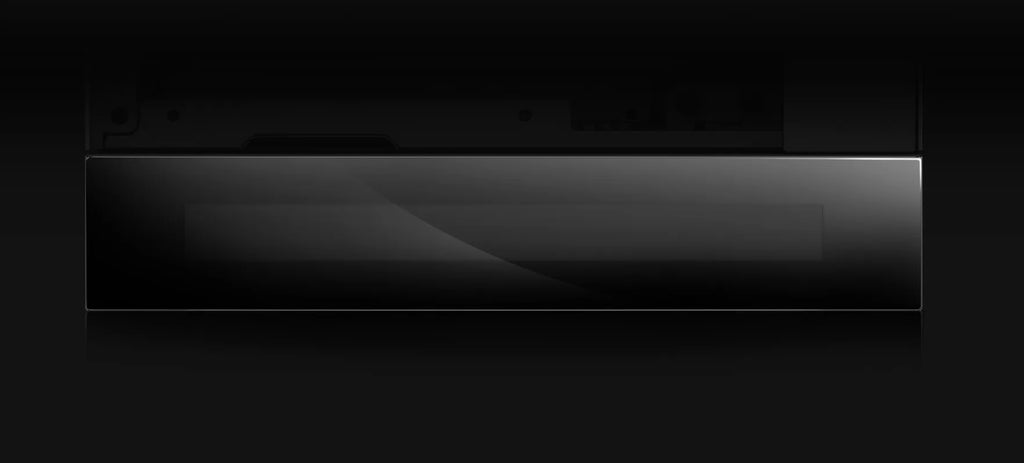

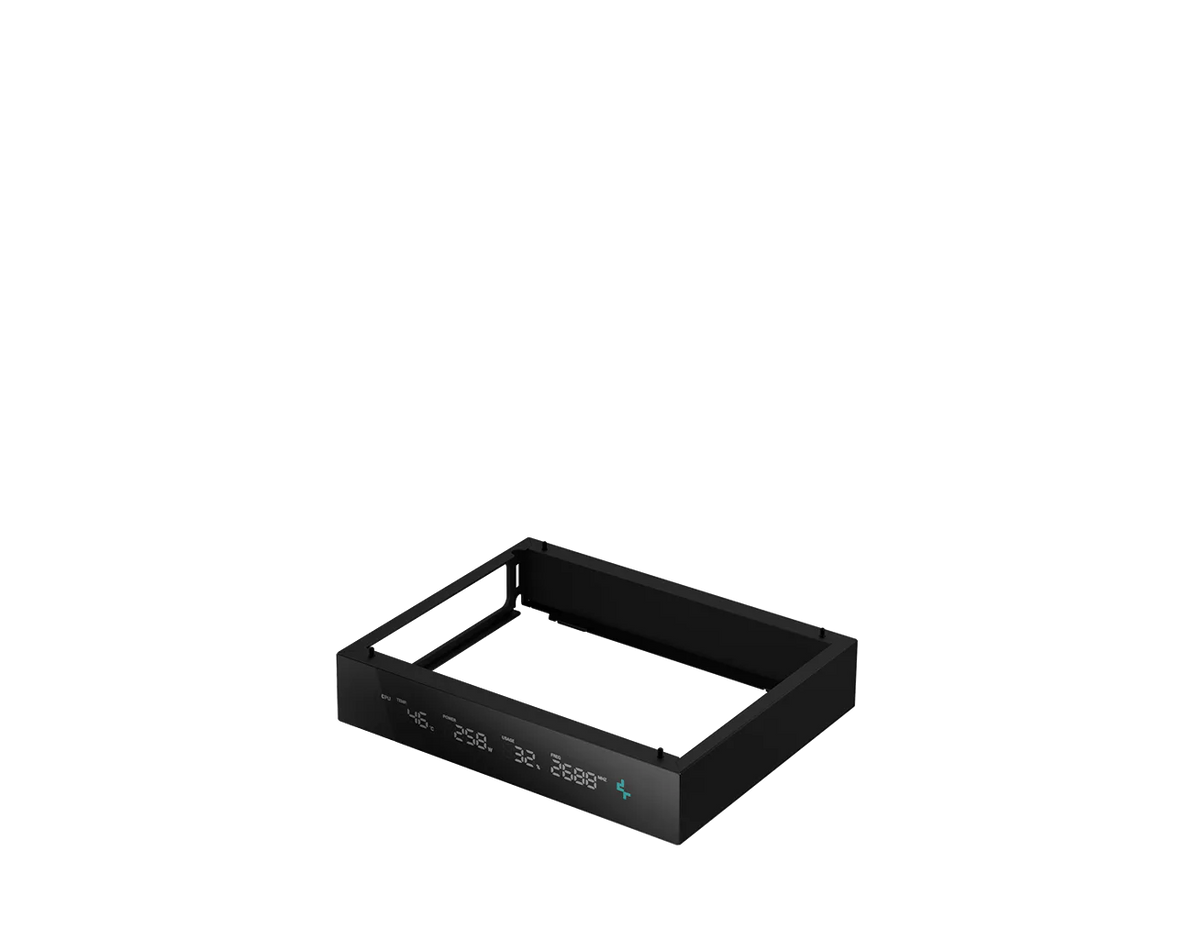

MULTIPLE DATA POINT DISPLAY
The CH170 DIGITAL has a digital base that displays four vital points of data, focusing on CPU, GPU, or PSU information at any given point in time.
QUALITY OF LIFE IMPROVEMENTS

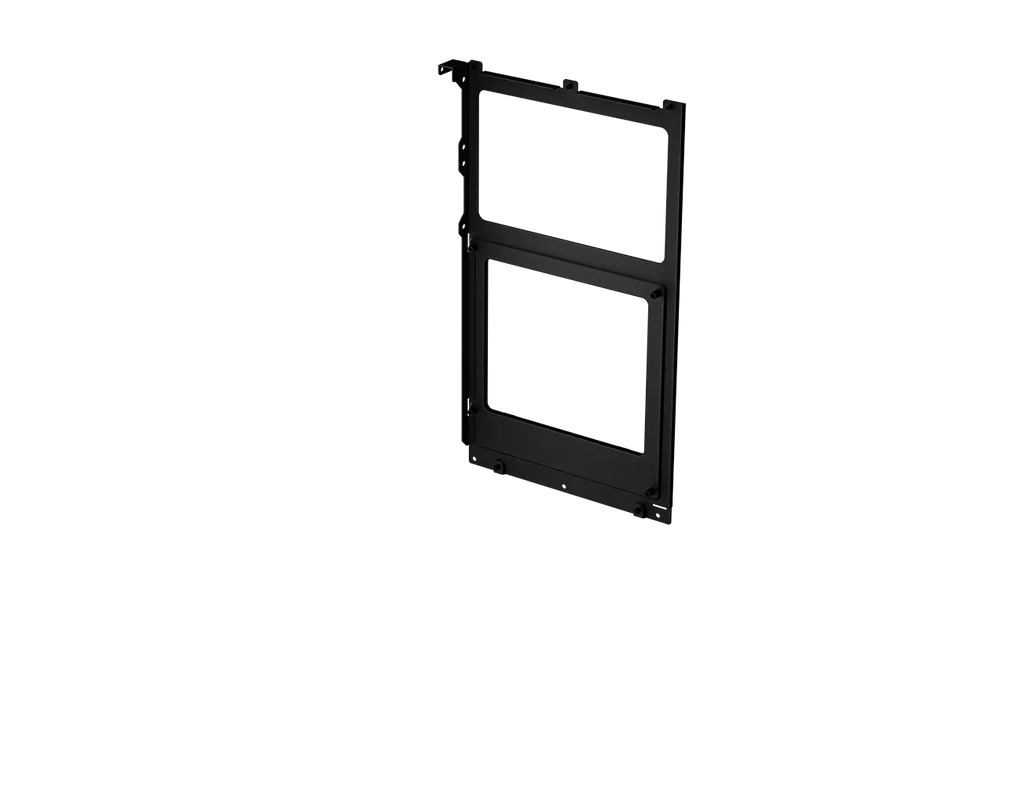

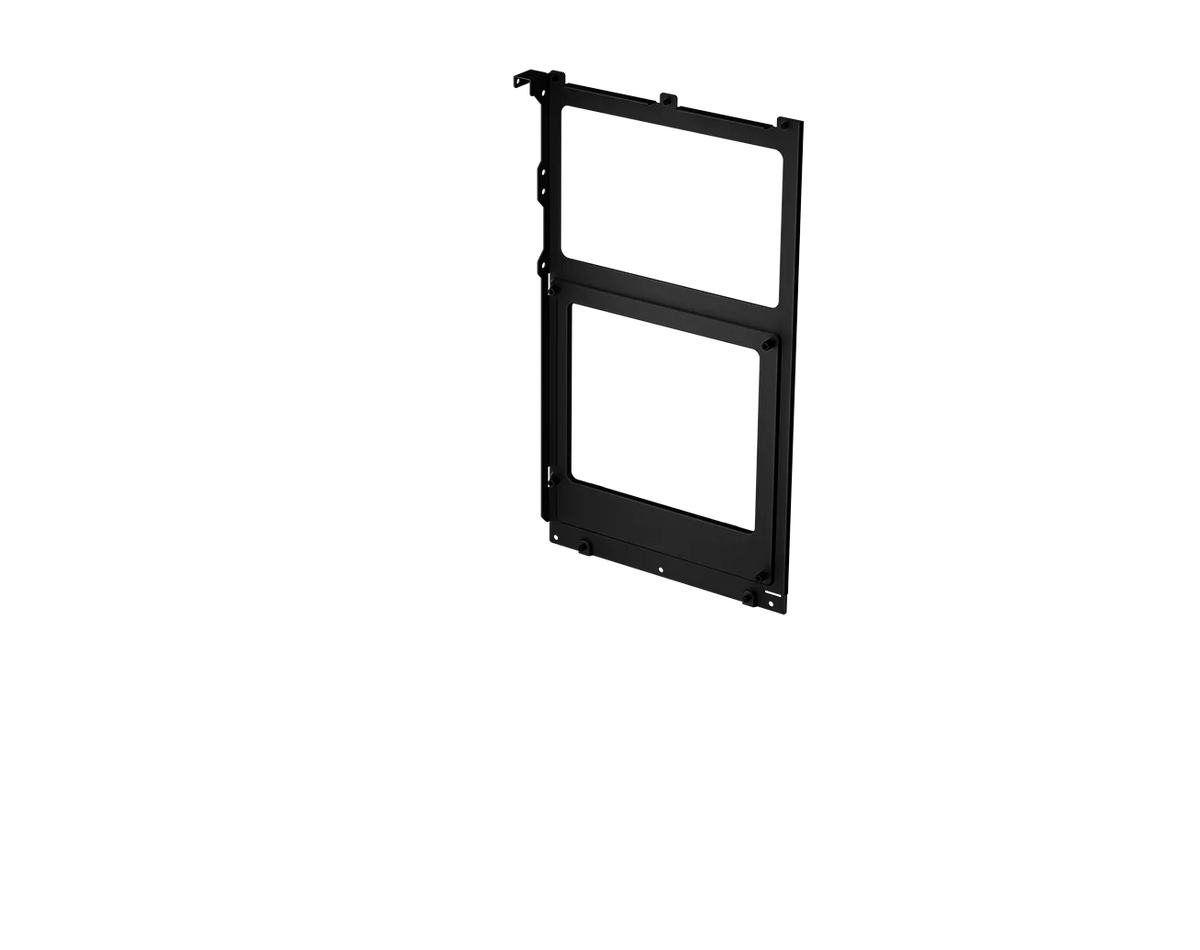

Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
General
| Brand | Deepcool |
|---|---|
| Model | CH170 Digital |
| Materials | ABS + SPCC |
Motherboard & Expansion
| Motherboard Socket | Mini-ITX |
|---|---|
| Expansion Slots | 3 |
Cooling & Airflow
| CPU Cooler Height Limit | 172 mm |
|---|---|
| Front Fans | 1 × 120 mm |
| Top Fans | 1 × 120 mm (or SSD/HDD alternative) |
| Rear Fans | 2 × 120 mm |
| Bottom Fans | 1 × 120 mm |
| Side Fans | 2 × 120 mm |
| Radiator Support | Side: 240 mm |
| Airflow Design | All-mesh panels |
Storage & Power
| Drive Bay Flexibility | 1 slot supports 2.5" SSD, 3.5" HDD, or 120 mm fan |
|---|---|
| Power Supply Type | ATX PS2, SFX, or SFX-L |
| PSU Max Length | 140 mm |
| GPU Maximum Length | 305 mm (SFX orientation) or 230 mm (ATX orientation) |
| GPU Maximum Height | 138 mm |
| GPU Clearance (Slots) | 3 slots |
Front Connectivity & Features
| USB 3.0 Ports | 2 |
|---|---|
| USB Type-C Ports | 1 (Gen 2) |
| Audio Ports | 1 (hybrid) |
| Digital Display | Yes, displays 4 system metrics |
| Dust Filters | 3 removable filters |
