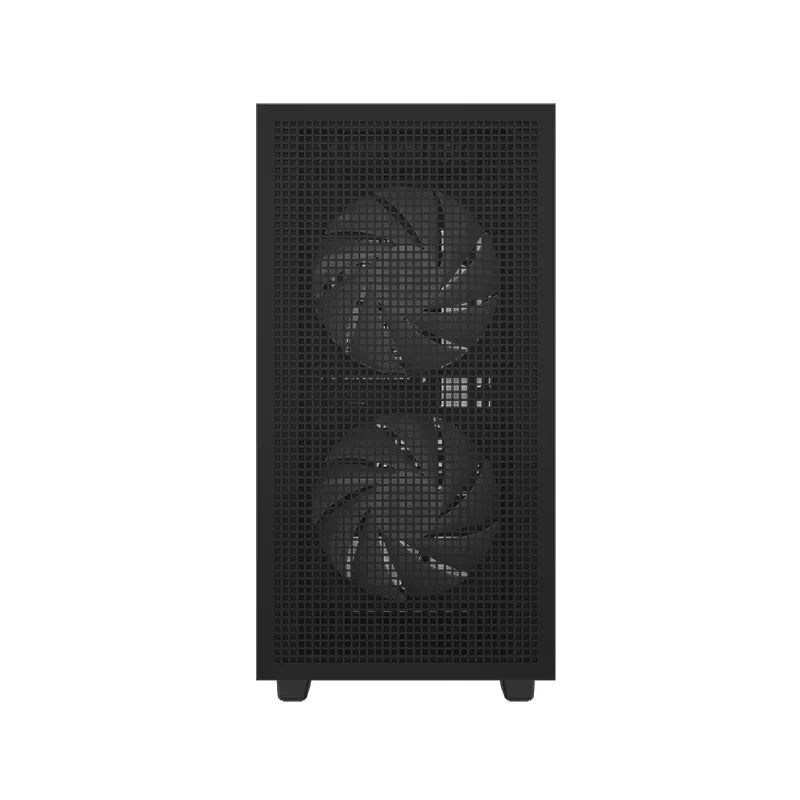

DeepCool CH360 Digital Black mATX Mid Tower Case - ARGB
DeepCool
DeepCool CH360 Digital Black mATX Mid Tower Case - ARGB

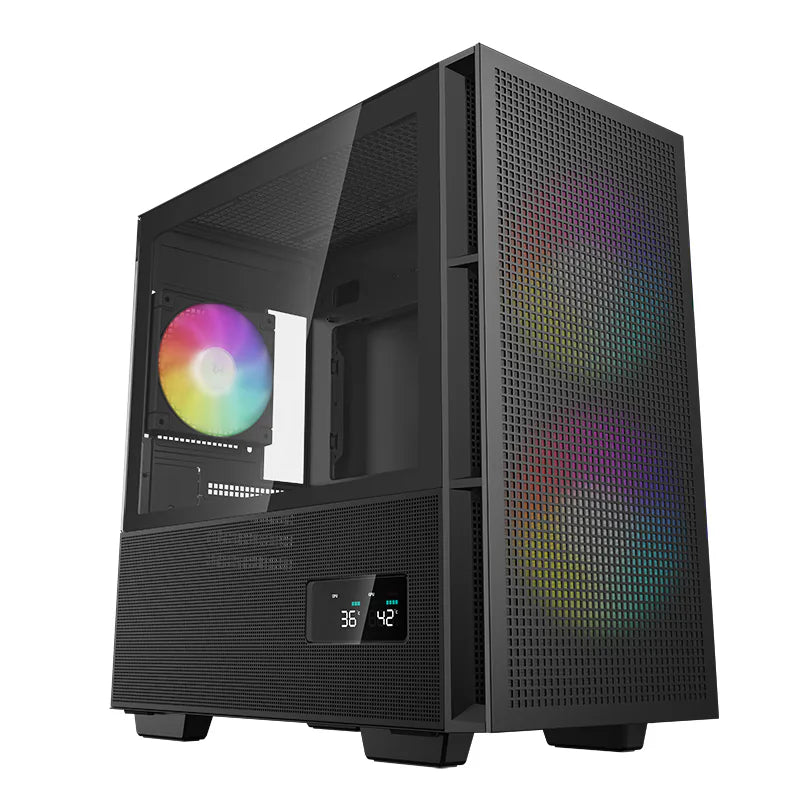

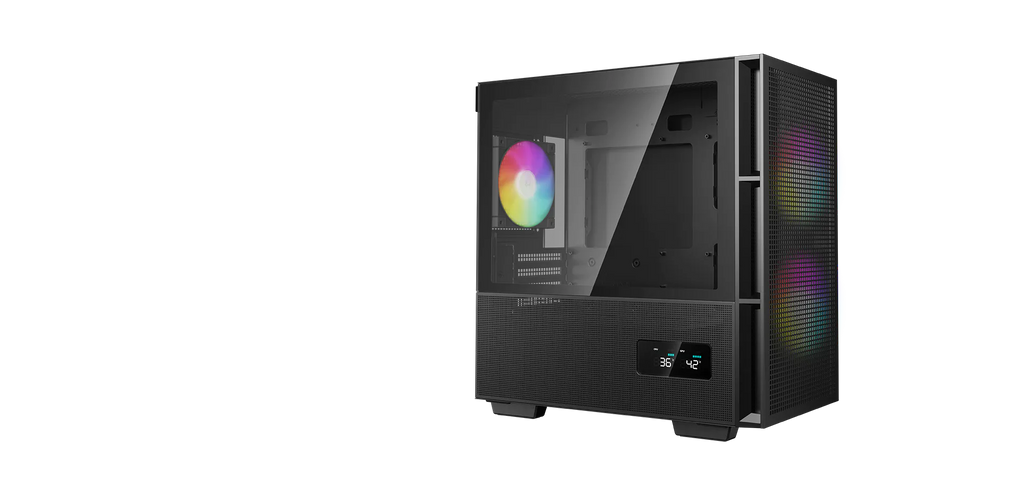

The DeepCool CH360 Digital Black mATX Mid Tower Case is a compact airflow-focused chassis designed for builders who want real-time system monitoring and flexible cooling options without sacrificing GPU clearance. It combines a hybrid glass-and-mesh side panel with an integrated dual-status digital display that shows CPU and GPU temperatures and utilization.
Why this product
Dual-status digital display
Real-time monitoring of CPU and GPU temperatures or utilization directly on the case. Display switches between metrics every 5 seconds, controlled via simple application.
Hybrid airflow glass panel
Tempered glass front with mesh sections supplies additional ventilation to GPUs while maintaining a clear view into the chassis.
Two pre-installed 140mm ARGB fans
PWM-enabled front fans mounted outside the main compartment to maximize GPU clearance while delivering strong intake airflow.
Flexible cooling configurations
Supports 360mm radiators in front, plus multiple fan mounting options across front, top, and rear positions.
Optimized for compact builds
Accommodates GPUs up to 378mm, CPU coolers up to 165mm, and PSUs up to 160mm within a 428×215×431mm footprint.
- TypemATX Mid Tower
- Dimensions428 × 215 × 431 mm
- Weight6 kg
- Pre-installed fansFront: 2×140mm ARGB, Rear: 1×120mm ARGB
- GPU clearance378 mm
- CPU cooler height limit165 mm
- Front I/OUSB 3.0, USB Type-C, Audio
- SKUDEE-1011
- EAN6933412774693
- Supports Micro-ATX and Mini-ITX motherboards.
- Front USB 3.0, USB Type-C, and hybrid audio jack on the I/O panel.
- Accommodates ATX power supplies up to 160mm in length.
- GPU length limit is 378mm; verify your graphics card dimensions against this specification.
- CPU cooler height limit is 165mm; tall tower coolers may not fit.
Best for
- Builders prioritizing airflow and thermal visibility
- Systems using high-end GPUs that benefit from additional side ventilation
- Users who want real-time system monitoring without separate hardware
- Compact build enthusiasts with Micro-ATX motherboards
Trade-offs
- ATX motherboards — this case supports only Micro-ATX and Mini-ITX layouts.
- Very tall CPU coolers — 165mm height limit excludes many dual-tower designs.
- Large graphics cards — 378mm GPU length limit may conflict with oversized cooler designs.
- Builders without RGB control hardware — ARGB fans and lighting require motherboard RGB headers or the included controller.

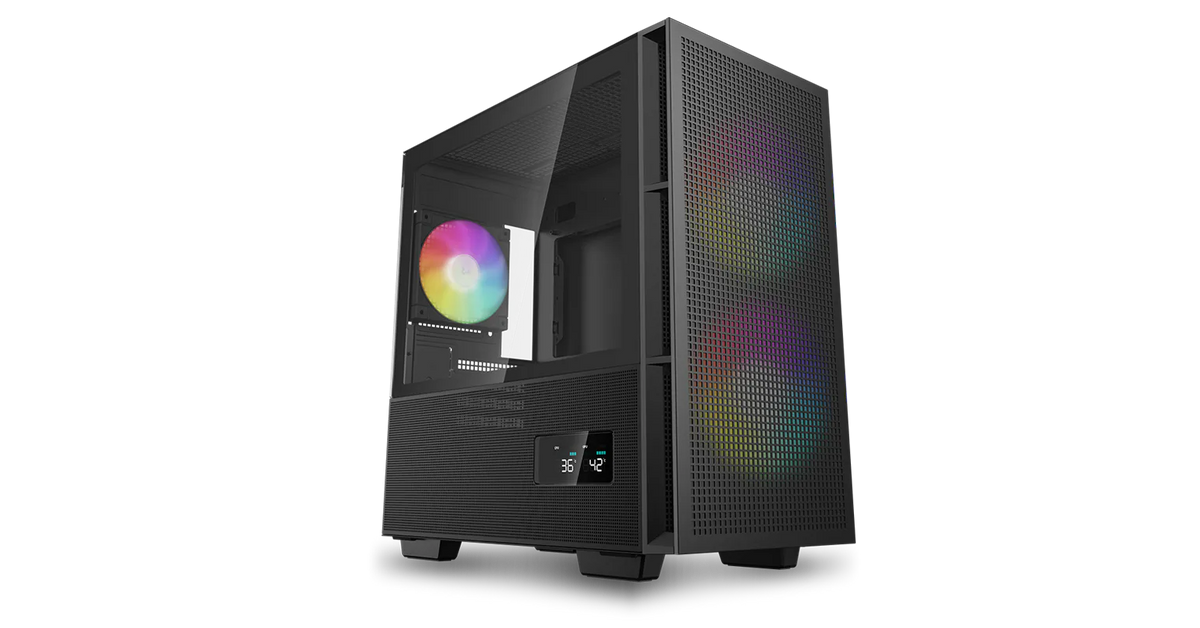

The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH360 DIGITAL is a newly designed mATX case with a concentrated focus on increased airflow throughout the entire chassis. Two bright PWM enabled 140mm ARGB fans are mounted in front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH360 DIGITAL apart from the competition.
A BREATH OF FRESH AIR
The CH360 DIGITAL provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

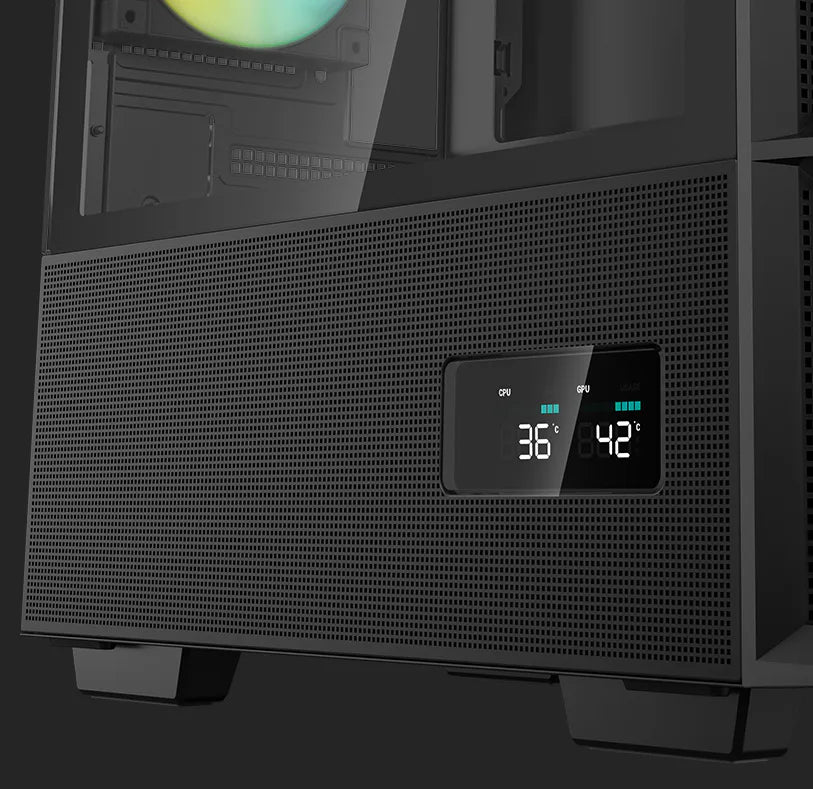

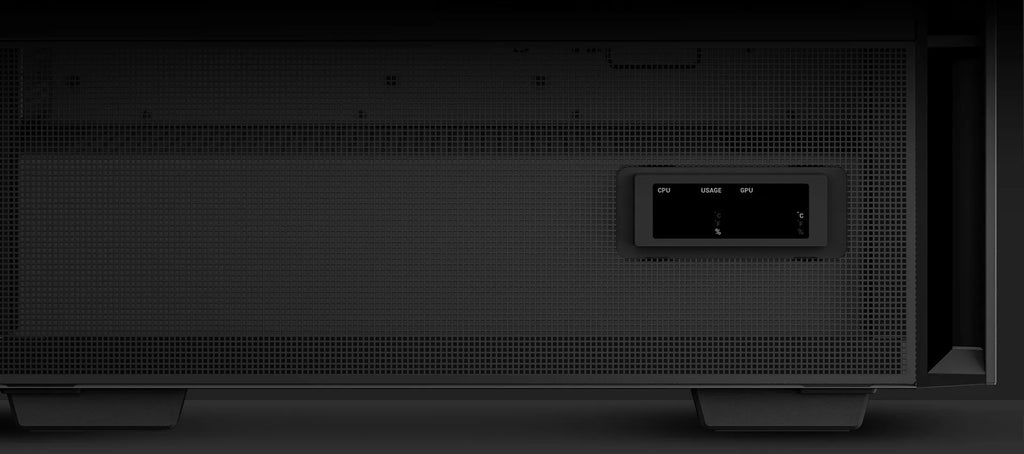

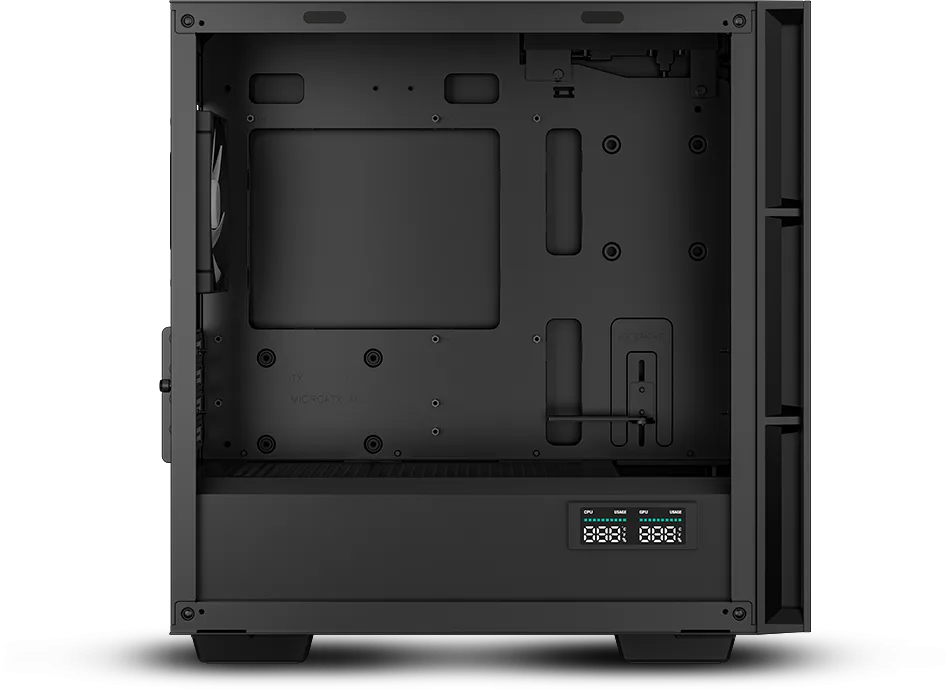

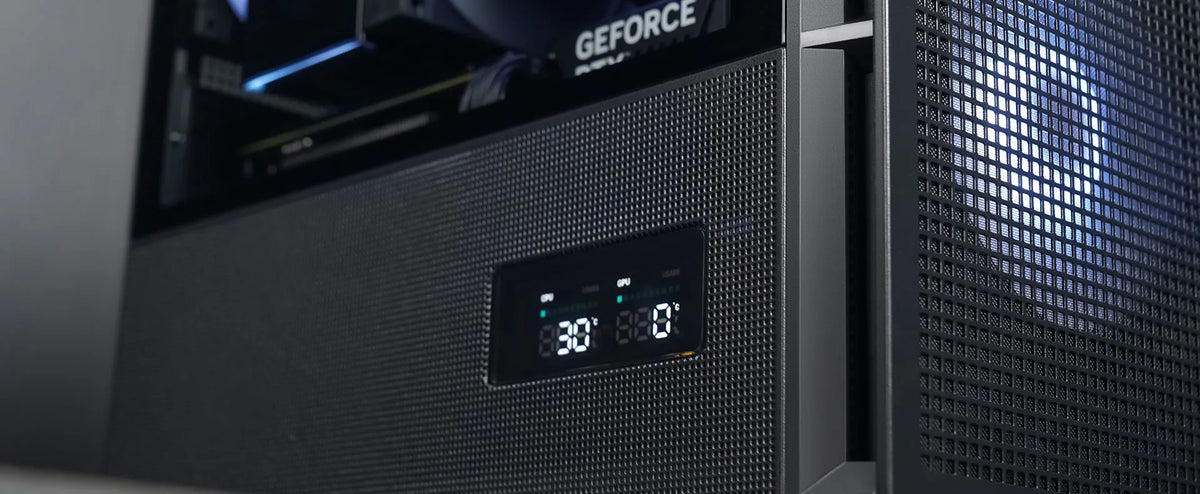

REAL-TIME DUAL-STATUS DIGITAL DISPLAY

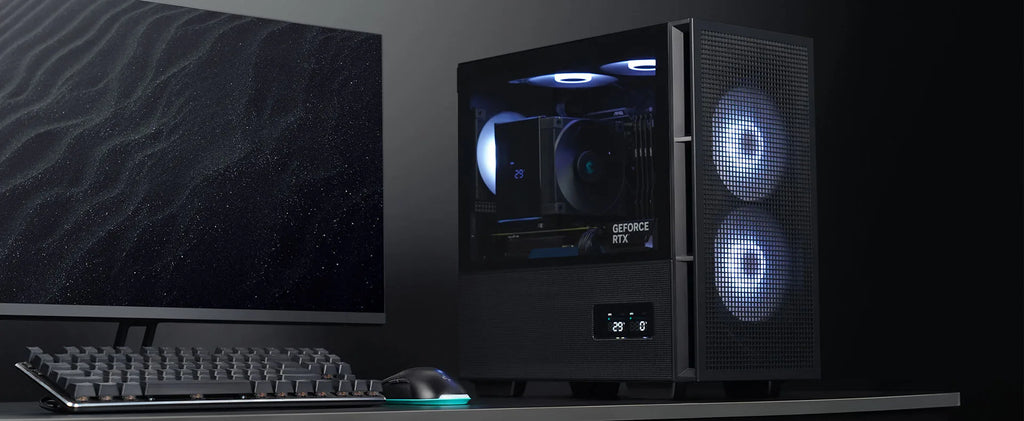

Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.
MAXIMUM COOLING CAPACITY

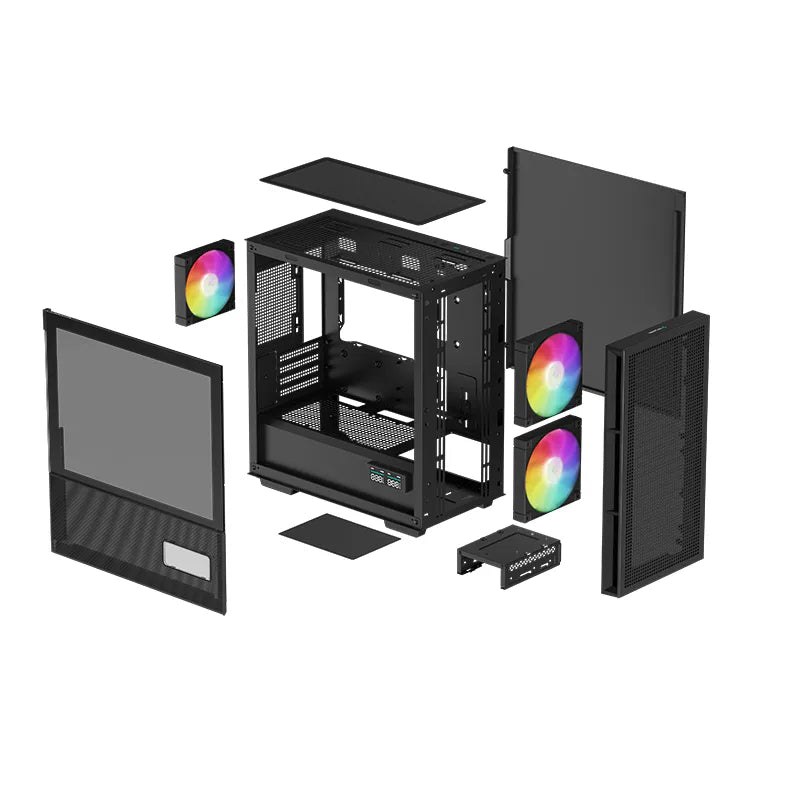

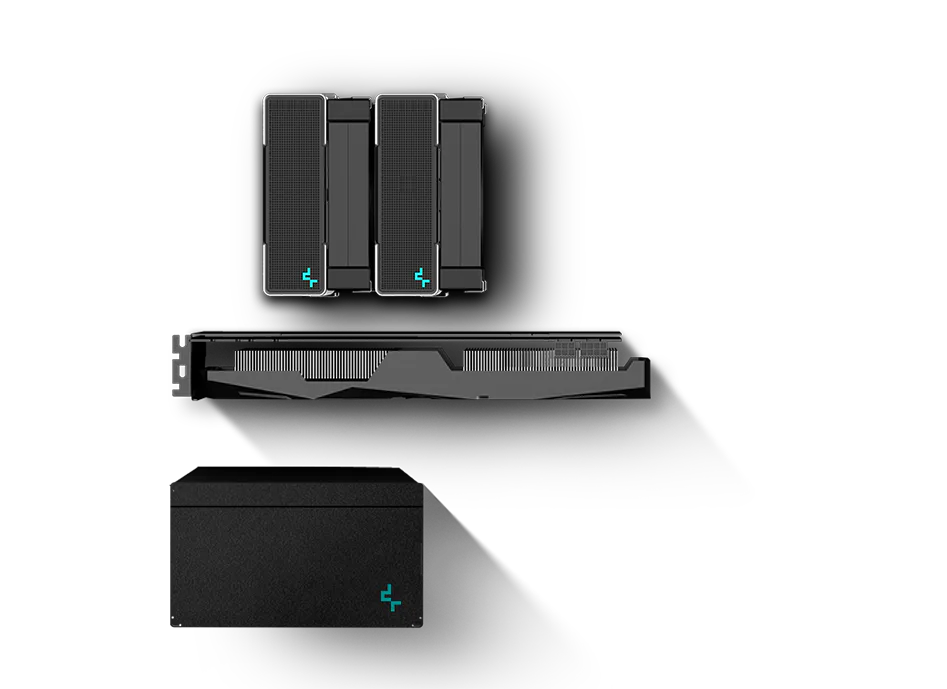

The CH360 DIGITAL has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless. With the ability to support 165mm tall CPU coolers, 378mm GPUs, and 160mm PSUs; the CH360 DIGITAL can be configured with a wide range of modern components. Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 DIGITAL and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint.
STRESS-FREE BUILDING

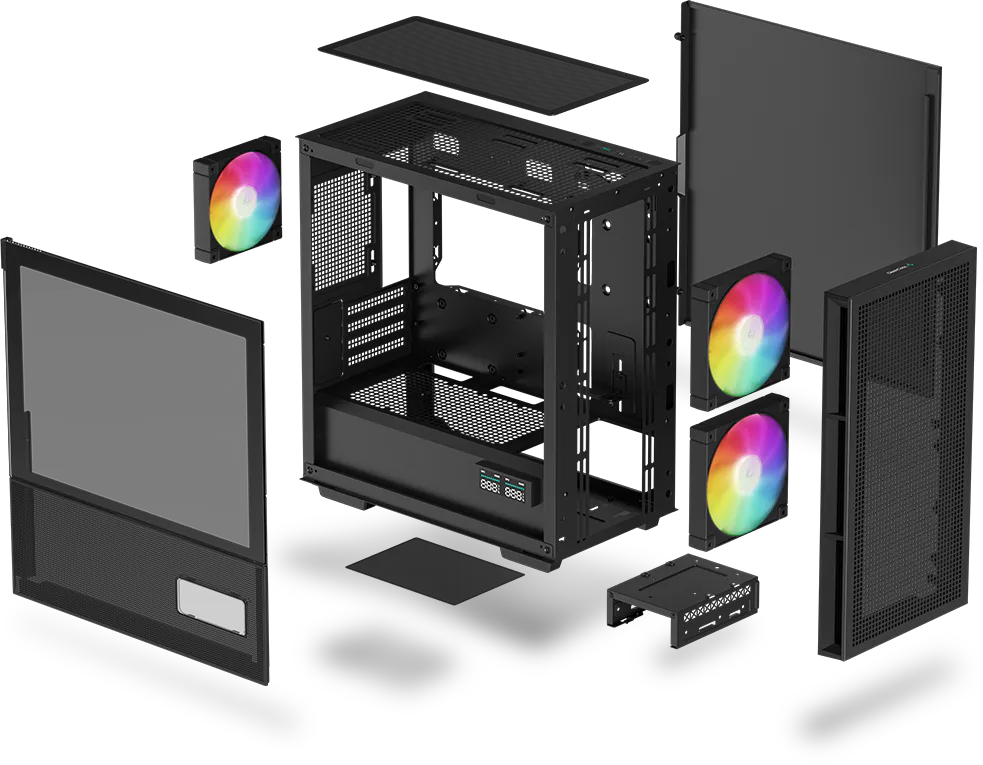

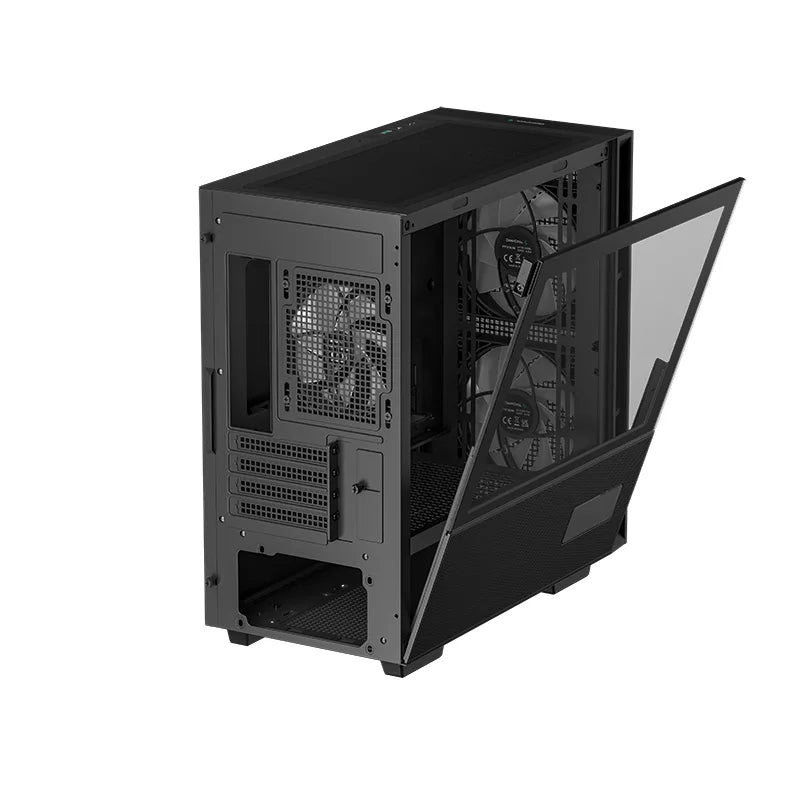

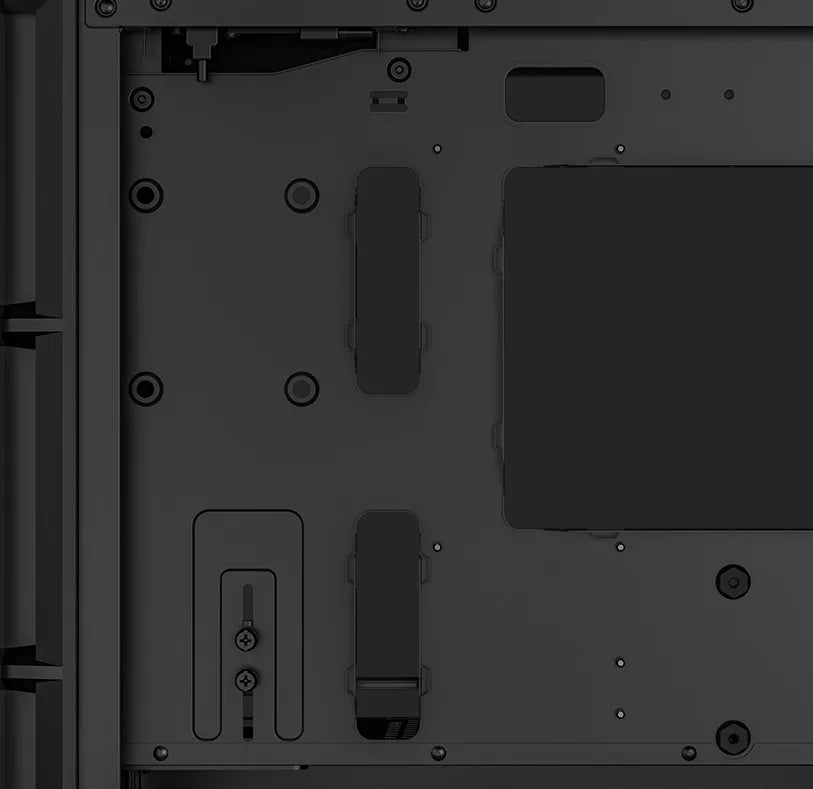

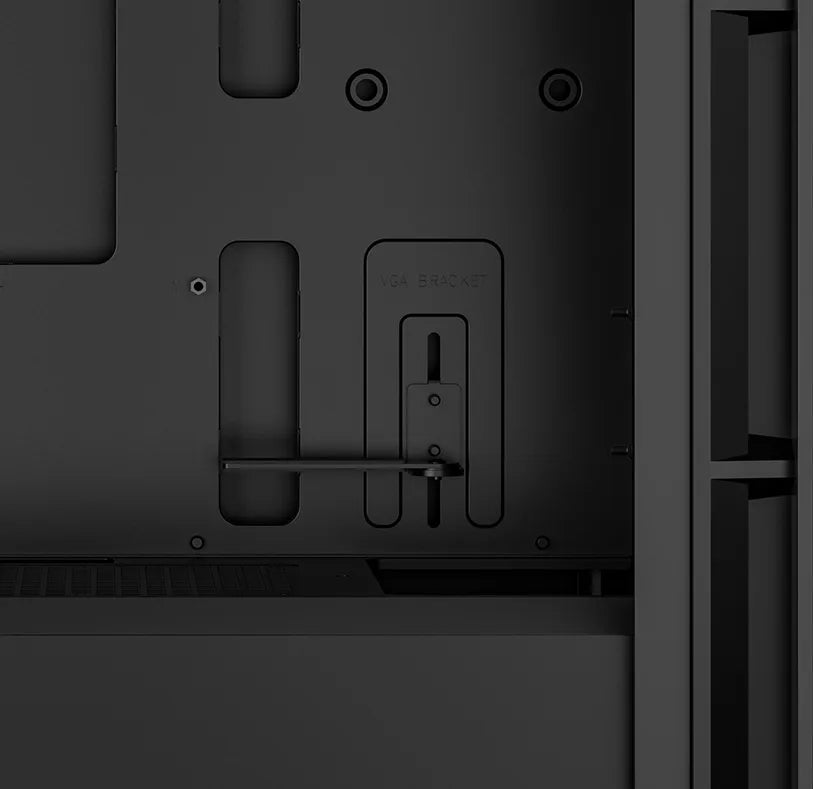

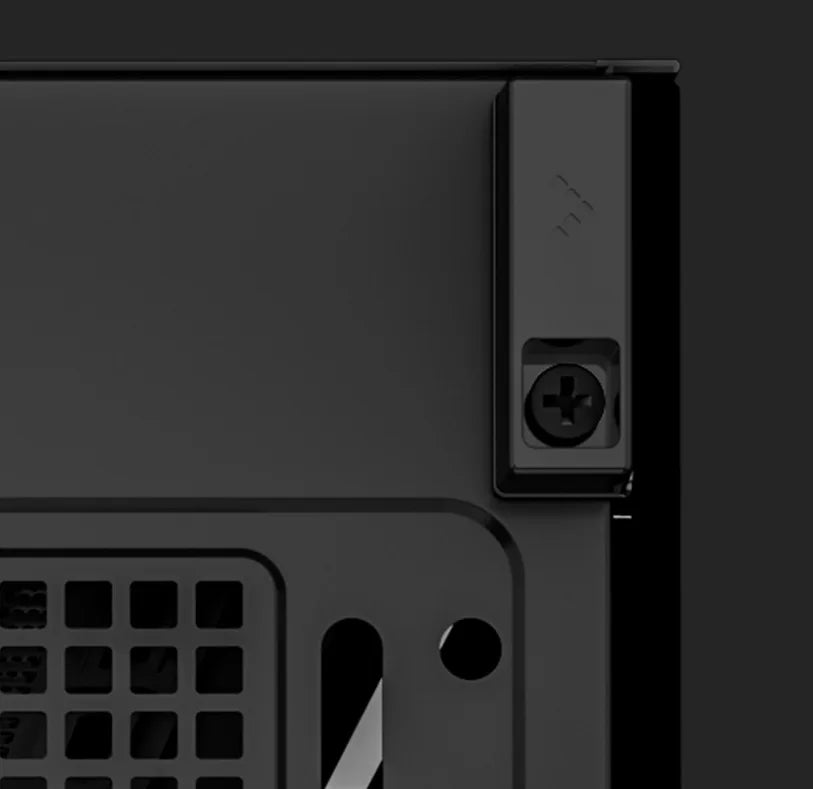

Building and maintaining the CH360 DIGITAL is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
CONVENIENCE AT ARM'S REACH
Everything necessary for daily routines is within reach with a Type-C, a USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.
General
| Brand | DeepCool |
|---|---|
| Part Number | R-CH360-BKAPE3D-G-1 |
| Material | ABS, SPCC, Tempered Glass |
Motherboard & Expansion
| Motherboard support | Mini-ITX, Micro-ATX |
|---|---|
| Expansion slots | 4 |
| 3.5" drive bays | 2 |
| 2.5" drive bays | 2+1 |
Cooling & Airflow
| Front fans | 2×140mm ARGB (pre-installed) |
|---|---|
| Rear fan | 1×120mm ARGB (pre-installed) |
| Front fan support | 3×120mm or 2×140mm |
| Top fan support | 2×120mm or 2×140mm |
| Rear fan support | 1×120mm |
| Radiator support (front) | 120/140/240/280/360mm |
| Radiator support (top) | 120/140/240mm |
| Radiator support (rear) | 120mm |
| CPU cooler height limit | 165 mm |
Component Compatibility
| GPU length limit | 378 mm |
|---|---|
| Power supply type | ATX PS2 (max 160mm) |
| PSU shroud fan support | 2×120mm |
Front I/O & Features
| USB ports | 1×USB 3.0, 1×USB Type-C |
|---|---|
| Audio | Hybrid audio jack |
| Digital display | Dual-status (CPU & GPU metrics) |

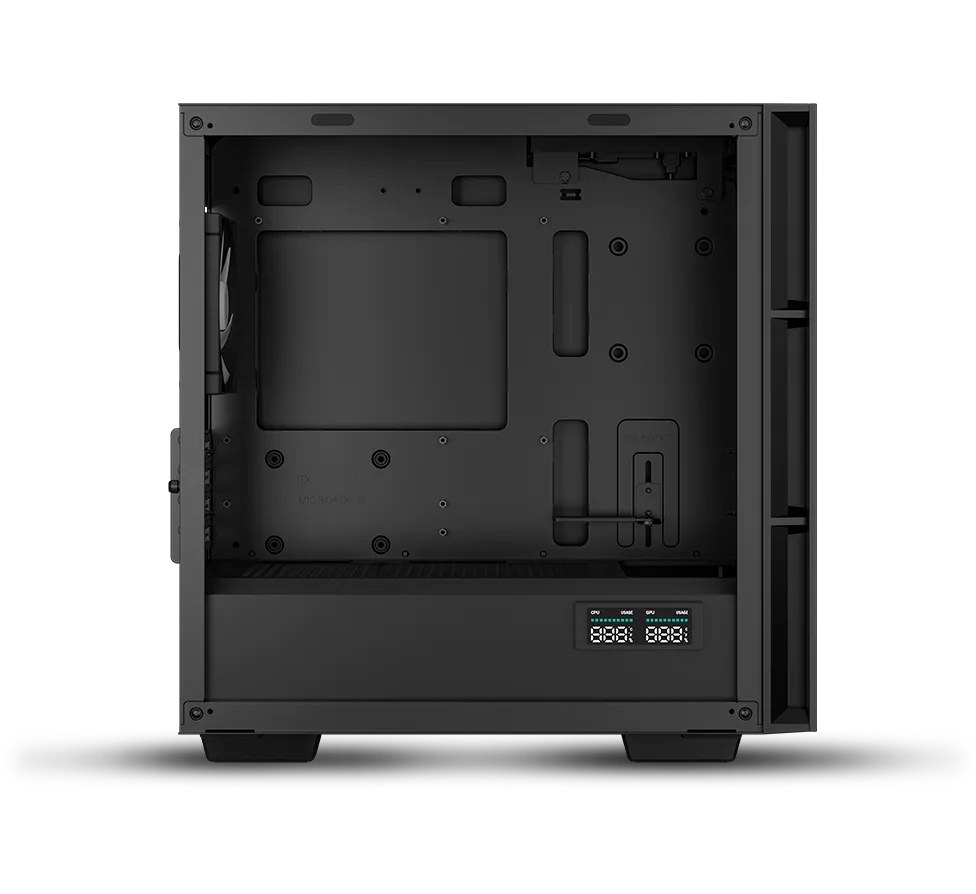

| Cable management space | 26 mm behind motherboard tray |
