DeepCool CH690 Digital Black Mid-Tower ATX Case - 420mm Rad

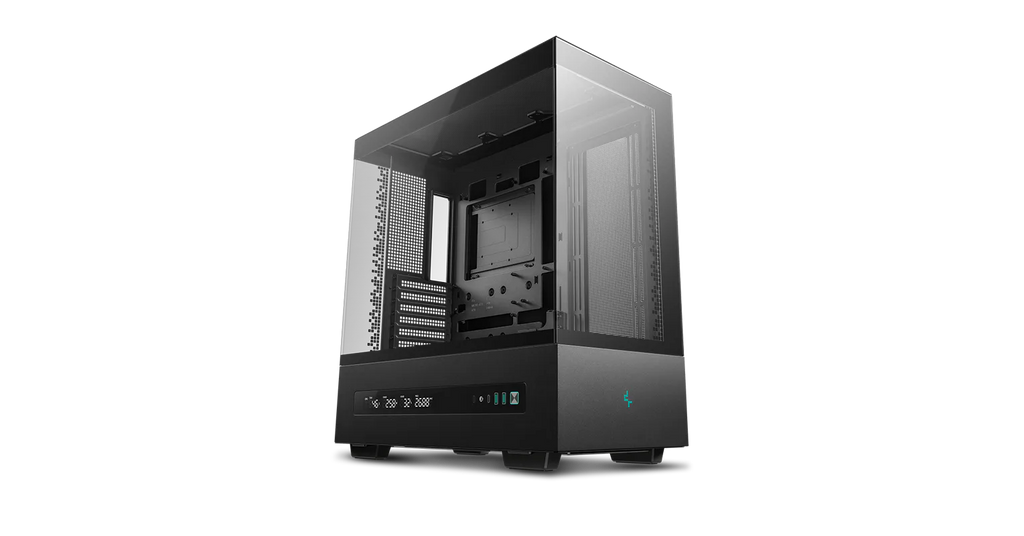

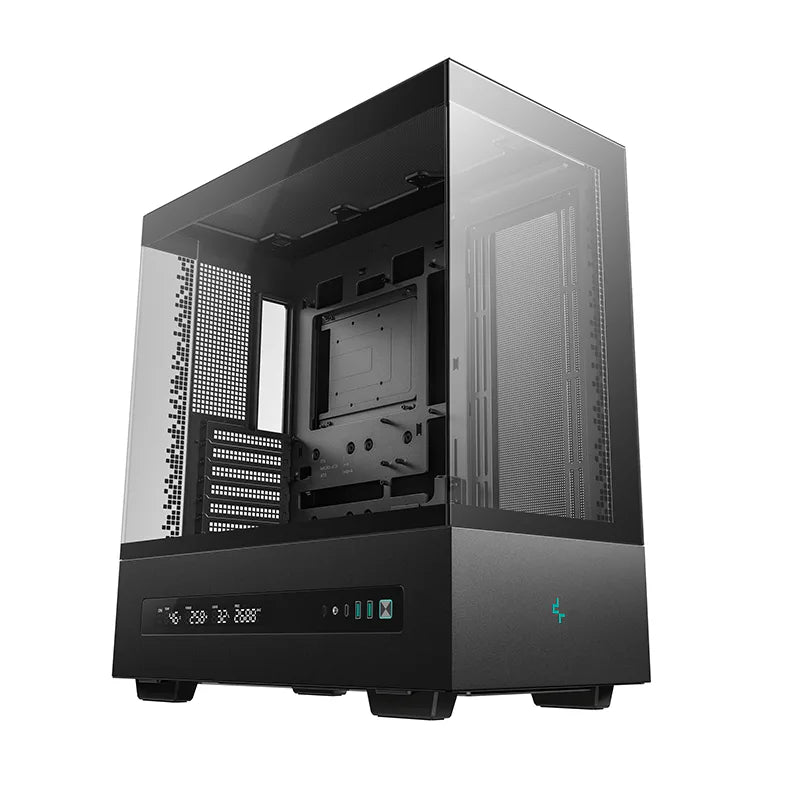

The DeepCool CH690 Digital Black Mid-Tower ATX Case is designed for builders who want visibility, flexibility, and real-time system monitoring. Its semi-glass front panel showcases components while the integrated digital display tracks CPU, GPU, and PSU metrics in real time.
Why this product
Integrated digital display with switchable modes
Monitor CPU temperature, GPU metrics, or PSU power consumption and frequency in real time. Display toggles between Fahrenheit and Celsius, with CPU mode showing fan speeds and PSU mode tracking fan performance.
Supports large radiators and high-end GPUs
Fits up to 420mm radiators on top, 280mm on the side, and 360mm in the PSU shroud. GPU clearance reaches 450mm, and CPU coolers up to 182mm tall fit without obstruction.
Semi-glass front with DIY mesh conversion
Tempered glass panel showcases components, but the rear can be modified to swap the semi-glass for a mesh panel and fan bracket to increase horizontal airflow for different cooling strategies.
Adjustable GPU support and cable management
Built-in GPU holder prevents sagging-related motherboard damage. Rear connector space of 36.5mm width handles routing, and a magnetic filter pad at the bottom simplifies maintenance.
- Case TypeMid-Tower
- Motherboard SupportMini-ITX, Micro-ATX, ATX
- GPU Length Limit450mm
- Radiator Support (Top)Up to 420mm
- CPU Cooler Height Limit182mm
- Warranty1 Year
- SKUDEE-1012
- EAN6933412774037
- Fits Mini-ITX, Micro-ATX, and full ATX motherboards.
- Supports ATX power supplies up to 180mm long.
- Front I/O includes dual USB 3.0, USB Type-C Gen 2, and HD Audio/Mic jack.
- Liquid cooling requires compatible 120mm, 140mm, 240mm, 280mm, 360mm, or 420mm radiators; no radiators pre-installed.
- Fans are not pre-installed; configuration depends on your choice of 120mm or 140mm fans in each mount location.
Best for
- High-end gaming and workstation builds requiring component visibility and real-time performance tracking.
- Liquid cooling enthusiasts who want to install large radiators and monitor system temperatures at a glance.
- Builders using long graphics cards (up to 450mm) who need GPU sag prevention and spacious internal layout.
- System builders prioritizing airflow customization through top-mounted and PSU shroud radiator configurations.
Trade-offs
- Builders seeking a plug-and-play case with pre-installed cooling; all fans and radiators must be purchased separately.
- Those needing a small form factor; this mid-tower measures 552mm L × 332mm W × 589mm H.
- Budget builds requiring minimal cable management space; rear connector width is 36.5mm, which may limit complex multi-cable runs.
The CH690 DIGITAL is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow.

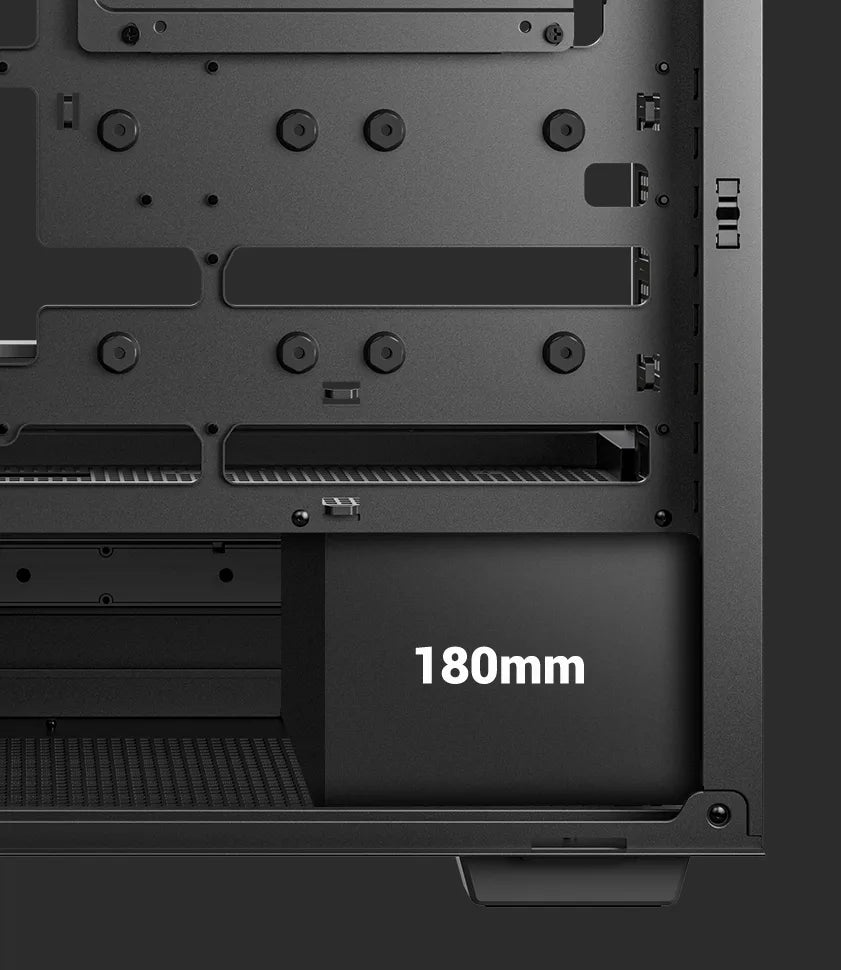

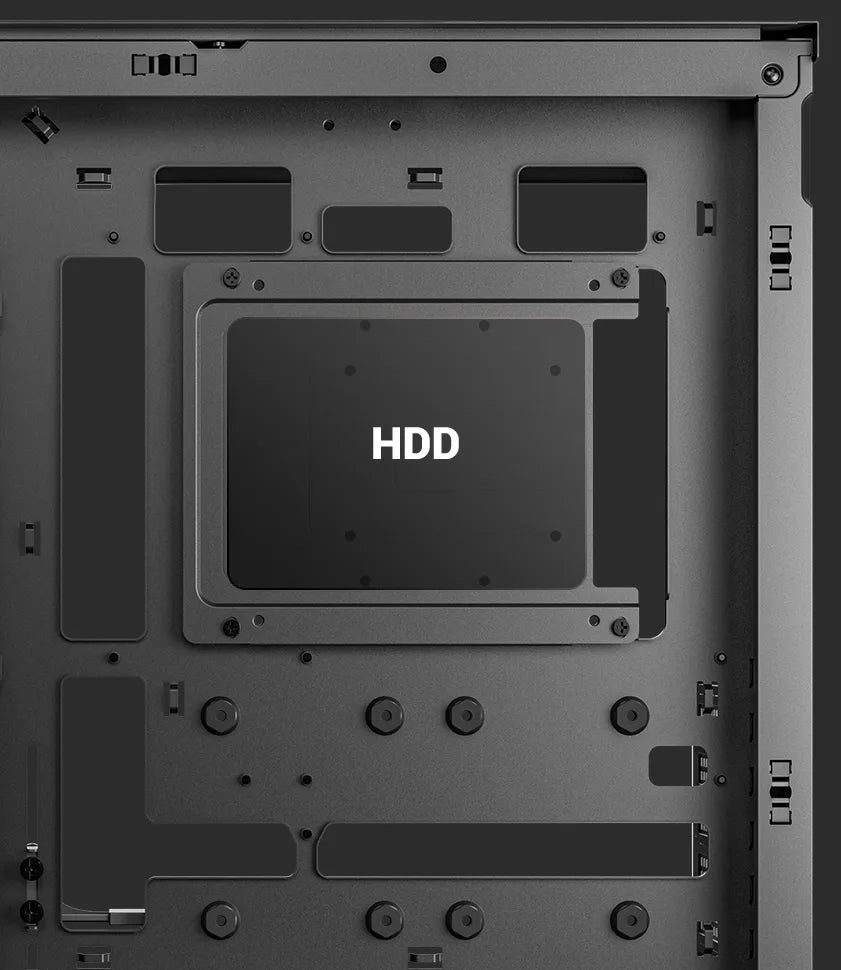

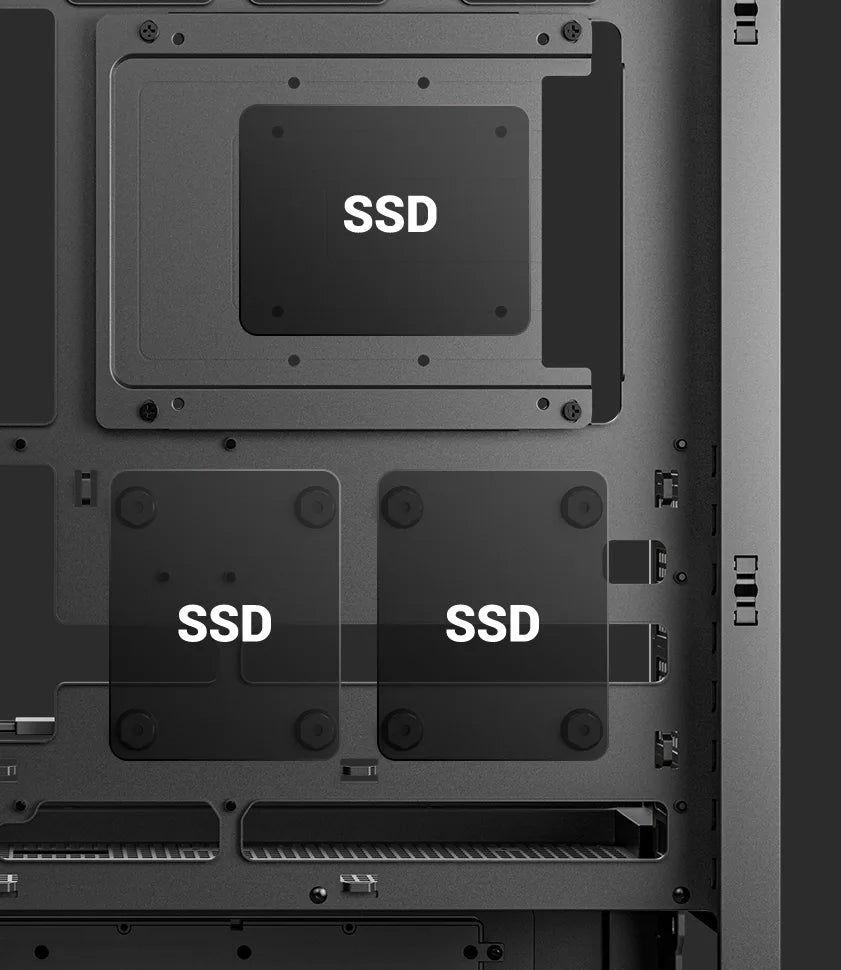

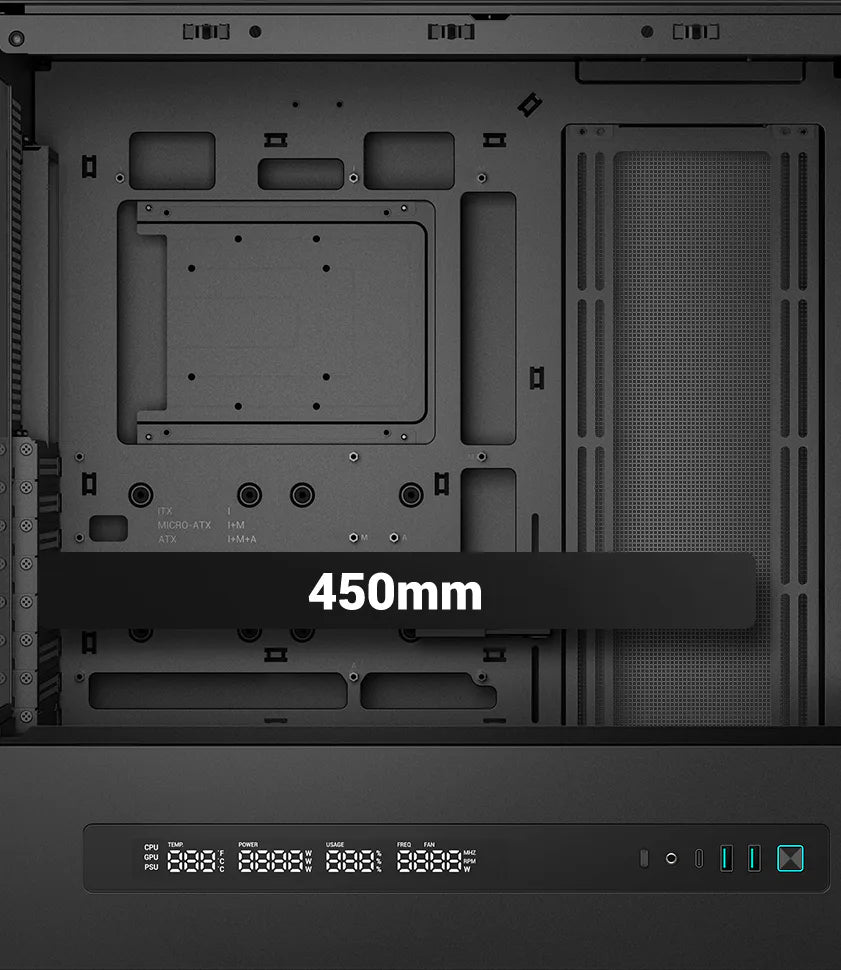

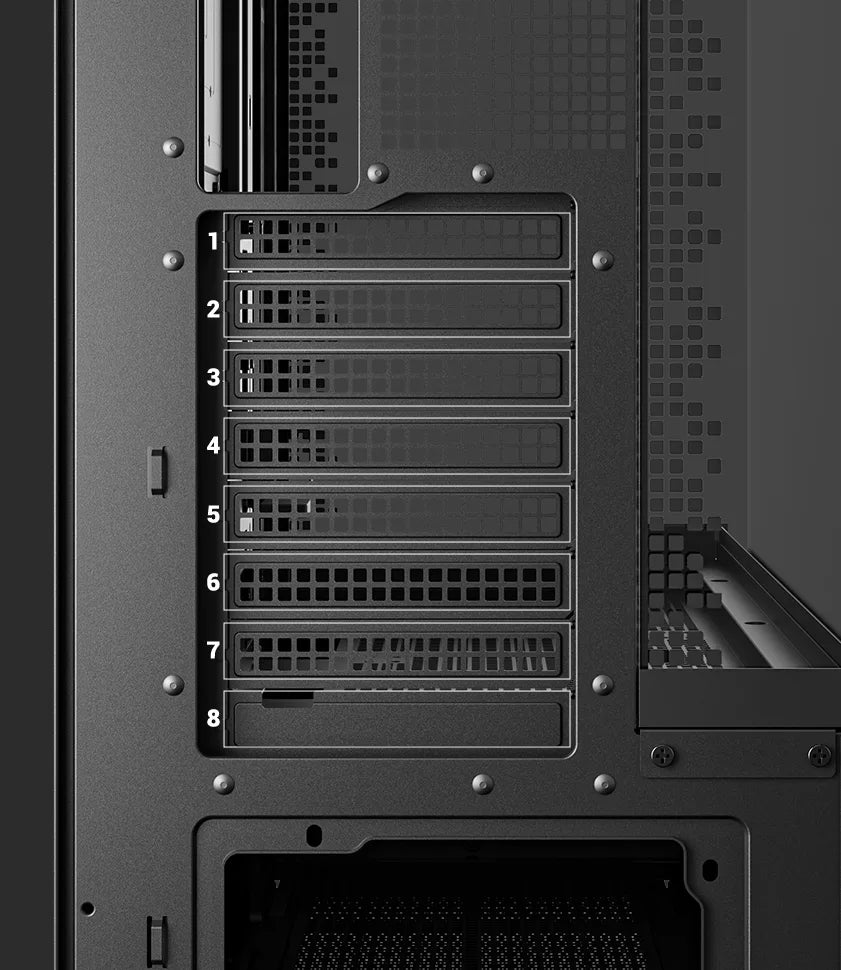

The CH690 DIGITAL is engineered for exceptional versatility, accommodating a 180mm PSU and a 450mm GPU with ease. It features up to 8 individual removable expansion slots, providing flexibility for various configurations. Storage options include 1 x 3.5" drive bay and 2 x 2.5" drive bays, ensuring ample space for data needs. This case is designed to support a wide range of components, making it an ideal choice for either gaming and professional setups.

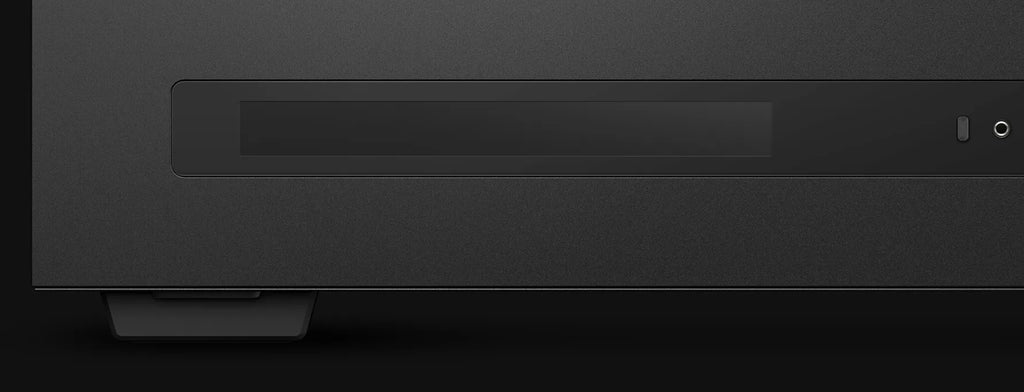

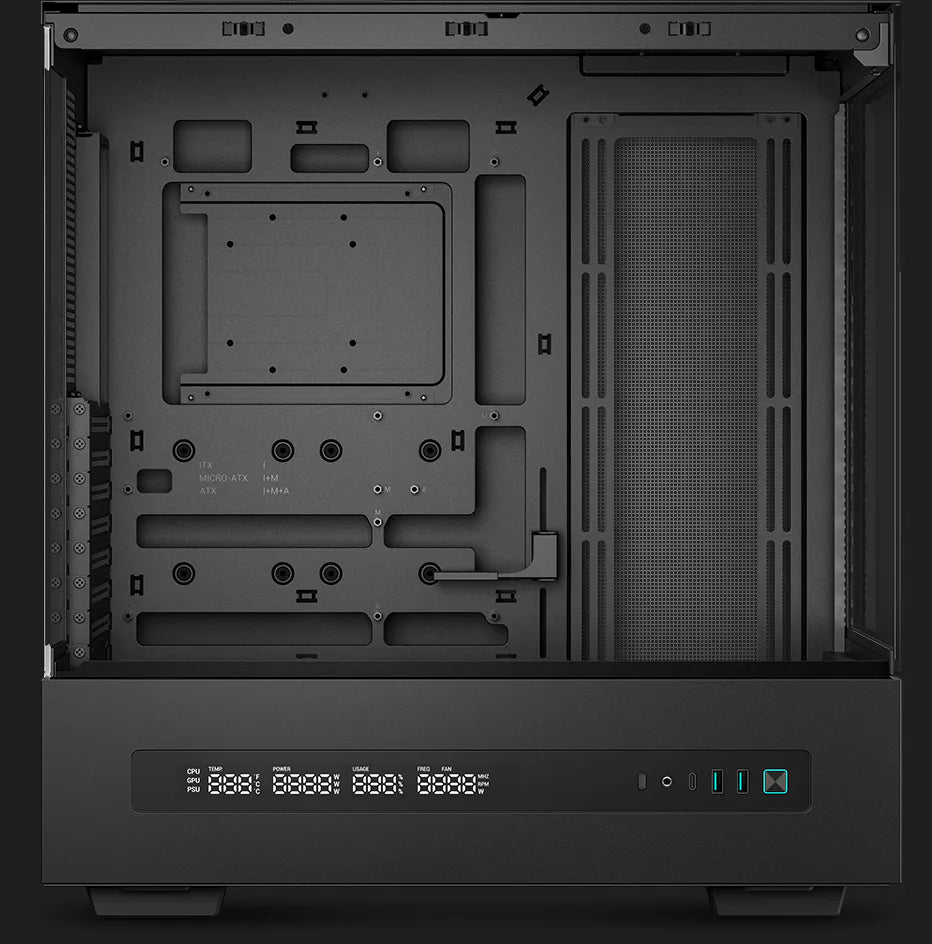

The CH690 DIGITAL case features a cutting-edge digital display that offers real-time monitoring of system's vital statistics. With switchable modes for CPU, GPU, and PSU, effortlessly track temperature in Fahrenheit or Celsius, power consumption, usage, and frequency. The CPU mode also includes fan speed monitoring, while the PSU mode provides additional insights into fan performance. This sophisticated display transforms the system into a high-tech command center, allowing optimal performance and efficiency at a glance.

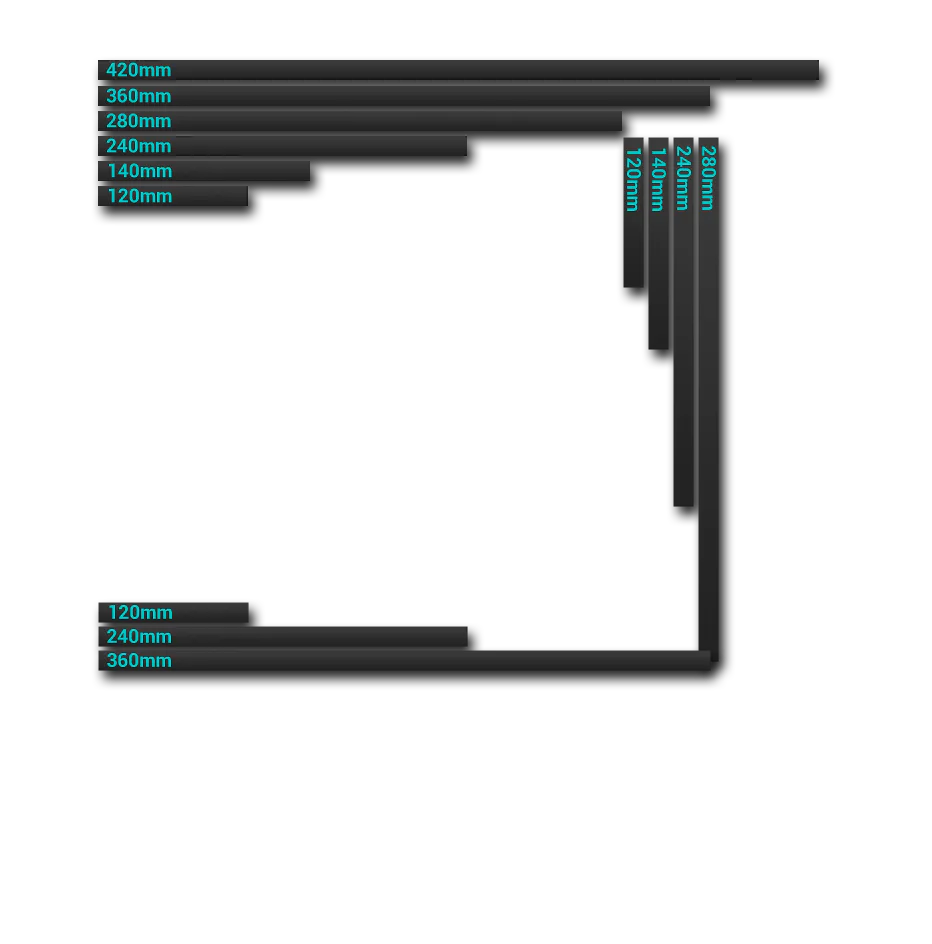

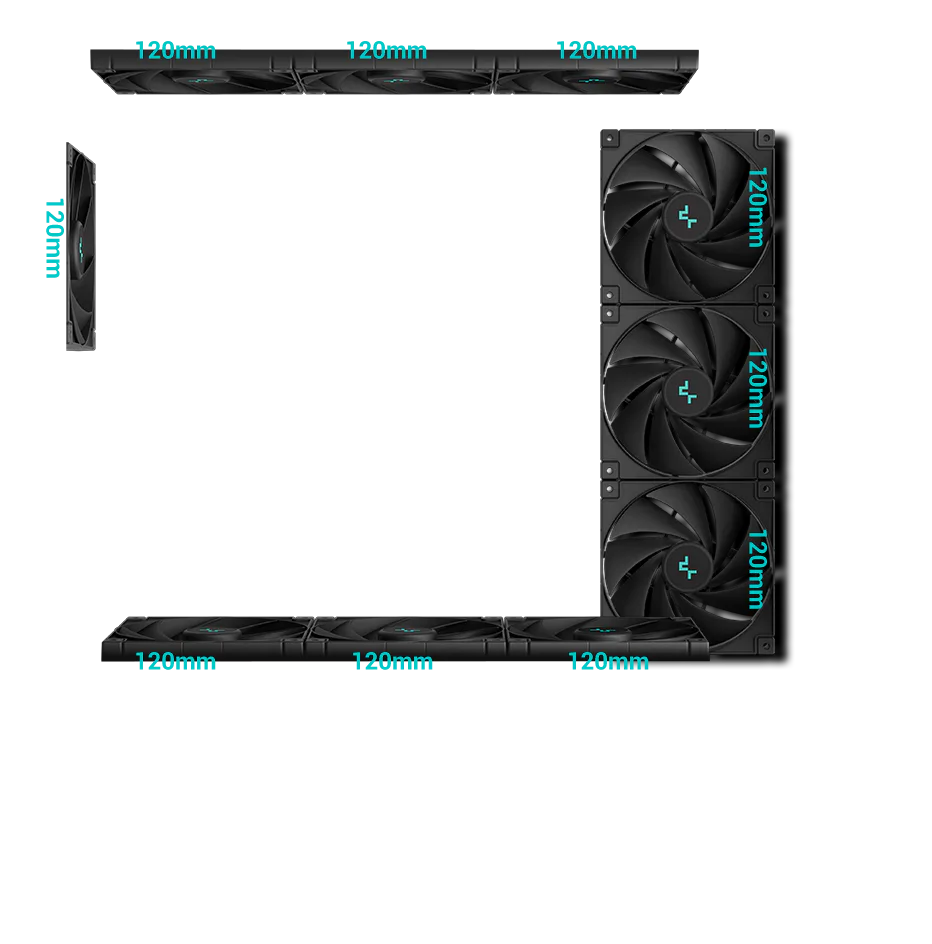

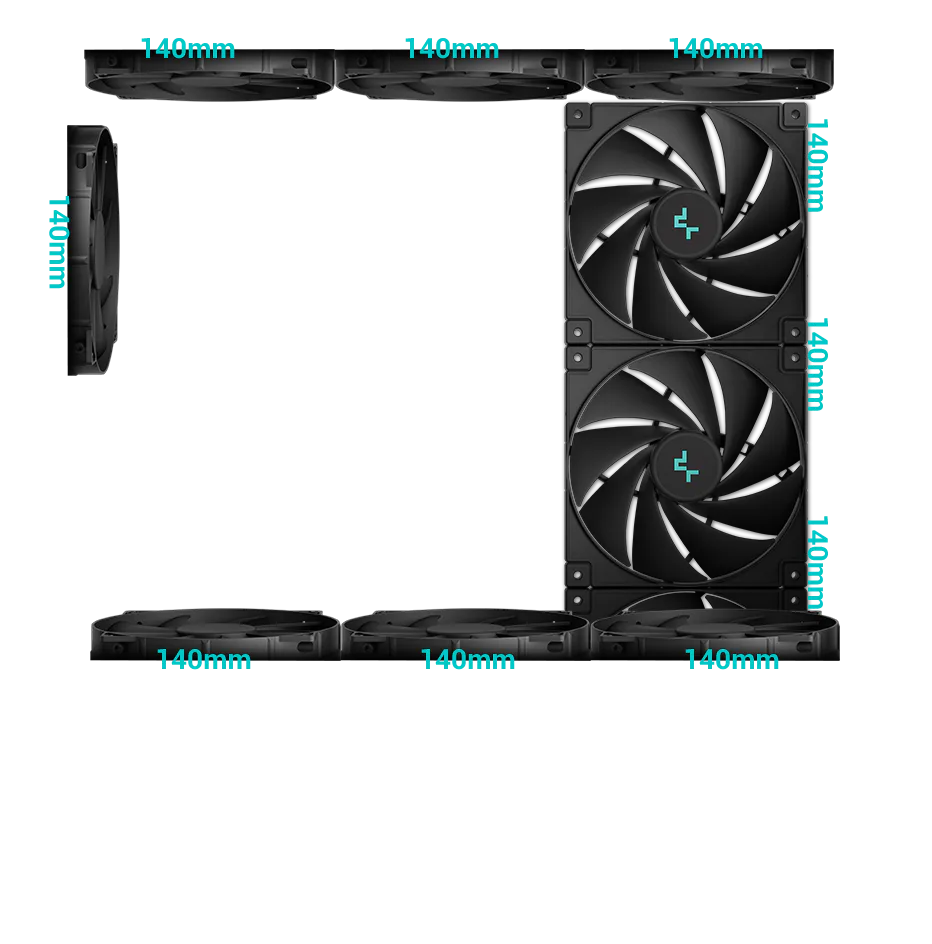

The CH690 DIGITAL is designed to adapt to versatile configurations, ensuring efficient heat dissipation through its innovative mesh-designed PSU shroud that creates a vertical airflow channel. It accommodates a wide range of radiator sizes, including up to 420mm on the top, 280mm on the side, and 360mm within the PSU shroud. Additionally, it supports various fan configurations, allowing for up to 3×140mm fans on the top, side, and PSU shroud, along with a 140mm fan at the rear. With the capability to support CPU coolers up to 182mm in height, the CH690 DIGITAL is engineered to maintain optimal temperatures for high-performance systems.
The CH690 DIGITAL is designed for convenience and durability, featuring an adjustable GPU holder that provides essential support to prevent GPU sagging resulting to motherboard damage. Its front I/O ports include USB dual 3.0, Audio Jack, and USB Type-C, ensuring easy access to external devices.
The CH690 DIGITAL also supports rear connector motherboards with a generous 36.5mm width for cable management for effortless organization. Additionally, the bottom of the case is equipped with a magnetic air filter pad, offering easy cleaning and effective dust prevention.
General
| Brand | DeepCool |
|---|---|
| Model Number | R-CH690-BKNNA0D-G-1 |
| Case Type | Mid-Tower |
| Materials | ABS, SPCC, Tempered Glass |
| Net Weight | 9.8 kg |
Dimensions & Motherboard
| Dimensions | 552mm (L) x 332mm (W) x 589mm (H) |
|---|---|
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
Storage & Expansion
| Drive Bays | 1 x 3.5" Drive Bay, 2 x 2.5" Drive Bays |
|---|---|
| Expansion Slots | 8 |
Cooling & Components
| Radiator Support (Top) | 120mm / 140mm / 240mm / 280mm / 360mm / 420mm |
|---|---|
| Radiator Support (Side) | 120mm / 140mm / 240mm / 280mm |
| Radiator Support (PSU Shroud) | 120mm / 240mm / 360mm |
| Fan Support (Top) | 3 x 120mm / 3 x 140mm |
| Fan Support (Side) | 3 x 120mm / 3 x 140mm |
| Fan Support (PSU Shroud) | 3 x 120mm / 3 x 140mm |
| Fan Support (Rear) | 1 x 120mm / 1 x 140mm |
| CPU Cooler Height Limit | 182mm |
| GPU Length Limit | 450mm |
| Power Supply Type | ATX PS2 (maximum length: 180mm) |
Front I/O & Features
| Front I/O Ports | 2 x USB 3.0, 1 x USB Type-C (Gen 2), 1 x HD Audio/Mic |
|---|---|
| Digital Display | Real-time CPU, GPU, and PSU monitoring with switchable modes |
