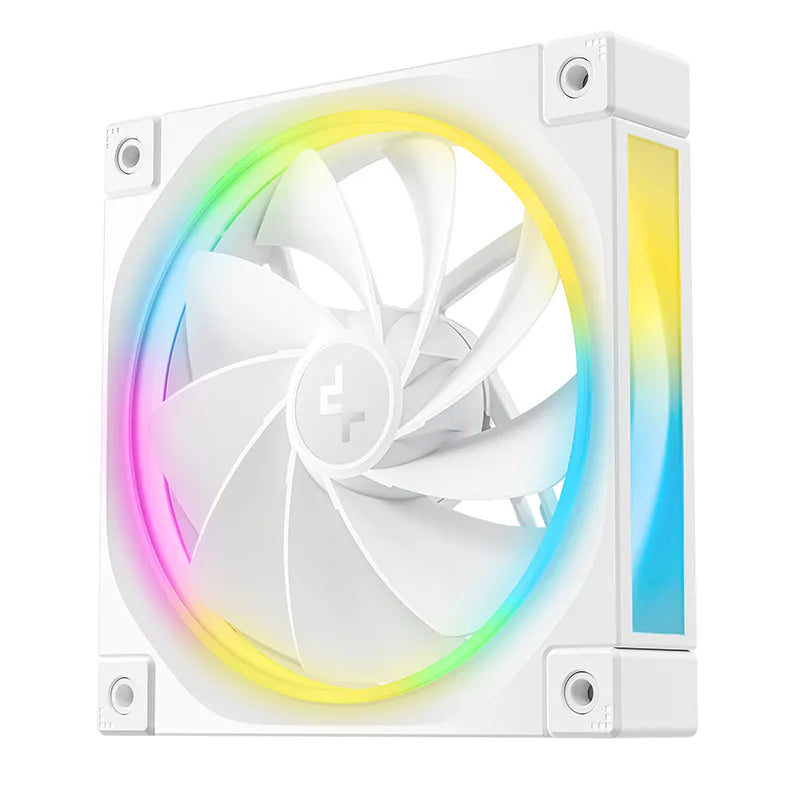

DeepCool FL12R WH 3-Pack 120mm Reverse ARGB PWM Fan - White
DeepCool

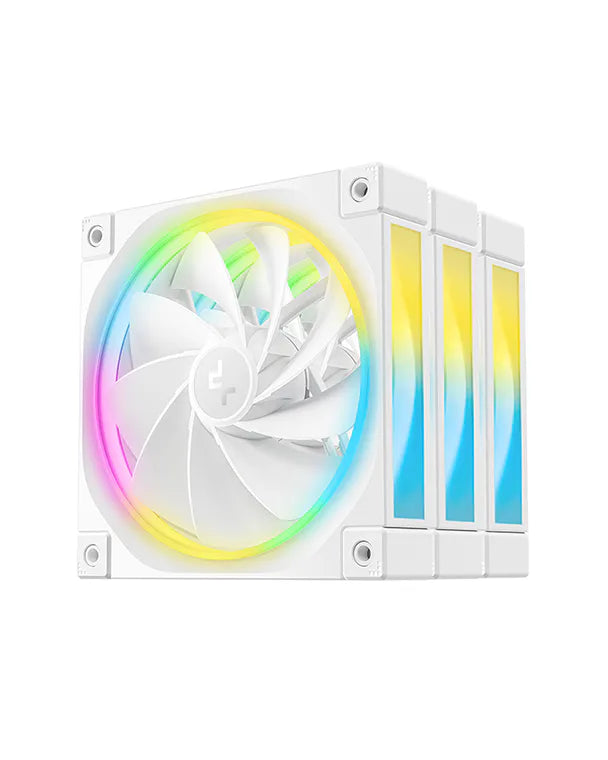

DeepCool FL12R WH 3-Pack 120mm Reverse ARGB PWM Fan - White
The DeepCool FL12R WH is a 3-pack of 120mm reverse-blade ARGB fans designed for PC builders who want clean RGB lighting from both intake and exhaust positions without visual obstruction. Each fan combines fluid dynamic bearings and vibration isolation with addressable LEDs to balance cooling performance and quiet operation.
Why this product

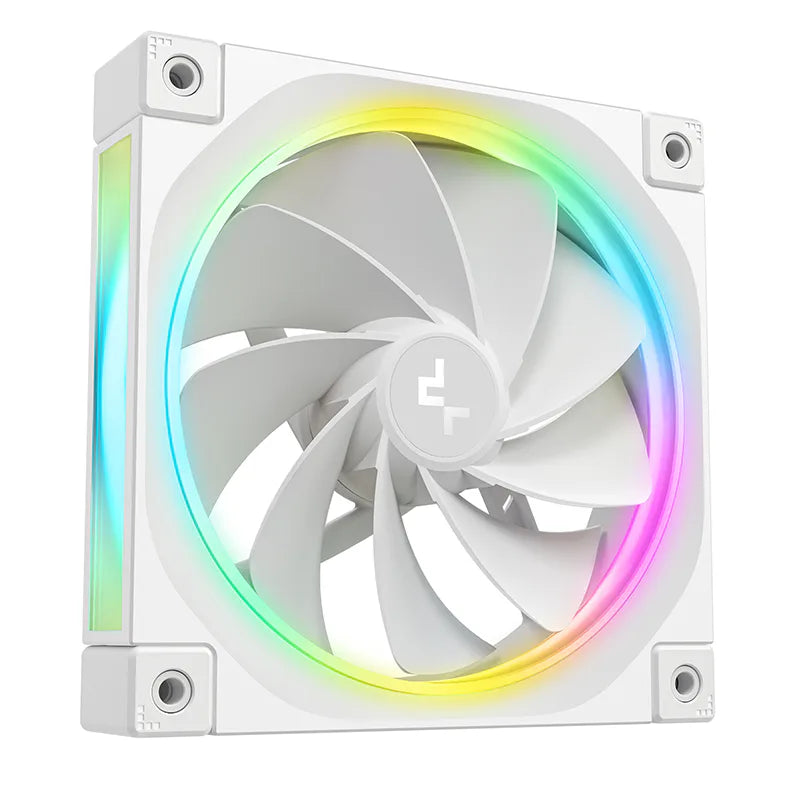

Reverse blade design shows RGB from both sides
The reversed fan blade eliminates the typical cross-shaped obstruction, so the halo ring of 36 ARGB LEDs remains uninterrupted whether the fan pulls air in or pushes it out.
Daisy-chain connectors simplify wiring
The integrated 8-pin connector combines PWM control and ARGB sync in one cable, reducing cable clutter and making installation safer.
Fluid dynamic bearing keeps noise low
Paired with full-coverage rubber isolation pads at each corner, the bearing design keeps vibration minimal and sound under 34 dB(A).
Reinforced composite frame and polycarbonate blades
PBT-based frame material and polycarbonate blades provide durability and balanced airflow across a wide speed range.
- Quantity3 fans per pack
- Size120 × 120 × 25 mm
- Speed range500–2150 RPM
- Noise level≤33.9 dB(A)
- LED typeAddressable RGB (ARGB Gen2), 36 per fan
- Connector8-pin daisy-chain (PWM + ARGB)
- SKUDEE-848
- EAN6933412785149
- Motherboards with standard PWM fan headers and 5V addressable RGB (ARGB) connectors.
- Works as intake or exhaust fans in any standard 120mm fan mounting position.
- RGB control requires a motherboard or controller with ARGB headers; fans operate without lighting if only PWM is connected.
Best for
- RGB-focused builds where lighting aesthetics matter from every angle
- Builders who value quiet operation and low vibration in mid-range cooling systems
- Systems needing balanced airflow and static pressure for air or water cooling radiators
- Cable-management-conscious builds thanks to simplified daisy-chain wiring
Trade-offs
- High-airflow applications — maximum of 55 CFM per fan limits total system airflow in large cases or heavy thermal loads.
- Non-RGB systems — the 36 LEDs per fan add cost and power draw if you plan to disable lighting entirely.
- Legacy or budget motherboards without addressable RGB headers will not control the lighting.

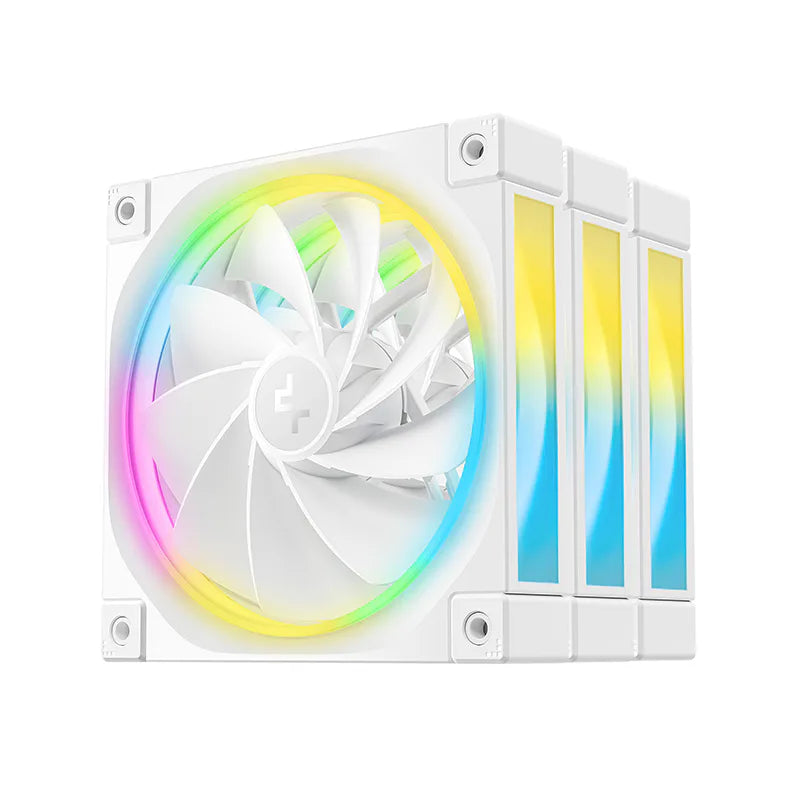

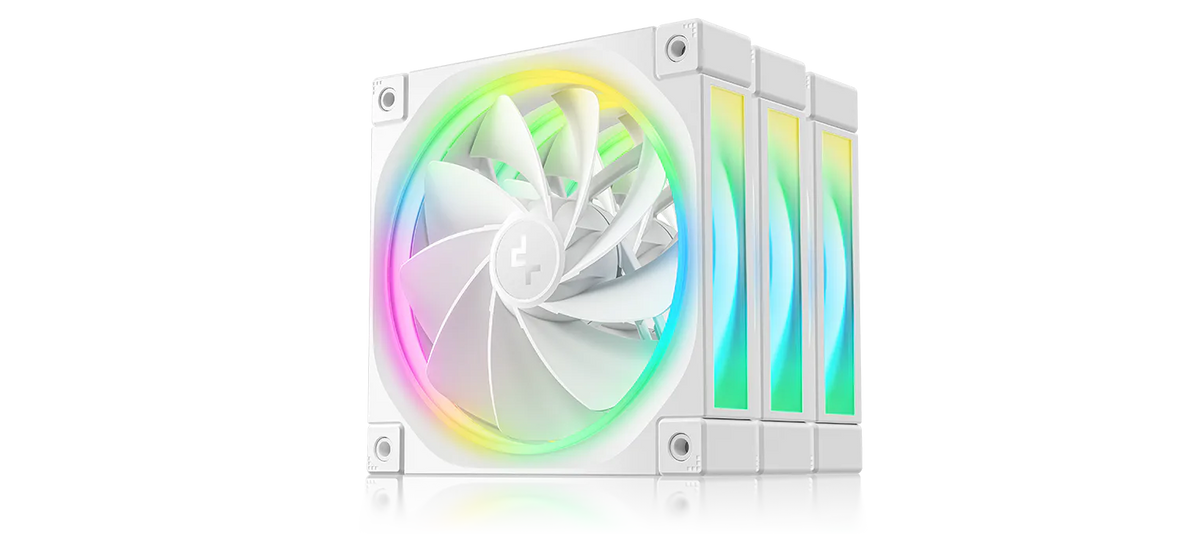

The FL12R WH was meticulously engineered by the DeepCool team to provide a unique light effect with reversed fan blade, ensuring high performance, low noise, and outstanding quality. Three FL12R WH fans are included in this package.

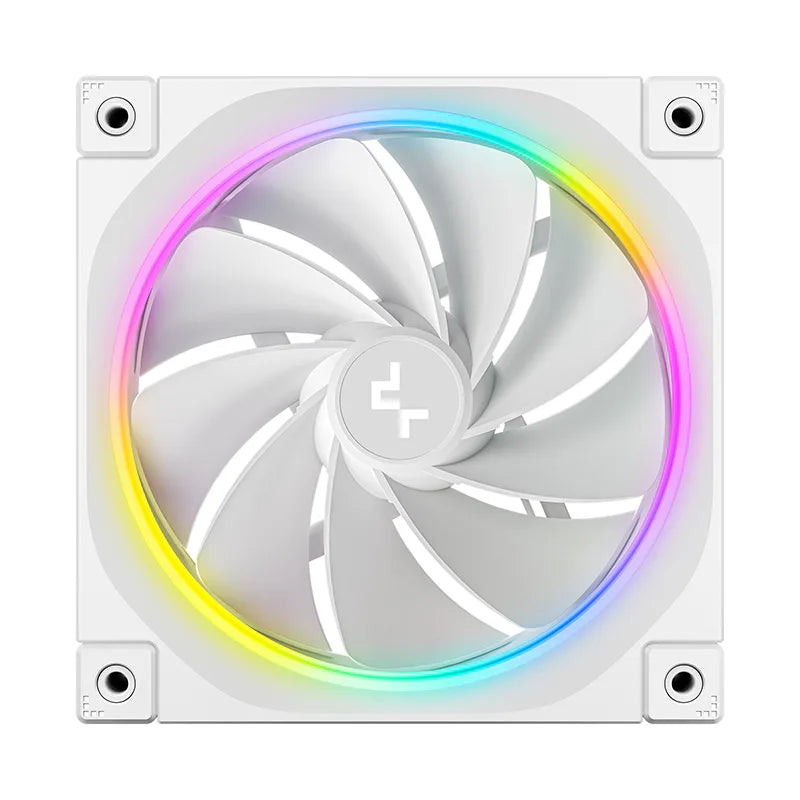

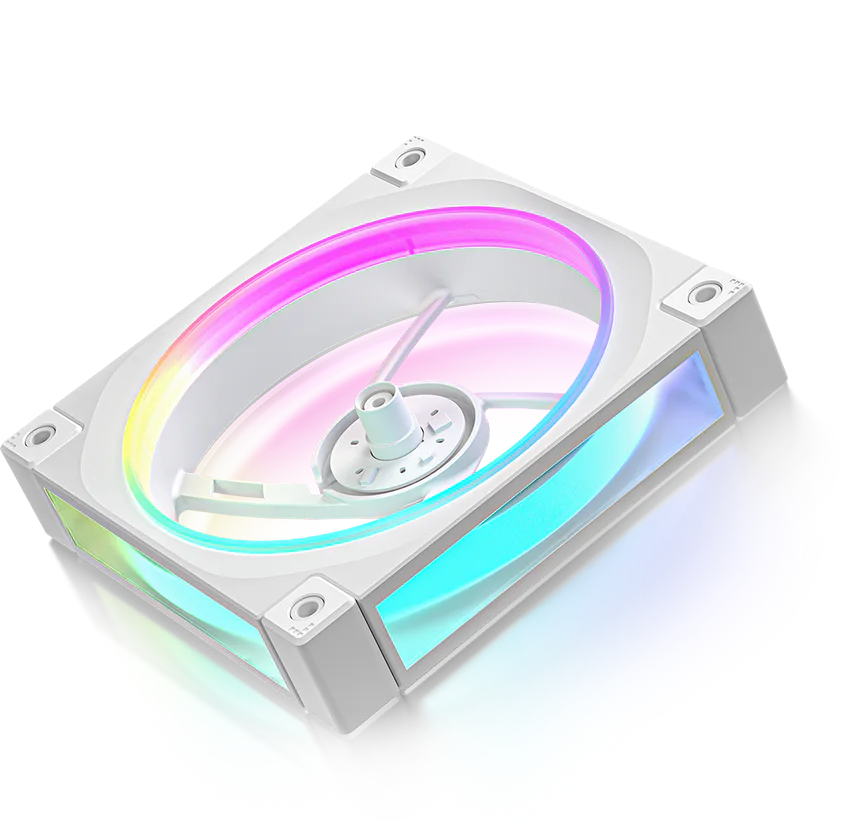

FL12R WH integrates a total of 36 ARGB Gen2 LEDs, with the halo ring elevating its design aesthetics to a whole new level. Say goodbye to the "cross" on the other side - now you can use the fan as an intake fan and enjoy uninterrupted RGB fan look on both intake and exhaust.

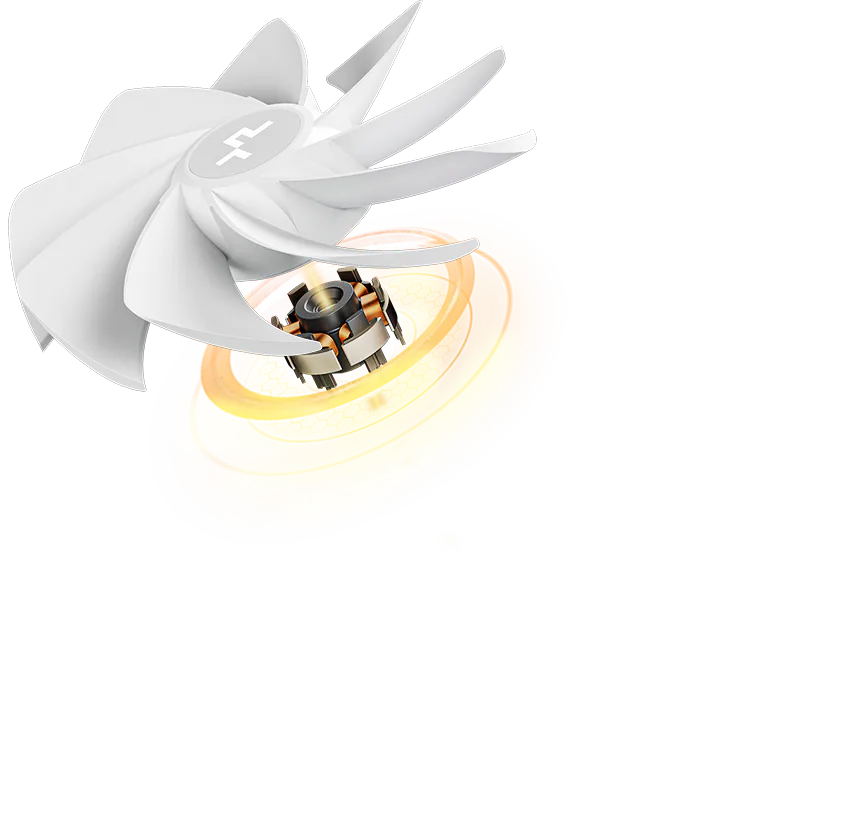

Equipped with a long-life fluid dynamic bearing. The FL12R WH PWM fans boast exceptional cooling specs while remaining relatively quiet.

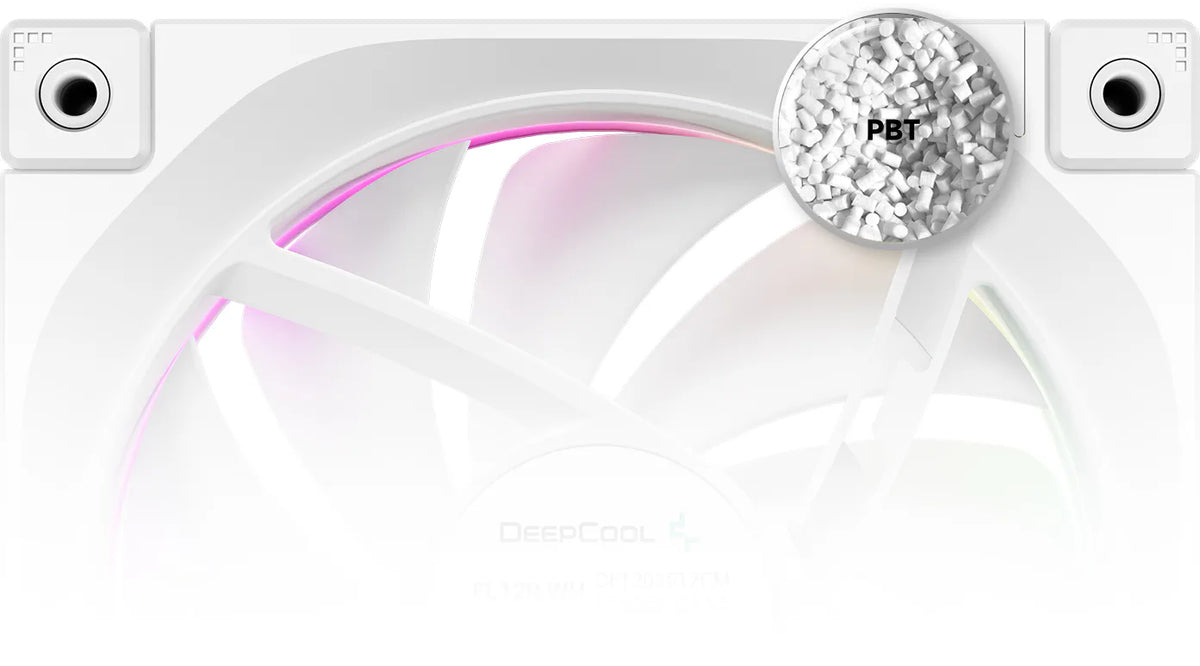

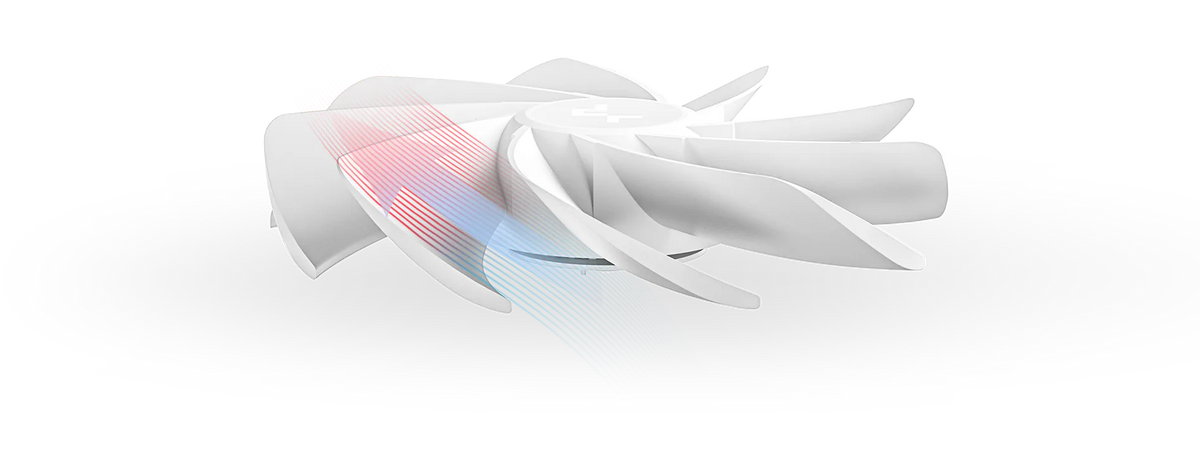

The entire structure and dynamic balance are further strengthened by using an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades.

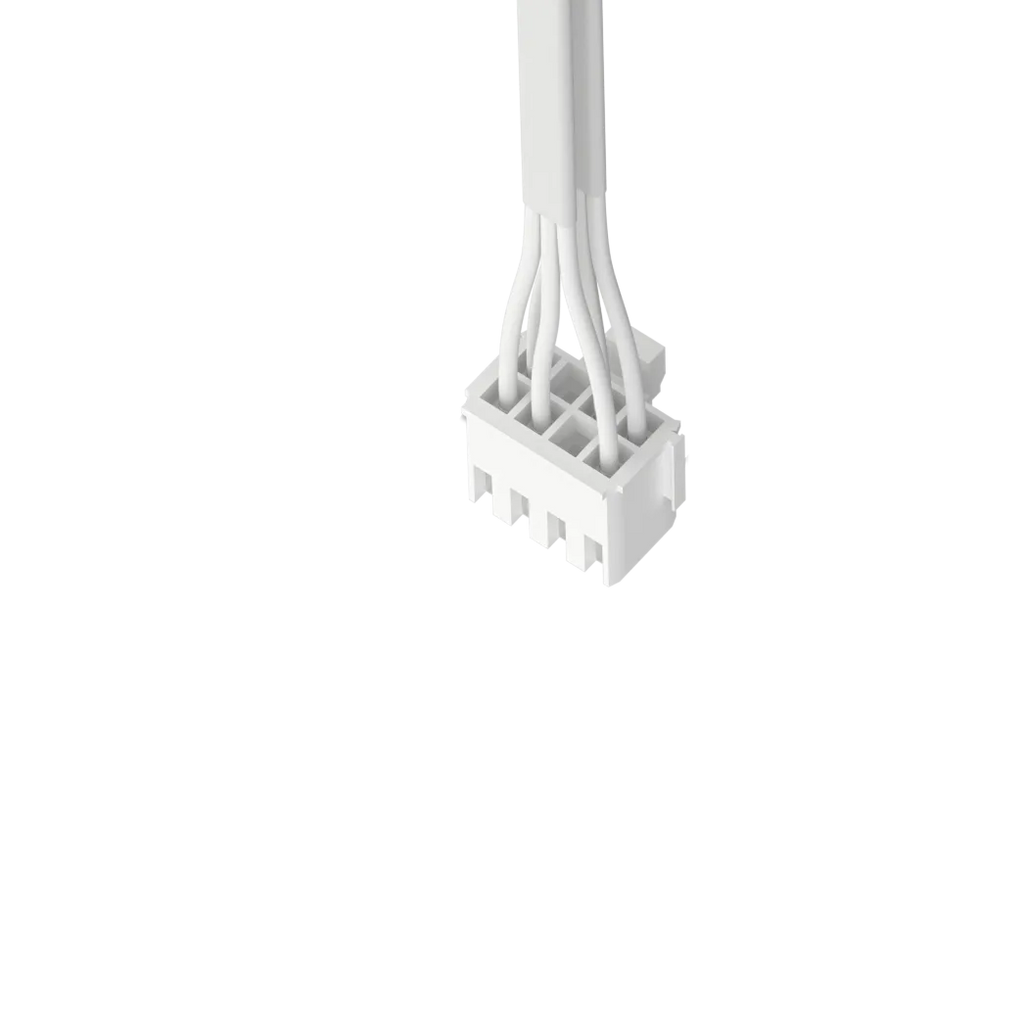

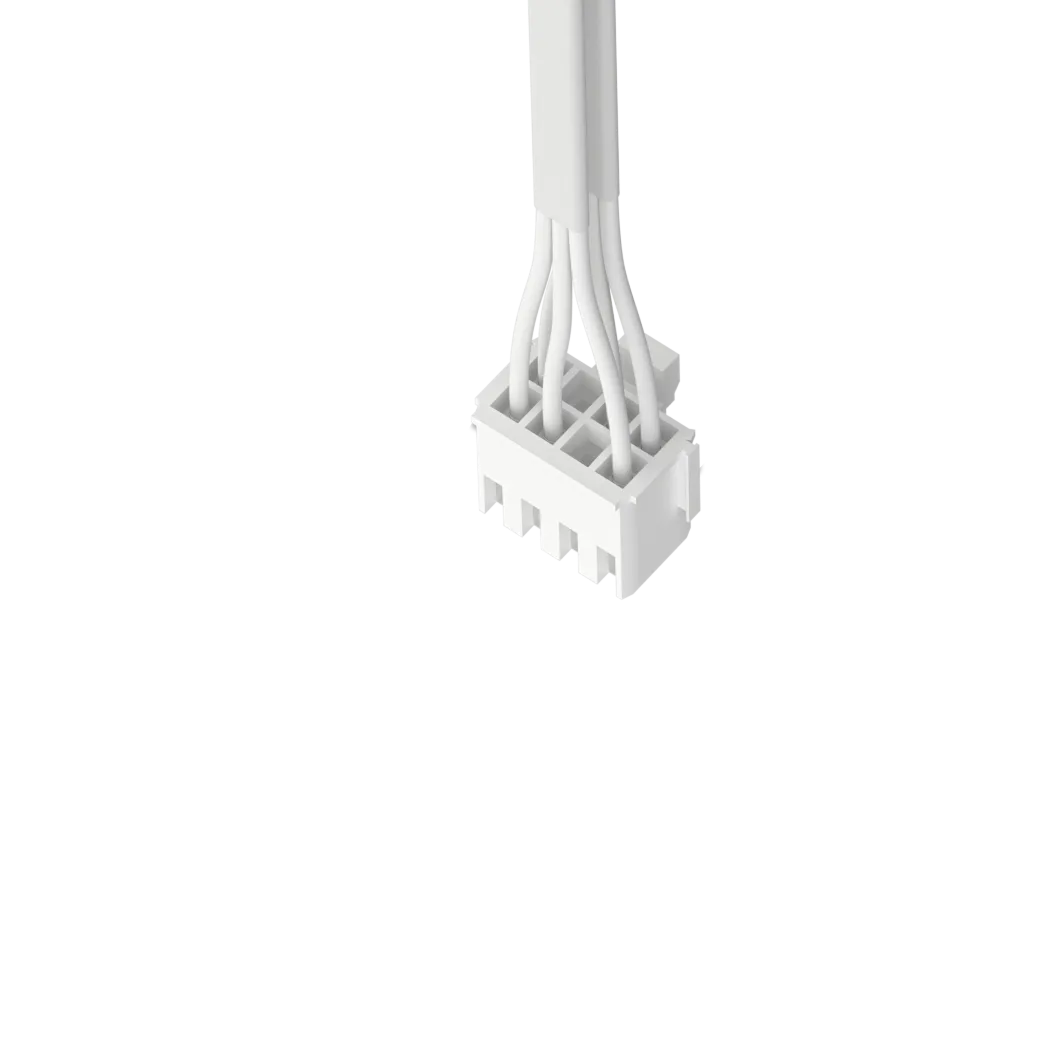

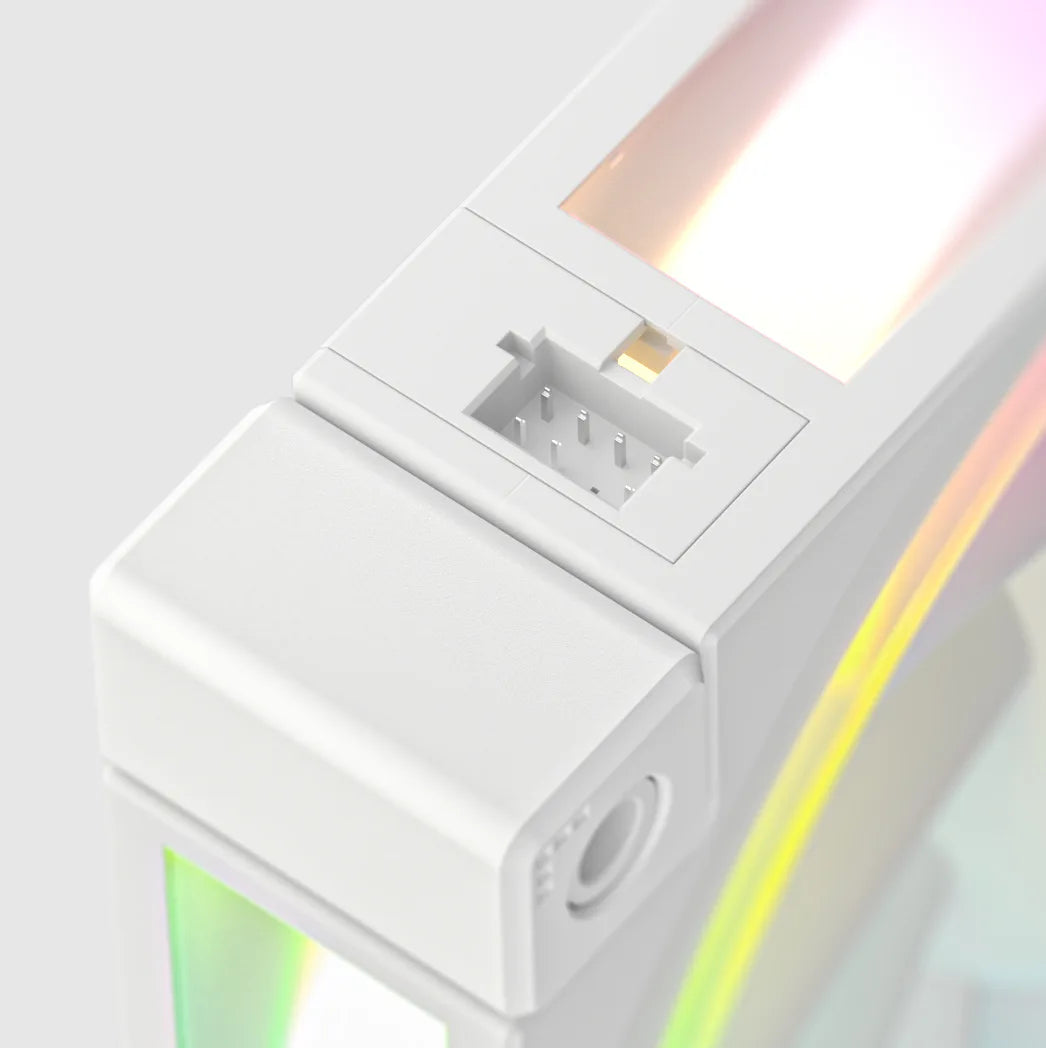

The 8-pin connectors, integrated with PWM and ARGB SYNC, provide a more accessible and safer user installation experience.

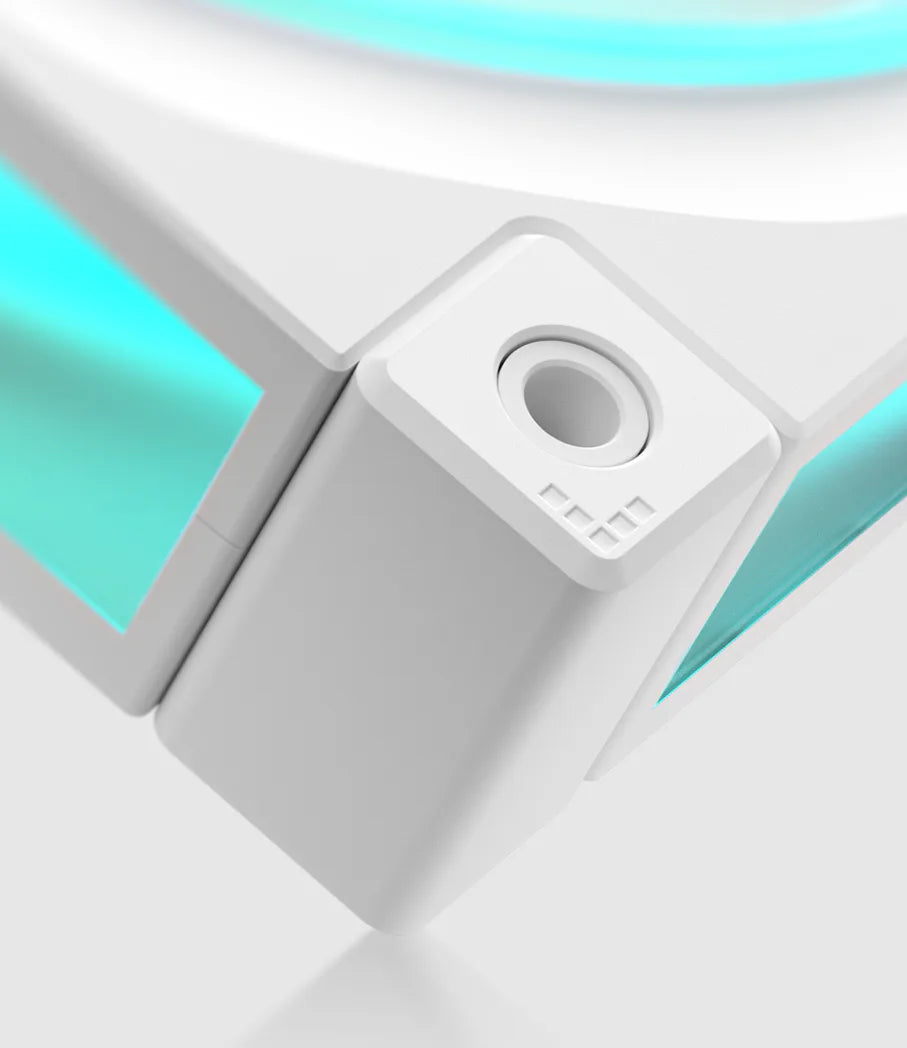

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
Fan
| Brand | DeepCool |
|---|---|
| Model number | R-FL12R-WHAPN3-G |
| Colour | White |
| Size | 120 × 120 × 25 mm |
| Total weight | 543 g |
| Bearing type | Fluid Dynamic Bearing |
| Frame material | Enhanced composite material based on PBT |
| Blade material | Polycarbonate |
Performance
| Speed range | 500–2150 RPM ±10% |
|---|---|
| Airflow | 55 CFM |
| Static pressure | 2.59 mmAq |
Acoustics & power
| Noise level | ≤33.9 dB(A) |
|---|---|
| Fan connector | 4-pin PWM |
| LED connector | 3-pin (+5V-D-G) |
| Daisy-chain | 8-pin combined connector |
| Fan voltage | 12 VDC |
| LED voltage | 5 VDC |
| Fan current | 0.15 A |
| Fan power consumption | 1.8 W |
| LED power consumption | 2.75 W |
