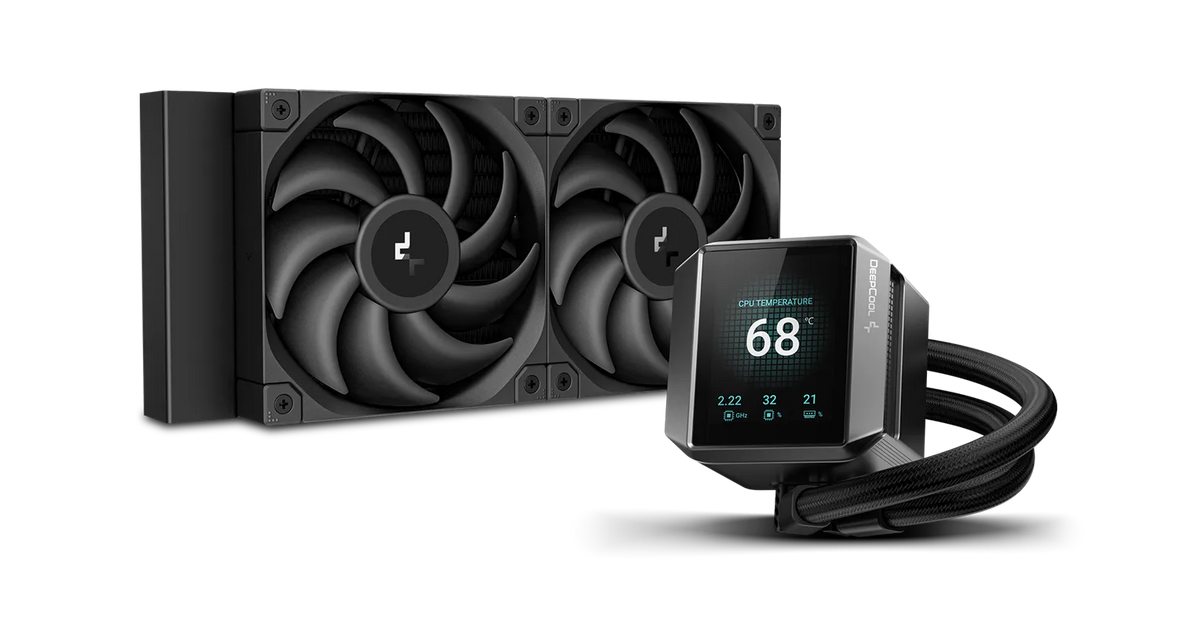

DeepCool MYSTIQUE 240 AIO Liquid Cooler - 2.8" LCD, 240mm
DeepCool
DeepCool MYSTIQUE 240 AIO Liquid Cooler - 2.8" LCD, 240mm
The DeepCool MYSTIQUE 240 AIO Liquid Cooler is an all-in-one CPU cooler with a customizable 2.8" LCD screen, built for PC enthusiasts who want to personalize their build while cooling modern high-performance processors. It combines a 5th-generation optimized pump, redesigned coldplate, and high-performance FT12 SE fans to handle power-hungry CPUs with style and efficiency.
Why this product
2.8" customizable LCD with auto-rotating display
The 640x480 pixel TFT screen displays 16.7M colors and uses built-in gyroscopic sensors to automatically adjust orientation. Load custom images and animated GIFs through the DeepCreative software.
5th-generation pump runs at 3400 RPM quietly
The optimized 3-phase, 6-slot, 4-pole motor delivers efficient cooling while staying under 21 dB(A) noise output.
Redesigned coldplate with intensive flow channels
0.1mm channels are positioned over CPU hotspots with a precision liquid splitter for optimal heat transfer and flow efficiency.
DeepCreative software for full system control
Real-time system statistics, device management, thermal color warning system, and RGB synchronization to motherboard ARGB controllers with rolling software updates.
Patented anti-leak technology with pressure valve
Internal valve regulates and purges excess pressure to extend cooler lifespan and reduce leak risk.
Complete mounting hardware included
Everything needed to install on current-generation Intel and AMD mainstream CPUs comes in the box.
- Socket compatibilityIntel LGA1700/1200/1151/1150/1155, AMD AM5/AM4
- Radiator size282 × 120 × 27 mm
- Pump speed3400 RPM
- Fan speed range500–2150 RPM
- Display2.83" 640×480 TFT LCD
- Warranty5 years
- Weight1543 g
- SKUDEE-902
- EAN6933412728771
- Intel LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
- AMD AM5, AM4
- Requires 3-pin pump connector and 4-pin PWM fan connectors on motherboard
- LCD customization and real-time system monitoring require DeepCreative software installation on Windows
- RGB LED synchronization requires compatible 5V addressable RGB header on motherboard; can run standalone without sync
Best for
- Enthusiasts building high-end PCs who want visible cooling and display customization
- Users cooling power-hungry modern CPUs (Ryzen 9, Core i9) who need reliable performance
- Builders seeking quiet operation: pump runs at 21 dB(A) and fans max at 36.49 dB(A)
- Those wanting integrated system monitoring and RGB control through a single application
- Builders prioritizing leak protection with patented anti-leak valve and 5-year warranty
Trade-offs
- Budget builds. All-in-one liquid coolers with LCD displays cost more than air coolers or simpler AIOs.
- Minimal case compatibility. 282mm radiator and 410mm tubes require adequate space; verify case support before purchase.
- Users without software support. DeepCreative runs on Windows; Linux and macOS users cannot customize the LCD or access system monitoring features.
- Environments requiring silent operation. At 36.49 dB(A) maximum, fans audible under full load; not suitable for noise-sensitive settings.
- Older CPU sockets. Limited to Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4; incompatible with older platforms.

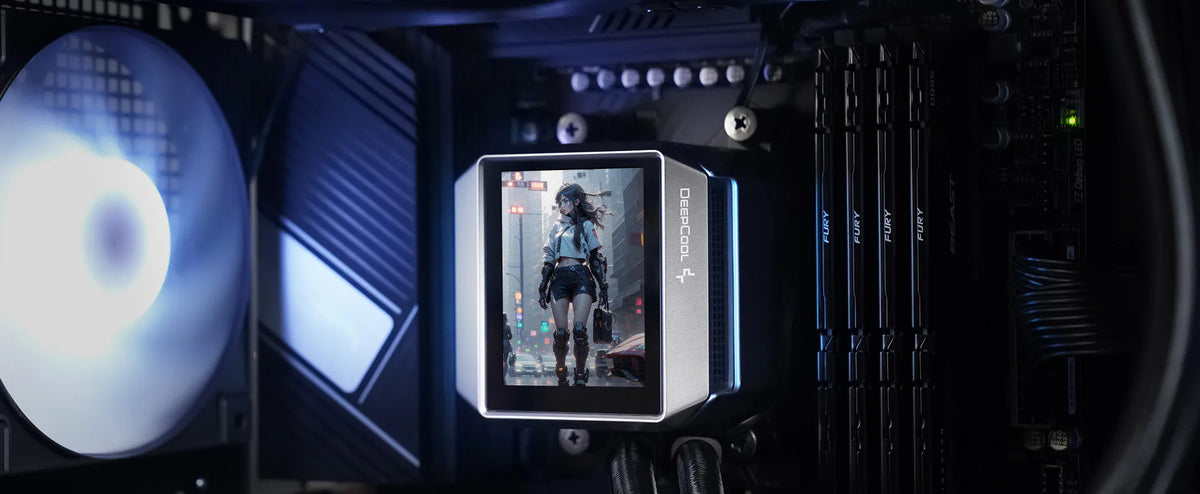

The MYSTIQUE series is DeepCool's new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.

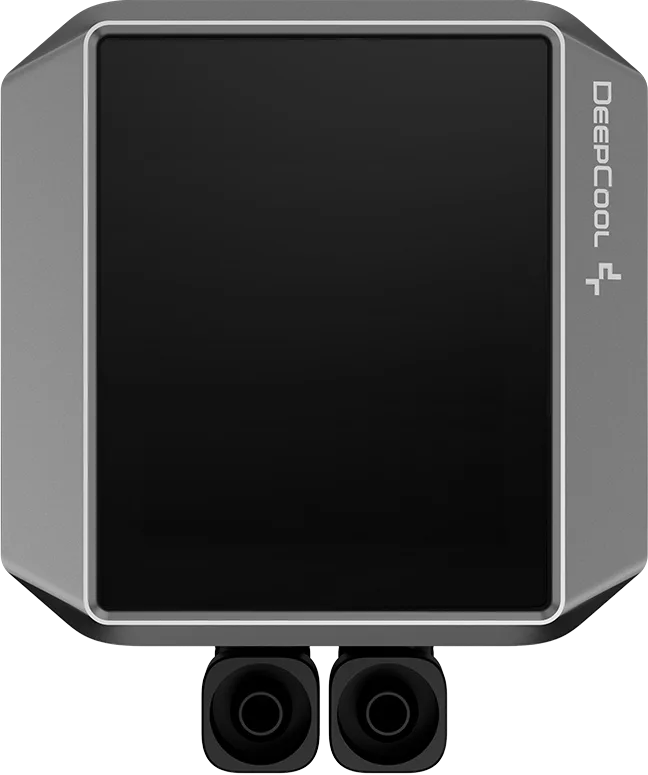

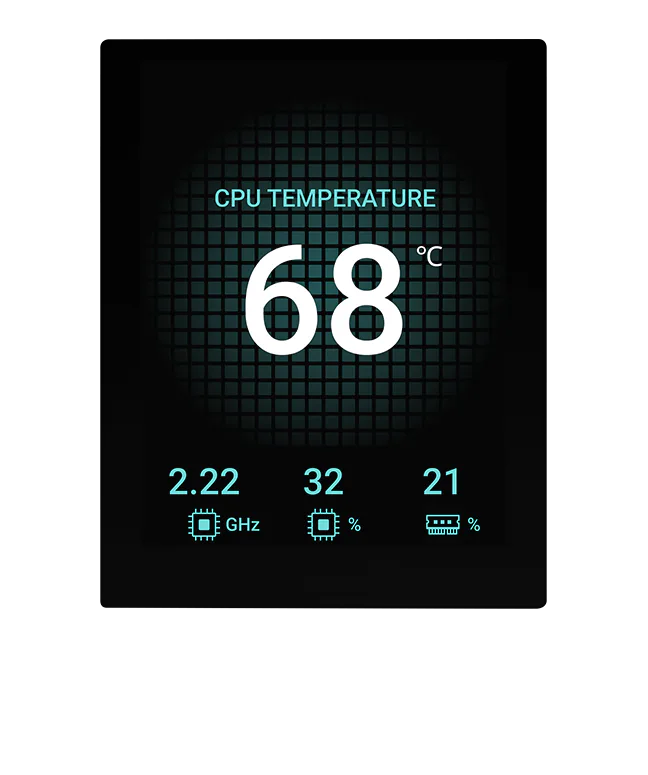

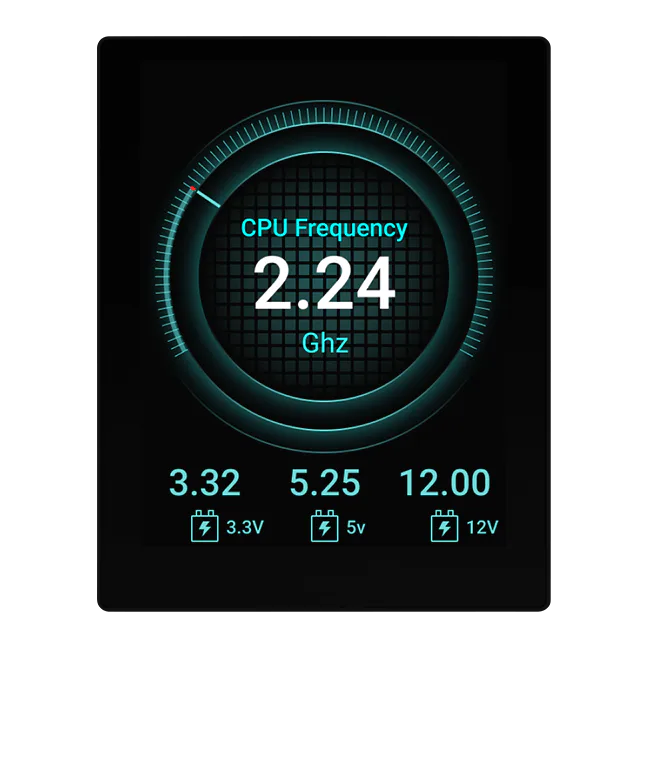

MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 240 utilizes built-in gyroscopic sensors.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

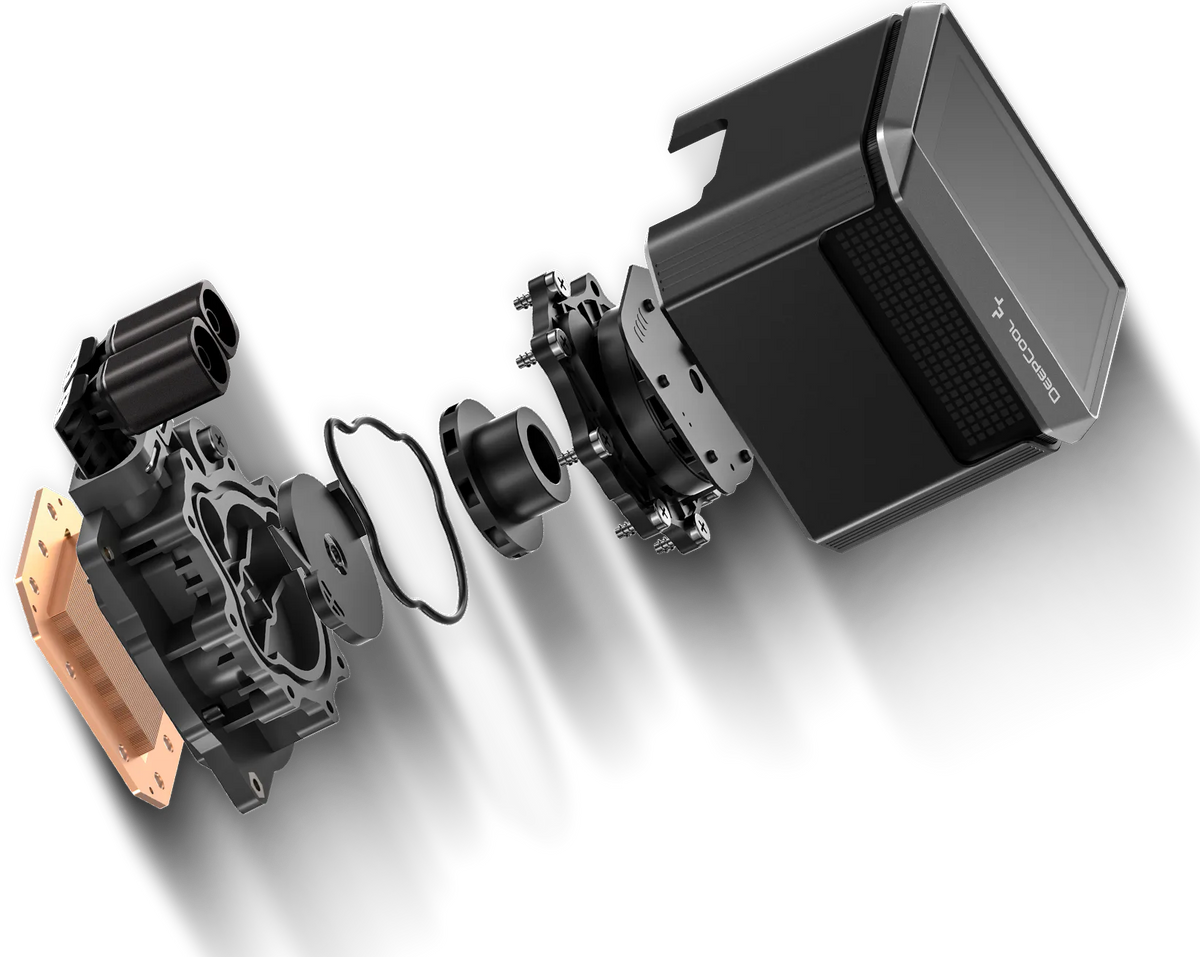

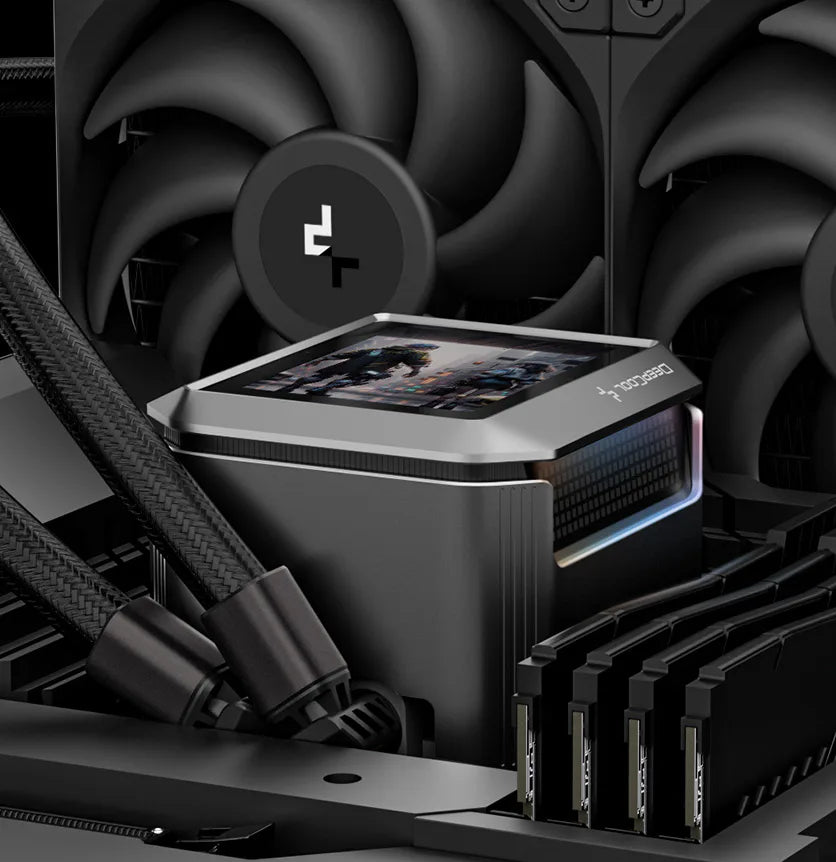

5th GEN PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 240 brings cooling modern power-hungry CPUs to a new level. The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).

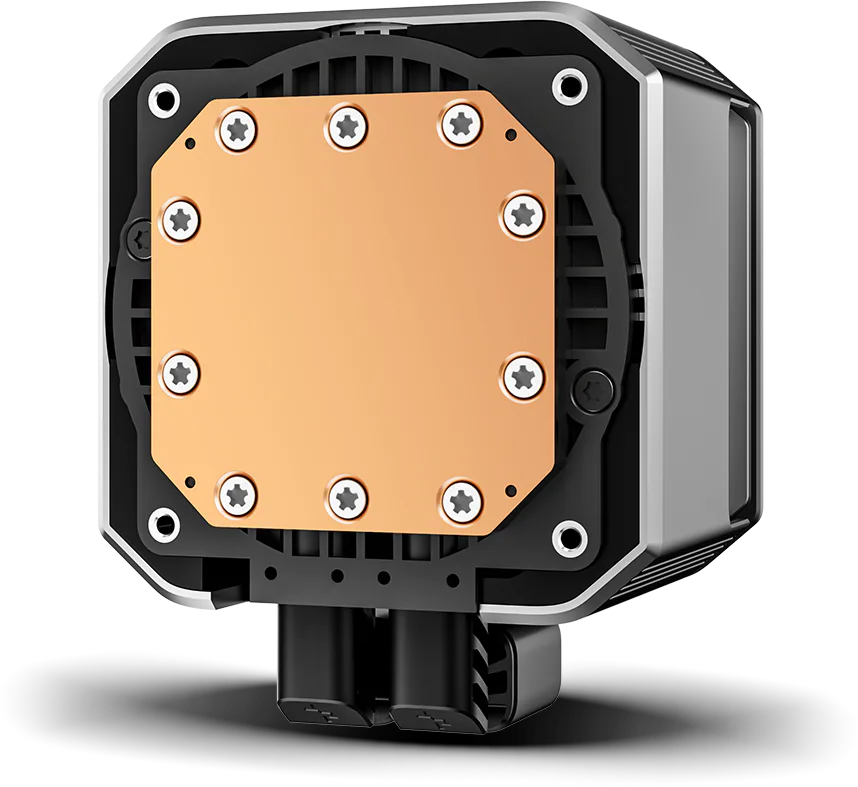

REDESIGNED AND IMPROVED COLDPLATE
A redesigned coldplate has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

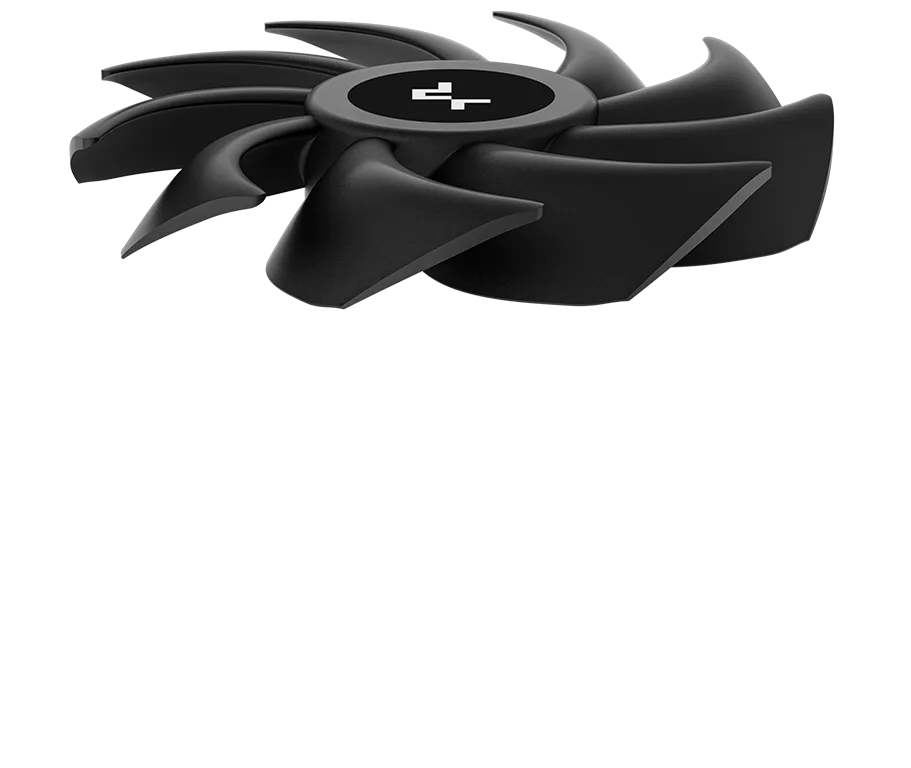

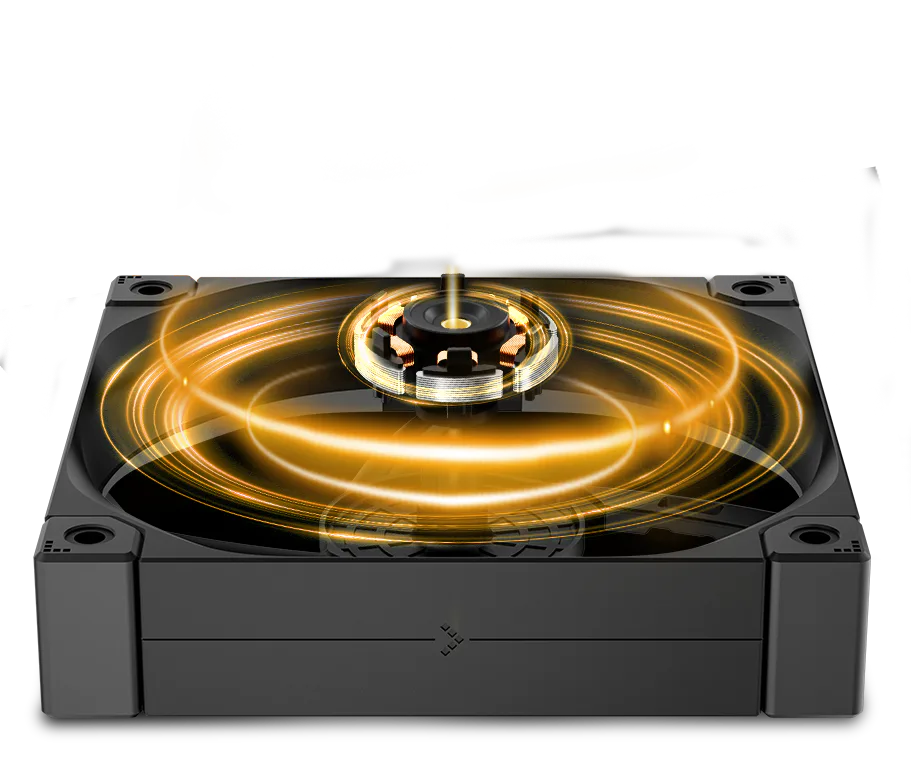

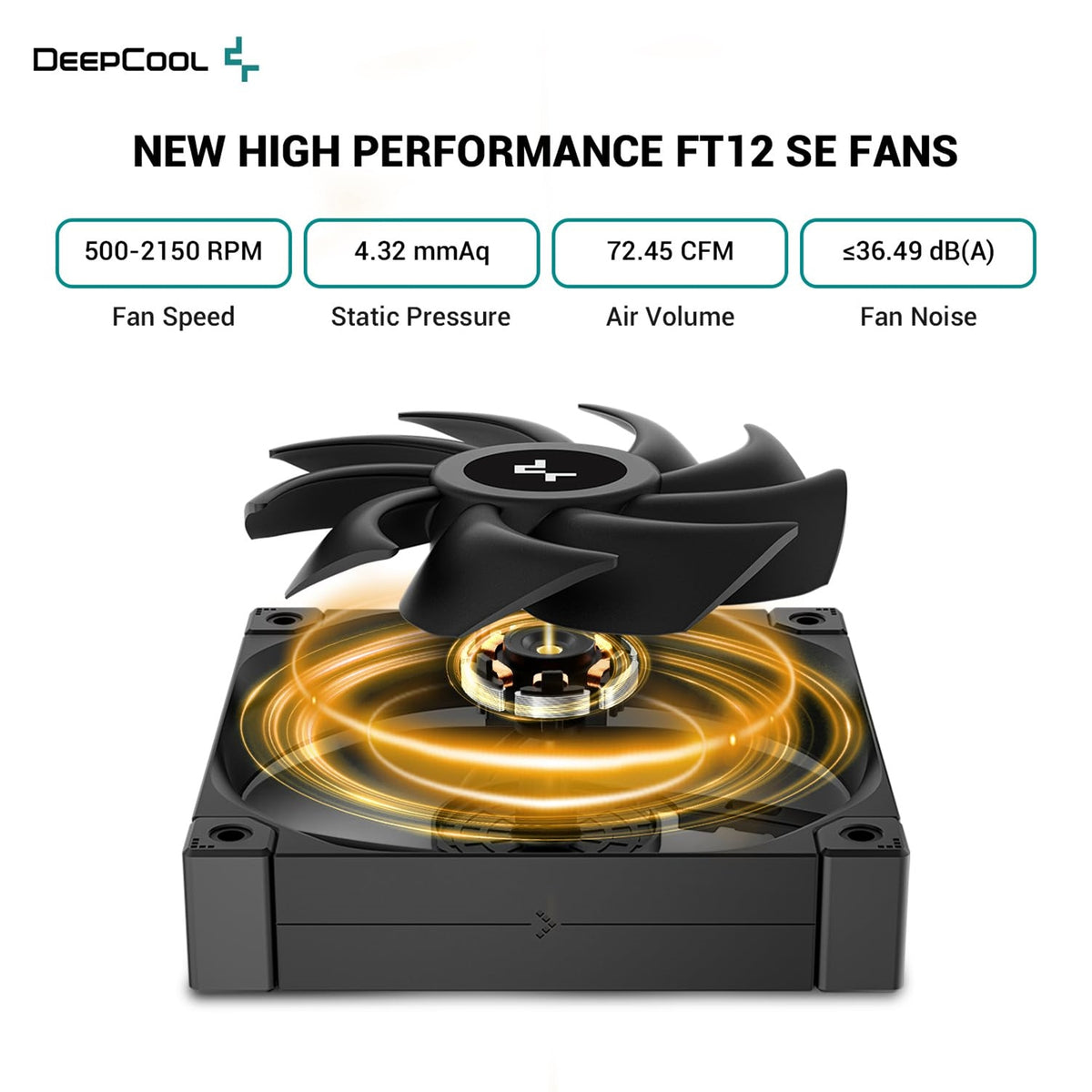

NEW HIGH-PERFORMANCE FT12 SE FANS
The MYSTIQUE 240 will include two high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.

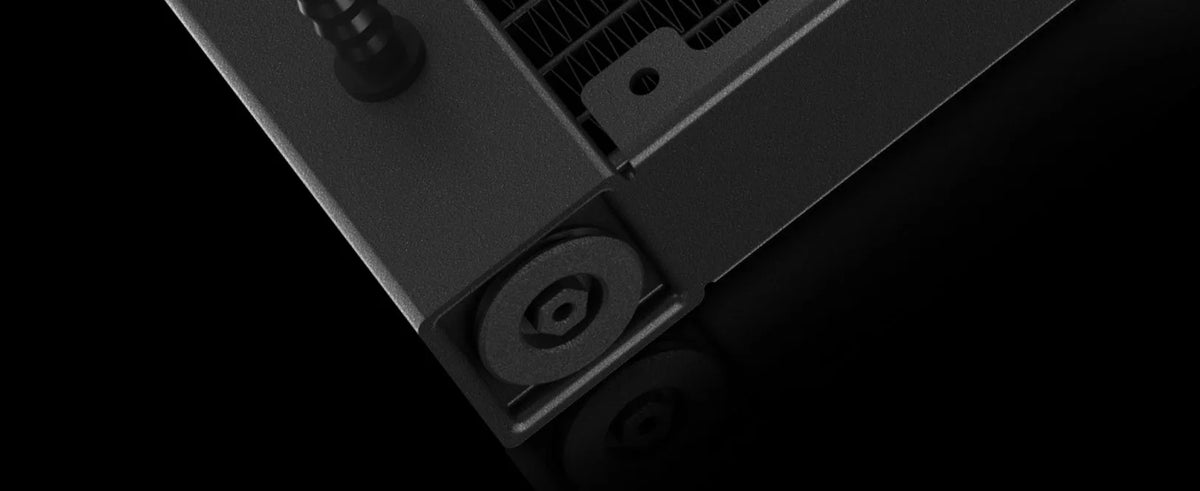

ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLIFIED INSTALLATION
Everything needed to mount the MYSTIQUE 240 to the latest mainstream CPUs is included in the box, so you are ready to go.
General
| Brand | DeepCool |
|---|---|
| Model | R-LX550-BKDSNC-G-1 |
Performance
| Pump speed | 3400 RPM ±10% |
|---|---|
| Pump power consumption | 4.2 W |
| Fan speed range | 500–2150 RPM ±10% |
| Fan airflow | 72.45 CFM |
| Fan static pressure | 4.32 mmAq |
Acoustics & power
| Pump noise | 21 dB(A) |
|---|---|
| Fan noise | ≤36.49 dB(A) |
| Fan power consumption | 3.6 W |
Fan
| Fan dimensions | 120 × 120 × 25 mm |
|---|---|
| Fan quantity | 2 |
| Bearing type | Fluid Dynamic Bearing |
| Fan connector | 4-pin PWM |
Radiator & coolant
| Radiator dimensions | 282 × 120 × 27 mm |
|---|---|
| Radiator material | Aluminum |
| Tube length | 410 mm |
Pump
| Pump dimensions | 93 × 77 × 66 mm |
|---|---|
| Pump connector | 3-pin |
| Pump rated voltage | 12 VDC |
| Pump rated current | 0.35 A |
Display & RGB
| Display size | 2.83 inch |
|---|---|
| Display resolution | 640 × 480 TFT LCD |
| Display colors | 16.7 million |
| LED type | Addressable RGB |
| LED connector | 3-pin (+5V-D-G) |
Compatibility
| CPU sockets | Intel LGA1700/1200/1151/1150/1155, AMD AM5/AM4 |
|---|
