DeepCool PF500 500W 80 PLUS White Non-Modular PSU - UK

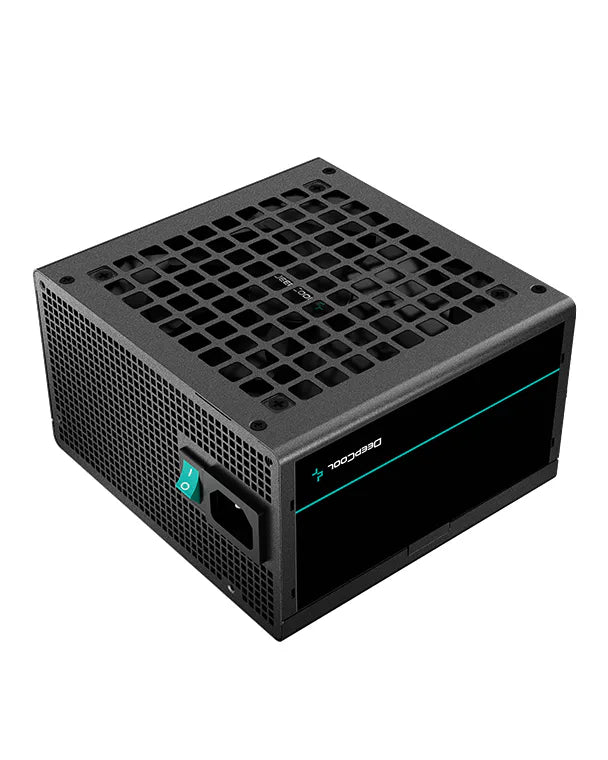

The DeepCool PF500 500W 80 PLUS White Non-Modular PSU is a straightforward, budget-friendly power supply suited to first-time builders and anyone putting together a modest desktop PC. It delivers certified 80 PLUS efficiency, multiple hardware protections, and a low-noise hydraulic bearing fan without the added cost of modular cabling. If you need reliable, stable power delivery for a mid-range build on a tight budget, this unit covers the essentials.
Why this product
80 PLUS White certified efficiency
Certified for 80 PLUS 230V EU Standard, it achieves at least 85% efficiency under 50% load, reducing wasted energy and keeping operating temperatures lower.

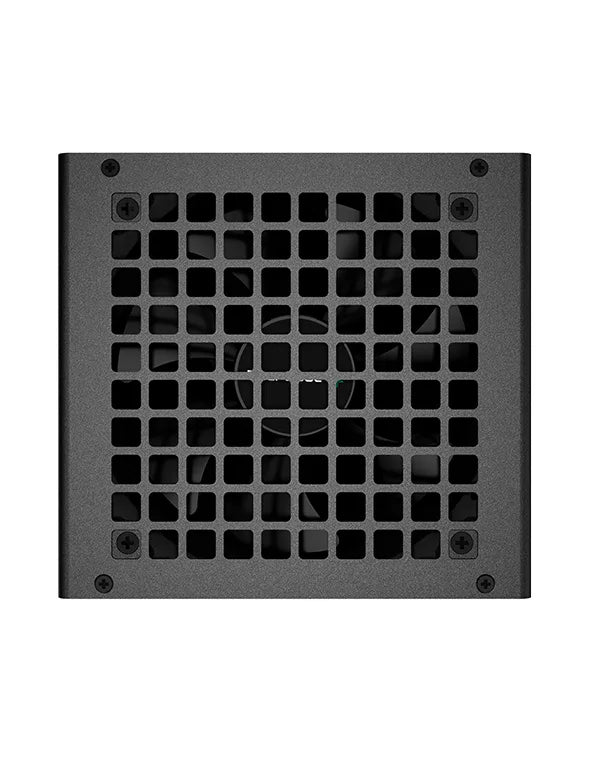

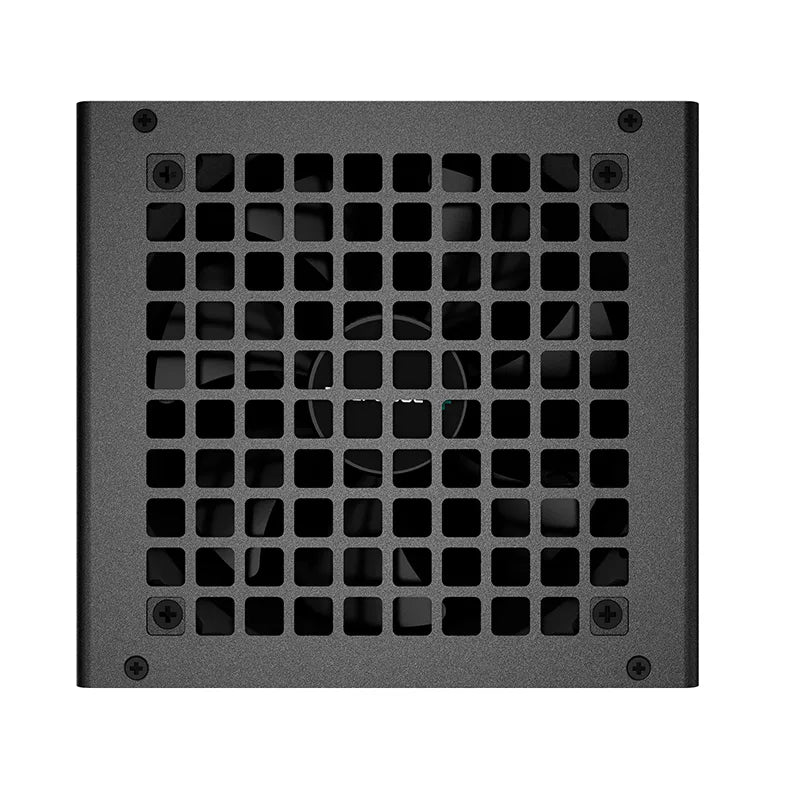

Silent 120mm hydraulic bearing fan
The 120mm fluid bearing fan is optimised for low-noise operation and has a longer service life than sleeve bearing alternatives due to reduced friction and vibration.
Four layers of built-in protection
Over Power, Over Voltage, Short Circuit, and Under Voltage protection guard connected components against surges and electrical faults.
Flat black cables for easier routing

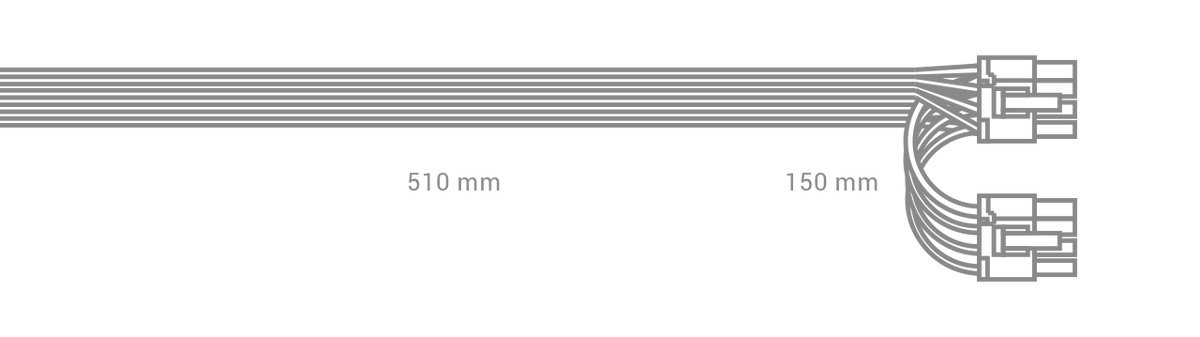

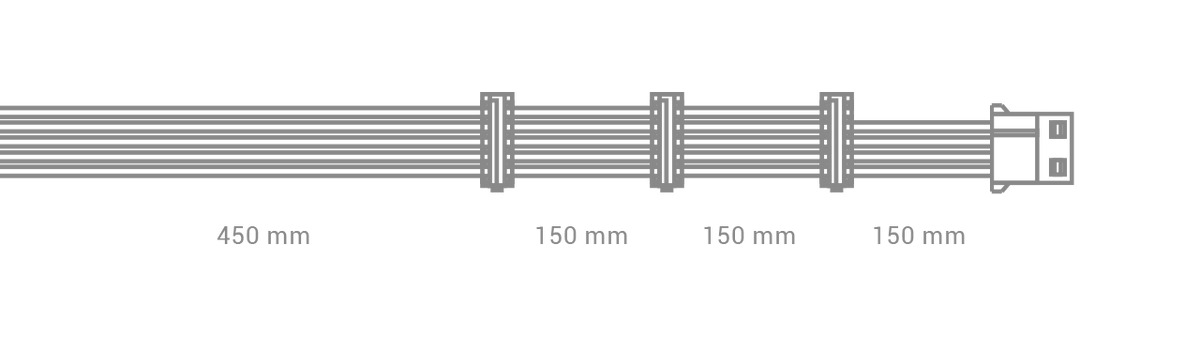

Fixed flat black cables are more flexible and take up less space than round cables, making cable management tidier inside the chassis.
100,000-hour MTBF rating
The unit is rated for 100,000 hours mean time between failures, reflecting a design intended for long-term, continuous use.
- Rated Wattage500W
- Efficiency Certification80 PLUS White
- Efficiency (50% Load)≥85%
- Fan Size120mm
- Fan BearingHydro Bearing
- ModularNon-modular
- MTBF100,000 Hours
- Dimensions (W × L × H)150 × 140 × 86mm
- SKUDEE-754
- EAN6933412711261
- Compatible with ATX 12V V2.4 standard motherboards, which covers the vast majority of modern desktop builds.

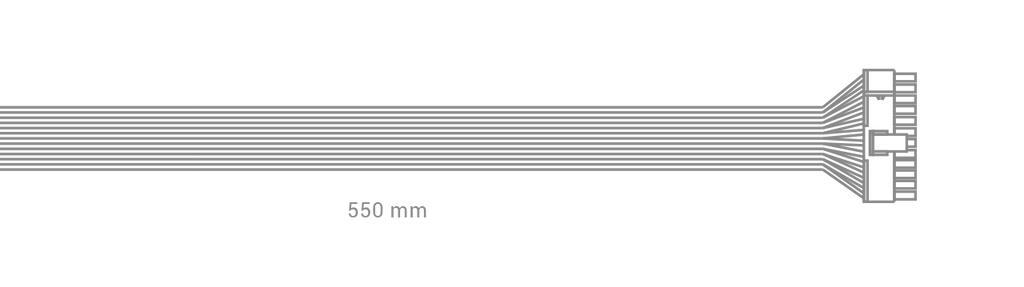

- Includes a 24-pin main connector and an 8-pin (4+4) EPS 12V connector, supporting most consumer Intel and AMD platforms.

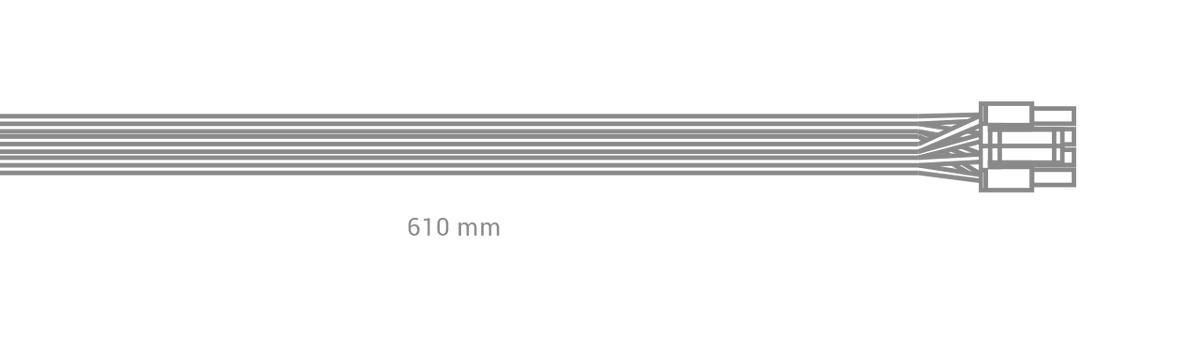

- Provides two PCIe 6+2 pin connectors, supporting a single mid-range discrete GPU with dual power connectors.
- Includes six SATA connectors and two 4-pin peripheral connectors, accommodating multiple storage drives and accessories.
- This is a non-modular unit — all cables are permanently attached. Unused cables must be tucked away inside the case, which requires sufficient chassis space.
- Not suited to high-end GPU configurations requiring more than two PCIe power connectors, as no additional PCIe connectors are provided.
Best for
- Budget desktop builders who need a certified, reliable PSU without paying for modularity or higher efficiency tiers.
- Builders with a single mid-range GPU — the two PCIe 6+2 pin connectors cover most mainstream graphics cards.
- Quiet build environments — the hydraulic bearing fan is specifically designed for low-noise operation.
- Multi-drive storage builds where the six SATA connectors allow connecting several hard drives or SSDs without adapters.
Trade-offs
- High-wattage GPU builds — systems requiring a flagship graphics card with three or more PCIe power connectors cannot be supported by this unit.
- Builders prioritising clean cable routing in a show build or small chassis — non-modular cables mean all leads are permanently present regardless of whether they are used.
- Efficiency-critical or always-on workstations — 80 PLUS White is the entry-level efficiency tier; higher-efficiency units (Gold, Platinum) waste less energy at all load levels.
PF500 — 80 PLUS Standard Power Supply
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

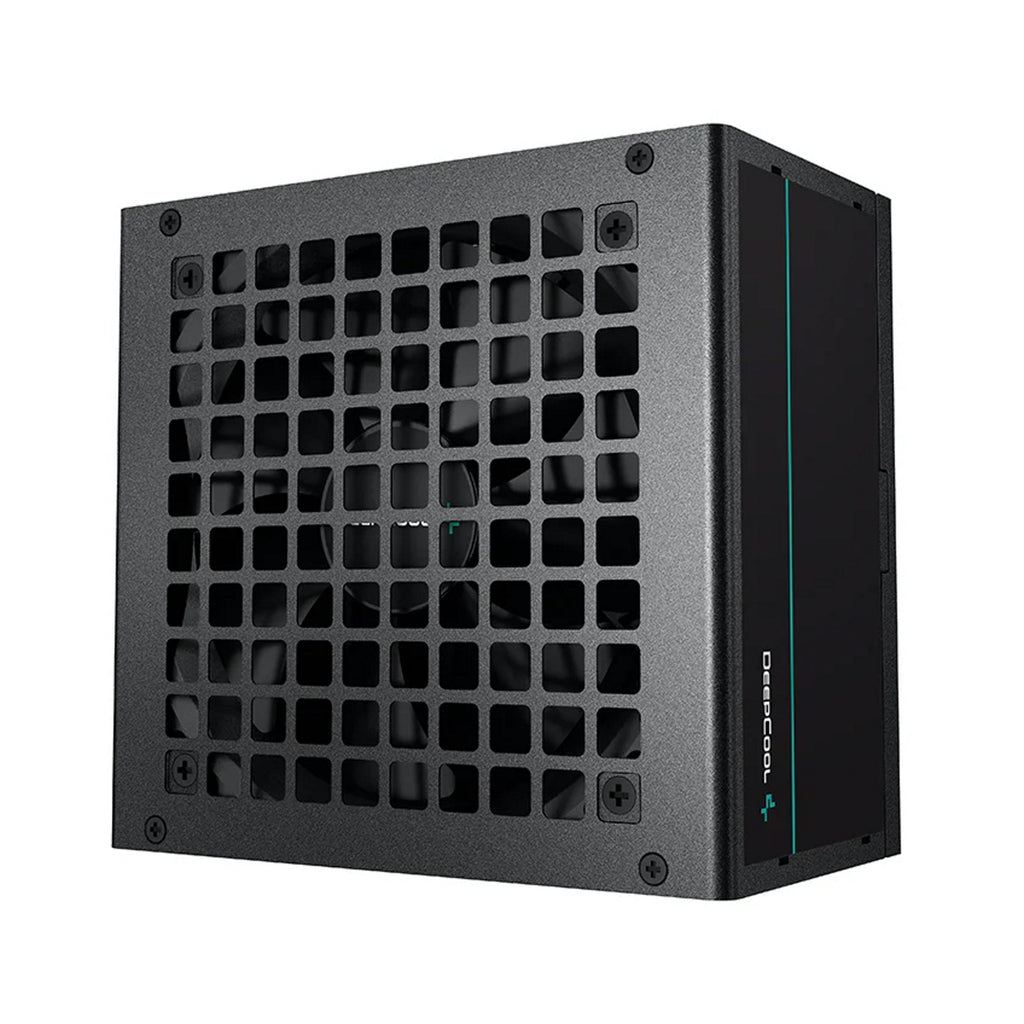

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
- OPP – Over Power Protection
- OVP – Over Voltage Protection
- SCP – Short Circuit Protection
- UVP – Under Voltage Protection
General
| Brand | DeepCool |
|---|---|
| Form Factor | ATX 12V V2.4 |
| Rated Wattage | 500W |
| Modular | Non-modular |
| Dimensions (W × L × H) | 150 × 140 × 86mm |
Efficiency & Electrical
| 80 PLUS Certification | White |
|---|---|
| Efficiency (50% Load) | ≥85% |
| Topology | Active PFC + Double tube forward |
| Hold Up Time | ≥16ms at 75% Load |
| Power Good Signal | 100–500ms |
Cooling & Reliability
| Fan Size | 120mm |
|---|---|
| Fan Bearing | Hydro Bearing |
| Operation Temperature | 0–40°C |
| MTBF | 100,000 Hours |

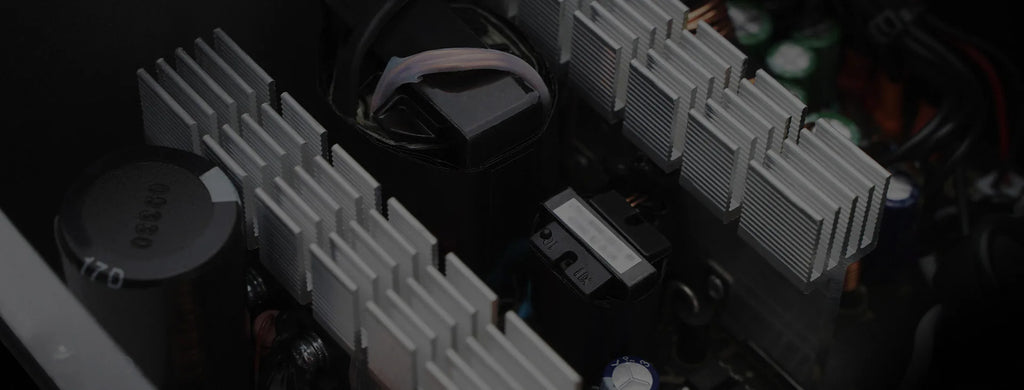

| Capacitors | Taiwan bulk capacitor |
Connectors & Protection
| Main Power Connector | 1 × 24-pin (20+4) |
|---|---|
| EPS 12V Connector | 1 × 8-pin (4+4) |
| PCIe Connectors | 2 × 6+2 pin |
| SATA Connectors | 6 × SATA |
| 4-Pin Peripheral Connectors | 2 × 4-pin |
| Protection | OPP / OVP / SCP / UVP |
| Certifications | CB / CCC / CE / UKCA / EAC / RCM / BIS |
